AUDI A8 2012 Repair Manual
Manufacturer: AUDI, Model Year: 2012, Model line: A8, Model: AUDI A8 2012Pages: 300, PDF Size: 75.06 MB
Page 61 of 300
©-Leg support forward/back
@ -Adjusting the display
Operating the reclining rear seat
Ap plies to vehicles : wit h recl in ing rea r seat
Fig. 55 Rear ce nter console : seat adjustment buttons
R eclining po sition on /off
@ -Adjusting the reclining position: press
and hold the button@c:>
page 58, fig . 54 un
til your seat and the front passenger's seat
reach their end pos itions ¢
page 58, fig. 54.
Depending on the last setting, the leg support
may fold out at the same time. The front pas
senger seat 's can no longer be used in the re
clining position
¢ & .
@ -Adjusting the standard position: press
and hold the button @ unt il the front pas
senger's seat reaches its end position and its
head restra int is upr ight . The leg s upport
folds in at the same time
¢ .&, .
You can adjust the leg support or fold the dis
p lay forward in the reclining position:
Adju sting th e leg support
@ -Folding the leg support out/in: press and
hold the left/right button@¢
fig. 55 unt il
the leg support reaches the des ired posit ion .
@ -Leg support steeper/flatter: Activate
front passenger's seat adjustment with the
button
(Z) . To adjust the front passenger's
seat backrest and the leg support, press the button ®forwa rd/back.
© -Leg support forward/back: Activate front
passenger's seat adjustment w ith the button
Sea ts a nd s to rage 59
leg support fo rward/back, p ress the button @
forward/back.
Adju sting the d ispl ay
@ -Tilting the display forward/back: press
and hold the left/right b utton @ unti l the d is
play reaches the desired position.
You can fold the display forward so that you have a clear view of the roadway. With the
seat in the recl ining posit ion, press and hold
the right button @ unti l the display is folded
forward . Make sure the driver has a clear view
of the exterior mirrors. If so, confirm the
question in the MMI with Yes. If you answer
No or do not respond to the question, the dis
play will return to the upright position.
.&_ WARNING
Do not use the front passenger 's seat for
seating when it is in the reclin ing pos ition .
This increases the risk of serious injury or
death.
- Never adjust the recl ining posit ion when
the front passenger's seat is occupied.
This inc reases the r isk of injury.
- Do not t ilt the display if the driver's view
of the right exter io r mirro r will be ob
s truc ted .
- Ma ke sure the a rea between the leg sup
port and the front passenger's seat back
rest is clear before fo lding the leg sup
port in so that you are not pinched.
(D Tips
If you cannot move the seat into the re
clin ing position, it may be because
- the front passenger's seat memory func
tion is switched off c:>
page 63 or
- the ch ild safety lock is switched on (the
~ button c:> page 38 or the right t but
t on¢
page 38 lights up in the dr iver's
door), o r
- t he front passe nger seat adjustment is
switched off in the MM I c:>
page 60.
Page 62 of 300
60 Seats and storage
Massage function remote control
Applies to vehicles: with reclining rear seat and massage
f u nct ion
Fig. 56 Remote contro l: recli nin g seat massage func·
tions
The remote controls are located in the rear
center console
Q page 64 , fig . 61. Th e mas
sage function is only available when the ign i
tion is switched on.
" To open the remote control compartment,
press the left button and fold the center
armrest upward .
" To adjust the massage type, press the ap
propriate button@-@ . The LED in the but
ton will turn on.
" To adjust the speed/ intensity, turn the
t hu mbwheel @I® . Th e LEDs indicate the
speed/intensity.
" Press the selected massage type again to
switch the massage function off.
Massage types
@-Wave
@ -Pulse
© -St retch
@ -Lumbar
(D} Tips
- The massage function switches off auto
matically after approximately 10 mi·
nutes.
- If you activate a massage type again, the
l ast selected intensity and speed wi ll be
se lected.
Comfort settings
Applies to vehicles: wit h comfort seats in the rear
You can adjust settings for the rear seat from
the cockpit using the MMI.
" Selec t! CAR I function button > Car systems
contro l button > Vehicle settings > Seats >
Rear seats.
Factory settings position -
This function
moves the outer rear seats and the front pas
senger seatback into the factory settings posi
t ion .
Entry assistance -Entry assistance makes it
easier to enter and exit the rear seat more
comfortably. When the function is activated,
the rear seat moves all the way back automat
i ca lly when the corresponding door opens .
Front passenger seat adjustment* -If the
function is act ivated in the MMI, the front
passenger seat can be adjusted from the rear
seat
Q page 57, fig . 53 .
Page 63 of 300

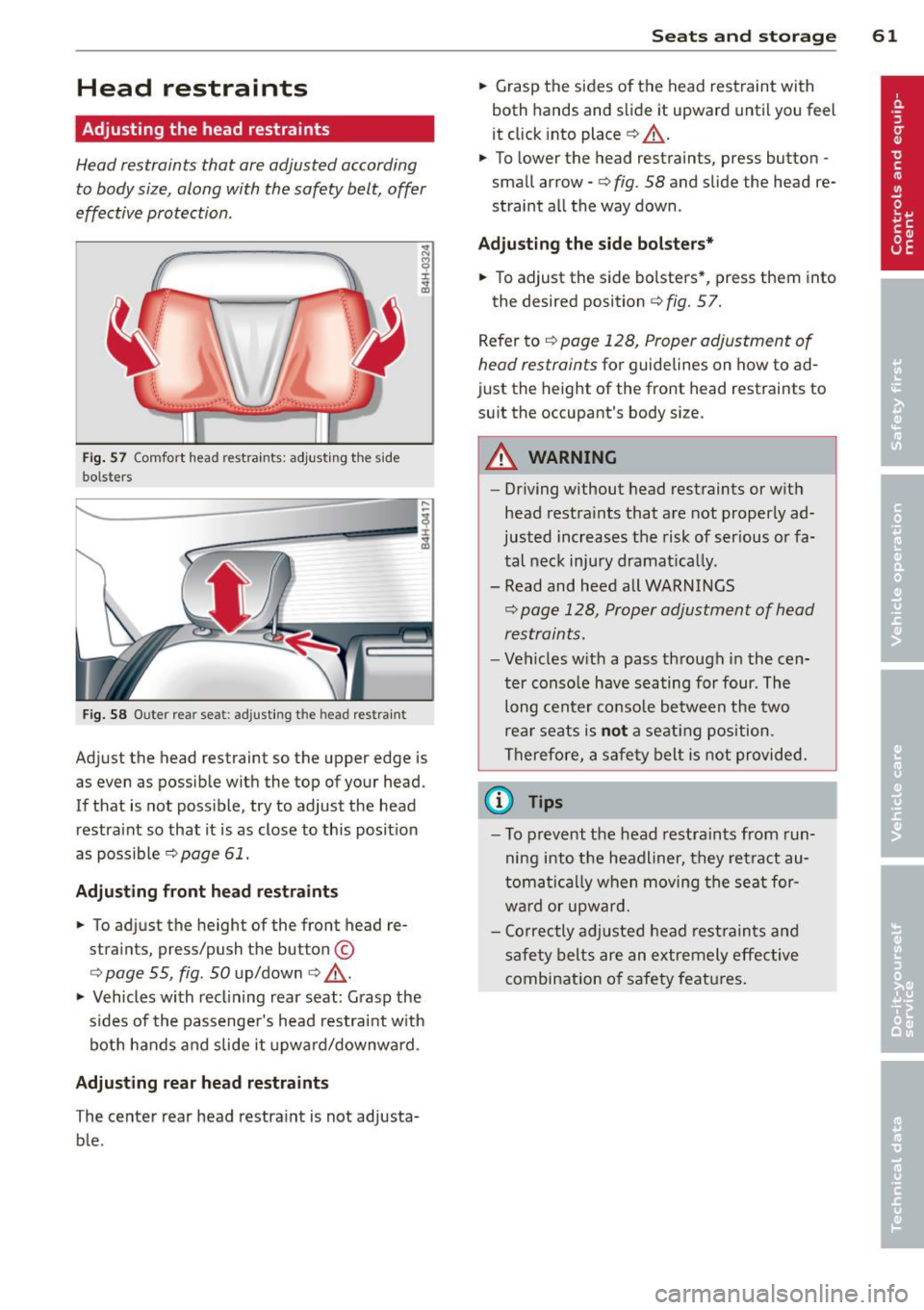

Head restraints
Adjusting the head restraints
Head restraints that are adjusted according
to body size, along with the safety belt, offer
effective protection .
Fig. 57 Comfort head restraints: adjusting th e s ide
bolsters
Fig. 58 Outer rear seat: adjusting the h ead restraint
Adjust the head restraint so the upper edge is
as even as possible with the top of your head.
If that is not possible, try to adjust the head
restra int so that it is as close to this position
as possible
c:> page 61.
Adjusting front head restraints
• To adjust the height of the front head re
stra ints, press/push the button ©
o page 55, fig . SO up/down o _& .
• Vehicles with reclining rear seat: Grasp the
s ides of the passenger 's head restraint with
both hands and s lide it upward /downwa rd.
Adjusting rear head restraints
The center rear head restra int is not adjusta
b le .
Seats and storage 61
• Grasp the sides of the head restraint with
both hands and slide it upward until you feel
it click into place
c:> ,&..
• To lower the head restraints, press button -
small arrow -
o fig. 58 and slide the head re
straint all the way down .
Adjusting the side bolste rs*
• To adjust the side bolsters *, press them into
the desired position
c:> fig. 57.
Refer to
c:> page 128, Proper adjustment of
head restraints
for guidelines on how to ad
just the height of the front head restraints to
suit the occupant's body size.
&_ WARNING
-
-Driving without head restraints or with
head restraints that are not properly ad
justed increases the risk of ser ious or fa
tal neck injury dramat ica lly.
- Read and heed all WARNINGS
c:> page 128, Proper adjustment of head
restraints.
- Vehicles w ith a pass through in the cen
ter console have seating for four. The long center console between the two
rear seats is not a seating position.
Therefore, a safety belt is not provided.
(D Tips
-To prevent the head restraints from run
ning into the headliner, they retract au
tomatically when moving the seat for
ward or upward.
- Correctly adjusted head restraints and
safety belts are an extremely effective
combination of safety features.
Page 64 of 300
62 Seats and storage
Seat memory
Description
Applies to vehicles: with memory function
The memory function allows you to quickly
and eas ily store and recall personal seating
p rofiles for the dr iver, front passenger and
outer rear seats*. The memory function is op
erated through the master key and the memo ry buttons in the driver's/front passenger's
doors and the rear doors*.
The driver's seating profi le is stored and as
signed to the master key each time the vehicle
is locked . The seating profile is recalled auto
matically when the vehicle is unlocked. If two
Remote control
master key
Driver
Seat X
Head restraint X
Steering wheel* X
Safety belt* X
Both exterior rear-X
view mirrors *
There are two additional buttons in the rea r
doors* that can be used to recall two stored
seating profiles
r:=;,poge 63.
Remote control key
Applies to vehicles: with memory function
To assign the driver's seat settings to the re
mote contro l key when locking the vehicle, the
function must be switched on .
.. Se lect:
ICARI function button> Car systems
control button > Vehicle settings > Seats >
Driver seat> Remote control key> On.
@ Tips
If you do not want another driver's set
tings to be assigned to the remote control
key, switch off the memory function using
the MMI or the
I OF FI button r:=;,poge 63.
people use one vehicle, it is recommended
that each person always uses "their own"
master key.
Two seating profiles can be stored in each of
the driver's/front passenger's doors and one
seat ing profile in each of the rear doors*.
Once stored, these seat ing profiles can be re
ca lled at any time.
T he following sett ings are stored:
Memory button
Driver Front passenger Outer rear seats*
X X X
X X
X
X
X
X
Page 65 of 300
Memory buttons
Applies to vehicles: with memory function
Fig . 59 D river's door: memory function buttons
Fig. 60 Rear door: memory fun ction buttons
The memo ry buttons are located in the dr iv
er 's/fr ont passenger's door and in the rear
doors* .
Storing seating profiles
.. To s tore a seating profi le , press the ISETI
button and then one of the memo ry but
tons .
.. To recall a seati ng prof ile, press and hold
the memory button until the seat is adj ust
ed to t he sto red settings.
.. To sw itch the memo ry function fo r the driv
er o r front passenger off, p ress th e
IOFFI
button. The word OFF ligh ts up when the
memo ry fu nctio n i s s witche d off . S eating
p ro files will not be s tore d.
Adjusting the reclining position/standard
position
.. To adju st the re cl ini ng pos it ion , press and
hol d the @ button until the seat move s into
the end position .
.. To ad just t he standard pos ition, press and
ho ld the @ button until the sea t moves into
the e nd position.
Seats and storage 63
A WARNING
- For safety reasons, the seat setting
should o nly b e recalled w hen the veh icle
is st ationary -oth erw ise you risk hav ing
a n ac cid ent.
- If necessa ry, you stop the process by
press ing the
!OF F! button or any of the
m emory buttons.
Adjusting the front passenger seat in
the MMI
Applies to vehicles: with memory function
The driver can adjust the posi tion of the front
passenger seat.
Adjusting the front passenger seat from
the driver's side
.. Select: !CAR I func tion b utton> Car systems
con trol bu tton > Vehicle settings > Seat s >
Front passenger seat > Adjust seat posi
tion .
.. Yo u can now adj ust the f ront passenger seat
using the buttons on the driver's seat
<=> page 55, fig. 50.
Matching the position of the driver's seat
.. To adju st the fron t passenger se at to match
t he driver's seat settings, se lec t th e
ICARI
function button > Car systems cont ro l but
ton
> Vehicle settings > Seats > Front pas
senger seat > Symmetry to driver seat .
.. Press and hold the control knob unt il the
adjustment process is comp lete .
@ Tips
When matching seat settings, the settings
fo r the lumbar support and seating sur
face will no t tra nsfer to the front passeng
e r's seat.
Page 66 of 300
64 Seats and storage
Full-length center
console
Overview
Appl ies to vehicles: with full-len gth ce nter console
Fig. 61 Rear: full -length center console
@ · 115 volt socket ¢ page 64
@ · cupholder <=> page 71
© · 12 volt socket c:> page 70
@ · Folding table ¢ page 65
®·center armrest and storage com part ·
ments: to open the deep compartment, press
the right button and fold the center armrest
upward. To open the compartment for the
massage function remote control*
c:> page 60
and for the telephone*, press the left button
and fold the center armrest upward.
115-volt socket
Applies to vehicles: with 115 -vo lt socket
The 115-volt socket can only be used when
the engine is running¢
A. When you push
the connector all the way into the socket, the
child safety mechanism releases and current
flows through the socket .
Equipment that can be connected
Electrical devices can be connected to the 115
volt socket in the vehicle. Power consumption
at the 115-volt socket must not exceed 150
watts (300 watts peak) . Check the power con·
sumption of the equipment on the model
plate .
LED on the socket
-The socket is ready for use when the LED is
green.
- If the LED blinks red, there is a malfunction.
The socket will switch off automatically due
to overcurrent or overheating. The socket
will switch on again automatically after a cool-down period. Any devices that are con
nected and switched on will activate again
automatically
c:> A .
A WARNING
-
- The sockets and the electrical accessories
connected to them operate only when
the ignition is switched on. Incorrect us
age can lead to serious injuries or burns.
To reduce the risk of injuries, never leave
children unattended in the vehicle with
the vehicle key.
- Heavy equipment or plugs with integrat
ed power supply units can damage the
socket and lead to injuries.
- Store a ll connected equipment securely
while the vehicle is moving so that they
cannot be thrown through the vehicle in
the event of a braking maneuver or an
accident.
- Never spill any liquids on the socket. If
any moisture gets into the socket, make
certain that all the moisture has dried up before using the socket again.
- Equipment that is connected to the vehi·
cle socket can heat up more than it does
when connected to the public grid .
- When using adapters and extension
cords, the child safety for the 115-volt
socket is disabled and the socket is live.
- Never insert anything other than the
plug of an appropriate electrical accesso·
ry into the socket, especially things that
conduct electricity, e.g. metal pens, knit
ting needles, etc. into the contacts of the
115-volt socket.
- Turn the electrical equipment off if the
socket has switched off because of over·
heating.
Page 67 of 300
(D Note
-Always follow the manufacturer's in
structions for all electrical accessories
you want to use with the electrical sock
et!
- Do not connect lamps that contain a ne
on tube. For technical reasons the lamp
may be damaged.
- Do not connect any 230-volt equipment
to the 115-volt socket. The equipment
may be damaged. If necessary, check the
permissible voltage for the equipment
on the mode l label.
- In the case of some power packs, e.g . for
a laptop computer, the bu ilt-in overcur
rent shutoff prevents it from be ing
swi tch ed on because of excessive start
up current. In this case, disco nnect the
power pack from the consumer and re
connect it after about 10 seconds.
(I) Tips
- Unshielded equipment may cause inter
ference in the radio and the vehicle elec
tronics.
- Some eq uipment may work properly be
cause of the reduced power (wattage),
available from the socket.
Folding table in the center console
Applies to vehicles: with fold ing table in the center con·
so le
The folding table is stored in the front area of
the center console .
Fig . 62 Rear center console: opening th e fo ld in g table
Seats and storage 65
Fig. 63 Rear center console: fold ing table inclined po ·
s itio n
Opening
.,. Pull the handle @back q fig. 62. The fold
ing table extends out partially by itself
~.&. -
.. Pull the folding table up until it locks into
place @.
.. Fold the tabletop back and down©-
Storing
.. Release the tabletop @to fold it back.
.. You can now move the folding table verti·
cally back into its original posit ion .
A WARNING
-Do not open the folding tab le while driv
ing. Opening the folding table while driv
ing increases the risk of injury in the
event of a coll is ion or sudden braking .
- To reduce the risk of pinching, open and
close the folding table carefully and in a
contro lled manner .
Page 68 of 300
66 Seats and storage

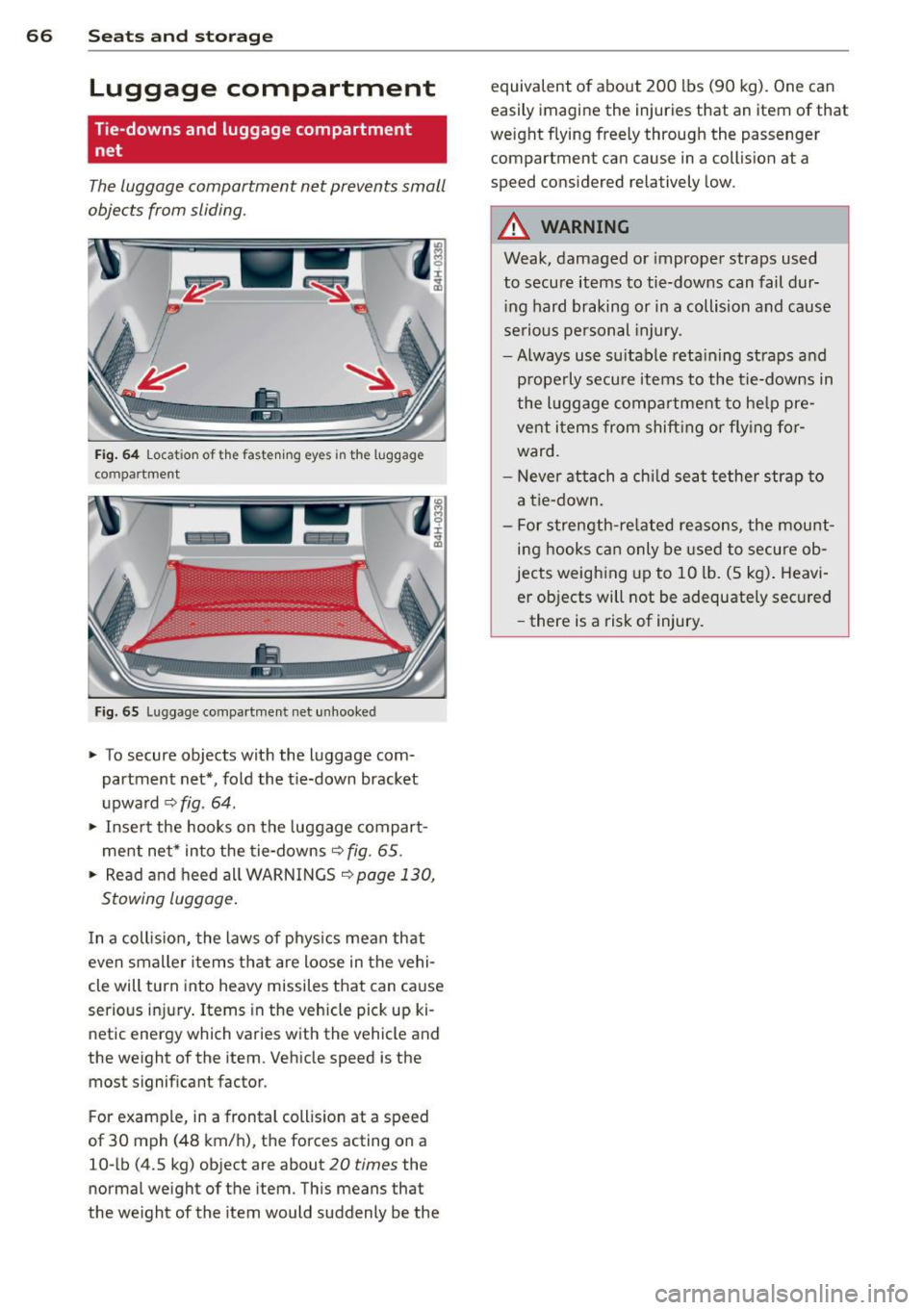

Luggage compartment
Tie-downs and luggage compartment
net
The luggage compartment net prevents small
objects from sliding.
Fig. 64 Locat ion of the faste ning eyes in the luggag e
compartment
Fig. 65 Luggage compartment net unhooked
" To secure objects with the luggage com
partment net*, fold the t ie-down bracket
upward
9 fig . 64 .
" Insert the hooks on the luggage compart
ment net* into the tie-downs
9 fig. 65.
" Read and heed all WARNINGS 9page 130,
Stowing luggage.
In a collis ion, the laws of phys ics mean that
even smaller items that are loose in the vehi
cle will turn into heavy missiles that can cause
serio us injury . Items in the vehicle pick up ki
netic energy which varies w ith the vehicle and
the weight of the item. Vehicle speed is the
most signif icant factor.
F or example, in a frontal collis ion at a speed
of 30 mph (48 km/h), the forces acting on a
10 -lb (4.5 kg) object are about
20 times the
normal weight of the item . This means that
the we ight of the item would suddenly be the equivalent of about
200 lbs (90 kg). One can
easily imagine the injuries that an item of that
weight flying freely through the passenger compartment can cause in a collision at a
speed considered relatively low.
A WARNING
-Weak, damaged or improper straps used
to secure items to tie-downs can fail dur
in g hard braking or in a collision and cause
serious personal injury.
- Always use su itable retaining straps and
p roperly secu re items to the tie-downs in
the lu ggage compartment to help pre
vent it ems from shifting or flying for
ward.
- Never attach a child seat tether strap to
a tie-down.
- Fo r strength-related reasons, the mount
ing hooks can only be used to secure ob
jects weighing up to 10 lb. (5 kg) . Heavi
er objects will not be adequately secured
- there is a risk of injury.
Page 69 of 300

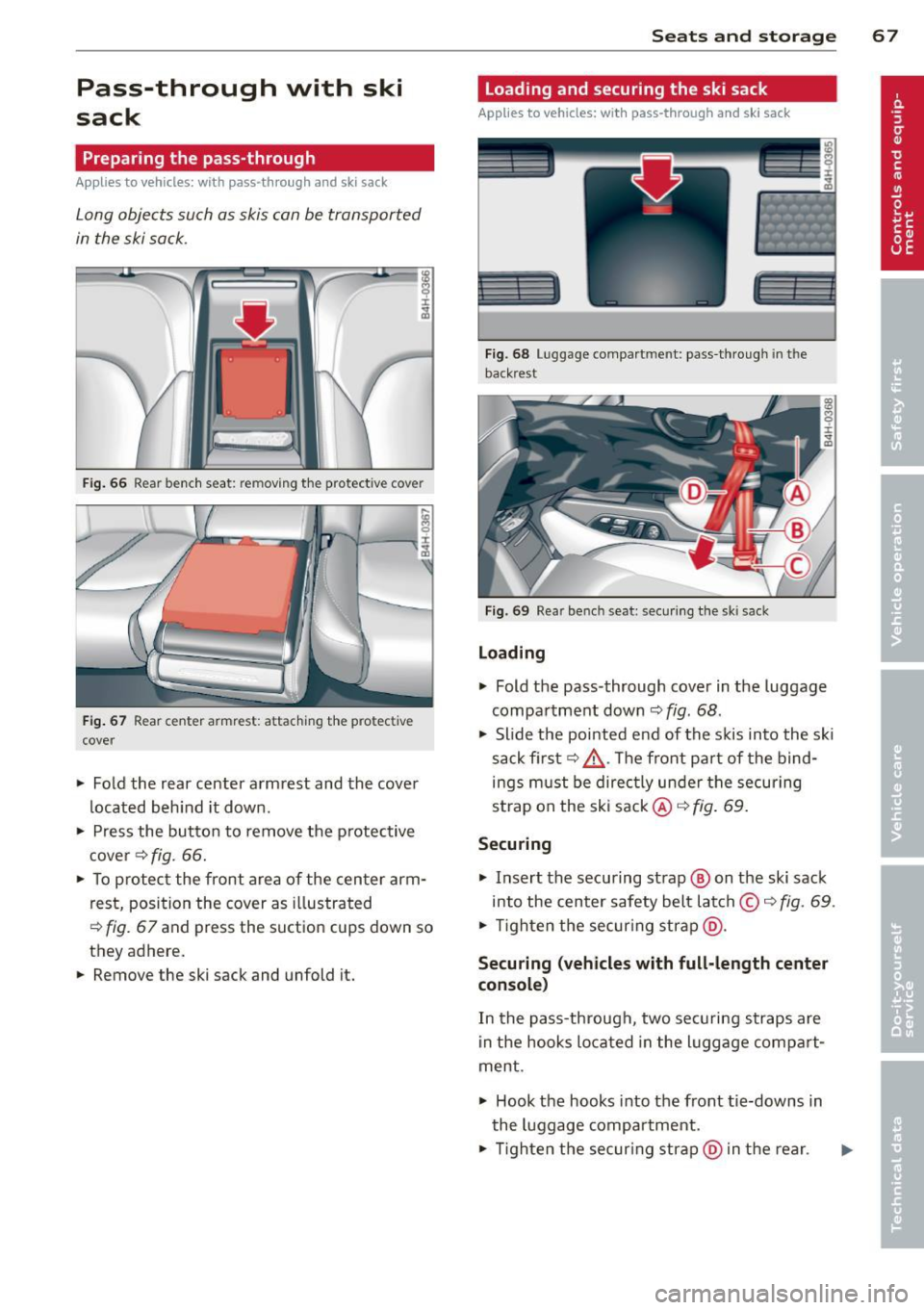

Pass-through with ski
sack
Preparing the pass-through
Applies to vehicles: with pass-through and ski sack
Long objects such as skis can be transported
in the ski sack.
Fig. 66 Rear bench seat: removing the protect ive cover
Fig. 67 Rear center armrest: attaching the protective
cover
~ Fold the rear center armrest and the cover
located behind it down.
~ Press the button to remove the p rotective
cover ¢
fig. 66.
~ To protect the front area of the center arm
rest, position the cover as illustrated
¢
fig. 67 and press the suction cups down so
they adhere.
~ Remove the ski sack and unfold it.
Seats and storage 67
Loading and securing the ski sack
Applies to vehicles: with pass -through and ski sack
--~ --
·-- --· ----~-
Fig. 68 Luggage compartment: pass-through in th e
backrest
Fig. 69 Rear bench seat: sec uring the sk i sack
Loading
~ Fold the pass-through cover in the luggage
compartment down
<=:> fig. 68.
~ Slide the pointed end of the skis into the sk i
sack first
c:> ,&. . Th e front pa rt of the bind
ings must be directly under the securing
strap on the ski sack@<=:>
fig. 69.
Securing
~ Insert the securing strap @ on the ski sack
into the center safety belt latch ©
c:> fig. 69.
~ Tighten the secur ing strap @.
Securing (vehicles with full-length center
console)
In the pass-through, two securing straps are
in the hooks located in the luggage compart
ment .
~ Hook the hooks into the front tie-downs in
the luggage compartment.
~ Tighten the securing strap@in the rear .
Page 70 of 300
68 Seats and storage
& WARNING
- The ski sack is intended only for the
transportation of skis and other light ob
jects . To reduce the risk of serious per
sonal in jury, never t ransport heavy or
poin ted objects in the ski sa ck.
- When brak ing rapidly or during an acci
dent, the load could be displaced and
cause injury to occupants.
- Sharp edges on the load must be cove red
for protect ion. Always fasten the belt
ti gh tly around the sack and its contents
¢ fig. 69.
-For safety reasons, do not t ransport
more than two pairs of skis in the ski
sac k.
- You m ust sec ure the ski sack with t he
strap after loading.
- Make sure a ll objects that you are trans
porting in the pass-through are secured.
Otherwise they cou ld slide around during
sudden braking maneuvers and cause in
jury.
@ Tips
- Never stow the sk i sack away whe n it is
still wet or damp (for examp le, snow
melt ing from sk is) . Allow it to dry com
plete ly before stowing it away .
- Position skis in the ski sack with the pointed ends facing t he front and ski
po les w ith the pointed ends facing the
rear.
Roof rack
Description and mounting locations
Additional cargo can be carried wi th a roof
luggage rack .
Fig . 70 Roo f ra ck attac hment po ints
.,. Always read and follow the instructions pro
vided by the roof rack man ufactu rer when
the roof rack system mus t be install ed .
If luggage or cargo is to be ca rried on the
roof, yo u mus t observe the follow ing:
- To enhance the vehicle 's streamlined design,
ra in gutters have been mo lded i nto t he roof .
I t is not poss ible to use normal roof ra cks.
O nl y install a roof ra ck specific ally designed
for your model AB . Contact the nea re st Audi
dea ler for information on approved modular
roof racks for your v ehicle.
- On ly use roof racks approved for your vehi
cl e. These approved roof racks are the basis
fo r a complete roof rack system. Addition al
a tta chmen ts or carr ier systems are needed
t o transpor t luggage and spor ts equipment.
We recommend using roof rack s from the
Aud i original accessories program.
- When insta lling the roof rack, make sure it
is o nly mounted on the designated locations
on the roof~
fig. 70.
- We recommend that you keep the i nstalla
tion instruct ions for your roof rack system
together w ith your Owner's literature in the
ve hicle.
When should the roof rack be removed?
- Before go ing through an automatic car wash
(it is best to ask the ca r wash operator for
adv ice)
...
