24 2 Ch ecking and filling
scalding from hot coolant by following
these steps .
- Turn off the eng ine and a llow it to cool
down.
- Protect your face, hands and arms from escaping flu id and steam by cover ing
the cap with a large, thick rag .
- Turn the cap slowly and very carefully
i n a counter-clockwise direction while
apply ing l ight, downwa rd press ure on
the top of the cap .
- To avo id being burned, do not spi ll an­
tifreeze or coolant on the exhaust sys­
tem or hot engine parts . Under certain
conditions, the ethylene glyco l in en­
gine coolant can catch f ire .
- Antifreeze is poisonous . Always store an­
tifreeze in its or iginal container and we ll
out of the reach of children.
- If you drain the coolant, it must be
caught and safely stored in a proper con­
tainer clear ly marked "poison".
@ Note
- Coolant po llutes the env ironment and
could cause an engine fire . Excess coo l­
ant will be forced out through the pres­
sure re lief valve in the cap when the en­
gine becomes hot.
- If, in an emergency, only water can be
added, the correct ratio between water
and antifreeze
c::> page 240 must be re­
stored as soon as possible .
@ For the sake of the environment
Drained coolant should not be re used. Al­
ways dispose of used coolant while observ­
ing all environmental regulat ions .
Radiator fan
The radiator fan switches on automatically by
itself
T he radiator fan is driven by the engine via the
V-be lt . The viscous clutch regulates the speed
of the fan accord ing to the temperature of the
coolant. An a
uxiliary electric radiator fan* switches on
and off depend ing on coolant temperature
and other vehicle operat ing condit ions .
After yo u sw itch the engine off, the aux iliary
f an can continue running for up to 10 minutes
- eve n wit h the ignit ion off. It can even switc h
on again later by itself
c::> &. , if
- t he tempe rature of the engine coo lant rises
due to the heat build -up from the engine in
the engine compartment, or
- the engine compa rtment heats up because
the vehicle is parked in i ntense sunlight.
_& WARNING
- To reduce the risk of personal injury nev­
er touch the radiator fan.
- The auxiliary electric fan is temperat ure
controlled and can sw itch on suddenly
even when the engine is not running.
- The a uxiliary radiator fan sw itches on au­
tomatically when the engine coo lant
reaches a certai n temperature and will
continue to run until the coolant temper­
ature drops .
Brake fluid
Checking brake fluid level
The brake fluid level can be checked with a
quick glance.
F ig . 201 E ngin e compart men t: cover on the brake fluid
r eservo ir
Before you check a nyth ing in the engine com­
partment,
always read and hee d all WARN ­
INGS c::> .&. in Working in the engine compart-
ment on page 232. .,..

~ Read the brake fluid level from the brake
fluid reservoir ¢
fig. 201, ¢ page 234. The
brake f luid leve l must be between the "MIN"
and "MAX" markings.
The location of the brake fl uid reservoir can be
seen in the engine compartment illustration
¢page 234.
The fluid level may drop slightly after some
time due to the automatic adjustment of the brake pads . This is not cause for alarm .
If the brake fluid level falls considerably be­
l ow the " MIN" mark, the bra ke wa rning/indi ­
cator light
1111 (U .S . models)/ . (Canadian
models) will come on
¢ page 14. Do not con­
tinue to operate the vehicle. The comp lete
brake system shou ld be thoroughly checked
by an authorized Audi dealer or other quali­
f ied fac ility and the cause corrected. If the
b rake fluid level is too low, the brake warn ing/
i ndicator light w ill illuminate . Co ntact an au­
thor ized Audi dealer
immediately .
Changing brake fluid
Have the brake fluid changed by an experi­
enced technician .
Brake fluid abso rbs moistu re from the a ir . If
the water content in the brake fluid is too
h igh, cor ros ion in the b rake system may result
after a per iod of t ime . The bo iling po int of t he
b ra ke fluid w ill also decrease considerab ly and
decrease braking performance.
Therefore, the brake flu id must be changed
e very two year s. Always use new b rake fluid
which confo rms to Fede ral Motor Vehicle
Standard "FMVSS 1 16 DOT 4".
The brake flu id rese rvoi r ca n be difficult to
r eac h, therefo re , we re commend that yo u
h ave the brake fl uid changed by you r autho r­
i zed
Audi dealer . Your deale r has the correct
too ls, the right brake fluid and the know-how
to do this fo r you .
Checkin g and fillin g 243
A WARNING
-Brake flu id is poisonous. It must be stor­
ed only in the closed original co ntainer
out of the reach of children!
- Brake failure can resu lt from o ld or inap­
prop riate brake f lu id . Observe these pre ­
cau tions:
- Use only brake fluid tha t meets SA E
s p ecification
J 1703 an d conforms to
Federa l Moto r Ve hicle Standard 116.
Always check with your authorized Audi
dealer to make sure yo u are using the
correct brake fluid. The cor rect type of
brake f lu id is also ind icated on the
brake flu id rese rvoir .
- The brake fluid must be new . Heavy use
of the brakes ca n cause a vapo r lock if
the b ra ke fluid is left i n the system too
l ong. This can se riou sly affect the effi ­
c ien cy of the brakes as well as your
safe ty. This co uld resu lt in an accident.
(D Note
Bra ke fluid will damage the paint of you r
vehicle.
@ For the sake of the environment
Because of t he p rob lem of prope r disposal
of b ra ke fluid as well as the spec ial too ls
r equired and the necessary exper tise, we
r e comme nd th at yo u have the brake fl u id
changed by yo ur autho rized Aud i dea le r.
Battery
General information
U nder normal operating cond itions, the bat­
te ry in your Audi does not need any ma inte­
nance . With
high outside tempe rat ures o r
l ong da ily drives we re commend t hat yo u h ave
the e lec trolyte leve l chec ked by a serv ice f a­
ci lity. The electrolyte leve l should also be
c h ecked each t ime the battery is charged
¢ page 246. IJ,,
•
•

244 Checking and filling
Have the battery checked when you take your
vehicle in for service. You are well advised to replace a battery that is older than 5 years .
W ith certa in types o f airbag deployment, the
battery is disconnected from the vehicle elec ­
trica l system for safety reasons¢
& in Re­
pair, core and disposal of the airbags on
page 166.
Disconnecting the battery terminals
Some veh icle functions (power window regu­
lators, for example) are lost if the battery ter­
minals are disconnected. These functions have
to be re learned after the battery terminals are
connected again. To prevent this, the battery
should only be disconnected from the vehicle
electrical system when absolutely necessary
for repairs .
Vehicles not driven for long period s
If you do not drive your vehicle over a period
of several days or weeks, electrical compo­
nents are gradually cut back or switched off.
This reduces energy consumption and main ­
tains starting capability over a longer period
¢
page 203. Some of the convenience func­
tions may not operate, such as the inte rior
lights or the power seat adjustment . Th e con­
venience functions will be available again
when you switch on the ignition and start the
engine.
Winter operation
During the winter months, battery capacity
tends to decrease as tempe rat ures drop . This
is because more powe r is also consumed while
starting , and the headlights, rear window de ­
fogger, etc., are used more often.
Avoid unnecessary power consumption, par­
ticular ly in city traffic or when traveling on ly
short distances. Let your authorized Audi
dealer check the capacity of the vehicle bat ­
tery before winter sets in
¢ page 246. A well
charged battery w ill not only prevent starting
prob lems when the weather is cold, but will
also last longer .
(D Tips
If your vehicle is left standing for seve ral
weeks at extremely low temperatures, the
vehicle battery sho uld be removed and
stored where it w ill not freeze . This will
prevent it from being damaged and having
to be replaced .
Working on the battery
Be especially careful when working on or near
the battery.
The battery is located in the luggage compart­
ment under the floor. Before you check any­
th ing in the luggage compartment,
read and
heed all WARNINGS
¢ ,& .
Always heed the safety warnings, when work­
ing on the vehicle battery or the vehicle elec­
trical system to prevent injury.
The following WARNINGS are very
important when working on the battery:
Always heed the following WARNING SYM­BOLS and safety precautions when working
on the battery.
®
Always wear eye protection.
Battery acid contains sulfuric acid.
Always wear gloves and eye protec­
tion.
No
- sparks
- flames
- smoking.
When a battery is charged, it produ­
ces hydrogen gas which is explosive
and could cause personal injury.
Always keep the battery well out of
I
reach of children .
_&. WARNING ~
Whenever working on the battery or on
the electrical system, there is the risk of
injury, accident and even fire . Read and
heed the following WARNINGS:
-

-Always wear eye protection. Do not let
battery acid or any lead particles get on
your skin or clothing. Shield your eyes .
Explosive gases can cause blindness or
other injury.
- Battery acid contains sulfuric acid . Sulfu­
ric acid can cause blindness and severe
burns.
- Always wear gloves and eye protection.
Do not tilt the battery because acid
could leak out of the ventilation open­
ings.
- If you get battery acid in your eyes or
on your skin, immediately rinse with
cold water for several minutes and get
medical attention .
- If you should ingest any battery acid,
seek medical attention immediately.
- Do not expose the battery to an open
flame, electric sparks or an open light.
- Do not smoke.
- Do not interchange the positive and neg-
ative cables .
= When working on the battery, be sure
not to short-circuit the terminals with
tools or other metal objects. This would cause the battery to heat up very quickly,
which could lead to damage or explosion and personal injury.
- When a battery is charged, it produces
hydrogen gas which is explosive and
could cause personal injury .
- Always keep the battery well out of the
reach of children.
- Before work is done on the electrical sys­
tem, disconnect the negative ground ca­ ble .
- Before performing any work on the elec­
trical system, switch off the engine and
ignition as well as any electrical equip ­
ment. The negative cable on the battery
must be disconnected . If you are just go­
ing to replace a light bulb, then it is
enough to switch off the lights.
- Before disconnecting the battery, switch
off the anti-theft alarm system! Other­
wise you will set off the alarm.
Checking and filling 245
-When disconnecting the battery, first
disconnect the negative cable and then
the positive cable.
- Before reconnecting the battery, make
sure all electrical consumers are switch­
ed off. Reconnect the positive cable first
and then the negative cable . Never inter ­
change the cables -this could start a fire!
- Never charge a frozen or a thawed-out
battery . It could explode! If a battery has
frozen , then it must be replaced . A dis­
charged battery can freeze over at 32 °F
(0 °C) .
-Make sure the vent hose is always attach­
ed to the opening on the side of the bat­
tery .
- Never use batteries which are damaged.
There is the danger of an explosion! Al­
ways replace a damaged battery.
&_ WARNING
California Proposition 65 Warning:
- Battery posts, terminals and related ac­
cessories contain lead and lead com­
pounds, chemicals known to the State of
California to cause cancer and reproduc­
tive problems. Wash hands after han­ dling.
(D Note
- Do not disconnect the vehicle battery
when the ignition is on or when the en­ gine is running, otherwise, you will dam­
age electronic components in the electri­
cal system.
- If your vehicle is going to stand for a
long period of time without being driven,
protect the battery from "freezing", oth­
erwise it will be damaged and will then
have to be replaced.
•
•

CD Note
Never use a fast charger as a booster to
start the engine . This will seriously dam­
age sensitive electronic components, such
as control units, relays, radio, etc ., as well
as the battery charger .
Battery replacement
The new battery must have the same specifi­
cations and dimensions as the original equip­
ment battery .
Intelligent energy management in your vehi­
cle is responsible for d istributing the electr i­
cal energy throughout your vehicle
c::> page 203 . The intelligent energy manage­
ment system w ill keep the engine battery
charged bette r than vehicles w ithout t his sys­
tem. To make sure the additional electr ica l en­
ergy is available once again after you have
changed the battery, we recommend that you
install batteries of the same type and manu­
facture only (the same as those installed at
the time your vehicle was delivered). Specifi­
cations are listed on the bat tery hous ing. Your
author ized dealer must code the battery in
the energy management system to enable you
to use the energy management functions cor­
rectly after replac ing the battery .
T he new battery must have the same capacity ,
voltage (12 volts), amperage, construction and p lug sealing.
When installing the battery, make sure the ig­
n ition and all electr ical consumers are sw itch­
ed off .
CD Note
-Make sure the ventilat ion hose on the
s ide of the battery is connected, other­
wise fumes or battery acid can leak out.
- Vehicles with the Start-Stop-System* are
equipped with a special cycle-proof AGM
battery. Insta lling a different type of
batte ry can cause prob lems in the vehi­
cle elect rical system. When replacing the
vehicle battery, always insta ll one wi th
Checkin g and fillin g 247
the same specifications as the origina l
battery .
- Battery mounts and clamps must always
be sec ured correct ly .
- Read and fo ll ow the warnings under
c::> page 244, Working on the battery be ­
fore performing any work on the battery.
@ For the sake of the environment
Because of the prob lem of p roper disposal
of a ba ttery, we recommend your author­
ized Audi dealer change the battery for
you. Batteries contain sulfuric acid and l ead and must always be disposed of prop­
erly in compliance with all environmental
regulat ions. Disposing of vehicle batter ies
i mproperly is very dangerous to the envi­
r o nment .
Windshield/headlight
washer container
.., N
-N
" ~
Fig. 203 Eng in e compa rtm ent: cove r on the w inds hield
washer flu id rese rvo ir
T he washer fluid container is marked w ith the
symbol-$ on its cap
c::>fig. 203, c::>page 234.
.,. Before you check anything in the engine
compa rtment, always read and heed all
WARNINGS c::> A in Working in the engine
compartment on page 232.
.,. Lift the filler cap tongue to add washer flu­
id. You can fi ll the container to the top .
.,. Press the cap back onto the f iller neck after
filling the container .
You can find the reservoir capacity in the table
inc::>page292. ""
•
•

284 Emergency situations
Emergency situations
General
This chapter is intended for trained emer­
gency crews and working personnel who
have the necessary tools and equipment to
perform these ope rations.
Starting by pushing or
towing
Q;) Note
Vehicles w ith an automatic transmission
cannot be started by pus hing o r tow ing.
Starting with jumper
cables
If necessary, the engine can be started by
connecting it to the battery of another vehi­
cle.
If the engine should fail to start because of a
discharged or weak battery, the battery can be
connected to the battery of
another vehicle,
using a
pair of jumpe r cables to start the en­
g ine .
Jumper cables
Use only jumper cables of sufficiently large
cross section to carry the starter current safe­
ly. Refer to the manufacturer's specif ications.
Use only jumper cables with
insulated termi­
na l clamps which are distinctly marked:
plus(+) cable in most cases colored red
minu s(-) cable
in most cases colored black .
A WARNING
Batteries contain electricity, acid, and gas.
Any of these can cause very serious or fatal
inju ry. Follow the instructions below for
safe handling of your veh icle's battery.
- Always shield you r eyes and avoid lean­
ing over the battery whenever possible.
- A discharged battery can freeze at tem­
peratures just be low 32 °F (0 °C). Before connecting a
jumper cable, you must
thaw the frozen battery complete ly, oth­
erwise it could explode.
- Do not allow battery acid to contact eyes
or skin . Flush any contacted area with
water immediately .
- Improper use of a booster battery to start a vehicle may cause an explosion.
- Vehicle batteries generate explosive gas­
es. Keep sparks, flame and lighted ciga­
rettes away from batteries.
- Do not try to jump start any vehicle with a low acid level in the battery.
- The vo ltage of the booster battery must
also have a 12-Volt rating. The capacity
(Ah) of the booster battery should not be
lower than that of the discharged bat­
tery . Use of batteries of d ifferent voltage
or substantially different "Ah" rating
may cause an exp losion and personal in­
jury.
- Never charge a frozen batte ry. Gas trap­
ped in the ice may cause an explosion.
- Never charge or use a battery that has
been frozen. The battery case may have
be weakened.
- Use of batter ies of different voltage or
substantially different capacity (Ah) rat­
ing may cause an exp losion and injury.
The capacity (Ah) of the booster battery
should not be lower than that of the dis ­
charged battery.
- Before you check anything in the engine
compartment, always read and heed a ll
WARNINGS¢
page 226 , Engine com­
partment.
«I) Note
-Applying a higher voltage booster bat­
tery will cause expensive damage to sen­
sitive electronic components, such as
contro l units, relays, rad io, etc .
- There must be no electrical contact be­
tween the vehicles as otherwise current
could already start to flow as soon as the
positive(+) terminals are connected. ..,_

302 Index
Automatic transmission (tiptronic) .... . 115
Emergency mode . ..... ... .. .. .... . 11 9
Kick-down . .... ... .... ... .. .. .... . 118
Manual shifting . . . . . . . . . . . . . . . . . . . 118
Park ing lock emergency release ..... . 120
Selector leve r posit ions . . . . . . . . . . . . . 115
Automatic wipers . . . . . . . . . . . . . . . . . . . . 52
Auto Safety Hotline ...... .. .. .. .. .. . 142
Average consumption ................. 24
Average speed . . . . . . . . . . . . . . . . . . . . . . . 24
Avoid damaging the vehicle . ... .. .. .. . 207
B
Ba ttery . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
C harging ... ................ ... ... 246
Important warnings ...... .. .. .. .. . 244
L ocat ion . . . . . . . . . . . . . . . . . . . . . . . . . 244
low . .. .. .. ............. .. .. .. .. . 203
Replacing the battery ..... .. .. .. .. . 247
State of charge . .. ..... ... .. .. .... . 203
Winter operation . ..... ... .. .. .... . 243
Wo rking on the battery . . . . . . . . . . . . . 244
B efore d riving .. ........... .... .... . 134
Blended gasoline ............ .. .... . 228
Blower (automatic climate cont rol) . . . . . . 80
Body cav ity sealing .......... .... .... 221
Booster seats ...................... 184
B rake fl uid
Changing the brake fl uid ... .. .. .. .. . 243
Checking the brake fluid level ..... .. . 242
What is the correct brake fluid leve l? .. 242
What should I do if the brake fluid warn-
ing light comes on? ................ 242
Brake system Anti-lock braking system ... .. .. .. ... . 1 9
Brake assist system .. ... .. .. .... .. . 198
Brake booste r .. .......... .. .. .... . 202
Brake fluid .............. .. .. .. .. . 242
Brake fluid spec ificat ions for refill and re­
placement . . . . . . . . . . . . . . . . . . . . . . . 243
Brake light defect ive ....... .... ..... 21
Brake pads . ........ ......... .... . 206
E lec tromechan ica l par king brake ...... 85
Fl uid reservoir ........... .. .. .. .. . 242
H ow does mo isture or road salt affect the
b rakes? .... ... .. ..... ... .. .. .... . 200 Warning/ind
icator lights ..... .... . .. . 14
Worn brake pads symbol . . . . . . . . . . . . . 20
braking guard Messages . .. .. .. ............. .. .. 100
Brak ing guard . .. .. .......... ...... .. 93
Settings ......... ............... . 100
Break-in period .... .. ... ..... ... .. .. 206
Brake pads .... .. ............. .... 206
Tires . .. .. .. .. .. ............. .. .. 206
Bu lbs . ... .. .... .. ... .. ..... .... . .. 283
C
Californ ia Pr oposition 65 Warn ing . .... 233
Battery spe cific .. ... .......... .. .. 24S
Capacities ........ .. .............. . 292
Engine o il ... .. .. .. ... ....... ... .. 23S
Car care .. .. .. .. .. ............. .. .. 215
Exterior ....... .. .. ........... .... 215
Interior ....... ................... 222
Car carrier Transporting your vehicle .... ... .. .. 288
Cargo a rea
refer to L uggage compartmen t ... .. . .
Catalytic converter
Center armrest 140
207
Cockpit ... .... .. .. ... .. ... ... .. .. . 60
Rear . .... .... .. ............. .... . 67
Cen tral lock ing ...................... 32
E mergency lock ing . .. .. ..... ... .. .. . 36
Certif ication .. .. .................. . 299
Changi ng a wheel .. .. .... .... ... .. .. 273
Changi ng engine oil ............. .... 239
Chassis (undercoat ing) .............. . 221
Checking Engine coolant level .. .. ..... .... . .. 240
Tire pressure . .. .. ............. .. .. 255
Child rest raints
Danger of using child restraints in the
front seat ..... .. .. ... ..... ... .. .. 154
Where can I get additional information
about child restraints and their use? .. 195
Child rest raint system anchors ........ 189
Child safety ... .. .. .. ... ....... ... .. 176
Convertible locking retractor ........ . 186
Gu idance fixtures for lower anchorages 191

starting .... ................ ... .... 83
Starting with jumper cables . ... .. .. . 284
Stopping . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Engine compartment ....... .. .. .. .. . 234
C losing the hood ......... .. .. .. .. . 233
Opening the hood .............. .. . 232
Safety instructions ................. 232
Working in the engine compartment .. 232
Engine coolant . ........... .. .. .. ... 240
Adding coolant ........... .. .. .. .. . 241
Checking the engine coolant level .. .. . 240
Expansion tank .............. ... ... 240
Malfunction symbol .......... ... .. .. 16
Radiator fan ............. .... .. .. . 242
Temperature gauge ....... .. .. .. .. .. 10
Engine oil ... ................ ... ... 235
Adding .... ................ ... ... 238
Additives ... ................ ... ... 238
Changing .. ............. .... .. ... 239
Checking oil level ......... .. .. .. .. . 238
Checking the engine oil level .. .. .. .. . 237
Consumption ............... .... .. 238
Indications and conditions requiring ex-
tra checking ............. .... .. ... 23 7
I ndicator light . . . . . . . . . . . . . . . . . . . . . 17
O il consumption .......... .. .. .. .. . 236
Oil grades .. ................ ... ... 235
Oil level symbol ................ .... 20
Pressure malfunction ......... ..... .. 17
Recommended oil check intervals .. .. . 237
Sensor defective . . . . . . . . . . . . . . . . . . . . 21
Specification and viscosity .. .. .. .. .. . 235
Engine sound ................ ... ... 109
Engine speed limitation ....... .. .. .. .. 20
Engine start-stop mode
refer to Start-Stop-System . .. .. .. .. .. 89
Engine start system (indicator lights) . ... 17
Entry assistance . . . . . . . . . . . . . . . . . . . . . 63
Environment Break-in period ........... .. .. .. ... 206
Catalytic converter . ....... .. .. .. .. . 207
Disposing of your vehicle battery .... . 247
Driving at high speeds ...... ... ... .. 209
Driving to minimize pollution and noise 208
Fuel ... .. .. .. ............. .. .. ... 230
Fuel economy ............ .... .. .. . 208
Leaks under your vehicle ............ 232
Letting the vehicle stand and warm up. 209
Index 305
Proper disposal of drained brake fluid . 243
Proper disposal of drained engine cool-
ant ....... ... .. .. ............... 241
Proper disposal of drained engine
oil . . . . . . . . . . . . . . . . . . . . . . . . . 238, 239
Recycling used engine oil ............ 238
Unleaded fuel .. .. .. . .. .... ........ 228
What should I do with an old battery? . 247
EPC
refer to E lectronic power control (EPC) . 20
ESC
refer to Electronic Stabilization Control
(ESC) ............................ 198
ESC (Electronic Stab ilization Control)
Warning/ind icator lights ............ . 18
Event Data Recorder (EDR) ............ 198
Exhaust tail pipes .. .. .............. . 222
Expansion tank .. .. ................. 240
Exterior lighting . .. ................. . 45
Exterior mirrors Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . 54
Dimming ... ... .... ................ 54
Heating ... .. .. .. .... ............. . 54
Exterior temperature display ........ .. . 23
F
Fastening
Booster seats .. .. .... ......... .... 184
Convertib le child safety seats .... .. .. 183
Infant seats . . . . . . . . . . . . . . . . . . . . . . 182
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . 140
Fo lding table .. .. .. .. ............... . 68
Foot pedals ... .. .... ... .......... .. 139
For the sake of the environment Gasoline fumes and the environment .. 230
Reducing engine noise by ear ly upshift-
ing ....... .. .. .. .. .. ........... .. . 10
Refueling . .. .. .. .. ............... 230
Saving fuel by early upshifting ....... . 10
Four zone automatic climate control ..... 79
Front airbags Description .. .. .. ................. 156
How they work . .. ................. 161
Frontal collisions and the laws of physics 145
Front passenger seat adjustment . . . . . . . 63
•
•

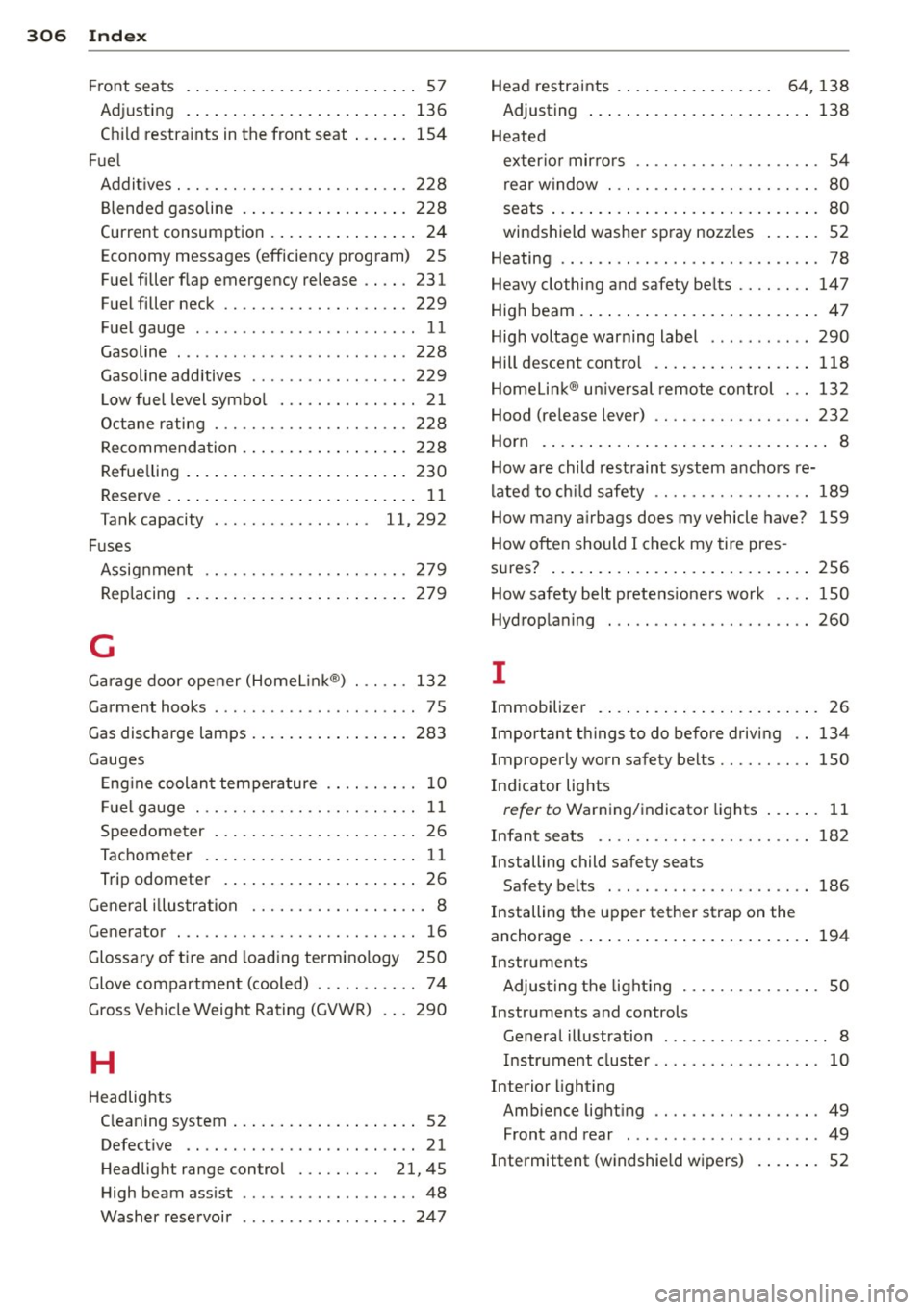

306 Index
Front seats . ............... ... .... .. 57
Adjusting . ................. ..... . 136
Child restraints in the front seat ... .. . 154
Fuel Addit ives . .... ........... .. .. .... . 228
Bl ended gasoline .......... ... .... . 228
Current consumption . . . . . . . . . . . . . . . . 24
Economy messages (efficiency program) 25
Fuel filler flap emergency relea se .. .. . 231
Fuel filler neck ............. .. .... . 229
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . 11
Gasoline ... ... ... .... ......... .. . 228
Gasoline additives ............ .. ... 229
L ow fuel level symbo l . . . . . . . . . . . . . . . 21
Octane rating .......... .. .. .. .. .. . 228
Recommendation .......... ... .... . 228
Refue lling . ................. ..... . 230
Reserve .................... ..... .. 11
Tank capacity . . . . . . . . . . . . . . . . . 11,292
Fuses Assignment ...................... 279
Replacing .. ................ ..... . 279
G
Garage door opener (Homelink®) . .. .. . 132
Garment hooks .. ... .... ......... .. .. 75
Gas discharge lamps ......... ... .. .. . 283
Gauges Engine coolant temperature .. .. .. .... 10
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . 11
Speedometer . . . . . . . . . . . . . . . . . . . . . . 26
Tachometer . . . . . . . . . . . . . . . . . . . . . . . 11
Trip odometer . . . . . . . . . . . . . . . . . . . . . 26
General illustration ............ .... ... 8
Generator . ................. .. .... .. 16
Glossary of tire and loading terminology 250
Glove compartment (cooled) ...... ..... 74
Gross Vehicle Weight Rating (GVWR) ... 290
H
Headlights
Cleaning system ............ .. .... .. 52
Defective . . . . . . . . . . . . . . . . . . . . . . . . . 21
He adlig ht range contro l . . . . . . . . . 21, 45
High beam assist .............. ... .. 48
Washer reservoir ............. .. ... 247 Head
restraints . . . . . . . . . . . . . . . . . 64, 138
Adjusting ..... .. ................. 138
H eated
exter ior mirrors . . . . . . . . . . . . . . . . . . . . 54
rear window ... .. ............. .... . 80
seats ......... .. .. .............. .. 80
windshield washer spray nozz les . . . . . . 52
H eating .. .. .. .. .. .. ............. .. . 78
Heavy clothing and safety belts ........ 147
High beam . ..... .. ............. ..... 47
High voltage warning label ..... .. .. .. 290
Hill descent contro l ................ . 118
Homelink ® un iversal remote control ... 132
Hood (release lever) ... .......... .. .. 232
Horn ..... ..... .. .. .............. ... 8
How are child restraint system anchors re-
lated to child safety ............. .. .. 189
How many air bags does my vehicle have? 159
How often should I check my tire pres-
sures? ......... .. .. .............. . 256
How safety belt pretens ioners work .. .. 150
Hydroplaning ... .. ............. .... 260
I
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . 26
Important things to do before driving .. 134
Improperly worn safety belts .......... 150
Indicator lights
refer to Warning/indicator lights ..... . 11
Infant seats .. .. .. ... .......... .... 182
Installing child safety seats Safety belts . . . . . . . . . . . . . . . . . . . . . . 186
Installing the upper tether strap on the
anchorage . ..... .. ................. 194
Instruments Adjusting the light ing .......... .... . 50
Instruments and controls
General illustration . . . . . . . . . . . . . . . . . . 8
Instrument cluster .................. 10
Interior lighting
Ambience lighting ............. .. .. . 49
Front and rear ... .. ..... ...... .. .. . 49
Intermittent (windshield wipers) ... ... . 52

_______________________________ I~ n~ d:::: e~x 311
Speed warning system ................ 90
Sport different ial ....... ...... ... ... 109
In dicator light . . . . . . . . . . . . . . . . . . . . . 22
Start-Stop-System . . . . . . . . . . . . . . . . . . . 87
Eng ine does not switched off . .. .. .. .. 89
Eng ine starts automatically .. .. ... ... 89
Indicator lights . . . . . . . . . . . . . . . . . . . . 88
Messages .. ............. .... .. .. .. 90
Starting/stopping the engine ... .. .. .. 88
switch ing off/on .......... .. .. .. .. .. 89
START ENGINE STOP button ..... ... ... 83
Starting from rest . . . . . . . . . . . . . . . . . . . . 86
Starting off with a trai le r .... .. .. .. .. .. 87
Starting the engine ........ .. .. .. .. .. 83
Steer ing whee l
Adjusting steering column ........... 82
Easy entry feature .................. 82
Indicator light . . . . . . . . . . . . . . . . . 17, 22
Shift paddles . . . . . . . . . . . . . . . . . . . . . 118
Steering wheel heating .. ... ... ... ... 81
Steps for determining correct load limit . 258
Stopping the engine . . . . . . . . . . . . . . . . . . 84
Storage ..... ................. .. .... 74
Sunroof ... .. .. ................ ... .. 42
Sun shades Emergency closing (roof) ...... .. .... . 44
Panoramic sunroof ........ .. .. .. .. .. 44
Rear doors . . . . . . . . . . . . . . . . . . . . . . . . 51
Rear window ............. .... .. .... 51
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . SO
Symbols
refer to Warning/Indicator lights .. .. .. 11
T
Tachometer . . . . . . . . . . . . . . . . . . . . . 11, 23
Technical modifications ....... .. .. .. . 299
Temperature display ........ .. .. .. .. .. 23
Tether anchors ..................... 193
Tether strap ................. .... .. 193
T he first 1,000 miles (1,500 km) and after-
wards ....... ................. .. ... 206
Tie-downs . . . . . . . . . . . . . . . . . . . . . 69, 141
Tips for the environment
Saving fuel . . . . . . . . . . . . . . . . . . . . . . . . 72
tiptronic (automatic transmission) .. .. . 115
Tire pressure . ............. .... .. .. . 255 T
ire pressure monitoring system ...... .
267
Loss of air pressure ............... . 268
Malfunction
. . . . . . . . . . . . . . . . . . . . . . 268
Resetting tire pressures ............ .
269
Tires
....... .. .. .. ................. 249
Service life
.. .. .. .. ............... 259
speed rating letter code ........... . 262
Tire manufacturing date ........... .
261
Tire specifications ............. .. . .
261
Tread depth . .. .. ................ .
259
Uniform tire quality grading ........ . 263
Winter tires ... .. .. . .. .... ....... . 264
Tires and vehicle load limits .......... . 257
T ires and wheels
Checking tire pressure .............. 255
Cold tire inflation pressure .......... 253
Dimensions ...... .. ............... 260
General notes .. .. .. ............... 249
Glossary of tire and loading terminolo -
gy ..... .. .. .. .. .. ............... 250
Low aspect ratio tires .... ......... .. 266
New tires and wheels .............. .
Replacing ........ ...... ......... .
Snow chains ... .. .... ........... . .
T ires and vehicle load limits ..... .. . .
Wheel bolts . .. .. .... ............ .
Winter tires
Tire service life
.. .. .. ... ....... .....
Too ls ...... .. .. .. .................
260
261
265
257
266
264
259
271
T orn or frayed safety belts ............ 147
Touch -up paint .. .. .. ... ....... ..... 220
Towing Tow truck procedures .............. . 286
TPMS Tire pressure monitoring system ... .. 268
Trailer towing ...... ................ 211
Operati ng instructions ...... .... .... 211
Parking system ....... ........... .. 131
T echnical requirements . . . . . . . . 211, 212
T ra iler towing tips ............. .. .. 213
Train (transporting your vehicle) ....... 288
Transmission malfunction (indicator
light) ........ .. ...... ............. 119
T ransport Canada .. .. ............... 142
Transporting your vehicle ... .. .... .... 288
Tread Wear Indicator (TWI) ........... 259
•
•
