The shoulder belt should lie as close to the
center of the collar bone as possib le an d
should fit well on the body¢
A in Saf ety belt
position on page 147.
Power safety belt h eight adjustment*
You can ad just the height of the safety belts
using the mu lti function b utton on the driver
or fro nt passenge r seat ¢
page 60.
&_ WARNING
-Always read and heed all WARNINGS and
other important informat ion¢
page 146.
You can also a djust the height of the front
seats to change the position of the safety
be lts.
Improperly worn safety belts
Incorrectly positioned safety belts can cause
severe injuries.
Wear ing sa fe ty be lts imprope rly can cause se ­
rio us in jury or death. Safety be lts can only
wo rk when they are correct ly positioned on
the body. Improper seating positions reduce
the effect iveness of safety belts and w ill eve n
increase the r isk of injury and death by mov­
in g the safety belt to cr itical a reas of the
body. Imprope r seat ing pos itions also in­
crease the risk of serio us in jury and death
when an air bag deploys and strikes an occu ­
p a nt who is not in the cor re ct seating posi­
tion. A driver is responsib le for the sa fe ty of
all vehicle occupants and especially for chi l­
dren . Therefore:
""N ever permit anyone to ass ume an inco rrec t
s itting position in the veh icle w hile traveling
¢.&, .
&_ WARNING
Imprope rly worn safety belts increase the
r isk of se rious personal injury and death
whenever a veh icle is being used .
Safety belts 149
- Always ma ke s ure that all ve hicle occu­
pants are co rrectly restrained and stay in
a co rrect seating position whenever the
veh icle is being used .
- Always read and heed all WARNI NGS and
o ther impo rtant inf ormation
¢page 146.
Safety belt preten­
sioners
How safety belt pretensioners work
In front, side and rear-end collisions above a
particular severity and in a rollover, safety belts are tensioned automatically.
Reversible safety belt tensioners
T he s afety belts o n the fro nt seats ar e eq uip­
ped with powe r reversi ble tensioners. The fo l­
l ow ing functions a re ava ila bl e when the driv­
er 's/fro nt passenge r's safety belts are fas­
tened :
- Au tomatic tens ioners : at the star t of a drive,
the safety be lts automat ica lly adjust to the
passenger afte r a certain time period or ve­
hicle speed. To switch the automatic ten ­
sioners off, select the following in t he M MI:
!CARI fu nction button > Car systems > Vehi­
cle settings > Seats > Driver's seat or Pas­
senger's seat > Automatic belt tensioner
>
Off .
-In ce rtain dr iv ing s ituations , the safety b elts
may tight en with a reve rs ible tens ion ing
fu nction
¢ page 194.
- The safety be lts m ay a lso tighten with th is
reve rsible te nsion ing functio n in m inor co ll i­
s ion s.
Pyrotechnic safety belt pretensioners
The safety belts are equipped with safety be lt
pre tensioners . The system is act ivated by se n­
so rs in front, s id e and r ear-end co llisions of
great seve rity and in a rollover. T his tig hte ns
t he be lt and t akes up belt slack ¢.&.
in Service
and disposal of s afe ty belt pretensioner on
page 150.
Tak in g up the s lack helps to reduce .,. •
•

150 Safety belts
forward occupant movement during a co lli­
sion.
A WARNING
- It is possible for the pretensioners to de­
ploy incorrectly.
- The pyrotechnic system can only provide
protection for one co llision. If the pyro­
technic pretensioners deploy, the preten­
sioning system must be replaced.
(D Tips
The pyrotechnic safety belt pretensioners
can only deploy once.
- The safety belt pretensioners do not de­
ploy in minor frontal and side collisions,
in rear-end collisions, in rollovers and in
collisions invo lving very litt le impact
force .
- A fine dust is released when the pyro­
techn ic safety belt pretens ioners deploy.
This is normal and is not caused by a fire i n the veh icle.
- The relevant safety requirements must
be obse rved when the vehicle or compo­
nents of the system are scrapped . A
qualified dea le rship is familiar with
these regulations and w ill be pleased to
pass on the informat ion to you.
- Be sure to observe all safety, environ­
mental and other regulations if the vehi­
cle or indiv id ual parts of the system, par ­
ticularly the safety belt or airbag, are to
be disposed. We recommend you have
your a uthorized Audi dea ler perform this
serv ice for you .
Service and disposal of safety belt
pretension er
The safety belt pretensione rs are parts of the
safety bel ts on your Audi . Installing, remov­
ing, servicing or repa iring of belt pretens ion ­
e rs can damage the safety be lt system and
prevent it from working correct ly in a colli­
sion.
There are some important th ings you have to
know to make sure that the effect iveness of the system wi
ll not be impaired and that dis­
carded components do not cause injury or pol­
l ute the environment .
A WARNING ,.__
Improper care, servic ing and repair proce­
dures can increase the risk of personal in­
jury and death by preventing a safety belt
pretensioner from activating when needed
or activating it unexpectedly :
- The belt pretensioner system can be act i­
vated only once. If belt pretensioners have been activated, the system must be
replaced.
- Never repair, adjust, or change any parts
of the safety be lt system.
- Safety belt systems including safety belt
pretens ioners cannot be repaired. Spe­
cial procedures are required for removal,
installation and disposa l of th is system.
- For any wo rk on the safety belt system,
we strongly recommend that you see
your author ized Audi dealer or qualified
technician who has an Audi approved re ­
pair manua l, training and special equip­
ment necessary.
@) For the sake of the environment
Undeployed airbag modules and preten­
sioners might be classified as Perchlorate Materia l -special handling may app ly, see
www .dtsc.ca.gov/hazardouswaste/per­
ch lorate. When the veh icle or parts of the
restraint system including airbag modu les
safety belts with pretensioners are scrap­ ped, all applicable laws and regulations
must be observed . Your author ized Audi
dealer is familia r with these requirements
and we recommend that you have your
dealer perform this service for you .

,....,
N ,....,
N
0 J:
'SI: ,...., \!) 1.1'1 ,...., 1.1'1 ,....,
Airbag system Important things to know
Importance of wearing safety belts and
sitting properly
Airbags are only supplemental restraints . For
airbags to do their job, occupants must al­
ways properly wear their safety belts and be
in a proper seating position.
F or your safety and the safety of your passen­
gers, before driving off, always:
"" Adjust the driver's seat and steering wheel
properly¢
page 134,
"" Adjust the front passenger's seat properly
¢ page 59,
""Wear safety be lts properly ¢ page 146,
""Always properly use the proper child re-
stra int to protect ch ildren
r::::> page 174.
In a collision, airbags must inflate within the
blink of an eye and with considerable force.
The supplementa l airbags can cause injuries if
the dr iver or the front seat passenger is not
seated properly . T herefore in order to help the
a irbag to do its job, it is important, both as a
d river and as a passenge r to s it properly at all
times.
By keep ing room between your body and the
steer ing whee l and the front of the passenge r
compartment, the airbag can i nflate fully and
comp lete ly and provide supp lemen tal protec­
tion in ce rtain frontal collisions
r::::> page 134,
Proper occupant seating positions .
For deta ils
on the operation of the seat adjustment con­
trols ¢
page 59.
It's espe cially important that children a re
p roperly restrained
r::::> page 174.
There is a lot that the d river and the passen­
gers ca n and must do to help the individua l
safety features ins talled in your A ud i work to­
gether as a system.
P rope r seat ing pos ition is important so that
the front airbag on the dr iver s ide ca n do its
job. If yo u have a physical impa irment or con-
A irbag system 15 1
dition that prevents yo u from sitting properly
o n the driver seat with the safety belt properly
fastened and reach ing the peda ls, or if you
have concerns with regard to the function or
operation of the Advanced Airbag System,
please contact your author ized Audi dealer or
qualified wo rkshop, o r call Audi Customer Re­
l ations at 1-800-822-2834 fo r poss ible modi­
ficat io ns to your veh icle.
When the airbag system dep loys, a gas gener ­
ator will fill t he a irbags, break open the pad­
ded cove rs, and inflate between the steer ing
whee l and the dr ive r and between the instru­
ment pane l and the fron t passenger. The a ir­
bags will deflate immedia tely after dep loy­
ment so that the front occupants can see
thro ugh the windshie ld again witho ut inter­
ruption.
A ll of th is takes place in t he blink o f an eye, so
f ast that many people don't even realize that
the airbags have deployed. The airbags a lso
inflate with a great dea l of force and nothing
should be in their way when they deploy.
Front a irbags in combination with properly
wor n safety belts slow down and lim it the oc ­
c u pant's fo rward movement. Togethe r they
help to preve nt the drive r and front seat pas­
senger from h itti ng pa rts of the inside of the
vehicle while reducing the forces act ing on the
occupant dur ing the crash . In this way they
help to reduce the risk of injury to the head
and upper body in the crash. Airbags do not
protect the arms or the lower parts of the
body.
Both front airbags wi ll not inflate in all fronta l
collisions . The trigge ring of the airbag system
depends on the vehicle dece lerat ion rate
ca used by the co llision and registered by the
electron ic control unit. If t his rate is below
the reference value programmed into the con ­
tro l unit, the airbags will not b e trigge red,
even t hough the car may be bad ly damaged as
a res ult of the co llision . Ve hicl e damage, re­
pair costs or even the lack of ve hicle damage
is not necessarily an indica tion of whether an
airbag should inflate or not . .,. •
•

152 Airbag sys te m
Since the cir cumstances will vary considerab ly
between one collision and anot her, it is not
possib le to def ine a range of vehicle speeds
that will cover every possible k ind and angle
of impact t hat will always trigger the airbags.
Important factors include, for example, the
nature (hard or soft) of the object which the
car h its , the ang le of impact, vehicle speed ,
etc. The front airbags will also not inflate in
side or rea r collisions, or in ro ll-overs .
Always rememb er: Airbags will deploy only
once, and only in certa in k inds of co llisions .
Your safety belts are always there to offer pro­
tection in those s ituations in which airbags
a re not supposed to deploy, or when they have
a lready deployed ; for example , when your ve­
hicle strikes or is struck by another vehicle af­
te r the first co llision .
This is just one of the reasons why an airbag is
a supplementary restraint and is not a substi­
tute for a safety belt . The airbag system
works most effect ively when used with the
safety belts. There fore, always properly wear
your safety belts¢
page 143.
A WARNING
Sitting too close to the steer ing wheel or
instrument panel will dec rease the effec­
t iveness of the airbags and will increase
the risk of personal injury in a collision .
- Never sit closer than 10 inches (2S cm)
to the stee ring wheel or instrument pan­
el.
- If you cannot sit more than 10 inches
( 2 5 cm) from the s teer ing whee l, investi­
gate whethe r adaptive equipmen t may
be available to help you reach the pedals
and increase your seating distance from
the steering wheel.
- If you are unrestrained, lean ing fo rward,
sitting sideways or out of position in any
way, your risk of in jury is much higher.
- You will also receive serio us injuries and
cou ld even be killed if you are up against
the airbag or too close to it when it in­
flates - even with an Advanced Airbag. -
To reduce the risk of injury when an a ir­
bag inflates, always wear safety be lts
properly ¢
page 146, Safety belts.
-Always make certain that ch ildren age 12
or younger always ride in the rear seat. If
children are not properly restrained, they
may be severely injured or killed when an
airbag inflates .
- Never let children ride unrestrained or
improperly restrained in the vehicle. Ad ­
just the front seats prope rly .
- Never ride with the back rest reclined .
- Always sit as far as possible from the
steer ing whee l or the instrument pane l
¢page 134.
-Always sit upright with your back against
the backrest of your seat .
- Never p lace your feet on the instrument
panel or on the seat. Always keep both
feet on the floor in front of the seat to
help prevent serio us in ju ries to the legs
and h ips if the airbag inflates.
- Never recline the front passenger 's seat
to transport objects , Items can a lso
move into the a rea of the s ide airbag or
the front a irbag du ring bra king or in a
sudden maneuve r. Objects nea r the air ­
bags can become projectiles and cause
in jur y when an airbag inflates.
A WARNING ~
Airbags that have deployed in a crash must
be replaced.
- Use on ly orig inal equipment airbags ap­
proved by Aud i and installed by a trained
technician who has the necessary too ls
and d iagnost ic equipment to properly re­
p lace any airbag in your vehicle and as­
sure system effectiveness in a crash .
- Never permit salvaged or recycled air­
bags to be installed in your vehicle .

,....,
N ,....,
N
0 J:
'SI: ,...., \!) 1.1'1 ,...., 1.1'1 ,....,

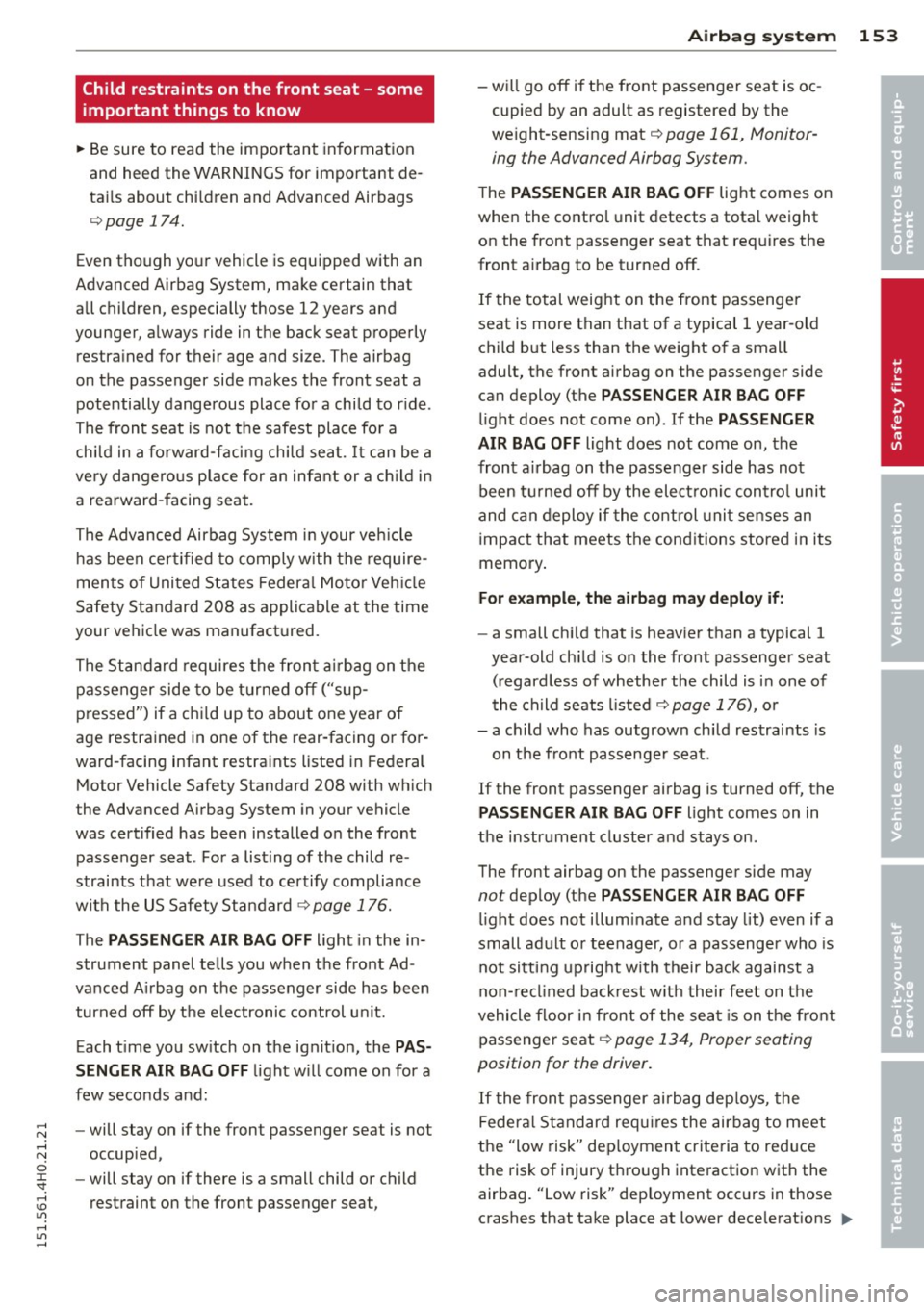

Child restraints on the front seat - some
important things to know
.. Be sure to read the important informat ion
and heed the WARNINGS for important de­
tai ls about chi ldren and Advanced Airbags
~ page 174.
Even though your vehicle is equipped with an
Advanced Airbag System, make certain that
a ll chi ldren, especially those 12 years and
younger, a lways ride in the back seat properly
restra ined for their age and size. The airbag
on the passenger side makes the front seat a potentially dangerous place for a child to r ide .
The front seat is not the safest place fo r a
chi ld in a fo rward-facing chi ld seat. It can be a
very dange ro us p lace for an infant or a ch ild in
a rearward -facing seat.
The Advanced Airbag System i n your veh icle
h as been cert ified to comp ly with the require­
men ts of Uni ted States Federa l Mo to r Veh icle
Safety Standard 208 as applicable at the time
your vehicle was manufactured.
The Standard requires the front a irbag on the
passenger side to be turne d off ("sup­
p ressed") if a chi ld up to about one year of
age restrained in one of the rear -facing or for­
ward -facing infant restraints listed i n Federal
Motor Vehicle Safety Standard 208 with wh ich
the Advanced Airbag System in your vehicle
was certified has been installed o n the front
passenger seat . For a listing of the child re­
straints that we re used to certify compliance
with the US Safety Standard ~
page 176.
The PASS ENGER AIR BAG OFF light in the in­
strument panel te lls you when the front Ad­
vanced A irbag on the passenger side has been
turned off by the e lectronic control u nit.
Each t ime you sw itch on the ignit ion, the
PAS­
SENGER AIR BAG OFF
l ight w ill come on for a
few seconds a nd:
- will stay on if the front passenger seat is not
occup ied,
- will stay on if there is a small child or child
restraint on the front passenger seat,
A irbag sys tem 153
- will go off if the front passenger seat is oc ­
cupied by an adult as registered by the
weight -sensing mat ¢
page 161, Monitor­
ing the Advanced Airbag System.
T he PASSENGER AIR BAG OFF light comes on
whe n the contro l unit detects a tota l weight
on the front passenger seat that req uires the
front a irbag to be turned off.
If the total weight on the front passenge r
seat is more than that of a typical 1 year-old
c h il d but less than the weight of a small
adult, the front airbag on the passenger side
can deploy (the
PASSENGER AIR BAG OFF
li ght does not come on). If the PASSENGER
AIR BAG OFF
light does not come on, the
front a irbag on t he passeng er side has not
been turned off by the elect roni c con trol unit
and can deploy if the control unit senses an
impact that meets the cond it ions stored i n its
memory .
For exampl e, th e airb ag may deplo y if:
- a small ch ild that is heav ie r than a typical 1
year-old ch ild is o n the front passenger seat
(regard less of whether the child is in one of
the ch ild seats l isted ¢
page 176), or
- a child who has outgrown chi ld restraints is
on the front passenge r seat.
If the front passenger airbag is turned off, the
PASSENGER AIR BAG OFF light comes on in
the instr ument cluster and stays on .
The front airbag on the passenger side may
not deploy (the PASSENGER AIR BAG OFF
l ight does not illum inate and stay lit) even if a
small ad ult o r teenager, or a passenger who is
not sitti ng uprig ht w ith their back against a
non -recli ned back rest w it h thei r feet on t he
vehicle floor i n front of the sea t is on t he front
passenger seat
~ page 134, Proper seating
position for the driver.
If the fron t passenger ai rbag dep loy s, the
Federa l Standard req uires the airbag to meet
the "low risk" dep loyment criteria to reduce
the ris k of injury t hrough interact ion w ith the
airbag. "Low risk" dep loyment occ urs in those
crashes that take place at lower dece lerat ions ..,_ •
•

154 Airbag sys te m
as def ined in the electronic control unit
Q page 162, PASSENGER AIR BAG OFF light.
A lways remember, a chi ld seat or infant carr i­
e r i nsta lled on the front seat may be struck
and knocked out of position by the rapidly in ­
flating passenger's airbag in a frontal colli­
sion. The airbag could greatly reduce the ef­
fectiveness of the chi ld restraint and even se­
riously injure the child during inflat ion.
F or this reason, and because the back seat is
the safest p lace for chi ldren -when properly
restra ined accord ing to their age and si ze -we
strongly recommend that children always sit
in the back seat
Q page 174, Child Safety .
A WARNING
A child in a rearward-facing child seat in­
stalled on the front passenger seat will be
ser iously injured and can be killed if the
front airbag inflates -even with an Ad­
vanced Airbag System.
- The inflating a irbag will hit the child seat
or infant carrier w ith great force and w ill
smash the ch ild seat and child against
the backrest, center armrest, door or
roof .
- Always install rear -facing child seats on
the rear seat .
- If you must install a rearward facing
child seat on the f ront passenge r seat
because of except iona l circumstances
and the
PASSENGER AIR BAG OFF light
does not come on and stay on, immedi­
ately i nstall the rear-facing chi ld seat in a
rear seating position and have the airbag
system inspected by your Aud i dealer .
- Forward-fac ing ch ild seats installed on
the front passenger's seat may interfere
with the deployment of the airbag and c ause se rious pe rsonal injury to the
c hild.
A WARNING
If, in exceptional c ircumstances, you mus t
install a forwa rd-facing child restra int on
the front passenger's seat: -
Always make sure the forward-facing
seat has been designed and certified by
its manufacturer for use on a front seat
with a passenger front and s ide a irbag .
- Never put the forward-facing child re­
straint up against or very near the instru­ ment panel.
- Always move the passenger seat into its
rearmost pos ition in the seat's fore a nd
aft adjustment range, as fa r away from
the airbag as possible before installing
the forwa rd-fa cing ch ild restra int. The
b ackrest mus t be ad justed to an up right
position.
- Make sure that the
PASSENGER AIR BAG
OFF
li ght comes on and stays o n all the
time wheneve r the ignition is switched
on.
A WARNING -ra----
To reduce the risk of serious injury, make
sure that the
PASSENGER AIR BAG OFF
light will be displayed whenever a child re­
straint is installed on the front passenger
seat and the ignition is sw itched on.
- If the
PASSENGER AIR BAG OFF light
does not stay on, perform the checks de­
scribed
Q page 161, Monitoring the Ad­
vanced Airbag System .
-Take t he chi ld restraint off the front pas­
senger seat and install it properly at one
of the rear seat positions if the
PASSEN ­
GER AIR BAG OFF
light does not stay on.
- Have the airbag system inspected by
your Aud i dea le r i mmediately .
- Always carefully follow instr uctions from
child restraint manufacture rs when in­
stall ing c hild restra ints .
A WARNING
If, in except iona l circumstances, you m ust
i nstall a forward o r rearwa rd-fa cing child
r estra int on the front p assenger's se at:
- I mp roper installation of ch ild restra ints
c a n reduce their effectiveness or even
p revent them from providing any protec -
tion. .,..

-An improperly installed child restraint
can interfere with the airbag as it de ­
ploys and seriously injure or even kill the
child -even with an Advanced Airbag
System .
- Always carefully follow the manufactur­
er's instructions provided with the child
seat or carrier .
- Never place additional items on the seat
that can increase the total weight regis­
tered by the weight-sensing mat and can cause injury in a crash.
Front airbags
Description of front airbags
The airbag system can provide supplemental
protection to properly restrained front seat occupants.
Fig. 165 Loca tion of driver a irbag: in stee ring wheel
Fig. 166 Location of front passenger's a irbag: in the in­
s trument pan el
Your vehicle is equipped with an "Advanced
Airbag System " in compliance with United
States Federal Motor Vehicle Safety Standard
(FMVSS) 208 as applicable at the time your
vehicle was manufactured. he safety belts for
the seats have "pretensioners" that he lp to
take slack out of the belt system. The preten-
Airbag system 155
sioners are also activated by the electronic
control unit for the airbag system.
The front safety belts also have load limiters
to help reduce the forces applied to the body in a crash.
The airbag for the driver is in the steering
wheel hub
i=;, fig . 165 and the airbag for the
front passenger is in the instrument panel
i=;,fig . 166 . The general location of the airbags
is marked "AIRBAG".
There is a lot you need to know about the air­
bags in your vehicle. We urge you to read the
detailed information about airbags, safety
belts and ch ild safety in th is and the other
chapters that make up the owner's literature.
Please be sure to heed the WARNINGS -they
are extremely important for your safe ty and
the safety of your passengers, especially in ­
fants and small children.
_& WARNING
Never rely on airbags alone for protection .
- Even when they deploy, airbags provide only supplementa l protection.
- Airbag work most effectively when used
with properly worn safety belts .
- Therefore, always wear your safety belts
and make sure that everybody in your ve­
hicle is properly restrained.
_& WARNING
A person on the front passenger seat , es­
pecially infants and small children, will re­
ceive serious injuries and can even be kil-
led by being too close to the airbag when
it inflates .
- Altho ugh the Advanced Airbag System in
your vehicle is designed to turn off the
front passenger airbag if an infant or a
small child is on the front passenger
seat, nobody can absolutely guarantee
that deployment under these special conditions is impossible in all conceiva­
ble situations that may happen during
-
the useful life of your vehicle . 11>-

156 Airbag sys te m
- The Advanced A irbag System can deploy
in accordance with the "low risk" opt ion
under the U.S. Federa l Standard if a child
that is heavier than the typical one-year
old child is on the front passenger seat
and the other cond itions for airbag de­
ployme nt are met.
- Acc ident statist ics have shown that chi l­
dren are generally safer in the rea r seat
area than in the front seating posit io n.
- For their own safety, all children, espe­
cially 12 yea rs and younger, sho uld a l­
w ays ride in the back pro perly rest rained
for their age an d size.
Advanced front airbag system
Your veh icle is eq uipped wit h a front Advanced
Airbag System in compliance with United
States Federal Motor Vehicle Saf ety Standard
208 as applicab le at the time your vehicle was
manufactured.
The front Advanced Airbag System supp le­
ments the safety belts to provide addit iona l
protection for the drive r's and front passeng ­
er's heads and upper bodies in frontal crashes .
The airbags inflate only in frontal impacts
when the vehicle dece lerat io n is high enough .
The front Advanced Airbag System for the
front seat occupants is not a substitute fo r
your safety belts. Rather, it is part of t he over­
all occupa nt restraint system in your ve hicle.
A lways remember that the airbag system can
on ly help to protect you , if you are s itting up­
r ight, wearing yo ur safety belt and wea ring it
p roperly . This is w hy you and yo ur passenge rs
must always be properly restrained , not just
beca use the law requires you to be.
The Advanced Airbag System in your veh icle
h as been cer tified to meet the " low r is k " re­
qu irements for 3 and 6 year -o ld children on
the passenger side and very small adu lts on
the driv er side. The low risk deployment crite ­
ria are intended to he lp red uce the risk of in­
jury through interaction with the front airbag that can occur, fo r example, by be ing too close to the steering wheel and instrument
pane
l when the airbag inflates .
In add ition, the system has been certified to
comply wi th the "s uppression" re qu iremen ts
of the Sa fe ty Standard , to turn
off the front
airbag for infants 12 months o ld and younger
who are rest rained on the front passenger
seat in child restraints that are listed in the Standard
¢ page 176, Child restraints and
Advanced Airbags .
"Suppression" requires the front a irbag on the
passenger side to be tu rned
off if:
- a child up to abo ut one year o f age is re ­
strained on the front passenger seat i n one
of the rear-fac ing or forward -facing infant
restraints listed in Federal Motor Vehicle
Safety Standard
208 with which the Ad­
vanced Airbag System in your vehicle was
cert ified . For a listing of the ch ild res traints
that were used to certify you r vehicle 's com­
plia nce w it h t he US Safety Standa rd
¢ page 176,
-we ight less than a threshold level stored in
the co ntrol uni t is de te cted on the fron t pas­
senger seat.
When a person is detected on the front pas­ senger seat, weighing more than t he total
we ight of a ch ild tha t is abou t 1 year old re ­
stra ined in one of the rear-fac ing o r forward­
f acing infant res traints ( listed in Fede ral Mo­
tor Vehicle Safety Standar d
208 with which
the Advanced Airbag System in yo ur vehicle
was certif ied), the front airbag on the passen­
ger side may or may not deploy.
The
PASSENGER AIR BAG OFF light comes on
when the electronic contro l unit detects a to­
ta l we ight on the front passenger seat that re ­
quires t he front airbag to be t urned
off. If the
PASSENGER AIR BAG OFF light does not
come on, the front a irbag on the passenger
s ide has not been t urned
off by the cont ro l
u ni t and ca n dep loy if the control un it senses
an impact that meets the cond itions store d in
i ts memory.
If the total weight on the fro nt passenge r
seat is more than that of a typ ical 1 yea r-old , ..,_

,....,
N ,....,
N
0 J:
'SI: ,...., \!) ..,.,
,...., ..,., ,....,
but less than the weight of a small adult, the
fro nt airbag on the passenger side may deploy
(the
PASSENGER AIR BAG OF F light does not
come on).
For example, the a irba g may deplo y if:
- a small child that is heavier than a typical 1
year-o ld child is on the front passenger seat
(regardless of whether the child is in one of
the chi ld seats listed
page 176),
-a ch ild who has outgrown child rest raints is
on the front passenger seat.
I f the front passenger airbag is turned off, the
PA SSENGER AIR BAG OFF light in the center
of the inst rument panel w il l come on and stay
on.
The front a irbag on the passenger side may
not deploy (the PASSENGER AIR BAG OFF
light does not illuminate and stay lit) if:
- a small adult or teenager is on the front pas­
senger seat
- a passenger who is not sitt ing upr ight w ith
their back against a non-reclined backrest
with their feet on the veh icle floo r in front
of the sea t is on the front passenge r seat.
If the front passenger airbag deploys, the
Federal Standard requires the a irbag to meet
the " low risk" deployment criteria to help re­
duce the risk of inj ury through in terac tion
with the airbag . "Low risk" deployment occurs
in those crashes that take place at lower de ­
celerations as defined in the electronic control unit
~ page 161.
Always remember : Even though you r vehicle
is equipped with Advanced Airbags, the safest
p lace for children is properly restrained on the
back seat . Please be sure to read the impor­
tant information in the sect ions that follow
and be sure to heed all of the WARNINGS.
A WARNING
To reduce the risk of injury when an airbag
inflates, always wear safety belts properly.
- If you are unrestrained, lean ing forward,
sitting sideways or out of position in any
way, your risk of in jury is much highe r.
A irbag system 157
-You will a lso receive serious injuries and
could even be killed if yo u are up aga inst
the airbag or too close to it when it in­
flates - even w ith an Advanced A irbag
~page 151 .
A WARNING
A child in a rearward-fac ing ch ild seat in­
stalled on the front passenger seat will be
se riously in ju red and can be killed if the
front airbag inflates - even w ith an Ad­
vanced A irbag System.
- Altho ugh the Advan ced Airbag Sys tem in
your veh icle is designed to turn
off the
front airbag when a rearward-facing
child restraint has been installed on the
front passenge r seat, nobody can abso­
lutely guarantee that dep loyment is im­
possible in all conceivable situations that
may happen dur ing the usefu l life of your
veh icle.
- The inflating airbag will h it the ch ild seat
or infant carrier with great force and will
smash the child seat and child aga inst
the backrest, center armrest, doo r, or
roof.
- Always install rearward-facing child re­
straints on the rear seat.
- If you must install a rearward fac ing
child seat on the front passenger s eat
because of exceptional cir cumstances
and the
PASSENGER AIR BAG OFF light
does not come on and stay on, immed i­
ately insta ll the rear -facing child seat in a
rea r seating position and have the airbag
system inspected by your Audi dealer.
A WARNING
If, in except iona l circumstances, you must
install a forward-facing child restraint on
the front passenger's seat:
-Always make sure the forward-facing seat has been designed and certified by its manufacturer for use on a front seat
with a passenger front and s ide a irbag.
•
•
-

158 Airbag sys te m
- Never put the forward-facing child re­
straint up aga inst or very near the instru­
ment panel.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the a irbag as poss ible, before installing
the forward-facing child restraint. The backrest must be adjusted to an upr ight
posit io n.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the
t ime whenever the ignition is switched
on.
Advanced Airbag System components
The front passenger seat in your vehicle has a
lot of very important parts of the Advanced
Airbag System in it. These parts include the
weight-sensing mat, sensors, wiring, brack­
ets, and more. The function of the system in
the front passenger seat is checked by the
electronic control un it when the ign it ion is on .
The control unit mon itors the Advanced Air­
bag System and turns the airbag indicator
l ight on whe n a malfunction in the system
components is de tected. The function of the
ai rbag indicator light is described in greater
detai l be low . Because the front passenger
seat contains important parts of the Ad­
vanced A irbag System, you must take care to
prevent it from be ing damaged. Damage to
the seat may prevent the Advanced Airbag for
the front passenger seat from doing its job in
a crash .
The front Advanced Airb ag System
con sis ts of the following:
- Crash sensors in the front of the veh icle that
measure veh icle acceleration/deceleration
to provide information to the Advanced Air­
bag System about the seve rity of the c rash.
- An electron ic co ntro l unit, w ith integ rated
crash sensors for fron t and side impacts.
T he contro l unit "dec ides " whether to fire
the front airbags based on the information received from the crash sensors . The contro l unit also "decides" whether the sa
fety be lt
pretensioners shou ld be activated.
- An Advanced Airbag with gas generato r and
contro l valve for the driver inside the steer­
ing wheel h ub.
- An Advanced Airbag with gas gene rator and
contro l valve inside the instrument panel for
the front passenger .
- A weight -sensing mat under the upho lstery
padding of the front passenger seat cushion
that measures the total weight on the seat.
The informat ion registered is sent continu­
ously to the electronic control unit to regu­ late deployment of the front Advanced Air­
bag on the passenger side.
- An airbag monitoring system and indicator
light in the instrument cluster~
page 161 .
-A sensor in each front seat registers the dis­
tance betwee n the respective seat a nd the
steer ing whee l o r inst rument panel. The in­
formation registered is sent cont inuous ly to
t he ele ctron ic contro l uni t to regula te de­
p loyment of the front Adva nced A irbags .
- The
PASSENGER AIR BAG OFF light comes
on and st ays on in the center of the instr u­
ment p anel
~page 162, fig. 168 and t ells
you when the front Advanced Airbag on the
passenger side has been turned off .
- A sensor below the safety be lt latch for the
front seat passenger to measure the tension
on t he safety be lt . The tension on the safety
be lt and the weight registered by the
weight-sensing mat he lp the control unit
"decide" whether the front airbag for the
front passenger seat should be turned off or not
~ page 153, Child restraints on the
front seat -some important things to
know.
- A sensor in the safety belt latch fo r the driv­
er and fo r the fro nt seat passenger that
senses whether that safety bel t is latched or
no t and transmi ts this information to t he
electronic control unit.
A WARNING ~ -
Damage to the front passenger seat can
prevent the front airbag from work ing
properly.
