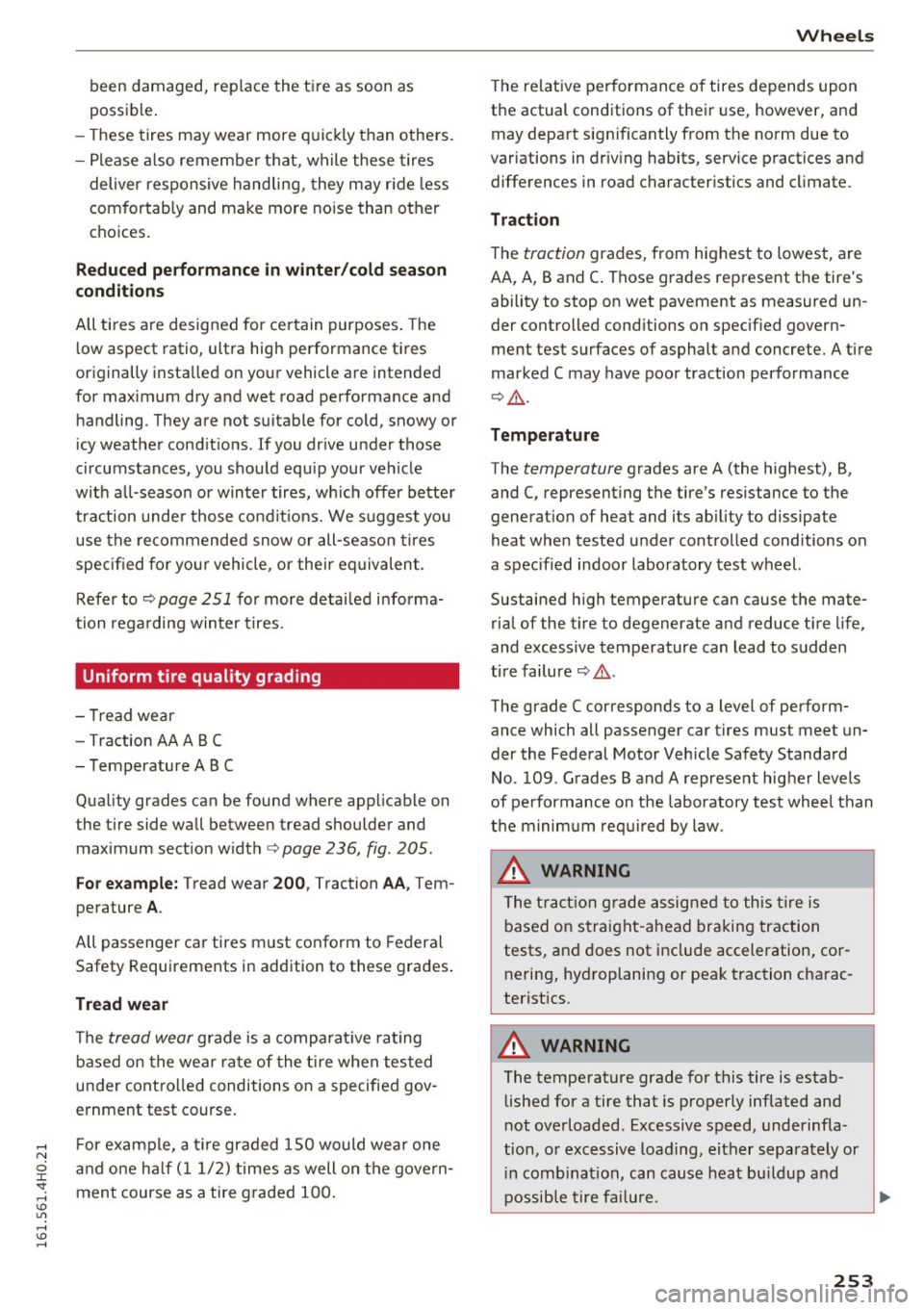

been damaged, replace the t ire as soon as
possible .
- T hese tires may wear more q uickly than others.
- Please a lso remembe r th at, while these tires
deliver responsive handling, they may r ide less
comfortab ly and make more noise than other
choices .
Reduc ed performance in wint er/ cold sea son
condit ions
All ti res are designed fo r ce rtain purposes. The
l ow aspect ratio, ultra high performance tires
originally insta lled on your vehicle are intended
for maximum dry and wet road performance and handling . They are not suitable for cold, snowy or
i cy weather cond it ions. If you dr ive under those
circumstances, you should equ ip your vehicle
with a ll-season or winter tires, wh ich offer better
traction under those condit ions. We suggest you
use the recommended snow or all-season tires
specified for yo ur vehicle, or the ir eq uivalent.
Refer to
c::;, page 251 for more detai led informa­
tion rega rding winter tires.
Uniform tire quality grading
- T read wear
- T raction AA A B C
- Temperature ABC
Quality grades can be found where applicable on
the tire side wall between tread shoulder and maximum sect ion w idth
c::> page 236, fig . 205.
For e xample: Tread wear 200 , Traction AA , Tem­
perature A.
All passenger car tires m ust conform to Federa l
Safety Requirements in addition to these grades .
Tread wea r
The
tread wear grade is a comparat ive rating
based on the wear rate of the t ire when tes ted
under cont ro lled conditions on a specified gov ­
ernment test course.
F or examp le, a t ire graded
150 would wear one
and one h alf
(1 1/2) times as well on the govern­
ment course as a tire g raded
100 .
Wh eel s
The re lat ive pe rformance of tires depends upon
the actual cond itions of their use, however, and
may depart significantly from the norm due to
variations in driv ing habits, service practices and
differences in road character istics and cl imate.
T raction
The
traction grades, from highest to lowest, are
AA, A, Band
C. Those grades rep resent the tire's
ability to stop on wet pavement as measured un­
der controlled cond itions on specified govern­
ment test surfaces of asphalt and concrete. A tire
marked C may have poor traction performance
c::;, .&_ .
Te mperature
The
temperature grades are A (the highest), B,
and C, representing the tire 's resistance to the
generat ion of heat and its ability to dissipate
heat when tested under controlled conditions on
a specified indoor laboratory test wheel.
Sustained h igh temperature can cause the mate­
rial of the tire to degenerate and reduce tire life,
and excessive temperature can lead to sudden
tire failure c::;, .&. .
The grade C corresponds to a level of perform­
ance which all passenger car tires must meet un­
der the Federal Motor Vehicle Safety Standard
No.
109 . Grades Band A represent higher levels
of pe rformance on the laboratory test wheel than
the minim um req uir ed by law.
A WARNING
-
The t ract io n grade assigned to this t ire is
based on straight -ahead braking traction
tests, and does not include acceleration, co r­
nering, hydroplaning or peak traction charac­
terist ics.
A WARNING
-The temperature grade for this tire is estab­
lished for a tire that is properly inflated and
not overloaded. Excessive speed, underinfla­
tion, or excessive loading, either separately or
i n comb inat ion, can cause heat bu ildup and
-
possib le tire fai lure. ~
253

the recommended tire pressure for you r ve hicle
¢ page 246, fig . 208.
T ire tread circumference and v ibrat ion character­
istics can change and cause a ti re pressure warn­
ing if :
- the tire p ressure in one o r more tires is too low.
- the tire has structura l damage .
- the tire was replaced or the tire pressure was
changed and it was not stored¢
page 255 .
-the spare t ire* is installed.
Ind icat or light s
IE Loss of press ure in at least one tire q &. .
Check the tires and replace or repair if necessary.
Check/correct the pressures of a ll four tires and
store the pressure again in the Infotainment sys­
tem ¢
page 255.
ffim (T ire Pressure Monitoring System) Tire
pressu re: Sys tem malfunction !.
Iffflm appears
after switching the ignition on or wh ile driving
and the
IE indicator light in the instrument clus­
ter blinks for approximate ly one minute and then
stays on, there is system malfunction . Try to
store the correct tire pressures¢ page 255 . If
the indicator light does tur n off or t urns on again
a fte r a short period of time, dr ive to you r author­
ized A udi dealer or qualified repair fac ility imme­
diate ly to have the ma lfunction co rrected.
&_ WARNING
- If the tire pressu re indicator appears in the
display, reduce your speed immed iate ly and
avoid any hard steer ing or braking maneu­
vers. Stop as soon as possib le and check the
t ir es and their press ure .
- The driver is responsib le for maintaining the
correct tire pressure. You must check the
t ir e pressu re regu la rly .
- Under certa in conditions (such as a sporty
dr iv ing style, wi nter cond itions or unpaved
roads), the tire p ressure monitoring system
indicator may be de layed.
- Do not use r un-flat tires on your vehicle. Us­
ing them when not permitted can lead to
vehicle damage or accidents.
Wh eel s
(D Tips
-The tire p ressure monitoring system can al­
so stop working when there is an ESC mal­
function.
- Using snow c hains may result in a system
ma lf u nction.
- The tires wit h the identification "AO" or
"RO"
q page 243 have been matched wit h
your Audi t ire press ure monitoring system.
We recommend that you use these tires.
Storing tire pressures
If the tire pressure changes or a tire is replaced,
it must be confirmed in the Infotainment sys­ tem.
.,. Ma ke sure befo re storing t hat the t ire pressures
of all four tires meet the specified values and
are adapted to the load ¢
page 244.
.,. Switch the ignit ion on .
.,. Select: the
I CAR ! funct io n button > Car Systems
cont rol button > Serv icing & check s > Tire
pressure monitoring > Store tire pressures >
Ye s, store now .
(j) Tips
Do not sto re the tire pressures if snow chains
are ins talled. Ot he rw ise the system could
malfunc tion.
255

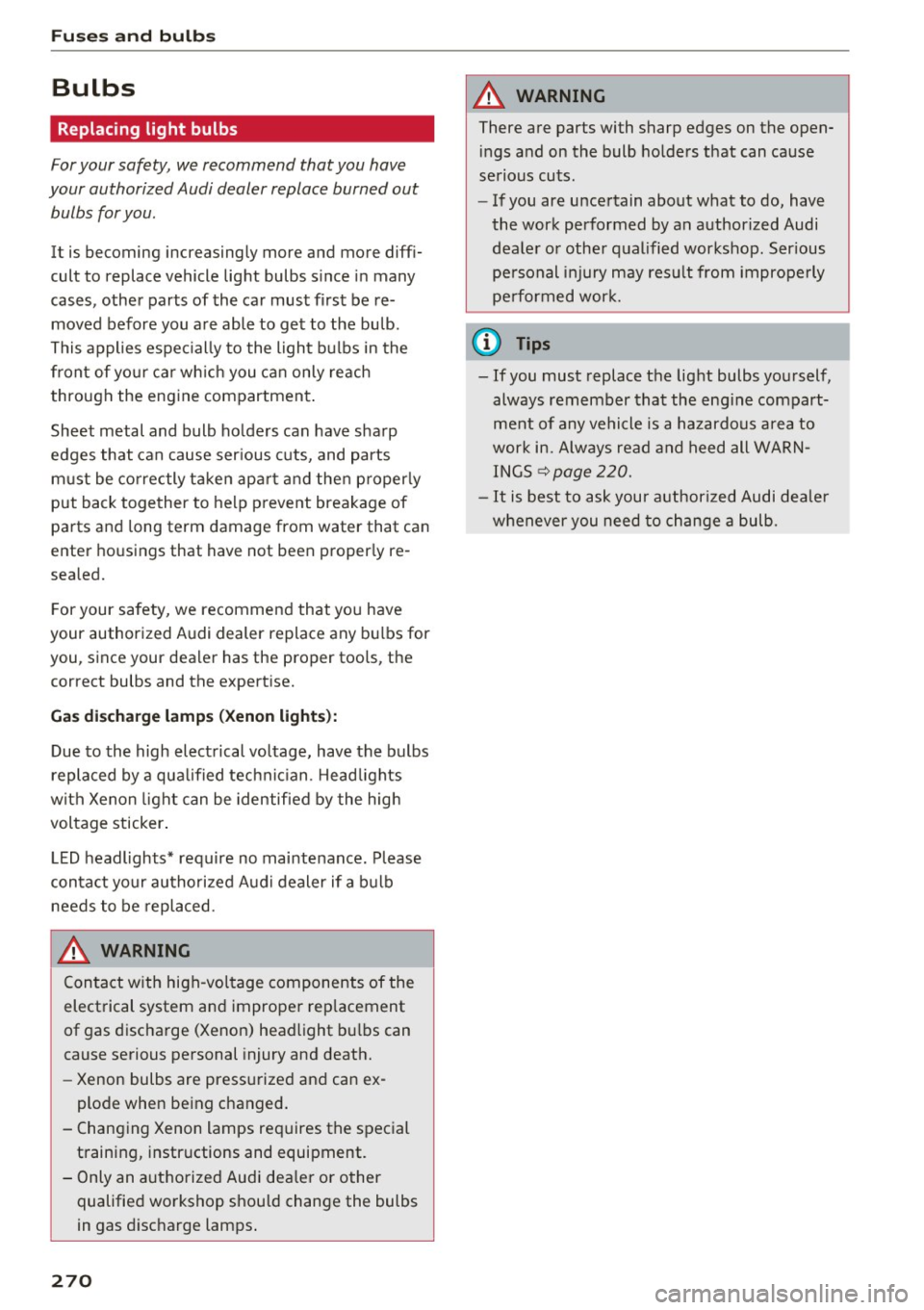

Fuses a nd bul bs
Bulbs
Replacing light bulbs
For your safety, we recommend that you have
your authorized Audi dealer replace burned out
bulbs for you.
It is becoming increasingly more and more diffi­
cult to replace vehicle light bulbs since in many
cases, other parts of the car must first be re­
moved before you are able to get to the bu lb .
This applies espec ially to the light bulbs in the
front of your car wh ich you can only reach
through the engine compartment .
Sheet metal and bulb holders can have sharp
edges that can cause ser ious cuts, and parts
m ust be correctly taken apa rt and then p roperly
put back together to help prevent breakage of
parts and long term damage from water that can
enter housings that have not been properly re­
sealed.
For your safety, we recommend that you have
your authorized Audi dealer replace any bu lbs for
you, since your dealer has the proper tools, the correct bulbs and the expertise.
G as di sc harg e l am ps (Xe non li ghts):
Due to the high electrical voltage, have the bulbs
replaced by a qua lified technic ian . Headlights
with Xenon light can be identified by the high
voltage sticker.
LED headlights* require no maintenance. Please
contact your authorized Aud i dealer if a bulb
needs to be replaced.
A WARNING
Contact w ith high-voltage components of the
electrical system and improper rep lacement
of gas discharge (Xenon) headlight bulbs can
cause serious personal injury and death.
- Xenon bulbs are pressurized and can ex­
plode when being changed.
- Changing Xenon lamps requires the special training, instructions and equipment.
- Only an a uthorized Audi dea ler or other
qualified workshop should change the bulbs
in gas discharge lamps .
270
A WARNING
-
There are parts with sharp edges on the open- ings and on the bulb holders that can cause
serious cuts.
- If you are uncertain about what to do, have
the work performed by an authorized Audi
dealer or other qualified workshop. Ser ious
pe rsonal injury may resu lt from improperly
pe rformed wor k.
@ Tips
- If you must replace the light bulbs yourself,
always remember that the eng ine compart­
ment of any vehicle is a hazardous area to
work in. Always read and heed all WARN­ INGS ~
page 220.
-It is best to ask your authorized Audi dealer
whenever you need to change a bulb.

Consumer information
Warranty coverages
Y our Audi is co vered b y the foll owing war ran­
tie s:
- New Vehicle Limited Warranty
- Limited Warranty Against Corrosion Perfora-
tion
- Emissions Control System Warranty
- Emissions Performance Warranty
- California Emissions Control Warranty (USA
vehicles only)
- California Emissions Performance Warranty
(USA vehicles only)
Detailed information regard ing your warranties
can be found in yo ur
W arranty & M ainten ance
bookl et.
Operating your vehicle
outside the U.S.A. or
Canada
Government reg ulations in the Un ited States and
Canada require that automobiles meet specific
emission regulations and safety standards.
Therefore, vehicles built for the U .S.A. and Cana­
da differ from vehicles sold in other countries.
I f you p lan to take your vehicle outside the conti­
nenta l limits of the United States or Canada,
there is the poss ibility that:
- u nleaded fue ls for vehicles with cata lytic con­
verter may not be available;
- fuel may have a considerably lower octane rat­
i ng . Imprope r fuel may ca use engine damage;
- service may be inadequate due to lack of p roper
service facilities, tools or testing eq uipment;
- r eplacement parts may not be readily ava ilable.
- Navigation systems for veh icles built for the
U .S .A . and Canada will not necessa rily work in
E urope, and may not wo rk in other countries
outside No rth Ame rica.
Con sumer inf ormation
(D Note
Audi cannot be respons ible for mechanical
damage that could resu lt from inadequate
fuel, service or parts ava ilability.
Audi Service Repair
Manuals and Literature
Audi Official Factory Service Manuals and L itera ­
ture are published as soon as poss ible after mod­
el introduction. Service ma nuals and literature
are avai lab le to order from the Audi Tec hni cal Lit ­
erature Ordering Center at :
www.audi .t e chlit eratur e.com
Maintenance
General
Your vehicle has been designed to he lp keep
maintenance requirements to a min imum. How­
ever, a certain amount of regular maintenance is
still necessary to assure your veh icle's safety,
economy and reliab ility . For detailed vehicle
maintenance consult your Wa rranty
& Mainte­
nance book let .
Und er diff icult op erating condition s, for exam­
ple at extremely low outside temperatures, in
very dusty regions, when towing a trai le r very fre­
quently, etc., some service work shou ld be per­
fo rmed between the in terv als specified. This ap ­
plies particularly to:
- oil changes , and
- cleaning or replacing the a ir filter .
(® For the sake of the environment
By regularly maintain ing your vehicle, you
help make sure that emiss ion standards are
maintai ned, thus min imizing adverse effects
on the environment .
Important considerations for you and your
vehicle
The increasing use of electronics, sophisticated
fuel injection and emission control systems, and
the generally increas ing technica l complexity of ""'
281

Consumer inf orm ation
today's a utomo biles, have steadily re duced the
scope of maintenance and repairs whic h can be
carried out by veh icle owners.
Also , sa fet y and
en vironmental
concerns place very strict limits
on the nature of repairs and adjustmen ts to en­
g ine and transmission parts wh ich an owner can
perform .
Maintenance, adjustments and repairs usually re­
qu ire special tools, testing devices and other
equ ipment available to specially trained work ­
shop personnel in order to assure proper per­
forma nce, re liability and safety of the veh icle and
its many systems .
Improper maintenance, adjustments and repairs
can impair the operation and reliab ility of your
ve hicle and eve n void your vehicle warranty .
Therefo re, proof of se rvicing in a ccordance w ith
the m aintenance sched ule may be a condition for
up ho ld ing a possible wa rranty claim made within
the wa rranty pe riod.
Above all , ope rational safety can be adversely af­
fected, cre ating unne cessa ry risks fo r you and
your passengers.
I f in doubt about any servicing, have it done by
your author ized Audi dealer or any other properly
eq uipped and qualified workshop . We strongly
urge you to g ive your author ized Audi dealer the
opportunity to perform a ll scheduled mainte ­
nance and necessa ry repairs. Your dealer has the
facilities, origina l parts and tra ined specialists to
keep your veh icle runn ing properly.
P e rforming limited maintenance yourself
The fo llow ing pages describe a limited number of
procedures whic h can be performed on your vehi­
cle with ordinary tools, should th e need arise and
tra ined personnel be unava ilable. Before per­
forming any of these procedures, always thor­
ough ly read all of the app licab le text and carefu l­
ly follow the instructions g iven . A lways rigorously
observe the
WARNINGS prov ided .
Befo re yo u check anything in the engine com ­
partment, always read and heed all WARNINGS
c::> & and c::> & in Working in the engine compart­
ment on page 220 .
282
A WARNING
-
-Ser ious personal in jury may occur as a result
of imp roperly performed maintenance, ad­
justments or repairs .
- Always be extreme ly careful when work ing
on the vehicle . Always follow commonly ac­
cepted safety practices and general com­ mon sense. Never r is k personal in jury.
- Do not attempt any of the mainte nance,
checks or repairs described on the following pages if you are no t fu lly fam iliar with these
or other proce dures with respect to the ve­
hicle, o r are uncert ain how to p ro ceed.
- Do not do any work wi thout the prope r tools
a nd equi pmen t. H ave the necess ary wo rk
done by your authorized Au di dealer or an ­
other properly equipped and qualified work­
shop.
- The engine compartment of any motor vehi ­
cle is a potentially hazardous area . Never
reach into the a rea around or touch the radi­
ator fan. It is temperature controlled and
can switch on suddenly - even when the en­
gine is off . The radiator fan switches o n au­
tomatically when the coolan t reaches a cer­
tain tempe ra ture an d w ill cont inue to run
until the coolant tem pe rature d rops.
- Always sw itch off the ignition before anyone
gets under the vehicle.
- Always support your vehicle with safety
stands if it is necessary to work underneath
the vehicle. The jack supp lied wi th the veh i­
cle is no t adequate fo r thi s pu rpose a nd
could collapse causing serious personal in­
Jury .
- If you must wor k unde rneath the vehicle
w ith the wheels on t he g roun d, always make
sure the vehicle is on level ground, that the
wheels are always sec urely blocked and that
the engine cannot be started.
- Always make sure the transmission se lector
lever (automatic t ransm iss ion) is in "P"
(Park position) and the pa rk brake is ap-
plied.
~

Consumer inf orm ation
Attempting to work on electronic components
and the software used w ith them can cause mal­
functions. Because of the way e lectronic compo ­
nents a re interconnected with each othe r, such
m alfunct ions can also have an adverse affect on
other systems that are not directly involved . This
means that you risk both a substantial reduction
in the operationa l safety of your veh icle and an
i n creased wea r of ve hicle parts ~ ,&. .
Author ized Audi dealers w ill perform this work in
a profess io nal and competent manner or, in spe­
cial cases, refer you to a p rofessional company
that spec ial izes in such modifications .
_8. WARNING
Improper repairs and modifica tions can
change the way vehicle system s work and
cause damage to the vehicle and serious per ­
sonal injury.
(J} Note
I f emergency repa irs mus t be pe rformed else­
where, have the vehicle examined by an a u­
thorized A udi dealer as soon as possib le .
Declaration of
Compliance, Telecom­ munication or Electronic
Systems
Radio Frequency Devices and Radiocommunica­
tion Equipment User Manual Notice.
The manufacturer is not responsible for any radio
or TV interference caused by unauthorized modi­
f ications to this eq uipment .
Devices
The fo llow ing devices eac h comp ly w it h FCC Part
15 .19, FCC 15.2 1 and RSS -Gen Issue 1:
- Adaptive c ruise contro l
- Audi s ide ass ist
- Cell phone package
- Convenience key
- Electronic immobilizer
- Head p hones
- Homelin k unive rsal remote contro l
284
- Remote cont rol key
FCC Part 15.19
This device complies wi th part 15 of the FCC
Rules. Ope ration is subject to the following two
cond it ions:
(1) This dev ice may not cause ha rmf ul interfer­
ence , and
(2) this device must accept any interference re­
ce ived, includ ing interference that may ca use un ­
desired operat ion .
FCC Part 15 .21
CAU TION:
Changes or modifi cat ions no t express ly approved
by the pa rty responsible for compliance cou ld
void the user's a uthority to operate the eq uip­
ment .
RSS-Gen Issue 1
Operat ion is s ubject to the following two cond i­
t ions:
(1) this device may not cause inte rfe rence, and
(2) this device must accept any i nterference, in­
clud ing inte rfe rence that may cause undesired
ope ration of the dev ice.
