Airbag syste m

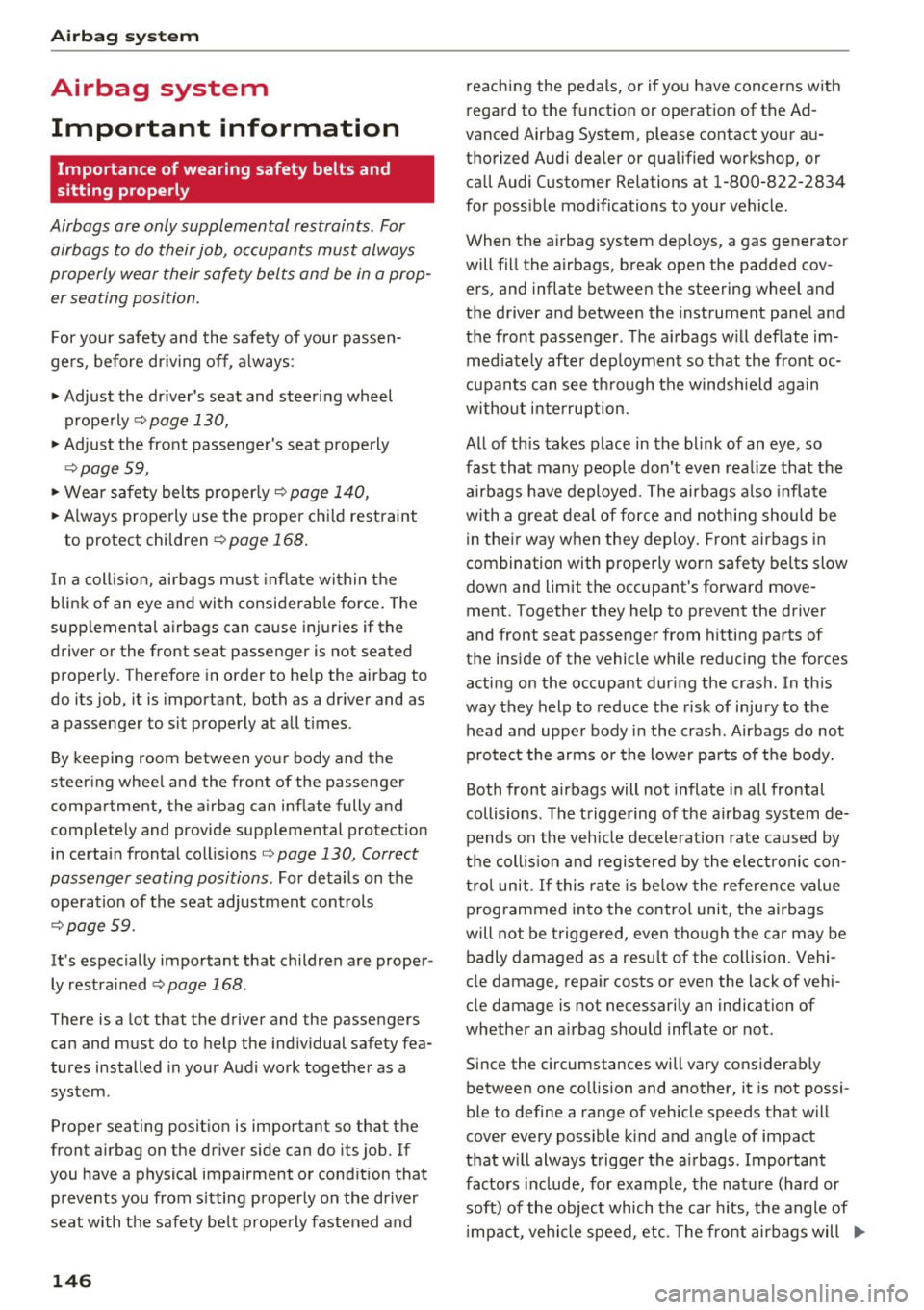

Airbag system
Important information
Importance of wearing safety belts and
sitting properly
Airbags are only supplemental restraints . For
airbags to do their job, occupants must always
properly wear their safety belts and be in a prop ­
er seating position.
For your safety and the safety of your passen­
ge rs , before driving off, always :
"' Adjust the driver's seat and steering wheel
properly ¢
page 130,
"'Adjust the front passenge r's seat properly
¢ page 59,
"'Wear safety belts p roperly ¢ page 140,
"'Always properly use the proper child restraint
to protect children
¢ page 168.
In a coll is io n, airbags mus t inflate within the
blink of an eye and wi th considerab le force. The
supp lemental airbags can cause injuries if the
driv er or th e front s eat passeng er is not s eated
properly. Therefore in order to he lp the airbag to
do its job, it is important, both as a dr iver and as
a passenger to sit properly at all t imes.
By keeping room between your body and the
steering whee l and the front of the passenger
compartment, the a irbag can inflate fully and
completely and provide supplemental protect ion
in certain frontal collisions¢
page 130, Correct
passenger seating positions .
For details on the
operation of the seat adjustment con trols
¢ page 59.
It's especially important that children are proper ­
ly restra ined
¢ page 168 .
There is a lot that the driver and the passengers
can and must do to help the ind iv idual safety fea­
tures installed in your Audi work together as a
system .
Proper seating posit ion is important so that the
front airbag on the drive r side can do its job. If
you have a physical impairment or cond ition that
prevents you from s itting properly on the driver
seat with the safety be lt properly fastened and
146
reaching the peda ls, or if yo u have concerns w ith
regard to the function or operation of the Ad­
vanced Airbag System, please contact your a u­
thori zed Audi dea ler or qua lified workshop, or
ca ll Audi Customer Relations at 1-800-822-2834
for poss ib le modifications to your vehicle .
When the airbag system dep loys, a gas generator
will fill the airbags, break open the padded cov­ ers, and infla te between the steering wheel and
the driver and between the instrument panel and
t h e front passenger . The airbags w il l deflate im­
med iate ly after deployment so that the front oc­
cupants can see t hrou gh the windsh ie ld again
without i nterruption.
All of th is takes p lace in the b link of an eye, so
fast that many people don't even rea lize that the
a irbags have deployed. The airbags a lso infla te
with a g re at deal of force and nothing should be
i n the ir way when they deploy. Front airbags in
combination with properly worn safety belts slow
down and limit the occupant 's forward move­
ment . Together they he lp to prevent the driver
and front seat passenger from hitting pa rts of
the ins ide of the vehicle while reduc ing the fo rces
acting on the occupant dur ing the cras h. In th is
way they help to reduce the risk of injury to the
head and uppe r body i n the crash . Airbags do not
protect the arms or the lower pa rts of the body.
Both front airbags will not inflate in all frontal
collisions . The t riggering of the a irbag system de­
pends on the veh icle decelerat ion rate caused by
t h e coll is io n and regis tered by the ele ctroni c con­
tro l unit . If this ra te is be low the refe rence value
programmed in to the contro l unit, the airbags
will not be trigge red, even tho ugh the car may be
badly damaged as a resu lt of the collision. Vehi­
cle damage, rep air costs or even the lack of vehi­
cle damage is not necessarily an indication of
whether an a irbag should inflate or not .
Since the circumstances will vary cons iderab ly
between one co llision and another, it is not possi ­
ble to define a range of veh icle speeds that will
cover every poss ible kind and angle of impact
that w ill always t rigger t he a irbags . Important
factors i nclude, for examp le, the nat ure (hard or
soft) of the object which the ca r hits, the angle of
i mp act , vehicle speed , etc. The front airbags will .,.

also not inflate in side or rear collisions, or in
ro ll-overs.
A lwa ys rememb er: Airbags will deploy only o nce,
and on ly in certain kinds of coll is ions. Your safety
be lts are always there to offer protection in those
situations in which airbags are not supposed to
deploy, or when they have a lready deployed; for
examp le, when your vehicle str ikes or is struck by
another vehicle after the first collis ion.
This is just one of the reasons why an airbag is a
supp lementary restraint and is not a substitute
for a safety belt. The airbag system works most effect ively when used with the safety belts.
Therefore, always properly wear your safety belts
c::>page 138.
A WARNING
Sitting too close to the steer ing whee l or in­
st rument panel will decrease the effect ive­
ness of the airbags and will inc rease the risk
o f persona l injury in a co llision.
- Never sit closer than 10 inches (25 cm) to
the steering wheel or instrument panel.
- If you cannot sit mo re than 10 inches
( 2 5 cm) from the steering wheel, inves ti­
gate whethe r adaptive equipment may be
available to help you reach the pedals and
increase your seating distance from the
steering wheel.
- If you are unrest rained, leaning forward, s it­
ting s ideways or out of position in any way,
your risk of in jury is much h igher.
- Yo u will also receive serious injur ies and
cou ld even be killed if you are up against the
airbag or too close to it when it inf lates -
even with an Advanced Airbag.
- To reduce the risk of in jury when an airbag
inflates, a lways wear safety belts p roperly
i=> page 141, Safety belts .
-Always make certain that ch ild ren age 12 or
younger always ride in the rear seat. If chil­ dren are not properly restra ined, they may
be severe ly injured o r kill ed when an airbag
inflates .
- Never let children ride unrestrained or im­ prope rly restrained in the veh icle. Adjust the
fro nt sea ts properly.
-
Airb ag sys tem
-Never ride with the back rest recl ined.
-Always sit as fa r as possible from the steer-
ing wheel o r the instrument panel
c::> page 130.
- Always sit upright with your back against
the backrest of your seat.
- Never p lace your feet on the instrument
panel or on the seat. Always keep both feet
on the floor in front of the seat to help pre­
vent ser ious injuries to the legs and hips if
the airbag inflates.
- Never recline the front passenger's seat to transpo rt objects. Items can also move into
the area of the s ide a irbag or the front air­
bag during braking or in a sudden maneu­
ver. Objects nea r the airbags can become
p roje ct il es and cause injury when an airbag
inflates.
A WARNING
A irbags tha t h ave deployed in a cr ash m ust be
r e p laced.
- Use o nly orig inal equipment airbags ap ­
p roved by A udi a nd insta lled by a trained
technici an who has the necessary tools and
diagnostic equipment to properly replace
any airbag in yo ur vehicle and assu re system
effect iveness in a crash.
- Never permit salvaged or recycled airbags to
be installed in you r vehicle .
Child restraints on the front seat - some
important things to know
.,. Be sure to read the important i nformat ion and
heed the WARNINGS for important deta ils
about ch ildren and Advanced A irbags
c::> page 168 .
Even though your veh icle is equipped wit h an Ad ­
vanced Airbag System, make certa in that a ll chil­
dre n, espec ia lly those 1 2 yea rs and yo unger, al­
ways r ide in the back se at prope rly res train ed fo r
their age and size. The ai rbag on t he p asse nger
s ide makes t he fron t seat a potentia lly dange rous
place for a child to ride. The front seat is not the
sa fest p lace for a child in a forward-facing child .,.
147

Airbag system
Front airbags
Description of front airbags
The airbag system can provide supplemental
protection to properly restrained front seat occu­
pants.
Fig. 163 Location of dr iver airbag: in steering whee l
Fig. 164 Location of front passenger's airbag: in th e in­
strument panel
Your veh icle is equipped with an "Advanced Air­
bag System " in compliance with Un ited States
Federal Motor Vehicle Safety Standard
(FMVSS) 208, as well as Canada Motor Vehicle
Safety Standard (CMVSS) 208 as applicable at
the time your vehicle was manufactured. he safe­
ty belts for the seats have "pretensioners" that help to take s lack out of the belt system. The pre­
tensioners are also activated by the electronic
control unit for the airbag system.
The front safety be lts also have load limiters to
help reduce the forces applied to the body in a
crash.
The airbag for the driver is in the steering wheel
hub<=>
fig . 163 and the airbag for the front pas­
senger is in the instrument panel
<=>fig. 164. The
general location of the airbags is marked "AIR­
BAG".
150
There is a lot you need to know about the airbags
in your vehicle . We urge you to read the detai led
i nformation about airbags, safety belts and ch ild
safety in this and the other chapters that make
up the owner's literature. Please be sure to heed
the WARNINGS -they are extremely important
for your safety and the safety of your passengers,
especially infants and small children .
.&_ WARNING -
Never rely on airbags alone for protection.
- Even when they deploy, airbags provide only
supp lemental protection.
- Airbag work most effectively when used
with properly worn safety belts .
- Therefore, always wear your safety belts and make sure that everybody in your vehicle is
properly restrained .
.&_ WARNING
A person on the front passenger seat, espe­
cially infants and small ch ildren, wi ll receive
serious injuries and can even be killed by be­
ing too close to the airbag when it inf lates.
- Although the Advanced Airbag System in
-
your vehicle is designed to turn off the front
passenger airbag if an infant or a small child
is on the front passenger seat, nobody can
absolutely guarantee that deployment un­
der these special conditions is impossible in
all conceivable situations that may happen
during the useful life of your vehicle.
- The Advanced Airbag System can deploy in
accordance with the "low risk" option under
the U.S. Federal Standard if a child that is
heav ier than the typical one-year old ch ild is
on the front passenger seat and the other
conditions for airbag deployment are met.
- Accident statistics have shown that children
are generally safer in the rear seat area than
in the front seating pos ition.
- For their own safety, all children, especially
12 years and younger, should always ride in
the back properly restrained for their age
and size.

passenger seat contains important parts of the
Advanced Airbag System, you must take care to prevent it from being damaged . Damage to the
seat may prevent the Advanced A irbag for the
front passenger seat from doing its job in a
crash.
The f ront Ad vanced Airb ag Sy stem con sist s
of the follo wing :
-Crash sensors in the front of the vehicle that
measure vehicle accelerat ion/decelerat io n to
provide information to the Advanced Airbag
System about the severity of the crash .
- An electronic control un it, with integrated
crash sensors for front and side impacts . The
contro l unit "decides" whethe r to fire the front
airbags based on the information received from
the crash sensors. The control unit also "de ­
cides" whether the safety be lt pretensioners
sho uld be activated.
- An Advanced Airbag with gas generator and
contro l valve for the driver inside the steering
whee l hub .
- An Advanced Airbag with gas generator and
contro l valve inside the instrument pane l for
the front passenger.
- A weight -sensing mat under t he upho lstery
padding of the front passenger seat cushion
that measures the total weight on the seat . The
information registered is sent continuously to
the e lectron ic control unit to regulate deploy­
ment of the front Adva need A irbag on the pas ­
senger side.
- An airbag monitoring system and indicator
light i n the instrument cluster
¢ page 156.
-A sensor in each front seat registers the dis­
tance between the respective seat and the
steering wheel or instrument panel. The infor­
mation reg istered is sent cont inuous ly to the
electronic control unit to regulate deployment
of the fro nt Adv a need A irbags.
- T he
PASS EN GE R AIR BAG OFF light comes on
and stays on in the center of the instrument
pane l
¢page 156, fig . 166 and tells you when
the fron t Advanced Airbag on the passenge r
side has been turned off.
- A se nsor below the safety bel t lat ch fo r th e
front seat passenger to meas ure the tens ion on
Airb ag sys tem
the sa fety belt. The tension on the safety belt
and the weight registered by the weight-sens­
ing mat help the contro l unit "decide" whether
the front airbag for the front passenger seat should be turned off or not¢
page 147, Child
restraints
on the front seat -some important
things to know.
- A sensor in the safety belt latch for the driver
and for the front seat passenger that senses
whether that safety belt is latched o r not and
t ransmits this information to t he electronic
cont rol un it.
_& WARNING
D amage to the front passenge r seat can pre­
vent the front airbag from working properly.
- Imp roper repair or disassembly of the fro nt
passenger and driver seat will p revent the
Advanced Airbag System from f unctioning
p roperly.
- Repairs to the front passenger seat must be
performed by qualified and p roperly trained
workshop personne l.
- Never remove the front passenge r or driver
seat from the vehicle.
- Never remove the upholstery from the front
passenger seat.
- Never disassemble o r remove par ts from the
seat o r disconnect w ires from it.
- Never carry sh arp objects in your pocke ts or
p lace them on the seat. If the weight-sens­
ing mat in the passenger seat is punctu red
it cannot work proper ly.
- Never carry things on your lap or carry ob­
jects on the passenge r seat. S uch items can
increase the weight reg istered by the
weight-sensing mat and send the wrong in­
formation to the a irbag control unit.
- Never store items under the front passenger
seat. Parts of the Advanced Airbag System
under the passenger seat could be dam­
aged, p reventing them and the airbag sys­
tem from working p roper ly.
- Never p lace seat covers or replacement up­
holstery that have not been specifically ap­
p roved by A udi on the front seats.
- Seat covers can prevent the Advanced A ir­
bag System from recognizing chi ld
153

Airbag syste m
-Never place or attach accessories or other
objects (such as cup ho lders, te lephone
brackets, large, heavy or bulky objects) on
the doors, over or near the area marked "AIRBAG" on the steering wheel, instru­
ment pane l, seat backrests or between
those areas and yourself. These objects
could cause injury in a crash, especially
when the airbags inflate.
- Never recline the front passenger's seat to
transport objec ts. Items can also move into
the area of the side airbag or the front a ir­
bag dur ing braking or in a sudden maneu­
ver. Objects near the airbags can become projectiles and cause injury, particularly
when the seat is reclined.
A WARNING
The fine dust created when airbags deploy can
cause breath ing problems for people w ith a
history of asthma or other breathing condi­
t ions.
- To reduce the risk of breathing problems,
those w ith asthma or other respiratory con­
ditions should get fresh air right away by
gett ing out of the vehicle o r opening w in­
dows o r doors.
- If you are in a collision in which airbags de­
ploy, wash your hands and fa ce with mild
soap and water befo re eat ing.
- Be careful not to get the dust into your eyes,
o r into any cu ts or sc ratches.
- If the resid ue should get into yo ur eyes,
flush them with water.
Monitoring the
Advanced Airbag System
~i (USA models)/!f (Canada models)
Airbag monitoring indicator light
Two separate indicators monitor the function of
the Advanced Airbag System: the airbag moni­
toring indicator light and the
PASSENGER AIR
BAG OFF
light.
The Advanced Airbag System (including the elec­
tron ic co ntrol unit, senso r ci rcui ts and system
w iri ng) is monitored con tinuously to make su re
156
that it is functioning properly whenever the igni­
tion is on. Each time you switch on the ignition,
the airbag mon itor ing indicator light
rl (U SA
models)/ E,I (Canada models) will come on for a
few seconds (se lf diagnostics) .
The system mu st be inspected wh en th e
indicat or light
II (USA models) /m (Canada
models ):
- does not come on when the ignition is sw itched
on,
- does not go out a few seconds after you have
sw itched on the ignit ion, or
- comes on while driving.
If an airbag system malfunction is detected, the
indicator light will first start flashing to catch the
driver's attention and then stay on continuously
to serve as a constant reminder to have the sys­
tem inspected immediately .
If a malfunction occurs that turns the front air­
bag on the passenger side off, the
PASSENGER
AIR BAG OFF
light will come on and stay on
whenever the ignition is on .
A WARNING
An airbag system that is not functioning prop­
e rly cannot provide supplemental protectio n
i n a fronta l crash.
- If the ai rbag ind icator light
Q page 18
comes when the veh icle is being used, have
t he system inspected immedia tely by your
author ized Audi dealer . It is possi ble that
the airbag will inflate when it is not sup ­
posed to, or will not inflate when it should .
PASSENGER AIR BAG OFF light
Fig. 16 6 Sect ion from the instrument panel: PASSENGER
AIR BAG O FF light .,,_

Airbag syste m
-the adu lt on the front passenger seat is proper ­
ly seated on the center of the seat cushion with
his or her back up against the backrest and the
backrest is not reclined
c> page 130, Correc t
passenger seating positions,
- the adu lt is not taking weight off the seat by
holding on to the passenger assist handle
above the fron t passenger door or supporting
their we ight on the armrest,
- the safety bel t is being properly worn and that
there is not a lot of slack in the safety belt web­
bing,
- accessory seat covers or cushions or other
th ings that may cause an incorrect read ing or
impression on the weight-sensing mat under
the upho lstery of the seat have been removed
from the front passenge r seat,
- a safety be lt extender has not been left in the
safety belt latc h for the front passenge r seat.
In addition to the
PA SSE NGER AIR BAG OFF
light in the center of the instrument panel, the
message
PASSENGER AIR BAG OFF or PASSEN­
GER AIR BAG ON
w ill briefly appear in the inst ru­
ment cluster display . T his is to inform the driver
of the current front passenger airbag status.
Important safety instructions on
monitoring the Advanced Airbag System
A WARNING
An airbag system that is not funct ion ing prop­
er ly cannot p rovide supplemental p rotection
in a frontal crash .
- If the airbag indicato r light
r=>page 18
comes when the vehicle is be ing used, h ave
the system inspected immediate ly by yo ur
authorized Aud i dealer . It is possible that
the airbag will inflate when it is not s up­
posed to, or will not inflate when it should.
A WARNING
If the front airbag inflates, a child without a
child restraint, or in a rearward-facing child
safety seat, or in a forward-facing child re­
straint that has not been properly installed
w ill be seriously injured and can be killed .
158
-Even tho ugh your vehicle is equipped with
an Advanced A irbag System, make certain
that a ll children, espec ia lly 12 years and
younger, always ride on the back seat prop­
erly restrained for their age and s ize.
- Always install forward or rear-facing child
seats on the rear seat -even w ith an Ad­
vanced Airbag System .
- If you must install a rearward-facing child
seat o n the front passenge r seat because of
except ional circumstances and the
PASSEN­
GER AIR BAG OFF
light does not appear and
s tay on, immediate ly ins tall the re ar-fa cing
child sea t in a rear seat ing pos ition and have
the airbag system inspected by your Audi
dea ler.
- A t ight tether or other s trap on a rearward­
facing chi ld restraint attached to the front
passenger seat can put too much pressure
on the weight-sensing mat in the seat and
register more weight than is actually on the
seat . The heavier weight registered can
make the system work as thoug h an adu lt
were on the seat and deploy the Advanced
Airbag when it must be suppressed causing
serious or even f atal injury to the child .
- If, in exceptional circumstances, you must
install a forward-fa cing child res traint on
the front p assenge r seat, always move the
seat into i ts rearmost posi tion in the sea t's
fore and aft ad justment range, as far away
from the ai rbag as possible . The back rest
must be adjusted to an upr ight position .
Make sure that the
PASSENGER AIR BAG
OFF
li ght comes on and stays on all the time
wheneve r the ignit ion is switched on.
A WARNING
- If the PASSENGER AIR BAG OFF light does
not go out when an adult is sitting on the
front passenger seat afte r taking the steps
described above, make s ure the adult is
p roper ly sea ted and restra ined at one o f the
rear sea ting posit ions .
- Have the ai rbag system inspec ted by your
Aud i dea le r before tr anspor ting anyone on
the front passenge r seat .

(D Tips
If the weight-sensing mat in the front passen­
ger seat detects an empty seat, the front air­
bag on the passenger side will be turned off,
and the
P ASS ENGER AI R BA G OFF light will
stay on.
Repair , care and disposal of the airbags
Parts of the a irbag system are installed at many
d ifferent p laces on your Aud i. Installing , remov­
ing, servic ing or repa iring a part in an area of the
vehicle can damage a part of an airbag system
and p revent that system from working properly
in a co llision.
There are some important things you have to
know to make su re that the effectiveness of the
system w ill not be impaired and that discarded
components do not cause injury or pollute the
environm ent .
A WARNING
Improper care, serv icing and repa ir proce­
dures can increase the risk of personal injury
and death by preventing an airbag from de­
ploying when needed or deploying an airbag
unexpectedly:
-
- Never cover, obstruct, or change the steer ­
ing wheel horn pad or a irbag cover or the in­
strument panel or mod ify them in any way .
- Never attach any objects such as cup holders or telephone mountings to the surfaces cov­
er ing the airbag units.
- For cleaning the horn pad or instrument
pane l, use on ly a soft, dry cloth or one mois­
tened with plain water. Solvents or cleaners cou ld damage the a irbag cover or change
the stiffness or strength of the material so
that the airbag cannot dep loy and protect
properly.
- Never repair, adjust, or change any parts of
the airbag system.
- All work on the steering wheel, instr ument
pane l, front seats or electrical system (in­
cluding the installation of audio equipment,
cellu lar telephones and CB radios, etc.)
must be performed by a qualified technician
Airb ag sys tem
who has the training and special equ ipment
necessary.
- For any wo rk on the airbag system, we
strong ly recommend that you see your au­
thorized Audi dealer or qualified workshop .
- Never modify the front bumper or parts of
the vehicle body.
- Always make sure that the side a irbag can
inflate without interference:
- Never install seat covers or replacement
upholstery ove r the front seatbacks that
have not been specifica lly approved by
Audi .
- Never use addi tional seat c ushions that
cove r the areas where the side airbags in­
flate.
- Damage to the orig inal seat cove rs or to
the seam in the area of the s ide airbag
module must a lways be repaired immedi­
ate ly by an authorized Aud i dealer.
- The airbag system can be activated only
once . A fter an airbag has inflated, it must
be replaced by an authorized Audi dealer or
qualified technic ian who has the technical
information, t raining and spec ial equ ipment
necessary.
- The airbag system can be deployed only
once . After an airbag has been deployed, it
must be replaced with new rep lacement
parts des igned and approved especially for
your Aud i model version. Replacement of
comp lete airbag systems or airbag compo­
nents must be performed by qualified work­
shops only. Ma ke sure that any airbag serv­
ice act ion is en tered in your Aud i Wa rranty
& Maintenance booklet under AIRBAG RE ­
PLACEMENT RECORD.
- For safety reasons in severe accidents, the
alternator and starter are separated from
the vehicle battery with a pyrotechnic circ uit
interrupter.
- Wo rk on the pyrotechnic c ircuit inte rrupt­
er must on ly be performed by a qua lified
dealer -risk of an acc ident!
- If the vehicle or the circuit interr upter is
scrapped, all applicable safe ty p recau tions
mus t be followed.
159

Airbag syste m
airbags have dep loyed . The airbags also inflate
with a great deal of force and it is important for
occupant safety that noth ing shou ld be in their
way when they deploy.
F u lly inflated airbags in combination with proper ­
ly worn safety belts slow down and limit the oc­
cupant's forward movement and he lp to reduce
the risk of injury.
Important safety instructions on the knee
airbag system
Airbags ore only supplemental restraints. Always
wear safety belts correctly and ride in a proper
seating position .
There is a lot that you and your passengers must
know and do to help the safety belts and airbags
to provide supplemental protection .
A WARNING
An inflating knee airbag can cause ser ious in­
jury. Wea ring safety belts incor rect ly and im­
proper seating pos it ions increase the r isk of
ser ious persona l injury and dea th whenever a
vehicle is being used.
- T he knee airbag system cannot protec t you
properly if you are seated too close to any o f
the airbag locatio ns. When adjusting their
seat positions, it is important that both the
dr iver and the front passenger keep their
upper bod ies and knees at the following
minimum safe distances:
- at least 10 inches (25 cm) between the
chest and the s teer ing whee l/instrumen t
panel.
- at least 4 inches (10 cm) between the
knees and the lower part of the i nstru­
ment panel.
- The r isk of persona l injury inc reases if you
lean forward or to the s ide, or if the seat is
imp roperly positioned and yo u are not wear­
ing yo ur safety belt. The risk increases even
more should the a irbag deploy.
- Always make sure that the knee airbag can
inflate without interference. Objects be­
tween you and the airbag can increase the risk of injury in an accident by interfering
162
w it h the way the airbag deploys or by being
pushed into yo u as the a irbag deploys.
- Neve r let anybody, especia lly childre n or
anima ls ride in the footwell in front of the
passenger seat.
If the airbag de ploys, this
can result in serious or fa tal in juries.
- Never ca rry objects of any kind in the foot­
well a rea in front of the driver's or pas­
senger's seat . Bul ky objects (shopp ing
bags, for example) can interfere with or
prevent proper dep loyment of the airbag .
Small objects can be thrown through the
vehicle if the airbag deploys a nd injure you
or your passengers.
- Make sure there are no cracks, deep scratch­
es or other damage in the area of the instru­
ment panel where the knee airbags are lo­
cated .
- If ch ildren are i ncorrectly seated, their risk
of injury increases in a col lision
c::> page 168, Child safety .
Side airbags
Description of side airbags
The airbag system con provide supplemental
protection to properly restrained occupants .
Fig. 169 S id e airbag location in the driver's seat
The side airbags are located in the s ides of the
front seat backrests<=>
fig. 169 and the rear back­
rest facing the doors . They are identified by the
word "AIRBAG" .
The side airbag sy stem bas ically consi st s of:
- the electronic control module and external side
impact sensors

Airbag syste m
How supplemental side airbags work
Side airbags deploy instantly and can help re­
duce the risk of upper torso injuries for occu­
pants who are properly restrained .
Fig . 1 70 In fla ted side airbags o n lef t s ide of vehicle , rear
side a irbag
When the system is triggered, the a irbag is filled
with propellant gas and breaks through a seam in
the seat surface area ma rked "AIRBAG". It ex ­
pands between the side trim pane l and the pas­
senger. In order to help provide th is additiona l
protection, the side ai rbag must inflate within a
fraction of a second at very h igh speed and with
great force . The supplementa l side airbag could
injure you if your seating position is not proper or
upright or if items are located in the area where
the supplemental side airbag expands . This ap ­
plies especially to children
~ page 168, Child
safety .
Supplemental side a irbags inflate be­
tween the occupant and the door pane l on the
side of the vehicle that is struck in certa in side
coll is ion
~ fig. 170.
A lthough they are not a soft pillow, they can
"cushion" the impact and in th is way they can
help to reduce the risk of injury to the uppe r part
of the body .
A fine dust may develop when the airbag deploys .
This is normal and does not mean there is a fire
in the vehicle .
164
Important safety instructions on the side
airbag system
Airbags are only supplemental restraints . Always
properly wear safety belts and ride in a proper
seating position .
There is a lot that you and your passengers must
k now and act according ly to help the safety belts
and airbags do their job to prov ide supplemental
protect ion .
_& WARNING
An inflating side airbag can cause serious or
fatal injury. Improperly wearing safety be lts
and improper seating posit ions increase the
risk of serious persona l injury and death
whenever a vehicle is being used.
- In order to reduce the risk of injury when
the supplemental side airbag inflates:
- Always s it in an upr ight position and never
l ean agains t the area where the supple­
mental s ide airbag is located .
- Never let a child or anyo ne e lse rest their
head against the side tr im panel in the
area where the s upplementa l side airbag
inflates .
- Always make s ure t hat safety belts are
worn correctly,
- Do no t let anyone s itting in the front seat
p ut their hand or any other parts of their
body out of the window.
- Always make sure that the side a irbag can
inflate w ithout interference.
- Never install seat covers or replacement
upholstery over the front seatbacks that
have not bee n specifical ly approved by
A udi .
- Never use additional seat cushions that
cover the areas where the side airbags de­ ploy.
- Damage to the orig inal seat cove rs or to
the seam in the area of the s ide airbag
module must a lways be repaired immedi­
ate ly by an autho rized Aud i dealer .
-
-Objects between you and the a irbag can in­
crease the r isk of injury in an acc iden t by in­
t erfering wi th the way the airbag unfolds or
~

items are located in the area where the supple­
mental side curtain airbag inflates. This applies
especially to children¢
page 168.
Although they are not a soft pillow, side curtain
airbags can "cushion" the impact and in this way
they can help to reduce the risk of injury to the
head and the upper part of the body.
A fine dust may develop when the airbag deploys.
This is quite normal and does not mean there is a
fire in the vehicle.
Important safety instructions on the side
curtain airbag system
Airbags are only supplemental restraints. Always
properly wear safety belts and ride in a proper
seating position.
There is a lot that you and your passengers must
know and do to help the safety belts and airbags
do their job to provide supplemental protection.
A WARNING
Improperly wearing safety belts and improper
seating positions increase the risk of serious
personal injury and death whenever a vehicle
is being used.
- Never let occupants place any parts of their
bodies in the area from which the side cur­
tain airbags inflate.
-Always make sure that the side curtain air­
bags can inflate without interference. Un­
suitable accessories fitted inside the expan­
sion range of a side curtain airbag can dan­ gerously interfere with its function. A de­
ploying head airbag develops enough force
to catapult any piece of add-on component
out of its path of inflation and into the pas­
senger compartment. An occupant hit by
such a projectile can suffer serious injury or
death ¢
page 283, Technical Modifications.
-Do not swivel the sun visors to the side if
you have any objects clipped onto them (for example pens). If the airbag should deploy,
you could be injured by these objects.
- Use the built-in coat hooks only for light­
weight clothing . Never leave any heavy or
sharp-edged objects in the pockets that may
Airbag system
interfere with airbag deployment and can
cause personal injury in an accident.
- Never use hangers to hang clothing from
the hooks.
- Only use factory-installed sun shades or, in
the case of shades installed after the vehicle
leaves the factory, only Audi roll-up
sunscreens may be used
c:> page 283, Addi­
tional accessories and parts replacement .
-Always sit in proper seating position and
wear safety belts while traveling so that the
side curtain airbags can help provide protec­
tion .
- The airbag system can only be triggered
once. If the airbag has been triggered, the
system must be replaced by an authorized
Audi dealer or qualified workshop.
-Always have work involving the side curtain
airbag system, removal and installation of
the airbag components, or other repairs
performed by a qualified dealership . Other­
wise the airbag system may not work cor­
rectly.
- Never attempt to modify any components of
the airbag system in any way.
167
