check engine AUDI A8 2017 Owner's Manual

0 co .... N ,..._
N .... 0 0 :c ' Using the proper engine oil is important for the
functionality and service life of the engine. Your
engine was factory-filled with a high -quality oil
which can usually be used throughout the entire
year.
Note
Your Limited New Vehicle Warranty does not cover damage or malfunctions due to failure
to follow recommended maintenance and use
requirements as set forth in the Audi Owner's Manual and Warranty & Maintenance booklet.
- Use only a high quality engine oil that ex-
pressly complies with the Aud i oil quality
standard specified for your vehicle's engine.
Using any o ther oil can cause serious engine
damage.
- Do not mix any lubricants o r other additives
into the engine oil. Doing so can cause en­
gine damage.
@ Tips
If you need to add oil and there is none availa­
ble that meets the Audi o il quality standard
your eng ine requ ires, you may add a total of
no more than 0 .5 quart/li ter of a h igh-quality
"synthet ic"oil that meets the following speci ­
fications.
- Vehicles with gasoline eng ine: ACEA A3 o r
API SM with a viscosity grade of SAE OW-30,
SAE SW-30 or SAE SW-40.
- For more information about engine oil that has been approved for your vehicle, please
contact e ither your authorized Audi dea ler
or A udi Customer Relat ions at
1 (800) 822-2834 or visit our web site at
www.audiusa.com or www.aud icanada .ca.
Engine oil consumption
The engine in your vehicle depends on an ade­
quate amount of oil to lubricate and cool all of
its moving parts .
In order to provide effective lubr ication and coo l­
ing of internal engine components, all internal
combustion engines consume a certain amount
of oil. Oil consumption varies from engine to en­
g ine and may change significant ly over the life of
Ch eck ing and Filling
the engine. Typ ica lly, engines with a specified
break-in period (see ¢
page 73) consume more
o il during the break -in per iod than they consume
after oil consumption has stabili zed.
Under normal cond itions, the rate of oil con ­
sumption depends on the quality and viscosity of
the oil, the RPM (revo lutions per minute) at
which the engine is operated, the amb ient tem­
perature and road condit ions. Further factors are
the amount of o il dilution from water condensa­
t ion or fuel residue a nd the oxidat ion level of the
o il. As any engine is subject to wear as mileage
builds up, the oil consumption may increase ove r
t ime unt il repla cement of worn components may
become necessary .
With a ll these variab les coming into play, no
sta ndard rate of o il cons umption can be estab­
l is h ed or spec ified. The re is no alternative to reg­
u lar and frequent checking of the oi l level, see
Note .
If the yellow engine o il leve l warning symbo l in
t h e instr ume nt cl uster
II lights up, yo u should
check the o il level as soon as possible
¢ page 2 76 . Top off the o il at your earliest con ­
venience
¢ page 276.
A WARNING
-Before you check anyth ing in the engine com-
partment, always read and heed all WARN­
INGS
¢ .& in Working in the engine compart­
ment on page 271 .
@ Note
Driving with an insufficient oil level is likely to
cause severe damage to the eng ine.
(D Tips
- The oil pressu re warning display. is not
an indicator of the o il le vel. Do not rely on
i t. Instead, check the oil level in you r en­
g ine at regular inter vals, preferabl y each
time you refuel, and alw ays before go ing
on a long trip .
-If you have the impression your engine con­
sumes excessive amou nts of oil, we recom-
mend that you consult your Aud i dea le r to .,,.
275

Checking and Filling
have the cause of your concern properly di­
agnosed. Keep in mind that the accurate
measurement of oil consumption requires
great care and may take some time. Your
Audi dealer has instructions about how to
measure oil consumption accurately.
Checking the engine oil level
A pp lies to: ve hicles w ith oil leve l indicator
The engine oil level can be checked in the Info­
tainment system
Observe the safety precautions c:::> &. in Working
in the engine compartment on page 2 71.
.. Park your vehicle on a level surface.
.. Shut the engine off when it is warm .
.. Switch only the ignition back on.
.. Wait approximately two minutes.
.. Select: the
ICARI function button > Car systems
control button > Servicing & checks> Oil level.
.. Read the oil level in the display . Add engine oil
if the bar in the oil level indicator is just before
"min"
<=:> page 276.
The engine oil consumption may be up to
0.5 quart/600 miles (0.5 liter/1,000 km), de­
pending on driving style and operating condi­
tions. Consumption may be higher during the
first 3,000 miles (5,000 km). Because of this, the
engine oil level must be checked regularly. It
would be best to check each time you refuel your
vehicle and before long drives.
@ Tips
The oil level indicator in the display is only an
informational display. If the oil level is too
low, a minimum oil warning appears in the in­
strument cluster. Add oil and close the hood.
The current oil level is displayed in the Info­
tainment system the next time the ignition is
switched on .
276
· Adding engine oil~
Fig. 260 En gine compartment : engine oil f iller opening
cover
Read and follow the WARNINGS before check­
ing anything in the engine compartment
c:::> page 2 71 .
.. Turn the engine off .
.. Unscrew the engine oil filling opening cap
"I::?:
c:::> fig. 260, c:::> page 2 74.
.. Carefully add 0.5 quart (0.5 liter) of the correct
oil
c:::> page 2 74.
.. Check the oil level again after two minutes
c:::> page 2 76, Checking the engine oil level .
.. Add more oil if necessary.
.. Close the engine oil filler opening cap.
A WARNING
- When adding oil, do not let oil drip onto hot
engine components. This increases the risk
of afire.
- Always clean skin thoroughly if it comes into
contact with engine oil.
(D Note
- Check the oil level. If the message Please
reduce oil level
appears, contact an author­
ized Audi dealer or authorized Audi Service
Facility to have excess oil extracted if neces­
sary.
- Do not mix any additional lubricants into
the engine oil. Damage caused by such addi­
tives is not covered by the warranty.
(® For the sake of the environment
-Oil should never enter the sewer system or
come into contact with the ground.

0 co .... N ,..... N .... 0 0 :c ' - Pay attention to legal requirements when disposing of empty oil containers .
Changing the engine oil
We recommend that have your oil changed by an
authorized Audi dealer or a qualified service sta­
tion .
Before you check anyth ing in the eng ine compart­
ment,
a lways rea d and heed all WARNINGS¢ &
in Working in the engine compartment on
page 271.
The engine oil must be changed according to the intervals specified in your Warranty
& Mainte­
nance booklet . This is very important because the
lubricat ing propert ies of oil diminish gradually
during normal vehicle use.
Under some circumstances the engine oi l should
be changed more frequently. Change oil more of­
ten if you drive mostly short distances, operate
the vehicle in dusty areas or under predominantly
stop-and-go traffic condit ions, or have your vehi­
cle where temperatures remain below freezing
for extended periods .
Detergent additives in the oil will make fresh oil
look dark after the engine has been running for a
short time . This is normal and is not a reason to
change the oil more often than recommended .
Because of the problem of proper disposal, along
with the special tools and necessary expertise re­
qu ired, we strongly recommend that you have
your oil changed by an authorized
A ud i d ea ler or
a qualified service station .
If y ou choo se to change yo ur o il y o urse lf, please
note the following important information:
A WARNING
To red uce the risk of personal injury if you
must change the engine oil in your veh icle
yourself:
- Wear eye protection .
- To reduce the risk of burns from hot engine
o il, let the eng ine cool down to the touch.
-
- When removing the o il drain plug with your
fingers, stay as far away as poss ible. Always
Ch eck ing and Filling
keep your forearm parallel to the ground to
help prevent hot oil from running down your
arm.
- Drain the oil into a container designed for
this purpose, one large enough to hold at
least the total amount of oil in your engine.
- Engine oil is poisonous. Keep it well out of the reach of children.
- Continuous contact with used engine oil is
harmful to your skin. Always protect your
skin by washing oil off thoroughly with soap
and water .
CI) Note
Never mix oil additives with your engine oil.
These additives can damage your engine and
adversely affect your Audi limited New Vehi­
cle Warranty.
® For the sake of the environment
- Before chang ing your oi l, first make sure
you know where you can properly d ispose of
the used oil.
- Always dispose of used engine o il properly.
Do not dump it on garden soil, wooded
areas, into open streams or down sewage
drains.
- Recycle used engine o il by tak ing it to a used
eng ine oil collection fac ility in your area, or
contact a service station .
Cooling system
Coolant
The engine cooling system is filled with a mixture
of purified water and coolant additive at the fac­
tory. This coolant must not be not changed .
T he coo lant level is monitored through the. in­
dicator light¢
page 20. However, we do recom­
mend occasionally checking the coolant leve l
manually.
If you must add coolant, use a mixture of wate r
and coolant additive . Mixing the coolant additive
with dist illed water is recommended.
ll>
277

Checking and Filling
Coolant addit iv e
The coolant additive is made of anti-freezing and
corrosion protection agents. Only use the fo llow­
ing coolant additives .
Coolant additive Sp ecification
G13 TL 774)
G12++ TL 774 G
These additives may be mixed with each other.
The amount of coolant additive that needs to be
mixed w ith water depends on the climate where
the vehicle will be operated . If the coolant addi­
tive percentage is too low, the coo lant can freeze
and damage the engine.
Coolant addi- Freeze protec-
tive tion
Warm regions min
. 40%,
min. -13 °F
max. 45% (-25 °C)
Cold regions min . 50%, max. -40 °F
max. 55% (-40
°C)
(D Note
-Before the start of winter, have your author­
ized Audi dealer or authorized Audi Service
F ac ility check if the coolant additive in you r
vehicle matc hes the percentage appropriate
fo r the clim ate. This is espe cially important
when driving in colder climates .
-If the appropriate coolant addi tive is not
available in an emergency, do not add any
other additive for risk of damaging the en ­
gine. If this happens, only use water and re­
store the correct mixture ratio with the
specified coolant additive as soon as possi­
ble.
- Only refill with new coo lant.
- Radiator sealant must not be mixed with
the coo lant.
278
Adding coolant
Fig. 261 E n g in e compartment: coolant expansion tank
cover
Observe the safety precautions ¢ .&. in Working
in the engine compartment on page 2 71.
Check ing the engine coolant level
.,. Park the vehicle on a level surface.
.,. Switch the ignit ion off.
.,. Read the coolant level on the coolan t expansion
tank
¢page 274. The coolant leve l must be be­
tween the M IN and MAX markings when the en­
gine in cold . When the engine is warm it can be
slightly above the MAX marking .
Adding coolant
Requirement: there m ust be a residua l amount of
coolant in the expansion t ank
~ CD.
.,. Let the engine cool down .
.,. Place a cloth
over the coolant expansion tank
cap and unsc rew the cap cou nte rclockw ise
~ .&. -
.. Add coolant mixed in the correc t ratio
~ page 277 up to the MAX marking.
.,. Make sure that the fluid level remains stable.
Add more coolant if necessary .
.,. Close the cap securely .
Coo lant loss usually indicates there is a leak . Im­
med iate ly drive your vehicle to an authorized
Audi dealer or authorized Audi Service Facility
and have the cooling system inspected.
If the
cooling system is not leak ing, a loss can come
from the coolant boiling through overheat ing
and being pushed ou t of the cooling system .

C)
_& WARNING
-The cooling system is under pressure. Do
not open the coolant expansion tank cap
when the engine is hot. This increases the
risk of burns .
- The coolant add itive and the coolant can be
dangerous to your health. For this reason,
keep the coolant in the original container
and away from children. There is a risk of
poisoning.
- When working in the engine compartment,
remember that the radiator fan can sw itch
on even if the ignition is switched off, which
increases the risk of injury.
CD Note
Do not add coolant if the expansion tank is
empty. Air could enter the cooling system and
damage the engine. If this is the case, do not
continue driv ing. See an authorized Audi deal­
er or authorized Audi Service Facility for assis­
tance.

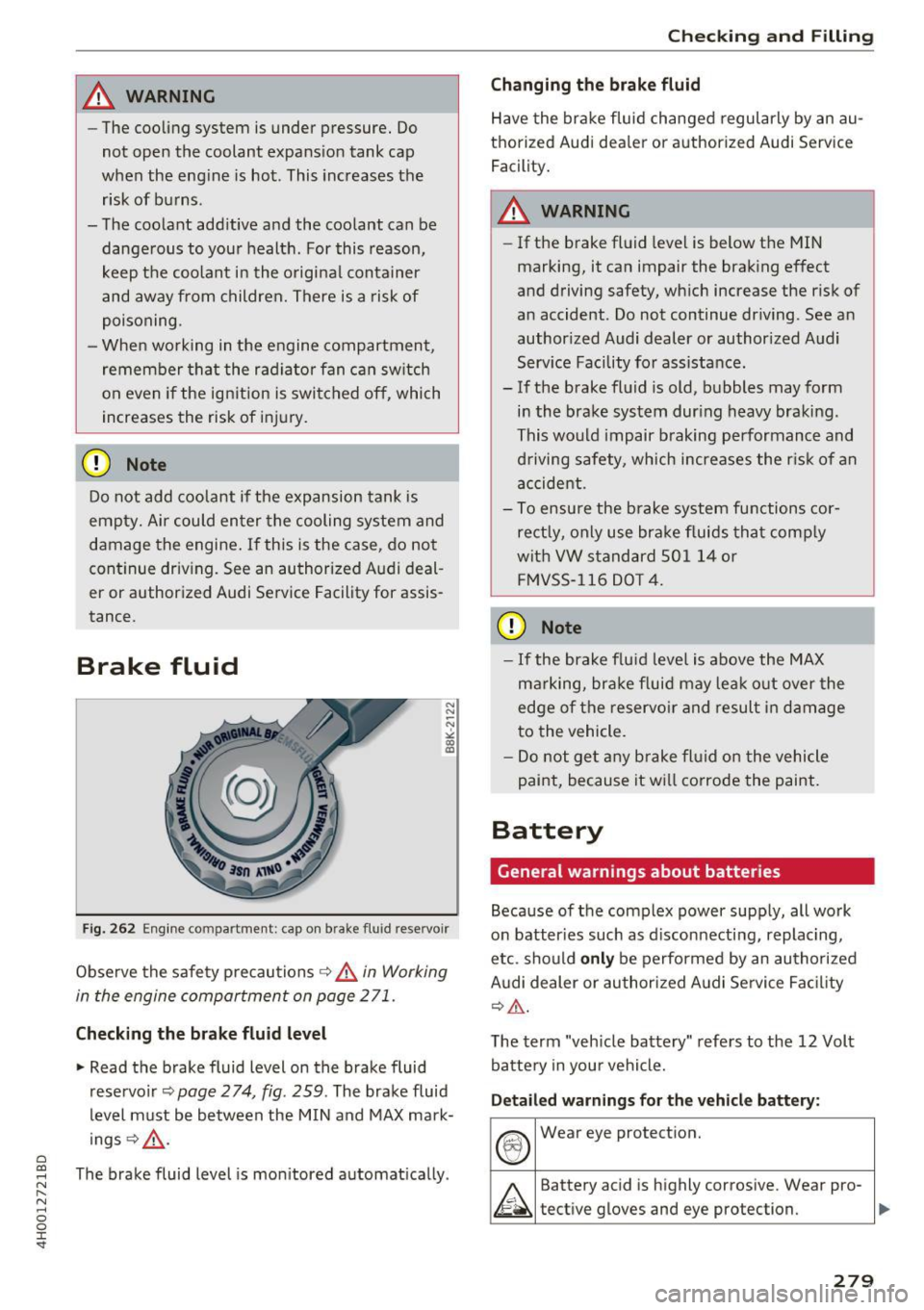

Brake fluid
N
N
-N
" co IXl
F ig. 262 Engine compartment: cap on brake fluid re servoir
Observe the safety precautions c:> &. in Working
in the engine compartment on page 2 71.
Checking the brake fluid level
" Read the brake fluid level on the brake fluid
reservoir
c:> page 2 74, fig. 259. The brake fluid
level must be between the MIN and MAX mark­
ings
c:> &_ .
~ The brake fluid level is mon itored automatically .
" N ...... 0 0 :r Checking and Filling
Changing the brake fluid
Have the brake fluid changed regularly by an au­
thorized Audi dealer or authorized Audi Service
Facility.
A WARNING
-
- If the brake fluid level is below the MIN
marking, it can impair the braking effect
and driving safety, which increase the risk of
an accident . Do not continue dr iving. See an
author ized Audi dealer or author ized Audi
Service Facility for assistance.
- If the brake fluid is old, bubbles may form
in the brake system dur ing heavy braking.
This would impair braking performance and
driving safety, which increases the r isk of an
accident.
- To ensure the brake system functions cor­
rectly, only use brake fluids that comply
with VW standard 50114 or FM VSS -116 DOT 4.
CD Note
-If the brake f luid level is above the MAX
marking, brake f luid may leak out over the
edge of the reservoir and result in damage
to the vehicle.
- Do not get any brake fluid on the vehicle
paint, because it wi ll corrode the paint.
Battery
General warnings about batteries
Because of the complex power supply, all wo rk
on batter ies such as disconnecting, replac ing,
etc. should
only be performed by an authorized
Audi dealer or authorized Audi Service Fac il ity
c:> & .
The term "vehicle battery" refers to the 12 Volt
battery in your vehicle.
Detailed warnings for the vehicle battery:
® Wear eye protection.
I.)._ Bat~ery acid is highly corrosiv~. Wear pro-
~ tect1ve gloves and eye protection. Ill-
279

Checking and Filling
Service interval display
The service interval display detects when your ve­
hicle is due for service.
The service interval display works in two stages:
-Inspection or oil change reminder: after a cer-
tain distance driven, a message appears in the
instrument cluster display each time the igni ­
tion is switched on or off . The remaining dis­
tance or time is displayed briefly.
- Inspection or oil change due: if yo ur vehicle
has reached an inspection or oi l change interval
or both intervals at the same time, the mes­
sage
Inspection due! or Oil change due! or Oil
change and inspection due!
appears briefly af­
ter switching the ignition on/off .
Checking service intervals
You can check the remaining distance or time un­
til the next oil change or next inspection in the
Car menu. To do this, select : the
ICARI function
but ton
> Car systems control button > Servicing
& checks > Service intervals .
Resetting the indicator
Your authorized Audi dealer or authorized Audi
Serv ice Facility will reset the serv ice interval dis­
p lay after performing serv ice.
If you have changed the oil yourself, you must re­
set the oil change interva l.
To reset the indicator, select : the
ICARI function
button
> Car systems contro l button > Servicing
& checks > Service intervals. Turn the control
knob downward to
Reset oil change interval and
press the control knob.
([) Note
-Only reset the oil change indicator if the oil
was changed .
- Following the service intervals is critical to
maintain ing the service life and va lue of
your vehicle, especially the engine. Even if
the m ileage on the vehicle is low, do not ex­
ceed the time for the next service.
282

Wheels
@ For the sake of the environment
Low tire pressure inc reases fuel consumption
and tire wear.
@ Tips
- The pressure of the spare tire * is not moni ­
tored.
- If t ires are re pla ced, the sensors/valves do
not need to be removed or rep laced . Ju st re­
placed the valve stem and, if necessary, the
valve and the wheel e lectron ics . If you have
quest ions, see your autho riz ed Aud i dea ler
or authorized Audi Service Facility.
Displaying tire pressures/temperatures
App lies to : 58 plus
Req uirement: the ign ition must be switched on .
.,. Select : the
ICARI function button > C ar s ystems
> Serv icing & checks > Tire pressure mon itor ­
ing
> Display tire pressures.
The current tire pressures are shown in green and
yellow numbers in the Infotainment system:
- Green : the current tire pressure and the speci­
fied tire pressure are approximately the same .
-Yellow: the c urrent tire press ure is too low
compared to the specified tire pressure.
The spe cified t ire press ure is the la st tire pres­
sure th at was s tored
c::> page 305.
No te that the tire pressure also depends on the
t emperature of the ti re . The ti re pressu re in­
creases as the engine becomes wa rmer wh ile
d riving.
& WARNING
R ea d and follow t he important information
and notes
c::> page 303 .
@ Tips
The tire pressure or tem per ature are not dis­
pl ayed in ada ptation mode. D ashe s·-.·- are
shown i n place of the press ure and tempera ­
ture .
304
-
Tire pressure loss
Applies to: 58 plus
Fig. 2 70 Dis pla y: ind icator light w it h a mess age
If the [I] ind icator light turns on, the pressure in
at least one tire is too low or new sensors were
not adapted:
RE indicator light s turn s on after turning the
ignition on
The tire pressure is too low compared to the
spec ified press ure .
.. Check and store the tire press ure(s) the next
time it is possible
c::> page 305.
RE indicator light turns on while dr iving
Wheels with new sensors we re not adapted or
the tire p ressure has reached a critica l level com­
pared to the specif ied pressure.
.. Avoid unnecessary s teering and brak ing maneu-
vers .
.. Adapt your driving sty le to the s ituation.
.. Stop as soon as possib le and check the tire(s).
.. If it is possib le to cont inue dr iv ing, see an au-
thorized Audi dealer or authorized Audi Service
Facility immediately and have your tire(s) re ­
pai red or rep laced .
& WARNING
Read and f ollow the impo rtant inform ation
and notes
c::>p age 303.
-

0 co .... N ,..... N .... 0 0 :c ' Emergency situations
General
This chapter is intended for trained emergency
crews and working personnel who have the nec­
essary tools and equipment to perform these
ope rations.
Starting by pushing or
towing
CD Note
Veh icles with an automatic transmission can­
not be started by pushing or towing.
Starting with jumper
cables
If necessary, the engine can be started by con­
necting it to the battery of another vehicle.
If the engine shou ld fail to start because of a dis ­
charged or weak battery, the battery can be con­
nected to the battery of
another vehicle, using a
pair of jumpe r cables to start the engine.
Jumper cables
Use only jumper cables of suffic iently large cross
section
to carry the starter current safely. Refer
to the manufacturer's specifications.
Use only jumper cables with
insulated term inal
clamps which are dis tinct ly marked:
plus (+) cable in most cases colored re d
minus( -) cable
in most cases colored black.
A WARNING
Batteries contain electricity, acid, and gas.
Any of these can cause very serious or fatal in­
jury. Follow the instructions below for safe
handling of your vehicle's battery.
- Always shield your eyes and avo id leaning
over the battery whenever poss ible.
- A dead battery can freeze at temperatures
around 32 °F (0 °C). If the vehicle battery is
frozen, you must thaw it before connecting
the jump start cab les. If you do not, this in-
Emergency situations
creases the risk of an explosion and chemi­
cal burns. After jump starting the vehicle,
drive to an authorized Aud i dealer or author­
ized Audi Service Facility immediately to
have the vehicle battery checked.
- Do not allow battery ac id to contact eyes or
skin . Flush any contacted area with water
immed iately.
- Improper use of a booster battery to start a
veh icle may cause an explosion .
- Veh icle batteries generate explosive gases.
Keep sparks, flame and lighted cigarettes
away from batter ies.
- Do not try to jump start any vehicle with a
low acid level in the battery .
- The voltage of the booster battery must also
have a 12-Volt rat ing. The capacity (Ah) of
the booster battery should not be lower
than that of the discharged battery. Use of
batter ies of different voltage or substantial­
ly different "Ah" rating may cause an exp lo­
sion and personal injury.
- Never charge a frozen battery. Gas trapped
in the ice may cause an explosion.
- Never charge or use a battery that has been
frozen . T he battery case may have be weak­
ened.
- Use of batteries of different voltage or sub­
stantially different capacity (Ah) rating may
cause an exp losion and injury . The capacity
(Ah) of the booster battery should not be
lower than that of the discharged battery.
- Before you check anything in the engine
compartment, always read and heed all
WARNINGS
qpage 271.
CD Note
-App lying a higher voltage booster battery
wi ll ca use expensive damage to sensitive
electronic components, such as control
units, relays, radio, etc.
- There must be no electrical contact between
the vehicles as otherwise current could al­
ready start to flow as soon as the positive
(+) terminals are connected.
327

-When connect ing jumper cables, make sure
that they cannot get caught in any mov ing
parts in the engine compartment.
- Before you check anything in the engine
compartment, a lways read and heed a ll
WARNINGS
¢ page 271.
(D Note
Impro per hook-u p of jum per cables can ru in
the generato r.
- Always connect POSITIVE( +) to POSITI VE
( + ), and NEGATIVE( -) to NEGATIVE( -)
g round post of the battery manager contro l
unit.
- Check that a ll screw p lugs on the batt ery
cells are sc rewed in firmly. If not, t ighten
pl ugs p rior to connect ing clamp on negative
b atte ry te rmi nal.
- Please note t hat the procedure fo r con nect­
i ng a jumper cab le as desc ribed above ap­
p lie s specifica lly to the case of yo ur vehicle
b eing ju mp started. When you are g iv ing a
ju mp s tart t o another vehicle, do
not con­
n ect th e neg ative( -) ca b le to the neg ative
( -) t ermin al on t he disch arge d batte ry @
¢ fig . 291 . Instead, secure ly connect the
n egative(- ) cab le to either a solid metal
com ponent that is f irm ly bolted to the en­
gine block o r to the engine bloc k itself. If
the battery that is be ing c ha rged does not
vent to the outs ide, escap ing batte ry gas
could ignite and ex plod e!
Towing with a tow truck
General hints
Yo ur Audi requires special h andling for towing .
The follow ing information is to be us ed by com­
mercia l tow tr uck o pera tors w ho kn ow how to op ­
e rat e the ir equip men t sa fely.
- Never tow your Audi. Towing will cause dam­
age to the engine and transmission .
- Never wrap the safety chains or winch cables
~ around the brake lines. ,..,
~ - To prevent unnecessary damage, your Audi N
8 must be transported with a flat bed truck . 0 :r Emergency situations
-To load the vehicle on to the flat bed , use the
towing loop found in the vehicle tools and at­
tach to the front or rear anchorage
¢ page 329 and c> page 330.
A WARNING
A veh icle being towed is not safe for passen­
gers. Neve r allow anyo ne to ride in a vehicle
b eing towed, for any reason.
Front towing loop
Fi g. 29 2 Fron t bumper: removing th e cap
Fig. 293 Fron t bumper: insta lling the towing loop
The thread for the towing loop is on the right
s ide of the front bumper beh ind a cap.
.,. Remove the towing loop f rom the vehicle too l
kit.
.,. Press the cap inward with brief, forceful pres­
sure
c> fig. 292 . The cap will loosen from the
bumper .
.,. Tighten the tow ing loop in the threaded open­
ing until it stops
c> fig. 293 and then tighten it
w ith a wheel w re nch .
.,. Afte r usi ng, p la ce th e tow ing loop b ack i n the
-
veh icle tool kit. ..,.
329

C) C0 ....
"' " "' .... 0 0 :r Raising the vehicle
Lifting with workshop hoist and with floor
jack
The vehicle may only b e li~ ed at the lifting
points illustra ted.
F ig. 297 Front lift ing po int
F ig. 2 98 Rea r lift ing point
.,. Read and heed WARNING c:> &_ .
.. Activate the vehicle jack mode in the MMI:
I CAR I funct ion button> Car systems control
button>
Servicing & checks > Air susp.: jack
mod e> On.
~ :c ... a,
.. Loca te lift ing po ints c:> fig . 297 and c:> fig. 298 .
.. Adju st lifting arms of workshop ho ist o r floo r
j ac k t o ma tch vehicl e lifting poin ts.
.. In se rt a rubb er pa d between the f loor jack/
wor kshop hoist and the lifting points .
T he vehicle ja ck mode m ust be a ctiv ate d so th at
the au tomatic a djustment of the Adaptive Air
Suspension does not make it more diffic ult to
raise the ve hicle w it h the floo r jack.
If you must lift your vehicle with a floor jack to
work underneath , be sure the vehicle is safely
supported on stands intended for this purpose .
Emergency situations
Front lifting point
The li fting poi nt is locate d on the floor p an rein ­
f orceme nt ab out at the same level as the ja ck
mounting point
c:> fig . 297. Do not lift the vehi­
cle at the vertical sill reinforcement.
Rear lifting point
T he lifting point is lo cated on the ver tic al rein ­
f orcement o f the lower s ill for the on- bo ar d jac k
<=> fig. 298 .
Lifting with vehicle jack
Refer to c:> pag e 315 .
A WARNING
- To reduce the r is k of se rious inju ry and vehi ­
cle damag e.
- Always lift the vehicle on ly at the special
workshop h oist a nd floor jack lift points
il ­
lustrated c:> fig. 297 and c:> fig. 298.
- Failure to lift t he veh icle at these points
could cause t he veh icle to tilt o r fall from
a lift i f th ere is a change in vehicle weight
dist ribution and balance . This might hap­
pen, fo r example, when heavy com po­
n ents such as the eng ine block o r trans­
mis sio n are re moved.
- Whe n re mov ing heavy co m ponents like
these, an ch or vehicle t o hois t or ad d co rre­
spon ding weig hts t o m aintai n the cen ter of
g ravi ty . Ot herw ise, the vehicle mig ht tilt or
slip off t he hoist, caus ing se rious pe rsonal
i njur y .
(D Note
-Be aw are of the fo llow ing points b efor e lift­
ing the vehicle:
-The vehicle should never be lifted or
jacked up from underneath the engine oil
pan, the transmission housing, the front
or rear axle or the body side members.
This could lead to serious damage .
- To avoid damage to the underbody or
chassis frame, a rubber pad must be in­
serted between the floor jack and the lift
points . ..,.
331
