AUDI A8 2017 Owners Manual

-When connect ing jumper cables, make sure
that they cannot get caught in any mov ing
parts in the engine compartment.
- Before you check anything in the engine
compartment, a lways read and heed a ll
WARNINGS
¢ page 271.
(D Note
Impro per hook-u p of jum per cables can ru in
the generato r.
- Always connect POSITIVE( +) to POSITI VE
( + ), and NEGATIVE( -) to NEGATIVE( -)
g round post of the battery manager contro l
unit.
- Check that a ll screw p lugs on the batt ery
cells are sc rewed in firmly. If not, t ighten
pl ugs p rior to connect ing clamp on negative
b atte ry te rmi nal.
- Please note t hat the procedure fo r con nect­
i ng a jumper cab le as desc ribed above ap­
p lie s specifica lly to the case of yo ur vehicle
b eing ju mp started. When you are g iv ing a
ju mp s tart t o another vehicle, do
not con­
n ect th e neg ative( -) ca b le to the neg ative
( -) t ermin al on t he disch arge d batte ry @
¢ fig . 291 . Instead, secure ly connect the
n egative(- ) cab le to either a solid metal
com ponent that is f irm ly bolted to the en­
gine block o r to the engine bloc k itself. If
the battery that is be ing c ha rged does not
vent to the outs ide, escap ing batte ry gas
could ignite and ex plod e!
Towing with a tow truck
General hints
Yo ur Audi requires special h andling for towing .
The follow ing information is to be us ed by com­
mercia l tow tr uck o pera tors w ho kn ow how to op ­
e rat e the ir equip men t sa fely.
- Never tow your Audi. Towing will cause dam­
age to the engine and transmission .
- Never wrap the safety chains or winch cables
~ around the brake lines. ,..,
~ - To prevent unnecessary damage, your Audi N
8 must be transported with a flat bed truck . 0 :r Emergency situations
-To load the vehicle on to the flat bed , use the
towing loop found in the vehicle tools and at­
tach to the front or rear anchorage
¢ page 329 and c> page 330.
A WARNING
A veh icle being towed is not safe for passen­
gers. Neve r allow anyo ne to ride in a vehicle
b eing towed, for any reason.
Front towing loop
Fi g. 29 2 Fron t bumper: removing th e cap
Fig. 293 Fron t bumper: insta lling the towing loop
The thread for the towing loop is on the right
s ide of the front bumper beh ind a cap.
.,. Remove the towing loop f rom the vehicle too l
kit.
.,. Press the cap inward with brief, forceful pres­
sure
c> fig. 292 . The cap will loosen from the
bumper .
.,. Tighten the tow ing loop in the threaded open­
ing until it stops
c> fig. 293 and then tighten it
w ith a wheel w re nch .
.,. Afte r usi ng, p la ce th e tow ing loop b ack i n the
-
veh icle tool kit. ..,.
329

Emergency situations
_& WARNING
If the towing loop is not tightened until it
stops when installing, the threads may be
pulled out when towing the vehicle and that
could cause an accident.

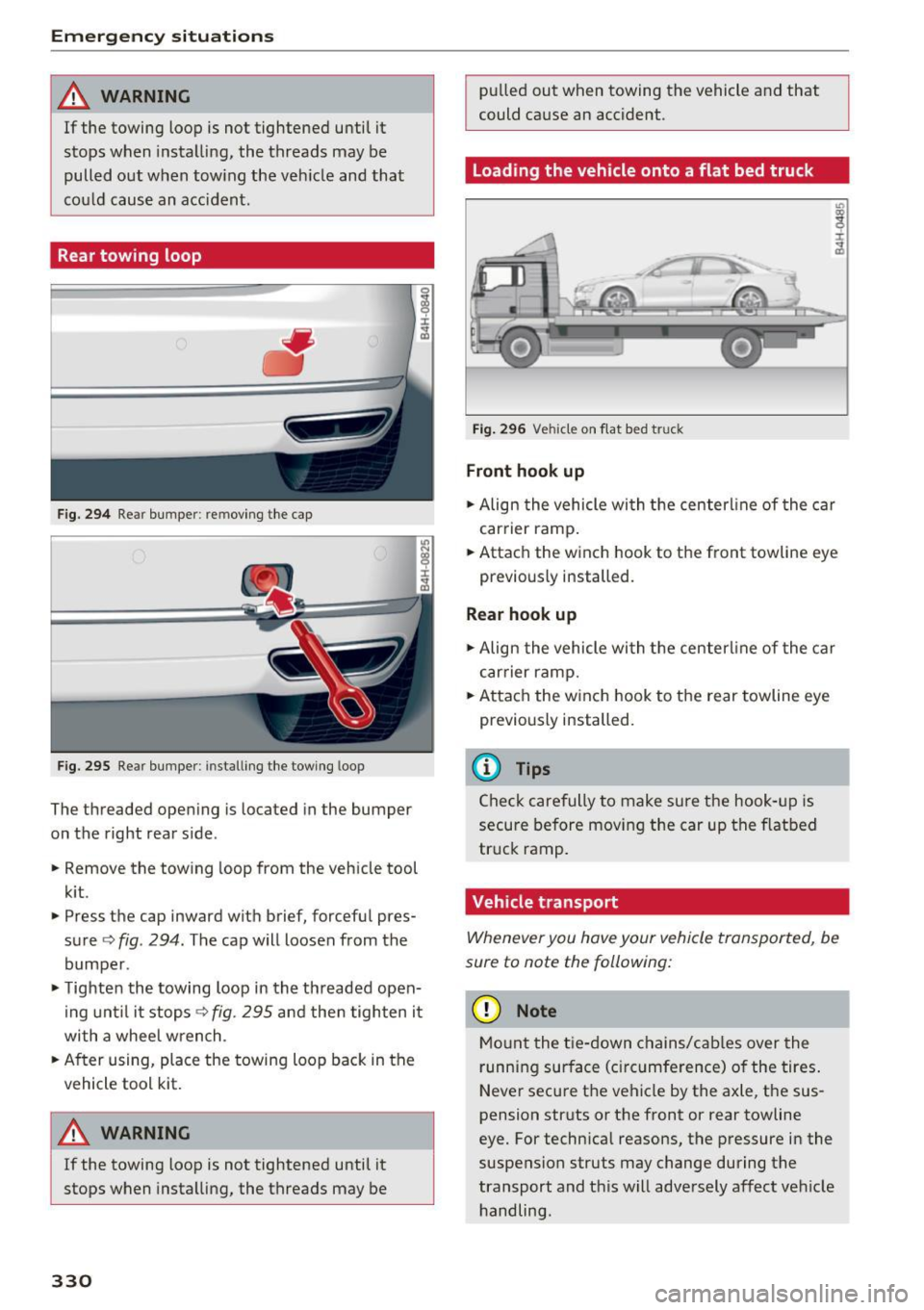

Rear towing loop
F ig. 294 Re ar bumper: re moving the cap
Fig. 295 Re ar bumpe r: in stalli ng the towing loop
The threaded open ing is loca ted in the bumper
on the right rear side .
.. Remove the towing loop from the vehicle tool
kit .
.. Press the cap inward with brief, forceful pres­
sure <:>
fig. 294. The cap will loosen from the
bumper .
.. Tighten the towing loop in the threaded open­
ing until it stops ¢
fig. 295 and then tighten it
with a wheel wrench .
.. After using, place the towing loop back in the
vehicle tool kit.
8_ WARNING
If the towing loop is not tightened until it
stops when installing, the threads may be
330
-
pulled out when towing the vehicle and that
could cause an accident .
Loading the vehicle onto a flat bed truck
Fig. 296 Vehicle on f lat bed tru ck
Front hook up
I
.. Align the vehicle with the centerl ine of the car
car rier ramp .
.. Attach the winch hook to the front towline eye
previously installed.
Rear hook up
.. Align the vehicle wi th the centerl ine of the car
car rier ramp .
.. Attach the w inch hook to the rear towline eye
previously installed.
@ Tips
Check carefully to make sure the hook-up is
secure before moving the car up the flatbed
truck ramp .
Vehicle transport
Whenever you hove your vehicle transported, be
sure to note the following:
(D Note
Mount the tie-down chains/cables over the
running surface (circumference) o f the tires.
Never secure the vehicle by the axle, the sus­
pension struts or the front or rear towline
eye. For technical reasons, the pressure in the
suspension struts may change during the
transport and this will adversely affect veh icle
handling.

C) C0 ....
"' " "' .... 0 0 :r Raising the vehicle
Lifting with workshop hoist and with floor
jack
The vehicle may only b e li~ ed at the lifting
points illustra ted.
F ig. 297 Front lift ing po int
F ig. 2 98 Rea r lift ing point
.,. Read and heed WARNING c:> &_ .
.. Activate the vehicle jack mode in the MMI:
I CAR I funct ion button> Car systems control
button>
Servicing & checks > Air susp.: jack
mod e> On.
~ :c ... a,
.. Loca te lift ing po ints c:> fig . 297 and c:> fig. 298 .
.. Adju st lifting arms of workshop ho ist o r floo r
j ac k t o ma tch vehicl e lifting poin ts.
.. In se rt a rubb er pa d between the f loor jack/
wor kshop hoist and the lifting points .
T he vehicle ja ck mode m ust be a ctiv ate d so th at
the au tomatic a djustment of the Adaptive Air
Suspension does not make it more diffic ult to
raise the ve hicle w it h the floo r jack.
If you must lift your vehicle with a floor jack to
work underneath , be sure the vehicle is safely
supported on stands intended for this purpose .
Emergency situations
Front lifting point
The li fting poi nt is locate d on the floor p an rein ­
f orceme nt ab out at the same level as the ja ck
mounting point
c:> fig . 297. Do not lift the vehi­
cle at the vertical sill reinforcement.
Rear lifting point
T he lifting point is lo cated on the ver tic al rein ­
f orcement o f the lower s ill for the on- bo ar d jac k
<=> fig. 298 .
Lifting with vehicle jack
Refer to c:> pag e 315 .
A WARNING
- To reduce the r is k of se rious inju ry and vehi ­
cle damag e.
- Always lift the vehicle on ly at the special
workshop h oist a nd floor jack lift points
il ­
lustrated c:> fig. 297 and c:> fig. 298.
- Failure to lift t he veh icle at these points
could cause t he veh icle to tilt o r fall from
a lift i f th ere is a change in vehicle weight
dist ribution and balance . This might hap­
pen, fo r example, when heavy com po­
n ents such as the eng ine block o r trans­
mis sio n are re moved.
- Whe n re mov ing heavy co m ponents like
these, an ch or vehicle t o hois t or ad d co rre­
spon ding weig hts t o m aintai n the cen ter of
g ravi ty . Ot herw ise, the vehicle mig ht tilt or
slip off t he hoist, caus ing se rious pe rsonal
i njur y .
(D Note
-Be aw are of the fo llow ing points b efor e lift­
ing the vehicle:
-The vehicle should never be lifted or
jacked up from underneath the engine oil
pan, the transmission housing, the front
or rear axle or the body side members.
This could lead to serious damage .
- To avoid damage to the underbody or
chassis frame, a rubber pad must be in­
serted between the floor jack and the lift
points . ..,.
331

Emergency situations

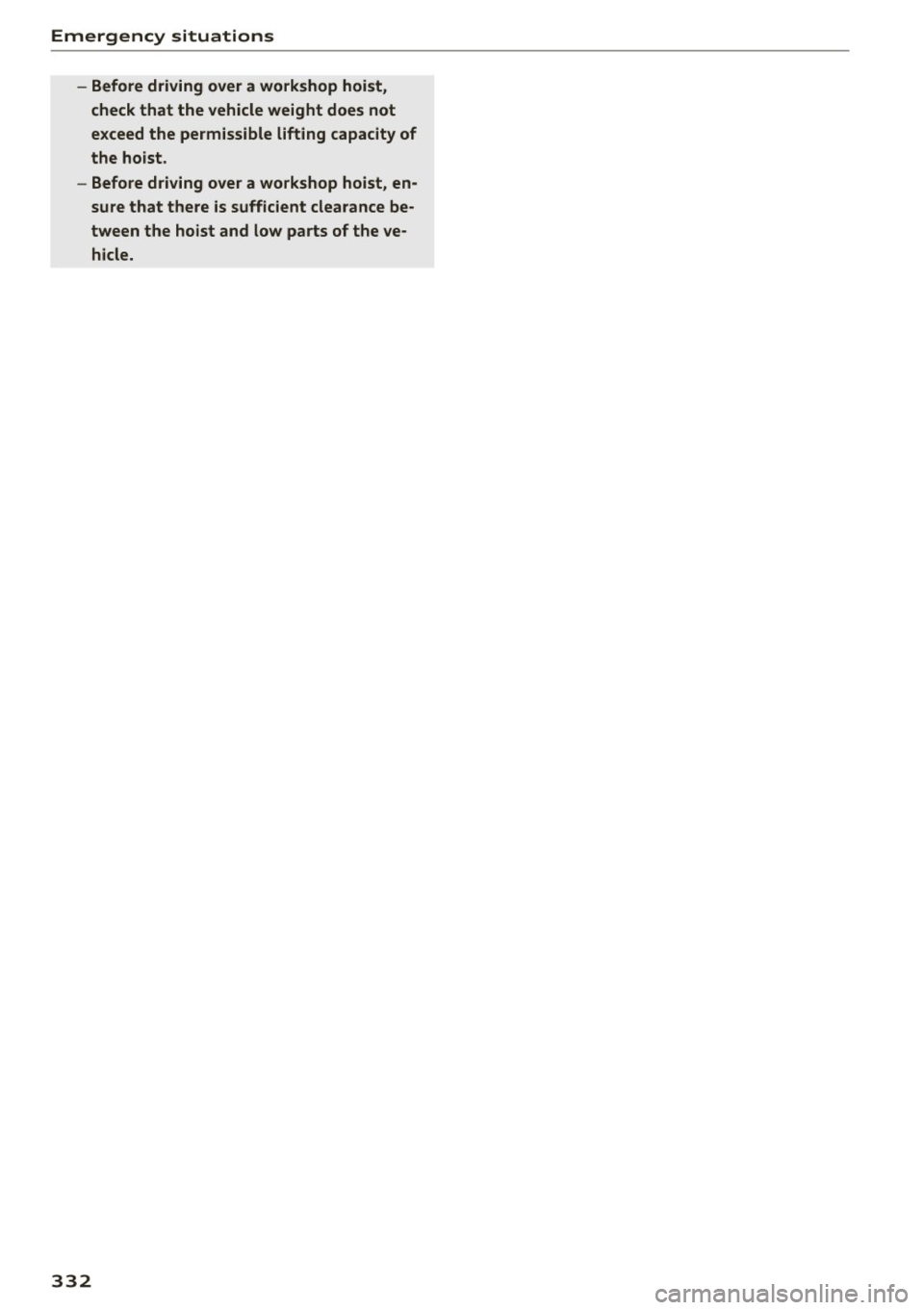

-Before driving over a workshop hoist,
check that the vehicle weight does not
exceed the permissible lifting capacity of
the hoist.
- Before driving over a workshop hoist, en­
sure that there is sufficient clearance be­
tween the hoist and low parts of the ve­ hicle.
332

C) C0 ....
"' ,-...
"' .... 0 0 :r Technical data
Vehicle specifications
XXXXX XX · X · XXXX XXX XX
CD-+ :::::: XXXXXX XX XX X XX XXX XXX
IYP IT'il'! XXX XXX
xx xxxxxxx xx xx xx
XXX KW XXX
a.;. C1lll /TRANS. CIIOE xxxx XXX XXX ®i 11)10Al<8 ./lil'IR.k8.
©+ I.AO OIR. / IN NENAllSSl.
XXXX I XXXX XXX I XX PAI NT IIO. / ffl£ml
II. • AIJSlit / OPTIONS
EOA 70 5 4U B 6XM SSG SRW
2 EH JO Z 1LB 1AS l BA
3FC S MU 7Xl
F O A 9G3 OG7 OYH OJF
TL 6 3 KA 8EH UlA X 9B OZ7
lXW 803 908 8Z4 020
7T6 CV7 7KO 4X3 2K 2
3 L4 4KC 3YO 413 50 2
lS A 7GB 01A 4GO
XX. X XX X XX X xxxx
Fig. 299 Vehicle identifica tion labe l
Vehicle Identification Number (VIN)
The VIN number is located in the following pla­
ces :
0
0
11:l :x: .,. al
-In the Infotainment system: se lect: the !CARI
func tion button > Car systems control button >
Servicing & checks > VIN number .
-on the vehicle identification label
- under the windshield on the driver's side
Vehicle identification label
The vehicle identification label ¢ fig. 299 is locat­
ed in the luggage compartment under the cargo
floor cover in the spare wheel well.
The information of the vehicle identification label
can also be found in your Warranty
& Mainte­
nance booklet.
Technical data
T he sticker contains the following vehicle data:
(D Vehicle Identification Number (VIN)
@ Vehicle type, engine output, transm ission
@ Engine and transmission codes
@ Paint and interior codes
® Optional equipment numbers
Safety compliance sticker
The safety compliance sticker is yo ur ass urance
that your new veh icle complies w ith all applicable
Federal Motor Vehicle Safety Standards which
were in effect at the time the vehicle was manu­
factured. You can find this sticker on the door
jamb on the driver's side. It shows the month and
year of production and the vehicle identification
number of your vehicle (perforation) as well as
the Gross Vehicle Weight Rat ing (GVWR) and the
Gross Axle Weight Rating (GAWR).
High voltage warning label
The high voltage warning label is located in the
engine compartment next to the engine hood re ­
lease. The spark ignition system complies with
the Canadian standard ICES-002 .
Notes about technical
data
The values may differ for some markets depend­
ing on equ ipment installed in certain markets
and the measuring methods.
Please note that the specifications listed in the
vehicle documentation always take precedence.
(0 Tips
Missing technical data was not available at
the time of print ing.
333

Tech nical data
Dimensions
Length (in (mm )) Width (in (mm ))
Width across the Height at curb
mirrors (in (mm )) weight (in (mm ))
A8 L 207.3 (5,265) 76.7 (1,949) 83.l (2,111) 57.9 (1,471)
AB 202.2 (5,135) 76.7 (1,949) 83.1 (2,111) 57.5 (1,460)
58 202.6 (5,147) 76.7 (1,949) 83.l (2,111) 57.4 (1,458)
When driving on poor roads, by curbs and on
steep ramps, make sure that low-hanging com­ ponents such as the spoiler and exhaust system
do not come into contact w ith these or they could
Capacities
Fuel tank
Windshield and headlight washer system*
Weights
G ro ss Vehicl e Weight Rat ing
The Gross Vehicle Weight Rating (GVWR), and
the Gross Axle Weight Rating (GAWR) for front
and rear are listed on a sticker on the door jamb
on the driver's side .
The Gross Vehicle Weight Rating includes the
weight of the basic vehicle p lus full fuel tank, oi l
and coolant, plus max imum load, which includes
passenger we ight (150 lbs/68 kg per designated
seating position) and luggage weight¢ ,&..
Gross A xle W eight Rating
The Gross Ax le Weight Rating is the maximum
load that can be applied at each axle of the vehi­
cle ¢,&. .
V ehicle capaci ty weight
The vehicle capacity we ight (max. load) is listed
either on the driver's side B-pillar or inside the
fue l filler flap .
A WARNING
- The actual Gross Axle Weight Rating at the front and rear axles shou ld not exceed the
permissible weights, and their comb inat ion
334
be damaged. This especially applies to vehicles
that are equipped w ith adapt ive air suspension
and when the vehicle is at full load .
Appro ximate capaci-
tie s
2 1. 7 gal (82.0
L)
5.3 qt (5.0 L)
must not exceed the Gross Vehicle Weight
Rating.
- Exceed ing permissible weight ratings can
result in vehicle damage, accidents and per­
sonal injury.
(D Note
- The veh icle capacity weight figures apply
when the load is d istr ibuted evenly in the
vehicle (passengers and luggage) . When
transport ing a heavy load in the luggage
compartment, carry the load as near to the
rea r axle as possib le so that the ve hicl e's
h and ling is no t impaired.
- Do not exceed the maximum pe rm iss ible
ax le loads or the maxim um gross vehicle
we igh t. A lways remember that the ve hicl e's
hand ling will be affected by the extra load.
T herefore, adjust your speed accordingly .
- Always observe local regula tions.

0 co .... N ,..._

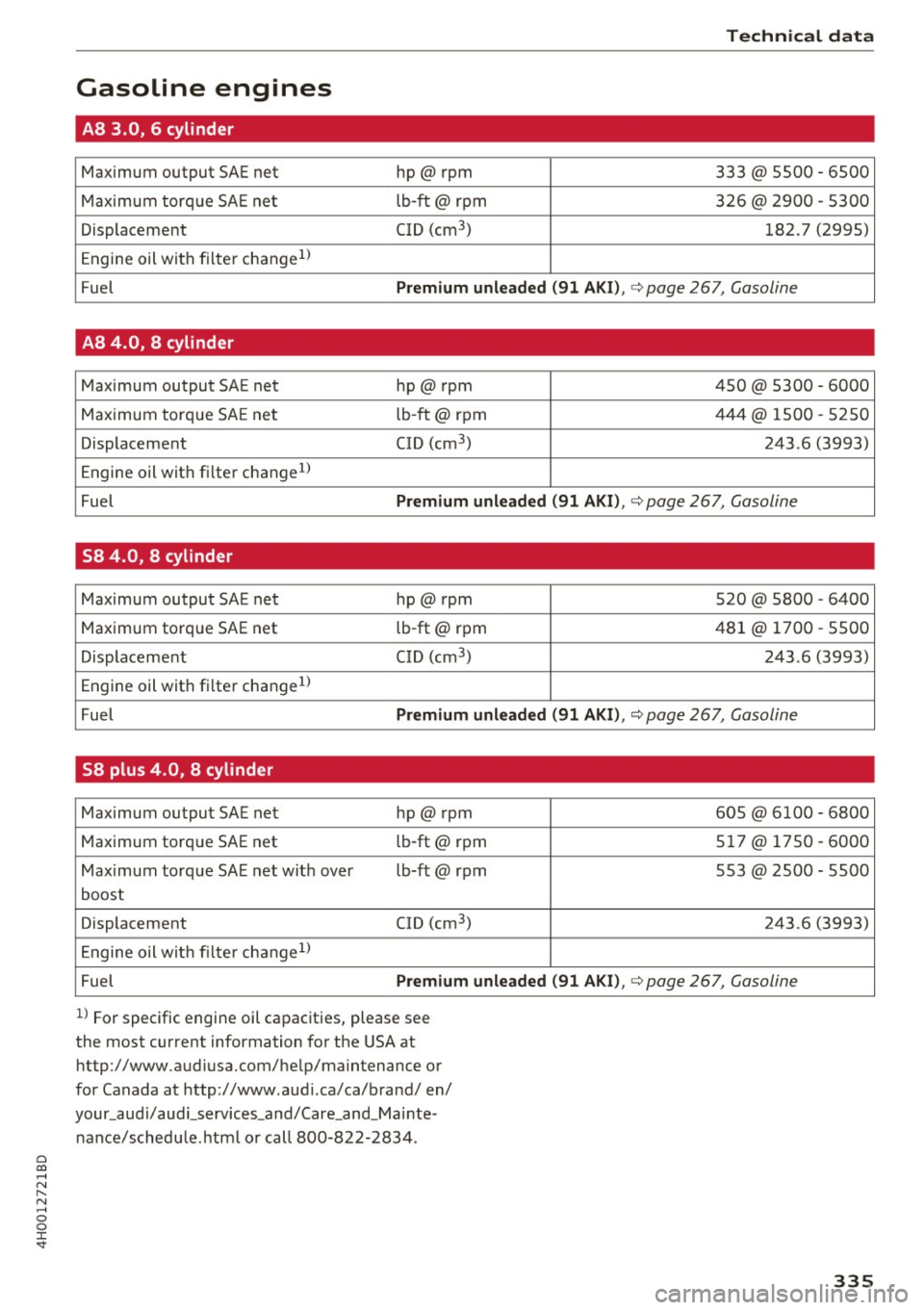

N .... 0 0 :c ' Technical dat a
Gasoline engines
A8 3.0, 6 cylinder
Maximum output SAE net hp@rpnn 333 @ 5500 -6500
Maximum torque SAE net lb-ft@ rpm 326@ 2900 -5300
Displacement CID (cm
3
) 182 .7 (2995)
Engine oil with filter change
1>
Fuel Pr emium un leaded (9 1 AKI), ¢ page 267, Gasoline
A8 4.0, 8 cylinder
Maximum output SAE net hp@ rpnn 450@ 5300 -6000
Maximum torque SAE net lb
-ft@ rpm 444@ 1500 -5250
Displacement CID (cm
3
) 243 .6 (3993)
Engine oil with filter change
1
)
Fuel Premium un lead ed (91 AK I), ¢ page 267, Gasoline
58 4.0, 8 cylinder
Maximum output SAE net hp@ rpnn 520 @ 5800 -6400
Maximum torque SAE net lb
-ft@ rpm 481 @ 1700 -5500
Displacement CID (cm3
)
243 .6 (3993)
Engine oil with filter change1
)
Fuel Pr emium un lead ed ( 91 A KI), ¢ page 267, Gasoline
58 plus 4.0, 8 cylinder
Maximum output SA E net hp@ rpnn 605@ 6100 -6800
Maximum torque SAE net lb-ft@ rpm
517@ 1750 -6000
Maximum torque SAE net wit h over lb-ft@ rpm 553 @ 2500 -5500
boost
Displacement CID (cm
3
) 243.6 (3993)
Engine oil with filter change
1l
Fuel
P remium unl eaded (91 AKI),¢ page 267, Gasoline
l) For specific engine oil capacities, please see
the most current information for the USA at
http :/ /www.audiusa.com/help/maintenance or
for Canada at http:/ /www.audi.ca/ca/brand/ en/
your _aud i/ aud i _services _a nd/Care _and _M a i nte­
na nce/ schedu le .html or call 800-822-2834 .
335

Consumer information
Consumer information
Warranty coverages
Your Audi is covered by the following warran­
ties:
- New Vehicle Limited Warranty
- Limited Warranty Against Corrosion Perfora-
tion
- Emissions Control System Warranty
- Emissions Performance Warranty
- California Emissions Control Warranty (USA
vehicles only)
- California Emissions Performance Warranty
(USA vehicles only)
Detailed information regarding your warranties
can be found in your
Warranty & Maintenance
booklet .
Operating your vehicle
outside the U.S.A. or
Canada
Government regulati ons in the United States and
Canada require that automobi les meet specific
emission regulations and safety standards.
Therefore, vehicles built for the U.S.A. and Cana ­
da differ from vehicles sold in other countries.
If you plan to take your vehicle outside the conti­
nenta l limits of the United States or Canada,
there is the poss ibility that:
- un leaded fue ls for vehicles with catalytic con­
verter may not be available;
- fuel may have a considerably lower octane rat­
ing . Improper fuel may cause engine damage;
- service may be inadequate due to lack of proper
service facilities, tools or testing equipment;
- r eplacement parts may not be readily available.
- Nav igation systems for veh icles built for the
U.S .A . and Canada will not necessarily work in
Europe, and may not work in other countries
outside North America.
336
(D Note
Audi cannot be responsib le for mechanical
damage that could result from inadequate
fuel, service or parts ava ilability.
Audi Service Repair
Manuals and Literature
Audi Official Factory Service Manuals and Litera ­
ture are published as soon as poss ible after mod­
el introduction . Service manuals and literature
are available to order from the Audi Technical Lit ­
erature Ordering Center at :
www.audi.techliterature .com
Maintenance
General '
Your vehicle has been designed to help keep
maintenance requirements to a minimum. How­
ever, a certain amount of regular maintenance is
still necessary to assure your vehicle's safety,
economy and reliability . For detailed vehicle
maintenance consult your Warranty & Mainte­
nance booklet .
Under difficult operating conditions, for exam ­
ple at extremely low outside temperatures, in
very dusty regions, when towing a trailer very fre­
quently, etc., some service work should be per­
formed between the intervals specified. This ap­
plies particularly to:
- oil changes, and
- cleaning or replac ing the a ir filter .
'
@) For the sake of the environment
By regularly maintain ing your vehicle, you
help make sure that em iss ion standards are
maintained, thus minimizing adverse effects
on the environment .
Important considerations for you and your
vehicle
The increasing use of electronics, sophisticated
fuel injection and emission control systems, and
the generally increas ing technica l complexity of ..,_

0 co .... N ,..... N .... 0 0 :c ' today's automobiles, have steadily reduced the
scope of maintenance and repairs which can be
carried out by vehicle owners.
Also, safety and
environmental
concerns place very strict limits
on the nature of repairs and adjustments to en­
gine and transmission parts which an owner can perform .
Maintenance, adjustments and repairs usually re­
quire special tools, testing devices and other
equipment available to specially trained work ­
shop personnel in order to assure proper per­
formance, reliability and safety of the vehicle and
its many systems.
Improper maintenance, adjustments and repairs
can impair the operation and reliability of your
vehicle and even void your vehicle warranty .
Therefore, proof of servicing in accordance with
the maintenance schedule may be a condition for upholding a possible warranty claim made within
the warranty period.
Above all , operational safety can be adversely af­
fected, creating unnecessary risks for you and
your passengers.
If in doubt about any servicing, have it done by
your authorized Audi dealer or any other properly equipped and qualified workshop. We strongly urge you to give your authorized Audi dealer the
opportunity to perform all scheduled mainte­ nance and necessary repairs. Your dealer has the
facilities, original parts and trained specialists to keep your vehicle running properly .
Performing limited maintenance yourself
The following pages describe a limited number of
procedures which can be performed on your vehi­
cle with ordinary tools, should the need arise and
trained personnel be unavailable. Before per­
forming any of these procedures, always thor­
oughly read all of the applicable text and careful­ ly follow the instructions given . Always rigorously
observe the
WARNINGS provided .
Before you check anything in the engine com­
partment, always read and heed all WARNINGS
c::> .&. and c::> .&. in Working in the engine compart­
ment on page 271 .
Consumer information
A WARNING
-Serious personal injury may occur as a result
of improperly performed maintenance, ad ­
justments or repairs .
- Always be extremely careful when working
on the vehicle. Always follow commonly ac­
cepted safety practices and general com­
mon sense. Never risk personal injury.
- Do not attempt any of the maintenance,
checks or repairs described on the following pages if you are not fully familiar with these
or other procedures with respect to the ve­ hicle, or are uncertain how to proceed.
- Do not do any work without the proper tools
and equipment. Have the necessary work
done by your authorized Audi dealer or an­
other properly equipped and qualified work­
shop.
- The engine compartment of any motor vehi­ cle is a potentially hazardous area. Never reach into the area around or touch the radi­
ator fan.
It is temperature controlled and
can switch on suddenly - even when the en­
gine is off . The radiator fan switches on au ­
tomatically when the coolant reaches a cer­
tain temperature and will continue to run
until the coolant temperature drops.
- Always switch off the ignition before anyone
gets under the vehicle .
-Always support your vehicle with safety
stands if it is necessary to work underneath
the vehicle . The jack supplied with the vehi­
cle is not adequate for this purpose and
could collapse causing serious personal in­
jury.
- If you must work underneath the vehicle
with the wheels on the ground, always make
sure the vehicle is on level ground, that the
wheels are always securely blocked and that
the engine cannot be started.
- Always make sure the transmission selector
lever (automatic transmission) is in "P"
(Park position) and the park brake is ap-
plied.
~
337

Consumer inf orm ation
@ For the sake of the env ironment
- Changing the engine settings wi ll adversely
affect emission levels. Th is is detrimental to
the environment and increases fuel con­
sumption.
- Always observe environmental regu lations
when disposing of old engine o il, used brake
flu id, d irty engine coolant, spent batteries
or worn out tires.
- Undeployed airbag modules and pretension­
ers might be classified as Perchlorate Mate­
rial -special handl ing may apply, see
www.dtsc .ca.gov/hazardouswaste/perchlo­
r ate. When the vehicle or parts of the re­
straint system including airbag modu les
safety be lts wi th pretensioners are scrap­
ped, all applicab le laws and regulations
must be observed. Your authorized Audi
dealer is familiar with these requirements
and we recommend that you have your deal­ er perform this service for you.
Accessories and technical changes
Additional accessories and parts replacement
Always consult on authorized Audi dealer before
purchasing accessories.
Your vehicle incorporates the latest safety design
features ensuring a high standard of active and passive safety.
This safety could be comp romised by non-ap­
proved changes to the vehicle. For this reason, if
parts have to be replaced, please observe the fo l­
lowing points when insta lling addit ional accesso­
ries:
Approved Audi accessories and genuine Audi parts are available from author ized Audi dealers.
These dealers also have the necessary facilities,
too ls and trained specialists to install the parts
and accessories properly.
338
A WARNING
-
Using the wrong spare parts or using non-ap-
proved accessories can cause damage to the
vehicle and serious personal i njury.
- Use on ly accessories expressly approved by
Aud i and genuine Audi spare parts
- These parts and accessor ies have been spe­
cially designed to be used on your vehicle.
- Do not use license plate brackets in the
front area that are d ifferent from the one
installed at the fac tory, or add additional li­
cense plate brackets.
- Never install accessor ies such as telephone
cradles or beverage holders on airbag covers
or w it hi n the airbag deployment zones. Do­
ing so will i ncrease t he risk of injury if a ir­
bags are triggered in an accident!
- Before you check anything in the eng ine
compa rtment, always read and heed all
WARN INGS ¢page 271.
(D Note
-If items other than genu ine A udi spa re
parts, add-on equipment and accessory
i t ems are used or if repair wor k is not per­
formed according to specified me thods, this
can resul t in severe damage to your vehi ­
cle's eng ine and body (such as corrosion)
and adve rsely affect your vehicle's warranty.
- The innovative aluminium concep t of your
Audi AB means that all servicing, repairs or
other work on the veh icle body must be car­
ried out exclus ively by an Audi workshop.
- If emergency repairs must be performed
elsewhere, have the vehicle exam ined by an
authorized Audi dealer as soon as possible.
- The manufacture r cannot be held liable for
damage which occurs d ue to failure to com­
ply with these stipulations.
Technical Modifications
Our guidelines must be complied with when tech­
nical modifications ore mode.
Always consult an authorized Audi dealer
befo re
starting work on any modifications .
