"' .... 0 0 :c ' Assistance systems Speed warning system
The speed warning system helps you to stay un­
der a specified maximum speed.
The speed warning system warns you if you are
exceeding the maximum speed that you have set.
A warning tone will sound as soon as your speed
exceeds the stored value slightly.
The. (USA models)/ . (Canada models) indi­
cator light and a message appear in the instru­
ment cluster display at the same time. The
•
• indicator light and the message turn off if the
speed falls back below the stored maximum
speed.
Setting a threshold is recommended if you would like to be reminded when you reach a certain
maximum speed. Situations where you may want
to do so include driving in a country with a gener­
al speed limit or if there is a specified maximum
speed for winter tires.
Setting the warning threshold
The warning threshold is set in the Infotainment
system.
.. Select: I CARI function button > Car systems
contro l button > Driver assistance > Speed
warning.
(D Tips
Regardless of the speed warning system, you
should always monitor your speed using the
speedometer and make sure you are following
the legal speed limit.
Assistance systems
Cruise control system
Switching on
The cruise control system makes it possible to
drive at a constant speed starting at 20 mph (30
km/h).
0
f
®t
0
Fig. 102 Operating lever: cruise control system
g M 0 :i: ;A
.. To switch the cruise control on, pull the lever
into position
(D ¢ fig. 102.
.. Drive at the speed to be maintained.
.. To store the speed, press the button @.
The stored speed and the
(ij;ji)M~ (USA models) /
l'I (Canada models) indicator light are displayed
in the instrument cluster.
This information is also shown briefly in the
head-up display* .
The speed is maintained by modifying engine
power or through an active brake intervention.
_.&. WARNING
-
-Always pay attention to the traffic around
you when the cruise control system is in op ­
eration. You are always responsible for your
speed and the distance between your vehi­
cle and other vehicles.
-For safety reasons, cruise control should not
be used in the city, in stop-and-go traffic, on
winding roads and when road conditions are poor (such as ice, fog, gravel, heavy rain and
hydroplaning), because this increases the
risk of an accident.
-Switch the cruise control off temporarily
when driving in turning lanes, highway exits or in construction zones.
~
93

u. co .... N

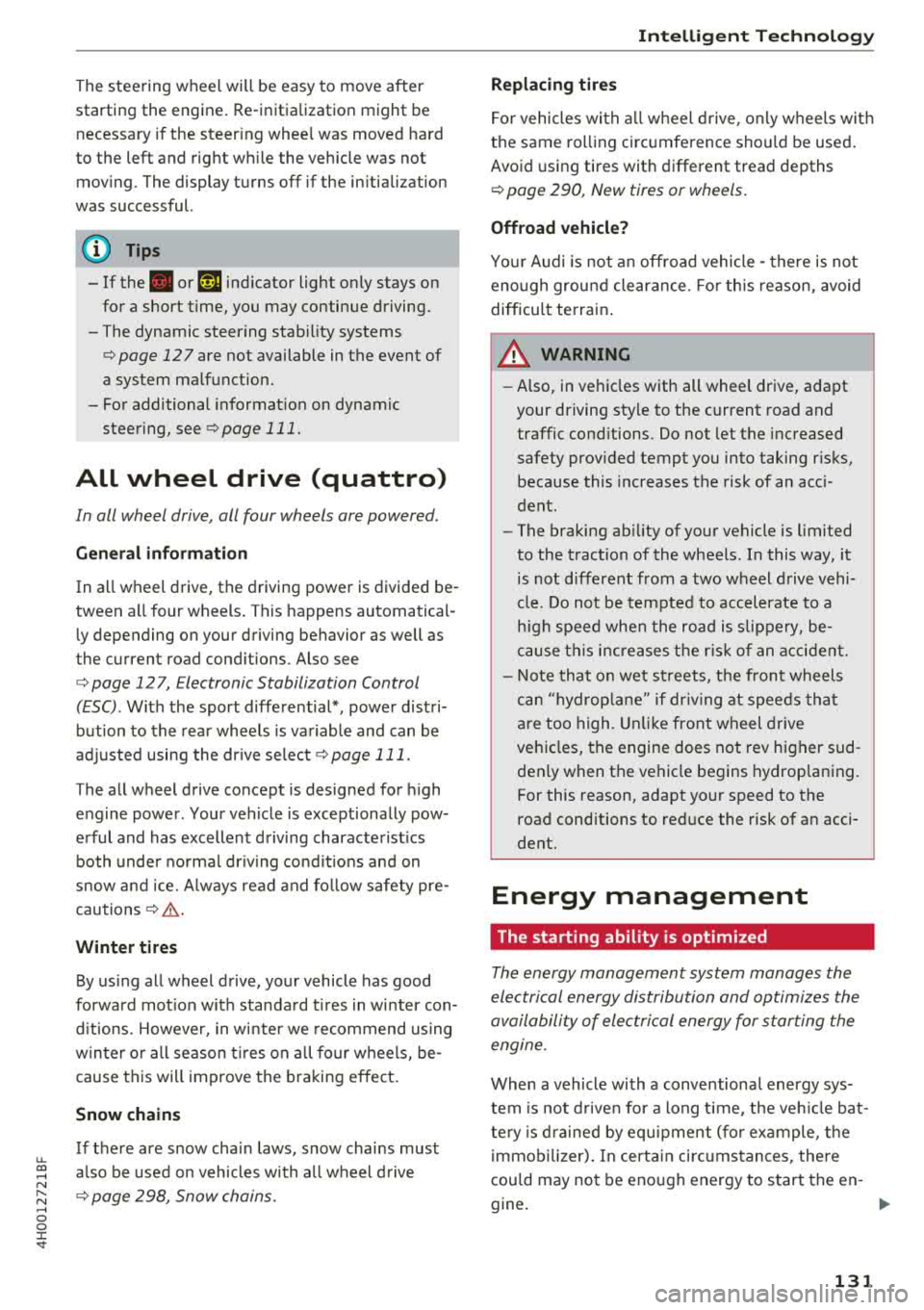

" N .... 0 0 :c ' The steering wheel will be easy to move after
starting the engine. Re-initialization might be
necessary if the steering whee l was moved hard
to the left and right while the vehicle was not
moving . The display turns off if the initia liz ation
was successful.
(D Tips
- If the . or l;:r-ij indicator light only stays on
for a short time, you may continue driving.
-The dynamic steering stability systems
<=>page 127 are not available in the event of
a system malfunction.
-For additional informat ion on dynamic
steering, see
<=> page 111.
ALL wheel drive (quattro)
In all wheel drive, all four wheels are powered .
General information
In all wheel drive, the driving power is divided be­
tween a ll four wheels . This happens automatical ­
ly depending on your driving behavior as well as
the current road conditions. Also see
<=> page 12 7, E lectronic Stabilization Control
(ESC) .
With the sport differential*, power distri­
bution to the rear wheels is variable and can be
adjusted using the drive select
<=>page 111.
The all wheel drive concept is designed for high
engine power . Your vehicle is exceptionally pow­
erful and has excellent driving characterist ics
both under normal driving conditions and on
snow and ice. Always read and follo w safety pre ­
cautions<=>.&. .
Winter tires
By using all wheel drive, your vehicle has good
forward mot ion with standard tires in winter con­
ditions. However, in winter we recommend using
winter or all season tires on all four wheels, be­
cause this will improve the braking effect.
Snow chains
If there are snow cha in laws, snow chains must
a lso be used on vehicles with all wheel drive
<=> page 298, Snow chains .
Intelligent Technology
Replacing tires
For vehicles with all wheel drive, only wheels with
the same rolling circumference should be used.
Avoid using tires with different tread depths
<=> page 2 90, New tires or wheels.
Offroad vehicle?
Your Audi is not an offroad vehicle -there is not
enough ground clearance. For this reason, avoid
difficu lt terrain .
A WARNING ~ -
-Also, in vehicles with all whee l drive, adapt
your driving style to the current road and
traffic cond itions. Do not let the increased
safety prov ided tempt you into taking r isks,
because this increases the risk of an acci ­
dent.
- The braking ability of your vehicle is limited
to the traction of the wheels. In this way, it
is not different from a two wheel drive vehi­
cle. Do not be tempted to accelerate to a
high speed when the road is slipp ery, be­
cause this incr eases the risk of an accident.
- Note that on wet streets, the front wheels
can "hydrop lane" if dr iv in g at speeds that
are too high . Unlike front wheel drive
vehicles, the engine does not rev higher sud­
den ly when the vehicle begins hydroplaning.
For this reason, adapt your speed to the
road conditions to reduce the risk of an acci­
dent.
Energy management
The starting ability is optimized
The energy management system manages the
electrical energy distribution and optimizes the
availability of electrical energy for starting the
engine.
When a vehicle with a conventiona l energy sys­
tem is not driven for a long t ime, the vehicle bat­
te ry is drained by equipment (for example, the
immobilizer). In certain circumstances, there
cou ld may not be enough energy to start the en-
gine.
.,.
131

u. a:, .... N
" N .... 0
0

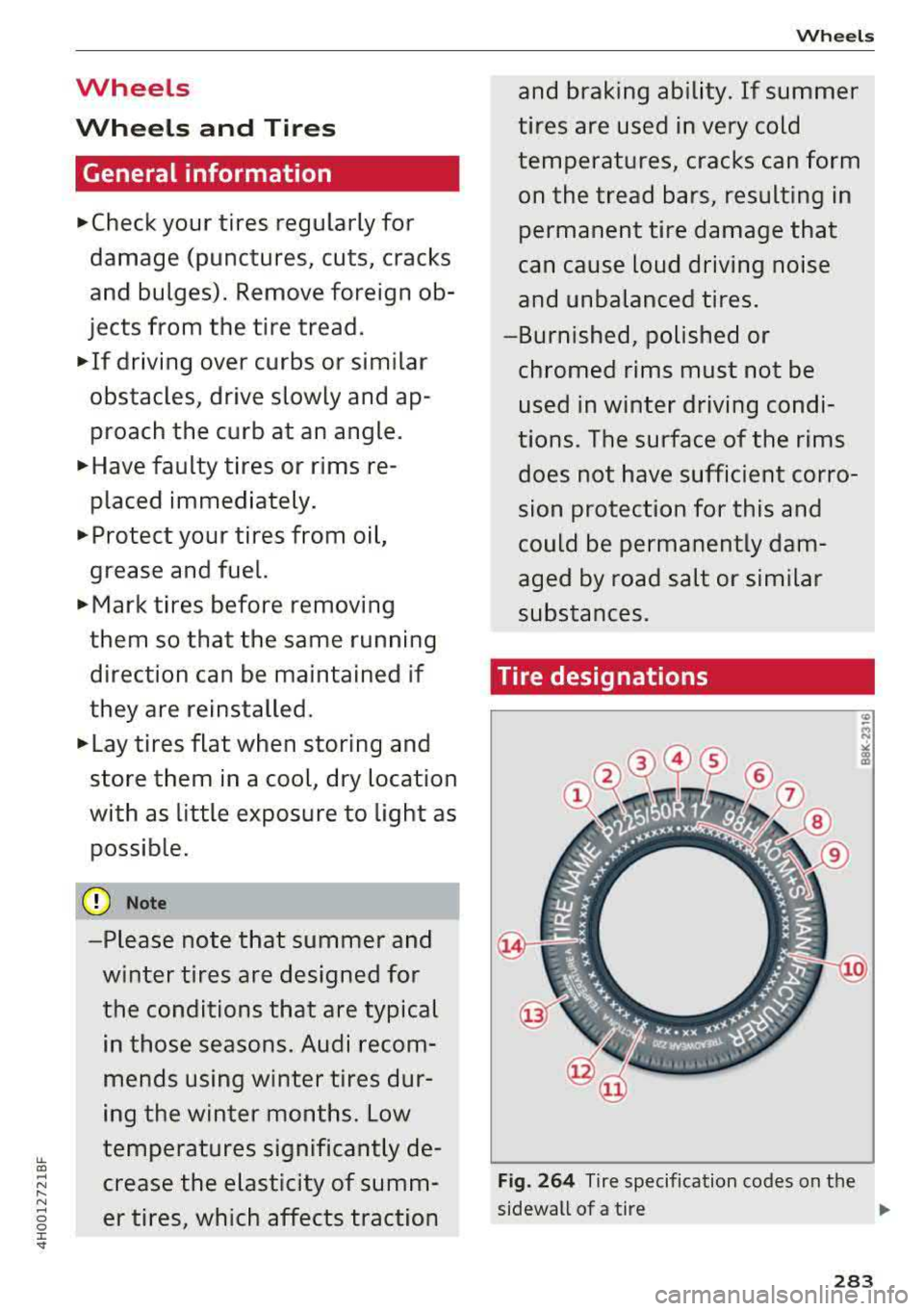

I Wheels
Wheels and Tires
General information
~check your tires regularly for
damage (punctures, cuts, cracks
and bulges). Remove foreign ob­
jects from the tire tread.
~ If driving over curbs or similar
obstacles, drive slowly and ap ­
proach the curb at an angle.
~Have faulty tires or rims re­
placed immediately.
~Protect your tires from oil,
grease and fuel.
~Mark tires before removing
them so that the same running
direction can be maintained if
they are reinstalled.
~Lay tires flat when storing and
store them in a cool, dry location
with as little exposure to light as possible.
(D Note
-Please note that summer and winter tires are designed for
the conditions that are typical in those seasons. Audi recom­
mends using winter tires dur­
ing the winter months. Low
temperatures significantly de­
crease the elasticity of summ­
er tires, which affects traction
Wheels
and braking ability. If summer
tires are used in very cold
temperatures, cracks can form on the tread bars, resulting in
permanent tire damage that
can cause loud driving noise
and unbalanced tires.
-Burnished, polished or chromed rims must not be
used in winter driving condi­
tions. The surface of the rims does not have sufficient corro­
sion protection for this and
could be permanently dam­
aged by road salt or similar
substances.
Tire designations
Fig. 264 Tire specification codes on the
sidewall of a tire
.,.
283

Wheels
(D Tires for passenger vehicles
(if applicable)
"P" indicates a tire for a passenger
vehicle. "T" indicates a tire desig­
nated for temporary use.
@ Nominal width
Nominal width of the tire be­
tween the sidewalls in millime­
ters. In general: the larger the number, the wider the tire.
@ Aspect ratio
Height/width ratio expressed as a
percentage.
© Tire construction
R indicates a radial tire.
® Rim diameter
Size of the rim diameter in inches.
@ Load index and speed rating
The load index indicates the tire's
load-carrying capacity.
The speed rating indicates the maximum permitted speed
c> & in
Winter tires on page 298.
"EXTRA LOAD", "xl" or "RF" indi­
cates that the tire is reinforced or
is an Extra Load tire.
Speed rat-
Maximum permitted speed
ing
p
up to 93 mph (150 km/h)
Q up to 99 mph (160 km/h)
284
Speed rat- Maximum permitted speed
ing
R up to 106 mph (170 km/h)
s up to 110 mph (180 km/h)
T up to 1 18 mph (190 km/h)
u up to 124 mph (200 km/h)
H up to 130 mph (210 km/h)
V up to 149 mph (240 km/h) al
z above 149 mph (240 km/h)a)
w up to 168 mph (270 km/h) al
y up to 186 mph (300 km/h)a)
a) For tires above 149 mph (240 km/h),
tire manufacturers sometimes use the
code
"ZR".
0 US DOT number (TIN) and
manufacture date
The manufacture date is listed on
the tire sidewall (it may only ap­
pear on the inner side of the tire):
DOT ... 2217 ...
means, for example, that the tire
was produced in the 22nd week of
the year 2017.
@ Audi Original Tires
Audi Original equipment tires
with the designation "AO" have
been specially matched to your
Audi. When used correctly, these
tires meet the highest standards
for safety and handling. An au­
thorized Audi dealer or author­
ized Audi Service Facility will be
able to provide you with more in­
formation.

....
"' -N .... N
-0
0
J: ..

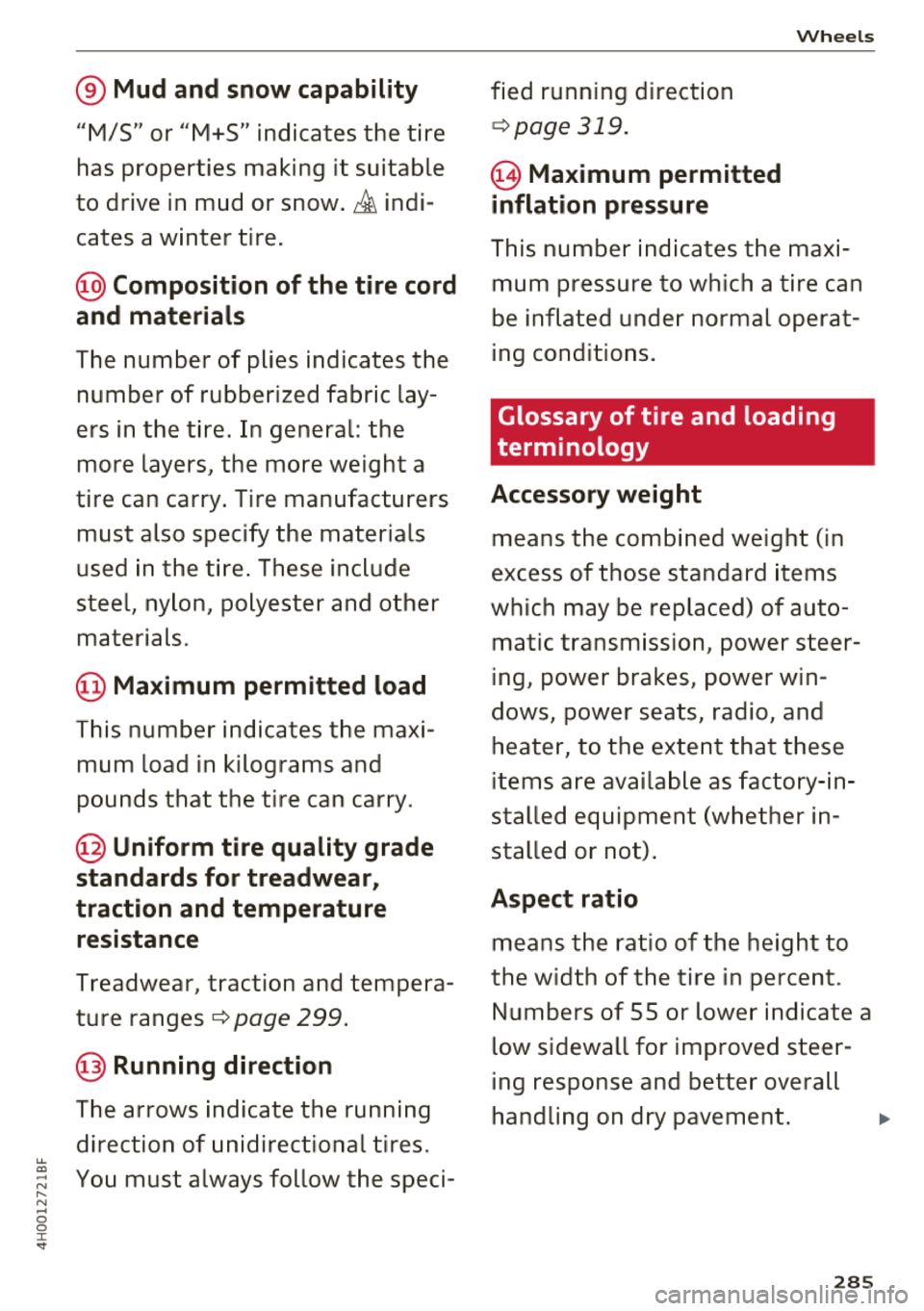

® Mud and snow capability
"M/S" or "M+S" indicates the tire
has properties making it suitable
to drive in mud or
snow .~ indi­
cates a winter tire .
@ Composition of the tire cord
and m aterials
The number of plies indicates the
number of rubberized fabric lay­
ers in the tire. In general : the
more layers, the more weight a
tire can carry . Tire manufacturers
must also specify the materials
used in the tire . These include
steel, nylon, polyester and other
materials .
@Maximum permitted load
This number indicates the maxi­
mum load in kilograms and
pounds that the tire can carry .
@Uniform ti re quality grade
standards for treadwear,
traction and temperature resistance
Treadwear , traction and tempera­
ture
ranges¢ page 299 .
@ Running direction
The arrows indicate the running
direction of unidirectional tires .
You must always follow the speci- fied running direction
¢
page 319.
@ Maximum permitted
inflation p ressure
Wh eel s
This number indicates the maxi­
mum pressure to which a tire can
be inflated under normal operat­
ing conditions.
Glossary of tire and loading
terminology
Accessory weight
means the combined weight (in
excess of those standard items
which may be replaced) of auto­ matic transmission, power steer­
ing, power brakes, power win ­
dows, power seats, radio, and
heater, to the extent that these
items are available as factory-in­
stalled equipment (whether in­
stalled or not) .
Aspect ratio
means the ratio of the height to
the width of the tire in percent .
Numbers of 55 or lower indicate a
low sidewall for improved steer­
ing response and better overall
handling on dry pavement .
285

Wheels

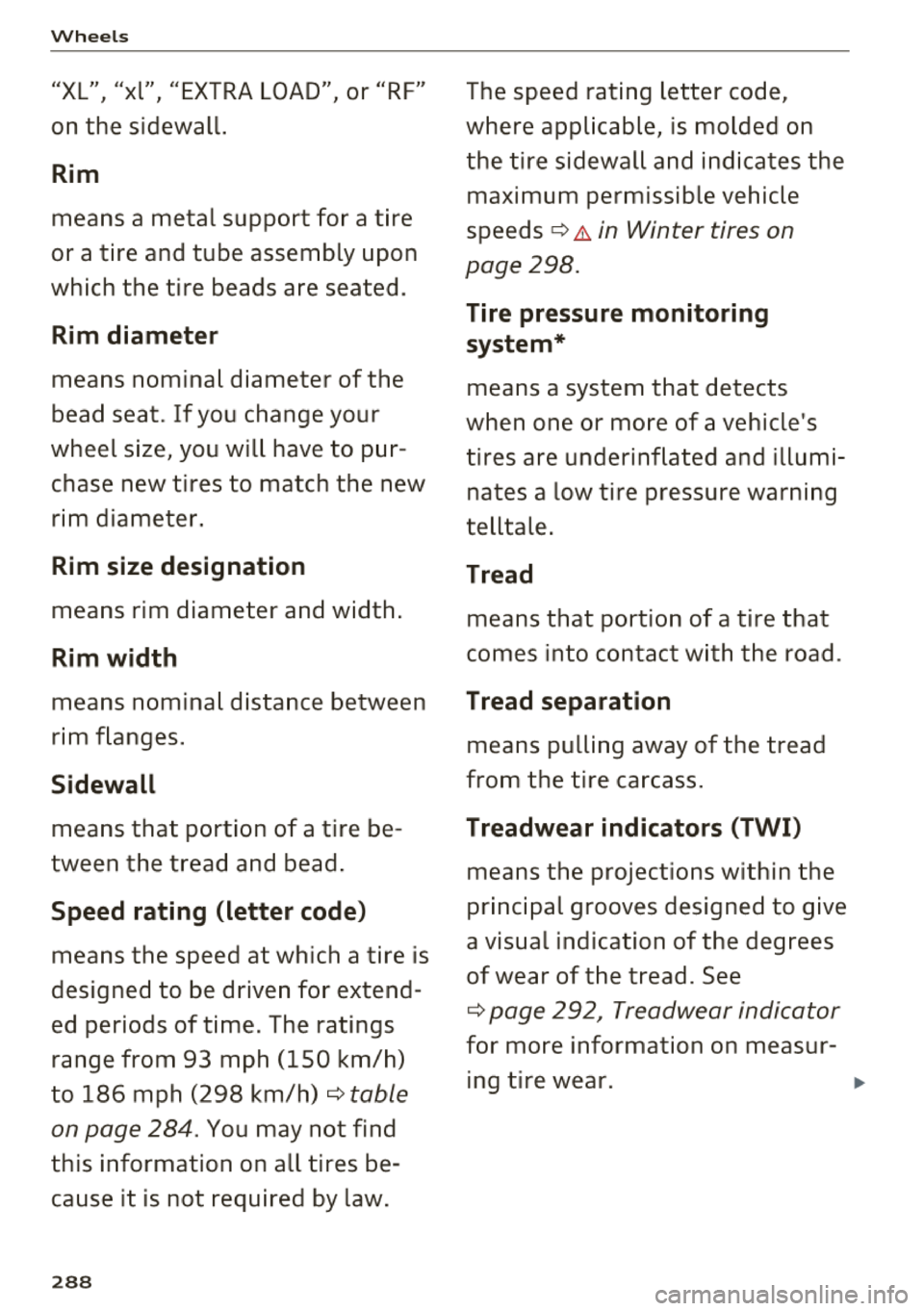

"XL" "xl" "EXTRA LOAD" or "RF" I I I
on the sidewall.
Rim
means a metal support for a tire
or a tire and tube assembly upon
which the tire beads are seated.
Rim diameter
means nominal diameter of the
bead seat . If you change your
wheel size, you will have to pur ­
chase new tires to match the new rim diameter .
Rim size designation
means rim diameter and width .
Rim width
means nominal distance between
rim flanges.
Sidewall
means that portion of a tire be­
tween the tread and bead .
Speed rating (letter code)
means the speed at which a tire is
designed to be driven for extend­
ed periods of time. The ratings range from 93 mph (150 km/h)
to 186 mph (298
km/h)¢ table
on page 284 .
You may not find
this information on all tires be­
cause it is not required by law .
288
The speed rating letter code,
where applicable, is molded on the tire sidewall and indicates the maximum permissible vehicle
speeds
¢ .1,. in Winter tires on
page 298 .
Tire pressure monitoring
system*
means a system that detects
when one or mo re of a vehicle 's
tires are underinflated and illumi­
nates a low tire pressure warning
telltale .
Tread
means that portion of a tire that
comes into contact with the road .
Tread separation
means pulling away of the tread
from the tire carcass .
Treadwear indicators (TWI )
means the projections within the
principal grooves designed to give
a visual indication of the degrees
of wear of the tread. See
¢ page 292, Treadwear indicator
for more information on measur- ing tire wear.
.,.

Wheel s

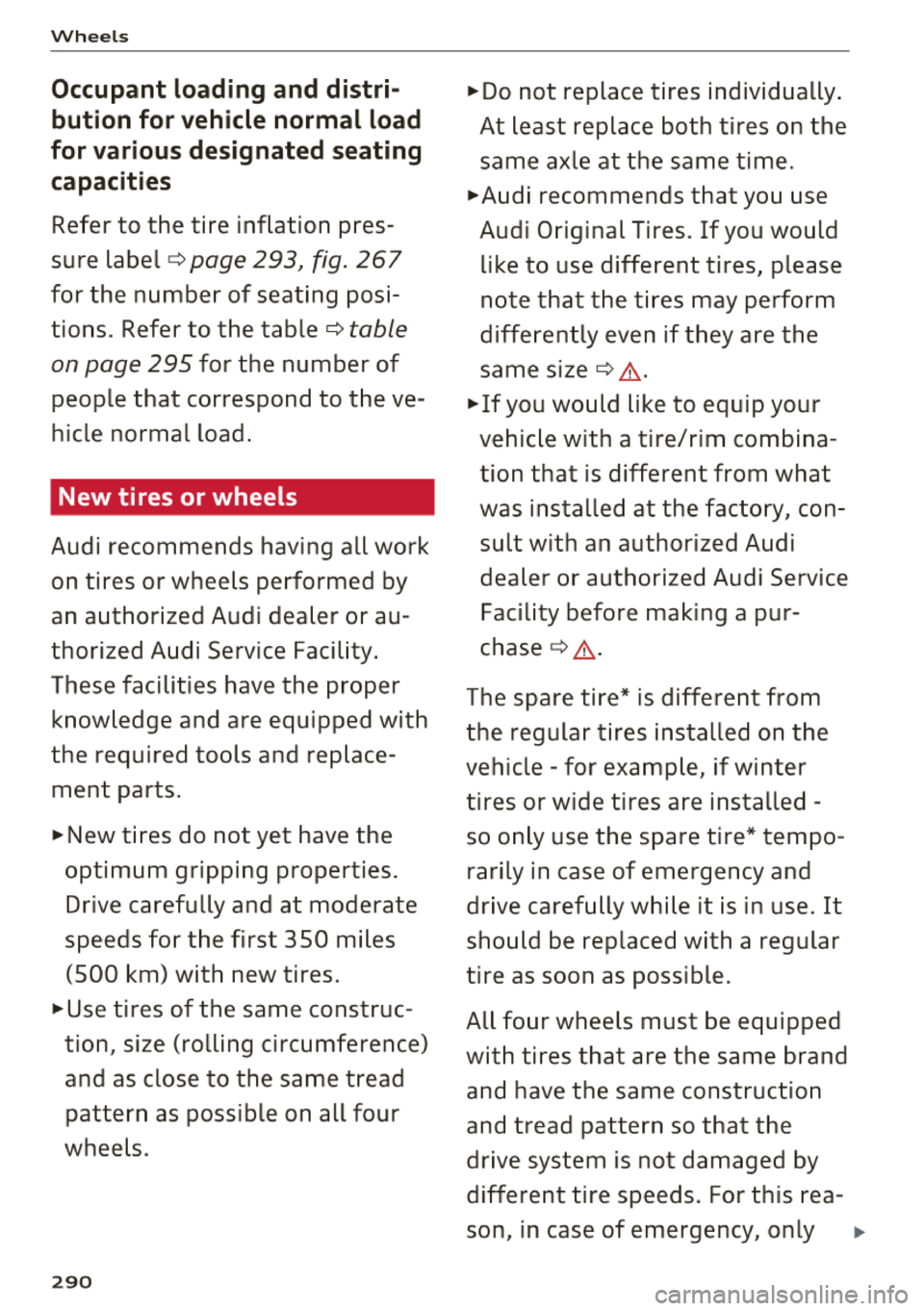

Occupant loading and distri­
bution for vehicle normal load
for various designated seating
capacities
Refer to the tire inflation pres­
sure
label ¢ page 293, fig . 267
for the number of seating posi­
tions . Refer to the
table¢ table
on page 295
for the number of
people that correspond to the ve­
hicle normal load .
New tires or wheels
Audi recommends having all work
on tires or wheels pe rformed by
an authorized Audi dealer or au­
thorized Audi Service Facility .
T hese facilities have the proper
knowledge and are equipped with
the required tools and replace ­
ment parts.
.,. New tires do not yet have the
optimum gripping properties. Drive carefully and at moderate
speeds fo r the first 350 miles
(500 km) with new tires .
.,. Use tires of the same construc ­
tion, size (rolling circumference)
and as close to the same tread pattern as poss ible on all four
wheels .
290
.,.Do not replace tires individually .
At least replace both tires on the
same axle at the same time.
.,. Audi recommends that you use
Audi Original Tires. If you would like to use different tires, please
note that the tires may perform
differently even if they are the
same
size¢ ,&.
.,. If you would like to equip your
vehicle with a tire/rim combina ­
tion that is different from what
was installed at the factory, con­
sult with an authorized Audi
dealer or authorized Audi Service
F acility before making a pur­
chase ~ &-
The spare tire* is different from
the regular tires installed on the
vehicle - for example, if winter
tires or wide tires are installed -
so only use the spare tire* tempo ­
rarily in case of emergency and
drive carefully while it is in use. It
should be replaced with a regular
tire as soon as possible.
All four wheels must be equipped
with tires that are the same brand and have the same construction
and tread pattern so that the
drive system is not damaged by
different tire speeds. For this rea-
son, in case of emergency, only
.,.

Wheels
the available cargo and lug­gage load capacity of your vehi­
cle.
.,.Check the tire sidewall
(¢ page 283, fig. 264) to deter­
mine the designated load rating
for a specific tire.
Wheel bolts and rims
Wheel bolts
Wheel bolts must be clean and loosen/tighten
easily .
Rims
Rims with a bolted rim ring* or with bolted wheel
covers* consist of multiple pieces . These compo­
nents were bolted together using special bolts
and a special procedure. You must not repair or
disassemble
them £:=?.&. .
A WARNING
Wheel bolts that are tightened or repaired in­
correctly can become loose and result in loss
of vehicle control, which increases the risk of
an accident. For the correct tightening specifi­
cation, see
¢page 314.
- Always keep the wheel bolts and the
threads in the wheel hub clean and free of grease.
- Only use wheel bolts that fit the rim.
- Always have damaged rims repaired by an
authorized Audi dealer or authorized Audi
Service Facility. Never repair or disassemble
rims yourself, because this increases the risk
of an accident .
Winter tires
Winter tires significantly improve the vehicle's
handling when driving in winter conditions. Be­
cause of their construction (width, compound,
tread pattern) , summer tires provide less trac­
tion on ice and snow.
298
.. Use winter tires on all four wheels .
.. Only use winter tires that are approved for your
vehicle.
.. Please note that the maximum permitted
speed may be lower with winter
tires¢ _&.. An
authorized Audi dealer or authorized Audi Serv ­
ice Facility can inform you about the maximum
permitted speed for your tires .
.,. Check the tire pressure after installing wheels
¢page 293 .
The effectiveness of winter tires is reduced great­
ly when the tread is worn down to a depth of
0.157 in (4 mm). The characteristics of winter
tires also decrease greatly as the tire ages , re­
gardless of the remaining tread.
A WARNING
- Never drive faster than the maximum per­
mitted speed for your tires. This could cause
the tires to heat up too much. This increases
the risk of an accident because it can cause
the tire to burst .
- Always adapt your driving to the road and
traffic conditions. Drive carefully and reduce
your speed on icy or slippery roads. Even
winter tires can lose traction on black ice .
® For the sake of the environment
Reinstall summer tires at the appropriate
time, because they provide better handling
when roads are free of snow and ice. Summer
tires cause less road noise, tire wear and fuel
consumption.
(D Tips
You can also use all season tires instead of
winter tires. Please note that in some coun­
tries where winter tires are required, only
winter tires with the
& symbol may be per­
mitted.
Snow chains
-
Snow chains not only improve the driving in win­
ter road conditions, but also the braking.
.,. Only install snow chains on the front wheels. .,.

u. co .... N

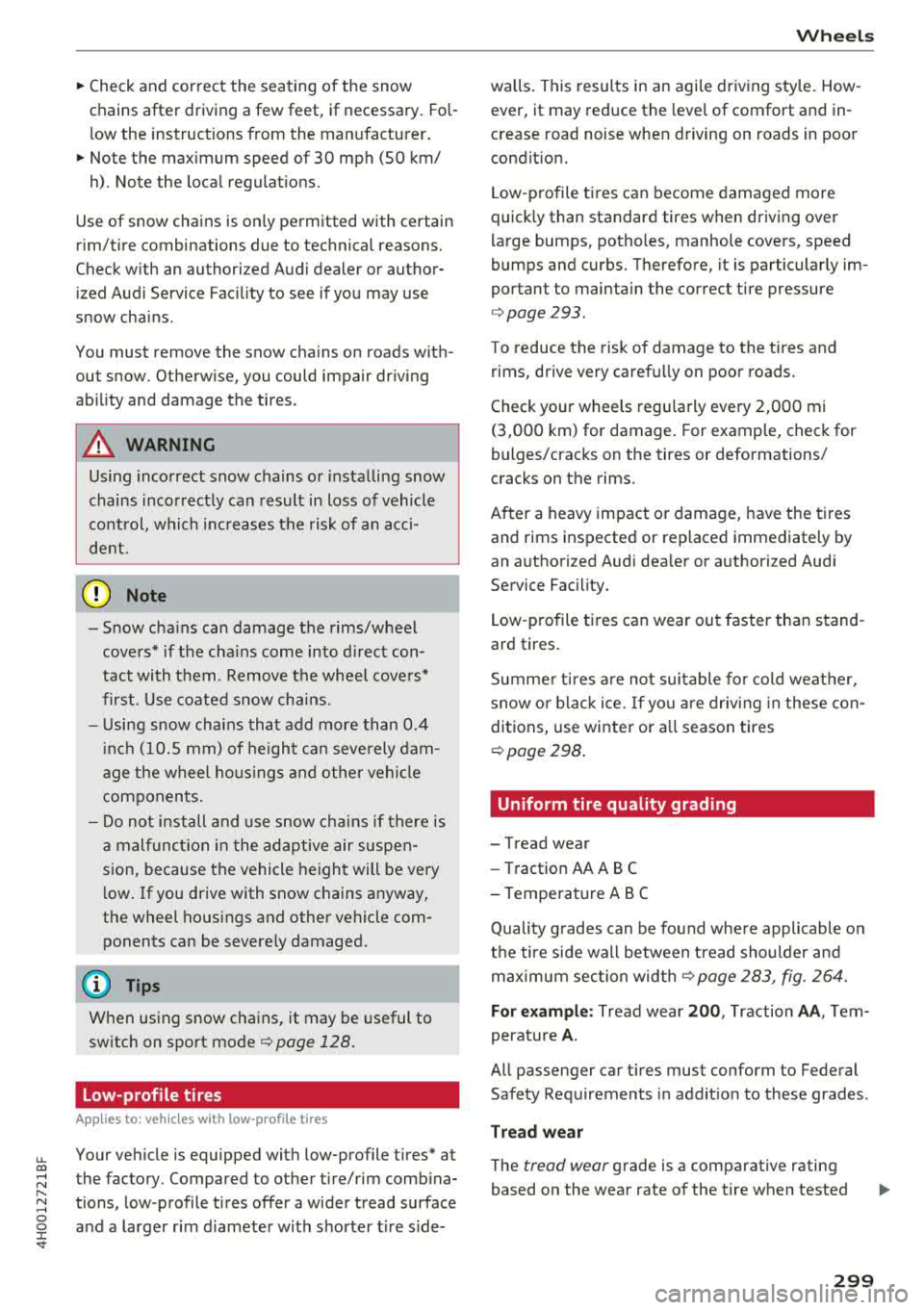

" N .... 0 0 :c ' ~ Check and correct the seating of the snow
chains after driving a few feet, if necessary. Fol­
low the instructions from the manufacturer.
~ Note the maximum speed of 30 mph (SO km/
h). Note the loc al regulations.
Use of snow chains is only permitted with certain
rim/tire combinations due to technical reasons.
Check with an authori zed Audi dealer or author­
ized Audi Service Facility to see if you may use
snow chains .
You must remove the snow chains on roads with­
out snow. Otherwise, you could impair driving
ability and damage the tires.
A WARNING
Using incorrect snow chains or installing snow
chains incorrectly can result in loss of vehicle
control, which increases the risk of an acci­
dent.
0 Note
-Snow chains can damage the rims/wheel
covers* if the chains come into direct con·
tact with them . Remove the wheel covers*
first. Use coated snow chains.
-Using snow chains that add more than 0.4
inch (10.5 mm) of height can severely dam­
age the wheel housings and other vehicle
components.
-Do not install and use snow chains if there is
a malfunction in the adaptive air suspen­
sion, because the vehicle height will be very
low. If you drive with snow chains anyway,
the wheel housings and other vehicle com­ ponents can be severely damaged.
@ Tips
When using snow chains, it may be useful to
switch on sport mode
¢ page 128.
Low-profile tires
Appl ies to: ve hicles w ith low-profile tires
Your vehicle is equipped with low-profile tires* at
the factory . Compared to other tire/rim combina­
tions, low-profile tires offer a wider tread surface
and a larger rim diameter with shorter tire side-
Wheels
walls. This results in an agile driving style. How­
ever, it may reduce the level of comfort and in­
crease road noise when driving on roads in poor
condition.
Low-profile tires can become damaged more
quickly than standard tires when driving over
large bumps, potholes, manhole covers, speed
bumps and curbs. Therefore, it is particularly im­
portan t to maintain the correct tire pressure
¢ page 293.
To reduce the risk of damage to the tires and
rims, drive very carefully on poor roads.
Check your wheels regularly every 2,000 mi
(3,000 km) for damage. For example, check for
bulges/cracks on the tires or deformations/
cracks on the rims.
After a heavy impact or damage, have the tires
and rims inspected or replaced immediately by
an authorized Audi dealer or authori zed Audi
Service Facility.
Low-profile tires can wear out faster than stand­
ard tires.
Summer tires are not suitable for cold weather,
snow or black ice. If you are driving in these con­
ditions, use winter or all season tires
¢ page 298.
Uniform tire quality grading
-Tread wear
-Traction AA AB C
-Temperature ABC
Quality grades can be found where applicable on
the tire side wall between tread shoulder and
maximum section width
¢ page 283, fig. 264.
For example: Tread wear 200, Traction AA, Tem­
perature
A .
All passenger car tires must conform to Federal
Safety Requirements in addition to these grades .
Tread wear
The tread wear grade is a comparative rating
based on the wear rate of the tire when tested
299

Wheels
-The driver is responsible for maintaining the
correct tire pressure. You must check the
tire pressure regularly.
- Under certain conditions (such as a sporty
driving style, winter conditions or unpaved
roads), the tire pressure monitoring system
indicator may be delayed .
- Do not use run-flat tires on your vehicle. Us­
ing them when not permitted can lead to
vehicle damage or accidents .
(D Tips
- The tire pressure monitoring system can al­
so stop working when there is an ESC mal­
function .
- Using snow chains may result in a system
malfunction.
- The tires with the identification
"AO" or
"RO" ¢ page 290 have been matched with
your Audi tire pressure monitoring system.
Using these tires is recommended.
Storing tire pressures
Applies to: AB, S8
If the tire pressure changes or a tire is replaced,
it must be confirmed in the Infotainment sys­
tem .
.,. Make sure before storing that the tire pressures
of all four tir es meet the specified values and
are adapted to the
load ¢ page 291 .
.,. Switch the ignition on .
.,. Select : the ICARI function button > Car Systems
control button > Service & control > Tire pres­
sure monitor> Store tire pressure > Yes, store
now.
(D Tips
Do not store the tire pressures if snow chains
are installed. Otherwise the system could
malfunction.
302
Tire Pressure Monitoring System (SB plus)
ill General notes
Applies to: S8 plus
Each tire, including the spare (if provided),
shou ld be checked monthly when cold and inflat­
ed to the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or
tire inflation pressure label. (If your vehicle has
tires of a different size than the size ind icated on
the veh icle placard or tire inflat ion pressure la­
bel, you should determine the proper tire infla­
tion pressure for those tires).
As an added safety feature, your vehicle has been
equipped with a tire pressure mon itor ing system
(TPMS) t hat illuminates a low tire pressure tell­
ta le when o ne or more of your tires is significant­
l y under-inflated. According ly, when the low tire
pressure telltale illuminates, you should stop and
check your tires as soon as possible, and inflate
them to the proper pressure . Driving on a signifi ­
cant ly under-inflated tire causes the tire to over­
heat and can lead to tire failure . Under-inflation
also reduces fuel efficiency and tire tread life,
and may affect the vehicle's handling and stop ­
ping ability .
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver's re­
spons ibility to maintain correct t ire pressure,
even if under-inflation has not reached the level
to trigge r illumination of the TPM S low t ire pres­
su re te lltale.
Your vehicle has also been equipped with a TPMS
malfunction indicator to ind icate when the sys­
tem is not operating prope rly . The TPM S mal­
function indicator is combined with the low t ire
pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi­
mately one minute and then remain continuously
illuminated. This sequence wi ll continue upon
subsequent vehicle start-ups as long as the mal­
function exists.
When the malfunction indicator is illuminated,
the system may not be able to detect or signal
low tire pressure as intended. TPMS
malfunctions ..,_
