AUDI E-TRON 2019 User Guide

4KE012721BB

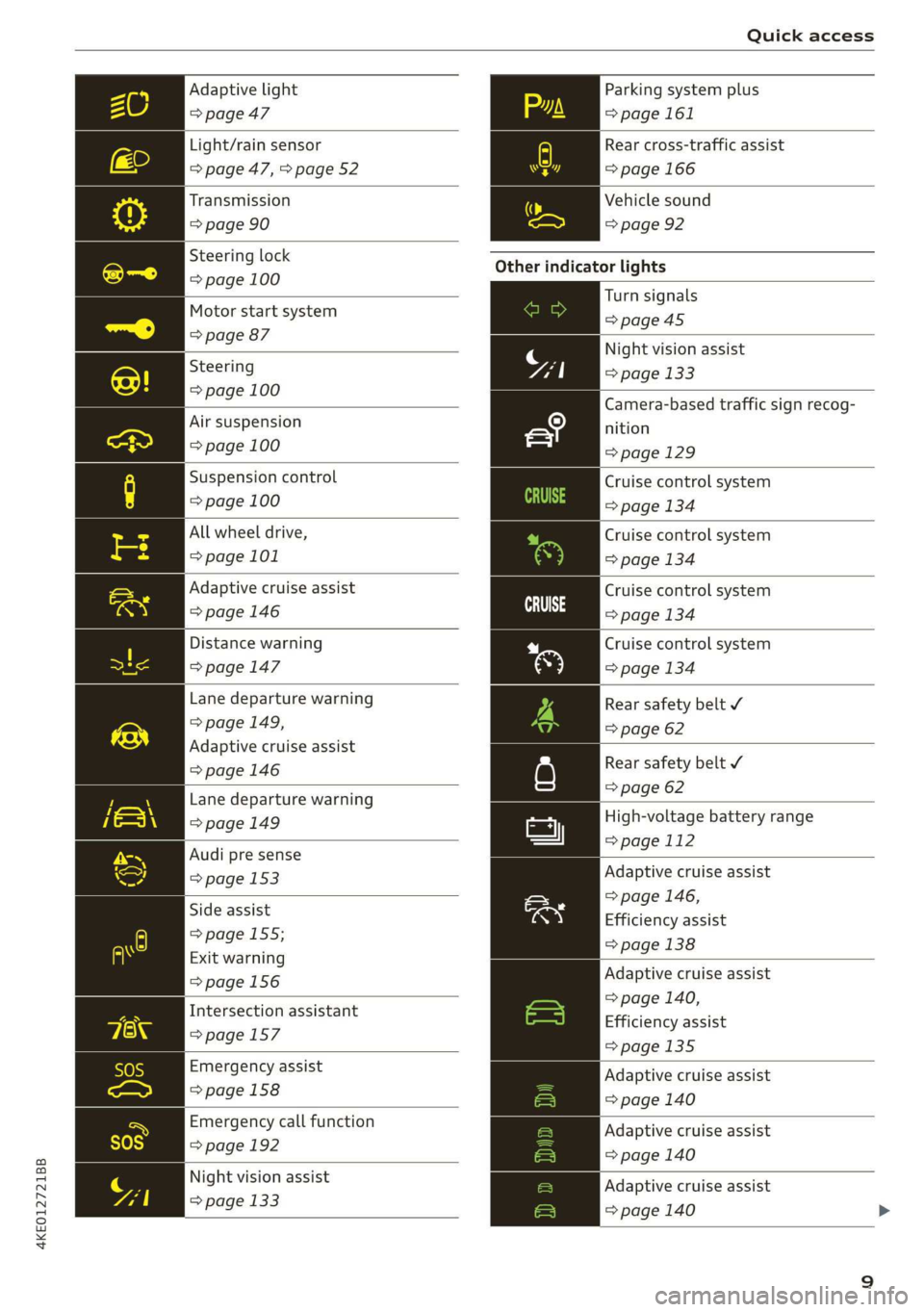

Quick access

Adaptive light
=> page 47
Light/rain sensor
=> page 47, > page 52

























Transmission
=> page 90
Steering lock
=> page 100
Motor start system
=> page 87
Steering
=> page 100
Air suspension
=> page 100
Suspension control
=> page 100
All wheel drive,
=> page 101
Adaptive cruise assist
=> page 146
Distance warning
=>page 147
Lane departure warning
=> page 149,
Adaptive cruise assist
=>page 146
Lane departure warning
=> page 149
Audi pre sense
=> page 153
Side assist
=> page 155;
Exit warning
=>page 156
Intersection assistant
=>page 157
Emergency assist
> page 158
Emergency call function
=> page 192
Night vision assist
=> page 133
Parking system plus
= page 161
Rear cross-traffic assist
= page 166
Vehicle sound
=> page 92


Other indicator lights
Turn signals
=>page 45
Night vision assist
=> page 133





Camera-based traffic sign recog-
nition
=> page 129


Cruise control system
=> page 134


Cruise control system
=> page 134


Cruise control system
CE age 134





Cruise control system
=> page 134


Rear safety belt ¥
=> page 62


Rear safety belt ¥
=> page 62
High-voltage battery range
=>page 112



Adaptive cruise assist
=> page 146,
Efficiency assist
=> page 138




Adaptive cruise assist
=> page 140,
Efficiency assist
>page 135



Adaptive cruise assist
=> page 140



Adaptive cruise assist
=> page 140


Adaptive cruise assist
=> page 140

Quick access

Hold assist
=> page 94
Hill hold assist
=> page 96
Adaptive cruise assist
=> page 143
Lane guidance for adaptive cruise
assist
> page 140 Hill descent assist
Lane guidance for adaptive cruise => page 97
assist
=> page 140
Hill descent assist
=> page 97
Efficiency assist
Keys
>page 135
=> page 87
Efficiency assist
>page 135
Efficiency assist
>page 135
Efficiency assist
=>page 135
Air suspension
=> page 100

Speed warning system
=> page 128
Speed warning system
=>page 128
Low beam headlight
=> page 44
Efficiency assist
>page 135
Distance warning
a => page 147
Lane departure warning
=>page 148
Parking light
=> page 44
High beams
=>page 45
Lane departure warning
> page 148 High beam assistant
=>page 45
Lane departure warning
=> page 149 High beam assistant
=>page 45
Audi pre sense ¥
Charging system
=> page 153 ang
=> page 112
Child safety lock
=> page 39
Side assist
=>page 155
Intersection assistant
=>page 157

Emergency assist
=>page 158
Door lock
> page 31
Electromechanical parking brake
=>page 95
Electromechanical parking brake
=>page 95
10
Efficiency assist A Rear cross-traffic assist
=> page 135 7] => page 166

4KE012721BB

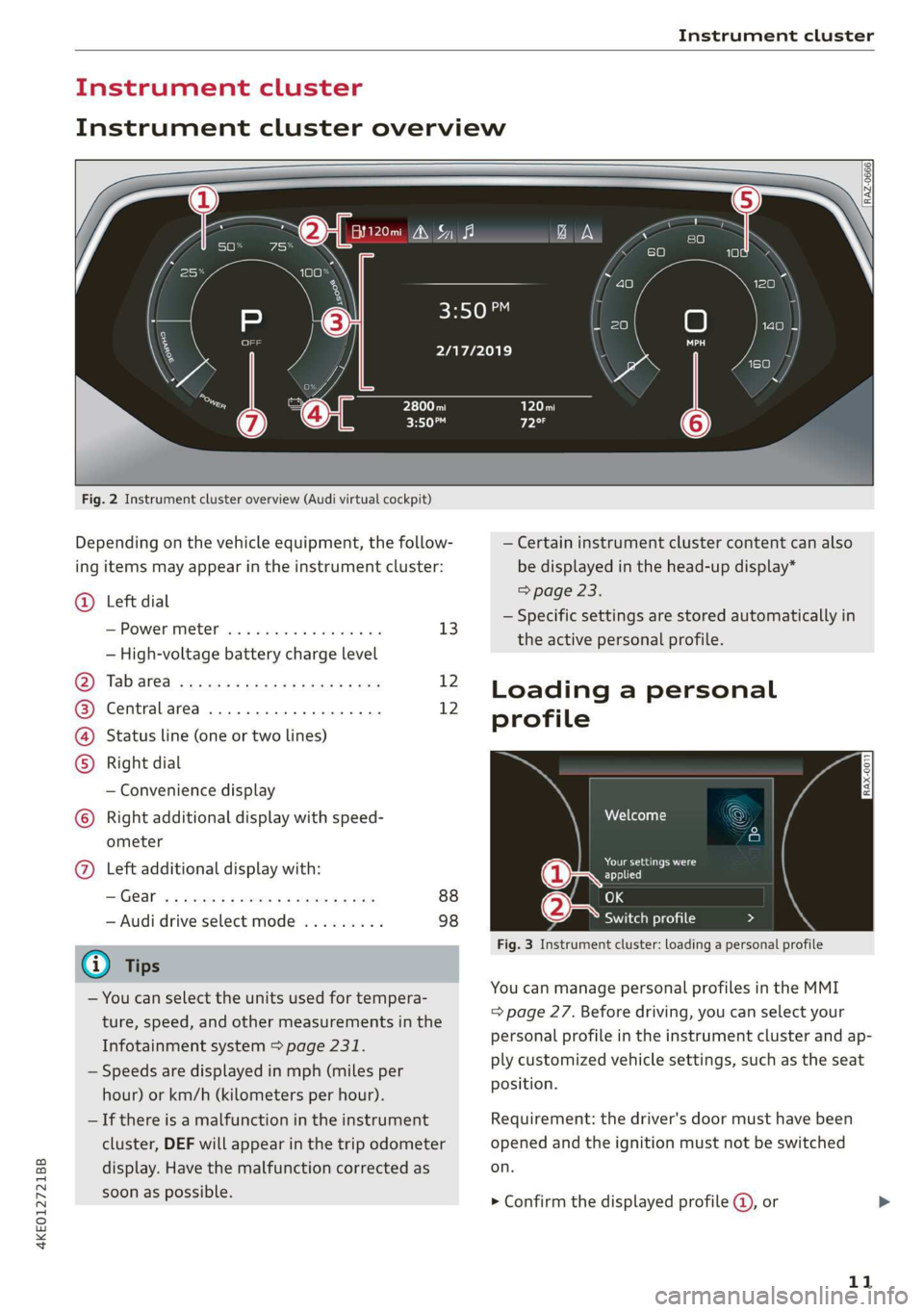

Instrument cluster

Instrument cluster overview


Fig. 2 Instrument cluster overview (Audi virtual cockpit)
Depending on the vehicle equipment, the follow-
ing items may appear in the instrument cluster:
@ Left dial
S:Powerimetert sia se seco a v seen ov 13
— High-voltage battery charge level
Oy Tab areal sess = ewe ¢ x oxen 2 2 ee 12

@) Centralarea .............0.000. 12


(4) Status line (one or two lines)
Right dial
— Convenience display

) Right additional display with speed-
ometer
@) Left additional display with:
IGG « 2 eee s 5 ee +e eee 9 ce 88
— Audi drive select mode ......... 98
@) Tips
— You can select the units used for tempera-
ture, speed, and other measurements in the
Infotainment system > page 231.
— Speeds are displayed in mph (miles per
hour) or km/h (kilometers per hour).
— If there is a malfunction in the instrument
cluster, DEF will appear in the trip odometer
display. Have the malfunction corrected as
soon as possible.
2/17/2019

— Certain instrument cluster content can also
be displayed in the head-up display*
=> page 23.
— Specific settings are stored automatically in
the active personal profile.
Loading a personal
profile
iy Aten
Darren ad
applied
(eae Switch profile Da 7 N
Fig. 3 Instrument cluster: loading a personal profile
You can manage personal profiles in the MMI
= page 27. Before driving, you can select your
personal profile in the instrument cluster and

ap-
ply customized vehicle settings, such as the seat
position.
Requirement: the driver's door must have been
opened and the ignition must not be switched
on.
> Confirm the displayed profile @, or
11

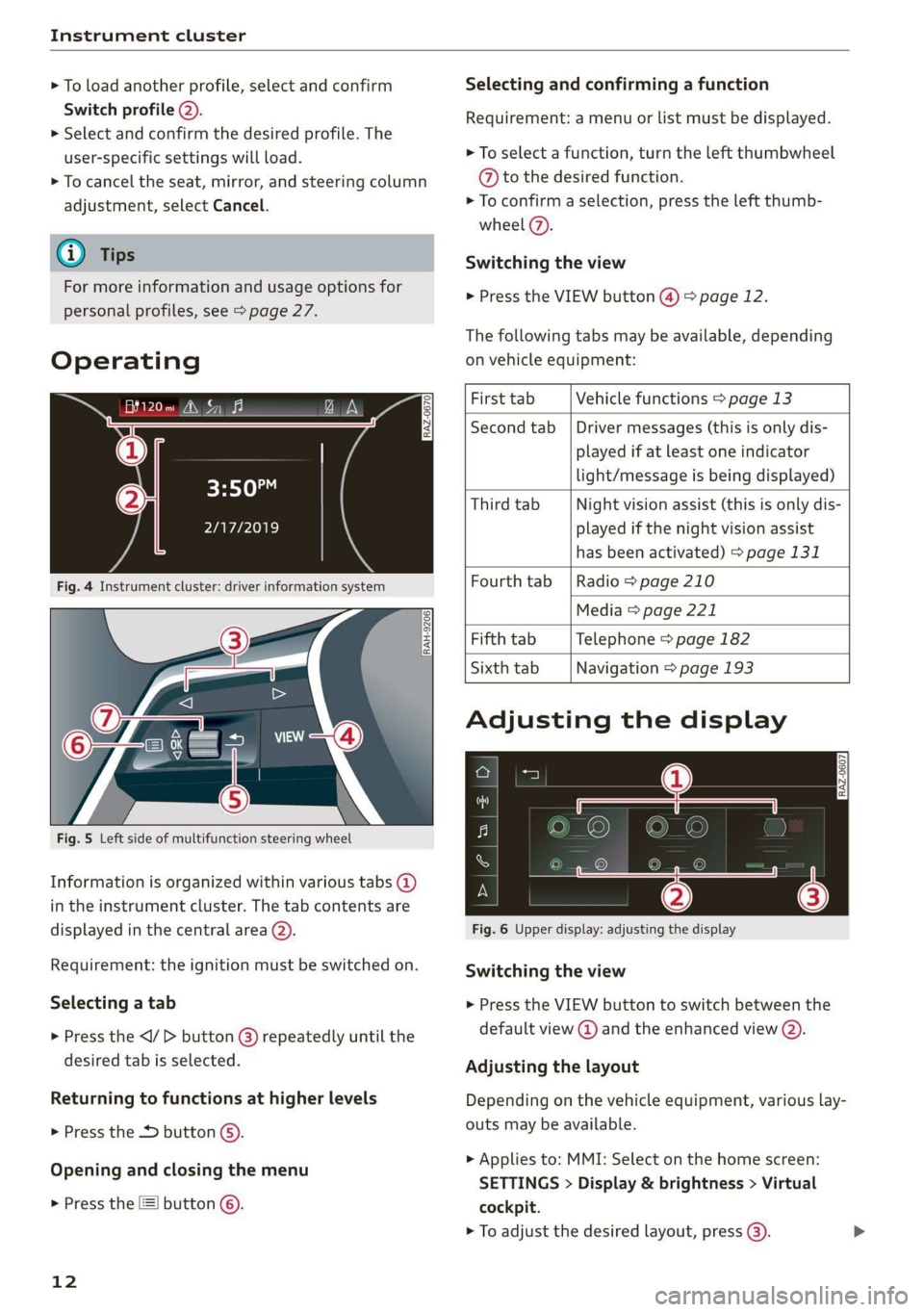

Instrument cluster

> To load another profile, select and confirm
Switch profile 2).
> Select and confirm the desired profile. The
user-specific settings will load.
> To cancel the seat, mirror, and steering column
adjustment, select Cancel.
@) Tips
For more information and usage options for
personal profiles, see > page 27.
Operating
S| S| 9] ny S| cc
3:50™
2/17/2019

Fig. 4 Instrument cluster: driver information system

RAH-9206|

Fig. 5 Left side of multifunction steering wheel
Information is organized within various tabs @)
in the instrument cluster. The tab contents are
displayed in the central area (2).
Requirement: the ignition must be switched on.
Selecting a tab
> Press the button @) repeatedly until the
desired tab is selected.
Returning to functions at higher levels
> Press the D button ©).
Opening and closing the menu
> Press the [=] button ©.
12
Selecting and confirming a function
Requirement: a menu or list must be displayed.
> To select a function, turn the left thumbwheel
@ to the desired function.
> To confirm a selection, press the left thumb-
wheel (7).
Switching the view
> Press the VIEW button @) > page 12.
The following tabs may be available, depending
on vehicle equipment:





First tab Vehicle functions > page 13
Second tab | Driver messages (this is only dis-
played if at least one indicator
light/message is being displayed)
Third tab Night vision assist (this is only dis-
played if the night vision assist
has been activated) > page 131
Fourth
tab | Radio > page 210
Media > page 221
Fifth tab Telephone > page 182
Sixth tab Navigation > page 193


Adjusting the display
S| 3| S| iS
| ec
Fig. 6 Upper display: adjusting the display
Switching the view
> Press the VIEW button to switch between the
default view @ and the enhanced view ().
Adjusting the layout
Depending on the vehicle equipment, various lay-
outs may be available.
> Applies to: MMI: Select on the home screen:
SETTINGS > Display & brightness > Virtual
cockpit.
> To adjust the desired layout, press (3).

4KE012721BB
Instrument cluster

Adjusting the additional display
Depending on the vehicle equipment, the addi-
tional displays that can be selected may vary.
> Applies to: MMI: Select on the home screen:
SETTINGS > Display & brightness > Virtual
cockpit > Configure.
> Select the desired additional display.
Reducing the display
Depending on the vehicle equipment, you can
hide the central area in the instrument cluster.
> Select on the instrument cluster: vehicle func-
tions tab > E] button > Reduced display.
Power meter

[RAZ-0574]





Fig. 7 Instrument cluster: power meter
The power meter gives feedback about the usage
capacity of the drive system. The power meter
needle displays the current usage capacity. A col-
ored border indicates how much the drive system
can currently be utilized. The colored borders
may vary depending on the selected driving pro-
gram and the electric power currently available.
Depending on the vehicle equipment, the power
meter displays the following driving statuses:
Drive system switched off
Vehicle recovering electrical energy
Drive system switched on
®©&O Vehicle is being driven, drive sys-
tem usage information in percent-
age
@ Vehicle is being driven briefly with
maximum power
Odometer
The trip odometer and odometer are displayed in
the status bar @) > page 11.
The trip odometer shows the distance driven
since it was last reset. It can be used to measure
short distances. The odometer shows the total
distance that the vehicle has been driven.
Resetting the trip odometer
> Select on the instrument cluster: vehicle func-
tions tab > I button > Reset mi.
@) Tips
Distances are displayed in mi (miles) or km
(kilometers).
Outside temperature
display
The outside temperature is displayed in the sta-
tus bar @) 9 page 11.
If your vehicle is stationary or if you are driving at
very low speeds, the temperature displayed in
the instrument cluster may be slightly higher
than the actual temperature outside due to heat
radiating from the motor.
At temperatures below 41 °F (+5 °C), a snowflake
symbol appears in front of the temperature dis-
play > A\.

Z\ WARNING
Do not assume the roads are free of ice based
on the outside temperature display. Be aware
that there may be ice on roads even when the
outside temperature is around 41 °F (+5 °C)
and that ice can increase the risk of accidents.

Vehicle functions
The trip computer is displayed in the first tab of
the driver information system. Additional vehicle
functions can be accessed depending on the vehi-
cle equipment.
13
>

Instrument cluster

> Press the =] button on the multifunction steer-
ing wheel.
— On-board computer > page 14
— Charging > page 108
— Reduced display > page 13
— Reset trip odometer > page 13
On-board computer
Resetting values to zero
Requirement: the Consumption, Short-term
memory, or Long-term memory display must be
selected.
> To reset the values in one of the memories to
zero, press and hold the left thumbwheel on
the multifunction steering wheel for one sec-
ond, or
> Select on the instrument cluster: vehicle func-
tions tab > [=] button > Reset mi.
Depending on the vehicle equipment, you can call
up the following displays in the on-board com-
puter one at a time by turning the left thumb-
wheel on the multifunction steering wheel:
—Time and date > page 231
— Range display > page 91
— Average consumption > page 14
— Short-term memory overview
— Long-term memory overview
— Driver assistance
— Traffic sign recognition > page 128
Short-term memory and long-term memory
The short-term memory collects driving informa-
tion from the time the ignition is switched on un-
til it is switched off. If you continue driving within
two hours after switching the ignition off, the
new values will be included when calculating the
current trip information.
Unlike the short-term memory, the long-term
memory is not erased automatically. You can se-
lect the time period for evaluating trip informa-
tion yourself.
14
Average consumption
The current consumption can be shown using a
bar graph. The average consumption stored in
the short-term memory is also displayed. If the
bar is green, your vehicle is saving energy using
the following methods:
— Recuperation: electrical energy can be stored in
the battery when the vehicle is coasting or driv-
ing downhill. The bar drops down into the neg-
ative part of the scale.
G) Tips
The date, time of day, and time and date for-
mat can be set in the Infotainment system
= page 231.

4KE012721BB

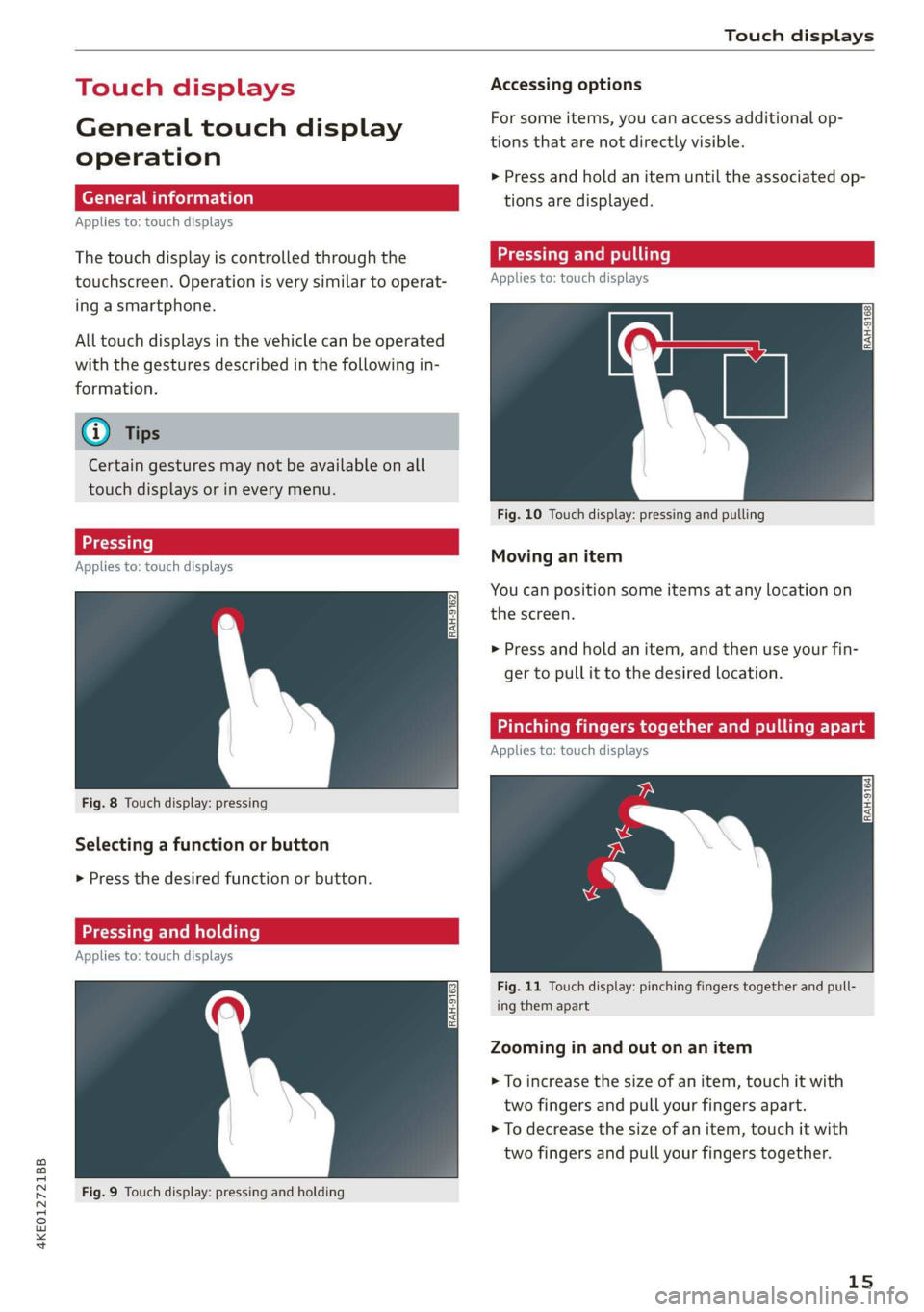

Touch displays

General touch display
operation

Applies to: touch displays
The touch display is controlled through the
touchscreen. Operation is very similar to operat-
ing a smartphone.
All touch displays in the vehicle can be operated
with the gestures described in the following in-
formation.
G@) Tips
Certain gestures may not be available on all
touch displays or in every menu.
Applies to: touch displays

Fig. 8 Touch display: pressing
Selecting a function or button
> Press the desired function or button.

Fig. 9 Touch display: pressing and holding
Accessing options
For some items, you can access additional op-
tions that are not directly visible.
>» Press and hold an item until the associated op-
tions are displayed.
Pressing and it
Applies to: touch displays

Fig. 10 Touch display: pressing and pulling
Moving an item
You can position some items at any location on
the screen.
> Press and hold an item, and then use your fin-
ger to pull it to the desired location.
Pinching fingers together and pulling apa
Applies to: touch displays

Fig. 11 Touch display: pinching fingers together and pull-
ing them apart
Zooming in and out on an item
> To increase the size of an item, touch it with
two fingers and pull your fingers apart.
> To decrease the size of an item, touch it with
two fingers and pull your fingers together.
15

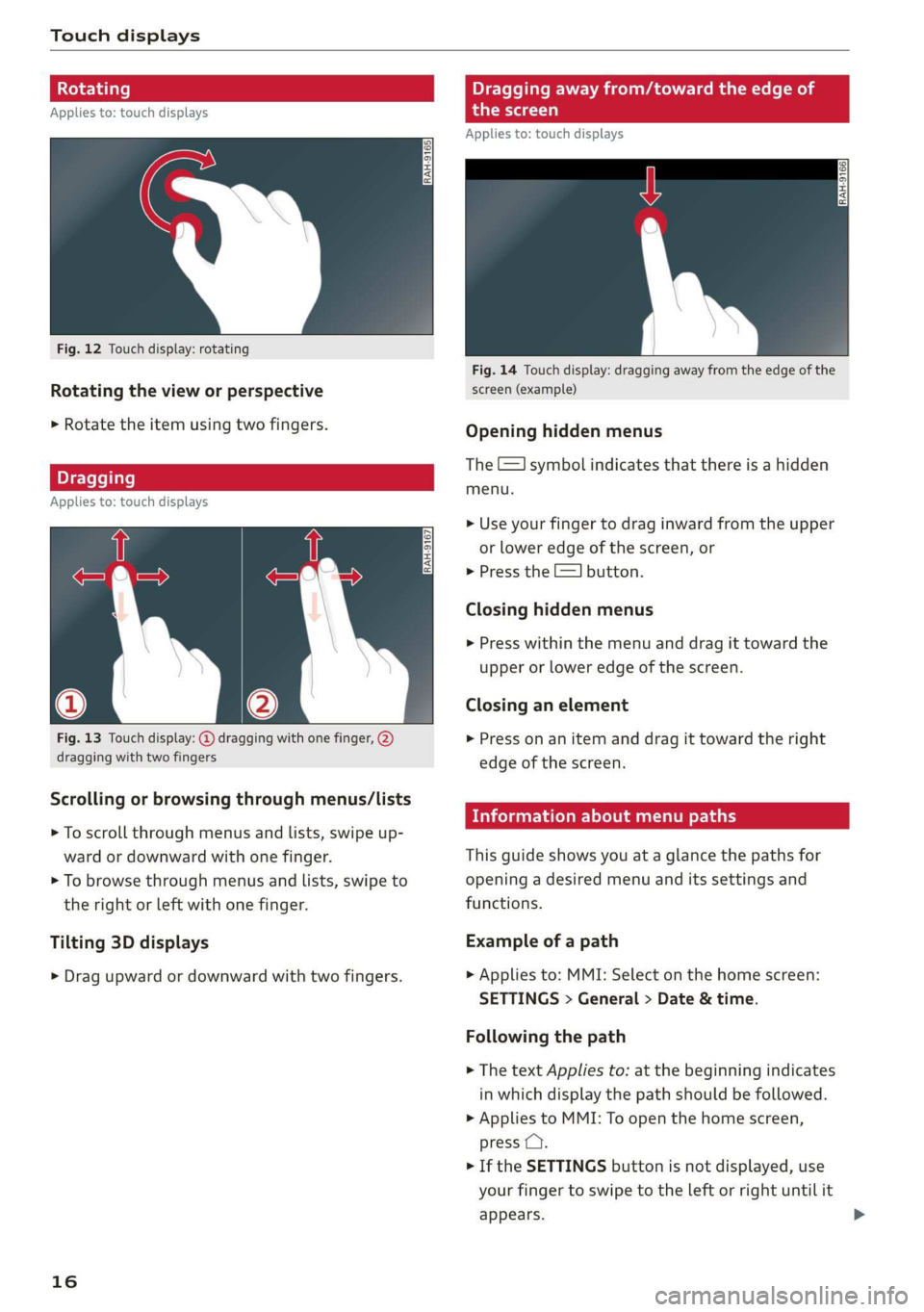

Touch displays
Rotating Dragging away from/toward the edge of
Applies to: touch displays the screen
Applies to: touch displays



Fig. 12 Touch display: rotating
Fig. 14 Touch display: dragging away from the edge of the
Rotating the view or perspective screen (example)
> Rotate the item using two fingers. Opening hidden menus
The E=] symbol indicates that there is a hidden
menu.
Dragging
Applies to: touch displays
>» Use your finger to drag inward from the upper
or lower edge of the screen, or
> Press the E=] button.
Closing hidden menus
> Press within the menu and drag it toward the
upper or lower edge of the screen.

Closing an element
Fig. 13 Touch display: @ dragging with one finger, @, > Press on an item and drag it toward the right
dragging with two fingers edge of the screen.
Information about menu paths
Scrolling or browsing through menus/lists
> To scroll through menus and lists, swipe up-
ward or downward with one finger. This guide shows you at a glance the paths for
> To browse through menus and lists, swipe to opening a desired menu and its settings and
the right or left with one finger. functions.
Tilting 3D displays Example of a path
> Drag upward or downward with two fingers. >» Applies to: MMI: Select on the home screen:
SETTINGS > General > Date & time.
Following the path
> The text Applies to: at the beginning indicates
in which display the path should be followed.
> Applies to MMI: To open the home screen,
press C.
> If the SETTINGS button is not displayed, use
your finger to swipe to the left or right until it
appears.
16

4KE012721BB

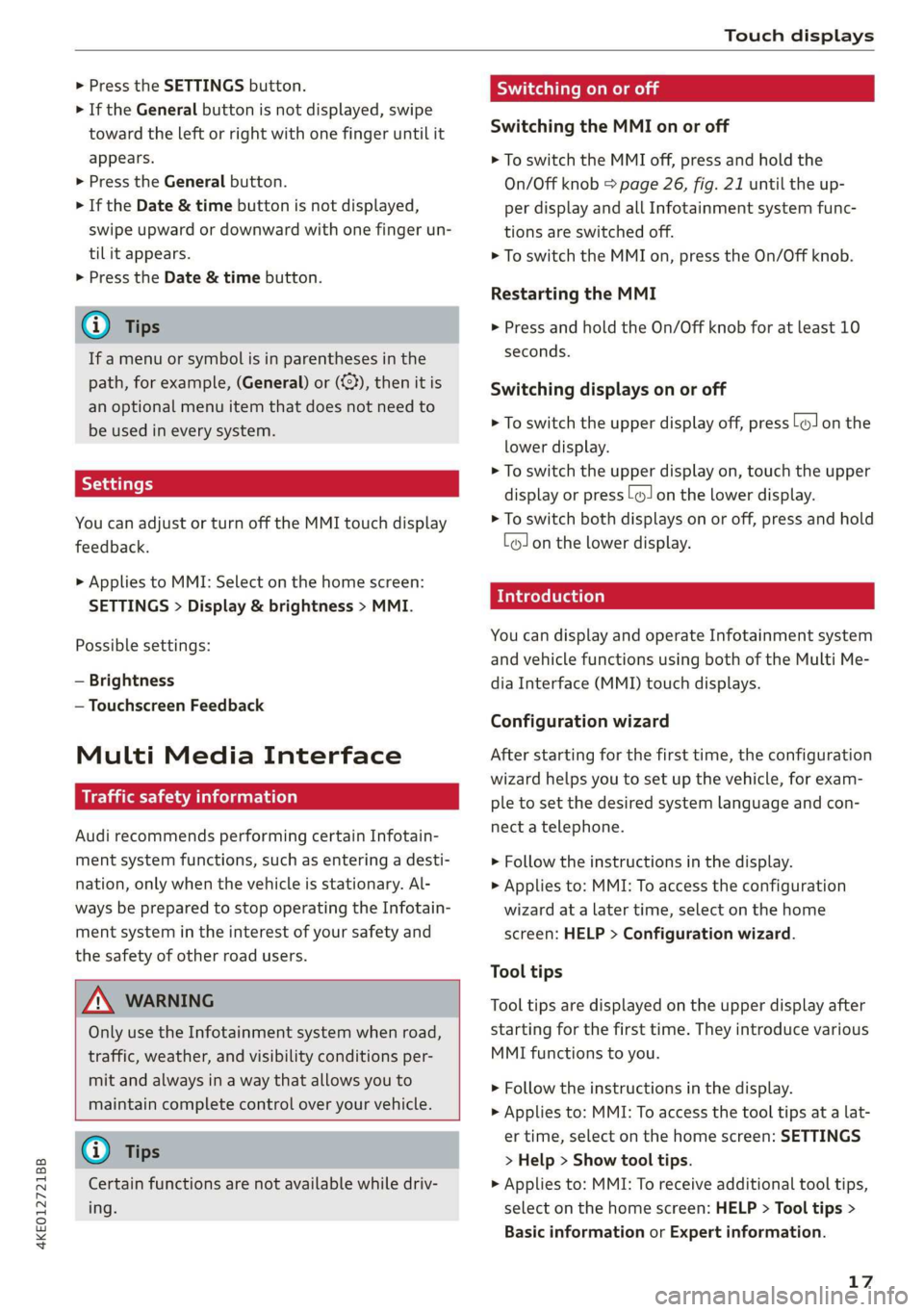

Touch displays

> Press the SETTINGS button.
> If the General button is not displayed, swipe
toward the left or right with one finger until it
appears.
> Press the General button.
> If the Date & time button is not displayed,
swipe upward or downward with one finger un-
tilit appears.
> Press the Date & time button.
@) Tips
If a menu or symbol is in parentheses in the
path, for example, (General) or (%23), then it is
an optional menu item that does not need to
be used in every system.
You can adjust or turn off the MMI touch display
feedback.
> Applies to MMI: Select on the home screen:
SETTINGS > Display & brightness > MMI.
Possible settings:
— Brightness
— Touchscreen Feedback
Multi Media Interface
Ne MCL
Audi recommends performing certain Infotain-
ment system functions, such as entering a desti-
nation, only when the vehicle is stationary. Al-
ways be prepared to stop operating the Infotain-
ment system in the interest of your safety and
the safety of other road users.

ZA WARNING
Only use the Infotainment system when road,
traffic, weather, and visibility conditions per-
mit and always in a way that allows you to
maintain complete control over your vehicle.
G) Tips
Certain functions are not available while driv-
ing.

Sy isealiae Mela Me) me) ai
Switching the MMI on or off
> To switch the MMI off, press and hold the
On/Off knob > page 26, fig. 21 until the up-
per
display and all Infotainment system func-
tions are switched off.
> To switch the MMI on, press the On/Off knob.
Restarting the MMI
>» Press and hold the On/Off knob for at least 10
seconds.
Switching displays on or off
> To switch the upper display off, press [Jon the
lower display.
> To switch the upper display on, touch the upper
display or press [Jon the lower display.
> To switch both displays on or off, press and hold
[oJ on the lower display.
Introduction
You can display and operate Infotainment system
and vehicle functions using both of the Multi Me-
dia Interface (MMI) touch displays.
Configuration wizard
After starting for the first time, the configuration
wizard helps you to set up the vehicle, for exam-
ple to set the desired system language and con-
nect
a telephone.
> Follow the instructions in the display.
> Applies to: MMI: To access the configuration
wizard at a later time, select on the home
screen: HELP > Configuration wizard.
Tool tips
Tool tips are displayed on the upper display after
starting for the first time. They introduce various
MMI functions to you.
> Follow the instructions in the display.
> Applies to: MMI: To access the tool tips at a lat-
er time, select on the home screen: SETTINGS
> Help > Show tool tips.
> Applies to: MMI: To receive additional tool tips,
select on the home screen: HELP > Tool tips >
Basic information or Expert information.
17

Touch displays

Menus and symbols


Ce ota UC
fons
a
Co > an
4 oo A oe Sc

Ls

Fig. 15 Upper/lower display: diagram

Label Description

Quick access bar Return to the home screen or open a menu quickly > page 18

Status bar
Displays existing notifications Z) > page 19, status display @)
=> page 19, time

Display area Select a menu, apply settings, display content > page 19

Function bar Activate functions or access attached content > page 20

Shortcuts Using shortcuts > page 20

Q|@/@|O|
©
|O
Climate control settings | Adjust the climate control system settings > page 81

Description of common symbols
You can operate the default functions using the
symbols that follow. The symbols may be found
in any menu, depending on the context.

Description










Go back one level
Close the menu
Search for content
Open explanations for a menu
Open settings for the selected
menu
Open the submenu
Adjust the settings
Set as favorite
Switch functions on or off
Switch functions on or off
Switch functions on or off
18



Symbol Description

Open additional actions
Open additional information for
the selected menu

G) Tips
The following pages primarily show ILlustra-
tions of the upper display with the largest
possible screen size. The display or location of
the items shown may vary depending on the
vehicle equipment.
With quick access, you can return to the home
screen and quickly switch between four menus
that can be individually configured.
Returning to the home screen or opening a
menu quickly
> Press ( or one of the four buttons.
