Driving
©
y Note

If the selector lever does not lock automati­
cally, a malfunction has occurred. In this case,
the power transmission is interrupted to pre­
vent the vehicle from moving unintentionally.
Proceed as follows to engage the selector lev­
er lock again:
- Applies to vehicles with 6-speed gearbox:
Briefly press the brake pedal.
- Applies to vehicles with 7-speed gearbox:
Press the brake pedal. Move the selector
lever to position
P
or
N
and then select a
gear.
- If the vehicle does not move forwards or
backwards even though a gear is selected,
proceed as follows:
- If the vehicle does not move in the desired

direction,
the system may have failed to en­
gage the gear correctly. In this case, press
the brake pedal and select the gear again.
- If the vehicle still does not move in the de­
sired direction, a system malfunction has

occurred.
Seek professional assistance and
have the system checked.
General notes on driving an automatic
Applies to: vehicles with automatic gearbox

Fig.
77 Detail of the centre console: Selector lever with in­
terlock button
Starting the engine

•
Move the selector Lever to
P
or N. In the case of
Low outside temperatures (below -10 °C), the
engine can only be started when the selector
lever is in position P.
Driving away from a standstill

•
Press and hold the brake pedal.

•
Press and hold the interlock button (the button
in the selector lever handle), set the selector
lever to the desired position (e.g. D)
^>page
86
and release the interlock button.

•
Wait for the gearbox to engage the gear (a
slight movement can be felt).

•
Release the brake and press the accelerator
There are several convenient functions to help
you drive away on gradients
^page
83.
Stopping briefly

•
Press the brake pedal to hold the vehicLe when
stationary (for instance at traffic lights).

•
Do not press the accelerator.

•
To prevent the vehicLe from rolling away, apply
the parking brake before moving off on steep
gradients
•=>^
and
•=>(]).

• As soon as you acceLerate as normal, the park­
ing brake will automatically be released and
the vehicLe will start moving. Important: The
driver's door must be closed.
Stopping/parking the car
If
you
open the driver's door while the selector
lever is not in position P, the vehicle can roll
away. The message Shift to P, otherwise vehicle
can roll away. Doors do not lock if lever is not in
P. appears on vehicles with convenience key*. A
buzzer will also sound.

•
Press and hold the brake pedal
<=>
A..

•
Apply the parking brake.

•
Move the selector Lever to P.
In some situations (such as on mountain roads or
when towing a trailer or caravan) it can be advan­
tageous to switch temporarily to the manual
shift programme so that the gear ratios can be
selected manually to suit the driving conditions

^>page
90.
On level ground it is sufficient to move the selec­
tor lever to P. On a gradient the parking brake
should be applied first and the selector Lever
should be moved to
P ^>page
82. This reduces
the load on the locking mechanism and makes it
easier to move the selector lever out of position
P. •
88

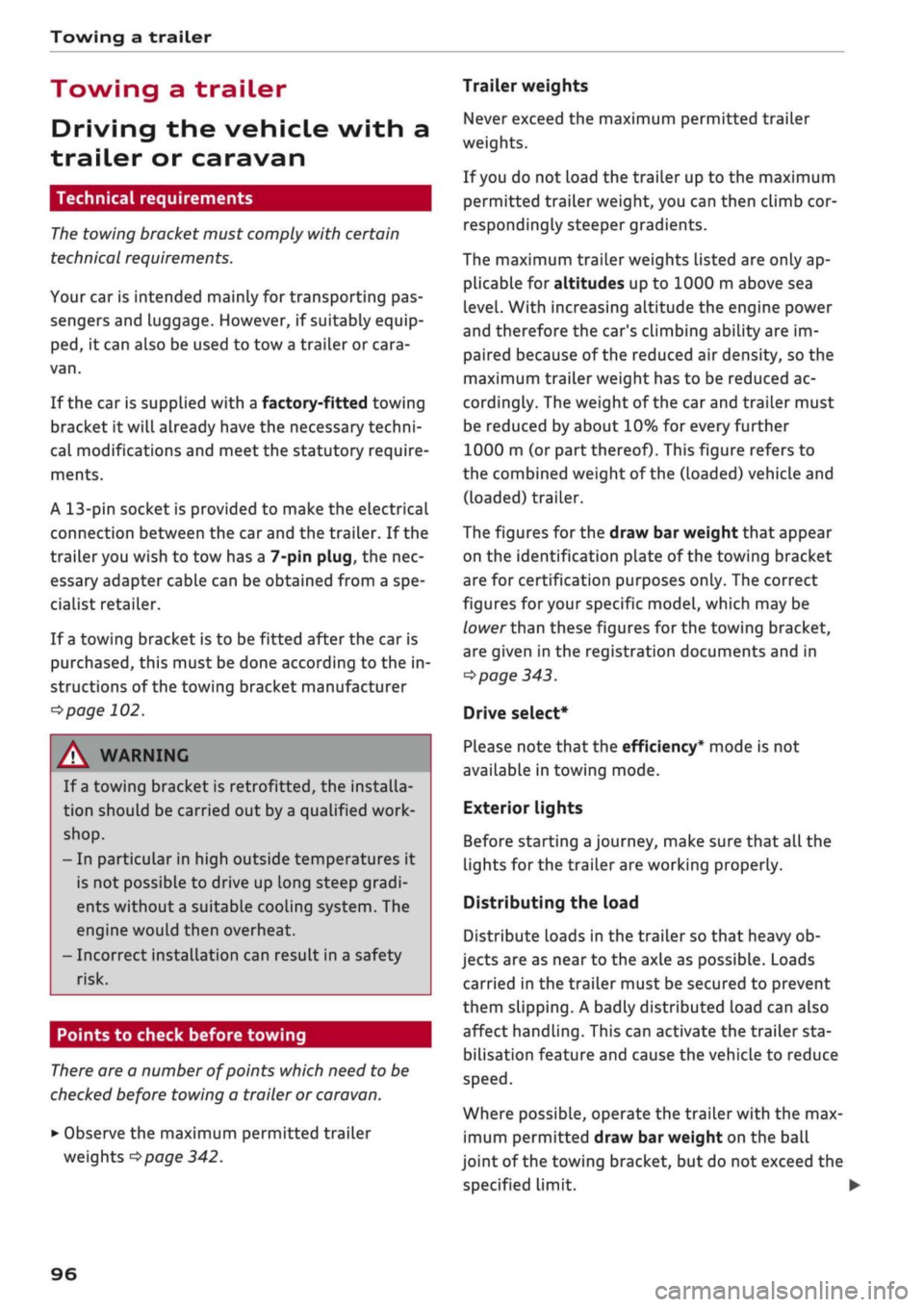

Towing a trailer
Towing a trailer
Driving the vehicle with a
trailer or caravan
Technical requirements

The
towing bracket must comply with certain
technical requirements.
Your car is intended mainly for transporting pas­
sengers and luggage. However, if suitably equip­

ped,
it can also be used to tow a trailer or cara­

van.

If the car is supplied with a factory-fitted towing
bracket it will already have the necessary techni­
cal modifications and meet the statutory require­
ments.
A 13-pin socket is provided to make the electrical
connection between the car and the trailer. If the
trailer you wish to tow has a 7-pin plug, the nec­
essary adapter cable can be obtained from a spe­
cialist retailer.
If
a
towing bracket is to be fitted after the car is

purchased,
this must be done according to the in­
structions of the towing bracket manufacturer

^page
102.
A WARNING
If
a
towing bracket is retrofitted, the installa­
tion should be carried out by
a
qualified work­

shop.

- In particular in high outside temperatures it
is not possible to drive up long steep gradi­
ents without
a
suitable cooling system. The
engine would then overheat.
- Incorrect installation can result in a safety
risk.
Points to check before towing
There are a number of points which need to be
checked before towing a trailer or caravan.

*•
Observe the maximum permitted trailer
weights
^>page
342.
Trailer weights
Never exceed the maximum permitted trailer
weights.
If
you
do not load the trailer up to the maximum
permitted trailer weight, you can then climb cor­
respondingly steeper gradients.
The maximum trailer weights listed are only ap­
plicable for altitudes up to 1000 m above sea

level.
With increasing altitude the engine power
and therefore the car's climbing ability are im­
paired because of the reduced air density, so the
maximum trailer weight has to be reduced ac­
cordingly. The weight of the car and trailer must
be reduced by about 10% for every further
1000 m (or part thereof). This figure refers to
the combined weight of the (loaded) vehicle and
(Loaded) trailer.
The figures for the draw bar weight that appear
on the identification plate of the towing bracket
are for certification purposes only. The correct
figures for your specific model, which may be
lower than these figures for the towing bracket,
are given in the registration documents and in

•=>
page 343.
Drive select*
Please note that the
efficiency*
mode is not
available in towing mode.
Exterior lights
Before starting
a
journey, make sure that all the
lights for the trailer are working properly.
Distributing the load
Distribute loads in the trailer so that heavy ob­
jects are as near to the axle as possible. Loads
carried in the trailer must be secured to prevent
them slipping. A badly distributed load can also
affect handling. This can activate the trailer sta­
bilisation feature and cause the vehicle to reduce

speed.

Where possible, operate the trailer with the max­
imum permitted draw bar weight on the ball
joint of the towing bracket, but do not exceed the
specified limit. •
96

Towing a trailer
Tyre pressure
Check the tyre pressures on your car, and adjust
for "full
load"
conditions (refer to the sticker list­
ing the tyre pressures)
^>page
307. It may also
be necessary to adjust the tyre pressures on the
trailer according to the recommendations of the
trailer manufacturer.
Exterior mirrors
Check whether you can see enough of the road
behind the trailer with the standard mirrors. If
this is not the case you should have additional
mirrors fitted. Both exterior mirrors should be
mounted on hinged extension brackets. Adjust
the mirrors to give sufficient vision to the rear.
Headlights
Before starting
a
journey, check the headlight
beam settings with the trailer hitched up. Adjust
the headlight settings if necessary.
On vehicles with halogen headlights, the
head­

light range control must be adjusted, see

tapage
49.
The headlight range control will be adjusted au­
tomatically if your vehicle is equipped with LED
headlights*.
Power supply
To ensure that the engine can be started again
after the ignition is switched off, the power
man­

agement system
^>page
149 controls the distri­
bution of electrical power and gradually switches
off unnecessary electrical equipment. The trailer
is supplied with power during this period. The
power supply to the trailer is interrupted while
the engine is being started.
Removable ball joint coupling
Vehicles with a factory-fitted towing bracket are
equipped with a removable
ball
joint coupling.
This is stored in the spare wheel well or in a sepa­
rate bag on the floor of the luggage compart­
ment, together with the necessary fitting instruc­

tions.

We recommend having the car serviced be­
tween the normal inspection intervals if it
used frequently for towing a trailer.
Trailer stabilisation system
Applies to: vehicles with towing bracket
Trailer stabilisation helps to reduce the risk of
the vehicle skidding when towing a
trailer.

When is the trailer stabilisation
system1'

activated?
Trailer stabilisation is active when the following
requirements are met:
- The ESC must be switched on
^>page
146 and
fully functional (no ESC malfunction).
- The trailer connector must be properly secured
in the vehicle socket.
- The vehicle speed must be higher than approx.
60 km/h.
How trailer stabilisation works
In many cases, the driver can stabilise a swaying
trailer by manually braking the vehicle.
However, if the ESC detects that the trailer is
swaying and this is affecting the towing vehicle,
it will automatically brake the vehicle in order to
stabilise the trailer. The indicator
Lamp Hi
will
flash in the instrument cluster. If possible, do
not turn the steering wheel at this stage.
In order to warn traffic behind you, the brake
lights will come on during this automatic braking

operation.

A trailer may sway quite considerably without the
trailer stabilisation system intervening.
If the system for activating the trailer brake
lights is defective, this will be indicated in the in­
strument cluster display
opage
35,
:&
Bulb

monitor.
•

CO

rN
rN
t-H
o <
x)
Not available on vehicles for some markets.
97

Towing
a
trailer

CO

< o rN
iv
rN
t-H
o < 00
have friction linings at the sides to prevent exces­
sive wear. Degrease and clean the ball joint be­
fore using a stabiLiser. The stabiliser can be pur­
chased and installed
at
a qualified workshop.
Electronic stabilisation control
The
ESC
-
in particular in conjunction with the
trailer stabilisation system
o^page
97 - makes
it

easier to stabilise a trailer
if it
starts to skid
or

sway. You should therefore keep the
ESC
switch­
ed on
at
all times.
Overheating
In hot weather, keep an eye on the coolant
tem­

perature gauge
^page
13. When climbing long
hills with the engine running fast in low gear, the
coolant temperature can increase. Reduce speed
immediately
if
the needle moves to the right end
of the scale. For information on the warning
lamp
||
refer to
opage
30.

Rear carrier systems
When using rear carrier systems (e.g. bicycle
racks) on the towing bracket,
it
is important not
to exceed the maximum load.
The total weight
of
the rear carrier system and
its

load must not exceed
75
kg for this vehicle. How­
ever,
it
is also important to observe the maxi­
mum permissible load for the rear carrier sys­

tem.

The greater the distance from the towing brack­
et, the smaller the maximum permissible Load
on

the rear carrier system. For this reason, you
should secure heavy objects as near as possible
to the towing bracket.
Note the instructions provided by the manufac­
turer of the rear carrier system.
Please make sure that the rear carrier system
is

approved for use on your vehicle.

l
Note
A WARNING
The use of an unsuitable rear carrier system
could cause severe damage
to
the towing
bracket. The towing bracket could then break
and cause an accident.
Degrease and clean the ball joint before using
a rear carrier system.

Removable towing
bracket

Introduction
Applies to: vehicles with removable towing bracket
Special care is required when fitting and remov­
ing the towing bracket.

Fig.
84 Luggage compartment:
Ball
joint for towing brack­
et (stowage example)
The removable ball joint attachment for the tow­
ing bracket is stored under the floor panel or in a
separate bag on the floor of the luggage com­
partment.
The ball joint can be fitted and removed by hand.
WARNING
Never use tools of any kind when fitting and
removing the ball joint. This could damage
the mechanism which locks the
ball
joint
in

place and impair its safety
-
risk of accident!
© Note
- Do not attempt to modify or repair the ball
joint or other towing bracket components.
- Should you have any difficulties when using
the towing bracket, or suspect that
it
is not
fitted properly, contact
a
qualified work­

shop.

- Before setting off, always check that the

ball
joint is secured properly
Opage
101.
99

Driver assist systems
Driver assist systems Cruise
control,
system
Speed warning function
Applies to: vehicles with speed warning function
The speed warning function can
help
you keep
below a pre-set maximum speed. It can be set,
changed and deleted on the infotainment sys­
tem.
The speed warning function will warn you if the
vehicle exceeds the pre-set maximum speed. The
system gives an audible warning signal if the set
speed is exceeded by a small amount. At the
same time, a warning lamp [5] and a message
will appear on the instrument cluster display.
The indicator Lamp [5] and the message will dis­
appear when the road speed drops below the set

value.

You are recommended to store this speed limit
warning if you wish to be reminded of a particu­
lar speed limit. This could be when driving in
countries with general speed limits, or if you
need to keep below a particular speed when
win­

ter tyres are fitted, etc.
Setting speed limit warning

•
Select the following on the infotainment sys­

tem:
IMENUI
button > Car > left control button
> Driver assist > Speed warning > manual.
© Note
- Please bear in mind that, even with the
speed warning function, it is still important
to keep a check on the car's speed with the
speedometer and to observe the statutory
speed limits.
- On vehicles for some markets, the speed
warning function warns you when you reach
a speed of 120 km/h. This speed limit warn­
ing is preset at the factory.
Switching on
Applies to: vehicles with cruise control system
The cruise control system allows you to drive at a
constant speed of 20 km/h or
higher.

Fig.
94 Control lever for cruise control system

• Pull
the lever to position
®
<^>Fig.
94 to switch
on the system.

•
Drive at the speed you wish to set the system

to.

• Press the button marked ® to store the speed.
The indicator lamp
[3]
in the instrument cluster
will light up. Information is also provided in the
head-up display*.
The instrument cluster display will briefly
indi­

cate the stored or
pre-selected
speed.
A constant speed is maintained by adjusting the
engine power or braking the vehicle accordingly.
WARNING
- Always direct your full attention to the
road,

even when you are using the cruise control

system.
It is always the driver who is re­
sponsible for determining the speed and for
keeping a safe distance to the other vehicles
on the
road.

- For safety reasons, the cruise control sys­
tem must not be used in city traffic, stop-
and-go traffic, on roads with a lot of bends
or in difficult or slippery driving conditions
(such as ice, fog, Loose grit or gravel, heavy

rain,
etc.) - risk of accident!
- When you take a turn-off, drive along a mo­
torway exit lane or pass through roadwork
104

Driver assist systems

CO

< o rN
r>
rN
t-H
o < 00
-The automatic brake application with in­
creasing brake force can be cancelled by ap­
plying the brakes yourself or by pressing the
accelerator firmly.
- In certain situations, a warning may be giv­
en by the rear cross-traffic assist even if
there is no traffic in the critical zone, for in­
stance when parking or manoeuvring the ve­
hicle in reverse.
- The rear cross-traffic assist is deactivated
automatically if you deactivate the
ESC.

-The rear cross-traffic assist is switched on/
off via the parking aid
^>page
134.
-The system is not available in towing mode.
Driver messages
Applies to: vehicles with Audi side assist
Should the side assist be deactivated automati­
cally, a driver message will appear in the instru­
ment cluster display.

O
Audi side assist: system fault!
The system cannot detect vehicles reliably and
will be deactivated. The sensors are out of align­
ment or defective. Have the system checked by a
qualified workshop soon.

O
Audi side assist: currently unavailable. No
sensor vision

O
Audi side assist: currently unavailable.
Sen­

sor view restricted due to surroundings. See
owner's manual
The radar sensors are blocked. The area in front
of the sensors must not be obstructed by bicycle

racks,
stickers, deposits or any other substances.
If necessary, clean the area in front of the
sen­

sors
^>page
128, Fig. 120.

O
Audi side assist: currently unavailable
The side assist is temporarily inoperative and
cannot be switched on (for instance if the battery
is not sufficiently charged).

O
Audi side assist: unavailable in towing mode

2
Audi side assist: unavailable in towing mode
The side assist function will be switched off auto­
matically after a short time when the electrical
connector for the trailer socket is plugged in on
vehicles with a factory-fitted towing bracket. If
the towing bracket is not factory-fitted the side
assist function may not be switched off automat­
ically. The side assist must not be used when
towing a trailer.

O Rear
parking aid: obstacle detection limited
The rear cross-traffic assist is not available. Ei­
ther the ESC is switched off or the radar sensors
may be obstructed by a bicycle rack, stickers,
leaves, snow or similar objects. Switch on the ESC
or, if necessary, clean the area in front of the
sen­

sors
<3page
128, Fig. 120. If this message re­
mains displayed, drive to a qualified workshop
soon and have the fault rectified.
Audi drive select
Introduction
Applies to: vehicles with Audi drive select
Audi drive select alLows you to use different set­
ups on your vehicle. The modes efficiency*, com­
fort, auto and dynamic allow the driver, for ex­

ample,
to change from a sporty mode to a more
comfortable one via the
&&
button in the centre
console or via the infotainment system. In
addi­

tion,
the individual* mode allows you to adapt
the vehicle set-up to
suit
your personal driving

style.
For example, you might choose to combine
a more dynamic engine set-up with a lighter
steering response.
Description
Applies to: vehicles with Audi drive select
The possible vehicle set-up in each mode de­
pends on which equipment is installed on your
vehicle. The engine and steering are basic parts
of your vehicle which are always included in the

set-up.

Engine and automatic gearbox*
The response of the engine and automatic
gear­

box* to accelerator pedal movements will be
more spontaneous or balanced, depending on
131

Checking and topping up fluids

CO

<
O
rN
iv
rN
t-H
o < 00

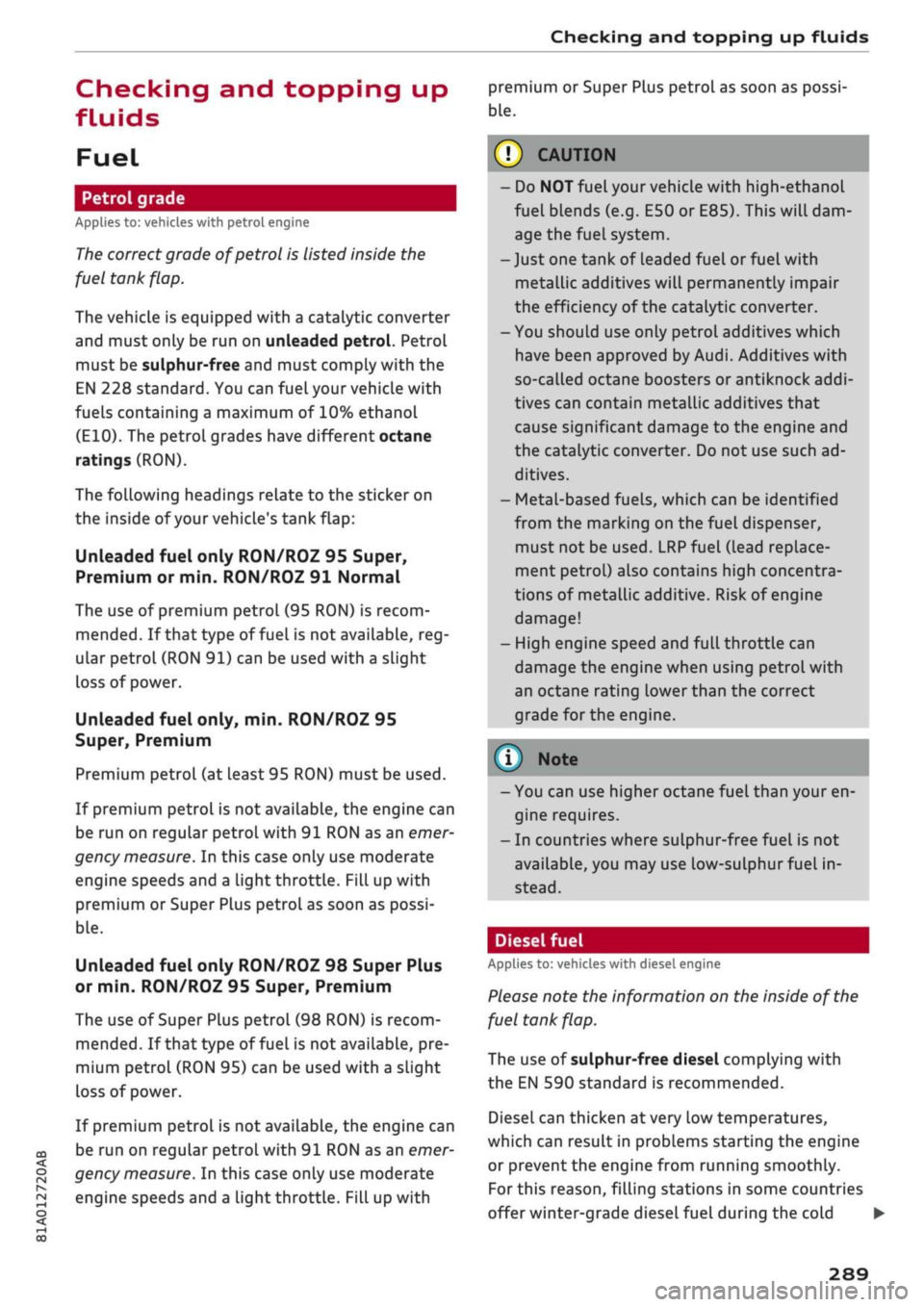

Checking and topping up
fluids
Fuel
Petrol grade
Applies to: vehicles with petrol engine

The
correct grade of petrol is listed inside the
fuel tank flap.
The vehicle is equipped with a catalytic converter
and must only be run on unleaded petrol. Petrol
must be sulphur-free and must comply with the
EN 228 standard. You can fuel your vehicle with
fuels containing a maximum of 10%
ethanol

(E10). The petrol grades have different octane
ratings (RON).
The following headings relate to the sticker on
the inside of your vehicle's tank flap:
Unleaded fuel only RON/ROZ
95
Super,
Premium or
min.
RON/ROZ 91 Normal
The use of premium petrol (95 RON) is recom­

mended.
If
that
type of fuel is not available,
reg­

ular petrol (RON 91) can be used with a slight
loss of power.
Unleaded fuel only, min. RON/ROZ
95

Super, Premium
Premium petrol (at least 95 RON) must be used.
If premium petrol is not available, the engine can
be run on regular petrol with 91 RON as an
emer­

gency measure. In this case only use moderate
engine speeds and a light throttle. Fill up with
premium or Super Plus petrol as soon as possi­

ble.

Unleaded fuel only RON/ROZ 98 Super Plus
or min. RON/ROZ 95 Super, Premium
The use of Super Plus petrol (98 RON) is recom­

mended.
If
that
type of fuel is not available, pre­
mium petrol (RON 95) can be used with a slight
loss of power.
If premium petrol is not available, the engine can
be run on regular petrol with 91 RON as an
emer­

gency measure. In this case only use moderate
engine speeds and a light throttle. Fill up with
premium or Super Plus petrol as soon as possi­

ble.

© CAUTION
- Do
NOT fuel
your vehicle with
high-ethanol

fuel blends (e.g. E50 or E85). This will dam­
age the fuel system.
- just one tank of leaded fuel or fuel with
metallic additives will permanently impair
the efficiency of the catalytic converter.
- You should use only petrol additives which
have been approved by Audi. Additives with
so-called octane boosters or antiknock
addi­

tives can contain metallic additives that
cause significant damage to the engine and
the catalytic converter. Do not use such ad­
ditives.
- Metal-based fuels, which can be identified
from the marking on the fuel dispenser,
must not be used. LRP fuel (lead replace­
ment petrol) also contains high concentra­
tions of metallic additive. Risk of engine
damage!
- High engine speed and full throttle can
damage the engine when using petrol with
an octane rating lower than the correct
grade for the engine.
- You can use higher octane fuel than your en­
gine requires.
- In countries where sulphur-free fuel is not
available, you may use low-sulphur fuel in­

stead.

Diesel fuel
Applies to: vehicles with diesel engine
Please note the information on the inside of the
fuel tank flap.
The use of sulphur-free diesel complying with
the EN 590 standard is recommended.
Diesel can thicken at very low temperatures,
which can result in problems starting the engine
or prevent the engine from running smoothly.
For this reason, filling stations in some countries
offer winter-grade diesel fuel during the cold
289

Checking and topping up fluids
months so that you can continue to operate your
vehicle reliably. Ask at your filling station wheth­
er the diesel fuel available there is suitable for
the current conditions and for the temperatures
which could potentially occur.
© CAUTION
- Never use FAME fuels (biodiesel), petrol,
heating oil, thinners or any other fuels or
additives, as these could cause serious dam­
age to the fuel system and the engine.
- Never start the engine if
you
fill up with the
wrong type of
fuel,
as this could damage
the fuel system and the engine. Obtain pro­
fessional assistance.

Filling the tank

Procedure for filling the tank

Fig.
238 Vehicle as seen from the rear right: Opening the

fuel tank
flap

fe

Fig.
239 Fuel tank flap with tank cap attached
The fuel tank flap is unlocked and locked auto­
matically by the central locking system.
Unscrewing the tank cap

•
Press the left side of the flap to open
it
-arrow­

ed
Fig.
238.

•
Unscrew the tank cap anti-clockwise.

•
Hook the cap onto the open flap
•=>
Fig.
239.

Closing the tank cap

•
Screw on the tank cap clockwise until
it
clicks
audibly.

•
Close the tank flap. Make sure you hear
it
click
into place.
When the automatic filler nozzle is operated cor­
rectly
it
will switch itself off
as
soon as the tank
is
fulL.
Do not try to put in more fuel after the
nozzle cuts out, as this will fill the expansion
chamber in the fuel tank.
The correct fuel grade for your vehicle is given on
a sticker on the inside of the tank flap. Further
notes on fuel
^>page
289.
The tank capacity of your vehicLe is given in the
Technical data section
^>page
343.
A WARNING
Fuel is highly inflammable and can cause
seri­

ous burns and other injuries.
- For safety reasons we do not recommend
carrying a spare fuel canister in the vehicle.
The canister could become damaged in an
accident and Leak.
- Observe all relevant statutory regulations
on using, storing and transporting spare
fuel canisters.
- When filling your tank or
a
spare fuel canis­
ter with
fuel,
do not smoke and keep away
from naked flames
-
risk of explosion!
- If, in exceptional circumstances, you have
to

carry
a
spare fuel canister, please observe
the following warnings:
- Never
filL
fuel into the spare fuel canister
with the canister placed in or on top of the
vehicLe. An electrostatic charge could
build up during filling, causing the fuel va­
pour to ignite
-
risk of explosion! Always
place the canister on the ground to fill
it.

- Insert the filler nozzle as far as possibLe
into the spare fuel canister.
-
If
the spare fuel canister is made of metal,
the filler nozzle must be in contact with
the canister during filling. This helps pre­
vent an electrostatic charge building up.
290

Checking and topping up fluids

CO

<
O
rN
IV
rN
t-H
o <
- Make sure you never spill fuel in the
vehi­

cle or in the luggage compartment. Fuel
vapour is explosive - danger to life!
© Note
(7) CAUTION
- If any fuel is spilt onto the vehicle, it should
be removed immediately as it could other­
wise damage the paintwork.
- Never run the tank completely dry. If there
is an irregular fuel supply, misfiring can oc­
cur. As a result unburnt fuel can enter the
exhaust system and cause damage to the
catalytic converter(s).
- Applies to vehicles with diesel engine: When
filling the fuel tank after having run it com­
pletely dry, the ignition must be switched
on for at least 30 seconds before the engine
is started. When you then start the engine it
may take longer than normal (up to one mi­
nute) for the engine to start firing. This is
because air needs to be bled from the fuel
system while starting.
® For the sake of the envir
Do not try to put in more fuel after the auto­
matic filler nozzle has switched off; this may
cause the fuel to overflow if it becomes warm.

(T)
Note
Applies to: vehicles with diesel engine
Diesel vehicles are equipped with an incorrect
fuelling protection
system1).
This system en­
sures that the tank can only be fuelled from a
diesel filler nozzle.
- If the filler nozzle is old, damaged or too

small,
it may not be able to open the pro­
tection mechanism on the fuel tank. In this

case,
try turning the filler nozzle before in­
serting it in the fuel filler neck, use a differ­
ent filling pump or seek professional assis­

tance.

- The protection mechanism will not open if
you try to add fuel from a spare fuel canis­
ter. You can get round this simply by adding
the diesel fuel slowly.

1)
May vary in different countries
The tank flap is not locked when you lock the
vehicle from the inside.
Releasing the tank flap manually

The
tank flap can be released manually if the
central locking system should fail to operate.

Fig.
240 Luggage compartment (rear right): Manual re­
lease under luggage compartment floor
The manual release mechanism is located under
the floor panel in the side trim on the right of the
luggage compartment.

•
Lift up the floor panel until it is fixed in position
behind the retaining tabs on the two side sec­
tions
•=>
page 319.
• Take the screwdriver out of the vehicle tooL kit

^>page
319. Use the flat-blade side of the re­
versible insert.

•
Use the screwdriver to prise off the cover
(l)

and remove
it(|).

• Release the ring from its holder and carefully
pull the ring
(S)
-arrow-
•=>([)•
The tank flap is
then released.

•
Press the left side of the tank flap to open it

•=>
page 290, Fig. 238.
© CAUTION
Stop pulling the ring when you feel resistance
at the ring/cover (the release mechanism is
not audible). Otherwise, you could damage
the manual release mechanism.
291

Checking and topping up fluids

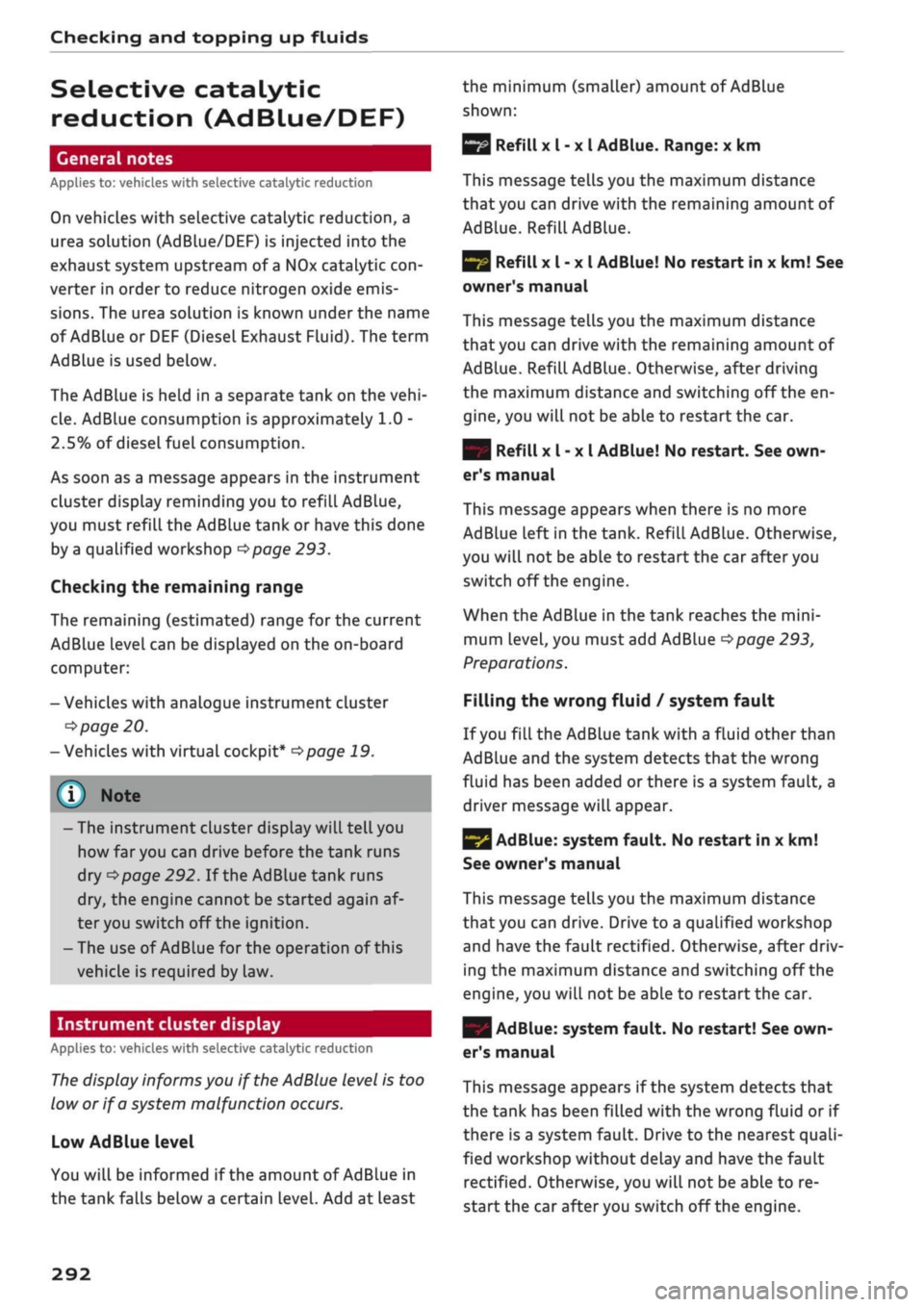

Selective catalytic
reduction (AdBLue/DEF)
General notes
Applies to: vehicles with selective catalytic reduction
On vehicles with selective catalytic reduction, a
urea solution (AdBLue/DEF) is injected into the
exhaust system upstream of
a
NOx catalytic
con­

verter in order to reduce nitrogen oxide emis­

sions.
The urea solution is known under the name
of AdBlue or DEF (Diesel Exhaust Fluid). The term
AdBlue is used below.
The AdBlue is held in a separate tank on the
vehi­

cle.
AdBlue consumption is approximately 1.0 -
2.5% of diesel fuel consumption.
As soon as a message appears in the instrument
cluster display reminding you to refill AdBlue,
you must refill the AdBlue tank or have this done
by
a
qualified workshop
^>page
293.
Checking the remaining range
The remaining (estimated) range for the current

AdBLue
level can be displayed on the on-board
computer:
- Vehicles with analogue instrument cluster

•=>
page 20.
- Vehicles with virtual cockpit*
<$page
19.
-The instrument cluster display will
tell
you
how far you can drive before the tank runs
dry
•=>page
292. If the AdBlue tank runs
dry, the engine cannot be started again af­
ter you switch off the ignition.
-The use of
AdBLue for
the operation of this
vehicle is required by Law.
Instrument cluster display
Applies to: vehicles with selective catalytic reduction

The
display informs you if the AdBlue level is too
low or if a system malfunction occurs.
Low AdBlue level
You will be informed if the amount of AdBlue in
the tank falls below a certain
Level.
Add at least
the minimum (smaller) amount of AdBlue

shown:

S
Refill x
I
- x
I
AdBlue. Range: x km
This message tells you the maximum distance

that
you can drive with the remaining amount of
AdBlue. Refill AdBLue.

3
Refill x
I
- x
I
AdBlue! No restart in x km! See
owner's manual
This message tells you the maximum distance
that you can drive with the remaining amount of
AdBlue. Refill AdBlue. Otherwise, after driving
the maximum distance and switching off the en­

gine,
you will not be able to restart the car.
| Refill x
I
- x
I
AdBlue! No restart. See own­
er's manual
This message appears when there is no more
AdBlue left in the tank. Refill AdBlue. Otherwise,
you will not be able to restart the car after you
switch off the engine.
When the AdBlue in the tank reaches the
mini­

mum
level,
you must add AdBlue
^>page
293,
Preparations.
Filling the wrong fluid / system fault
If
you
fill the AdBlue tank with a fluid other than
AdBlue and the system detects that the wrong
fluid has been added or there is a system fault, a
driver message will appear.

|
AdBlue:
system fault. No restart in x km!
See owner's manual
This message tells you the maximum distance

that
you can drive. Drive to a qualified workshop
and have the fault rectified. Otherwise, after driv­
ing the maximum distance and switching off the
engine, you will not be able to restart the car.
|
AdBlue:
system fault. No restart! See own­
er's manual
This message appears if the system detects that
the tank has been filled with the wrong fluid or if
there is a system fault. Drive to the nearest quali­
fied workshop without delay and have the fault

rectified.
Otherwise, you will not be able to re­
start the car after you switch off the engine.
292
