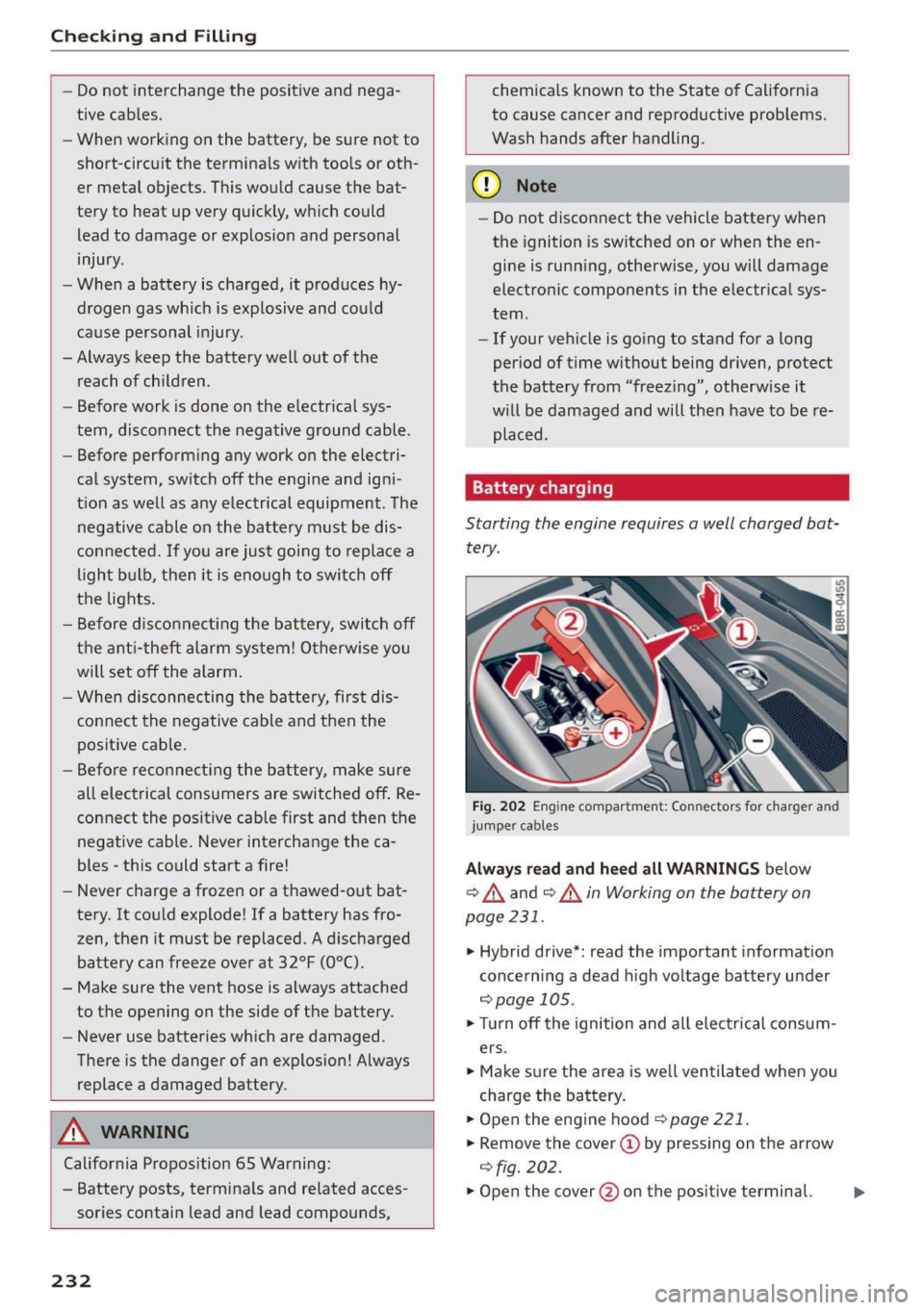

Checking and Filling
-Do not interchange the positive and nega­
tive cables .
- When working on the battery, be sure not to
short-circuit the terminals with tools or oth­
er metal objects. This would cause the bat­
tery to heat up very quickly, which could
lead to damage or explosion and personal
injury .
- When a battery is charged, it produces hy­
drogen gas which is explosive and could
cause personal injury.
- Always keep the battery well out of the
reach of children .
- Before work is done on the electrical sys­
tem, disconnect the negative ground cable .
- Before performing any work on the electri­
cal system, switch off the engine and igni ­
tion as well as any electrical equipment. The
negative cable on the battery must be dis­
connected. If you are just going to replace a
light bulb, then it is enough to switch off
the lights.
- Before disconnecting the battery, switch off
the anti-theft alarm system! Otherwise you
will set off the alarm.
- When disconnecting the battery, first dis­
connect the negative cable and then the
positive cable.
- Before reconnecting the battery, make sure
all electrical consumers are switched off. Re­
connect the positive cable first and then the
negative cable . Never interchange the ca­
bles -this could start a fire!
- Never charge a frozen or a thawed-out bat­
tery. It could explode! If a battery has fro­
z en, then it must be replaced . A discharged
battery can freeze over at 32°F (O°C).
- Make sure the vent hose is always attached
to the opening on the side of the battery .
- Never use batteries which are damaged.
There is the danger of an explosion! Always
replace a damaged battery.
A WARNING
California Proposition 65 Warning:
- Battery posts, terminals and related acces­
sories contain lead and lead compounds,
232
chemicals known to the State of California
to cause cancer and reproductive problems.
Wash hands after handling.
(D Note
- Do not disconnect the vehicle battery when
the ignition is switched on or when the en­
gine is running, otherwise , you will damage
electronic components in the electrical sys­
tem .
- If your vehicle is going to stand for a long
period of time without being driven, protect
the battery from "freezing", otherwise it
will be damaged and will then have to be re­ placed.
Battery charging
Starting the engine requires a well charged bat­tery .
Fig. 202 Engin e compar tment : Co nnec tors fo r char ger and
jumper cables
Always read and heed all WARNINGS below
¢ .&. and
¢.&. in Working on the battery on
page 231 .
.. Hybrid drive*: read the important information
concerning a dead high voltage battery under
¢ page 105.
.. Turn off the ignition and all electrical consum­
ers.
.. Make sure the area is well ventilated when you
charge the battery .
.. Open the engine hood
¢ page 221.
.. Remove the cover(!) by pressing on the arrow
¢fig. 202 .
.. Open the cover @on the positive terminal. .,.

Checking and F ill in g

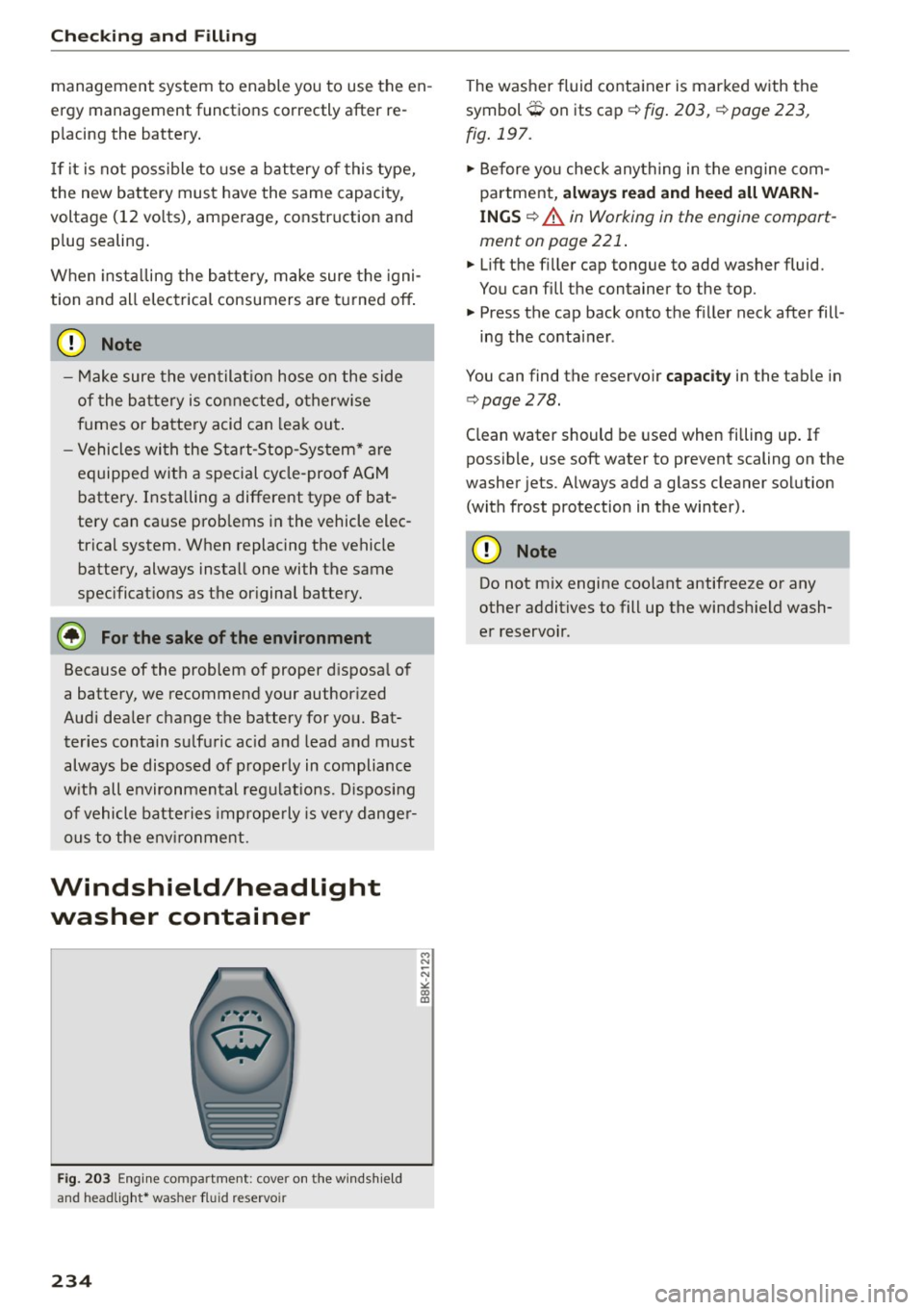

management system to enable you to use the en­
ergy management functions correctly after re­ p lacing the battery .
If i t is not poss ible to use a battery of this type,
the new battery must have the same capacity,
voltage (12 vo lts), amperage, construction and
p lug sealing .
When insta lling the ba ttery, make sure the igni­
tion and all electrical consumers are t urned
off .
(D Note
- M ake sure the ven tilat ion hose on the side
of the ba tte ry is co nne cte d, o therw ise
fumes o r batte ry acid can lea k out .
- Vehicles wi th the Start-Stop-System* are
equipped with a special cycle-proof AG M
b attery. Installing a different type of bat­
tery can cause prob lems in the vehicle elec­
trica l system. When replacing the vehicle
battery, always install one with the same
spec ificat ions as the or iginal battery.
@ For the sake of the environment
Because of the problem of proper disposa l of
a battery, we recommend your author ized
Aud i dea ler change the battery for you. Bat­
teries conta in su lfuric ac id and lead and must
always be disposed of properly in compliance
w it h all environmental reg ulations. Disposing
of vehicle batte ries imprope rly is very dange r­
ous to the e nvironme nt.
Windshield/headlight
washer container
F ig . 20 3 En gin e compart ment: cover o n the w inds hield
and headlig ht* w ash er flui d reservo ir
234
M N
-N
>< a, al
The washer fluid conta iner is mar ked w ith the
symbol
O on its cap ¢ fig . 203, ¢page 223,
fig . 197 .
.. Before yo u check any thing in the engine com­
partment,
always re ad and heed all WARN­
INGS ¢ A in Working in the engine compart­
ment on page 221 .
.. Lift the f iller cap tongue to add washer fluid.
You can fill the container to the top.
.. Press the cap back o nto the f iller neck afte r fill -
ing the conta iner.
You can find the reservo ir
capacity in the table in
<=> page 2 78.
Clean water should be used when fi lling up . If
possib le, use soft water to prevent scaling on the
washer jets . Always add a g lass cleaner solution
(with frost protection in the winter).
(D Note
Do not mix engine coolant antifreeze o r any
other additives to fill up the winds hield wash­
e r reservo ir .

M N
co
a:
co
,...., \!) 1.1"1
N 1.1"1 ,....,

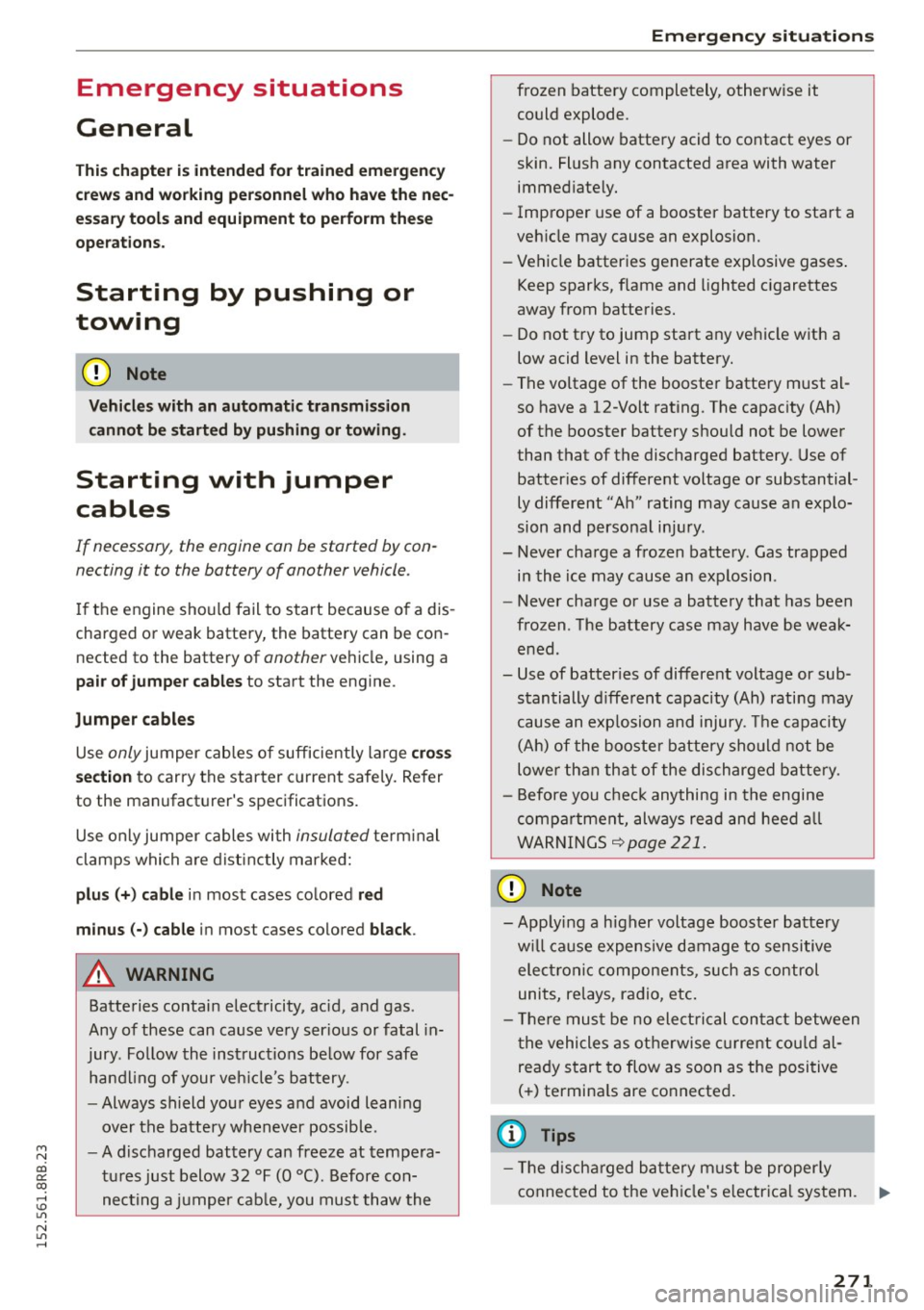

Emergency situations
General
This chapter is intended for trained emergency
crews and working personnel who have the nec­
essary tools and equipment to perform these
operations.
Starting by pushing or
towing
(D Note
Vehicles with an automatic transmission
cannot be started by pushing or towing.
Starting with jumper
cables
If necessary, the engine can be started by con­
necting it to the battery of another vehicle.
If the engine should fail to start because of a dis­
charged or weak battery, the battery can be con­
nected to the battery of
another vehicle, using a
pair of jumper cables to start the engine .
Jumper cables
Use only jumper cables of sufficiently large cross
section
to carry the starter current safely. Refer
to the manufacturer's specifications.
Use only jumper cables with
insulated terminal
clamps which are distinctly marked:
plus(+) cable in most cases colored red
minus(-) cable
in most cases colored black.
A WARNING
Batteries contain electricity, acid, and gas.
Any of these can cause very serious or fatal in­
jury . Follow the instructions below for safe
handling of your vehicle's battery.
-Always shield your eyes and avoid leaning
over the battery whenever possible.
-A discharged battery can freeze at tempera­
tures just below 32 °F (0 °C). Before con­
necting a jumper cable, you must thaw the
Emergency situations
frozen battery completely, otherwise it
could explode.
- Do not allow battery acid to contact eyes or
skin. Flush any contacted area with water immediately.
- Improper use of a booster battery to start a
vehicle may cause an explosion.
- Vehicle batteries generate explosive gases.
Keep sparks, flame and lighted cigarettes
away from batteries.
- Do not try to jump start any vehicle with a
low acid level in the battery.
- The voltage of the booster battery must al­
so have a 12-Volt rating. The capacity (Ah)
of the booster battery should not be lower
than that of the discharged battery. Use of
batteries of different voltage or substantial­
ly different" Ah" rating may cause an explo­
sion and personal injury.
- Never charge a frozen battery. Gas trapped
in the ice may cause an explosion.
- Never charge or use a battery that has been
frozen. The battery case may have be weak­
ened ,
- Use of batteries of different voltage or sub­ stantially different capacity (Ah) rating may
cause an explosion and injury. The capacity
(Ah) of the booster battery should not be
lower than that of the discharged battery.
- Before you check anything in the engine
compartment, always read and heed all
WARNINGS
q page 221.
(D Note
-Applying a higher voltage booster battery
will cause expensive damage to sensitive
electronic components, such as control
units, relays, radio, etc.
- There must be no electrical contact between
the vehicles as otherwise current could al­
ready start to flow as soon as the positive
(+) terminals are connected.
(D Tips
- The discharged battery must be properly
connected to the vehicle's electrical system. .,..
271

M N
co ~ co
rl I.O
"' N
"' rl

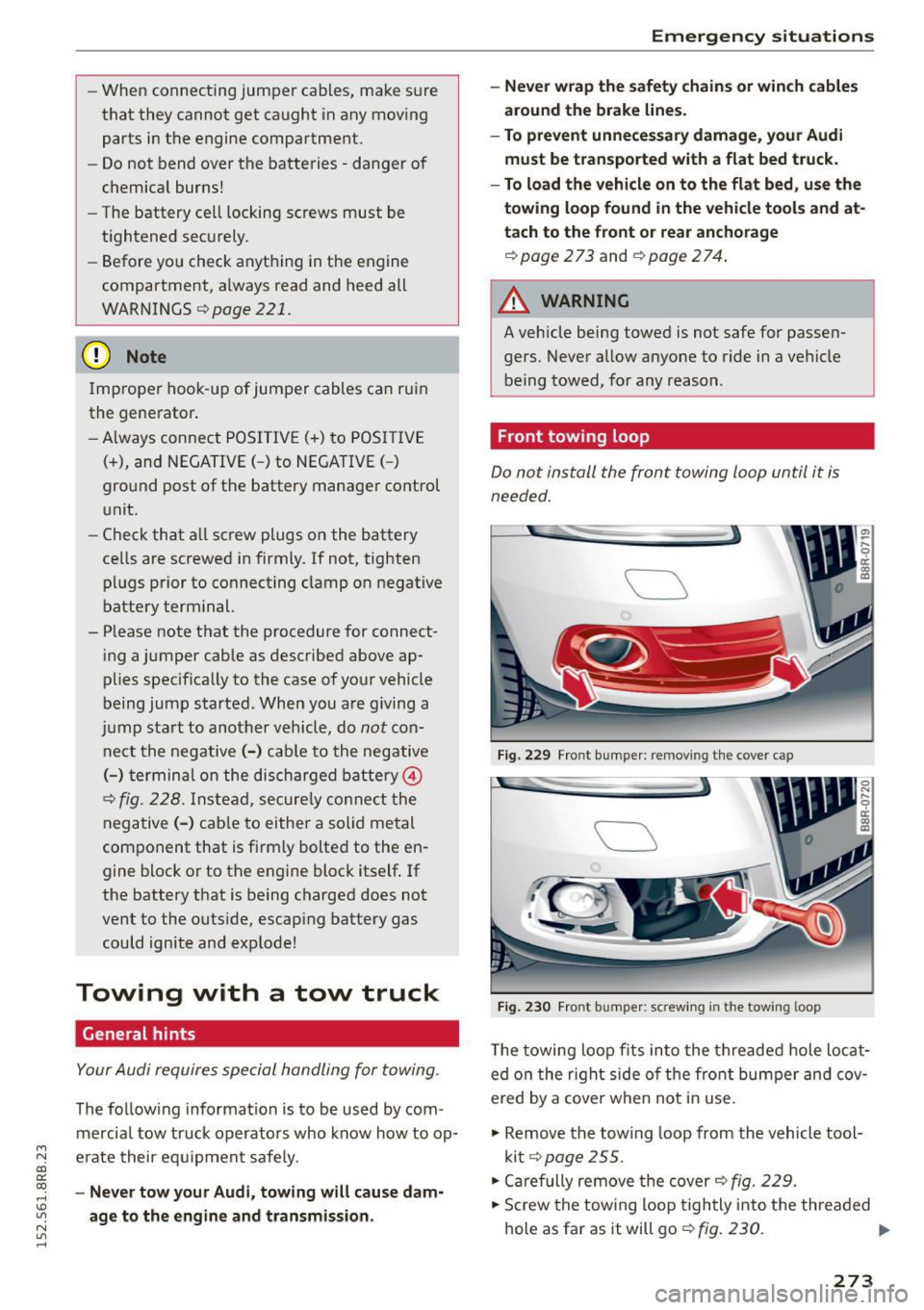

-When conne cting jump er cabl es, make sur e
that they cannot get caught in any moving
parts in the engine compartment.
- Do not bend over the batteries -danger of
chemical burns!
- The battery cell locking screws must be
tightened securely .
- Before you check anything in the engine
compa rtment, always read and heed all
WARNINGS
¢ page 221.
(D Note
Improper hook-up of jumper cables can ruin
the generator.
- Always connect POSITIVE(+) to POSITIVE
(+), and NEGATIVE(-) to NEGATIVE(-)
ground post of the battery manager control
unit.
- Check that all screw plugs on the battery
cells are screwed in firmly . If not, tighten
plugs prior to connecting clamp on negative
battery terminal.
- Please note that the procedure for connect­
ing a jumper cable as described above ap­
plies specifically to the case of your vehicle
being jump started . When you are giving a
jump start to another vehicle, do
not con­
nect the negative(-) cable to the negative
(-) terminal on the discharged battery@
¢
fig. 228. Instead, securely connect the
negative (-) cable to either a solid metal
component that is firmly bolted to the en­
gine block or to the engine block itself. If
the battery that is being charged does not
vent to the outside, escaping battery gas
could ignite and explode !
Towing with a tow truck
General hints
Your Audi requires special handling for towing .
The following information is to be used by com ­
mercial tow truck operators who know how to op­
e rate their equipment safely .
-Never tow your Audi, towing will cause dam­
age to the engine and transmission.
Emergency situations
- Never wrap the safety chains or winch cables
around the brake lines.
- To prevent unnecessary damage, your Audi
must be transported with a flat bed truck.
- To load the vehicle on to the flat bed, use the
towing loop found in the vehicle tools and at­
tach to the front or rear anchorage
¢ pag e 273 and ¢ pag e 274.
A WARNING
--
A vehicle being towed is not safe for passen­
gers. Never allow anyone to ride in a vehicle
being towed, for any reason .
Front towing loop
Do not install the front towing loop unt il it is
needed.

Fig. 229 Fro nt bump er: r em oving th e cover ca p

.·~G
' -
Fig. 230 Fro nt bumper: s crewing in th e tow in g l oo p
The towing loop fits into the threaded hole locat­
ed on the right side of the front bumper and
cov­
ered by a cover when not in use.
.,. Remove the towing loop from the vehicle tool­
kit ¢
page 255.
"' Carefully remove the cover ¢ fig. 229 .
.,. Screw the towing loop tightly into the threaded
hole as far as it will go¢
fig. 230. IJi,,
273

Emergency situations

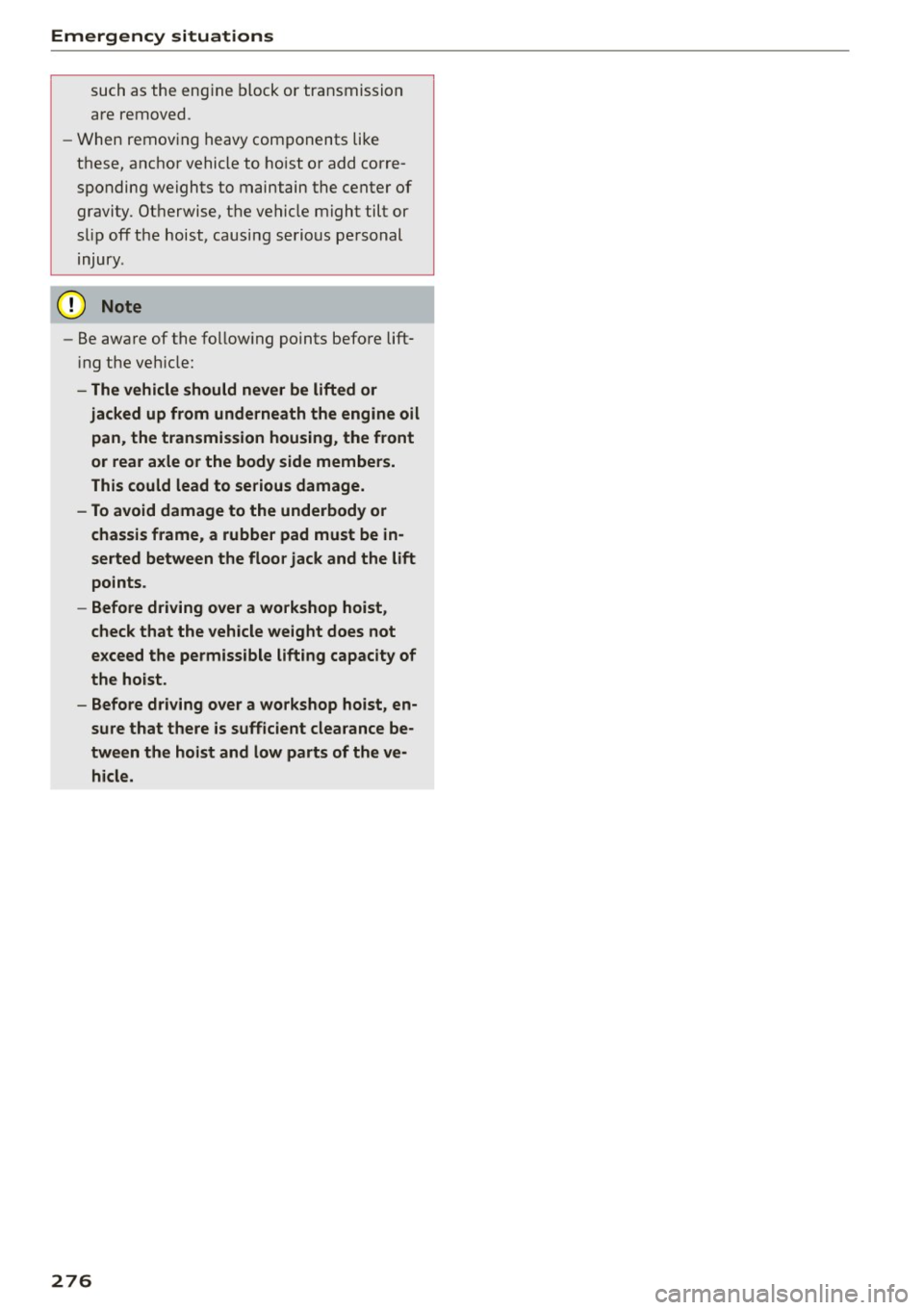

such as the engine b lock or transmission
are removed .
- When remov ing heavy components like
these, anchor vehicle to ho ist or add corre­
sponding weights to maintain the center of
gravity . Otherwise, t he vehicle might tilt or
slip off t he hoist, causi ng serious pe rsonal
injury .
(D Note
-Be awa re of the fo llow ing points befo re lift ­
ing the ve hicle:
- The vehicle should never be lifted or
jacked up from underneath the engine oil pan , the transmi ssion housing, the front
or rear axle or the body side members.
This could lead to se rious damage.
- To avoid damage to the underbody or chassis frame, a rubbe r pad must be in­
serted between the floor jack and the lift
po ints .
- Before driving over a workshop hoist,
check that the vehicle weight does not
ex ceed the permissible lifting capacity of
the hoist.
- Before driving over a workshop hoist, en ­
sure that there is sufficient clearance be­
tween the hoist and low parts of the ve­
hicle .
276

M N
co ~ co
rl I.O
"' N
"' rl
Technical data
Vehicle identification
F ig. 236 Veh icle Identificat ion Number (VlN) plate: loca·
t ion on driver 's side dash pane l
XXXXX XX -X -XXXX XXX XX
CD+ ~t :1:: xxxxxxxx xx x xxxxxxxx
T VP /fffl XXX XXX
XX XXXXXXX XX X X XX
XXX
KW XXX
®i ~:J ·f lfils~~ XXXX XXX XXX
®-+ ~ N:a=i~l xxxx ; xxxx xxx ; xx
11. • AUSS, I OPTIONS
E0A 7D5 4UB 6XM 5SG 5R W
2EH J0Z lLB l
A S lBA
3FC SMU 7Xl
FOA
9G3 0G7 0YH OJF
TL 6 3 KA
8EH UlA X98 QZ 7
lXW 803 908 824 020
7T6 CV7 7K0 4X3 2K2
3L4 4KC 3Y0 413 502
lS A
7GB 01A 4G0
XX. X XX X XX X xxxx
Fig. 237 Veh icle identificat ion label: inside the luggage
compartment
Vehicle Identification Number (VLN )
The Veh icle Iden tific ation Number is located in
d iffe rent p laces:
- under the w indshield on the dr iver's side
c::> fig . 236.
-in the radio or in the MM I*: Select: I CAR I func­
t ion but ton
> Vehicle ID numb er (VIN ) or se·
Le et
I CAR I funct ion button > Car sy s tem s* con·
tro l bu tton
> Servicing & checks > VIN num­
ber .
-on the vehicle identific ation label.
Technical d ata
Vehicle id entification label
T he vehicle identification label is lo cate d in the
lu ggage compartment above the compartment
for the vehicle too ls.
T he label
c::> fig . 23 7 shows the fo llow ing vehicle
da ta:
(D Vehicl e Ident ificat ion Number (VIN)
@ Vehicle type, engine o utp ut, transmission
@ Engine and transm ission code
@ Pain t number and inte rior
® Optional equipment numbers
T he information of the vehicle identification label
can a lso be found in your W arranty
& Ma inte­
nance booklet.
Safety compliance sticker
T he safety complianc e sticker is your assurance
that your new vehi cle complies w ith all appli cable
F ede ra l Mo to r Vehi cle Safety Sta ndards which
were in effec t at the time the vehicle was ma nu­
fact ured. Yo u can find this sticker on the door
jamb on the driver's side. It shows the month and year of product ion and the vehicle identification
number of your vehicle (perforation) as well as
t h e Gross Veh icle Weight Rating (GVWR) and the
G ross Ax le Weight Rating (GAWR).
H igh vo lt a ge warn ing lab el
The high voltage warning label is located in the
engi ne compartment next to the engine hood re·
lease. The spark ignit ion system complies with
the Canadian standard ICES-002 .
Weights
Gross Vehicle Weight Rating
The Gross Vehicle Weight Rating (GVWR), and
the Gross Axle Weight Rat ing (GAWR) for front
and rear are listed o n a sticker on the door jamb
on the dr iver's side.
The Gross Vehicle Weight Rating includes the
weight of the bas ic vehicle plus full fuel tank, oil
and coolant, plus maximum load, which includes
passenger weight (150 lbs/68 kg per designated
seat ing pos ition) and luggage we ight
c::> .&, . ..,_
277

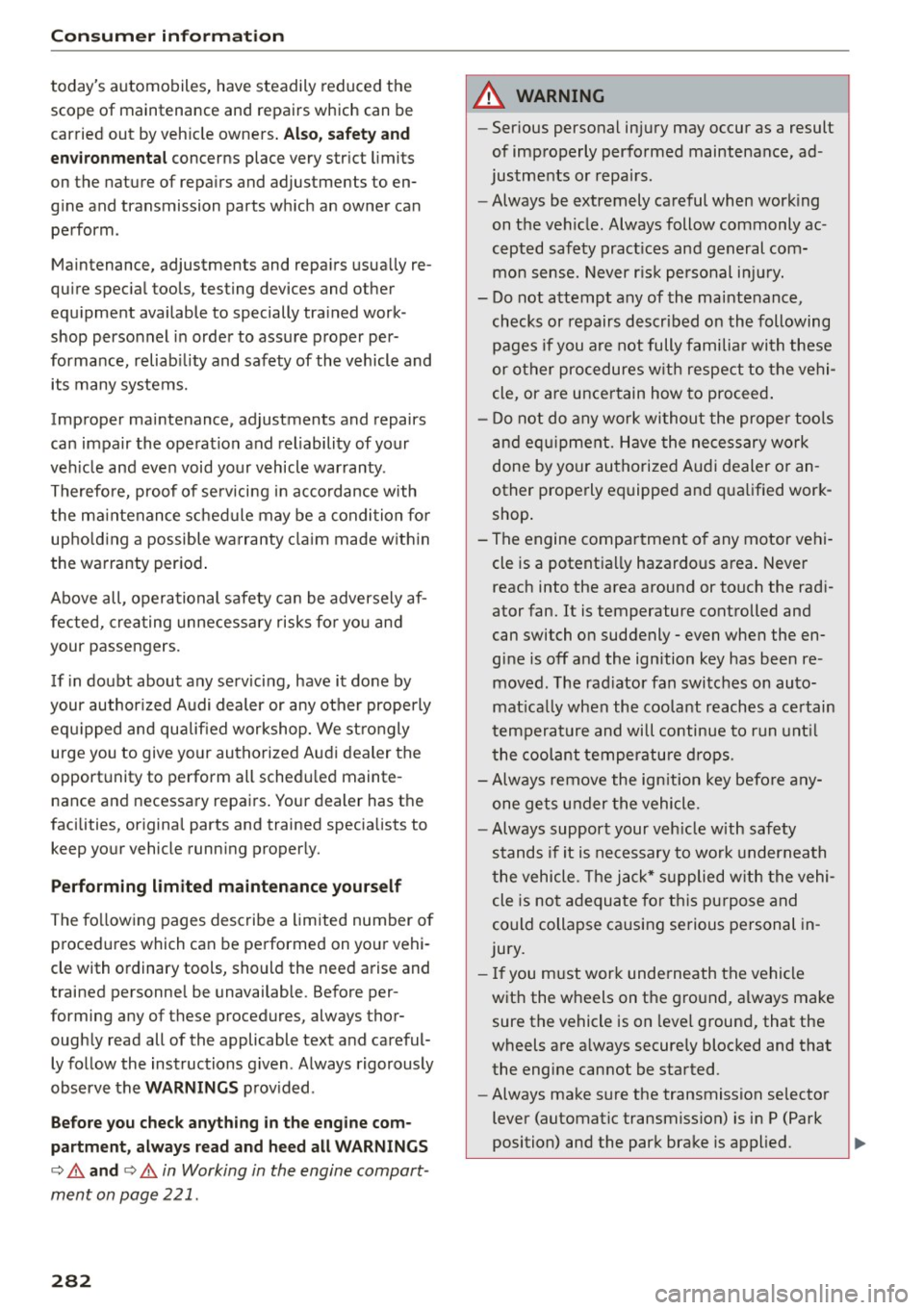

Consumer information
today's automobiles, have steadily reduced the
scope of maintenance and repairs which can be
carried out by vehicle owners.
Also, safety and
environmental
concerns place very strict limits
on the nature of repairs and adjustments to en­
gine and transmission parts which an owner can perform .
Maintenance, adjustments and repairs usually re­
quire special tools , testing devices and other
equipment available to specially trained work ­
shop personnel in order to assure proper per­
formance, reliability and safety of the vehicle and its many systems.
Improper maintenance, adjustments and repairs
can impair the operation and reliability of your
vehicle and even
void your vehicle warranty .
Therefore, proof of servicing in accordance with
the maintenance schedule may be a condition for
upholding a possible warranty claim made within
the warranty period .
Above all, operational safety can be adversely af­
fected, creating unnecessary risks for you and
your passengers.
If in doubt about any servicing, have it done by
your authorized Audi dealer or any other properly equipped and qualified workshop. We strongly
urge you to give your authorized Audi dealer the
opportunity to perform all scheduled mainte­ nance and necessary repairs. Your dealer has the
facilities, original parts and trained specialists to keep your vehicle running properly.
Performing limited maintenance yourself
The following pages describe a limited number of
procedures which can be performed on your vehi­
cle with ordinary tools, should the need arise and
trained personnel be unavailable. Before per­
forming any of these procedures, always thor­
oughly read all of the applicable text and careful­ly follow the instructions given . Always rigorously
observe the
WARNINGS provided.
Before you check anything in the engine com­
partment, always read and heed all WARNINGS
c::> & and c::> & in Working in the engine compart­
ment on page 221 .
282
A WARNING
-
-Serious personal injury may occur as a result
of improperly performed maintenance, ad ­
justments or repairs.
- Always be extremely careful when working
on the vehicle . Always follow commonly ac­
cepted safety pract ices and general com­
mon sense. Never risk personal injury.
- Do not attempt any of the maintenance,
checks or repairs described on the following
pages if you are not fully familiar with these
or other procedures with respect to the vehi­
cle, or are uncertain how to proceed.
- Do not do any work without the proper tools
and equipment. Have the necessary work
done by your authorized Audi dealer or an­
other properly equipped and qualified work­
shop.
- The engine compartment of any motor vehi­ cle is a potentially hazardous area. Never
reach into the area around or touch the radi­
ator fan. It is temperature controlled and
can switch on suddenly - even when the en­
gine is off and the ignition key has been re ­
moved. The radiator fan switches on auto­
mat ically when the coolant reaches a certain
temperature and will continue to run until
the coolant temperature drops.
- Always remove the ignition key before any­
one gets under the vehicle.
-Always support your vehicle with safety
stands if it is necessary to work underneath
the vehicle. The jack* supplied with the vehi­
cle is not adequate for this purpose and
could collapse causing serious personal in­
jury.
- If you must work underneath the vehicle
with the wheels on the ground, always make
sure the vehicle is on level ground, that the
wheels are always securely blocked and that
the engine cannot be started.
- Always make sure the transmission selector
lever (automatic transmission) is in P (Park
position) and the park brake is applied.

M N
co
a:
co
,...., \!) 1.1'1
N 1.1'1 ,....,

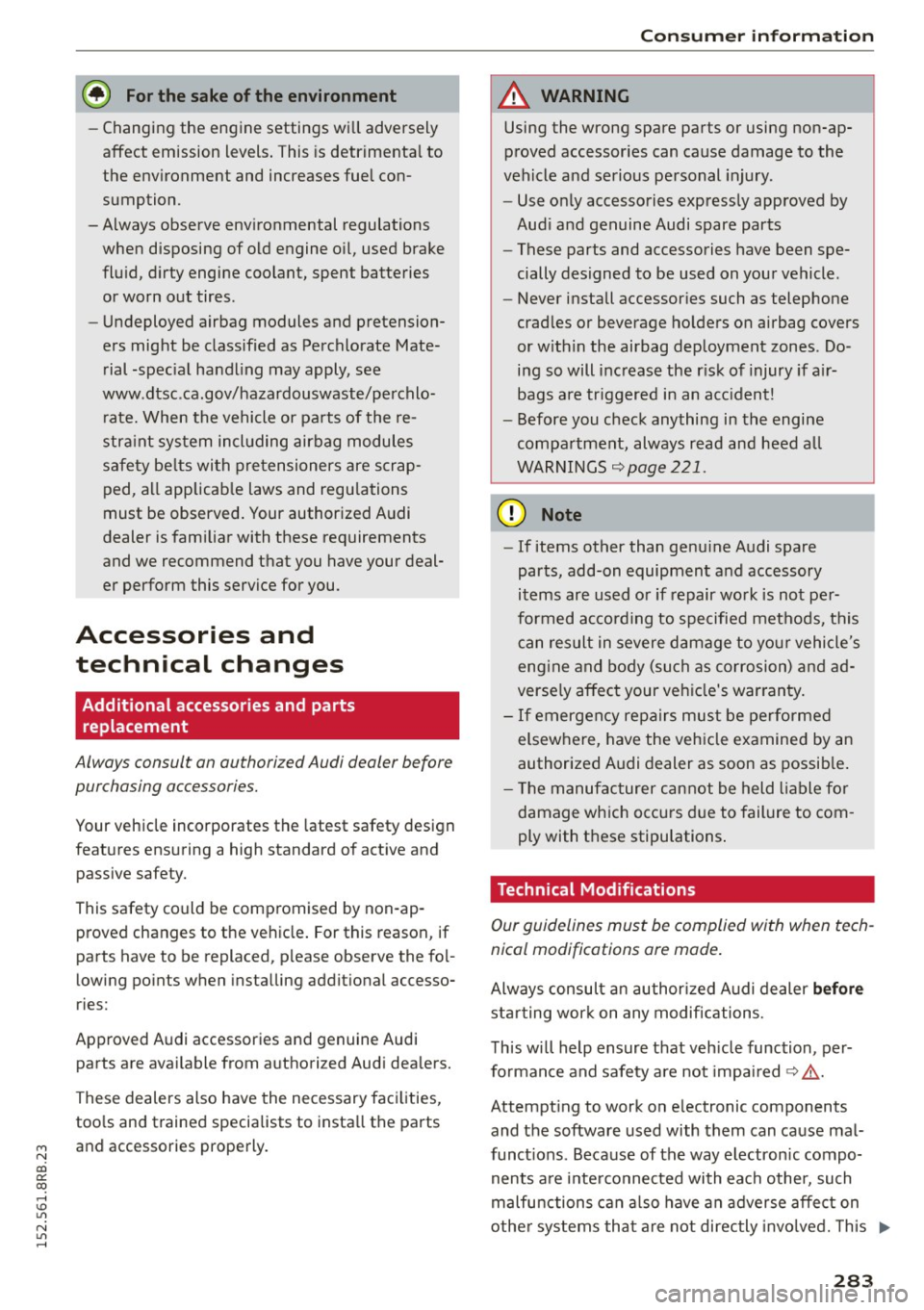

@ For the sake of the environment
-Changing the engine settings wi ll adversely
affect emission levels. This is detrimenta l to
the environment and increases fuel con­
sumption.
-Always observe environmental regulations when disposing of old engine o il, used brake
flu id, dirty engine coolant, spent batteries
or worn out tires .
- Undeployed airbag modules and pretension­
ers might be classified as Perchlorate Mate­
rial -spec ial handling may apply, see
www .dtsc.ca .gov/hazardouswaste/perchlo­
r ate. When the vehicle or pa rts of the re­
stra int system incl uding airbag modules
safety be lts with pre tensioners are scrap­
ped, all applicab le laws and regulations
must be observed . Your authorized Audi
dealer is familiar with these requirements
and we recommend that you have your deal­
er perform this service for you.
Accessories and
technical changes
Additional accessories and parts
replacement
Always consult an authorized Audi dealer before
purchasing accessories.
Your vehicle incorporates the latest safety design
features ensuring a high standard of act ive and
passive safety.
This safety could be compromised by non -ap­
proved changes to the ve hicle . For this reason, if
parts have to be replaced, please observe the fol­
lowing po ints when insta lling addit ional accesso­
ries:
Approved Audi accessories and genuine Audi parts are avai lable from authorized Aud i dea lers.
These dealers also have the necessary faci lities,
too ls and trained specialists to insta ll the parts
and accessories properly.
C o nsum er information
A WARNING
Using the wrong spare parts or using non-ap­
proved accessories can cause damage to the
vehicle and serious personal injury .
- Use on ly accessories express ly approved by
Aud i and genuine Audi spare parts
- These parts and accessories have been spe­
cially designed to be used on your vehicle .
- Never install accessor ies such as telephone
crad les or beverage ho lders on airbag covers
or w ith in the airbag deployment zones . Do ­
ing so will inc rease the r isk of injury if a ir­
bags are triggered in an acc ident!
- Before you check anything in the engine
compa rtment, always read and heed a ll
WARNINGS
9 page 221.
(D Note
- If items other than genu ine Audi spare
parts, add-on equipment and accessory
items are used o r if repair work is not pe r­
formed a ccording to specified methods, this
can result in severe d amage to yo ur vehicle's
eng ine and body (su ch as corrosion) and ad­
verse ly affect your vehicle's warranty.
- If emergency repairs must be performed
elsewhere, have the veh icle examined by an
authorized A udi dealer as soon as possib le .
- T he manufac turer can not be held liable for
damage wh ich occu rs d ue to failure to com ­
ply with t hese stipulations .
Technical Modifications
Our guidelines must be complied with when tech­
nical modifications are made .
Always consult an authorized Audi dealer before
sta rting wor k on any modifications.
This wi ll help ensur e that veh icle function , per­
formance and safety are not impa ired
9 &. .
Attempt ing to work on e lectronic components
and the software used with them can cause mal­
funct ions . Because of the way electronic compo­
nents a re inte rconnected with each other, such
malfu nctions can a lso have an adverse affect on
othe r systems that are not direc tly invo lved. This ..,_
283

M N
co
a:
co
,...., \!) 1.1'1
N 1.1'1 ,....,

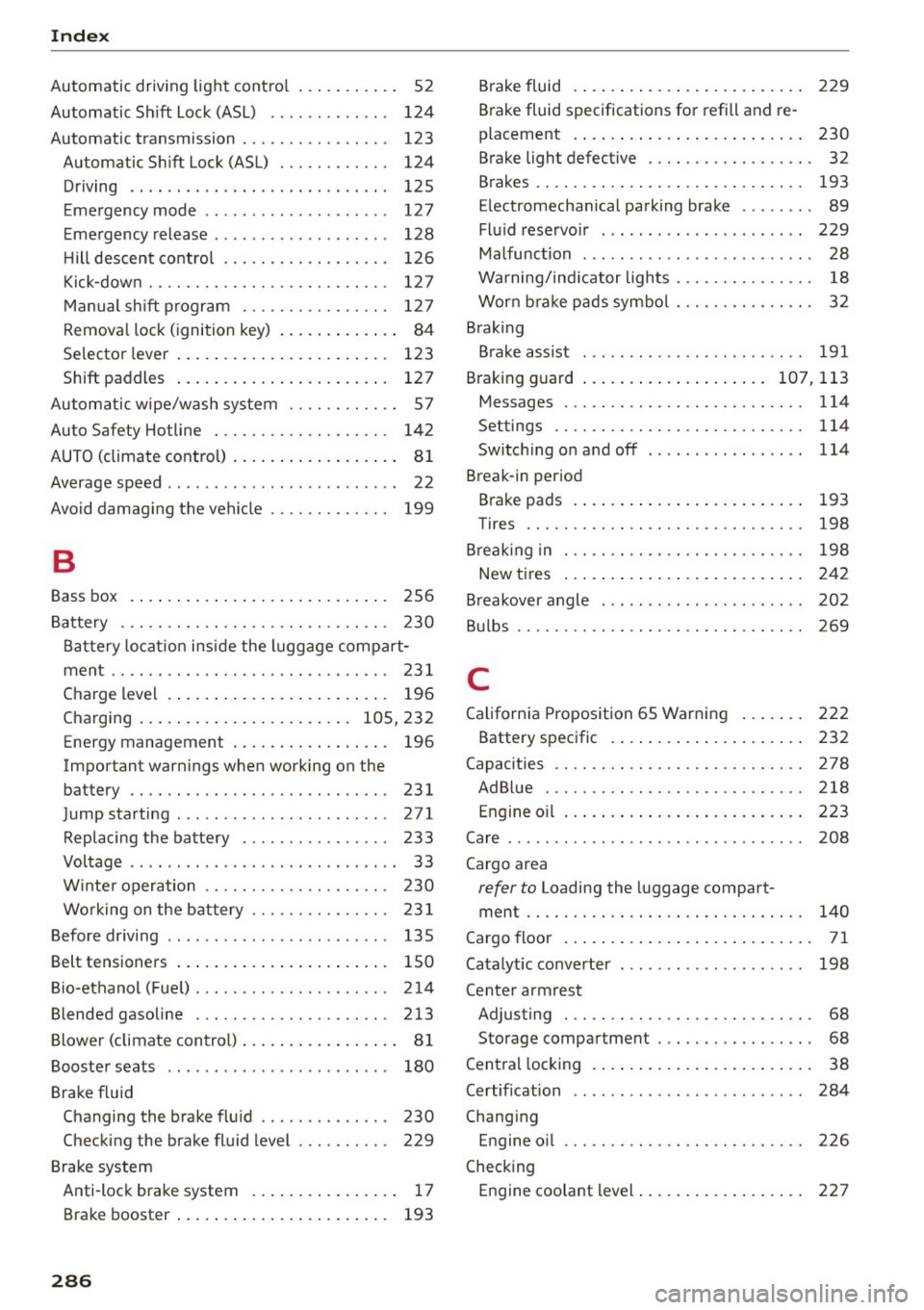

A
A/C (climate control) . . . . . . . . . . . . . . . . . . . 81
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . 283
Active lane assist
Cleaning the camera area . . . . . . . . . . . . . 209
Adapt ive cruise control . . . . . . . . . . . . . . . . . 107
C leaning the sensor . . . . . . . . . . . . . . . . . . 209
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . 109
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Request for driver intervention . . . . . . . . . 112
Setting the distance....... .. .. .. .. .. . 111
Setting the driving program . . . . . . . . . . . 112
Adaptive dampers . . . . . . . . . . . . . . . . . . . . . 120
Adapt ive light . . . . . . . . . . . . . . . . . . . . . . . . . 54
Defective . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
AdBlue .... .. ................. .. .... . 218
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Opening the tank door . . . . . . . . . . . . . . . . 219
Refilling . .. .. ........... .. .. .. .... . 219
Adding Engine coolant ........... .... .. .... .
Engine oil ............ ...... .... ... .
Windshield washer fluid ... .. .. .. .. .. .
Additional accessories
Addit ives 228
225
234
283
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Adjusting Air distribution (climate control) . . . . . . . . 81
Instrument illumination . . . . . . . . . . . . . . . 56
Steer ing column manually . . . . . . . . . . . . . 84
Temperatu re (climate control) . . . . . . . . . . 81
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . 167
Advanced Airbag-System . . . . . . . . . . . . . . 156
Advanced Airbag System components . . . 158
Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Children . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Child restraints ... .. ...... .. .. .. .. .. . 174
Components (front airbags) . . . . . . . . . . . 158
Danger of fitting a child safety seat on the
front passenger seat . . . . . . . . . . . . . . . . . 153
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Front airbags . . . . . . . . . . . . . . . . . . . 1S6, 157
How do the front airbags work? . . . . . . . . 160
How many airbags does my vehicle have? 158
How the Advanced Airbag System compo-
nents work together . . . . . . . . . . . . . . . . . 160
Index
Important information . . . . . . . . . . . . . . . 152
Indicator light . . . . . . . . . . . . . . . . . . . . . . 162
Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . 162
PASS ENGER AIR BAG OFF light . . . . . . . . . 162
Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16S
Safety instructions . . . . . . . . . . . . . . . . . . . 164
S ide airbags . . . . . . . . . . . . . . . . . . . . . . . . 166
Side curtain airbags . . . . . . . . . . . . . . . . . . 169
Warning/ind icator lights . . . . . . . . . . . . . . . 16
We ight-sensing mat . . . . . . . . . . . . . . . . . 173
When must the system be inspected? . . . 162
Air transport . . . . . . . . . . . . . . . . . . . . . . . . . 106
All-wheel drive . . . . . . . . . . . . . . . . . . . . . . . 195
Se lective wheel torque control . . . . . . . . . 191
All season tires . . . . . . . . . . . . . . . . . . . . . . . 250
Alternator Malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 28
Anti-freeze
refer to Engine coolant system . . . . . . . . . 227
Anti- lock brake system
Warning/indicator lights . . . . . . . . . . . . 15, 17
Anti-Lock Braking System . . . . . . . . . . . . . . 191
Anti-slip regu lation
W arning/indicator lights . . . . . . . . . . . . . . . 15
Anti-Slip Regu lation . . . . . . . . . . . . . . . . . . . 191
Anti-theft alarm warning system . . . . . . . . . . 38
Electronic immobilizer . . . . . . . . . . . . . . . . . 38
App roach/departure angle . . . . . . . . . . . . . . 202
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Audi braking guard
refer to Braking guard 113
Audi drive select Indicato r light . . . . . . . . . . . . . . . . . . . . . . 195
also refer to Drive select . . . . . . . . . . . . . . 120
Audi parking system plus with rearview cam- era . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Adjusting the display . . . . . . . . . . . . . . . . . 134
Adjusting the warning tones . . . . . . . . . . . 134
Rearview camera -parking mode 1 . . . . . . 132
Rearview camera -parking mode 2 . . . . . . 133
Safety precautions . . . . . . . . . . . . . . . . . . . 129
Switching on and off . . . . . . . . . . . . . . . . . 131
T ra iler hitch . . . . . . . . . . . . . . . . . . . . . . . . 134
Audi Service Repair Manuals and Literature 281
Auto-Check Control . . . . . . . . . . . . . . . . . . . . 27
Auto locking . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Automatic belt retractor . . . . . . . . . . . . . . . 14 7
285

Index
Automatic driv ing light contro l . . . . . . . . . . . 52
Automatic Sh ift Lock (ASL) . . . . . . . . . . . . . 124
Automatic transmission . . . . . . . . . . . . . . . . 123
Automatic Shift Lock (ASL) . . . . . . . . . . . . 124
Driving ...... .................. ... . 125
Emergency mode . . . . . . . . . . . . . . . . . . . . 127
Emergency release . . . . . . . . . . . . . . . . . . . 128
H ill descent control . . . . . . . . . . . . . . . . . . 126
Kick -down . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Manual sh ift program . . . . . . . . . . . . . . . . 127
Remova l lock (ignition key) . . . . . . . . . . . . . 84
Selector lever . . . . . . . . . . . . . . . . . . . . . . . 123
Shift paddles . . . . . . . . . . . . . . . . . . . . . . . 127
Automatic wipe/wash system . . . . . . . . . . . . 57
Auto Safety Hotline . . . . . . . . . . . . . . . . . . . 142
AUTO (climate control) . . . . . . . . . . . . . . . . . . 81
Average speed . . . . . . . . . . . . . . . . . . . . . . . . . 22
Avoid damaging the vehicle . . . . . . . . . . . . . 199
B
Bass box . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Battery locat ion inside the luggage compa rt-
ment .............................. 231
Charge level . . . . . . . . . . . . . . . . . . . . . . . . 196
Charging . . . . . . . . . . . . . . . . . . . . . . . 105, 232
Energy management . . . . . . . . . . . . . . . . . 196
Important warnings when working on the
battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Jump starting . . . . . . . . . . . . . . . . . . . . . . . 271
Replacing the battery . . . . . . . . . . . . . . . . 233
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
W inte r operation . . . . . . . . . . . . . . . . . . . . 230
Working on the battery . . . . . . . . . . . . . . . 231
Before driving . . . . . . . . . . . . . . . . . . . . . . . . 135
Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . 150
B io-ethanol (Fue l) . . . . . . . . . . . . . . . . . . . . . 214
Blended gasoline . . . . . . . . . . . . . . . . . . . . . 213
Blower (climate control) . . . . . . . . . . . . . . . . . 81
Booster seats . . . . . . . . . . . . . . . . . . . . . . . . 180
Brake fl uid
Changing the brake flu id . . . . . . . . . . . . . . 230
Checking the brake fluid level . . . . . . . . . . 229
Brake system Anti-lock brake system . . . . . . . . . . . . . . . . 17
Brake booster . . . . . . . . . . . . . . . . . . . . . . . 193
286
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . 229
Brake fluid specifications for refill and re­
placement . . . . . . . . . . . . . . . . . . . . . . . . . 230
Brake light defective . . . . . . . . . . . . . . . . . . 32
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
E lectromechanical parking brake . . . . . . . . 89
Fluid reservo ir . . . . . . . . . . . . . . . . . . . . . . 229
Malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 28
Wa rning/indicator lights . . . . . . . . . . . . . . . 18
Worn b ra ke pads symbo l . . . . . . . . . . . . . . . 32
Brak ing
Brake assist . . . . . . . . . . . . . . . . . . . . . . . . 191
Braking guard ..... .. .. ... . .... ... 107, 113
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Switching on and
off . . . . . . . . . . . . . . . . . 114
Break-in period Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . 193
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
B reak ing in . . . . . . . . . . . . . . . . . . . . . . . . . . 198
New tires . . . . . . . . . . . . . . . . . . . . . . . . . . 242
B reakover angle . . . . . . . . . . . . . . . . . . . . . . 202
Bul bs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
C
Californ ia Proposition 65 Warning . . . . . . . 222
Battery specific . . . . . . . . . . . . . . . . . . . . . 232
Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
AdBlue ... .. .... .. .. .. ........... .. 218
Engine oi l . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Cargo area
refer to Loading the l uggage compart-
ment..... .. .... .. .. .. ........... .. 140
Cargo floor . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Catalytic converter . . . . . . . . . . . . . . . . . . . . 198
Center armrest
Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Storage compar tment . . . . . . . . . . . . . . . . . 68
Central locking . . . . . . . . . . . . . . . . . . . . . . . . 38
Certification . . . . . . . . . . . . . . . . . . . . . . . . . 284
Chang ing
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Checking Engine coolant level . . . . . . . . . . . . . . . . . . 227
