Airbag system
The airbag system is not a substitute for your
safety belt. Rather, it is part of the overall occu­
pant restraint system in your vehicle . Always re­
member that the airbag system can only help to
protect you if you are wearing your safety belt
and wearing it prope rly. This is another reason
why you should always wear your safety belts, not just because the law requires you to do so
~ page 144, General information.
It is important to remember that while the side
curta in a irbag system is designed to help reduce
the likelihood of serious injuries, other injuries,
for example, swelling, bruising, and minor abra­
sions can also be associated with these airbags.
Remember too, these airbags wi ll dep loy only
once and only in certain kinds of accidents -your
safety belts are always there to offer protection.
The side curtain airbag system basically
consists of:
-The electronic control modu le and externa l side
impact sensors
- The side curtain airbags above the front and
rear side w indows
- The airbag indicator light in the instrumen t
panel
The airbag system is monitored electron ically to
make certa in it is f uncti oning properly at all
times. Each time you turn on the ignition, the air­
bag system indicator light wi ll come on for a few
seconds (self diagnostics).
The side curtain airbag is not activated:
-if the ignit ion is tu rned off,
- in s ide collisions when the acceleration meas-
ured by the sensor is too low,
- in rear-end collisions.
A WARNING
-Safety belts and the ai rbag system will on ly
provide protection when occupants are in
the proper sea ting position
~ page 63, Gen­
eral information .
-If the airbag indicato r ligh t ~page 16
comes when the vehicle is being used, have
the system inspected immediate ly by your
authorized Aud i dealer. It is possible that
170
the airbag will inflate when it is not sup­
posed to, or will not inflate when it should.
How side curtain airbags work
Side curtain airbags can work together with side
airbags to help reduce the risk of head and upper
torso injuries for occupants who ore properly re­
strained.
Fig. 172 Illustration of principle: Inflated side curtain air ­
bags on the left side
The side curtain airbags inflate between the oc­
cupant and the windows on the side of the vehi­
cle that is struck in a side collision
~ fig. 172.
N 0
s ri: (X) m
When the system is triggered, the side curta in
airbag is filled with propellant gas and breaks
through a seam above the front and rear side
windows identified by the AIRBAG label. In order
to help provide this additional protection, the
side curtain airbag must inflate within the blink
of an eye at very high speed and with great force .
The side curtain airbag could injure you if your
seat ing position is not proper or upright or if
i tems are located in the area where the supple­
mental sid e curtain airbag inflates. This applies
especially to chi ld ren
~ page 172.
Although they are not a soft pillow, side curtain
a irbags can "cush ion" the impact and in this way
they can help to reduce the risk of injury to the
head and the upper pa rt of the body.
A fine dust may develop when the airbag deploys.
This is quite normal and does not mean there is a
fire in the vehicle.

M N
co
a:
co
,...., \!) ..,.,
N ..,., ,....,

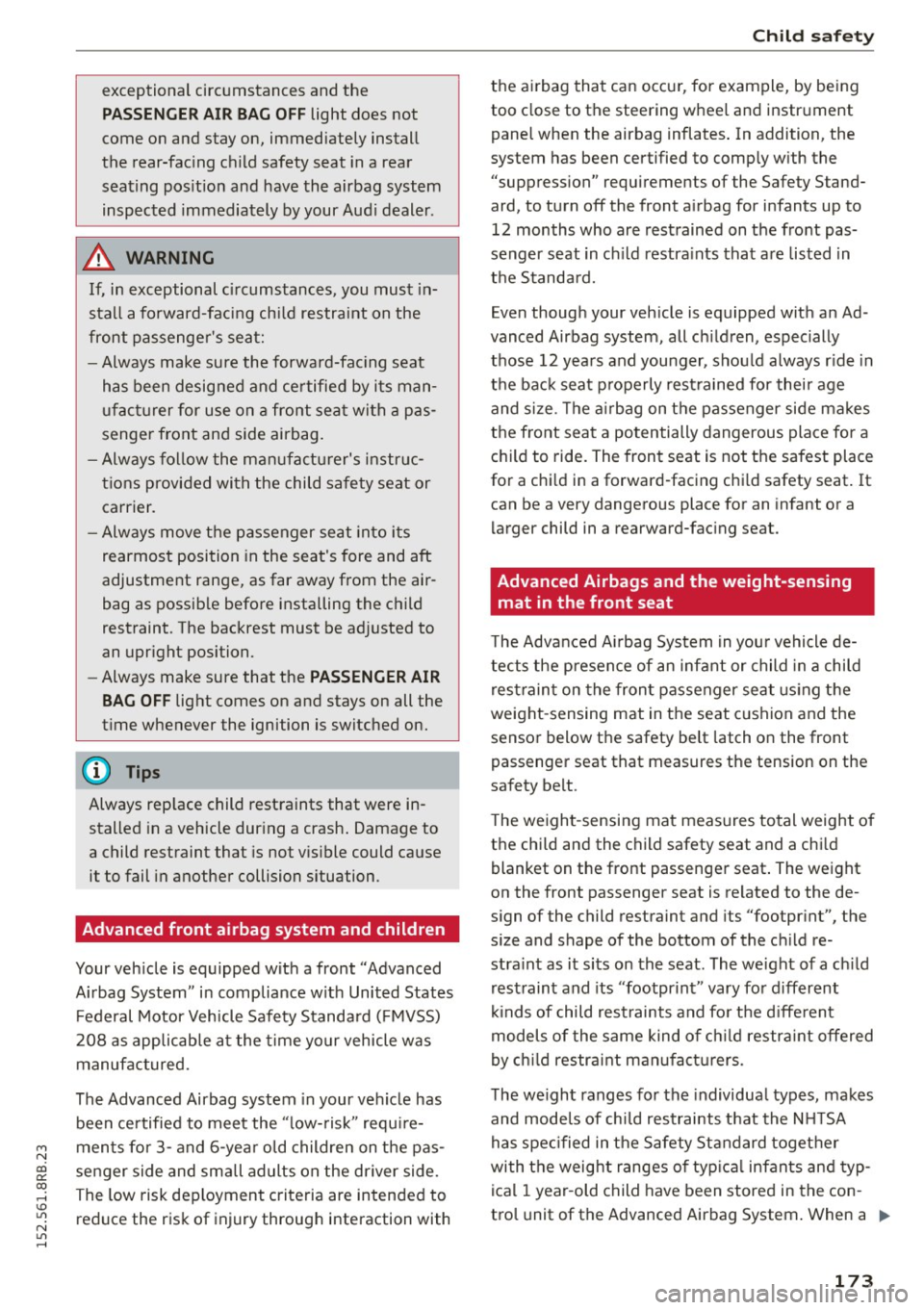

exceptional circumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay on, immediately install
the rear-facing child safety seat in a rear
seating position and have the airbag system
inspected immediately by your Audi dealer .
A WARNING
If, in exceptional circumstances, you must in­
stall a forward-facing child restraint on the
front passenger's seat:
- Always make sure the forward-facing seat
has been designed and certified by its man­
ufacturer for use on a front seat with a pas­
senger front and side airbag.
- Always follow the manufacturer's instruc­
tions provided with the child safety seat or
carrier.
- Always move the passenger seat into its
rearmost position in the seat's fore and aft
adjustment range, as far away from the air­
bag as possible before installing the child
restraint. The backrest must be adjusted to
an upright position.
- Always make sure that the
PASSENGER AIR
BAG OFF
light comes on and stays on all the
time whenever the ignition is switched on.
(D Tips
Always replace child restraints that were in­
stalled in a vehicle during a crash. Damage to
a child restraint that is not visible could cause
it to fail in another collision situation.
Advanced front airbag system and children
Your vehicle is equipped with a front "Advanced
Airbag System " in compliance with United States
Federal Motor Vehicle Safety Standard (FMVSS)
208 as applicable at the time your vehicle was
manufactured.
The Advanced Airbag system in your vehicle has
been certified to meet the "low-risk" require­
ments for 3- and 6-year old children on the pas­
senger side and small adults on the driver side.
The low risk deployment criteria are intended to
reduce the risk of injury through interaction with
Child safety
the airbag that can occur, for example, by being
too close to the steering wheel and instrument
panel when the airbag inflates. In addition, the
system has been certified to comply with the "suppression" requirements of the Safety Stand­
ard, to turn off the front airbag for infants up to 12 months who are restrained on the front pas­
senger seat in child restraints that are listed in
the Standard.
Even though your vehicle is equipped with an Ad ­
vanced Airbag system, all children, especially
those 12 years and younger, should always ride in
the back seat properly restrained for their age
and size . The airbag on the passenger side makes
the front seat a potentially dangerous place for a child to ride. The front seat is not the safest place
for a child in a forward-facing child safety seat. It can be a very dangerous place for an infant or a
larger child in a rearward-facing seat.
Advanced Airbags and the weight-sensing mat in the front seat
The Advanced Airbag System in your vehicle de­
tects the presence of an infant or child in a child
restraint on the front passenger seat using the
weight-sensing mat in the seat cushion and the
sensor below the safety belt latch on the front
passenger seat that measures the tension on the
safety belt .
The weight-sensing mat measures total weight of
the child and the child safety seat and a child blanket on the front passenger seat. The weight
on the front passenger seat is related to the de­
sign of the child restraint and its "footprint", the
size and shape of the bottom of the child re­ straint as it sits on the seat . The weight of a child
restraint and its "footprint" vary for different
kinds of child restraints and for the different
models of the same kind of child restraint offered
by child restraint manufacturers.
The weight ranges for the individual types, makes
and models of child restraints that the NHTSA
has specified in the Safety Standard together
with the weight ranges of typical infants and typ­
ical 1 year-old child have been stored in the con­
trol unit of the Advanced Airbag System. When a
1iJ11-
173

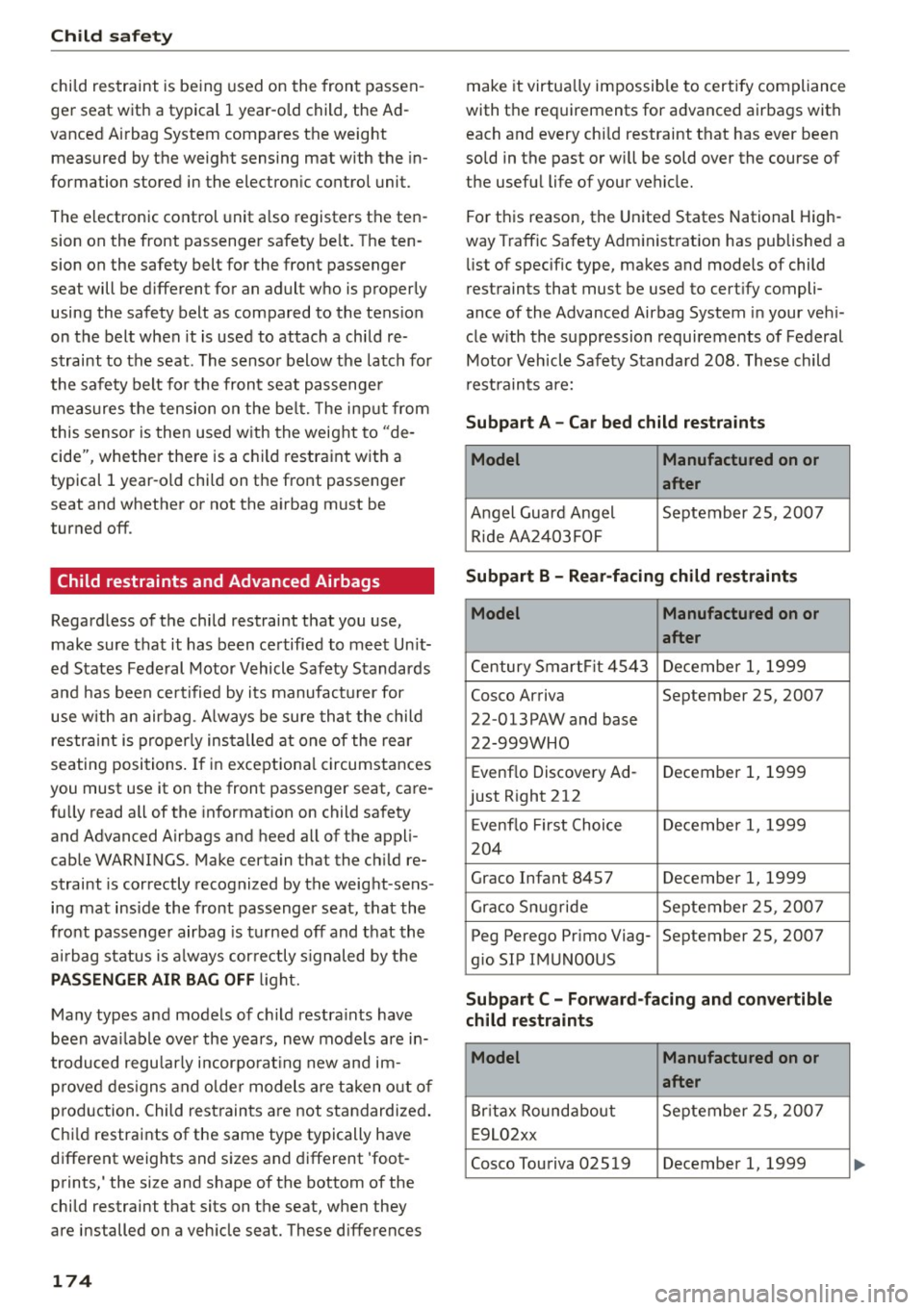

Child safety
child restraint is being used on the front passen ­
ger seat with a typical 1 year-old child , the Ad­
vanced Airbag System compares the weight
measured by the weight sensing mat with the in­
formation stored in the electron ic control unit.
The electronic control unit a lso reg isters the ten­
sion on the front passenger safety be lt. The ten­
sion on the safety belt for the front passenger
seat will be d ifferent for an adult who is properly
using the safety belt as compared to the tens ion
on the belt when it is used to attach a child re­
straint to the seat. The senso r below the latch fo r
the safety belt for the fron t seat passenge r
measures the tension on the be lt. T he inp ut from
t his sensor is then used w ith the weight to "de­
cide", whether there is a c hild restraint with a
typical 1 year -old chi ld on the front passenge r
seat and whether or not the airbag must be
turned off .
Child restraints and Advanced Airbags
Regardless of the child restraint that you use,
make sure that it has been certified to meet Un it­
ed States Federal Motor Vehicle Safety Standards
and has been ce rtified by i ts manufact urer for
use with an airbag . A lways be sure tha t the child
restrain t is properly ins talled at one of the re ar
seating posi tions . If in exceptiona l circumstances
you must use it on the front passenger seat, care­
fu lly read all of the informat ion on child safety
and Advanced Airbags and heed a ll of the appli­
cable WARNINGS . Make certain that the ch ild re­
straint is correctly recognized by the weight -sens ­
i n g mat inside the front passenger seat, that the
front pass enge r airbag is turned off and that the
a ir bag s tatus is a lways corre ctly s ignaled by t he
PASSENGER AIR BAG OFF li ght.
Many types and models of ch ild restra ints have
been ava ila ble over the y ears, new models are in­
troduced regu larly i ncorpo rat ing new and im­
p rove d des igns and o lde r models a re t aken o ut o f
p rod uction. Child rest rain ts a re not standardized .
C hild restraints of the same type typically have
diffe rent weights and sizes and different 'foot ­
prints,' the size and shape of the bottom of the
child restraint that sits on the seat, w hen they
are i nstalled on a veh icle seat. These differences
174 make
it virtua lly impossib le to cert ify compliance
with t he requirements for advanced airbags with
each and every chi ld restraint that has ever been
so ld in the past or will be sold over the course of
the usefu l life of your vehicle.
Fo r th is reason, the Unite d States National High­
way T raffic Safety Adm inistrat ion has published a
li st of specific type, makes and models of child
rest raints that must be used to cert ify compli­
ance of the Advanced Airbag System in your veh i­
cle w ith the s uppression requi rements of Federal
Motor Veh icle Safety S tanda rd 208. These child
r est raints a re:
Subpart A -Car bed child restraints
Model Manufactured on or
after
A ngel Guard Angel September 2S , 2007
R id e AA 2403FOF
Subpart B - Rear-facing child restraints
Model Manufactured on or
after
Century Smart Fit 4 54 3 December 1, 1999
Cosco Arriva September 25, 2007
22 -013PAW and base
22-999WHO
Evenflo Discove ry Ad- December 1, 1999
just R ight 212
E venflo First Choi ce Decembe r 1, 1999
2 04
Graco Infant 8457 December 1, 1999
Gr aco S nugride Se pte mber 25 , 20 07
Peg Perego Pr imo Viag- September 25, 2007
gio SIP IM UNOOUS
Subpart C - Forward-facing and convertible
child restraints
Model Manufactured on or
after
B rit a x Round about Septe mber 25, 200 7
E 9 L02xx
Cosco Tou riva 02519 December 1, 1999

Care and cleaning
Care and cleaning
General information
Regular, proper care he lps to maintain your vehi ­
cle's value.
It can also be a requirement when
submitting warranty claims for corrosion damage
and paint defects on the body.
The necessary care products can be obtained
from your authorized Audi dealer . Read and fol­
low the instructions for use on the packaging.
A WARNING
-Using cleaning and care products incorrectly
can be dangerous to your health.
- Always store cleaning and care products out of reach of children to reduce the risk of poi­
soning .
@ For the sake of the environment
-Preferably use environmentally-friendly
products when buying cleaning agents.
- Do not dispose of leftover cleaning and care
products with household trash .
Car washes
The longer that deposits such as insects, bird
droppings, tree sap or road sa lt remain on the ve­
hicle, the more the surface can be damaged. High
temperatures such as those caused by sunlight
increase the damaging effect .
Before washing, rinse off heavy deposits with
plenty of water.
Stubborn deposits such as bird droppings or tree
sap are best removed with plenty of water and a
microfiber cloth .
Also, wash the underside of your vehicle once
road salt stops being used for the season.
Pressure washers
When washing your veh icles with a pressure
washer, always follow the operating instructions
p rovided with the pressure washer. This is espe­
cially important in regard to the pressure and
spraying distance. Do not aim the spray direct ly
at seals on side windows, doors, the hood, the
208
rear lid or the sunroof* or at tires, rubber hoses,
insulating material, sensors* or camera lenses*.
Keep a distance of at least 16 inches (40 cm).
Do not remove snow and ice with a pressure
washer.
Never use rotary nozzles or high pressure noz­
zles.
The water temperature must not be above 140 °F
(60 °().
Automatic car washes
Spray off the vehicle before washing.
Make sure that the windows and roof* are closed
and the windshie ld wipers are off . Follow instruc­
tions from the car wash operator, especially if
there are accessories attached to your vehicle.
If possible, use car washes that do not have
brushes.
Washing by hand
Clean the veh icle starting from the top and work­
i ng down using a soft sponge or cleaning b rush .
Use solvent-free cleaning products.
Washing vehicles with matte finish paint by
hand
To avoid damaging the paint when washing, first
remove dust and large particles from your vehi­
cle. Insects, grease spots and fingerprints are
best removed with a special cleaner for matte
finish paint .
Apply the product using a microfiber cloth . To
avoid damaging the paint surface, do not use too
much pressure.
Rinse the vehicle thoroughly with water. Then
clean using a neutra l shampoo and a soft micro­
fiber cloth .
Rinse the vehicl e thoroughly again and let it air
dry. Remove any water residue using a shammy.
A WARNING
-
- Only wash the vehicle when the ignition is
off and fo llow the instruct ions from the car

M N
co
a:
co
,...., \!) ..,.,
N ..,., ,....,
wash operator to reduce the risk of acci­
dents.
- To reduce the risk of cuts, protect yourself
from sharp metal components when wash­
ing the underbody or the inside of the wheel
housings.
- After washing the vehicle, the braking effect
may be delayed due to moisture on the
brake rotors or ice in the w inter. The brakes
must be dried first w ith a few careful brake
applications.
- If you wash the vehicle in an automatic car
wash, you must fold the exterior m irrors in
to reduce the risk of damage to the mirrors.
Power folding exterior mirrors* must only
be fo lded in and out us ing the power folding
funct ion.
- To reduce the risk of damage to the rims
and tires, compare the width between the
whee ls on your vehicle w ith the distance be­
tween the g uide rails in the car wash .
- To red uce the risk of damage, compare the
height and width of yo ur vehicle with the
Care and cleaning
height and w idth of the inside of the car
was h.
- T o prevent paint damage, do not wash the
vehicle in direct sunlight.
- To reduce the ris k of damage to the sur face,
do not use insect remov ing sponges, kitchen
sponges o r similar items.
- Matte finish painted veh icle components:
- To reduce the risk of damage to the sur-
face, do not use polishing agents or hard
wax.
- Never use protective wax. It can destroy
the matte finish effect.
- Do not place any stickers or magnetic
signs on vehicle parts painted w ith matte
finish paint. The paint could be damaged
when the stickers or magnets are re­ moved.
@ For the sake of the environment
Only wash the vehicle in facilities spec ially de­
s igned for that purpose. Th is w ill reduce the
r isk of dirty water contaminated w ith oil from
entering the sewe r system.
Cleaning and care information
When clea ning and caring for individual vehicle
components, refer to the following tables. The
information conta ined there is simply recommen -dations. For questions or for components that
are not listed, refer to an authorized A
udi dealer.
Also follow the information found in
¢ A.
Ext erior cl eaning
Component Situation Solution
Wind shi eld wiper
Deposits ¢ page 58, Cleaning windshield wiper blades
blades
H eadlight s/
Deposits Soft sponge with a mild soap solutional
tail light s
S ensors /
Deposits Sensors: soft cloth with solvent-free cleaning solution
camera le nses Camera lenses: soft cloth with alcohol-free clean ing solu-
tion
Snow/ice Hand brush/solvent-free de -ic ing spray
Whe els Road salt Water
Brake dust Acid-free special cleaning
solution
Exhau st tail p ipe s Road salt Water, cleaning solution suitable for stainless steel, if nee-
essary
209

M N
co
a:
co
,...., \!) 1.1"1
N 1.1"1 ,....,
Care and cleaning
Component Situation Solution
Te xtile s
Deposits adhering to Vacuum cleaner
artificial leather, the surface
Alcantara Water-based depos its Absorbent
cloth and mild soap solutiona)
such as coffee, tea,
b lood, etc.
Oil-based deposits Apply a m ild soap solutiona>, blot away the dissolved oil or
such as oil, make-up, dye, treat afterward with water, if necessary
etc.
Special deposits such Specia l sta in remover, blot with absorbent material, treat
as ink, na il polish, la- afterward with mild soap solution, if necessarya>
tex paint, shoe pol-
ish, etc.
Natural leather Fresh stains Woo
l cloth with a mild soap solutiona>
Water-based deposits fresh stains : absorbent cloth
such as coffee, tea, dried stains: stain remover suitable for leather
blood, etc.
Oil-based deposits Fresh stains: absorbent cloth and stain remover sui tab le
such as oil, make-up, for leathe r
etc. dried stains: Oil cleaning spray
Special deposits such Spot remover suitable for leather
as ink, nai l polish, la-
t ex paint, shoe po l-
ish, etc.
Ca re Regularly apply conditioning cream that protects from
light and penetrates into the mate rial. Use specially-col-
ored conditioning cream, if necessary.
Carbon parts Deposits clean the same way as plastic parts
a) Mild soap sol ution : maximum two tablespoons of neutral soap in 1 quart (1 liter) of water
.8, WARNING
The windshield may not be treated with wa­
ter-repelling windshield coating agents . Un­
favorab le conditions such as wetness, dark­
ness, or low sun can resu lt in increased glare.
Wiper blade chatter is also possible.
@ Note
- Headlights/tail lights
- Never clean headlights or tail lights with a
dry cloth or sponge.
- Do not use any cleaning product that con­
tains alcohol, because they could cause
cracks to form.
- Wheels
-
- Never use any paint polish or other abra­
sive materials.
- Damage to the protective layer on the
rims such as stone chips or scratches must
be repaired immediately.
- Sensors/camera lenses
-Never use warm or hot water to remove
snow or ice from the camera lens. This
could ca use the lens to crack.
- Never use abrasive cleaning materials or
alcohol to clean the camera lens. This
could cause scratches and cracks.
- Door windows
-Remove snow and ice on windows and ex-
terior mirrors with a plastic scraper. To
211

Checking and Filling
"'Park your vehicle on a level surface.
"'Turn off the ignition.
"'Read the engine coolant level from the coolant
expansion tank
c:> fig . 200, <=> page 223,
fig. 197. With a cold engine, the coolant level
should be between the "MIN" and "MAX" mark­
ings . When the engine is warm, the level may
be slightly above the "MAX" marking .
The location of the coolant expansion tank can be
seen in the engine compartment illustration
<=> page 223 .
To obtain an accurate reading, the engine must
be switched off.
The expansion tank in your vehicle is equipped
with an electric coolant level sensor.
When the coolant level is too low, the warning
light in the Auto-Check System
c::> page 29 will
blink until you add coolant and the level has been
restored to normal. Even though there is an elec­
tric coolant level sensor, we still recommend you
check the coolant level from time to time .
Coolant loss
Coolant loss may indicate a leak in the cooling
system. In the event of coolant loss, the cooling
system should be inspected immediately by your
authorized Audi dealer. It is not enough merely
to add coolant .
In a
sealed system, losses can occur only if the
boiling point of the coolant is exceeded as a re­
sult of overheating.
0 Note
Do not add any type of radiator leak sealant
to your vehicle's engine coolant . Adding radia­
tor repair fluid may adversely affect the func­
tion and performance of your cooling system
and could result in damage not covered by
your New Vehicle Limited Warranty .
Adding coolant
Be very careful when adding engine coolant.
Before you check anything in the engine compart­
ment,
always read and heed all WARNINGS
228
c::> A in Working in the engine compartment on
page
221.
Requirement: There must be a residual amount
of coolant in the expansion tank
<=>(i) .
"'Turn off the engine.
"' Let the engine cool down.
"' Place a thick rag over the coolant expansion
tank
c::> page 22 7, fig. 200 and carefully turn
the cap counter-clockwise
c::> .&, .
"'Add coolant mixed in the correct ratio
c::> page 22 7, Coolant up to the MAX marking.
"'Make sure that the fluid level remains stable.
Add more coolant if necessary .
"'Twist the cap on again
tightly.
Replacement engine coolant must conform to ex­
act specifications
c::> page 22 7, Coolant.
We recommend using only coolant additive Gl2+
+, Gl3
or in an emergency Gl2+. Do not use a
different additive. In an emergency use plain wa­
ter until you can get the correct additive and can
restore the correct ratio. This should be done as
soon as possible.
If you have lost a considerable amount of cool­
ant, then you should add cold antifree ze and cold
water only when the engine is cold.
Always use
new engine coolant when refilling.
Do not fill coolant above the "MAX" mark. Excess
coolant will be forced out through the pressure
relief valve in the cap when the engine becomes
hot.
A WARNING
- The cooling system is under pressure and
can get very hot. Reduce the risk of scalding
from hot coolant by following these steps.
- Turn off the engine and allow it to cool
down.
- Protect your face, hands and arms from
escaping fluid and steam by covering the
cap with a large, thick rag.
- Turn the cap slowly and very carefully in a
counter-clockwise direction while applying
light, downward pressure on the top of
the cap.
ll-

M N
co
a:
co
,...., \!) ..,.,
N ..,., ,....,
also reduces fuel efficiency and tire tread life,
and may affect the vehicle's handling and stop­
ping ability .
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver's re­
sponsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire pres­
sure telltale.
Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the sys­
tem is not operating properly. The TPMS mal­
function indicator is combined with the low tire pressure telltale . When the system detects a
malfunct ion, the telltale will flash for approxi­
mately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent veh icle start-ups as long as the mal­
function exists.
When the malfunction indicator is illuminated,
the system may not be able to detect or signal
low tire pressure as intended. TPMS malfunctions
may occur for a variety of reasons, including the
installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS
from functioning properly. Always check the
TPMS malfunction telltale after replacing one or more tires or wheels on your vehicle to ensure
that the replacement or alternate tires and
wheels allow the TPMS to continue to function properly.
Wheels
If the Tire Pressure Monitoring System
indicator appears
Appl ies to vehicles : wi th t ir e p ress ure mo nito rin g system
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too low
or if there is a system malfunction.
Fig. 208 Instrument cluster: i ndicator light with message
Using the ABS sensors, the tire pressure monitor­
ing system compares the tire tread circumference
and vibration characteristics of the individual
tires .
If the pressure changes in one or more
tires, this is indicated in the instrument cluster
display with an indicator light
RIJ and a message
¢fig. 208. If only one tire is affected, the loca­
tion of that tire will be indicated.
The tire pressures must be stored in the Infotain­
ment system again each time the pressures
change (switching between partial and full load
pressure) or after changing or replacing a tire on
your vehicle ¢
page 254. The tire pressure moni­
toring system only monitors the tire pressure you have stored. Refer to the tire pressure label for
the recommended tire pressure for your vehicle
¢ page 245, fig . 207.
Tire tread circumference and vibration character­
istics can change and cause a tire pressure warn­
ing if:
- the tire pressure in one or more tires is too low .
- the tire has structural damage.
- the tir e was replaced or the tire pressure
changed and it was not stored again
c:!;> page 254.
-the collapsible spare* tire is installed.
253

M N
co ~ co
rl I.O
"' N
"' rl
Left cockpit fuse assignment
Fig. 224 Left side of the cockpit: fuse panel with plastic
clip
Fuse panel @ (black )
No. Equipment
1 Dynamic steering
2 ESC control module
A/C system pressure sensor, electrome-
3 chanical park
ing brake, Homelink, auto-
matic dimming interior rearview mirror, air
quality/outside air sensor, ESC button
5 Sound
actuator/exhaust sound tuning
6 Headlight range contro l/cornering light
7 Headlight (cornering light)
Control modu les (e lectromechanical park-
8 ing brake, shock absorber, quattro Sport,
trailer hitch), DCDC converter
9
Adaptive cruise control or high voltage
battery (hybrid drive)
11 Side assist
12 Headlight range control, parking system
13 Airbag
14 Rear w iper
15 Auxi
liary fuse (instrument panel)
1 6 Auxiliary fuse terminal 15 (engine area) Fuses
and bulbs
Fuse panel @ (brown)
No . Equipment
1 Electric exhaust door
2 Brake light sensor or brake pedal
move-
ment sensor (hybr id drive)
3 Fuel pump
4 AdBlue pumps
or brake booster power
supply (hybrid dr ive)
5 Left seat heating with/without seat venti-
lation
6 ESC
7 Horn
8 Left
front door (window regulator, central
locking, mirror, switch, lighting)
9 Wiper motor
10 ESC
11 Left
rear door (window regu lator, switch,
lighting)
12 Rain and light sensor
Fu
se panel © (re d)
No . Equipment
3 Lumbar support
4 Dynamic steering
5 Climatized cupholder
6 Windshie
ld washer system, headlamp
washer system
7 Vehicle electr ical system control module 1
8 Vehicle e
lectrica l system control module 1
9 Panorama sunroof
10 Vehicle e lectrica l system control module 1
11 Sun shade (pano rama sunroof)
12 Anti-theft a
larm system
267

M N
co
a:
co
,...., \!) 1.1'1
N 1.1'1 ,....,
A
A/C (climate control) . . . . . . . . . . . . . . . . . . . 81
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . 283
Active lane assist
Cleaning the camera area . . . . . . . . . . . . . 209
Adapt ive cruise control . . . . . . . . . . . . . . . . . 107
C leaning the sensor . . . . . . . . . . . . . . . . . . 209
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . 109
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Request for driver intervention . . . . . . . . . 112
Setting the distance....... .. .. .. .. .. . 111
Setting the driving program . . . . . . . . . . . 112
Adaptive dampers . . . . . . . . . . . . . . . . . . . . . 120
Adapt ive light . . . . . . . . . . . . . . . . . . . . . . . . . 54
Defective . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
AdBlue .... .. ................. .. .... . 218
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Opening the tank door . . . . . . . . . . . . . . . . 219
Refilling . .. .. ........... .. .. .. .... . 219
Adding Engine coolant ........... .... .. .... .
Engine oil ............ ...... .... ... .
Windshield washer fluid ... .. .. .. .. .. .
Additional accessories
Addit ives 228
225
234
283
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Adjusting Air distribution (climate control) . . . . . . . . 81
Instrument illumination . . . . . . . . . . . . . . . 56
Steer ing column manually . . . . . . . . . . . . . 84
Temperatu re (climate control) . . . . . . . . . . 81
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . 167
Advanced Airbag-System . . . . . . . . . . . . . . 156
Advanced Airbag System components . . . 158
Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Children . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Child restraints ... .. ...... .. .. .. .. .. . 174
Components (front airbags) . . . . . . . . . . . 158
Danger of fitting a child safety seat on the
front passenger seat . . . . . . . . . . . . . . . . . 153
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Front airbags . . . . . . . . . . . . . . . . . . . 1S6, 157
How do the front airbags work? . . . . . . . . 160
How many airbags does my vehicle have? 158
How the Advanced Airbag System compo-
nents work together . . . . . . . . . . . . . . . . . 160
Index
Important information . . . . . . . . . . . . . . . 152
Indicator light . . . . . . . . . . . . . . . . . . . . . . 162
Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . 162
PASS ENGER AIR BAG OFF light . . . . . . . . . 162
Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16S
Safety instructions . . . . . . . . . . . . . . . . . . . 164
S ide airbags . . . . . . . . . . . . . . . . . . . . . . . . 166
Side curtain airbags . . . . . . . . . . . . . . . . . . 169
Warning/ind icator lights . . . . . . . . . . . . . . . 16
We ight-sensing mat . . . . . . . . . . . . . . . . . 173
When must the system be inspected? . . . 162
Air transport . . . . . . . . . . . . . . . . . . . . . . . . . 106
All-wheel drive . . . . . . . . . . . . . . . . . . . . . . . 195
Se lective wheel torque control . . . . . . . . . 191
All season tires . . . . . . . . . . . . . . . . . . . . . . . 250
Alternator Malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 28
Anti-freeze
refer to Engine coolant system . . . . . . . . . 227
Anti- lock brake system
Warning/indicator lights . . . . . . . . . . . . 15, 17
Anti-Lock Braking System . . . . . . . . . . . . . . 191
Anti-slip regu lation
W arning/indicator lights . . . . . . . . . . . . . . . 15
Anti-Slip Regu lation . . . . . . . . . . . . . . . . . . . 191
Anti-theft alarm warning system . . . . . . . . . . 38
Electronic immobilizer . . . . . . . . . . . . . . . . . 38
App roach/departure angle . . . . . . . . . . . . . . 202
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Audi braking guard
refer to Braking guard 113
Audi drive select Indicato r light . . . . . . . . . . . . . . . . . . . . . . 195
also refer to Drive select . . . . . . . . . . . . . . 120
Audi parking system plus with rearview cam- era . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Adjusting the display . . . . . . . . . . . . . . . . . 134
Adjusting the warning tones . . . . . . . . . . . 134
Rearview camera -parking mode 1 . . . . . . 132
Rearview camera -parking mode 2 . . . . . . 133
Safety precautions . . . . . . . . . . . . . . . . . . . 129
Switching on and off . . . . . . . . . . . . . . . . . 131
T ra iler hitch . . . . . . . . . . . . . . . . . . . . . . . . 134
Audi Service Repair Manuals and Literature 281
Auto-Check Control . . . . . . . . . . . . . . . . . . . . 27
Auto locking . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Automatic belt retractor . . . . . . . . . . . . . . . 14 7
285
