Lamp (MIL) ¢..ffi will il luminate. If this occurs,
contact the nea rest authorized Audi dea ler for as­
sistance.
.&_ WARNING
Always observe the posted speed limits and adjust your speed to suit prevailing road, traf­
fic and weather cond it ions . Never drive your
vehicle faster than the maximum speed rating
of the tires installed .
Auto Check Control
Introduction
The Auto-Check control monitors the function of
certain vehicle features and components .
It sim­
ply makes sure these features and components
are working properly . The Auto-Check control
works as long as the ignition is on, as well as
whenever the veh icle is driven .
-
If a component is malfunctioning or if the need
for an urgent repair has been detected, this will appear in the instrument cluster display . You w ill
also hear an audible warning tone . The displays
are color coded in either red or ye llow depending
on their level of prior ity.
A red symbol means
Danger , a yellow symbol in ­
dicates
Warning . In certain situations, informa­
tion message for the dr iver appear in addition to
the red and yellow symbols.
Note about automatic transmission
The Auto-Check Control will automat ically per­
form a test each time you switch o n the ignition .
With the selector lever in P or N, the following
message appears in the display :
When stationary apply brake pedal while select­
ing gear
When you select a different gear (for example: R,
D, etc.), the message will disappear and the Au­
to -Check function is d isplayed.
If there is a malfunction, then the malfunction
message will appear about 15 seconds after you
start the vehicle. At the same time you will hear a
warning tone.
Dri ver information system
Dr iver information messages
Driver information messages are shown in the in­
strument cluster display in addition to symbols .
Fig. 22 Inst rume nt clust er: SET button
For example, if the transmission selector lever is
not in the P position when the engine is turned
off, the following message appears :
Shift to P otherwise vehicle can roll away. Doors
do not lock if lever is not in P .
The ign ition key can only be removed w ith these­
lector in this position . This and other messages
are bro ught up if a function cannot be carried
out .
Driver messages and red symbols
If a red symbol appears in the display, a driver
message is also displayed automatically.
For example, the symbol for a problem w ith en­
gine oil pressure . appears in the display . The
fo llow ing message appears:
Turn off engine! O il pressure too low
T he driver message in the display goes out after
about S seconds . The dr iver message can be dis­
played again by briefly press ing the
ISETI button
9 fig . 22.
Driver messages and yellow symbols
If a yellow symbol appears in the display, a driver
message is also displayed automatically .
For example, the symbol
Ill appears in the dis­
play, indicat ing low windshie ld washer fluid level.
The following message also appears :
Please refill washer fluid ..,_
27

Driver information system
CJ) Note
Do not continue driving if the. symbo l ill u­
m inates. There is a malfunct ion in the engine
cooling system -you could damage your en­
gine.
9=:;r: Engine oil pressure malfunction
The red engine oil pressure warning symbol re­
quires immediate service or repair. Driving with a
low oil pressure indication is likely to cause se­
vere engine damage .
If the . symbol on the display flashes, the en­
g ine oil pressure is too low. A driver message ap­
pears as well to explain the malfunction in more
deta il. The dr iver warning goes out after about 5
seconds, but it can be brought up at any time by
p ress ing the
ISETI but to n again.
Turn off engine! Oil pressure too low
• Stop the vehicle .
• Turn the eng ine off .
• Check the eng ine oil level
c::, page 225.
• Contact your authorized Audi dealer for ass is -
tance if necessary.
Engine oil level too low
If the engine o il level is too low, add engine oi l
c::, page 225.
Engine oil level correct
If the symbol . flashes even though the engine
oil level is correct, please contact your nearest
authorized Audi Dealer for assistance. Do not
continue driving . Do not leave the engine running
idle, either.
(D Tips
- The engine oil pressure symbol. is not
an indicator for a low engine oil level. Do
not rely on it. Instead, check the oil level in
your engine at regular intervals, preferably each time you refuel, and always before
going on a long trip.
- The yellow oil level warning indication
Ill
requires oil refill or workshop service with­
out delay. Do not wait until the red oil
30
pressure warning • starts to flash before
you respond to the low oil level warning
II. By then, your engine may already have
suffered serious damage.
~ ... Fill engine oil now
WARNING: Please add oil immediately
If the . symbol lights up , then the oil has to be
replenished right now
c::, page 225.
@-Steering malfunction
If there is a malfunction in the electronic steer ­
ing column lock, the steering cannot be un­
locked.
If the . symbol in th e disp lay blinks, there is a
malfunction in the electronic steering co lumn
l ock. A driver message appears as well to exp lain
the malfunct ion in more deta il. The dr iver warn­
i ng goes out after about 5 seconds, but it can be
brought up at any time by pressing the
ISE TI but ­
ton again .
Steering defective! Do not drive vehicle!
• Contact your nearest authorized Audi dealer.
• Do
not tow your vehicle .
A WARNING
Your vehicle must not be towed in the event
of a malfunction in the electronic steering co l­
umn lock because it cannot be steered due to
the locked steering. If it is towed with the
steering locked, there is the risk of an acci­
dent.
© -Ignition lock malfunct ion
A malfunction in the ignition lock must be re­
paired immediately.
If the . symbo l in the display blinks, there is a
malfunction in the electronic ignition lock. A driv ­
er message appears as well to explai n the mal­
funct ion in more deta il. The driver warning goes
out after about 5 seconds, but it can be brought
up at any time by pressing the
ISETI button again.
Ignition lock defective. Contact dealer! ll-

M N
co ~ co
rl I.O
"' N
"' rl
@ Tips
-The oil pressure warning display. is not
an indicator of the oil level. Do not rely on
it. Instead, check the oil level in your en­
gine at regular intervals, preferably each
time you refuel , and always before going
on a long trip .
-If you have the impression your engine con­
sumes excess ive amounts of o il, we recom­
m end th at you cons ult an a uthorized Aud i
deal er to have th e cau se of yo ur co nc ern
p ro perly di ag no se d . Keep i n mi nd th at the
a ccurate meas ureme nt o f oil c onsu mpti on
r equires great care and m ay ta ke some time.
An a uthorized Audi dea ler has i nstr uctions
abo ut how to meas ure o il cons umption ac­
curate ly.
Checking the engine oil level
F ig. 19 8 Disp lay: O il level indicator
Read oil level
.. Pa rk your vehicle so that i t is hor izont ally level.
.. Shu t the engine off when i t is at oper ating te m-
perature.
.. Switc h on ly the ignition back on.
.. Wa it approx. two minutes .
.. Se lect:
I CARI funct ion button > Oil level. Or
.. Select:
ICARI funct ion button> Car systems *
control button > Servicing & checks > Oil level.
.. Read the oil leve l in the radio or MMI* Display
¢ fig . 198. Add e ng in e oil if the bar of the oil
l evel i ndicator is nea r "M in"
9page 225.
The oil level needs to be c hec ked at regular inter­
va ls. The best t im es to do this are whenever you
ref uel and prior to long t rips.
Checking and Filling
D epend ing on the way t he vehicle is dr iven and
the ope rat ing cond itions, oil consumption ca n be
u p to a 1/2 quart pe r 600 miles (0 .5 liter per
1,000 km). Consumption may be higher within
the fi rst 3,000 mi les (5,000 km).
(D Tips
The oil leve l indicator in t he ra dio or MMI*
D isp lay is only an information display. If t he
o il level is too low , a minimum oi l warn ing ap­
p ears in the instrume nt cl uster. Add oil
¢ page 225. If the hood has been o pen ed,
t h e cur ren t oil leve l is shown in t he instru­
m ent cl uster the n ext tim e the ig niti on i s
sw itch ed on.
Adding engine oil 0 N ~ N ,;, a, co
Fig . 199
Engine compa rtment: cove r on th e e ng in e oi l fill­
er neck
Befo re you check a nyth ing in the engine compart­
ment ,
always read and heed all WARNINGS
¢ & in Working in the engine compartment on
page 221 .
.. Shut the eng ine off .
.. Unscrew the cap
'l!:7-to the eng ine o il filling
hole
¢ fig. 199, 9page223, fig.197 .
.. Carefully top off with 0.5 quarts (0.5 liters) of
the appropriate oil ¢
page 223 .
.. Check t he oil level aga in after two m inutes
<:> page 225, Checking th e e ngin e oil l eve l.
.. Top off the o il, if necess ary .
.. Scr ew the cap back on the filling hole.
& WARNING
-
- W hile to p pin g off , the o il m ust not come in
contact w ith hot e ngine parts - fire hazar d!
225

Checking and Filling
"'Park your vehicle on a level surface.
"'Turn off the ignition.
"'Read the engine coolant level from the coolant
expansion tank
c:> fig . 200, <=> page 223,
fig. 197. With a cold engine, the coolant level
should be between the "MIN" and "MAX" mark­
ings . When the engine is warm, the level may
be slightly above the "MAX" marking .
The location of the coolant expansion tank can be
seen in the engine compartment illustration
<=> page 223 .
To obtain an accurate reading, the engine must
be switched off.
The expansion tank in your vehicle is equipped
with an electric coolant level sensor.
When the coolant level is too low, the warning
light in the Auto-Check System
c::> page 29 will
blink until you add coolant and the level has been
restored to normal. Even though there is an elec­
tric coolant level sensor, we still recommend you
check the coolant level from time to time .
Coolant loss
Coolant loss may indicate a leak in the cooling
system. In the event of coolant loss, the cooling
system should be inspected immediately by your
authorized Audi dealer. It is not enough merely
to add coolant .
In a
sealed system, losses can occur only if the
boiling point of the coolant is exceeded as a re­
sult of overheating.
0 Note
Do not add any type of radiator leak sealant
to your vehicle's engine coolant . Adding radia­
tor repair fluid may adversely affect the func­
tion and performance of your cooling system
and could result in damage not covered by
your New Vehicle Limited Warranty .
Adding coolant
Be very careful when adding engine coolant.
Before you check anything in the engine compart­
ment,
always read and heed all WARNINGS
228
c::> A in Working in the engine compartment on
page
221.
Requirement: There must be a residual amount
of coolant in the expansion tank
<=>(i) .
"'Turn off the engine.
"' Let the engine cool down.
"' Place a thick rag over the coolant expansion
tank
c::> page 22 7, fig. 200 and carefully turn
the cap counter-clockwise
c::> .&, .
"'Add coolant mixed in the correct ratio
c::> page 22 7, Coolant up to the MAX marking.
"'Make sure that the fluid level remains stable.
Add more coolant if necessary .
"'Twist the cap on again
tightly.
Replacement engine coolant must conform to ex­
act specifications
c::> page 22 7, Coolant.
We recommend using only coolant additive Gl2+
+, Gl3
or in an emergency Gl2+. Do not use a
different additive. In an emergency use plain wa­
ter until you can get the correct additive and can
restore the correct ratio. This should be done as
soon as possible.
If you have lost a considerable amount of cool­
ant, then you should add cold antifree ze and cold
water only when the engine is cold.
Always use
new engine coolant when refilling.
Do not fill coolant above the "MAX" mark. Excess
coolant will be forced out through the pressure
relief valve in the cap when the engine becomes
hot.
A WARNING
- The cooling system is under pressure and
can get very hot. Reduce the risk of scalding
from hot coolant by following these steps.
- Turn off the engine and allow it to cool
down.
- Protect your face, hands and arms from
escaping fluid and steam by covering the
cap with a large, thick rag.
- Turn the cap slowly and very carefully in a
counter-clockwise direction while applying
light, downward pressure on the top of
the cap.
ll-

M N
co
a:
co
,...., \!) 1.1'1
N 1.1'1 ,....,

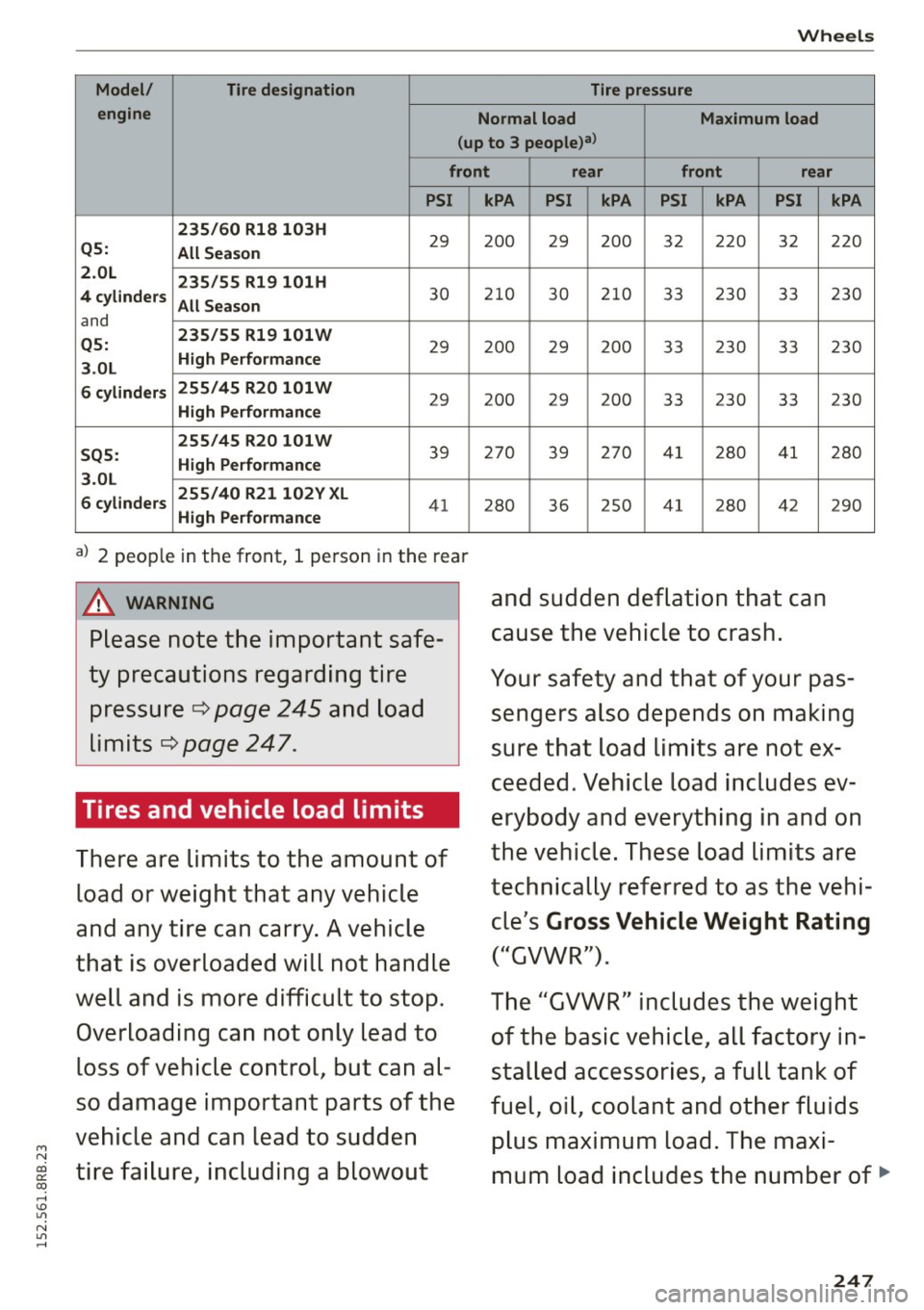

Wheels
Model/ Tire designation Tire pressure
engine Normal load Maximum load
(up to 3 people)a)
front rear front rear
PSI
235/60 Rl8 103H
29 Q5: All Season
2.0L 235/55 Rl9 101H
4 cylinders All Season
30
and
Q5: 235/55 Rl9 101W 2
9 High Performance
3.0L
6 cylinders 255/45 R20 101W
29 High Performance
255/45 R20 101W
3
9 SQ5:
High Performance
3.0L
6 cylinders 255/40 R21 102Y XL
41
High Performance
a) 2 p
eopl e in th e fron t, 1 p ers on i n th e re arr
A WARNING
Please note the important safe­
ty precautions regarding tire pressure
¢ page 245 and load
limits
¢ page 247 .
Tires and vehicle load limits
There are limits to the amount of
load or weight that any vehicle
and any tire can carry. A vehicle
that is overloaded will not handle
well and is more difficult to stop.
Overloading can not only lead to
lo ss of vehicle control , but can al­
so damage important parts of the
vehicle and can lead to sudden
tire failure, including a blowout
kPA PSI kPA PSI kPA PSI
20 0 29 2 00 32 220 32
2 10 30 210 33 230 33
200 2 9 200
33 2
30 33
2 00 29 2 00 33 230 33
270 39 270 41 280 41
280 36 2
50 41 2 80 42
and sudden deflation that can
cause the vehicle to crash.
kPA
220
230
2 30
230
280
2 90
Your safety and that of your pas­
sengers also depends on making
sure that load limits are not ex­
c eeded. Vehicle load includes ev­
erybody and everything in and on
the vehicle. These load limits are te chnically referred to as the vehi­
cle 's
Gross Vehicle Weight Rating
("GVWR") .
The "GVWR " includes the weight
of the basic vehicle, all factory in­
stalled accessories, a full tank of
fuel, oil, coolant and other fluids
plus maximum load. The maxi­
mum load includes the number of""
247

Emergency assistance

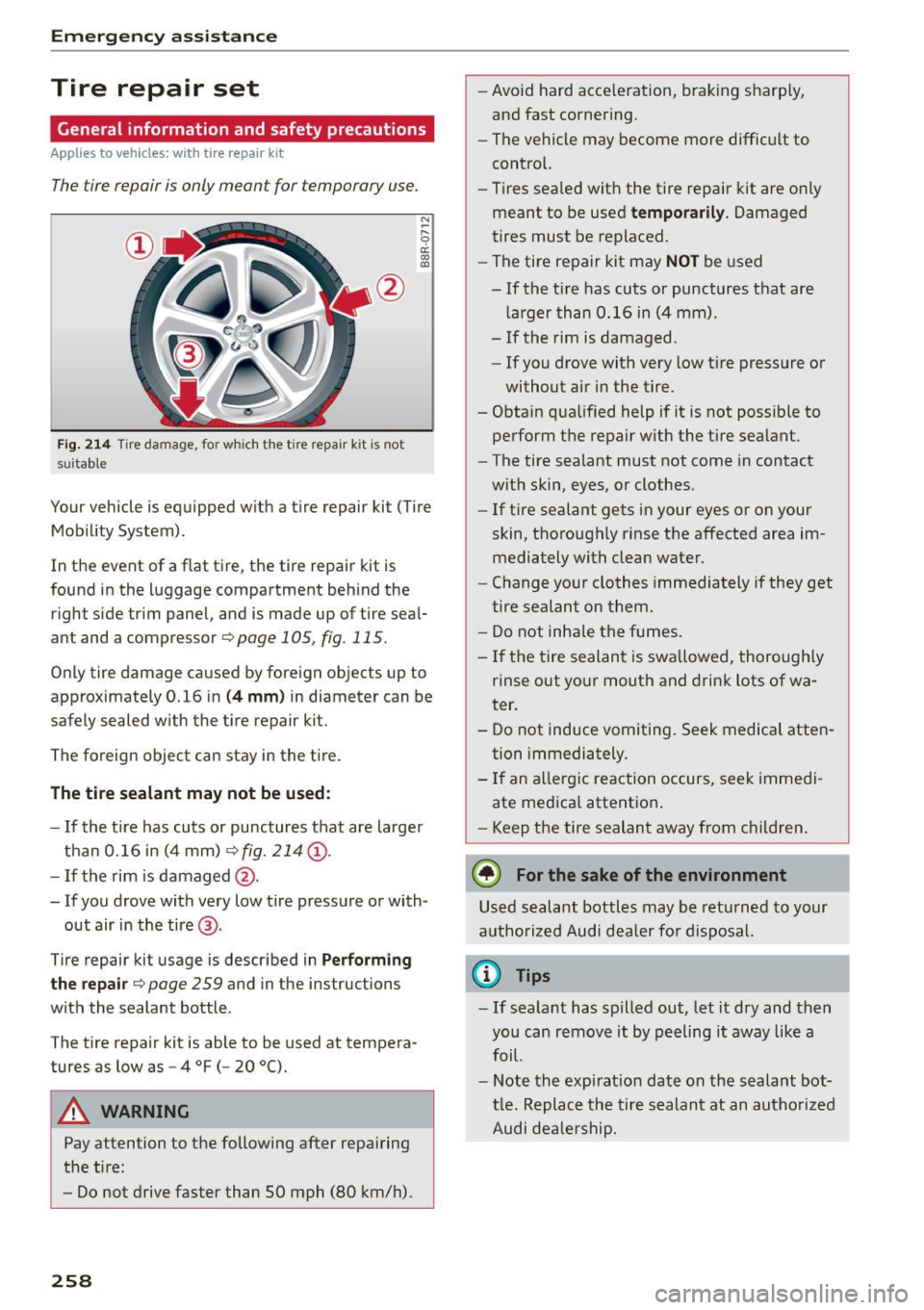

Tire repair set
General information and safety precautions
Applies to veh icles: w ith tire repair kit
The tire repair is only meant for temporary use.
Fig. 214 T ire damage, for which the tire repa ir kit is not
s ui ta bl e
N ~ .... 0 cc co m
Your vehicle is eq uipped w ith a tire repair kit (Tire
Mob ility System).
In the event of a flat tire, the tire repai r kit is
found in the l uggage compartment beh ind the
right side tr im panel, and is made up of tire seal­
ant and a compressor
<=:>page 105, fig . 115 .
Only tire damage caused by foreign objects up to
approximately 0.16 in
( 4 mm ) in diameter can be
safe ly sealed with the tire repair kit.
The fo reign object can stay in the tire .
The tire sealant may not be used:
-If the t ire has cuts or pu nctures that are large r
than 0.16 in (4 mm)
r::::> fig. 214 @.
-If the rim is damaged @.
- If you drove with very low t ire pressure or with -
out air in the tire @.
Tire repair kit usage is descr ibed in
Performing
the repair r::::> page 259 and in the instructions
with the sealant bottle .
The tire repair kit is able to be used at tempera­
tures as low as -4 °F (- 20 °C).
A WARNING
Pay attention to the following after repa iring
the t ire:
- Do not drive faster than SO mph (80 km/ h).
258
- Avoid hard acce lerat ion, bra king sharply,
and fast cornering .
- Th e vehicle may become more diffic ult to
contro l.
- Tires sea led with the tire repair kit are o nly
meant to be use d
temporarily. Damaged
tires must be replaced .
- The tire repair kit may
NOT be used
- If the ti re has cuts or punctures that are
lar ger than 0.16 in (4 mm).
- If the rim is damaged.
- If you drove with very low t ire pressure or
without air in the tire .
- Obta in qua lified help i f it is not poss ible to
perform t he repair with the tire sealant.
- The tire sealant must not come in contact
w it h skin, eyes, or clothes .
- If tire sealant gets in your eyes or on your
skin, thoroughly rinse the affected area im­
mediately with clean wate r.
- Change your clothes immediately if they get
tire sealant on them.
- Do not inha le the fumes.
- If the tire sealan t is swa llowed, thoroughly
rinse out yo ur mouth and drink lots of wa­
ter.
- Do not induce vomiting . Seek medical atten ­
tion immediately .
- If an a llergic reaction occurs, seek immedi­
ate med ica l attention .
- Keep t he tire sealan t away from c hild ren.
@ For the sake of the environment
Used s ealant bottl es may be retu rned to your
a uthori zed Audi dea le r fo r d isposal.
(j) Tips
- If sea lant has spilled out, let it dry and then
yo u can remove it by pe eling it away like a
foil.
- Note the expi rat ion date on the sealant bot­
t le . Replace the tire sealant at an au tho riz ed
Audi dealership .

M N
co ~ co
rl I.O
"' N
"' rl

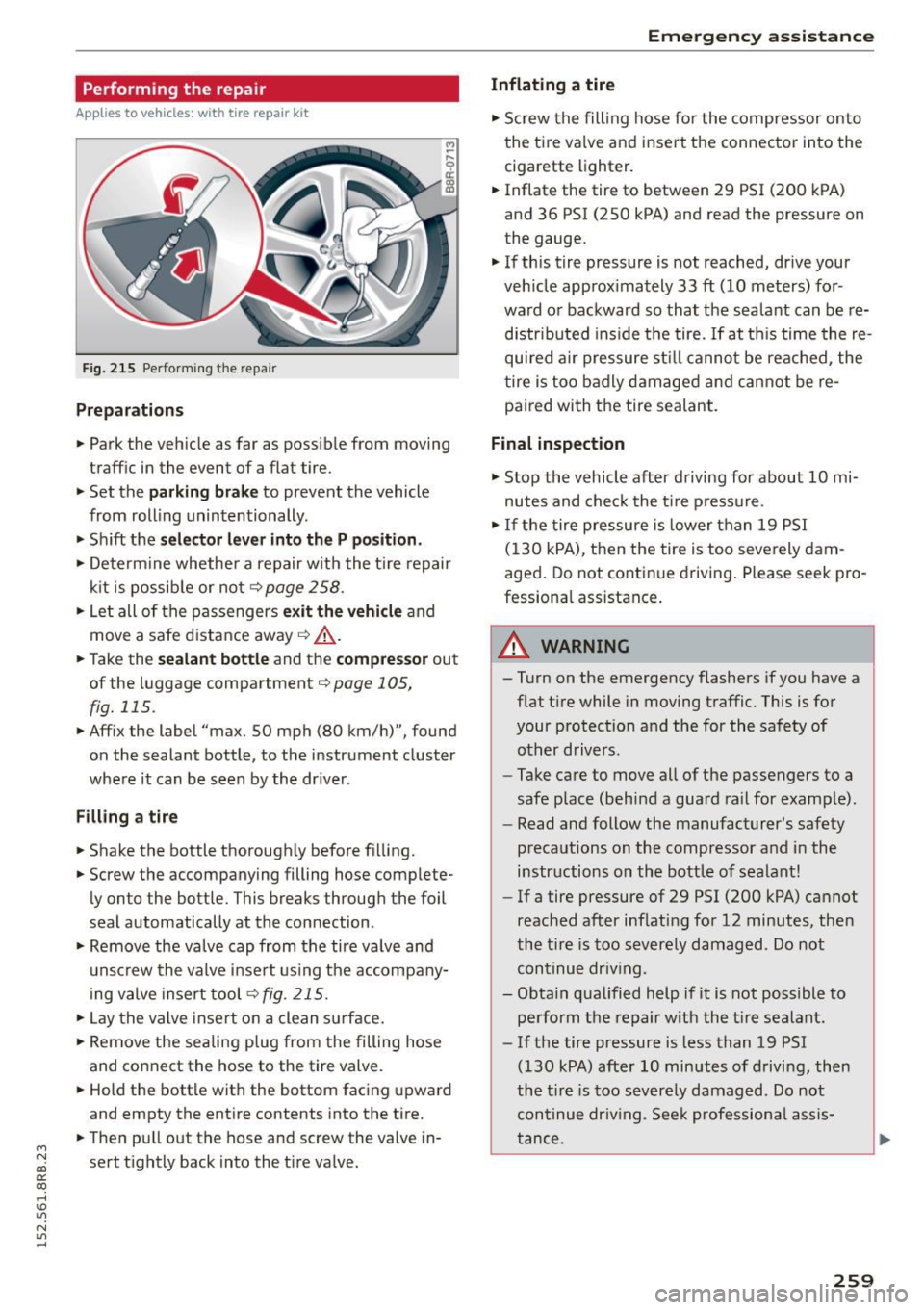

Performing the repair
Applies to vehicles: with tire repair kit
Fig. 215 Perfo rm ing the repa ir
Prep arati ons
"' Park the vehicle as far as possib le from moving
traff ic in the event of a flat tire.
"' Set the
parki ng brak e to prevent the vehicle
from roll ing unintentionally.
"' Shift the
sele ctor lever into th e P po sition .
"'Determ ine whethe r a repair w ith the t ire repair
k it is possib le or not
c::> page 258.
"' Let all of the passengers ex it the vehicle and
move a safe d istance away
c::> .&_ .
• Take the se alant bottle and the compre ssor out
of the luggage compartment
i:::> page 105,
fig. 115 .
"'Affix the label "max. 50 mph (80 km/h)", found
on the sealant bottle, to the instrument cluster
where it can be seen by the dr iver.
F illing a tire
"'Shake the bottle thoroughly before fi lling.
"' Screw the accompanying filling hose complete-
ly onto the bottle. This breaks throug h the foil
seal automatically at the connection .
"' Remove the valve cap from the tire va lve and
unscrew the valve insert us ing the accompany­
ing valve insert tool~
fig. 215.
"'Lay the valve inse rt o n a clean s urface.
"' Remove the sealing plug from the filling hose
and connect the hose to the tire valve.
"' Hold the bottle with the bottom facing upward
and empty the ent ire contents into the tire.
"' Then pull out the hose and screw the valve in­
sert tightly back into the t ire va lve.
Em erg en cy ass is tan ce
Inflating a tire
"'Screw the fill ing hose for the compressor onto
the t ire va lve and insert the connector into the
cigarette lighter.
• Inflate the tire to between 29 PSI (200 kPA)
and 36 PSI (250 kPA) and read the pressure on
the gauge.
"' If this tire pressure is not reached, dr ive your
veh icle app rox imately 33 ft (10 meters) for ­
ward or backward so that the sealant can be re­ distr ibuted ins ide the tire . If at th is time the re­
qui red a ir pressure st ill canno t be reached, the
t ire is too badly damaged and cannot be re­
pa ired with the tire sealant.
Final inspection
"' Stop the vehicle after driving for about 10 mi­
nutes and che ck the t ire p ress ure .
"'I f the tire pressure is lower than 19 PSI
( 1 30 kPA), then the tire is too seve rely dam­
aged. Do not continue driving . Please seek pro­
fessiona l assistance .
A WARNING
-
- Turn on the emergency flashers if you have a
flat tire while in moving traffic. This is for
your protection and the for the safety of
other drivers .
- Take care to move all of the passengers to a
safe place (behind a guard rail for examp le).
- Read and follow the manufacturer's safety
precautions on the compressor and in the instructions on the bottle of sealant!
- If a tire pressure of 29 PSI (200 kPA) cannot
reached after inflating for 12 minutes, then
the t ire is too severely damaged . Do not
continue dr iv ing .
- Obta in qualified help if it is not possible to
perform t he repair w ith the t ire sea lant.
- If the tire pressure is less than 19 PSI
(130 kPA) after 10 minutes of drivi ng, then
the t ire is too severe ly damaged . Do not
continue dr iv ing. See k professiona l assis­
tance .
259

M N
co
a:
co
,...., \!) ..,.,
N ..,., ,....,
Electronic Stabilization Control . . . . . . . . . . 191
Electronic Stabilization Control (ESC)
H ill descent assist . . . . . . . . . . . . . . . . . . .
193
Offroad mode . . . . . . . . . . . . . . . . . . . . . . . 192
Warn ing/ indicator lights . . . . . . . . . . . . . . . 15
Emergency braking . . . . . . . . . . . . . . . . . . . . . 91
Emergency flasher . . . . . . . . . . . . . . . . . . . . . 54
Warning/indicator lights . . . . . . . . . . . . . . . 16
E mergency key . . . . . . . . . . . . . . . . . . . . . . . . 36
Starting engine . . . . . . . . . . . . . . . . . . . . . . 86
Emergency locking of the doors . . . . . . . . . . . 42
Emergency operation
Luggage compartment lid . . . . . . . . . . . . . .
45
Emergency release
Selector lever ...................... .
E t . mergency s artmg ........... .... ... .
Emergency unlocking
128
271
Ignition key . . . . . . . . . . . . . . . . . . . . . . . . . 38
Energy management . . . . . . . . . . . . . . . . . . 196
Engine
Compartment . . . . . . . . . . . . . . . . . . . . . . .
223
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
H ood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Jump starting . . . . . . . . . . . . . . . . . . . . . . . 105
Starting . . . . . . . . . . . . . . . . . . . . . . 84, 87, 99
Startingwithjumpercab les . ... .. .. ... 271
Stopping . . . . . . . . . . . . . . . . . . . . . . 86, 88, 99
E . ngine compartment . . . . . . . . . . . . . . . . . . 223
Safety instructions . . . . . . . . . . . . . . . . . . . 221
Working the engine compartment ... .. . 221
E . l ngine coo ant system . . . . . . . . . . . . . . . . . 227
Adding coolant . . . . . . . . . . . . . . . . . . . . . . 228
Checking coolant leve l . . . . . . . . . . . . . . . . 227
Malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 29
Radiator fan . . . . . . . . . . . . . . . . . . . . . . . . 229
Engine coolant temperature
Temperature gauge . . . . . . . . . . . . . . . . . . .
10
Engine hood
Closing .. .. .. .... ...... ... .. .. .. .. .
How to release the hood ...... .. .... . .
Engine oil Adding
Additives . .. ................. .. .... .
Changing .. ................. .. .... .
Check oil level .............. .... ... .
221
221
223
225 225
226 225
Consumption . . . . . . . . . . . . . . . . . . . . . . . 225
Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Index
Oil consumption . . . . . . . . . . . . . . . . . . . . . 224
Pressure malfunction . . . . . . . . . . . . . . . . . . 30
Sensor defective . . . . . . . . . . . . . . . . . . . . . . 33
Specification and viscosity . . . . . . . . . . . . . 223
Engine speed limitation . . . . . . . . . . . . . . . . . 33
Environment
Catalytic converter . . . . . . . . . . . . . . . . . . .
198
Diesel particulate filter . . . . . . . . . . . . . . . 199
Disposing of your vehicle battery . . . . . . . 233
Driving at high speeds . . . . . . . . . . . . . . . . 200
Fuel...... .... .. .. .............. ... 216
Leaks under your vehicle . . . . . . . . . . . . . . 221
Letting the vehicle stand and warm up . . . 200
Proper disposal of drained brake fluid . . . 230
Proper disposal of drained engine coolant 228
Proper disposal of drained engine oil 225, 226
Recycling used engine oil. . . . . . . . . . . . . . 225
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 4
Unleaded fuel.. .. ... .......... .. .. ..
213
What shou ld I do with an old battery? . . . 233
EPC
refer to Electronic power control . . . . . . . . 15
ESC
refer to Electronic Stabilization
Control (ESC) . . . . . . . . . . . . . . . . . . . . . . . .
15
Ethyl alcohol (Fuel) . . . . . . . . . . . . . . . . . . . . 214
Event Data Recorder (EDR) . . . . . . . . . . . . . . 190
Expansion tank . . . . . . . . . . . . . . . . . . . . . . . 227
Explanation of some technical terms . . . . . 202
Exterior lighting . . . . . . . . . . . . . . . . . . . . . . . 52
Exterior mirrors
Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . .
59
D . . ,mmmg ...... .. ............. .... .. . 60
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Eyeglasses compartment . . . . . . . . . . . . . . . . 79
F
Fall line
Fan Radiator
Fastening 202
229
Booster seats . . . . . . . . . . . . . . . . . . . . . . . 180
Convertible child safety seats . . . . . . . . . . 178
Infant seats . . . . . . . . . . . . . . . . . . . . . . . . 177
Flexib le fue l . . . . . . . . . . . . . . . . . . . . . . . . . 214
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
289
