Page 5 of 302

M N
co
a:
co
,...., \!) 1.1'1
N 1.1'1 ,....,
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Driving safety . . . . . . . . . . . . . . . . . . . . 135
Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Correct passenger seat ing positions . . . . . 136
Pedal area . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Storing cargo correct ly . . . . . . . . . . . . . . . 140
Reporting Safety Defects . . . . . . . . . . . . . . 142
Safety belts . . . . . . . . . . . . . . . . . . . . . . 144
General information . . . . . . . . . . . . . . . . . 144
Why use safety belts? . . . . . . . . . . . . . . . . 145
Safety belts . . . . . . . . . . . . . . . . . . . . . . . . 147
Belt tensioners . . . . . . . . . . . . . . . . . . . . . . 150
Airbag system . . . . . . . . . . . . . . . . . . . . 152
Important information . . . . . . . . . . . . . . . 152
Front airbags . . . . . . . . . . . . . . . . . . . . . . . 156
Monito ring the Advanced Airbag System . 162
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . 166
Side curtain airbags . . . . . . . . . . . . . . . . . . 169
Child safety . . . . . . . . . . . . . . . . . . . . . . 172
Important information . . . . . . . . . . . . . . . 172
Child seats .............. .... .. .. ... 177
Secur ing ch ild seats . . . . . . . . . . . . . . . . . . 181
LATCH system (Lower anchorages and
tethers for children) . . . . . . . . . . . . . . . . . . 184
Addit ional info rmation . . . . . . . . . . . . . . . 189
Driver messages . . . . . . . . . . . . . . . . . 190
Smart Technology . . . . . . . . . . . . . . . 190
Notice about data recorded by the Event
Data Recorder and vehicle control
modules . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
E lect ronic Stabilization Control (ESC) . . . . 191
B raking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Electromechanica l power assist, Dynamic
steering . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Driving with your quattro . . . . . . . . . . . . . 195
Energy management . . . . . . . . . . . . . . . . . 196
Driving and the environment . . . . 198
Breaking in . . . . . . . . . . . . . . . . . . . . . . . . . 198
Cata lytic converter . . . . . . . . . . . . . . . . . . . 198
Diesel particu late filter . . . . . . . . . . . . . . . 199
Avoid damaging the vehicle . . . . . . . . . . . . 199
Econom ical and environmentally-friend ly
driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Table of contents
Offroad driving . . . . . . . . . . . . . . . . . . .
202
Driving under difficult conditions and off-
road . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Trailer mode . . . . . . . . . . . . . . . . . . . . . . 204
Driving with a trailer . . . . . . . . . . . . . . . . . 204
Tra iler mode notes . . . . . . . . . . . . . . . . . . . 206
Operating instructions . . . . . . . . . . . 208
Care and cleaning . . . . . . . . . . . . . . . . 208
General information . . . . . . . . . . . . . . . . . 208
Car washes . . . . . . . . . . . . . . . . . . . . . . . . . 208
Cleaning and care information . . . . . . . . . 209
Placing your vehicle out of service . . . . . . 212
Fuel and Refueling .......... ... .. 213
Fuel .. ..... ... .. .. ........ ...... ... 213
Refueling ... .. .. .. ... .. ... ..... .. .. 215
Selective catalytic reduction 218
Checking and Filling . . . . . . . . . . . . . 221
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Eng ine compartm ent . . . . . . . . . . . . . . . . . 223
En gine oil . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Cooling system . . . . . . . . . . . . . . . . . . . . . . 227
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . 229
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Windshield/headlight washer container 234
Wheels .. .... .. .. ... ........ .. .. .. 235
Wheels and Tires . . . . . . . . . . . . . . . . . . . . 235
Tire pressure monitoring system . . . . . . . 252
Troubleshooting . . . . . . . . . . . . . . . . . 255
Emergency assistance . . . . . . . . . . . 255
Vehicle jack, vehicle tool kit and
collapsib le spare tire . . . . . . . . . . . . . . . . . 255
Tire repair set . . . . . . . . . . . . . . . . . . . . . . . 258
Replacing wheels . . . . . . . . . . . . . . . . . . . . 260
Fuses and bulbs . . . . . . . . . . . . . . . . . . 266
Fuses. ...... .. .. .. ... .. ... ..... .. .. 266
Bulbs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Emergency situations . . . . . . . . . . . . 271
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
Starting by pushing or towing . . . . . . . . . . 271
Starting with jumper cables . . . . . . . . . . . 27 1
3
Page 6 of 302

Table of contents
Use of jumper cables . . . . . . . . . . . . . . . . . 272
Towing with a tow truck. . . . . . . . . . . . . . . 273
Raising the vehicle . . . . . . . . . . . . . . . . . . . 275
Technical Data . . . . . . . . . . . . . . . . . . . . 277
Technical data . . . . . . . . . . . . . . . . . . . . 277
Vehicle identificat ion . . . . . . . . . . . . . . . . . 277
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . 278
Capac ities . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Gasoline engines . . . . . . . . . . . . . . . . . . . . 279
D iese l eng ine . . . . . . . . . . . . . . . . . . . . . . . 280
Consumer information . . . . . . . . . . 281
Warranty coverages . . . . . . . . . . . . . . . . . . 281
Operating your vehicle outside the U.S.A.
or Canada . . . . . . . . . . . . . . . . . . . . . . . . . . 281
Audi Service Repair Manuals and Literature . . . . . . . . . . . . . . . . . . . . . . . . . . 281
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . 281
Accessories and technical changes . . . . . . 283
Declaration of Compliance,
Te lecommunications and E lectronic
Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
Index ..... ...... ........... .. .. ... 285
4

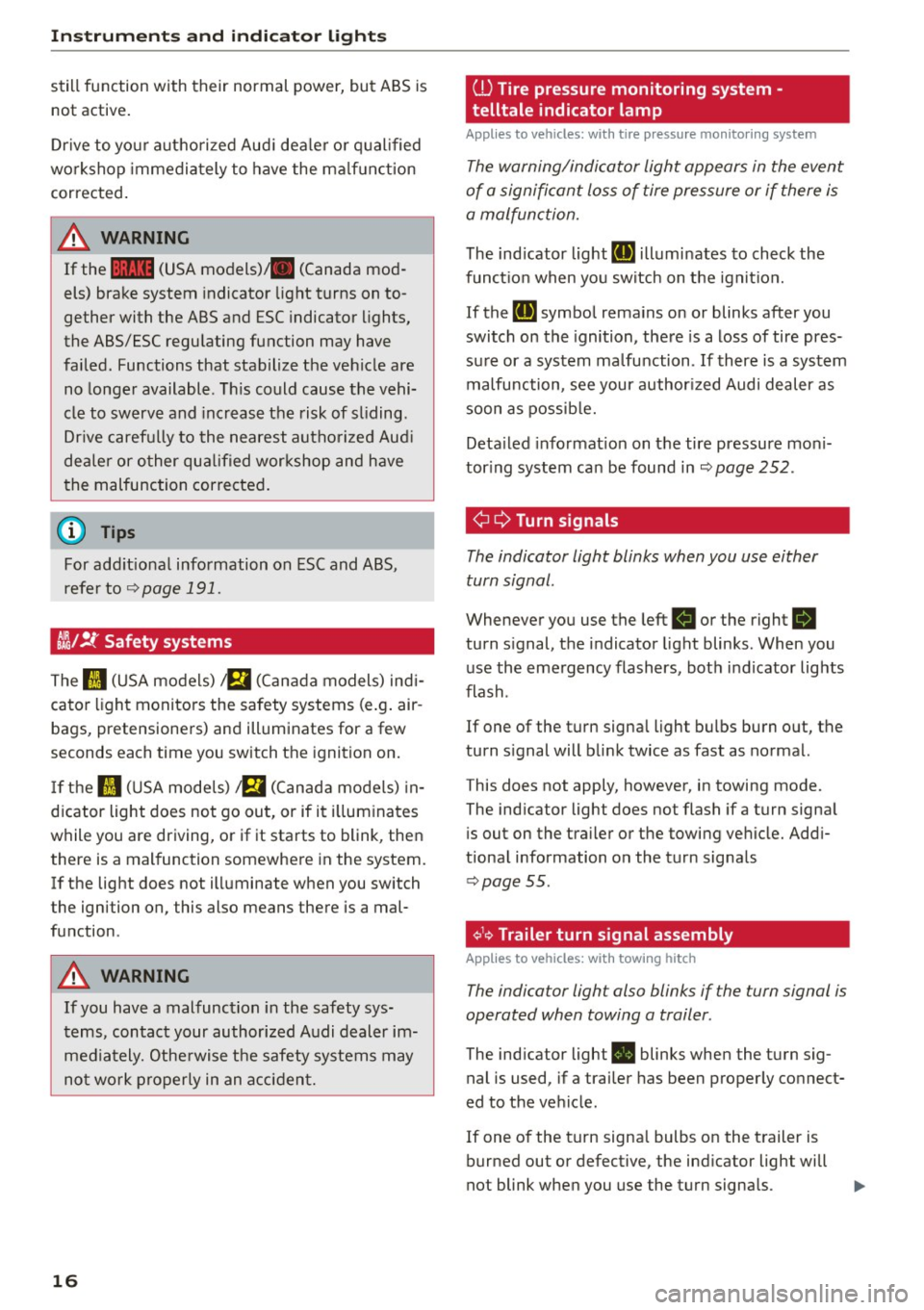

Page 18 of 302

Instruments and indicator lights
still fu nction with their normal power, but A BS is
not active .
D rive to y our a uthorize d Au di d eale r o r q ual ified
wo rkshop immediately to have the ma lf u nction
corrected .
A WARNING
If the .. (USA models) . (Canada mod
els) brake system indicator light turns on to
gether with the ABS and ESC indicator lights ,
the ABS/ESC regulating function may have
failed . Functions that stabilize the vehicle are
no longer available . Th is could cause the vehi
cle to swerve and increase the risk of sliding .
Dr ive caref ully to the nearest autho rized Aud i
de aler or o ther qualified wor kshop and have
t he malfunction corrected .
(D Tips
For addit iona l information on ESC and ABS,
refer to
¢ page 191.
CJ};/ !f Safety systems
-
The II (USA models) a (Cana da models) indi
cator light monito rs the safety systems (e .g . air
bags, pretensione rs) and illuminates for a few
seconds each time you switch t he ignition on.
If t h e II (U SA mode ls) a (Canad a models) in
d icator light does not go out, or if it i llum inates
while you are driving, or if it starts to blink, then
there is a malfunction somewhe re in the system.
I f the light does not ill uminate when you switch
the igni tion on, this also means there is a mal
function .
A WARNING
If you have a mal func tion in the safety sys
t ems, contact your authorized A udi dealer im
media tely. Othe rwise the safety system s may
no t w or k properly in an a cci den t.
16
ill Tire pressure monitoring system -
telltale indicator lamp
Applies to vehicles: with tire pressure monitoring system
The warning/indicator light appears in the event
of a signifi cant loss of tire pressure or if there is
a malfunction.
The ind icator light RI] illumi nates to check the
func tion when yo u sw itch on t he ign it io n.
If the
RI] symbo l rema ins on or blinks after you
switch on the ignition, the re is a loss of tire pres
su re or a system ma lfunction .
If there is a system
malfunction, see your author ized Audi dealer as
soon as possib le.
Deta iled info rmat ion on the tire pressure mo ni
tor ing system ca n be found in
¢page 252.
¢¢Turn signals
The indicator light blinks when you use either
turn signal .
Whenever you use the left B or the right R
turn s ignal, the indicator light blinks . When you
use the eme rgency flashers, bot h in d icator lights
flash .
If one of the turn signa l ligh t bulbs burn out, the
turn s ignal will b link twice as fast as normal.
This does not apply, however, in towing mode.
The ind icator light does not flash if a turn signa l
i s out on the tra iler or the towing veh icle. Add i
tiona l information on the turn signa ls
¢ page 55.
¢1.~ Trailer turn signal assembly
Applies to vehicles: with towing hitch
The indicator light also blinks if the turn signal is
operated when towing a trailer .
The indicator light . blinks when the t urn s ig
nal is used, if a trai ler has been properly co nnect
ed to the ve hicle .
If one of the tu rn signa l bulbs on the t railer is
burned out or defective, the ind icator light will
not blink when you use the turn signa ls.
Page 19 of 302

M N
co
a:
co
,...., \!) ..,.,
N ..,., ,....,
@ Tips
For vehicles with a factory installed towing
hitch or a trailer hitch that was installed later
according to factory specifications, the trailer
turn signal assembly is actuated.
~ Safety belts
This warning/indicator light reminds you to put
on your safety belt.
The . warning/indicator light illuminates when
the ignition is switched on to remind the driver
and (on USA models only) any front passenger to
put on the safety belt. Additionally, an audible
warning tone will also sound .
For more Information ¢
page 144, Safety belt
warning light.
o Malfunction Indicator Lamp (MIL)
The Malfunction Indicator Lamp (MIL) is part of
the On -Board Diagnostic (OBD II) system . The
symbol ¢4 lights up when the ignition is turned
on and w ill turn off after the engine has started
and has settled at a constant idle speed. This in
dicates that the MIL is working properly .
The warning light illuminates when there is a
malfunction in the engine electronic system.
Contact your authorized Audi dealer and have the
mal funct ion corrected.
An improperly closed fuel filler cap may also
cause the MIL light to illuminate (only vehicles
with gasoline engine)
¢page 216.
For more informat ion ¢ page 26.
[D High beam
The . warning/ind icator light illuminates when
the high beams are on or when you use the head
light flasher. For more info rmation about using
the high beams, see
~ page 55.
Instruments and indicator lights
CRUISE/•(-) Cruise control
The (~jll)~i* (USA models) ;Bl (Canada models)
warning/ind icator light illuminates when the
cruise control is activated.
ABS/{ @) Anti-lock brake system (ABS)
This warning/indicator light monitors the ABS
and the electronic differential lock (EDL).
The~ (USA models) !(iJ (Canada mode ls)
warning/indicator light will come on for a few
seconds when the ignition is switched on. The
light will go out after an automatic check se
quence is comp leted .
There is a malfunction in the ABS when:
-The warning/indicator light does not illum inate
when you sw itch on the ignit ion.
- The warning/indicator light does not go out af
ter a few seconds.
- The warning/ indicator light illum inates while
driving .
The brake system will still respond even with·
out the assistance of the ABS system. See your
authorized Audi dealer as soon as possible to re
store full braking performance.
For more infor
mation regarding the ABS
~page 191.
The ABS warning light and the brake warning
light come on together . The ABS will not work
and you will notice a change in braking re
sponse and performance.
Malfunction in the brake system
If the brake warning light¢ page 18 and the
ABS warning illum inate
together there may be a
malfunction in the ABS, and there may also be a
malfunction in the brake system itself~ ,&..
In the event of a
malfunction in the brake sys
tem
the warning/ind icator light 1111 (USA mod
els)/ . (Canada mode ls) in the instrument clus
ter flashes. By press ing the
!SE TI button, you can
bring up a dr iver message which exp lains the
malfunction in more detail. Please note
~page 28.
17
Page 32 of 302

Driver information system
CJ) Note
Do not continue driving if the. symbo l ill u
m inates. There is a malfunct ion in the engine
cooling system -you could damage your en
gine.
9=:;r: Engine oil pressure malfunction
The red engine oil pressure warning symbol re
quires immediate service or repair. Driving with a
low oil pressure indication is likely to cause se
vere engine damage .
If the . symbol on the display flashes, the en
g ine oil pressure is too low. A driver message ap
pears as well to explain the malfunction in more
deta il. The dr iver warning goes out after about 5
seconds, but it can be brought up at any time by
p ress ing the
ISETI but to n again.
Turn off engine! Oil pressure too low
• Stop the vehicle .
• Turn the eng ine off .
• Check the eng ine oil level
c::, page 225.
• Contact your authorized Audi dealer for ass is -
tance if necessary.
Engine oil level too low
If the engine o il level is too low, add engine oi l
c::, page 225.
Engine oil level correct
If the symbol . flashes even though the engine
oil level is correct, please contact your nearest
authorized Audi Dealer for assistance. Do not
continue driving . Do not leave the engine running
idle, either.
(D Tips
- The engine oil pressure symbol. is not
an indicator for a low engine oil level. Do
not rely on it. Instead, check the oil level in
your engine at regular intervals, preferably each time you refuel, and always before
going on a long trip.
- The yellow oil level warning indication
Ill
requires oil refill or workshop service with
out delay. Do not wait until the red oil
30
pressure warning • starts to flash before
you respond to the low oil level warning
II. By then, your engine may already have
suffered serious damage.
~ ... Fill engine oil now
WARNING: Please add oil immediately
If the . symbol lights up , then the oil has to be
replenished right now
c::, page 225.
@-Steering malfunction
If there is a malfunction in the electronic steer
ing column lock, the steering cannot be un
locked.
If the . symbol in th e disp lay blinks, there is a
malfunction in the electronic steering co lumn
l ock. A driver message appears as well to exp lain
the malfunct ion in more deta il. The dr iver warn
i ng goes out after about 5 seconds, but it can be
brought up at any time by pressing the
ISE TI but
ton again .
Steering defective! Do not drive vehicle!
• Contact your nearest authorized Audi dealer.
• Do
not tow your vehicle .
A WARNING
Your vehicle must not be towed in the event
of a malfunction in the electronic steering co l
umn lock because it cannot be steered due to
the locked steering. If it is towed with the
steering locked, there is the risk of an acci
dent.
© -Ignition lock malfunct ion
A malfunction in the ignition lock must be re
paired immediately.
If the . symbo l in the display blinks, there is a
malfunction in the electronic ignition lock. A driv
er message appears as well to explai n the mal
funct ion in more deta il. The driver warning goes
out after about 5 seconds, but it can be brought
up at any time by pressing the
ISETI button again.
Ignition lock defective. Contact dealer! ll-
Page 36 of 302

Driver inform ation system
the dr iver information system . Keep in mind that
the engine speed will not exceed the va lue dis
p layed in the driver information system, for ex
ample when downshifting.
P lease go to an autho rized Audi dea le r or other
qualified workshop to have the malfunction re paired.
,m.. Diesel particulate filter clogged
Ap plies to veh icles: w ith diesel e ngi ne and d iesel pa rticu late
f ilt e r
II Particul ate filter Se e owne r's manu al
When the II symbol illum inates, you can alte r
your driving style to assist the fi lter self-clean ing
process . Drive for approximately 15 minu tes wi th
the selector lever in the S position at a minimum
speed of 37 mph (60 km/h) and an engine speed
of approximately 2,000 RPM. The temperature
increase that will result from this can burn off
the soot in the fi lter. The symbol will sw itch off
when the clean ing is successful. After a success
ful cleaning, there is no need to b ring the car to
an author ized deal er or qualified wo rkshop be
cause this is part of normal ve hicle operation.
If the symbo l
II does not switch off, see your
author ized dealer or other qualif ied wo rkshop to
have the problem corrected.
For more information on the d iesel particulate
fi lter, refer to
<=> page 199 .
A WARNING
Always adapt yo ur speed to the current
weather, road and traffic condit ions. You
should never disobey traffic laws in order to
follow driving recommendat ions.
~()) Headlight range control defective
II Headlight range contr ol d efec tiv e!
If the symbol II ill um inates, the dynam ic head
light range con trol is no longe r working prope rly .
H ave the system checked and repaired a t your au
thor ized Audi dealer.
34
~O Adaptive light defective
App lies to vehicles: wit h adaptive light
mil Audi adaptiv e light : defe ctiv e
When this symbol mil illuminates, it means that
adaptive light is defective. Go to an author ized
Audi dealer to have the headlig hts o r the control
unit for the adaptive light repa ired.
@ -Steering malfunction
El! Steering lock: Contact deal er!
If the El! symbol in the d isplay comes on, there
i s a n elect ronic steering co lumn lock malfunc
tion.
Drive to your authorized Audi dealer immed iately
to have the malfunct ion corrected.
A WARNING
Your veh icle must not be towed in the event
of a malfunction in the elec tronic steering co l
umn lock be ca u se it canno t be s teered due to
the locked steering . If it is towed with the
steering locked, there is the risk of an acci
dent .
~ Ignition lock malfunction
m Ignition lock defective
If the l3 symbo l in the d isplay comes on, there is
a malfunction i n the electronic ignition lock.
Please go to an authorized A udi dealer or other
qualified workshop to have the ma lf u nction re
paired.
; Adaptive dampers
App lies to vehicles: with Aud i drive se lect
R Suspension : Sy stem fault!
If the R symbo l in the disp lay comes on, there is
a mal function in the adaptive dampers. Please go
to an authorized Aud i dea ler or other qualified
workshop to have the malfunction repaired .
· ~ Windshield wipers faulty
El Windshield wipers d efective
Page 47 of 302

M N
co ~ co
rl I.O
"' N
"' rl

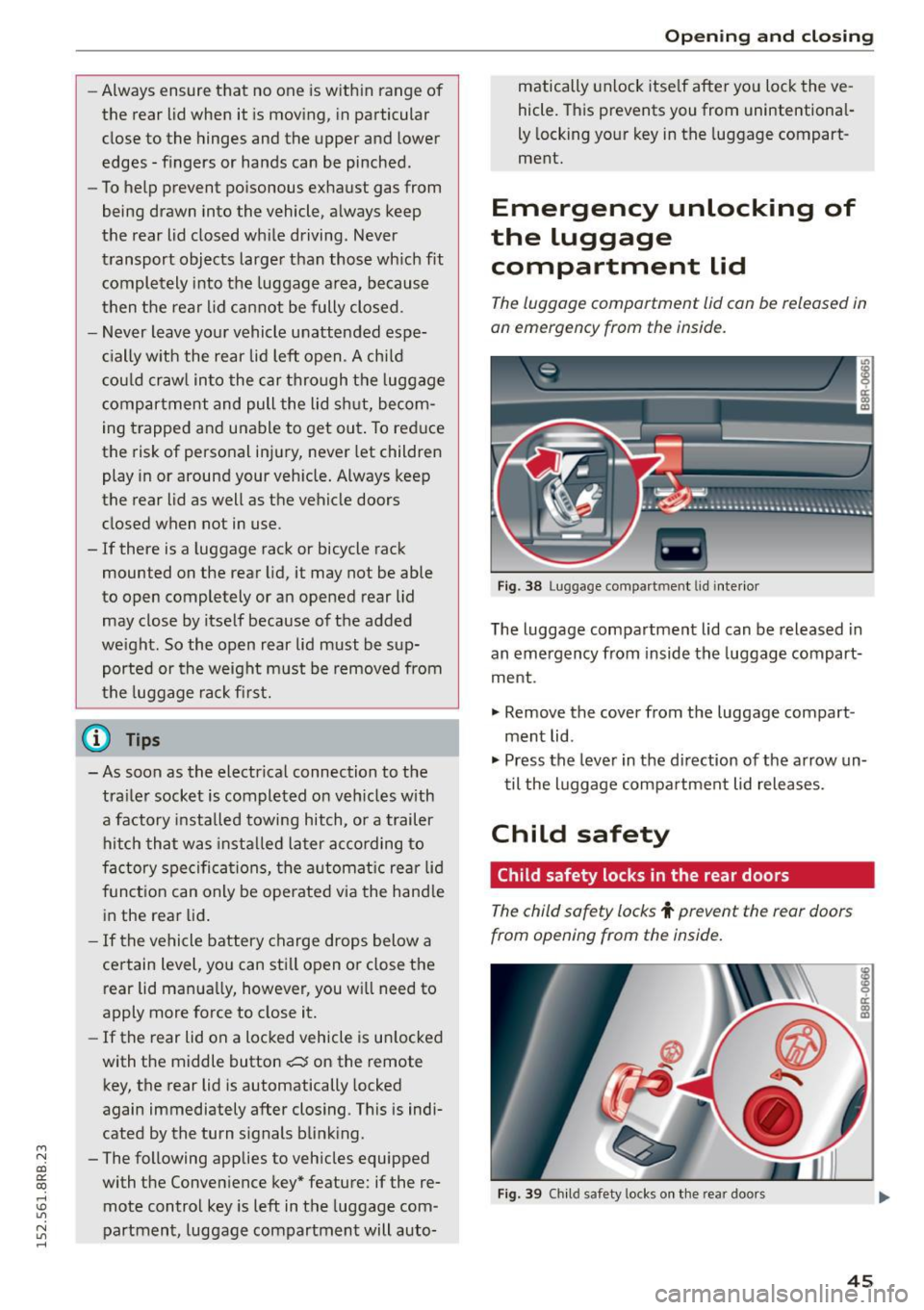

-Always ensure that no one is with in range of
the rear lid when it is mov ing, in particular
close to the hinges and the upper and lower
edges - f ingers or hands can be pinched.
- To help prevent po isonous exhaust gas from
being drawn into the vehicle, a lways keep
the rear lid closed wh ile driving . Never
transport objects large r than those wh ich fit
compl etely into the luggage area , because
then the rea r lid cannot be fully closed .
- Never leav e your vehicle unattended espe
c ially w ith the rear lid left open. A ch ild
c ou ld craw l in to the car through t he luggage
c ompartment and pull the lid s hut, becom
ing t rapped and unable to get ou t. To red uce
the risk of perso nal in jury, never let children
play i n or around your veh icle . Always keep
the rear lid as well as the vehicle doors
closed when not in use.
- If there is a luggage rack or bicycle rack
mounted on the rear lid, it may not be able
to open completely or an ope ned rear lid
may close by itse lf because of the added
we ight. So the open rear lid must be sup
ported or the weight m ust be removed from
the luggage ra ck fi rst .
(O} Tips
- As soon as the electrical connection to the
tra ile r socket is completed on veh icles with
a f actory insta lled towing hitch, o r a trailer
hitch that was insta lled later acco rding to
fac tory spe cifi ca tions , th e au tomat ic rear li d
fu nct ion can only be operate d via the hand le
in the rea r lid .
- If th e vehicle battery charge drops below a
certain level, yo u can sti ll open or close the
r ear lid manua lly, however, you w ill need to
apply more force to close it.
- If the rear lid on a locked vehicle is un locked
with the middle button
,c:$ on the remote
key, the rear lid is automatically locked
again immediately after closing. This is indi
cated by the turn s ignals bli nking.
- The f ollowing applies to veh icles equipped
with the Conve nience key" feature: if the re
mote control key is left in the luggage com
partment, luggage compartment will auto-
Open ing and clo sing
matically unlock itse lf after yo u loc k the ve
hicle. This prevents you from unintentional·
Ly locking yo ur key in the luggage compart
ment.
Emergency unlocking of
the luggage compartment Lid
The luggage compartment lid can be released in
an emergency from the inside.
Fi g. 3 8 Luggage co mpa rtment lid i nte rior
T he luggage compartment lid can be released in
an emergency from inside the luggag e compart
me nt.
., Remove the cover from t he luggage compart
ment lid .
., Press the leve r in the di rection of the arrow un
t il the luggage compa rtment lid releases.
Child safety
Child safety locks in the rear doors
The child safety locks t prevent the rear doors
from opening from the inside.
Fig . 39 Chil d safety locks o n th e rea r doo rs
45
Page 57 of 302

M N
co ~ co
rl I.O
"' N
"' rl
-your vehicle is being towed by a tow truck or
if you are towing another vehicle behind
you.

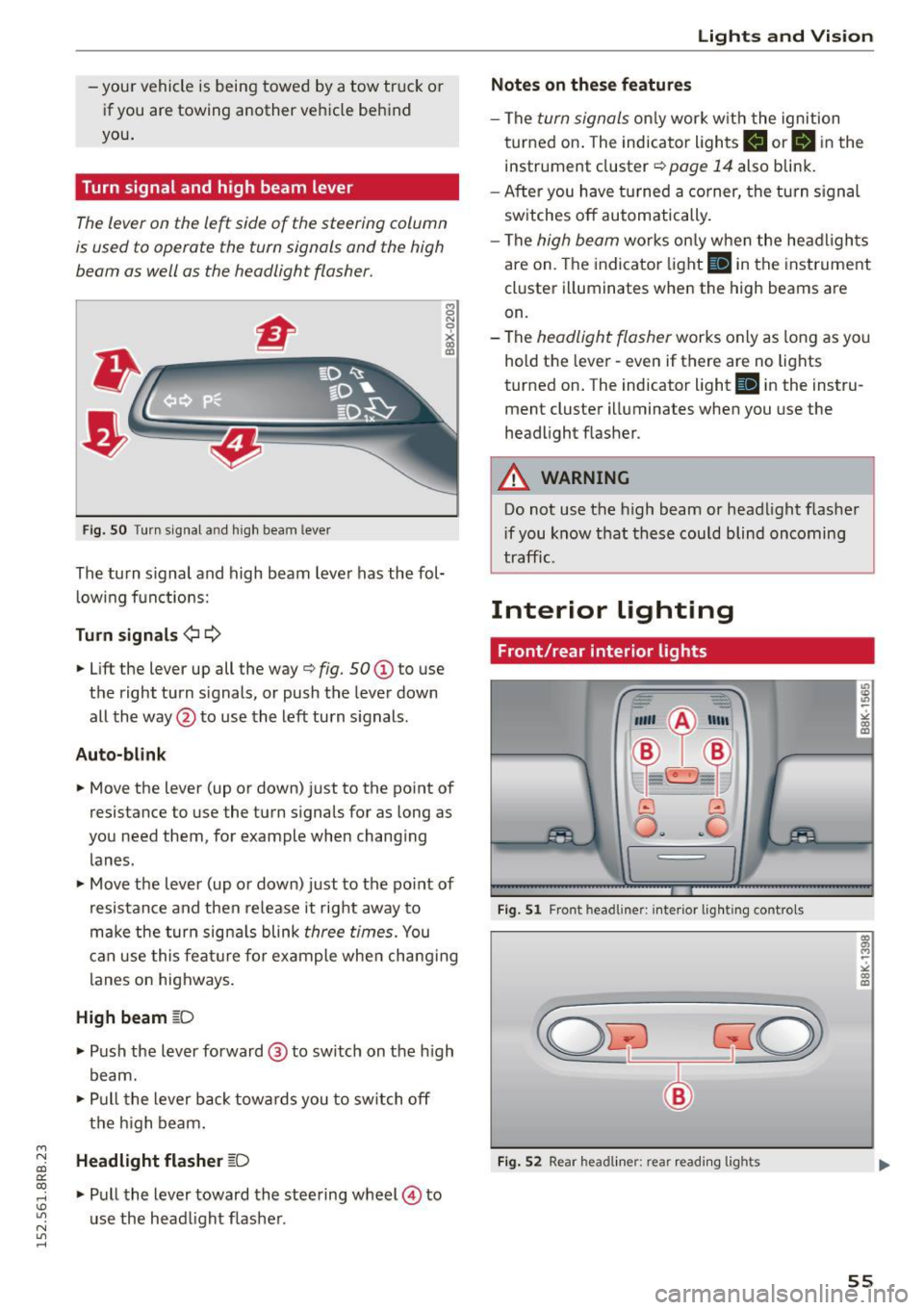

Turn signal and high beam lever
The lever on the le~ side of the steering column
is used to operate the turn signals and the high
beam as well as the headlight flasher.
Fig. SO Turn s ignal a nd high beam lever
The turn s ignal and high beam lever has the fol·
lowing functions:
Turn signals ¢1 ¢
• Lift the lever up all the way o fig. 50 (D to use
the right turn s ignals, or push the lever down
all the way @to use the left turn signals .
Auto-blink
8 N
0
~ IXI
• Move the lever (up or down) just to the point of
resistance to use the turn signals for as long as
you need them, for example when changing
lanes.
• Move the lever (up or down) just to the point of
resistance and then release it right away to
make the turn signals blink
three times. You
can use this feature for example when changing
lanes on highways.
High beam gD
• Push the lever forward @ to switch on the high
beam.
• Pull the lever back towards you to switch off
the high beam.
Headlight flasher ~D
• Pull the lever toward the steering wheel@ to
use the head light flasher .
Lights and Vision
Notes on these features
-The turn signals only work w ith the ignition
turned on. The indicator lights
II orlll in the
instrument cluster
o page 14 also blink.
- After you have turned a corner, the turn signal
switches off automatically.
- The
high beam works only when the headlights
are on. The indicator light
SI in the instrument
cluster illuminates when the high beams are
on.
- The
headlight flasher works only as long as you
hold the lever· even if there are no lights
turned on. The indicator light
SI in the instru
ment cluster illuminates when you use the
headlight flasher .
A WARNING
-Do not use the high beam or headlight flasher
i f you know that these could blind oncoming
traffic.
Interior lighting
Front/rear interior lights
_. --=:.
I-~~
._ -- v
8 G
o .. .. c
l
Fig. Sl Front headline r: inter ior lighting controls
Fig. S2 Rear headliner : rea r read ing lig h ts
55
Page 58 of 302

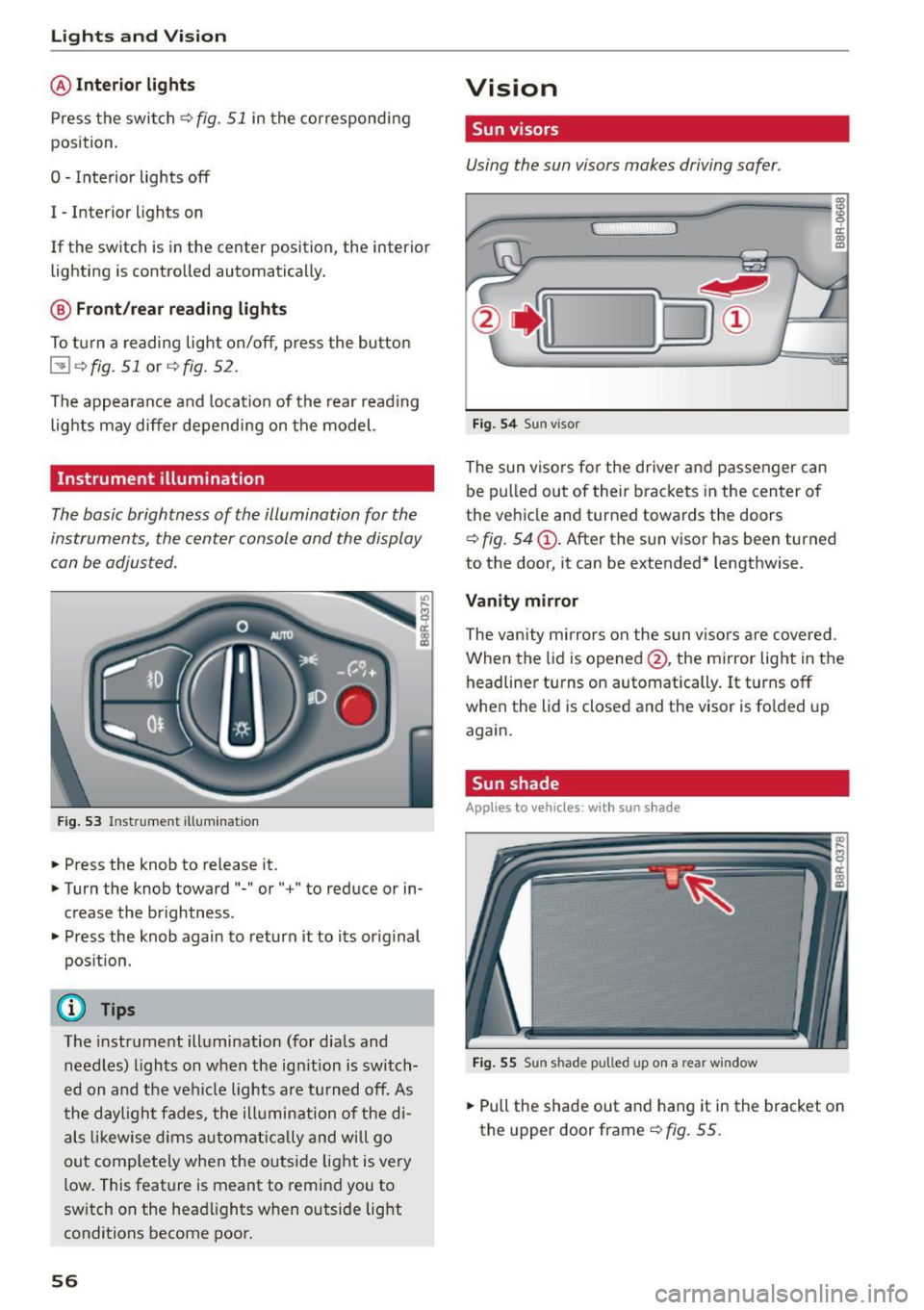

Lights and Vision
@Interior lights
Press the switch¢ fig. 51 in the corresponding
position.
0 -Interior lights off
I -Interio r lights on
If the sw itch is in the center position, the interior
lighting is controlled automatically.
@ Front/rear reading lights
To turn a reading light on/off, press the button
@~ fig. 51 or ¢fig. 52.
The appearance and location of the rear reading
lights may differ depending on the model.
Instrument illumination
The basic brightness of the illumination for the
instruments, the center console and the display
can be adjusted.
Fig. 53 Instrume nt illumina tion
.. Press the knob to release it .
.. Turn the knob toward "-" or"+" to reduce or in
crease the brightness .
.. Press the knob again to return it to its original
position.
(D Tips
The instrument illumination (for dials and
needles) lights on when the ignition is switch
ed on and the vehicle lights are turned off. As
the daylight fades, the illumination of the di
als likewise dims automatically and will go
out completely when the outside light is very
low. This feature is meant to remind you to
switch on the headlights when outside light
conditions become poor.
56
Vision
Sun visors
Using the sun visors makes driving safer .
Fig. 54 Sun visor
The sun visors for the driver and passenger can
be pulled out of their brackets in the center of
the vehicle and turned towards the doors
~ fig. 54 @. After the sun visor has been turned
to the door, it can be extended* lengthwise .
Vanity mirror
The vanity mirrors on the sun visors are covered.
When the lid is opened @, the mirror light in the
headliner turns on automatically.
It turns off
when the lid is closed and the visor is folded up
again.
Sun shade
App lies to vehicles: wi th sun s had e
Fig. 55 Su n sha de pulled up on a rear win dow
.. Pull the shade out and hang it in the bracket on
the upper door frame ~
fig. 55.
Page 68 of 302

Seats and storag e
Rear seat
General information
Safe transportation of passengers on the rear
seats requires proper safety precautions .
All passengers on the rear seats must be seated
in compliance with the safety guidelines ex
plained in
¢ page 144 and ¢page 152. The cor
rect seat ing pos ition is crit ical for the safety of
front
and rear seat passengers alike ¢ page 138.
_& WARNING
-Occupants in the front and rear seats must
always be properly restrained.
- Do not let anyone ride in the vehicle without
the head restraints prov ided . Head re
strain ts he lp to red uce in juries.
- Loose item s inside the passenger compa rt
me nt, can fly forward in a crash or s udden
mane uver and injure occ upants . Always
store articles in the luggage compartment
and use the fasten ing eyes, especially when
the rear seatbacks have been fo lded down.
- Read and heed all WARNINGS
¢page 138,
Proper seating positions for passengers in
rear seats.
Adjusting seat
The fore-and-oft adjustment of the seat cushion
and the seotbock angle can be adjusted.
F ig. 66 Ad just ing seatba ck a ngle
66
Fig. 67 Fore -and -aft adj ustme nt
Adjustin g sea tback angle
~ Pull the Lever up and push the seatback toward
the rear to the desired position ¢
fig. 66 . Re
lease the lever.
~ Pull the lever up so that the seatback pivo ts for
ward . Release the lever and push the seatback
to the rear to retu rn the seatback to the norma l
position .
Fore-and-aft ad justment
~ Pull the ha ndle up and push the seat forwa rd o r
back ¢
fig. 67.
~ Release the handle and continue to push the
seat unt il the seat Latch engages.
_& WARNING
- For safety reasons, the seat must only be
ad justed when the vehicle is stationary -
danger of accident!
- Exercise caution when adjusting the seat.
Ad justing the seat witho ut checking or pay
ing attention can pinch fingers or limbs -
danger of injury!
-
