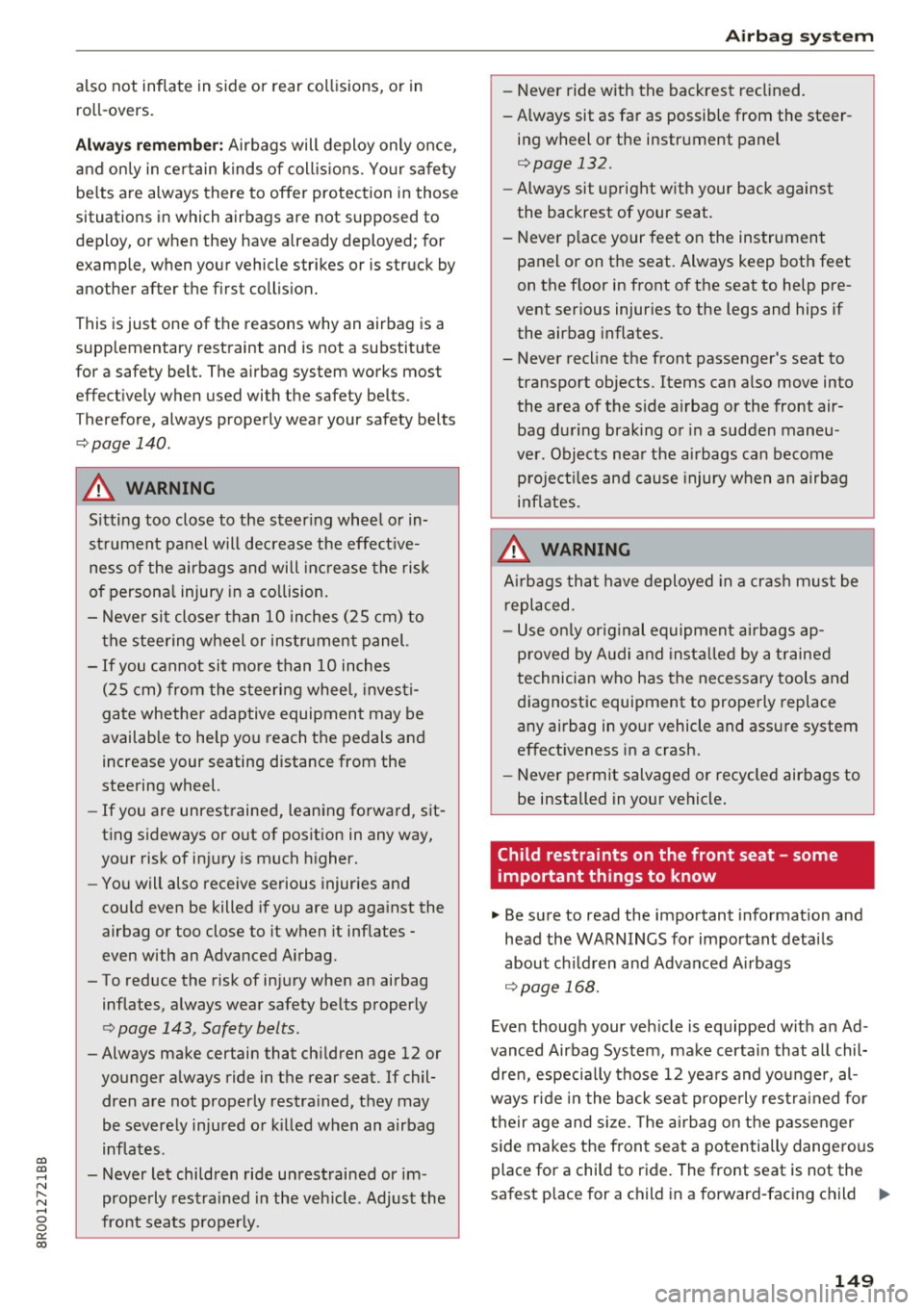

also not inflate in side or rear collisions, or in
ro ll-overs.
A lwa ys rememb er: Airbags will deploy only o nce,
and on ly in certain kinds of coll is ions. Your safety
be lts are always there to offer protection in those
situations in which airbags are not supposed to
deploy, or when they have a lready deployed; for
examp le, when your vehicle str ikes or is struck by
another after the first collis ion.
This is just one of the reasons why an airbag is a
supp lementary restraint and is not a substitute
for a safety belt. The airbag system works most effect ively when used with the safety belts.
Therefore, always properly wear your safety belts
c::>page 140.
A WARNING
Sitting too close to the steer ing whee l or in­
st rument panel will decrease the effect ive­
ness of the airbags and will inc rease the risk
o f persona l injury in a co llision.
- Never sit closer than 10 inches (25 cm) to
the steering wheel or instrument panel.
- If you cannot sit mo re than 10 inches
( 2 5 cm) from the steering wheel, inves ti­
gate whethe r adaptive equipment may be
available to help you reach the pedals and
increase your seating distance from the
steering wheel.
- If you are unrest rained, leaning forward, s it­
ting s ideways or out of position in any way,
your risk of in jury is much h igher.
- Yo u will also receive serious injur ies and
cou ld even be killed if you are up against the
airbag or too close to it when it inf lates -
even with an Advanced Airbag.
- To reduce the risk of in jury when an airbag
inflates, a lways wear safety belts p roperly
i=> page 143, Safety belts .
-Always make certain that ch ild ren age 12 or
younger always ride in the rear seat. If chil­ dren are not properly restra ined, they may
be severe ly injured o r kill ed when an airbag
inflates .
- Never let children ride un restrained or im­
prope rly restrained in the veh icle. Adjust the
fro nt sea ts properly.
-
Airb ag sys tem
-Never ride with the back rest recl ined.
-Always sit as fa r as possible from the steer-
ing wheel o r the instrument panel
c::> page 132.
- Always sit upright with your back against
the backrest of your seat.
- Never p lace your feet on the instrument
panel or on the seat. Always keep both feet
on the floor in front of the seat to help pre­
vent ser ious injuries to the legs and hips if
the airbag inflates.
- Never recline the front passenger's seat to transpo rt objects. Items can also move into
the area of the s ide a irbag or the front air­
bag during braking or in a sudden maneu­
ver. Objects nea r the airbags can become
p roje ct il es and cause injury when an airbag
inflates.
A WARNING
A irbags tha t h ave deployed in a cr ash m ust be
r e p laced.
- Use o nly orig inal equipment airbags ap ­
p roved by A udi a nd insta lled by a trained
technici an who has the necessary tools and
diagnostic equipment to properly replace
any airbag in yo ur vehicle and assu re system
effect iveness in a crash.
- Never permit salvaged or recycled airbags to
be installed in you r vehicle .
Child restraints on the front seat - some
important things to know
.,. Be sure to read the important i nformat ion and
head the WARNINGS for important deta ils
about ch ildren and Advanced A irbags
c::> page 168 .
Even though your veh icle is equipped wit h an Ad ­
vanced Airbag System, make certa in that a ll chil­
dre n, espec ia lly those 1 2 yea rs and yo unger, al­
ways r ide in the back se at prope rly res train ed fo r
their age and size. The ai rbag on t he p asse nger
s ide makes t he fron t seat a potentia lly dange rous
place for a child to ride. The front seat is not the
sa fest p lace for a child in a forward-facing child .,.
149

Airbag syste m

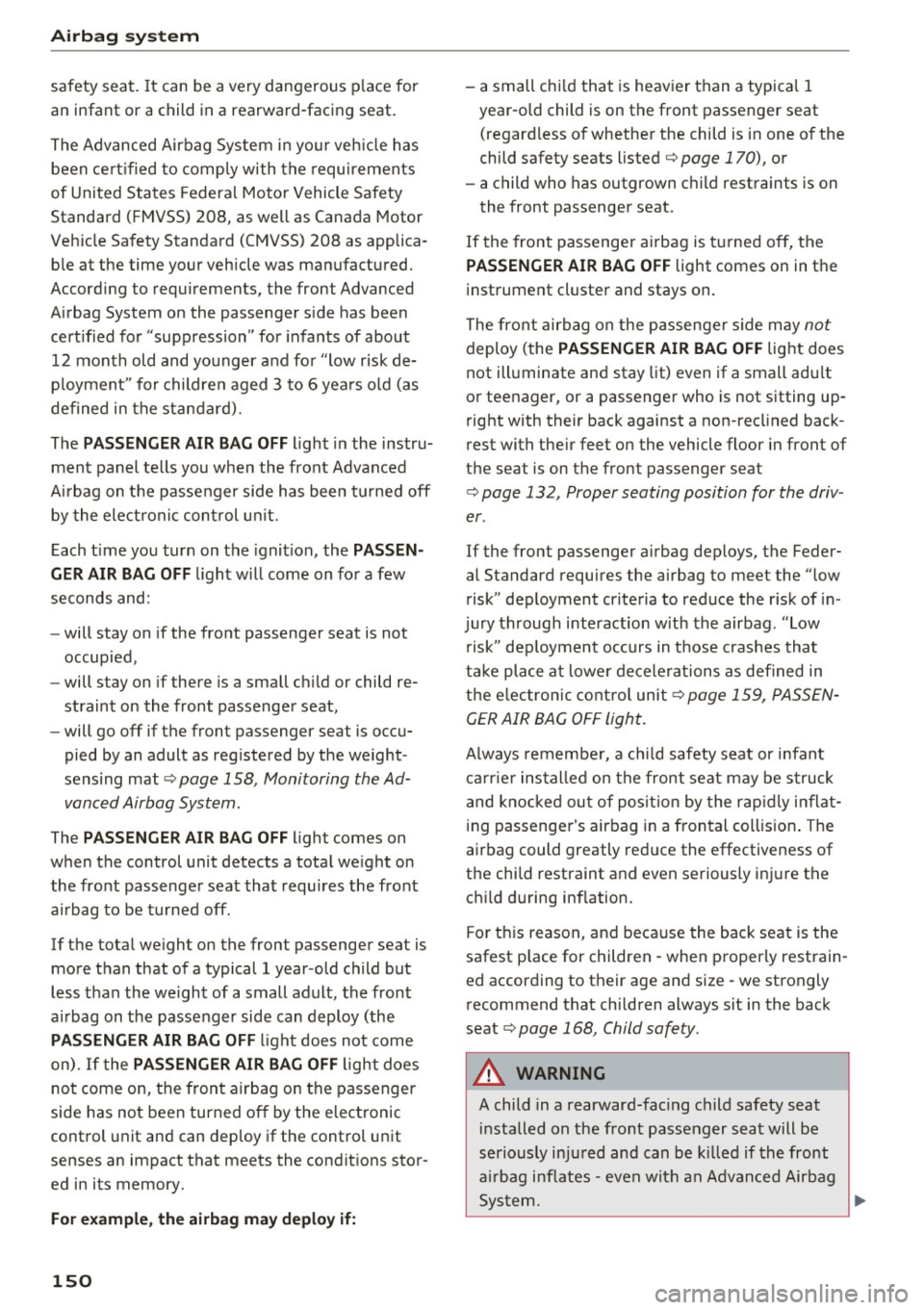

safety seat. It can be a very dangerous p lace for
an infant or a child in a rearward-facing seat.
The Advanced Airbag System i n your veh icle has
been ce rt ified to comp ly with the requirements
of United States Federal Motor Vehicle Safety
Standard (FMVSS)
208, as well as Canada Motor
Veh icle Safety Standard (CMVSS)
208 as applica ­
b le at the time your vehicle was manufactured.
According to requirements, the front Advanced
Airbag System on the passenger s ide has been
certified for "suppression " for infants of about
12 month old and younger and for "low risk de­
p loyment " for children aged
3 to 6 years o ld (as
defined in the standard).
The
PA SSENGER AIR BAG OFF light in the instru­
ment panel tells you when the front Advanced
Ai rbag on the passenger side has been tu rned off
by the elect ronic cont rol unit.
Each t ime you tur n on the ignit ion , the
PASSEN­
GER AIR BAG OFF
light will come on fo r a few
seconds and :
- will stay on if the front passenger seat is not
occupied,
- will s tay on if there is a small c hild or child re­
straint on the front passenger seat,
- will go off if the front passenger seat is occu­
pied by an adult as reg istered by the weight ­
sensing mat¢
page 158, Monitoring the Ad­
vanced Airbag System .
The PAS SENGER AIR BAG O FF light comes on
when the control unit detects a total we ight on
the front passenger seat that requires the front
airbag to be turned off.
If the tota l weight on the front passenger seat is
more than that of a typical 1 year -old child but
less than the we ight of a small adult, the front
a irbag on the passenger side can deploy (the
PAS SENGER AIR BAG OFF light does not come
on) .
If the PAS SENGER AIR BAG OFF light does
not come on, the front a irbag on the passenger
side has not been turned off by the electronic
control unit and can deploy if the control unit
senses an impact that meets the condit ions stor ­
ed in its memory.
For e xample, the airbag may deploy if:
150
- a small chi ld that is heavier than a typica l 1
year-o ld child is on th e front passenger seat
(regard less of whether the child is in one of the
child safety seats listed¢
page 170), or
- a child who has outgrown c hild restraints is on
the front passenger seat.
If the front passenger a irbag is t urned off, the
PASSENGER AIR BAG OFF light comes on in the
instrument cluster and stays on.
The fro nt airbag on the passenge r side may
not
deploy (the PAS SENGER AIR BAG OFF light does
not ill uminate and stay lit) even if a small adu lt
or teenager, or a passenger who is not sitting up­
right with thei r back against a non-recl ined back­
rest with the ir fee t on the vehicle floor in front of
the sea t is on the fron t passenger sea t
<=> page 132, Proper seating position for the driv ­
er .
If the front passenger a irbag deploys, the Feder­
al Standard requires the airbag to meet the "low
risk" deployment cr iteria to reduce the r isk of in ­
jury through interaction w ith the airbag . "low
risk " deployment occurs in those crashes that
take place at lowe r de cele rations as defined in
the e lec tronic co ntro l unit ¢
page 159, PASSEN­
GER AIR BAG OF F light.
Always remembe r, a chi ld safety seat or infant
c ar rie r ins talled on the front seat may be s truck
and knocked ou t of posit ion by t he rap idly i nflat­
i ng passenge r's airbag in a frontal coll is ion . The
airbag could greatly red uce the effectiveness of
the child restraint and even seriously injure the child during inflation.
Fo r th is reason, and beca use the back seat is the
safest place for children -when properly restrain ­
ed according to their age and size -we strongly
recommend that children always sit in the back
seat
c> page 168, Child safety .
A WARNING
A child in a rearward-facing child safety seat
installed on the front passenger seat will be
seriously injured and can be killed if the front
a ir bag inflates - even with an Advanced Airbag
Sys tem.
Ill>

CD
CD
.... N ,-... N ..... 0 0 C<'. 00
-The inflating airbag will hit the child safety
seat or infant carrier with great force and
will smash the chi ld safety seat and child
against the backrest, center armrest, door
or roof .
- Always install rear-facing child safety seats
on the rear seat.
- If you must install a rearward fac ing ch ild
safety seat on the front passenger seat be­ cause of exceptional circumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay on, immed iate ly install
the rear-fac ing ch ild safety seat in a rear
seating pos it ion and have the airbag system
inspected by your a uthorized Audi dea le r.
- Forward-fac ing ch ild safety sea ts installed
on the front passenger's seat may interfere
with the deployment of the airbag and
cause serious personal injury to the child.
~ WARNING
If, in except ional circumstances, you must in­
stall a forward-facing chi ld restraint on the
front passenger 's seat:
- Always ma ke sure the forward-fac ing seat
has been designed and certified by its man­
ufacturer for use on a front seat with a pas­
senger front and s ide a irbag.
- Never put the forward-facing child restraint
up against or very near the instrument pan­
el.
-Always move the front passenger seat to
the highest position in the up and down ad ­
justment range and move it back to the
rea rmost position in the seat's fore and aft
adjustment range, as fa r away from the air­
bag as possib le, before insta lling the for­
ward- facing child restra int .
- Always ma ke sure tha t the safety belt upper
anchorage is beh ind the child restrain t and
not next to or in front o f the chi ld restraint
so that the safety belt will be properly pos i­
tioned.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the time
whenever the ignition is switched on.
Airb ag sys tem
A WARNING
To reduce the risk of serious injury, make sure
that the
PASSENGER AIR BAG OFF light will
be d isplayed whenever a child restraint is in­
stalled on the front passenger seat and the
i gnition is switched on .
-If the PASSENGER AIR BAG OFF light does
not stay on , perform t he checks desc ribed
~ page 158, Monitoring the Advanced Air­
bag System.
- Take the child restra int off t he front passen­
ge r seat an d install it prope rly at one of the
rear sea t positions i f the
PASSENGER AIR
BAG OFF
light does not stay on .
- Have the air bag system inspec ted by your
author ized Audi dealer immed iate ly .
- Always c are fully follow ins tructions from
child restrain t manufacture rs when instal­
ling child restraints .
If, in exceptional c ircumstances, you must in ­
stall a forward or rearward-facing child re­
stra int on the front passenger's seat:
- Imp roper installation of child restraints can
reduce their effectiveness or even prevent
them from providing any protect ion.
- An improperly installed child restra int can
interfere with the airbag as it deploys and
serious ly injure or even kill the chi ld -even
with an Advanced A irbag System.
- Always care fully follow the manufacturer 's
instr uctions provided with the child safety
seat or carr ie r.
- Never p lace add itiona l items on the seat
that can increase the total weight registered by the weight -sensing mat and can cause in­
jury in a crash.
151

Airbag syste m

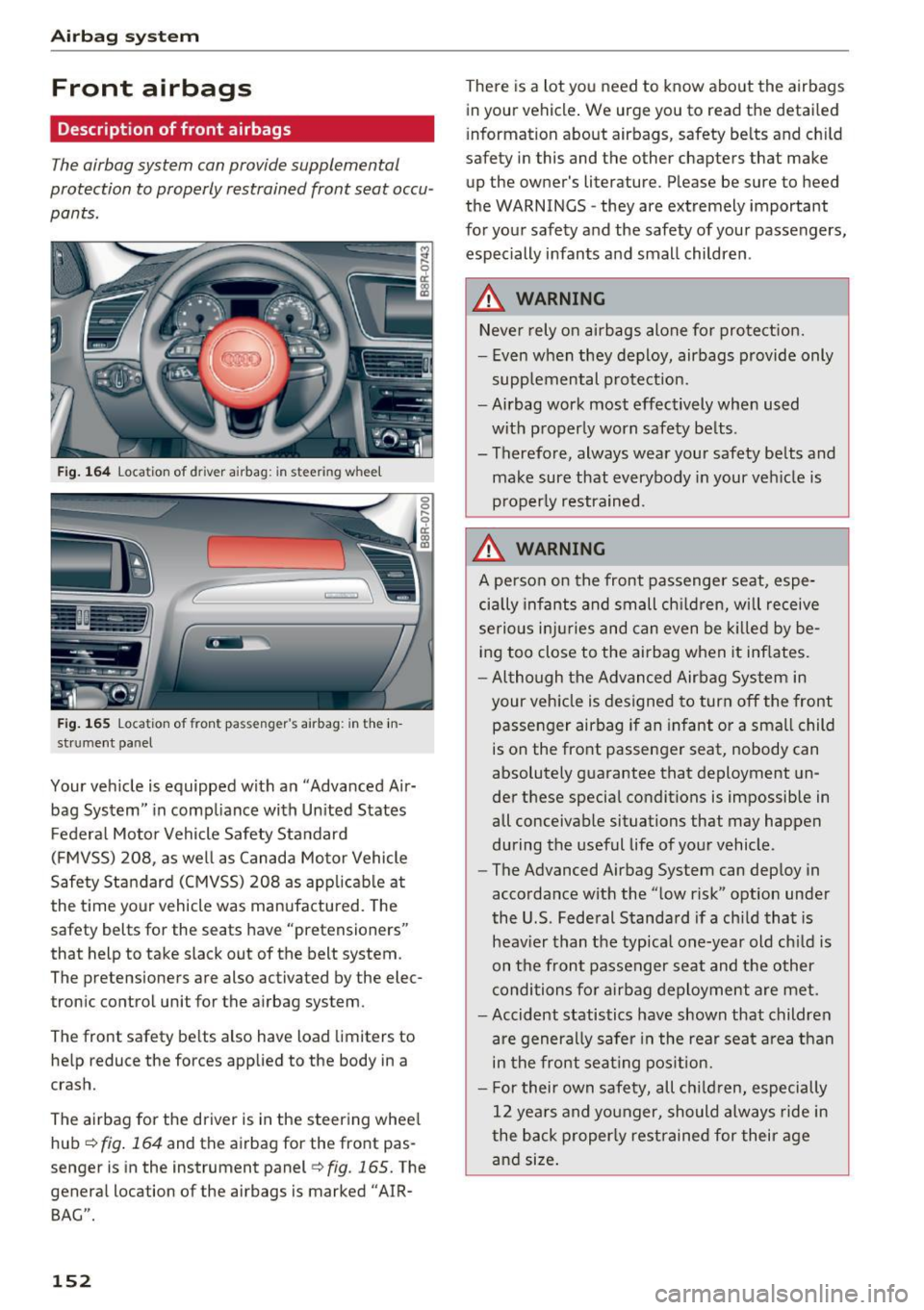

Front airbags
Description of front airbags
The airbag system can provide supplemental
protection to properly restrained front seat occu­
pants.
Fig. 164 Location of driver airbag: in steering whee l
Fig. 165 Location of front passenger's airbag: in the in­
strument panel
Your veh icle is equipped with an "Advanced Air­
bag System" in compliance with Un ited States
Federa l Motor Vehicle Safety Standard
(FMVSS) 208, as well as Canada Motor Vehicle
Safety Sta ndard (CMVSS) 208 as app licable at
the time your vehicle was manufactured. The
safety belts for the seats have "pretensioners"
that help to take slack out of the belt system.
The pretensioners are also activated by the elec­
tronic control unit for the airbag system.
The front safety be lts also have load limiters to
help reduce the forces applied to the body in a
crash.
The airbag for the driver is in the steering wheel
hub<=>
fig . 164 and the airbag for the front pas­
senger is in the instrument panel
<=>fig. 165. The
general location of the airbags is marked "AIR­
BAG".
152
There is a lot you need to know about the airbags
in your vehicle . We urge you to read the detailed
i nformation about airbags, safety belts and child
safety in this and the other chapters that make
up the owner's literature. Please be sure to heed
the WARNINGS -they are extremely important
for your safety and the safety of your passengers,
especially infants and small children .
.&_ WARNING -
Never rely on airbags alone for prote ct ion.
- Even when they deploy, airbags provide only supp lemental protection.
- Airbag work most effectively when used with properly worn safety be lts.
- Therefore, always wear your safety belts and make sure that everybody in your veh icle is
properly restrained .
.&_ WARNING
A person on the front passenger seat, espe­
cially infants and small ch ildren, wi ll receive
serious inju ries and can even be killed by be­
ing too close to the airbag when it inf lates.
- Although the Advanced Airbag System in
-
your vehicle is designed to turn off the front passenger airbag i f an infant or a small child
is on the front passenger seat, nobody can
absolutely guarantee that deployment un­
der these special conditions is impossible in
all conceivable situations that may happen
during the useful life of your vehicle.
- The Advanced Airbag System can deploy in
accordance with the "low risk" option under
the U.S. Federal Standard if a child that is
heav ier than the typical one-year old ch ild is
on the front passenger seat and the other
conditions for airbag deployment are met.
- Accident statistics have shown that children are generally safer in the rear seat area than
in the front seat ing pos ition.
- For their own safety, all chi ld ren, especially
12 years and younger, should always ride in
the back proper ly restrained for their age
and size .

CD
CD
.... N ,-... N ..... 0 0 C<'. 00

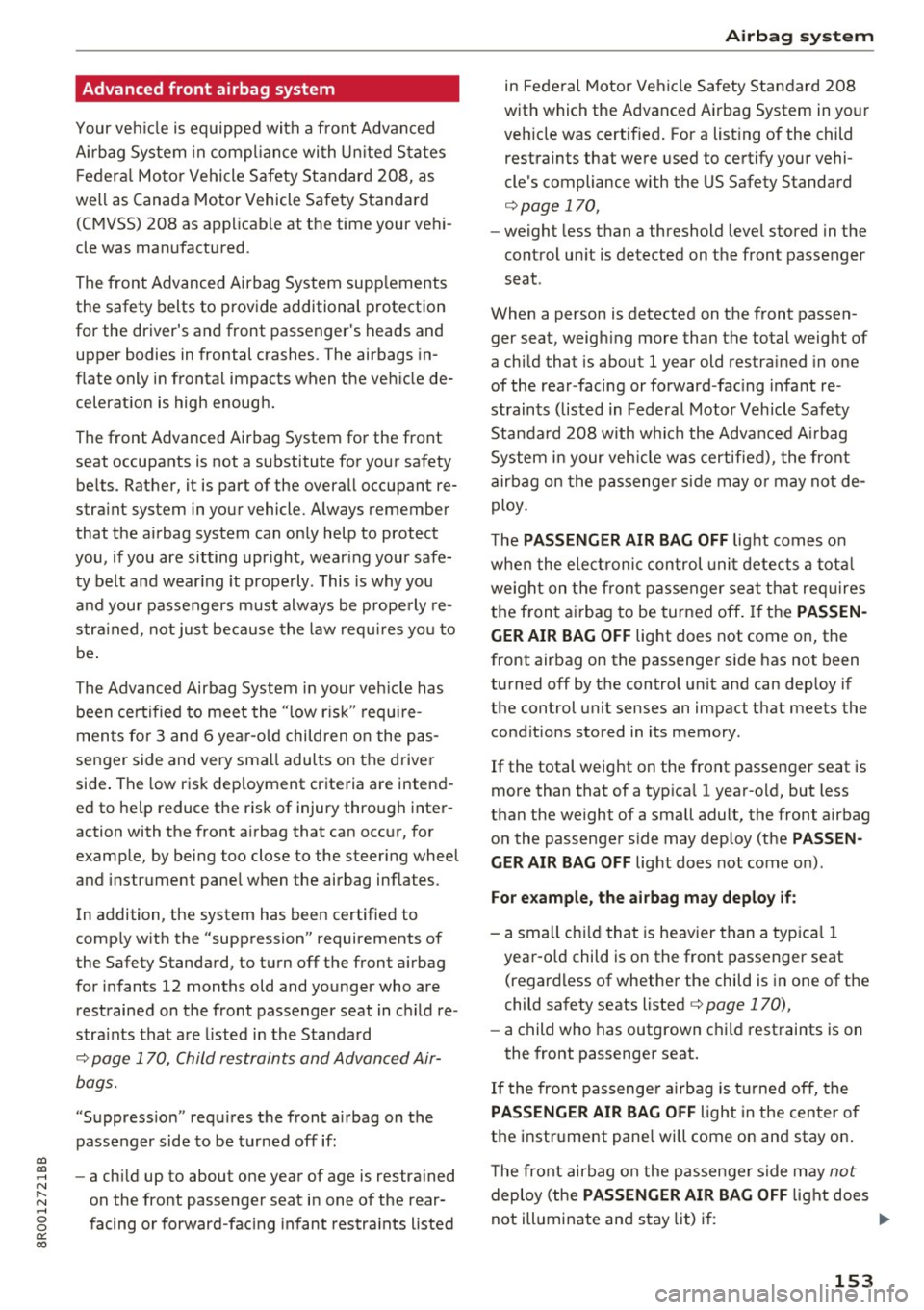

Advanced front airbag system
Your vehicle is equipped with a front Advanced
Airbag System in compliance with Un ited States
F edera l Motor Vehicle Safety Standard 208, as
well as Canada Motor Vehicle Safety Standard
(CMVSS) 208 as applicable at the time your vehi­
cle was manufactured .
The front Advanced Airbag System supp lements
the safety belts to provide additional protection
for the driver 's and front passenger's heads and
upper bodies in frontal crashes . The airbags in­
f late only in frontal impacts when the veh icle de­
cele rat ion is high enough.
The front Advanced Airbag System for the front
seat occupants is not a substitute for your safety be lts . Rather, it is part of the overall occupant re­
s tra int system in your vehicle. Always remember
that the airbag system can on ly help to protect
you, if you are sitting upr ight, wear ing your safe­
ty belt and wear ing it prope rly . This is why you
and your passengers must always be prope rly re­
stra ined, not just beca use the law req uires yo u to
be .
The Advanced Airbag System in your veh icle has
been ce rtified to meet the "low r is k" requi re­
ments fo r 3 and 6 ye ar-old children o n the pas­
senger side and very sma ll adults on the drive r
side . The low risk dep loyment cr iteria are intend­
ed to help reduce the risk of injury through inter­
action with the front a irbag that can occur, for
examp le, by being too close to the steering wheel
and instrument panel when the airbag inflates .
In addition , the system has been certified to
comp ly with the "suppression" requi rements of
the Safety Standard, to turn off the front a irbag
for i nfants 12 months old and younger who are
restrained on the front passenger seat in child re ­
stra ints that are listed in the Standa rd
¢ page 170, Child restraints and Advanced Air­
bags.
"Suppress ion" requ ires the front a irbag on the
passenger side to be turned off if:
- a ch ild up to about one year of age is restra ined
on the front passenger seat in one of the rear­
facing or forward -fac ing infant restra ints listed
Airb ag sys tem
in Federal Motor Veh icle Safety Standard 208
with which the Advanced Airbag System in your
veh icle was certif ied. For a List ing of the child
restraints that were used to certify your vehi ­
cle's compliance with the US Safety Standard
¢ page 170,
-weight less than a threshold level stored in the
con trol un it is detected on the front passenger
seat .
When a person is detected on the front passen­ ger seat, weighing more than the total weight of
a chi ld that is about
1 year old restra ined in one
of the rear-facing or forward -fac ing infant re ­
straints (listed in Federal Motor Veh icle Safety
Standard 208 with w hich the Advanced A irbag
System in your veh icle was certified), the front
airbag on the passenge r side may o r may not de­
ploy .
T he
PAS SENGER AIR BAG OFF lig ht comes o n
whe n the elect ronic con trol uni t detects a tota l
weight on the fron t passenger sea t th at req uires
the front a irbag to be turned off . If the
PASSEN­
GER AIR BAG OFF
light does not come on, the
front airbag on the passenger side has not been
turned off by the control unit and can dep loy if
the control unit senses an impact that meets the
condit io ns stored in its memory .
If the total weight on the front passenger seat is
more than that of a typica l 1 year-old, but less
than the weight of a small adult, the front airbag
o n the passenger s ide may deploy (the
PAS SEN­
GER AIR BAG OFF
light does not come on) .
For example , the ai rb ag may deploy if :
- a small ch ild that is heav ier than a typ ica l 1
yea r-o ld child is on the front passenger seat
(regard less of whether the child is in one of the
child safety seats listed
¢ page 170),
- a child who has outgrown c hild restraints is on
the front passenger seat.
If the front passenge r a irbag is t urned off, the
PASSENGER AIR BAG OFF light in the center of
the instr ument pane l wi ll come on and stay on .
T he front airbag on the passenger s ide m ay
not
deploy (the PASSENGER AIR BAG OFF light does
not illuminate and stay lit) if: ..,.
153

Airbag syste m
-a small adu lt or teenager is on the front pas ­
senger seat
- a passenger who is not sitting upright with
their back against a non -reclined backrest with
their feet on the vehicle floor in front of the
seat is on the front passenger seat.
I f the front passenger airbag dep loys, the Feder ­
al Standard requires the airbag to meet the "low
risk" deployment criteria to help reduce the risk
of injury through interaction with the airbag.
"Low risk" deployment occurs in those crashes
that take place at lower decelerations as def ined
in the electronic control unit.¢
page 158
Alway s remember: Even though your vehicle is
equ ipped w ith Advanced Airbags, the safest place
for children is properly restrained on the back
seat . Please be sure to read the important infor­
mat ion in the sections that follow and be sure to
heed a ll of the WARN INGS.
A WARNING
To red uce the risk of inj ury when an ai rbag in­
fla tes, a lways wear safety bel ts p roperly.
- If you are unrestrained, leaning fo rwa rd, s it­
t ing s ideways or o ut of pos ition in any way,
yo ur risk of in jury is much h igher .
- Yo u will also re ceive serious injur ies and
could even be killed if you are up aga inst the
airbag or too close to it when it inflates -
even with an Advanced Airbag ¢
page 148.
A WARNING
A child in a rearward-facing chi ld safety seat
installed on the front passenger seat wi ll be
ser iously injured and can be killed if the front
airbag inflates - even w ith an Advanced Airbag
System.
- Although the Advanced A irbag System in
your vehicle is designed to turn off the front
airbag when a rearward-facing child re­
straint has been installed on the front pas­
senger seat, nobody can absolutely g uaran­
tee that deployment is impossible in all con­
ceivable s ituations that may happen during
the useful life of your vehicle .
- The inflating a irbag w il l hit the child safety
seat or infant c arrier with great force and
154
w ill smash the child safety seat and child
aga inst the back rest, center armrest, door,
or roof.
- Always install rearward-facing child re­
straints in the back seat.
- If you must install a rearward facing child
safety seat on the front passenger seat be­
cause of exceptional circumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay on, immediately install
the rea r-facing child safety seat in a rear
seating posi tion and have the ai rbag system
inspected by your au thori zed Au di dealer.
A WARNING
If, in exceptional ci rcums tances, you must in­
stall a forward-facing child res traint on the
front passenger's seat:
- Always make sure the forward-fa cing sea t
has been des igned and certified by its man ­
ufacturer for use on a front seat with a pas­
senger front and side airbag.
- Never put the fo rward -facing child restraint
up against or very nea r the instrument pan ·
el.
-Always move the front passenger seat to
the highest position in the up and down ad­
justment range and move it back to the
rearmost position in the seat's fo re and aft
adjustment range , as far away from the air­
bag as poss ible, before install ing the for­
ward-facing chi ld restraint.
- Always make sure that the safety be lt upper
anchorage is behind the ch ild restraint and
no t next to o r in front of the child rest raint
so that the safety be lt will be p roperly posi­
tioned.
- Ma ke sure that the
PASSENGER AIR BAG
OFF
li ght comes on and stays on a ll the time
wheneve r the ign it ion is swi tched on.
Advanced Airbag System components
The front passenge r sea t in your veh icle has a lot
of ve ry important parts o f the Advanced Airbag
System in it. These parts include the weight­
sensing mat, sensors, wiring, brackets, and
more. The function of the system in the front
1111>

CD
CD
.... N ,-... N ..... 0 0 C<'. 00
passenger seat is checked by the electronic con­
tro l unit when the ignition is on . The control unit
monitors the Advanced A irbag System and turns
the airbag indicator light on when a malfunct ion
in the system components is detected. The func­
tion of the airbag indicator l ight is descr ibed in
greater detai l below . Because the front passen­
ge r seat conta ins important parts of the Ad­
vanced A irbag System, you must take care to p re ­
ve nt i t from being damaged. Damage to the seat
may prevent the Advanced Airbag for the fron t
passenger seat from doing its job in a crash.
The front Advanced Airbag System consists
of the following :
-Crash sensors in the front of the vehicle that
measure vehicle acceleration/deceleration to
provide information to the Advanced Airbag
System a bout the severity of the crash.
- An e lectronic control unit, with integrated
crash sensors for front and side impacts. The
control unit "decides" whether to fire the front
airbags based on the information received from
the crash sensors. The control unit a lso "de­
c ides" whether the safety belt pretens ioners
should be activated .
- An Advanced Airbag with gas generator and
control
valve for the driver ins ide the steer ing
wheel hub .
- An Advanced Airbag with gas generator and contro l
valve inside the instrument pa nel for
the front passenger.
- A weig ht-sensing mat under the upho lstery
padd ing of the front passenge r seat cushion
t h at meas ures the total weight on the seat. The
i nforma tion registered is sent continuously to
the e lectron ic cont rol unit to reg ulate dep loy­
ment o f the front Adv a need A irbag on the pas­
senger side .
- An airbag monito ring system and indicator
li ght in the instrument cluster
¢ page 158.
-A senso r in eac h front sea t registers the dis­
tance between the respective seat and the
steering wheel or instrument pane l. The infor­
mation reg istered is sent contin uously to the
electronic control unit to regulate deployment
of the front Adva need A irbags.
Airb ag sys tem
-The PASSENGER AIR BAG OFF light comes on
and stays on in the center of the instrument
pane l¢
page 159, fig . 167 and te lls yo u when
the front Advanced Airbag on the passenger side has been turned off.
- A sensor below the safety be lt latch for the
front seat passenger to measure the tension on the safety belt. The tension on the safety belt
and the we igh t registered by the weight -sens­
ing mat help the contro l unit "decide" whethe r
t he front airbag fo r th e fron t passe nger seat
should be tu rned off o r not ¢
page 149, Child
restrain ts on the front seat -some impor tant
things to know.
- A sensor in the s afety be lt latch for the drive r
an d for the front seat passenger that senses
whether tha t safety be lt is la tched o r not and
transmits this information to the e lectronic
control un it.
A WARNING ,-
Damage to the front passenge r seat can pre-
vent the front airbag from working properly.
- Improper repair or disassembly of the front
passenger and driver seat will p revent the
Advanced A irbag System from f unct ion ing
properly .
- Repairs to the front passenger seat must be
performed by qualified and p roper ly trai ned
wo rkshop personne l.
- Never remove the front passenger or d river
seat from the vehicle.
- Never remove the upholstery from the front
passenger seat.
- Never d isassemble o r remove parts from the
seat or disco nnect w ires from it.
- Never carry sharp objects in your pockets or
p lace them on the seat . If the weight-sens­
ing mat in the passenger seat is punctu red
it cannot work p roper ly .
- Never carry things on your lap or carry ob­
jects on the passenge r seat . S uch items can
increase t he weight reg istered by the
weight-sensing mat and s end the wro ng in­
formation to the a irbag con trol u nit.
- Never store i tems unde r the front passenger
seat. Parts of the Advanced Airbag System
un der the pas senger se at could be
~
155

Airbag syste m
damaged, preventing them and the airbag
system from working properly.
- Never place seat covers or rep lacement up­
holstery that have not been specifically ap­
proved by Audi on the front seats .
- Seat covers can prevent the Advanced Air­
bag System from recognizing child re­
straints or occupants on the front passenger
seat and prevent the side a irbag in the seat
backrest from deploying properly.
- Never use cush ions, pillows, blankets or
similar items on the front passenger seat.
The add it ional padding will prevent the
weight-sens ing mat in the seat from acc u­
rately reg istering the ch ild restraint or per­
son on the seat and prevent the Advanced
Airbag System from funct ioning properly.
- If you must use a child rest raint on the front
passenge r seat and the child restraint man­
ufacturer 's instructions require the use of a
towel, foam cushion or something else to properly position the ch ild restraint, make
certain that the
PA SSENGER AIR BAG OFF
light comes on and stays on whenever the
child restraint is installed on the front pas­
senger seat.
- If the
PASSEN GER AIR B AG OFF light does
not come on and stay on, immed iately in­
stall child restraint in a rear seating position and have the airbag system inspected by
yo ur autho rized Aud i deale r.
How the Advanced Airbag System
components work together
The front Advanced Airbag System and the side
airbags supplement the protection offered by the
front three-po int safety belts with pretensioners
and load limiters and the adjustable head re­
stra ints to help reduce the r isk of injury in a wide
range of accident and crash situations. Be sure to read the important informa tion about safety and
heed the WARN INGS in t his chapter.
Deployment of the Advanced Airbag System and
the act ivat ion of the safety belt pretensioners de­
pend on the deceleration measu red by the crash
sensors and regis tered by the electronic control
unit. Crash severity depends on speed and decel-
156 eration as well as the mass and stiffness of the
vehicle or object involved in the crash
.
On the passenger side, regard less of safety be lt
u se, the airbag will be turned off if the weight on
the passenger seat is less than the amount pro­
grammed in the electronic control unit . The front
airbag on the passenger side will also be turned
off if one of the child safety seats that has been certified under Federal Motor Vehicle Safety
Standard 208 has been recogn ized on the seat .
The
PASSENGER A IR BAG OFF lig ht comes o n
and stays on to te ll you when the front Advanced
Airbag on the passenger side has been turned off
q page 149, Child restraints on the front seat­
some important things to know.
A WARNING
To reduce the ris k of injury when an airbag in ­
f lates, always wea r safety belts properly.
- If you are un restrained, leaning forward, sit ­
ting sideways or out of position i n any way,
your risk of injury is much higher.
- You will a lso receive serious injuries and
could even be killed if you are up against the
airbag or too close to it when it inflates -
even with an Advanced Airbag
q page 148.
More important things to know about front
airbags
Fig . 166 Inflated front a irbags
Safety be lts are important to help keep front
seat occupants in the proper seated position so
that airbags can unfold properly and prov ide sup-
plemental protection in a fronta l collision . ..,.

CD
CD
.... N ,-... N ..... 0 0 C<'. 00

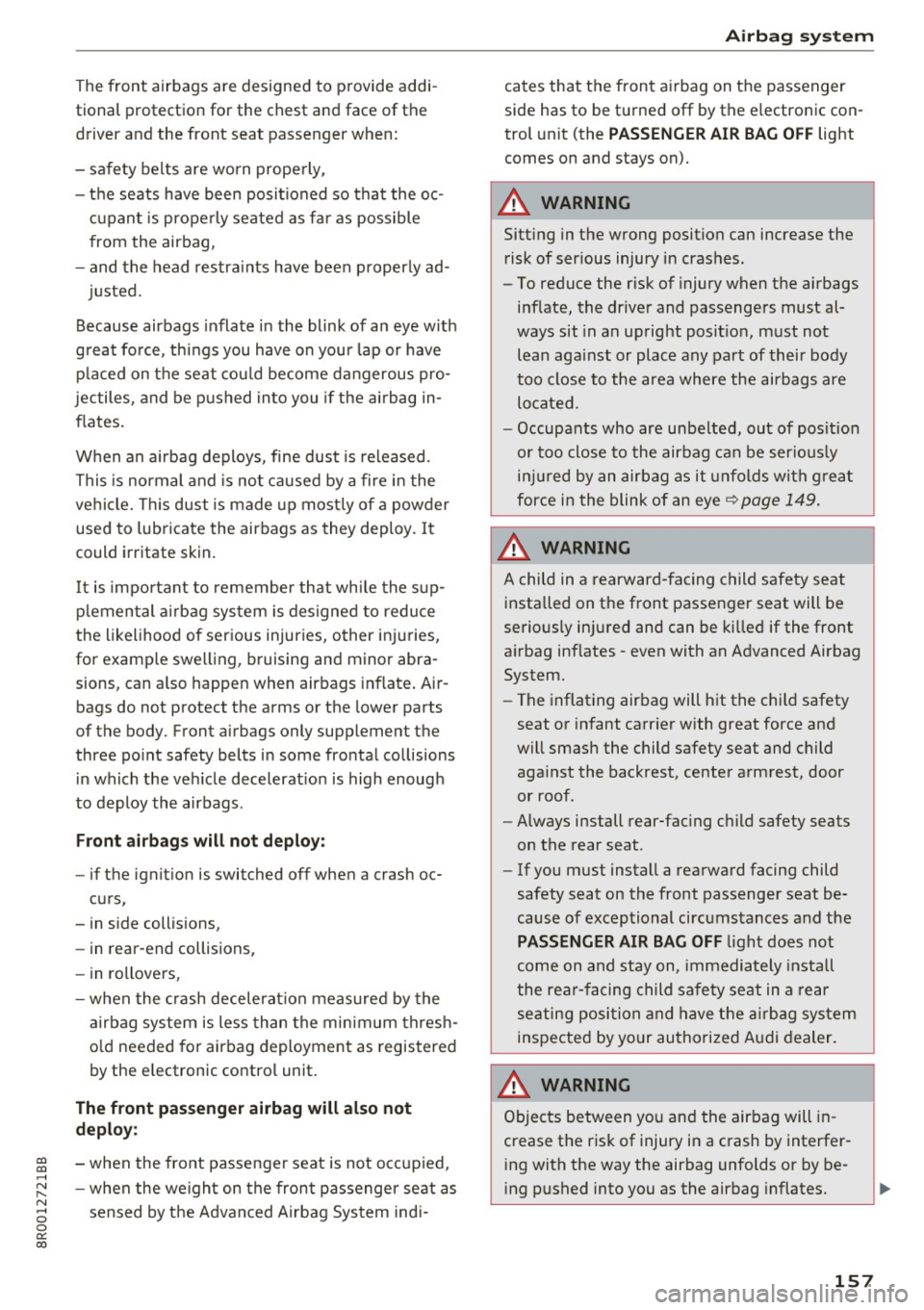

Th e fr ont a irbags are designed to provide addi­
tional protection for the chest and face of the
driver and the front seat passenger when:
- sa fety belts are worn prope rly,
- the seats have been positioned so that the oc-
c u pan t is prope rly sea ted as far as possible
from the airbag,
- and the head restra ints have been p roperly ad-
j u ste d.
Because airbags inflate in the blink of a n eye w ith
g reat fo rce, th ings you have on your lap or have
p laced on the seat cou ld become dangerous pro­
jectiles , a nd be p ushed in to you if the ai rbag in ­
flates.
When an a irbag deploys, fine dust is re leased.
This is normal and is not caused by a fire in the
ve hicl e. Thi s dust is made up mostly of a powder
used to lubricate the airbags as they deploy. It
could irritate skin.
It is important to remember that whi le the s up­
p lemental airbag system is des igned to reduce
the likel ihood of ser ious injuries, o ther i njur ies,
for example swelling, bruising and minor abra­
sions, can a lso happen when airbags in flate . Ai r­
bags do not protect the arms or the lower parts
of the body. Front airbags only supplement the
three po int safety belts in some frontal co llisions
in which the ve hicle decelerat io n is high enough
to deploy the airbags .
F ront airbag s will not deploy:
- if the ignit ion is switched off when a crash oc-
curs,
- in s ide collisions,
- in rear-end collisions,
- in rollove rs,
- when the crash decelerat io n meas ured by the
airbag system is less than the minimum thresh­
o ld needed for airbag deployment as registered
by the e lectronic contro l unit.
The front passenger airbag will also not d eploy:
- when the front passenger seat is not o ccu pied,
- when the we igh t on the fron t passenge r seat as
sensed by t he Advanced A irbag Sys tem indi-
Airb ag sys tem
cates that the front a irbag on the passenger
side has to be t urned off by the e lectronic con­
trol unit (the
PASSENGER AIR BAG OFF light
comes on and stays on).
A WARNING
Sitting in the wrong position can increase the r isk of ser ious injury in crashes .
- To reduce the r isk of injury when the airbags
inflate, the drive r and passenge rs must al­
ways sit in an up right posit ion, m ust not
lean aga inst or place any part of their body
too close to the area where the airbags are
lo cated.
- Occupants who are unbelted, out of posit ion
or too close to the airbag can be serio usly
in jur ed by an air bag as it unfolds with g reat
for ce in the blink ofan eye
r=>page 149.
A WARNING
-A child in a rearward-fa cing child safety se at
i nsta lled on the front passenger seat will be
se riously inju red and can be k illed if the front
airbag inflates -even with an Advanced Airbag
System.
- The inflating airbag will h it the ch ild safety
seat or in fant ca rr ier with great force and
will smash the child safety seat and child aga inst the backrest, center armrest, door
or roof.
- Always install rear-fac ing child safety seats
on the rear seat.
- If you must install a rearward facing child
safety seat on the front passenger seat be­
cause of excep tional circumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay on, immedia tely insta ll
the rea r-facing child safe ty se at in a rear
seating posi tion and have the airbag system
inspecte d by your au thorized Audi dealer.
A WARNING
= -
Objects between you and the air bag will in -
crease the risk of injury in a crash by interfer­
i ng with the way the airbag unfolds or by be­
i ng p ushed into you as the airbag inflates.
157

Airbag syste m
-Never h old things i n your hands or on your
lap whe n the vehicle is in use.
- Never transport items on or in the area of
the front passenger seat. Objects could move into the area of the front airbags dur­
ing brak ing or other sudden maneuver and
become dangerous projectiles that can
ca use serious personal injury if the a irbags
inflate.
- Never place or attach accessor ies or other
objects (such as cupholders, telephone
brackets, large, heavy o r bulky objects) on
the doors, over or nea r the area marked
"AIRBAG" on the steering wheel, instru­
ment pane l, seat backrests or between
those areas and yourself. These objects could cause injury in a c rash, especially
when the airbags inflate.
- Never recline the front passenger's seat to
transport objects. Items can also move into
the area of the side airbag or the front a ir­
bag dur ing braking or in a sudden maneu­
ver. Objects near the airbags can become projectiles and cause injury, particularly
when the seat is reclined.
A WARNING
The fine dust created when airbags deploy can
cause breathing p roblems for people w ith a
his to ry of asthma or o ther b reathing condi­
tions .
- T o reduce the risk of brea thing problems,
those w ith asthma or o ther respiratory con­
ditions should get fresh air right away by
getting out of the vehicle or o pening win­
dows or doors.
- If you are in a collision in which airbags de ­
ploy, wash your hands and face with mild
soap and water before eat ing.
- Be careful not to get the dust into your eyes,
or into any cuts or scratches.
- If the resid ue should get into your eyes,
flush them with water .
158
Monitoring the
Advanced Airbag System
~i (USA models} / !f (Canada models}
Airbag monitoring indicator light
Two separate indicators monitor the function of
the Advanced Airbag System: the airbag moni­
toring indicator light and the
PASSENGER AIR
BAG OFF
light.
The Advanced A irbag System ( including the e lec­
tronic control unit, sensor circuits and system
wiring) is monitored continuously to make sure
that it is functioning properly whenever the igni­
tion is o n. Each time you turn on the ignit io n, the
airbag monitoring ind icator light
II (USA mod ­
e ls)
!E,I (Canada models) w ill come on for a few
seconds (self diag nostics).
The s ystem must be inspected when the
indicator light
fl ( USA models) tE,I
(Canada models ):
- does no t come on when the igni tion is sw itched
on,
- does no t go out a few se co nds afte r yo u have
sw itched on the igni tion, or
- comes on while driv ing.
If an airbag system malfunction is detected, the
i ndicator light will come on to serve as a constant
r eminder to have the system inspected immedi­
ate ly.
If a ma lfunction occurs that turns the front air­
bag on the passenge r side off, the
PASSENGER
A IR BAG OFF
light will come on and stay o n
whenever the ignition is on.
A WARNING
A n a ir bag system t hat is not functioning prop­
e rly cannot provide sup plemental pro te ct ion
in a fronta l crash.
- If the airbag ind icator light¢ page 13
comes when the vehicle is being used, have
the system inspected immediately by your
author ized Audi dealer . It is possib le that
the airbag will inflate when it is not sup­ posed to, or will not inflate when it should.
