Instruments and controls
General illustration
G)
0
©
©
©
©
0
©
©
Door handle
Memory buttons (driver's seat)
Power locking switch
Side assist button .. ....... .. .... .... .... ... ... .
Power window switches .......... ..... .. .... ... .
Adjuster control for outside mirrors ...... .... .... .
Air outlets .. ...... ..... ........ .... .... .. ..... .
Light switch ...... .. ... ... . .. .. ..... ... .... ... .
Control lever for:
- Turn signal and high beam
- Lane assist ................. ........... ..... .
@) Control lever for:
-Cruise control
- Adaptive Cruise Contro l .... ... ..... .... .... .. .
@ Multifunction steering wheel with:
- Horn
- Driver's airbag .............................. .
- Shift buttons ............. ........ ... .... ... .
- Button for steering wheel heating
@ Instrument cluster ... .... ....... ...... ......... .
@ Switches for :
@
@
-Windshield wiper/washer ... .... .... .... ... ... .
- Trip computer ..... .. .... ......... ... ....... .
Steering lock/ignition /starter switch
Buttons for:
- Advanced Parking System .......... .......... .
- Reset button for trip odometer . .... .... .... ... .
Controls and equip ­
ment 97
55
174
64
88
130 73
77
171
149
152
245 189
138 13
81
40
142
191
15
Instruments and controls
-!CHECK] .......... ........ ... .... .... ..... . .
- Instrument lighting ......... .... ....... .... .. .
@ MMI Display 11
@ Buttons/Indicator light for:
- Elec tronic Stabilization Program (ESP) .. ..... .. . .
- Emergency flashers ............. ....... ...... .
- PASSENGER AIR BAG OFF
@ Buttons for:
- Switching MMI display on/off
- Valet key function . ........ .... .... .......... .
- Unlocking glove compartment .............. ... . 16
17
288 76
51
119
@ Glove compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
@) Front passenger's airbag . . . . . . . . . . . . . . . . . . . . . . . . 245
@ CD player/CD changer
@ Climate controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
@ Shift lever for automatic transmission . . . . . . . . . . . . . 184
@ Ashtray and cigarette lighter .. .... ............... 116, 117
@ 12-volt outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
@ MMI Terminal
@ Storage compartment
@ [START ]-~STOP ] button . . . . . . . . . . . . . . . . . . . . . . . . . 144
@ Adjustable steering whee l, depending on equipment :
- mechanical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
- electrical . ........ .... ... .. .... .... ...... ... .
@) Data Link Connector for On Board Diagnostics (OBD Ill
@ Pedal for operating parking brake ...... .... ...... .
@ Engine hood release ...... .... .... .... ...... ... . 140
29
147
330 ...
11 Depending on how the vehicle is equipped the presentation in the MMI dis ­
play may be multi -color or bi-co lor. As both presentations are almost iden­
tical , the multi -color versions are used in this operating manual.
I • •

Instrument cluster illumination
The basic brightness of the illumination for the instru­
ments, the center console and the display can be
adjusted.
F ig . 6 Inst rume nt
c lu st er ill um inatio n
-Press the"+" button to increase the brightness during the
hours of darkness.
- Press the" -" button to decrease the brightness during the
hou rs of darkness.
A light sensor in the instrument cluster controls the il lumination for
the instrument cluster, the center conso le and the displays. In a
bright environment, using the buttons to change the brightness has
no effect .
[ i J Tip s
The illumination for the instrument cluster lights up whenever you
switch on the ignition with the vehicle headlights off. As the
daylight fades, the instrument cluster illumination likewise dims
automatically and wil l go out complete ly when the outside light is
very low. This feature is meant to remind you to switch on the head ­
lights when outside l ight conditions become poor. •
Contro ls and eq uip­
ment
In st ru m ents a nd w arnin g/indi cator li ght s
Warning /indicator lights
Overview
The warning/indicator lights indicate different functions
or a p ossible malfunction .
Fig. 7 Instru me nt clu ste r wi th warnin g/in dic at or l igh ts
Your vehicle is equipped with severa l important warning and indi ­
cator lights to he lp you monitor the continued reliable operation of
your vehicle ::::;>& .
AIR
BAG
E lectronic power cont rol ::::;> page 19
Electronic Stabilization Program (ESP) => page 19
U SA model s: => page 19
Airbag system
Vehicle care I I irechnical data

Opening and closing
Opening and closing
Keys
Key set
C !
@ Master key with remote control
Fig. 29 Key set
You can centrally lock and unlock your vehicle and start the engine
with the master key with remote control.
@Valet key
The valet key only fits the lock in the driver's door and the ignition
lock . If you have to leave the key with somebody else, you are well­
advised to turn over the valet key only.
Be aware that the rear lid and glove compartment can be opened
from inside the vehicle using the release buttons. It is therefore best
to activate the valet key function to prevent unauthorized access to
the glove compartment and the luggage compartment when
someone else has charge of your vehicle~
page 51.
© Emergency key
The emergency key is only for temporary use if the vehicle key
should be lost or misplaced ~& .
Key replacement
If you lose a key, contact your authorized Audi dealer immediately
to have the
lost key disabled. Be sure to bring all your keys with you.
Registered keys
You can check to find out how many keys have been registered to
your vehicle. Therefore, when buying a used vehicle, make sure to
get all of the remote keys belong to it.
Calling up the registered keys~
page 76.
Data in the master key
While you are driving, service and maintenance relevant data are
being continuously stored on your master key. Your Audi service
adviser can read out these data and tell you about work that is
needed on your vehicle. This also applies to vehicles with Conve­
nience key*.
L1}. WARNING
• Do not leave your vehicle unattended with the key in the igni­
tion lock. Entry by unauthorized persons could endanger you or result in theft or damage the vehicle. Always lock all doors and
take the key.
• Do not leave children unattended
in the vehicle, especially with
access to vehicle keys. Unguarded access to the keys provides
children the opportunity to start the engine and/or activate vehicle
systems such as the power windows etc. Unsupervised operation
of any vehicle system by children can result in serious injury.
[ i] Tips
• If you open the driver's door with the key left in the ignition lock,
a chime will sound. This is your reminder to remove the key and lock
the door.
~

Openin g a nd clo sin g
When the function is switched on, the buttons for opening the rear
lid and glove compartment have no function . However, please note
the following exceptions:
E xc epti ons
If the ignition has been switched on using the master key, you can
sti ll open the glove compartment and the rear lid.
As long as the ignition is switched off, you can still open the rear lid
using the rear lid button on the
master keyc:s. The same holds true
for using the rear lid release handle in conjunction with the Conve ­
nience key *.
For this reason, be sure to only hand over the
valet key to the person
who wil l take charge of your vehicle .
[ i ) Tip s
Be sure to activate the function before handing over the valet key to
someone else . T he valet key only fits the lock in the driver's door and
the ignition lock .•
Power locking system
General description
The power locking system locks or unlocks all doors and
the rear lid simultaneously.
The power locking system in your vehicle incorporates the following
functions:
• Central locking function
• Selective unlock feature=>
page 55
• Remote contro l feature=> page 49
• Convenience key * => page 67
• Anti -theft alarm system=> page 63
All the doors and the rear lid are locked by the central locking
system when you lock the vehicle. You can set whether genera lly
only the driver's door or all doors and the rear lid should be
unlocked when you open the vehicle in the MMI menu
Central
lock ing
to suit your individual desires=> page 55.
Unlocking the vehicle
You can unlock the vehicle from outside either by using the remote
control or by inse rting and turning the key in the driver's door lock .
When you
unl ock your vehicle:
• The anti -theft alarm system is deactivated briefly .
• The vehicle interior lights i lluminate for approximate ly 30
seconds.
• All turn signal lights will flash twice when the car is unlocked .
• After un lock ing the vehicle, you have 60 seconds to open a door
or the rear lid . After 60 seconds, the vehicle automatically locks and
the a nti -theft a larm system activates again.
The rear lid can be locked or unlocked either by using the remote
control
or by inserting and turning the key in the driver's door lock.
Un locking the vehicle with the remote control w ill only
unlock the
rear lid, to
open it, the lid handle needs to be pressed.
L oc kin g th e vehicle
You can lock the vehic le from outside either by using the remote
control
or by inserting and turning the key in the drivers's door lock .
When you
lo ck the vehicle :
• All doors and the rear lid are locked.
• All turn signal lights will flash once when the car is locked .
• The anti-theft alarm system is activated. The horn of the anti­
theft alarm system wi ll sound and the anti -theft alarm system readi ­
ness light, located in the upper part of the driver's door panel , wi ll
start to blink .
• The vehicle interior lights turn off.

-The opening process is stopped immediately if the
middle button
,c:::J on the remote key is pressed again for
at least one second or the unlock button
,c:::J in the
driver's door is pressed again or the handle in the rear lid
is pressed again.
- Middle button in the remote key and unlock button in the
driver's door:
The opening process is continued by
pressing one of the buttons again.
- Handle in the rear lid: the rear lid is closed again by
pressing the handle again=>,& .
Closing rear lid/trunk lid
-Press the close button in the open rear lid=> page 58,
fig. 43. The trunk lid moves to the closed position by
itself and soft close locks it automatically=> ,&.
-The closing process is stopped immediately if the close
button in the rear lid is pressed again.
- By pushing the button again, the rear lid is opened again.
Saving the opening angle of the rear lid
-Bring the rear lid manually or automatically to the
desired opening position and leave it in this position.
- Press the button in the rear lid=>
page 58, fig. 43 for at
least four seconds in order to save the desired opening
position . The position can only be saved starting at a
certain level.
& WARNING
• Never close the rear lid inattentively or without checking first.
Although the closing force of the rear lid is limited, you can still
seriously injure yourself or others.
Controls and equip ­
ment
Opening and closing
& WARNING (continued)
• Always ensure that no one is within range of the rear lid when
it is moving, in particular close to the hinges and the upper and
lower edges -fingers or hands can be pinched.
• To help prevent poisonous exhaust gas from being drawn into
the vehicle, always keep the rear lid closed while driving. Never
transport objects larger than those which fit completely into the
luggage area, because then the rear lid cannot be fully closed.
• Never leave your vehicle unattended especially with the rear lid
left open. A child could crawl into the car through the luggage
compartment and pull the lid shut, becoming trapped and unable
to get out . To reduce the risk of personal injury, never let children
play in or around your vehicle. Always keep the rear lid as well as
the vehicle doors closed when not in use.
• If there is a luggage rack or bicycle rack mounted on the rear lid,
it may not be able to open completely or an opened rear lid may
close by itself because of the added weight. So the open rear lid
must be supported or the weight must be removed from the
luggage rack first.
[ i] Tips
• If the rear lid is open or not properly locked when the ignition is
turned on, the door and rear lid warning::::;,
page 27 appears in the
instrument cluster display.
• The automatic rear lid opening/closing process can be stopped
by holding the rear lid with your hand. The lid can then be further
opened/closed by hand.
• If there is a mechanical problem with the automatic rear lid
opening process or there is an obstruction, the process is stopped
immediately.
• If there is a mechanical problem with
automatic closing for the
rear lid or there is an obstruction, it opens again slightly right away.
Check to see why the rear lid could not be closed before attempting
to close it again. ..,_
I • •

Child safety lock
Power child safety lock for the rear doors t
The power child safety lock prevents the rear doors from
being opened from the inside.
Fi g. 46 Sectio n fro m
dr ive r's door: co ntrols
T he rear doors ar e equip ped with a power child safe ty lock .
It is operated with t he two safety buttons(!) in the driver's
door=} fig. 46.
- Press the left and/or right safety button to disable t he
rear p ower window(sl and preve nt the respective rear
door from being opened from t he inside. The LED in the
button will light up when the chi ld safety lock is tur ned
on .
- Press the ill umina ted butt on aga in t o turn the child
safety f eatures
off .
When the chi ld safe ty lock is activated, the interior door opening
lever is inoperative; the door can only be opened from the ou tside .
In addi tion, the window regulator for that door is a lso inoperative
when the child safety lock is activated.
If the child safety lock has been activated on one or both sides, the
buttons in the rear for the Panoramic slid ing sunroof* are disabled.
Con tro ls and eq uip­
ment
Op ening and clo sing
If the child safety lock has been activated on the left and on the right
s ide, the rear controls are locked on vehicles with rear air -condi ­
tioning *. Dashes"--- " are shown in the disp lays for the rear c limate
controls, and the rear air -conditioning can only be operated fro m
the climate controls in the cabin=>
page 131.
[ i ] Tips
• In order to activate the child safety lock on the left and the rig ·h t
side, you have to press the two safety buttons in succession .
• Make certain that the check l ight comes on in the corresponding
safety switch when the child safety lock is activated. •
Convenience key
Applies to veh ic les: wit h Convenie nce key
Description
Access and vehicle operation based on: Master key remains in driver's p ocket.
The Convenience key veh icle authorization system allows keyless
unlocking, locking and starting of the vehicle . You only have to carry
t he master key on your person .
It makes no difference whether the master key is in your jacket
pocket or in you r brief case . As soon as you app roach your vehicle,
the Convenience key recognizes the request for access , checks for
authori zation and enables the following functions :
• Unlocking the vehicle=>
page 62.
• Locking th e vehicle => page 63.
• Switching on ignition and star ting the engine by pressing the
[ S TAR T] button; the master key does not have to be in the ignition
switch =>
page 144 . ~
Vehicle care I I irechnical data

Opening and closing
& WARNING
• When you lock your vehicle from out side , nobody -espe cially
c hildren -should remain inside the vehicle . Remember , when you
lock the vehicle from the outside the windows cannot be opened
from the inside.
• When you lea ve the vehi cle , always remove the ignition key and
take it with you . This will prevent passenger s (children, for
example ) from accidentally being locked in the vehicle should they
accidentally press the power locking switch in the front door s.
• Do not leave children inside the vehi cle unsupervised . In an
emergency it would be impossible to open the doors from the
outs ide without the key .
[ i ] Tips
• In order for Convenience key to function, you must a lways carry
the mas te r k ey wi th you.
• In order to be able to unlock or lock the vehicle, the authorized
maste r key must be w ithin a range of ab out 5 fee t 11.5 meters) fr om
the door or the rear lid.
• Of c ours e, you ca n st ill unl ock and lock y our vehicle using the
buttons on the master key . The selector lever must be in the P pos i­
t ion .
• For Dec larat ion of Compliance to United States FCC and Industry
Cana da re gulat io ns =>
page 404. •
Applie s to vehi cles : w it h C onve ni ence key
Unlocking the vehicle
T he d oo rs and the rear lid c an be unlo cked withou t oper ­
at ing the mas ter ke y.
F ig . 47 Convenience
key: unlocking vehicle
do or
- Take ho ld of t he door handle. The d oor is unlocked auto­
maticall y.
- P ull the handle to o pen t he door .
A doo r is un lo cke d as soon as you app roach the door hand le and t he
system recogn izes an authorized master key. The vehicle can be
unlocked at any door . The authorized master key only has to be
with in a range of about 5 feet ( 1.5 meters) from the respective door .
When a door is un locked, the driver's door is always un loc ked as
we ll. It depends on th e settings in th e central locking menu i n the
M MI whether the entire vehicle is unlocked or on ly certa in doors
=> p age 55.
[ i ] Tips
If your vehic le has been s tanding f or an ex tended period , please
note the following :

& WARN IN G (c ontinu ed)
start ing of the eng ine and u se of vehicle system s su ch as power
windows , etc . which could resul t in seriou s injury.
• Rememb er - you can still ope n or close the power windo ws for
a bout t en minute s after the ignit ion i s s witched off . Only when
e ither of the front doors are opened are th e power windo ws
s witched off .
• Be ca reful when closing t he w indow s. Ch eck to se e th at no o ne
i s in the w ay, or seriou s injury could resu lt !
• Always r emove the ignition key when ever you le ave your
v ehi cle .
• If you lock your v ehi cle from the out side , no one , e spe cially chil ­
d ren , s hould rem ain in the vehi cle .
• Do not stick anything on the windows or the windshield that
ma y interfere with the dri ver 's field of vision.
[ i ] Tip s
In addition to the switches in the driver's door there is a separate
switch i n each door for the power w indow in that door~
page 66,
fig. 50 . •
Switches in the driver's door
The driver can operate all windows.
If t he respective switch is pus hed o r pulled the window wi ll
open or c lose. The power window sw itches have a
two-posi­
tion fun ction :
Opening the windows
- Pus h the switch to the first stop and hold it the re until the
window has lowered to t he desired pos ition.
Controls and equip ­
ment
Opening and clo sing
- P ush the swit ch brie fly to the s econd stop : the window
will aut om atical ly open a ll the way .
Closing th e windows
- Pu ll the switc h up to the fir st stop and ho ld it there until
the window has risen to the des ired position.
- Pull the sw itch q uickly to the
second position : the
window will automatically close all the way=>
& in
"Controls" on
page 64.
Activating /deacti vating th e rear windows
- Press the left 00 sw itch => page 64, fig. 49 to deactivate
only the wind ow reg ulator in the left doo r. The indicat or
light in the switch illuminates.
- Press the ri ght
00 switch => page 64, fig. 49 to deactivate
only the w indow regulator in the right d oor. T he indicator
ligh t in the switch illuminates.
- Press the[!_] sw itch aga in to reactivate the window regu-
lator . The indicator light in the switch goes out.
If you press both 00 switches © in succession, the following func ­
tions are switched off in the rear of the vehicle:
• The window regulator switches in the rear doors .
• The buttons for the Panoramic s liding sunroof *.
• On vehicles with rear c limate control*, operation from the rear is
b locked. Dashes" ---" are shown in the displays for the rear climate
controls, and the rear air-cond itioning can only be operated from
the c limate controls in the cabin~
page 131.
• If only the left 00 switch was pressed, the window regulator in
the
left rear d oo r and the buttons in the rear for the Panoramic
s liding sunroof* are deactivated. In addition, the door is locked. .,
I • •

Opening and closing
• If onl y the right (!) switch was pressed, the window regulator in
t he
right rear door and the buttons in the rear for the Panoramic
sliding sunroof * are deactivated . In addition, the door is locked .
This feature has been provided for the safety of small children riding in the rear of the vehicle.
[ i ] Tips
• The windows can still be opened and closed for about ten
minutes after the ignition has been turned off. The power windows
are not shut off until one of the front doors is opened.
• In order to activate the child safety lock on the left and the right
side, you have to press the two safety swi tches in succession . Make
certain that the check light comes on the corresponding safety
switch when the c hild safety lock is act ivated. •
Switch in the front passenger 's door and on
the rear doors
F ig . 5 0 Sw itch loca­
ti on fr ont pa sse nge rs
d o or
The power w indow switch has a two-posit ion function :
Opening the windows
Press the switch to the fir st position and ho ld it until you
have opened the w indow as fa r as you want. -
Press the sw it c h quickly to th e
second po sition and t he
wind ow will a uto matically open all th e way .
Closing the windows
-Pull the switch to the first position and hold it unti l you
have closed the window as far as you want.
- Pull the sw itch q uick ly to the
second position and the
window will automatically close all t he way.
[ i ] Tip s
The windows can still be opened and closed for about ten minutes
af ter the ignition has been turned off . The power windows are not
shut off until one of the front doors is opened .•
Convenience close/open feature vvith the
lock in the driver's door
You can close o r open the wi ndo ws from outside when
you lock or unlock your c ar with the key in the driver's
door lock.
Closing windows
Fi g. 51 Key t urns fo r
opening and clo sing
- Insert the key into the lock of the d river's door .

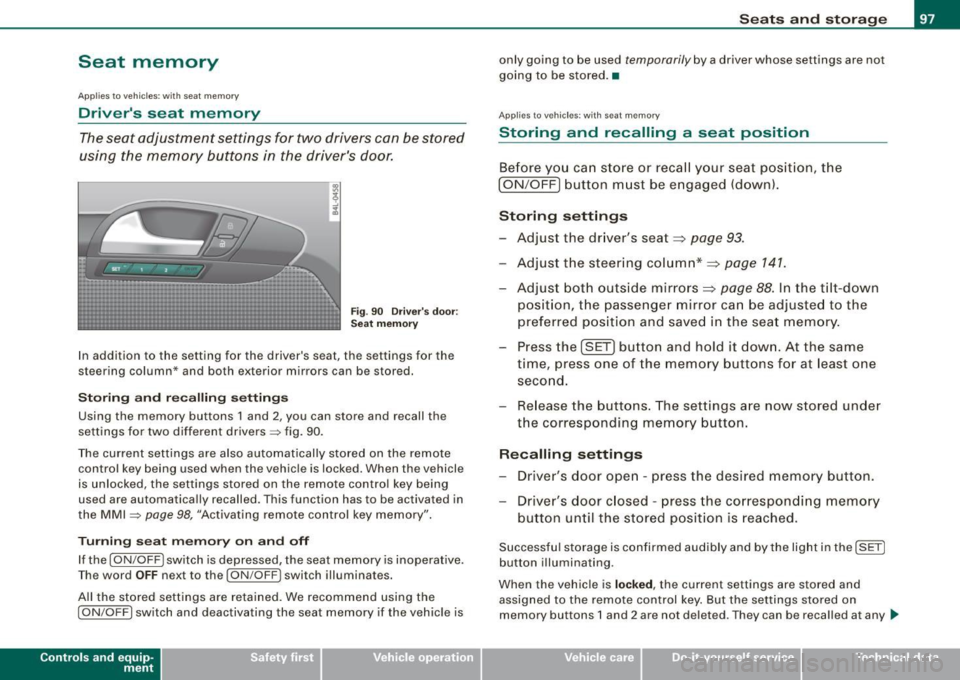

Seat memory
Applies to vehicles: w ith seat memory
Driver's seat memory
The seat adjustment settings for two drivers con be stored
using the memory buttons in the driver's door.
Fig . 90 Driver's door :
Seat memory
In addition to the setting for the driver's seat, the settings for the
steering column* and both exterior mirrors can be stored.
Storing and recalling settings
Using the memory buttons 1 and 2, you can store and recall the
settings for two different drivers=> fig. 90.
The current settings are also automatically stored on the remote control key being used when the vehicle is locked. When the vehicle
is unlocked, the settings stored on the remote control key being
used are automatically recalled. This function has to be activated in
the MMI =>
page 98, "Activating remote control key memory".
Turning seat memory on and off
If the [ ON/OFF ! switch is depressed, the seat memory is inoperative.
Th e word OFF next to the [ON/OFF) switch illuminates.
All the stored settings are retained. We recommend using the
I ON/OFF] switch and deactivating the seat memory if the vehicle is
Con tro ls and eq uip­
ment
Seats and storage
only going to be used temporarily by a driver whose settings are not
going to be stored. •
Applies to veh icles: w ith seat memory
Storing and recalling a seat position
Before you can store or recall your seat position, the
I ON/OFF] button must be engaged (down).
Storing settings
- Adjust the driver's seat~
page 93.
-Adjust the steering column*~ page 141.
Adjust both outside mirrors~ page 88. In the tilt-down
position, the passenger mirror can be adjusted to the
preferred position and saved in the seat memory.
- Press the
!SET) button and hold it down. At the same
time, press one of the memory buttons for at least one
second.
- Release the buttons. The settings are now stored under
the corresponding memory button.
Recalling settings
- Driver's door open -press the desired memory button.
- Driver's door closed -press the corresponding memory
button until the stored position is reached.
Successful storage is confirmed audibly and by the light in the [ SET]
button illuminating.
When the vehicle is
locked , the current settings are stored and
assigned to the remote control key. But the settings stored on
memory buttons 1 and 2 are not deleted. They can be recalled at any
~
Vehicle care I I irechnical data
