Instruments and warning /indicator lights
Instruments and warning/indicator lights
Instruments
Instrument cluster and controls
The instrument cluster is your central source of informa ­
tion.
Fi g. 2 O ver view of th e in stru men t clust er
© Coolant temperature gauge . . . . . . . . . . . . . . . . . . . . . . 10
@ Tachometer with t ime and date d isplay . . . . . . . . . . . . 11, 11
® Warning/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . 14
© Driver information system . . . . . . . . . . . . . . . . . . . . . . . 22
© Speedomete r with odometer . . . . . . . . . . . . . . . . . . . . . 12
© Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
(j) Park ing system adva nced . . . . . . . . . . . . . . . . . . . . . . . . 169
@ Reset button for trip odometer . . . . . . . . . . . . . . . . . . . 12
@ !CHECK] button .... ...... ..... ......... ...... .
@ Instrument cluster illumination ................. .
(I) Tips 13
1
3
The illum inat ion for the instrument cluster lights up whenever you
switch o n the ignition with the
vehicle headlight s off. As the daylight
fades, the instrument cluste r illum ination likewise d ims automati­
cally and w ill go out completely when the outside light is very low .
T his featu re is mean t to remind you to switch on the headligh ts when
outs ide light conditions become poor .•
Engine coolant temperature gauge
The engine coo lant gauge ~ fig . 2 © only works when the ignition is
on. To p revent damage to yo ur engine, ple ase note the following
important po ints:
Engine cold
As long as the needle rema ins at or close to the bottom of the gauge,
t he engine s till has not rea ched its operat ing tem perature. Avo id high
eng ine speeds, heavy eng ine loads and heavy t hrottle app lications.
Normal temperature
When the eng ine has reached its ope rating temperature, the needle
w ill move into the midd le of the gauge and remain t he re.
If the
eng ine is working hard at high outs ide temperatures, the needle may
r ise up. This is no need to worry as long as the
_t_ warning light in th e
instr ument cluster does not illuminate.
Warning light in the instrument cluster -t
When the _L warning light in the instrument cluster starts to flash,
this can mean one of two things: e ithe r th e coolan t
temperature is
too high, or the coolant
level is too low=> page 30. _,.

If the needle is well in the upper area of the gauge, the coolant
tempe rat ure is too high.
Stop the vehicle , switch the engine off and
allow the engine to cool.
If the warning light comes on again after
driving a short distance, contact an authorized dealer.
& WARNING
• Alway s observe th e warning in=> page 286 , "Engine comp art ­
ment ", before opening the hood and checking the engine coolant
level.
• Never open the engine hood if you see or hear steam, or if you
s ee engin e coolant dripping from the engine compartment. You
could burn yourself. Let the engine cool off first so that you cannot
hear or see any steam or engine coolant .
0 Note
• Mounting additiona l lights or accessories in fron t of the a ir inlets
reduces the cooling effect of the radiator . At high outside tempera­
t ur es o r high engine load, the engine could overheat.
• The front spo iler has bee n des igned to prope rly d istribute the
coo ling air when the vehicle is moving.
If the spoiler is damaged, this
cou ld reduce the coo ling effect and the eng ine could then overheat .
Ask your author ized A udi dealer for assistance .•
Tachometer (engine rev counter)
The tachometer indicat es th e engine RPM (revolutions
per minutes).
Th e ta chomete r@ ::::> page 1 0, fig. 2 is the left of the tw o large clock­
type displays.
Th e engine tu rns at a speed
1,000 times the si ng le dig it in the
display, e.g. if the need le is po int ing at the "2 " the engi ne is t urning
at 2,000 RP M.
Controls and equip ­
ment Safety first
Instruments and warning
/indicator lights
If e ngine RPM drops below 1,500, you s hould dow nsh ift to t he next
lower ge ar. T he re d area at t he e nd of the s cale i ndic ates m aximum
permissible e ngine RPM after the break-in per iod . Before reaching
this area, move the selector lever to posit ion "D (Drive)" or ease yo ur
foot off the accelerator pedal.
0 Note
T he tachome ter needle s houl d not move into the red range. If it does,
then only fo r a very short period of time . You could damage your
e n g in e by driv ing at h igh RPM .
c£> For the sake of the environment
Upshifting early saves fuel a nd reduces e ngine noise. •
Digital clock with date display
Date and time of day can be set in the MM I.
Fig. 3 Instrumen t
cluster with digital
clock
Th e d ate, t ime o f day, and time and date fo rmat c an be se t in the
MMI. You can find o ut more in the MMI manual.
Vehicle care Technical data

Driver information display
Driver messages and yellow symbols
If a yellow symbol appears in the display, a driver message is also
displayed automatically.
F o r example, the symbol appears in the display, indicating low
windshield washer fluid level. The following message also appears :
Please refill washer fluid
The driver message disappears after a few seconds. The driver
message can be displayed again by briefly pressing the [
CHECK]
button.•
Red symbols
A red symbol means DANGER.
-Pull off the road.
- Stop the vehicle.
- Turn off the engine.
Fig. 17 Display:
engine coolant level
warning (priority 1)
-Check the malfunctioning system. Contact your autho-
rized Audi dealer or a qualified workshop for assistance.
Red symbols indicate a priority 1 malfunction. Danger! With a priority 1 malfunction, a large symbol appears
in the center
area of the display => fig .
17. When the symbol appears, three
warning tones sound in succession . The symbol continues to blink
until the malfunction has been repaired.
If there are
more than one priority 1 malfunctions, the symbols
appear one after the othe r for about
2 seconds .
An additional driver message can also be displayed by briefly pressing
the (
CHECK ] button.
The red symbols mean :
0
BRAKE
CCD>
Alternator malfunction
USA models:
Brake system malfunction
Canada models:
Brake system malfunction
Engine coolant level too
low/engine coolant temperature
too high
~ Engine oil pressure too low
Ad Blue
/8' Refill AdBlue*
f Faulty steering
Faulty ignition switch
(I) Tips
=> page29
=> page29
=> page29
=>page 30
=> page 30
=>page292
=> page 31
~page31
• If the warning/indicator light BRAKE (USA models)/ ((!)) (Canada
models) in the instrument cluster flashes, there is a brake system
malfunction . By pressing the (
CHECK) button, you can bring up a
driver message which explains the malfunction in more detail. Please
note =>
page 29. .,_

• Speed warnings threshold 1 8 (USA models)/9 (Canada models)
and thresho ld 2
e , (USA mode ls)/ 0, (Canada models) are also s hown
as red symbols . The warning is always shown as a small symbol in the
upper area of the display ~
page 35. •
Alternator malfunction 0
If the D symbol in the instrument panel d isplay flashes, then there
is a malfunction in the alternator or the vehicle electronics . A warning
to the driver wi ll appear, too. The driver warning goes out after about
5 seconds, but it can be brought up at any time by pressing the
[CHECK] button again.
Us ua lly, you can sti ll d rive to the next dea le rship . T urn off all but the
most necessary e lectr ica l consumers, s ince these dra in the vehicle's
battery.
0 Note
If the _f-warning symbol (coolant system ma lfunction) a lso lights up
on the instrument panel during the trip~
page 30, then you have to
stop immediate ly and t urn off the engine. The coolant pump is no t
work ing anymore -danger of damage to the engine! •
Brake system malfunction
A malfunction in the brake system must be repaired as
soon as possible.
If the warning /indicator light BRAKE (USA mode ls)/ CCD)
(Canada models) in the instrument cluster flashes, there is a
brake system ma lfunction. By press ing the
[CHECK ] button,
you can bring up a driver message which exp lains the
malfunction in more deta il.
Controls and equip ­
ment Safety first
Dri
ver information display
Stop vehicle and check brake fluid Level
- Pull off the road.
- Stop the veh icle .
- Turn off the eng ine .
- Check th e brake flui d level =>
page 307.
-Contact your nearest authorized Audi dea ler or qualified
workshop if necessary.
Warning ! Fault in brake system. Contact
workshop
- Drive carefully to the neares t author ized Audi dealer or
qualified works hop and have the malfunction corrected
=> & .
If the ABS system malfunctions, the ABS warning/indicato r light illu­
minates together with the b rake system malfunction warning/ indi ­
cator light~& .
& WARNING
• Alw ay s ob serve the warning s in ~ page 28 6, "Engine c ompart­
m ent ", before opening th e hood and che cking the b rake fluid .
• Driving with low brake fluid is a safety hazard. Stop th e car and
get profe ssional a ssistan ce.
• USA model s: If the BRAKE warning light an d the \6:> warning
light com e on together, the rea r wheel s could lo ck up fir st under
hard braking . R ear wh eel lo ck -up c an cau se lo ss of vehi cle control
and an a ccident . Have your v ehicl e repair ed immedia tely by your
authorized Audi dealer or a qualified work shop. Dr ive slowly and
avoid sudd en, hard brake applications .
• Canada model s: If the brake warning light CCI» and the ABS
warning light come on togeth er, the rear wheels could lo ck up
fir st unde r hard b raking. Rea r wheel loc k-up c an cause lo ss of
~
Vehicle care Technical data

Driver information display
& WARNING (continued)
vehicle control and an accident. Have your vehicle repaired imme·
diately by your authorized Audi dealer or a qualified workshop.
Drive slowly and avoid sudden, hard brake applications.•
Engine cooling system malfunction -L
A malfunction in the engine cooling system must be
repaired as soon as possible.
When the .J_ symbol in the display blinks, then either the
engine coolant
temperature is too high, or the coolant level
is too low. An additional driver message can also be displayed
by pressing the
[CHECK) button:
Switch off engine and check coolant level
-Pull off the road.
- Stop the vehicle.
- Turn off the engine .
- Check coolant level~
page 305.
-Add coolant if necessary~ page 306.
-Continue driving only after the engine coolant
warning/indicator light goes out.
- Contact your authorized Audi dealer for assistance if
necessary.
If the engine coolant level is correct, then the radiator fan may be the
cause of the malfunction.
If the
D wa rning symbol (alternato r malfunction) also lights up on
the instrument panel~
page 29, then the fan belt may be damaged .
& WARNING
• If your vehicle should break down for mechanical or other
reasons, park at a safe distance from moving traffic, turn off the
engine and turn on the hazard warning lights~
page 68, "Emer­
gency flasher
A".
• Never open the hood if you see or hear steam or coolant
escaping from the engine compartment· you risk being scalded.
Wait until you can no longer see or hear steam or coolant
escaping.
• The engine compartment of any vehicle is a dangerous area.
Before you perform any work in the engine compartment, turn of
the engine and allow it to cool. Follow the warning stickers
~ page 286, "Engine compartment".
0 Note
Do not continue driving if the _f_ symbol illuminates. There is a
malfunction in the engine cooling system -you could damage your
engine .•
Engine oil pressure malfunction "l::,r:
The red engine oil pressure warning symbol requires
immediate service or repair. Driving with a low-oil-pres­
sure indication is likely to inflict severe damage to the
engine .
If the pressure is too low. An additional driver message can also be
displayed by pressing the
[CH ECK) button:
Switch off engine ! Oil pressure too low
Immediate actions
-Pull off the road .

_______________________________________________ w __ a _r _m _ a_ n_d _ c_o _ l_ d __ _
Warm and cold
Climate control
Description
The air conditioner is fully automatic and is designed to
maintain a comfortable and uniform climate inside the
vehicle.
We recommend the following settings:
- Set the temperature to 72
°F (+22 °C).
- Press the
[AUTO] button.
With this setting, you attain maximum comfort in the least amount
of time. Change this setting , as desired , to meet your personal needs.
The climate controls are a combination of heating, ventilation and cooling systems, which automatically reduce humidity and cool the
air inside your vehicle .
The air temperature, air flow and air distribution are automatically regulated to achieve and maintain the desired passenger compart­
ment temperature as quickly as possible.
The system automatically compensates for changes in outside
temperature and for the intensity of the sunlight entering the
vehicle. We recommend you use the
Automatic mode ~ page 112
for year-round comfort .
Please note the following:
Turn on the air conditioner to reduce humidity in the vehicle. This also
prevents the windows from fogging up.
When the outside temperature is high and the air is very humid,
condensation from the evaporator may drip under the vehicle . This is
normal and does not indicate a leak.
Controls and equip ­
ment Safety first
If the outside temperature is
low, the fan normally only switches to a
higher speed once the engine coolant has warmed up sufficiently .
The air conditioner temporarily switches off when you drive off from
a standstill using full throttle to save engine power.
The compressor also switches off if the coolant temperature is too
high, so that the engine can be adequately cooled under extreme
loads.
Air pollutants filter
The air pollutants filter (a combined particle filter and activated char­
coal filter) reduces or prevents outside air pollution (dust, or pollen)
from entering the vehicle. The air is also filtered in air recirculation
mode.
The air pollutants filter must be changed at the intervals specified in
your Warranty
& Maintenance booklet, so that the air conditioner can
properly work.
If you drive your vehicle in an area with high air pollution, the filter
may need to be changed more frequently than specified in your Audi
Warranty
& Maintenance booklet. If in doubt, ask your authorized
Audi Service Advisor for advice .
Key coded settings
The air conditioner settings selected are automatically stored and
assigned to the key being used. When the vehicle is started, the air
conditioner automatically selects the settings assigned to that key.
This way every driver will maintain his/her own personal settings and
does not have to reset them manually.
If a different driver uses your key and changes the air conditioner
settings, the latest adjustments will erase and replace the settings
you have stored. _.,
Vehicle care Technical data

_______________________________________________ w __ a _r _m _ a_ n_d _ c_o _ l_ d __ _
App lies to veh icles : with di esel e ngine

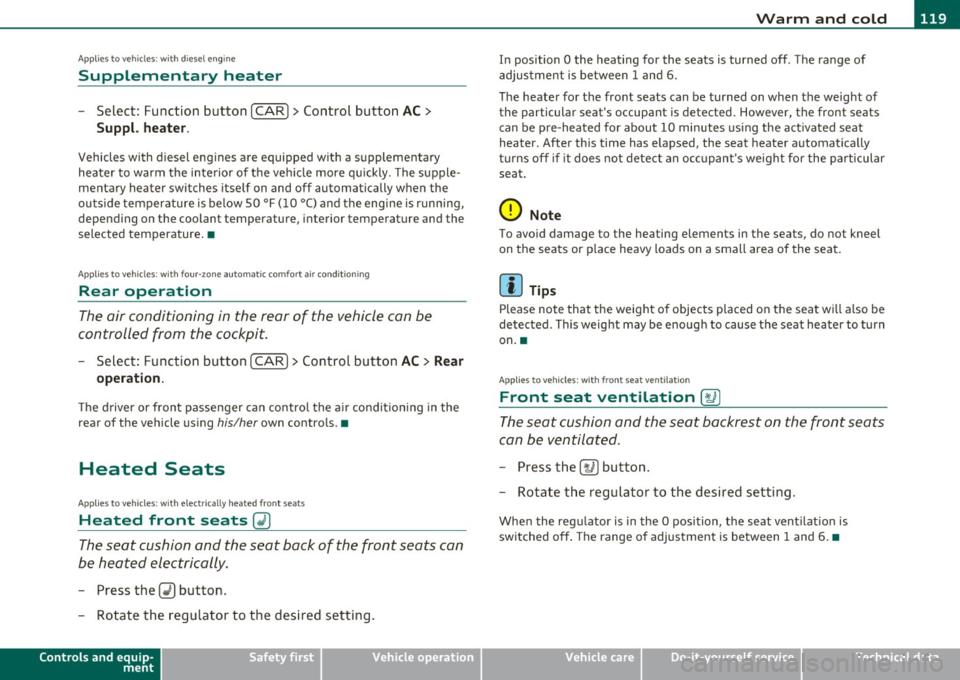

Supplementary heater
- Select: Function button !CAR]> Control button AC>
Suppl. heater .
Vehicles with diesel engines are equipped with a supplementary
heater to warm the inte rior of the veh icle more qu ickly. The supple­
mentary heater switches itself on and off automatically when the
outs ide temperature is below SO
°F (10 °() and the engine is running,
depending on the coolant temperature, interior temperature and the
selected temperature. •
Applies to veh icles: w ith four -zone automat ic co mfort air co nditioning
Rear operation
The air conditioning in the rear of the vehicle can be
controlled from the cockpit.
-Select: Function button I CAR]> Control button AC> Rear
operation.
Th e d river or front passenger can contro l the air conditioning in the
rea r of the vehicle using
his/her own controls. •
Heated Seats
Applies to vehicles: with ele ctrica lly heated front seats
Heated front seats ~
The seat cushion and the seat back of the front seats can
be heated electrically.
- Press the~ button.
- Rotate the regulator to the desired setting.
Controls and equip ­
ment Safety first
I
n position O the heating for the seats is turned off. The range of
adjustment is between 1 and 6.
The heater for the front seats can be turned on when the weight of
the particular seat's occupant is detected. However, the front seats
can be pre -heated for about 10 minutes using the activated seat
heater. After this time has e lapsed, the seat heater automatic ally
turns off if it does not detect an occupant's weight for the particular
seat.
0 Note
To avoid damage to the heating elements in the seats, do not kneel
on the seats or p lace heavy loads on a small area of the seat.
[I] Tips
Please note that the weight of objects placed on the seat wi ll also be
detected. This weight may be enough to cause the seat heater to turn
on. •
Applies to vehicles: w it h front seat ventilat ion
Front seat ventilation [~]
The seat cushion and the seat backrest on the front seats
can be ventilated .
-Press the Iv] button .
- Rotate the regulator to the desired setting.
When the regulator is in the O position, the seat ventilat ion is
switched off . The range of adjustment is between 1 and 6. •
Vehicle care Technical data

-L~O~n~t:_!h~e=....!:r~o~a~d~ --------------------------------------------
- Turn the ig nition key to position (D -the glow plu g i nd i­
cator lig ht
~ ill um inates when t he g low plug system is
act ive.
- When the indica tor light
'1.., swi tches off, turn the ignition
k e y to position @ but do not p ress the acce lerator pe dal.
- Re lease the ignition key once the e ngi ne starts. The
s ta rter m ust not conti nue r unning .
A cold engine may sound loud after it has been started . This is due to
t he hydra ulic valves building up o il pressure . This is norma l an d is not
a need for concern .
If the engine does not start immediately, stop trying after 10 seconds
and then try to rest art the engi ne about 30 seco nds la ter.
Glow plug system*
Diesel engines are eq uipped with a glow p lug system whose
preheating t ime is controlled
by the coo lant and outs ide tempera­
ture. Sta rt the engi ne
immediat ely after the glow pl ug ind icator lig ht
switches off.
Th e g low pl ug indica tor light w ill on ly ill uminate fo r approximately 1
second when the engine is warm or the outside temperature is higher
t han 46 ° F (8 °C). That means you can sta rt the eng ine
immediately .
& WARNING
Never start or let the engine run in a confined or enclosed area.
Exhaust fumes from the engine contain carbon mono xide, a color­
le ss and odorless gas. Carbon monoxide can be fatal if inhaled .
• Never leave the engine idling unattended. An unattended
vehicle with a running engine poses a danger of person al injury or
theft.
0 Note
• Avoid high e ng ine speeds, fast a cce le ration or heavy eng ine loads
w hile the engine is still co ld. This co uld damage the engine .
• The eng ine ca nnot be sta rted by p ush ing or tow ing the veh icle.
'ii? For the sake of the environment
T o avoid unnecessa ry engine w ea r and to reduce exhaust em iss ions,
do not let your vehicle stand and warm up . Be ready to drive off imme ­
diately after sta rting yo ur vehicle . M aintain mode rate speed u ntil the
eng ine is complete ly warm . Remember, the engine performs best at
operat ing temper ature. •
Stopping the engine
- Tur n the ign it ion key to position @ ==> page 125, fig. 12 2.
& WARNING
• Never turn off the engine until the vehicle has come to a
complete stop .
• The brake booster and servotronic only work when the engine
i s running . With the ignition turned off, you have to apply more
force when steering or b raking. Since you cannot stee r and stop
normally, this can lead to accidents and serious injuries.
• The radi ator fan can continue to run for up to 10 minute s even
after you have turned off the engine and removed the ignition key.
The radiator fan can also turn on again if the engine coolant heats up because of intense sunlight or heat build-up in the engine
compartment. ..,,

_________________________________________________ O_ n_ t_ h_ e_ r _o_ a_d _ __.fflll
0 Note
Do not stop the engine immediately after hard or extended driving .
Keep the engine running for approximately two minutes to prevent
excessive heat build-up.•
Starting and stopping the engine
with Convenience key
Applies to veh icle s: with Con venie nce ke y
Starting the engine with the {START) button
This button switches on the ignition and starts the
engine.
Fig . 123 Convenience
key: ENGINE START
button
The [START] button is provided with two-stage operation
=:> fig. 123.
Switching the ignition on
- Press the [ START] button once to the first stage to switch
on only the ignition .
Gasoline engine: Starting the engine
-Step on the brake.
Contro ls a nd e quip ­
m en t Vehicle
OP-eration
-Move the selector lever to the P or N position =:>& .
- Press the
[START] button to the second stage to start the
engine.
Diesel engine: Starting the engine
- Step on the brake.
- Move the selector lever to the P or N position =:>& .
- Press the
[START] button down to the first level to begin
the preheating process. The glow plug indicator light
illuminates when the glow plug system is active.
- When the indicator light switches off, press the
[START] button down to the second level to start the
engine.
After a cold engine is started, there may be a brief period of increased
noise because oil pressure must first build up in the hydraulic valve
adjusters . This is normal and not a cause for concern .
If the engine does not start immediately, stop trying after 10 seconds
and then try to restart the engine about 30 seconds later.
Glow plug system*
Diesel engines are equipped with a glow plug system whose
preheating time is controlled by the coolant and outside tempera­
ture . Start the engine
immediately after the glow plug indicator light
switches off.
Th e glow plug indicator light will only illuminate for approximately 1
second when the engine is warm or the outs ide temperature is higher
than 46 °F (8 °C). That means you can start the engine
immediately.
& WARNING
Never allow the engine to run in confined spaces· danger of
asphyxiation.
Vehicle care Do-it-yourselt service iTechnical data

1111..__0_ n_ t_h _e_ r_o _ a_ d _________________________________________________ _
0 Note
• Avoid high eng ine rpm, full thrott le and heavy engine loads unt il
the eng ine has reached operating tempe ratur e -othe rwise you risk
eng ine damage.
• T he engine cannot be started by p ushing or tow ing the vehicle.
Do not a llow the engine to warm up with the vehicle stationary . Start
dr iving right away. In this way yo u avoid unnecessary emiss io ns.
(I] Tips
If you open the drive r's door when the ignition is switched on, a
bu zzer sounds and the message
Ignit ion is on appears in the instru­
me nt cl uste r display. Please swi tch t he ig nition off. •
Applies to ve hicle s: with Co nve nie n ce ke y
Switching engine off with the !STOP] button
-Bring your vehicle to a comp lete stop .
Fig. 124 C onv enience
k ey:
ENGINE STO P
bu tt on
- Move the se lector lever to the P or N position.
- P ress the [S T OP] button ~ fig . 12 4.
Pressing the (S T OP] button once switches off the engine and the igni­
t ion .
If you press the I ST OP I bu tto n ag ain for more tha n 1 second,
the steering is loc ked, provided that the selector lever is in the P posi­
tion =>& .
Emergency OFF function
If necessary, the en gine can be sw itched off w ith the se lec tor lever in
the
R, Dor S positions . To do so, step on the brake pedal and press
and hold t he [STOP) but ton (veh icle speed mus t be less than
6 mph
/ 10 km/h .
& WARNING
• Never turn off the engine until the vehicle has come to a
c omplete stop.
• The brake booster and servotronic only work when the engine
i s running. With the ignition turned off , you have to apply more
force when steering or b raking. Since you cannot steer and stop
normally, this can lead to accident s and seriou s injuries.
• For safety rea sons , you should always park your vehicle with
the selector lever in P. Otherwi se, the vehicle could inadvertently
roll away.
• After the engine has been switched off, the radiator fan can
continue to
run for up to 10 minutes -even with the ignition
switched off . It can al so swit ch on again after some time if the
coolant temperature r ises as the result of a heat buildup or if the
engine i s hot and the engine compartment is additionally he ated
by the sun's rays.
0 Note
If the eng ine has bee n under heavy load for an extended period, heat
builds up in the engine compartment after the engine is switched off
- there is a risk of damaging the eng ine. Allow the engine to run at idle
for abo ut 2 min utes befo re switching it off .•
