After changing a wheel
A wheel change is not complete without the doing the following .
• Always store the vehicle tool kit, the jack
and the replaced tire in the luggage com­
partment
Q page 166.
• As soon as possible, have the tightening
torques
on all wheel bolts checked with a
torque wrench . The correct tightening tor­
que is 120
ft lb (160 Nm).
• Have the flat tire
replaced as soon as possi­
ble.
(D Tips
- If you notice that the wheel bolts are
corroded and difficult to turn while
changing a tire, they should be replaced
before you check the tighten ing torque.
- Drive at reduced speed until you have the
tightening torq ues checked .
Decorative wheel covers
Applies to vehicles: with decorative wheel cove rs
The decorative wheel covers must be removed
first to access the wheel bolts.
Fig . 249 Ch ang ing a whee l: Removing the wheel cove r
Removing
• Insert the hook provided with the veh icle
tool kit in the hole in the hub.
• Pull off the
decorative wheel cover
Qfig . 249.
What do I do now? 299
Wheels with wheel bolt caps
Applies to vehicles: with wheel bolts with caps
The cops must be removed first from the
wheel bolts before the bolts can be un­
screwed .
Fig. 250 Chang ing a whee l: removing the wheel bo lt
caps
Removing
• Push the plastic clip provided with the veh i­
cle tool kit over the wheel bolt cap until it
engages .
• Pull on the
plastic clip to remove the cap
Qfig. 250.
Refitting
• Place the caps over the wheel bolts and
push them back on.
The caps are to protect and keep the wheel bolts clean.
Loosening and tightening the wheel
bolts
The wheel bolts must be loosened before rais­
ing the vehicle.
Fig. 251 C ha ng in g a wheel : loosen ing t he whee l bol ts ...

300 What do I do now?
Loosening
.,. Install the wheel bolt wrench over the
wheel bolt and push it down as far as it will
go .
.,. Take tight hold of the
end of the wrench
handle and turn the wheel bolts
counter­
clockwise
about one single turn in the direc­
tion of arrow
c> fig. 251.
Tightening
.,. Install the wheel bolt wrench over the
wheel bolt and push it down as far as it will
go .
.,. Take tight hold of the
end of the wrench
handle and turn each wheel bolt
clockwise
until it is seated .
A WARNING
- Do not use force or hurry when changing
a wheel - you can cause the vehicle to slip
off the jack and cause serious personal
injuries.
- Do not loosen the wheel bolts more than
one turn
before you raise the vehicle with
the jack. - You risk an injury.
@ Tips
If a wheel bolt is very tight, you may find it
easier to loosen by carefully pushing down
on the end of the wheel bolt wrench with
one foot only. As you do so, hold on to the
car to keep your balance and take care not
to slip.
Raising the vehicle
The vehicle must be lifted with the jack first
before the wheel can be removed.
Fig. 252 Sill pane ls: mar kings
Fig. 253 Sill: posit ioning the jack
.,. Activate the vehicle jack mode* (only vehi­
cles with Adaptive Air Suspension)
<::> page 154.
.,. Engage the parking brake to prevent your
vehicle from rolling unintentionally
.,. Move the
selector lever to position P .
.,. Find the marking (imprint) on the sill that
is nearest the wheel that will be changed
c> fig. 252. Behind the marking, there is a
lifting point on the sill for the jack.
.,. Turn the
jack located under the lifting point
on the sill to raise the jack until its arm@
c> fig. 253 is located under the designated
plastic mount
c> & c::> (D .
.,. Align the jack so that its arm @ c::> fig. 253
engages in the designated lifting point in
the door sill and the movable base® lies
flat on the ground. The base @ must be
ver­
tical
under the lifting point@.
.,. Wind the jack up further until the flat tire
comes off the ground
c> ,& .
Position the jack only under the designated
lifting points on the sill
c>fig . 252. There is
exactly
one location for each wheel. The jack
must not be positioned at any other location
c> .&. c> CD.
An unstable surface under the jack can cause
the vehicle to slip off the jack. Always provide
a firm base for the jack on the ground. If nec­
essary place a sturdy board or similar support under the jack . On
hard, slippery surfaces
(such as tiles) use a rubber mat or similar to
prevent the jack from slipping
c> ,&.. liJI,

_& WARNING
-You or your passengers could be injured
while changing a wheel if you do not
follow these safety precautions:
- Position the jack only at the designated
lifting points and align the jack. Other­
wise, the jack could slip and cause an
injury if it does not have sufficient hold
on the vehicle.
- A soft or unstable surface under the
jack may cause the vehicle to slip off the jack. Always provide a firm base for
the jack on the ground . If necessary,
use a sturdy board under the jack.
- On hard, slippery surface (such as tiles)
use a rubber mat or similar to prevent
the jack from slipping .
- To help prevent injury to yourself and
your passengers:
- Do not raise the vehicle until you are
sure the jack is securely engaged.
- Passengers must not remain in the ve­
hicle when it is jacked up.
- Make sure that passengers wait in a
safe place away from the vehicle and
well away from the road and traffic.
- Make sure jack position is correct, ad­
just as necessary and then continue to
raise the jack.
(D Note
Do not lift the vehicle by the sill. Position
the jack only at the designated lifting
points on the sill. Otherwise, your vehicle
will be damaged.
What do I do now? 301
Taking the wheel off/installing the inflatable spare tire
Follow these instructions step-by-step for
changing the wheel
Fig. 254 Chan ging a wh eel : ali gnment p in inside the
t op hole
After you have loosened all wheel bolts and
raised the vehicle off the ground, remove and
replace the wheel as follows :
Removing the wheel
.. Remove the topmost wheel bolt comple tely
and set it aside on a
clean surface .
.. Screw the threaded end of the
alignment
pin from the tool kit hand-tight into the
empty bolt hole
~ fig . 254.
.. Then remove the other wheel bolts as de­
scribed above.
.. Take off the wheel leaving the alignment
pin in the bolt hole
~ 0.
Putting on the inflatable spare tire
.. Inflate the inflatable spare tire~ page 297
and push the wheel over the alignment pin.
.,. Screw in and tighten all wheel bolts
slight­
ly.
.. Remove the alignment pin and insert and
tighten the remaining wheel bolt slightly
like the rest .
.. Turn the jack handle counter-clockwise to
lower the vehicle until the jack is fully re­
leased .
.,. Use the wheel bolt wrench to tighten all
wheel bolts firmly
~page 299 . Tighten
them
crosswise, from one bolt to the (ap­
proximately) opposite one, to keep the
wheel centered.

302 What do I do now?
When removing or installing the wheel,
the rim could hit the brake rotor and dam­
age the rotor. Work carefully and have a
second person help you.
- When mounting tires with
unid irectional
tread design
make sure the tread pat­
tern is pointed the right way
¢ page 302.
-The wheel bolts should be clean and easy
to turn. Check for d irt and corrosion on
the mat ing surfaces of both the wheel
and the hub. Remove all dirt from these
su rfaces before remount ing the wheel.
Tires with unidirectional tread design
Tires with unidirectional tread design must be
mounted with their tread pattern pointed in
the right direction.
Using a spare t ire w ith a tread pattern
int ended fo r use in a specific direct ion
When us ing a spa re tire w ith a t read patte rn
i n te nded for use in a specific direction, p lease
note the fo llowing:
- The direction of rotation is marked by an ar­
row on the side of the tire .
- If the spare tire has to be installed in the in­
correct d irection, use the spare tire only
temporarily since the t ire will not be able to
a chieve its optimum perfo rma nce character­
ist ics w ith reg ard to aquapl ani ng, noise and
wea r.
- We recommend tha t you pay pa rticular at ­
tent ion to this fact du ring wet weather and
that you adjust your speed to ma tch road
con ditions.
- Replace the fla t tire w ith a new one and
have it installed on your veh icle as soon as
poss ible to restore the handling advantages
of a unid irect iona l tire.
Notes on wheel changing
Please read t he i nfo rmat ion Q page 285, New
tires and replacing tires and wheels
if yo u are
go ing to use a spa re tire which is different
from the tires on yo ur vehicle.
After you change a tire:
- Check the tire pressure on the spar e imm e­
diately after installation .
- Ha ve the wheel bolt tightening torque
ch ecked with a torque wr ench as soon a s
po ssible by your authorized Audi deal er or
a qua lifi ed workshop.
- With steel and alloy wheel rim s, the wheel
bolt s are corre ctly tightened at a torque of
120 ft lb (160 Nm) .
- If you notice that the wheel bolts ar e cor ­
roded and difficult to turn while changing
a tire, they should be repla ced before y ou
c heck the tightening torque .
- Re pla ce the flat tire wi th a new on e and
have it in stalled on y our vehi cle a s soon a s
po ssible. Remount the wheel cover.
Until th en , dr ive with extra car e and at re­
duc ed speed s.
&_ WARNING
-
- If you a re going to eq uip you r vehi cle
with tires or rims which differ from those
which were factory installed, then be
sure to read the information
Q page 285,
New tires and replacing tires and
wheels.
- Always make s ure the damaged wheel o r
even a flat tire and the jack and tool kit
are property secured in the luggage com­
partment and are not loose in the pas­
senger compartment .
- In an accident or sudden maneuver they
could fly forwa rd, injuring anyone in the
ve hicle.
- Always store damaged wheel, jack and
too ls securely in the luggage compa rt­
ment. Othe rwise, in a n accident o r sud­
den maneuve r they could f ly forwa rd,
causing inj ury to passengers in the ve hi­
cle.

Fuses and bulbs
Electrical fuses
Replacing fuses
Fuses that have blown will have metal strips
that have burned through.
Fig. 255 Left cockpit: fuse panel cove r
•
•
Fig. 256 Right lu ggage compa rtment: side tr im
The fuses are located at the front left and
right of the cockpit and behind the trim on
the right side of the luggage compartment.
.. Turn off the ignit ion and the affected elec-
trical consumers.
11 You can dis pose of the pla st ic d ip afte r remov ing it.
Fuses and bulbs 303
.. Check the following table to see which fuse
be longs to the consumer.
.. Remove the appropr iate cover .
.. To remove the purp le plastic clip if necessa­
ry
1> , hold onto it at the small side and pull
it out of the fuse panel
9 page 304,
fig.
257 .
.. Remove the clamp from the rear side of the
fuse cover
9fig . 255 .
.. Remove the f use using the clamp and re­
place the b lown fuse with an ident ica l new
one.
A WARNING
--
Do not repair fuses and never replace a

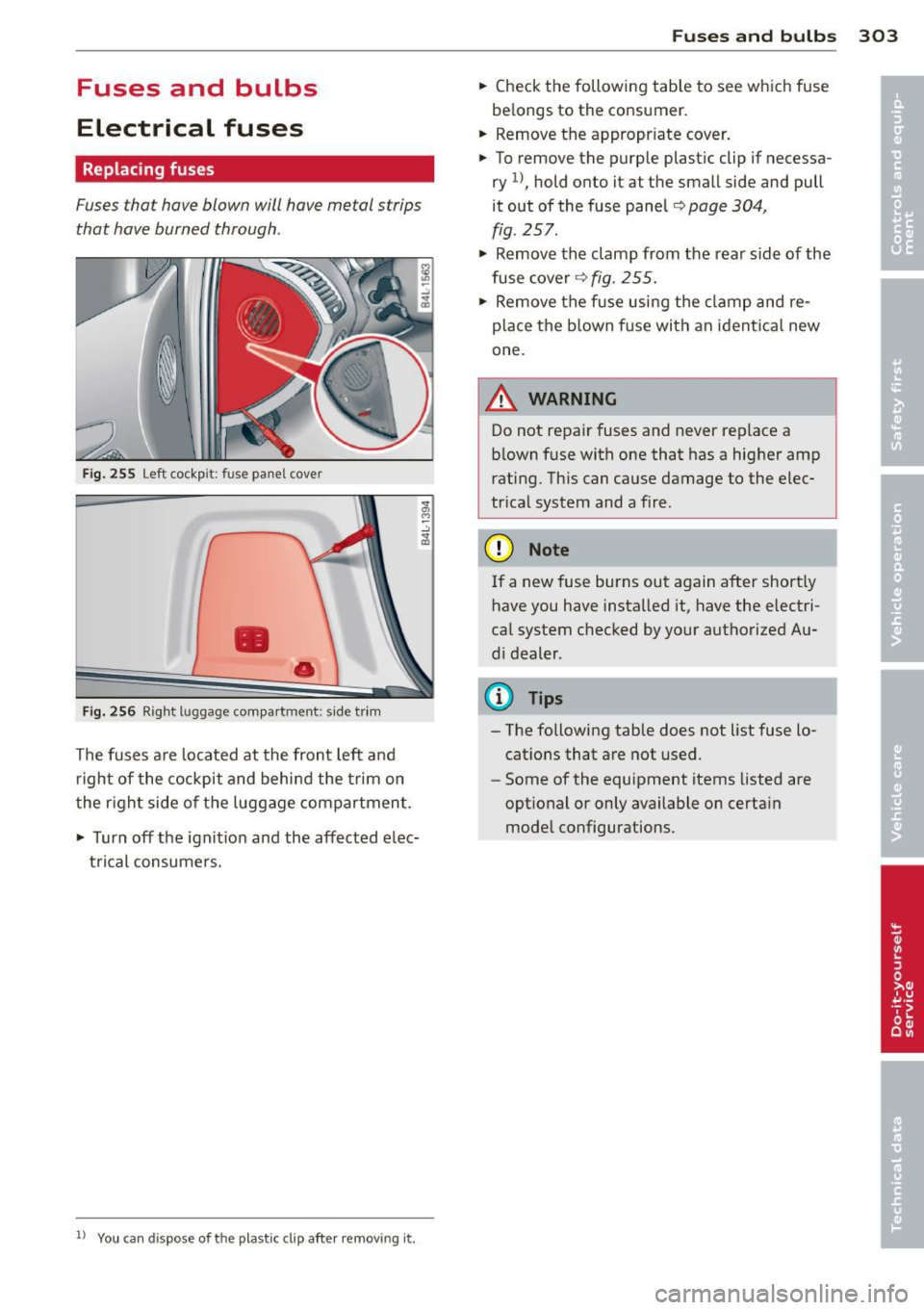

blown fuse with one that has a higher amp
rating. This can cause damage to the elec­
tr ica l system and a fire.
(D Note
If a new fuse burns out again after short ly
have you have installed it, have the electri­
cal system checked by your authorized Au­
di dealer .
{!) Tips
-The following table does not list fuse lo­
cat ions that are not used.
- Some of the equipment items listed are
opt ional or only available on certain
mode l configurations .

304 Fuses and bulb s
.

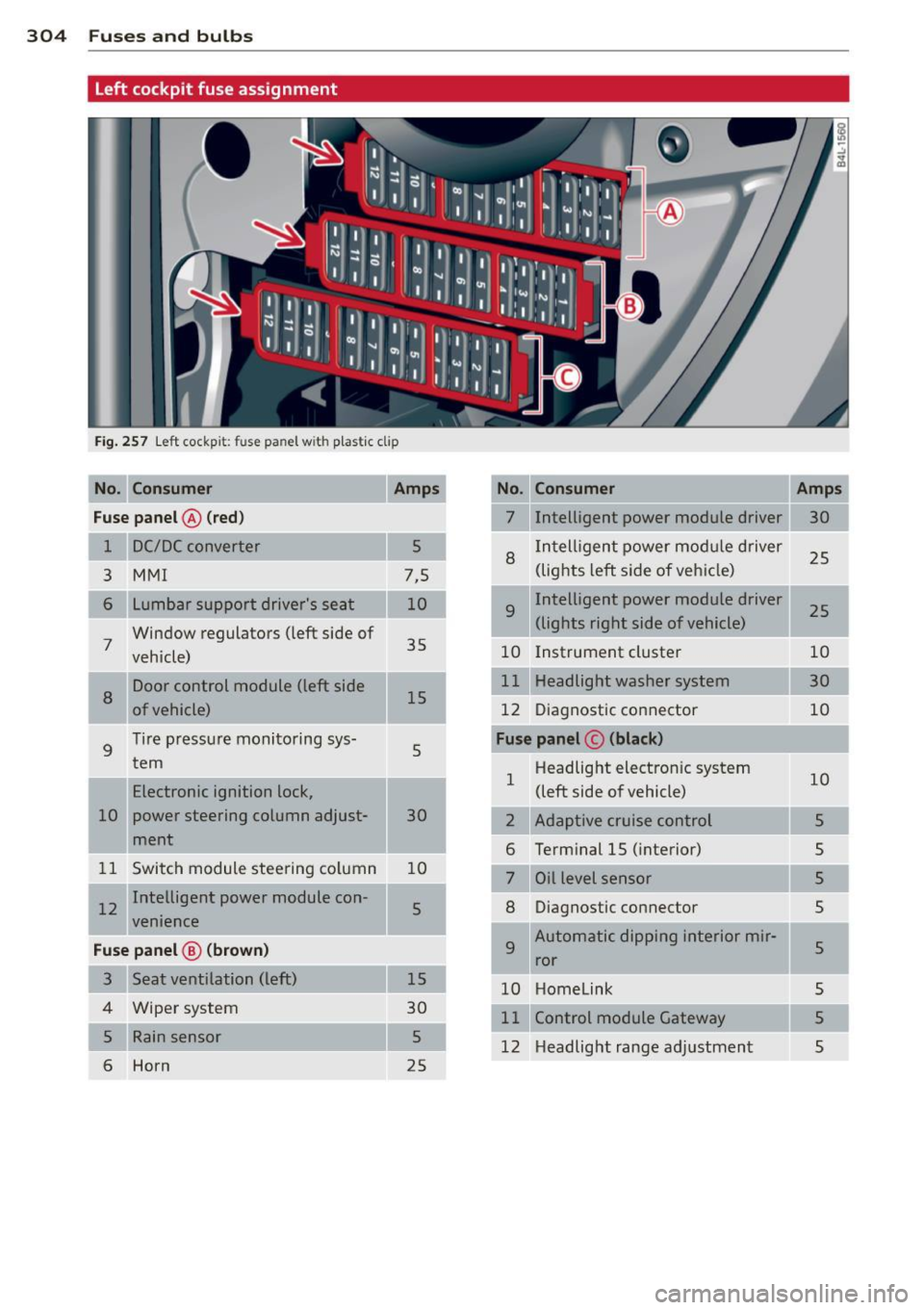

Left cockpit fuse assignment
Fig. 257 Left cockpi t: fu se pa nel w ith plas tic cl ip
Fu se pa nel @ (red )
1
3 MMI
6
7
8
9 Lumbar support driver's seat
Window regulators (left side of
vehicle) Door control module (left side
of vehicle)
Tire pressure monitoring sys­
tem Electronic ignition lock,
10 power steering column adjust-
I ment
11 Switch module steering co lumn
Intelligent power module con­
venience
F u se pa nel @ (b ro wn)
3
6 Horn
5
7,5
35
15
5
30
10
5
5
25
No .
7
8
9
Consumer
Intelligent power module driver
I ntell igent power mod ule driver
(lights left side of vehicle)
Intelligent power module driver (lights right side of vehicle)
10 Instrument cluster
11 Headlight washer system
12 Diagnostic connector
Fuse pane l c (black )
1 Headlight electron
ic system
(left side of vehicle)
Adaptive cruise control
Terminal 15 (interior)
Diagnostic connector
9 Automatic dipping interior mir-
ror
10 Homelink
11 Control module Gateway
12 Headlight range adjustment
-Amps
30
25
25
10
30
10
10
5
5
5 5
5
5

Fuse s and bulb s 305
Right cockpit fuse assignment
Fig . 258 Right cockp it: f use pane l w ith plastic clip
No. Con sumer Amps No. Consumer Amps
Fu se pa nel@ (bla ck )
6 Automatic transmission
5/20
1 Heated rear seats
7
E lectronic Stability Control
5
2 Telephone, cell phone package (ESC)
--Shift gate automatic transmis-
Front seat hating/seat ventila-
8 5
3 30/15
tion (right) sion
Electron ic Stab ility Control 9 Parking system
5
4 (ESC) 20
10 Airbag
5
5 Door control module (right side
15 11
Heated rear seats
5
of vehicle) 12 Air-conditioning 5
6 Rear electrical outlets 25 Fuse panel© (red )
7
Lumbar support passenger's
10 1 Instrument cluster
seat 2 Rearview camera
8 Ciga
rette lighter front 20
3 CD player, DVD drive 5
9 Front electrical outlets
25 4 MMI Display 5
10 A/C controls 10
5 Automatic transmission
11 Cooler
15 Panoramic sliding sunroof seg-
7 20
12 Inte
lligent power module pas-
15 ment 1
senger Panoramic sliding sunroof seg-
Fuse panel B (brown ) 8 ment2 20
1 Headlight e
lectronic system
10 Panoramic sliding sunroof sun-
9 20
(right side of veh icle)
blind
Ride height adjustment 5
Window regulators (right side
Telephone package 5 11
of vehicle) 35
4 12 Rear air-condi
tioning contro ls 10
5 Electronic
Stability Cont rol
5
(ESC)

306 Fuses and bulbs

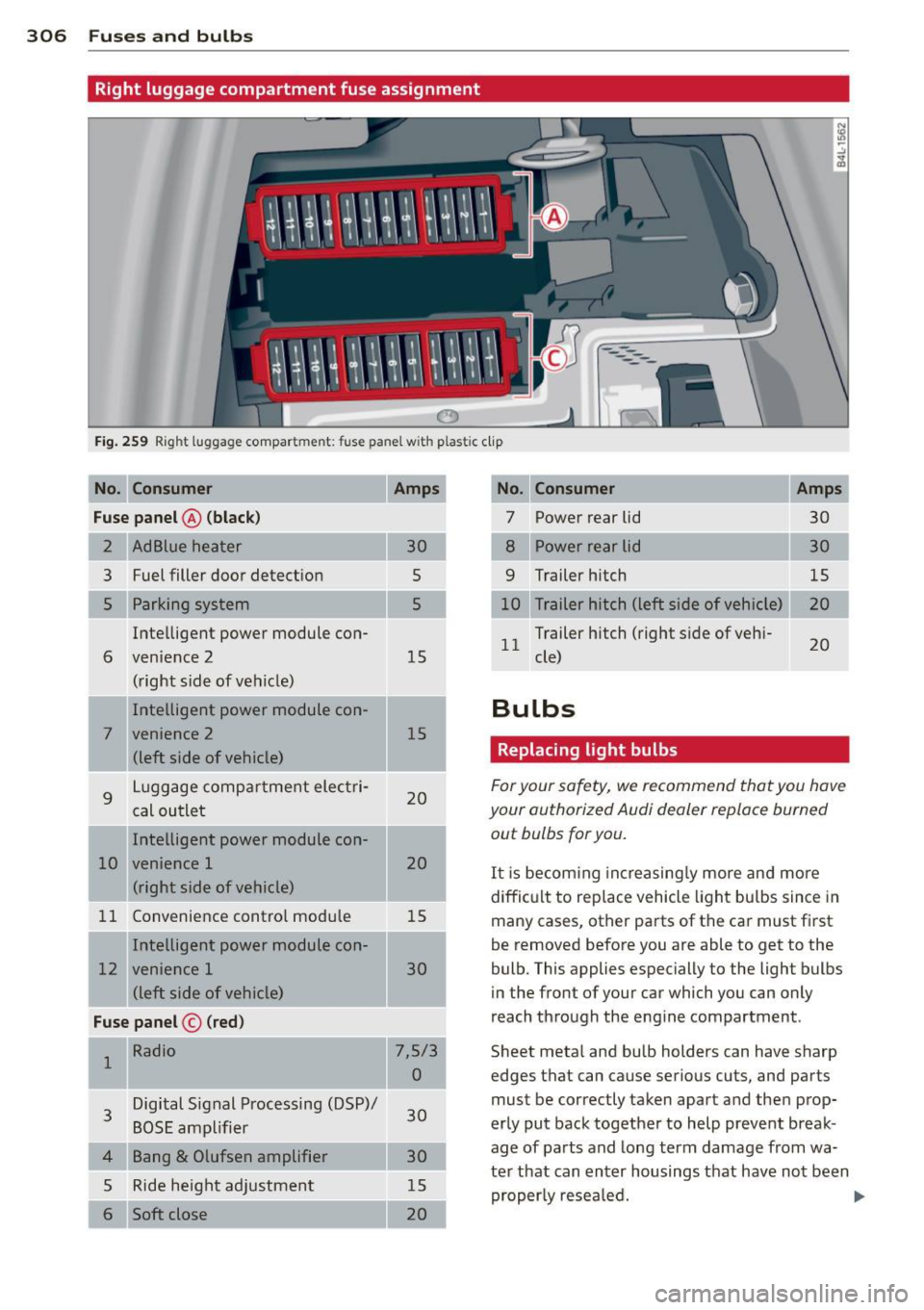

Right luggage compartment fuse assignment
0
Fig. 259 Rig ht luggage compartment: fuse panel with plastic clip
Fu se pa nel @ (bla ck )
2
3 Fuel filler door detection
5 Parking system Inte lligent power module con-
6 venience 2
(right side of vehicle)
~
Intelligent power module con-
7 venience 2
(left side of vehicle)
9
L uggage compa rtment electri-
cal outlet
I Intelligent power module con-
10 venience 1 (right side of vehicle)
1 1 Convenience contro l mod ule
In telligent power module con-
12
venience 1
(left side of vehicle)
-Fuse panel © (red)
1 Radio
3 Digital Signal Processing (DSP)/
BOSE amplifier
4 Bang & Olufsen amplifier
s Ride height ad justment
6 Soft close 30
5
15
15
20
20 1 5
30
7,5/3 0
30
30 1 5
20
No . Consumer
7 Power rear lid
8 Power rear lid
9 Trailer hitch
15
10 Trailer hitch (left side of vehicle)
1 1 T
railer hitch (right side of veh i-
20
de)
Bulbs
Replacing light bulbs
For your safe ty, we recommend that you hove
your authorized Audi dealer replace burned
out bulbs for you.
It i s becom ing increasing ly more and mo re
diffic ult to replace vehicle ligh t bu lbs since in
many cases, other parts of the car must fir st
be removed befo re you are able to get to the
bulb. This applies especially to the light bulbs
in the front of your car which you can only
r each th rough the engine compartment .
Sheet meta l and bu lb holders can have sharp
edges that can cause serious cuts, and parts
must be correctly taken apart and then prop­
erly put back together to help prevent break ­
age of pa rts and long term damage from wa­
te r that can enter housings that have not been
properly re sea led. ..,.

For your safety, we recommend that you have
your authorized Audi dealer replace any bulbs for you, s ince your dealer has the proper tools,
the correct bu lbs and the expertise.
G as discharg e lamps (Xenon li ght s)*:
Due to the high elect rical voltage, have the
bu lbs rep laced by a qualified technician.
H eadlights with Xenon light can be identified
by the high voltage sticker .
~ WARNING
Contact with high-voltage components of
the electrical system and improper re­
placement of gas discharge (Xenon) head­
light bulbs can cause serious personal in­
jury and death .
- Xenon bulbs are pressurized and can ex­
plode when be ing changed.
- Chang ing Xenon lamps requires the spe­
c ial train ing, instructions and equip­
ment.
- Only an authorized Aud i dea ler or other
qualified workshop should change the
bulbs in gas discharge lamps.
A WARNING
There are parts with sharp edges on the
openings and on the bulb holde rs that can
cause se rious cuts.
- If you are uncertain about what to do,
have the work performed by an author­
ized Audi dea le r or other qua lified work­
shop. Serious persona l injury m ay result
from improperly performed work .
@ Tips
-If you must rep lace the light bu lbs your­
se lf, always remembe r that the engine
compartmen t of any vehicle is a hazard­
ous area to work in . Always read and
heed all WARNINGS
~ page 248, Engine
comportment ¢.& .
-It is best to ask your authorized A udi
dealer whenever you need to change a
bulb.
Fu ses and bulb s 307
•
•

308 Emergency situations
Emergency situations
General
This chapter is intended for trained emer­
gency crews and working personnel who
have the necessary tools and equipment to perform these operations.
Starting by pushing or
towing
Q;) Note
Your vehicle is equipped with an automatic
transmission. Consequently, the engine
cannot be started by pushing or towing.
Starting with jumper
cables
If necessary, the engine can be started by
connecting it to the battery of another vehi­
cle.
If the engine should fail to start because of a
discharged or weak battery, the battery can be
connected to the battery of
another vehicle,
using a
pair of jumper cables to start the en­
gine .
Jumper cables
Use only jumper cables of sufficiently large
cross section to carry the starter current safe­
ly. Refer to the manufacturer's specifications.
Use only jumper cables with
insulated termi­
nal clamps which are distinctly marked:
plus(+) cable in most cases colored red
minus(-) cable
in most cases colored black .
A WARNING
Batteries contain electricity, acid, and gas.
Any of these can cause very serious or fatal
injury. Follow the instructions below for
safe handling of your vehicle's battery.
- Always shield your eyes and avoid lean­
ing over the battery whenever possible. -
A discharged battery can freeze at tem­
peratures just below 32 °F (0 °C). Before
connecting a jumper cable, you must
thaw the frozen battery completely, oth­
erwise it could explode.
- Do not allow battery acid to contact eyes
or skin . Flush any contacted area with
water immediately .
- Improper use of a booster battery to
start a vehicle may cause an explosion.
- Vehicle batteries generate explosive gas­
es . Keep sparks, flame and lighted ciga­
rettes away from batteries.
- Do not try to jump start any vehicle with
a low acid level in the battery .
- The voltage of the booster battery must
also have a 12-Volt rating. The capacity
(Ah) of the booster battery should not be
lower than that of the discharged bat­
tery . Use of batteries of different voltage
or substantially different "Ah" rating
may cause an explosion and personal in­
jury.
- Never charge a frozen battery. Gas trap­
ped in the ice may cause an explosion.
- Never charge or use a battery that has
been frozen. The battery case may have
be weakened.
- Use of batteries of different voltage or
substantially different capacity (Ah) rat­
ing may cause an explosion and injury.
The capacity (Ah) of the booster battery
should not be lower than that of the dis­
charged battery.
- Before you check anything in the engine
compartment, always read and heed all
WARNINGS¢
page 248, Engine com­
partment.
@ Note
- Applying a higher voltage booster bat­
tery will cause expensive damage to sen­
sitive electronic components, such as
control units, relays, radio, etc.
- There must be no electrical contact be­
tween the vehicles as otherwise current
could already start to flow as soon as the
positive(+) terminals are connected. ..,.
