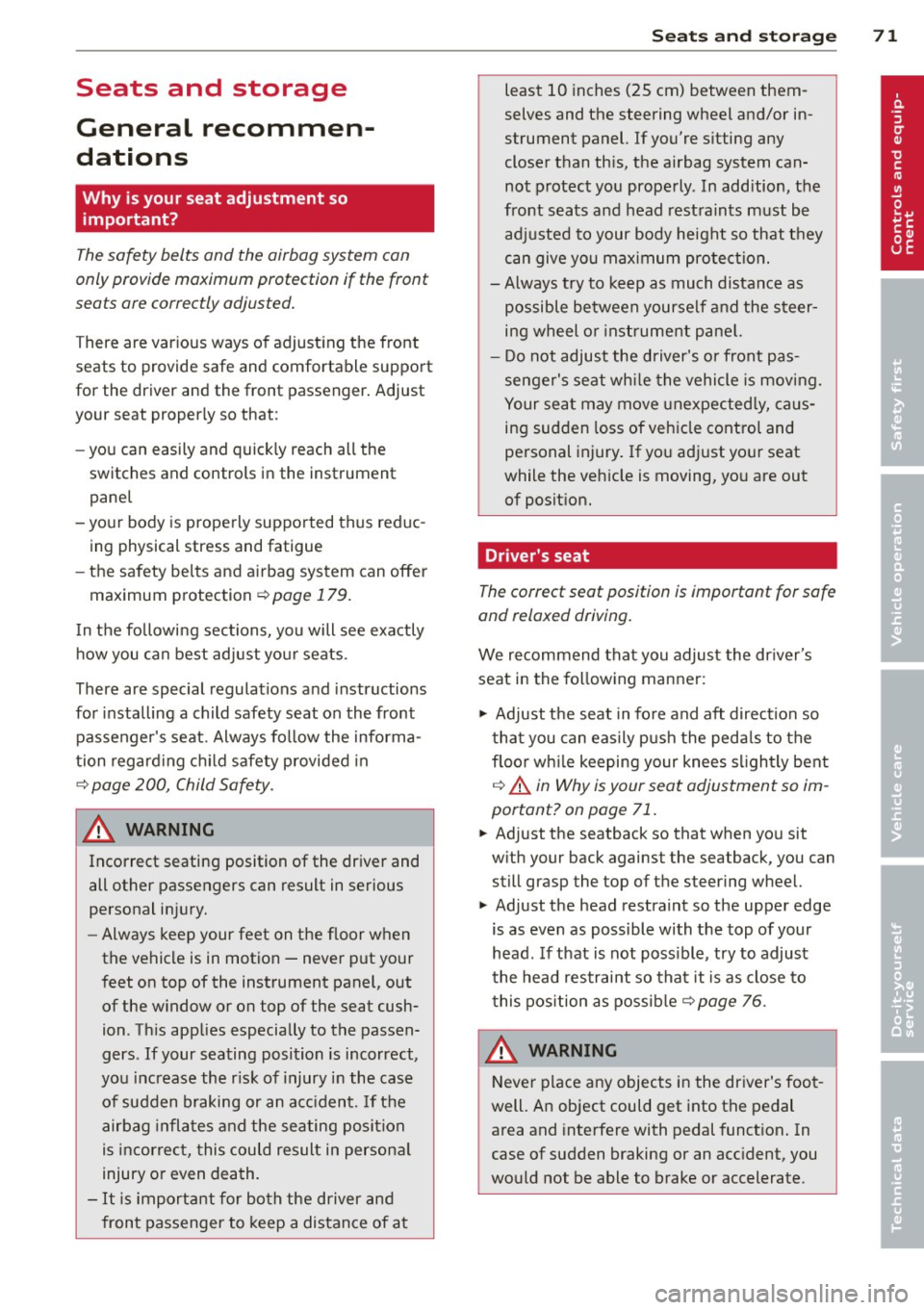

Seats and storage
General recommen­
dations
Why is your seat adjustment so important?
The safety belts and the airbag system can
only provide maximum protection if the front
seats are correctly adjusted.
There are various ways of adjusting the front
seats to provide safe and comfortable support
for the driver and the front passenger. Adjust
your seat properly so that :
- you can easily and quick ly reach all the
switches and controls in the instrument
panel
- your body is properly supported thus reduc­ ing physical stress and fatigue
- the safety belts and airbag system can offe r
maximum protection
¢ page 179.
In the following sections, you will see exactly
how you can best adjust your seats .
There are special regulations and instructions
for installing a child safety seat on the front passenger's seat. Always follow the informa­
tion regard ing child safety provided in
¢ page 200, Child Safety.
A WARNING
Incorrect seating position of the driver and
all other passengers can result in serious
personal injury.
- Always keep your feet on the f loor when
the vehicle is in motion -never p ut your
feet on top of the instrument panel, out
of the w indow or on top of the seat cush­
ion. Th is applies especially to the passen­
gers . If your seating position is incorrect,
you increase the r isk of injury in the case
of sudden braking or an acc ident. If the
airbag inflates and the seating position
is incorrect, this could result in persona l
injury or even death.
- It is important for bo th the driver and
front passenger to keep a distance of a t
Seat s an d sto rage 71
least 10 inches (25 cm) between them­
selves and the steering wheel and/or in­
strument panel. If you're s itting any
closer than th is, the airbag system can­
not protect you properly. In addition, the
front seats and head restraints must be
adjusted to your body height so that t hey
can give you maximum protect ion.
- Always try to keep as much distance as
possible between yourself and the s teer­
ing wheel o r instrument pane l.
- Do not adjust the driver's or front pas­
senger's seat whi le the vehicle is moving.
Your sea t may move unexpected ly, caus­
ing sudden loss of vehicle cont rol and
personal injury . If you adjust yo ur seat
while the veh icle is moving, yo u are out
of posit ion.
Driver's seat
The correct seat position is important for safe
and relaxed driving.
We recommend that you adjus t the dr iver's
seat in the fo llowing manner:
.,. Adjust t he seat in fore and aft direction so
that you can easily push the peda ls to the
floor wh ile keeping your knees s lightly bent
i:::> A in Why is your seat adjustment so im­
portant? on page 71.
.,. Adjust the seatback so that when you sit
w ith your back against the seatback, you can
still grasp the top of the steering wheel.
.,. Adjust the head restraint so the upper edge
is as even as possible with the top of your head . If that is not poss ible , try to adjust
the head res traint so that it is as close to
this pos ition as possib le
i:::> page 76.
A WARNING
Never place any objects in the dr iver's foot­
well. An object could get into the pedal
area and interfere with pedal funct ion . In
case of sudden braking or an acc ident, you
wo uld not be able to brake or accelerate.

7 2 Seats and storage

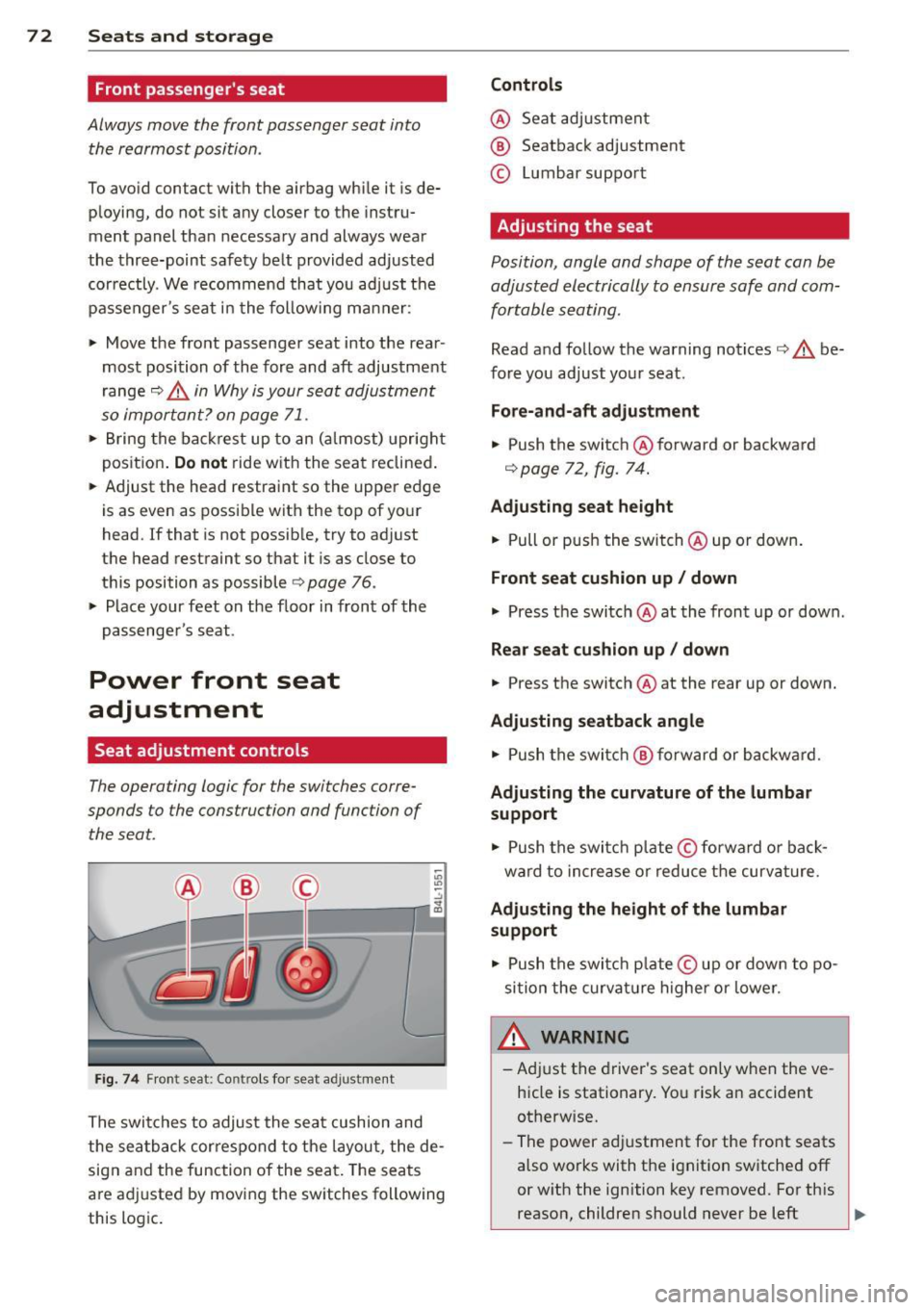

Front passenger's seat
Always move the front passenger seat into
the rearmost position .
To avoid contact with the airbag while it is de­
ploying, do not sit any closer to the instru­
ment panel than necessa ry and always wear
the three-point safety belt provided adjusted correctly . We recommend that you adjust the
passenger's seat i n the fol low ing ma nner:
• Move the front passenger seat into the rea r­
most position of the fore and aft adjustment
r ange
¢ A in Why is your seat adjustment
so important? on page 71.
• Bring the backrest up to an ( almost) uprigh t
pos it ion .
Do not ride w it h the seat reclined .
• Adjust the head restraint so the upper edge
is as even as possible with the top of your
head . If that is not possible, try to adjust
the head restraint so that it is as close to
t h is position as possible
c:> page 76 .
• Place your feet on the floor in front of the
passenger's seat .
Power front seat
adjustment
Seat adjustment controls
The operating logic for the switches corre­
sponds to the construction and function of
the seat.
"' "' ~ ..,
,.._..---, 1,--~--,4 ;g
F ig . 74 Fron t seat : Co ntr ols for seat a djustment
The swi tches to adjust the sea t cushion and
the sea tback cor respond to the layou t, the de­
sig n and the function of the seat. The seats
a re ad justed by movi ng the sw itches following
this logic .
Controls
@ Seat adjustmen t
® Seatback adjustment
© Lumbar suppo rt
Adjusting the seat
Position, angle and shape of the seat can be
adjusted electrically to ensure safe and
com­
fortable seating .
Read and follow the warning notices c:> A be­
fore you adjust yo ur seat.
Fore-and-aft adjustment
• Push the switch @forward or backward
c:> page 72 , fig. 74.
Adjusting seat height
• Pull or p ush the switch @up o r down .
Front seat cushion up/ down
• Press t he switch @at the front up or down .
Rear seat cu shion up / down
• Press the switch @at the rear up or down.
Adjusting seatback angle
• Push the switc h @ forward or backwa rd.
Ad justing the curvature of the lumbar
support
• Push the switc h plate © forward or bac k­
ward to increase o r reduce t he curvature.
Adjusting the height of the lumbar
support
• Push the switc h plate © up or down to po­
si tion the curva ture higher or lower.
WARNING
-Ad just the driver's seat only when the ve ­
h icle is stationary. Yo u risk an accident
otherwise.
- The power a djustment for the front seats
also works with the ignit ion sw itched off
or w ith the ignition key removed. For th is
reason, children should never be left ..,.

unattended in the vehicle -they could be
injured!
- Exercise caution when adjusting the seat
height. Unsupervised or careless seat ad­
justment can pinch fingers or hands
causing injur ies.
- While the vehicle is moving, the seat­
backs of the front seats must not be in­
clined too far to the rear because the ef­
fectiveness of the safety belts and the
airbag system is severely compromised -
there is a risk of injury.
- To reduce the r isk of injury in the case of
sudden braking or accident, front pas­
sengers must never ride in a moving ve­
hicle wi th the seatback reclined. Safety
belts and the airbag system only offer
maximum protection when the seatback
is upright and the safety be lts are prop­
erly positioned on the body. The more
the seatback is reclined, the greater the
risk of personal injury from an incorrect
seating pos ition and improperly posi­
t ioned safety belts.
Seat memory
Driver's seat memory
Ap plies to vehicles: with seat memo ry
The seat adjustment settings for two drivers
can be stored using the memory buttons in
the driver's door.
F ig. 75 Driver's door : Seat memory
In addition to the setting for the driver's seat,
the settings for the steering column* and
both exterior mirrors can be stored .
Seats and storage 73
Storing and recalling settings
Using the memory buttons 1 and 2, you can
store and recall the settings for two different drivers ¢
fig. 75.
The current settings are also automatical ly as­
s ig ned to the remote control key being used
when the vehicle is locked. When the vehicle
is un locked, the settings assigned to the re­
mote control key being used are automatically
recalled. This function has to be activated in
the M MI ¢
page 7 4, Activating remote con­
trol key memory.
Turning seat memory on and off
If the I ON/O FF I switch is depressed, the seat
memory is inoperative. The word
OFF next to
the
ION/O FF I switch illuminates.
All the stored settings are retained. We rec­
ommend using the
ION/OF F I switch and deac­
tivating the seat memory if the vehicle is only
going to be used
temporarily by a driver
whose settings are not going to be stored.
Storing and recalling a seat position
App lies to vehicles: wit h seat memory
Before you can store or recall your seat pos i­
tion, the
ION /OFF! button must be engaged
(down) .
Storing settings
.,. Adjust the driver's seat¢ page 72 .
.,. Adjust the steer ing column* ,=;, page 103 .
.,. Adjust both outs ide mirro rs ¢ page 68 . In
the tilt-down position, the passenger mirror
can be adjusted to the preferred posit ion
and saved in the seat memory .
.,. Press the
ISETI button and hold it down . At
the same time, press one of the memory
buttons for at least one second .
... Release the buttons. The settings are now
stored under the corresponding memory
button.
Recalling settings
.,. Driver's door open -press the desired mem-
ory b utton.
ll-

76 Seats and storage

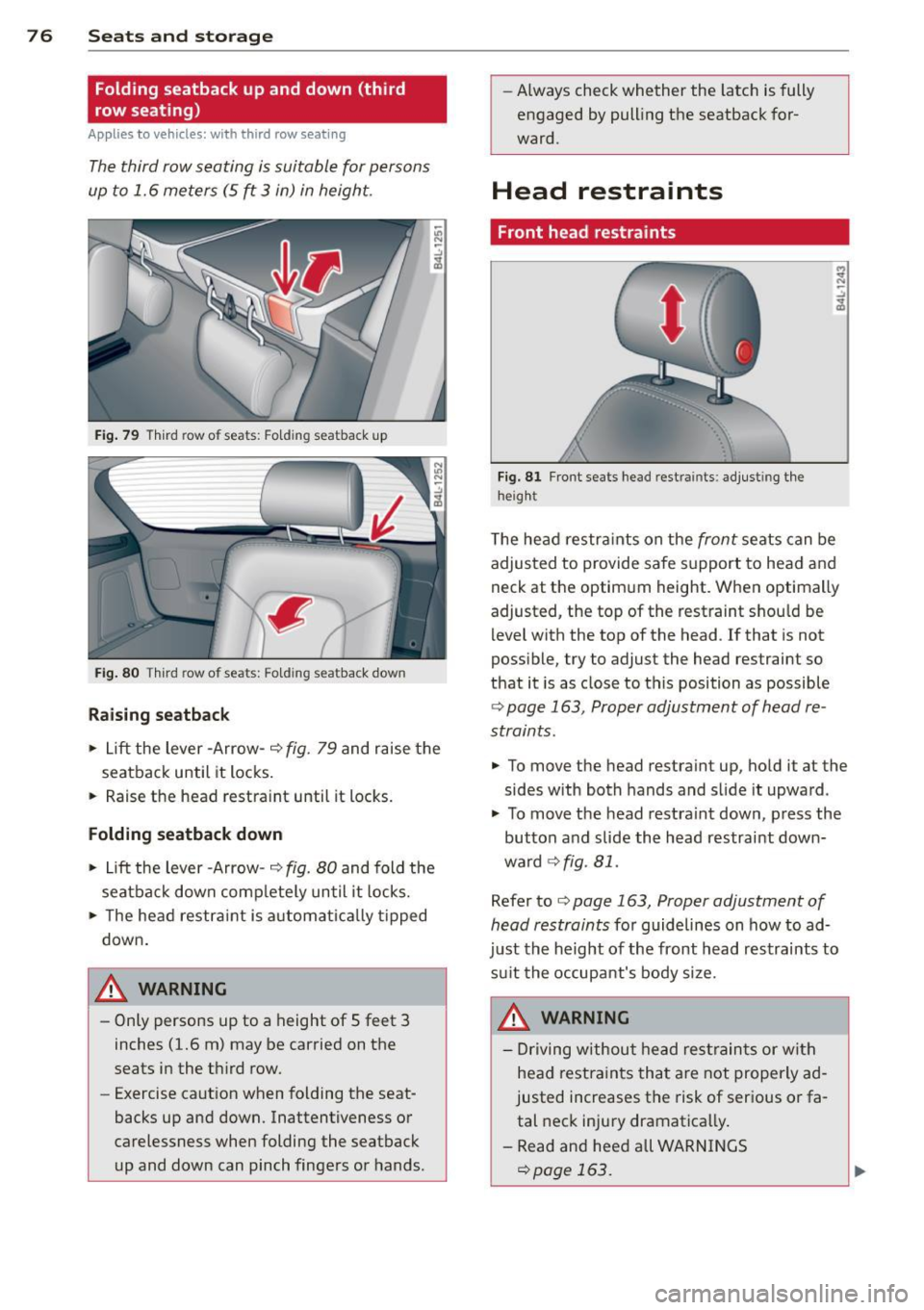

Folding seatback up and down (third
row seating)
Applies to vehicles: with third row seating
The third row s eating i s suitable for p ersons
up to 1.6 meters (5
~ 3 in) in height.
F ig. 79 Thi rd row of seats : F old ing seatba ck up
F ig. 80 T hi rd row of seats: Fold ing seatback dow n
Raising seatback
• Lift the lever -Arrow- ¢ fig. 79 and r aise the
seatback until it loc ks.
• Raise t he head restra int until it locks.
Folding seatback down
• Lift the lever -Arrow- ¢ fig. 80 and fold the
seatba ck down comp lete ly un til it lock s.
• The hea d restra int is a utoma tica lly ti pped
down .
A WARNING
-Only persons up to a height of 5 feet 3
inches (1.6 m) may be carried on the
seats i n the t hird row.
- Exercise caut ion when folding the seat­
backs up and down. Inattentiveness o r
carelessness when folding the seatback
up and down can pinch finge rs or hands . -
Always check whether the latc h is fully
engaged by pull ing the seatback for­
ward.
Head restraints
Front head restraints
Fi g. 81 Front seats head rest rain ts: a djusting the
h eig ht
T he he ad restr aints on the fr ont sea ts can be
adjus ted to provide safe s upport to he ad and
neck at the optim um height . When optimally
adjusted, the top of the rest raint shou ld be
l evel with the top of the head . If that is not
poss ible, try to adjust the head restraint so
that it is as close to t his position as possible
¢ page 163, Proper adjustment of head re ­
s traints .
• To move the head restraint up , hold it at the
sides with both hands and s lide it upward .
• To m ove t he head restra int down, press the
button and slide th e head restraint down­
wa rd ¢
fig . 81.
Refer to ¢ page 163, Proper adjustment of
head restraints
fo r gu idelines on how to ad­
just th e height of the front head r estraints to
s ui t the occupa nt's b ody siz e.
A WARNING
- D riving w ithou t head re str ain ts or wit h
hea d restr aints th at are not pro perly ad ­
justed increases t he risk of ser ious or fa­
tal neck inju ry dramatica lly.
- Read and hee d all W ARNINGS
¢pa ge 163.
-

78 Seats and storage

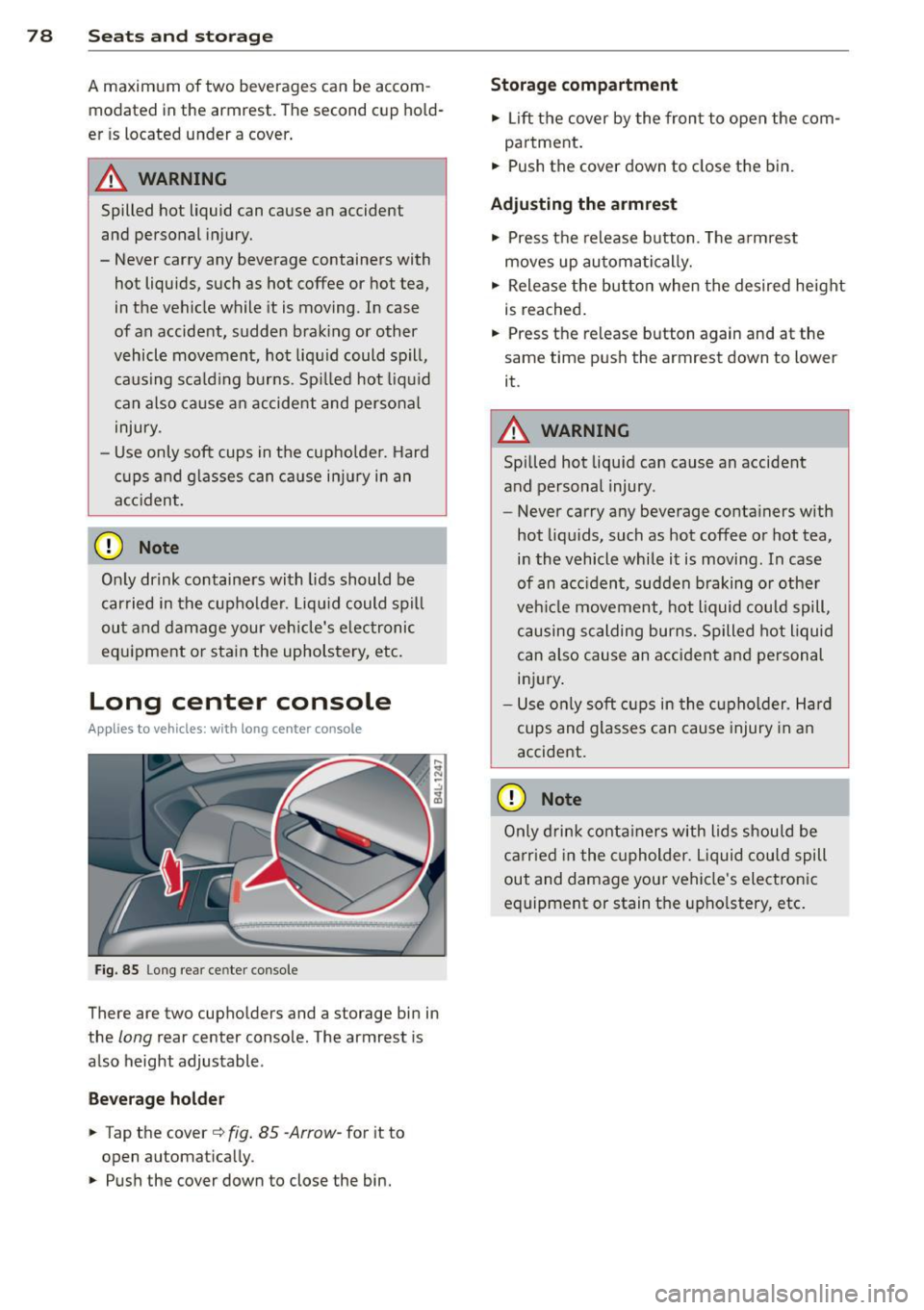

A maximum of two beverages can be accom­modated in the armrest. The second c up ho ld­
er is located under a cover.
.&_ WARNING
Spilled hot liquid can cause an accident
and personal injury.
-
- Never carry any beverage containers with
hot liquids, such as hot coffee or hot tea,
in t he vehicle while it is moving. In case
of an accident, sudden brak ing or other
vehicle movement, hot liqu id could spill,
caus ing sca ld ing bur ns. Sp illed hot liqu id
c an also ca use an accident and perso nal
injury.
- Use only soft cups in the cupholde r. H ard
c u ps and g lasses can ca use in jury in an
acc ident.
CD Note
On ly drink containe rs wi th lids should be
car ried in the cupho lder. Liq uid could spi ll
ou t and damage your veh icle's e lectronic
equ ipment o r sta in the upholstery, etc.
Long center console
App lies to vehicles: with long center console
Fig. 85 Long rear ce nter co nsole
There are two cupho lders and a storage bin in
the
long rear center console. The armrest is
also height adjustable .
Bever age holder
.,. Tap the cover ¢ fig. 85 -Arrow-for it to
open automat ica lly .
.,. Push the cover down to close the bin.
Storage compartment
.,. Lift the cover by the front to open the com-
pa rtment .
.,. Push the cover down to close the bin .
Adjusting the armrest
.,. Press the release button. The a rmrest
moves up automatically.
.,. Release the but ton when the desired height
is reached.
.,. Press the release button again and at the
same time push the armrest down to lower
it .
.&_ WARNING
Spi lled hot liqu id can cause an accident
and personal injury .
- Never carry any beverage conta iners with
hot liquids, such as hot coffee o r hot tea,
in the vehicle while it is moving. In case
of an acc ident, sudden braking o r other
ve hicl e movement, hot l iquid could spill,
causing s calding burns. Spilled hot liquid
can also cause an a ccident a nd personal
inj ury .
- Use on ly soft c ups in the c upholder. Ha rd
cups and glasses can cause injury in an
accident.
CD Note
Only drink conta iners with lids should be
ca rried in the c upholder. Liquid cou ld spill
out and damage you r vehicle's electronic
equipment or stain the upho lstery, etc.

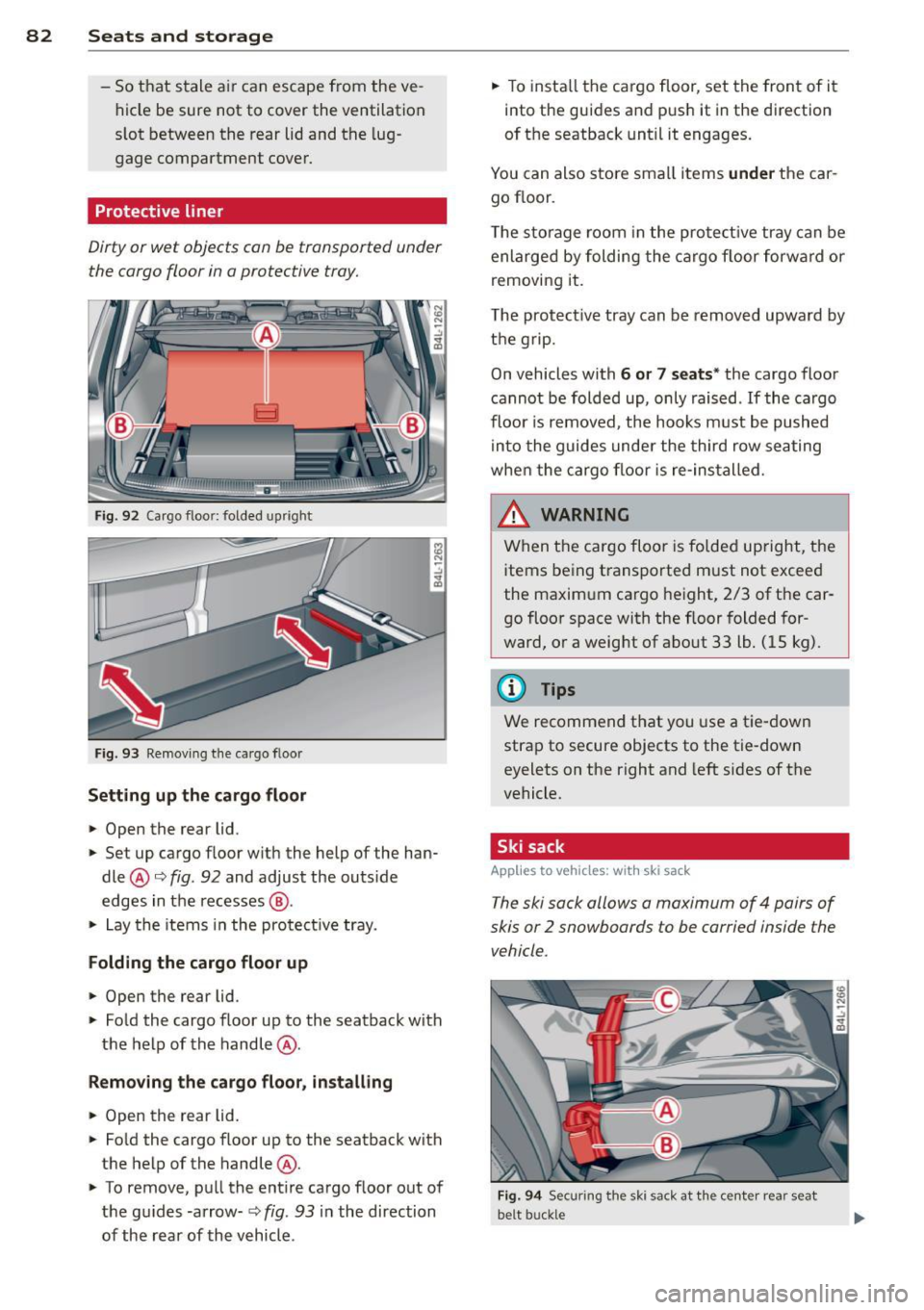

82 Seats and st o rage
- So that stale a ir can escape from the ve­
hicle be sure not to cover the ventilation
s lot between the rear lid and the lug­
gage compartment cover.
Protective liner
Dirty or wet objects con be tronsported under
the cargo floor in a protective tray.
Fig. 92 Cargo floor: folded upright
Fig. 93 Remov ing t he cargo floor
Setting up the ca rg o flo or
• Open the rear lid.
• Set up cargo floor with the help of the han­
dle @¢
fig. 92 and adjust the outs ide
edges in the recesses @.
• Lay the items in the protect ive tray.
Folding the cargo floor up
• Open the rear lid.
• Fold the cargo floor up to the seatback with
the help of the handle @.
Rem oving the c arg o floor , in sta ll ing
• Open the rear lid.
• Fo ld the cargo floor up to the seatback with
the help of the handle @.
• To remove, pull the enti re cargo floor out of
the gu ides -arrow-
Q fig . 93 in the direction
of the rear of the vehicle. •
To insta ll the ca rgo floor, set the front of it
into the guides and pus h it in the direction
of the seatback until it engages.
You can also store sma ll items
und er the car­
go floor.
T he sto rage room in the pro te ct ive tray can be
enlarged by folding the cargo floor forward or
removing it .
T he protect ive tray can be removed upward by
the grip.
On vehicles with
6 or 7 sea ts* the cargo floor
cannot be folded up, only raised. If the ca rgo
floor is removed, the hooks must be pushed
into the guides under the third row seating
whe n the cargo floor is re-installed.
& WARNING
When the cargo floor is folded upright, the
items being transported must not exceed
the maximum cargo height, 2/3 of the car­
go floor space with the floor folded for­
ward, or a weight of about 33 lb. (15 kg).
@ Tips
We recommend that you use a tie-down
strap to secure objects to the tie-down
eyelets on the right and left sides of the
vehicle.
· Ski sack
Applies to vehicles: with ski sack
The ski sack allows a maximum of 4 pairs of
skis or 2 snowboards to be carried inside the
vehicle.
F ig. 9 4 Securing the ski sack at the center rear seat
be lt buckle

84 Seats and storage
can cause the roof rack or the items at­
tached to it to fall off the roof onto the
road.
- Objects falling from the roof of a vehicle
can cause a crash and personal injury.
- Only mount the system between the
markings shown in~
page 84, fig. 95 .
-The roof rack system must be installed
exactly according to the instructions pro­
vided.
(D Note
- Your vehicle warranty does not cover any damages to the vehicle caused by using roof racks or mounting structures not
approved by Audi for your vehicle . The
same applies to damage resulting from incorrect roof rack installation .
- Always check the roof rack mountings
and hardware before each trip and dur­
ing a trip to make sure everything is se ­
curely tightened . If necessary, retighten
the mountings and check the entire sys­
tem from time to time.
- After mounting a roof rack system, or
when you transport objects on the roof
of your vehicle, the height of the vehicle
is naturally increased. Be careful when
driving under low bridges or in parking
garages for example. This could cause
damage to the load and even the vehicle
itself.
Roof rack mounting locations
Roof racks must be installed only at the loca­
tions marked on the roof rails .
i
-
Fig. 95 Roof rails: front and rea r mo unting locatio ns
Mount the front and rear cross bars between
the punched markings on the inside of the
roof railings ~
fig. 95. The markings are locat­
ed on the inside of the railings.
Loading the roof rack
Always distribute loads evenly. Make sure
anything on the roof rack is securely tied
down.
.,. Always distribute the loads on the roof rack
evenly .
.,. Always attach items to the roof rack secure -
ly before you drive off .
The max imum permissible roof weight is
220
lb (100 kg).
The roof weight is made up of
the weight of the roof rack system and the
weight of the object being transported .
When using a roof rack system wh ich has a
lower load carrying capacity, you must not use
up the total maximum permissible load carry­
ing capacity specified above. Instead, you
should load the roof rack system only to the maximum capacity specified by the manufac­
turer of the roof rack system .
.&_ WARNING
Weak, damaged or improper straps used
to secure items to the roof rack can fail
during hard braking or in a collision and
cause serious personal injury.
- Make sure the roof rack is installed exact­
ly as specified above~
page 84.
-Always use suitable mounting straps for
securing items to the roof rack to help
prevent items from shifting or flying for­
ward .
- Items on the roof rack must always be
securely mounted.
- The use of a roof rack can negatively af­
fect the way a vehicle handles. Cargo that is large, heavy, bulky , long or flat
will have a greater negative influence on the vehicle's aerodynamics, center of
gravity and overall handling. Always
drive slowly, avoid sudden braking and .,,.

On the road
Steering
Manually adjustable steering wheel
Applies to vehicles: with manu ally adjustable steering
w hee l
The height and reach of the steering wheel
can be adjusted.
Fig. 117 Lever under the steer ing column
First, adjust the driver's seat correctly .
.. Pull the lever
c:>fig . 117-Arrow-c:> ,A .
.. Move the steering wheel to the desired po­
sition.
.. Push the lever against the steering column
unt il it locks.
There must be at least 10 inches (25 cm) be­
tween your chest and the center of the steer­
ing wheel.
If you cannot sit more than 10 in­
ches (25 cm) from the steering wheel, see if
adapt ive equipment is available to help you
reach the pedals and increase the distance
from the steering wheel.
For detailed information on how to adjust the
driver's seat, see
c:> page 72.
& WARNING
Improper use of steering wheel adjust­
meht and improper seating position can
cause serious personal injury.
- Adjust the steering wheel column only
when the veh icle is not moving to pre­
vent loss of vehicle control.
-
-Adjust the driver's seat or steering wheel
so that there is a minimum of 10 inches
(25 cm) between your chest and the
steering wheel
c:> page 161, fig. 182. If
On the road 103
you cannot maintain this minimum dis­
tance, the airbag system cannot protect
you properly.
- If physical limitations prevent you from
sitting 10 inches (25 cm) or more from
the steering wheel, check with your au­
thorized Audi dealer to see if adaptive
equipment is available.
- If the steering wheel is aligned with your
face, the supplemental dr iver's a irbag
cannot provide as much protection in an
accident. Always make sure that the
steering wheel is aligned with your
chest.
- Always hold the steer ing wheel w ith your
hands at the 9 o'clock and 3 o'clock posi­
tions to reduce the risk of personal injury
if the driver's airbag dep loys .
- Never hold the steering wheel at the 12
o'clock position or with your hands inside
the steering wheel rim or on the steering
wheel hub. Holding the steering wheel
the wrong way can cause serious injuries
to the hands, arms and head if the driv­
er's airbag deploys.
Electrically adjustable steering wheel
App lies to vehicles: with electrically adjustable steering
w heel
The height and reach of the steering wheel
can be electrically adjusted to suit the driver.
Fig. 118 Switch for stee ring wheel adjustment
First, adjust the driver's seat correctly.
Height adjustment
.. Push the switch @ up or down c:>fig. 118.
The steering wheel height changes for as
long as you press the sw itch. ..,.

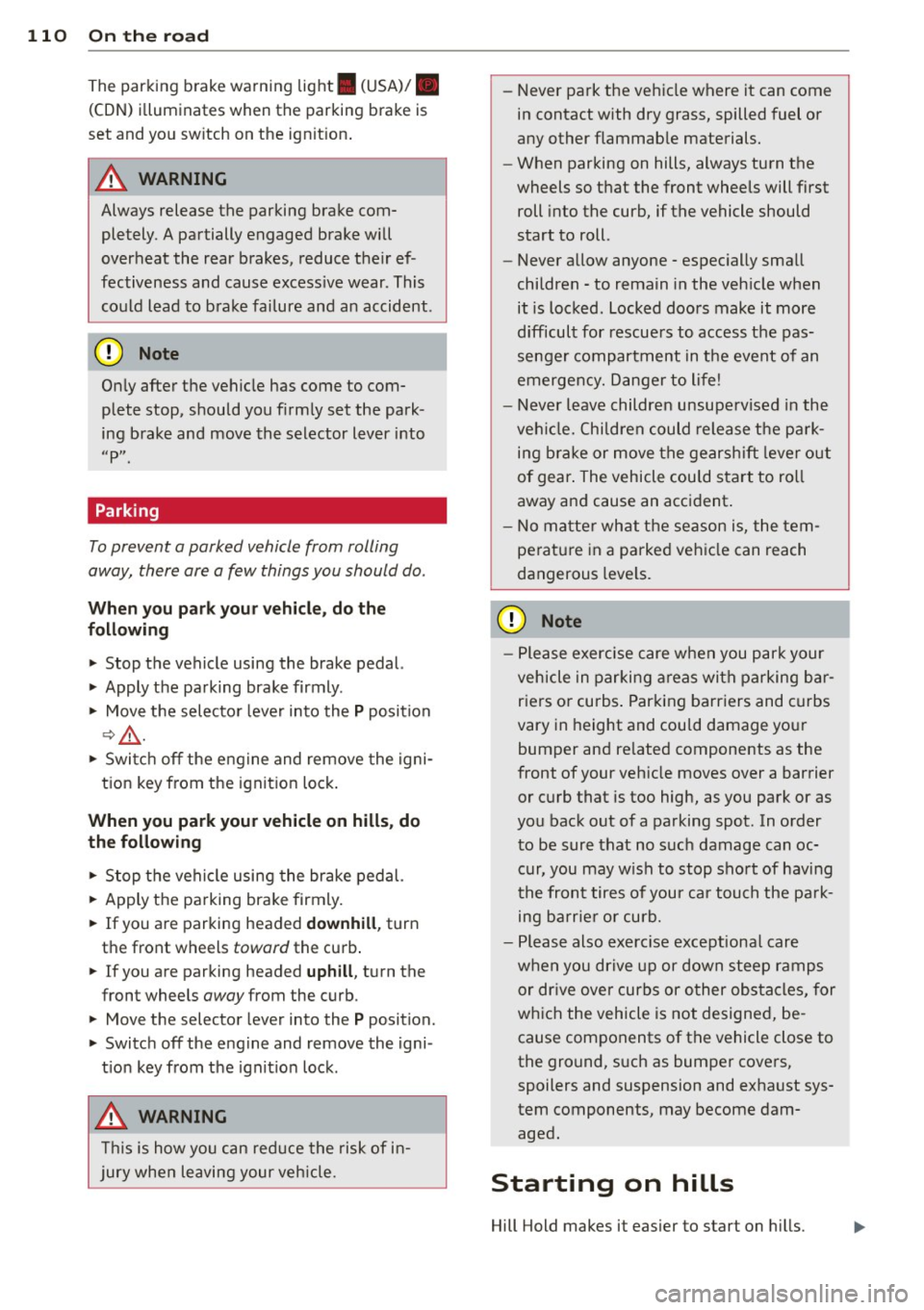

110 On the road
The parking brake warning light. (USA)/ .
(CON) illuminates when the parking brake is
set and you switch on the ignition.
_& WARNING
-
Always release the parking brake com­
pletely. A partially engaged brake will
overheat the rear brakes, reduce their ef­
fectiveness and cause excessive wear. This could lead to brake failure and an accident .
(D Note
Only after the vehicle has come to com­ plete stop, should you firmly set the park­
ing brake and move the selector lever into
"P".
Parking
To prevent a parked vehicle from rolling
away, there are a few things you should do .
When you park your vehicle, do the
following
• Stop the vehicle using the brake pedal.
• Apply the parking brake firmly .
• Move the selector lever into the
P position
~ &.
• Switch off the engine and remove the igni-
tion key from the ignition lock.
When you park your vehicle on hills, do
the following
• Stop the vehicle using the brake pedal.
• Apply the parking brake firmly.
• If you are parking headed downhill, turn
the front wheels
toward the curb.
• If you are parking headed uphill, turn the
front wheels
away from the curb.
• Move the selector lever into the
P position.
• Switch off the engine and remove the igni­
tion key from the ignition lock.
_& WARNING
This is how you can reduce the risk of in­
jury when leaving your vehicle. -
Never park the vehicle where it can come
in contact with dry grass, spilled fuel or
any other flammable materials.
- When parking on hills, always turn the
wheels so that the front wheels will first
roll into the curb, if the vehicle should
start to roll.
- Never allow anyone - especially small
children - to remain in the vehicle when
it is locked. locked doors make it more
difficult for rescuers to access the pas­
senger compartment in the event of an
emergency. Danger to life!
- Never leave children unsupervised in the
vehicle. Children could release the park­
ing brake or move the gearshift lever out
of gear. The vehicle could start to roll
away and cause an accident.
- No matter what the season is, the tem­
perature in a parked vehicle can reach
dangerous levels.
@ Note
-Please exercise care when you park your
vehicle in parking areas with parking bar­
riers or curbs. Parking barriers and curbs
vary in height and could damage your
bumper and related components as the
front of your vehicle moves over a barrier or curb that is too high, as you park or as
you back out of a parking spot. In order to be sure that no such damage can oc­
cur, you may wish to stop short of having
the front tires of your car touch the park­
ing barrier or curb.
- Please also exercise exceptional care
when you drive up or down steep ramps
or drive over curbs or other obstacles, for
which the vehicle is not designed, be­
cause components of the vehicle close to
the ground, such as bumper covers, spoilers and suspension and exhaust sys­
tem components, may become dam­ aged.
Starting on hills
Hill Hold makes it easier to start on hills.

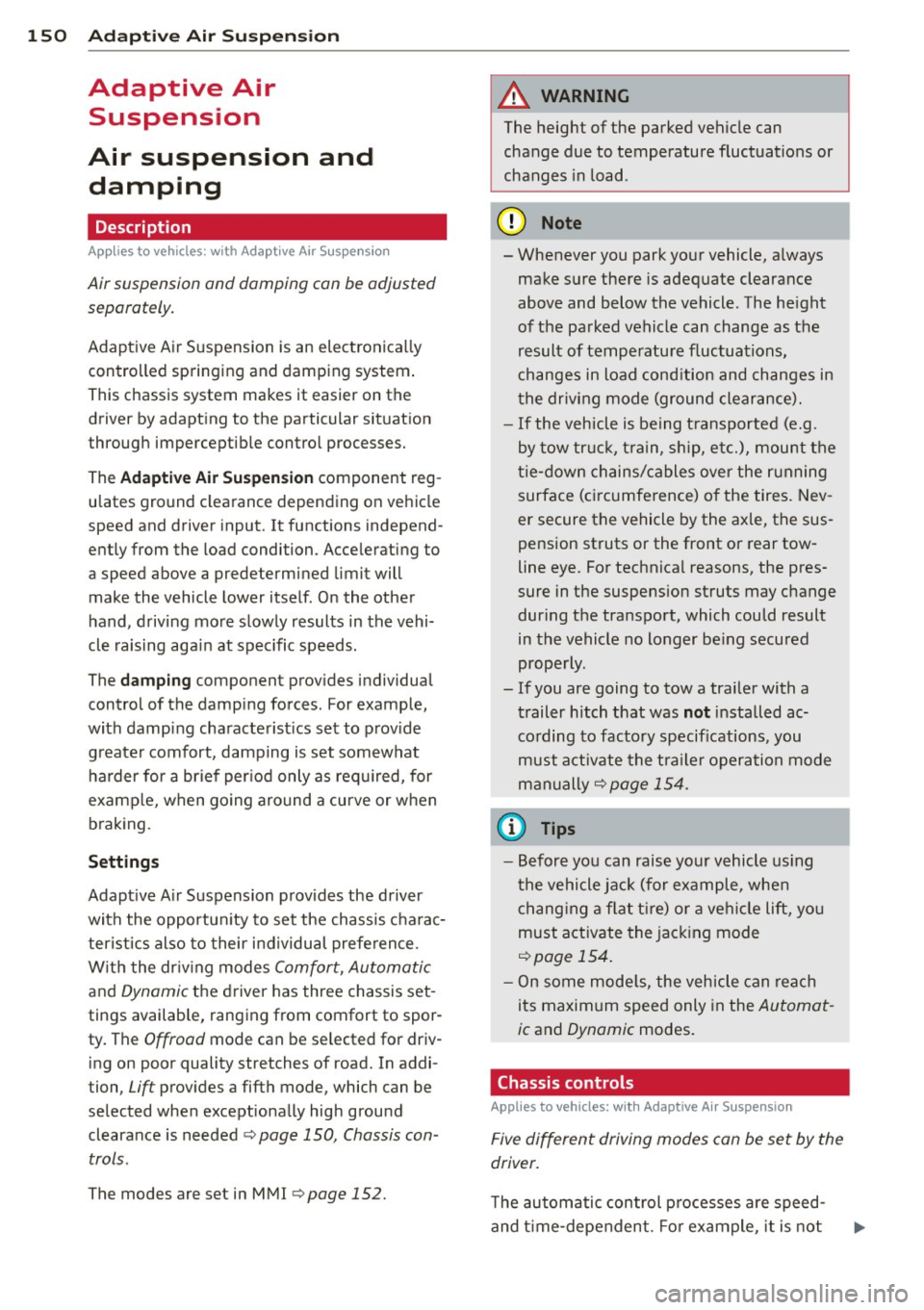

150 Adapti ve Air Susp en sion
Adaptive Air
Suspension
Air suspension and damping
Description
App lies to vehicles: with Adapt ive Air Suspe nsion
Air suspension and damping can be adjusted
separately.
Adaptive Air Suspension is an electronically
controlled springing and damping system .
This chassis system makes it easier on the
driver by adapt ing to the particular situat ion
through imperceptible control processes.
The
Ad apti ve Air Su sp ension component reg ­
ulates ground clearance depending on vehicle
speed and driver input. It functions independ­
ently from the load condition . Accelerating to
a speed above a predetermined limit will make the vehicle lower itself . On the other
hand, driving more slowly results in the vehi­
cle raising aga in at specific speeds.
The
d am ping component provides individual
control of the damping forces. For example,
with damping characterist ics set to prov ide
greater comfort, damping is set somewhat
harder for a brief per iod only as required, for
example, when going around a curve or when brak ing .
Set tings
Adapt ive A ir Suspension provides the driver
with the opportun ity to set the chassis charac­
teristics also to their individual prefe rence.
W ith the dr iv ing modes
Comfort, Automatic
and Dynamic the driver has three chassis set ­
tings available, ranging from comfort to spor­
ty. The
Offrood mode can be selected for driv­
ing on poor quality stretches of road. In addi­
tion,
Lift provides a fifth mode, which can be
selected when exceptionally high ground
clearance is needed
c::> page 150, Chassis con ­
trols.
The modes are set in MMI r:::;, poge 152.
A WARNING
The height of the parked vehicle can
change due to temperature fluctuations or
changes in load.
([) Note
- Whenever you park your vehicle, a lways
make sure there is adequate clearance
above and below the vehicle. The he ight
of the parked vehicle can change as the
result of temperature f luctuations,
changes in load cond ition and changes in
the driving mode (ground clearance).
- If the vehicle is being t ransported (e.g.
by tow truck, train, sh ip, etc.), mount the
tie-down chains/cables over the running
surface (circumference) of the tires. Nev­
er secure the vehicle by the axle, the sus­
pension struts or the front or rear tow­
line eye. For technical reasons, the pres­
sure in the suspens ion struts may change
during the transport, which could result
in the vehicle no longer be ing secured
properly .
- If you are going to tow a trailer with a trailer hitch that was
not installed ac­
cording to factory specif ications, you
must activate the tra iler operation mode
manually
c;, page 154.
(D Tips
- Before you can raise your vehicle us ing
the vehicle jack (for example, when
changing a f lat t ire) or a veh icle lift, yo u
must activate the jac king mode
c::>poge 154.
-On some mode ls, the vehicle can reach
its maxim um speed only in the
Automat ­
ic
and Dynamic modes.
Chassis controls
Applies to vehicles: wit h Adaptive A ir Suspensio n
Five different driving modes con be set by the
driver.
The automatic control processes are speed­
and t ime -dependent . Fo r example, it is not
