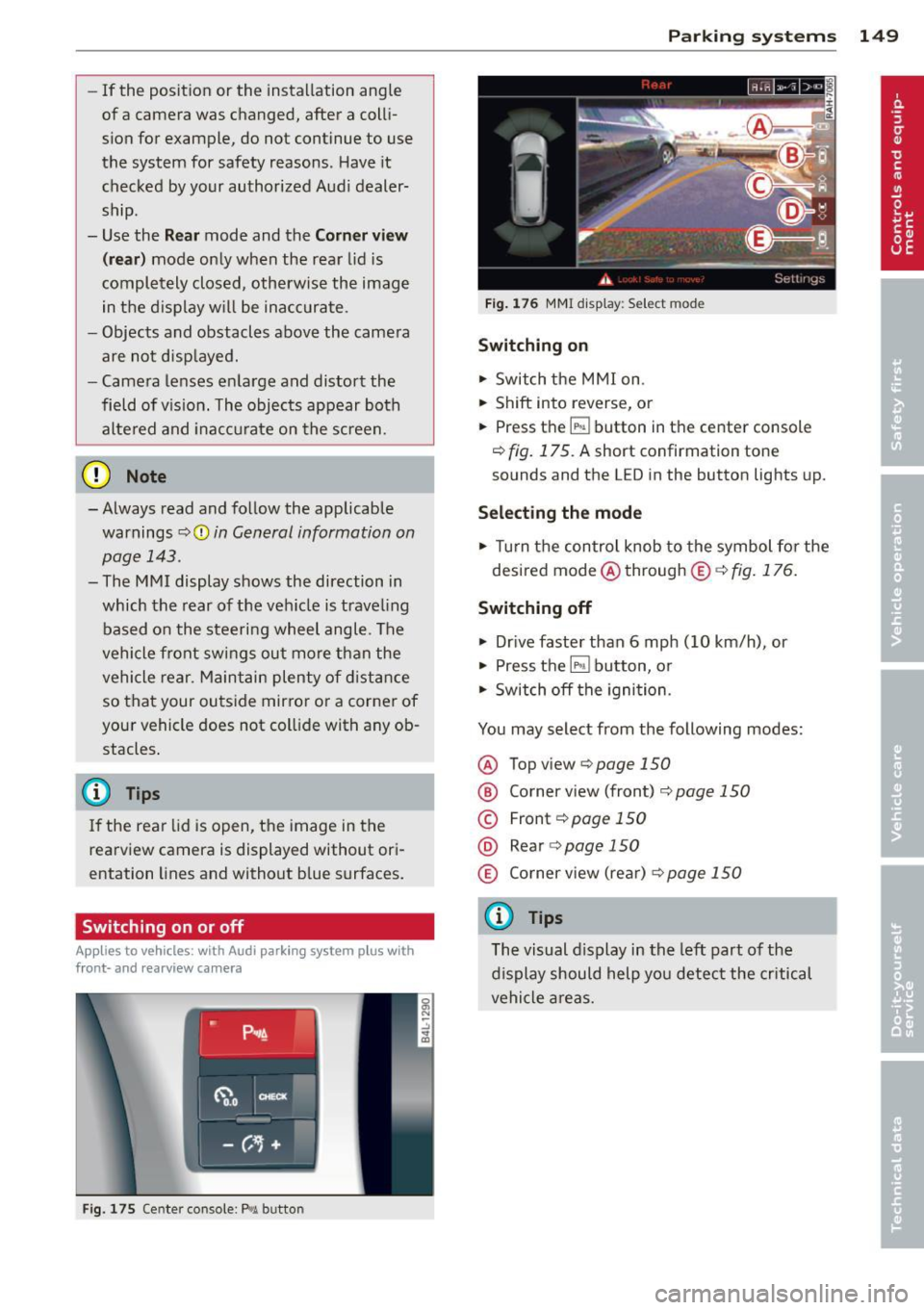

-If the position or the installation angle
of a camera was changed, after a colli­
sion for example, do not continue to use
the system for safety reasons . Have it
checked by your authorized Audi dealer­
ship .
- Use the
Rear mode and the Corner view
(rear)
mode only when the rear lid is
completely closed, otherwise the image
in the display will be inaccurate.
- Objects and obstacles
above the camera
are not displayed.
- Camera lenses enlarge and distort the
field of vision. The objects appear both
altered and inaccurate on the screen.
(0 Note
- Always read and follow the applicable
warnings
o0 in General information on
page 143 .
-The MMI display shows the direction in
which the rear of the vehicle is traveling
based on the steering wheel angle. The
vehicle front swings out more than the
vehicle rear. Maintain plenty of distance
so that your outside mirror or a corner of
your vehicle does not collide with any ob­
stacles .
@ Tips
If the rear lid is open, the image in the
rearview camera is displayed without ori­
entation lines and without blue surfac es.
Switching on or off
Applies to vehicles: with Audi parking system plus w ith
fro nt- and rearv iew ca mera
Fig. 175 Center console : P,•A but ton
Parking systems 149
Fig. 176 MMI display: Select mode
Switching on
.,. Switch the MMI on.
.,. Shift into reverse, or
.,. Press the~ button in the center console
o fig. 175. A short confirmation tone
sounds and the LED in the button lights up.
Selecting the mode
.,. Turn the control knob to the symbol for the
desired mode @through
® o fig. 176.
Switching off
.,. Drive faster than 6 mph (10 km/h), or
.,. Press the
IP>11 button, or
.,. Switch off the ignition.
You may select from the following modes:
@ Topview opage150
@ Corner view (front) ¢ page 150
© Front¢ page 150
@ Rear o page 150
® Corner view (rear) o page 150
(D Tips
The visual display in the left part of the
display should help you detect the critical
vehicle areas.

150 P ark in g s ystems

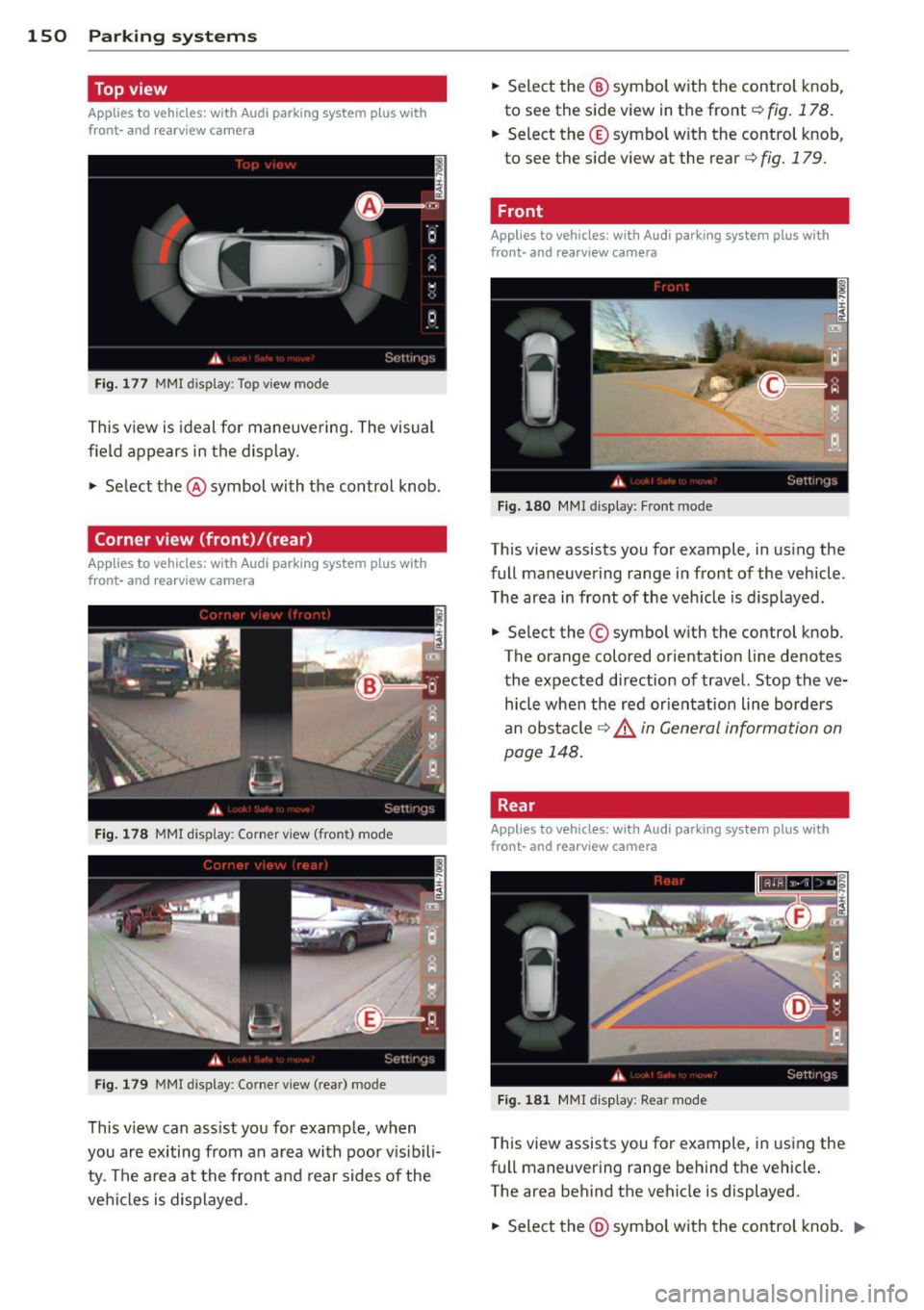

Top view
App lies to vehicles: with Audi parking system p lus w ith
front- and rearv iew camera
Fi g. 177 MMI display: To p view mode
This view is ideal for maneuvering. The visual
field appears in the display .
.,. Select the @ symbol with the control knob .
Corner view (front)/{rear)
Applies to vehicles: with Audi parking system plus w ith
front- and rearv iew camera
F ig . 178 MMI display: Corner view (fron t) mode
Fig. 179 MMI display: Corner v iew ( rear) mode
This v iew can ass ist you for example, when
you are ex iting from an a rea with poor v is ibili­
ty . The area at the front and rear sides of the
veh icles is displayed . .,.
Select the ® symbo l with the control knob,
to see the side view in the front
c::> fig. 178.
.. Select the © symbo l w ith the control knob,
to see the side v iew at the rear
c::> fig. 179.
Front
Applies to vehicles: wit h Aud i parking system plus with
front- and rea rview camera
Fig . 1 80 MMI display: Fron t m ode
This view assists you for example, in us ing the
full maneuvering range in front of the vehicle .
T he area in front of the vehicle is d isp layed .
.,. Select the © symbo l with the control knob.
The orange colored orientation Line denotes
the expected direction of travel. Stop the ve­ hicle when the red orientation Line borders
an obstacle
c::> & in General information on
page 148.
Rear
Applies to vehicles: wit h Audi parking syste m plus with
front -and rearview camera
Fi g. 1 81 MMl display: Rear mode
T his view assists you for example, in using the
full maneuvering range behind the vehicle .
The area behind the vehicle is displayed.
.,. Sele ct the @ symbo l with the control knob . ..,.

You can choose between three different views in this mode.
.. To cross park, parallel park, or position the
vehicle in front of a trai ler, press the ® con­
trol button on the controls repeatedly until
the symbo l for the desired mode is selected .
Cross parking
Applies to vehicles: with Audi parking system p lus w it h
fr ont- an d rearview ca mera
This view may be used when parking in a ga­
rage or in a parking space .
Fig. 182 MMI display: A iming at a pa rki ng space
Fi g. 183 MMI display: Al ign ing the vehicle
Requirement: cross parking is selected
¢ page 150 .
.. The orange colo red o rien tation lines©
show the d irection of t ravel of t he vehi cle.
T urn the s teering whee l until the orange ori­
entatio n lines appear in the parking space
¢
fig. 182 . Use the markings @to help you
est imate the distance from an obstacle.
Each marking represents approximately 3
ft
(1 m) . The blue area represents an extension
of the vehicle's out line by approximate ly
16
ft (5 m) to the rear .
.. While driv ing in reverse ge ar, ad just the
stee ring wheel angle to fi t the park ing space
P arking sys tems 151
with the aid of the orange orientation lines
¢ A in General information on page 148,
¢ (Din General information on page 149 .
® marks the rear bumper. Stop the vehicle
when the red orientat ion line @ borders an
obstacle¢
A in General Information on
page 145.
Parallel parking
Applies to vehicles : wit h Audi parking system pl us with
front- and rearview camera
This view may be used when parallel parking
along the side of a street.
Fi g. 184 MMI disp lay: B lue surface aligned in t he park ­
i n g space
Fi g. 185 MMI disp lay: Contact o f the b lue curve w ith
the curb
Parking on the right is described here. It is
identical when parking o n the left.
If there is an obstacle next to the parking
spa ce (such as a wall), refer to in fo rm atio n for
"Park ing next to o bstacles"
r::!:> page 152.
Req uirement: pa ra ll el par king is sele cted
¢ page 150.
.. Act ivate the turn signal.
.. Pos it ion your veh icle n ext to a par ked v ehi-
cle in fro nt of t he des ired par kin g space. The ...

152 Parking systems
distance to this vehicle should be approxi­
mately 3 ft (1 m).
• Turn the
MMI on and select the reverse
gear. The parking system is turned on and
the
parallel parking indicator is displayed.
• Press the contro l button on the
MMI con ­
t ro ls
(D ¢ fig . 184. The cross parking indica­
tor is displayed.
• Back up and align your vehicle so the b lue
area @ borders on the rear end of the vehi ­
cl e or on t he pa rking space line¢ .&.
in Gen­
eral information on page 148,
¢(D in Gen ­
eral information on page 149.
The blue area
represents an extension of the veh icle's out ­
line by approximately
16 ft (5 m) to the rear.
The long side of the blue area should be on
the curb. The entire blue area must f it into
the parking space .
• With the veh icle stopped, turn the steer ing
wheel to the r ight as far as it w ill go.
• Back in to the par king space until the b lue
cu rve ¢
fig. 185 touches the curb¢.&. in
General information on page 148,
~ CD in
General information on page 149 .
Stop the
vehicle.
• With the vehicle stopped, turn the steer ing
wheel to the left as far as it will go.
• Cont inue to back into the parking space un­
t il the vehicle is parked pa rallel to the curb
¢ .&. in General information on page 148,
¢(Din General information on page 149.
@ marks the rear bum per. Stop the ve hicle,
at the latest, when the red orientation line
© borders an obstacle. Keep an eye on the
front of your vehicle whi le doing this .
Parking next to obstacles
When there is an obstacle (s uch as a wall)
n ex t to the parking space, choose a space w it h
mo re space on the sides. Pos ition the long
side of the blue area so that there is sufficient
space from the c urb. The area must not be on
the curb. You wi ll also need to start turn ing
the steering wheel much earlier. The re should
be a sufficient amount of space between the
curb and the blue curve, and the blue c urve
c::> fig. 185 must not touch the curb.
(D Tips
The left or rig ht orientation lines and s ur­
faces will be disp layed, depending on t he
turn s ignal being used.
Trailer mode
Applies to vehicles: with Audi parking system plus with
front· and rearview camera and trailer hitch
This view a ssists you in positioning the vehicle
in front of a trailer.
Fi g. 186 MM I disp lay: Rear mode
Requirement: the t railer mode is se lected
c:> page 150 .
• Now you can posi tion your veh icle in front
of the trailer ¢.&.
in General information
on page 148,
c::> (D in General information
on page 149.
The orange co lored orienta­
tion line denotes the expected path toward
the trailer hitch. Use the blue lines to help
you estimate the distance to the tra ile r
h itch .
Setting the mode
Applies to vehicles: with Audi parking system plus with
front· and rearview camera
• Select: I CAR ! function button > Car sys­
tems *
control button > Driv e r assist > Pa rk­
ing a id
> Chang e to front/rear > Auto or
Manual.
Auto -
This view behind the vehicle ( Rear
mode) is displayed automatically when you
sh ift into reve rse . This v iew in front of the ve­
hicle
( Front mode) is displayed au tomat ica lly
whe n you shift in to the forwa rd gears. ..,.

Manual -This view behind the vehicle (Rear
mode) is a lways disp layed when you turn on
the system.
Adjusting the display and warning tones
Applies to vehicles: with rear park assist/Audi parking sys­
t em plus with rearview camera/front- and rearview cam·
e ra
The display* and warning tones can be ad­
justed in the MMI.
""S elect: ICARlf unction button> Systems*
control button > Parking system. Or
"" Se lect: I CAR
I function button > Car sys­
tems* control button > Driver assist
> Park­
ing aid.
Display*
- Off -when the parking system is switched
off, only aud ible signals are given.
-On -when the parking system is switched
on, either the visual display or the picture
from the rearview camera is disp layed .
Warning tones
- Front volume* - front sensor vo lume
- Front frequency* -front sensor frequency
- Rear volume - rear sensor volume
- Rear frequency -rear sensor frequency
- In-car entertainment fader/Music volume
while parking - when the parking system is
switched on, the volume of the active audio
source is lowered.
The new ly adjusted value is briefly heard from
the signal generator.
@ Tips
- The warning tones can also be adjusted
direct ly by the visual disp lay* or the pic­
ture from the camera*. S imply press the
Settings* control button.
- Changed settings are activated when
parking system is switched on again.
- The settings are automatically stored
and assigned to the remote control key
being used. Parking
systems 153
Error messages
Applies to
vehicles: with rear park assist/Audi parking sys­
tem plus with rearview camera/front- and rearv iew ca m­
era
There is an error in the system if the LED in
the~ button* is blinking and you hear a con­
tinuo us alarm for a few seconds after switch­
ing on the park ing system or when the park­
ing system is already activated .
If the error is
not corrected before you switch off the igni­
tion, when you switch on the parking system
again, the LED in the ~ button* will blink. If
you activate the parking system with the but­
ton in this case, the continuous warning tone
will continue to sound.
Parking system plus with front and
rearview camera*
There is another system error if:
- the~·· symbol appears in the display and
the corresponding display area is shown in
blue. The camera is not working in this area.
- all segments around the vehicles are red or
if no segments are displayed.
Drive to your authorized A udi dealer or au­
thorized repair fac ility immed iate ly to have
the mal function corrected .
Trailer hitch
Applies to vehicles: with rea r park assist/Audi parking sys­
tem plus with rearview camera/front- and rearview cam­
era and tra iler hitch
For vehicles using the trailer socket, the park­
ing system rear sensors do not turn on when
you shift into reverse gear or when you press
the~ button*. This results in the follow ing
restrictions:
Rear park assist*
There is no warning for distances to the rear.
Audi parking system plus with rearview
camera/front and rearview camera*
There is no distance warning for the rear. The
front sensors remain act ivated. The visual dis­
play sw itches to the trailer towing mode. The
rearview camera image will not show the ori-
entat ion lines and the blue surfaces . ..,.

154 Parking system s

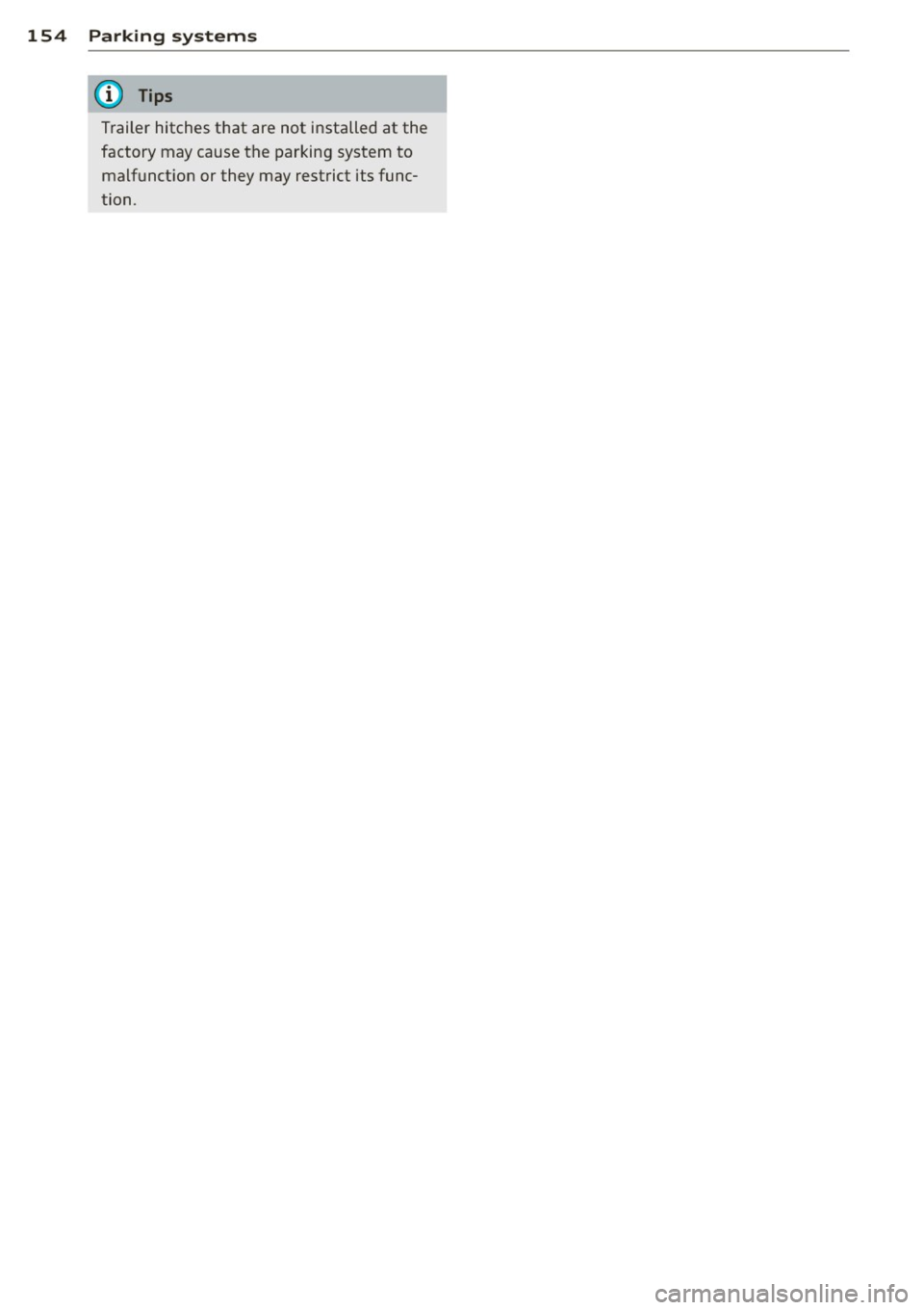

Trailer hitches that are not installed at the
factory may cause the parking system to
malfunct ion or they may restrict its func­
tion.

Adaptive Air Suspension
Air suspension and damping
Description
App lies to vehicles: with Adapt ive Air S uspe nsio n
Air suspension and damping con be adjusted
separately.
Adaptive A ir Suspension is an electronically
controlled springing and damping system.
This chassis system makes it easier on the
driver by adapt ing to the particular situation
through imperceptible control processes.
The
Adaptive Air Suspension component reg ­
ulates ground clearance depending on vehicle
speed and driver input. It functions independ­
ently from the load condition . Accelerating to
a speed above a predetermined limit will make the vehicle lower itself. On the other
hand, driving more slowly results in the vehi­
cle raising again at specific speeds.
The
damping component provides individual
control of the damping forces . For example,
w ith damping characterist ics set to provide
greater comfort, damping is set somewhat
harder for a br ief per iod only as required, for
example, when go ing aro und a curve or when
braking.
Settings
Adapt ive Air Suspension prov ides the driver
with the opportun ity to set the chassis charac­
ter istics also to their individual preference.
W ith the driving modes
Comfort, Automatic
and Dynamic the driver has three chassis set­
tings available, ranging from comfort to spor­
ty. The
Offrood mode can be selected for driv­
ing on poor quality stretches of road. In addi­
tion,
Lift provides a fifth mode, which can be
selected when exceptionally high ground
clearance is needed
c::;, page 155, Chassis con ­
trols .
The modes are set in MMI <::;,page 157.
Adaptive A ir Suspension 155
A WARNING
The height of the parked vehicle can
change due to temperature fluctuations or
changes in load .
@ Note
- Whenever you park your vehicle, a lways
make sure there is adequate clearance
above and below the vehicle. The he ight
of the parked vehicle can change as the
result of temperature fluctuations,
changes in load condition and changes in
the driving mode (ground clearance).
- If the vehicle is being transported (e.g .
by tow truck, train, ship, etc.), mount the
tie-down chains/cables over the running
surface (circumference) o f the tires. Nev­
er secure the vehicle by the axle, the sus ­
pension struts or the front or rear tow­
line eye . For technica l reasons, the pres­
sure in the suspens ion struts may change
during the transport, which could result
in the vehicle no longer being secured
properly .
- If you are going to tow a trailer with a
trailer hitch that was
not installed ac­
cording to factory specif ications, you
must activate the traile r operation mode
man ually
<::;,page 159.
(D Tips
-Before you can raise your vehicle using
the vehicle jack (for example, when
chang ing a flat tire) or a vehicle lift, yo u
must activate the jacking mode
c::;, page 159.
- On some models, the vehicle can reach
its maximum speed only in the
Automat ­
ic
and Dynamic modes.
Chassis controls
App lies to vehicles : wit h Adaptive A ir Suspensio n
Five different driving modes can be set by the
driver.
T he automatic control processes are speed­
and t ime-dependent. For example, it is not

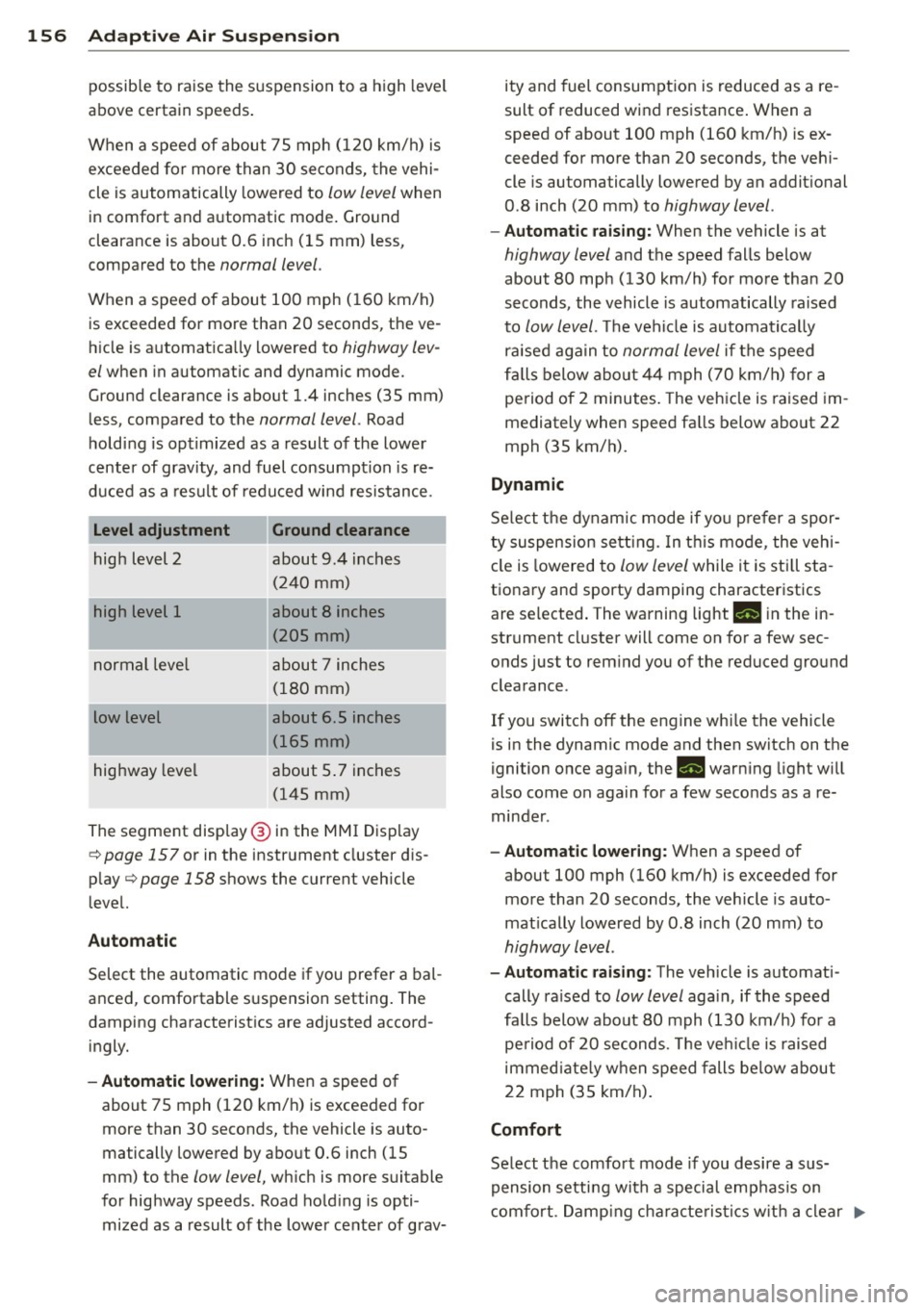

156 Adapti ve Air Susp en sion
possible to raise the suspension to a h igh level
above certain speeds .
When a speed of about 75 mph (120 km/h) is
exceeded for more than 30 seconds, the vehi­
cle is automatically lowered to
low level when
in comfort and automatic mode. Ground
clearance is about 0.6 inch (15 mm) less,
compared to the
normal level .
When a speed of about 100 mph (160 km/h)
is exceeded for more than 20 seconds, the ve­
h icle is automat ica lly lowered to
highway l ev­
el
when in automatic and dynamic mode.
G round clearance is about 1.4 inches (35 mm)
less, compared to the
normal level. Road
hold ing is optimized as a result of the lower
center of gravity, and fuel consumption is re­
duced as a result of reduced wind resistance .
I
Level adjustment
high level 2
high level 1
normal level
low level
highway level
Ground clearance
about 9.4 inches
(240 mm)
about
8 inches
(205 mm)
about 7 inches (180 mm)
about 6 .5 inches
(165 mm)
about 5 .7 inches
(145 mm)
The segment disp lay @ in the MMI Display
c:::> page 157 or in the instr ument cluste r dis­
p lay
c:::> page 158 shows the current veh icle
level.
Automatic
Select the automatic mode if you prefer a bal­
anced, comfortable suspension setting . The
damping characteristics are adjusted accord­ ingly.
- Automatic lowe rin g: When a speed of
about 75 mph (120 km/h) is exceeded for
more than 30 seconds, the vehicle is auto­
matically lowered by about 0.6 inch (15
mm) to the
low level, wh ich is more suitable
for highway speeds . Road hold ing is opti ­
mized as a result of the lower ce nter of grav- ity and fuel consumption is reduced as a re
­
sult of r educed wind resistance . When a
speed of about 100 mph (160 km/h) is ex ­
ceeded for more than 20 seconds, the veh i­
cle is automa tically lowered by an addi tional
0 .8 inch (20 mm) to
highway level .
-Automat ic raising: When the vehicle is at
highway level and the speed falls below
about 80 mph (130 km/h) for more than 20
seconds , the vehicle is automatically raised
to
low level. Th e vehicle is automatica lly
raised aga in to
normal level if the speed
fa lls below about 44 mph (70 km/h) for a
pe riod of 2 minutes . The vehicle is raised im ­
mediately when speed fa lls below about 22
mph (35 km/h) .
Dynamic
Select the dynam ic mode if yo u pre fer a spor­
ty suspension se tti ng. In t his mode , the veh i­
cle is lowered to
low level while it is still sta­
t ionary and sporty damping characteristics
are selected . The warning light
Ill in the in ­
strument cluster will come on for a few sec­
onds just to rem ind you of the reduced ground
clearance .
If you switch off the engine whi le the vehicle
is in the dynamic mode and then switch on the
igni tion once aga in, the
Ill warn ing light will
also come on again for a few seconds as a re­ minder .
-Automat ic lowe ring: When a speed of
about 100 mph (160 km/h) is exceeded for
more than 20 seconds , the veh icle is auto ­
mat ically lowered by 0 .8 inch (20 mm) to
highway level .
-Automa tic raising: The vehicle is automati ­
cally ra ised to
low level again , if the speed
fa lls below about 80 mph (130 km/h) for a
pe riod of 20 seconds. The ve hicle i s raised
immed iate ly when speed falls be low about
22 mph (35 km/h).
Comfort
Select the comfort mode if you desire a s us­
pension setti ng w ith a special emp hasis on
comfort . Damp ing cha racte ris tics w ith a clear .,.

emphasis on comfort are selected in this
mode.
- Automatic lowering : When a speed of
abo ut 75 mph (120 km/h) is exceeded for
more than 30 seconds, the vehicle is auto­
matically lowered by 0.6 inch (15 mm) to
low level .
-Automatic raising: The vehicle is automati­
ca lly raised to
normal level again, if the
speed falls below about 44 mph (70 km/h)
for a period of 2 minutes . The vehicle is
raised immediately when speed falls below
about 22 mph (35 km/h) .
Offroad
Select the offroad mode when you have to
travel over poor quality sections of road (e .g.
trails). In th is mode, the vehicle is raised to
high level 1, and damp ing characteristics for
poor road stretches are selected . When
sw itch ing to offroad mode, the Adaptive Air
Suspension indicator appears automat ically in
the instrument cluster display ¢
page 158.
The offroad mode can only be activated at
speeds below 37 mph (60 km/h) . Offroad
mode ends automatically and the automatic
mode is activated when a speed of approxi­
mately 50 mph (80 km/h) is exceeded.
Lift
Select the lift mode when except ionally high
ground clearance is needed at a reduced
speed. In this mode, the vehicle is raised to
high level 2. When switching to lift mode , the
Adaptive A ir Suspension indicator appears au­
tomatically in the instrument cluster display
¢ page 158.
The lift mode can be activated only at speeds
be low 12 mph (20 km/h) . When a speed of
about 25 mph (40 km/h) is exceeded, the sys­
tem automatically leaves lift mode and the
offroad mode is activated. The instrument
cluster display automat ically switches the dis­
play to Adaptive Air Suspens ion to indicate re­
duced ground clearance .

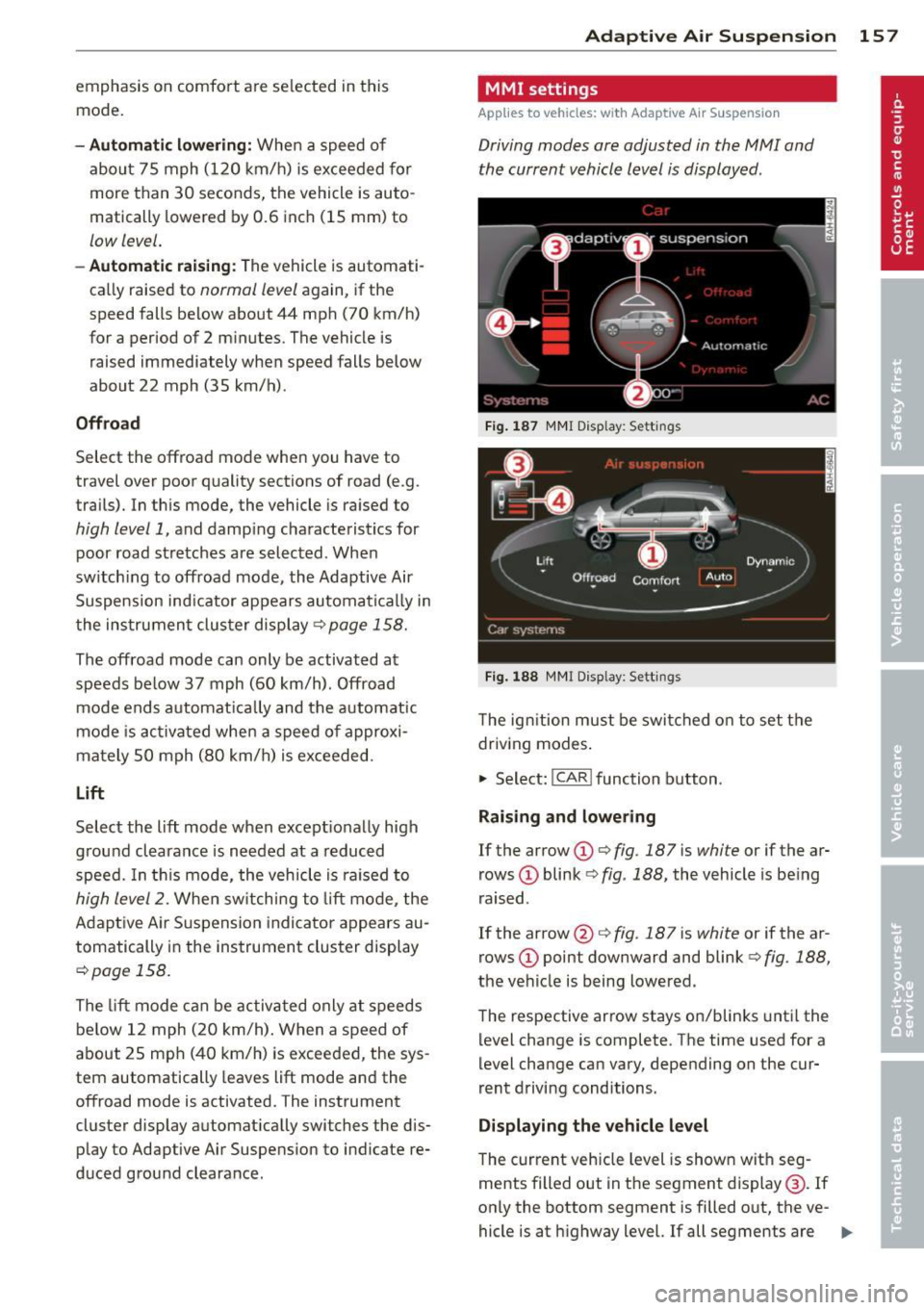

Adaptive Air Suspension 15 7
MMI settings
Applies to vehicles: wit h Adaptive A ir Suspension
Driving modes are adjusted in the MMI and
the current vehicle level is displayed .
Fig. 187 MMI Display: Sett ings
Fig. 188 MMI Display: Sett ings
Th e ign ition must be switched on to set the
driving modes.
1-Select: !CAR ! function button .
Raising and lowering
If the arrow (D ¢ fig. 187 is white or if the ar­
rows
(D blink ¢ fig. 188, the vehicle is being
raised .
If the arrow @¢
fig. 187 is white or if the ar­
rows
(D point downward and blink ¢ fig. 188,
the vehicle is being lowered .
The respective arrow stays on/blinks until the
level change is complete . The time used for a
level change can vary, depending on the cur­
rent driving conditions .
Displaying the vehicle level
The c urrent vehicle level is shown with seg­
ments filled out in the segment display@. If
only the bottom segment is filled o ut, the ve-
hicle is at highway level. If all segments are
IJJ>-

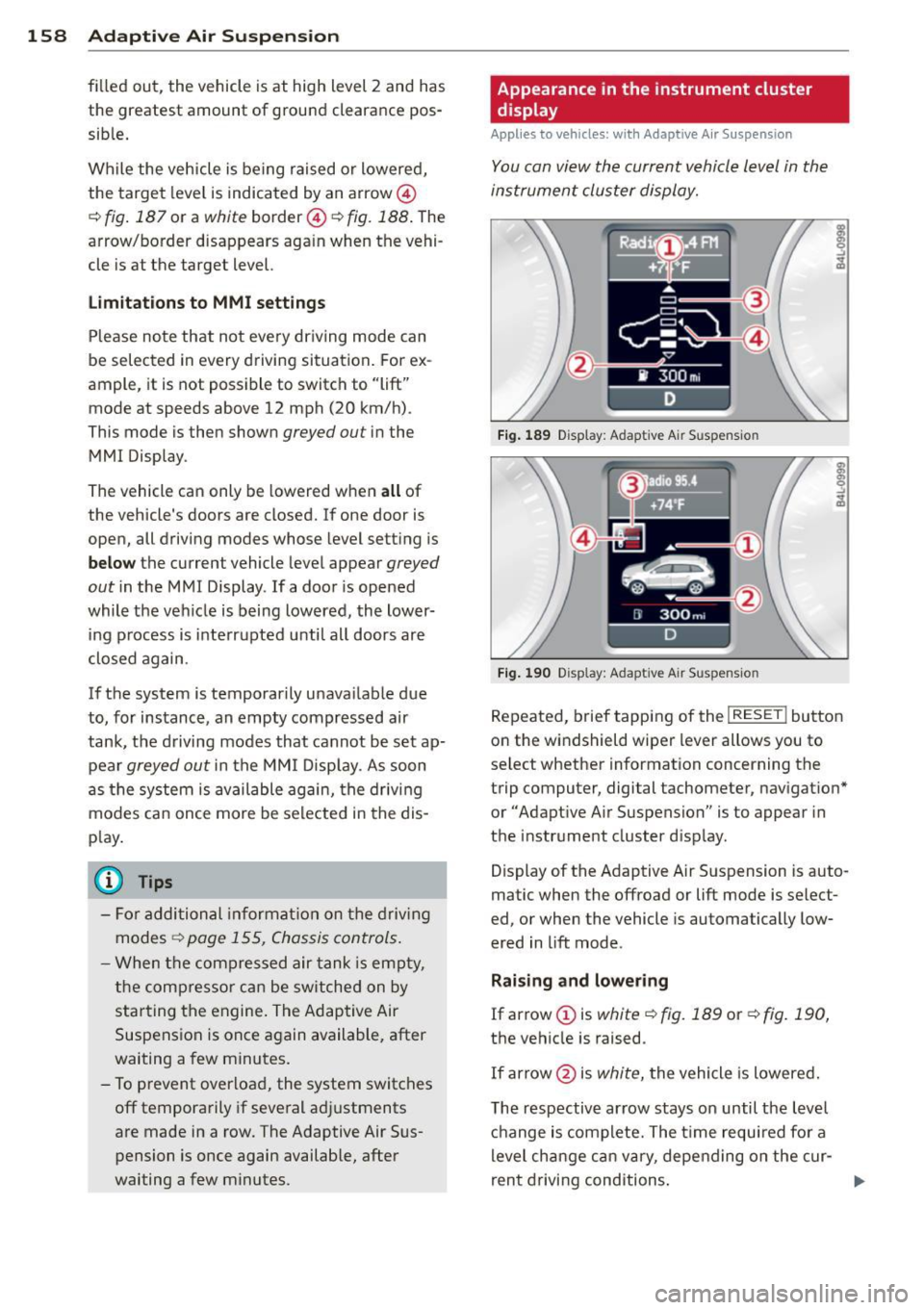

158 Adapti ve Air Suspens ion
fi lled out, the vehicle is at high level 2 and has
the greatest amount of ground clearance pos­
sib le.
While the vehicle is being raised or lowered,
the target level is indicated by an arrow@
c::> fig. 187 or a white border @ c::> fig. 188 . The
arrow/border disappears aga in when the vehi­
cle is at the target level.
Limitations to MMI s etting s
Please note that not eve ry dr iving mode can
be selected in every d riving situation . For ex­
ample, it is not possible to switch to "lift"
mode at speeds above 12 mph (20 km/h) .
This mode is then shown
greyed out in the
MMI Display.
The vehicle can only be lowered when
all of
the vehicle's doors are closed. If one door is
open, all driving modes whose level sett ing is
belo w the current vehicle level appear
greyed
out
i n the MMI Display. If a door is opened
while the veh icle is being lowered, the lower­
ing p rocess is interrupted u ntil all doors are
closed again .
If the system is temporar ily unava ilable due
to, for instance, an empty compressed air
tank, the driving modes that cannot be set ap­ pear
greyed out in the MM I Disp lay. As soon
as the system is available again, the driv ing
modes can once more be selected in the dis­
p lay .
(D} Tips
- Fo r addition al in forma tion on the driv ing
modes
c:;> page 155, Chassis controls.
- When the compressed air tank is empty,
the compressor c an be switched on by
starting the engine . The Adaptive Air
Suspension is once again available, after
waiting a few minutes .
- To prevent over load, the system switches
off tempera rily if seve ral adj ustments
are made in a row. The Adaptive Air Sus­
pension is once again available, after
waiting a few minutes. Appearance in the instrument cluster
display
Applies to veh
icles: w ith Adapt ive A ir Suspens ion
You can view th e current vehicle l evel in the
instrument cluster display.
Fi g. 1 89 Display: Adaptive Air Suspension
F ig . 190 Display: Adaptive Air Suspension
Repeated, brief tapping of the I RESET ! button
on the windshield wiper lever allows you to
se lect whether information concerning the
trip computer, digital tachometer, nav igat ion*
or "Adapt ive A ir Suspension" is to appear in
t h e instrument cluster d isp lay .
Display of the Adaptive A ir S uspension is auto­
matic when the offroad or lift mode is select­
ed, or when the vehicle is automatically low­
ered in lift mode.
Rai sing and lowe ring
If arrow
(J) is white c::> fig. 189 or c::> fig . 190,
the vehicle is raised.
If arrow @is
white, the vehicle is lowered .
The respective arrow stays on until the level ch ange is complete. The time requ ired fo r a
level change can vary, depending on the cur-
ren t drivi ng conditions . ..,_
