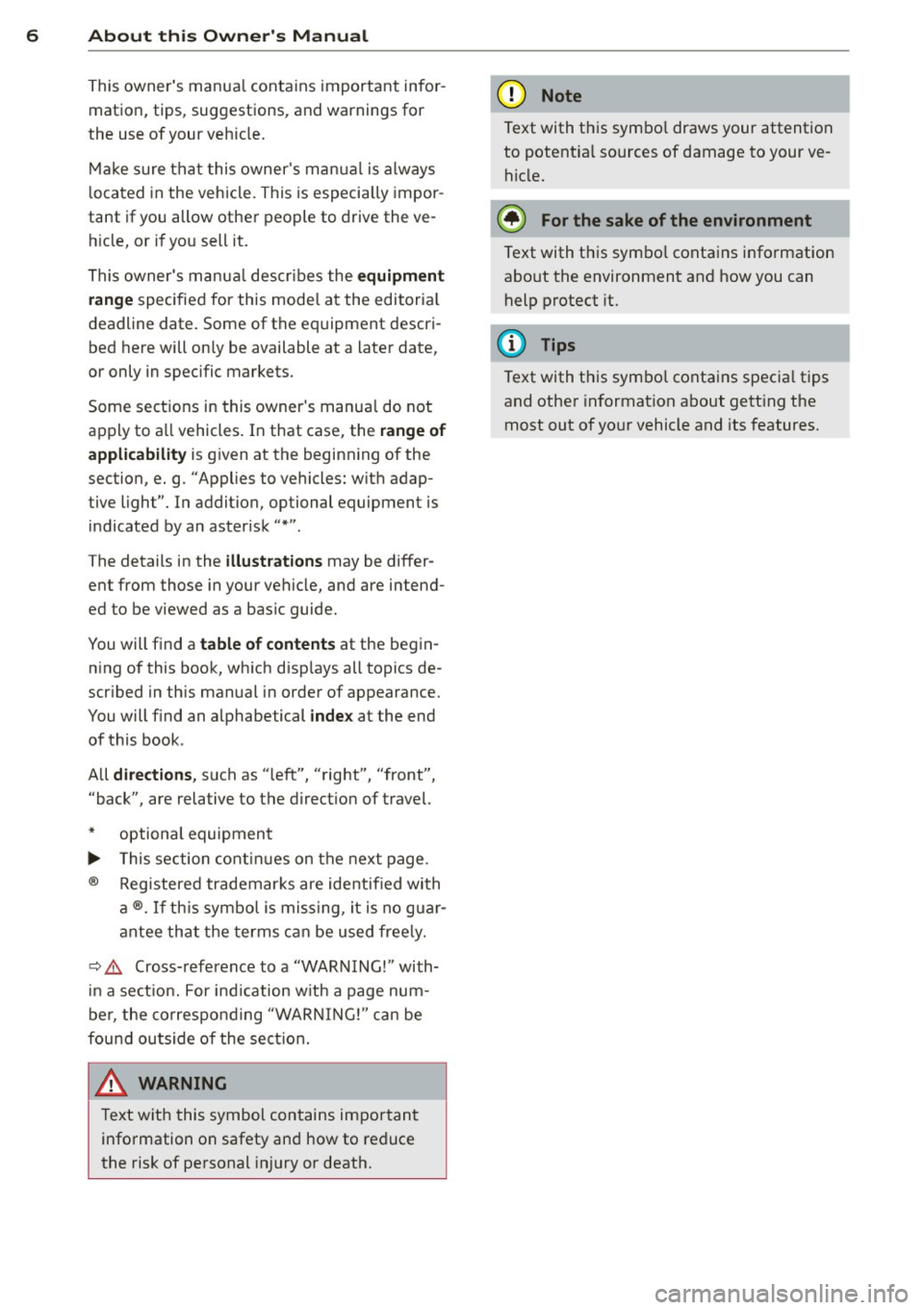

6 About this Owner's Manual
This owner's manua l contains important infor­
mation, tips, suggestions, and warnings for
the use of your veh icle.
Make sure that this owner's manua l is always
located in the vehicle. This is especia lly impor­
tant if you allow other people to drive the ve­
h icle, or if you sell it.
This owner's manua l descr ibes the
equipment
range
specified for this mode l at the editoria l
deadline date. Some of the equipment descri­
bed here will on ly be available at a later date,
or only in specific markets.
Some sections in this owner's manua l do not
apply to a ll vehicles . In that case, the
range of
applicability
is g iven at the beginn ing of the
section, e.g. "Applies to vehicles: w ith adap­
tive light". In addition, optional equipment is
indicated by an asterisk"*".
The details in the
illustrations may be differ ­
ent from those in your vehicle, and are intend­
ed to be viewed as a bas ic guide.
You will find a
table of contents at the begin­
ning of this book, which disp lays all topics de ­
scr ibed in this manual in order of appearance.
You will find an alphabetical
index at the end
of this book .
All
directions , such as "left", "right", "front",
"back", are relative to the direct ion of travel.
* optional equipment
... This section continues on the next page .
® Registered trademarks are identified with
a®. If this symbol is miss ing, it is no g uar­
antee that the terms can be used freely.
~ .& Cross-reference to a "WARNING!" with-
in a sect ion. For ind ication w ith a page num­
ber, the corresponding "WARNING!" can be
found ou tside of the sect ion.
& WARNING
Text with this symbol contains important
information on safety and how to reduce
the risk of personal injury or death.
(D Note
Text with this symbo l draws your attention
to potentia l sources of damage to your ve­
hicle.
@) For the sake of the environment
Text with this symbo l contains information
abo ut the environment and how you can
help protect it.
{!) Tips
Text with this symbo l contains specia l tips
and other information about gett ing the
most out of yo ur vehicle and its features.

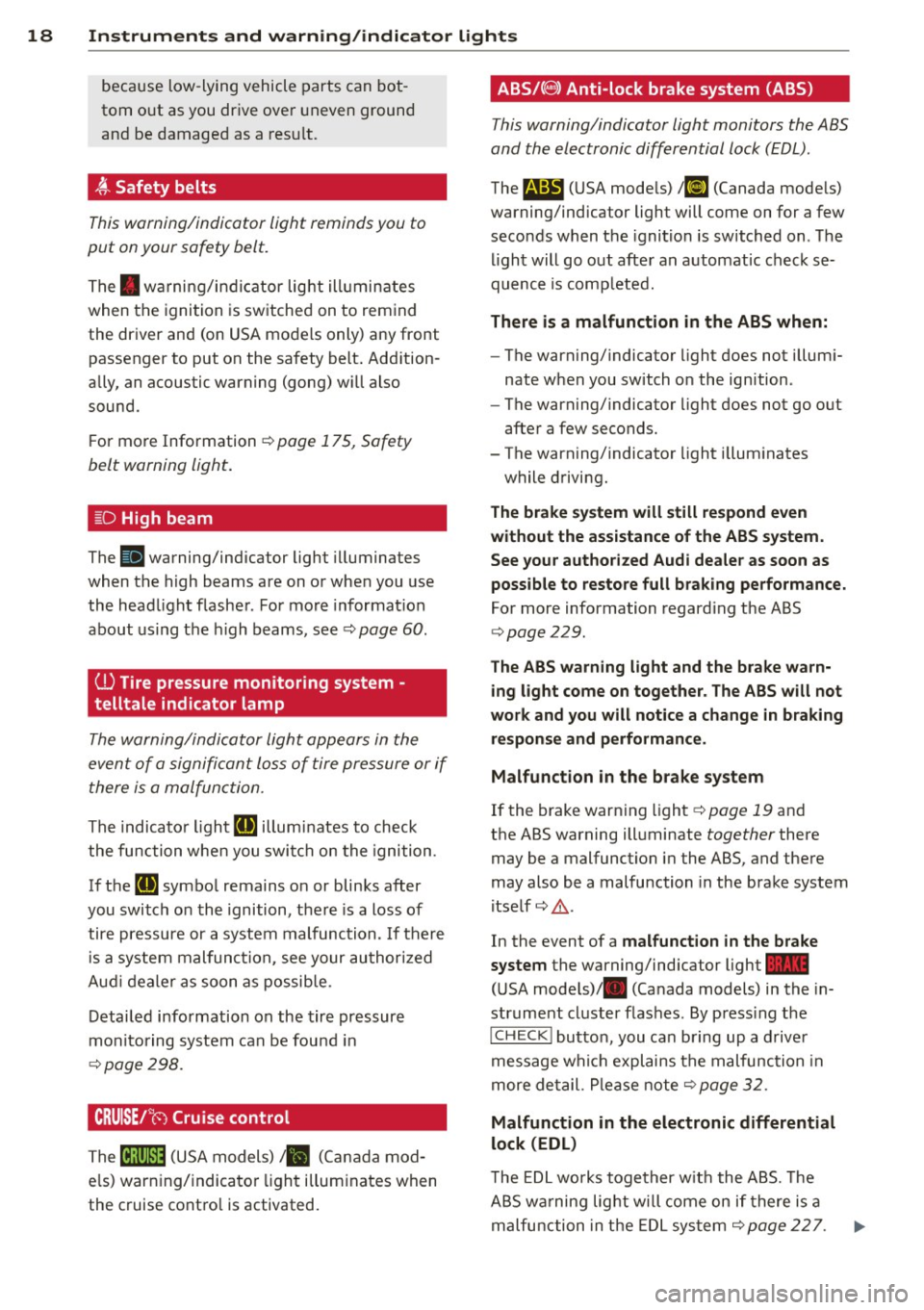

18 Instruments and warning/indicator lights
because low-lying vehicle parts can bot­
tom out as you drive over uneven ground
and be damaged as a result.
~ Safety belts
This warning/indicator light reminds you to
put on your safety belt.
The . warning/indicator light ill uminates
when the ignition is switched on to remind
the driver and (on USA models only) any front passenger to put on the safety belt . Add ition­
ally, an acoustic warning (gong) wi ll also
sound.
F or more Information
~ page 175, Safety
belt warning light.
~D High beam
The ii warning/indicator light illuminates
when the high beams are on or when you use
the head light flasher . For more informat ion
about using the high beams, see
~page 60.
(J) Tire pressure monitoring system -
telltale ind icator lamp
The warning/indicator light appears in the
event of a significant loss of tire pressure or if
there is a malfunction .
The indicator light IE illuminates to check
the function when you switch on the ignition.
If the
IE symbol remains on or blinks after
you switch on the ignition, there is a loss of
tire pressure or a system malfunction. If there
is a system malfunction, see your authorized
Aud i dealer as soon as possible.
Detailed information on the tire pressure
monitoring system can be found in
~page 298.
CRUISE/'(-) Cruise control
The (ij;\1)~1~ (USA models) /. (Canada mod­
e ls) warn ing/indicator light illuminates when
the cruise contro l is activated.
ABS /(8) Anti -lock brake system (ABS)
This warning/indicator light monitors the ABS
and the electronic differential lock (EDL) .
The E (USA models) ;fl] (Canada mode ls)
warning/indicator light will come on for a few
seconds when the ignition is sw itched on . T he
l ight will go out after an automatic check se­
quence is comp leted.
There is a malfunction in the ABS when:
-The warning/indicator light does not illumi­
nate when you switch on the ignition.
- The warning/indicator light does not go out
after a few seconds.
- The warning/indicator light illuminates
while driving.
The brake system will still respond even
without the assistance of the ABS system.
See your authorized Audi dealer as soon as
possible to restore full braking performance.
For more information regarding the ABS
~page 229.
The ABS warning light and the brake warn­
ing light come on together. The ABS will not
work and you will notice a change in braking
response and performance.
Malfunction in the brake system
If the brake warning light ~ page 19 and
the ABS warning ill uminate
together there
may be a malfunction in the ABS, and there
may also be a malfunction in the brake system
i tself ~
A.
In the event of a malfunction in the brake
system
the warning/indicator light 11111
(USA models)/ . (Canada models) in the in­
strument cluster flashes. By press ing the
jCHECKI button, you can b ring up a driver
message which explains the malfunction in
more detail. Please note
~ page 32.
Malfunction in the electronic differential
lock (EDL)
The EDL works together with the ABS. The
ABS wa rning lig ht will come on if there is a
malfu nction in the EDL system
q page 227.

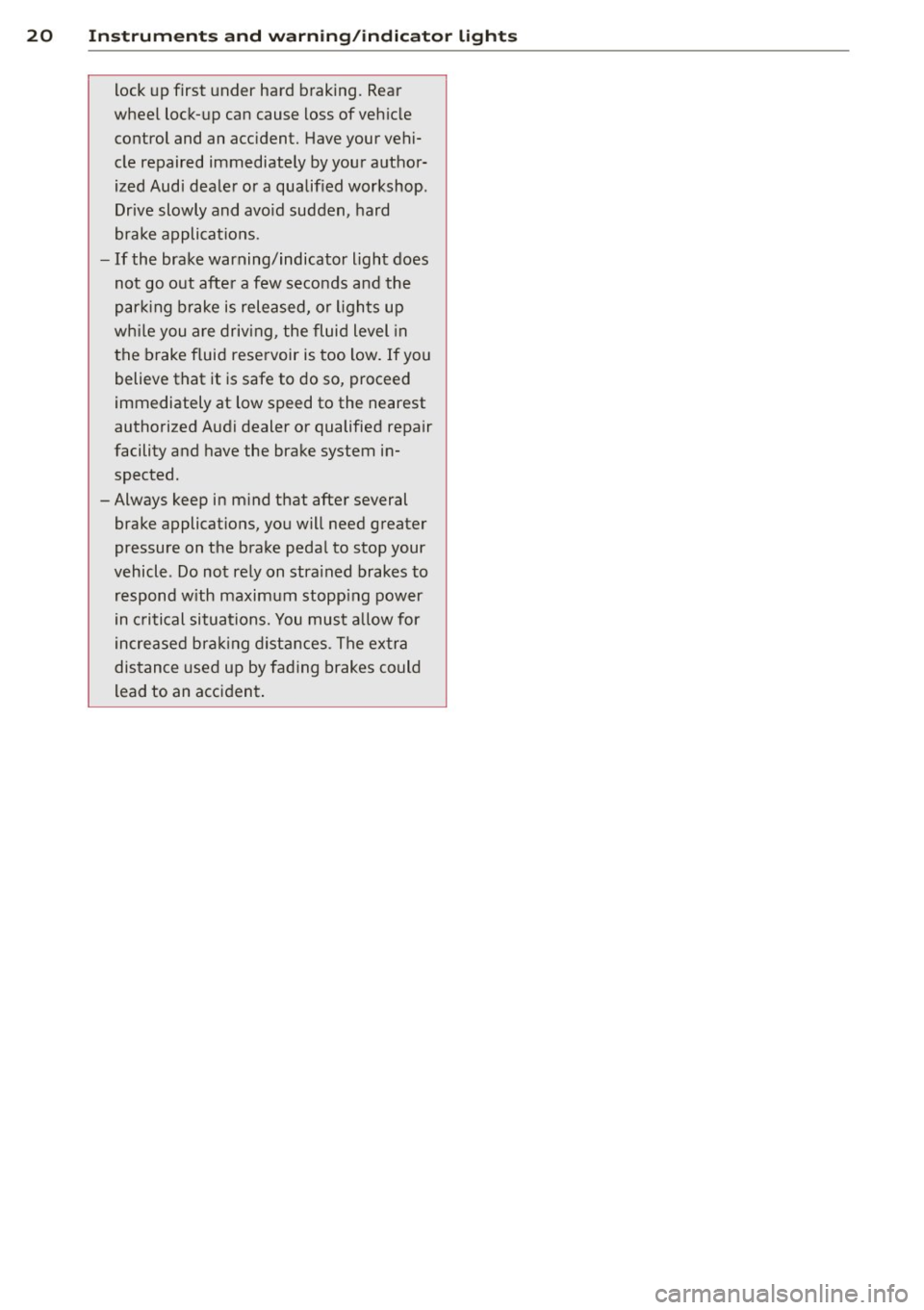

20 Instrum ent s a nd w arn in g/i ndic ato r light s
lock up first under hard braking. Rear
wheel lock-up can cause loss of vehicle control and an accident. Have your vehi­
cle repaired immediately by your author­
ized Audi dealer or a qualif ied workshop.
Drive slowly and avo id sudden, hard
brake applicat ions.
- If the brake warning/indicator light does
not go out after a few seconds and the
par king brake is released, or lights up
wh ile you are driving, the fluid level in
the brake fluid reservoir is too low. If you
believe that it is safe to do so, proceed
immediately at low speed to the nearest
authorized Audi dealer or qualified repair
facility and have the brake system in­
spected.
- Always keep in m ind that after several
brake applicat ions, you will need greater
pressure on the brake peda l to stop your
vehicle . Do not rely on stra ined brakes to
respond w ith maximum stopp ing power
in critical situa tions. You must a llow for
increased bra king distances . The extra
distance used up by fading brakes could
lead to an accident .

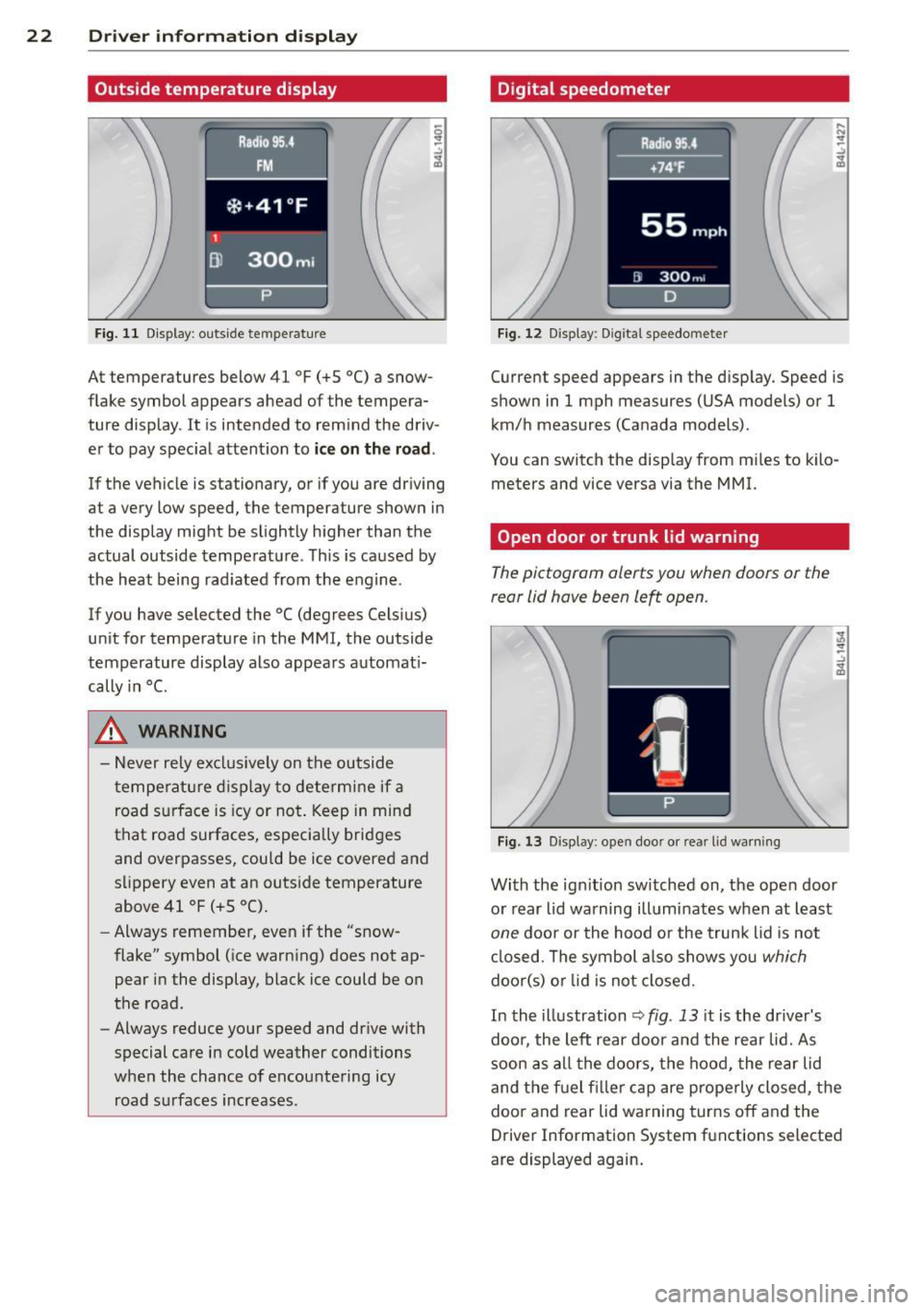

22 Driver in formation d ispl ay
Outside temperature display
Fig. 11 Display : outside temperature
At temperatures below 41 °F (+S °C) a snow­
flake symbol appears ahead of the tempera­
ture display . It is intended to remind the driv­
er to pay spec ial attent ion to
ic e on the roa d.
If the vehicle is stationary, or if you are driving
at a very low speed, the temperature shown in
the display might be slightly higher than the
actual outside temperature . Th is is caused by
the heat being rad iated from the engine .
If you have selected the °C (degrees Celsius)
unit for temperature in the MMI, the outside
temperature display also appears automat i­
cally in
°C.
A WARNING
- Never rely excl usively on the outside
temperatu re d isplay to determine if a
road surface is icy or not . Keep in mind
that road surfaces, especially bridges
and overpasses, could be ice covered and
s li ppery even at an outs ide temperature
above 41 °F (+ S °C).
- Always remember, even if the "snow­
flake" symbol (ice warn ing) does not ap­
pear in the display, black ice could be on
the road.
- Always reduce your speed and dr ive with
special care in cold weather conditions
when the chance of encountering icy road s urfaces increases .
Digital speedometer
Fig. 12 Display: Digi tal speedometer
Current speed appears in the disp lay. Speed is
shown in 1 mph measures (USA models) or 1
km/h measures (Canada models) .
You can switch the disp lay from m iles to kilo­
meters and vice versa via the MMI.
Open door or trunk lid warning
The pictogram alerts you when doors or the
rear lid have been left open .
Fig. 13 Display: open doo r or rea r lid wa rning
With the ign it ion sw itched on, the ope n door
or rear lid warning illuminates when at least
one door or the hood or the trunk lid is not
cl osed . The symbol a lso shows you
which
doo r(s) o r lid is not closed.
In the illustration
~ fig . 13 it is the dr iver's
doo r, the left rear door and the rear lid. As
soon as all the doors, the hood, the rear lid
and the f uel filler cap are prope rly closed, the
door and rear lid warning turns off and the
Driver Information System functions selected
are displayed again.

24 Driver information d isplay
Re setting the service interval display
Your au thor ized A udi dealer w ill reset the cor­
responding service sched ule after performing
the app rop riate service on yo ur vehicle . Yo u
a lso have the possibility to reset the oil
change sched ule after having performed an
oil c hange according to Audi specifications.
Select
I CAR I function button > Systems * con­
trol button
> Service int erva l display > Re set
oil change interval
or ! CARI function button >
Car systems* control button > S ervicing &
check s > Service interval s > Reset oil change
interval.
(D Note
If you disconnect the b attery termi nals, no
c a lcu lations can be m ade for the servi ce
in terva l display during this time and no
service rem inder w ill appear . Remembe r
that obse rv in g the prope r serv ice interva ls
is vita lly im portant to extend ing the life o f
y o ur veh icle , part icu larly the eng ine, and
maintaining its va lue . Do not exceed the
time int erval fo r th e next se rv ice, even if
the vehicle mileage is low .
@ Tips
-Do not reset the display between oil
changes, otherw ise the display will be in­
correct.
- The informati on in the Servic e Reminder
r ema ins sto red even when the vehicle
batte ry is discon necte d.
Trip computer
Introduction
The trip computer gives you information on
current and average fuel mileage, average
speed, fuel range and driving time.
Fig. 16 T rip comp ute r di sp lay : Average f ue l m il eage
T he following dr iving inform ation is con tinu ­
o usly evalua ted by the trip computer and can
b e displayed sequentially in the instrument
cluster disp lay.
Fuel range
T he es tim ated cru is ing r ange in miles ( km)
appea rs in the display. T his tells you how far
yo ur vehicle will be ab le to travel on the c ur­
rent ta nk of f uel a nd with the same driving
sty le. The display changes in increments of 6
miles (10 km).
T he cruising range is calculated based o n the
fuel consum ptio n for the last 18 miles
(30 km). I f you drive conservative ly, the cr uis­
i ng range w ill increase.
Average fuel mileage
The aver age f ue l economy in MPG ( l/1 00 km)
s ince you last cleared the memo ry appears in
t hi s disp lay . You can use this display to ad just
yo ur driv ing technique to achieve a desired
mileage.
Current fuel mileage
T he ins tan taneous fuel consum ption in m iles
per gallon ( l/100 km) is shown in this disp lay.
You can use this display to adjust your driving
technique to achieve a desired m ileage .
Ill-

38 Opening and closing
Opening and closing
Keys
Key set
Fig. 27 Key set
@ Master key with remote control
You can centrally lock and unlock your vehicle
and start the engine with the master key with
remote control.
@ Valet key
The valet key only fits the lock in the driver's
door and the ignition lock . If you have to leave
the key with somebody else, you are well-ad­
vised to turn over the valet key only
¢ page 41.
© Emergency key
The emergency key is only for temporary use if
the vehicle key should be lost or misplaced
¢ .&. .
Key replacement
If you lose a key, contact your authorized Audi
dealer immediately to have the
lost key disa­
b led . Be sure to bring all your keys with you.
Registered keys
You can check to find out how many keys have
been registered to your vehicle. Therefore,
when buying a used vehicle, make sure to get
all of the remote keys be long to it .
Ca lling up the registered keys¢
page 12.
Data in the master key
While you are driving, serv ice and mainte­
nance relevant data are being continuously stored on your master key. Your Audi
Service
Advisor can read out these data and tell you
about work that is needed on your vehicle .
This also app lies to vehicles w ith Convenience
key*.
A WARNING
--
- Do not leave your vehicle unattended
with the key in the ignition lock. Entry by
unauthorized persons could endanger
you or result in theft or damage the vehi­
cle. A lways lock all doors and take the
key.
- Do not leave children unattended in the
veh icle, especially with access to vehicle
keys . Unguarded access to the keys pro­
vides children the opportun ity to start
the engine and/or activate vehicle sys­
tems such as the power windows etc. Un­
supervised operation of any vehicle sys­
tem by children can result in serious in­
Jury .
(D Tips
- If you open the driver's door with the key
left in the ignition lock, a chime w ill
sound. T his is your reminder to remove
the key and lock the door.
- For security reasons, replacement keys
are only ava ilable from Audi dealers.
Master key with remote control
The remote control allows you to lock or un­
lock the vehicle electronically .
Fig. 28 Fold-up maste r key with remo te control
., To fold the key out and back in place, press
t he release button ¢
fig. 28. .,.

42 Openin g and clo sing
readiness light, located in the upper part of
the driver's door panel, will start to blink.
- T he vehicle interior lights turn off.
Unlocking and l ocking with Conven ience
k ey*
On vehicles which a re equipped w ith the C o n­
ve nience k ey*
authorization system, the
doors are unlocked without a key by means of
a proximity sensor in the door handle. The
doors are simi larly locked without a key using
the locking button. Each door has a proximity
sensor and a locking button .
Automatic l ock ing
The automatic locking feature locks all the ve­
hicle doors and the rear lid when you drive
faster than 9 mph (15 km/h). This function can be turned on and off in the MMI
C entr al
lo cking
Menu c:> page 44.
You can un lock the vehicle from the inside by :
- removing the key from the ign it ion sw itch
(the vehicle will automat ica lly unlock itself)
or
- pressing the unlock part of the power lock
switch @or
- pull ing the door handle (twice to open the
rear doors).
Unintent ionall y locking yourself out
In the following cases there safeguards to
prevent you locking your remote master key in
the vehicle :
- The veh icle does not lock with the power
locking sw itch
c:> page 44 if the driver's
door is open.
- On vehicles with Convenience key* , if the
most recently used master key is in the lug­
gage compartment, the rear lid is automati­
cal ly unloc ked aga in after it is closed.
Do not lock your vehicle with the
r e mot e m as ­
t e r k ey or Convenienc e key*
until all doors
and the rea r lid are closed. In t his way you
avoid locking yourse lf out accidenta lly.
A WARNING
- When you lock your vehicle from outside,
nobody- espec ially children -should re ­
main inside the vehicle . Remember,
when you lock the vehicle from the out­
side the windows cannot be opened from
the inside.
- When you leave the veh icle, always re­
move the ignition key and take it with
you . This will prevent passengers (chil­
dren, for example) from accidentally be ­
ing locked in the vehicle should they acci­
dentally press the power locking switch
in the front doors.
- Do not leave children inside the vehicle
unsupervised. In an emergency it would
be imposs ible to open the doors from
the outside without the key.
(D Tips
- In the event of a crash with airbag de­
ployment all locked doors will be auto­
matically unlocked to give access to the
vehicle occupants from the outside.
- If the power locking system sho uld mal­
function, you can lock each door individ­
ually using the vehicle key
c:> page 45 .
-If the power locking system shou ld fa il,
you can still open the fuel tank flap in an
emergency
c:> page 261 .
-You are well advised not to keep va lua­
bles inside an unattended vehicle, v is ible
or not. Even a properly locked vehicle
cannot p rov ide the secur ity of a safe .

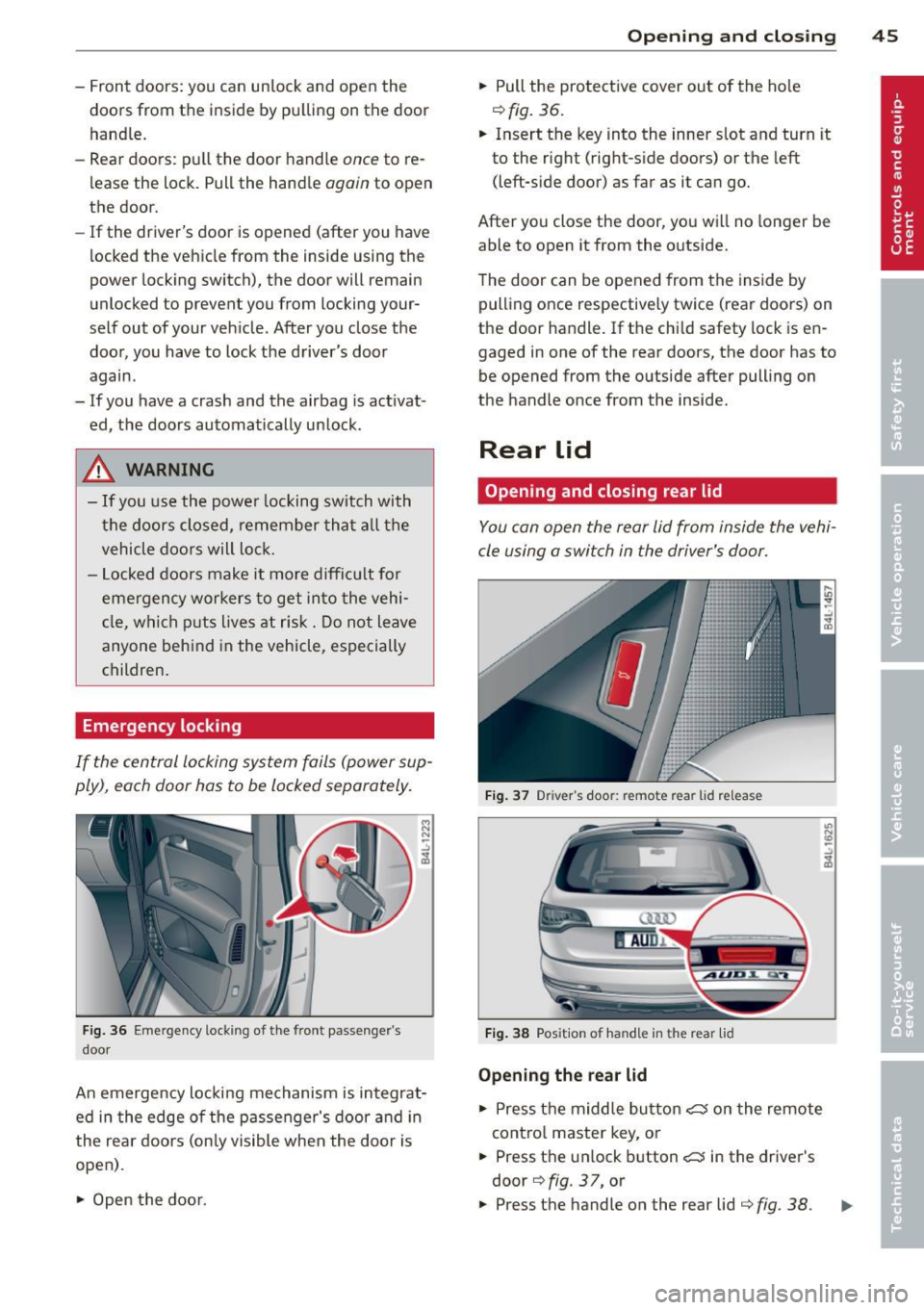

-Front doors: you can un lock and open the
doors from the inside by pulling on the door
handle.
- Rear doors: pu ll the door handle
once to re­
lease the lock. Pull the hand le
again to open
the doo r.
- If the driver's door is opened (after you have
locked the vehicle from the inside using the
power locking switch), the door will remain
unlocked to prevent you from locking your­
self out of your vehicle . After you close the
door, you have to lock the driver 's door
again .
- If you have a crash and the airbag is act ivat­
ed, the doors automatically unlock.
A WARNING
- If you use the powe r locking switch with
the doors closed, remember that all the
vehicle doors will lock.
- Locked doors make it more difficult for
emergency workers to get into the vehi ­
cle, which puts lives at risk. Do not leave
anyone behind in the vehicle, especially
children.
Emergency locking
If the central locking system fails (power sup­
ply), each door has to be locked separately.
Fig. 36 Em ergency lockin g o f the front passe nger's
doo r
i:i N
-..:,
~
An emergency locking mechanism is integrat­
ed in the edge of the passenger's door and in
the rear doors (only visible when the doo r is
open) .
~ Open the door.
Opening and closing 45
~ Pull the protective cover out of the hole
¢fig. 36.
~ Insert the key into the inner slot and turn it
to the right (right-s ide doors) or the left
(left-s ide door) as far as it can go.
After you close the door, you will no longer be
able to open it from the outside.
T he door can be opened from the inside by
pulling once respectively twice (rear doors) on
the door handle . If the chi ld safety lock is en­
gaged in one of the rear doors, the door has to
be opened from the outside after pull ing on
the handle once from the inside.
Rear lid
Opening and closing rear lid
You can open the rear lid from inside the vehi­
cle using a switch in the driver's door.
Fig. 37 Driver 's doo r: remote rear lid release
Fig. 38 Posit io n of ha ndle in t he re ar lid
Opening the rear lid
~ Press the middle button C::5 on the remote
cont rol master key, or
~ Press the un lock button C::5 in the driver's
door
¢ fig . 37, or
U) N
"' -..:,
i3
~ Press the handle on the rear lid ¢ fig. 38 . .,.

48 Openin g and clo sing
- As soon as the electrical connec tion to
the trailer socket is completed on
vehicles with a factory installed towing
hitch, or a trailer hitch that was installed
later according to factory specifications,
the automatic rear lid function can only be operated v ia the handle in the rear lid.
Rear lid emergency unlocking
If the rear lid cannot be opened, an emergen­
cy release is provided .
1----------------- --,l~ N
Fig . 4 1 Section of the luggage compar tment : Access to
emerge ncy re lease
Fig . 42 Sect ion of the luggage compartment: Emer­
gency release
,.. Tilt the seatback forward .
,.. Move into the t runk.
,.. Take the sc rewd river from the veh icle tool
kit . As an alternat ive, you can a lso use the
vehicle key.
• Put the flat side of the screw driver into the
recess and pry the cover up
o fig. 41 -Arrow-.
• Press the lever in the direction of the arrow
ofig . 42 to unlock the rear lid .
Child safety lock
Power child safety lock for the rear
doors
The power child safety lock t prevents the
rear doors from being opened from the in ­
side .
Fig . 43 Sect ion fro m driver's door: controls
The rear doors are equipped with a power
child safety lock.
It is operated with the two
safety buttons
III in the dr iver's door o fig. 43.
• Press the left and/or right safety button to
disab le the rear power window(s) and pre­
vent the respective rear door from being
opened from the inside. The LED in the but­
ton will light up when the child safety lock is
turned
on .
,.. Press the illum inated button aga in to turn
the child safety featu res
off .
When the c hild safety lock is activated, the in­
te rior door opening lever is inoperative; the
doo r can only be opened from th e outside. In
addition, the window reg ulator for that doo r
is also inoperative when the child safety lock
is activa ted.
If the child safety lock has been ac tivated on
one or both sides, the butto ns in the rear for
the Panoramic slid ing su nroof* are disabled .
If the child safety lock has been act ivated on
the left
and on the right side, the rear con­
tro ls are locked on veh icles with rear a ir-condi­
tion ing *. Dashes" ••• " are show n in t he dis­
plays for the rear climate contro ls, and the
rear air-conditioning can on ly be operated
from the climate controls in the cabin
opage 97.

@ Tips
-In order to activate the chi ld safety lock
on the left and the right side, you have to press the two safety buttons in succes­
sion.
- Make certain that the check light comes
on in the corresponding safety sw itch
when the child safety lock is activated.
Convenience key
Description
A pp lies to vehicles: with Convenie nce key
Access and vehicle operation based on: Mas­
ter key remains in driver 's pocket .
The Convenience key veh icle authorization
system allows
keyless unlock ing , locking and
starting of the vehicle . You only have to carry
the master key on your pe rson.
It makes no d ifference whether the master
key is in your jacket pocket or in your brief
case . As soon as you approach your vehicle,
the Convenience key recognizes the request
for access, checks for a uthorization and ena ­
b les the fo llowing functions:
- Unlocking the vehicle~
page 49.
-Locking the vehicle~ page 50.
-Switching on ignition and starting the en -
gine by pressing the
I START! button; the
master key does not have to be in the igni­
t ion switch
~page 107.
_& WARNING
-When you lock your vehicle from outside,
nobody- especially ch ildren -should re­
main inside the vehicle. Remember,
when you lock the vehicle from the out­
side the windows cannot be opened from
the ins ide .
- When you leave the vehicle, always re­
move the ignition key and take it with
you. This will prevent passengers (chil­
dren, for example) from accidentally be­
ing locked in the veh icle should they acci-
Opening and clo sin g 49
dentally press the power locking switch
in the front doors.
- Do not leave chi ldren inside the vehicle
unsupervised. In an emergency it would
be imposs ible to open the doors from
the outside without the key.
(D Tips
- In order for the Convenience key to func­
tion, you must a lways carry the master
key with you .
- In order to be able to unlock or lock the
vehicle, the author ized master key must
be within a range of about S feet (l.S
meters) from the door or the rear lid.
- Of course, you can still unlock and lock
your vehicle using the buttons on the
master key . The selector lever must be in
the P position .
- For Declaration of Compliance to United
States FCC and Industry Canada regula­
tions ~
page 328.
Unlocking the vehicle
App lies to vehicles : wit h Co nve nience key
The doors and the rear lid can be unlocked
without operating the master key .
Fig. 44 Convenie nce key : unlocking vehicle door
.,. Ta ke hold of the door handle. The door is
un locked automatically.
.,. Pull the handle to open the door.
A door is unlocked as soon as you approach
the door handle and the system recognizes an
authorized master key. The vehicle can be un­
locked at any door. The authorized master key
on ly has to be within a range of about 5 feet
(1.5 meters) from the respective doo r.
II>-
