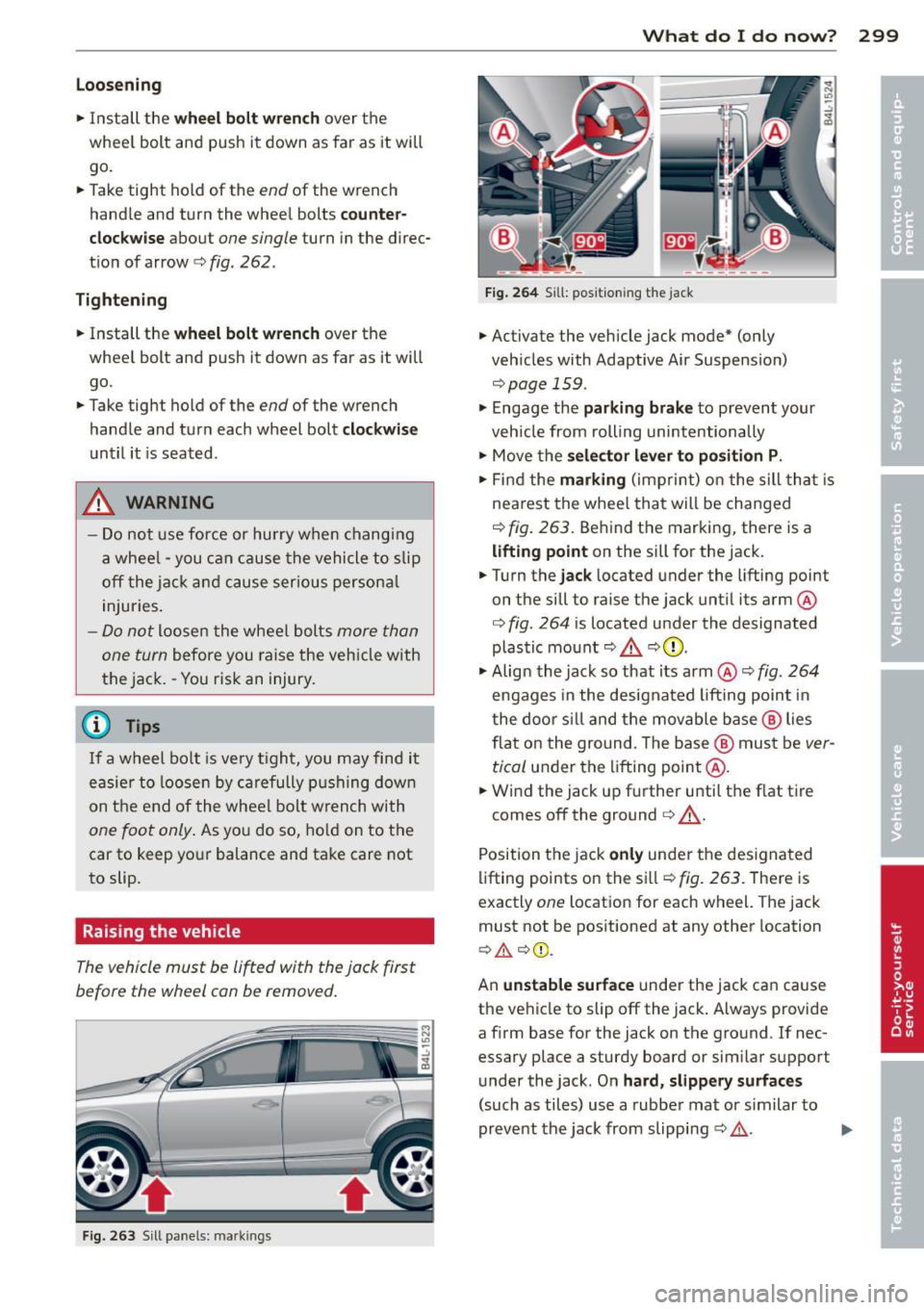

Loosening
• Install the wheel bolt wrench over the
whee l bolt and push it down as far as it wi ll
go.
• Take tight hold of th e
end of the wrench
handle and turn the whee l bolts
counter­
clockwise
abou t one single turn in the di rec·
tion of arrow
c::> fig. 262 .
Tightening
• Install the wheel bolt wrench over the
wheel bolt and push it down as far as it will
go .
• Take tight hold of the
end of the wrench
handle and turn each wheel bolt
clockwise
until it is seated .
& WARNING
-Do not use force or hurry when changi ng
a whee l· you can cause the vehicle to slip
off the jac k and cause serious personal
injuries .
-Do not loosen the wheel bolts more than
one turn
before you raise the veh icle with
the jack. -You risk an injury.
(j) Tips
If a wheel bolt is very tight, you may find it
easie r to loosen by carefully pushing down
on the end of the wheel bolt wrench with
one foot only. As you do so, hold on to the
car to keep yo ur balance and take care not
to slip.
Raising the vehicle
The vehicle must be lifted with th e jack first
before the wheel can be removed .
Fig. 263 Sill pane ls: m arkin gs
What do I do now? 299
Fig. 264 Sill: p ositioning the jack
• Activate the vehicle jack mode* (only
veh icles with Adaptive Air Suspension)
c::> page 159 .
• Engage the parking brake to prevent your
vehicle from rolling unintentionally
• Move the
selector lever to position P .
• Find the marking (imprint) on the sill that is
nea rest the whee l that will be changed
c::>fig. 263. Behind the marking, there is a
lifting point on the sill for the jack.
• Turn the
jack located under the lifting point
on the sill to raise the jack until its arm@
c::> fig. 264 is located under the designated
plastic mount
c::> .&. c::> Q) .
• Align the jack so that its arm@ c::> fig. 264
engages in the designated lifting point in
the door s ill and the movable base® lies
flat on the ground. The base@ must be
ver­
tical
under the lifting point@.
• Wind the jack up further until the flat tire
comes off the ground
c::> .,& .
Position the jack only under the designated
lifting points on the sill
c::> fig. 263. There is
exactly
one locat ion for each whe el. The jack
must not be positioned at any other location
c::> .&. c::> Q).
An unstable surface under the jack ca n cause
the vehicle to slip off the jack. Always provide
a firm base for the jack on the ground . If nec ­
essary place a sturdy board or similar support
under the jack . On
hard, slippery surfaces
(such as tiles) use a rubber mat or similar to
prevent the jack from slipping
c::> ,&.. .,,.

300 What do I do now?
& WARNING
-You or your passengers could be injured
while changing a wheel if you do not
follow these safety precautions:
- Position the jack only at the designated
lifting points and align the jack. Other­
wise, the jack could slip and cause an injury if it does not have sufficient hold
on the vehicle.
- A soft or unstable surface under the
jack may cause the vehicle to slip off the jack. Always provide a firm base for
the jack on the ground . If necessary,
use a sturdy board under the jack.
- On hard, slippery surface (such as tiles)
use a rubber mat or similar to prevent
the jack from slipping.
- To help prevent injury to yourself and
your passengers:
- Do not raise the vehicle until you are
sure the jack is securely engaged.
- Passengers must not remain in the ve­
hicle when it is jacked up.
- Make sure that passengers wait in a
safe place away from the vehicle and
well away from the road and traffic.
- Make sure jack position is correct, ad­
just as necessary and then continue to
raise the jack.
(D Note
Do not lift the vehicle by the sill. Position
the jack only at the designated lifting
points on the sill. Otherwise , your vehicle
will be damaged.
Taking the wheel off /installing the
inflatable spare tire
Follow these instructions step-by-step for
changing the wheel
Fig. 265 Changing a wheel: alignment pin inside the
top hole
After you have loosened all wheel bolts and raised the vehicle off the ground, remove and
replace the wheel as follows:
Removing the wheel
.,. Remove the topmost wheel bolt completely
and set it aside on a
clean surface.
.,. Screw the threaded end of the
alignment
pin
from the tool kit hand-tight into the
empty bolt hole
¢ fig . 265.
.,. Then remove the other wheel bolts as de­
scribed above.
.,. Take off the wheel leaving the alignment pin
in the bolt hole ¢(D.
Putting on the inflatable spare tire
.,. Inflate the inflatable spare tire ¢ page 296
and push the wheel over the alignment pin.
"Screw in and tighten all wheel bolts
slightly.
.,. Remove the alignment pin and insert and
tighten the remaining wheel bolt slightly
like the rest .
.,. Turn the jack handle counter-clockwise to
lower the vehicle until the jack is fully re­
leased .
" Use the wheel bolt wrench to tighten all
wheel bolts firmly ¢
page 298 . Tighten
them
crosswise, from one bolt to the (ap­
proximately) opposite one, to keep the
wheel centered.

Loading the vehicle onto a flat bed truck
Fig. 277 Veh icle on flat bed truck
Front hook up
.. Align the vehicle with the centerline of the
car carrier ramp.
.. Attach the winch hook to the front towline
eye previously installed .
Rear hook up
.. Align the vehicle with the centerline of the
car carrier ramp.
.. Attach the winch hook to the rear towline
eye previously installed.
(D} Tips
Check carefully to make sure the hook-up
is secure before moving the car up the flat­
bed truck ramp.
Lifting vehicle
Lifting with workshop hoist and with
floor jack
The vehicle may only be li~ed at the lifting
points illustrated .
Fig. 278 Front l ifting po int
Emergency situations 311
Fig . 279 Rea r lift ing po int
.,. Read and heed WARNING c::> .&, .
.,. Locate lifting points c::> fig. 2 78 and
¢ fig. 279 .
.,. Adju st lifting arms of workshop hoist or
floor jack to match veh icle lifting points.
.. Insert a rubber pad between the floor jack/
workshop hoist and the lift ing points.
If you must lift your vehicle with a floor jack
to work underneath, be sure the vehicle is
safely supported on stands intended for this
purpose .
Front lifting point
T he lifti ng point is loca ted on the floo r pan re­
info rcemen t about at the same level as the
jack mounting point
c::>fig. 278. Do not lift
the vehicle at the vertical sill reinforcement.
Rear lifting point
The lifting point is located o n the vert ica l rein­
forcement of the lower sill for the on board
jack
c::> fig. 2 79 .
Lifting with vehicle jack
Refer to c:;, page 299.
A WARNING
-To reduce the risk of ser ious injury and
vehicle damage.
- Always lift the vehicle only at the spe­
cia l workshop hoist and floor jack lift
points illustrated
c:;, fig. 278 and
¢fig. 279.
- Fail ure to lift the veh icle at these
-
points could cause the vehicle to tilt or ..,.

312 Emergency situations
fall from a lift if there is a change in ve­
hicle weight distribution and balance.
This might happen, for example, when
heavy components such as the engine
block or transmission are removed .
- When removing heavy components like
these, anchor vehicle to hoist or add cor­
responding weights to maintain the cen­
ter of gravity. Otherwise, the vehicle
might tilt or slip off the hoist, causing
serious personal injury.
(D Note
- Be aware of the following points before
lifting the vehicle:
-The vehicle should never be lifted or
jacked up from underneath the engine
oil pan, the transmission housing, the
front or rear axle or the body side
members. This could lead to serious
damage.
- To avoid damage to the underbody or
chassis frame, a rubber pad must be
inserted between the floor jack and
the lift points.
- Before driving over a workshop hoist,
check that the vehicle weight does not
exceed the permissible lifting capacity
of the hoist.
- Before driving over a workshop hoist,
ensure that there is sufficient clear­
ance between the hoist and low parts
of the vehicle.
