Child safety seats
Infant seats
Babies and infants up to about one year old
and 20 lbs. or 9 kg need special rearward -fac ­
ing child restraints that support the back,
neck and head in a crash.
Fig . 217 Sche matic overv iew: rearward-fac ing infant
seat, properly installed o n the rear seat
~ When using the vehicle safety belt to install
a child safety seat, you must first activate
the convertible locking retracto r on the
safety be lt to prevent the child safety seat
from moving ¢
page 213 or install the seat
using the LA T CH attachments.
~ Push the child safety seat down with your
full weight to get the safety belt rea lly tight
so that the seat cannot move forward or
sideways more than one inch (2.5 cm).
~ Secure unused safety belts on the rear seat
¢page 208.
Infants up to about one year (20 lbs. or 9 kg)
are best protected in special infan t carriers
and child safety seats designed for their age
group . Many experts believe that infants and
small children should ride only in spec ial re­
straints in which the ch ild faces the back of
the vehicle. These infant seats support the ba­
by's back, neck and head in a crash ¢
fig. 217.
The airbag on the passenger side makes the
front seat a po tentially dangerous place for a
child to r ide . The front seat is not the safest
p lace for a child in a forward -facing child seat.
It is a very dangerous p lace for an infant or a
l arger ch ild in a rearward-facing seat.
Child Safety 209
A WARNING
Not using a child safety seat, using t he
wrong child safety seat or improperly in ­
stall ing a ch ild restraint increases the risk
of ser ious personal injury and death in a
crash.
- Never install rear-facing child safety
seats or infant ca rr ie rs on the front pas­
senger seat -even with an Advanced Air ­
bag Sys tem. A ch ild will be ser iously in­
jured and ca n be killed when the inflat ­
ing airbag hits the child safety seat or in­
fant carrier with great force and smashes the child safety seat and child against
the backrest, center armrest, door or
roof ¢
page 184, Child restraints on the
front seat- some important things to
know .
-Always install rear-fac ing ch ild safety
seats or infant carriers on the rear seat .
- Never install a rear-fac ing ch ild restraint
in the forward-fac ing d irect ion. Such re­
straints are designed for the special needs of infants and very small ch ild ren
and cannot prote ct them properly if the
seat is forward- facing.
- If you mus t insta ll a rearward fac ing
child sa fety seat on the fro nt passenger
seat because of exceptiona l circumstan­
ces and t he
PASSENGER AIR BAG OFF
light does not come on and stay on, im­
mediately insta ll the rear -fac ing ch ild
safety seat in a rear seating position and
have the airbag system inspected by your
Aud i dea ler .
- Always read and heed all WARNINGS
wheneve r us ing a child restrained in ave­
hicle is being used¢
page 173 , Safety
belts,
¢ page 182, Airbag system and
¢ page 203, Important things to know.

210 Child Safety
Convertible child safety seats
Properly used convertible child safety seats
can help protect toddlers and children over
age one who weigh between
20 and 40 lbs. (9
and 18 kg) in a crash.
Fig. 218 Schematic overv iew : ins tallat ion of t he at­
ta chments applicable to a LATCH seat
Fig. 219 Schematic overview: insta llation of th e sea t
us ing t he veh icle's safety be lt system
.. When using the vehicle safety be lt to install
a chi ld safety seat, you must f irst activate
the convertible locking feature on the safety
belt to prevent the child safety seat from
moving
c::> page 213 or install the seat using
the LATCH attachments .
.. Push the child safety seat down with your
full weight to get the safety belt really t ight
so that the seat cannot move forward or sideways more than one inch (2.5 cm)
c::>page213.
.. If the child safety seat is eq uipped w ith a
tether strap, attach it to the tether anchors
i=>page220.
.. Secure unused safety be lts on the rear seat
c::> page 208.
A toddler or child is usually too large for an in­
fant restra int if it is more than one year o ld
and weighs more than 20 lbs. (9 kg). T
oddlers and children who are older than one
year up to about 4 years old and weigh more
than 20 lbs. (9 kg) up to 40 lbs. (18 kg) must
always be properly restrained in a child safety
seat certified for their size and weight
c::> fig . 218 and c::> fig . 219 .
The airbag on the passenger side makes the
front seat a potentia lly dangerous place for a
child to ride. The front seat is not the safest
place for a child in a forward-facing child safe­
ty seat . It is a very dangerous place for an in­
fant or a larger child in a rearward-facing seat.
_&. WARNING
Not using a child safety seat, using the
wrong child safety seat or improp erly in­
stalling a chi ld restraint increases the risk
of serious personal injury and death in a
collision or other emergency situation .
- Children on the front seat of any car,
-
even with Advanced Airbags, can be seri­
ously injured or even killed when an air­ bag inflates . A chi ld in a rearward-facing
child safety seat installed on the front passenger seat will be seriously injured
and can be killed if the front airbag in­
f la tes -even with an Advanced Airbag
System .
- The inflating airbag will hit the child
safety seat or infant carrier with great
force and will smash the child safety seat
and child against the backrest, center
armrest, door or roof.
- Always install rear-facing child safety
seats on the rear seat .
- If you must install a rearward facing
child safety seat on the front passenger
seat because of exceptiona l circumstan­
ces and the
PASSENGER AIR BAG OFF
light does not come on and stay on, im­
mediately insta ll the rear-facing child
safety seat in a rear seating position and
have the airbag system inspected by your
Audi dealer.
- The rear side of the child safety seat
should be pos itioned as close as possible ..,.

M
"' 0 ..J
"". rl I.O
"' rl
"' rl
to the backrest on the vehicle seat. Ad­
just or remove the rear seat head restraint if it is difficult to inst all the
child seat with the head restraint in place
¢ page 80. Install the head restraint
again immediately once the child seat is
removed. Driving without head restraints
or with head restraints that are not prop­
erly adjusted increases the risk of serious
or fatal neck injury dramatically.
- Always read and heed all WARNINGS
whenever using a child restrained in ave­
hicle is being used
¢page 173, Safety
belts,¢ page 182, Airbag system
and
¢ page 203, Important things to know.
A WARNING
If exceptional circumstances require the
use of a forward-facing child restraint on
the front passenger's seat, the child's safe­
ty and well-being require that the follow­
ing special precautions be taken:
- Make sure the forward-facing seat has been designed and certified by its manu­
facturer for use on a front seat with a passenger front and side airbag.
-Always follow the manufacturer's in­
structions provided with the child safety
seat or infant carrier.
- Always move the front passenger seat in­
to the rearmost position of the passen­
ger seat's fore and aft adjustment range,
and as far away from the airbag as possi­
ble before installing the child restraint.
- Always make sure that nothing prevents
the front passenger's seat from being
moved to the rearmost position in its
fore and aft adjustment range.
- Always make sure the backrest is in an
upright position.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the
time whenever the ignition is switched
on.
- If the light does not stay on, perform the
checks¢
page 193, Monitoring the Ad­
vanced Airbag System.
-
Child Safety 211
- Ta ke the child restraint off the front pas­
senger seat and install it properly at one
of the rear seat positions if the
PASSEN­
GER AIR BAG OFF
light does not stay on
whenever the ignition is switched on.
Booster seats and safety belts
Properly used booster seats con help protect
children weighing between about 40 lbs. and
80 lbs. (18 kg and 36 kg) who are less than 4
ft. 9 in . (57 inches/1.45 meters) tall.
In .... N 0 ±
~
Fig. 220 Rear seat: c hild properly res trained in a boos­
ter seat
The vehicle's safety belts alone will not fit
most children until they are at least 4
ft. 9 in .
(57 inches/1.45 meters) tall and weigh about
80 lbs. (36 kg). Booster seats raise these chil­
dren up so that the safety belt will pass prop­
erly over the stronger parts of their bodies
and the safety belt can help protect them in a
crash.
.,. Do not use the convertible locking retractor
when using the vehicle's safety belt to re­
strain a child on a booster seat.
... The shoulder belt must lie as close to the
center of the child's collar bone as possible
and must lie flat and snug on the upper
body. It must never lie across the throat or
neck . The lap belt must lie across the pelvis
and never across the stomac h or abdomen .
Make sure the belt lies flat and snug . Pull on
the belt to tighten if necessary.
.,. If you must transport an older child in a
booster seat on the front passenger seat,
you can use the safety belt height adjust­
ment to help adjust the shoulder portion
properly.

212 Child Saf ety
• Secure unused safety belts on the rear seat
9page 208.
Ch ildren up to at least 8 years old (over 40
l bs. or 18 kg) are best protected in chi ld safe­
ty seats designed for their age and weight. Ex­ perts say that the ske leta l structure, particu­
larly the pelvis, of these chi ldren is not fully
developed, and they must not use the vehicle
safety belts w ithout a su itable child restraint.
It is us ually best to put these children in ap­
propriate booster seats. Be sure the booster
seat meets all applicab le safety standards.
Booster seats raise the seating position of the
child and reposition both the lap and shoulder
parts of the safety belt so that they pass
across the child's body in the right places. The
routing of the belt over the child's body is very
important for the ch ild's protection, whether
or not a booster seat is used . Children age 12
and under must always ride in the rear seat.
Ch ildren who are at least 4
ft. 9 in. (S7 in­
ches/1.4S meters) tall can generally use the
vehicle's three po int lap and shoulder belts.
Neve r use the lap belt portion of the veh icle's
safety belt a lone to restrain any child, regard­
l ess of how b ig the child is. Always remembe r
that c hildren do not have the pronounced pe l­
vic structure required for the proper function
of lap belt portion of the vehicle's three point
lap and shoulder be lts. The child's safety ab­
solutely requires that a lap be lt portion of the
safety belt be fastened snugly and as low as
possible around the pelvis . Never let the lap
be lt portion of the safety belt pass over the
chi ld's stomach or abdomen.
In a crash, airbags must inflate within a blink
of an eye and with cons iderable force . In order
to do its job, the airbag needs room to inflate
so that it will be there to protect the occupant
as the occupant moves forward into the air­ bag.
A vehicle occupant who is out of position and
too close to the airbag gets in the way of an
i n flat ing airbag. When an occupant is too
close, he or she wi ll be struck violen tly and will
receive serious or possib ly even fatal in ­
jury .
In order fo r the ai rbag to offer protect ion, i t is
i mportant that a ll vehicle occupants, espec ial­
ly any children, who m ust be in the front seat
because of exceptiona l circumstances, be
proper ly restrained and as far away from the
airbag as possible. By keeping room between
the child's body and the front of the passen­
ger compartment, the airbag can inflate com­
pletely and prov ide supplemental protection
in certain frontal collisions.
.&, WARNING
No t using a booste r seat, using the boos­
ter seat improperly, inco rrectly installing a
booster seat or using the vehicle safety
belt improperly increases the risk of seri­
ous persona l injury and death in a collision
or other emergency situat ion. To he lp re­
duce the risk of serious personal injury
and/or death:
- The shou lder belt must lie as close to the
center of the ch ild's collar bone as possi­
b le and must lie flat and snug on the up­
per body. It must neve r lie across the
throat or neck. The lap belt must lie
across the pe lvis and neve r ac ross t he
stomach o r abdomen. Make sure the belt
liesflat andsnug.Pullon thebeltto
tighten if necessary.
- Failure to p roperly ro ute s afety belts
over a child's body wi ll ca use seve re inj u­
ries in an accident or other emergency
situation
¢page 173 .
- The rear side o f the child safety seat
should be pos itioned as close as possib le
to the backrest on the vehicle seat. Ad­
just or remove the rear seat head re­ straint if it is difficu lt to install the ch ild
seat with the head restraint in p lace
c::> page 80. Install the head restraint
aga in immediately once the ch ild seat is
removed. D riving without head restraints
or w ith head restra ints that a re not prop­
erly ad justed increases the risk of serious
.
or fatal neck inj ury dramatically . ""

M N
0 ...J
'SI: ,...., \!) ..,.,
,...., ..,., ,....,

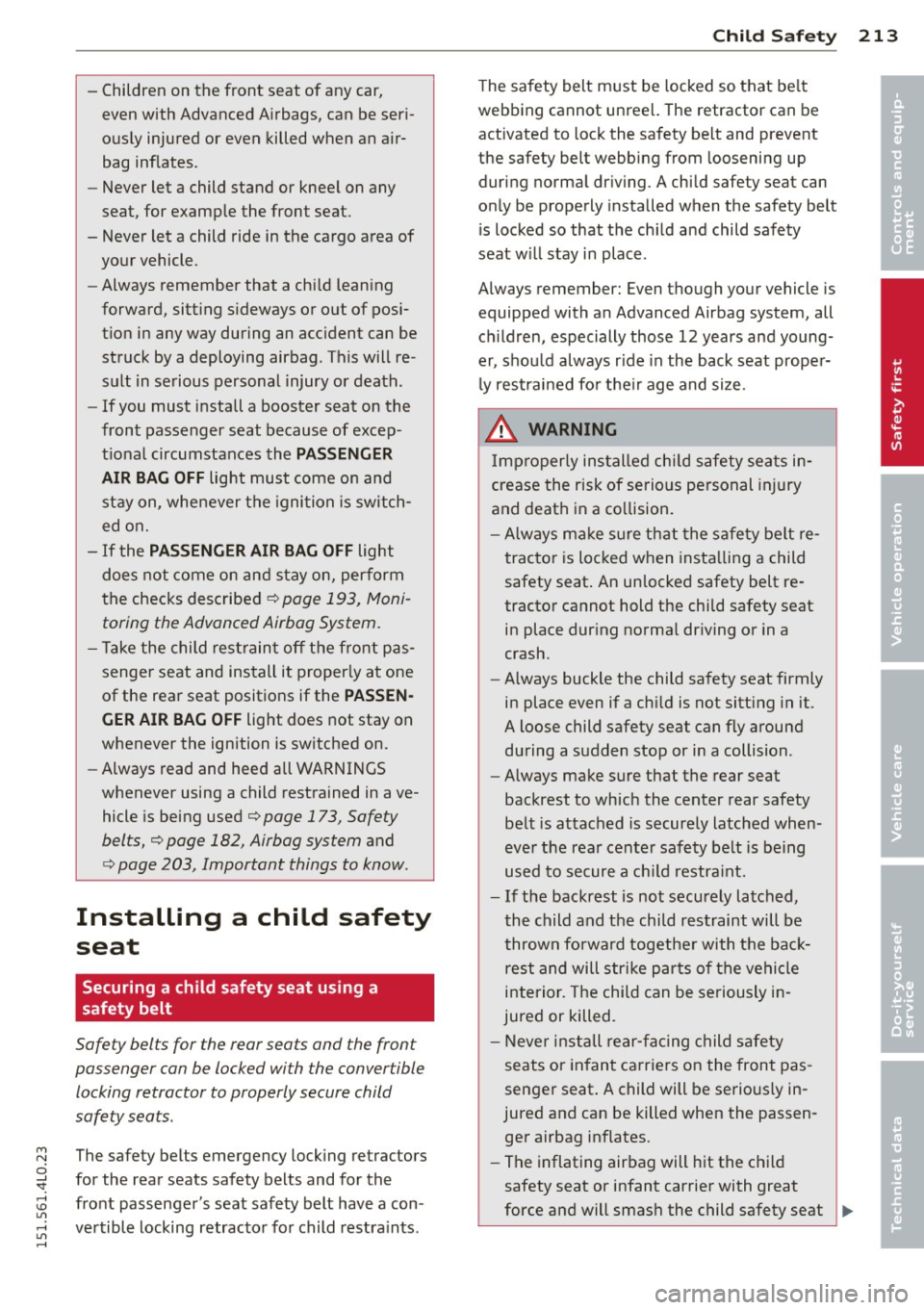

-Children on the front seat of any car,
even with Advanced A irbags, can be seri­
ous ly injured or even killed when an a ir­
bag inflates.
- Never let a child stand or kneel on any
seat, for examp le the front seat.
- Never let a child ride in the cargo area of
your vehicle .
- Always remember that a ch ild lean ing
forward, sitt ing sideways or out of posi­
t ion in any way during an acc ident can be
struck by a deploying airbag . This will re­
sult in se rious personal injury or death .
- If you must install a booster seat on the
front passenger seat because of excep­
t ional circumstances the
PASSENGER
AIR BAG OFF
light must come on and
stay on, whenever the ignition is switch­
ed on.
- If the
PASSENGER AIR BAG OFF light
does not come on and stay on, perform
the checks described¢
page 193, Moni­
toring the Advanced Airbag System.
- Ta ke the child restrain t off the front pas­
senger seat and install it properly at one
of the rear seat positions if the
PASSEN­
GER AIR BAG OFF
light does not stay on
whenever the ignition is switched on.
- Always read and heed all WARNINGS
whenever using a child restrained in ave­
hicle is being used ¢
page 173, Safety
belts,¢ page 182, Airbag system
and
c:> page 203, Important things to know.
Installing a child safety
seat
Securing a child safety seat using a
safety belt
Safety belts for the rear sea ts and the fron t
passenger can be locked wi th the convertible
locking retractor to properly secure child
safety seats .
The safety belts emergency lock ing retractors
for the rear seats safety belts and for the
front passenger's seat safety belt have a con ­
ve rtible locking retractor for child restraints.
Child Sa fet y 213
The safety belt must be locked so that be lt
webbing cannot unree l. The retractor can be
activated to lock the safety belt and prevent
the safety belt webbing from loosening up
during normal dr iving . A child safety seat can
only be properly installed when the safety belt
i s locked so that the chi ld and child safety
seat w ill stay in place .
Always remember: Even though your vehicle is equipped with an Advanced Airbag system, all
ch ildren, especially those 12 years and young­
er, shou ld always r ide in the back seat proper­
ly restrai ned fo r the ir age and size.
A WARNING
Improperly installed chi ld safety seats in­
crease the risk of serious personal injury
and death in a collision.
- Always ma ke sure that the safety belt re­
tracto r is loc ked when installing a child
safety seat . An unlocked safety belt re­
tractor cannot hold the child safety seat
in place during normal dr iving or in a
crash.
- Always buckle the child safety seat firmly
in place even if a ch ild is not sitt ing in it.
A loose child safety seat can fly around during a sudden stop or in a collision .
- Always make sure that the rear seat
backrest to which the center rear safety
belt is attached is securely latched when­
eve r the rea r center safety belt is being
used to secure a ch ild restra int.
- If the backrest is not securely latched,
the child and the child restraint will be
thrown forward together with the back­ rest and will strike parts of the vehicle
interior. The child can be seriously in­
jured or killed.
- Never install rear-fa cing child safety
seats or infant carrie rs on the front pas ­
senger seat . A child will be serio usly in­
jured and can be killed when the passen­ ger airbag inflates.
- The inflating airbag will h it the ch ild
safety seat or infant carrier with great
force and will smash the child safety seat
~
•
•

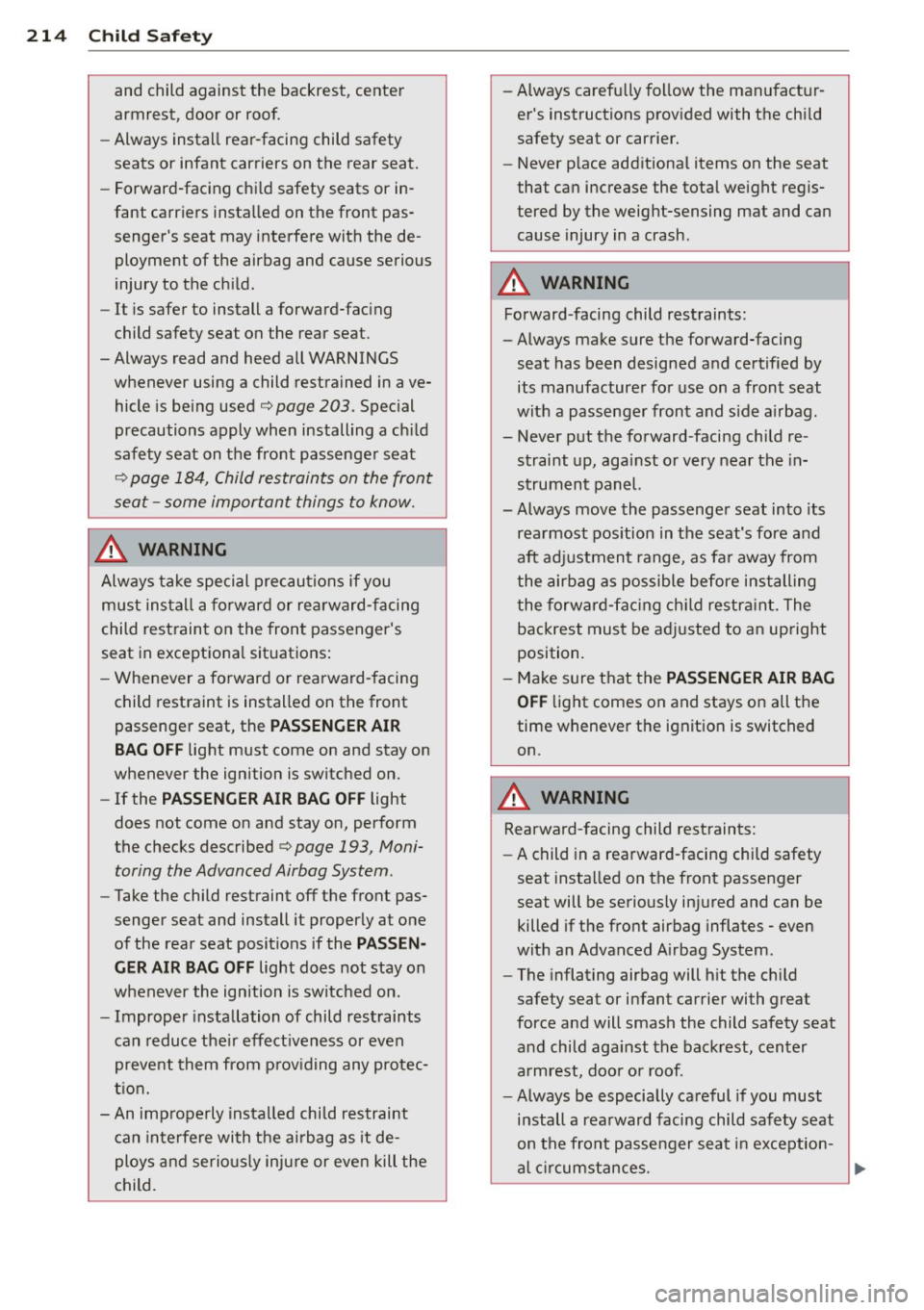

214 Child Safety
and child against the backrest, center
armrest, door or roof.
- Always install rear-facing child safety
seats or infant carriers on the rear seat.
- Forward-facing child safety seats or in­
fant carriers installed on the front pas­
senger's seat may interfere with the de­
ployment of the airbag and cause serious
injury to the child.
- It is safer to install a forward-facing
child safety seat on the rear seat.
- Always read and heed all WARNINGS whenever using a child restrained in ave­
hicle is being used
c::> page 203 . Special
precautions apply when installing a child
safety seat on the front passenger seat
c::> page 184, Child restraints on the front
seat -some important things to know.
A WARNING
Always take special precautions if you
must install a forward or rearward-facing
child restraint on the front passenger's
seat in exceptional situations:
- Whenever a forward or rearward-facing
child restraint is installed on the front
passenger seat, the
PASSENGER AIR
BAG OFF
light must come on and stay on
whenever the ignition is switched on.
- If the
PASSENGER AIR BAG OFF light
does not come on and stay on, perform
the checks described
<=:> page 193, Moni­
toring the Advanced Airbag System.
- Take the child restraint off the front pas­
senger seat and install it properly at one
of the rear seat positions if the
PASSEN­
GER AIR BAG OFF
light does not stay on
whenever the ignition is switched on.
- Improper installation of child restraints
can reduce their effectiveness or even
prevent them from providing any protec­
tion.
- An improperly installed child restraint
can interfere with the airbag as it de­
ploys and seriously injure or even kill the
child. -
Always carefully follow the manufactur­
er's instructions provided with the child
safety seat or carrier.
- Never place additional items on the seat
that can increase the total weight regis­
tered by the weight-sensing mat and can
cause injury in a crash .
A WARNING
-Forward-facing child restraints:
- Always make sure the forward-facing
seat has been designed and certified by its manufacturer for use on a front seat
with a passenger front and side airbag .
- Never put the forward-facing child re­ straint up, against or very near the in­
strument panel.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the airbag as possible before installing
the forward-facing child restraint. The
backrest must be adjusted to an upright
position.
- Make sure that the PASSENGER AIR BAG
OFF
light comes on and stays on all the
time whenever the ignition is switched
on .
A WARNING
Rearward-facing child restraints:
- A child in a rearward-facing child safety
seat installed on the front passenger
seat will be seriously injured and can be killed if the front airbag inflates -even
with an Advanced Airbag System .
- The inflating airbag will hit the child
safety seat or infant carrier with great
force and will smash the child safety seat
and child against the backrest, center
armrest, door or roof.
- Always be especially careful if you must
install a rearward facing child safety seat
on the front passenger seat in exception-
al circumstances.
~

M N
0 ..J
'SI: ,...., \!) 1.1'1 ,...., 1.1'1 ,....,
-A tight tether strap on a rearward-facing
child restraint attached to the front pas­
senger seat can put too much pressure on the weight-mat in the seat and regis­
ter a heavier weight in the Advanced Air­
bag System . The heavier weight regis­
tered can make the system work as
though an adult were on the seat and de­
ploy the Advanced Airbag when it must
be suppressed causing serious or even
fatal injury to the child .
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the
time whenever the ignition is switched
on.
- If the
PASSENGER AIR BAG OFF light
does not come on and stay on, immedi­
ately install the rear-facing child safety
seat in a rear seating position and have
the airbag system inspected by your Audi dealer.
Activating the convertible locking
retractor
Use the convertible locking retractor to se­
cure a child restraint.
Always heed the child safety seat manufactur­
er's instructions when installing a child re­
straint in your vehicle . To activate the conver­
tible locking retractor :
.. Place the child restraint on a seat, prefera­
bly on the rear seat.
.. Slowly pull the belt
all the way out .
.. Route it around or through the child re ­
straint belt path~&_ .
.. Push the child safety seat down with your
full weight to get the safety belt really tight.
.. Insert the belt tongue into the buckle for
that seating position .
.. Guide the safety belt back into the retractor
until the belt lies flat and snug on the child
safety seat .
.. You should hear a "clicking " noise as the
belt winds back into the inertia reel. Test the
convertible locking retractor by pulling on
the belt . You should no longer be able to
Child Safety 215
pull the belt out of the retractor. The con­
vertible locking retractor is now activated.
.. Make sure that the red release button is fac­
ing away from the child restraint so that it
can be unbuckled quickly.
.. Pull on the belt to make sure the safety belt
is properly tight and fastened so that the
seat cannot move forward or sideways more
than one inch (2.5 cm).
_&. WARNING
Using the wrong child restraint or an im­
properly installed child restraint can cause
serious personal injury or death in a crash.
- Always make sure that the safety belt re-
tractor is locked when installing a child
safety seat. An unlocked safety belt re­
tractor cannot hold the child safety seat
in place during normal driving or in a
crash.
-Always buckle the child safety seat firmly in place even if a child is not sitting in it.
A loose child safety seat can fly around
during a sudden stop or in a crash.
- Always make sure the seat backrest to
which the child restraint is installed is in
an upright position and securely latched
into place and cannot fold forward . Oth­
erwise, the seatback with the child safety
seat attached to it could fly forward in
the event of an accident or other emer­
gency situation .
- Always read and heed all WARNINGS
whenever using a child restrained in ave­
hicle is being used¢
page 203. Special
precautions apply when installing a child
safety seat on the front passenger seat
¢ page 184, Child restraints on the front
seat -some important things to know .
-
•
•

216 Child Saf ety
Deactivating the convertible locking
retractor
The convertible locking retractor for child re­
straints will be deactivated automatically when the belt is wound all the way back into the retractor .
.,. Press the red button on the safety belt buck­
le. The be lt tongue w ill pop out of the buck­
le .
.. Guide the safety belt all the way back into
its stowed position .
A lways le t the safety belt retract complete ly
into its stowed position . The safety belt can
now be used as an ordinary safety belt with ­
out the convertib le locking retractor for chi ld
restra ints.
If the convertible locking retractor shou ld be
activated inadvertently, the safety belt m ust
be unfastened and guided completely back in­
to its stowed position to deactivate th is fea­
ture. If the convertible locking retractor is not
deactivated, the safety belt will gradually be­
come tighter and uncomfortable to wea r.
A WARNING
Imprope rly insta lled child safety seats in­
crease the risk of ser ious personal inju ry
and death in a collision.
- Never unfaste n the safety belt to deacti­
vate the convert ible lock ing ret ractor for
c hild rest rain ts while the veh icle is mov­
ing. You would not be rest rained and
cou ld be seriously injured in an accident.
- Always read and heed all WARN INGS
whenever using a child rest rained in ave ­
hicle is being used
¢ page 203. Special
precautions apply when installing a ch ild
safety seat on the front passenger seat
¢ page 184, Child restraints on the front
seat -some important things to know.
LATCH Lower
anchorages and tethers
for children
Child Restraint System anchors and how
are they related to child safety
To p rov ide a simpler and more practicable way
to a ttach the child restra int on the vehi cle
seat, Federal regulat ions req uire spec ia l lowe r
anchorages in vehicles and devices on new
child restraints to attach to the vehicle ancho­
rages.
T he combination of the tether anc horages and
the lowe r anchorages is now genera lly ca lled
t h e
LATCH system fo r "Lower Anchorages and
T ethers for Child ren."
F o rward-facing chi ld restrai nts ma nufactured
after September 1, 1999, are requ ired by U .S .
f edera l regu lations to comply with new child
head movement performance req uirements.
These new performance requirements make a
tether necessary on most new child seats.
Installing a child restraint that requires a top
tether without one can seriously impair the performance of the c hild restra int and its abil­
ity to protect the child in a coll is ion. Insta lling
a chi ld restraint that requires a top tether
without the top tether may be a violat ion of
state law.
Child restraint manufacturers offer LATCH
lower anchorages on their child seats w ith
hook-on or push-on connectors attached to
adjustable straps.
In add ition to the LATCH lower anchorages,
these chi ld restraint systems usually require
the use of tether straps to he lp keep the chi ld
rest raint firmly in place.

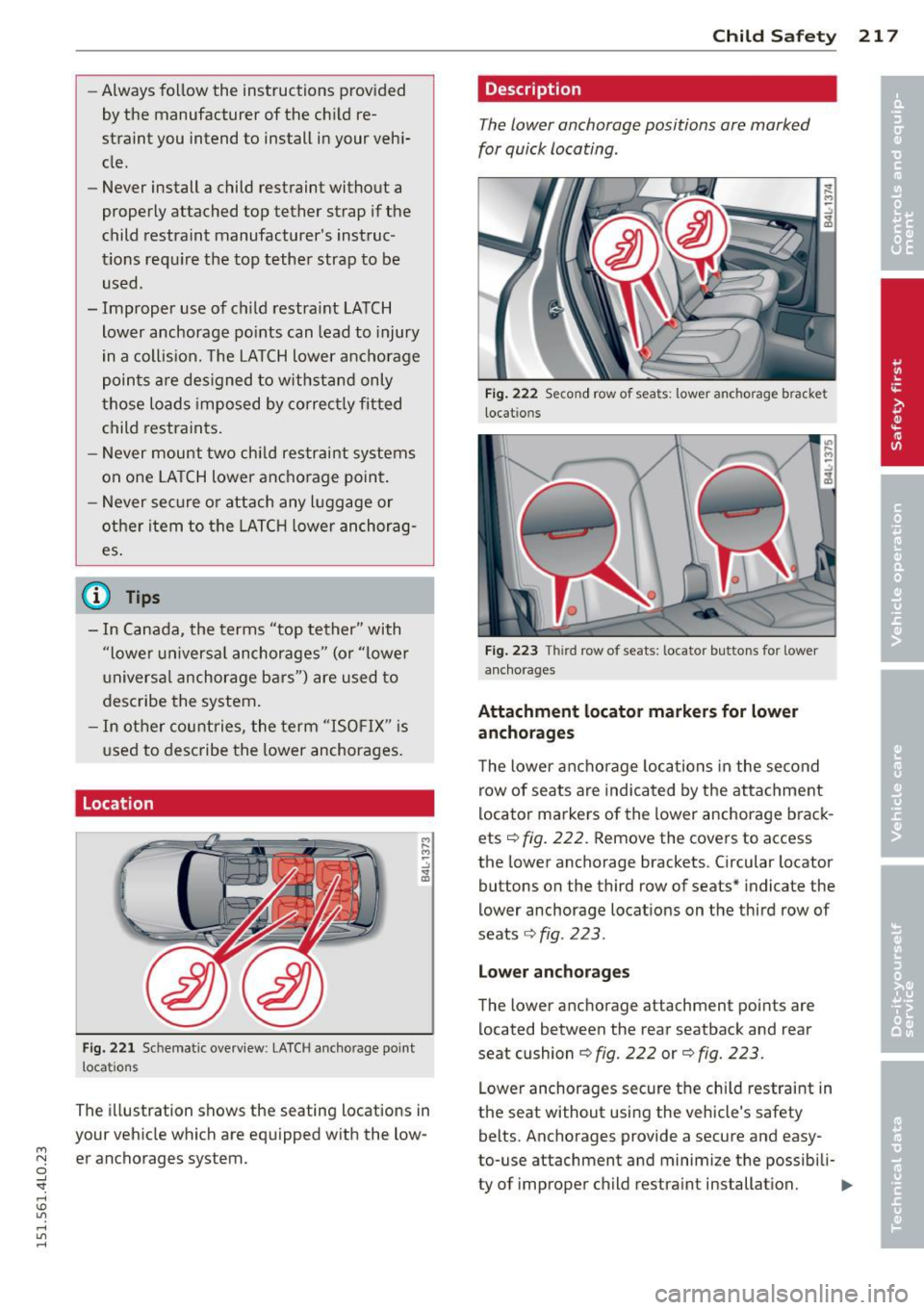

A WARNING
-Imp roper installat ion of ch ild restra ints
will i ncrease the r is k of injury a nd death i n
a crash.
-

-Always follow the instructions provided
by the manufacturer of the child re­
straint you intend to install in your vehi­
cle .
- Never install a child restraint without a
properly attached top tether strap if the
child restraint manufacturer's instruc­
t ions req uire the top tether strap to be
used.
- Improper use of child restra int LATCH
lower anchorage po ints can lead to injury
in a collis ion. The LA TCH lower anchorage
poin ts are des igned to w ithstand only
those loads imposed by correct ly fit ted
child restraints.
- Never mount two chi ld restraint systems
on one LA TCH lower anchorage point .
- Never secure o r attach any l uggage or
other i tem to the LATC H lower anchorag­
es .
{i) Tips
-In Canada, the terms "top tether" with
"lowe r universa l anchorages" (or "lower
universa l anchorage bars") are used to
desc ribe the system .
- In ot her countries, the term "ISOFIX" is
u sed to describe the lower anchorages.
Location
F ig. 22 1 Schematic overview : LATCH anc horage point
locations
The ill ustration shows the seating locations in
your vehicle which are equipped with the low-
M "' er anchorages system. 0 ..J
"". rl I.O
"' rl
"' rl
Child S afety 21 7
Description
The lower anchorage positions are marked
for quick locating .
Fig . 222 Second row of seats: lower anchorage bracket
locat ions
F ig . 223 Thir d row of seats: locator buttons for lower
a nch orages
Attachment locato r markers for lower
anchorages
T he lower anchorage locations in the second
row of seats are indicated by the attachment
locator marke rs of the lower anchorage brack ­
ets¢
fig. 222. Remove the covers to access
the lower anchorage brackets. Circular locator
buttons on the third row of seats" indicate the
lower anchorage locations on the third row of
seats
¢ fig . 223.
L o w er anch orag es
The lower anc horage attachment points are
located between the rear seatback and rear
seat cushion ¢
fig. 222 or¢ fig. 223.
Lower anchorages secure the child restraint in
the seat without using the vehicle's safety
belts. Anchorages provide a secure and easy­
to-use attachment and minimize the possibili-
ty of improper child restra int installation. .,..

218 Child S afe ty
A ll child restraints manufactured after Sep­
tember 1, 2002, must have lower anchorage
attachments for the
LATCH system.
Remember that the lower anchorage points
are on ly intended for installation and attach­
ment of child restraints specifically certified
for use w ith
LATCH l ower anchorages . Child
restra ints that are not equipped with the tow­
er anchorage attachments can still be instal­ led in compliance with the ch ild restra int
manufacturer's instruct ions on using vehicle
safety belts.
A WARNING
Improper use of LATCH lower anchorages
can ca use serio us pe rsonal injury in an ac­
cident.
- Always carefully follow the ch ild re­
strain ts manufac turer's instruct io ns for
proper installation of the child restraint
and proper use of the lower anchorages
or safety belts in your vehicle .
- Never secure o r attach any l uggage or
ot her items to the
LATCH lower ancho­
rages.
- Always read and heed the important in­
formation about child restraints in this
chapter and WARNINGS
¢ page 203,
Child Safety.
Guidance fixtures for lower anchorages
Applies to vehicles: with third row seating
Special guidance fixtures increase the conven­
ience of the lower anchorages and are availa­
ble from your authorized Audi dealer.
F ig . 224 T hir d row of seats: install ing the gu idance fix ·
tures
0
Fig. 225 Close-up: fitting the guidance fixture over the
l ower anchorage bracket
T he lower ancho rage attachment points are
located on the third row of seats between the
seatback and the seat cushion. Special guid­
ance fixtures increase the conven ience of the
lower anchorages and help protect the seat
mater ial from possib le damage when instal­
ling ch ild restra ints .
Installing the guid anc e fixture s
.,. Push down on the seat cushion so that the
tower anchorages are v is ible.
.,. Hold the guidance fixture with the part
number facing downward and push it in the
d irection of the arrow onto the anchorage
¢fig. 225.
.,. Ma ke sure that each of the two guidance fix­
t ures per sea t snaps into place.
Removing the guidance fixtures
.,. Remove the ch ild restra int according the
child restraint manufacture r's instructions .
.,. Push dow n on the seat cushion so that the
lowe r ancho rages are v is ible.
.,. Pull off the gu idance fixtures from the lower
anchorages.
.,. Always remove the guidance f ixt ures and
keep them in a safe p lace when not in use .
You may find it easier to install chi ld re­
straints equipped with hooks attached to
straps witho ut the g uidance fixtures in place.
If this is the case, remove the guidance fix­
tures by pulling them off the anchorages. However, the guidance fixtures can help you
to locate the
LATCH anchorages . ..,.
