6 About this Owner's Manual
This owner's manua l contains important infor­
mation, tips, suggestions, and warnings for
the use of your veh icle.
Make sure that this owner's manua l is always
located in the vehicle. This is especia lly impor­
tant if you allow other people to drive the ve­
h icle, or if you sell it.
This owner's manua l descr ibes the
equipment
range
specified for this mode l at the editoria l
deadline date. Some of the equipment descri­
bed here will on ly be available at a later date,
or only in specific markets.
Some sections in this owner's manua l do not
apply to a ll vehicles . In that case, the
range of
applicability
is g iven at the beginn ing of the
section, e.g. "Applies to vehicles: w ith adap­
tive light". In addition, optional or vehicle­
specif ic equ ipment is indicated by an asterisk
"*"
Illustrations may be different from those in
your veh icle, and are intended to be viewed as
a basic guide .
You will find a
table of contents at the begin­
n ing of this book, which disp lays all topics de­
scr ibed in this manual in order of appearance.
You will find an alphabetical
index at the end
of this book .
All
directions , such as "left", "right", "front",
''back", are relative to the direct ion of travel.
* Optional or vehicle-specific equipment
.,.. This section continues on the next page.
~ .&. Cross-reference to a "WARNING!" with­
in a sect ion. For ind ication w ith a page num­
ber, the corresponding "WARNING!" can be
found outside of the section .
A WARNING
Text with this symbol contains important
information on safety and how to reduce
the risk of personal injury or death.
(D Note
Text with this symbo l draws your attention
to potentia l sources of damage to your ve­
hicle.
@) For the sake of the environment
Text with this symbo l contains information
abo ut the environment and how you can
help protect it.
{!) Tips
Text with this symbo l contains specia l tips
and other information about gett ing the
most out of yo ur vehicle and its features.

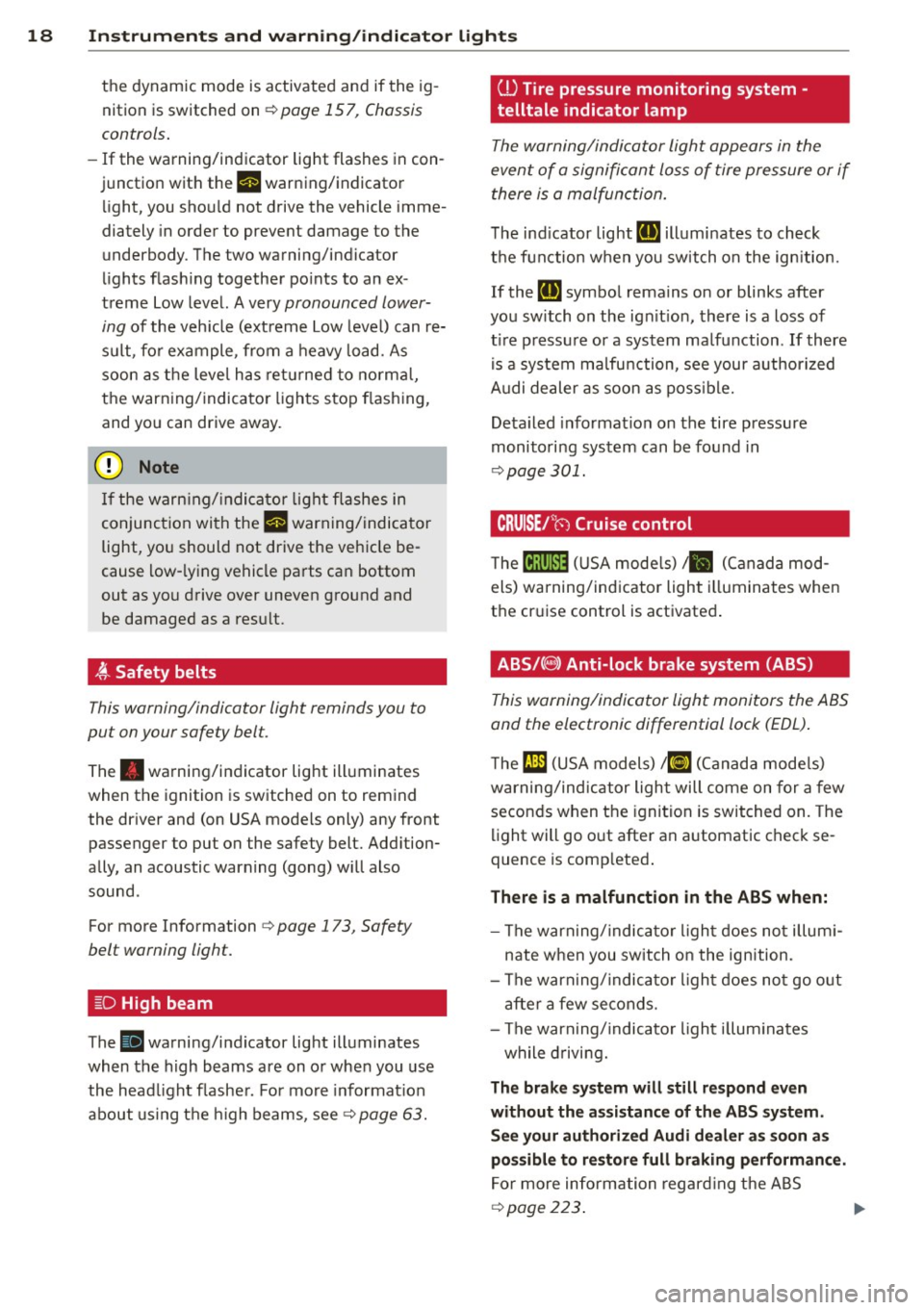

18 Instrum ent s and w arn ing /indic ato r light s
the dynamic mode is activated and if the ig­
nition is switched on
¢ page 157, Chassis
controls .
-If the warning/indicator light flashes in con­
junction with the
Ill warning/indicator
li ght, you shou ld not drive the vehicle imme­
diately in order to prevent damage to the
underbody . The two warning/indicator
lights flash ing together po ints to an ex­
treme Low level. A very
pronounced lower­
ing
of the veh icle (ext reme Low level) can re­
sult, fo r example, from a heavy load. As
soon as the leve l has ret urned to norma l
I
the warning/indicato r lights stop flashing,
and yo u can drive away.
{[) Note
If the warn ing/ indicator light flashes in
conjunction with the
Ill warning/indicator
light, you should not drive the veh icle be­
cause low- lying vehicle parts can bottom
out as you drive over uneven ground and
be damaged as a result.
~ Safety belts
This warning/indicator light reminds you to
put on your safety belt.
The . warning/indicator lig ht ill uminates
when the ignition is sw itched on to remind
the driver and (on USA models only) any front passenger to put on the safety belt. Add ition­
ally, an acoustic warning (gong) w ill also
sound.
For more Information
c> page 173, Safety
belt warning light.
~D High beam
The II warning/indicator light illuminates
when the high beams are on or when you use
the head light flasher. For more informat ion
about us ing the h igh beams, see
c>page 63.
ill Tire pressure monitoring system -
telltale indicator lamp
The warning/indicator light appears in the
event of a significant loss of tire pressure or if there is a malfunction.
The ind icator light [IJ illuminates to check
the function w hen you switch on the ign ition.
If the
[IJ symbol remains on or blinks after
you sw itch on the ign it ion, there is a loss of
t ire p ressure or a system ma lfunction . If there
is a system ma lfunction, see your authorized
Audi dealer as soon as poss ible.
Deta iled informat io n on the tire pressure
monitoring system can be found in
c> page 301.
. CRUISE /''(") Cruise control
The IR;\l)~il (U SA mode ls) ,fl (Canada mod­
els) warning/indicator light i lluminates when
t h e cr uise control is activated .
ABS/(8) Anti-lock brake system (ABS)
This warning/indicator light monitors the ABS
and the electronic differential lock (EDL) .
The ttl1 (USA models) /KO)l (Canada mode ls)
warning/indicator ligh t will come on for a few
seconds when the ignition is switched on. The
light will go out after an a utomatic check se ­
quence is comp leted .
There is a malfunct ion in the ABS when:
- The warning/indica tor l igh t does no t illum i­
nate when you switch on the ignition.
- The warning/indicator light does no t go o ut
after a few seconds.
- The warning/indicator light illum inates
while driving.
The brak e syst em will still respond e ven
withou t the ass istanc e of th e ABS sy stem .
S ee yo ur authorized Audi dealer as soon a s
p oss ible t o res tor e full braking p erf orm ance .
For more information regard ing the ABS
c>page 223 . II>-

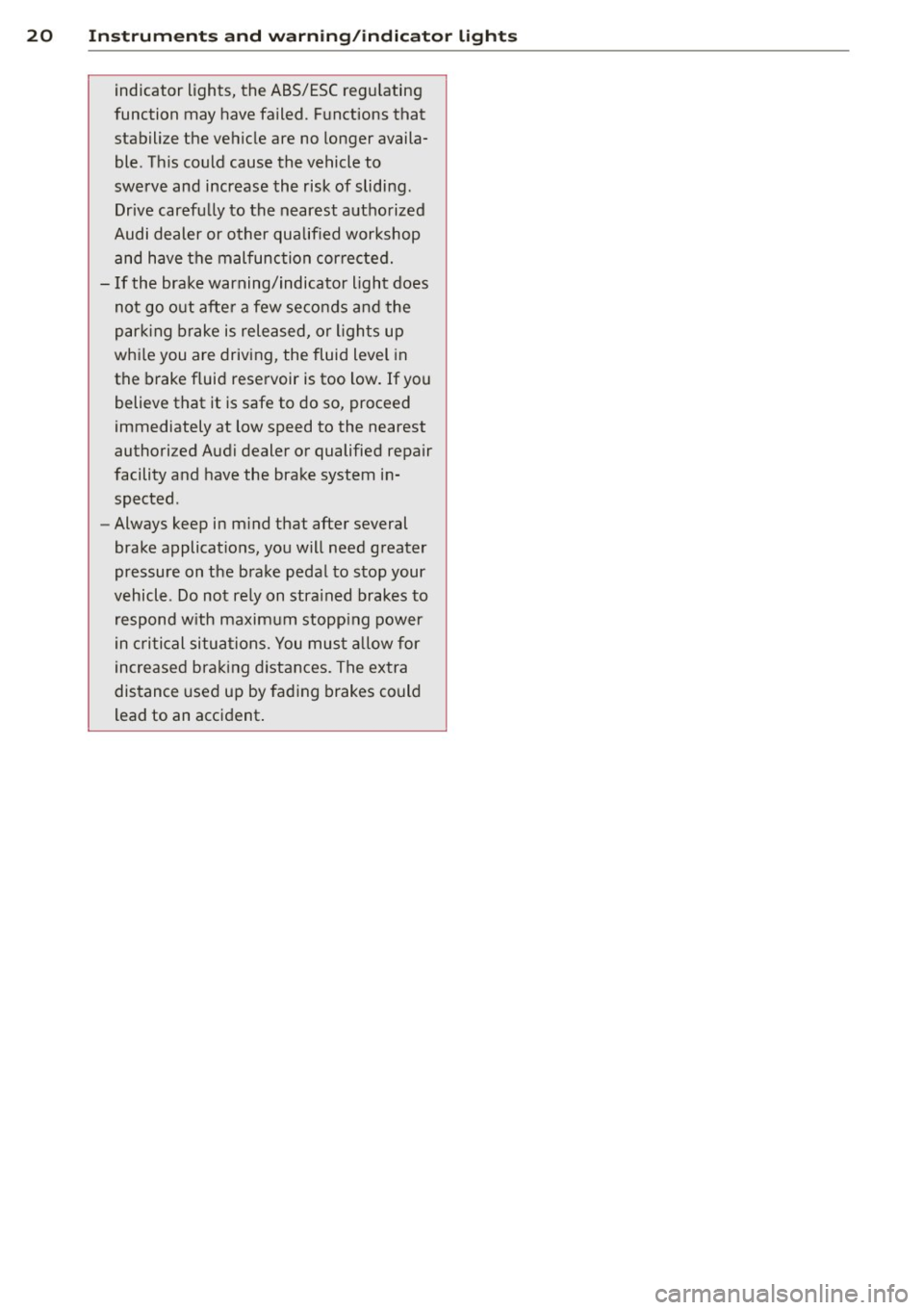

20 Instrum ent s a nd w arn in g/i ndic ato r light s
indicator lights, the ABS/ESC regu lating
function may have failed. Functions that
stabilize the vehicle are no longer availa­ ble . This could cause the vehicle to
swerve and increase the risk of sliding.
Drive carefu lly to the nearest authorized
Audi dealer or other qualified workshop and have the malfunction corrected.
- If the brake warning/indicator light does
not go out afte r a few seconds and the
par king brake is released, or ligh ts up
wh ile you are driving, the fluid level in
the brake fluid reservoir is too low. If you believe that it is safe to do so, proceed
immediately at low speed to the nearest
authorized Audi dealer or qualified repair
facility and have the brake system in­
spected.
- Always keep in m ind that after several
brake applicat ions, you will need greater
pressure on the b rake pedal to stop your
vehicle . Do not re ly on stra ined brakes to
respond w ith maximum stopp ing power
in cri tic al situations. You must a llow for
increased bra king distances. The extra
distance used up by fad ing brakes could
lead to an accident.

22 Driver in formation d ispl ay
Outside temperature display
Fig. 11 Display : outside temperature
At temperatures below 41 °F (+S °C) a snow­
flake symbol appears ahead of the tempera­
ture display . It is intended to remind the driv­
er to pay spec ial attent ion to
ic e on the roa d.
If the vehicle is stationary, or if you are driving
at a very low speed, the temperature shown in
the display might be slightly higher than the
actual outside temperature . Th is is caused by
the heat being rad iated from the engine .
If you have selected the °C (degrees Celsius)
unit for temperature in the MMI, the outside
temperature display also appears automat i­
cally in
°C.
A WARNING
- Never rely excl usively on the outside
temperatu re d isplay to determine if a
road surface is icy or not . Keep in mind
that road surfaces, especially bridges
and overpasses, could be ice covered and
s li ppery even at an outs ide temperature
above 41 °F (+ S °C).
- Always remember, even if the "snow­
flake" symbol (ice warn ing) does not ap­
pear in the display, black ice could be on
the road.
- Always reduce your speed and dr ive with
special care in cold weather conditions
when the chance of encountering icy road s urfaces increases .
Digital speedometer
Fig. 12 Display: Digi tal speedometer
Current speed appears in the disp lay. Speed is
shown in 1 mph measures (USA models) or 1
km/h measures (Canada models) .
You can switch the disp lay from m iles to kilo­
meters and vice versa via the MMI.
Open door or trunk lid warning
The pictogram alerts you when doors or the
rear lid have been left open .
Fig. 13 Display: open doo r or rea r lid wa rning
With the ign it ion sw itched on, the ope n door
or rear lid warning illuminates when at least
one door or the hood or the trunk lid is not
cl osed . The symbol a lso shows you
which
doo r(s) o r lid is not closed.
In the illustration
~ fig . 13 it is the dr iver's
doo r, the left rear door and the rear lid. As
soon as all the doors, the hood, the rear lid
and the f uel filler cap are prope rly closed, the
door and rear lid warning turns off and the
Driver Information System functions selected
are displayed again.

24 Driver information display
Resetting the service interval display
Your authorized Audi dealer w ill reset the cor­
responding service schedule after performing
the appropriate service on your vehicle. You
a lso have the possibility to reset the oi l
change schedule after having performed an
oil change according to Audi specifications.
Select
I CAR I function button > Systems* con­
trol button >
Service interval display > Reset
oil change interval
or ICARI function button>
Car systems* control button > Servicing &
checks > Service intervals > Reset oil change
interval.
(D Note
- Only reset the o il change d isp lay when
you have completed an oil change.
- If you d isconnect the battery terminals,
no calculations can be made for the serv­
i ce interval display during this time and
no service reminder will appear. Remem­
ber that observing the proper service in­
terva ls is vitally important to extending
the life of your vehicle, particularly the
engine, and maintaining its value. Do not
exceed the time interval for the next
serv ice, even if the vehicle mileage is
low .
(D Tips
The informat ion in the Serv ice Reminder
remains stored even when the vehicle bat­
tery is disconnected .
Trip computer
Introduction
The trip computer gives you information on
current and average fuel mileage, average
speed, fuel range and driving time.
Fig. 16 Trip computer d isp lay: Average fue l mil eage
The following dr iving informa tion is con tinu­
ous ly evaluated by the trip computer and can
be displayed sequentially in the instrument
cluster disp lay.
Fuel range
T he es timated cruis ing range in miles ( km)
appea rs in the display. This tells you how far
your vehicle will be ab le to travel on the c ur­
rent tank of fuel and with the same driving
style. The display changes in increments of
Smiles (10 km).
T he cruising range is calculated based on the
fuel consumption for the last 18 miles
(30 km). If you drive conservative ly, the cruis­
ing range will increase.
Average fuel mileage
The average fuel economy in MPG (l/100 km)
since you last cleared the memory appears in
this disp lay. You can use this display to adjust
your driving technique to achieve a desired
mileage.
Current fuel mileage
The instantaneous fuel consumption in m iles
per gallon ( l/100 km) is shown in this display.
You can use this display to adjust your driving
technique to achieve a desired m ileage .
1111>

M N
0 ...J
'SI: ,...., \!) 1.1"1 ,...., 1.1"1 ,....,
-The e ngine com partment of any ve hicle
is a dangerous area. Before you perform
any work in the engine compartment,
turn of the eng ine and allow it to cool.
Follow the wa rning stickers~
page 256.
(D Note
Do not contin ue driving if the. symbo l
illuminates. There is a ma lfunct ion in the
eng ine cooling system -you cou ld damage
your engine.
9=:7-: Engine oil pressure malfunction
The red engine oil pressure warning symbol
requires immediate service or repair. Driving
with a low-oil-pressure indication is likely to
inflict severe damage to the engin e.
If the . symbol appears in the display and
b links, the oil pressure is too low. An addition­
a l dr ive r message can also be d isp layed by
p ress ing t he
I CH ECKi b utton:
Switch off engine I Oil pressur e too low
Immediate a ction s
~ Pull off the road.
~ Stop the vehicle.
~ Turnoff the engine.
~ Check the engine oil le vel with the dipstick
i=> page
260.
Dipstick reading s checks too low
~ Top off oi l to the proper level~ page 261.
~ Make sure that the oil pressure warning
symbol . appears no longer in the display
before you start driving aga in.
Dipstick reading checks OK
~ If the o il pressure warning symbol. starts
flashing again even though the engi ne oil
l evel checks OK on the d ipst ick,
do not con­
tinue driving and do not let the engine run in idle.
Instead , contact your authorized
A udi dealer for assistance.
Dri ver information di spla y 33
(D Tips
- The engine oil pressure symbol. is
not an indicator for a low engine oil lev­
el. Do not rely on it . Instead, check the
o il level in your engine at regular inter ­
vals, preferably each time you refuel, and always before going on a long trip .
- The yellow oil level warn ing indication
l!I requires oil refill or workshop serv­
ice without delay . Do not wait until the
red oil pressure warning. start s to
flash before you respond to the low oil
level warning
m. By then, your engine
may already have suffered serious dam­
age.
i Steering malfunction
If there is a malfunction in the ele ctronic
steering column lock, the steering cannot be
unlocked .
If the . sym bo l in t he d isplay b links, there is
a mal func tion in the ele ct ronic s teer ing col ­
u mn lock. An additional drive r message can
also be displayed by pressing the
I CHECK ! but­
ton:
Do not d rive vehicle: steering defective
~ Contact your nea rest autho riz ed Aud i dea le r
or qualifie d wo rkshop.
~ Do not tow your ve hicle.
A WARNING
= -
Your ve hicle must not be towed in t he
event of a malfunction in the electro nic
steering column lock beca use it cannot be
steered d ue to the loc ked steering. If it is
t o wed with the steer ing locked, there is
the r isk of an accident .
~ Ignition lock malfunction
A malfunction in the ignition lock must be re ­
paired immedia tely.
If the . symbol in t he display blinks, there is
a mal function in the electronic ign it ion lock. ..,_

38 Opening and closing
Opening and closing
Keys
Key set
Fig. 27 Key set
@ Master key with remote control
You can centrally lock and unlock your vehicle
and start the engine with the master key with
remote control.
@ Valet key
The valet key only fits the lock in the driver's
door and the ignition lock . If you have to leave
the key with somebody else, you are well-ad­
vised to turn over the valet key only
¢ page 41.
© Emergency key
The emergency key is only for temporary use if
the vehicle key should be lost or misplaced
¢ .&. .
Key replacement
If you lose a key, contact your authorized Audi
dealer immediately to have the
lost key disa­
b led . Be sure to bring all your keys with you.
Registered keys
You can check to find out how many keys have
been registered to your vehicle. Therefore,
when buying a used vehicle, make sure to get
all of the remote keys be long to it .
Ca lling up the registered keys¢
page 12.
Data in the master key
While you are driving, serv ice and mainte­
nance relevant data are being continuously stored on your master key. Your Audi
Service
Advisor can read out these data and tell you
about work that is needed on your vehicle .
This also app lies to vehicles w ith Convenience
key*.
A WARNING
--
- Do not leave your vehicle unattended
with the key in the ignition lock. Entry by
unauthorized persons could endanger
you or result in theft or damage the vehi­
cle. A lways lock all doors and take the
key.
- Do not leave children unattended in the
veh icle, especially with access to vehicle
keys . Unguarded access to the keys pro­
vides children the opportun ity to start
the engine and/or activate vehicle sys­
tems such as the power windows etc. Un­
supervised operation of any vehicle sys­
tem by children can result in serious in­
Jury .
(D Tips
- If you open the driver's door with the key
left in the ignition lock, a chime w ill
sound. T his is your reminder to remove
the key and lock the door.
- For security reasons, replacement keys
are only ava ilable from Audi dealers.
Master key with remote control
The remote control allows you to lock or un­
lock the vehicle electronically .
Fig. 28 Fold-up maste r key with remo te control
., To fold the key out and back in place, press
t he release button ¢
fig. 28. .,.

42 Openin g and clo sing
readiness light, located in the upper part of
the driver's door panel, will start to blink.
- T he vehicle interior lights turn off.
Unlocking and l ocking with Conven ience
k ey*
On vehicles which a re equipped w ith the C o n­
ve nience k ey*
authorization system, the
doors are unlocked without a key by means of
a proximity sensor in the door handle. The
doors are simi larly locked without a key using
the locking button. Each door has a proximity
sensor and a locking button .
Automatic l ock ing
The automatic locking feature locks all the ve­
hicle doors and the rear lid when you drive
faster than 9 mph (15 km/h). This function can be turned on and off in the MMI
C entr al
lo cking
Menu c:> page 44.
You can un lock the vehicle from the inside by :
- removing the key from the ign it ion sw itch
(the vehicle will automat ica lly unlock itself)
or
- pressing the unlock part of the power lock
switch @or
- pull ing the door handle (twice to open the
rear doors).
Unintent ionall y locking yourself out
In the following cases there safeguards to
prevent you locking your remote master key in
the vehicle :
- The veh icle does not lock with the power
locking sw itch
c:> page 44 if the driver's
door is open.
- On vehicles with Convenience key* , if the
most recently used master key is in the lug­
gage compartment, the rear lid is automati­
cal ly unloc ked aga in after it is closed.
Do not lock your vehicle with the
r e mot e m as ­
t e r k ey or Convenienc e key*
until all doors
and the rea r lid are closed. In t his way you
avoid locking yourse lf out accidenta lly.
A WARNING
- When you lock your vehicle from outside,
nobody- espec ially children -should re ­
main inside the vehicle . Remember,
when you lock the vehicle from the out­
side the windows cannot be opened from
the inside.
- When you leave the veh icle, always re­
move the ignition key and take it with
you . This will prevent passengers (chil­
dren, for example) from accidentally be ­
ing locked in the vehicle should they acci­
dentally press the power locking switch
in the front doors.
- Do not leave children inside the vehicle
unsupervised. In an emergency it would
be imposs ible to open the doors from
the outside without the key.
(D Tips
- In the event of a crash with airbag de­
ployment all locked doors will be auto­
matically unlocked to give access to the
vehicle occupants from the outside.
- If the power locking system sho uld mal­
function, you can lock each door individ­
ually using the vehicle key
c:> page 45 .
-If the power locking system shou ld fa il,
you can still open the fuel tank flap in an
emergency
c:> page 2 52 .
-You are well advised not to keep va lua­
bles inside an unattended vehicle, v is ible
or not. Even a properly locked vehicle
cannot p rov ide the secur ity of a safe .

M
"' 0 _,
"". rl I.O
"' rl
"' rl

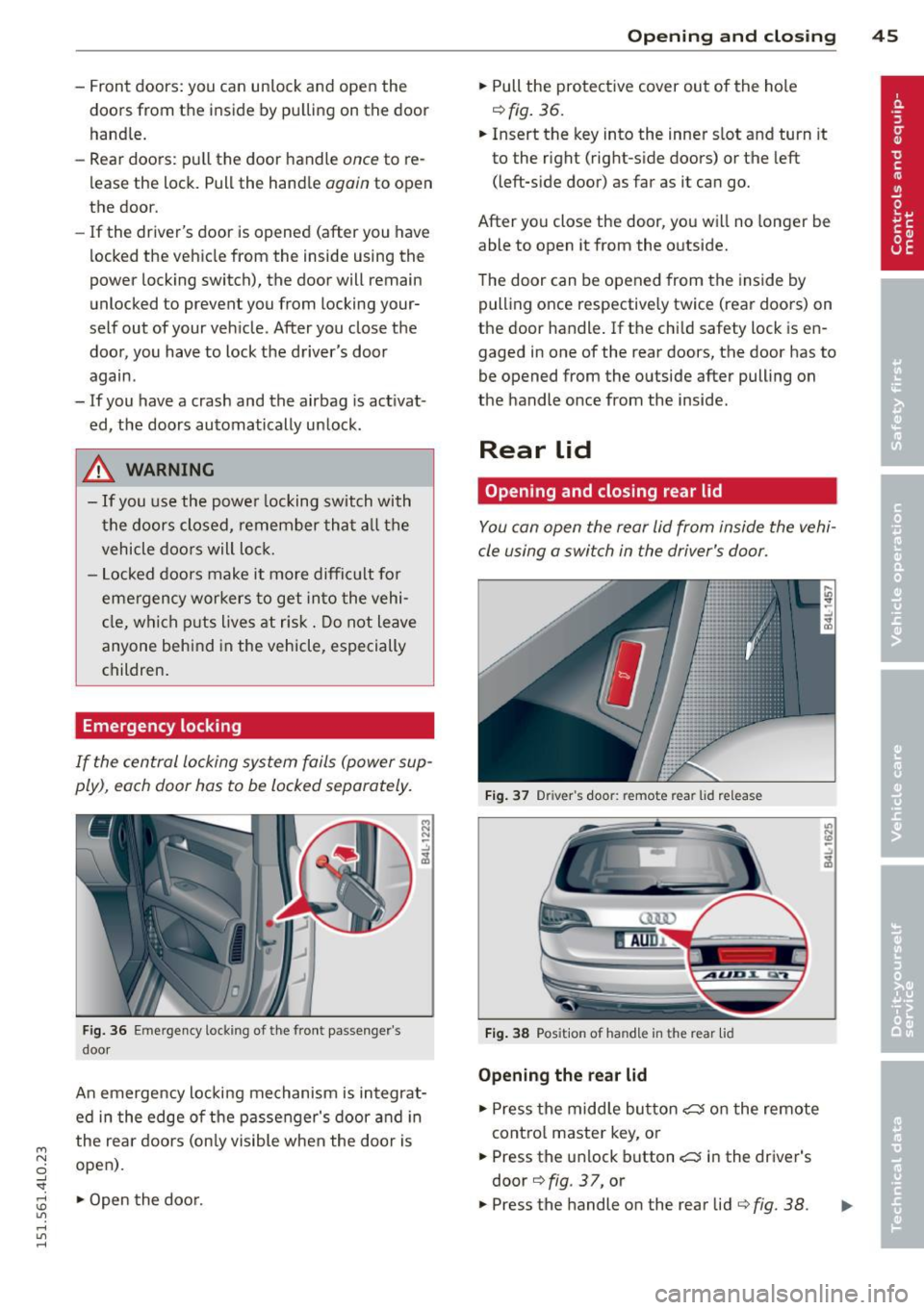

-Front doors: you can un lock and open the
doors from the inside by pulling on the door
handle.
- Rear doors: pu ll the door handle
once to re­
lease the lock. Pull the hand le
again to open
the doo r.
- If the driver's door is opened (after you have
locked the vehicle from the inside using the
power locking switch), the door will remain
unlocked to prevent you from locking your­
self out of your vehicle . After you close the
door, you have to lock the driver 's door
again .
- If you have a crash and the airbag is act ivat­
ed, the doors automatically unlock.
A WARNING
- If you use the powe r locking switch with
the doors closed, remember that all the
vehicle doors will lock.
- Locked doors make it more difficult for
emergency workers to get into the vehi ­
cle, which puts lives at risk. Do not leave
anyone behind in the vehicle, especially
children.
Emergency locking
If the central locking system fails (power sup­
ply), each door has to be locked separately.
Fig. 36 Em ergency lockin g o f the front passe nger's
doo r
i:i N
-..:,
~
An emergency locking mechanism is integrat­
ed in the edge of the passenger's door and in
the rear doors (only visible when the doo r is
open) .
~ Open the door.
Opening and closing 45
~ Pull the protective cover out of the hole
qfig. 36.
~ Insert the key into the inner s lot and turn it
to the right (right-s ide doors) or the left
(left-s ide door) as far as it can go.
After yo u close the door, you will no longer be
able to open it from the outside.
T he door can be opened from the inside by
pulling once respectively twice (rear doors) on
the door handle . If the chi ld safety lock is en­
gaged in one of the rear doors, the door has to
be opened from the outside after pulling on
the handle once from the inside.
Rear lid
Opening and closing rear lid
You can open the rear lid from inside the vehi­
cle using a switch in the driver's door.
Fig. 37 Driver 's doo r: remote rear lid release
Fig. 38 Posit io n of ha ndle in t he re ar lid
Opening the rear lid
~ Press the middle button c:, on the remote
cont rol master key, or
~ Press the unlock button c:, in the driver's
door
q fig . 37, or
~ Press the handle on the rear lid qfig. 38.
U) N
"' -..:,
i3

48 Openin g and clo sing
- If the vehicle battery charge drops below
a certain level, you can still open or close
the rear lid manua lly, howeve r, you will
need to app ly more force to close it .
- As soon as the electrical connection to
the trailer socket is comp leted on
vehicles with a factory installed towing
hitch, or a trailer hitch that was installed
l ater accord ing to factory spec ificat ions,
the automatic rear lid function can only be ope rated v ia the handle in the rear lid.
Rear lid emergency unlocking
If the rear lid cannot be opened , an emergen­
cy release is provided .
·-----------------.J ~ N
CJ
Fig . 41 Sectio n of the lu ggag e compar tment: A cce ss to
e m erge ncy re lease
Fig . 4 2 Sect io n of th e lugg age compa rtme nt: Em er­
g en cy re le ase
~ T ilt the sea tback fo rwa rd.
~ Move into the trunk .
~ Take the screwdr iver from the veh icle too l
k it. As an a lternative, you can a lso use the
v eh icle key.
~ Put the flat side of the screw driver into the
reces s and pry the cover up
i=> fig . 41 -Arrow -.
~ Press the lever in the direction of the arrow
i=> fig. 42 to unlock the rear lid.
Child safety lock
Power child safety lock for the rear
doors
The power child safety lock t prevents the
rear doors from being opened from the in ­
side .
Fig. 4 3 Section fro m drive r's door: con tro ls
The rear doors are eq uipped w ith a power
chi ld safety lock.
It is operated with the two
safety buttons
III in the dr iver 's door c> fig. 43 .
~ Press th e left and/or right safety b utton to
disab le the rear power w indow(s) and pre­
vent the respect ive rear door from being
opened from the i nside. The LED in the but­
ton will light up when the child safety lock is
turned
on .
~ Press the illum ina ted button again to turn
the chil d safety featu res
off .
When the c hild safety lock is activated, the in ­
te rior door opening lever is inoperat ive; the
doo r ca n only b e opened from th e outside . In
addition, the window reg ulator for that doo r
is a lso inoperative when the child s afety lock
is activa ted.
If the ch ild safety loc k has been ac tivated on
o ne or both sides, the butto ns in the rear for
the Panoramic slid ing su nroof* are disabled .
If the child safety lock has been act ivated on
the left
and on the right side , the rear con­
t ro ls are locked on veh icles with rear a ir-condi­
tio ning *. Dashes " ••• " are show n in t he dis­
plays for the rear climate contro ls , and the
rear ai r-conditioning can on ly be operated
from the climate controls in the cabin
i=> page 100.
