Driving

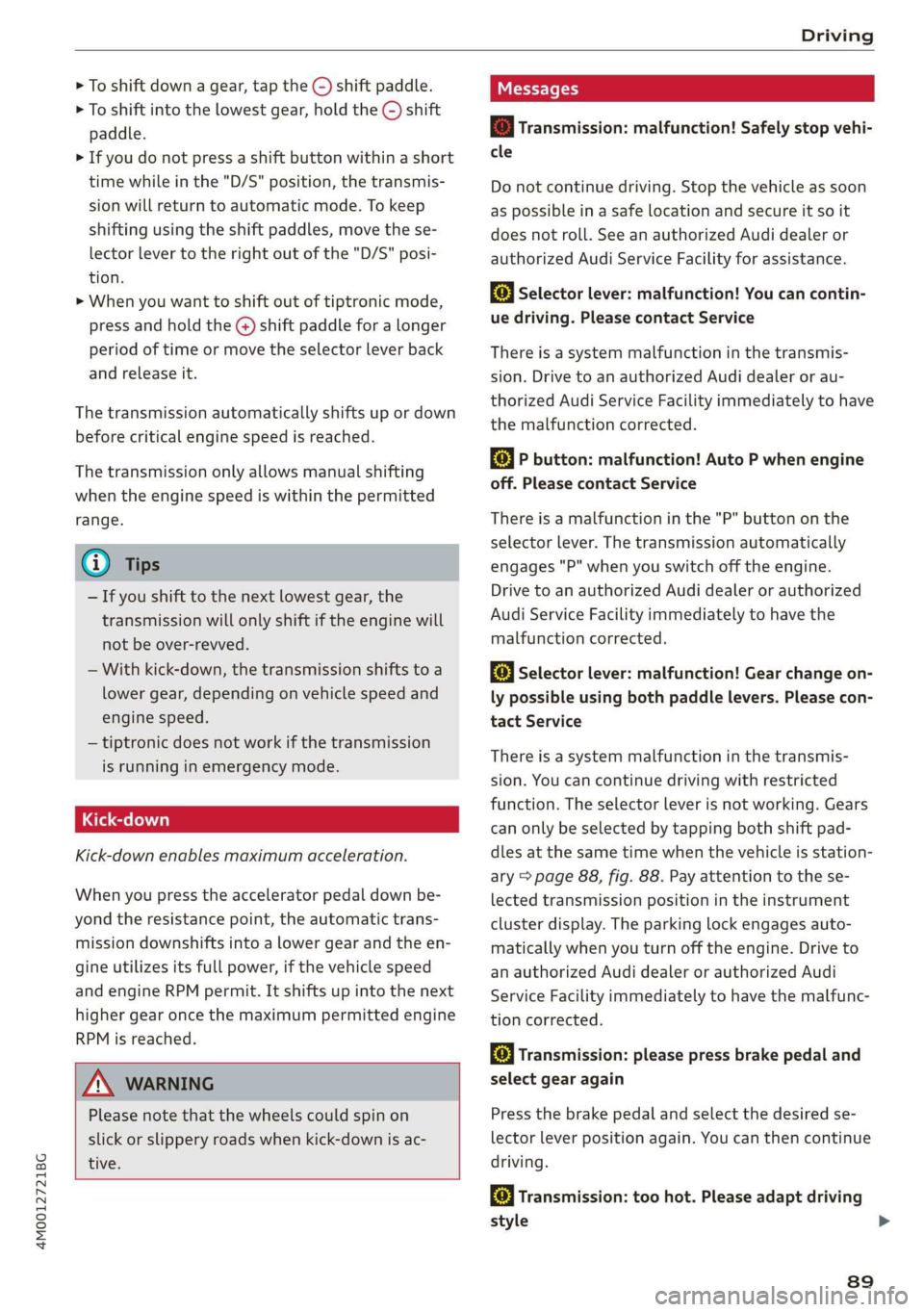

>Toshiftdownagear,tap the©)shiftpaddle.
>Toshiftintothelowestgear,holdthe©)shift
paddle.
>Ifyoudonotpressashiftbuttonwithinashort
timewhileinthe"D/S"position,thetransmis-
sionwillreturn toautomaticmode.Tokeep
shiftingusingtheshiftpaddles,movethese-
lectorlevertotherightoutofthe"D/S"posi-
tion.
>Whenyouwanttoshiftoutoftiptronicmode,
pressandholdtheG@)shiftpaddleforalonger
periodoftimeormovetheselectorleverback
andreleaseit.
Thetransmissionautomaticallyshiftsupordown
beforecriticalenginespeedisreached.
Thetransmissiononly allowsmanualshifting
whentheenginespeediswithinthepermitted
range.
@Tips
—Ifyoushifttothenextlowestgear,the
transmissionwillonlyshiftiftheenginewill
notbeover-rewved.
—Withkick-down,thetransmissionshiftstoa
lowergear,dependingonvehiclespeedand
enginespeed.
—tiptronicdoesnotworkifthetransmission
isrunninginemergencymode.
Kick-downenablesmaximumacceleration.
Whenyoupresstheacceleratorpedaldownbe-
yondtheresistancepoint,theautomatictrans-
missiondownshiftsintoalower gearandtheen-
gineutilizesitsfullpower,ifthevehiclespeed
andengineRPMpermit.Itshiftsupintothenext
highergearoncethemaximumpermittedengine
RPMisreached.

ZA\WARNING
Pleasenotethatthewheelscouldspinon
slickorslipperyroadswhenkick-downisac-
tive.

ci]Transmission:malfunction!Safelystopvehi-
cle
Donotcontinuedriving.Stopthevehicleassoon
as possibleinasafelocationandsecureitsoit
doesnotroll.SeeanauthorizedAudidealeror
authorizedAudiServiceFacilityforassistance.
i]Selectorlever:malfunction!Youcancontin-
uedriving.PleasecontactService
Thereisasystemmalfunctioninthe transmis-
sion.DrivetoanauthorizedAudidealerorau-
thorizedAudiServiceFacilityimmediatelytohave
themalfunctioncorrected.
iPbutton:malfunction!AutoPwhenengine
off.PleasecontactService
Thereisamalfunctioninthe"P"buttononthe
selectorlever.Thetransmissionautomatically
engages"P"whenyouswitchofftheengine.
DrivetoanauthorizedAudidealerorauthorized
AudiServiceFacilityimmediatelytohavethe
malfunctioncorrected.
fs]Selectorlever:malfunction!Gearchangeon-
lypossibleusingbothpaddlelevers.Pleasecon-
tactService
Thereisasystemmalfunctioninthe transmis-
sion.Youcancontinuedrivingwithrestricted
function.Theselectorleverisnotworking.Gears
canonlybeselectedbytapping bothshiftpad-
dlesatthesametimewhenthevehicleisstation-
ary>page88,fig.88. Payattentiontothese-
lectedtransmissionpositionintheinstrument
clusterdisplay.Theparkinglockengagesauto-
maticallywhenyouturnofftheengine.Driveto
anauthorizedAudidealerorauthorizedAudi
ServiceFacilityimmediatelytohavethemalfunc-
tioncorrected.
iTransmission:pleasepressbrake pedaland
selectgearagain
Pressthebrakepedalandselectthedesiredse-
lectorleverpositionagain.Youcanthencontinue
driving.
flTransmission:toohot.Pleaseadaptdriving
style
89
>

Driving

Thetransmissiontemperaturehasincreasedsig-
nificantly.Driveverycautiouslyortakeabreak
fromdrivinguntilthetemperaturereturnstothe
normalrangeandtheindicatorlightturnsoff.
fs}Transmission:malfunction!Youcancontin-
uedriving.Seeowner'smanual
Thereisasystemmalfunctioninthetransmis-
sion.Youmaycontinuedriving.Drivetoanau-
thorizedAudidealerorauthorizedAudiService
Facilitysoontohavethemalfunctioncorrected.
fs}Transmission:malfunction!Youcancontin-
uedrivinginDuntilengineisoff
Thereisasystemmalfunctioninthetransmis-
sion.Thetransmissionisswitchingtoemergency
mode.Ifyouturntheengineoff,youwillnotbe
abletoselectanyotherselectorleverpositions
afterstartingtheengineagain.Drivetoanau-
thorizedAudidealerorauthorizedAudiService
Facilityimmediatelytohavethe malfunctioncor-
rected.
is}Transmission:malfunction!Youcancontin-
uedrivingwithlimitedfunction.Pleasecontact
Service
Thereisasystemmalfunctioninthetransmis-
sion.Thetransmissionisswitchingtoemergency
mode.Thismodeonlyshiftsintocertaingearsor
maynolongershiftatall.Theenginemaystall.
DrivetoanauthorizedAudidealerorauthorized
AudiServiceFacilityimmediatelytohavethe
malfunctioncorrected.
fs}Transmission:malfunction!Youcancontin-
uedrivingwithlimitedfunction.Noreverse
gear
Thereisasystemmalfunctioninthetransmis-
sion.Thetransmissionisswitchingtoemergency
mode.Thismodeonlyshiftsintocertaingearsor
maynolongershiftatall.Theenginemaystall.
Youcannotengagethereversegear.Drivetoan
authorizedAudidealerorauthorizedAudiService
Facilityimmediatelytohavethe malfunctioncor-
rected.
fs}Dangerofrollingaway!Pnotpossible.
Pleaseapplyparkingbrake
90
—Theparkinglockwasreleasedusingtheemer-
gencyrelease>page90.Or
—Theparkinglockcannolongerbeengaged.
DrivetoanauthorizedAudidealerorauthor-
izedAudiServiceFacilityimmediatelytohave
themalfunctioncorrected.
Moveselectorlevertoautomaticposition
Thereisamalfunctioninthetiptronicmode.End
tiptronicmodebypushingtheselectorleverto
theleftintothe"D/S"position.
Parkinglockemergencyrelease
@

B4M-0189


®


Fig.89Driver'ssidefootwell:releasingtheparkinglock
usingtheemergencyrelease
Theemergencyreleaseislocatedunderthefloor
matonthedriver'sside.Readandfollowtheim-
portantinstructionsabouttowing>page366.
Releasingthe parkinglockusingthe
emergencyrelease
>Topreventyourvehiclefromrollingaway,set
theparkingbrake©)>page81.
>Prythecoveroffatoneoftheopeningsusing
thescrewdriverfromthevehicletoolkit.
>Insertthe socketwrenchfromthevehicletool
kitintotheopening>fig.89.
»Turn thesocketwrenchclockwise(4)untilit
stopsandpressitdownward()untilitlocksin-
toplace.
>Leavethesocketwrenchinserted.
Resettingtheparkinglock
>Graspthe socketwrenchwithbothhandsand
carefullypullitupwardtoremove.
>Installthecover.

4M0012721BG
Driving

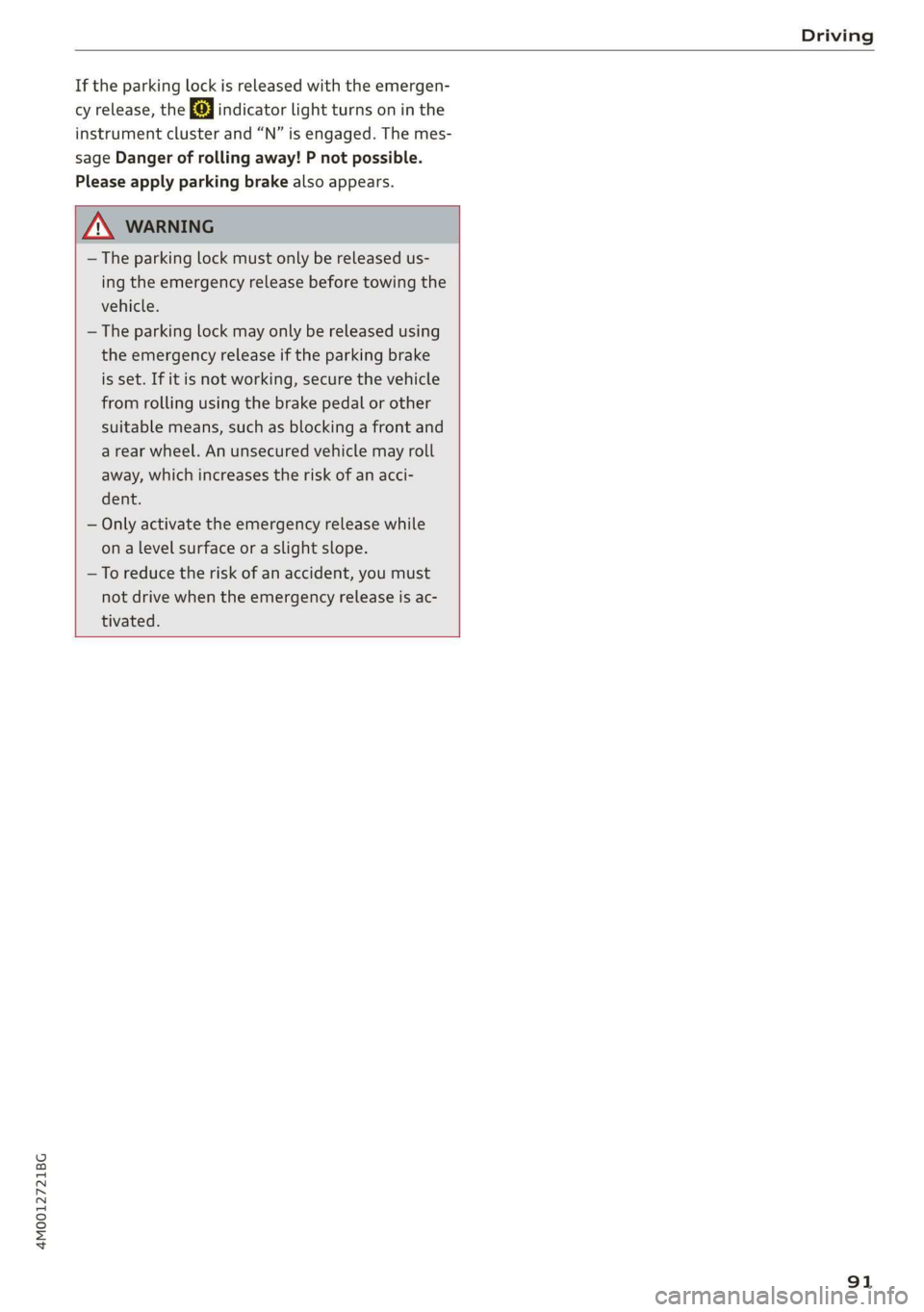

Iftheparkinglockisreleasedwiththeemergen-
cyrelease,thefa}indicatorlightturnsoninthe
instrumentclusterand“N”isengaged.Themes-
sageDangerofrollingaway!Pnotpossible.
Pleaseapplyparkingbrakealsoappears.

ZXWARNING
— Theparkinglockmustonlybereleasedus-
ingtheemergencyreleasebeforetowingthe
vehicle.
—Theparkinglockmayonlybereleasedusing
theemergencyreleaseiftheparkingbrake
isset.Ifitisnotworking,securethevehicle
fromrollingusingthebrake pedalorother
suitablemeans,suchasblockingafrontand
arearwheel.Anunsecuredvehiclemayroll
away,whichincreasestheriskofanacci-
dent.
—Onlyactivatetheemergencyreleasewhile
onalevelsurfaceoraslightslope.
—Toreducetheriskofanaccident,youmust
notdrivewhentheemergencyreleaseisac-

tivated.

91

Trailertowing

Trailertowing
Drivingwithatrailer
eTreeeleurltela}
Yourvehicleisprimarilyintendedfortransport-
ingpeopleandluggage.However,ifyoudrive
withatrailer,followthetechnicalrequirements,
the operationanddrivingtips,andthelegalreg-
ulations.
Drivingwithatraileraffectsthevehicle'sfuel
consumption,performanceandwear.Italsore-
quireshigherconcentrationfromthedriver.

ZAWARNING
Donottransportanypeopleinatrailerdueto
theriskoffatalinjury.
Technicalrequirements
Certainrequirementsmustbemetwhentowing
atrailer.

Trailerhitch
Onlyuseatrailerhitchwitharemovableball
hitchmountandballhitch.Thetrailerhitchmust
bepermittedforthevehicle,thetrailerandthe
permittedtotalweightofthetrailerbeing
pulled.Aboveall,itmustbesecurelyandsafely
attachedtothevehicletrailer.
Nevermountatrailerhitchonthebumper.The
trailerhitchmustbemountedinawaythatdoes
notimpair thefunctionofthebumper.Donot
makeanychangestotheexhaustsystemandthe
brakesystem.
Checkregularlyifthetrailerhitchissecurely
mounted.Alwaysfollowtheinstructionsgivenby
thetrailerhitchmanufacturer.
Trailerbrakes
Ifthetrailerhasitsownbrakesystem,thenfol-
lowthemanufacturerspecifications.However,
thebrakesystemonthetrailermustneverbe
connectedtothevehiclebrakesystem.
92
Enginecoolingsystem
Drivingwithatrailermeansahigherloadonthe
engineandthecoolingsystem.Thecoolingsys-
temmustbedesignedforadditionalloadand
containenoughcoolant>©.

ZAWARNING
—Nevermounta"weight-distributing"or
"load-balancing"trailercouplerasthetrailer
hitch.Thevehiclewasnotdesignedfor
thesetypesoftrailerhitches.Thetrailer
hitchcanmalfunctionandthetrailercan
breakofffromthevehicle.
—Ifthetrailerisequippedwithelectronic
brakes,thesebrakescannotbeactivatedby
afactory-installedcontrolsystem,whichin-
creasestheriskofanaccident.
—Toreducetheriskofinjury,alwaysremove
theballhitchmountifnotrailerismount-
ed
@)Note
Longerinclinescannotbedrivenwithouta
suitablecoolingsystem,especiallyiftheout-
sidetemperaturesarehigh.Otherwise,this
increasestheriskofenginedamage.
Operatinginstructions
Severalthingsmustbe notedwhentowinga
trailer.

Towingcapacity
Thepermittedtowingcapacitymustnot beex-
ceededunderanycircumstances>page376.
Youcandriveuplargerinclinesifyouarenotus-
ingthemaximumtowingcapacity.
Thetowingcapacitiesgivenonlyapplytoeleva-
tionsupto3,200ft(1,000m)abovesealevel.As
theelevationincreases,theenginepowerde-
creasesduetothedecreasingairpressure.This
reducesthehillclimbingabilityandtowingca-
pacity.Foreveryadditional3,200ft(1,000m),
themaximumpermittedtowingweightmustbe
reducedbyapproximately10%.Thepermitted
towingweightisthecombinedweightofthe
(loaded)vehicleandthe(loaded)trailer.

4M0012721BG
Trailertowing

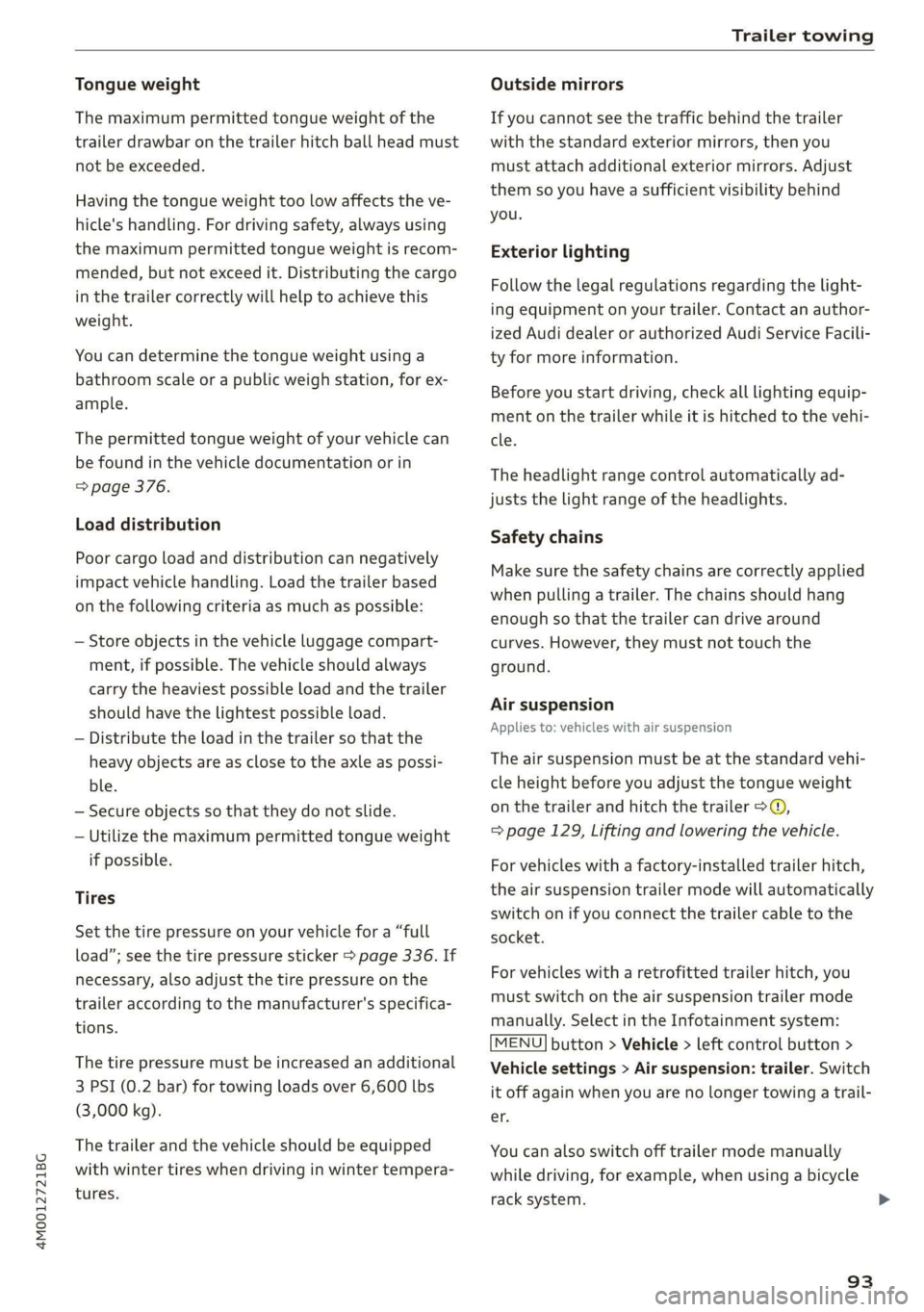

Tongueweight
Themaximumpermittedtongueweightofthe
trailerdrawbaronthetrailerhitchballheadmust
notbeexceeded.
Havingthetongueweighttoolowaffectstheve-
hicle'shandling.Fordrivingsafety,alwaysusing
themaximumpermittedtongueweightisrecom-
mended,butnotexceedit.Distributingthecargo
inthetrailercorrectlywillhelptoachievethis
weight.
Youcandeterminethetongueweightusinga
bathroomscaleorapublicweighstation,forex-
ample.
Thepermittedtongueweightofyourvehiclecan
befoundinthevehicledocumentationorin
=>page376.
Loaddistribution
Poorcargoloadanddistributioncannegatively
impactvehiclehandling.Loadthetrailerbased
onthefollowingcriteriaasmuchaspossible:
—Storeobjectsinthevehicleluggagecompart-
ment,ifpossible.Thevehicleshould always
carrytheheaviestpossibleloadandthetrailer
shouldhavethelightestpossibleload.
—Distributetheloadinthetrailersothatthe
heavyobjectsareasclosetotheaxleaspossi-
ble.
—Secureobjectssothattheydonotslide.
—Utilizethemaximumpermittedtongueweight
ifpossible.
Tires
Set thetirepressureonyourvehiclefora“full
load”;seethetirepressuresticker>page336.If
necessary,alsoadjustthetirepressureonthe
traileraccordingtothemanufacturer'sspecifica-
tions.
Thetirepressuremustbeincreasedanadditional
3PSI(0.2bar)fortowingloadsover6,600lbs
(3,000kg).
Thetrailerandthevehicleshould beequipped
withwintertireswhendrivinginwintertempera-
tures.
Outsidemirrors
Ifyoucannotseethetrafficbehindthetrailer
withthestandardexterior mirrors,thenyou
mustattachadditionalexterior mirrors.Adjust
themsoyouhavea sufficientvisibilitybehind
you.
Exterior lighting
Followthelegalregulationsregardingthelight-
ingequipmentonyourtrailer.Contact anauthor-
izedAudidealerorauthorizedAudiServiceFacili-
tyformoreinformation.
Beforeyoustartdriving,checkalllightingequip-
mentonthetrailerwhileitishitchedtothevehi-
cle.
Theheadlightrangecontrolautomaticallyad-
juststhelightrangeoftheheadlights.
Safety chains
Makesurethesafetychainsarecorrectlyapplied
whenpullingatrailer.Thechainsshouldhang
enoughsothatthetrailercandrivearound
curves.However,theymustnottouchthe
ground.
Airsuspension
Appliesto:vehicleswithairsuspension
The
airsuspensionmustbeatthestandardvehi-
cleheightbeforeyouadjustthetongueweight
onthetrailerandhitchthetrailer>,
=>page129,Liftingandloweringthevehicle.
Forvehicleswithafactory-installedtrailerhitch,
theairsuspensiontrailermodewillautomatically
switchonifyouconnectthetrailercabletothe
socket.
Forvehicleswitharetrofittedtrailerhitch,you
mustswitchontheairsuspensiontrailermode
manually.SelectintheInfotainmentsystem:
MENU}button>Vehicle>leftcontrolbutton>
Vehiclesettings>Airsuspension:trailer.Switch
itoffagainwhenyouarenolongertowingatrail-
er.


Youcanalsoswitchofftrailermodemanually
whiledriving,forexample,whenusingabicycle
racksystem.>
93

Trailertowing

Ifyouhavetodrivethroughdifficultroadcondi-
tions,youcanraisethevehicleagainafterhitch-
ingthetrailerorafteradjustingthetongue
weight.
@)Note
Appliesto:vehicleswithairsuspension
—Changesintemperatureorloadcanaffect
the heightofthevehicle.
—Ifthestandardvehicleheightisnotused,
thetongueweightspecificationisnolonger
applicable.
@)Note
Attachmentsretrofittedonthevehiclemay
causedamage,especiallyonthetrailerhitch
ballhead.Incasesofdamage,havethefunc-
tioncheckedby anauthorizedAudidealeror
authorizedAudiServiceFacility.
G)Tips
—Blockthewheelswithchockswhenparking
oninclinesifthetrailerisloaded.
—Havingthevehicleinspectedbetweenthe
inspectionintervalsisrecommendedifyou
towatrailerfrequently.
—Avoiddrivingwithatrailerduringthevehi-
clebreak-inperiod.
Drivingwithatrailer
Drivingwithatrailerrequiresextracaution.
Speed
Adheretothelegalspeedlimits.Followthelegal
regulationsspecifictothecountry.
Asthespeedincreases,thedrivingstabilityof
thetrailerdecreases.Thereforeyoushouldnot
exceedthemaximumlegalspeedlimitwhen
thereareunfavorableroad,weather,and/orwind
conditions.Thisespeciallyapplieswhendriving
downhill.
Hill
Whenyoustartdrivinguphillordownhill,trailers
maytiltorswaysoonerthanwhendrivingona
levelsurface.Ifsmallswayingmovementshave
alreadyoccurred,youcanstabilizethetrailerby
94
firmlybrakingimmediately.Nevertryto
“straightenout”thetrailerbyaccelerating.
Downshiftbeforedrivingonhillstoutilizetheen-
ginebrakingeffect>A\.
Brakes
Whenusingatrailerwithoverrunbrakes,first
brakegentlythenquickly.Thisreducestheriskof
jerkingwhilebrakingifthetrailerwheelslockup.
Enginecoolanttemperature
Payattentionspecificallytothecoolanttempera-
ture displaywhentherearehighoutsidetemper-
atures,andwhendrivingonlonginclines
=>page15.Shifttoahighergearinatimelyman-
ner.

Z\WARNING
Constantbrakingcausesthebrakestoover-
heatandcansubstantiallyreducebrakingper-
formance,increasebrakingdistance,orcause
completefailureofthebrakesystem.

4M0012721BG

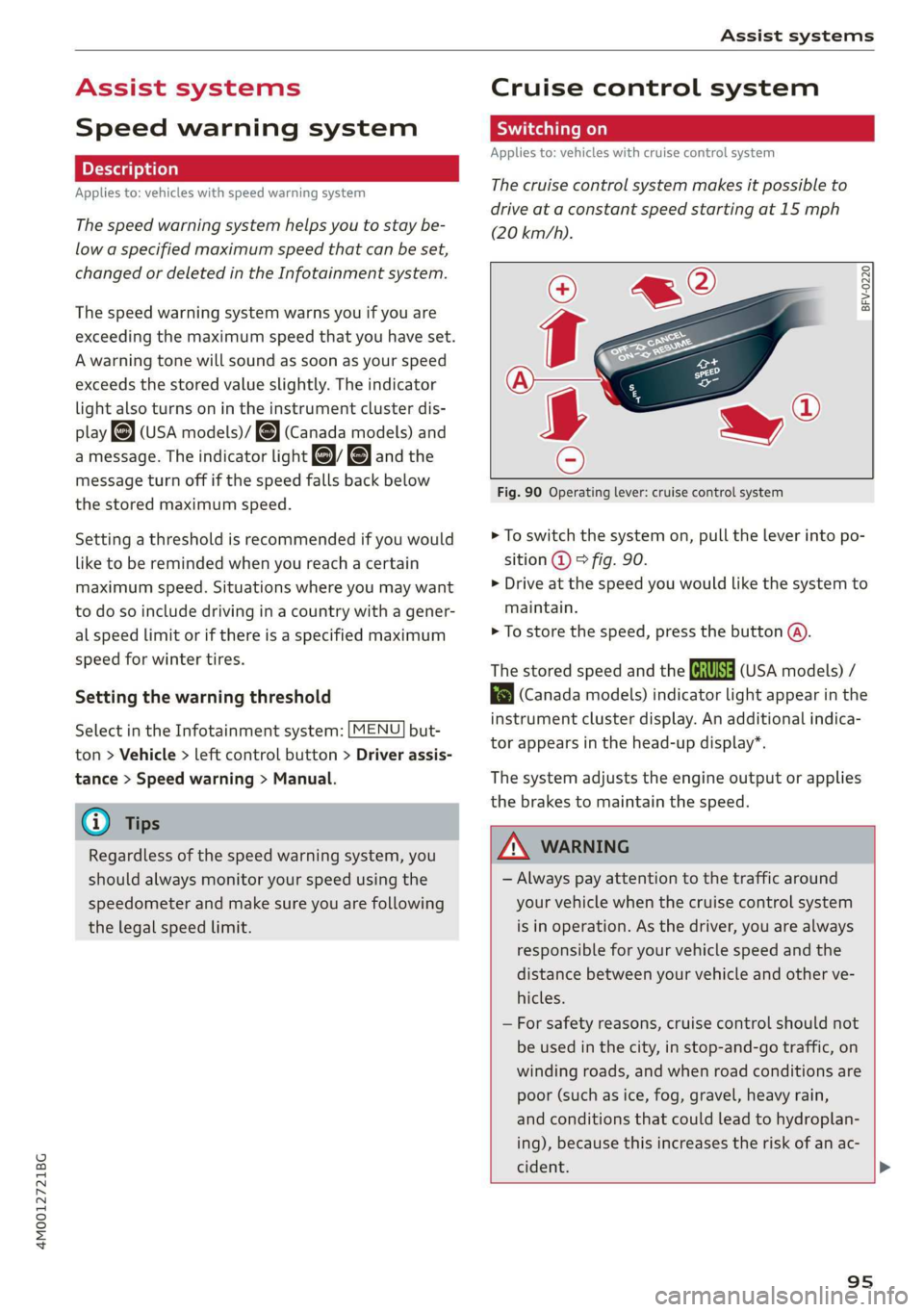

Assistsystems

Assistsystems
Speedwarningsystem
Appliesto:vehicleswithspeedwarningsystem
Thespeedwarningsystemhelpsyoutostaybe-
low aspecifiedmaximumspeedthatcanbeset,
changedordeletedintheInfotainmentsystem.
Thespeedwarningsystemwarnsyouifyouare
exceeding themaximumspeedthatyouhaveset.
Awarningtonewillsoundassoonasyourspeed
exceedsthestoredvalueslightly.Theindicator
lightalsoturnsonintheinstrumentclusterdis-
play{@)(USAmodels)/J(Canadamodels)and
amessage.Theindicatorlightoyandthe
messageturnoffifthespeedfallsbackbelow
thestoredmaximumspeed.
Settingathresholdisrecommendedifyouwould
liketoberemindedwhenyoureachacertain
maximumspeed.Situationswhereyoumaywant
todosoincludedrivinginacountrywithagener-
alspeedlimitorifthereisaspecifiedmaximum
speedforwintertires.
Settingthewarningthreshold

SelectintheInfotainmentsystem:[MENU]but-
ton>Vehicle>leftcontrolbutton>Driverassis-
tance>Speedwarning>Manual.
@)Tips
Regardlessofthespeedwarningsystem,you
shouldalwaysmonitoryourspeedusingthe
speedometerandmakesureyouarefollowing
thelegalspeedlimit.

Cruisecontrolsystem
Switchingon
Appliesto:vehicleswithcruisecontrolsystem
Thecruisecontrolsystemmakesitpossibleto
driveataconstantspeedstartingat15mph
(20km/h).

BFV-0220



Fig.90Operatinglever:cruisecontrolsystem
>Toswitchthesystemon,pulltheleverintopo-
sition@©fig.90.
>Driveatthespeedyouwouldlikethesystemto
maintain.
>Tostorethespeed,pressthe button(@).
ThestoredspeedandtheCRUISE(USAmodels)/
BB(Canadamodels)indicatorlightappearinthe
instrumentclusterdisplay.Anadditionalindica-
torappearsinthehead-updisplay*.
Thesystemadjuststheengineoutputorapplies
thebrakestomaintainthe speed.

ZA\WARNING
—Alwayspayattentiontothetrafficaround
yourvehiclewhenthecruisecontrolsystem
isinoperation.Asthedriver,youarealways
responsibleforyourvehiclespeedandthe
distancebetweenyourvehicleandotherve-
hicles.
—Forsafetyreasons,cruisecontrolshould not
be
usedinthecity,instop-and-gotraffic,on
windingroads,andwhenroadconditionsare
poor(suchasice,fog,gravel,heavyrain,
andconditionsthatcouldlead tohydroplan-
ing),becausethisincreasestheriskofanac-
cident.>

95

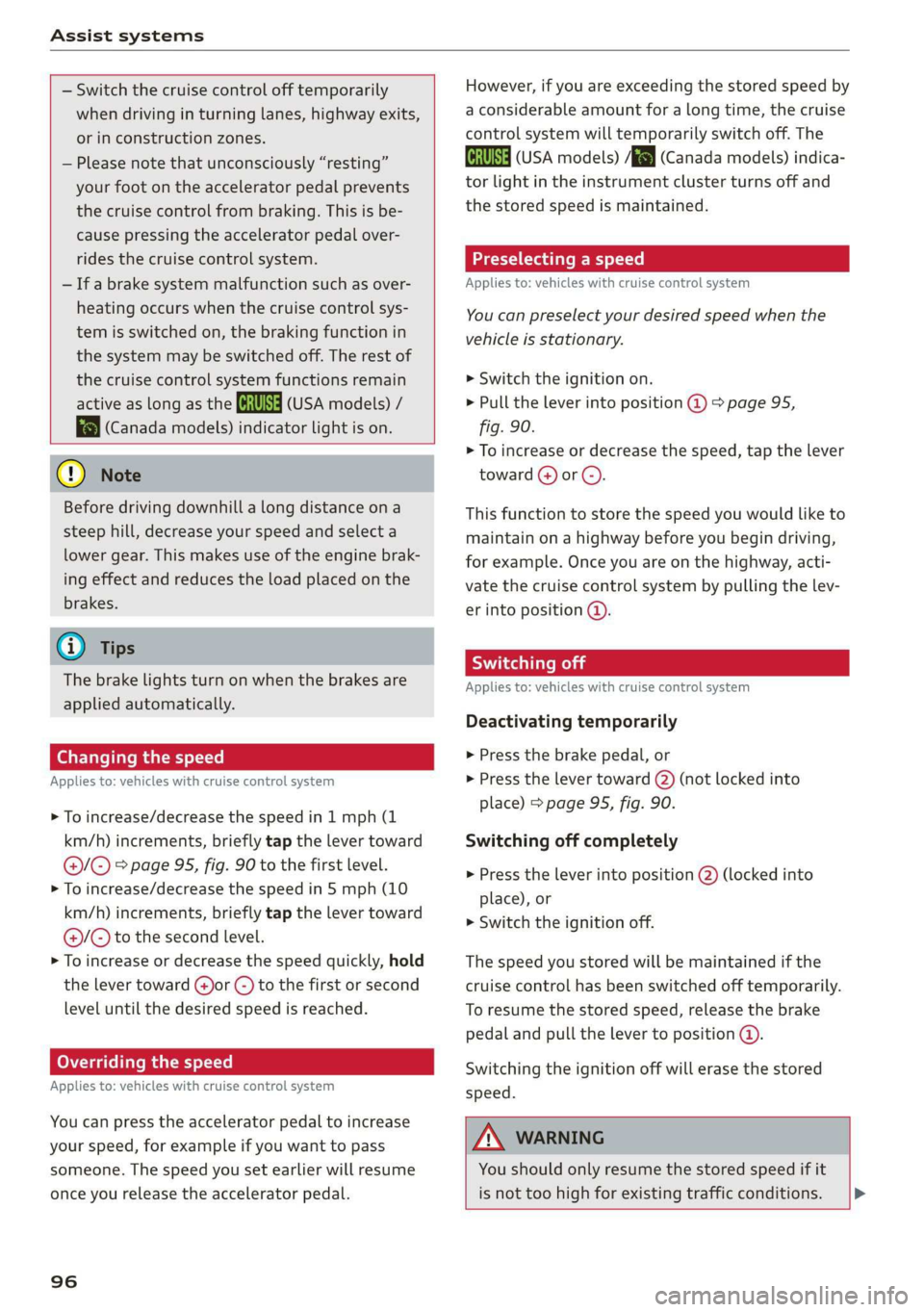

Assistsystems


—Switchthecruisecontrolofftemporarily
whendrivinginturninglanes,highwayexits,
orinconstructionzones.
—Pleasenotethatunconsciously“resting”
yourfootontheacceleratorpedalprevents
thecruisecontrolfrombraking.Thisisbe-
causepressingtheacceleratorpedalover-
ridesthecruisecontrolsystem.
—Ifabrakesystemmalfunctionsuchasover-
heatingoccurswhenthecruisecontrolsys-
temisswitchedon,thebrakingfunctionin
thesystemmaybeswitchedoff.Therestof
thecruisecontrolsystemfunctionsremain
activeaslongastheGg(USAmodels)/
ES)(Canadamodels)indicatorlightison.
@)Note
Beforedrivingdownhillalongdistanceona
steephill, decreaseyourspeedandselecta
lowergear.Thismakesuseoftheenginebrak-
ingeffectandreducestheloadplacedonthe
brakes.
G)Tips
Thebrakelightsturnonwhenthebrakesare
appliedautomatically.
Changingthespeed
Appliesto:vehicleswithcruisecontrolsystem

>Toincrease/decreasethespeedin1mph(1
km/h)increments,brieflytapthelevertoward
@/O°page95,fig.90tothefirstlevel.
>Toincrease/decreasethespeedin5mph(10
km/h)increments,brieflytapthelevertoward
@/Otothesecondlevel.
>Toincrease ordecrease thespeedquickly,hold
thelevertowardG)or©)tothefirstorsecond
level untilthedesiredspeedisreached.
Overridingthespeed
Appliesto:vehicleswithcruisecontrolsystem
Youcanpresstheacceleratorpedaltoincrease
yourspeed,forexampleifyouwanttopass
someone.Thespeedyousetearlierwillresume
onceyoureleasetheacceleratorpedal.
96
However,ifyouareexceedingthestoredspeedby
aconsiderableamountforalongtime,thecruise
controlsystemwilltemporarilyswitchoff.The
Gk(USAmodels)/(Canada models)indica-
torlightintheinstrumentclusterturnsoffand
thestoredspeedismaintained.
Preselectingaspeed
Appliesto:vehicleswithcruisecontrolsystem
Youcanpreselectyourdesiredspeedwhenthe
vehicleisstationary.
>Switchtheignitionon.
> Pulltheleverintoposition@>page95,
fig.90.
>Toincrease ordecrease thespeed,tapthelever
toward@)or ©).
Thisfunctiontostorethespeedyouwouldliketo
maintainonahighwaybeforeyoubegindriving,
forexample.Onceyouareonthehighway,acti-
vatethecruisecontrolsystembypullingthelev-
er intoposition@.
Switchingoff
Appliesto:vehicleswithcruisecontrolsystem
Deactivatingtemporarily
>Pressthebrakepedal,or
>Pressthelevertoward(2)(notlockedinto
place)>page95,fig.90.
Switchingoffcompletely
>Presstheleverintoposition2)(lockedinto
place),or
>Switchtheignitionoff.
Thespeedyoustoredwillbemaintainedifthe
cruisecontrolhasbeenswitchedofftemporarily.
Toresumethestoredspeed,releasethebrake
pedalandpullthelevertoposition@.
Switchingtheignitionoffwillerasethestored
speed.

ZXWARNING
Youshouldonlyresumethestoredspeedifit
isnot toohighforexistingtrafficconditions.|>

4M0012721BG
Assistsystems


Ifitistoohigh,youcanincreasetheriskofan
accident.

Camera-basedtraffic
signrecognition
Appliesto:vehicleswith camera-basedtrafficsignrecognition
Vo
ny
anaF=)
=
a
f

Fig.91Instrumentcluster:trafficsignrecognition

B4M-0090


Fig.92Windshield:camerawindowfortrafficsignrecog-
nition
Trafficsignrecognitionassistsyouwhendriving
bydisplayingdetectedspeedlimitsorsignspro-
hibitingpassingintheinstrumentclusterdisplay
=>fig.91.Withinthelimitsofthesystem,thele-
galspeedlimitsinschoolzonesaredetectedand
displayed.
Generalinformation
Trafficsignrecognitioncandetectstandard
speedlimitsignsthatarewithinthecamera'svis-
ualfield.Withassistancefromnavigationdata,
detectedspeedlimitsareevaluatedandshownin
thedisplay.Thetrafficsignforthecurrentde-
tectedspeedlimitwillblinkinthedisplayifyou
exceedthewarningthresholdsetintheInfotain-
mentsystem>page98.
Thetrafficsignrecognitionissubjecttocertain
systemlimitationsandmaybeunavailableoron-
lypartiallyavailableinthefollowingsituations:
—Whenvisibilityispoor,suchasinsnow,rain,
fogorheavyspray
—Whenthereisglare,forexamplefromoncom-
ingtrafficorthesun
—Athighspeeds
—Ifthecamera'svisualfield>fig.92iscovered,
forexamplebydirtorstickers.Forinformation
oncleaning,see>page346.
—Ifthetrafficsigns arecompletelyorpartially
covered,forexamplebytrees,snow,dirtor
othervehicles
—ifspeedtrafficsignsdonotconformtothe
standards
—Iftrafficsigns aredamagedorbent
—Iftrafficsigns aredisplayedonsignholders
withelectronicsigns
—ifthetrafficsignsortheconfigurationofthe
roadhavechanged(navigationdataisnolonger
up-to-date)

ZA\WARNING
Payattentiontotrafficandtheareaaround
yourvehiclewhentrafficsignrecognitionis
turnedon.Thetrafficsignsinstalledonthe
roadalwaystakeprecedenceoverthedisplay.
Thedriverisalwaysresponsibleforassessing
thetrafficsituation.
— Undersomecircumstances,trafficsignrec-
ognitionmaynotdetecttrafficsignscorrect-
lyordetectthematall.Asaresult,thesys-
temmaynotdisplaythecorrectspeedlimit
oranyspeedlimit.
—Trafficsignrecognitiondoesnotadaptyour
vehicle'sspeedtomatchthespeedlimit!
—
Thedisplayintheinstrumentclusteris
basedontheunitsofmeasurementusedfor
speedinthecountrywherethevehicleisbe-
ingoperated.Asaresult,thedisplay50in
theinstrumentclustercanmeaneither
km/hormph,dependingonthecountry.

97

Assistsystems

Operating
Appliesto:vehicleswith camera-basedtrafficsignrecognition

REO
Fig.93Instrumentcluster:additionaldisplay
Accessingtrafficsignrecognition
>Select:thefirsttab>Trafficsigns.
Settingaspeedwarning
Youcansetawarningthresholddownto10mph
(15km/h).Thetrafficsignforthecurrentdetect-
edspeedlimitwillblinkinthedisplayifyouex-
ceed thesetthreshold.

> SelectintheInfotainmentsystem:[MENU]but-
ton>Vehicle>leftcontrolbutton>Driveras-
sistance>Speedwarning>Trafficsignbased
warning.

Additionaldisplay
If aviewotherthanthetrafficsignrecognitionis
selectedintheinstrumentclusterdisplay,the
speedlimitwillbeshowninanotherdisplay
=>fig.93.Thecurrentapplicablespeedlimitwill
beshownthere,ifpossiblewithinthelimitsof
thesystem.
G)Tips
—Anadditionalindicatorappearsinthehead-
updisplay*.
—Yourspeedwarningsettingsarestoredau-
tomaticallyandassignedtothevehiclekey
inuse.
Messages
Appliesto:vehicleswith camera-basedtrafficsignrecognition
Trafficsignrecognition:currentlyunavaila-
ble.Cameraviewlimitedduetosurroundings
98

Functioncurrentlyunavailable.Cameraviewre-
strictedduetosurroundings
Thismessageappearsifthecamera'svisualfield
iscovered>page97,fig.92.Thesystemwill
switchitselfoff.
Trafficsign recognition:currentlylimited.
Seeowner'smanual
Thismessageappearsifthereisamalfunctionin
thenavigationsystem,forexample.Thespeed
limitdisplayislimited,whichincreasestheriskof
anincorrectdisplay.
Trafficsignbased speedwarning:currently
unavailable.Seeowner'smanual
Therewillbenowarningwhenthesetthreshold
isexceeded.
Notrafficsigninformationavailable
Thereisnovalidnavigationdataandnospeed
limitsweredetected.Orthereisarecommended
speedbutthereisnotaspeedlimit(forexample
drivingonandoffthe expressway).
Malfunction!Seeowner'smanual
Thesystemmaynotfunctioncorrectlysoithas
beenswitchedoff.SeeanauthorizedAudidealer
orauthorizedAudiServiceFacilityforassistance.
Functionnotavailableinthiscountry
Thevehicleisinacountrywherethefunctionis
notavailable.
Predictiveefficiency
assist
Introduction
Thepredictiveefficiencyassisthelpsthedriverto
drivewithanticipationandthereforehelpsto
savefuel.Thesystemaccessespredictivetripda-
ta(includingspeedlimits,hills,andtheangleof
curves)fromthenavigationsystem*.Informa-
tionfromthe camera-basedtrafficsignrecogni-
tion*isalsoappliedtorecognizetrafficsigns
=>page97.
