Driving

—Theignitionwillturnoffifyoupressthe
STARTENGINESTOP]buttonduringastop


phase.
—Youcancontroliftheenginewillstopornot
byreducingorincreasingtheamountof
forceyouusetopressthebrakepedal.For
example,ifyouonlylightlypressonthe
brakepedalinstop-and-gotrafficorwhen
turning,theenginewillnotswitchoffwhen
thevehicleisstationary.Ifyoupressthe
brakepedalharder,theenginewillswitch
off.
Startingandstoppingtheengineautomat-
relay
Appliesto:vehicleswithStart/Stopsystem
Thesystemchecksifcertainconditionsaremet
beforeandduringthe"stop"phase,anddeter-
minesiftheenginestopsandhowlongitre-
mainsstopped.Forexample,ifpowerusageis
high,theenginewillnotbestopped.Alongwith
otherconditions,thefollowingfactors influence
theautomaticenginestartorstop:
—Environmentalconditions(slopes,inclines,ele-
vation,temperature)
—Battery(chargestatus,temperature,powerus-
age)
—Enginetemperature
—Assistsystems
—Drivingbehavior
Dependingontheengine,theGyindicatorlight
mayappeariftheengineisnotstopped.

SearsMUMMLMLluiace]00
Appliesto:vehicleswith Start/Stopsystem
Ifyouleavethevehicleduringa"stop"phase,the
enginecanberestartedwithinapproximately30
secondsifthedoorsareclosed,thedriver'ssafe-
tybeltisfastened,andthebrakepedalispress-
ed.
Ifyouleavethevehiclelongerthan30seconds,
theignitionwillswitchoffautomaticallytopre-
vent thevehiclebatteryfromdraining.Ifthisis
thecase,themessageStart/stopsystem:igni-
tionwillbeswitchedoffin30swillappearinthe
instrumentclusterand,ifthelowbeamhead-
80
lightsareswitchedon,theparkinglightswill
switchoninstead.Theparkinglightswillswitch
offafterapproximately30minutesorwhenyou
lockthevehicle.
Theignitionalsoswitchesoffwhenyoulockthe
vehiclefromtheoutsideduringastop phase.
IftheStart/Stopsystemhasnot turnedoffthe
engineorifyouhave switchedtheStart/Stopsys-
temoffmanually, theenginewillcontinuetorun
andtheignitionwillnotswitchoffautomatically.

ZXWARNING
To reducetheriskofasphyxiation,never allow
theenginetoruninconfinedspaces.
G)Tips
Ifyouleavethevehiclewiththe"D/S"or"R"
selectorleverpositionengaged,theparking
brakeisautomaticallyset.
ManuallyswitchingtheStart/Stopsystem
amiemela)
Appliesto:vehicleswithStart/Stopsystem

The@)o*buttonislocatedabovetheselectorlev-
erinthecenterconsole.
>Press(A)toswitchonoroff.TheLEDinthe
buttonturnsonwhenthefunctionisswitched
off.
@)Tips
Ifyouswitchthesystemoffduringastop
phase, theenginewillstartagainautomati-
cally.
Messages
Appliesto:vehicleswithStart/Stopsystem
Start/stopsystem:deactivated.Pleasestart
enginemanually
Thismessageappearswhenspecificconditions
arenotmetduringastopphase.TheStart/Stop
systemwillnot beabletorestarttheengine.The
enginemustbestartedwiththe
STARTENGINESTOP]button.

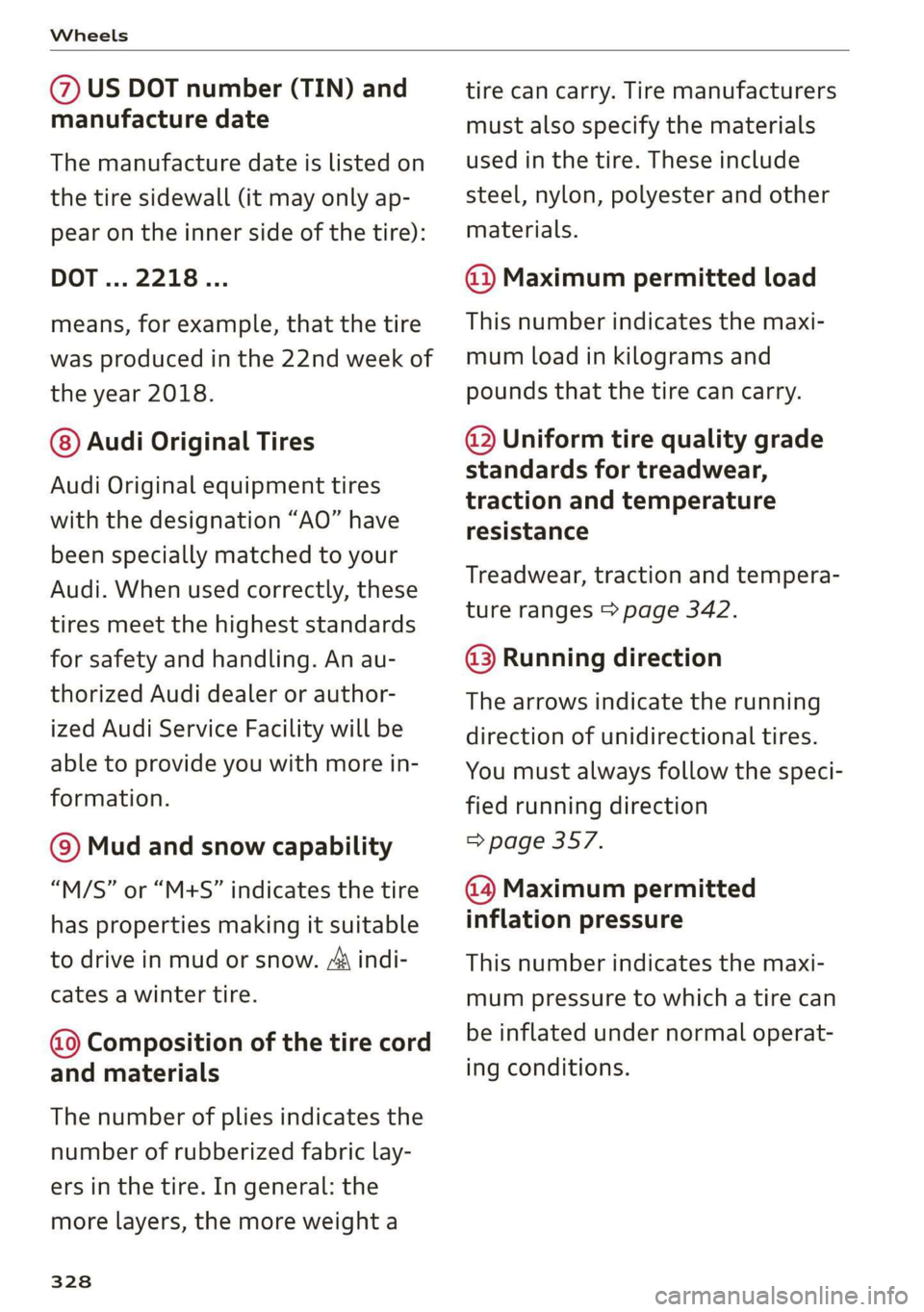

Wheels

@USDOTnumber(TIN)and
manufacturedate
Themanufacturedateislistedon
thetiresidewall(itmayonlyap-
pearontheinnersideofthetire):
DOT...2218...
means,forexample,thatthetire
wasproducedinthe22ndweekof
theyear2018.
@)AudiOriginalTires
AudiOriginalequipmenttires
withthedesignation“AO”have
beenspeciallymatchedtoyour
Audi.Whenusedcorrectly,these
tiresmeetthehigheststandards
forsafetyandhandling.Anau-
thorizedAudidealerorauthor-
izedAudiServiceFacilitywillbe
abletoprovideyouwithmorein-
formation.
@)Mudandsnowcapability
“M/S”or“M+S”indicatesthetire
haspropertiesmakingitsuitable
todriveinmudorsnow.4indi-
catesawintertire.
Compositionofthetirecord
andmaterials
Thenumberofpliesindicatesthe
numberofrubberizedfabriclay-
ersinthetire.Ingeneral:the
morelayers,themoreweighta
328
tirecancarry.Tiremanufacturers
mustalsospecifythematerials
usedinthetire.Theseinclude
steel,nylon,polyesterandother
materials.
@Maximumpermittedload
Thisnumber indicatesthemaxi-
mumloadinkilogramsand
poundsthatthetirecancarry.
@Uniformtirequalitygrade
standardsfortreadwear,
tractionandtemperature
resistance
Treadwear,tractionand tempera-
tureranges>page342.
@Runningdirection
Thearrowsindicatetherunning
directionofunidirectionaltires.
Youmustalwaysfollowthespeci-
fiedrunningdirection
>page357.
Maximumpermitted
inflationpressure
Thisnumber indicatesthemaxi-
mumpressuretowhichatirecan
beinflatedundernormaloperat-
ingconditions.

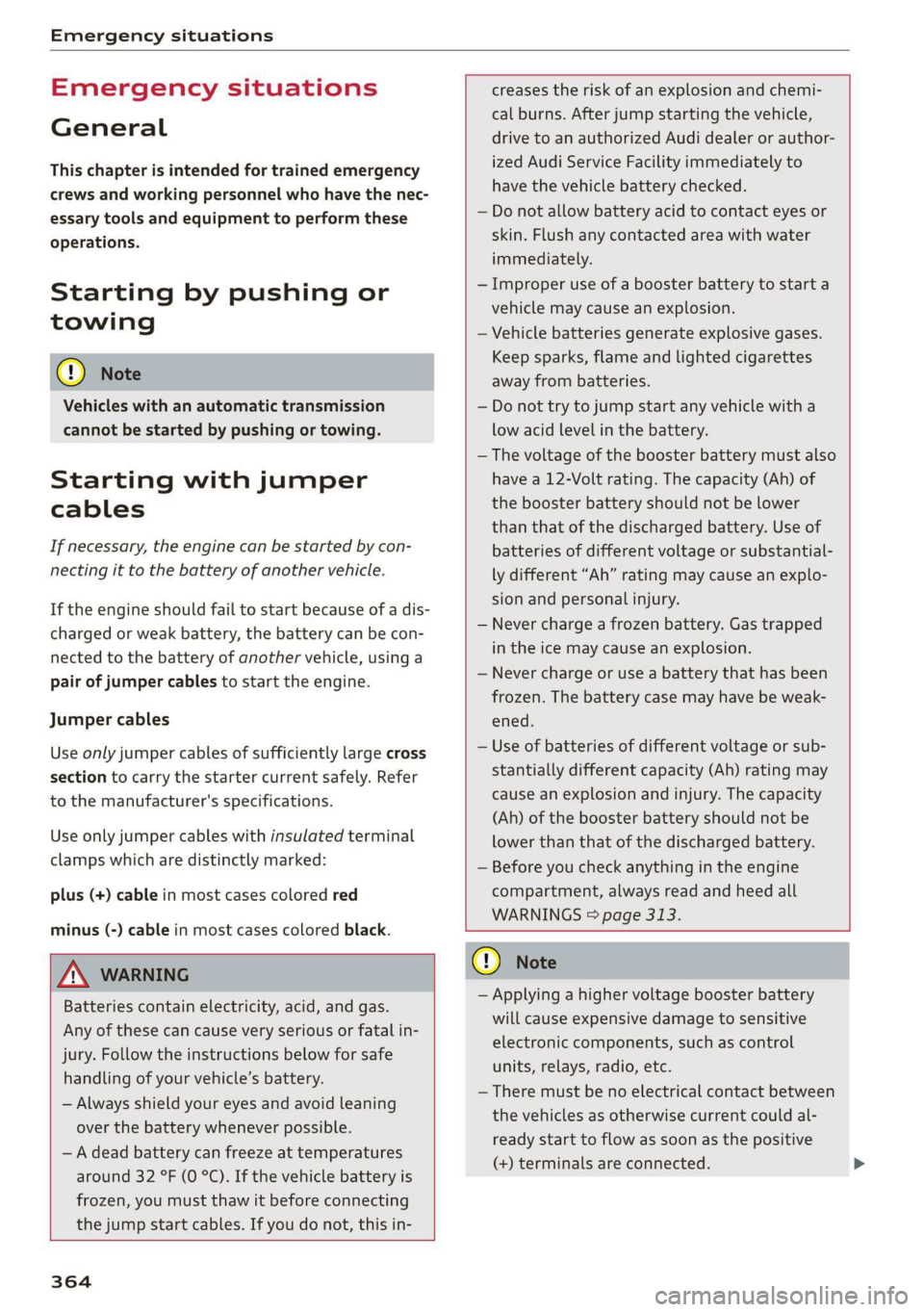

Emergencysituations

Emergencysituations
General
Thischapterisintendedfortrainedemergency
crewsandworkingpersonnelwhohavethenec-
essarytoolsandequipmenttoperformthese
operations.
Startingbypushingor
towing
@)Note
Vehicleswithanautomatictransmission
cannotbestartedbypushingortowing.
Startingwithjumper
cables
Ifnecessary,theenginecanbestartedbycon-
nectingittothebatteryofanothervehicle.
Iftheengineshouldfailtostartbecauseofadis-
chargedorweakbattery,thebatterycanbecon-
nectedtothebatteryofanothervehicle,usinga
pairofjumpercablestostarttheengine.
Jumpercables
Useonlyjumpercablesofsufficientlylargecross
sectiontocarrythestartercurrentsafely.Refer
tothemanufacturer'sspecifications.
Useonlyjumpercableswithinsulatedterminal
clampswhicharedistinctlymarked:
plus(+)cableinmostcasescoloredred
minus(-)cableinmostcasescoloredblack.


creasestheriskofanexplosionandchemi-
calburns.Afterjumpstartingthevehicle,
drivetoanauthorizedAudidealerorauthor-
izedAudiServiceFacilityimmediatelyto
havethevehiclebatterychecked.
—Donotallowbatteryacidtocontacteyesor
skin.Flushanycontactedareawithwater
immediately.
—Improperuseofaboosterbatterytostarta
vehiclemaycause anexplosion.
—Vehiclebatteriesgenerateexplosivegases.
Keepsparks,flameandlightedcigarettes
awayfrombatteries.
—Donottrytojumpstartanyvehiclewitha
lowacidlevelinthebattery.
— Thevoltageoftheboosterbatterymustalso
havea12-Voltrating.Thecapacity(Ah)of
the boosterbatteryshouldnotbelower
thanthatofthedischargedbattery.Useof
batteriesofdifferentvoltageorsubstantial-
lydifferent“Ah”ratingmaycause anexplo-
sionandpersonalinjury.
—Neverchargeafrozenbattery.Gastrapped
intheicemaycause anexplosion.
—Neverchargeoruseabatterythathasbeen
frozen.Thebatterycasemayhave beweak-
ened.
—Useofbatteriesofdifferentvoltageorsub-
stantiallydifferentcapacity(Ah)ratingmay
causeanexplosionandinjury.Thecapacity
(Ah)oftheboosterbatteryshouldnot be
lowerthanthatofthedischargedbattery.
—Beforeyoucheckanythingintheengine
compartment,alwaysreadandheedall
WARNINGS&page313.


Z\WARNING
Batteriescontainelectricity,acid,andgas.
Anyofthese cancauseveryseriousorfatalin-
jury.Followtheinstructionsbelowforsafe
handlingofyourvehicle’sbattery.
—Alwaysshieldyoureyesandavoidleaning
overthebatterywheneverpossible.
—Adeadbatterycanfreezeattemperatures
around
32°F(0°C).Ifthevehiclebatteryis
frozen,youmustthawitbeforeconnecting
thejumpstartcables.Ifyoudonot,thisin-

364
C)Note
—Applyingahighervoltageboosterbattery
willcauseexpensivedamagetosensitive
electroniccomponents,suchascontrol
units,relays,radio,etc.
—Theremustbe noelectricalcontactbetween
thevehiclesasotherwisecurrentcouldal-
readystarttoflowassoonasthepositive
(+)terminalsareconnected.
