remote start AUDI Q7 2020 Owner´s Manual

Opening and closing

Opening and closing
Central locking
erasure)
ZA WARNING
— If you leave the vehicle, switch the ignition
off and take the key with you. This applies
particularly when children remain in the ve-
hicle. Otherwise, children could start the ve-
hicle or operate electrical equipment (such
as power windows), which increases the risk
of an accident.
— Applies to vehicles with anti-theft alarm sys-
tem: When the vehicle is locked from the
outside, no one - especially children - should
remain in the vehicle, because the windows
can no longer open from the inside
=> page 33, Anti-theft alarm system.
Locked doors make it more difficult for
emergency workers to enter the vehicle,
which puts lives at risk.
All doors and the luggage compartment lid can
be centrally unlocked and locked at once. You can
select in the MMI if the entire vehicle or only the
driver's door should unlock when unlocking the
vehicle > page 31. The turn signals flash twice
when you unlock the vehicle and flash once when
you lock the vehicle. If they do not flash when
locking, check if all doors and lids are closed.



Depending on the vehicle equipment, you may
have different options for centrally unlocking and
locking your vehicle.
— Vehicle key > page 35
— Sensors in the door handles > page 35
— Lock cylinder on the driver's door > page 33
— Central locking switch inside > page 32
Vehicle key
The term “vehicle key” refers to the remote con-
trol key or convenience key*. The convenience
key* is a remote control key with special func-
tions > page 35 and > page 94.
30
Power closing*
When closing a door or the luggage compart-
ment lid, you only have to let it fall lightly into
the latch. It then closes automatically > A.
Automatic locking
If you unlock the vehicle but then do not open
any of the doors, the luggage compartment, or
the hood within a short period time, the vehicle
locks again automatically. This feature prevents
the vehicle from being accidentally left unlocked
for a long period of time.
Automatic locking (Auto Lock)
The Auto Lock function locks all doors and the
luggage compartment lid once the speed has ex-
ceeded approximately 9 mph (15 km/h). The ve-
hicle will unlock again if the unlock function in
the central locking switch is pressed, the “P” gear
is engaged, or the ignition is switched off.
You can open the doors individually from the in-
side by pulling the door handle one time. To open
the rear doors individually, you must pull the
door handle twice.
In the event of a crash with airbag deployment,
the doors will also automatically unlock to allow
access to the vehicle.
Unintentionally locking yourself out
Only lock your vehicle when all of the doors and
the luggage compartment lid are closed and
there is no key in the vehicle. This reduces the
risk of locking yourself out accidentally.
The
following features help to reduce the risk of
locking your vehicle key in the vehicle:
— If the driver's door is open, the vehicle cannot
be locked by pressing the @ button on the re-
mote control key or by touching the locking
sensor* on a door.
— If the vehicle key that was used most recently is
inside the luggage compartment, the luggage
compartment lid will automatically open again
after it closes > ©.
— If the vehicle key that was last used is detected
inside the vehicle, then the vehicle cannot be
locked from the outside > ©.

4M1012721BA
Driving

reached operating temperature yet. You
could damage the engine.
— If the engine has been under heavy load for
an extended period of time, heat builds up
in the engine compartment after the engine
is switched off and there is a risk of damag-
ing the engine. For this reason, let the en-
gine run at idle for approximately two mi-
nutes before shutting it off.
@ Tips
— Brief noises are normal when starting and
stopping the vehicle and are no cause for
concern.
— For up to 10 minutes after stopping the en-
gine, the radiator fan may turn on again au-
tomatically or it may continue to run, even if
the ignition is switched off.
— It may not be possible to start the vehicle in
extremely low temperatures.
— Power will be fully available once the engine
is at operating temperature.
Messages
Ei Engine start system: malfunction! Please
contact Service
Do not switch the ignition off because you may
not be able to switch it on again. Drive to an au-
thorized Audi dealer or authorized Audi Service
Facility immediately to have the malfunction cor-
rected.
E Engine start system: malfunction! Please
contact Service
There is a malfunction in the engine start system.
Drive immediately to an authorized Audi dealer
or authorized Audi Service Facility to have the
malfunction repaired.
BE Remote control key: key not detected. Is the
key
still in the vehicle?
The vehicle key was removed from the vehicle
while the engine is running. If the vehicle key is
no longer in the vehicle, you cannot switch the ig-
nition on or start the engine once you stop it. You
also cannot lock the vehicle from the outside.
Remote control key: hold back of key
against the designated area. See owner's man-
ual
The battery in the vehicle key may be drained or
there may be a malfunction. To start the vehicle,
you must also hold the vehicle key against the lo-
cation shown ?) > page 94, fig. 92.
If the malfunction remains, drive immediately to
an authorized Audi dealer or authorized Audi
Service Facility to have the malfunction correct-
ed.
When driving
Starting to drive, stopping, and parking
Starting from a stop
> Press and hold the brake pedal.
>» Start the engine.
> Select a gear.
> Release the parking brake.
> Release the brake pedal. The vehicle may roll.
> Press the accelerator pedal to accelerate.
Stopping and parking
> Bring the vehicle to a full stop and press and
hold the brake pedal.
> Set the parking brake.
> Select the “P” selector lever position to secure
the vehicle from rolling away.
> Turn the steering wheel when parking on in-
clines so that the wheels will roll into the curb
if the vehicle starts moving.
> Switch off the ignition before leaving the vehi-
cle.
On hills, activate the parking brake first and then
shift into the "P" selector lever position. This pre-
vents too much stress from being placed on the
locking mechanism.

Z\ WARNING
— Always set the parking brake when leaving
your vehicle, even if for a short period of
time. If the parking brake is not set, the ve-
hicle could roll away, increasing the risk of

an accident. >

95

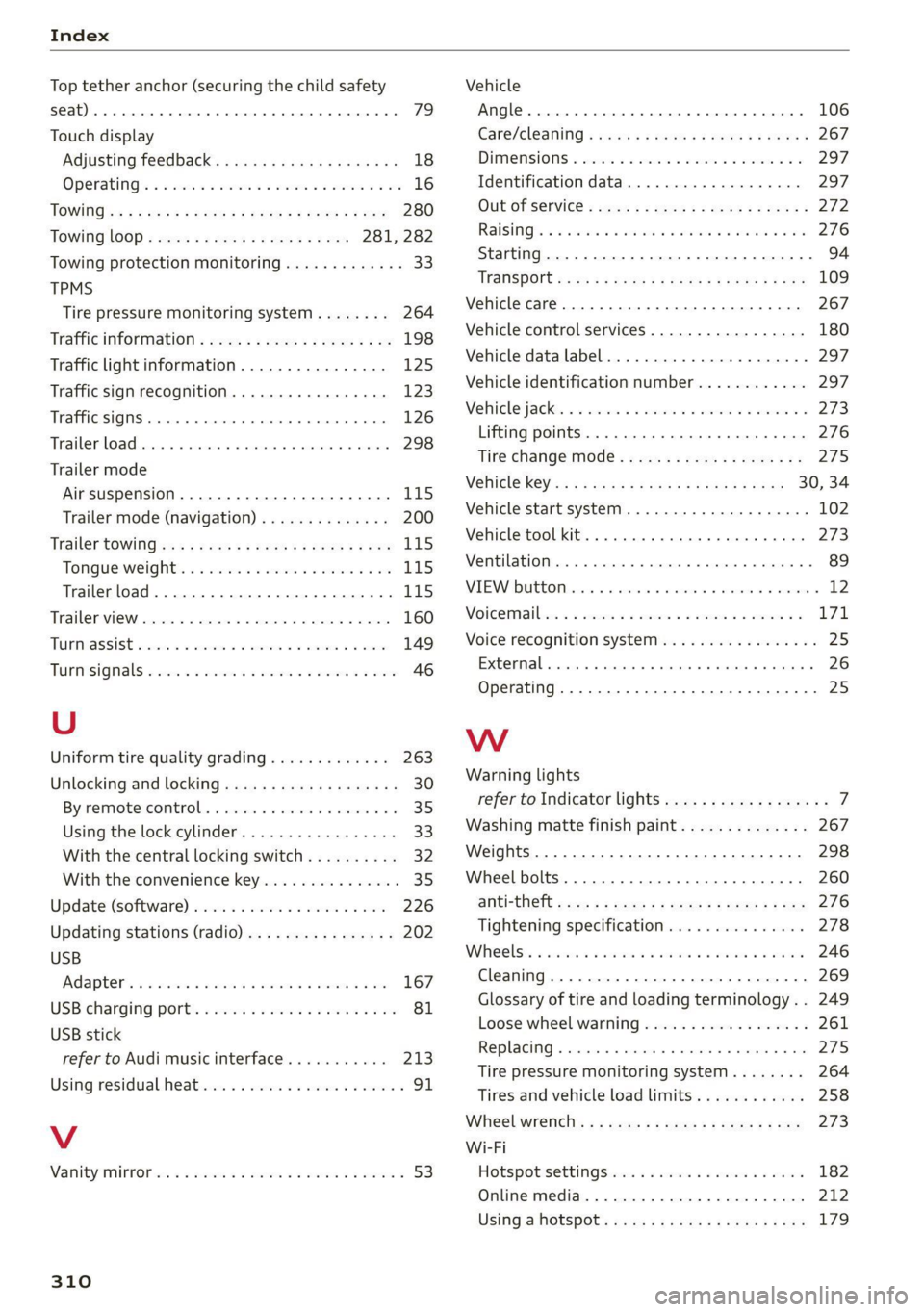

Index

Top tether anchor (securing the child safety

SQat) occ ccc ce eee eee eee nee 79
Touch display
Adjusting feedback..............-.0005 18
QPeratinG's » vse 2 2 cise « 2 arses sa won 6 eo 16
TOWINGies ¢ 2 wegs s secu ¢ s peeem © = eres § 2 oe 280
Towing lOOp = sem: <2 wees =e ease seen 281, 282
Towing protection monitoring............. 33
TPMS
Tire pressure monitoring system........ 264
Trafficinformation = sey « : weer: x 2 eos sa 198
Traffic light information................ 125
Traffic sign recognition...............4. 123
Traffic SIGNS... kk eee eee 126
Thaker loa isis © + senss2e « « aneseue a o ameuene 4 aanwis 298
Trailer mode
Airsuspension............-.0-.0-0005 115
Trailer mode (navigation) .............. 200
TrailePtOwiiG'ss « = see <= seem = 2 noe ee eos 115
Tongue Weight: « s sws se ewes 4 e ores oo ov 115
Trailer load... 2... eee eee eee eee 115
Traile review, scones ss meres ao moans oo anamin © eames 160
TUPMASSISE scsi «5 csecare © 3 weaves oe come ao eee 149
TUrnsignalls wise s 2 sass a ¥ momen oo eet so Ee 46
U
Uniform tire quality grading............. 263
Unlocking and locking. ...............605 30
By remote:control... « cio. se cwwa se ome vee 35
Using the lock cylinder 33
With the central locking switch.......... 32
With the convenience key............... 35
Updater(Software). wie cs ose 2 a anu © a ave 226
Updating stations (radio)................ 202
USB
Adapter’s « « sso wane 2 3 wesc a 6 aisnene @ 6 aw 167
USB charging Ports. « secu ox wsse oo snomne w oven 81
USB stick
refer to Audi music interface........... 213
Using residual.heatiessss se ses 6 5 wae oo arn o 91
Vv
Vanity MirtOties: 2 2 sss 2 3 mes © x mene © x ome 53
310
Vehicle
Angle... cece cece eee 106
Care/cleaninig « sews ss ween + x wee + a wees = 267
DIMENSIONS «saves os sane © cae ao meme a oy 297
Identification data................00. 297
QUt-OF SERVICE ¢ sex « = semen ss pees se Sees 272
Raising’ « «wie vo mein 3 w sae ¥ 0 eee ¥ we 276
Starting... 02... 00... eee eee eee 94
TRANSPOFt siscsu s = weeny = ¥ So0R% 5 F DORs FE 109
Vehicle care... 2. eee eee ee 267
Vehicle control services..........-...--- 180
Vehicle data label.............0.....000. 297
Vehicle identification number............ 297
Vehiclejacks. «2 essceie xs comece ve assem ve meee vs 273
Lifting points .......... 0.0... e eee 276
Tire change mode.............---.00+ 275
Vehicle key. 2s isas cs tease oven ad bres 30, 34
Vehicle start systeM.............00 eee 102
Vehicle tool kit... 6... cece cece eee 273
Ventilation. . 2.0... 2. eee eee eee 89
VIEW button... ... 2. eee eee eee 12
Voicemail . o cace oo mance ve meee vo ernie os 171.
Voice recognition system................. 25
External... .... ccc eee cee eee eee 26
Operating.............. 0.2.00. ee eee 25
Ww
Warning lights
refer to Indicator lights.................. Z
Washing matte finish paint.............. 267
Weights ........ 2... 0 cece eee eee eee 298
Wheel bolts....... 0.0... e cece ee eee ee 260
ANtI-theft occ: ss que 5 ¥ gee ee Ree ee eS 276
Tightening specification............... 278
Whieelsts «sss so save sw snscaws wa arava © anweone 246
Cleaning.......... 0. eee eee eee eee 269
Glossary of tire and loading terminology... 249

Loose wheel warning 261
REPILEGIG « visene + susonae » 0 anexane nH anetatie © & wt 275
Tire pressure monitoring system........ 264
Tires and vehicle load limits............ 258
Wheel Wench: « + ser s 2 meme sv eee ee ree 273
Wi-Fi
HotspotisettingSiins so sass 9 & mane so wears 182
Online media...............00000000. 212
Using a hOtspOt's esas se eos ss ees 5 8 aes 179
