Page 6 of 308
Table of contents
Airbagisy Stems: «5 ssisces oe swwewes w 8 on
Important information...............
FrONt airbags: « sews ss maw 5 2 oes * eee
Monitoring the Advanced Airbag System .
Knee airbags............ 0. eee eee eee
Side@ airbags -«. « ¢ ses 2 seus oe ees se oe
Side curtain airbags..............0 eee
Child safety......................
Important information...............
Child safety seats.............0..000.
Securing child safety seats............
Additional information...............
Refueling .......... 0000 ences
Emissions control system.............
Engine compartment.................
Engine oil... 6... ee eee eee ee eee
Cooling’system « « ace se wees sv een so oe
Brakesfluidss « s sssvon se ian a a scone a v annua
Electrical system. ..........0.02-000.
Battery’: s < sccm 7 « een ¢ 8 oe E RE BE He
Windshield washer system............
Service interval display...............
Care and cleaning................
Generalinformation.................
Car Washes « sues s « geen ce tem se ome sg
Cleaning and care information.........
Taking your vehicle out of service.......
Doilt VoOurselP sess cscs wos a 2 ween
Emergency assistance...........
Generalinformation.................
EQGUIPIMENE isos « o nowy 3 wees ao eenes & x oe
Tire mobility kit..................00.
Replacing wheels.............-...5-5
JUIMIPISTAKEING 5 x sors ow canons @ a sxmnwes vo seus 277
TOWING... cece eee 278
Fuses and bulbs.................. 281
Fuses... 00... ccc eee eee eee 281
BUILDS sss s ¢ ware 5% Soom 5 2 cores Bee gee 282
Customer information........... 284
Accessories and technical
GCHATIQGS:: « x cea 5 saws 5c epee oc wn ce 284
Warranty. c= cess oo wennire oo epee» e eres 284
Audi Literature Shop..............00- 284
Driving in other countries............. 284
Maintenance, repairs, and technical
modifications...............02.-008- 284
Accessories and parts..............-. 286
Reporting Safety Defects.............. 286
Declaration of compliance for
telecommunications equipment and
electronic systeMS........ 000. e eee 287
Techical Gata... ; cscs ss mance eas 289
Identification data................0.. 289
Vehicle data........ 2... eee eee eee 289
ENGUOX: s acces & 2 seeee © = ems & ¢ eee Fg Be 291,
Page 14 of 308
Instrument cluster
outside temperature is around 41 °F (+5 °C)
and that ice can increase the risk of accidents.
Fuel level
The display @ > page 10, fig. 3 only works when
the ignition is switched on. When the display has
reached the reserve mark, a red LED turns on and
the i indicator light turns on > page 19.
For
the tank capacity in your vehicle, refer to the
Technical Data > page 290.
@ Note
Never drive until the tank is completely emp-
ty. The irregular supply of fuel that results
from that can cause engine misfires. Uncom-
busted fuel will then enter the exhaust sys-
tem. This can cause overheating and damage
to the catalytic converter.
Multifunction steering
wheel
Fig. 5 Driver information system display
Fig. 6 Left side of multifunction steering wheel
Requirement: The ignition must be switched on.
12
The driver information system contains multiple
tabs @ that display various information @).
The following tabs may be available, depending
on vehicle equipment:
First tab Vehicle functions
Second tab | Driver messages (this is only dis-
played if at least one indicator
light/message is being displayed)
=>page 16
Third tab Radio > page 146
Media > page 150
Fourth tab | Telephone > page 110
Fifth tab Navigation > page 131
Map > page 139
Sixth tab Sound®> page 167
Audi connect > page 124
Settings > page 167
@l|k2] button
Switching tabs: press the [<>] button repeatedly
until the desired tab is shown (for example, Ra-
dio).
@l[VIEW] button
Changing the view > page 13.
@®|s] button
Return to functions at higher levels.
© Band [c] control buttons
Open/close the selection menu or options menu
=> page 13.
@ Left thumbwheel
— Selecting a function in a menu/list: turn the
left thumbwheel to the desired function ina
menu or list (such as selecting a station, Lap
times*).
— Confirming a selection: press the left thumb-
wheel (for example, confirm the station).
— Zooming in or out on the map: when a map is
displayed, turn the left thumbwheel up/down
to zoom in/out on the map.
Page 230 of 308
Checking and Filling
The correct fuel type for your vehicle can be
found ona label located on the inside of the fuel
filler door. For additional information on fuel, see
=> page 226.

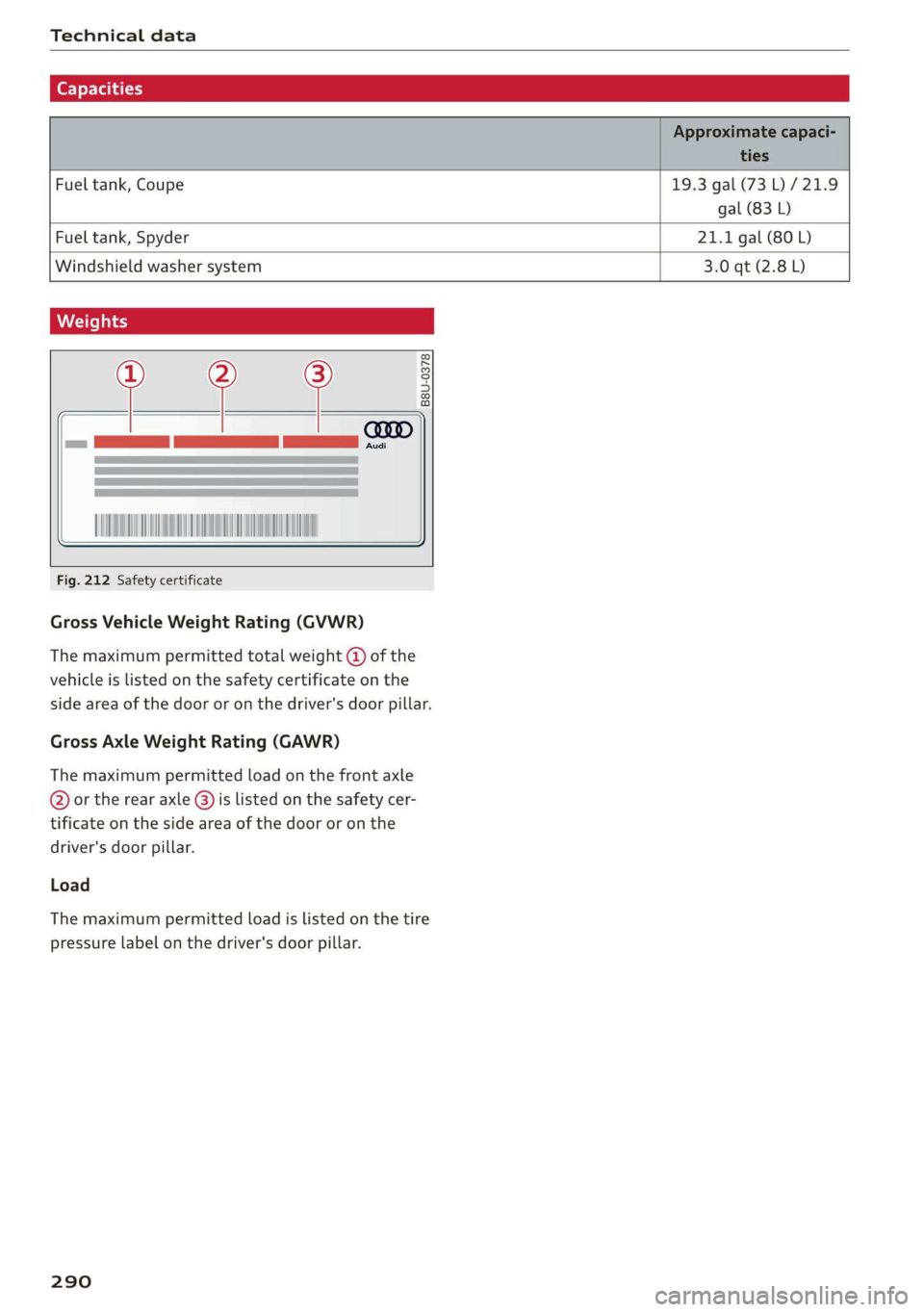

For the tank capacity in your vehicle, refer to the
Technical Data > page 290.
ZA\ WARNING
Improper fueling procedures and improper
handling of fuel can lead to explosions, fires,
severe burns, and other injuries.
— Do not smoke. Keep away from open flames.
— The ignition must be switched off when re-
fueling.
— Mobile devices, radio devices, and other ra-
dio equipment should always be switched
off when refueling. Electromagnetic rays
could cause sparks and start a fire.
— If you do not insert the fuel pump nozzle all
the way into the filler tube, then fuel can
leak out. Spilled fuel can ignite and start a
fire.
— Never get into the vehicle when refueling. If
there is an exceptional situation where you
must enter the vehicle, close the door and
touch a metal surface before touching the
fuel pump nozzle again. This will reduce the
risk of electrostatic discharge that can cause
flying sparks. Sparks can start a fire when
refueling.
ZA WARNING
The vehicle must not be refueled with a re-
serve canister due to the risk of fire.
@) Note
— Remove fuel that has overflowed onto any
vehicle components immediately to reduce
the risk of damage to the vehicle.
— Never drive until the fuel tank is completely
empty. The irregular supply of fuel that re-
sults from that can cause engine misfires.
Uncombusted fuel may enter the exhaust
system and increase the risk of damage to
the catalytic converter.
228
— Never insert any portable nozzles, funnels
or after-market containers into the fuel fill-
er neck.
— Do not pry open the fuel filler neck forceful-
ly or press against it with foreign objects to
open the tank system.
@) For the sake of the environment
— Do not overfill the fuel tank, or fuel could
leak out when the vehicle is warming up.
— Fuel should never enter the sewer system or
come into contact with the ground.
@ Tips
— If adverse weather conditions cause the fuel
filler door to freeze shut, press on the cen-
ter of the filler door with the heel of your
hand and then try opening it again.
— The fuel filler door on your vehicle does not
lock if you lock the vehicle from the inside
using the central locking switch.
@) Tips
— Your vehicle is equipped with a misfueling
guard. It allows the vehicle to be fueled only
with the correct fuel pump nozzle.
—Aworn or damaged nozzle or a nozzle that
is too small may not be able to open the die-
sel misfueling guard. If this is the case, try
turning the nozzle before inserting it in the
fuel filler neck, use a different fuel pump, or
see an authorized Audi dealer or authorized
Audi Service Facility for assistance.
Emissions control
system
General information
ZA WARNING
The temperature of the exhaust system is
high, both when driving and after stopping
the engine.
— Never touch the exhaust tail pipes once they
have become hot. This could result in burns.
— Do not park your vehicle over flammable
materials such as grass or leaves because >
Page 287 of 308
4S1012721BA
Accessories and technical changes
Usually maintenance and repair work requires
special tools, measuring devices, and other
equipment that is available to trained vehicle
technicians in order to help ensure that your vehi-
cle and all of its systems operate correctly, relia-
bly, and safely. Performing work on the vehicle
incorrectly can impair the operation and reliabili-
ty of your vehicle and may void one or more of
your vehicle's warranties.
Technical Modifications
Interference with electronic components, their
software, the wiring, and data transfer may cause
malfunctions. Because of the way electronic com-
ponents are interconnected, such malfunctions
can also impair systems that are not directly in-
volved. This means that you risk both a substan-
tial reduction in the operational safety of your ve-
hicle and increased wear of vehicle components.
Some convenience functions, such as the conven-
ience turn signal function, individual door open-
ing function, and displays, can be reprogrammed
using special workshop equipment. If functions
are reprogrammed, the information and descrip-
tions about these functions in this Owner's Man-
ual may no longer apply to the changed func-
tions. Audi recommends that an authorized Audi
dealer or authorized Audi Service Facility perform
and verify any reprogramming procedures.
carry out the job and have the correct tech-
nical information and the correct tools.
— If you are uncertain about what to do, have
the work performed by an authorized Audi
dealer, an authorized Audi Service Facility,
or another qualified workshop. Serious per-
sonal injury may result from improperly per-
formed work.
ZA WARNING
Maintenance procedures, repairs, or technical
modifications that are performed incorrectly
increase the risk of an accident and can lead
to serious injuries.
ZA WARNING
The engine compartment in any motor vehicle
is a potentially dangerous area and can cause
serious personal injury.
— Always use extreme caution when doing any
work in the motor compartment. Always fol-
low commonly accepted safety practices and
use common sense. Never risk personal in-
jury.
— Never perform any work in the engine com-
partment unless you know exactly how to
@) Note
— Maintenance procedures, repairs or techni-
cal modifications that are performed incor-
rectly can cause damage to the vehicle, such
as corrosion.
— If emergency repairs must be performed,
take your vehicle to an authorized Audi deal-
er or authorized Audi Service Facility as soon
as possible.
— Audi is not liable for damage to the vehicle
resulting from failure to comply with these
guidelines.
@) For the sake of the environment
— Regular maintenance can help protect the
environment.
— Technical modifications to the vehicle can
have a negative impact on fuel consumption
and vehicle emissions.
(@) For the sake of the environment
Undeployed airbag modules and pretension-
ers are classified as Perchlorate Material -
special handling may apply, See www.dtsc.ca.
gov/hazardouswaste/perchlorate. When the
vehicle or parts of the restraint system includ-
ing airbag modules and safety belts with pre-
tensioners are scrapped, all applicable laws
and regulations must be observed. Your au-
thorized Audi dealer is familiar with these re-
quirements and we recommend that you have
your dealer perform this service for you.
G) Tips
Because of your vehicle's aluminum body de-
sign, all service and repair procedures affect-
ing the body should be performed by an au-
thorized Audi dealer or authorized Audi
285
Page 291 of 308
4S1012721BA
Technical data
Technical data
Identification data
Vehicle identification label
XXXXX AX = X= AXXX XXX XK
vor KX x XXXXXXXX
XXX. XXX
XX XXXXXXX XX. XX XX
XXX KW XXX
XXXX XXX XXX
YL XXKK XXX XX
5RW
1BA
B4H-0800
FAHRZG. - IDENT - NR.
VEHICLE - IDENT - NO,
[Tye /1yPE
‘MOTORKB. / GETR. KB.
ENG. CODE / TRANS. CODE
LACKNR. / INNENAUSST.
PAINT NO./ INTERIOR
(M.- AUST. / OPTIONS
EOA 7D5 4UB 6XM 5SG
2EH
JOZ 1LB 1AS
3FC 5MU 7X1
FOA 9G3 OG7 OYH OJF
TL6 3KA 8EH U1A X9B QZ7
1xXW 803 908 824 D2D
7176 CV7 7KO 4X3 2K2
3L4 4KC 3Y0 413
1SA 7GB Q1A
aaa
5D2
4GQ
XX. X XX. XXX. X_—XXXK
WV
Fig. 211 Vehicle identification label
The vehicle identification label > fig. 211 is locat-
ed near the fuses in the front passenger's side
footwell > page 281.
The vehicle identification label information can
also be found in the Warranty & Maintenance
booklet.
Vehicle data
The sticker contains the following vehicle data:
@® Vehicle Identification Number (VIN)
@ Vehicle type, engine output, transmission
® Engine and transmission codes
@) Paint and interior codes
© Optional equipment numbers
Vehicle identification number (VIN)
The VIN is located in the following areas:
— Select: [MENU] button > left control button >
Service & checks > Vehicle information.
— On the vehicle identification label
— At the front behind the windshield*
— Under the carpet under the right front seat
Notes about technical data
The values may vary based on special equipment
as well as market-specific equipment and meas-
uring methods.
Please note that the specifications listed in the
vehicle documentation always take precedence.
G) Tips
Any technical data that is missing was not
available at the time of printing.
Length (in (mm)) | Width (in (mm)) | Width across the | Height at curb
mirrors (in (mm)) | weight (in (mm))
R8 Coupe 174.4 (4,429) 76.4 (1,940) 80.2 (2,037) 48.7 (1,236)
R8 Spyder 174.4 (4,429) 76.4 (1,940) 80.2 (2,037) 48.9 (1,242)
289
Page 292 of 308
Technical data
(er) Fah a(t)
Fuel tank, Coupe 19.3 gal (73 L)/21.9
gal (83 L)
Fuel tank, Spyder 21.1 gal (80 L)
Windshield washer system 3.0 qt (2.8 L)
Weights
| [ie
FANMAIL
Fig. 212 Safety certificate
Gross Vehicle Weight Rating (GVWR)
The maximum permitted total weight @ of the
vehicle is listed on the safety certificate on the
side area of the door or on the driver's door pillar.
Gross Axle Weight Rating (GAWR)
The maximum permitted load on the front axle
@ or the rear axle @) is listed on the safety cer-
tificate on the side area of the door or on the
driver's door pillar.
Load
The maximum permitted load is listed on the tire
pressure label on the driver's door pillar.
290

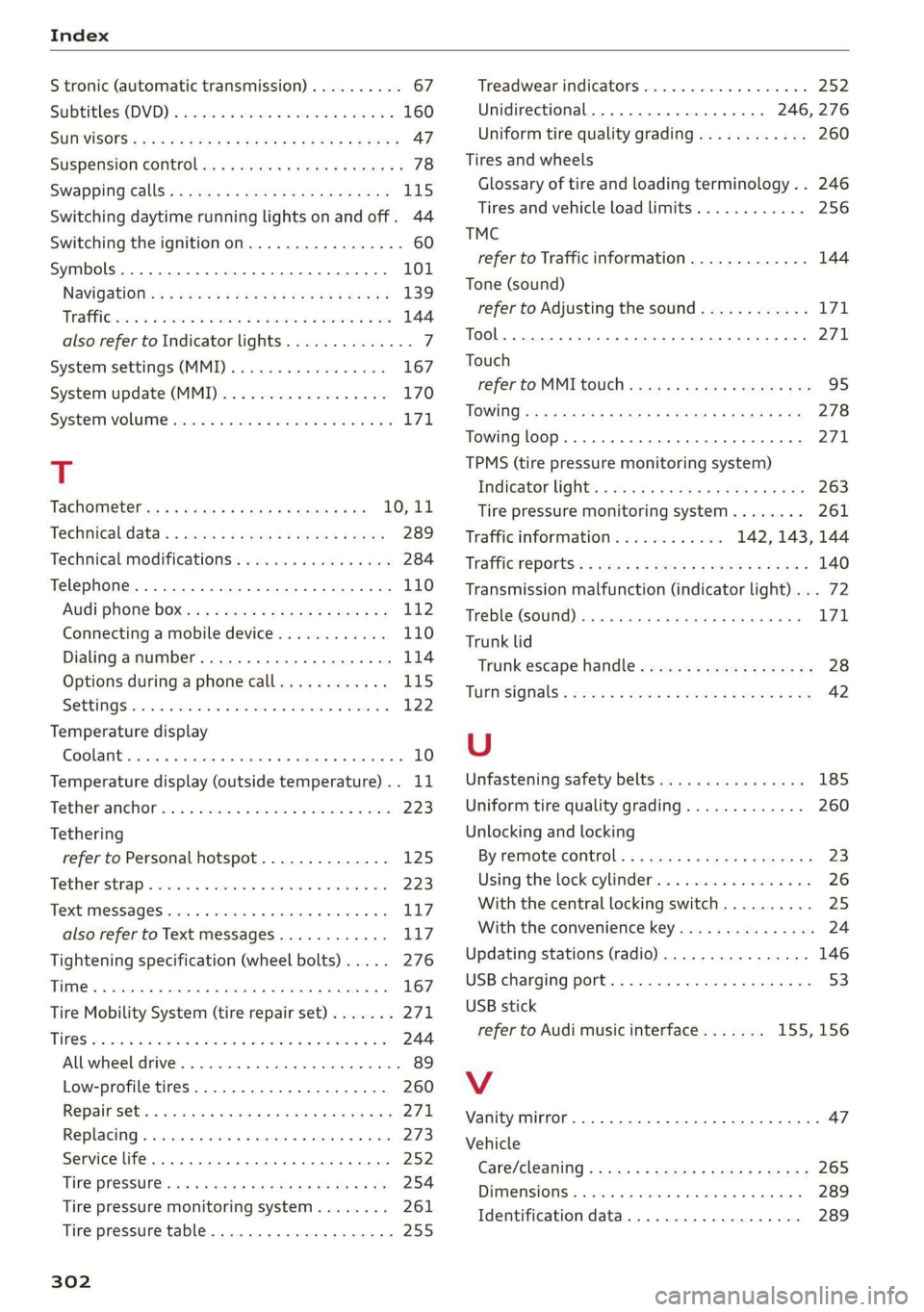

Page 304 of 308
Index
S tronic (automatic transmission).......... 67
Subtitles:(DVD) « sce 2 2 esas a 6 serene 2 6 wee 160
SUNVISORS 2 cawx ¥ naven w s wee 2 & Roo 4 7 See 47
SUSPENSION CONCOlws ss avis + x eee s o ee ws ¢ 78
Swapping Calls = cee. se sees se eee ee eens 115
Switching daytime running lights on and off. 44
Switching the ignitionon................. 60
Symbols ....... 2.0.0 e cece eee eee 101
Navigation ss sees s sees s eeee es Pewee 139
TAP Cricis « scaoisn mw aonsoe we % aco oo Hee eB at 144
also refer to Indicator lights.............- 7
System settings (MMI)................. 167
System update (MMI)...............000. 170
SysteM VOLUME sess 2s eens e eee 2 wwe ee 171
T
Tachometer asa < ccna « = pares 3 = eames 2 x ee 10,11
Technical data’: « wasn ss wwe a 2 ween 2 2 con 289
Technical modifications............20005 284
Telephone......... 000. cee cece eee 110
Audi phone box... < . eevee se oesa es ceeaaee 112
Connecting a mobile device............ 110
Dialing anumber................-00 ee 114
Options during a phone call............ L15
SECM GSirsanw & woesas w « swwen w @ saesans & 7 BoM 122
Temperature display
Coolant... 0... cece eee eee eee eee 10
Temperature display (outside temperature) .. 11
Tetheriamchor ices « «cusses «0 cians oo cncwce wo aoee 223)
Tethering
refer to Personal hotspot.............. 125
Tether strap... 2. eee eee eee 223
TEX MESSAGES icc so veces 2 x asec vo eee 2 117
also refer to Text messages............ 117
Tightening specification (wheel bolts)..... 276
THING. @ oxnecs w x sores wo awcrene @ vanes 8 eI OS 167
Tire Mobility System (tire repair set)....... 27).
TIRES session © sicsvs oo coos 4 @ actos a x ome wo oe 244
Allwheeldrive...........00 0. cece eee 89
Low-profile tires.................000. 260
Repairsets « ess ss eases se ene s o eee oe 271
Replacing. ........ 0c eee e eee eee eee 273
Service life... . kee eee eee eee 252
TIGG PreSSUlCisws « sim « + ew & x eee 4 2 ne 254
Tire pressure monitoring system........ 261
Tire pressure table................000. 255
302
Treadwear indicators...............0-. 252
Unidirectional.................0- 246, 276
Uniform tire quality grading............ 260
Tires and wheels
Glossary of tire and loading terminology .. 246
Tires and vehicle load limits............ 256
TMC
refer to Traffic information............. 144
Tone (sound)
refer to Adjusting the sound............ 171
Tool... oo eee 271
Touch
réfer'to MMI tOUCH seis ss sees s x pers s een 95
TOWING zis = seuss ¢ 3 ween s Y meNwA Fy ERE 5 2 ae 278
Towing loop...... 2... cece eee ee eee eee 271
TPMS (tire pressure monitoring system)
Indicator light’: « sax + ween ¢ eee ee pee 263
Tire pressure monitoring system........ 261
Traffic information............ 142,143,144
Traffic reports; = saws : = aeeu ss wows te eee = 140
Transmission malfunction (indicator light)... 72
Treble (SoUtid) as ¢ s sawu s 4 aaien 5 o sams 4 8 171
Trunk lid
Trunk escape handle.............0.0055 28
TUPMSIGH ALS = sce: « < seme x y wees ¢ Eee € oe 42
U
Unfastening safety belts................ 185
Uniform tire quality grading............. 260
Unlocking and locking
By remiotecontrol . « « sews se ees ce pew ce 23
Using the lock cylinder..............004 26
With the central locking switch.......... 25
With the convenience key............... 24
Updating stations (radio)................ 146
USB charging port................2.000. 53
USB stick
refer to Audi music interface....... 155, 156
V
Vanity Mirror... 2.2... ee eee ee eee ee 47
Vehicle
Gare/Cleanitig « sass « s meme 2 e sume ev mee 4 265
DIMENSIONS « siccvine « o cemivs a ononani w a owen oo 289
Identification data...............00.. 289
