AUDI R8 SPYDER 2012 Owner's Guide

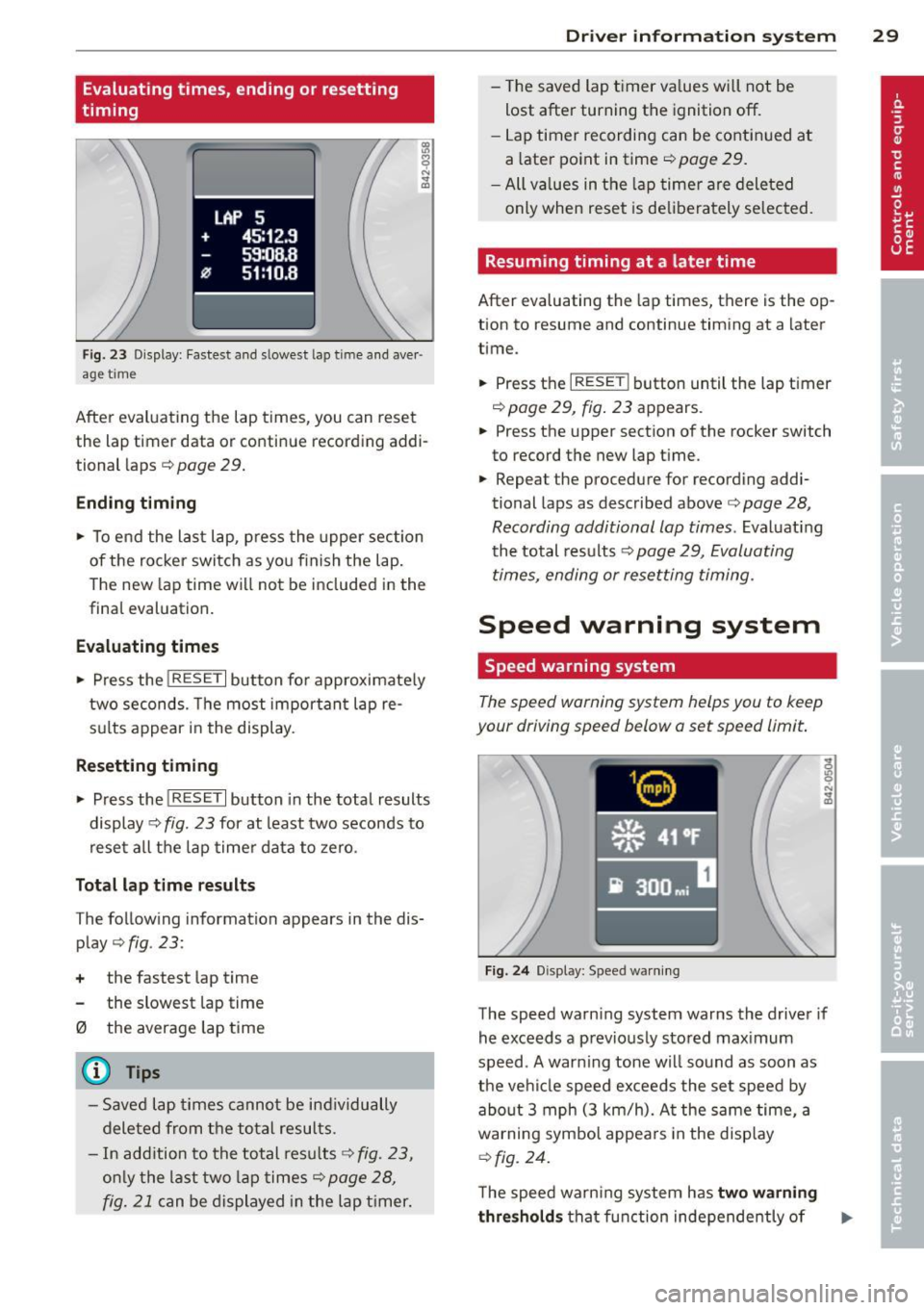

Evaluating times, ending or resetting
timing
LAP 5
+ 45:12.9
59:08.B
0 51 :10.B
F ig. 23 D isplay: Fastest and slowest lap time a nd aver ·
age t ime
After evaluating the lap times, you can reset
the lap timer data or contin ue recording addi­
tional laps
c:::> page 29.
Endin g timing
~ To end the last lap, p ress the upper sec tion
of the rocker switch as you f inish the lap .
The new lap time wi ll not be included in the
final evaluation.
E valuating times
~ Press the !RESET I button for approximately
two seconds. The most important lap re­
su lts appear in the display .
Resetting timing
~ Press the ! RESE T I button in the tota l results
display
c:::> fig. 23 for at least two seconds to
rese t all the lap time r data to ze ro.
Tot al lap time re sults
The following information appears in the dis­
play
c:::> fig . 23:
+ the fastest lap time
the slowest lap time
0 the average lap time
(D Tips
- Saved lap times cannot be ind ividually
deleted from t he total resu lts.
- In add ition to the total resu lts
c:::> fig. 23,
on ly the last two lap times c:::> page 28,
fig. 21
can be displayed in the lap t imer.
Dr iver in formation system 29
- T he saved lap ti mer va lues will not be
Lost after turning the ignition off.
- Lap timer recording can be continued at
a later point in time
c:::> page 29.
- All va lues in the lap timer are deleted
only when reset is deliberately se lected.
Resuming timing at a later time
After evaluating the lap times, there is the op·
tion to resume and continue timing at a later
time .
~ Press the I RESET ! button until the lap t imer
~ page 29, fig . 23 appears.
~ Press the upper section of the rocker switch
to record the new Lap time.
~ Repeat the procedure for recording addi­
tional laps as described above
c:::> page 28,
Recording additional lap times .
Evaluating
th e total res ults ~
page 29, Evaluating
times, ending or resetting timing.
Speed warning system
Speed warning system
The speed warning system helps you to keep
your driving speed below a set speed limit.
Fi g. 24 Display: Speed wa rning
The speed warn ing system warns the driver if
he exceeds a p reviously stored max imum
speed . A warning tone wi ll sound as soon as
the vehi cle speed exceeds the set speed by
about 3 mph (3 km/h). A t the same time, a
warning symbol appea rs in the disp lay
~ fig. 24.
The speed warn ing system has two w arn ing
thr eshol ds that f unction independe ntly of ..,.

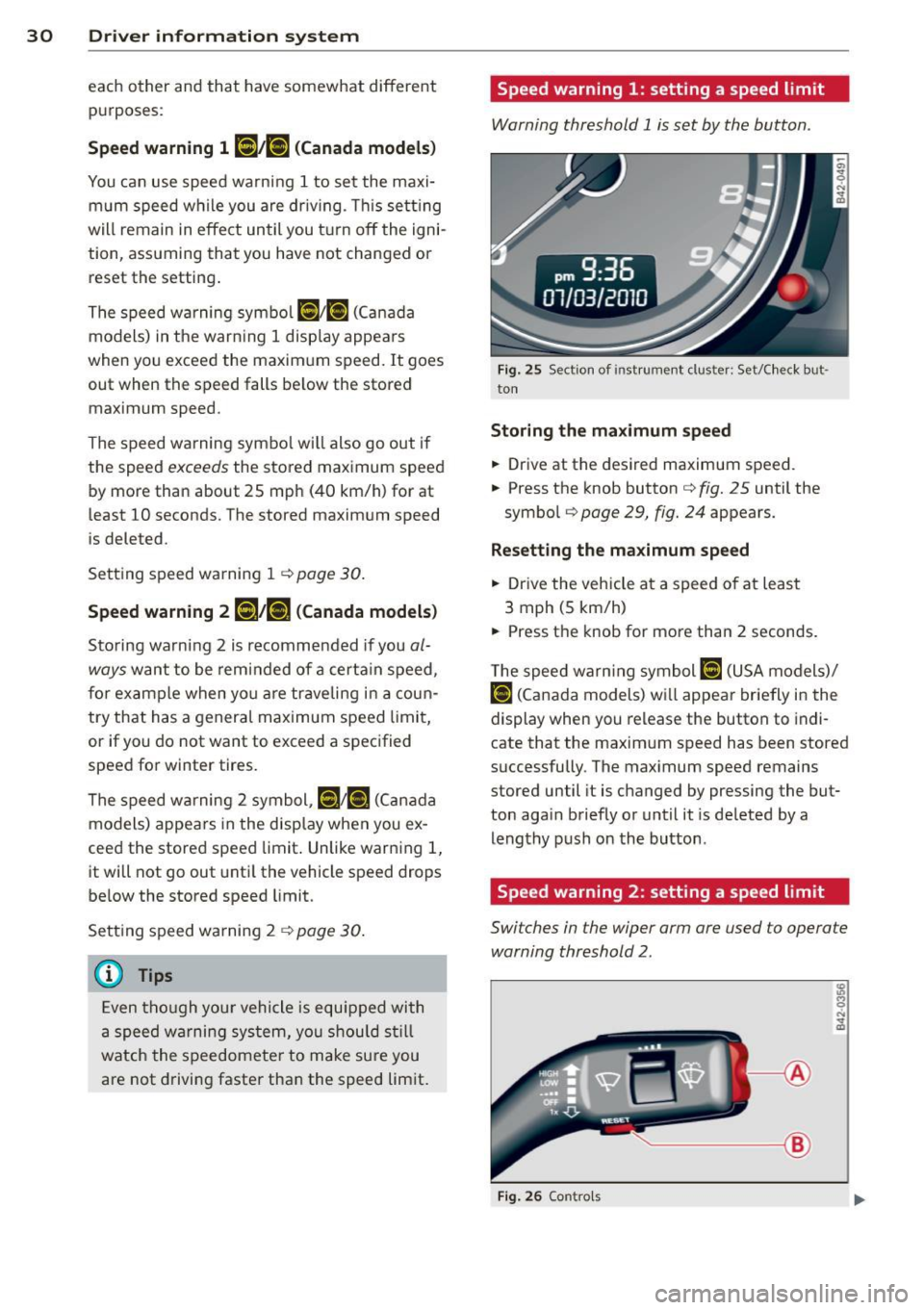

30 Driver in formation sy ste m
each other and that have somewhat different
purposes:
Spee d warn ing 1 lDl/lOl ( Canada models )
You can use speed warning 1 to set the maxi­
m um speed w hile you are driv ing. This sett ing
will remain in effe ct until you turn off the igni­
tion, assuming that you have not changed or reset the setting .
The speed warning symbo l
(alllDl (Canada
models) in the warning 1 display appea rs
when you exceed the maxim um speed. It goes
out when the speed falls be low the stored
maximum speed.
The speed wa rning symbo l w ill also go out if
the speed
exceeds the stored maximum speed
by more than about 25 mph (40 km/h) for at
least 10 seconds. The stored maximum speed
is deleted.
Setting speed warning 1
c:>page 30.
Speed warning 2 lCl/EOl (Canada m odels )
Storing warning 2 is recommended if you al­
ways
want to be remi nded of a certa in speed,
for example when you a re traveling i n a cou n­
try that has a general maximum speed limit,
or if you do not want to exceed a specified
speed for winter tires.
The speed wa rning 2 symbol,
1a1;[i] (Canada
models) appears in the disp lay when you ex­
ceed the stored speed limit . Unlike warn ing 1,
it will not go out unti l the vehicle speed drops
be low the stored speed limit.
Sett ing speed warning 2
c:> page 30 .
({) Tips
Even tho ugh you r vehicle is equipped with
a speed w arning sys tem, you should s till
watch the speedomete r to make sure you
are not driving faster tha n the speed limit.
Speed warning 1: setting a speed limit
Warning threshold 1 is set by the button .
Fig. 25 Sect ion of instrument cluster: Set/Check but ­
ton
Storing the ma ximum speed
.,. Drive at the desired maximum speed.
.,. Press the knob button
c:> fig. 25 until the
symbo l
c:> page 29, fig. 24 appears.
Resett ing the maximum spe ed
.,. Drive the vehicle at a speed of at leas t
3 mph (5 km/h)
.,._ Press the knob for more than 2 seconds.
T he speed wa rn ing symbol
ID] (USA models)/
f•j (Canada models) wi ll appear briefly in the
display when you release the button to indi­
cate that the maxim um speed has been stored
s uccessfully . The max imum speed remains
stored until it is changed by pressing the but­
ton aga in briefly or unt il it is de leted by a
leng thy push on the button .
Speed warning 2: setting a speed limit
Switches in the wiper arm are used to operate
warning threshold 2.
----- @
Fig. 26 Contro ls

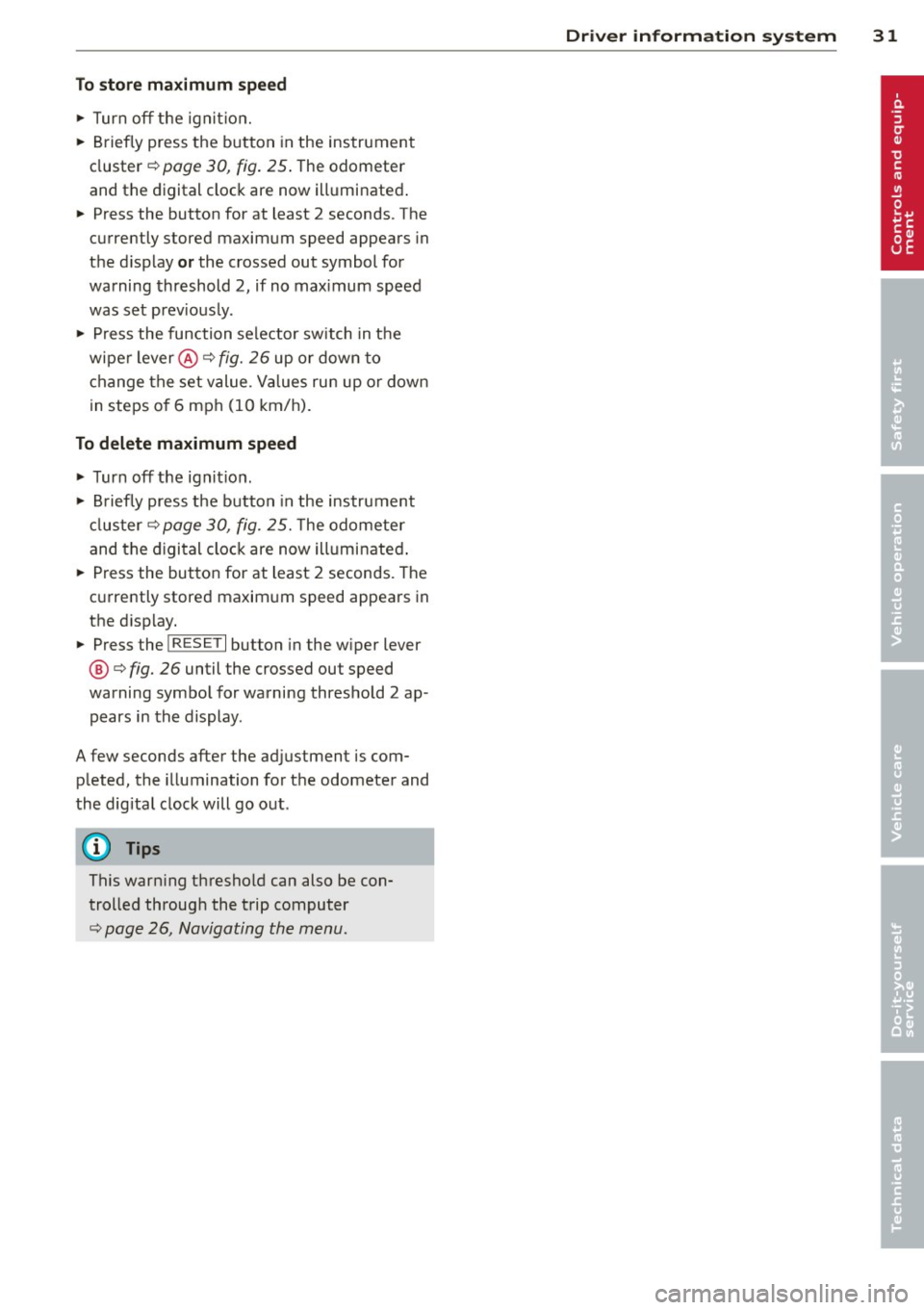

To store maximum speed
"' Turn off the ignition.
"' Briefly press the button in the instrument
cluster ¢
page 30, fig. 25 . The odometer
and the digital clock are now illuminated .
"' Press the button for at least 2 seconds. The
currently stored maximum speed appears in
the d isplay
or the crossed out symbol for
warning threshold 2, if no max imum speed
was set prev iously.
"' Press the function selector sw itch in the
wipe r lever @¢
fig. 26 up or down to
change the set value. Values run up or down
in steps o f 6 mph (10 km/h).
To delete maximum speed
"' Turn off the ignit ion.
"' Briefly press the button in the instrument
cluster ¢
page 30, fig. 25. The odometer
and the digital clock are now illuminated .
"' Press the button for at least 2 seconds. The
currently stored maximum speed appears in
the display.
"' Press the~,
R-E-5-E T~I button in the w iper lever
@ ¢fig. 26 until the crossed out speed
warning symbol for warning threshold 2 ap­
pears in the display.
A few seconds after the adjustment is com­
p leted, the illumination for the odometer and
the digital clock will go out.
(Di Tips
This warn ing threshold can also be con­
trolled through the trip computer
¢ page 26, Navigating the menu.
Driver information system 31

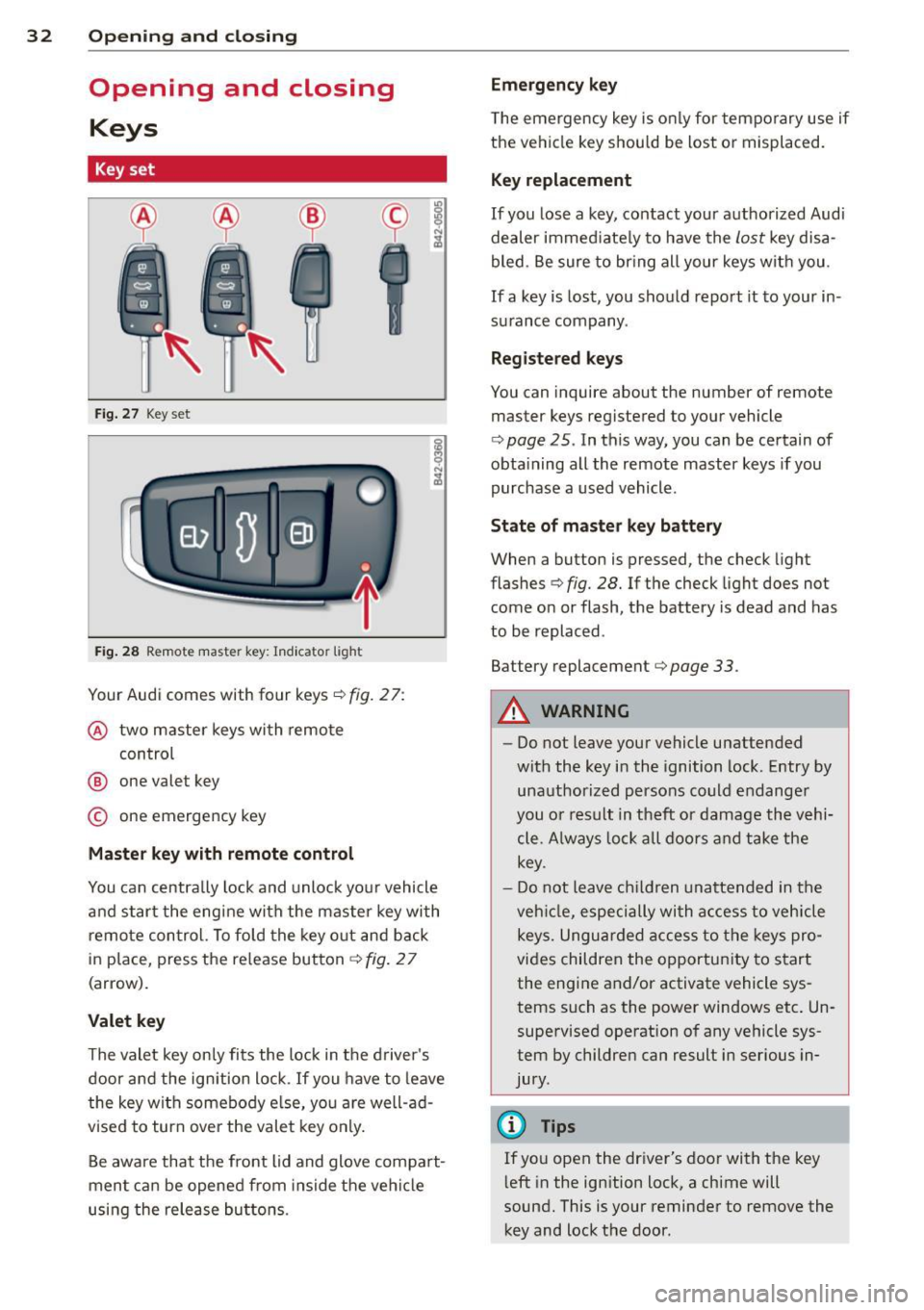

32 Opening and clo sing
Opening and closing
Keys
Key set
Fig . 27 Key set
Fig. 28 Remote master key : Indicator light
Your Audi comes with four keys c::> fig. 27:
@ two master keys with remote
control
@ one valet key
© one emergency key
M aster key with remot e co ntrol
You can centrally lock and unlock yo ur vehicle
and start the eng ine with the master key with
remote control. To fold the key o ut and back
in place, press the re lease button
c::> fig. 2 7
(arrow).
Valet key
The valet key only fits the lock in the d river's
door and the ignition lock .
If you have to leave
the key with somebody e lse, yo u are well-ad ­
vised to turn
over the valet key only.
Be aware that the front lid and glove compa rt­
ment can be opened from ins ide the ve hicl e
using the release buttons . Emergency key
T he emergency key is only for tempo rary use if
the ve hicle key s hou ld be lost o r misplaced.
Key replacement
If you lose a key, contact your authorized Audi
dealer immed iate ly to have the
lost key disa­
bled . Be sure to br ing all your keys with you .
If a key is lost, you should repo rt it to your in­
surance company .
Reg istered keys
You can inquire about the number of remote master keys registered to your vehicle
r=> page 25 . In this way, you can be certain of
obta ining all the remote master keys if you
purchase a used vehicle .
St ate of maste r key b attery
When a button is pressed, the check light
flashes
c::> fig. 28. If the check light does not
come on or flash, the battery is dead and has
to be replaced .
Battery replacement
r=> page 33.
A WARNING
--
- Do not leave your vehicle unattended
with the key in the ignition lock. Entry by unauthorized persons co uld endanger
you or result in theft or damage the vehi­
cle. A lways lock all doors and take the
key .
- D o not leave ch ildren unattended in the
veh icle, especially with a ccess to ve hicle
keys. Unguarded access to the keys pro­
vides children the opportu nity to start
the engine and/or activate vehicle sys­
tems such as the power windows etc . Un­
supervised operation of any vehicle sys ­
tem by children can result in serious in­
jury .
(D Tips
If you open the driver's door with the key
l eft in the ign ition lock, a ch ime will
sound. This is your reminder to remove the key and lock the door .

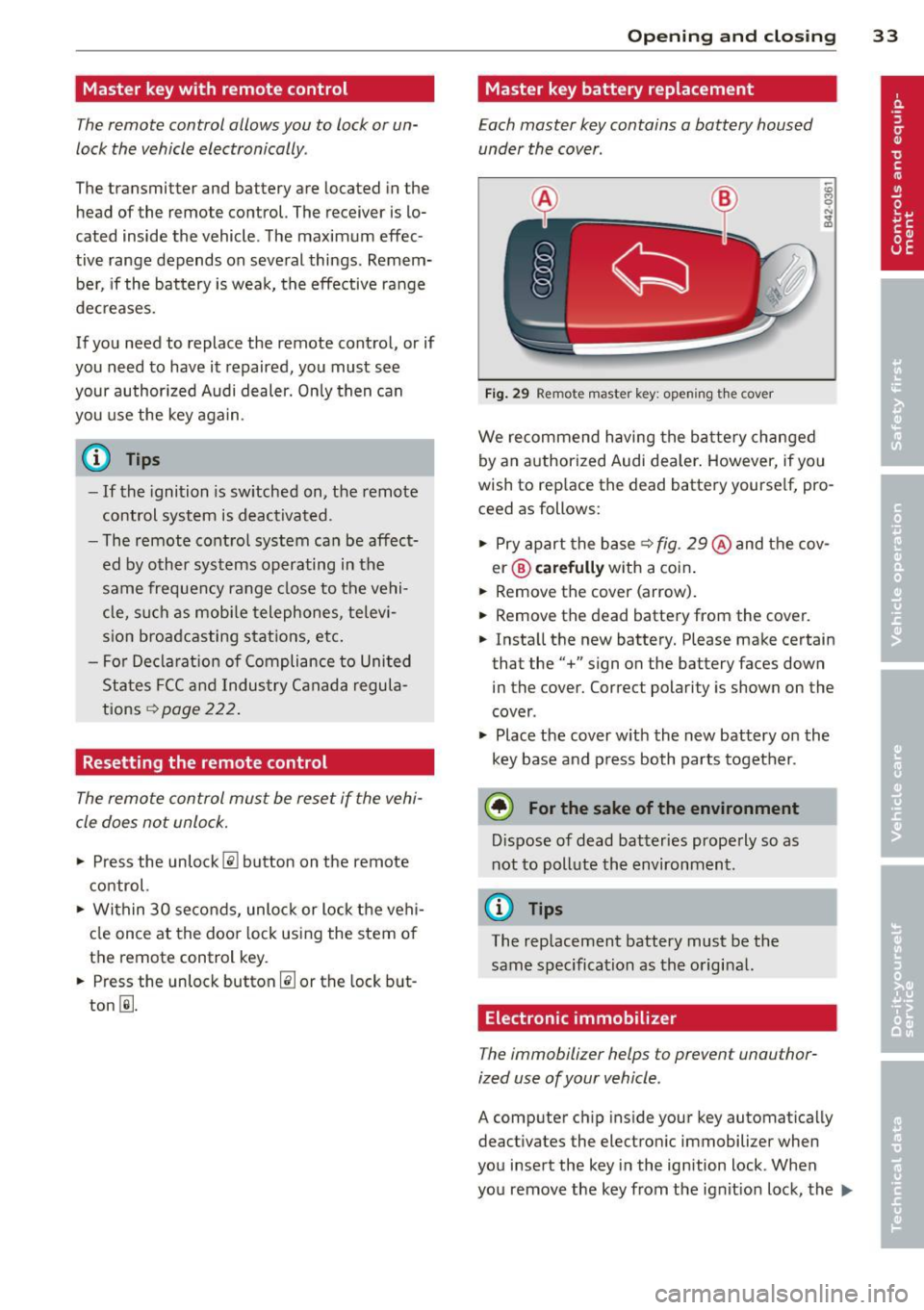

Master key with remote control
The remote control allows you to lock or un­
lock the vehicle electronically .
The transmitter and battery are located in the
head of the remote control. The receiver is lo­
cated inside the vehicle . The maximum effec ­
tive range depends on several things . Remem­
ber, if the battery is wea k, the effective range
decreases.
If you need to replace the remote control, or if
you need to have it repaired, you must see
your authorized Audi dealer. Only then can
you use the key again.
(D Tips
- If the ignition is sw itched on, the remote
control system is deactivated .
- The remote control system can be affect­
ed by other systems operating in the
same frequency range close to the vehi­
cle, such as mobile telephones, televi­
sion broadcasting stations, etc.
- Fo r Declaration of Compliance to United
States FCC and Indus try Canada regula­
tions
¢ page 222.
Resetting the remote control
The remote control must be reset if the vehi­
cle does not unlock.
• Press the unlock@ button on the remote
control.
• Within 30 seconds, unlock or lock the vehi­
cle once at the door lock using the stem of
the remote control key.
• Press the unlock button~ or the lock but­
ton ~.
Opening and closing 33
Master key battery replacement
Each master key contains a battery housed
under the cover.
Fig . 29 Remote master key: opening t he cover
We recommend having the battery changed
by an authorized Audi dea ler . However, if you
wish to rep lace the dead battery yourse lf, pro­
ceed as follows:
• Pry apart the base
~ fig. 29@and the cov-
er@ carefully with a coin .
• Remove the cover (arrow).
• Remove the dead battery from the cover.
• Insta ll the new battery. Please make certain
that the"+" sign on the battery faces down
in the cover. Correct polarity is shown on the
cover .
• Place the cover w ith the new battery on the
key base and press both parts together .
@ For the sake of the environment
Dispose of dead batteries properly so as
not to pollute the environment.
(D Tips
The replacement battery must be the
same specification as the origina l.
Electronic immobilizer
The immobilizer helps to prevent unauthor­
ized use of your vehicle .
A computer chip inside your key automatically
deactivates the electronic immobilizer when
you insert the key in the ignition lock . When
you remove the key from the ignit ion lock, the
II>

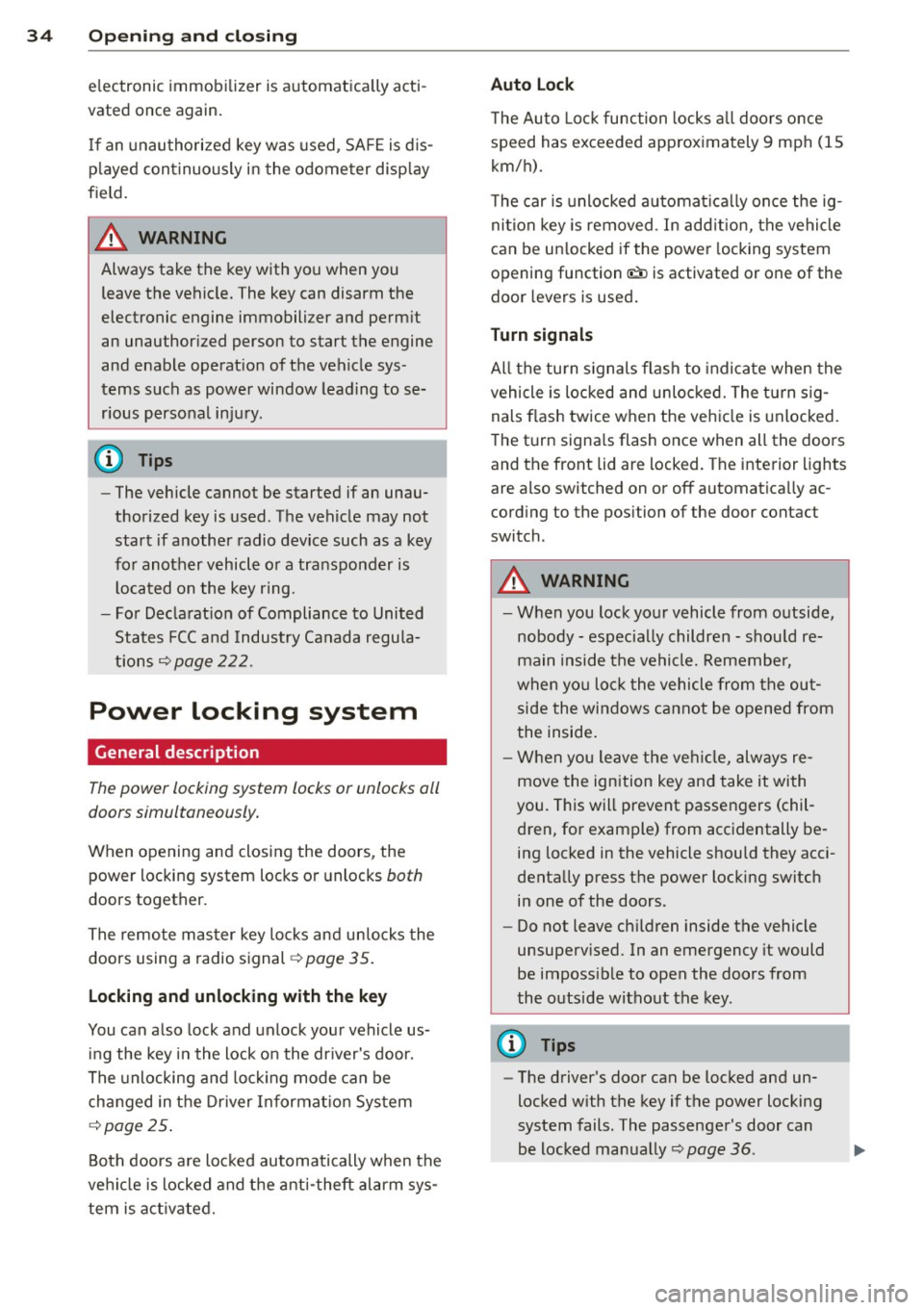

34 Openin g and clo sing
electronic immobilizer is automatica lly acti­
vated once again.
I f an unauthorized key was used , SA FE is d is­
p layed con tinuously in the odometer disp lay
field.
A WARNING
-
Always take the key with you when you
leave the vehicle. The key can disarm the
electronic engine immobilizer and permit
an unauthor ized person to start the engine
and enable operation of the vehicle sys­
tems such as power window leading to se­ r ious personal in jury .
(D Tips
-The vehicle cannot be started if an unau­
thorized key is used . The vehicle may not
start if another radio device such as a key
for another vehicle or a transponder is l ocated on the key ring.
- For Declarat ion of Compliance to United
States FCC and Industry Canada regu la­
tions
~page 222.
Power locking system
General description
The power locking system locks or unlocks all
doors simultaneously.
When opening and closing the doors, the power locking system locks or unlocks
both
doors together.
The remote mas ter key locks and un locks the
doors using a radio signal
~ page 35.
Locking and unl ocking w ith the key
You can also lock and unlock your vehicle us­
ing the key in the lock o n the dr iver's door.
The unlocking and lock ing mode can be
changed in the Driver Informat ion System
~ page 25.
Both doors are locked automatically when the
vehi cle is locked and the ant i-theft alarm sys ­
tem is act ivated.
Auto Loc k
The Auto Lock function locks a ll doors once
speed has exceeded approximately 9 mph (15
km/h).
T he car is unlocked automat ica lly once the ig ­
nition key is removed . In add ition, the vehicle
can be un locked if the power locking system
opening function
(l;;i) is activated or one of the
door levers is used .
Turn signals
All the tu rn s ignals flash to indicate when the
vehicle is locked and unloc ked. The t urn sig­
nals flash twice when the vehicle is unlocked.
T he turn signa ls flash once when all the doors
and the front lid are locked. The interior lights
are also switched on or off automatica lly ac­
cord ing to the position of the door contact
switch .
A WARNING "---
-When you lock your vehicle from outside,
nobody -espec ially children -shou ld re­
main inside the vehicle. Remember,
when yo u lock the vehicle from the out­
side the windows cannot be opened from
the inside .
- When you leave the veh icle, always re ­
move the ignition key and take it with
you. This will prevent passengers (chil­ dren, for example) from accidentally be­ing locked in the vehicle should they acci­
dentally press the power locking switch
in one of the doors.
- Do not leave ch ildren inside the vehicle
unsuperv ised. In an emergency it would
be imposs ible to open the doors from
the outside without the key.
(D Tips
- The driver's door can be locked and un­
locked with the key if the power locking
system fails . The passenger's door can
be locked manually~
page 36 .

-In the event of a c rash with airbag de ­
ployment all locked doors will be auto­
matically unlocked to g ive access to the
vehicle occupants from the outside .
- You are we ll advised not to keep valua­
bles inside an unattended vehicle, visib le
or not . Even a properly locked vehicle
cannot p rovide the securi ty of a safe!

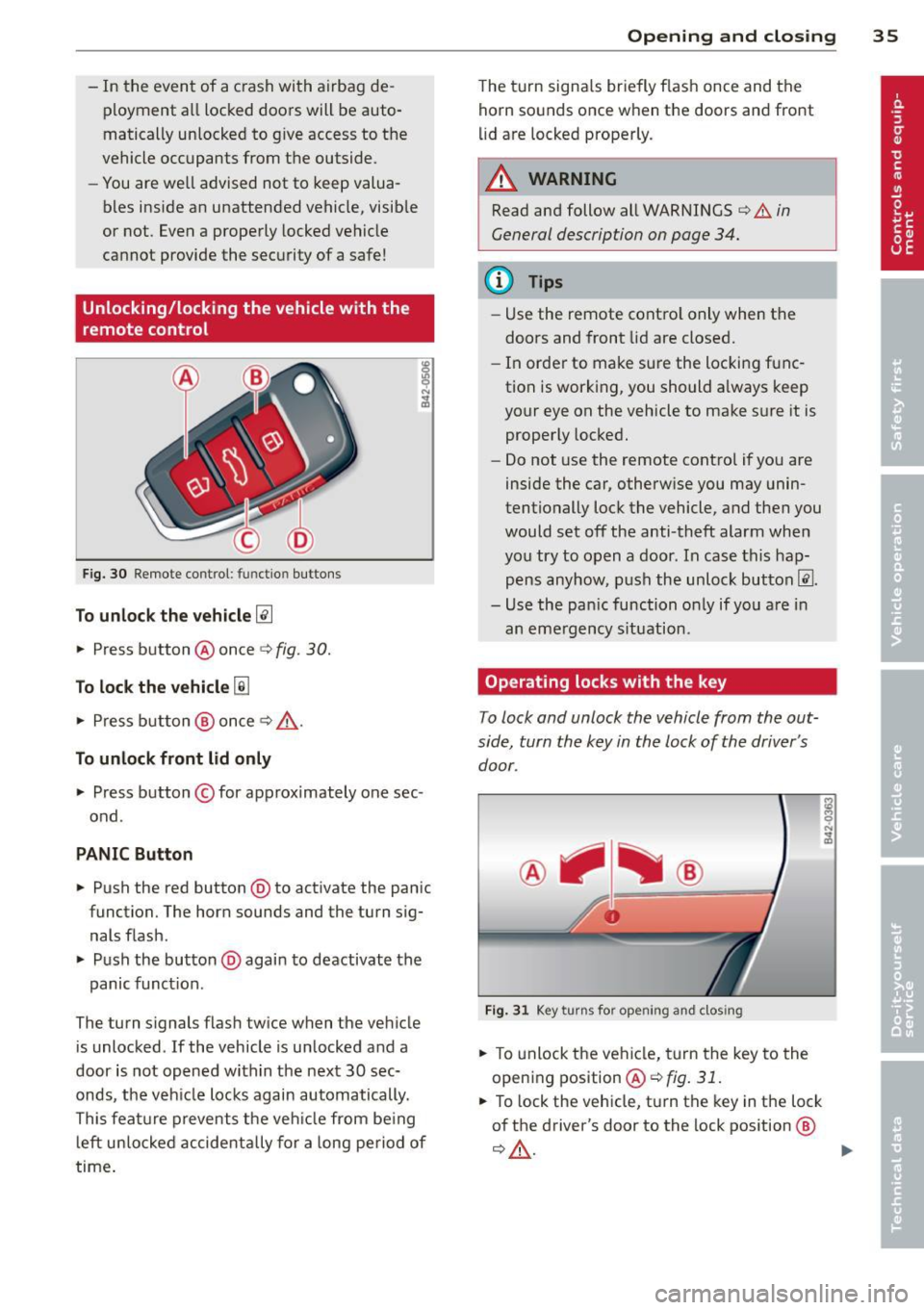

Unlocking/locking the vehicle with the
remote control
Fig. 30 Remote co n trol: functio n buttons
To unlock the vehicle~
.. Press button @ once ¢ fig. 30.
To lock the vehicle [ru
.. Press button @ once ¢ /A.
To unlock front lid only
.. Press button © for approximately one sec ­
ond .
PANIC Button
.,. Pu sh the red button @to activate the pan ic
function. The horn sounds and the turn sig­
nal s flash .
.. Push the button @again to deactivate the
panic funct ion .
The turn s ignals flash twice when the vehicle
is unlocked . If the vehicle is un locked and a
door is not opened within the next 30 sec­
onds, the veh icle locks again automatically.
This feat ure prevents the vehicle from be ing
left unlocked accidentally for a long period of
time .
Opening and closing 35
The turn signals briefly flash once and the
horn sounds once wh en the doo rs and front
li d are locked properly.
_& WARNING
Read and follow all WARNINGS ¢.&. in
General description on page 34.
(D Tips
- Use the remote contro l only when the
doors and front lid are closed.
- In order to make sure the locking func­
tion is working, you should a lways keep
your eye on the vehicle to make sure it is
properly locked.
-
- Do not use the remote control if you are
inside the car, otherwise you may unin­
tentionally lock the vehicle, and then you
would set off the anti-theft alarm when
you try to open a door . In case this hap­
pens anyhow, push the unlock button@ .
- Use the pan ic function on ly if you are in
an eme rgency s ituation .
Operating locks with the key
To lock and unlock the vehicle from the out­
side, turn the key in the lock of the driver 's
door .
Fig. 31 Key turn s fo r op eni ng an d clos ing
.. To unlock the vehicle, turn the key to the
opening position
@¢fig. 31.
.. To lock the vehicl e, turn the key in the lock
of the driver's door to the lo ck position @
¢&, . ....

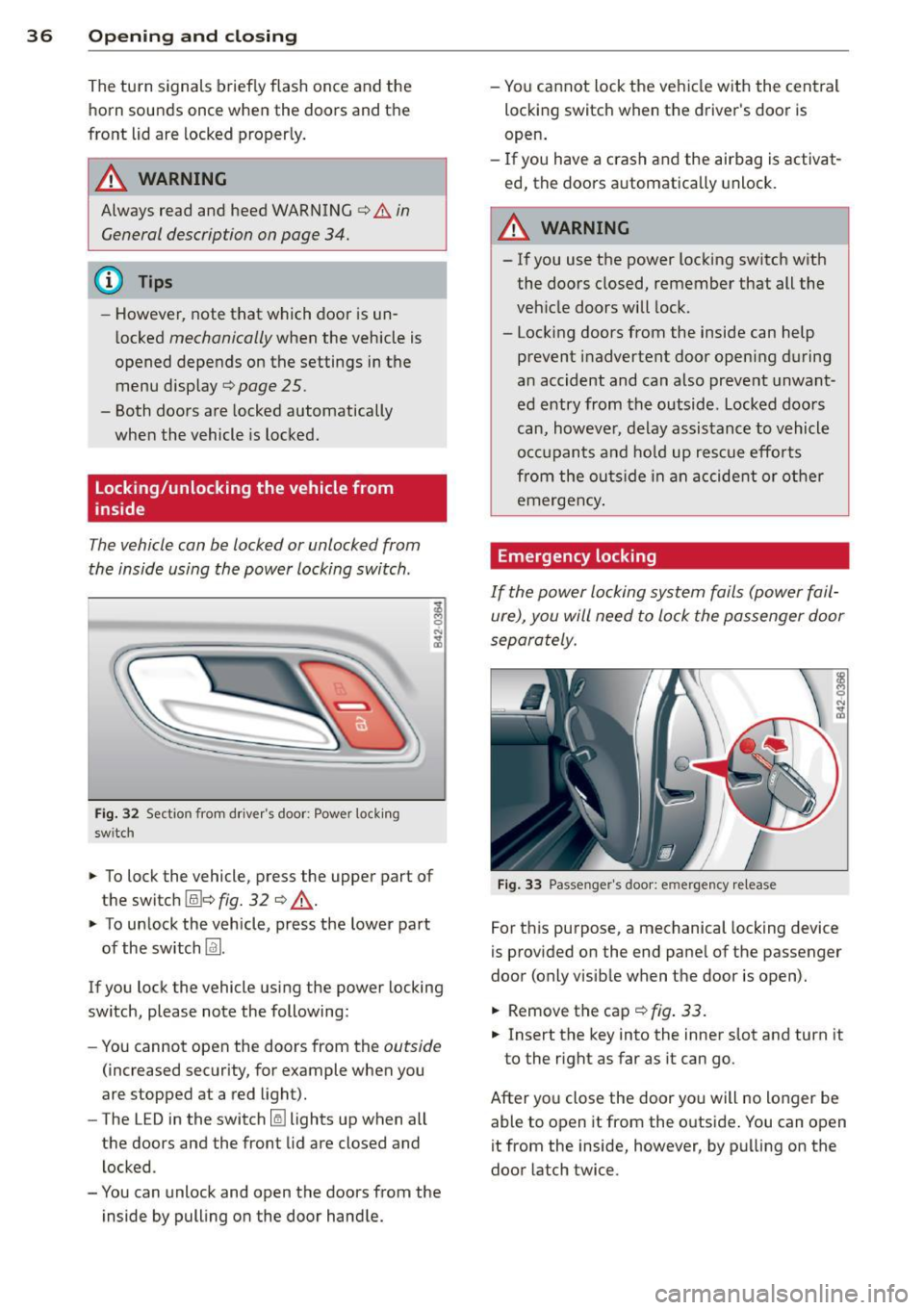

36 Opening and clo sing
The turn signals brief ly flash once and the
horn sounds once when the doors and the
front lid are locked proper ly.
.&_ WARNING
Always read and heed WARNING <=> .& in
General description on page 34.
@ Tips
- However, note that which door is un­
locked
mechanically when the vehicle is
opened depends on the settings in the menu display
c>page 25.
-Both doors are locked automatically
when the vehicle is locked.
Locking/unlocking the vehicle from
inside
The vehicle can be locked or unlocked from
the inside using the power locking switch .
Fig. 32 Section from driver's door: Power locking
sw itch
-
;! M 0
"' .., m
~ To lock the vehicle, press the upper part of
the switch (illc>
fig. 32 c> ..&., .
~ To unlock the vehicle, press the lower part
of the switch
Im.
If you lock the vehicle using the power locking
switch, please note the following:
- You cannot open the doors from the
outside
(increased security, for example when you
are stopped at a red light).
- The LED in the switch
Iii lights up when all
the doors and the front lid are closed and
locked .
- You can unlock and open the doors from the inside by pulling on the door handle. -
You cannot lock the vehicle with the central
locking switch when the driver's door is
open.
- If you have a crash and the airbag is activat­
ed, the doors automatically unlock.
A WARNING
-
-If you use the power locking switch with
the doors closed, remember that all the
vehicle doors will lock.
- Locking doors from the inside can help prevent inadvertent door opening during
an accident and can also prevent unwant­
ed entry from the outside. Locked doors
can, however, delay assistance to vehicle
occupants and hold up rescue efforts
from the outside in an accident or other
emergency .
Emergency locking
If the power locking system fails (power fail­
ure), you will need to lock the passenger door
separately .
Fig. 33 Passenger's door: emergency re lease
For this purpose, a mechanical locking device
is provided on the end panel of the passenger
door (only visib le when the door is open).
~ Removethecap c>fig.33.
~ Insert the key into the inner slot and turn it
to the right as far as it can go.
After you close the door you will no longer be able to open it from the outside . You can open
it from the inside, however, by pulling on the
door latch twice.

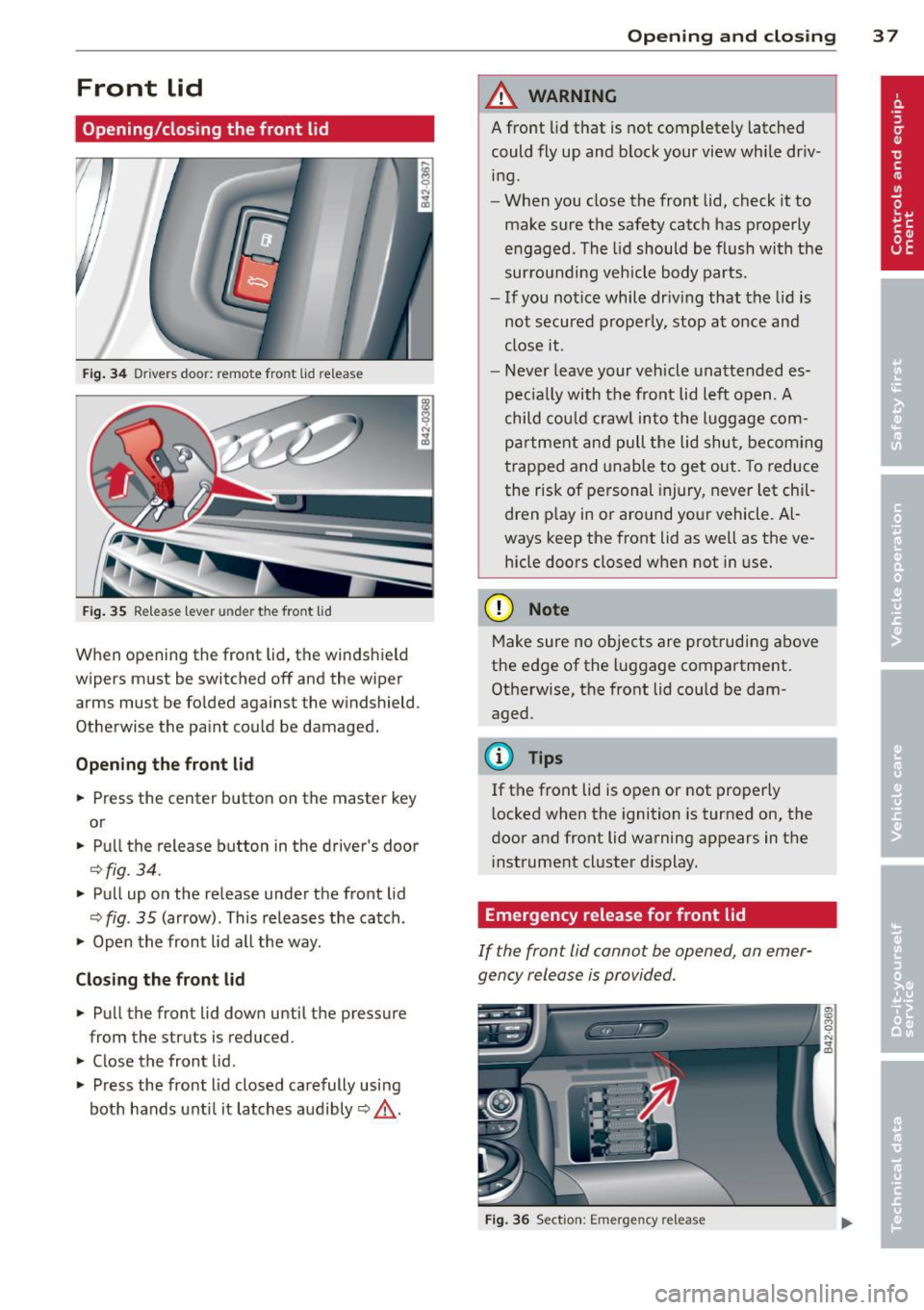

Front lid
Opening/closing the front lid
Fig. 34 Drive rs doo r: remote fro nt lid re le ase
Fig. 35 Releas e le ver under th e fron t lid
When opening the front lid, the windshield
wipers must be switched off and the wiper
arms must be folded against the windshield .
Otherwise the paint could be damaged.
Opening the front lid
.. Press the center button on the master key
or
.. Pull the release button in the driver 's door
Q fig . 34 .
.. Pull up on the release under the front lid
~ fig . 35 (arrow) . This releases the catch .
.. Open the front lid all the way .
Closing the front lid .. Pull the front lid down until the pressure
from the struts is reduced .
.. Close the front lid .
.. Press the front lid closed carefully using
both hands unti l it latches audibly
Q ,& .
Opening and closing 3 7
A WARNING
A front lid that is not completely latched
could fly up and block your view while driv ­
ing .
- When you close the front lid, check it to
make sure the safety catch has properly
engaged . The lid should be flush with the
sur rounding vehicle body parts.
- If you notice while driv ing that the lid is
not secured properly, stop at once and
close it.
- Never leave your vehicle unattended es­
pecia lly with the front lid left open .
A
child could crawl into the luggage com­
partment and pull the lid shut, becoming
trapped and unable to get out. To reduce
the risk of personal injury, never let chil­
dren p lay in or around your vehicle. A l­
ways keep the front lid as well as the ve­ hicle doors closed when not in use.
(D Note
Make sure no objects are protruding above
the edge of the luggage compartment.
Otherwise, the front lid could be dam­
aged .
@ Tips
If the front lid is open or not properly
l ocked when the ignition is turned on, the
door and front lid warning appears in the
in strument cluster dis play.
Emergency release for front lid
If the fron t lid cannot be opened, an emer­
gency release is provided .
Fig. 36 Section: Emerge ncy re lease
.

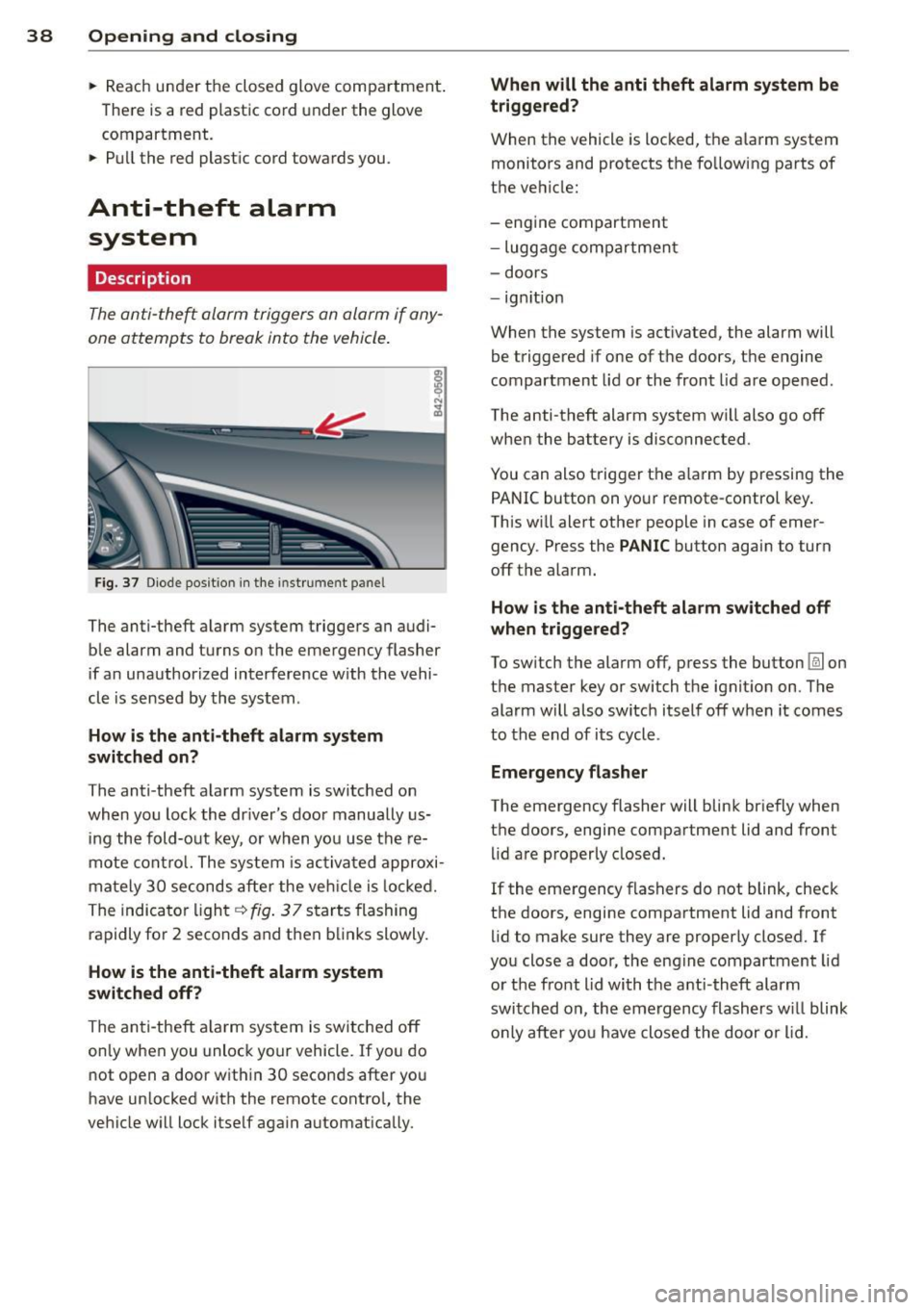

38 Opening and closing
• Reach under the closed glove compartment .
There is a red plastic cord under the glove
compartment.
• Pull the red plastic cord towards you .
Anti-theft alarm
system
Description
The anti-theft alarm triggers on alarm if any ­
one attempts to break into the vehicle .
Fig. 37 Diode posit io n in the instr um ent p anel
The anti-theft alarm system triggers an audi­
ble alarm and turns on the emergency flasher
if an unauthorized interference w ith the vehi­
cle is sensed by the system .
How is the anti-theft alarm system
switched on?
The anti -theft alarm system is switched on
when you lock the driver's door manually us­
ing the fold-out key, or when you use the re­
mote control. The system is activated approxi­
mately 30 seconds after the veh icle is locked.
The indicator light
q fig. 37 starts flashing
rapidly for 2 seconds and then blinks slowly.
How is the anti-theft alarm system
switched off?
The anti-theft a larm system is switched
off
only when you unlock your vehicle. If you do
not open a door within 30 seconds after you
have un locked with the remote contro l, the
vehicle will lock itself again automatically. When will the
anti theft alarm system be
triggered?
When the vehicle is locked, the alarm system
monitors and protects the following parts of
the vehicle:
- engine compartment
- luggage compartment
- doors
- ignition
When the system is ac tivated, the alarm will
be triggered if one of the doors, the engine
compartment lid or the front lid are opened.
The anti-theft alarm system wi ll also go
off
when the battery is disconnected .
You can also trigger the a larm by pressing the
PANIC button on your remote-control key.
This will alert other people in case of emer­
gency . Press the
PANIC button again to turn
off the alarm.
How is the anti-theft alarm switched off
when trigge red?
To switch the alarm
off, press the button @Jon
the master key or switch the ignition on. The alarm will also switch itself off when it comes
to the end of its cycle .
Emergency flasher
The emergency flasher will blink briefly when
the doors, engine compartment lid and front lid are properly closed.
If the emergency flashers do not blink, check
the doors, engine compartment lid and front
lid to make sure they are properly closed. If
you close a door, the engine compartment lid
or the front lid with the anti -theft alarm
switched on , the emergency flashers will blink
only after yo u have closed the door or l id.
