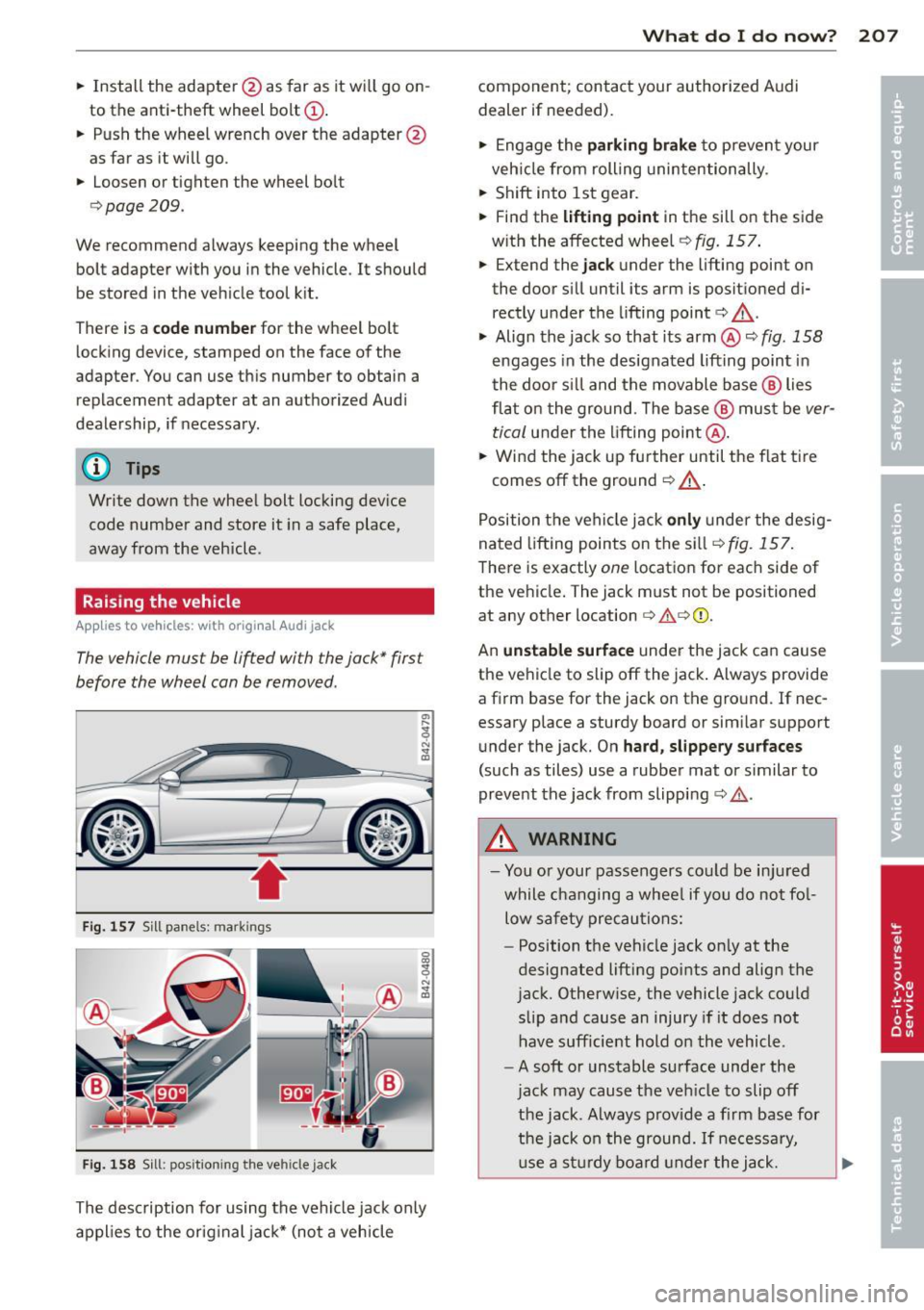

.. Install the adapter @ as far as it wi ll go on
to the anti-theft wheel bolt
(D .
.. Push the wheel wrench over the adapter @
as far as it will go.
.. Loosen or tighten the wheel bolt
i=>page 209.
We recommend a lways keeping the wheel
bolt adapter with you in the vehicle . It should
be stored in the vehicle tool k it.
There is a
co de number for the wheel bolt
l ocking device, stamped on the face of the
adapter . You can use th is number to obtain a
replacement adapter at an authorized Aud i
dealership, if necessa ry .
{!) Tips
Write down the wheel bolt locking dev ice
code number and store it in a safe place,
away from the vehicle.
Raising the vehicle
Ap plies to vehicles: with origina l Audi jack
The vehicle must be li~ed with the jack* first
before the wheel can be removed.
•
Fi g. 157 Sill pane ls: markings
Fig. 158 Sill: posit ion ing the vehicle jack
0 co
~
"' ;g
The description for using the vehicle jack only
appl ies to the or ig inal jack* (no t a veh icle
What do I d o now ? 207
component; contact your authorized Audi
dealer if needed) .
.,. Engage the
parking brak e to prevent your
veh icle from rolling unintentionally .
.. Shift into 1st gear.
.. Find the
liftin g po int in the sill on the side
w ith the affected wheel
c:> fig. 157 .
.. Extend the jack under the lifting point on
the door s ill until its arm is positioned di
rectly under the lifting point
c:> /.1. .
.,. Align the jack so that its arm @c::> fig. 158
engages in the designated lifting point in
the door s ill and the movable base @ lies
flat on the ground. The base @ must be
ver
tical
under the lifting point @ .
.. Wind the jack up further until the flat tire
comes
off the ground c:> /.1. .
Position the veh icle jack only under the desig
nated lifting points on the sill ¢
fig. 157.
There is exactly one locat io n for eac h side of
the vehicle . The jack must not be positioned
at any other location
c:> & c:>Q) .
An un stable surfac e under the jack can cause
the ve hicle to slip
off the jack . Always provide
a firm base for the jack on the ground . If nec
essary place a sturdy board or simi lar s upport
under the jack. On
hard , sl ipper y sur faces
(such as tiles) use a rubber mat or similar to
prevent the jack from slipping c::>
&.
A WARNING
-You or your passengers co uld be in jured
while changing a wheel if you do no t fo l
low safety precautions:
- Position the vehicle jack on ly at the
designated lifting points and align the
jack. Otherwise, the vehicle jack could slip a nd cause an injury if it does not
have sufficient hold o n the vehicle.
- A soft or unstable surface under the
jac k may cause the ve hicle to slip off
the jack . Always provide a firm base for
the jack on the ground. If necessary, u se a st urdy board under the jack.
Page 210 of 236

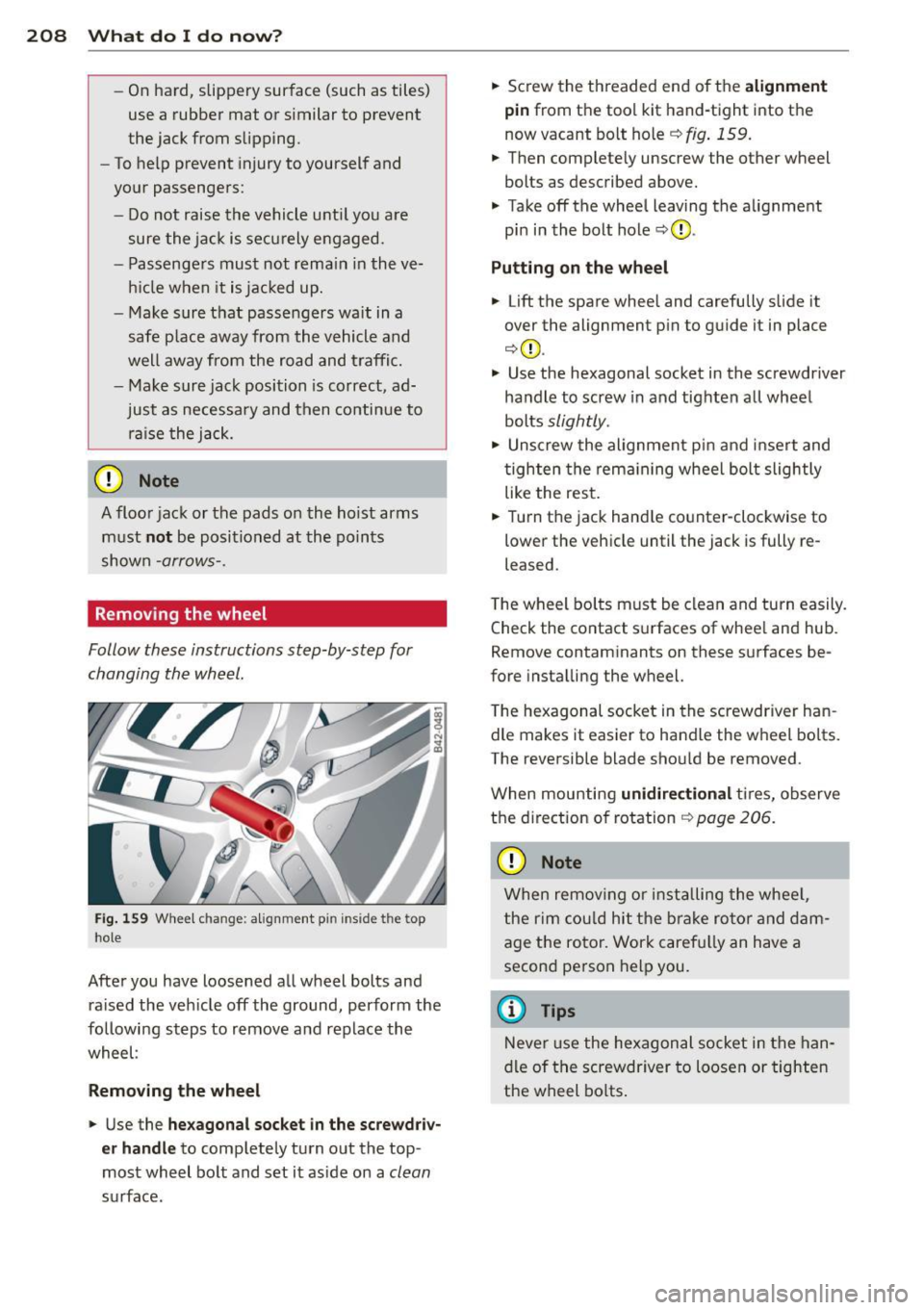

208 What do I do now ?
-On hard, slippery surface (such as tiles)
use a rubber mat or similar to prevent
the jack from slipping.
- To help prevent injury to yourself and
your passengers:
- D o not raise the vehicle u nti l yo u a re
sure the ja ck is sec urely engaged.
- P assenge rs must not rema in i n the ve
h icl e when it is ja ck ed up.
- M ake sure t hat passengers wait in a
safe p lace away fro m the vehicle and
well away from the road and traffi c.
- M ake sur e jac k position is correct, ad
just as necessary and then co ntinue to
r ai se the j ack .
CD Note
A floo r jack or the pads o n the hoist arms
m ust
not be posit ioned at the points
s hown
-arrows-.
Remov ing the wheel
Follow these instructions step-by-step for
changing the wheel.
F ig. 1 59 Whee l change: alignment pin inside the top
hole
Afte r you have loosened a ll wheel bolts and
ra ised the veh icle off the ground, perform the
following steps to remove a nd rep lace the
wheel :
Removing the wheel
" Use the hexagonal socket in the screwdri v
er handle
to comp lete ly tu rn out the top
most wheel bo lt and set it as ide on a
clean
surface. "
Sc rew the th readed end of the
alignment
pin
from th e tool kit hand-tight into t he
now vacant bolt ho le
c::> fig . 159.
" Then complete ly unscrew the other wheel
bolts as described above.
" Take off the whee l leaving the a lignment
p in in the bolt hole
c::>(D .
Putting on the wheel
" Lift the spare whee l and carefully s lide it
over the alignment pin to guide it in place
c::>(D .
" Use the hexagonal socket in the screwdriver
ha ndle to screw in and tighten a ll whee l
bolts
slightly .
" Uns crew the alignment p in and insert and
tighten the rem aining wheel bol t slightly
like the res t.
" Tur n t he jack hand le co unter-clockwise to
lower the vehicle until the jack is fully re
leased.
T he wheel bo lts must be clean and turn easily.
Check the contact s urfaces of whee l and hub.
Remove contaminants on these surfaces be
fore insta lling the w heel.
T he hexagonal socket in the screwdriver ha n
dle makes it easier to handle the w heel bo lts.
The reversible blade should be removed.
When mounting
unidirectional ti res, observe
the d irection o f rotation
c::> page 206.
CD Note
W hen remov ing or inst alling the whee l,
t he r im cou ld hi t the b ra ke ro tor and dam
age the ro tor . Wor k caref ully an have a
second pe rson hel p you.
(D Tips
Neve r use the he xagona l socket in the han
d l e of t he screwdriver to loosen or tighten
the wheel bo lts .
