restraints or occupants on the front pas­
senger seat and prevent the side airbag
in the seat backrest from deploying prop­
erly.
- Never use cushions, pillows, blankets or
similar items on the front passenger
seat. The add itional padd ing will prevent
the weight-sens ing mat in the seat from
accurately reg istering the ch ild restra int
or person on the seat and preve nt the
Advanced Airbag System from func tion­
ing properly .
- If you must use a child restra int on the
front passenger seat and the ch ild re­
straint manufacturer's instructions re­
quire the use of a towel, foam cush ion or
something else to properly position the
child restraint, make certa in that the
PASSENGER AIR BAG OFF light comes
on and stays on whenever the child re­
st ra int is installed on the front passen­
ger seat .
- If the
PA SSE NGER AIR BAG OFF light
does not come on and stay on, have the
airbag system inspected by your Audi dealer.
How the Advanced Airbag System
components work together
The front Advanced Airbag System and the side airbags s upplement the protection of­
fered by the front three-point safety be lts
with pretensioners and load limiters and the
adjustab le head restra ints to he lp reduce the
risk of injury in a wide range of acc ident and
crash situat ions . Be sure to read the impor­
tant information about safety and heed the
WARNINGS in this chapter .
Deployment of the Advanced Airbag System
and the act ivat ion of the safety be lt preten­
sioners depend on the dece le rat ion measured
by the c rash sensors and registered by the
e lectronic control un it . Crash severity depends
on speed and dece leration as well as the mass
and stiffness of the vehicle or object involved in the crash .
Airbag system 119
When the electronic control unit registers a
low severity cras h and the safety belt is being
used, the airbag will not dep loy. If the safety
belt is not being used, the first stage deploys,
followed by the second stage after a much lat­ er t ime in the crash sequence.
If the electron ic control unit registers a crash
of medium severity, the first stage of the air­ bag deploys followed by the second stage at a
much later time in the crash sequence -re ­
gardless of whether the safety belt is be ing
used or not . In higher sever ity crashes as reg­
iste red by the elect roni c cont rol unit, bot h the
first and se cond s tages deploy almost at the
same t ime.
On the passenger side, regardless of safety
belt use, the airbag w ill be tu rned off if the
weight on the passenger sea t is less than the
amount programmed in the electronic control
u nit . The front airbag on the passenger side
will a lso be turned off if one of the child safe­
ty seats that has been certified under Federal
Motor Vehicle Safety Standard 208 has been
recognized on the seat. The
PASS ENGER A IR
BAG OFF light comes on and stays on to tell
you when the front Adva nced A irbag on the
passenger side has been turned off
¢ page 112, Child restraints on the front seat
- some important things to know .
_&. WARNING ~
To reduce the risk of inj ury when an a irbag
inflates, always wear safety be lts properly.
- If you are unrestrained, leaning forward,
sitting sideways or o ut o f position in any
way, your risk of injury is m uch higher.
- You will a lso receive serious injuries and
could even be killed if yo u are up against
the airbag or too close to it when it in­
f lates -even with an Advanced A irbag
¢page 111.
•
•

120 Airbag system
More important things to know about
front airbags

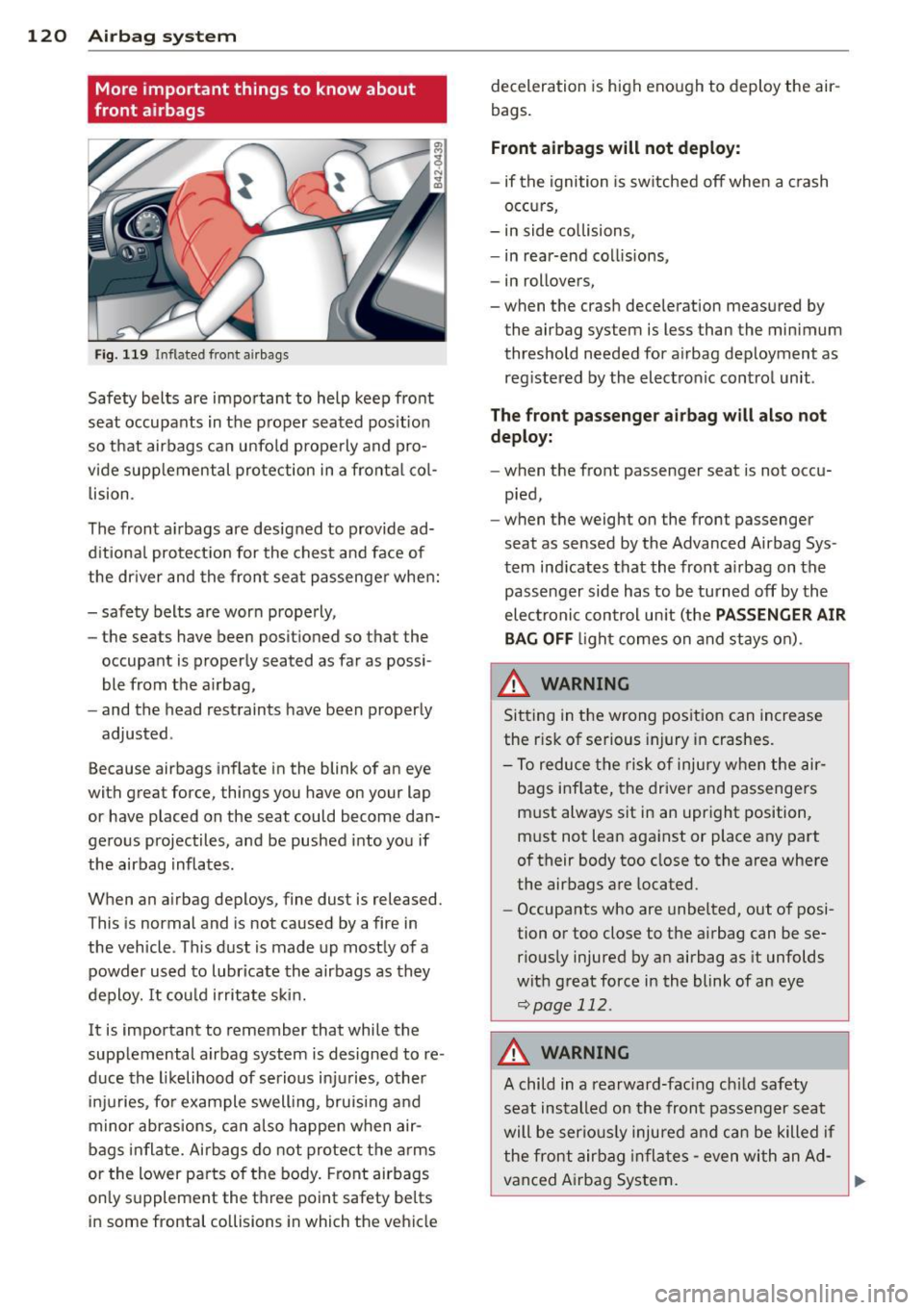

F ig. 1 19 Inflated fro nt airbags
Safety belts are impo rtant to help keep fro nt
seat occupants in the p roper seated pos it io n
so that airbags can unfo ld prope rly and pro­
vide supplemental protection in a fronta l co l­
lision .
The front a irbags are designed to provide ad­
d itiona l protect ion for the chest a nd face of
the dr iver and the front seat passenger when:
- safety belts are worn properly,
- the seats have been positioned so that the
occupant is properly seated as far as possi­
ble from the a irbag,
- and the head restraints have been properly
adjusted .
Because airbags inflate in the blink of an eye
with great force, things you have on your lap or have placed on the seat could become dan­
gerous projectiles, and be pushed into you if
the airbag inflates .
When an a irbag deploys, fine dust is released.
This is normal and is not caused by a fire in
the vehicle . This dust is made up mostly of a
powder used to lubricate the airbags as they
deploy. It cou ld irritate ski n.
It is important to remember that while the
supp lemental airbag system is designed to re­
duce the l ikelihood of serious inj uries, other
i n juries, fo r example swelling, bruisi ng and
m inor abrasions, ca n also happe n when air­
bags in flate. Airbags do not protect the a rms
or the lower pa rts of the body. Front airbags
only supplement the t hree point safety belts
in some frontal collisions in which the vehicle deceleration
is high eno ugh to deploy the air ­
bags .
Front airbags will not deploy:
- if the ignition is sw itched off when a c rash
occu rs,
- in side co llisions,
- in rear-end co llisions,
- in rollovers,
-when the crash deceleration measured by the airbag system is less than the min imum
threshold needed for a irbag deployment as
reg istered by the electronic control unit .
The front pass enge r airbag will al so not
deploy:
- when the front passenger seat is not occu­
p ied,
- when the weight on the front passenger
seat as sensed by the Advanced Airbag Sys ­
tem indicates that the front ai rbag on the
passenger side has to be turned off by the
elec troni c control un it (the
PASSENGER AIR
BAG OFF
li ght comes on and stays o n).
_&. WARNING ~
Si tting in the wrong position can increase
the r isk o f se rious injury i n crashes.
- To reduce the risk of inju ry w he n t he air ­
bags inflate, the drive r and passengers
m ust always sit in an upr ight position,
m ust not lean aga inst or place any part
of their b ody too close to the area where
the airbags a re located .
- Occupants who are unbelted, out of posi­
tion or too close to the a irbag can be se­
rio usly injured by a n airbag as it unfolds
wit h great force in the blink of an eye
<=:>page 112 .
_&. WARNING ~ -
A child in a rearward-fac ing c hild safety
seat installed on the front passenger seat
will be serio usly injured a nd ca n be killed if
the front air bag in fla tes -even with an Ad­
vanced A irbag Sys tem.

-The inflating airba g will hit the child
safety seat or infant carrier wit h great
f o rce and w ill smash t he ch ild safety seat
and child aga inst the backrest, cente r
arm rest, d oor or roof.
- Never install a r earward facing child
sa fety seat on the front pass eng er s eat
unless the
PASSENGER AIR BAG OFF
light c omes on and stays on. If the PAS­
S ENGER AIR BAG OFF
ligh t does no t
c o m e on and stay on, the inflating airbag
will hit the child safety seat or infant car­
rier with great force and will smash the
child safety seat and child against the
backrest, door or roof. Have the airbag
system inspected immediately by your
authorized Audi dealer .
A WARNING
Objects between you and the a irbag will
increase the risk of injury in a crash by in­
terfering with the way the airbag unfolds
or by being pushed into you as the a irbag
inflates.
- Never hold th ings in your hands or on
your lap when the vehicle is in use .
- Never transport items on or in the area
of the front passenge r seat. Objects
cou ld move into the area of the front air­
bags dur ing braking or other s udden ma­
neuver and become dangerous projec ­
ti les that can cause serious personal in­
jury if the airbags inflate.
- Never place o r attach accessories or oth­
er objects (such as cup ho lders, tele­
phone brackets, large, heavy or b ulky ob­
jects) on the doors, over or near the area
marked "AIRBAG" on the steering wheel,
instrument panel, seat backrests or be­
tween those a reas and yourself. These
objects could cause injury in a crash, es­
pecially when the airbags inflate.
- Never recline the front passenger's seat
to transport objects. Items can also
move in to the area of the side airbag or
the front airbag dur ing braking or in a
sudden maneuver . Objects near the air -
-
Airbag system 12 1
bags can become projectiles and cause
inju ry, partic ularly when the seat is re­
clined.
A WARNING
The fine dust created when airbags deploy
can cause breathing prob lems for people
with a history of asthma or other breath­
ing cond itions.
- To reduce the risk of breath ing problems,
those with asthma o r other respiratory
conditions shou ld get fresh air r ight
away by getting o ut of the veh icle or
open ing windows or doors.
- If you are in a collision in which airbags
deploy, was h your hands and fa ce with
mild soap and wate r before ea ting.
- Be ca reful not to get the dust into your
eyes, o r into any cuts or sc ratches .
- If the resid ue should get into your eyes,
f lush them w ith wate r.
Monitoring the
Advanced Airbag System
t!~ Airbag monitoring indicator light
Two separate indicators monitor the function
of the Advan ced Airbag System: the airbag
monitoring indi cator light and the
PASSEN ­
GER AIR BAG OFF
light.
T he Advanced A irbag System (including the
electron ic co ntro l unit, sensor circu its and sys­
tem wir ing) is monitored con tinuously to
make sure that it is functioning properly
whenever the ignition is on. Each time you
turn on the ignition, the a irbag mon itoring in­
dicator light
I will come on for a few seconds
(self diagnostics).
The sy stem mu st be in spected when th e
indicator light
I :
- does not come on when the ignition is
sw itched on,
- does not go out a few seconds after you
have switched on t he ignition, or
•
•

122 Airbag sys te m
- comes on while driving .
I f an airbag system malfunct ion is detected ,
the ind icator light will first start flash ing to
ca tch the d river's attention and then stay on
continuously to serve as a constant reminder
to have the system inspected immed iately.
I f a malfunction occurs that turns the front
a irbag on the passenger side off, the
PA SS EN­
GER AIR BAG OFF
li ght will come on and stay
on whenever the ignition is on .
A WARNING
An airbag system that is not funct ioning
properly cannot provide supplemental pro­
tection in a frontal crash.
- If the airbag indicator light comes on, it
means that there may be someth ing
wrong with the Advanced Airbag System .
It is possible that the airbag will inflate
when it is not supposed to, or w ill not in­
flate when it should.
- Have the airbag system inspected imme­
diately by your Aud i dealer .
PASSENGER AIR BAG OFF light

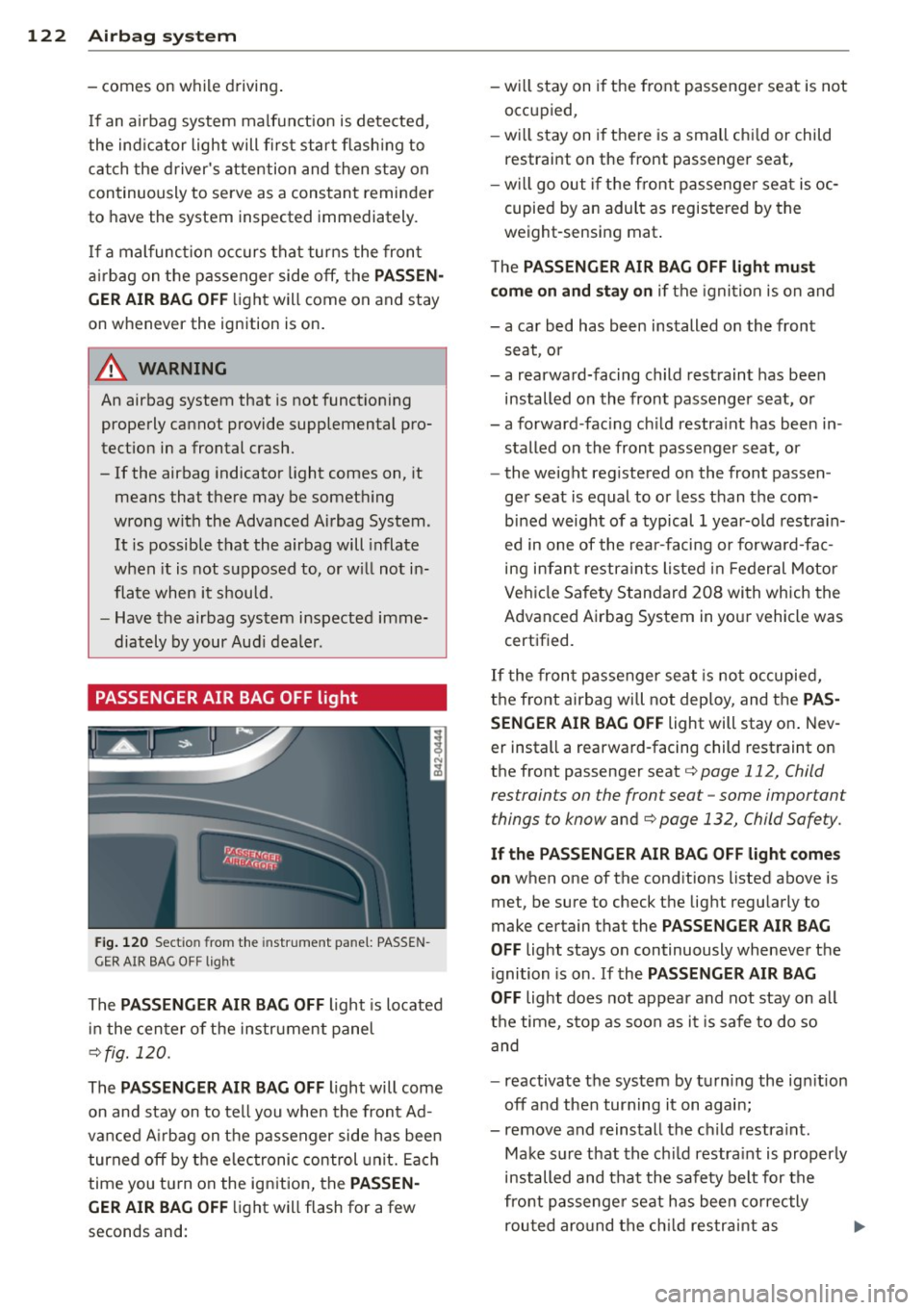

Fig. 120 Sect ion from t he instru men t pan el: PASS EN­
G ER AIR BA G OFF ligh t
The PASSENGER AIR BAG OFF light is located
i n the center of the instr ument panel
¢ fig. 120.
The PASSENGER AIR BAG OFF light will come
on and stay on to tell you when the front Ad­
v a nced A irbag on the passenger side has been
turned off by the e lectronic control unit. Ea ch
time you tu rn on the ig nition, the
PASSEN­
GER AIR BAG OFF
li ght will flash for a few
seconds and: -
w ill s tay on i f the front passenger seat is not
occupied,
- will stay on i f there is a small ch ild or child
restrai nt on the front passenger seat,
- w ill go out i f the front passenger sea t is oc­
cupied by an adult as registered by the
weight-sensing mat .
T he
PASSENGER AIR BAG OFF light must
come on and stay on
if the igni tion is on and
- a car bed has been installed on the front
seat, or
- a rearward-facing child rest raint has been
installed on the front passenger seat, o r
- a forward -fac ing ch ild restra int has been in­
stalled on the front passenger seat, or
- the we ight reg istered on the front passen ­
ge r seat is equal to or less than t he com­
bined weight of a typical 1 year-old restra in­
ed in one of the rear-facing or forwa rd-fac ­
ing infan t restra ints listed in Feder al Motor
Ve hicle Safety Standa rd 208 wi th wh ich the
Advanced Airbag System in your vehicle was
certified.
If t he front passenger seat is not occupied,
the front airbag wi ll not dep loy, and t he
PAS­
SENGER AIR BAG OFF
light will stay on . Nev ­
er install a rearward-facing child rest raint on
the front passenger seat¢
page 112, Child
restrain ts on the front sea t-some impor tan t
things to know
and ¢ page 132, Child Safe ty.
If the PASSENGER AIR BAG OFF light come s
on
when one of the cond itions listed above is
met, be sure to check the lig ht regu larly to
make certain tha t the
PASSENGER AIR BAG
OFF
light stays on continuously whenever the
ignition is on .
If the PASSENGER AIR BAG
OFF
light does not appear and not stay on a ll
t h e time, s top as soon as i t is safe to do so
and
- reactivate the system by t urning the ig nition
off and then turning it on again;
- remove and reinstall the child restra int.
Make s ure that the ch ild restra int is proper ly
installed and that the safety belt for the
fro nt passenge r seat has been correctly
rou ted aro und the ch ild res tra int as .,.

described in the child restraint manufactur­
er 's instructions;
- make sure that the convertible locking fea­
ture on the safety be lt for the front passen­
ger seat has been activated and that the
safety belt has been pulled tight. The belt
must not be loose or have loops of slack so
that the sensor below the safety belt latch
on the seat can do its job<=>
page 140 .
-make sure that th ings that may increase the
weight of the child and child safety seat are
not being transported on the front passen­
ger seat;
- make sure that the safety belt tension sen­
sor is not blocked . Shake the safety belt
latch on the front passenge r seat back and
forth;
- If a st rap or tether is being used to tie the
ch ild safety seat to the front passenger
seat, make sure t hat it is not so tigh t that it
ca uses the we ight-sensing mat to meas ure
more weight than is actua lly on the seat .
If the PASSENGER AIR BAG OFF light still
does not com e on and does not stay on con­
tinuously (when the igni tion is sw itched on),
- take the ch ild restraint off the front passen·
ger seat and install it p roperly at one of the
rear seat pos itions. Have the a irbag system
i nspec ted by your A udi dealer immediately.
- move the ch ild to a rea r seat posit io n and
make su re th at the chi ld is proper ly res train ­
ed in a chi ld restraint that is appropriate fo r
its size and age .
The
PASSENGER AIR BAG OFF light shou ld
NO T come on when the ign ition is on and an
ad ult is sitting in a p rope r seat ing pos ition on
the front passenger seat. If the
PASSENGER
AIR BAG OFF
li ght comes on and stays on or
flashes for about 5 seconds while driving, un­
der these circumstances, make sure that:
- the ad ult on the front passenger seat is
proper ly seated on the center of the seat
cushion with his or her back up against the
backrest and the backrest is not reclined
<=> page 94, Proper occupant seating posi­
tions,
A irbag system 123
- the adult is not tak ing weight off the seat by
holding on to the passenger assist handle
above the front passenger door,
- the safety be lt is being properly worn and
that there is not a lot of s lack in the safety
be lt webbing,
- accesso ry seat covers or cushions or other
things that may cause an incorrect reading
or impression on the weight-sensing mat
under the upho lstery of the seat have been
removed from the front passenger seat,
- a safety belt extender has not been left in
the safety belt latch for the front passenger
seat .
In add ition to the
PASSENGER AIR BAG O FF
light in the center of the instrument panel,
the message
PASSENGER AIR BAG O FF or
PASSENGER AIR BAG ON w ill briefly appear
in the instrument cluster display. This is to in­
form the dr iver of the current front passenge r
a irbag status.
Important safety instructions on
monitoring the Advanced Airbag System
A WARNING
An airbag system that is not functioning
p roperly cannot provide supplemental pro­
tection in a frontal c rash.
- If the airbag ind icator light comes on, it
means that there may b e something
wrong with the Advan ced Airbag Sys tem.
It is poss ible that the air bag w ill inflate
when it is not supposed to, or will not in ­
f late when it sho uld .
- Have the airbag system inspe cted imme­
diate ly by your Audi dealer.
A WARNING
If the front airbag inflates, a child without
a child restraint, in a rea rward-facing child
safety seat or in a forward-facing child re­
straint that has not been proper ly installed
will be ser ious ly injured and can be killed.
- Even tho ugh your vehicle is equipped
with an Advanced A irbag System, make
certain that all children, espec ially 12
-
•
•

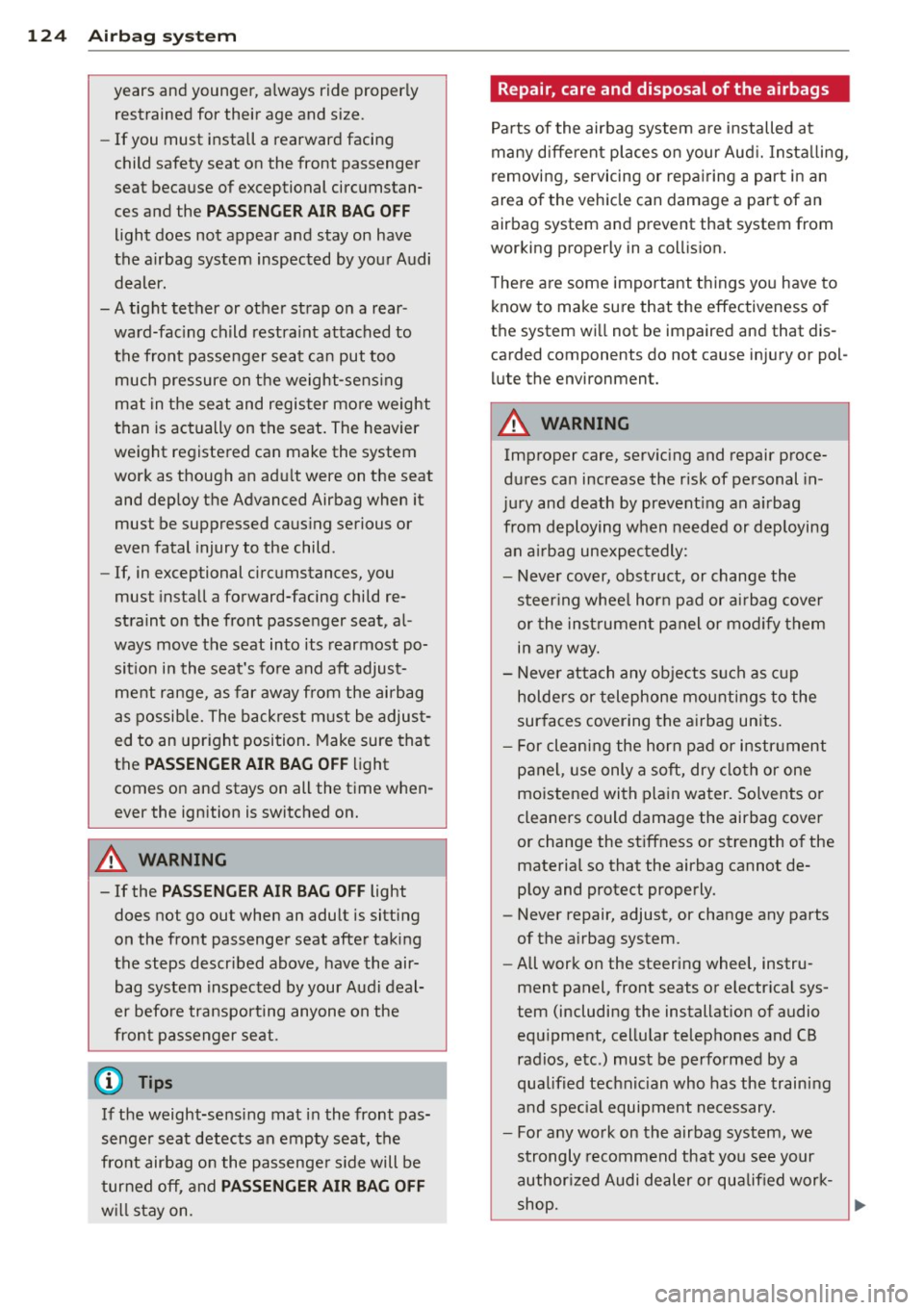

124 Airbag sys te m
years and younger, a lways ride proper ly
restrained for their age and s ize.
- If you must install a rearward facing
child safety seat on the front passenger
seat because of exceptional circumstan­
ces and the
P ASS ENGER AIR BAG OFF
light does not appear and stay on have
the a irbag system inspected by your Audi
dealer.
-A tight tether or other strap on a rear­ ward-fac ing child restra int attached to
the front passenger seat can put too much pressure on the weight-sens ing
mat in the seat and register mo re weight
than is actually on the seat. The heavier
weight registered can make the system
work as though an ad ult were on the seat
and dep loy the Advanced Airbag when it
must be suppressed caus ing serious or
even fatal injury to the child.
- If, in exceptional circumstances, you
must install a forward-facing child re­
straint on the front passenger seat, a l­
ways move the seat into its rearmost po­
sit ion in the seat's fo re and aft adjust­
ment range, as far away from the airbag
as possib le. The backrest m ust be adjus t­
ed to an upr ight position. Make sure that
the
PASSENGER AIR BAG OFF light
comes on and stays on all the t ime when­
ever the ignition is switched on.
A WARNING
- If the PASSENGER AIR BAG OFF light
does not go out when an adult is sitting
on the front passenge r seat afte r taking
the steps described above, have the air­ bag system inspected by your Audi deal­
er before transpor ting anyone on the
front passenger se at.
(D Tips
If the weight-sensing mat in the front pas­
senger seat detects an empty seat, the
front airbag on the passenge r side will be
turned off, and
PASSENGER AIR BAG OFF
w ill stay on.
-
Repair, care and disposal of the airbags
Pa rts of the airbag system are i nstalled at
many diffe rent p laces o n your Aud i. Insta llin g,
removi ng, servicing or repa iring a part in an
area of the veh icle can damage a part of an
airbag system and prevent that system from
working properly in a coll is ion.
T he re a re some important t hings yo u have to
know to make sure that the effectiveness o f
t h e system wi ll not be impaired and that dis­
carded components do not cause injury or pol ­
l ute the environment.
A WARNING
Improper care, serv ic ing and repair proce­
du res can increase the risk of personal in­
j u ry and death by prevent ing an a irbag
from deploying when needed or dep loying
an a irbag une xpec tedly:
- Never cover, obst ruct, or change the
steer ing whee l horn pad or ai rbag cover
or the in st rument panel or mod ify them
in any way .
- Never attach any objects s uch as c up
holders or telephone mountings to the
sur faces covering the a irbag un its.
- For cle aning the horn pad or instr ument
panel, use only a soft, dry clo th or one
moistened with pla in water. Solvents o r
cleaners could damage the airbag cover
or change the st iffness or strength of the
material so that the airbag cannot de­
p loy and protect properly.
- Never repair, adjust, or change any parts
of the a irbag system.
- All work on the steering wheel, instru­
ment panel, front seats or e lectr ica l sys­
tem (including the installation of audio
equ ipment, cellu lar telep hones and CB
radios, etc.) must be performed by a
qualified technic ian who has the training
and specia l equipment ne cessary.
- For any wo rk on the airbag system, we
strongly recommend that you see your
author ized Audi dealer or qualified work-
shop. ..,.

-Never modify the front bumper or parts
of the veh icle body.
- Always make sure that the side airbag
can inflate without interference:
- Never install seat covers or replace­
ment upho lstery ove r the front seat­
backs that have not been spec ifically
approved by Audi.
- Never use add itiona l seat cushions that
cover the areas where the side airbags
inflate .
- Damage to the o rigina l seat covers or
to the seam in the area of the side air­
bag module must always be repa ired
immediate ly by an authorized Audi
dealer.
- The airbag system can be activated only
once . After an airbag has inflated, it
must be replaced by an author ized Audi
dealer or qualif ied technic ian who has
the techn ica l information, tra ining and
special equipment necessary.
- The airbag system can be deployed only
once. After an a irbag has been deployed,
it must be replaced w ith new replace­
ment parts designed and approved espe­
c ially for your Aud i model version. Re­
placemen t of complete ai rbag systems
or airbag components m ust be per­
f ormed by qualified workshops only.
Make su re that any airbag service act ion
is entered in your Audi Warranty
& Main­
tenance booklet under
AIRBAG REPLACE­
MENT RECORD.
- For safety reasons in severe accidents,
the a lternator and starter are separated
from the vehicle battery with a pyrotech­
nic circuit interrupter.
- Work on the pyrote chnic cir cu it inter­
rupter must on ly be per formed by a
qualified dealer - risk of an accident!
- If the veh icle or the ci rcuit interrupter
is sc rapped, all applicable safety pre ­
cautions must be followed .
Airbag system 12 5
@:) For the sake of the environment
Undeployed airbag modules and p reten­
sioners might be classified as Perchlorate
Materia l -special handling may apply, see
www. dtsc. ca.gov/hazard o u swa ste/ per-
ch lo rate. When the veh icle or parts of the
restraint system including airbag modules
and safety be lts with pretensioners are
scrapped, all applicab le laws and regu la­
tions mus t be obse rved. Your authorized
A udi dealer is familia r wi th these require­
ments and we recommend that you have
your dealer perform this service fo r you .
Other things that can affect Advanced
Airbag performance
Chang ing the veh icle's suspens io n system can
c h ange the way that the Advanced Airbag Sys­
tem perfo rms in a crash. For examp le, using
tir e-rim combi nat ions not approved by A udi,
l ower ing the veh icle, chang ing the st iffness of
the suspens ion, including the spr ings, suspen­
sio n struts, shock absorbers etc. can change
the forces that are measured by the airbag
sensors and sent to the electronic contro l
u nit. Some suspension changes can, for exam­
ple, i ncrease the force levels measured by the
sensors and make the airbag system deploy in c rashes in which it wou ld not deploy if the
c h anges had not been made. Other kinds of
c h anges may reduce the fo rce leve ls meas­
u red by the sensors and preven t the airbag
from dep loying when i t should.
T he sensors in the safety be lt buc kle for the
drive r and front passenger seat te ll the e lec ­
tron ic contro l modu le if the s afety be lt is
l atche d or no t. If the safety be lt is being used,
the front airbag will deploy at a slightly high­ er rate of veh icle deceleration than if the safe­
ty belt is not be ing used. Therefore, in a par­
ticular coll is ion, it is possible t hat an airbag
will not deploy at a seat ing pos ition where the
safety belt is be ing used b ut w il l inflate at the
pos ition wher e th e safety be lt is not be ing
used. It is impo rtant that noth ing interfere
Ill>
•
•

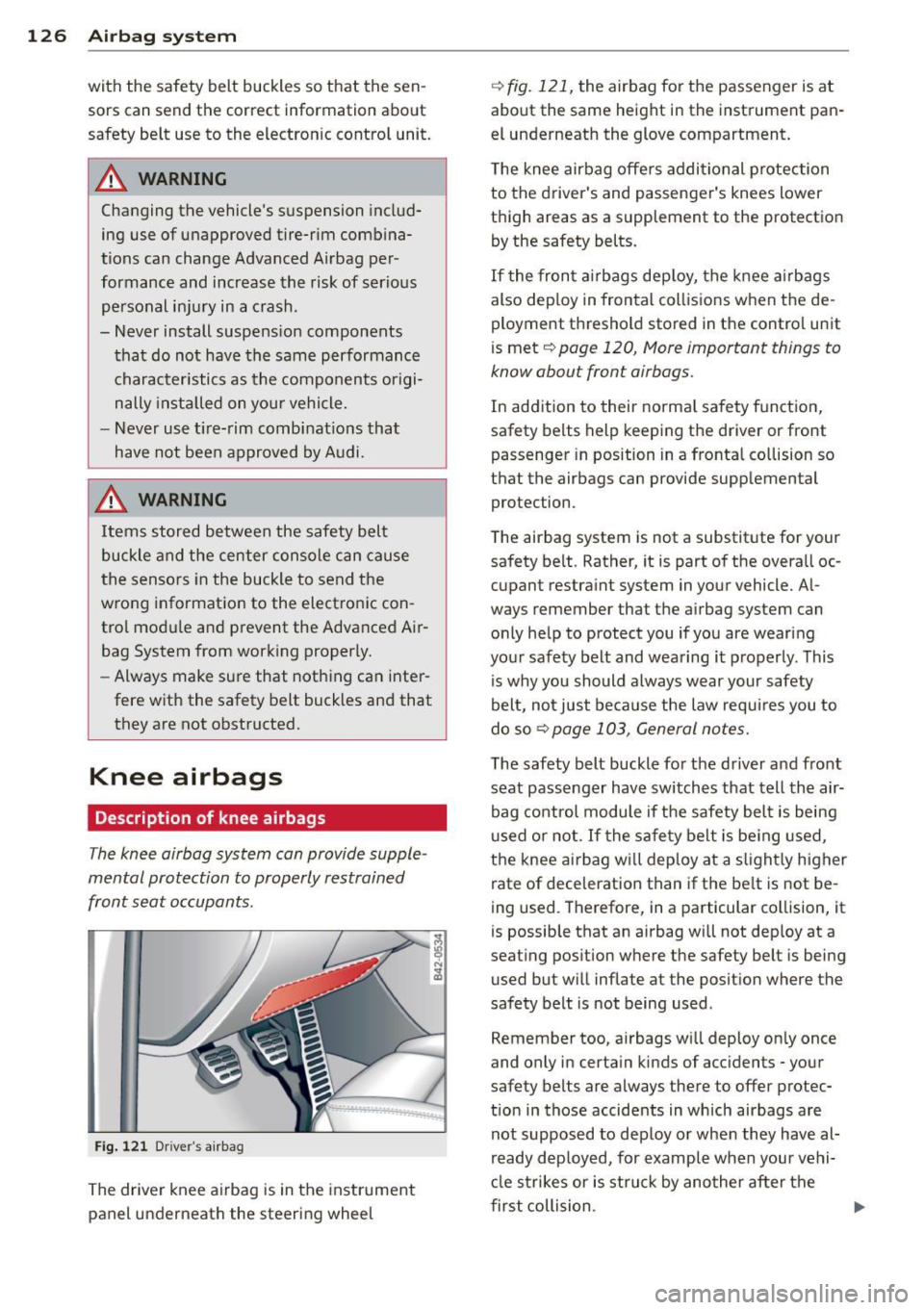

126 Airbag system
with the safety belt buckles so that the sen ­
sors can send the correct information about
safety belt use to the electron ic control unit.
.&_ WARNING
Changing the vehicle 's s uspension includ­
ing use of unapproved tire-rim combina­
tions can change Advanced Airbag per­
formance and increase the risk of serious personal inj ury in a c rash .
- Never install suspens ion components
that do not have the same performance
character istics as the components origi­
nally insta lled on yo ur vehicle.
- Never use ti re-rim comb inat io ns that
have not been approved by A udi.
.&_ WARNING
-
Items stored between the safety belt
buckle and the center console can cause
the senso rs in the buckle to send the
wrong information to the electronic con ­
trol mod ule a nd prevent the Advanced A ir ­
bag System from work ing properly .
- Always make sure that nothing can inter-
fere with the safety belt buck les and that
they are not obstructed.
Knee airbags
Description of knee airbags
T he knee airbag system can provide supple ­
mental protection to properly restrained
front seat occupants .
Fig. 121 Driv er 's airbag
The drive r knee airbag is in the instrument
panel underneath the steering whee l
~ fig. 121, the airbag for the passenger is at
about the same height in the instrument pan­
el underneath the glove compartment .
T he knee air bag offe rs addi tional p rotec tion
to the driver 's and passenger's knees lower
t h igh areas as a supplement to the protection
by the safety belts .
If the fron t airbags dep loy, the knee a irbags
also dep loy in frontal collisions w hen the de­
ployment threshold stored in the control unit
is met ~
page 120, More important things to
know about front airbags .
In addition to their normal sa fety function,
safety belts help keeping the driver or front
passenger in position in a fronta l co llision so
that the airbags can provide supp lemental
protection .
T he airbag system is not a substitute for your
safety belt . Rather, it is part o f the overa ll oc ­
cupant restra int system in your vehicle. A l­
ways remember tha t the a irbag system can
o nly he lp to protect you if you are wearing
you r safety belt and wea ring it properly . This
is why you should a lways wear your safety
belt, not jus t be cause the law requ ires you to
do so~
page 103 , General notes.
The safety belt buckle fo r th e driver and front
seat passenger have switch es that tell the air­
bag control module if the safety bel t is being
u sed or not .
If the sa fe ty belt is be ing used ,
t h e knee a irbag w ill deploy at a s light ly h igher
rate of dece leration than if the be lt is not be ­
ing used . Therefore, in a particular co llision, it
is possib le that an airbag will not dep loy at a
seating pos ition where the safety belt is being
used but will inflate at the posit ion where the
safety belt is not being used .
Remember too, airbags w ill deploy on ly once
and only in certa in kinds of acc idents - your
safety belts are always there to offer protec­
t io n in those accidents in which airbags are
not supposed to deploy o r whe n they have al­
ready dep loyed, for example when your vehi­
cl e s trikes or is st ru ck by ano ther after the
first collision . ..,.

This is just one o f the reasons why an a irbag is
not a substitute for the safety belt . The airbag
system works most effective ly when used wit h
the safety belts. Theref ore, always wear your
safety belts correctly .
It is important to remember that while t he
supp lemental knee a irbag system is des igned
to reduce the like lihood of serious injur ies,
other injuries, for example, swel ling, bruising,
minor abrasions and friction burns can also
occur when a n airbag inflates .
The knee airb ag sy stem ba sically con sist s
of:
-The electronic contro l modu le
- Two inflatable airbags (airbag and gas gen-
erator), one for the driver and one for the
front passenger
- The airbag indicator light in the instrument
panel
The knee airbag system will not d eploy :
-when the ignition is turned off
- in frontal col lisions when the dece lerat ion
measured by the contro l unit is too low
- in s ide coll isions
- in rear-end colli sions
- in ro llovers
- in the event of a system malfunct ion (warn-
ing/ indicator light is on)
~ page 14.
A WARNING
- Saf ety belts and the a irbag system can
o nly p rov ide protection whe n occu pants
are in t he p roper sea ting posit io n
~page 12 0.
- If the air bag indica to r ligh t comes on
when the veh icle is be ing used, have the
system inspected immediately by your
authorized Audi dealer.
-

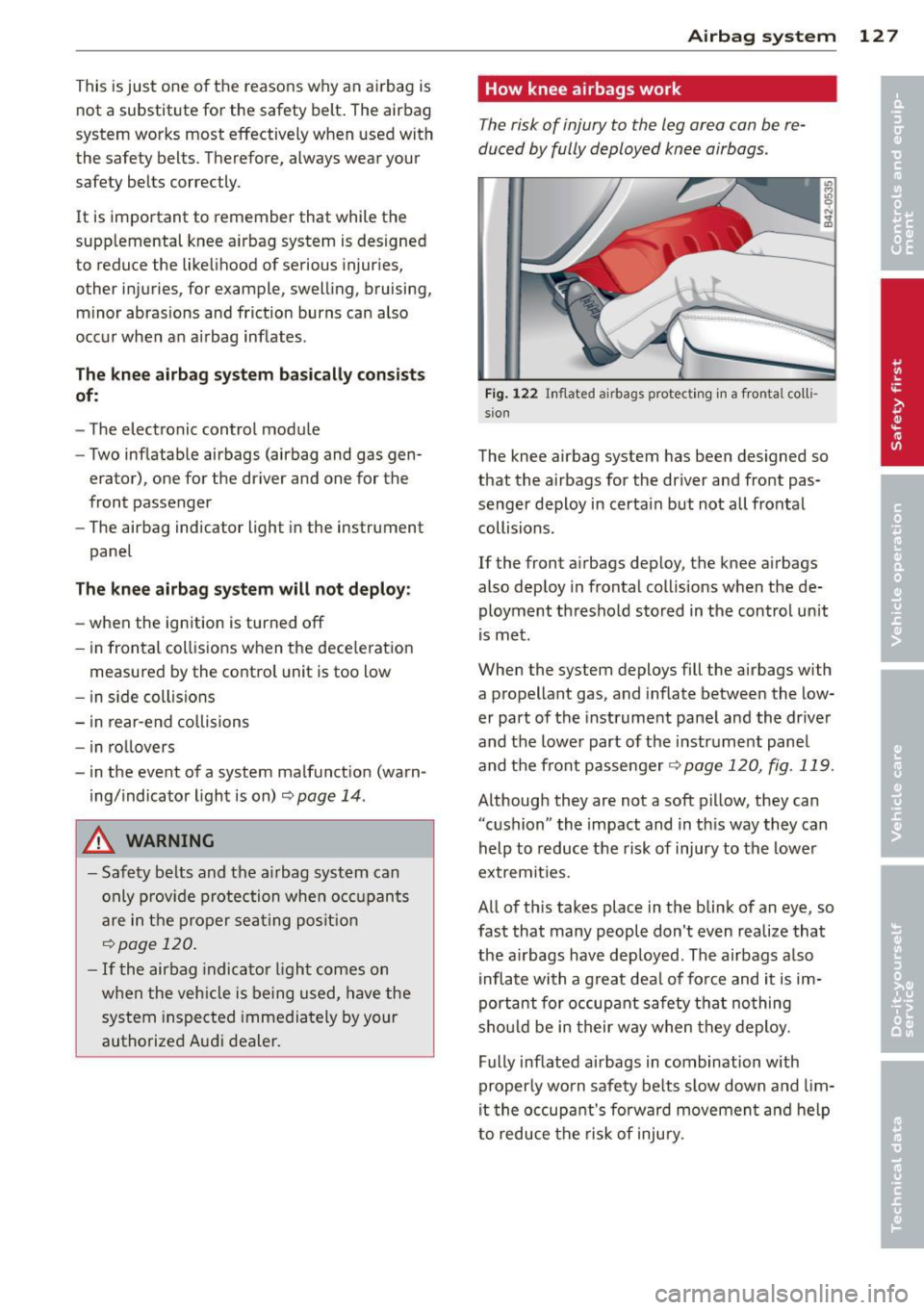

A irba g sy stem 12 7
How knee airbags work
The risk of injury to the leg area can be re­
duced by fully deployed knee airbags.
F ig. 1 22 In flated a irbags protect ing in a frontal colli ­
s io n
The knee airbag system has been designed so
that the airbags for the driver and fro nt pas­
senger deploy in certain but not all frontal
collisions .
If the front a irbags dep loy, the knee a irbags
also deploy in frontal col lisions when the de­
ployment threshold sto red in the control unit
is met.
When the system deploys fill the airbags with
a p ropellant gas, and inflate between the low­
er part of the instrume nt pane l and the dr iver
and the lower part of the instr ument pane l
and the front passe nger
~ page 120, fig. 119.
Although they are not a soft pillow, they can
"cushion" the impact and in th is way they can
help to reduce the risk of injury to the lower
extremit ies.
All of th is takes place in the bli nk of an eye, so
fast that many people don't even realize that
the a irbags have deployed. The airbags a lso
inflate wi th a g reat dea l of fo rce and it is im­
po rtant for occup ant safety t hat no thing
sho uld be in their way whe n they deploy.
Fully inflated ai rbags in combination with
properly worn safety be lts s low dow n and lim­
it the occup ant's forward movemen t and help
to reduce the risk of inju ry.

128 Airbag system
Important safety instructions on the
knee airbag system
Airbags are only supplemental restraints. Al­
ways wear safety belts correctly and ride in a
proper seating position.
There is a lot that you and your passenger
must know and do to help the safety belts and
airbags to provide supplemental protection.
.&_ WARNING
An inflating knee airbag can cause serious injury. Wearing safety belts incorrectly and
improper seating positions increase the
risk of serious personal injury and death
whenever a vehicle is being used.
-
- The knee airbag system cannot protect
you properly if you are seated too close
to any of the airbag locations. When ad­
justing their seat positions, it is impor­
tant that both the driver and the front
passenger keep their upper bodies and
knees at the following min imum safe
distances:
- at least 10 inches (25 cm) between the
chest and the steering wheel/instru­
ment panel.
- at least 4 inches (10 cm) between the
knees and the lower part of the instru­
ment panel.
- The risk of personal injury increases if
you lean forward or to the side, or if the
seat is improperly positioned and you are
not wearing your safety belt. The risk in­
creases even more should the airbag de­
ploy.
- Always make sure that the knee airbag
can inflate without interference. Objects
between you and the airbag can increase
the risk of injury in an accident by inter­
fering with the way the airbag dep loys or
by being pushed into you as the airbag
deploys .
- Never let anybody, especially children
or animals in the footwell in front of
the passenger seat.
If the airbag de- ploys, this can result in serious or fatal
injuries.
- No objects of any kind should be car­
ried in the footwell area in front of the
driver's or passenger's seat. Bulky ob­
jects (shopping bags, for example) can
hamper or prevent proper deployment
of the airbag . Small objects can be
thrown through the vehicle if the air­ bag deploys and injure you or your pas­
sengers.
- Make sure there are no cracks, deep
scratches or other damage in the area of
the instrument panel where the knee air­
bags are located.
- If children are incorrectly seated, their
risk of injury increases in a collision
~page 132, Child Safety.
Side airbags
Description of side airbags
The airbag system can provide supplemental
protection to properly restrained front seat
occupants.
Fig. 123 S ide a irbag location in the driver's seat
The side airbags are located in the sides of the
front seat backrests
q fig. 123 facing the
doors. They are identified by the word "AIR­
BAG".
Th e side airbag system basically consists of:
-the electronic control module and external
side impact sensors
- the two side airbags located in the sides of
the front backrests
- the airbag warning light in the instrument
cluster .
