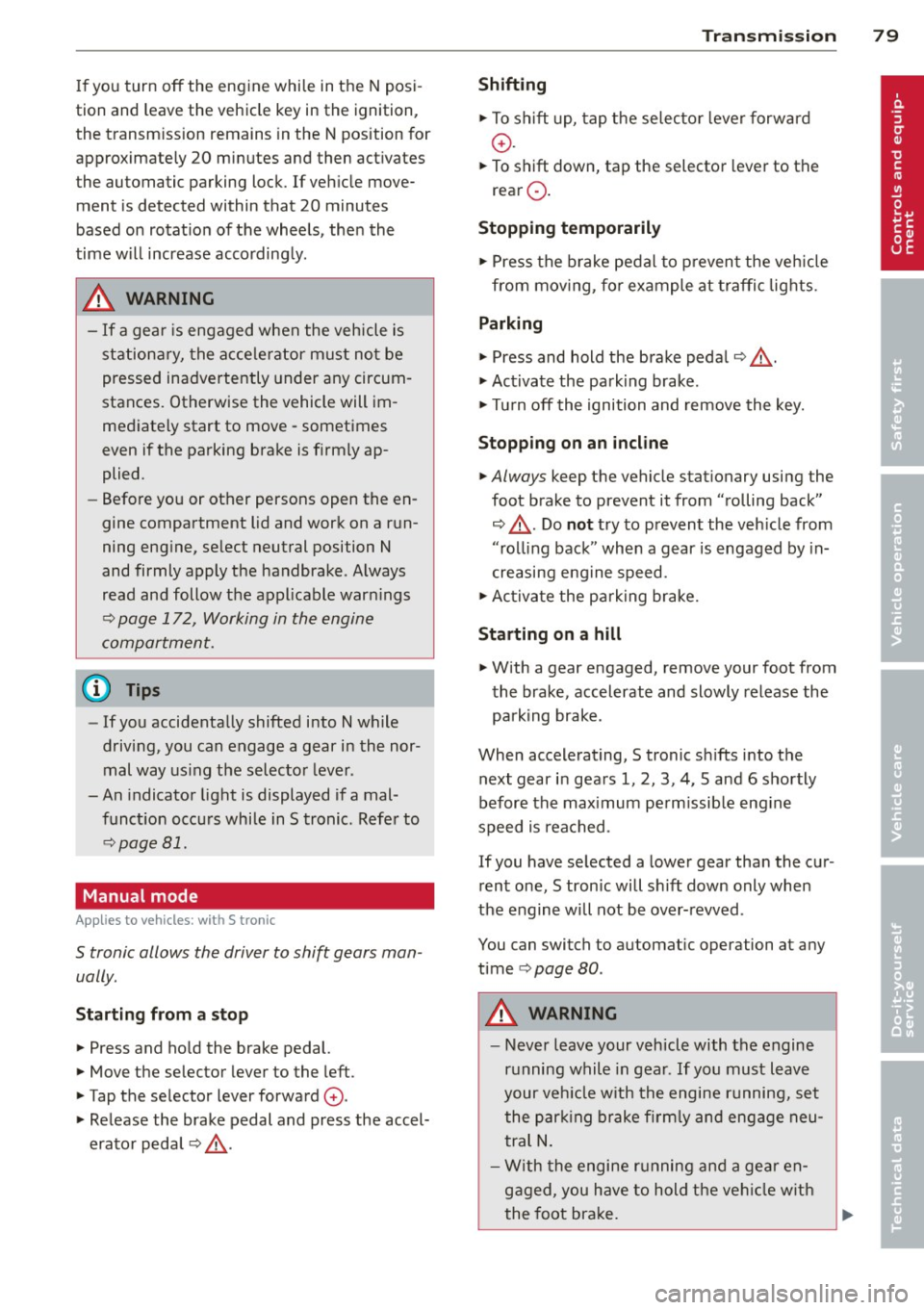

If you turn off the engine while in the N posi­
ti on and leave the vehicle key in the ignition,
the transm ission remains in the N pos ition for
approximately 20 mi nutes an d then act ivates
th e automatic parking lock. If vehicle
move­
ment is detected within tha t 20 minutes
based on rotat ion of the wh eels, th en the
time will increas e according ly.
A WARNING
- If a gear is engaged when the vehicle is
stationa ry, the acce lerator must not be
pressed inadvertently under any circum­
stances. Otherwise the vehicle will im­
med iately start to
move -sometimes
even if the parking brake is firmly ap­
plied.
- Before you or other persons open the en­
gine compartment lid and work on a ru n­
ning eng ine, se lect neutral position
N
and firmly apply the handbrake. A lways
read and follow the applicable warn ings
¢ page 172, Working in the engine
compartment.
(i) Tips
- If you accidentally shifted into N while
driving, you can engage a gear in the nor­ mal way using the selecto r lever.
-An indicator light is displayed if a mal­
funct ion occ urs while in S tronic. Refe r to
qpage 81.
Manual mode
Appl ies to vehicles : wit h S t ronic
S tronic allows the driver to shift gears man­
ually.
Starting from a stop
.. Press and ho ld the brake pedal.
.. Move the selector lever to the left.
.,. Tap the selector lever forward
0 -
.. Re lease the brake pedal and press the accel­
erato r peda l¢ ,& .
Tran sm iss ion 79
Shifting
.,. To shift up, tap the selec to r l ever forwa rd
0-
.. To shift down, tap the selector lever to the
rear Q.
Stopping temporarily
.. Press the b rake pedal to p revent the veh icle
from mov ing, fo r ex ample at tra ffic l ights.
Parking
.. Press and hold the brake pedal¢ ,& .
.. Act ivate the park ing brake .
.,. Tu rn off the ignition and remove the key.
Stopping on an incline
.. Always keep th e vehicle stat ionary using the
foot brake to prevent it from "rolling back"
¢ ,& . D o
not try to p revent the veh icle from
"rol ling back" when a gear is engaged by in­
creasing e ng ine speed.
.. Ac tiva te the pa rk ing br ake.
Starting on a hill
.. With a gear engaged, remove your foot from
th e brake, accelerate and slowly release the
park ing brake.
When accelerat ing, S tronic sh ifts i nto the
next gear i n gears 1, 2, 3, 4, 5 and 6 shortly
before the max imum pe rm issib le eng ine
speed is reached.
If you have se lected a lowe r gear tha n the cur­
r ent one, S tron ic will s hift down only when
the engine will not be
over- revved .
You can switch to automat ic operation at any
time
q page 80.
A WARNING
-Never leave your vehicle with the engine
ru nning while in gear . If you must leave
your veh icle w ith the engine r unning, set
the par king brake firm ly and engage neu­
tral
N.
- W ith the engine r unning and a gear en­
g aged, you have to hold the ve hicle with
the foot bra ke.

80 Transmi ssion

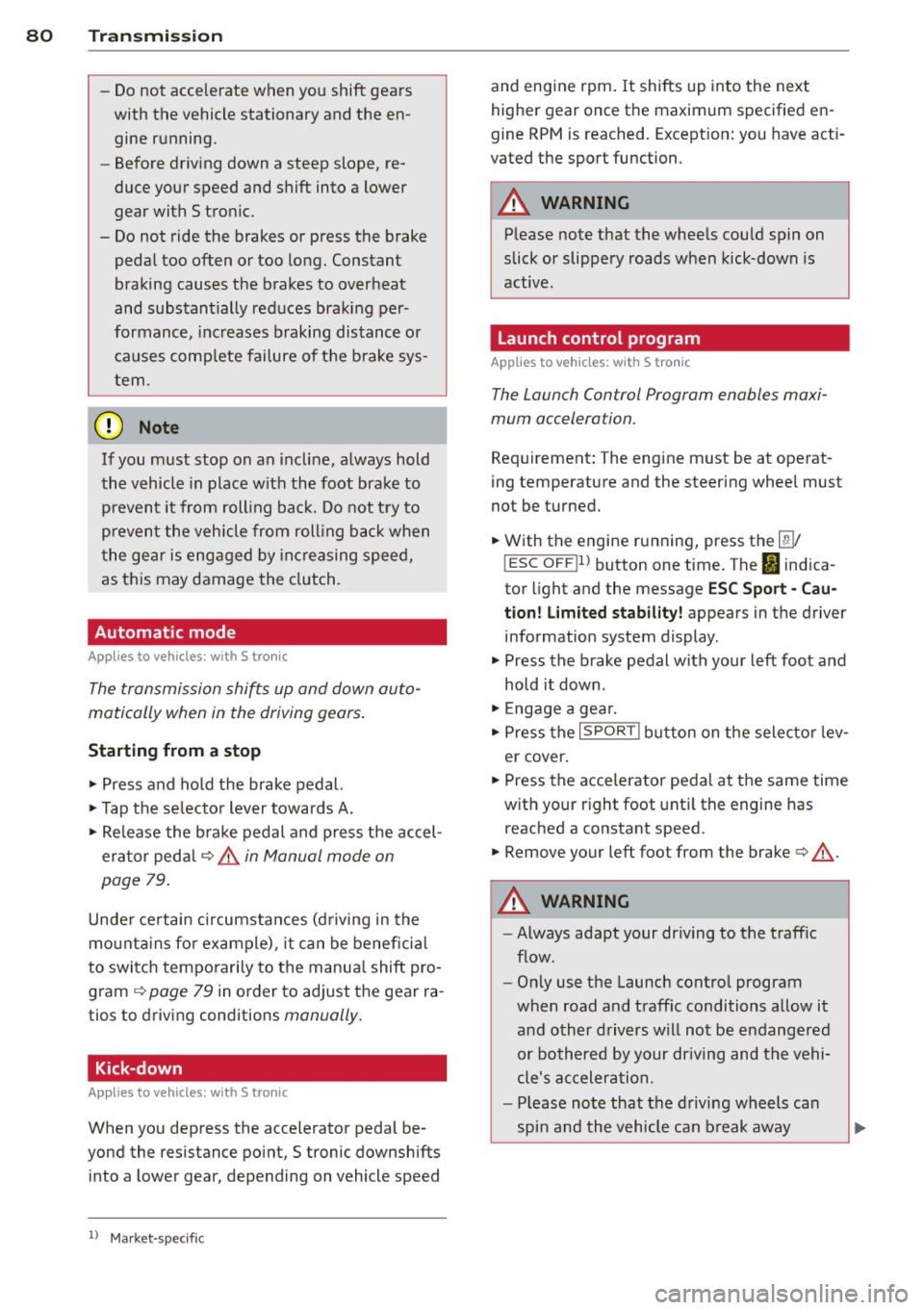

-Do not accelerate when you shift gears
with the vehicle stationary and the en­
gine running.
- Before driving down a steep slope, re­
duce your speed and shift into a lower
gear with S tron ic.
- Do not ride the brakes or press the brake pedal too often or too long. Constant
braking causes the brakes to overheat
and substantially reduces brak ing per ­
formance, inc reases braking distance or
c auses comp lete failure of t he b rake sys­
tem.
0 Note
If you must stop on an incline, always hold
t he vehicle in place w it h the foot bra ke to
p revent it from roll ing ba ck. Do not t ry to
preven t the vehicle from r oll ing bac k when
t he ge ar is engaged by increasing speed,
as t his may damage the clutch .
Automatic mode
Applies to vehicles: with 5 tronic
The transmission shifts up and down auto­
matically when in the driving gears.
Starting from a stop
.. Press and hold the brake peda l.
.. Tap the se lector lever towards A.
.. Re lease the brake pedal and press the accel­
era to r peda l¢
A in Manual mode on
page
79 .
Unde r certain circumstances (d riving in the
mo unt ains fo r example), it can be beneficia l
to switch tempo rari ly to the manua l shift pro ­
gram ¢
page 79 in order to adjust the gear ra­
tios to driving conditions
manually .
Kick-down
Applies to vehicles: with S tronic
When you depress the acce lerator pedal be ­
yond the resistance po int, S tronic downshifts
i n to a lower gear , depending on vehicle speed
l) Market- sp ec ifi c
and engine rpm . It shifts up into the next
higher g ear once the maximum specified en ­
gine RPM is reached. Except ion: you have acti ­
vated the sport func tion .
A WARNING
Please note that the whee ls cou ld spin on
slick or slippe ry roads when kick-down is
active .
Launch control program
Applies to vehicles: wit h S tronic
The Launch Con trol Program enables maxi­
mum acceleration .
Requirement: The eng ine must be at operat­
ing temperature and the steering wheel must
not be turned.
.. With th e engine running, press the
(fill
!ESC OFF!1l
button one time. The I ind ica­
tor light and the message
ESC Spo rt -Cau ­
tion! Lim ited stabil ity!
appears in the driver
information system display .
.. Press the brake pedal with your left foot a nd
hold it down .
.. Engage a gea r.
.. Press the
I SPOR T! button on the selecto r lev ­
er cover .
.. Press the accelerator peda l at the same time
with your right foot unti l the engine has
reached a constant speed .
.. Remove your left foot from the brake¢,&. .
A WARNING
--Always adapt your dr iving to the traff ic
f low.
- Onl y use t he Launch contro l program
when road and t raff ic conditions a llow it
a nd other d rivers w ill not be e ndangered
or both ered by your dr iving and the vehi­
cle 's ac celera tion.
- Pl ease note that the d riving wheels ca n
sp in a nd the vehicle can b reak away
-

when ESC is switched off, especially
when the road is slippery.

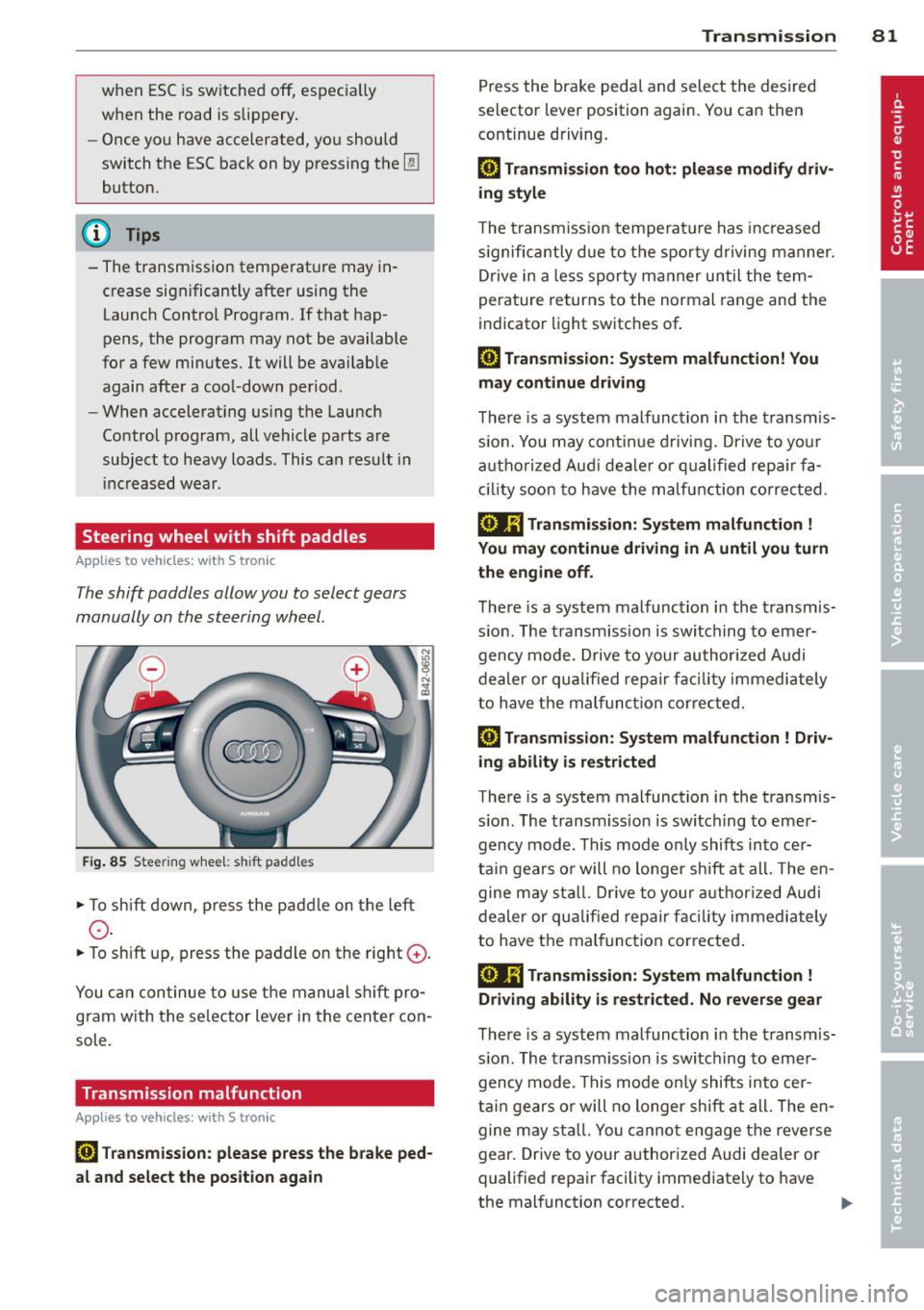

- Once you have accelerated, you should
switch the ESC back on by pressing the
[fil
button.
(D Tips
- The transmission temperature may in­
crease significantly after using the Launch Control Program. If that hap­
pens, the program may not be available
for a few minutes. It will be available again after a cool-down period.
- When accelerating using the Launch
Control program, all vehicle parts are
subject to heavy loads. This can result in
increased wear.
Steering wheel with shift paddles
Applies to vehicles: with S tronic
The shift paddles allow you to select gears
manually on the steering wheel .
Fig . 85 Steering wheel: shift paddles
~ To shift down, press the paddle on the left
0 -
~ To shift up, press the paddle on the right G).
You can continue to use the manual sh ift pro­
gram with the selector lever in the center con­
sole.
Transmission malfunction
Applies to vehicles: with S tronic
[O] Transmission: please press the brake ped­
al and select the position again Transmission 81
Press the brake pedal and select the desired
selector lever position again. You can then
continue driving.
[O] Transmission too hot: please modify driv·
ing style
The transmission temperature has increased
significantly due to the sporty driving manner.
Drive in a less sporty manner until the tem­
perature returns to the normal range and the
indicator light switches of.
[O] Transmission: System malfunction! You
may continue driving
There is a system malfunction in the transmis­ s ion. You may continue driving. Drive to your
authorized Audi dealer or qualified repair fa­
c ili ty soon to have the malfunction corrected.
Bii·Transmission: System malfunction !
You may continue driving in A until you turn
the engine off.
There is a system malfunction in the transmis­
sion. The transmission is switching to emer­
gency mode . Drive to your authorized Audi
dealer or qualified repair facility immediately
to have the malfunction corrected.
[O] Transmission: System malfunction ! Driv­
ing ability is restricted
There is a system malfunction in the transmis­
s ion . The transmission is switching to emer­
gency mode . This mode only shifts into cer­
tain gears or will no longer shift at all. The en­
gine may stall. Drive to your authorized Audi
dealer or qualified repair facility immediately
to have the malfunction corrected .
[oJ;t Transmission: System malfunction !
Driving ability is restricted. No reverse gear
There is a system malfunction in the transmis­
sion. The transmission is switching to emer­
gency mode . This mode only shifts into cer­
ta in gears or will no longer shift at all. The en ­
gine may stall. You cannot engage the reverse
gear. Drive to your authorized Audi dealer or
qualified repair facility immediately to have
the malfunction corrected.

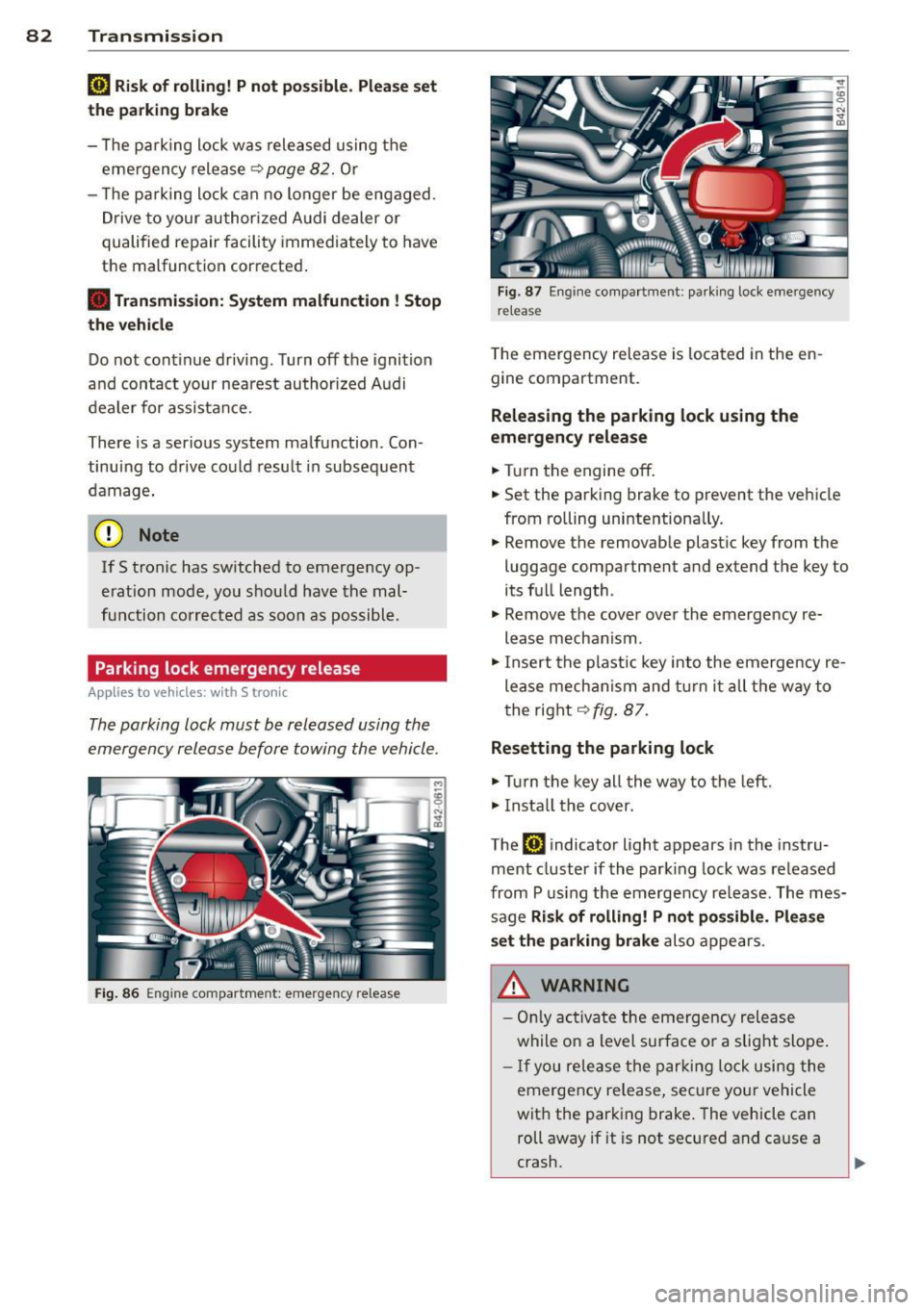

82 Transmission [O] Risk of rolling! P not possible. Plea se set
the parking brake
- T he pa rking lock was released using the
eme rgency release
r=;, page 82. Or
- T he pa rking lock can no longer be engaged.
Drive to your authorized Audi dealer or
qualified repair facility immediately to have
the malfunction corrected.
• Transmission: System malfunction ! Stop
the vehicle
Do not cont inue driving. Turn off the ignition
and contact your nearest authorized Audi
dealer for assistance.
There is a serious system malfunction . Con­
tinuing to drive could result in subsequent
damage.
0 Note
If S tronic has switched to emergency op­
eration mode, you should have the mal­
function corrected as soon as possible.
Parking lock emergency release
Appl ies to vehicles: with S tronic
The parking lock must be released using the
emergency release before towing the vehicle .
Fig. 86 Engine compartment: emergency release
Fig. 87 Engine compa rtment: pa rking lock emergency
r e lease
The emergency release is located in the en­
gine compartment.
Releasing the parking lock using the
emergency release
.,. Turn the engine off.
.,. Set the parking brake to prevent the vehicle
from rolling unintentionally.
.,. Remove the removable plastic key from the
luggage compartment and extend the key to
its full length .
.,. Remove the cover over the emergency re­
lease mechanism .
.,. Insert the plastic key into the emergency re­
lease mechanism and turn it all the way to
the right
r=;, fig. 87.
Resetting the parking lock
.,. Tu rn the key all the way to the left .
.,. Install the cover.
The
[O] indicator light appears in the instru­
ment cluster if the park ing lock was released
from P using the emergency release. The mes­
sage
Risk of rolling! P not possible. Please
set the parking brake
also appears .
.&_ WARNING
- Only activate the emergency release
while on a level surface or a slight slope.
-If you release the parking lock using the
emergency release, secure you r vehicle
wit h the parking brake. The vehicle can
roll away if it is not secured and cause a
crash.

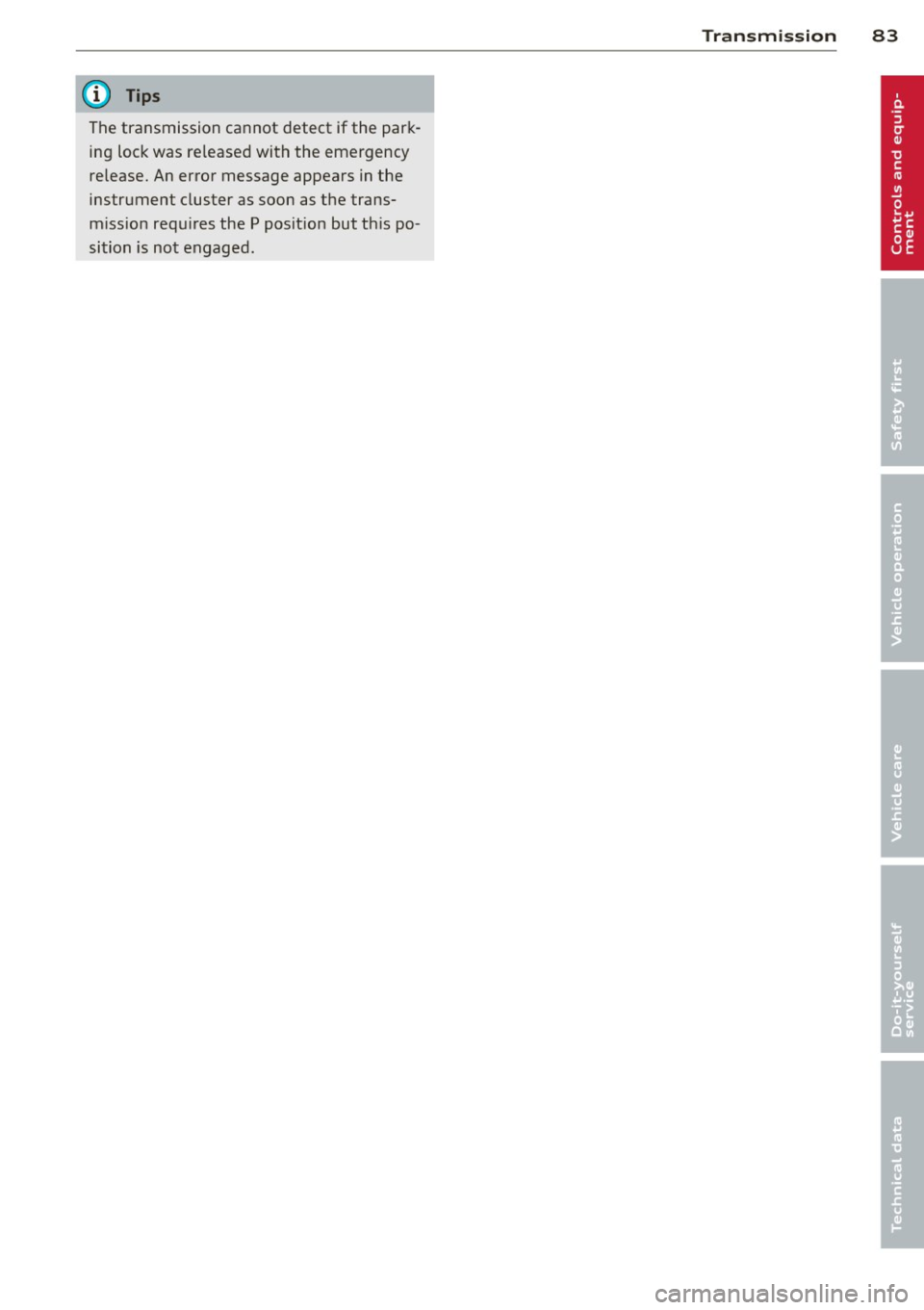

@ Tips
The transmission cannot detect if the park­ing lock was re leased with the emergency
re lease. An error message appears in the
instrument cluster as soon as the trans­
m iss ion requ ires the P posit ion but th is po­
sition is not engaged .
Transm iss ion 83

84 Parking system
Parking system
Parking system
advanced
Introduction
Appli es to vehicles: wit h park ing system advanced
Fig. 88 Park ing mode 1: Reverse parking
;J
9 N
I!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!\
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! ,~
Fig. 89 Parkin g mode 2: Pa ral lel parking
Vehicles with the parking system are equ ipped
with a
r e ar view camer a in addition to the
acoustic and visual park ing system .
You can choose between two modes to help
you when parking your vehicle . Use "parking
mode 1" when parking in a parking space or
garage ~
fig. 88. If you are go ing to be paral­
l el parking, use "parking. mode 2"
~ fig. 89.
General Information
Applies to vehicles: w ith park ing system advanced
Fig. 90 View from top: Rearvi ew camera coverage area
-----·-­·--
Fig . 91 Side view: Rea rvi ew came ra coverage area
Sen so rs in th e bumper
Sensors are located in the front and rear
bumpers . If these detect an obstacle, audible
and visual signals warn you. The range at
which the sensors begin to measure is approx­
imately :
front side
3 ft (0
.90 m)
center 4 ft (1.20 m)
side 2 ft (0.60 m)
rear center 5.2 ft (1.60 m)
The closer you get to the obstacle, the shorter
the interval between the audible signals . A
continuous tone sounds when the obstacle is
less than approximately 1 foot (0.30 meters)
away. Do not continue dr iv ing farther .
If the distance to an obstacle remains con­
sta nt, the volume of the distance warn ing
gradually drops after about four seconds (this
does not apply in the cont inuous tone range). ..,.

Rear vi ew camer a coverage area
The rearview camera shows you the a rea be­
hind your vehicle in the navigation system dis­
p lay. This area roughly corresponds to the
area in¢
fig . 90 and (!)¢ fig. 91. Orientation
lines and colored surfaces are projected in the
area shown, which can help you with parking
and maneuvering. Objects that are located in
an area that is not captured by the camera @
¢
fig. 91 and that are closer to the bumper
will not appear on the nav igation system dis ­
p lay.
We recommend that you practice park ing with
the rearview camera in a traffic-free location
or pa rking lot to become familiar w ith the sys­
tem, the o rientation l ines, and their function.
There should be sufficient light and good
weather conditions when doing so.
I n the nav igat io n system disp lay, objects or
veh icles appear closer or fu rther away if:
Objects or vehicles appear closer or farther
away in the navigation system if:
- you are driving in reverse gear from a level
surface onto an incline, or a downward
slope,
- you are driving in reverse gear toward pro-
truding objects.
The accuracy of the orientation lines and blue
surfaces dimin ishes if:
- the rearview camera does not provide a reli­ able image, for examp le, in poor visibility
cond itions or if the lens is dirty,
- the image on the screen is not visible due to
sun g lare and reflect ion .
Caring f or the re arvi ew cam era len s
The rearview camera is located i n the center
of the vehicle above the rear license plate bra cket. In o rder for the rearview camera to
f u nction properly, the came ra lens must be
kept clean and free of snow and ice .
- Dampen the lens with a househo ld alcoho l­
based glass cleane r, and clean the lens with
a dry cloth.
Par king system 85
- Remove snow with a hand br ush and ice
preferably with a de-icing spray ¢(D .
A WARNING
-The parking system cannot replace the
driver's attention. The driver alone is re­
sponsib le for parking and similar driving
maneuvers.
- Sensors have blind spots in wh ich objects
can not be detected. Pay spec ia l attent ion
to small children and an imals because
the sensors cannot always detect them.
- Always keep your eyes on the vehicle's
sur ro undings, us ing the rearv iew mirro r
as well.
- Do not allow yourself to be distracted from traffic by the rearv iew camera pic­
tures in the navigat ion system display.
- If the position and the installation angle
of the camera has changed, for example,
after a rear end collision, do not conti nue
to use the system for safety reasons.
Have it checked by an au thori zed A ud i
dea ler or other q ualified workshop .
(D Note
-Low obstacles a lready s ignaled by a
wa rni ng can disappear from the system's
detect ion range as they are app roached
and wi ll not continue to be signaled. Ob­
jects such as barrier chains, trailer d raw
bars, narrow painted vertica l poles or
fences may not be detected by the sys­ tem, posing risk of damage.
- Never use warm or hot water to remove snow or ice from the rearv iew camera
lens because the lens could crack.
- Never use products that are abrasive when clean ing the lens.
-

86 Parking system
Switching on /off
App lies to vehicles: with park ing system advanced
SPORT •
Fig. 92 Sectio n of the cente r conso le : Park assist
s w it c h
F ig. 93 Nav iga tio n sy ste m disp lay : v is u al dis ta n ce d is ­
p lay
Switching on
.,. Switch the navigation system and the nav i­
gation system display on.
.,. Engage the reverse gear, or
.,. Press the
!"" I switch in the cente r co nsole
¢ fig. 92. A short confirmation tone so unds
and the indicato r light in the swi tc h lights
up.
Switching betwe en the rear v iew camera
and vi sual display
.,. Press the Gr aph ic control button
¢ page 87, fig. 94 to see t he visua l dis­
play .
.,. Press the
Rear view contro l button to see
the rear view camera image
¢ fig. 93 .
Switching off
.,. Drive faster than 6 mph (10 km/h) , or
.,. Press the~ switch , or
.,. Sw itch off the ignition .
Segments in the visual display
T he red segmen ts in front o f and behind the
vehicle ¢
fig. 93 help you to determine the
distance between you and an obstacle. As
you r vehicle comes closer to the obstacle, the
segments move closer to the veh icle. The col ­
lis ion area has been reached when the next to
last segment is displayed. Do not continue
driv ing farther ¢
Ii::.. in General Information
on page
85 !
A WARNING
- T he navigation system d isp lay cannot
show, or c an not adequately show, cer­
tain o bjec ts (s uch a s sma ll posts o r g ra ­
ting), recesses in the ground and p ro ­
trud ing parts on another ca r.
- Only use t he rearv iew came ra to assist
you if it shows a good, clear picture. For examp le, the image may be affected by
the sun shining into the lens, d irt on the
lens or if there is a defect .
(D Tips
-The sensors m ust be ke pt cl ean and free
of snow and ice for the park assist to op­
erate .
- Yo u can change the vol ume and pitch of
the s ignals ¢
page 88 .
-What appea rs in the disp lay is time -de­
layed.
-

Reverse parking
Applies to vehicles: with parking system advanced
Parking mode 1 can be used when parking in
a garage or into a parking space.
Fig. 94 Navigation system display: Aiming at a parking
spot
Fig.
95 Navigation system display: Al igning the veh icle
~ Switch the navigation system and the dis­
play of the navigation system on.
~ Select the reverse gear .
~ Turn the steering wheel until the orange ori­
entation lines
(D appear in the parking spot
C? fig. 94. Use the markings @to help you
estimate the distance from an obstacle.
Each marking represents 3
ft. (1 m). The
blue area represents an extension of the ve­
hicle's outline by approximately 16
ft. (5 m)
to the rear.
~ While driving in reverse gear, adjust the
stee ring wheel angle to fit the parking spot
with the a id of the orange orientation lines
E:?(D. @ marks the rear bumper. Stop the
vehicle once the red orientation line©
touches an object
E:? ,&. .
A WARNING
-The rearview camera does not show the
entire area behind the vehicle~
page 84,
fig. 91. Watch out especially for small
Parking system 87
children and animals. The rear view cam­
era cannot always detect them, posing
risk of an accident!
- Please note that objects not touching the
ground can appear to be farther away
than they really are (for example, the
bumper of a vehicle or the rear of a
truck). In this case, you should not use
the orientation lines to help with park­
ing, which poses danger of an accident!
(D Note
In the navigation system display, the direc­
tion of travel of the vehicle rear is repre­
sented depending on the steering wheel
angle. The vehicle front swings out more
than the vehicle rear. Maintain plenty of
distance so that your outside mirror or a
corner of your vehicle does not collide with
any obstacles. This can damage to your ve­
hicle.
Parallel parking
Applies to vehicles: with parking system advanced
Use parking mode 2 to help you parallel park
along the side of a street.
Fig. 96 Nav igation system display: Blue surface
a ligne d with parking spot
Fig. 97 Navigation system display: The blue curved line
contacting the curb
IJi,,-

88 Parking system
The following steps app ly only when there is
no obstacle such as a wall near the parking
spot. Otherwise, please read the informat ion
prov ided in the "Parking Next to Obstacles"
section.
.. Activate the turn signal.
.. Position yo ur vehicle parallel to the edge of
the street, approximately 3 ft. (1 m) from a parked vehicle .
.. Switch the navigation system and the nav i­
gat ion system d isplay on.
.. Se lect reverse gea r. The parking aid turns on
and park ing mode 1 appears on the disp lay.
.. Press the contro l bu tton
1 on the nav igat ion
system
r=> fig. 96 . Parking mode 2 appears .
.. Back up and align yo ur vehicle so the blue
area @ borders on the rear end of the vehi­
cle or on the parking spot line. The bl ue area
represents an extension of the veh icle's out­
li ne by approximate ly 16 ft (5 meters) to the
rear . The long side of the blue area should
be o n the cu rb. The entire blue area must fit
into the parking spot .
.. With the veh icle stopped, turn the s teer ing
wheel to the right as far as it w ill go.
.. Back into the par king spot until the blue
c ur ve to uches the curb
r=> fig. 97. Stop the
vehicle.
.. With the veh icle stopped, turn the steer ing
wheel to the left as far as it will go.
.. Co ntinue to back into the parking spot un til
the veh icle is parked para llel to the curb .@
marks the rear bumper . Stop the vehicle
when the red orientation line@ borders an
obje ct
r=> & -Keep an eye on the front of
yo ur vehicle while doing this
r=>0 .
Parking n ext to obstacles
When t here is an obstacle (such as a wall)
next to the pa rk ing spot, choose a spot w ith
mo re space on t he sides. Pos ition the long
side of the blue area so that there is sufficie nt
sp ace from the curb. The area m ust no t be on
the c urb. Yo u will also need to start turning
the steering wheel much earlier. There should
be a suffic ient amo unt of space between the
curb and the b lue curve, and the blue c urve
¢
fig. 97 must not to uch the curb.
A WARNING
- The rearview camera does not show the
entire area behind the vehicle¢ page
84 ,
fig . 91 . Watch out especially for small
children and anima ls . T he rea r view cam­
era cannot always de te ct them, pos ing
r is k of an a ccide nt!
- P lease note that objects not touching the
g round can appear to be far ther away
t han they really are (for examp le, the
bumper of a vehicle or the rear of a
truck) . In this case, you should not use
the orientation lines to help with par k­
ing, which poses danger of an accident!
(D Note
In the navigation system d isp lay, the direc ­
tion of trave l of the vehicle rear is rep re­
sented depending on the stee ring wheel
angle. The vehicle front swings out more
than the vehicle rear. Ma inta in p lenty of
distance s o that your outside mirror or a
corner of you r vehicle does not coll ide wi th
any obstacles. This can damage to your ve­ h icl e .
(D Tips
The left o r right orie ntation lines and su r­
faces will be disp layed, depending on t he
tu rn s ignal being used .
Adjusting the warning tones
Applies to vehicles: with parking system advanced
Fig . 98 Nav igat io n s ystem d is pl ay: adj ust ing the park­
i ng sys te m
Req uirement : The parking system must be
switched on.
