128 Airbag system
Important safety instructions on the
knee airbag system
Airbags are only supplemental restraints. Al­
ways wear safety belts correctly and ride in a
proper seating position.
There is a lot that you and your passenger
must know and do to help the safety belts and
airbags to provide supplemental protection.
.&_ WARNING
An inflating knee airbag can cause serious injury. Wearing safety belts incorrectly and
improper seating positions increase the
risk of serious personal injury and death
whenever a vehicle is being used.
-
- The knee airbag system cannot protect
you properly if you are seated too close
to any of the airbag locations. When ad­
justing their seat positions, it is impor­
tant that both the driver and the front
passenger keep their upper bodies and
knees at the following min imum safe
distances:
- at least 10 inches (25 cm) between the
chest and the steering wheel/instru­
ment panel.
- at least 4 inches (10 cm) between the
knees and the lower part of the instru­
ment panel.
- The risk of personal injury increases if
you lean forward or to the side, or if the
seat is improperly positioned and you are
not wearing your safety belt. The risk in­
creases even more should the airbag de­
ploy.
- Always make sure that the knee airbag
can inflate without interference. Objects
between you and the airbag can increase
the risk of injury in an accident by inter­
fering with the way the airbag dep loys or
by being pushed into you as the airbag
deploys .
- Never let anybody, especially children
or animals in the footwell in front of
the passenger seat.
If the airbag de- ploys, this can result in serious or fatal
injuries.
- No objects of any kind should be car­
ried in the footwell area in front of the
driver's or passenger's seat. Bulky ob­
jects (shopping bags, for example) can
hamper or prevent proper deployment
of the airbag . Small objects can be
thrown through the vehicle if the air­ bag deploys and injure you or your pas­
sengers.
- Make sure there are no cracks, deep
scratches or other damage in the area of
the instrument panel where the knee air­
bags are located.
- If children are incorrectly seated, their
risk of injury increases in a collision
~page 132, Child Safety.
Side airbags
Description of side airbags
The airbag system can provide supplemental
protection to properly restrained front seat
occupants.
Fig. 123 S ide a irbag location in the driver's seat
The side airbags are located in the sides of the
front seat backrests
q fig. 123 facing the
doors. They are identified by the word "AIR­
BAG".
Th e side airbag system basically consists of:
-the electronic control module and external
side impact sensors
- the two side airbags located in the sides of
the front backrests
- the airbag warning light in the instrument
cluster .

The airbag system is monitored electronically
to make certain that it is functioning properly
at all times. Each time you turn on the igni­
tion, the airbag system indicator light will
come on for a few seconds (self diagnostics) .
The side airbag system supp lements the safe­
ty belts and can help to reduce the risk of in­
jury to the driver's and front passenger's up­
per torso and head injuries on the side of the
ve hicle that is st ruck in a side co llision . The
airbag deploys in s ide impacts and only when
the veh icle acce lerat ion registered by the con­
trol un it is high enough. If this rate is below
the refe rence va lue p rogrammed into the con­
trol un it, the s ide a irbags w ill not be trig­
gered, even though the car may be bad ly dam ­
aged as a result of the collision . It is not pos ­
sib le to define an airbag tr igger ing range that
will cover every poss ible angle of impact,
since the c ircumstances will vary considerab ly
between one collision and anothe r. Important
factors include, fo r example, the nature (hard
or soft) of the impacting object, the angle of i mpa ct, veh icle speed, e tc.¢
page 130, Im­
portant safety instru ctions on the side airbag
system .
Aside from the ir normal safety function, safe­
ty belts wor k to he lp keep t he d river or front
passenger in posi tion in the event of a side
coll is ion so that the side a irbags can provide
p rotection.
The airbag sys tem is
not a subs titute for your
safety be lt. R athe r, it is pa rt of the overall oc­
cupant res traint system in your veh icle . Al­
ways remember that the side airbag system
can only he lp to protect you if you are wearing
your safety belt and wear ing it properly. Th is
is another reason w hy you sho uld always wear
your safety belts, not just because the law re­
qu ires you to do so¢
page 103, General
notes.
It is important to remember that while the
supp lemental s ide a irbag system is designed
to reduce the like lihood of serious injur ies,
other i njuries, for example, swell ing, b ruising,
and minor abras ions can also be assoc iated
with deployed s ide a irbags . Remem ber too,

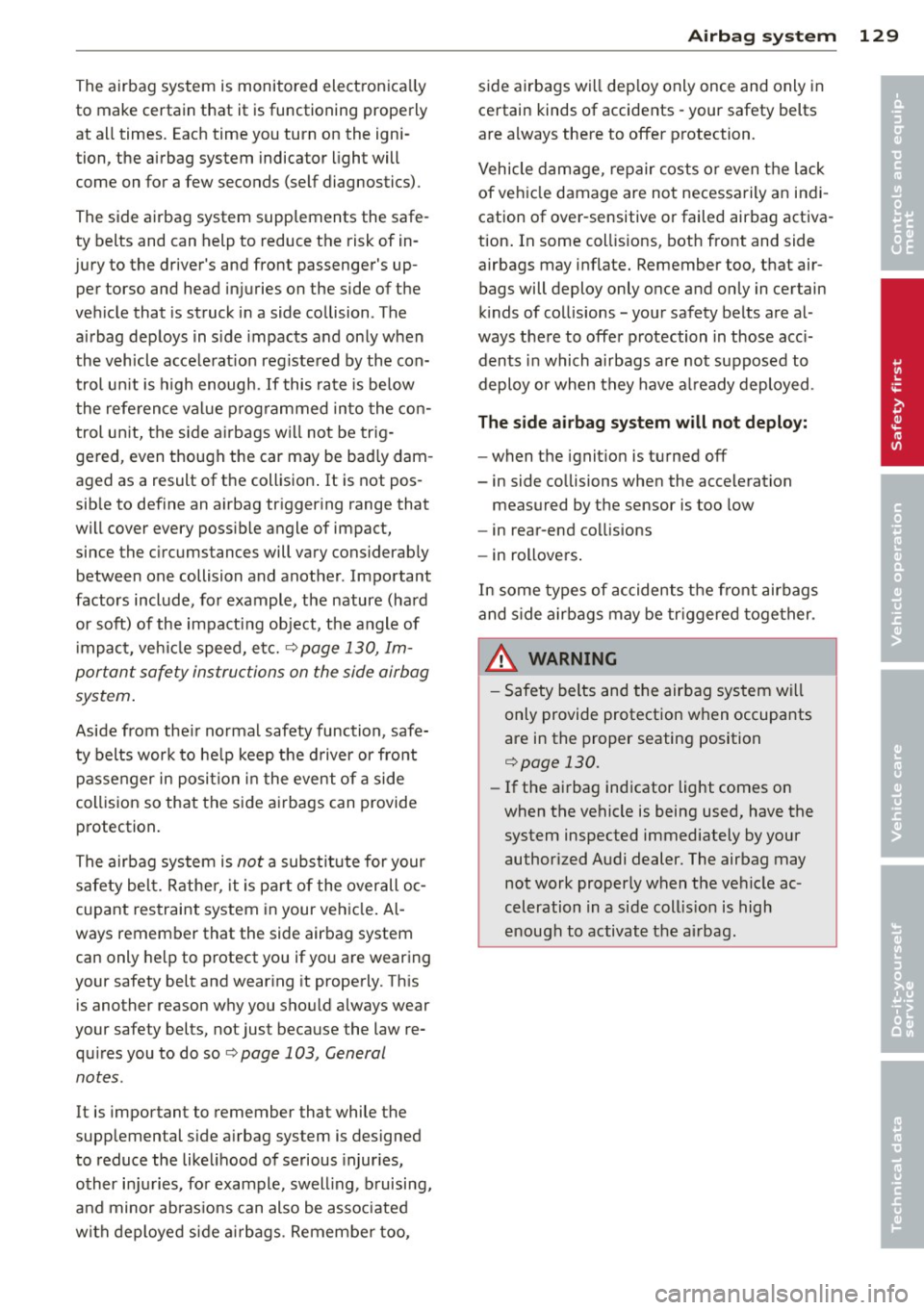

A irbag system 129
side airbags wi ll dep loy only once and only in
certain kinds of accidents -your safety belts
are always the re to offer p rotection.
Vehicle damage, repair costs or even t he lack
of ve hicle damage are not necessarily an indi ­
cation of over-sensitive or failed airbag activa­
tion . In some coll is ions, both front and side
airbags may inflate. Remember too, that air­ bags will deploy only once a nd only in certain
k inds of col lisions -your safety be lts a re al­
ways the re to offe r protection in those acc i­
dents in which airbags are not supposed to
deploy or when they have a lready deployed .
The side airbag system will not deploy:
-when the ignit io n is turned off
- in side co llisions when the acceleration
meas ured by the sensor is too low
- in rear-end co llisions
- in rollove rs .
In some types of ac cidents the front airbags
and s ide a ir b ag s may be triggere d toge ther.
A_ WARNING
- Safety belts and the airbag system wi ll
only provide protection when occupants
are in the proper seating position
¢page 130.
-If the ai rbag indicator light comes on
when the vehicle is being used, have the
system inspected immediately by your
author ized Audi dealer. The airbag may
not work properly when the vehicle ac­
c e leration in a side collis ion is high
e nough to activate t he a irbag. •
•

-Objects between you and the airbag can
increase the risk of injury in an accident
by interfering with the way the airbag
unfolds or by being pushed into you as
the airbag inflates .
- Never place or attach accessories or
other objects (such as cup holders, tel­
ephone brackets, or even large, bulky
objects) on the doors, over or near the
area marked "AIRBAG" on the seat
backrests.
- Such objects and accessories can be­
come dangerous projectiles and cause
injury when the supplemental side air­
bag deploys .
- Never carry any objects or pets in the
deployment space between them and
the airbags or allow children or other
passengers to travel in this position.
-Always prevent the side airbags from be­ ing damaged by heavy objects knocking
against or hitting the sides of the seat­
backs.
- The airbag system can only be triggered
once. If the airbag has been triggered,
the system must be replaced by an au­
thorized Audi dealership.
- Damage (cracks, deep scratches etc.) to
the original seat covers or to the seam in
the area of the side airbag module must always be repaired immediately by an au­
thorized Audi dealer.
- If children are seated improperly, their
risk of injury increases in the case of an
accident
c> page 132, Child Safety.
- Never attempt to modify any compo­
nents of the airbag system in any way.
- In a side collision, side airbags will not
function properly if sensors cannot cor­
rectly measure increasing air pressure in­
side the doors when air escapes through
larger, unclosed openings in the door
panel.
- Never drive with interior door trim pan­
els removed.
- Never drive when parts have been re­
moved from the inside door panel and
Airbag system 131
the openings they leave have not been
properly closed.
- Never drive when loudspeakers in the
doors have been removed unless the
speaker holes have been properly
closed.
- Always make certain that openings are
covered or filled if additional speakers
or other equipment is installed in the inside door panels.
- Always have work on the doors done by
an authorized Audi dealer or qualified
workshop.
•
•

A WARNING
-=
If, in exceptional circumstances, you must
install a forward-facing child restraint on
the front passenger's seat:
- Always make sure the forward-facing
seat has been designed and certified by
its manufacturer for use on a front seat
with a passenger front and side airbag.
-Always follow the manufacturer's in­
structions provided with the child safety
seat or carrier.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the airbag as possible before installing
the child restraint. The backrest must be
adjusted to an upright position.
- Always make sure that the
PASSENGER
AIR BAG OFF light comes on and stays
on all the time whenever the ignition is
switched on.
(D Tips
Always replace child restraints that were
installed in a vehicle during a crash. Dam­
age to a child restraint that is not visible
could cause it to fail in another collision
situation.
Advanced front airbag system and children
Your vehicle is equipped with an "Advanced
Airbag System" in compliance with United
States Federal Motor Vehicle Safety Standard
(FMVSS) 208 as applicable at the time your
vehicle was manufactured.
The Advanced Airbag system in your vehicle
has been certified to meet the "low-risk " re­
quirements for 3- and 6- year-old children on
the passenger side and small adults on the
driver side. The low risk deployment criteria
are intended to reduce the risk of injury
through interaction with the airbag that can
occur, for example, by being too close to the
steering wheel and instrument panel when
the airbag inflates. In addition, the system
Child Safety 133
has been certified to comply with the "sup­
pression" requirements of the Safety Stand­
ard, to turn off the front airbag for infants up
to 12 months who are restrained on the front passenger seat in child restraints that are list­
ed in the Standard .
Even though your vehicle is equipped with an
Advanced Airbag system, a child should al­
ways ride in the seat properly restrained for
its age and size . The airbag on the passenger
side makes the front seat a potentially dan­
gerous place for a child to ride. The front seat
is not the safest place for a child in a forward­
facing child safety seat .
It can be a very dan­
gerous place for an infant or a larger child in a
rearward-facing seat.
Advanced Airbags and the weight­
sensing mat in the front seat
The Advanced Airbag System in your vehicle
detects the presence of an infant or child in a
child restraint on the front passenger seat us­
ing the weight-sensing mat in the seat cush­
ion and the sensor below the safety belt latch
on the front passenger seat that measures the
tension on the safety belt.
The weight-sensing mat measures total
weight of the child and the child safety seat
and a child blanket on the front passenger
seat. The weight on the front passenger seat
is related to the design of the child restraint
and its "footprint", the size and shape of the
bottom of the child restraint as it sits on the
seat. The weight of a child restraint and its
"footprint" vary for different kinds of child re­
straints and for the different models of the
same kind of child restraint offered by child restraint manufacturers.
The weight ranges for the individual types,
makes and models of child restraints that the
NHTSA has specified in the Safety Standard
together with the weight ranges of typical in­
fants and typical 1 year-old child have been
stored in the control unit of the Advanced Air­
bag System. When a child restraint is being
used on the front passenger seat with a
ll-
•
•

150 Intellig ent technolog y
Snow chain s
Where t ire cha ins are mandatory on certain
roads, this normally a lso applies to vehicles
with a LL-wheel drive
¢ page 204, Snow
chains .
Replacing wheels /t ir es
Vehicles with all-wheel drive must a lways
have tires of the same size. Also avoid t ires
with different tread depths. For details see
page
¢ page 199, New tires and replacing
tires and wheels.
Off -Ro ad dri ving?
Your Aud i does not have enough ground clear­
ance to be used as an off -road veh icle .
It is
therefore best to avoid rough tracks and un ­
even terrain as much as possible . Also refer to
¢ page 153.
A WARNING
-Always adjust your driving to road and
traffic conditions. Do not let the extra
safety afforded by all-wheel drive tempt
yo u into taking extra risks.
- Although the all-wheel dr ive is very ef­
fective, always remember that braking
capacity is limited by t ire traction . You
should the refore not dr ive at excessive
speeds on icy or slippery road su rfaces.
- On wet road surfaces, be careful not to
dr ive too fast because the front wheels
cou ld beg in to s lide on top of the w ater
(aquaplaning) .
If this should occ ur, you
will have no warning from a sudden in ­
crease in engine speed as with a front­
wheel drive vehicle. A lways drive at
speeds wh ich are suited to the road con­
ditions. -risk of crash.
Energy management
Starting ability is optimized
Energy management controls the distribution
of electrical energy and thus optimizes the
availability of electrical energy for starting the engine.
If a vehicle with a conventional energy system
is not driven for a long per iod of t ime, the bat­
tery is discharged by idling current consumers
(e .g. immobilize r). In certa in circumstances it
can resu lt in the re be ing insufficient energy
available to start the engine.
Intelligent energy management in your vehi­
cl e ha ndles the distribution of e lectr ica l ene r­
gy . Start ing ability is ma rkedly improved and
the life of the battery is extended .
Bas ica lly, energy management consists of
b att ery diagn osis, idlin g current manage ­
m ent
and dynamic en erg y manag em ent .
Battery di agnosis
Battery diagnosis continuously determines
the state of the battery. Sensors determine
battery voltage, battery cu rrent and battery
tempe rature. This determines the current
state o f charge and the power of t he battery .
Idling current m anagem ent
Idling current management reduces energy
consumption while the vehicle is standing .
With the ig nition sw itched off, it controls the
energy supply to the various electri ca l compo ­
nents. Da ta from ba ttery diagnos is is cons id ­
ered.
Depend ing on the batte ry's state of cha rge,
individual cons ume rs a re g radually turned off
to prevent excessive discharge of the battery
and th us maintain starting capability.
Dynamic energy manag ement
While the vehicle is being d riven, dynamic en­
ergy ma nagement distr ibutes the energy gen­
era ted a ccord ing to t he needs of the individ u-
al components .
It regula tes consumption, so
t h at more electrical energy is not being used ..,.

158 Cleaning and protection
the waste water. In certain areas washing
a car outside of such facilities is not per­
mitted.
Caring for vehicles with matte finish
paint
App lies to vehicles: with matte finish paint
Vehicles with ma tte finish poin t require spe­
cial core due to the characteris tic s of the
point.
Automatic car washes
You must take the necessary precautions such
as closing the windows before using an auto­
matic car wash. See the car wash attendant if
there is special equipment on your vehicle
such as a spoiler or remote control antenna
c:::> CD.
Only use car washes where the vehicle re­ mains stationary and the washing equipment
moves around the vehicle when washing and
drying .
It is not possible to use car washes
that move the vehicle through the car wash
using a chain
c:::> &,.
Only use car washes that use cloth cleaning
equipment, not brushes .
Washing with pressure washers
When washing your vehicles with a pressure
washer, always follow the operating instruc­
tions provided with the pressure washer . This
is especially important in regard to the
pres­
sure
and spraying distance. Be sure to keep
enough distance from soft materials such as rubber hoses or insulating material as well as
from the parking system sensors*, which are
located in the front or rear bumper.
Never use
rotary nozzles or high pressure
nozzles.
Washing by hand
T o avoid damaging the paint when washing,
first remove dust and large particles from
your vehicle. Insects , grease spots and finger­
prints are best removed with a
special cleaner
for matte finish paint.
Apply the product using a microfiber cloth. To
avoid damaging the paint surface, do not use
too much pressure.
Rinse the vehicle thoroughly with water. Clean
the vehicle starting at the top and working to­
ward the bottom using a
neutral shampoo
and a soft microfiber cloth. Stop frequently to
rinse the cloth thoroughly.
Clean the wheels and sill panels last. Use a
clean
sponge on these areas.
Rinse the vehicle thoroughly again and let it
air dry . If there are any water spots, they can
be removed using a
leather cloth.
Clean again with the special cleaner for matte
finish paint
if necessary .
Removing stubborn dirt
Bird droppings or tree sap
are best removed
with plenty of water and a microfiber cloth.
You should rinse off
gasoline residue immedi­
ately with plenty of water .
A WARNING
--Wash your vehicle only when the ignition
is switched off to reduce the risk of a
crash .
- To reduce the risk of cutting yourself,
protect your hands and arms from metal
parts with sharp edges when cleaning
the underbody, the inside of the wheel
housings or the wheel covers.
- If washing your vehicle during the win­
ter, moisture and ice in the brake system
can affect the vehicle's braking ability.
0 Note
-Do not treat vehicle parts painted with
matte finish paint using polishing mate­
rials or hard wax. These products could
cause damage to the appearance or sur­
face that cannot be repaired.
- Never use protective wax.
It can destroy
the matte finish effect.
- Do not place any stickers or magnetic
signs on vehicle parts painted with
matte finish paint. The paint could be

182 Checking and filling
Checking the engine coolant level
Proceed carefully when checking the coolant.
Fig. 144 Convertible top: se rvice position
Fig. 145 Convert ible top sto rage bay: coo lant expan­
sion tank
Before you check anything in the engine com­
partment,
always read and heed all WARN­
INGS c:::> &_ in Working in the engine compart­
ment on page 173
and park your vehicle on a
level surface.
The coolant expansion tank is located in the
right side of the convertible top storage bay
under the round metal cover
c:::> fig. 145. The
convertible top must be in the service position
to check the coolant leve l
c:::> fig. 144.
Bringing the closed convertible top into
the service position
.. Switch the ignition on .
.. Pull and hold the convertible top switch .
.. Press and hold the rear window switch too
until the convertib le top moves into the
service position
c:::> fig. 144.
Bringing the open convertible to into the
service position
.. Switch the ignition on.
.. Press and hold the convertible top switch. ..
Press and hold the rear window switch too
until the convertible top moves into the
service position
c:::> fig. 144.
Opening the coolant expansion tank cover
.. Stop the engine and allow it to cool.
.. Switch the ignition off .
.. Care fully remove the bolts in the cover@
using a screwdriver and remove the cover.
The coolant reservoir is located below
¢fig. 145.
Checking the engine coolant level
.. Place a rag or cloth on the cap of the coolant
expansion tank and turn the cap
carefully to
the left (counter-clockwise)
c:::> .&, .
.. Read the coolant leve l inside the coolant ex­
pansion tank¢
fig. 145. With a cold engine,
it must be above the "min" mark. With a hot
eng ine, it can be a little above the indicated
range.
To obtain an accurate reading, the engine must be switched off.
The expansion tank in your vehicle is equipped
with an electric coo lant level sensor
c:::> page 15. We still recommend you check the
coolant level from time to time .
Coolant loss
Coolant loss may indicate a leak in the cooling
system. In the event of coolant loss, the cool­
ing system should be inspected immediately
by your authorized Audi dealer. It is not
enough merely to add coolant.
In a
sealed system, losses can occur on ly if
the boiling point of the coo lant is exceeded as
a result of overheating .
A WARNING
-- The cooling system is under pressure. Do
notopenthecapofthecoolantexpan­
sion tank when the engine is hot. You
ris k be ing sca lded.
- The coolant additive, and therefore the
coo lant itself, is haza rdous to hea lth .
Keep the coolant additive in the original

V up to 149 mph (240 km/h)1
)
Z over 149 mph (240 km/h)1)
W up to 168 mph (270 km/h)1l
Y up to 186 mph (298 km/h)1
)
Your veh icle is norma lly factory equipped with
t ires, which posses s excellen t driving charac­
ter istics and give your Audi opt imum driving
comfort
~ Ii':,. .
U.S . DOT T ire Identific ation Numbe r (TIN)
a nd tire manufacture d ate
T his is the t ire's "serial number" . It begins
with the letters "DOT " and indicates that the
tire meets all federal standards . The next two
numbers or lette rs indicate the p lant whe re it
was manufactured, and the last four numbers represent the week and year of manufacture.
F or example, the numbers 2213 mean that
the tire was produced in the 22nd week of
2013. The other numbers are marketing co­
des that may or may not be used by the t ire
manufac turer. This information is used to con­
tact consume rs if a tire defect requires a re ­
call.
Audi Origin al tire
T ires with the identification "AO" or "RO" have
been spec ially matched with your Aud i. We
recommend using only these tires because
they meet the highest standards regard ing
safety and driving character istics when used
correctly . Your authorized Aud i dealer will
g lad ly provide you with more information .
Tire ply composition and materials used
The number of plies ind icates the number of
layers of rubber -coated fabric in the t ire. In
general, the greater the numbe r of p lies, the
mo re weight a tire can support. Tire manufa c­
turers a lso must i ndicate the materials in the
tire, wh ic h include steel, nylon, polyes ter, and
others.
ll Fo r tires wit h a m ax im um s pee d ca pabil ity over 149
mph (2 4 0 k m/h) , tire ma nufa cturers some times use
t h e le tters " ZR."
Tire s an d wheel s 201
Maximum Load Rating
This number indicates the maximum load in
k ilograms and pounds that can be ca rr ied by
the tire .
Tire quality grading for treadwear ,
tract ion, and temp erature resistance
Tread wear, t raction and tempe ra tu re grades
¢page 203 .
Maximum Permissible Inflation Pressure
This number is the greatest amount of a ir
pressure that should ever be put in the tire
u nder norma l dr iv ing cond itions .
Replacing tires or rims on vehicles
equipped with tire pressure monitoring
s ystem
The wheels on yo ur vehicle are equipped with
a sensor which constantly monitors the air
pressure inside the tire, and then transm its
th is information to the tire pressure monitor­
ing system. If you are going to repl ace the
whee l rims on your veh icle, make s ure the new
rims also have these sensors . The sensors
mus t be compatib le wit h the t ire pressure
monitori ng system on you r vehicle.
If you install rims, w hich do not have the sen ­
sors, or have senso rs which are not compat i­
ble, then the t ire p ressure monitoring system
will not wor k prope rly. In t his case, t he tire
pressure monitoring system wou ld not be
able to moni tor the tire pressure or warn you
if it is necessary .
- The battery inside of the tire pressure sen ­
sor has a limited serv ice life.
- Always dr ive with the va lve stem caps se­
curely mounted . We recommend using fac­
t o ry installed valve stem caps. Ask yo ur au­
thorized A udi dealer to rep lace lost valve
stem caps .
T he installat ion of repl acemen t tires with
stee l co rd body p lies in the ti re sidewall may .,..
•
•

202 Tire s and whee ls
cause ma lfunction of the tire pressure moni­
toring system, and is not recommended (cord
materia l information in molded on the tire
sidewall).
A lways check your tire pressure monitoring
system indicator after replacing one or more
tires on your vehicle . If the tire pressure mon i­
toring system indicator flashes, or is on, your
system is not working properly.
A WARNING
-Us ing incorrect or unmatched tires and/
or wheels or improper tire and wheel
combinations can lead to loss of cont rol,
co llision and serious persona l injury.
- Always use tires, rims and wheel bo lts
that meet the specifications of orig inal
factory-installed t ires or other combina­
t ions that have been specifically ap­
proved by the vehicle manufac turer .
- T ires age even if they are not be ing used
and can fail suddenly, especially at high
speeds. Tires that are more than 6 years
o ld can only be used in an emergency
and then with special care and at lower
speeds.
- Never mount used tires on yo ur vehicle if
you are not sure of their "previous histo­
ry." Old used tires may have been dam­
aged even though the damage cannot be
seen that can lead to sudden tire failure
and loss of vehicle control.
- Only the wheel/tire s izes specified by the
manufacturer may be used on veh icles
with all-wheel dr ive.
- Never drive faster than the maximum
speed for which the tires on your veh icle
are rated because ti res that are driven
fas ter than their rated speed can fail
sudden ly.
- Overloading t ires cause heat build-up,
sudden tire failure, incl uding a blowout
and sudden deflation and loss of control.
- Temperature grades app ly to tires that
are prope rly inflated and not over or un­
derinflated. -
For technica l reasons it is not always
possible to use wheels from other
vehicles -in some cases not even wheels
from the same veh icle model.
- Do not use run-flat tires on your vehicle.
Using run-flat tires can lead to veh icle
damage or crashes .
(D Note
-For technical reasons, it is not generally
possible to use the wheel rims from oth­
er veh icles . Th is can hold true for wheels
of the same vehicle type .
- If you should put different wheels and
tires on your veh icle (e.g. winter wheels
and tires), you must be certain that the
wheels and tires are compatible with the
tire pressure monitoring system. Other­
w ise the system will register a malfunc­
tion and a fau lt message w ill be dis­
played. For more information, contact
your authorized Audi dealer.
(D Note
- When installing new tires, be care ful not
to damage the valves or tire pressure
monitoring system sensors.
- Never drive without the valve stem cap.
The va lves co uld get damaged.
- If the sensors must be replaced, then
the valve must also be replaced at the
same time.
@ For the sake of the environment
Dispose of o ld tires in accordance with the
l ocal requirements .
(D Tips
Tires with the identification "ROl'' have
been specially matched wi th you r A udi. We
recommend using on ly these tires because
they meet the highest standards regarding
safety and driving characteristics when used correctly. Your authorized Audi R8
dealer w ill gladly provide you with more
i nformat ion.

204 Tire s and wheel s
This also improves the vehicle's braking
performance and reduces stopping distances .
Summer tires provide less g rip on ice and
snow.
W inter t ires (snow t ires) must always be fitted
on all four wheels.
Compat ible tire pressure mon itoring sensors
must be installed on all four winter tires for
the tire pressure monitor ing system to func­
tion properly ~
page 201 .
Ask your authorized Aud i dea le r or qualified
workshop for permitted
wint er tire sizes. Use
on ly radia l wi nte r tires .
W inter t ires lose the ir effectiveness when the
tread is worn down to a depth of 0 .157 inch
(4 mm).
Only drive with winter tires under winter con­
d itions. Summer tires handle better when
there is no snow or ice on the roads and the
temperature is above 45 °F (7 °C).
Please always remember that w inter t ires may
have a lower speed rating than the t ires origi­
na lly installed on your vehicle at the t ime it
was manufactured. Please see~
page 200,
Speed rating (letter code)
for a List ing of the
speed rat ing letter codes and the maximum
speed at wh ic h t he t ires ca n be dr iven .
The speed rating letter code
( ~ page 192) is
on the s ide wall of the tire~
page 199 .
A WARNING
Winter tires have maximum s peed limits
th at may be lowe r than you r vehi cle's m ax­
im um speed. Always know the maxim um
speed befo re d riving off . Never d rive faster
than the speed permitted for your specific
w inte r tires. This will cause damage to the
tires leading to an accident and serious
personal in jury to you and yo ur passen­
gers.
A WARNING
Dr iv ing faster than the maximum speed
for which the w inter t ires on your vehicle
-
were designed can cause t ire fail ure in­
cluding a blowout and sudden deflation,
l oss of contro l, crashes and ser ious per­
sona l injuries. Have worn o r damaged tires
r eplaced immediately .
- W inter tires have maximum speed rating
that may be lower than yo ur vehicle 's
maximum speed.
- Never d rive faster than the speed for
which the w in ter or othe r tires installed
on yo ur vehicle a re rated .
A WARNING
-Always ad just your dr iv ing to the road and
traffic condit ions . Never let the good ac­
ce ler ation o f the w in ter t ires and a ll-wheel
d rive tempt yo u into t aking extra risks. Al­
ways remember:
- W hen braking, an all-wheel drive veh icle
handles in the same way as a front drive
vehicle .
- D rive c arefully and redu ce your spee d on
icy and slippery roads, even w inter t ires
cannot help under black ice conditions .
@ For the sake of the environment
Use summer tires when weather condi­
tions permi t. T hey are qu iete r, do no t wear
as quickly and reduce fuel consumpt ion .
Snow chains
Snow chains may be fitted only to the rear
whee ls, and on ly to certain tire sizes . Ask your
authori zed Aud i dea ler on which tire si zes
snow chains ca n be used .
The snow chains must have low -profi le links
and must not be th icker than 0.53 inch
(13 .5 mm), includ ing the lock.
Remove whee l center covers before putt ing
snow c hains on your vehicle
~ CD . For safety
reasons cover caps must then be f itted over
the wheel bolts. These are available from au­
thorized Audi dea le rs.
