Instruments and warning/indicator lights 19
!;.!~ Electronic Stabilization Control
(ESC)
If the Jjj indicator lamp blinks while driving,
the ESC or ASR (Anti-Slip Regulation) is active­
l y regulating.
If the Ji) i ndicator lamp illuminates, the sys­
tem has switched the ESC
off. In this case, you
can switch the ignition
off and then on to
switch the ESC on again. Th e system is func­
tioning completely when the indicator lamp
switches
off.
If the II indicator lamp illuminates, the ESC
was switched
off with the I ~ OFF ! button.
Stabilization control (ESC/ABS): Fault! See
owner's manual
I f the indicator light Jj;] and the ABS ind icator
light
E (USA models) / ti] (Canada mod­
e ls) turn on and the message appears, there is
a ma lfunction in the ABS system or e lectronic
differential lock. This also interrupts the ESC.
The brakes still function with their normal
power, but ABS is not active.
Drive to your authorized Audi dea le r immedi­
ately to have the malfunction corrected .
For more information about the ESC
c:> page 176.
ABS/( §) Anti-lock braking system (ABS)
This warning/indicator light monitors the ABS
and the electronic differential lock (EDL).
The warning/ind icator light E (USA mod­
els)/ ti] (Canada models) w ill come on for a
few seconds when the ignition is switched on.
The light will go o ut after an automatic check
sequence is completed.
There is a malfunction in the ABS when:
- The warning/indicator light does not illumi­
na te when you switc h the ignition on.
- The warning/indicator light does not go out
after a few seconds.
- The warning/ind icator light illuminates
while driving. T
he ESC indicator light also illuminates if
there is a ma lfunction in the ABS . The mes­
sage
Stabilization control (ESC): Fault! See
owner's manual
a lso appears in the instru­
ment cluster d isplay and a warning tone
sounds.
The brake system will still respond even
without the assistance of the ABS system.
See your authorized Audi dealer as soon as
possible to restore full braking performance .
For more information regarding the ABS
c:>page 176.
Malfunction in the brake system
If the brake warning light c:> page 15 and the
ABS warning illum inate
together there may be
a malfunction in the ABS, and there may also
be a malfunction in the brake system itself
c:> &. The ABS will not work and you will no­
tice a change in braking response and per­
formance.
In the event of a malfunction in the brake
system
the warning/indicator light 1111
(USA mode ls)/ . (Canada models) in the in­
strument cluster flashes
c:> page 15.
Malfunction in the electronic differential
lock (EDL)
The EDL works together with the ABS. The
ABS wa rning light will come on if there is a
malfunction in the EDL system
c:> page 176.
See your authorized Audi dealer as soon as
possible .
A WARNING
---=-if the E (USA mode ls)l ti] (Canada
models) warning light does not go out,
or if it comes on while dr iving, the ABS
system is not working properly. The vehi­
cle can then be stopped only w ith the
standard brakes (without ABS). You w ill
not have the protection ABS provides.
Con tact your authorized Aud i dealer as
soon as possible.
- USA models: If the 1111 warning light
and the
E warning ligh t come on to­
gether, the rear whee ls could lock up

20 Instruments and warning /indicator lights
first under hard braking. Rear wheel lock­
up can cause loss of vehicle control and
an accident. Have your vehicle repaired
immediately by your authorized Audi
dealer or a qualified workshop . Dr ive
slowly and avoid sudden, hard brake ap­
plicat ions.
- Canada models: If the brake warning
light . and the ABS warning light
II]
come on together, the rear wheels could
lock up first under hard braking. Rear
wheel lock -up can cause loss of vehicle
control and an accident . Have your vehi­
cle repaired immediately by your author­
ized Audi dea ler or a qualified workshop.
Drive slowly and avoid sudden, hard
brake applicat ions.
I I !i.' Safety systems
The fl (USA models) ;fll (Canada models) in ­
dicator light monitors the safety systems (e .g.
a ir bags, pretensioners) and illuminates for a
few seconds each time you switch the ignition
on.
If the
I (USA models)/ E,I (Canada mode ls)
indicator light does not go out, or if it illumi­
nates whil e you are driv ing, or if it sta rts to
blink, then there is a ma lf unct ion somewhere
in the system. If the light does not illuminate
when you switch the ignition on, this also
means there is a ma lfunction.
A WARNING
If you have a malfunction in the safety sys­
tems, contact your authorized Audi dealer
immediately. Otherwise the safety sys­
tems may not work properly in an acci­
dent .
(0) Worn brake pads
EIJ Brake pads!
If the warn ing light illuminates, immediately
contact your authorized Audi dealer or quali-
l ) - : USA models onl y
fied workshop to have all brake pads inspect­
ed. On USA models the warning light
EIJ
comes on together w ith the warning light
1111 . Both sets of brake pads on an ax le
must always be replaced at the same time.
A WARNING Co-- -
Driving with bad brakes can cause a colli­
sion and ser ious personal injury.
- If the warn ing light
EIJ and the warn ing
light
11111> with the message Brake
pads!
comes on in the instrument cluster
d isplay, immediately contact you r au­
thorized Audi dealer or qualified work­
shop to have all brake pads checked or
replaced if necessary.
EPC Electronic power control
This warning/indicator light monitors the
electronic power control.
The
(m warning/indicator light (Electronic
Power Control) illuminates when you sw itch
the ignition on as a function check.
(D Tips
If this warning/ indicator l ight illum inates
while you a re driving, then there is a mal­
funct ion in the engine electronics. Have
the malfunct ion corrected as soon as pos­
s ib le by your authorized Audi dealer or
qualified repair facility.
o Malfunction Indicator Lamp (MIL)
The Malfunction Indicator Lamp (MIL) is part
of the On-Board Diagnostic (OBD II) system.
The symbol
¢.j lights up when the ignition is
switched on and will turn off after the engine
has started and has settled at a constant idle
speed. This indicates that the MIL is working
properly.
The warning light illuminates when there is a
malfunction in the engine electron ic system . ..,.

22 Instruments and warning/indicator lights
A WARNING
- light bu lbs are pressurized and could ex­
plode while they are being changed caus­
ing ser ious p erso na l inju ry .
- Work w ith due care when handling the
high -voltage section of gas discha rge
(xenon) lights . Fa ilu re to do so could re­
sult in death or se rious injury.
(D Tips
Have the bulb replaced or the connection
re pa ired by yo ur autho rized Aud i Service
de partment.
~(D Headlight range control
El Headlight range control defective !
If the symbol El illum inates , the dynam ic
h eadl ight range cont rol is no long er wo rking
p rope rly . Have the system checked and re­
pa ired a t your author ized Audi dealer.
§0
Adaptive Light
Appl ies to vehicles: with adaptive ligh t
m;J Audi adaptive light: defective
If the indicator lig ht turns on and t his mes­
sage appears, the re is a ma lfu nction in the
a d apt ive light sys tem . Th e headlights s till
f u nc tion.
Go to an a utho rized dea le rship to have the
h eadlights or the cont ro l unit fo r the adapt ive
light rep aired.
@.D Light/rain sensor
App lies to vehicles: with light/rain senso r
t'£;I Automatic headlight s/ automatic wipers
defective
I f t he in di cator lig ht tu rns on and t his mes­
s a ge appears, the lig ht/r ain se nsor is no t
function ing cor rectly.
For safety reasons the low beams are tu rned
on permanent ly w ith the swi tch in
AUTO .
However, you can con tinue to tu rn the ligh ts
on an d off usin g the light swi tc h. You can still control a
ll functions that are independent of
the ra in sensor through the windshield wipe r
l ever.
C o nta ct you r auth orized Aud i dea ler as soon
as possib le to have the problem co rrec ted.
H Sport differential
Appl ies to vehicles: wit h Aud i drive se lect and spo rt dif·
ferential
Sport differential : System fault!
T he re is a malfunction with t he sport d iffe ren­
tia l.
Drive to y our authorized A udi dealer immedi­
ate ly to have the malfu nction corrected .
Sport differential : Overheating
T he transm iss ion tempera ture ha s in cr eased
s ignificantly due to the sporty d riving manner .
Drive in a less sporty ma nner until the tem­
perature returns to the normal range and the
indicator light switches of.
A WARNING
Contact your author ized Audi dealer or a
q ualified wor kshop if the spo rt differential
i s faul ty or malfunct io ning . T he repair
must be perfor med by t rain ed perso nnel
usi ng the co rrect oil in order to ensure
s a fety .
~ Ignition lock
I!) Ignition lo ck defe ctive
-
The re is a malfunction in the e lect ronic igni­
t io n lock . P lease go to a n author ized Audi
de aler or o ther qua lifie d wo rkshop to have t he
malfu nction rep aire d.
¢¢ Turn signals
Whenever yo u use the left H or the right B
turn s ignal , the indicato r light blin ks. When
you use the emergency f lashe rs, both indica -
tor lights flash . .,.

Instruments and warning/indicator lights 23
If one of the turn s ignal light bu lbs burn out ,
the t urn signa l will blink tw ice as fast as nor ­
mal. Carefully drive to y our authorized A udi
dea le r i mmediately to have the malfunct io n
corrected.

24 Drive r in form ation d ispl ay
Driver information
display
Introduction
The Driver information disp lay inside the in ­
strument cluster provides you, the driver ,
with important information.
Fig . 7 In strum en t cl ust er: center dis pl ay
Fi g. 8 W iper leve r: co ntr ols fo r the menu displa y
Cent er d ispla y
With the ignition on, the display in the Dr iver
I nformation System shows the fol low ing in­
format ion :
- CD* inserted or Radio* station set
- Outside temperature* : At temperatures be-
low 41 °F ( +S °C), a snowflake symbol ap­
pears in front of the temperature display
c::> .&_ .
- Warning if one of the doors , front lid or en-
gine compartment lid is not closed .
Additional fun cti ons
You can open the following function s in the
Driver Information System display by pressing
the
! R ESE T I button c::> fig. 8 one or more times:
Digital speedometer*
Tire pressure monitoring *
~page240
Trip computer
Service interval display
Speed warning
Gearshift selector positions
Automatic transmission
Adapt ive cruise control*
Lap timer
c::> page25
c::> page 27
c::> page 81
c:> page 92
Eng ine oil temperature indica-c:> page 28
tor
Auto Check Control
Some functions and veh icle components are
scanned for their operating status when you
switch the ignition on and whi le you are driv­
i ng . Malfunctions or required service proce ­
dures are s ignaled audib ly and ind icated by
red and yellow illuminated symbols and re­
minders in the disp lay.
A WARNING
- Never rely exclusively on the outside
temperature display to determine if a road surface is icy or not. Keep in m ind
that road surfaces, especially br idges
and overpasses, could be ice covered and
slippery even at an outside temperature
above 4 1 °F (+ S
0
() .
-Always remember , even if the "snow­
f lake" symbo l (ice warning) does not ap­
pear in the d isp lay, black ice co uld be on
the road .
- Always reduce your speed a nd d rive with
specia l care in cold weathe r cond itions
when the chance of encountering icy
road surfaces increases.
© Tips
If the vehicle is stationa ry, or if you are
driving at a very low speed, the tempera­
tu re shown in the display mig ht be s light ly
higher than the actua l outside tempera ­
ture . This is caused by the heat being radi ­
ated from the engine.

28 Driver information d isplay
Engine oil temperature
indicator
Fig . 13 Dis play: e ngine oil temperat ure indica tor
.. With the ign it ion switched on, press the
IRESET lbutton
¢ page 26, fig. 11 repeated­
ly until the engine oil temperature indicator
is shown.
If the engine oil temperature is be low 140 ° F
(60 °C) , the G!#JI symbol followed by three hy ­
phens"- --" and the °C unit is shown .
At an engine oil temperature above
140 °F
(60 °() the engine has reached its operating
temperature . The engine oil temperature may
be higher if there is heavy engine load and
high temperatures outside. This is not a cause
for concern as long as the. ¢
page 17 or
the
II ¢ page 21 warning light in the display
does not flash .
Lap timer
Introduction
You can record and eva luate lap times with
the lap timer in the display¢
page 28,
fig. 15. The time is measured in minutes, sec­
onds and
1/10 seconds. The hours are also
shown when the lap time exceeds 60 minutes .
The maximum individual measurement is
99
hours. A max imum of 99 laps may be record­
ed.
& WARNING
-
Please devote your fu ll att ent ion to driv­
ing. As the driver, you have comp lete re­
sponsibility for safety in traffic. Only use
the funct ions in such a way that you always maintain complete control over your vehi­
cle in all traffic situations.
(D Tips
When the lap timer stopwatch is runn ing,
you can call up the trip computer informa­ tion with the I RESET I button .
Calling up the lap timer and timing
Fig. 14 Controls
Fig. 15 Display : Lap timer
Calling up the lap timer
.. Press the I RESET ! button ~ fig . 14 @ until
the lap timer¢
fig. 15 appears.
Timing laps
.. To start timing, press the upper section of
the wiper switch @. The time measurement
is shown in line@¢
fig. 15.
.. To stop t iming, press the upper section of
the wiper switch @ again. This also starts
timing the next round. The prev ious timing
always moves one line down, first into line
@, and then into lines @and @. The lap
number that corresponds to the timing is
disp layed in front of the individual timings. ..,.

Displaying intermediate time and pausing
timing
• To disp lay an intermediate time, press the
lower section of the wiper switch ®· The
timing continues to run in the background.
• To pause timing, press the lower section of
the wiper switch ® again .
• To continue t iming, press the upper section
of the wiper switch @.
If timing is paused, you can continue it later
even if you switch the ign it ion off.
Evaluating times and continuing or
resetting timing
You can evaluate the fastest, slowest and
average lap times.
Fig. 16 Display : lap t ime eva luat ion
• To eva luate lap times, press and hold the
I RESE T I button ¢ page 28, fig. 14@for ap­
proximate ly 2 seconds. The number of laps
traveled, the fastest lap"+", the slowest lap
"-" and the average lap time "0" appears in
the display .
• To continue timing for additional laps, press
the wiper switch @.
• To reset the timer to zero, press and hold
the
I RESET ! button again for approximately
2 seconds .
• To switch the lap timer off completely, press
the
I RESE T I button briefly.
(D Tips
-Saved lap times cannot be individually
deleted from the total resu lts.
- The saved lap timer values will not be
l ost after turning the ignition off .
Driver information display 29
On-Board Diagnostic
system (OBD)
Malfunction Indicator Lamp (MIL)
The Malfunction Indicator Lamp (MIL)¢• in
the instrument cluster is part of the On-Board
Diagnostic (OBD II) system .
T he warning/indicator light illuminates when
the ignition is switched on and goes out after
the engine starts and the id le has stabilized.
This indicates that the MIL is working proper­
ly.
If the light does not go out after the engine
is started, or illuminates while you are driv­
ing, a malfunction may exist in the engine sys­
tem .
If the light illuminates, the catalytic con­
verter could be damaged .
Continue driving
with reduced power (avoid­
ing sustained high speeds and/or rapid accel­
erations) and have the condition corrected.
Contact your authorized Audi dealer.
An improperly closed fuel filler cap may also
cause the MIL light to illuminate
¢ page 204.
On-Board Diagnostics
Fig. 17 Locat io n of Data Link Co nn ector (D LC)
On-Board Diagnostics monitors the compo ­
nents of your emission contro l system. Each
monitored component in your engine system
has been assigned a code. In case of a mal­
funct ion , the component will be identified
and the fault stored as a code in the control module memory.

30 Driver in formation d isplay
The MIL light may a lso illuminate if there is a
l eak in the on-board fue l vapor recovery sys­
tem .
If the light illuminates after a ref ueling,
stop the veh icle and make sure the fue l filler
cap is properly closed
¢ page 204.
In order to make an accurate diagnosis, the
stored data can only be displayed using spe ­
cial diagnostic eq uipment (gener ic scan tool
for OBD).
In order to connect the special diagnostic
eq uipment, push the p lug into the Data L ink
Connector (DLC). The DLC is located to the
rig ht of the hood release
¢ fig. 17.
Your authorized A udi dealer or qualified work ­
shop can interpret the code and perform the necessary repa ir.
A WARNING
Do not use the diagnostic connector for
personal use. Incorrect usage can cause
malf unctions, which can increase the risk
of a coll is ion!
-

36 Opening and clo sing
- You cannot open the doors or the rear lid
from th e outside (increased security, for ex­
amp le when you are stopped at a red light).
- The diodes in the power locking switch illu­
minate when all the doors are closed and
locked .
- You can unlock and open the doors from the
inside by pulling on the door hand le .
- If you have a crash and the airbag is activat ­
ed, the doors automatically un lock .
.&_ WARNING
- The power locking switch works with the
ignition off and automatically locks the
entire vehicle when it is actuated .
- On a vehicle locked from the outs ide the
power locking system switch is inopera­
t ive .
- locked doors make it more difficult for
emergency workers to get into the vehi­
cle, which puts lives at risk . Do not leave
anyone beh ind in the veh icle, especially
children.
(D Tips
Your vehicle is locked automatically at a speed of
9 mph (15 km/h) (Auto lock)
¢ page 31. You can unlock the veh icle
again using the opening f unction in th e
power locking sys tem switch
@I.
Setting power locking
In the radio/MM!* , you can set which doors
the central locking system will unlock.
• Select :
I CAR I function button> Central lock­
ing .
Or
• Se lect :
~I C-A-R ~I funct io n button > Car sy stem s*
control bu tton > Vehicle setting s > (Centr al
locking )*.
Sing le door un locking /Unlock do ors* -
you
can specify which doors un lock when you open
the veh icle .
- Se lecting
off /All and pressing the I@ b utton
on the remote cont ro l key unlocks the entire
vehicle . -
Selecting
on/Dri ver and pressing the~ but­
ton on the r emote control key once un locks
only the driver 's door. In vehicles w ith a con­
ven ience key*, only the door whose handle
you pull will unlock . If you press the
@J but­
ton tw ice, the entire vehicle will un lock .
If
you p ress the I@ b utton, t he ent ire ve hicle
w ill always lock.
Luggage comp. lock /Lock e xterior trunk han ­
dle -
If you select On, you can no longer ope n
t h e luggage compartment usi ng the rea r lid
hand le ¢ page 37, fig .
26. In this case, the
rear lid can be opened with the
l=I button on
t h e master key
¢ page 34 , fig. 21.
Ton e when locking -if you select On, a tone
will sound when you lock the vehicle .
Auto Lock/Lock when driving -if you select
On, the entire vehicle w ill lock automatica lly
when the speed reaches
9 mph ( 1 5 km/h) .
Emergency locking
Fig. 24 D river 's doo r: lock cy li nder
Fig. 25 Fro nt pass eng er 's doo r: emer gency lock
If the central locking system malfunctions,
you must unlock/lock the doors separate ly us­
i ng the emergency key or the mechanical key . .,.

38 Openin g and clo sing
Opening th e re ar lid
.,. Press the button c::5 on the remote contro l
master key for at least one second. The rear
lid unlocks and opens slightly. Or
.,. Press the handle on the rear lid
Q fig. 26.
Closing th e re ar lid
.,. Pull the rear lid down at the grip on the in­
side and allow it to drop gently to close it
¢ ,& .
~ WARNING
-After closing the rear lid, always pull up
on it to make sure that it is properly
closed. Otherwise it could open suddenly
when the vehicle is moving.
- To help prevent po isonous exhaust gas
from being drawn into the veh icle, al­
ways keep the rear lid closed while driv­ ing. Never transport objects larger than
those which fit completely into the lug­
gage area, because then the rear lid can­
no t be fully closed.
- Never leave you r vehicle unattended es­
pecially with the rea r lid left ope n. A
child could crawl into the car through the
l u ggage compartment and pull the lid
shut, becoming trapped and unab le to
get out. To reduce the risk of persona l in­
jury, never let children play in or around your vehicle. A lways keep the rear lid as
well as the vehicle doors closed when not in use.
- Always ensure that no one is w ithin
range of the rear lid when it is mov ing, in
part icu lar close to the h inges -fingers or
hands can be pinched.
@ Tips
When the vehicle is locked, the rear lid can
be opened separately by pressing the but­
ton
c::5 on the maste r key. When you close
the r ear lid agai n, it locks automatically.
Emergency unlocking of the luggage
compartment lid
There is an emergency release for the rear lid .
AUDl
F ig . 27 Rear lid: Lock cylinder
.,. Remove the mechanica l key ¢ page 33.
.,. Insert the key in the lock cylinder and turn it
in the direction of the arrow.
· Trunk escape handle
In case of an emergency , the luggage com­
partment lid can be opened from the inside using the trunk escape handle.
F ig . 28 Tru nk escape handle: v iew from inside the

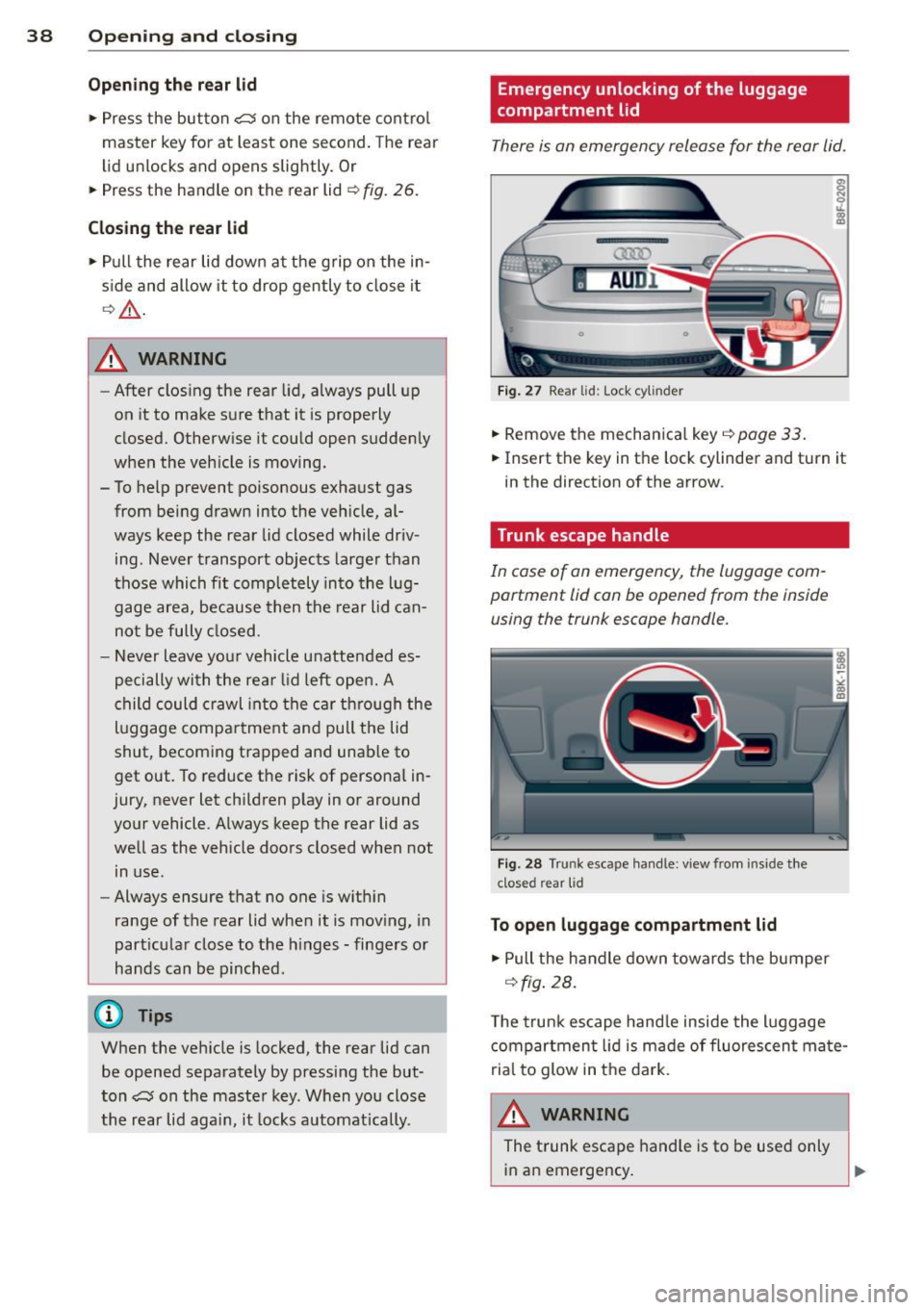

closed rear lid
To open luggage compa rtment lid
.,. Pull the handle down towards the bumper
¢ fig . 28.
T he trunk escape hand le inside the l uggage
compartment lid is made of fluorescent mate­
rial to glow in t he dark.
A WARNING
The t runk escape handle is to be used only
in an emergency .
