-Always wear gloves and eye protection.
Do not tilt the battery because acid
could leak out of the ventilation open­
ings .
- If you get battery acid in your eyes or
on your skin, immediately rinse with
cold water for several minutes and get
medical attention.
- If you should ingest any battery acid,
seek medical attention immediately.
- Do not expose the battery to an open
flame, electric sparks or an open light .
- Do not smoke.
- Do not interchange the positive and neg-
ative cables .
- When working on the battery, be sure
not to short-circuit the terminals with
tools or other metal objects. This would cause the battery to heat up very quickly,
which could lead to damage or explosion
and personal injury .
- When a battery is charged, it produces
hydrogen gas which is explosive and
could cause personal injury .
- Always keep the battery well out of the
reach of children .
- Before work is done on the electrical sys­
tem, disconnect the negative ground ca­
ble.
- Before performing any work on the elec­ trical system, switch off the engine and
ignition as well as any electrical equip­
ment. The negative cable on the battery
must be disconnected.
If you are just go­
ing to replace a light bulb, then it is
enough to switch off the lights.
- Before disconnecting the battery , switch
off the anti-theft alarm system! Other­
wise you will set off the alarm.
- When disconnecting the battery, first
disconnect the negative cable and then
the positive cable.
- Before reconnecting the battery, make
sure all electrical consumers are switch­
ed off. Reconnect the positive cable first
and then the negative cable. Never inter­
change the cables - this could start a fire!
Checking and filling 219
- Never charge a frozen or a thawed-out
battery . It could explode! If a battery has
frozen, then it must be replaced. A dis­
charged battery can freeze over at 32°F
(ooc).
- Make sure the vent hose is always attach­
ed to the opening on the side of the bat­
tery .
- Never use batteries which are damaged.
There is the danger of an explosion! Al ­
ways replace a damaged battery .
A WARNING
California Proposition 65 Warning:
- Battery posts, terminals and related ac­
cessories contain lead and lead com­
pounds, chemicals known to the State of
California to cause cancer and reproduc­
tive problems . Wash hands after han­
dling.
(D Note
- Do not disconnect the vehicle battery
when the ignition is switched on or when
the engine is running, otherwise, you will
damage electronic components in the
electrical system.
- If your vehicle is going to stand for a
long period of time without being driven,
protect the battery from "freezing", oth­
erwise it will be damaged and will then
have to be replaced.
Battery charging
Start ing the engine requires a well charged
battery.
Fig . 183 Eng in e compart ment : Co nnectors fo r charger
and jum per cab les
1111>

220 Check ing and filling
Al ways read and h eed all WARNING S below
¢ A and ¢ A in Working on the bottery on
page 218.
.,. Turn off the ignit ion and a ll elect rical con­
sumers .
.,. Make sure the area is well venti lated when
yo u charge the battery.
.,. Open the engine hood ¢
page 207.
.,. Open the cover on the positive pole
¢ fig . 183 .
.,. Connect the charger connectors accord ing to
the instructions to the
j ump sta rt bolt s.
(Bolts under the cover= "positive" , Bolts
with hex head= "negative") .
.,. Only now plug the mains lead for the charg­
ing equipment into the wall outlet and turn
it on ¢.&_ .
.,. Ma ke sure the ch arging rat e is not ov er
30 amp s/14. 8 Volt.
.,. When the battery is fully charged: Turn the
charging equ ipment off and remove the
mains lead from the wall outlet .
.,. Now remove the clamps for the charg ing
equipment.
.,. Close the cover on the posit ive po le.
.,. Close the hood
¢ page 207.
A discharged batte ry can freez e at tempera­
tures of on ly 32 ° F (0 °C). A llow a frozen bat­
tery to thaw completely before attempt ing to
charge it¢
A . Howeve r, we recommend not
using a thawed battery again because the bat­
tery cas ing can be cracked d ue to ice forma­
tion and can leak battery acid.
Batt ery charging (Ma ximum cha rging rate
of 30 amp s/14 .8 Volt)
When charging at low voltages (e.g . w ith a
tr ickle ch arger ), the battery cables do not
have to be d isconnected first. The battery
caps should
not be opened when charging a
battery .
It is not necessary to remove the battery from
the luggage compartment.
Fa st chargin g th e batt ery (cha rging rate
ab ove 14.8 V olt s)
For technical reasons do not use a battery
charger that uses voltage greater than 14.8
Volts to charge your vehicle's battery.
A WARNING
= -
Charging a battery can be dangerous .
-Always follow the operating instructions
provided by the battery charger manu­
facturer when charg ing your battery .
- Never charge a frozen battery. It may ex­
plode because of gas trapped in the ice.
Allow a frozen battery to thaw out f irst .
- Do not reuse batteries wh ich were fro­
zen. The battery housing may have
cracked and weakened when the battery
froze.
- Charge the battery in a well ventilated area. Keep away from open flame or elec­
tr ica l spark. Do not smoke. Hydrogen gas
generated by the battery is explos ive .
- To reduce the danger of explosion, never
connect or d isconnect charger cab les
while the charger is ope rat ing .
- Fast charging a battery is dangerous and
should only be attempted by a compe­
tent techn ic ian wi th the proper equip­
ment.
- Battery acid that may sp ill dur ing cha rg­
ing should be washed off wi th a solut ion
of warm water and baking soda to neu ­
tralize the ac id.
(D Note
Neve r use a fast charger as a booster to
start the eng ine. Th is w ill seriously dam­
age sensitive e lectronic components, such
as contro l units, re lays, radio, etc., as well
as the battery charger.

Battery replacement
The new battery must have th e sam e specifi­
cations and dim ensions as the original equip­
ment battery.
Intell igent energy management in your vehi­
cle is respons ible for d istr ibuting the e lectr i­
cal energy throughout your vehicle
c::>
pag e 182. The intel ligent e nergy ma nage­
men t system w ill keep the eng ine ba tte ry
ch arged be tte r th en vehicles w ithout t his sys ­
tem . To make sure the additional e lectrica l en ­
e rgy is available once again after you have
changed th e battery, we recommend that you
install batteries of the same type and man u­
facture only (the same as those installed at
the time your vehicle was delivered). Specifi­
cations a re listed on the battery hous ing. Your
author ized Audi d ealer must code the battery
in the energy management system to enable
you to u se the ene rgy man agement func tions
correctly a fter rep lac ing the b att ery.
If it is not poss ible to use a battery of this
type, the new battery must have the same ca­
paci ty, voltage ( 12-volts), ampe rage, con­
s truc tion and pl ug sea ling.
W hen insta lli ng the battery, make sure the ig­
ni tion and all e lectr ical c ons umers a re turned
off.
CD Note
Ma ke s ure the venti lation hose on the s ide
of the bat tery is connected, ot he rwise
fumes or ba ttery a cid c an leak out.
@, For the sake of the environment
Because of the probl em of proper d isposa l
of a batte ry, we recommend your autho r­
i z e d Au di d ealer change the batt ery for
you. Batter ies co ntain s ulfu ric ac id and
lead and m ust always be dis posed of prop ­
erly i n complia nce w ith all environmental
reg ulations. D isposin g of vehicle batteries
improper ly is very dangerous to the envi­
ronment.
Checkin g and fillin g 221
Windshield/headlight*
washer container
Fig. 184 Engine compartment: Cover on th e win d·
s hi eld and headlig ht' washer fluid conta iner
The was her fluid container is marked w ith the
symbol Won its cap c::>
fig. 184, c::> page 209,
fig. 177.
.. Before you check anything in the engine
compartment,
always read and heed all
WARNINGS c::> &. in Working in the engine
compartment on page 207.
.. Lift the fi ller cap tongue to add washer flu­
id. You can fi ll the containe r to t he top .
.. Press the cap back o nto the fi lle r nec k afte r
filling the container.
You can find the reservo ir
capacity in t he table
in c::>
page 263.
Clean water should be used when filling up. If
poss ible, use soft water to prevent scaling on
the washer jets. A lways add a glass cleane r
solution (with frost pro te ction in t he winter).
CD Note
Do not mix engine coo lant antifreez e or
a ny other addit ives to f ill up t he win d­
sh ield washer rese rvo ir.
•
•

222 Tire s and wheel s

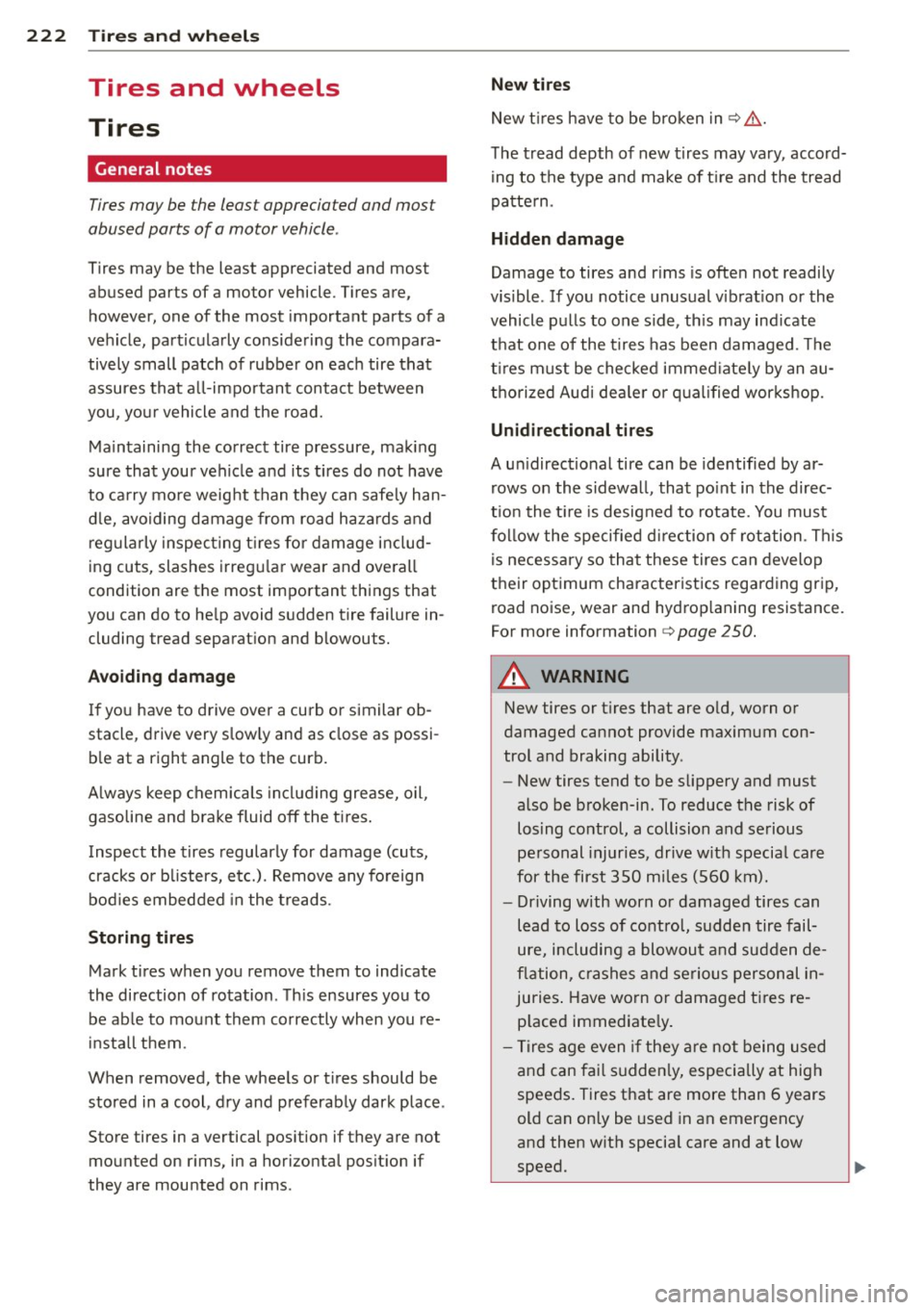

Tires and wheels
Tires
General notes
Tires may be the least appreciated and most
abused parts of a motor vehicle .
Tires may be the least appreciated and most
abused parts of a motor vehicle . Tires are,
however, one of the most important parts of a
vehicle, particularly considering the compara­
tive ly small patch of rubber on each tire that
assures that a ll-impo rtant contact between
you, your vehicle and the road.
Maintaining the correct tire pressure, mak ing
sure that your vehicle and its tires do not have
to carry mo re weight than they can safe ly han­
d le, avoiding damage from road hazards and
reg ularly inspecting t ires for damage includ­
ing cuts, slashes irregu la r wear and ove rall
condition are the most important things that
you can do to he lp avoid sudden tire failure in­
cluding tread separat ion and blowouts.
Avoiding damage I f you have to drive over a curb or similar ob­
stacle, drive very s low ly and as close as possi ­
b le at a right angle to the curb.
A lways keep chem ica ls includ ing gre ase, o il,
gasoline and b rake fluid off the ti res .
Inspect the t ires regularly for damage (cuts,
cracks or b listers, etc.). Remove any fo reign
bod ies embedded in the treads.
Storing tires Mark tires when you remove them to indicate
the direction of rotation . Th is ensures you to
be ab le to mount them correctly when you re­
install t hem.
When removed, the whee ls or t ires should be
stored in a cool, d ry and preferably dark place .
Store tires in a vertical pos ition if they are not
mounted on r ims, in a horizontal pos it ion if
they are mounted on rims. New tire
s
New t ires have to be broken in¢&,. .
T he tread depth of new t ires may vary, accord­
ing to the type a nd make of t ire and the tread
pa tte rn .
Hidden damage
Damage to tires and r ims is ofte n not readily
vis ible . If you notice unusual v ibrat ion or the
vehicle p ulls to one s ide, th is may ind icate
t h at one of the t ires has been damaged . Th e
t ir es m ust be checked immed iate ly by an au ­
tho rized Aud i dea le r or q uali fied wor ks hop.
Unidirectional t ires
A un idirectional tire can be identified by ar­
rows on the s id ewa ll, that po int in the direc­
t ion the t ire is desig ned to rotate. You mus t
f ol low the specified d irection of rotation . This
is necessary so that these tires can develop
their optimum characterist ics regarding grip,
road no ise, wear and hyd rop laning resistance.
For more information
¢ page 250.
A WARNING
-New tires or tires that are o ld, worn or
damaged cannot provide maximum con­
trol and braking ability .
-
-New tires tend to be slippery and must
also be broken-in. To reduce t he risk of
losing control, a collision and se rious
pe rsonal injuries, drive w it h specia l care
for the first 350 miles (560 km).
- Driving with worn or damaged tires can
le ad to loss of control, sudden tire fail­
ure, including a blowou t and sudden de­
fl ation, c rashes and seriou s personal in­
juries . Have wo rn or damaged t ires re­
p laced immediate ly .
- T ires age even if they are not being used
an d can fai l sudden ly, especially at high
speeds. Tires that are more than 6 years
old can only be used in an emergency
and then w ith specia l care and at low
speed.

-Never mount used tires on yo ur vehicle if
yo u are not sure of their "previous histo­
ry." Old used tires may have been dam­
aged even though the damage cannot be
seen that can lead to sudden tire failure
and loss of vehicle control.
- If you notice unusual vibration or if the
vehicle pulls to one side when d riving, al­
ways stop as soon as it is safe to do so
and check the wheels and tires for dam­
age .
(D Note
Please note that summe r and wi nte r tires
are designed for the cond itions that are
Glossary of tire and loading terminology
Accessory weight means the comb ined weight (in excess of
those sta ndard items which may be rep laced)
of au toma tic transmission, power steer ing ,
power brakes, power windows, power seats,
radio, and heater, to the extent that these
items are availab le as factory-installed equip­
ment (whether installed or not) .
Aspect ratio
means the rat io o f the height to the w idth of
the tire in percent . Numbers of 55 or lower in ­
dicate a low sidewall for improved steering re­
sponse and better overa ll handling on dry
pavement .
Bead
means the part of the t ire t hat is made o f
steel wires, wrapped or reinforced by ply cords
and that is shaped to fit the r im.
Bead separation
means a b reakdown of the bond between
components in the bead .
Cord means the strands forming the plies in the
tire.
Tire s an d wheel s 223
typica l in those seasons . Aud i recommends
using winter tires during the winter
months . Low temperatures signif icant ly
dec rease the e lasticity of summer t ires,
which affects tract ion and brak ing ability.
If summer t ires are used i n very co ld tem ­
peratures, cracks ca n form o n the tread
bars , res ulting in perma nen t tire damage
that can cause loud driving noise and un­
bala nced ti re s. Audi i s not respon sible for
th is type of damage .
Cold tire inflation pressure
means the t ire p ress ure recommended by t he
vehicle manufacture r fo r a tire o f a des ignated
s ize t hat has not bee n driven for more than a
coup le o f miles (k ilometers) at low speeds in
the three hour period before the tire press ure
is m easured or adjusted.
Curb weight
me ans the we ight of a motor ve hicle with
st andard equipmen t incl ud ing the max imum
capacity of fuel, oi l, and coolant, air condi ­
tioning and additional weig ht of optiona l
equipment.
Extra load tire
means a t ire design to oper ate a t higher load s
and at higher inflation pressures than the cor­
responding standa rd tire . Extra load tires may
be identified as "XL", "x l", "EXTRA LOAD", o r
"RF" on the sidewal l.
Gross Axle Weight Rating ("GAWR")
me ans the load-ca rry ing capac ity of a single
axle system , measured at the tire -ground in­
te rfaces.
Gross Vehicle Weight Rating ( "GVWR ")
mea ns the maximum total loaded we ight of
the ve hicl e. .,..
•
•

224 Tires and wheels

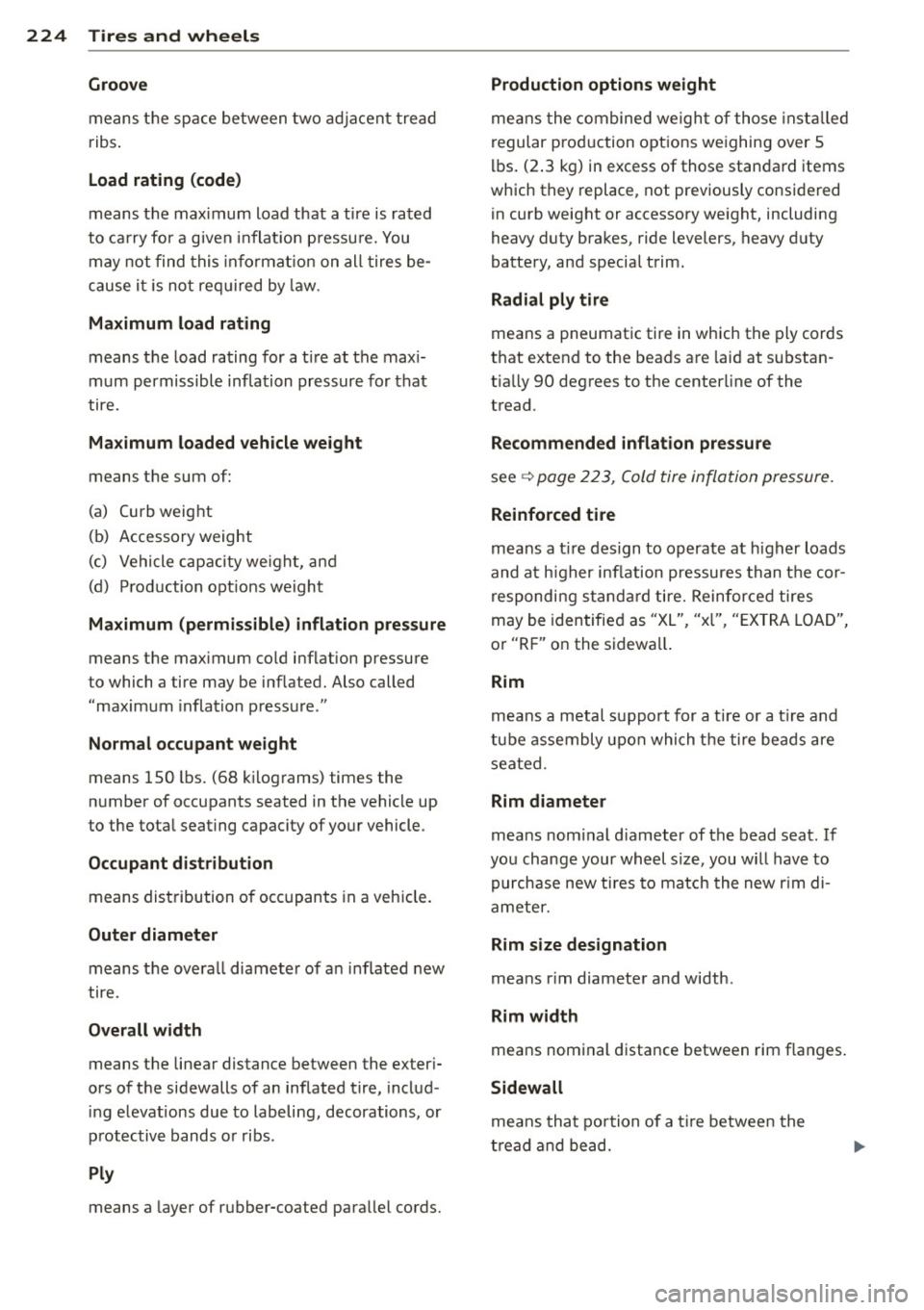

Groove
means the space between two adjacent tread
ribs .
Load rating (code)
means the maximum load that a tire is rated
to carry for a given inflation pressure. You
may not find this informat ion on all tires be­
cause it is not req uired by law.
Maximum load rating
means the load rating for a t ire at the max i­
mum permissible inflation pressure for that
tire.
Maximum loaded vehicle weight
means the sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity we ight, and
(d) Production options weight
Maximum (permissible) inflation pressure
means the maximum cold inflation pressure
to which a tire may be inflated. Also called
"maximum inflation pressure ."
Normal occupant weight
means 150 lbs. (68 kilograms) times the
number of occupants seated in the vehicle up
to the total seating capacity of your vehicle .
Occupant distribution
means distribution of occupants in a vehicle.
Outer diameter
means the overa ll diameter of an inflated new
tire.
Overall width
means the linear distance between the exteri­
ors of the sidewalls of an inflated tire, includ ­
ing elevations due to labeling, decorations, or
protective bands o r ribs .
Ply
means a layer of rubber-coated parallel cords.
Production options weight
means the combined weight of those insta lled
regular production options weighing over 5
lb s. (2 .3 kg) in excess of those standard items
which they replace, not previously considered
in curb weight or accessory we ight, including
heavy duty brakes, ride levelers, heavy duty
battery, and special trim.
Radial ply tire
means a pneumat ic tire in which the ply cords
that extend to the beads are laid at substan­
t ia lly 90 degrees to the center line of the
tread .
Recommended inflation pressure
see<=> page 223, Cold tire inflation pressure.
Reinforced tire
means a t ire design to operate at higher loads
and at h igher inflation pressures than the cor­
responding standa rd tire. Reinforced tires
may be identified as "XL" "xl" "EXTRA LOAD"
' ' '
or "RF" on the sidewa ll.
Rim
means a metal support for a tire or a tire and
tube assembly upon which the tire beads are
seated.
Rim diameter
means nom inal diameter of the bead seat. If
you change your wheel s ize, you will have to
purchase new tires to match the new rim di­
ameter.
Rim size designation
means r im diameter and width .
Rim width
means nominal distance between rim flanges.
Sidewall
means that portion of a tire between the
t read and bead.

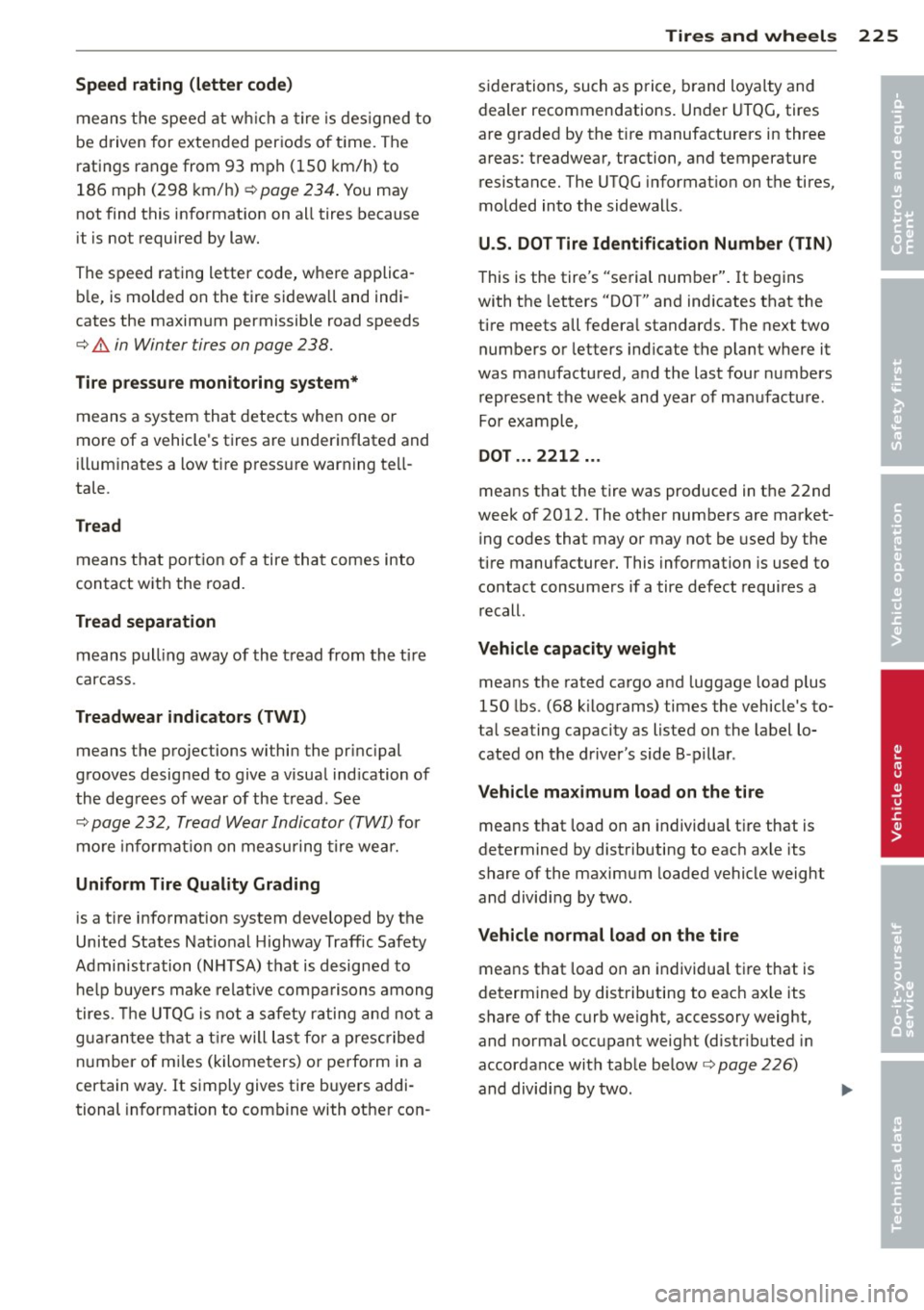

Speed rating (letter code)
means the speed at wh ich a tire is des igned to
be driven for extended periods of t ime . The
ratings range from 93 mph (150 km/h) to
186 mph (298 km/h)
¢page 234. You may
not find this information on all tires because
it is not required by law.
The speed rating letter code, where applica­ b le, is molded on the tire sidewall and indi­
cates the maximum permissible road speeds
¢ &. in Winter tires on page 238.
Tire pressure monitoring system*
means a system that detects when one or
more of a vehicle's tires are underinflated and
illuminates a low tire pressure warn ing te ll­
tale .
Tread
means that port ion of a tire that comes into
contact with the road.
Tread separation
means pulling away of the tread from the tire
carcass .
Treadwear indicators (TWI)
means the projections within the pr incipal
grooves designed to give a visual ind ication of
the degrees of wear of the tread. See
¢
page 232, Tread Wear Indicator (TWI) for
mo re inf ormat ion on measuring tire wear.
Uniform Tire Quality Grading
is a tire information system developed by the
United States National Highway Traffic Safety
Admin istration (N HTSA) that is designed to
help buyers make relative comparisons among
tires . Th e U TQG is not a safety rating and not a
g ua ran tee that a tir e will last for a prescribed
number of mi les (kilometers) or perform in a
certain way. It simply gives tire buyers addi ­
tional information to combine with other con-
Tires and wheels 225
siderations, such as price, brand loyalty and
dealer recommendations. Under UTQG, tires
are graded by the t ire manufacturers in three
areas : treadwear, traction, and temperature
resistance. The UTQG informat ion on the tires,
molded into the sidewalls .
U.S. DOT Tire Identification Number (TIN)
This is the tire's "serial number". It begins
with the letters "DOT" and indicates that the
tire meets all federa l standards. The next two
numbers or letters indicate the plant where it
was manufactured, and the last four numbers
represent the week and year of manufacture.
For example,
DOT ... 2212 ...
means that the tire was produced in the 22nd
week of 2012. The other numbers are market­
ing codes that may or may not be used by the
tire manufacturer. This information is used to
contact consumers if a tire defect requires a
recall.
Vehicle capacity weight
means the rated cargo and luggage load plus
150 lbs . (68 k ilograms) times the vehicle's to­
tal seating capacity as listed on the label lo­
cated on the driver's side B -pillar .
Vehicle maximum load on the tire
means that load on an individual tire that is
determined by distributing to each axle its
share of the maximum loaded vehicle weight
and dividing by two.
Vehicle normal load on the tire
means that load on an individual tire that is
determined by distributing to each ax le its
share of the curb weight, accessory weight,
and normal occupant weight (distr ibuted in
accordance with table below¢
page 226)
and dividing by two.
•
•

226 Tires and wheels

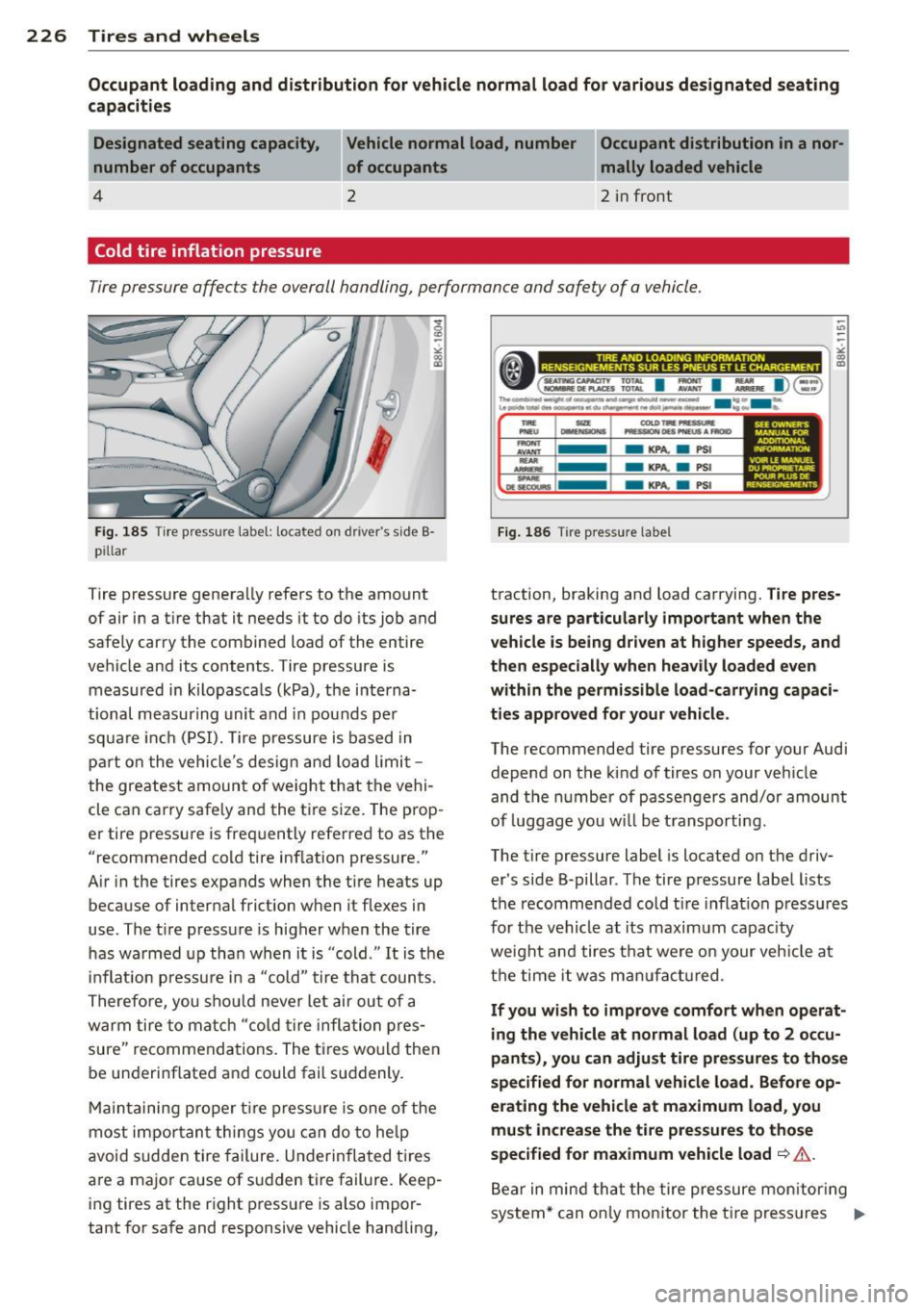

Occupant loading and distribution for vehicle normal load for various designated seating
capacities
Designated seating capacity,
number of occupants Vehicle normal load, number Occupant distribution in a nor-
of occupants
_____ mally loaded vehicle
4 2 2 in front
Cold tire inflation pressure
Tire pressure affects the overall handling , performance and safe ty of a vehicle.
Fig. 185 Tire press ure label: loca ted on driver's side B·
p ill ar
Tire pressure generally refers to the amount
of air in a tire that it needs it to do its job and
safely carry the combined load of the entire
vehicle and its contents . Tire pressure is
measured in kilopascals (kPa), the interna·
tional measuring unit and in pounds per
square inch (PSI). Tire pressure is based in
part on the vehicle's design and load limit -
the greatest amount of weight that the vehi·
cle can carry safe ly and the t ire size. The prop·
er tire pressure is frequently referred to as the
"recommended cold tire inflation pressure."
Air in the tires expands when the tire heats up
because of internal frict ion when it flexes in
use . The t ire pressure is higher when the tire
has warmed up than when it is "cold ." It is the
inflation pressure i n a "cold" tire that counts.
Therefore, you should never let air out of a
warm tire to match "cold tire in fla tion pres­
sure" recommendations. The tires would then
be underinflated and could fail suddenly .
Maintaining proper tire pressure is one of the
most important things you can do to help
avoid sudden tire failure. Underinflated tires
are a major cause of sudden tire failure. Keep·
i ng tires at the right pressure is also impor­
tant for safe and responsive vehicle handling,
-U'>
-
---------------------- ,;
•(=~= I: I::... 1)§ :l!: n-...,....,....,~ ...... ~-...,..., ..... _ ... U ........ ~-·~N.-..-.we..... .... lllt-
-AVANT ...,.
-...... .. _
-KPA. a PSI
- KPA. a PSI
-KPA. a PSI
Fig. 186 Tire pressure label
SEE OWNEJICS MANUA1 FOA A,DOITl<>N.IU. INfORMATlON
VOIR L£ MANUll DUPR0ftlET""" P"OUR i-t.US DE RENSEIGMEMENfS
traction, braking and load carrying. Tire pres­
sures are particularly important when the
vehicle is being driven at higher speeds, and
then especially when heavily loaded even
within the permissible load-carrying capaci­
ties approved for your vehicle.
The recommended tire pressures for your Audi
depend on the kind of tires on your veh icle
and the number of passengers and/or amount
of luggage you will be transporting.
The tire pressure label is located on the driv­
er 's side B-pillar . The tire pressure label lists
the recommended cold t ire inflat ion pressures
for the vehicle at its maximum capacity
weight and tires that were on your veh icle at
the time it was manufactured .
If you wish to improve comfort when operat­
ing the vehicle at normal load (up to 2 occu­
pants), you can adjust tire pressures to those
specified for normal vehicle load. Before op­
erating the vehicle at maximum load, you
must increase the tire pressures to those
specified for maximum vehicle load
~ ,&..
Bear in mind that the tire pressure monitoring
system * can on ly mon itor the tire pressures .,.

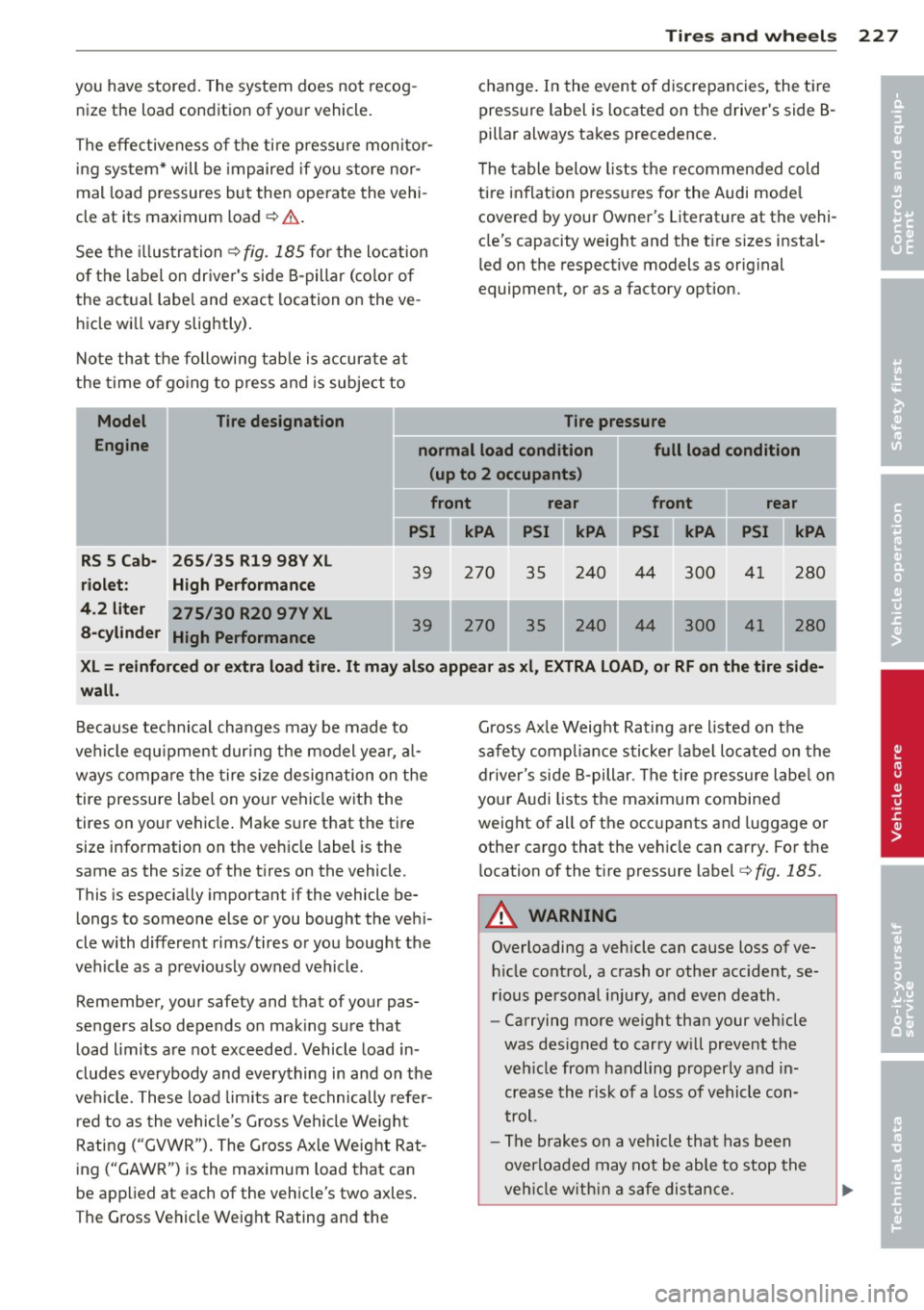

Tires an d wheel s 22 7
you have stored. The system does not recog ­
nize the load condition of your vehicle.
The effectiveness of the ti re pressu re monitor­
ing sys tem* will be impaired if you store nor ­
mal load pressures but then operate the vehi ­
cle at its maximum load¢,& .
See the illustration ¢
fig. 185 for the location
of the label on dr iver's side B-pillar (co lor of
the actual labe l and exact location on the ve­
hicle wi ll vary slig htly) .
Note that the fo llowing tab le is accurate a t
the t ime o f go ing to press and is subject to
Tire designation
change. In the event of discrepancies, the ti re
pressure label is located on the driver's side B­
pillar always takes precedence .
T he table below lists the recommended cold
ti re inflation pressures for the Audi mode l
covered by your Owner's Literat ure at the vehi­
cle's capacity weight and the t ire sizes instal­
l ed on the respective models as orig inal
equipment, or as a factory option.
Tire pressure
Model
Engine normal load condition full load condition
(up to 2 occupants)
front rear front rear
PSI
kAA ~I kAA ~I kAA ~I kAA
RS 5 Cab- 265 /35 R19 98V X L
riol et: High Performan ce
39 270 35 240 44 300 41
280
4.2 liter 275 /30 R20 97V XL
a -cyl inder
270 35 240 44 300 4 1 280
XL= reinf orc ed or extra lo ad tire. It ma y al so appear a s xl , EXTRA LOAD, or RF on the tire side ­
w all .
Because tec hnical changes may be made to
ve hicl e equ ipment dur ing the model yea r, a l­
ways compare the tire s ize designation on the
tire pressure label on your vehicle w ith the
tires on your vehicle . Make s ure that the tire
size information on the vehicle label is the
same as the s ize of the t ires on the vehicle.
This is especially important if the vehicle be­
longs to someone else or you bought the veh i­
cle with different rims/tires or you bought the
veh icle as a previously owned vehicle.
Remember, your safety and that of your pas­
sengers also depends on mak ing sure that
load limits are not exceeded . Vehicle load in­
cludes everybody and everything in and on the
ve hicl e. These load limits are technically refer­
r ed to as the vehicle's G ross Vehicle We ight
Rating ("GVWR"). The Gross Ax le Weight Rat­
ing ("GAWR") is the maximum load that can
be applied at each of the vehicle's two axles .
The Gross Vehicle We ight Rating and the G
ross Ax le Weig ht Rating are listed on the
sa fe ty comp liance sticke r label lo cated on the
dr iver's side B-pillar . The tire pressu re labe l on
your A udi lists the maximum combined
weight of all of the occ upants and luggage o r
other cargo that the veh icle can carry. For the
location of the t ire pressure label ¢
fig. 185.
A WARNING
-Overloading a vehicle can cause loss of ve-
h icle contro l, a crash or other accide nt, se­
rious personal injury, and even death.
- Carrying more we ight than your veh icle
was des igned to carry will prevent the
veh icle from handling properly a nd in­
crease the risk of a loss of vehicle con­
trol.
- The brakes on a vehicle that has been
overloaded may not be able to stop the
veh icle w ith in a safe distance.
•
•

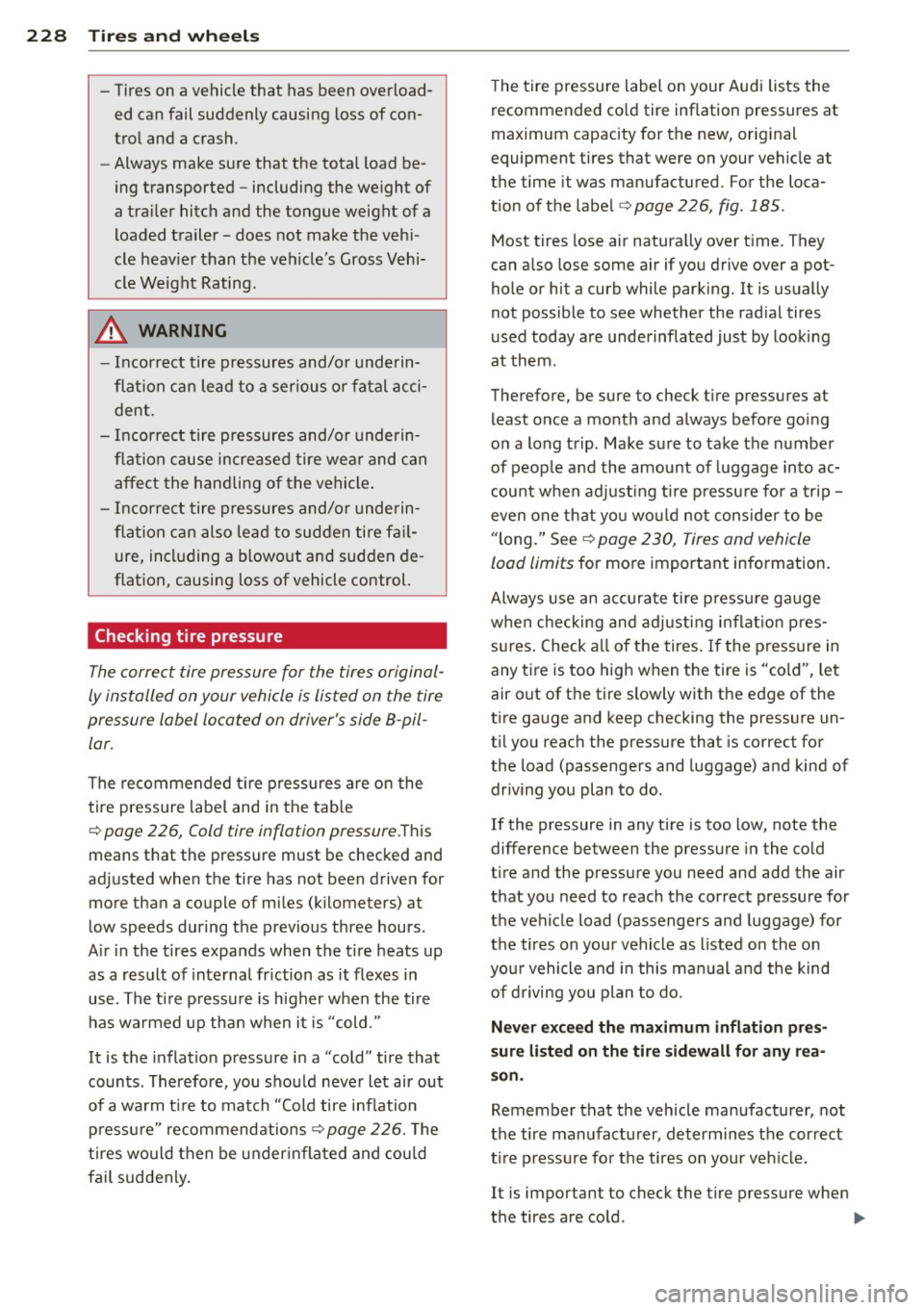

228 Tire s and wheel s
-Tires on a vehicle that has been overload­
ed can fail suddenly causing loss of con­
trol and a crash.
- Always make sure that the tota l load be­
ing transported -including the weight of
a tra iler hitch and the tongue weight of a
loaded trailer - does not make the veh i­
cle heav ier than the veh icle's Gross Vehi­
cle Weight Rating.
A WARNING
- Incorrect tire pressures and/or underin­
flation can lead to a serious o r fatal acci­
dent .
- Incorrect tire pressures and/or underin­
flation cause increased tire wear and can
affect the handling of the vehicle .
- Incorrect tire pressures and/or underin­
flation c an also lead to sudden tire fa il­
ure, including a blowo ut and sudden de ­
flation, causing loss of vehicle control.
Checking tire pressure
,
The correct tire pressure for the tires original­
ly installed on your vehicle is lis ted on the tire
pressure label located on driver 's side 8-pil ­
lar.
The recommended t ire p ress ures are on the
tire pressure labe l and in the tab le
¢ page 226, Cold tire inflation pressure. This
means that the pressure must be checked and
ad justed when the tire has not been driven for
more than a couple of m iles (kilometers) at
low speeds during the previous three hours .
A ir in the tires expands when the tire heats up
as a result of inte rna l fr iction as it flexes in
use. The ti re p ress ure is higher w hen the tire
has wa rmed up than when it is "cold ."
It is the inflat io n pressure i n a "cold " tire that
counts . Therefore, you shou ld never let air out
of a warm t ire to match "Cold tire inflation
p ress ure" recommendations ¢
page 226. The
tires would then be under infla ted and cou ld
fa il suddenly . T
he tire pressure label on your Audi lists the
recommended co ld tire inflation pressures at
maximum capacity for the new, or ig inal
equipment tires that were on your vehicle at
the time it was manufactured. For the loca­
t ion of the labe l
¢page 226, fig . 185 .
Most tires lose air natura lly over t ime. They
can a lso lose some air if you drive over a pot­
hole or hit a curb while park ing. It is usually
not possible to see whether the rad ial tires
used today are underinflated just by look ing
at them.
Therefo re, be sure to check t ire press ures at
least once a mo nth and a lways befo re going
on a long trip . Make sure to take the number
of peop le and the amou nt of luggage into ac­
c ount w hen adjust ing ti re pressu re for a trip -
even one th at yo u wo uld not consider to be
" long." See
r:!v page 230, Tires and vehicle
load limits
for mo re important information.
Always use an accurate ti re p ressu re ga uge
whe n checking and ad justi ng i nflat ion pres ­
s u res . Check a ll of the tires. If the press ure in
any tire is too high when the tire is "cold", let
air out of t he tire slowly with the edge of the
t ire ga uge and keep checking the pressure un­
t il you reach the pressure that is correct for
the load (passengers and luggage) and kind of
driv ing you plan to do.
If the pressure in any tire is too low, note the
difference between the pressure in the co ld
t ire and the pressure you need and add the air
t h at you need to reach the correct pressure for
the ve hicle load (passengers a nd luggage) for
the tires on your vehicle as listed on the on
you r vehicle and in this ma nual a nd the kind
of d riving you plan to do.
Ne ver e xceed the maximum inflation pres­
sure listed on the tir e sidewall for any rea ­
son.
Remember that the vehicle manufacture r, not
the tire manufacturer, determines the cor rect
t ire p ressu re for the tires on your vehicle.
I t is impor tant to check the t ire pressure when
the tires are co ld .
111>
