preservative cream that contains UV­
blockers and that works into the leather .
This cream w ill nourish and mo istur ize
the leather, he lp ing it to breathe and
stay supple. It also helps to build up a
protective coating on the surface.
- Clean the leather every 2 - 3 months,
and clean any areas that get soiled.
- Remove fresh marks made by ballpoint pens, ink, lipst ick, shoe polish, etc. as
soon as possib le.
- Preserve the color of the leather as need­
ed by using a special colored leather care
cream to touch up areas of uneven color.
Cleaning and caring for leather
upholstery and trim
Applies to vehicles: with natural leather
Natural leather requires special care and at­
tention.
Norm al cleaning
.,. Clean soiled areas with a slightly mo istened
cotton or woolen cloth.
Mor e stub born dir t
.,. More stubborn dirt can be removed using a
cloth saturated with a m ild soap so lution (2
tablespoons m ild liquid soap) .
.,. Never allow the soap solution to saturate
the leather, and make certa in that no water
soaks into the seams .
.,. Wipe off the soap solution with a soft, dry
cl oth.
Cleaning spots
.,. Remove fresh w ater -b ased spots (such as
coffee, tea, ju ices, blood) w ith an absorbent
cloth or paper towel.
.,. Remove fresh
grea se or oil -based spot s
(such as butter, mayon naise , chocolate) wi th
an absorbent cloth or paper towe l, or use
the cleaner from the leat her ca re kit i f the
spot has not yet penetrated into the s urface
of the leather .
.,. Use an oil/grease dissolv ing spray, if
oil /
grease spots h ave d ried on.
Cleaning and protec tion 199
.,. Remove specific kinds of spots (ballpoint
pe n, fe lt marker, fingernai l polish, water­
based pa int, shoe po lish, etc .) with a spot
remover specifically formu lated for leather.
L e ather care
.,. Every half yea r use an approved leather care
product (available from your authorized
Audi dea ler) to ca re for the leather .
.,. App ly the product very spar ingly.
.,. Wipe it off w ith a damp cloth.
If you have any q uestions about cleaning and
caring for the leather in your vehicle, it is best
to contact your authorized Audi dealer, who
will be glad to help you and tell you about our
full range of leather care products, such as :
- Leather cleaning and care kit
- Creams to ca re fo r colored leather
- Spot removers for ballpoin t pens, shoe pol-
ish, etc.
- Oil/grease d issolving spray
- New and upcom ing products .
.&_ WARNING
Always read and heed all WARN INGS and
other in formation
r:!) page 189 .
(D Note
- Never use chem ica l so lvents (e .g . lighte r
fluid, tu rpe nti ne), waxes, s hoe polish o r
simi la r prod ucts on the lea ther surfaces
i n yo ur Audi .
- To avoid damage, have stubbo rn sta ins
removed by a comme rcial clean ing spe­
c ialist .
Cleaning Alcantara ® (synthetic suede)
Applies to vehicles: with Alcantara® upholste ry
R emoving du st and dirt
.,. Moisten a cloth, squeeze out excess water
and wipe down the seat surfaces .
Removing stains
.,. Moisten a cloth with lukewa rm wate r or
w ith di luted
ethyl (rubbing ) alc ohol.
•
•

200 Cleaning and protec tio n
• Dab at the stain . Start at the outside and
work inwards .
• Once the stain is no longer visib le, use a soft
dry cloth or tissue to soak up the moisture.
Do not use leather cleaning products on Al­
cantara ®.
You may use a suitable shampoo for remov ing
dust and dirt .
Dust and grit in the pores and seams can
scratch and damage the surface. If the car is
l eft stand ing in the sun for long periods, the
A lcantara ® should be protected against direct
sunlight to prevent it from fading. Slight color
variations will develop in normal use and are
not an indication of material deterioration .
@ Note
-Never use chemical solvents (e.g . lighter
fl uid, turpentine), waxes, shoe polish or
similar products on Alcantara ® surfaces .
- To avoid damage, have stubborn stains
removed by a commercial cleaning spe­
cia list.
- Do not use brushes, stiff sponges or sim­
ilarly abrasive cleaning aids.
Safety belts
Only well-maintained safety belts work relia­
bly when needed .
• Keep be lts clean .
• For cleaning, use a mild soap and water sol­
ution . Let be lts dry thoroughly and away
from direct sunlight.
• Do not allow inertia reel safety belts to re­
tract before they are completely dry.
• Check the condition of your safety belts
reg ­
ularly .
Heavily soiled safety belts may not retract
properly .
A WARNING
Damaged safety belts can break in a crash.
-Anything that might damage your safety belts could mean that you and your pas­
sengers would not be adequate ly pro­
tected in an accident.
- Safety belt performance depends on cor­
rect insta llation. Never remove be lts
from the veh icle to clean them .
- Do not use chemical clean ing agents,
bleach or dyes. T hey have corrosive prop­
erties which weaken the webb ing .
- When clean ing your safety belts, inspect
them for damage. If you discover dam­
age, see your authorized Audi dealer .
-Always read and heed all WARNINGS and other information
Q page 189 .
Engine compartment
Be especially careful when cleaning the en­
gine compartment.
Al ways s witch off the ign it ion befo re clea n­
ing the engine ¢ Li:::,..
Plenum panel
Remove leaves from the plenum panel in front
of the windshield under the engine hood . This
prevents the water drain holes from becoming
blocked, and it prevents debris from enter ing
the vehicle interior through the heating and
ventilat ion ducts.
Corro sio n p rot ection
T he engine compartment and transmission
have been corrosion-protected at the factory .
Good anti- co rrosion treatmen t is very impor­
tant, particu larly in the w inte r.
If the vehicle
is frequently driven on salt treated roads, the
entire engine compartment and plenum panel
shou ld be thoroughly cleaned at the end of
winter and retreated to prevent salt damage.
At the same time, the underside of the vehicle
should be washed as well. .,..

If the engine compartment is cleaned at any
time with grease removing solutions
1>, or if
you have the engine washed, the anti-corro­
sion treatment is almost always removed as
well. It is therefore essential to have a long­
lasting corrosion protection reapplied to all
surfaces , seams, joints and components in the
engine compartment .
.8, WARNING
Be aware: The engine compa rtment of any
motor vehicle is a potentially h azardous
area .
- Before working in the engine compart­
ment, be s ure to read the informat ion
r=;, page207 .
-Before reaching into the front plenum
pane l, always remove the ignition key .
Otherwise, the windshield wiper system
cou ld unintentiona lly be switched on,
poss ibly causing personal injury from the
moving wiper linkage.
- Never reach into the area around or
touch the radiator fan. The auxiliary fan
is temperature controlled and can switch
on suddenly- even when the ign it ion is
off .
- Do not wash, wax or dry the engine w ith
the engine running . Moving or hot parts
could inju re you .
- Do not clean the underside of the chas­
sis, fenders, wheel covers, or other hard
to reach parts w ithout protecti ng your
hands and arms. You may cut yourse lf on
s harp-edged metal parts .
- Always read and heed all WARN INGS and
othe r information
r=;, page 189.
l ) Use o nly the co rr ect clean in g s olu tio ns. Ne ve r use ga s­
o line or d ie sel fuel.
Cleaning and protec tion 20 1
•
•

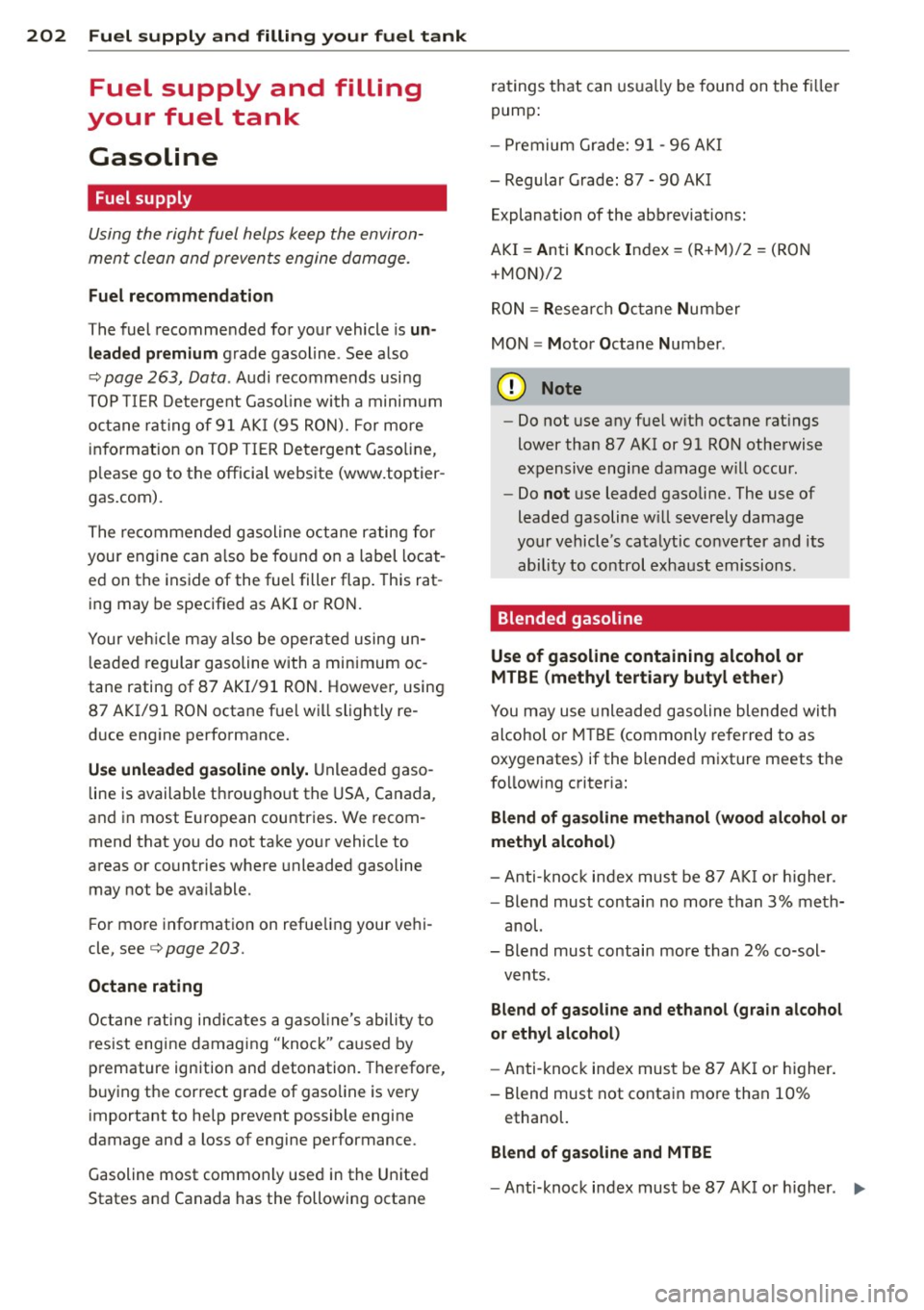

202 Fuel supply and filling your fuel tank
Fuel supply and filling
your fuel tank
Gasoline
Fuel supply
Using the righ t fuel helps keep the environ­
ment cle an and preven ts engine dam age .
Fuel recommendation
The fuel recomme nded for you r vehicle is un­
lead ed premium
g rade gasoline . See a lso
¢ pag e 263, Doto . Audi recommends usi ng
T OP TIER D eterge nt Gaso line wi th a mini mu m
octa ne ra tin g of 9 1 AKI (95 RON). For more
in fo rmation on TO P TI ER De tergent Gaso line,
p lease go to the officia l webs ite (www.toptier ­
gas.com).
Th e re commended g asoline oct ane r ating for
your engine can a lso be fo und on a label loca t­
e d on the ins ide of the fue l filler flap . This rat ­
ing may be specified as A KI or RO N.
Your veh icle m ay also be oper ated using un­
l ea ded regular g asoline with a min imum o c­
tane rating of 87 AKI/91 R ON. However, using
87 AKI/91 RON octa ne f ue l w ill slightly re ­
d uce eng ine perfo rmance.
Use unleaded gasoline only. Unleaded g aso­
line is availab le th rou gho ut the USA, Canada ,
and in most E uropean countries . We recom­
mend that you do not ta ke yo ur vehicle t o
areas or countries where unleaded gasoline
may not be avai lable.
F or mo re in format io n on refue ling your ve hi­
cle, see
¢ page 203.
Octane rating
O cta ne r ating in dicates a gaso line's abili ty to
res ist engine damaging "knoc k" ca used by
p remature ign ition and detonation. Therefore,
buy ing the correct grade of gaso line is very
important to help prevent possible engine
damage and a loss of engine performance.
Gasoline most commonly used in the Unite d
States a nd Canada has the following octane r
at ings t hat can usu a lly be found on the fi ller
pump:
- Pre mium G ra de: 91 -9 6 A KI
- Regular Grade : 87 -90 AKI
Explanation of the abbreviations:
AKI = Anti K nock Index= (R+M) /2 = (RO N
+ MON)/2
R ON= Resea rch Octane Numb er
MON = Motor Octane Num ber .
(D Note
-Do not use a ny f ue l w it h octane rat ings
lower tha n 87 A KI or 9 1 RO N othe rwise
expensiv e engine damage w ill occur.
- Do
not use leaded gasoline . The use of
lead ed gasoline w ill severely damage
yo ur v ehicl e's catalytic co nve rter a nd its
ability to co ntrol exha ust em ission s.
Blended gasoline
Use of gasoline containing alcohol or
MTBE (methyl tertiary butyl ether)
You may use unleaded g asoline blende d with
alcohol o r MTBE (commonly re ferred to as
oxygenates) if the blende d mixture meets t he
f o llow ing criteria:
Blend of gasoline methanol (wood alcohol or
methyl alcohol)
- Anti -kno ck index mus t be 87 A KI or higher.
- Blend must contain no mor e than 3% me th-
anol.
- Blend must contain more than 2% co-sol-
ve nts .
Blend of gasoline and ethanol (grain alcohol
or ethyl alcohol)
- Anti -knoc k index must be 87 AKI or higher .
- Blend must not conta in mo re than 10%
ethanol.
Blend of ga soline and MTBE
- Anti-knoc k index must be 87 AKI or high er. ll-

-Blend must contain not more than 15%
MTBE.
Seasonally adjusted gasoline
Many gasoline grades are blended to perform
espec ially we ll for winter or summer driving.
During seasonal change-over, we suggest that
you fill up at busy gas stat ions where the sea­
sonal adjustment is more likely to be made in
time .
(D Note
-Methanol fuels which do not meet these
requirements may cause corrosion and
damage to plastic and rubber compo­
nents in the fuel system .
- Do not use fue ls that fail to meet the
specified criter ia in this chapter.
- If you are unable to determine whether
or not a particular fue l blend meets the
specifications, ask your service station or
its fuel supp lier.
- Do not use fuel for which the contents
cannot be identified.
- Fuel system damage and performance
problems resulting from the use of fuels
different from those specified are not
the responsibility of Audi and are not
covered under the New Vehicle or the Emission Control System Warranties.
- If you experience a loss of fuel economy
or driveability and performance prob­ l ems due to the use of one of these fuel
blends, we recommend that you switch
to unblended fuel.
Gasoline additives
A major concern among many auto manufac­
turers is carbon deposit build- up caused by
the type of gasoline you use.
Although gasoline grades differ from one manufacturer to another , they have certain
things in common. All gasoline grades contain
substances that can cause deposits to collect
on vital engine parts, such as fuel injectors
and intake valves. Although most gasoline brands include additives to keep engine and
Fuel supply and filling your fuel tank 203
fuel systems clean, they are not equally effec ­
tive .
A udi recommends using TOP TIER Detergent
Gasoline. For more info rmation on TOP TIER
Detergent Gasoline, please go to the official
website (www.toptiergas.com).
After an extended period of using inadeq uate
fuels, built-up carbon deposits can rob yo ur
engine of peak performance.
Q) Note
Damage or malf unct ion due to poor fue l
quality is not covered by the Aud i New Ve­
hicle Limited Warranty.
Fuel tank
Fuel filler neck
The fuel filler neck is located on the right rear
side panel behind the fuel fille r flap.
If the power locking system should fail, you
can still open the flap manually -for deta iled
instruct ions see¢
page 205 .
You can find the fuel tank capacity of your ve­
hicle in
Technical Data ¢ page 263.
The label on the inside of the fuel fi ller flap
tells you the correct fue l for your vehicle. For
more information about fuel specifications,
see ¢
page 202.
Your vehicle fue l tank has an on -board refue l­
li ng vapor recovery system. This feature helps
to prevent fuel vapors from escaping from the
tank and pollut ing the environment while you
refuel your vehicle . In order to fill the tank
properly while protecting the environment,
please fo llow this refueling procedure careful­
ly.
_&. WARNING
Under normal operating conditions, never
carry additional fuel containers in your car.
Gas canisters and other containers used to
transport f uel can be dangero us. Such con­
tainers, full or empty, may leak and could
cause a fire in a collision. If you must
•
•

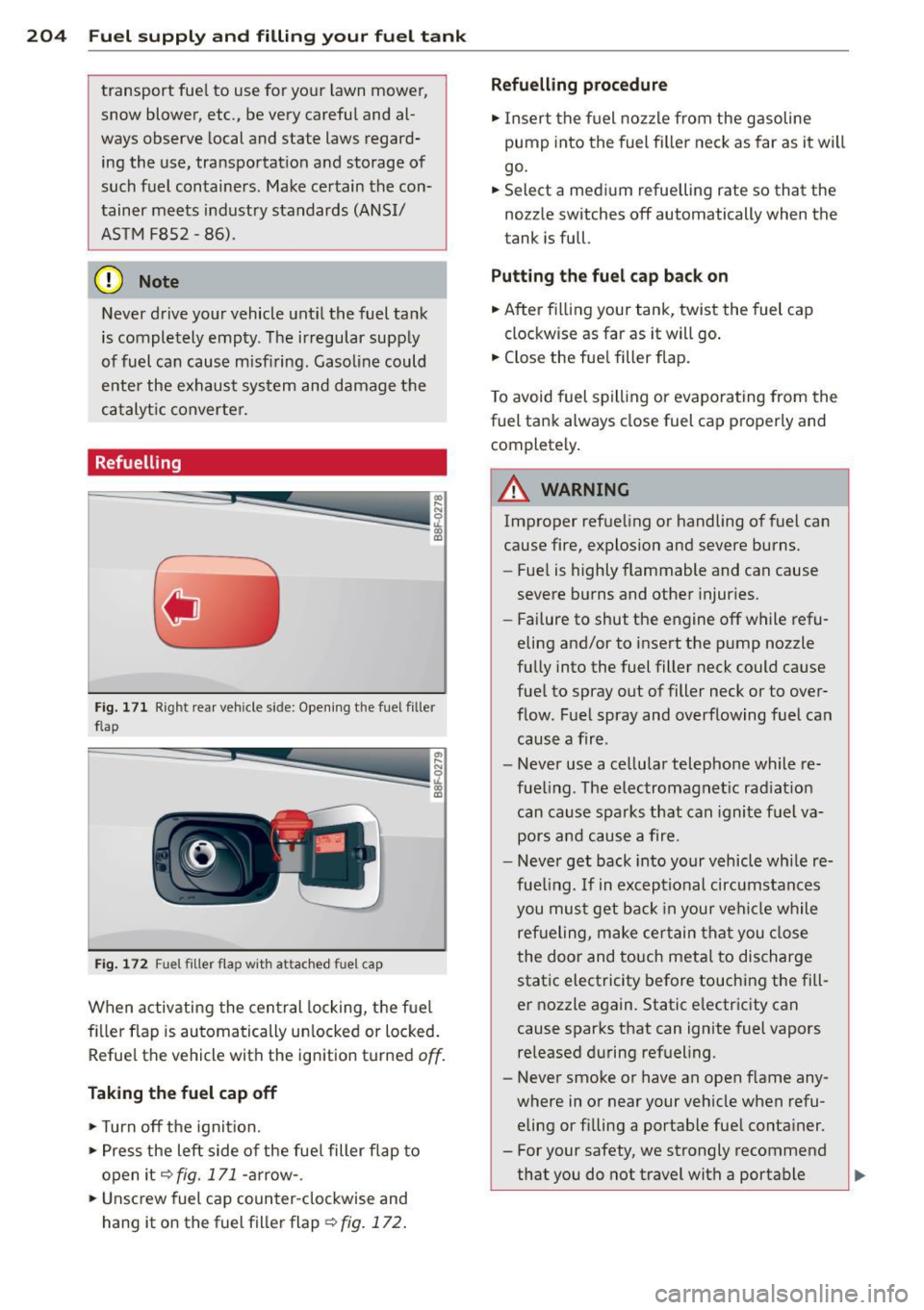

204 Fuel suppl y and filli ng your fu el t ank
transport fue l to use for your lawn mower,
snow blower, etc., be very careful and al ­
ways observe local and state laws regard­
ing the use, transportat ion and storage of
such fuel containers . Make certain the con­
tainer meets industry standards (ANSI/
AS TM F852 -86) .
(D Note
Never drive your vehicle until the fuel tank
is completely empty. The irregular supply
of fuel can cause misfiring . Gasoline could
e nte r the exhaust system and damage t he
catalyt ic converter.
Refuelling
Fig. 171 Rig ht rea r veh icle s ide: Ope ning the fuel fille r
f lap
Fi g. 1 72 Fuel filler fla p with attached fuel c ap
When activating the central locking, the fuel
fi ller flap is automatically un locked or locked.
Refue l the vehicle with the ignition turned
off .
Taking th e fu el cap off
,.. Turn off the ignit ion.
,.. Press the left side of the fue l filler flap to
open it q fig .171-a rrow -.
"" Unsc rew fuel cap counter -clockwise and
hang it on the fuel filler flap
~ fig. 172 .
Refuell ing proc edur e
,.. Insert the fuel nozzle from the gasoline
pump into the fuel fille r neck as far as it will
go .
,.. Sele ct a med ium r efuelling rate so that the
no zz le switches off automatically when the
tank i s full.
Putting the fu el cap back on
,.. After fi lling your tank, twist the fuel cap
clockwise as far as it will go .
,.. Close the fue l fill er flap.
T o avoid fuel spilling or evaporating from the
fuel tank always close fuel cap properly and complete ly .
A WARNING
-
Improper refue ling or handling of fuel can
cause fire, explosion and severe burns.
- Fue l is highly flammable and can cause
severe burns and other injur ies.
- Failure to shut the engine off while refu­
eling and/or to insert the pump nozzle
fully into the fuel filler neck could cause
fuel to spray out of filler neck or to over­
flow . Fuel spray and overflowing fuel can
cause a fire .
- Never use a cellular telephone while re­
fueling . The electromagnet ic rad iat ion
can cause sparks that can ignite fuel va­
pors and cause a fire .
- Never get back into your vehicle white re­
fueling .
If in exceptional circumstances
you mu st get back in your vehicle while
ref ueling, make ce rtain that you close
the door and touch metal to discharge static electricity before touching the fill­
er nozzle again. Static e lectricity can
cause sparks that can ignite fuel vapors
released during ref ueling .
- Never smoke or have an open f lame any­
where in or near your veh icle when refu­
eling or filling a portab le fuel conta iner.
- For your safety, we strongly recommend
that you do not travel with a portable

fuel container in your vehicle. The con­
tainer, full or empty may leak and co uld
cause a fire, especially in a crash.
- If, under exceptional circumstances, yo u
must transport a portable fuel container,
please observe the following:
- Never fi ll a po rtable fue l container
while it is anywhe re in or on the vehicle
(for examp le, in the luggage compar t­
ment, or on the tr unk). Static electric i­
ty can bui ld up while fi lling and can ig­
n ite fue l vapors causing a fire .
- Always p lace a portable fuel container
on the gro und before filling.
- Always keep the fi ller nozzle comp lete­
ly inside the po rtable conta iner before
and during filling.
- If filling a portable container made of
metal, the filler nozz le must always be
in contact with the container. Th is w ill
he lp prevent static electricity from dis­
charging and cause a fi re .
- Never sp ill fuel inside the vehicle or
luggage compartment. Fue l vapors are
h ighly f lammable .
- Always observe local and state/provin­
cial laws regard ing the use, storage
and tra nsporta tion of fuel co ntainers .
- Make certai n the fuel container meets
industry standards (ANSI/ ASTM
F 8 52 -86) .
(D Note
If any f uel has spilled onto t he car, it
should be removed immediate ly to prevent
damage to the paint.
~ For the sake of the environment
As soon as the correctly operated nozzle sw itches off automatically fo r the fi rst
time, the tank is full. Do not try to add more fue l because fue l may spill out . In
add it io n, th e expans io n sp ace in the fuel
t ank will be fi lled -cau sin g the fue l to
over flow whe n it be come s w arm a nd pol ­
lu te the env iro nment.
Fu el suppl y and filli ng your fuel t ank 205
@ Tips
- Ru nning your eng ine whi le refue lli ng
may cause vapors to escape or even
cause fuel to sp ill out of the tank. T his
would then shut off the fuel nozzle be­
f o re the ta nk is f ull.
- Do not refuel you r vehicle with the ign i­
tion turned o n. The fuel gauge may oth­
erwise not indicate the correct f uel level
after refuelling .
- The fue l filler flap of yo ur vehicle is not
locked when you lock t he ve hicle from
t he insid e.
Unlocking the fuel filler flap
by hand
You can open the fuel filler flap by hand if the
power locking system should fail .
Fig. 173 Lug gage compa rtm ent: ope ning th e side trim
Fig .1 74 Luggage co mpa rtme nt: Eme rgency ope ning
of fue l fil le r flap
The emergency opening mechanism is located
behind the right side trim panel in the lug­
gage compartment .
Opening the side trim .,. Insert a tool such as a screwdriver
¢
page 243 or the emergency key into the
r ight side of the upper gap¢
fig. 173. .,.

206 Fuel supply and filling your fuel tank
• Pry upward to re lease the trim .
Fuel filler door emergency release
.. Loos en the strap from its bracket and pull
on it~
fig. 174. You can now open t he fue l
filler flap as usu al¢
page 204.

Checking and filling Engine hood
Releasing and opening the engine hood
The engine hood is released from inside the
vehicle .
Fig. 175 Dr iver's side footwell: eng ine hood release
lever
F ig . 176 Re lease lever un der the engine hood
Before opening the engine hood, make sure
that the windshield wipers are flat against the
windshield. Otherwise, they could damage the
paint on the hood.
.. Pull the release lever on the left under the
instrument panel in the direction of the ar­
row
<::)fig. 175.
.. Raise the hood slightly Q &.
.. Press the rocker switch under the hood up­
ward
c::> fig . 176 . This re leases the catch .
.,. Open the hood.
& WARNING
Hot engine coo lant can burn you.
- To redu ce the r isk of being burned, never
open the hood if yo u see or hear steam
or coolant escaping from the engine
compartment. Wait until no steam or
Checkin g and fillin g 207
coolant can be seen or heard before care­
fully opening the hood.
Closing the engine hood
.. Pull the hood down until the pressure from
the struts is reduced .
.. Let the hood
drop down and latch in place .
Do not try to push it shut; it may fail to en­
gage
c::> &, .
_&. WARNING
-
A hood that is not comple tely latched
could fly up and b lock your view while dr iv­
ing.
- When you close the engine hood, chec k it
to make sure the safety catch has p rope r­
ly engaged . The hood sho uld be flush
with the surrounding vehicle body parts .
-If you notice while driv ing that the hood
is not secured properly, stop at once and
close it.
Working in the engine compartment
Be especially careful whenever you work in the engine compartment .
Whenever yo u mu st p erform an y w or k in th e
eng ine compa rtment, for example checking
and filling differ ent fluid s, there i s a ri sk of
injury , burn s and accide nts. To prevent per­
sonal injury al ways obser ve the foll owing
WARNINGS . The eng ine compa rtment of an y
v ehicle is a hazardous are a
QA .
_&. WARNING
To help avoid injury, before you check any­
thing under the hood:
- Turn off the engine.
- Remove the ignition key.
- Apply the parking brake .
- Move selector lever of automatic trans -
mission to "P" (Park).
- Always le t the engine cool down . Hot
components wi ll bur n skin on contact .

208 Check ing and filling
- To reduce the r isk of being burned, never
open the hood if you see or hear steam
or coolant escaping from the engine
compartment . Wait until no steam or
coolant can be seen or heard before care­
fully opening the hood.
- Keep children away from the engine com­
partment.
- Never spill flu ids on hot engine compo­
nents . They can cause a fire.
- Never touch the radiator fan. The auxili­
ary electr ic fan is temperature controlled
and can switch on suddenly.
- Never open the coolant reservoir cap
when the eng ine is still warm . The cool­
ant system is pressur ized and hot coo l­
ant could spray out.
- Protect your face, hands and arm from
steam o r hot eng ine coolant by placing a
thi ck rag over the cap when you open the
coolant reservoir .
- Do not remove the engine cover under
any c ircumstances. Th is increases the
risk of burns.
- If wo rk on the fuel system or the electri­
c al system is necessa ry:
- Always disconnect the battery.
- Never smoke or work near heaters or
open flames . Fluids in the engine com­
pa rtment cou ld start a fire.
- Keep an approved fire extinguisher im­
mediately avai lable.
- To avoid electrical s hock and persona l in ­
jury while the engine is running or being
started, never touch:
- Ignition cables
- Othe r components of the high voltage
e lectronic ignition system.
- If you must perform a check or repa ir
with the engine running:
- First, fully apply the parking bra ke,
move se lector lever o f automat ic trans­
missio n to "P" (Park). -
Always use extreme caution to p revent
clothing, jewel ry, or long hair from get­
ting caught in the radiator fan, V-belts
or other moving parts, or from contact­ ing hot parts. Tie back hair before
starting, and do not wea r clothing that
will hang o r droop into t he engine.
- Mi nimize exposure to em ission and
chemical hazards~ &.
A WARNING
Ca lifo rnia Proposition 65 Wa rning:
- Eng ine exhaust, some of its const ituents,
and certain vehicle components contain
or emit chemicals know n to the State of
California to cause cancer and birt h de­
fects and reproduc tive harm. In addition,
certain fl uids contained in vehicles and
certain products of component wear con­
tain or emit chemicals known to the
State of California to cause cancer and b irth defects or other reproductive harm.
- Battery posts, terminals and related ac­ cessories conta in lead and lead com ·
pounds, chemicals known to the State of
California to cause cancer and reproduc­
tive harms. Wash hands afte r handling .
(I) Note
When adding f lu ids, always make sure that
they are poured i nto the proper conta iner
or filler opening, otherwise serious dam­
age to vehicle systems w ill occur.
@) For the sake of the environment
To detect leaks in time, inspect the vehicle
floor pan from underneath regularly. If
you see spots from oil or other veh icle flu­
i ds, have yo ur vehicle inspected by a n au­
thor ized Audi dea ler.
