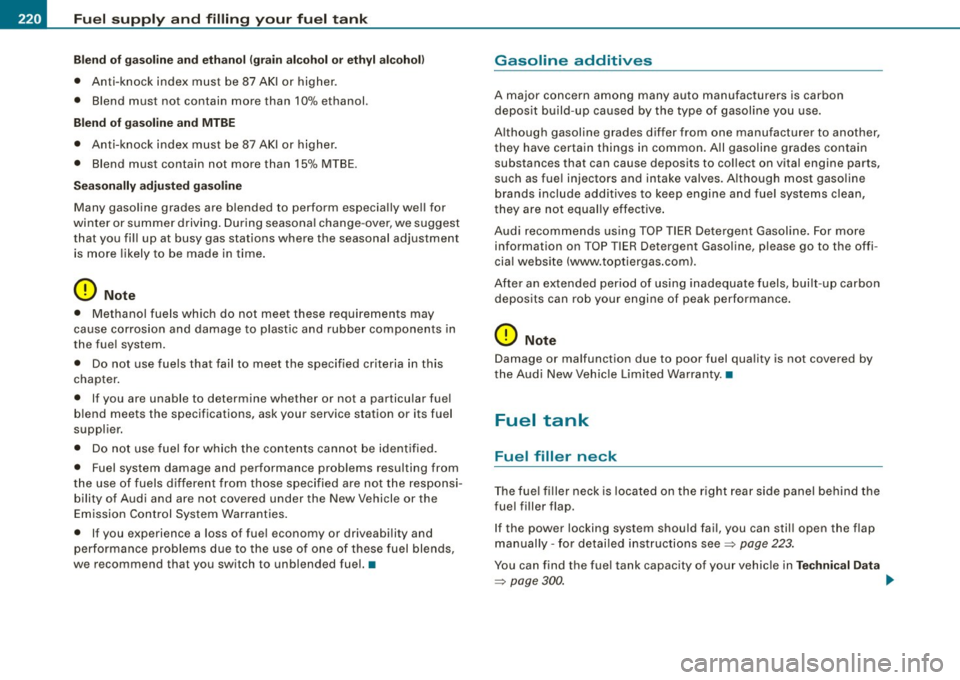

Fuel supply and filling your fuel tank
Blend of gasoline and ethanol (grain alcohol or ethyl alcohol}
• Anti -knock index must be 87 AKI or higher.
• Blend must not contain more than 10% ethanol.
Blend of gasoline and MTBE
• Anti-knock index must be 87 AKI or higher.
• Blend must contain not more than 15% MTBE.
Seasonally adjusted gasoline
Many gasoline grades are blended to perform especially well for
winter or summer driving. During seasonal change -over, we suggest
that you fill up at busy gas stations where the seasonal adjustment
is more likely to be made in time.
0 Note
• Methanol fuels which do not meet these requirements may
cause corrosion and damage to plastic and rubber components in
the fuel system.
• Do not use fuels that fail to meet the specified criteria in this
chapter.
• If you are unable to determine whether or not a particular fuel
blend meets the specifications, ask your service station or its fuel
supplier.
• Do not use fuel for which the contents cannot be identified.
• Fuel system damage and performance problems resulting from
the use of fuels different from those specified are not the responsi ­
bility of Audi and are not covered under the New Vehicle or the
Emission Control System Warranties.
• If you experience a loss of fuel economy or driveability and
performance problems due to the use of one of these fuel blends,
we recommend that you switch to unblended fuel. •
Gasoline additives
A major concern among many auto manufacturers is carbon
deposit build-up caused by the type of gasoline you use.
Although gasoline grades differ from one manufacturer to another,
they have certain things in common . All gasoline grades contain
substances that can cause deposits to collect on vital engine parts,
such as fuel injectors and intake valves. Although most gasoline
brands include additives to keep engine and fuel systems clean,
they are not equally effective.
Audi recommends using TOP TIER Detergent Gasoline. For more
information on TOP TIER Detergent Gasoline, please go to the offi­
cial website (www.toptiergas.com).
After an extended period of using inadequate fuels, built-up carbon
deposits can rob your engine of peak performance.
(D Note
Damage or malfunction due to poor fuel quality is not covered by
the Audi New Vehicle Limited Warranty. •
Fuel tank
Fuel filler neck
The fuel filler neck is located on the right rear side panel behind the
fuel filler flap.
If the power locking system should fail, you can still open the flap
manually - for detailed instructions see=>
page 223.
You can find the fuel tank capacity of your vehicle in Technical Data
=> page 300. .,_

Checking and filling -
---------------------=----"=---------
0 Note
• Before winter sets in, have the coolant checked to see if the
coolant additive in your vehicle is sufficient to meet the climate
conditions. This is especially important if you live in a region where
the winter is extremely cold. If necessary, increase the proportion of
coolant additive to 60%.
• When adding coolant additive to your cooling system,
remember:
-We recommend using only coolant additive G12+ + (check the
label) for your vehicle. This coolant additive is available at autho­
rized Audi dealers. Other types of antifreeze can significantly
reduce corrosion protection . The resulting corrosion can cause a
loss of coolant and serious engine damage .
• Do not add any type of radiator leak sealant to your vehicle's
engine coolant. Adding radiator repair fluid may adversely affect the
function and performance of your cooling system and could result
in damage not covered by your New Vehicle Limited Warranty .•

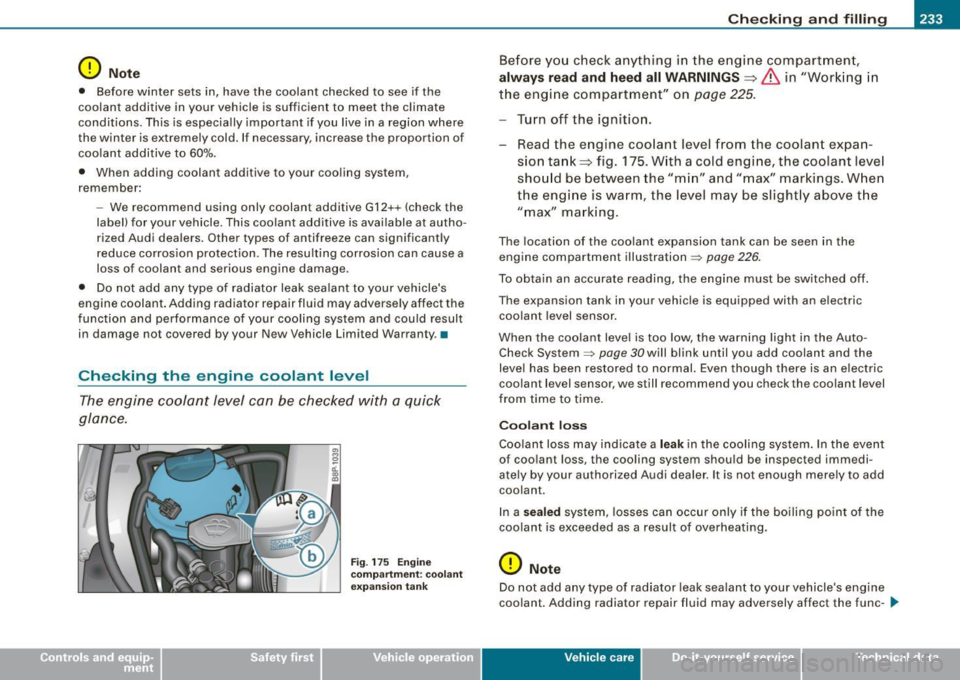

Checking the engine coolant level
The engine coolant level can be checked with a quick
glance.
Fig . 175 Engine
compartment : coolant
expansion tank
Before you check anything in the engine compartment,
always read and heed all WARNINGS==> & in "Working in
the engine compartment" on
page 225.
Turn off the ignition.
Read the engine coolant level from the coolant expan­
sion tank==> fig. 175. With a cold engine, the coolant level
should be between the "min" and "max" markings. When
the engine is warm, the level may be slightly above the
" max" marking.
The location of the coolant expansion tank can be seen in the
engine compartment illustration=>
page 226.
To obtain an accurate reading, the engine must be switched off.
The expansion tank in your vehicle is equipped with an electric
coolant level sensor.
When the coolant level is too low, the warning light in the Auto­
Check System =>
page 30will blink until you add coolant and the
level has been restored to normal. Even though there is an electric
coolant level sensor, we still recommend you check the coolant level
from time to time.
Coolant loss
Coolant loss may indicate a leak in the cooling system. In the event
of coolant loss, the cooling system should be inspected immedi­
ately by your authorized Audi dealer. It is not enough merely to add
coolant.
In a
sealed system, losses can occur only if the boiling point of the
coolant is exceeded as a result of overheating.
0 Note
Do not add any type of radiator leak sealant to your vehicle's engine
coolant. Adding radiator repair fluid may adversely affect the tune- _..
Vehicle care I I Technical data

What do I do now? -
------------------
& WARNING !continued)
• Always make sure the spare tire and even a flat tire are secured
in place and not loose, otherwise they could fly forward, causing
personal injury to passengers in the vehicle in an accident or
sudden maneuver .
• Never use the jack supplied with your Audi on another vehicle,
particularly on a heavier one. The jack is only suitable for use on
the vehicle it came with. •

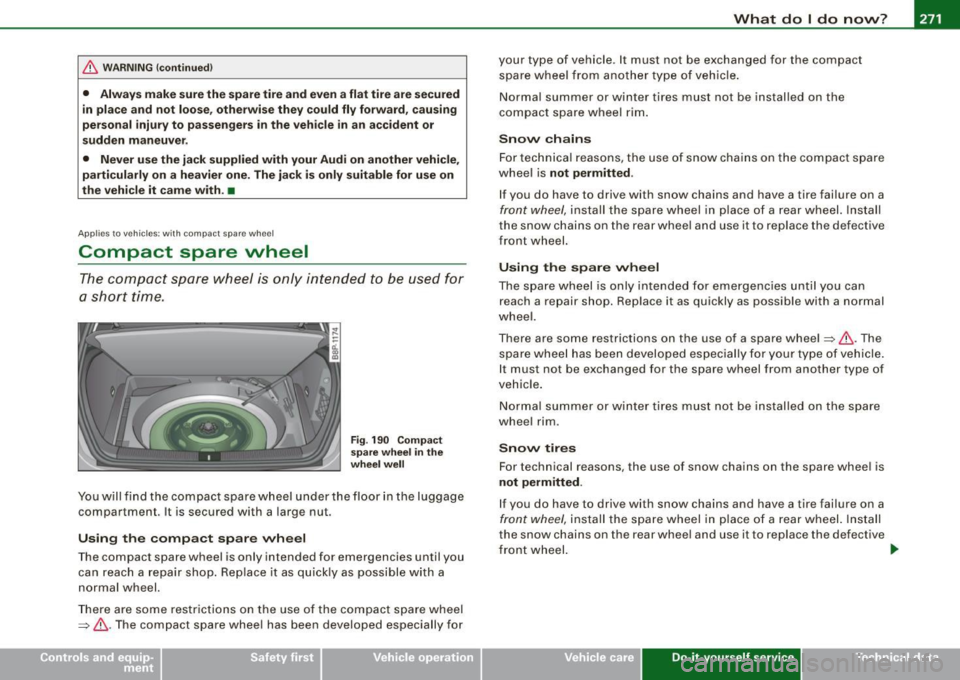

Ap plies to vehicles: w ith compact spare wheel
Compact spare wheel
The compact spare wheel is only intended to be used for
a short Nme.
Fig . 190 Compact
spare wheel in the
wheel well
You will find the compact spare wheel under the floor in the luggage
compartment. It is secured with a large nut.
Using the compact spare wheel
The compact spare wheel is only intended for emergencies until you
can reach a repair shop. Replace it as quickly as possible with a
normal wheel.
There are some restrictions on the use of the compact spare wheel
=>
& -The compact spare wheel has been developed especially for your type of vehicle
. It must not be exchanged for the compact
spare wheel from another type of vehicle.
Normal summer or winter tires must not be installed on the
compact spare wheel rim.
Snow chains
For technical reasons, the use of snow chains on the compact spare
wheel is
not permitted .
If you do have to drive with snow chains and have a tire failure on a
front wheel, install the spare wheel in place of a rear wheel. Install
the snow chains on the rear wheel and use it to replace the defective
front wheel.
Using the spare wheel
The spare wheel is only intended for emergencies until you can
reach a repair shop. Replace it as quickly as possible with a normal
wheel.
There are some restrictions on the use of a spare wheel =>& .The
spare wheel has been developed especially for your type of vehicle.
I t must not be exchanged for the spare wheel from another type of
vehicle.
Normal summer or winter tires must not be installed on the spare
wheel rim .
Snow tires
For technical reasons , the use of snow chains on the spare wheel is
not permitted .
If you do have to drive with snow chains and have a tire failure on a
front wheel, install the spare wheel in place of a rear wheel. Install
the snow chains on the rear wheel and use it to replace the defective
front wheel.
t,.
Vehicle care Do-it-yourself service irechnical data

What do I do now ? -
------------------

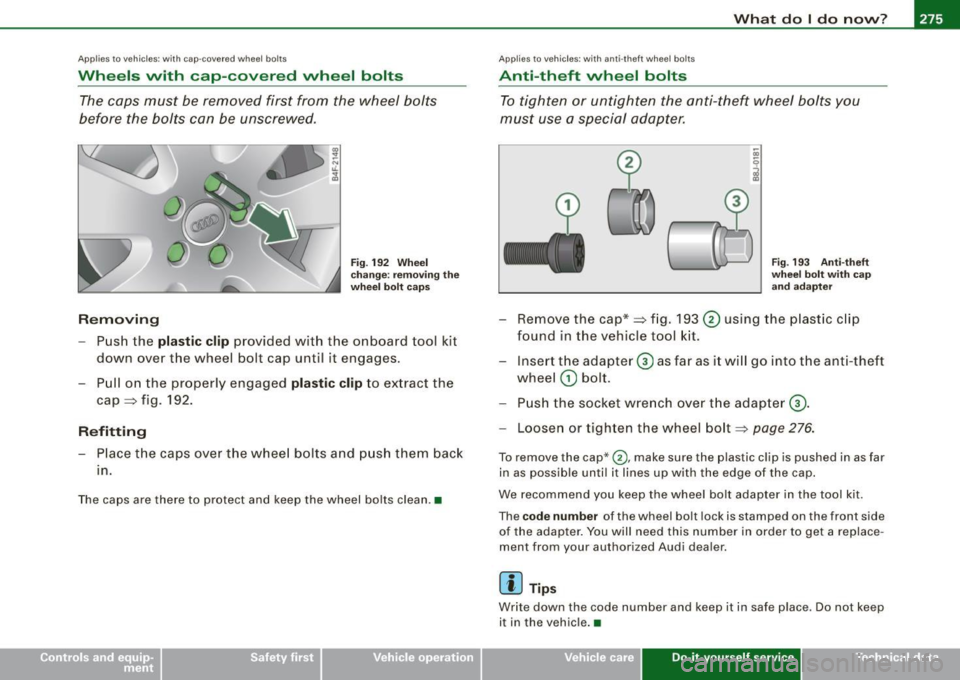

Applies to vehicle s: with cap-covered wheel bolts
Wheels with cap-covered wheel bolts
The caps must be removed first from the wheel bolts
before the bolts can be unscrewed.
Removin g
Fig. 19 2 W hee l
c h ange : remov in g th e
whee l bolt ca ps
- Push the plastic clip provided with the onboard tool kit
down over the wheel bolt cap unti l it engages.
- Pull on the properly engaged plastic clip to extract the
cap
~ fig . 192.
R efitting
- Place the caps over the whee l bo lts and p ush them back
1n.
The caps are there to protect and keep the wheel bo lts clean .•
Ap plies to vehicles: with anti-theft wheel bo lts
Anti-theft whee l bolts
To tighten or untighten the anti-theft wheel bolts you
must use a special adapter.
....
(
V"
..
Fi g. 193 Anti-t heft
whee l bolt wit h ca p
a n d ada pter
- Remove the cap*~ fig. 193 0 using the plastic clip
found in the vehicle tool kit.
- Insert the adapter
0 as far as i t wi ll go into the anti-theft
wheel
G) bolt.
- Push the socket wre nch over t he adap ter
0 -
- Loosen or tighten the wheel bolt~ page 276.
To remove the cap* 0, make sure the plastic clip is pushed in as far
in as possib le until it lines up wi th the edge of the cap .
We recommend you keep the wheel bo lt adapter in the tool kit.
The
c od e numb er of the wheel bolt lock is stamped on the front side
of the adap ter. You will need this number in orde r to get a replace ­
ment from your author ized Audi dealer.
[ i ] Tip s
Write down the code number and keep it in safe place . Do not keep
it in the vehicle. •
Vehicle care Do-it-yourself service Technical data

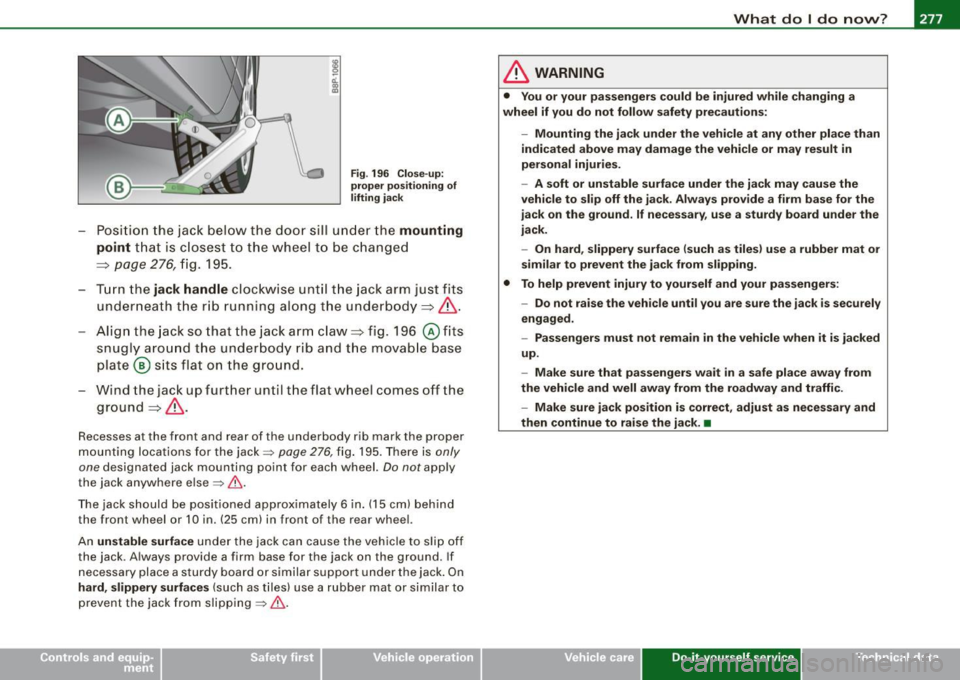

_____________________________________________ W_ h_ a_t _d_ o_l _ d_o _ n_o_ w_ ? _ __._
Fig. 196 Close- up:
prope r po sit io ning of
lifting ja c k
- Posi tion the jack bel ow the doo r sill u nder t he mounting
point
t ha t is clos est to the w hee l to be ch an ged
==> page 2 76, fi g. 19 5.
- Tur n the
jack handle cl ockwise un til the ja ck arm jus t fit s
un derne ath th e r ib runni ng a lo ng the und erbo dy ==:> & .
- Align t he jack so tha t the ja ck a rm claw ==:> fig. 196
© fits
snugl y aro un d t he un derb od y r ib an d t he mov ab le base
p lat e@ sit s fla t on t he grou nd.
- Win d the jac k up furt her until t he flat wheel comes off the
groun d==:> & .
Recesses a t the front and rear of the underbody rib mark the proper
m ounti ng lo ca tions for the jack=>
page 276, fig . 195. There i s only
one
designated jac k mounting po int for each wheel. Do not app ly
the jack anywhe re e lse
=> & .
The jac k sh o uld be pos it ioned appro ximat ely 6 in. (15 cm) b ehind
the front wheel or 10 in. (25 cm) in front o f the rear whee l.
An unstable surface und er the jack can cause the veh icle to s li p o ff
the jack. A lways provide a firm base for the jack on the ground . If
n ece ssary place a s turd y b oa rd or sim ila r su p po rt und er the jack . On
hard , slippery surfaces (such as t ile s) use a rubber mat or s imilar to
pr even t the jack fr om slip ping =>& .
& WARNING
• You or your passengers could be injured wh ile changing a
wheel if you do not follow safety precautions:
-Mounting the jack under the vehicle at any other place than
indicated above may damage the vehicle or may result in
per sonal injuries.
- A soft or unstable surface under the jack may cause the
vehicle to slip off the jack . Always provide a firm base for the
j ack on the ground. If necessary , use a sturdy board under the
jack.
- On hard, slippery surface (such as tiles ) use a rubber mat or
similar to prevent the jack from slipping .
• To help prevent injury to yourself and your passengers:
-Do not raise the vehicle until you are sure the jack is securely
engaged.
- Passengers must not remain in the vehicle when it is jacked
up.
- Make sure that passengers wait
in a safe place away from
the vehicle and well away from the roadway and traffic .
- Make sure jack position is correct, adjust as necessary and
then continue to rai se the jack. •
Vehicle care Do-it-yourself service Technical data

_________________________________________________ F_ u_ s_ e_s _ a_n _d_ b_ u _ lb_ s _ __.ffllll

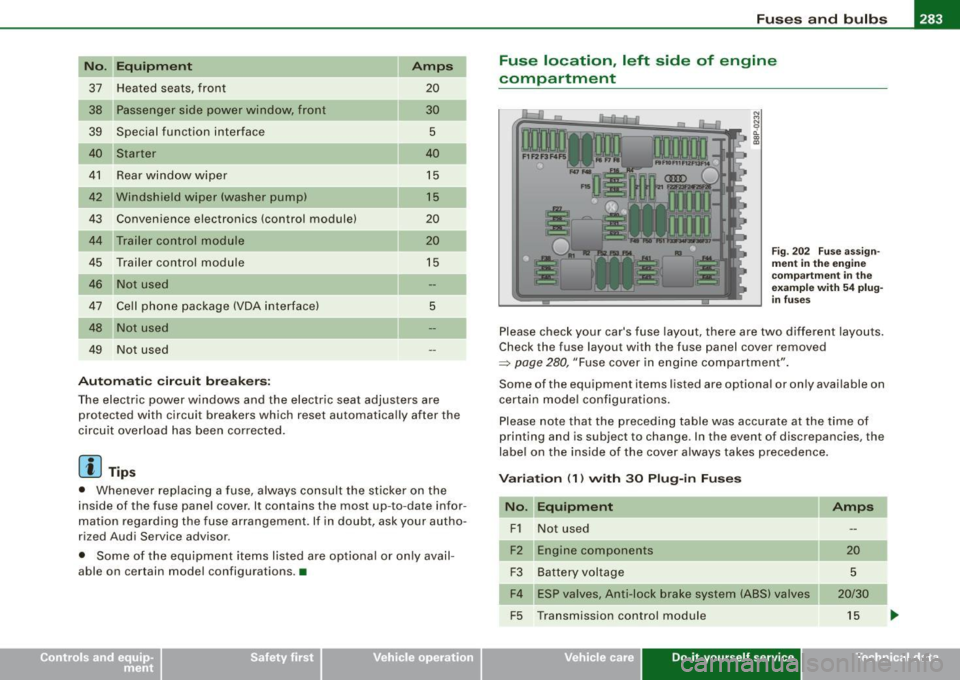

No . Equipm ent
37 Heated seats, front
38 Passe nger s ide power window, front
39 Special function interface
Starter
41 Rear window wiper
42 Windshield wiper (washer pump)
43 Convenience electronics (control module)
44 Trailer control module
45 Trailer control module
Not used
47 Cell phone package (VOA interface)
48 Not used
49 Not used
Au tom atic cir cuit br eake rs: Amps
20
30
5
40
15
15
20
20
15
5
The electric power windows and the electric seat adjusters are protected with circuit breakers which reset automatically after the
circu it overload has been corrected.
[ i J Tip s
• Whenever replacing a fuse, always consult the sticker on the
inside of the fuse panel cover. It contains the most up-to-date infor ­
mation regarding the fuse arrangement. If in doubt, ask your autho­
rized Audi Service advisor.
• Some of the equipment items listed are optiona l or on ly avail­
able on certain model configurations. •
Fuse location , left side of engine
compartment
N M N
~ (X) 0)
Fig . 202 F use ass ign­
m ent in th e e ngin e
co mpar tment in th e
e xampl e wit h
54 p lu g­
in fu ses
Please check your car's fuse layout, there are two different layouts.
Check the fuse layout with the fuse panel cover removed
~ page 280, "Fuse cover in engine compartment" .
Some of the equipment items listed are optional or on ly available on
certain model configurations.
Please note that the preceding table was accurate at the time of
printing and is subject to change . In the event of discrepancies, the
label on the inside of the cover a lways takes precedence.
V ariation (1 ) with 30 Plu g-in F uses
No . Equipm ent
F1 Not used
Engine components
F3 Battery voltage
F4 ESP v alves, Anti -lock brake system (ABS) valves
F5 Transmission control module
Vehicle care Do-it-yourself service
Amps
20
5
20/30
15
Technical data

___ G_ e_ n_ e_r_ a _ l_ in_ f_ o _r_m _ a_ t_ i_ o _ n __________________________________________________ _
General information

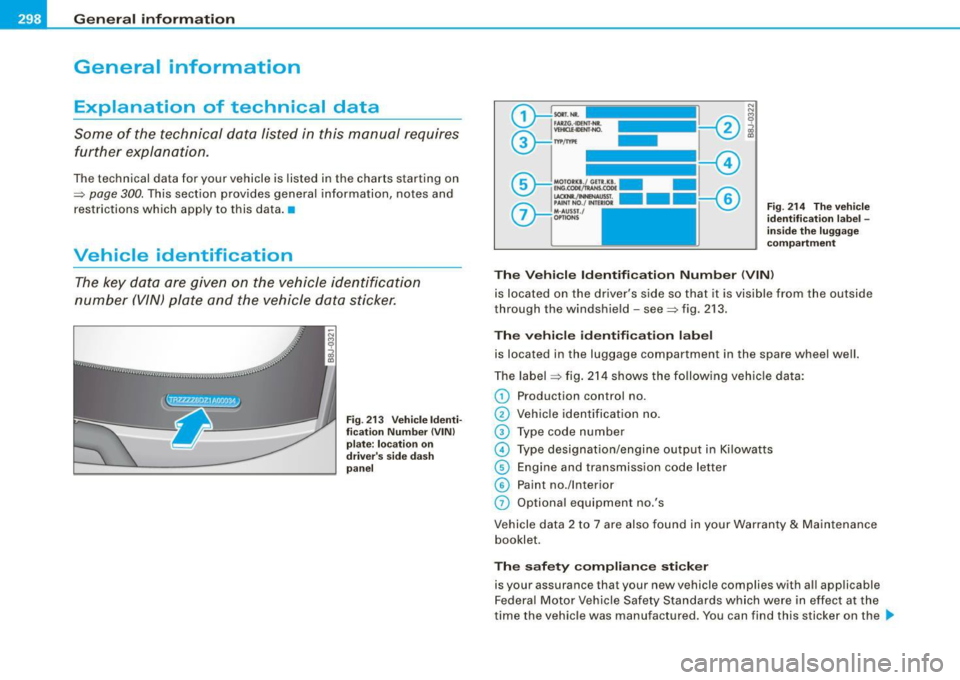

Explanation of technical data
Some of the technical data listed in this manual requires
further explanation.
The technical data for your vehicle is listed in the charts starting on
~ page 300. This section provides general information, notes and
restrictions which apply to this data. •
Vehicle identification
The key data are given on the vehicle identification
number (VIN) plate and the vehicle data sticker.
Fig. 213 Vehicle Identi­
fication Number (VIN)
plate: location on
driver's side dash
panel Fig
. 214 The vehicle
identification label -
inside the luggage
compartment
The Vehicle Identification Number (VIN)
is located on the driver's side so that it is visible from the outside
through the windshield -see ~ fig. 213.
The vehicle identification label
is located in the luggage compartment in the spare wheel well.
The label ~ fig. 214 shows the following vehicle data:
© Production control no.
0 Vehicle identification no.
© Type code number
© Type designation/engine output in Kilowatts
© Engine and transmission code letter
© Paint no./lnterior
0 Optional equipment no.'s
Vehicle data 2 to 7 are also found in your Warranty
& Maintenance
booklet .
The safety compliance sticker
is your assurance that your new vehicle complies with all applicable
Federal Motor Vehicle Safety Standards which were in effect at the
time the vehicle was manufactured. You can find this sticker on the ._

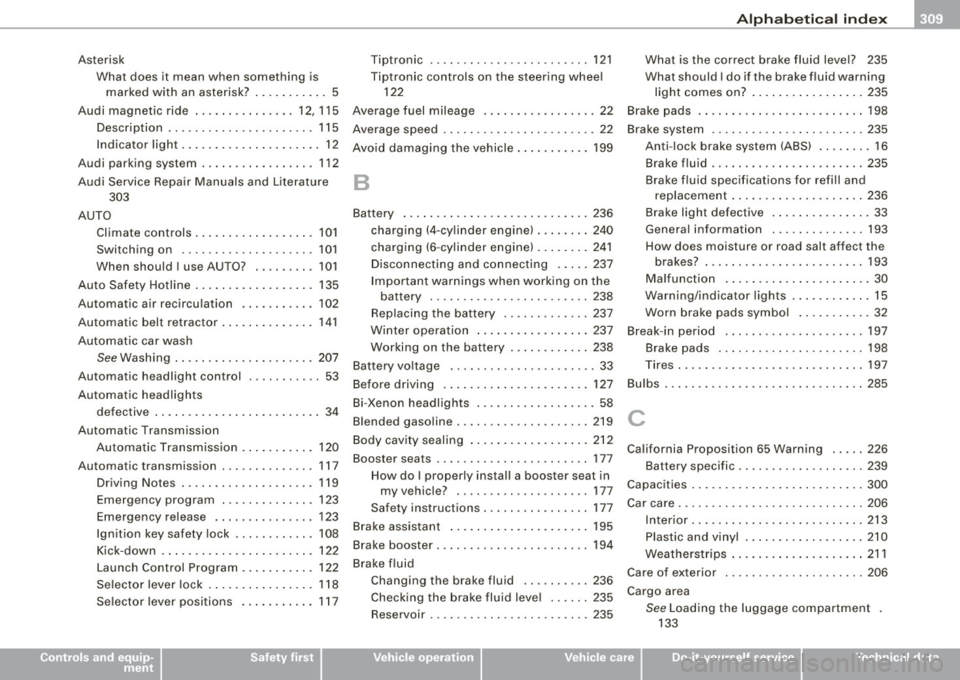

______________________________________________ A_ l_,_ p _h_ a_ b_e _t_i c_ a _ l _in _ d_e _ x __ lll
Asterisk
What does it mean when something is marked with an asterisk? ... .. .. .. .. 5
Audi magnet ic ride .. .... .... ..... 12, 115
Description ...................... 115
Ind icator light .. ...... .... .... .... . 12
Audi parking system ................. 112
Audi Service Repair Manuals and Literature 303
AUTO Climate controls ...... .... ... .... . 101
Switching on .................... 101
When should I use AU TO? . ....... . 10 1
Au to Safety Ho tline ... .. .... .... .... . 135
Automatic air recircu lation ........... 102
A utomatic belt retracto r ...... .... .... 1 41
Automa tic car wash
See Washing ...... .... ... .. .. .... 207
Automatic headlight control ....... .... 53
Automat ic headlights
defective ... .. .... .... ... .... .... . 34
Automat ic Transmission
Au tomatic Transmission . ...... .... 120
Automatic transmission . ............. 117
Driving Notes . . . . . . . . . . . . . . . . . . . . 119
Emergency program . ........... .. 123
Emergency release . . . . . . . . . . . . . . . 123
I gn ition key safety lock ....... .... . 108
Kick-down ... .... .... .... ... .... . 122
L aunch Co ntrol Program ...... ..... 122
Se lector lever lock .. ...... ...... .. 1 18
Se lecto r lever posi tions .. ...... ... 11 7
Controls and equip­
ment Safety first
T
iptronic ... .... . .. .. ... ... .. .... 121
Tiptronic controls on the steering whee l
122
Average fuel mileage ................ . 22
Average speed ... .... ..... ... .... ... . 22
Avo id damagi ng the v ehicle ...... .... . 199
B
Battery ... .. .... ... .... .... .... .... 236
charg ing (4-cy lind er engine) . ....... 240
c harging (6 -cy li n der engine) ... ..... 241
Disconnecting and c onnecting .. ... 237
I mpo rtant warnings when working on the
battery . .... .... .... .... .... ... 238
Replaci ng the battery .. ... .... .... 237
Winter operation ... .. .... .... .... 237
Working on the battery .. ...... .... 238
Battery voltage ...................... 33
Before driving . ....... .. .... .... .... 127
Bi -Xenon headlights .. ........ .... ... . 58
Blended gasoline . ... ... ..... .... .... 219
Body cavity sealing ...... ...... ... .. . 212
Booster seats .... .... .... .... .... ... 177
How do I properly install a booster seat i n
my vehicle? .. ... .... .... .... ... 177
Safety instructions ................ 177
Brake assistan t ..... .... .... .... .... 195
Brake booster .......... ...... ..... .. 194
Brake fluid Changing the brake fluid .. ........ 236
Checking the brake fluid leve l .. .... 235
Reservoir ........................ 235 What is
the correct brake fluid leve l? 235
What should I do if the brake fluid warning
light c omes on? ... .. .... .... .... 235
Brake pads ... ... .... ....... .... ... . 198
Brake system ....................... 235
Anti -lock brake system (ABS) .. .... .. 16
Brake fluid ....................... 235
Brake f luid specifications for refi ll and
r eplacement ... .. .... .... ...... . 236
Brake light defective . ........ .... .. 33
General information .. .... .... .... 193
How does moisture or road salt affect the
b rakes? .. ............... .... ... 193
Ma lfunct io n . .... .... .... .... ..... 30
Warning/indica tor lights .... .... .... 15
Worn brake pads symbo l ...... .... . 32
Break -in period ...... .... .... .... ... 197
Brake pads ....... ........ ....... 198
Tires ... .. .... .... .... ... .... .... 197
Bu lbs .... .... .... .... ... ....... .... 285
C
California Proposition 65 Warning . .... 226
Battery specific ...... ... .. ... ..... 239
Capac it ies . .... ... ... .... ... .... .... 300
Car care . .... ........ ....... .... .... 206
In ter ior . ...... .... .... ... .... .... 213
P last ic a nd vinyl . ...... .... .... ... 210
Weatherstrips ... .. .... ...... ... .. 211
Care of exterior .... ... .. .... .... .... 206
Ca rgo area
See Loading the luggage compartment
133
Vehicle operation Vehicle care Do-it-yourself service Technical data

Alphab eti ca l ind ex -
-------------=----
Convenience close/open feature
Windows . .... .... .... ... ... ..... . 47
Convertible child safety seats
How do I properly install a convertible
ch ild seat in my vehicle? . ...... .. 175
Safety instructions .. ... .... ... .. . 175
Convertible locking retrac tor
Activating ... ... ... .. ... ... .. .... 181
Deactivating .. .... .... ... ... ..... 182
Using to secure a child safety seat 179, 181
Coolant system . .... .... .... .... ... . 232
Cooling System Expansion tank ... ................ 233
Cornering light .... .... .... .... .... .. 55
Cruise contro l ...................... 113
Changing speed .................. 114
Presetting your speed ... .... .... .. 114
Swi tching off .. ...... .... ... .... . 114
Swi tch ing on .. ...... .... ....... . 113
Warning/indicator lights . ... .. .... .. 14
Cup holder .......................... 92
Cup holders front ......... ...... ...... ..... .. 91
Current fuel mileage .... .... ... .. .. .. . 22
D
Damping
See Audi magnetic ride .. .... .. .... 115
Data .. .... ... ... .. .... .... ... .... . 300
Data recorder ....................... 190
Date display ... .. ... ... .... ... .... .... 9
Controls and equip­
ment Safety first
Daytime running lights
.. ... .... .... .. . 54 Driver information system
Daytime running lights (Canada) .. .. ... . 55 Gearshift indicator
..... .. .... .... .. 19
Dec laration of compliance Menu button ..
........ .... ...... .. 25
Ce ll phone package ............... 307 Open door or front lid warning .
.... . 18
Electronic immobilizer ............ 307 Outside temperature display
.... .... 18
Home link® universal remote control 307 Red symbols
...... .... .. . .. .. .... . 28
Remote control key ...... .. .. .... . 307 Setting
... .... .... .... ... .... ..... 26
Tire pressure monit oring system . ... 307 Sound system disp
lay ........ ... .. . 18
Dec laration of conform ity ... .... .... . 268 Trip compu
ter ... .. .... ... .... .... . 22
def yellow symbols .
...... .... .... ..... 29
What does this mean when it appears in Dr
iver seat
t he trip odometer d isplay? .. ...... . 10
See Seating position ... ... .... .... 128
Defective light bulb warning . .......... 33 Driving safely
....................... 126
Defogg ing the windows ... .. .... .... . 10 1 Dup
lica te key . ...... .... ... .... .... .. 35
D efrosting the windows .. ... ..... ... . 101
Defrosting/defogging windows .... .... 104
E
Determining correct load limit . ...... . 252
Elapsed time .. ...... .... ... .... .... . 22
Digita l clock ..... .. .... .... .... ...... . 9
Setting the time ............. ... .. .. 9
Digita l compass . .... ... .... .... .... .. 72 Electrically heated front seats
......... 105
Electro -mechanical power assist . ... 16, 195
Electronic differential lock
Dimensions . ..... ... .... .... .... ... 299
Warning/indica tor lights .... .... .... 16
Dipstick Electronic differential lock (EDU
Reading the dipstick properly ..... . 229
How the system works .... .... .... 191
Direct Shift Gearbox
Emergency release ... .... .... .... 1 23
Distance . .... ... ...... ...... .... .... 23 Elect
ronic immobilizer . ...... .... .. 10, 37
Electro nic power contr ol
EPC warning/indicator light ... .... .. 13
Doors, power locks .. ... .... ..... ... .. 40
Electronic speed limiter ............... 21
Driver information ...... .. .... .... ... . 29
Driver Information System
Menu display . ...... .. .... ..... .. . 23 Electronic Stability Program
...... ... . 190
Electron ic stabil ization program (ESP)
Warning/ind icator lights .... .... .... 13
Emergency flasher Warning/indicator lights .... ...... .. 14
Vehicle operation Vehicle care Do-it-yourself service Technical data

Alphabetical index -
-------------=----
Saving fuel by upshifting early ... .. 8, 9
Using the rear window defogger .... 105
Front airbags
Description ... ....... .... .. . .... . 151
How th ey work . . . . . . . . . . . . . . . . . . . 156
Front seats ......... .... ... .... ...... 74
Adjusting ................... .... 129
Adjusting the manual seats .. .. .... . 76
Child restraints in the front seat .. .. 149
Heated seats . . . . . . . . . . . . . . . . . . . . . 105
Fronta l collisions and the laws of physics
138
Fuel Current fuel mileage ........... .... 22
Fuel gauge ...... .... .... ...... ... 10
Fuel supply too low ...... .... .... .. 32
Fuel filler f lap
Unlocking the fuel filler flap by hand 223
Fuel gaug e .... .... ...... .. .... ..... . 10
Fuel range .. .... .... .... .... ... .... . 22
Fuel supply Additives . .... .... .... ... ..... ... 219
Blended gasoline ... .. ........ .... 219
Fuel filler neck ... .... .... ........ 220
Fuel gauge ...... .... .... ........ . 10
Fuel tank capacity ........... .. 10, 220
Gasoline ... .. .... .... ........... 219
Gasoline additives . ... .... ....... . 220
Octane rating . .... .... ... .... .... 219
Recommendation . .. .. .. .... .... . 219
Refu elling .... ..... ... ..... .. ... . 221
Unlocking the fuel filler flap by hand 223
Controls and equip­ ment Safety first Fuel
tank
Capacity . .... ...... ........ ..... 220
Capacity (gal lons/liters) ...... ... .. .. 10
Fuse arrangemen t ... .. .. .... ... .... . 281
G
Gas discharge lamps .. .. ..... .. .... . 285
Gauges Engine coolant temperature .. ..... ... 9
Fuel gauge ... .. .... .... .. .. .... .. 10
Speedometer ... ...... .... .... .... 10
Tachometer .......... .... ... .... .. 8
Trip odometer . ................... 10
Gear recommendation ..... ...... .... . 19
Gearshift indicator .. ...... .... .... ... 19
Gearshift lever ........ ... .... ....... 116
Genera l illustration
Instruments and controls . .... .... ... 7
Generator Warning /indicato r lights .. .. .... .... 14
Glossary of tire and loading terminology .. .
244
G love compartment ... .. .... ... .... .. 95
Light .... ... ... .. .... .... ........ 60
Gross Vehicle Weight Rating (GVWR) ... 299
H
Head restraints ........ ...... ... .... 131
Adjusting ... ... ................. 131
Rear seats ... ... .. ........ ........ 80 Headlight
defective . .... .... .... ...... ... .. . 33
Head light range control
defective ..... .... .... .. . ......... 33
Headlights ... ... ...... ..... .. ...... . 52
adaptive light ..... .... ....... ..... 55
Front fog lights . ..... .. ............ 56
Switching off . ... .... .... .... .. .. . 52
Switching on ...... .... .. .. .... .... 52
Washer system .. ...... ... .... .. . .. 66
Heated rear window ..................... 105
Heated outside mirrors ... .... ... ... ... 70
Heated washer jets
Wiper and washer system ........... 63
Heavy clothing and safety be lts .... .... 140
High beam ... .... ..... .. .... ..... 5 2, 59
Warning/indicator lights .. .... .... .. 14
High vo ltage warning label . ...... .... 298
Hi ll Descent Assist .... ... .... .... .... 120
Hill hold assist Starting on hills ... ... ... .... .... . 111
hood
See Engine hood ..... .... .... .... 224
Hood re lease .... ..... .. .... .... .... 224
Horn ... .... .... .... ... .... .... ..... . 7
How many airbags does my vehicle have? ..
154
How often shou ld I check my tire pressures?
251
How safety belt pretensioners work .. .. 145
Hydroplaning ...... .. ...... .... .... . 255
Vehicle operation Vehicle care Do-it-yourself service Technical data
