Power windows
Controls
Fig. 40 Dri ver's door:
power wind ow
swit ches
T he switches are located in the dr iver 's doo r. The front passenger's
door has a own power w indow switch of its own .
T o open/ close If the respective swi tch is pu shed or pulled, the
window will, respectively .
Switches for front door windows
© operates the window in the driver's door .
@ operates the window in the front passenger's door.
Switches for rear windows
© operates the lef t r ear w indow.
@ operates the rig ht rea r window.
Safety switch
® Safety switch for rea r window operat ion .
& WARNING
• Do not leave children unattended in the vehicle, esp ecially with
ac ce ss to vehicle key s. Unsupervi sed use of the keys can re sult in
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Opening and closing
& WARNI NG (continued )
starting of the engine and use of vehicle systems such as power
windows, et c. whi ch could result in seriou s injury.
• Remember -you can still open or clo se the power windows for
about ten minutes after the ignition is swit ched off . Only when
eithe r of the front doors are opened are the powe r windows
s witched off .
• Be ca reful when closing the windows . Chec k to see that no one
is in the way, or serious injury could result!
• Alway s remo ve the ignition key whene ver you leave your
veh icle.
• If you lo ck your vehicle from the out side, no one, e specially
children, should remain in the vehicle .
• Do not stick anything on the windows or the windshield that
may interfere w ith the driver 's field of vision. •
Switches in the driver 's door
The d riv er can operate all windo ws.
In additi on to th e switches i n the driver's d oor, t here is a
separate switch in each door fo r th e po wer wi ndow in that
door~ fig. 40. If the respective switc h is pus hed or p ulled ,
the window will open or c lose. The power window switc hes
have a
two-position function:
Opening the windows
- Push th e switch to th e first stop an d h old it there until the
window has l owere d to the d esired position.
- Push t he swi tch briefly to t he
second stop : the window
wi ll automati ca lly op en all th e way .
Vehicle care Do-it-yourselt service iTechnical data

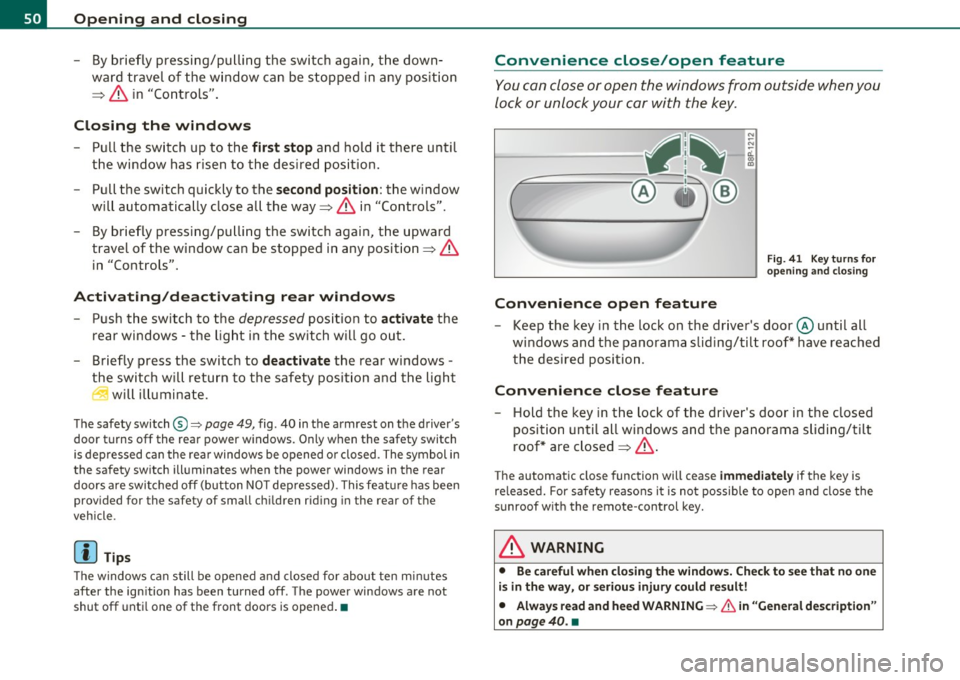

Open ing and closing
- By briefly pressing/pulling the switch again, the down ­
ward travel of the window can be stopped in any position
:::::, & in "Controls" .
Closing the windows
Pull the switch up to the first stop and hold it there until
the window has risen to the desired position.
- Pull the switch quickly to the
sec ond po sit ion : the window
will automatically close all the way:::::,
& in "Controls".
- By briefly pressing/pulling the switch again, the upward travel of the window can be stopped in any position=:>
&
in "Controls".
Activating/deactivating re ar windows
- Push the switch to the depressed position to acti vate the
rear windows -the light in the switch will go out .
- Briefly press the switch to
deacti vate the rear windows -
the switch will return to the safety position and the light
~ will illuminate.
The safety switch ©::::> page 49, fig. 40 in the armrest on the driver's
door turns off the rear power windows. Only when the safety switch
is depressed can the rear windows be opened or closed . The symbol in
the safety switch illuminates when the power windows in the rear
doors are switched off (button NOT dep ressed) . This featu re has been
prov ided for the safety of small children rid ing in the rear of the
vehicle.
[ i ] Tips
T he windows can still be opened and closed for about ten min utes
after the ign ition has been turned off. The power windows are not
shut off unti l one of the front doors is opened .•
Convenience close/open feature
You can close or open the windows from outside when you
lock or unlock your car with the key.
Convenience open feature
Fi g. 41 K ey turn s fo r
openi ng and closi ng
Keep the key in the lock on the driver's door @until all
windows and the panorama sliding/tilt roof * have reached
the desired position.
Convenience close feature
- Hold the key in the lock of the driver's door in the closed
position until all windows and the panorama sliding/t ilt
roof* are closed :::::,
&.
The automatic close function will cease immed iatel y if the key is
re leased. For safety reasons it is not possib le to open and close the
sunroof with the remote-control key.
& WARNING
• Be c areful when cl osing t he window s. C heck to see that no one
i s in the w ay, or seriou s injur y could re sult !
• Alwa ys read and h eed WARNING =>
& in "Gener al d esc ription "
on
pag e 40. •

Reactivating the system after battery
disconnection
Reactiva ting the convenience close/open feature
If the vehicle bat tery is disconnected and then reconnec ted,
t h e automatic closing and op ening f unctio n will not work
u ntil it is r eactiva ted. To reactivat e this feature, perform the
fo llowing ste ps:
Reactivating close /open feature
- Pull and hold the power window switch until the window is
com pletely closed.
- Release the switch .
- Pull the switch again for o ne second. The a utomatic
closing/opening is now reactivated .•
Panoramic sliding sunroof
A pp lies to vehicles : w ith panoramic sliding sunroof
Description
The pa no ram ic s lid ing sunroof is opera ted wi th t he toggle switc h
=> fig. 42 when the ignit ion in on.
T he panoramic sliding sun roof can sti ll be opened or closed for about
1 0 m in utes after the ig nition has been switched off. However , as
soon as the driver's or passenger 's door is opened, the sw itch for the
roof is inoperat ive. •
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Opening and closing
Applies to vehicles : with pano ram ic sliding sunroof
Opening and closing panoramic sliding
sunroof
............... ...... ....................... .
;;;;;;;;;; ;;;;;::: ::::· ::;:;;::;;;;;;;;;; ;;;;i
1·············~1
.............. . ............. . ............. . .............. . ............ ..
• •
Fig. 42 Sectio n o f th e
roo f line r To gg le
s wit ch fo r the
p anora mic sli ding
s u nro of
Th e panoramic slid ing sunroof is opened in two stages. First,
the roof lifts up and t hen it can be opened .
Lifting
-Tap the switc h@ ~ fig. 42 b riefly, an d the roof lifts a uto-
matically (pop -u p position) .
Opening automatically (independent
operation)
-Tap t he switch (D ~ fig. 42 b riefly , and the roof moves to
t h e
lift position .
-Tap the switch (D briefly a second time , and the roof
moves to the
low wind noise comfort position .
- Press the switch (D until the roof is fully open. In this
position increased wind no ise may occur .
Vehicle care Do-it-yourselt service iTechnical data

Opening and closing

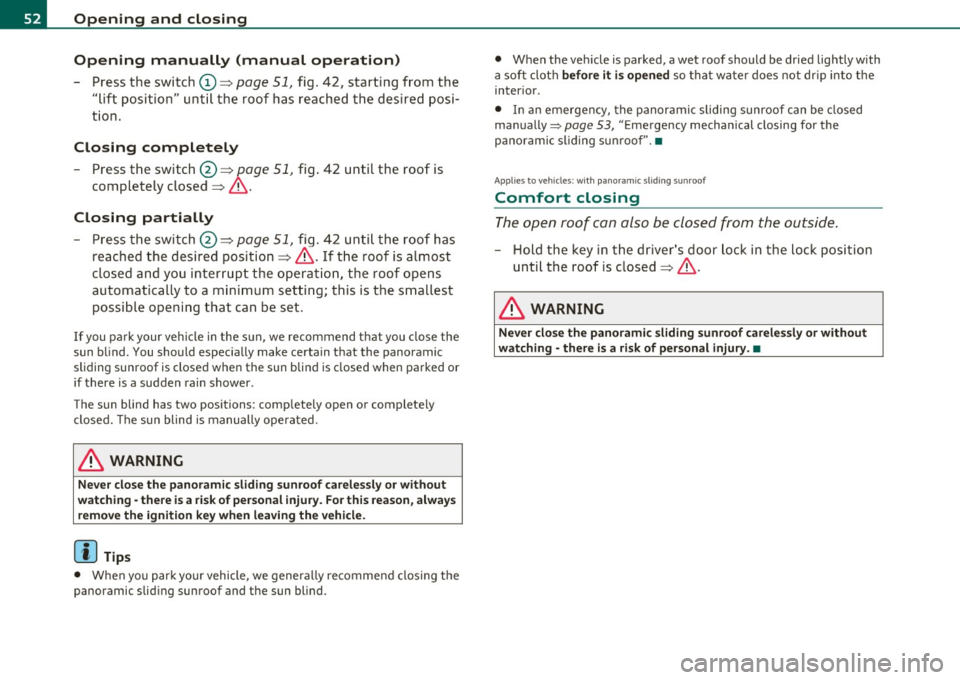

Opening manually (manual operation)
- Press the switch (D => page 51, fig. 42, starting from the
"lift position" until the roof has reached the desired posi­
tion.
Closing completely
- Press the switch @=> page 51, fig. 42 until the roof is
completely closed=>& .
Closing partially
- Press the switch @=> page 51, fig. 42 until the roof has
reached the desired position =>& . If the roof is almost
closed and you interrupt the operation, the roof opens
automatically to a minimum setting; this is the smallest
possible opening that can be set.
If you pa rk your vehicle in the su n, we recommend that you close the
sun blind . You should especially make certain that the panoramic
sliding sunroof is closed when the sun blind is closed when parked or
if there is a sudden rain shower.
The sun blind has two positions: comp letely open or completely
closed. The sun blind is manually operated.
& WARNING
Never close the panoramic sliding sunroof carelessly or without
watching -the re is a risk of personal injury. For this reason, always
remove the ignition key when leaving the vehicle.
[ i ] Tips
• When you park your vehicle , we generally recommend closing the
panoramic sliding sunroof and the sun blind . •
When the vehicle is parked, a wet roof should be dried lightly with
a soft cloth
before it is opened so that water does not drip into the
interior .
• In an emergency, the panoramic sliding sunroof can be closed
manually=>
page 53, "Emergency mechan ical closing for the
panoramic slidi ng sunroof". •
Appli es to vehicles : wit h pa norami c sli ding s unroo f
Comfort closing
The open roof can also be closed from the outside.
-Hold the key in the driver's door lock in the lock position
until the roof is closed=> &.
& WARNING
Never close the panoramic sliding sunroof carelessly or without
watching -there is a risk of personal injury.•

Emergency mechanical closing for
the panoramic sliding sunroof
Ap plie s to vehicl es: w ith panor am ic sli d ing sunr oof
Uncovering the light unit
In an emergency, the panoramic sliding sun roof can be
closed manually. Removal of the light unit requires some
dexterity .
i d.
co
m
F ig . 4 3 Li ght unit in
the h eadliner :
re mov ing the gla ss
Fi g. 44 Light un it in
th e headliner :
r em oving th e switch
cove r
Please sw itch off all lamps before removing the light unit
~ & .The glass and the switch cover simply click into place
for i nstal lation . Be sure they are positioned correct ly for
installation .
Control s and equ ip­
m ent Vehicle
OP-eration
Opening and closing
Removing the glass
- Take t he sc rewdriver from the vehicle tool kit.
- Use the flat end of the reversib le screwdriver blade.
- Inse rt th e screwdriver carefully between the light un it and
the glass into the v isible marks (arrows)~ fig. 43 .
- Pry the glass out care fu lly.
Removing the switch cover
- Push the flat blade o f the screwdriver several times in
succession between the light unit and the switch cover at
different places on the left and righ t and carefu lly lift the
switch cove r as you do this~ fig . 44. O n ve hicles with
additio nal equipment you can allow the cover to hang by
the wire, otherw ise plac e th e loose cov er to one side.
& WARNING
Before working on th e front light unit switch th e integr al lamp s
off -otherwi se yo u risk being burned. •
Vehicle care Do-it-yourselt service iTechnical data

Open ing and closing
App lies to veh icles : w ith panoramic sliding sunroof
Removing the light unit
Removing the light unit requires some dexterity .
1111111111111111111111111111111
.,
~ CL ., m
"' ~ CL ., m
Fig. 45 Light unit in
t he headliner:
removing screws in the
light unit
Fig. 46 Removing the
light unit
Installation of the light unit follows the steps used in
removal, but in reverse order.
- Install the Phillips head blade in the screwdriver.
- Turn the two screws in the light unit in a counter-clockwise direction to remove~ fig. 45.
- Pull the light unit out of the headliner by the front end
(arrow) ~ fig. 46 .
- Allow the light unit to hang by the wire. •
Applies to vehicles : w ith panoramic sliding sunroof
Closing the open sky roof manually
Fig. 47 Left end face
of t he inst rument
panel: fuse cove r wit h
hand crank
F ig. 48 Lig ht unit in
t h e hea dliner : cran k
for emergency opera ­
t io n
You can close the panoramic sliding sunroof using the hand
crank located on the inside of the fuse box cover .
- Install the flat blade in the screwdriver .
Use the screwdriver to remove the fuse box cover
~ fig . 47 .
- Remove the crank from the fuse box cover .
Remove the blade from the screwdriver handle .

- Install the end of the screwdriver handle onto the short side of the crank to help you turn it~
page 54, fig. 47 (D.
- Push the long end of the crank@~ page 54, fig. 48 all
the way into the hexagonal hole ®·
- Hold the crank down and turn it with the screwdriver
handle to close the roof.
- Install the light unit first and then the glass. For installa­
tion , reverse the removal sequence.
- Return the crank to its location in the fuse box cover
~ page 54, fig. 47 and install the cover .
- Have the problem corrected .
[I) Tips
• To turn the crank for emergency closing more easily, yo u should
use the screwdriver handle as an aid . First, remove the screw driver
from the handle, then push the handle onto the crank.
• The crank should be turned slowly; turning it quickly only
increases the effor t required. •
Controls and equip ­
ment Safety first
Op
ening and closing
Vehicle care Technical data

Clear vision
Clear vision
Lights
Switching the headlights on and off ·"ti-·
!
-ti. ID -O> :! ti. ID Fig. 49 Instrument
panel: light switch
Fig. SO Instrument
panel: Light swit ch
with daytime running
lights (DRL )
The light switch must not be overturned past the stops in
either direction.
Switching on automatic headlight control*
-Turn the light switch to AUTO* =:> fig. 49.
Switching on the side marker lights
- Turn the light switch to ~oo~.
Switching on the headlights and high beam
-Turn the light switch to io.
Push the high beam lever forward towards the instrument
panel=:>
page 59 .
Switching off the lights
-Turn the light switch to 0.
The headlights only work when the ignition is switched on . While
starting the engine or when switching off the ignition, the headlights
w ill go off and only the side marker lights will be on.
Daytime running lights (DRL) (USA models)
The daytime running lights can be turned on or off using this func ­
tion. If the function is active, the daytime running lights are turned
on automat ically when the ignition is switched on .
The daytime running lights are activated
only when the light switch is
at the
AUTO* or DRL * position .
Daytime running lights (Canada models only)
The daytime running lights are act ivated only when the light switch
~ fig. 49 is either at the O or the ~oa; position.
The daytime running lights function cannot be turned off.
Automatic headlight control*
In the switch position AUTO the automatic headlight control is
turned on . The low beams are turned on automatically through a light
sensor as soon as ambient brightness (e.g . when driving into a
tunnel) falls below a value preset at the factory. When ambient .,_

brightness increases again, the low beams are turned off again auto­
matically =>& .
In the
AUTO position the low beams are switched off automatically
when the ignition is turned off.
Light Sensor Malfunction*
In the event of a light sensor ma lfunct ion, the driver is notified in the
instrument cluster display:
Automatic headlights/automatic wipers defective
For safety reasons the low beams are turned on permanently with t he
switch in
AUTO*. H owever, you can continue to turn the lights on and
off using the light switch. Have the light sensor checked as soon as
possible at a dealership.
Coming home/leaving home function*
The function is sw itched on when the sw itch is in the AUTO* position
and the function is shown as active in the driver information system.
The
coming home funct ion illuminates the area around the vehicle
when the ign it ion is switched
off and the driver's door is opened. The
length of time the lights rema in on can be set in the menu display
( Illumination > Exterior lights > coming home ).
The leaving home function illuminates the area around the vehicl e
when u nlocking it .
& WARNING
• Never use daytime running lights to see where you are going.
They are not bright enough and will not let you see far enough
ahead for safety, especially at dusk or when it is dark. Always
switch on the low beams at dusk or when it is dark.
• Automatic headlights are only intended to assist the driver .
They do not relieve the driver of his respon sibility to check the
headlights and to turn them on manually according to the current
light and visibility conditions. For example, fog and rain cannot be
Controls and equip ­
ment Safety first
Clear vision
& WARNING
(continued )
detected by the light sensors. So always switch on the headlights
under these weather conditions and when driving
in the dark io.
• Crashes can happen when you cannot see the road ahead and
when you cannot be seen by other motorists.
- Always turn on the headlights so that you can see ahead and
so that others can see your car from the back.
(I) Tips
• With the switch in AUTO front fog lights cannot be turned on in
addition.
• Th e light senso r for headlight control is located in the rear view
mirror mount . Do not apply any stickers to the windshield in this area
to prevent malfunctions or fail ures .
• Some exterior lighting functions can be adjusted in the driver
information system => page 22 ,
• If you remove the ignition from t he ignition lock whi le the head­
lights are still on, a buzzer will sound as long as the driver's door is
open to remind you to turn off the lights .
• Always observe the specific local regulat ions for your area as to
when to use your lights.
• With automatic headlights, the high-beam funct ion is also avail­
able, but with one restr iction:
If you have not switched the high
beams back to low beams during automatic headlig ht operation (for
example, after driving through a tunnel), only the low beams come
on the next time automatic headlights are switched on . To use the
high beams, you first have to pull the high beam lever back and then
push the lever forwa rd again .
• In cool or damp weather, the inside of the headlights, turn signa ls
and ta il lights can fog over due to the temperature difference
between the inside and outside. They will clear shortly after switching
them on. This does not affect the serv ice life of the light ing . _,,
Vehicle care Technical data

Clear vision
• Frequent use of the coming home/leaving home function for
approaching and departing a vehicle parked in the dark will strain the
battery. This applies particularly if only short distances are drive n
between stops. Occasionally drive longer distances to make sure the
battery is recharged sufficiently .•
Front fog Lights }0
Use the light switch to turn on the front fog lights.
@
Fig . 51 Fog light acti­
vation: light switch
position on vehicles
WITHOUT sensor light
Switching on the front fog lights }D
- Do not turn the light switch·'!'!-· ~ fig. 51 toward the fog
light symbol ".
- Turn the light switch to
~oo~ or to ;D.
- Pull the light switch to the first stop (D.
When the front fog lights are on, the symbol }O next to the light
switch will illuminate. •
Instrument panel illumination
The illumination of the instruments, displays and the
center console can be adjusted.
Fig. 52 Instrument
panel illuminat ion
You regulate the brightness of the instruments with the left
thumbwheel
er ~ fig . 52.
Ignition ON, light switch at@.
With the ignition switched ON, the glow of instrument needles can
be adjusted to appear brighter or dimmer.
Ignition ON, light switch at ;oo; or iD .
With the lights switched on, the brightness of instrument cluster (i.e.
needles, gauges and displays) and center console illumination can be
adjusted.
0 Note
Th e instrument cluster and center console illumination (gauges and
needles) comes on when you sw itch on the ignition and the
vehicle
headlights are off.
Be aware of the following difference between
models built to US or Canadian specifications:
• USA models : illumination of the instrument cluster (gauges and
needles), dash and center console around the gearshift lever is
controlled
by a light sensor located in the instrument panel. The _,,,
