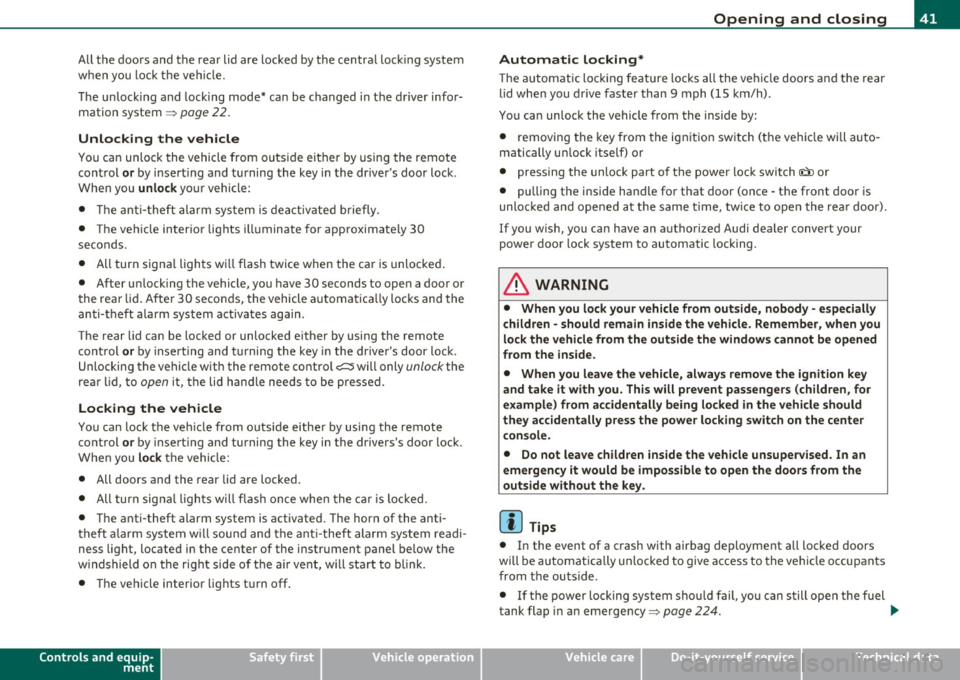

All the doors and the rear lid are locked by the central locking system
when you lock the vehicle.
The unlock ing and locking mode* can be changed in the driver infor­
mation system~
page 22.
Unlocking the vehicle
You can unlock the vehicle from outside either by using the remote
control
or by inserting and turning the key in the driver's door lock .
When you
unlock your vehicle:
• Th e anti-theft alarm system is deactivated briefly.
• The vehicle interior lights illuminate for approximately 30
seconds .
• All turn signa l lights will flash twice when the car is unlocked .
• After unlocking the vehicle, you have 30 seconds to open a door or
the rear lid. Afte r 30 seconds, the vehicle automatica lly locks and the
anti-theft alarm system activates again.
The rear lid can be locked or unlocked either by using the remote
control or by inserting and turning the key in the dr iver's door lock.
Unlocking the vehicle with the remote control~ will only
unlock the
rear lid, to
open it, the lid handle needs to be pressed.
Locking the vehicle
You can lock the vehicle from outside either by using the remote
control
or by inserting and turning the key in the drivers's door lock.
When you
lock the vehicle:
• All doors and the rear lid are locked.
• All turn signal lights will flash once when the car is locked.
• Th e anti-theft alarm system is activated. The horn of the anti­
theft alarm system will sound and the anti-theft alarm system readi­
ness light, located in the center of the instrument panel below the
windshield on the right side of the air vent, will start to blink.
• Th e vehicle interior lights turn off.
Controls and equip ­
ment Safety first
Opening and closing
Automat
ic locking*
The automatic locking feature locks all the vehicle doors and the rear
lid when you drive faster than 9 mph (15 km/h).
You can unlock the vehicle from the inside by:
• removing the key from the ignition switch (the vehicle wi ll auto­
matically unlock itself) or
• pressing the unlock part of the power lock switch
ll::D or
• pulling the inside handle for that door (once - the front door is
unlocked and opened at the same time, twice to open the rear door).
If you wish, you can have an authorized Audi dealer convert your
power door lock system to automatic locking.
& WARNING
• When you lock your vehicle from outside, nobody· especially
children - should remain inside the vehicle. Remember, when you
lock the vehicle from the outside the windows cannot be opened
from the inside .
• When you leave the vehicle, always remove the ignition key
and take it with you. This will prevent passengers (children, for
example) from accidentally being locked in the vehicle should
they accidentally press the power locking switch on the center
console.
• Do not leave children inside the vehicle unsupervised. In an
emergency it would be impossible to open the doors from the
outside without the key.
[ i ] Tips
• In the event of a crash with airbag deployment all locked doors
will be automatically unlocked to give access to the vehicle occupants
from the outside .
• If the power locking system sho uld fail, you can still open the fuel
tank flap in an emergency~
page 224 . .,_
Vehicle care Technical data

Opening and closing
• You are well advised not to keep valuables inside an unattended
vehicle, v isible or not . Even a properly locked vehicle cannot provide
the security of a safe! •
Unlocking and Locking the vehicle with the
remote control
How the remote control works.
Fig. 29 Remote
control : function
buttons
To unlock the vehicle doors and rear lid !TI
- Press button @once to unlock d river' door.
- Press button @twice to unlock all doors and the rear lid.
To lock the vehicle doors and rear lid iTI
- Press button ®~ & in "General description" on
page 40.
-Watch that all turn signal lights flash once.
To open rear lid only?:$
-Press button © for approximately one second .
PANIC Button
-Push the red button @to activate the panic function. The
horn sounds and the turn signals flash.
- Push the button @ again to deactivate the panic function.
The remote contro ls allows you to:
• lock or unlock the vehicle
• selective ly unlock the rear lid.
Th e turn signa ls will flash briefly whenever you lock or unlock the
vehicle. Also, the interior light will come on or go off whenever you
open or close the driver's door.
The transmitter and battery are located in the head of the remote
control. The receiver is located inside the vehicle. The maximum
effect ive range depends on several things. Remember, if the battery
is weak, the effective range decreases.
Th e remo te-control key contains a fold-out key that you can use to
manually lock or unlock the vehicle and to start the engine.
If you need to replace the remote control, or if you need to have it
repaired, you must see your authorized Audi dealer . Only then can you
use the key again.
& WARNING
Read and follow all WARNINGS ~ & in "General description" on
page 40.
(I] Tips
• The remote contro l key is automatically deactivated when the
ignition is switched on .
• The operation of the remote control key can be tempora rily
disr upted by interference from transmitters in the vicinity of the
vehicle wo rking in the same frequency range (e.g. a cell phone, radio
equipment). _..

• In order to make sure the locking funct ion is working, you should
a lways keep your eye on t he vehicle to ma ke sure it is p roperly lo ck ed.
• Do not use the remote contro l if you are inside the car, otherwise
yo u may u nintent ionally loc k the veh icle, and then you would set off
the ant i-theft a larm when you try open a door . In case t his happens
anyhow, push the unl ock button@.
• Use the panic function on ly if you are in an emergency situation. •
Resetting the remote control
The remote control must be reset if the vehicle does not
unlock .
- Press the unlock but ton en on the remote control.
- Manually un lock the driver's door lock with t he mechanical
key w ithin 30 seconds.
- Press either the lock-
rn or the unlock m b utton to
complete the reset sequence .•
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Opening and closing
Doors, power locks
Operating the Locks with the fold-out key
To lock and unlock the vehicle from th e outside, turn the
key in the lock of the driver's door .
N
-N
-a:. gi
Fig. 30 Key turn s for
o pe ning and closing .
To unlock all doors and the rear lid
- Turn the key to positi on @ :::::> fig. 30 to unlock the vehi cle
To lock the vehicle
- Close all windows and doors properly .
- Tu rn t he key in the lock of the driver's door to the lock
posi tion @=>
& in "General descr iption" on page 40.
When you unlock yo ur vehicle:
• The a nti -theft alarm system is deactivated .
• Th e vehicle interior lights illumina te for approximate ly 30
seco nds.
When you
lock the vehicle:
• All doors and the rear lid are loc ked.
• The anti-theft alarm system is activated.
• The vehicle inter ior lights turn off .
Vehicle care Do-it-yourselt service iTechnical data

Opening and closing
in. WARNING
Always read and heed WARNING~ & in "General description" on
page 40. •

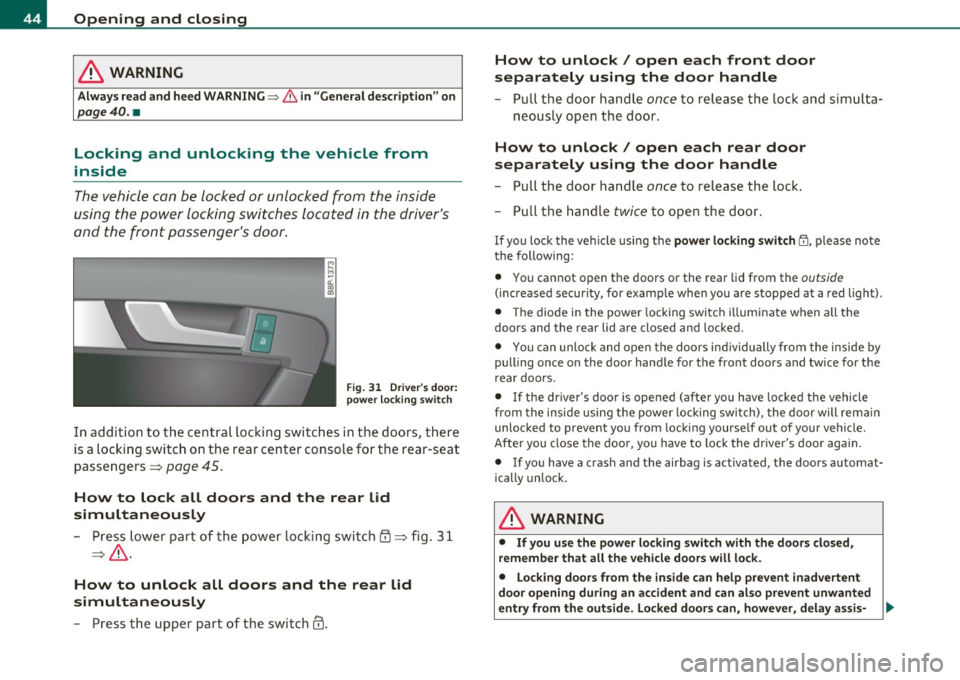

Locking and unlocking the vehicle from
inside
The vehicle can be locked or unlock ed from the inside
usin g the power locking swi tches located i n the driver's
and the front passen ger 's door .
Fig . 3 1 Driv er's do or:
p ower locking switch
In add ition to the ce ntra l loc kin g swi tches in the doors , the re
is a locking switc h on the rear center console for the rear-seat
passe ngers=>
page 45 .
How to lock all doors and the rear lid
simultaneously
- Press lower pa rt of t he po wer locking sw itch {D ::::> fig. 3 1
=> & .
How to unlock all doors and the rear lid
simultaneously
- P ress the upper part o f th e swi tch@.
How to unlock/ open each front door
separately using the door handle
- Pull the doo r handle once to release th e lock and sim ult a-
neo usly o pen the door.
How to unlock/ open each rear door
separately using the door handle
- Pull t he door handle once to release the loc k.
- Pull the ha ndle
twice to o pen t he doo r.
If you lo ck the ve hicl e using t he power loc king switch 1'.I!, please note
the following:
• You cannot o pen the doors or the rear lid from the
outside
(increased security, for examp le whe n you a re stopped at a red light) .
• Th e diode in the power loc king switch illuminate when a ll the
doors and the rear lid are closed and loc ked.
• You can un lo ck and open t he doors in dividually from the inside by
pulling once o n the door hand le for the front doors and twice for t he
rea r doors.
• If the driver's door is opened (after yo u have locked the vehicle
fro m the inside using the power locking sw itch), the door will rem ain
unlocked to preve nt you from locki ng yourse lf out of yo ur vehicle.
After you close the doo r, you have to lo ck the drive r's door aga in .
• If you have a crash and the airbag is activated, the doors automat­
ically unlo ck.
& WARNING
• If you use the power locking switch with the door s closed,
remember that all the vehicle doors will lock.
• Locking doors from the inside can help prevent inadvertent
doo r opening during an accident and can also prevent unwanted
entry from the outside . Locked door s can, however, delay assi s- .,,.

& WARNING (continued)
tance to vehicle occupants and hold up rescue efforts from the
outside in an accident or other emergency.
(I) Tips
If the vehicle has been locked manually with the key or with the
remote control, the central locking switch is inoperative. •
Rear power locking switch
There is also a power locking switch in the rear center
console for passengers sitting in the rear.
Fig. 32 Rear power
locking switch
-Press switch rD => fig. 32 to lock the vehicle=> & in
"Locking and unlocking the vehicle from inside" on
page 44.
This switch does not unlock the doors .
See also=> page 44, "Locking and unlocking the vehicle from
inside". •
Contro ls a nd e quip ­
m en t Vehicle
OP-eration
Opening and closing
Rear lid c:::::5
The rear lid is opened by the power locking system using
the
.c::s button.
Opening the rear lid
Fig. 33 Driver's door,
rear bottom: remote
rear lid release
Fig. 34 Handle loca ­
tion in the rear lid
- Pull the switch c::::5 => fig. 33 in the driver's door.
- Unlock the rear lid by pressing the~ button on the
remote control=> fig . 33.
- Lift the lid
=> fig. 34.
Vehicle care Do-it-yourselt service iTechnical data

Opening and closing

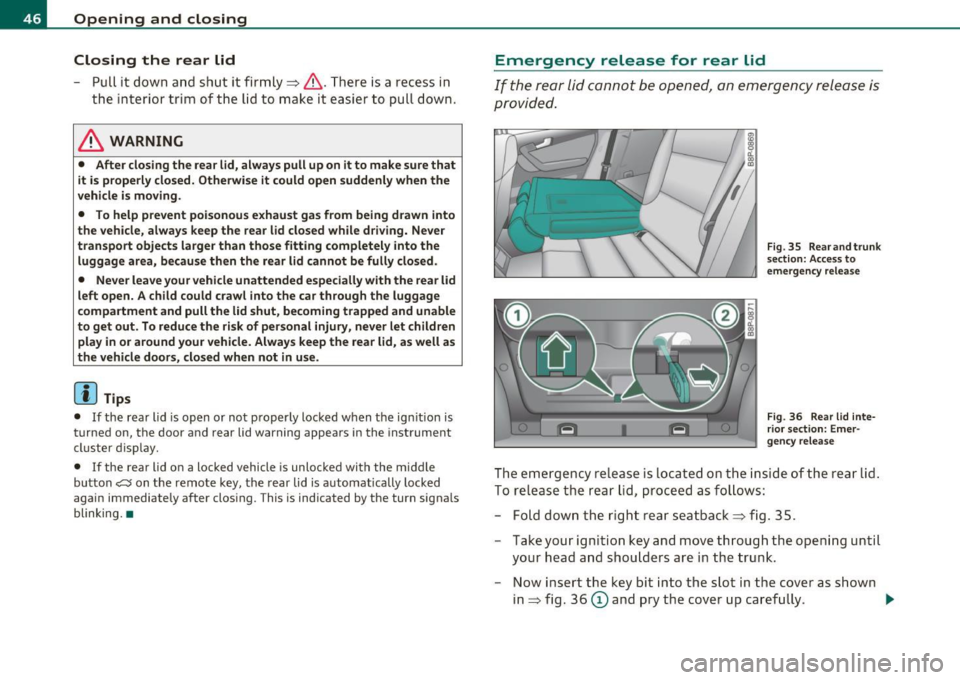

Closing the rear lid
-Pull it down and shut it firmly => & . T here is a recess in
the interior trim o f the lid to make it easier to pull down.
& WARNING
• After closing the rea r lid , always pull up on it to make sure that
it is properly closed. Otherwise it could open suddenly when the
vehicle is moving .
• To help p re v ent poisonous exhaust ga s from being drawn into
the vehicle, always keep the rear lid closed while d riv ing. Never
transport objects larger than those fitting completely into the
luggage area, becau se then the rear l id cannot be fully closed.
• Never lea ve your vehicle unattended e specially with the re ar lid
left open . A child could crawl into th e car throu gh the luggage
compa rtment and pull the lid shut , bec oming trapped and un able
to get out . To reduc e the r isk of per sonal injury, never let children
play in or around your vehicle. Always keep the rear lid , as well as
the vehicle doors , clo sed when not in us e.
(I) Tips
• If the rea r lid is op en or not p roper ly locked when the ign ition is
turned on, the door and rear lid warning appears in the instrument
cl uster dis play.
• If the rear lid on a locked vehicle is unlocked with the middle
button
cs on the remote key, the rear lid is automat ically locked
again immediately after clos ing . This is indicated by the turn signa ls
blinking. •
Emergency release for rear lid
If the rear lid can not be opened, an emergency release is
p rovided.
Fig . 3 5 Rear and trunk
se ction : Acce ss to
em ergency relea se
Fig . 3 6 Rea r lid i nte­
ri or se ct ion: Em er­
ge ncy rele ase
The em ergency re lease is located on the inside of the rear lid .
To re lease the rear lid, proceed as follows:
- Fold dow n the righ t rear se atba ck
=> fig . 35.
- Take you r igni tion key and move through the ope nin g u ntil
your head a nd shou lders are i n the tru nk.
- Now insert the key bit into the slot in the cover as shown
in => fig. 36
(D and pry the cover up caref ully . ..,.

-Place the key in the round opening behind the cover@
and turn the key in the direct ion of the arrow . This unlocks
the lock and the rear lid opens a crack.
- Open the rear lid from the outside and put the ignition key
in a safe place. •
Manual door locking
If the power locking system fails (power failure), you will
need to lock the passenger door separately.
i a:.
"' "'
F ig. 3 7 Em ergency
lo cking devic e in the
doo rs
An emergency door locking device is integrated in the rear
edge of the doors (only visible when the door is open) for
those doors without a lock cylinder .
- Open the door.
- Remove the plastic cap using the veh icle key~ fig. 37 .
- Stick the key into the internal slot and turn the key about
90 degrees as far as it can go to the righ t (right-side doors)
or to the left (left-side doors).
- Replace the plastic cap.
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Opening and closing
After you close the door, you will no longer be able to open it from the
outs ide.
You can open it from the inside, however, by pulling on the door latch,
once for the front doors and twice for the rear doors.•
Child safety lock
The child safety lock prevents the rear doors from being
opened from the inside.
,._ M
-
-a:. a, (0
Fig. 38 Rear doors:
c h ild safety loc k
The rear doors are equipped with a child safety lock. It is
operated with the vehicle key . The child safety lock is only
visible when the door is op en .
- To
switch on the child safety lock, turn the ignition key in
the direction of the arrow.
- To
switch off the child safety lock, turn the ignition key in
the opposite direction of the arrow.
The child safety lock prevents the doors from being opened from the
inside when you have small children sitting in the rear. •
Vehicle care Do-it-yourselt service iTechnical data

Opening and closing
Anti-theft alarm system
The anti-theft alarm triggers an alarm if anyone
attempts to break in to the ve hicle .
Fig . 3 9 Dio de po sition
in the in strum ent
panel
The anti -theft alarm system trigge rs an audible a larm and turns on
t he emergency flasher if an unauthori zed i nter feren ce wi th th e
veh icle is sensed by t he system .
How is the anti-theft alarm system switched on?
The anti-theft alarm system is switched on when you lock the dr iver's
door m anually using t he fo ld-ou t key, o r whe n you use the remote
control. The sys tem is activated approximately 30 seconds after the
vehicle is lo cked. The indicato r lig ht ~ fig . 39 sta rts flash ing rapi dly
for 30 seconds and then blinks s lowly.
How is the anti -theft alarm sy stem switched off?
The anti-theft alarm sys tem is switched off when you use the remote
c on trol to unlock yo ur vehi cle. If you do no t open a door within 30
seconds after you have unlocked with t he remote control, the vehicle
w ill l ock itse lf aga in automat ically .
If you lock just the d river's door us ing your key, the front passenger's
door and the rear lid remain locked .
When will the anti theft alarm system be triggered?
When the vehicle is locke d, the alarm sys tem monitors and protects
t he following parts of t he veh icle:
• eng ine compa rtment
• luggage compartment
• doors
• ignition
When the system is activated, the a larm will be t rigge red if one of the
doors, the engine hood or the rear lid are opened, or if t he ign it ion is
t u rned on or t he radio removed .
Th e a nti-t hef t alarm system w ill also go o ff w hen the bat tery i s
disconnected.
You can also t rigge r the alarm by pressing the PA NI C but ton on your
remote -co ntro l key. T his w ill alert other peop le in case of emergency .
Press the
PANIC button aga in to t urn off the a la rm .
How is the anti-theft alarm switched off when
triggered?
T he a larm system is switched off when you unlock the ve hicle using
the remote-cont ro l key or when the ignition is switched on. The a la rm
w ill also switch itself off when it comes to the end of its cycle .
Emergency flasher
The emergency flasher will b link briefly when the doors, eng ine hood
and re ar lid ar e pr oper ly closed .
If the emergency flashers do not blink, check the doo rs , engi ne hood
and rear lid to ma ke sure they are properly closed. If you close a door,
t he hood or the rea r lid wi th the an ti- theft a la rm sw itched on, the
eme rgency flashers w ill blink on ly after you have closed the door or
lid .
[ i ] Tips
For the an ti-t heft a larm system to func tion p roperly, m ake su re all
vehicle doors and windows are closed before leaving the vehicle. •
