-When a battery is charged, it produces
hydrogen gas which is explosive and
could cause personal injury.
- Always keep the battery well out of the
reach of children.
- Before work is done on the electrical sys­
tem, disconnect the negative ground ca­
ble.
- Before performing any work on the elec­
trical system, switch off the engine and
ignition as well as any electrical equip­
ment. The negative cable on the battery
must be disconnected. If you are just go­
ing to replace a light bulb, then it is
enough to switch off the lights.
- Before disconnecting the battery, switch
off the anti-theft alarm system! Other­
wise you will set off the alarm.
- When disconnecting the battery, first
disconnect the negative cable and then
the positive cable.
- Before reconnecting the battery, make
sure all electrical consumers are switch­
ed off. Reconnect the positive cable first
and then the negative cable. Never inter­
change the cables -this could start a fire!
- Never charge a frozen or a thawed-out
battery. It could explode! If a battery has
frozen, then it must be replaced. A dis­
charged battery can freeze over at
32 °F
(0 oc).
-Mak e sure the vent hose is always attach­
ed to the opening on the side of the bat­
tery.
- Never use batteries which are damaged.
There is the danger of an explosion! Al­
ways replace a damaged battery.
_& WARNING
California Proposition 65 Warning:
- Battery posts, terminals and related ac­ cessories contain lead and lead com­
pounds, chemicals known to the State of
California to cause cancer and reproduc­
tive problems. Wash hands after han­ dling.
Checking and filling 209
(D Note
- Do not disconnect the vehicle battery
when the ignition is switched on or when
the engine is running, otherwise, you will
damage electronic components in the
electrical system.
- When working on the engine, protect the
battery housing from ultraviolet (UV)
rays by not parking the vehicle in direct
sunlight .
- If your vehicle is going to stand for a
long period of time without being driven,
protect the battery from "freezing", oth­
erwise it will be damaged and will then
have to be replaced
~ page 209.
Charging of battery
All work on the battery requires technical knowledge!
Fig. 165 E ngine compart ment: conne ctors for a charg­
er and jump start cables
A charged battery ensures good starting per­
formance . A discharged battery can
freeze at
temperatures of only
O 0C. A frozen or thawed
battery must be replaced, as the battery
housing may be cracked due to freezing and
could therefore leak acid.
.,. Always read and heed all WARNINGS be­
low~ .&, and ~.&, in
Working on the bat­
tery on page 208.
... Switch off the ignition and all electrical con­
sumers .
.,. Make sure the area is well ventilated when
you charge the battery.
.,. Connect charger cables.
Charger cables
must always be connected POSITIVE
G to ..,.

210 Check ing and filling
POS IT IVE E] and NEGATI VE [:] to NEGATIVE
(j ump sta rt pins)[:].
.. Switch on the charger.
• Make sure the charging rate is not over
6 amps.
• Turn off the charger¢,&..
• Disconnect the charger cables.
• Connect both battery cables to the battery
i f necessary -
first plus, then minus.
The battery must not be opened!
¢ @ in Gen­
eral information on page 207 .
Chargi ng the b attery
Only use chargers with a m ax im um cha rg in g
v oltage o f
14.8 V. The battery connecting ca­
bles do not need to be disconnected. Do not
open the battery when charging.
Read all of the manufacturer's instructions for
the charger before charting the battery.
It is not necessary to remove the battery from
the engine compartment, and it is a lso not
necessary to disconnect the cables.
Normally, a battery should be charged at no
more than 10 percent of its rated capacity.
For example, a charging current of 4.5 amps
wo uld be used on a battery rated at 45 Ah.
Rated capacity of the battery in your veh icle is
listed on the battery housing .
The battery caps shou ld
not be opened when
cha rg ing a battery.
_& WARNING
Cha rging a battery can be dangerous.
- Never charge a frozen battery. It may ex­
plode because of gas trapped in the ice .
Allow a frozen battery to thaw o ut first .
- Do not reuse batteries which we re fro­
zen. They must be replaced. The battery
housing may have cracked and weakened
when the battery froze.
- Charge the battery in a we ll ventilated
area. Keep away from open f lame or elec­
trical spark. Do not smoke. Hydrogen gas generated by the battery is explosive. -
To reduce the danger of exp losion, never
connect or d isconnect charger cab les
while the charger is operating.
- Fast charging a battery is dangerous and
should only be attempted by a compe­
tent techn ic ian with the proper equip­
ment.
- Battery acid that may sp ill dur ing charg­
ing should be washed off with a solut ion
of warm water and baking soda to neu­
tralize the ac id.
{[) Note
-Make sure that the gas venting hose is
always connected to the or iginal opening
on the battery s ide. Otherwise gasses or
battery acid could leak out.
- Never use a fast charger as a booster to start the engine. This will seriously dam­
age sensitive electron ic components,
such as contro l units, re lays, radio, etc.,
as well as the batte ry charger.
- T he vehicle may be optionally equ ipped
w ith a gel battery, wh ich can only be
charged at a cons tant current-lim ited
voltage . To prevent damage to the bat ­
tery and the electronics system, a gel battery that is connected must under no
circumstances be charged with a quick
charger.
{!) Tips
- The vehicle battery must not be charged
with a standard small charger that pl ugs
into the outlet.
- Only charge the battery through the con­
nections in the engine compartment.
Battery replacement
The new battery must hove the some specifi­
cations as the old one.
Intelligent energy management in your vehi­
cle is responsible for distributing the electri­
ca l energy throughout your vehicle
¢
page 167. The intelligent energy manage-
ment system will keep the engine battery .,..

charged better then vehicles without this sys­
tem . To make sure the additional e lectrica l en ­
ergy is available once again after you have
changed the battery, we recommend that you install batteries of the same type and manu­
facture only (the same as those installed at
the t ime your vehicle was delivered). Specifi­
cations are listed on the battery hous ing . Your
authorized dealer must code the battery in
the energy management system to enable yo u
to use the energy management functions cor­
rectly after replacing the bat tery.
If it is not possible to use a battery of this
type, the new battery must have the same ca­
pacity, voltage (12 volts) , amperage, con ­
struction and plug sealing.
We re commend that you use ma intenance­
free or
cy cle -re sis tant /le ak-proof batteries
that conform to the standards TL
825 06
(from December 1997) and VW 7 SO 73 (from
Aug ust 2001).
When insta lling the bat tery , make sure the ig­
n ition and all e lectrica l consumers are turned
off .
CD Note
-Make sure tha t the gas venting hose is
always connected to the o riginal open ing
on the battery side . Otherwise gasses or
battery acid could leak out.
- Battery mounts and clamps m ust always
be secured correctly.
- Read and follow the warnings under
C? page 208, Working on the battery be ­
fore performing any work on the battery .
@ For the sake of the environment
Because of the problem of proper d isposa l
o f a battery, we recommend your author ­
ized Audi dealer change the batte ry for
you. Batteries contain su lfuric ac id and
lead and must always be disposed of prop­
erly in compliance w ith all environmental
regu lations . D isposing of vehicle batte ries
improperly is very dangerous to the envi­
ronment. Make sure that the removed bat-
Checkin g and fillin g 211
tery cannot overbalance, otherwise su lfu ­
ric acid might escape!
Windshield washer container
Using plain water is not adequate for filling
the $ windshield washer system .
Fig. 166 En gin e compart men t: w in ds hield washer flu­
i d co ntai ner
The windshield washer fluid container is locat­
ed on the right side of the engine compart­
ment ~
fig. 166. The washer fluid conta iner is
marked w ith the symbol $ is on its cap .
.,. Before you check anything in the engine
compartment, always
read and heed all
W ARNINGS ~ _&. in Working in the engine
compartment on page 194.
.,. Lift the fil le r ca p tongue to add washer flu ­
id. You can fi ll the container to the top.
.,. Press the cap back onto the f iller neck after
f illing the container .
You can find the reservo ir
capacity in t he t able
in
C? page 257.
Clean water should be used when filling up . If
poss ible, use soft water to prevent scaling on
the washer jets. Always add a glass cleane r
solu tion (with frost protection in t he win ter).
CD Note
Do not mix engi ne coolant antifreeze o r
a ny o ther addi tives to fill up the wind­
sh ield washer rese rvoi r.

212 Tire s and wheel s
Tires and wheels
Tires
General notes
Tires may be the least appreciated and most
abused parts of a motor vehicle .
Tires may be the least appreciated and most
abused parts of a motor vehicle . Tires are,
however, one of the most important parts of a
vehicle, particularly considering the compara­
tive ly small patch of rubber on each tire that
assures that a ll-impo rtant contact between
you, your vehicle and the road.
Maintaining the correct tire pressure, mak ing
sure that your vehicle and its tires do not have
to carry mo re weight than they can safe ly han­
d le, avoiding damage from road hazards and
reg ularly inspecting t ires for damage includ­
ing cuts, slashes irregu la r wear and ove rall
condition are the most important things that
you can do to he lp avoid sudden tire failure in­
cluding tread separation and blowouts.
Avoiding damage I f you have to drive over a curb or similar ob­
stacle, drive very s low ly and as close as possi ­
b le at a right angle to the curb.
A lways keep chem ica ls includ ing gre ase, o il,
gasoline and b rake fluid off the ti res .
Inspect the t ires regularly for damage (cuts,
cracks or b listers, etc.). Remove any fo reign
bod ies embedded in the treads.
Storing tires Mark tires when you remove them to indicate
the direction of rotation . Th is ensures you to
be ab le to mount them correctly when you re­
install t hem.
When removed, the whee ls or t ires should be
stored in a cool, d ry and preferably dark place .
Store tires in a vertical pos ition if they are not
mounted on rims, in a horizontal pos it ion if
they are mounted on rims. New tire
s
New t ires have to be broken in¢&,. .
T he tread depth of new t ires may vary, accord­
ing to the type a nd make of t ire and the tread
pa tte rn .
Hidden damage
Damage to tires and r ims is ofte n not readily
vis ible . If you notice unusual v ibrat ion or the
vehicle p ulls to one side, th is may ind icate
t h at one of the t ires has been damaged . Th e
t ir es m ust be checked immed iate ly by an au ­
tho rized Aud i dea le r or q uali fied wor ks hop.

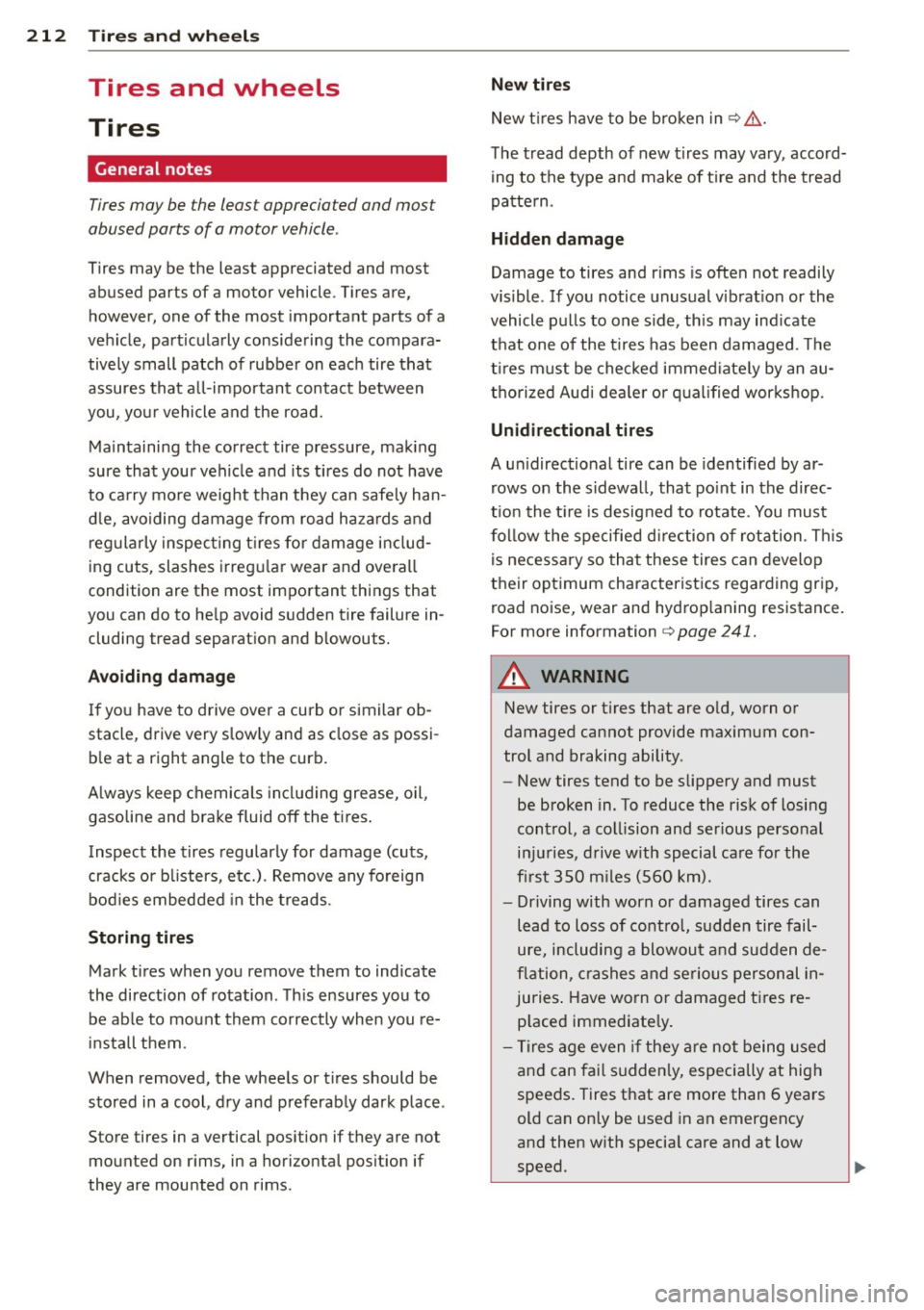

Unidirectional t ires
A un idirectional tire can be identified by ar­
rows on the sid ewa ll, that po int in the direc­
t ion the t ire is desig ned to rotate. You mus t
f ol low the specified d irection of rotation . This
is necessary so that these tires can develop
their optimum characterist ics regarding grip,
road no ise, wear and hyd rop laning resistance.
For more information ¢
page 241.
A WARNING
-New tires or tires that are old, worn or
damaged cannot provide maximum con­
trol and braking ability .
-
-New tires tend to be slippery and must
be broken in . To reduce the risk of losing
control, a co llision and ser ious personal
in jur ies, d rive w ith special ca re fo r the
fi rst 350 m iles (560 km).
- Driving with worn or damaged tires can
le ad to loss of control, sudden tire fail­
ure, including a blowou t and sudden de­
fl ation, c rashes and seriou s personal in­
juries . Have wo rn or damaged t ires re­
p laced immediate ly .
- T ires age even if they are not being used
an d can fai l sudden ly, especially at high
speeds. Tires that are more than 6 years
old can only be used in an emergency
and then w ith specia l care and at low
speed.

-Never mount used tires on yo ur vehicle if
you are not sure of their "previous histo­
ry." Old used tires may have been dam­
aged even though the damage cannot be
seen that can lead to sudden tire failure
and loss of vehicle control.
Glossary of tire and loading terminology
Accessory weight
means the comb ined weight (in excess of
those standard items wh ich may be rep laced)
of automa tic tra nsmission, power steering,
power br akes, power w indows, power sea ts,
radio, and heater, to the ex tent that these
items are avai lab le as factory -installed equip ­
ment (whether installed or not).
Aspect ratio
means the rat io of the height to the w idt h of
the tire in percent. Numbers of 55 or lower in ­
d icate a low sidewall fo r improved s teer ing re ­
sponse and better overall handling on dry
pavement.
Bead
means the pa rt of the t ire t hat is made o f
s teel wires, wrapped o r rein force d by ply cor ds
and that is shaped to fit the r im.
Bead separation
means a b reakdown of the bond between
components in the bead.
Cord
means the strands forming the plies in the
tire.
Cold tire infl ation pressure
means t he tire pressure recommended by the
vehicle manufacturer for a t ire of a designated
size that has not been dr iven for more than a
couple of miles (kilometers) at low speeds in
the three hour period before the tire pressure
i s measu red or adjusted.
Tire s an d wheel s 213
-If you notice un usua l vibration or if the
veh icle pulls to one side when driv ing, a l­
ways stop as soon as it is safe to do so and check the wheels and tires for dam­
age.
Curb weight
mea ns the we ight of a motor ve hicle w it h
standard equipment in cl ud ing t he maximum
capa city of fuel, o il, and coolant, ai r cond i­
tion ing a nd addi tional weig ht o f optiona l
equipment .
Extra load tire
means a t ire designed to operate at higher
loads and at highe r inflat ion p ressu res tha n
th e co rresponding standard tire. Extra load
tir es my be i dent ified as "XL", "xl", "EXTRA
L O AD", or "R F" on t he sidewall.
Gross Axle Weight Rating ("GAWR ")
mea ns the load-carry ing capac ity of a s ingle
axle system, measured at the tire-ground in­
te rfaces.
Gross Vehicle Weight Rating ( "GVWR ")
means the maximum total loaded we ight of
the ve hicle.
Groove
means the space between two adjacent tread
ribs.
Load rating (code )
means the maximum load tha t a t ire is rated
to carry for a given inflation press ure. Yo u
may not find this information on all tires be­
ca use it is not required by law.
Maximum load rating
me ans the load r ating for a tire at the maxi­
mum pe rm issi ble inf lat ion pressure for that
ti re . •
•
...

214 Tires and wheels
Maximum loaded vehicle weight
means the sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight, and
(d) Production options weight
Maximum (permissible) inflation pressure
means the maximum cold inflation pressu re
to which a tire may be inflated. Also called
"maximum inflation p ressure."
Normal occupant weight
means 150 lbs. (68 kilograms) times the
number of occupants seated in the vehicle up
to the total seating capacity of your vehicle.
Occupant distribution means distribution of occupants in a vehicle .
Outer diameter means the overa ll diameter of an inf lated new
tire.
Overall width
means the linear distance between the exteri­
ors of the sidewalls of an inflated tire, includ­
ing e levations due to labeling, decorations, or
protective bands or ribs.
Ply
means a layer of rubber-coated parallel cords.
Production options weight
means the comb ined weight of those installed
regular production options weighing over 5
lbs . (2 .3 kg) in excess of those standard items
which they replace, not previously considered
in curb weight or accessory weight, including
heavy duty brakes, r ide leve lers, roof rack,
heavy duty battery, and specia l trim .
Radial ply tire
means a pneumatic tir e in which the p ly cords
that extend to the beads are laid at substan­
tially 90 degrees to the centerline of the
tread . Recommended inflation pressure
see
~
page 213, Cold tire inflation pressure.
Reinforced tire
means a t ire designed to operate at higher
loads and at higher inflation pressures than
the corresponding standard tire . Re inforced
t ir es my be identified as "XL", "xl", "EX TRA
LOAD", or "RF" on the sidewall.
Rim
means a metal support for a tire or a t ire and
tube assembly upon which the tire beads are seated.
Rim diameter
means nom inal d iameter of the bead seat. If
you change your wheel s ize, you w ill have to
purchase new tires to match the new r im di­
ameter .
Rim size designation
means rim diameter and width.
Rim width
means nominal distance between rim flanges .
Sidewall
means that portion of a tire between the
t read and bead.
Speed rating (letter code)
means the speed at which a tire is designed to
be driven for extended periods of time. The
ratings range from 93 mph (150 km/h) to
186 mph (298 km/h)
~ page 224 . You may
not find this information on all tires because
it is not requ ired by law.
The speed rating letter code, where applica­
ble, is molded on the tire sidewall and indi­
cates the max imum pe rmissibl e road speeds
~ A in Winter tires on page 228.
Tire pressure monitoring system*
means a system that detects when one or
more of a veh icle's tires are underinflated and
illuminates a low tire pressure warning tell­
tale.

Tires and wheels 215

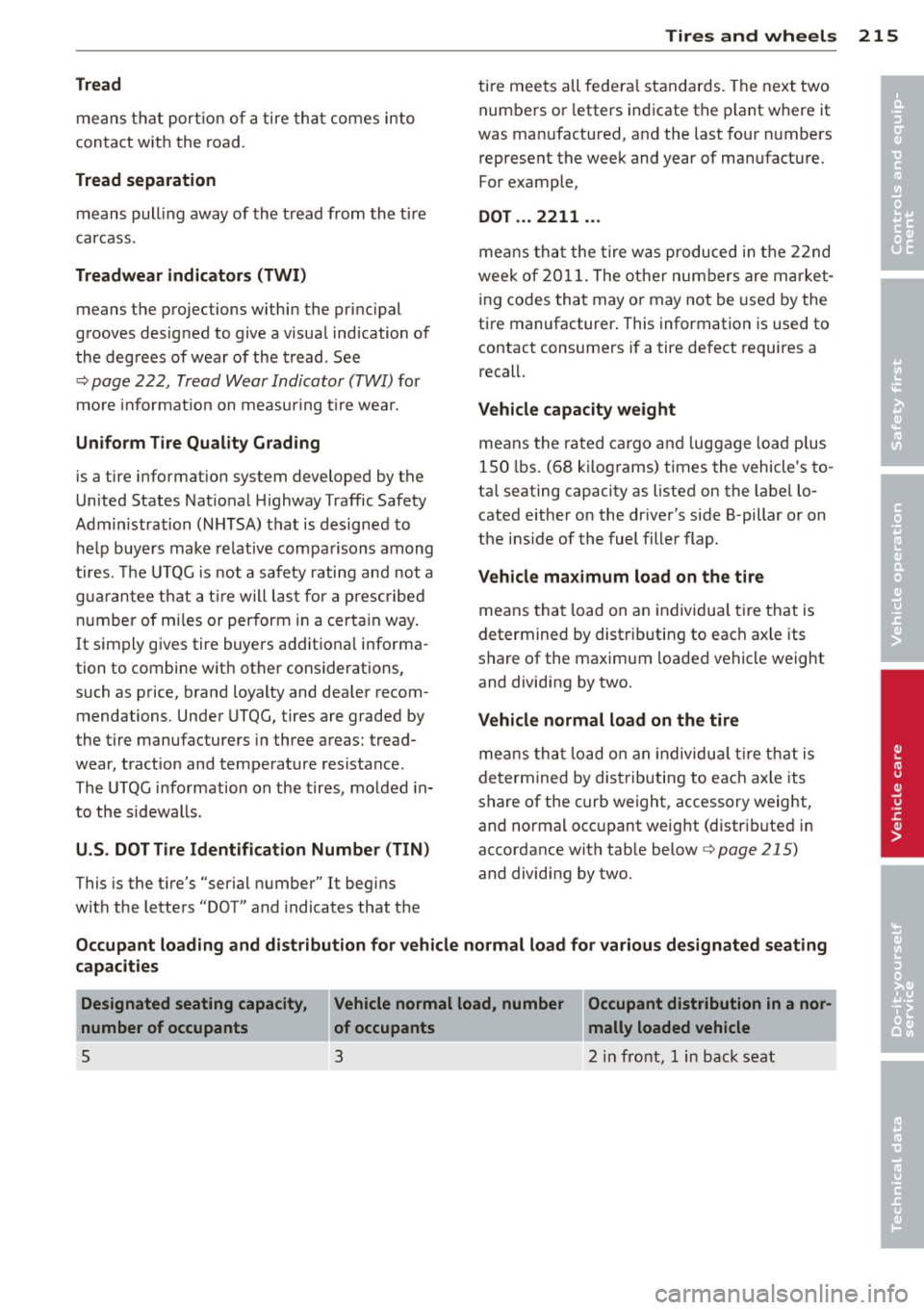

Tread
means that portion of a tire that comes into
contact with the road.
Tread separation
means pull ing away of the tread from the tire
carcass .
Treadwear indicators (TWI)
means the projections within the principal
grooves designed to give a visual indication of
the degrees of wear of the tread. See
c:> page 222, Tread Wear Indicator (TWI) for
more informat ion on measuring tir e wear.
Uniform Tire Quality Grading
is a tire information system developed by the
United States National Highway Traffic Safety
Administration (NHTSA) that is designed to help buyers make relative comparisons among
tires. The UTQG is not a safety rating and not a
guaran tee that a tire will last for a prescribed
number of miles or per form in a certain way.
I t simply gives tire buyers additional informa ­
tion to combine with other considerations,
such as price, brand loyalty and dea ler recom­
mendations. Under UTQG, tires are graded by
the tire manufacturers in three areas: tread­
wear, traction and temperature resistance.
The UTQG information on the tires, molded in­
to the sidewalls .
U.S. DOT Tire Identification Number (TIN)
This is the t ire's "serial number" It begins
with the letters "DOT" and indicates that the ti
re meets all federal standards. The next two
numbers or letters indicate the plant where it
was manufactured, and the last four numbers
represent the week and year of man ufacture.
For example,
DOT . .. 2211 ...
means that the tire was produced in the 22nd
week of 2011. The other numbers are market­
ing codes that may or may not be used by the
tire manufacturer . This information is used to
contact consumers if a tire defect requires a
recall.
Vehicle capacity weight
means the rated cargo and luggage load plus
150 lbs. (68 kilograms) times the vehicle's to­
ta l seating capacity as listed on the label lo­
cated either on the driver's side B-pillar or on
the inside of the fuel filler flap.
Vehicle maximum load on the tire
means that load on an individua l tire that is
determined by distributing to each ax le its
share of the maximum loaded vehicle weight
and dividing by two.
Vehicle normal load on the tire
means that load on an individua l tir e that is
determ ined by distributing to each axle its
share of the curb weight, accessory weight,
and normal occupant weight (distributed in
accordance with tab le below
c:> page 215)
and dividing by two.
Occupant loading and distribution for vehicle normal load for various designated seating
capacities
Designated seating capacity,
number of occupants
5
Vehicle normal load, number Occupant distribution in a nor-
of occupants _____ mally loaded vehicle
3 2 in front, 1 in back seat
•
•

216 Tires and wheels
Cold tire inflation pressure
Tire pressure affects the overall handling, performance and safety of a vehicle .
Fig. 167 Tire press ure labe l: loca ted ei the r on dr iver 's
side 8-pillar or inside the fuel filler flap
Tire pressure generally refers to the amount
of air in a tire that it needs it to do its job and
safely carry the combined load of the entire
vehicle and its contents . Tire pressure is
measured in kilopascals (kPa), the interna­
tional measuring unit and in pounds per
square inch (PSI). Tire pressure is based in
part on the vehicle's design and load limit­
the greatest amount of weight that the vehi­
cle can carry safely and the tire size. The prop­
er tire pressure is frequently referred to as the
"recommended cold tire inflation pressure."
Air in the tires expands when the tire heats up
because of internal friction when it flexes in
use . The tire pressure is higher when the tire
has warmed up than when it is "cold ." It is the
inflation pressure in a "cold " tire that counts.
Therefore, you should never let air out of a
warm tire to match "cold tire inflat ion pres­
sure" recommendations. The tires would then
be underinflated and could fail suddenly .
Maintaining proper tire pressure is one of the
most important things you can do to help
avoid sudden tire failure. Underinflated tires
are a major cause of sudden tire failure. Keep­
ing tires at the right pressure is also impor­
tant for safe and responsive vehicle handling,
traction, braking and load carrying .
Tire pres­
sures are particularly important when the
vehicle is being driven at higher speeds, and
then especially when heavily loaded even
within the permissible load -carrying capaci­
ties approved for your vehicle.
,;
•(=~: I : I :,.. I)@ ~
The~-----~---w-o- ....... -e.....i -·· - ­u ........ -.-..,.0, ... -....,.,...tot~---....... ._.,. -..
....
-..... ...........
- KPA. a PSI
- KPA.
a PSI
- KPA. a PSI
Fig. 168 Tir e pressure label
SU OWNER'S MANUAl FOR AD0"10NAL l10N VOl!ILEMANU£1. DU _,...,
POUR Pl.US DE
REHSEKi.\'IEME NTS
The recommended tire pressures for your Audi
depend on the kind of tires on your veh icle
and the number of passengers and/or amount
of luggage you will be transporting .
On USA vehicles, the t ire pressure label is lo­
cated on driver's side B-pillar . On Canada vehi­
cles, the tire pressure label is located e ither
on the dr iver 's side B-pillar or inside the fuel
filler flap . The tire pressure label lists the rec­
ommended cold tire inflation pressures for
the vehicle at its maximum capacity we ight
and tires that were on your vehicle at the time
it was manufactured.
If you wish to improve comfort when operat­
ing the vehicle at normal load (up to 3 occu­
pants), you can adjust tire pressures to those
specified for normal vehicle load. Before op­
erating the vehicle at maximum load, you
must increase the tire pressures to those
specified for maximum vehicle load¢.&..
Bear in mind that the tire pressure mon itoring
system * can on ly monitor the tire pressures
yo u have stored. The system does not recog­
nize the load condition of your vehicle.
T he effectiveness of the tire pressure monitor­
ing system * wi ll be impaired if you store nor­
mal load pressures but then operate the vehi ­
cle at its maximum load
¢ .&..
See the illustration ¢ fig. 167 for the location
of the label either on driver's side B-pillar or
i nside the fuel fi ller flap (color of the actual
IJI>

Tires an d wheel s 21 7
labe l and exact location on the vehicle will
vary slightly).
Note that the fo llowing tab le is accurate at
t he t ime o f go ing to press and is subject to
change. In the event of discrepancies, the tire
pressure label (on USA vehicles, the tire pres ­
sure label is located on driver's side B -pillar;
on Canada vehicles, the tire pressure label is
located e ither on the driver's side B-pillar or inside the f
uel filler flap.) always takes prece­
dence.
T he table below lists the recommended cold
ti re inflat ion p ressu res for the Audi mode l
cove red by your Owner's Literat ure at the vehi­
cle's capacity weight and the tir e sizes instal­
l ed on the respect ive models as orig inal
equipment, or as a factory option.
Engine
(dis­
place­
ment in liter ) Tire designation
Tire pressure front Tire pressure rear
4- cylin ­
d er
2.0 TFSI (ga so­
line )
4-cylin -
der
2 .0
TOI
(clean
die sel) 205
/55 Rl6 91H All Sea-
son
2 25 /45 Rl7 91W High
Performance
22S /45 Rl7 94H XL All
Season
225 /45 Rl7 94Y XL High
Performance
225 /40 Rl8 92V XL H igh
Perfo rmance
Compact spare wheel
Tl25 /70 Rl8
205 /S5 Rl6 91H All Sea-
s on
225 /45 Rl 7 94H XL All
Season
225 /4S Rl 7 94V XL High
P erformance
225 /40 Rl8 92V XL High
Performance
C ompa ct spare whe el
Tl25 /70 Rl8 no
rmal load
condition
( upto 3 oc-
cupant s)
PSI kPA
36 250
•
JI
35 2 40
38 260
35 240
38 260
60 420
36 250
38 260
35 240
35 240
60 420
normal load
full load condition full load
condition (up to 3 oc- condition
cupant s)
PSI kPA PSI kPA PSI kPA
39 270 30 210 38 260
..
38 260 30 210 36 250
"
39 270 32 220 38 260
36 250 30 210 35 240
41 280 35 240 41 280
60 420
60 420 60 420
39 270 30 210 36 250
41 280 32 220
38 260
38 260 30 210 35 240
38 260 30 210 38 260
60 420 60 420 60 420
X L = reinforced or extra load tire. It may also appear as xl, EX TRA LOAD , or RF on the tire side­
wall.
The correct tire pressure for the spare wheel is
located on a label e ither on the driver's side B­
p illar or i nside the fuel filler flap . ways
compare the tire size designatio n on the
tire pressure label on your vehicle with the
tires on yo ur vehicle . Make sure that the t ire
s ize informat ion on the vehicle labe l is the
I
J
•
I
Because technical changes may be made to
vehicle equipment during the model year, al- same as the size of the tires on the veh
icle. .,.
•
•

218 Tires and wheels
This is especia lly important if the vehicle be­
longs to someone else or you bought the vehi­
cle with different rims/tires or you bought the
vehicle as a previously owned vehicle.
Remember, your safety and that of your pas­
sengers also depends on making sure that
load limits are not exceeded. Vehicle load in­
cludes everybody and everything in and on the
vehicle. These load limits are technically refer­
red to as the vehicle's Gross Vehicle Weight
Rating (' 'GVWR"). The Gross Axle Weight Rat­
ing ("GAWR") is the maximum load that can
be applied at each of the vehicle's two axles.
The Gross Vehicle Weight Rating and the
Gross Axle Weight Rating are listed on the
safety compliance sticker label located either
on the driver's side B-pillar or on the inside of
the fuel filler flap. The tire pressure label on
your Audi lists the maximum combined
weight of all of the occupants and luggage or
other cargo that the vehicle can carry. For the
location of the tire pressure label
o fig. 167.
_& WARNING
Overloading a vehicle can cause loss of ve­
hicle control, a crash or other accident, se­
rious personal injury, and even death.
- Carrying more weight than your vehicle
was designed to carry will prevent the
vehicle from handling properly and in­
crease the risk of a loss of vehicle con­
trol.
- The brakes on a vehicle that has been
overloaded may not be able to stop the
vehicle within a safe distance.
- Tires on a vehicle that has been overload­
ed can fail suddenly causing loss of con­
trol and a crash.
- Always make sure that the total load be­
ing transported -including the weight of
a trailer hitch and the tongue weight of a
loaded trailer -does not make the vehi­
cle heavier than the vehicle's Gross Vehi­
cle Weight Rating.
A WARNING
- Incorrect tire pressures and/or underin­
flation can lead to a serious or fatal acci­
dent.
- Incorrect tire pressures and/or underin­
flation cause increased tire wear and can affect the handling of the vehicle.
- Incorrect tire pressures and/or underin­
flation can also lead to sudden tire fail­
ure, including a blowout and sudden de­
flation, causing loss of vehicle control.
Checking tire pressure
The correct tire pressure for the tires original­
ly installed on your vehicle is listed on the tire
pressure label located either on driver's side 8-pillar or inside the fuel filler flap.
The recommended tire pressures are on the
tire pressure label and in the table
o page 216, Cold tire inflation pressure. This
means that the pressure must be checked and
adjusted when the tire has not been driven for
more than a couple of miles (kilometers) at
low speeds during the previous three hours.
Air in the tires expands when the tire heats up
as a result of internal friction as it flexes in
use. The tire pressure is highe r when the tire
has warmed up than when it is "cold ."
It is the inflation pressure in a "cold" tire that
counts. Therefore, you should never let air out
of a warm tire to match "Cold tire inflation
pressure" recommendations
o page 216. The
tires would then be underinflated and could
fail suddenly.
The tire pressure label on your Audi lists the
recommended cold tire inflation pressures for
the new, original equipment tires that were
on your vehicle at the time it was manufac­
tured. For the location of the label
opage 216, fig. 167.
Most tires lose air naturally over time . They
can also lose some air if you drive over a pot­
hole or hit a curb while parking. It is usually
not possible to see whether the radial tires ..,.
