display AUDI S3 2012 Owner's Guide

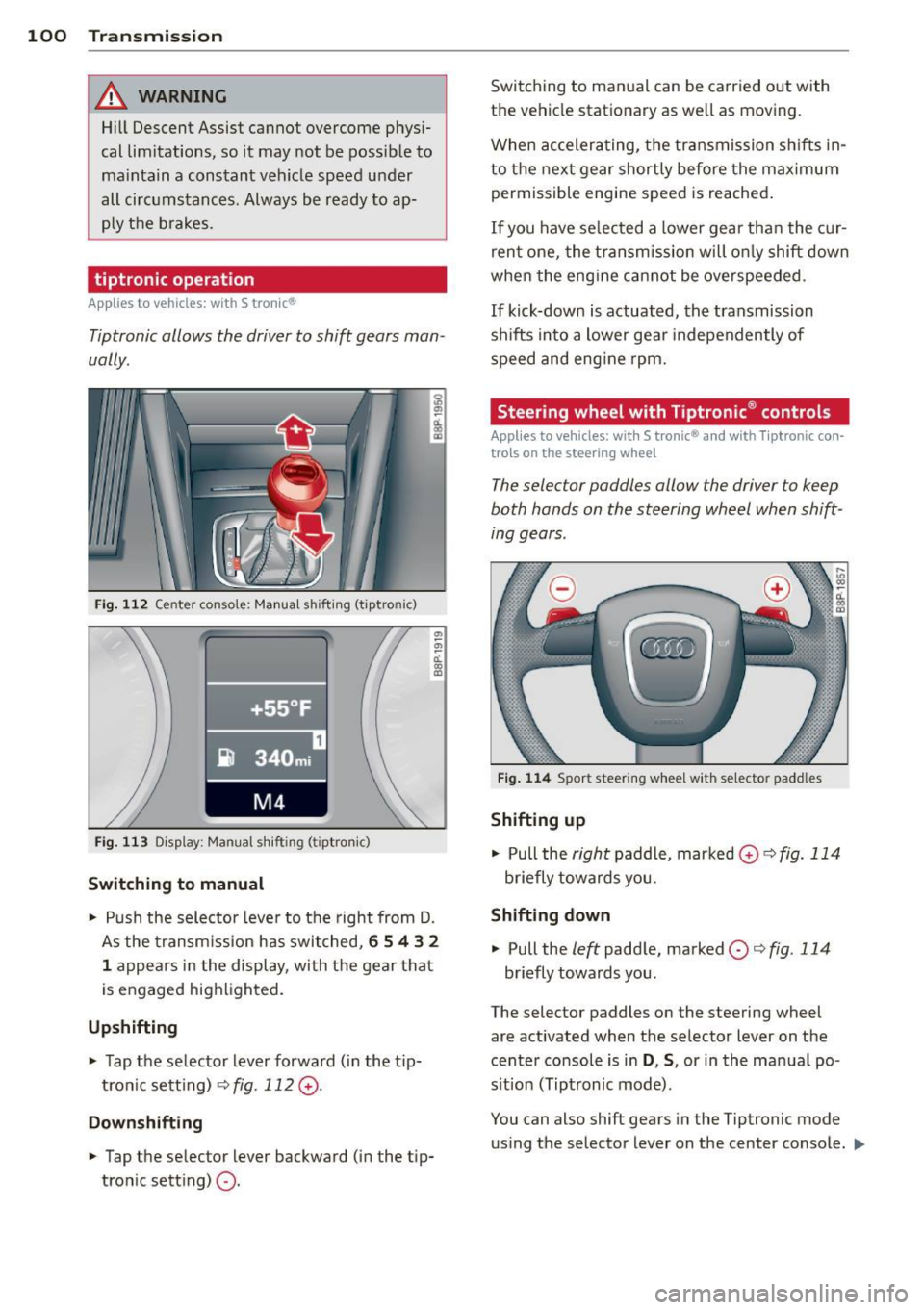

100 Transmi ssion
& WARNING
Hill Descent Assist cannot overcome phys i­
cal lim itations, so it may not be possible to
ma intain a constant vehicle speed under
all circumstances. Always be ready to ap­
ply the b rakes.
tiptronic operation
Applies to vehicles: with S tronic®
Tiptronic allows the driver to shift gears man­
ually .
Fig. 112 Center console: Manua l shift ing (tiptronic)
Fig. 113 Disp lay: Manual shifting (t iptro nic)
Switching to manual
~
"' d. .. m
• Push the selector leve r to the right from D .
As the transm ission has switched,
6 5 4 3 2
1 appea rs in the display, with t he gear that
is engaged highlighted.
Upshifting
• Tap the selector lever forwa rd (in the t ip­
t ron ic sett ing)
Q fig. 112 G).
Down shifting
• Tap the selector lever backward (in the t ip­
tronic sett ing)
0 -
Switching to manual can be carried out with
the vehicle stationary as we ll as moving.
When accelera ting, the transmission sh ifts in­
to the next gear shortly before the maximum
permissible engine speed is reached .
If you have selected a lower gear than the cur­
ren t one, the t ransmission w ill on ly shift down
when the eng ine ca nnot be overspeeded.
If kick-down is actuated, the transmission
shifts into a lower gear independently of
speed and eng ine rpm.
Steering wheel with Tiptronic ® controls
Applies to vehicles: with 5 tronic® and with T iptronic con­
trols on the steering wheel
The selector paddles allow the driver to keep
both hands on the steering wheel when shift­
ing gears .
Fig . 1 14 Sport steering whee l w ith selector paddles
Shifting up
• Pull the right paddle, marked 0 ¢ fig. 114
briefly towards you.
Shifting down
• Pull the left padd le, marked 0 ¢ fig. 114
briefly towards you .
The selector paddles on the steering wheel
are activated when the selector lever on the
center console is in
D , S , or in the manual po­
s ition (Tiptronic mode).
You can also shift gears in the Tiptronic mode
us ing the selector lever on the center console . ..,.

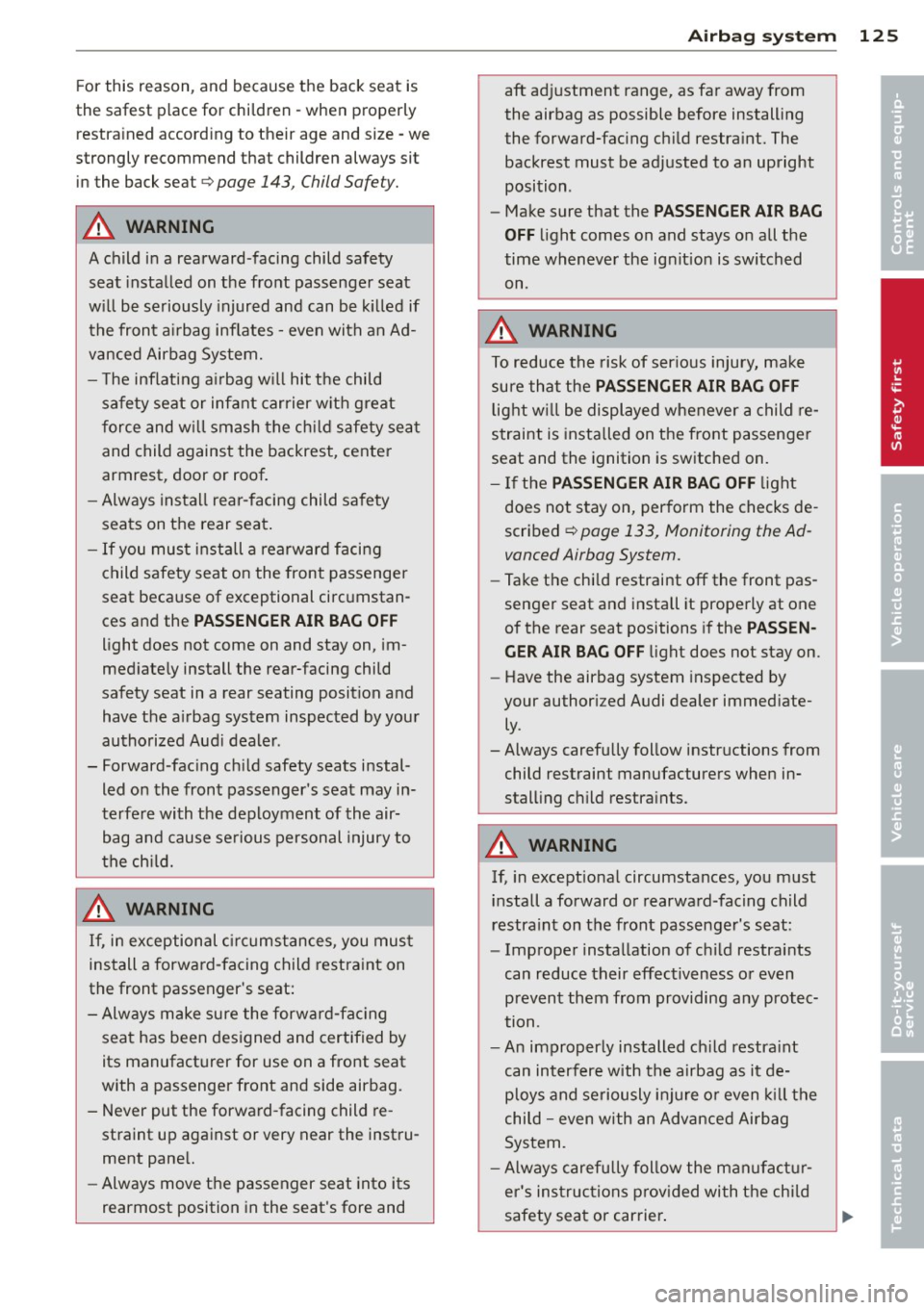

For this reason, and because the back seat is
the safest place for children - when properly restrained according to their age and size - we
strongly recommend that children always sit in the back seat
Q page 143, Child Safety.
A WARNING
-
A child in a rearward-facing child safety seat installed on the front passenger seat
w ill be seriously injured and can be k illed if
the front a irbag inflates - even with an Ad­
vanced Airbag System.
- T he inflating a irbag w ill hit the child
safety seat or infant carrier with great
force and w ill smash the ch ild safety sea t
and child against the backrest, cente r
armrest, door or roof .
- Always install rear -facing child safety
seats on the rear seat.
- If you must install a rearward facing
child safety seat on the front passenger
seat because of exceptional circumstan­
ces and the
PASSENGER AIR BAG OFF
light does not come on and stay on , im­
med iately install the rear-facing child
safety seat in a rear seating posit ion and
have the a irbag system inspected by your
authorized Aud i dealer .
- Forward-fac ing ch ild safety seats instal­
led on the front passenger's seat may in­
terfe re with the deployment of the air­
bag and cause se rious personal injury to
the ch ild.
A WARNING
If, in exceptional c irc umstances, you mus t
install a forwa rd-facing child restra int on
the front passenger's seat:
- Alw ays make sure the forw ard-fac ing
seat has been des igned and certified by
its manufacturer for use on a front seat
with a passenger front and side airbag.
- Never put the forward -facing child re ­
straint up aga inst or very near the instru­
ment pane l.
- Always move the passenger seat into its
rearmost position in the seat's fore and
A irbag system 12 5
aft adjustment range, as far away from
the airbag as possible before installing
the forward-fac ing ch ild restraint. The
backrest must be adj usted to an upright
position .
- Make sure that the
PASSENGER AIR BAG
OFF
li ght comes on and stays on all the
time wheneve r the ignit ion is switched
on.
A WARNING
To reduce the risk of ser ious injury, make
su re that the
PASSENGER AIR BAG OFF
light w ill be displayed whenever a child re­
straint is installed on the front passenger
seat and the ignition is switched on.
- If the
PASSENGER AIR BAG OFF light
does not s tay on, per form the checks de ­
scribed
Q page 133, Monitoring the Ad ­
vanced Airbag System.
- Take the chi ld restraint off the front pas­
senger seat and install it properly at one
of the rear seat positions if the
PASSEN ­
GER AIR BAG Off light does not stay on.
- Have the airbag system inspected by
your author ized Audi dealer immed iate­
ly .
-Always carefu lly follow instr uctions from
child restraint manufacturers when in­
stall ing ch ild restra ints .
A WARNING
If, in except iona l circumstances, you must
install a forward or rearward-facing child
restra int on the front passenger's seat :
- Improper instal lation of ch ild restraints
can reduce their effect iveness o r even
prevent them from providing any protec­
tion.
- An improper ly installed ch ild restra int
can interfere with the a irbag as it de­
ploys and seriously i njure o r even kill the
child -even with an Adv ance d Airbag
System.
- Always carefu lly follow the manu factur­
er 's ins truc tions p rov ided with the ch ild
safety seat or car rier . •
•

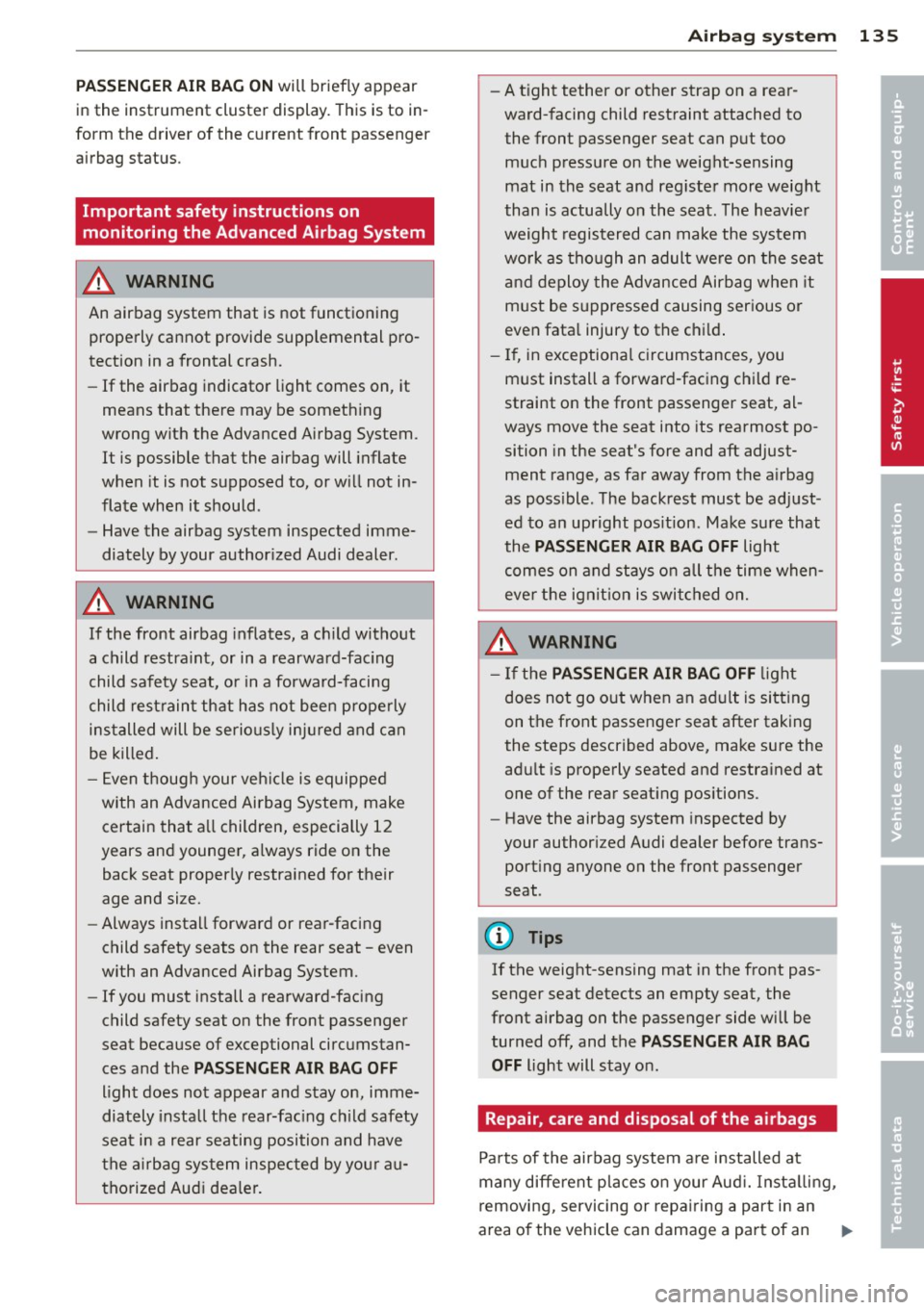

PASSENGER AIR B AG ON will briefly appear
in the instrument cluster display. This is to in­
form the driver of the current front passenger
airbag status .
Important safety instructions on
monitoring the Advanced Airbag System
A WARNING
An airbag system that is not functioning
properly cannot provide supplemental pro­
tection in a frontal crash.
- If the airbag indicator light comes on, it
means that there may be someth ing
wrong with the Advanced Airbag System .
It is possible that the airbag will inflate
when it is not supposed to, or w ill not in ­
flate when it should .
- Have the airbag system inspected imme­
diately by your author ized Audi dealer .
A WARNING
If the front airbag inflates, a ch ild without
a child restra int, or in a rearward-fac ing
child safety seat, or in a forward-facing
child restraint that has not been prope rly
installed will be serio usly injured and can
be killed.
- E ven though your veh icle is equipped
with an Advanced Airbag System , make
certain that a ll children, especially 12
years and younger, a lways ride on the
back seat properly restrained for their
age and si ze.
- Always install forward or rea r-facing
child safety seats on the rear seat -even
with an Advanced Airbag System.
- If you must install a rearward-facing
child safety seat on the front passenger
seat because of exceptional circumstan­
ces and the
PAS SENG ER AIR BAG OFF
light does not appear and stay on, imme­
diately install the rear-fac ing ch ild safety
sea t in a rear seating position and have
the a irbag sys tem inspected by you r au­
tho rized Aud i dea ler.
-
A irbag system 135
-A t ight tether or other strap on a rea r­
ward-facing child rest raint attached to
the front passenger seat can put too much pressure on the weight-sensing
mat in the seat and reg iste r more weight
than is actually on the seat . The heavie r
weight registered can make the system
wo rk as tho ugh an adult we re on the seat
and deploy the Advanced Airbag when it
m ust be suppressed causing serious or
even fata l injury to the chi ld .
- If , in exceptiona l c ircumstances , you
m ust install a forward-facing child re­
straint on the front passenger seat, al­
ways move the seat into its rearmost po­ sition in the seat's fore and aft adjust­
ment range, as far away from the a irbag
as poss ible. The backrest must be adjust ­
ed to an upright pos ition. Make su re that
the
PASSENGER AIR BAG OFF light
comes on and stays on all the time when­
eve r the ignit ion is switched on.
A WARNING
-
- If the PASSENGER AIR BAG OFF light
does not go o ut when an ad ult is sitting
on the front passenger seat after taking
the steps described above, make sure the
adu lt is properly seated and restra ined at
one of the rear seating pos itions.
- Have the airbag system inspected by
your author iz ed Audi dealer before trans­
port ing anyone on the front passenger
seat .
(j) Tips
If the weight-sensing mat in the front pas­
senger seat detects an empty seat, the
front airbag on the passenger side will be
turned off, and the
PASSENGER AIR BAG
OFF
light will stay on.
Repair , care and disposal of the airbags
Pa rts of the airbag system are installed at
many different places on your Aud i. Insta lling,
removing, servicing or repa iring a part in an
area of the vehicle can damage a part of an ..,.
•
•

Energy management
Starting ability is optimized
Energy management controls the distribution
of electrical energy and thus optimizes the
availability of electrical energy for starting the engine .
If a vehicle with a conventional energy system
is not driven for a long period of time , the bat­
tery is discharged by idling current consumers
(e.g. immobilizer). In ce rtain c ircumstances it
can result in there being insuff icient ene rgy
avai lab le to start the engine .
Intell igent energy management in your vehi­
cle hand les the d istribution of electrical ener­
gy. Starting ab il ity is markedly improved and
the life of the battery is extended.
Basically, energy management consists of
batt ery di agno sis, idlin g current man ag e­
m ent
and dyn ami c en ergy m anage ment .
Batter y diagnosis
Battery diagnosis continuously determines
the state of the battery . Sensors determ ine
battery vo ltage, battery current and battery
temperature. This dete rm ines the current
state of charge and the powe r of the battery.
Idling curr ent man agement
Idling current management reduces ene rgy
consumption while the vehicle is stand ing .
W ith the ignition switched off, it cont ro ls the
energy supply to the va rious electr ical compo ­
nents . Data from battery diagnosis is consid­
ered.
Depending on the battery's state of charge,
i nd ividua l consumers are gradual ly t urned off
to prevent excess ive d ischarge of the bat tery
and thus maintain starting capability .
Dynamic en ergy management
While the vehicle is being driven, dynamic en­
e rgy management dist ributes the energy gen­
e rated according to the needs of the individu­
a l components.
It reg ulates cons umption, so
that more electrical energy is not being used
Int ellig ent technolog y 167
than is being generated and ensures an opti ­
mal state of charge for the battery.
(0 Tips
- But even energy management canno t
negate the limits of physics . Consider
that the power and life of a battery are
limited .

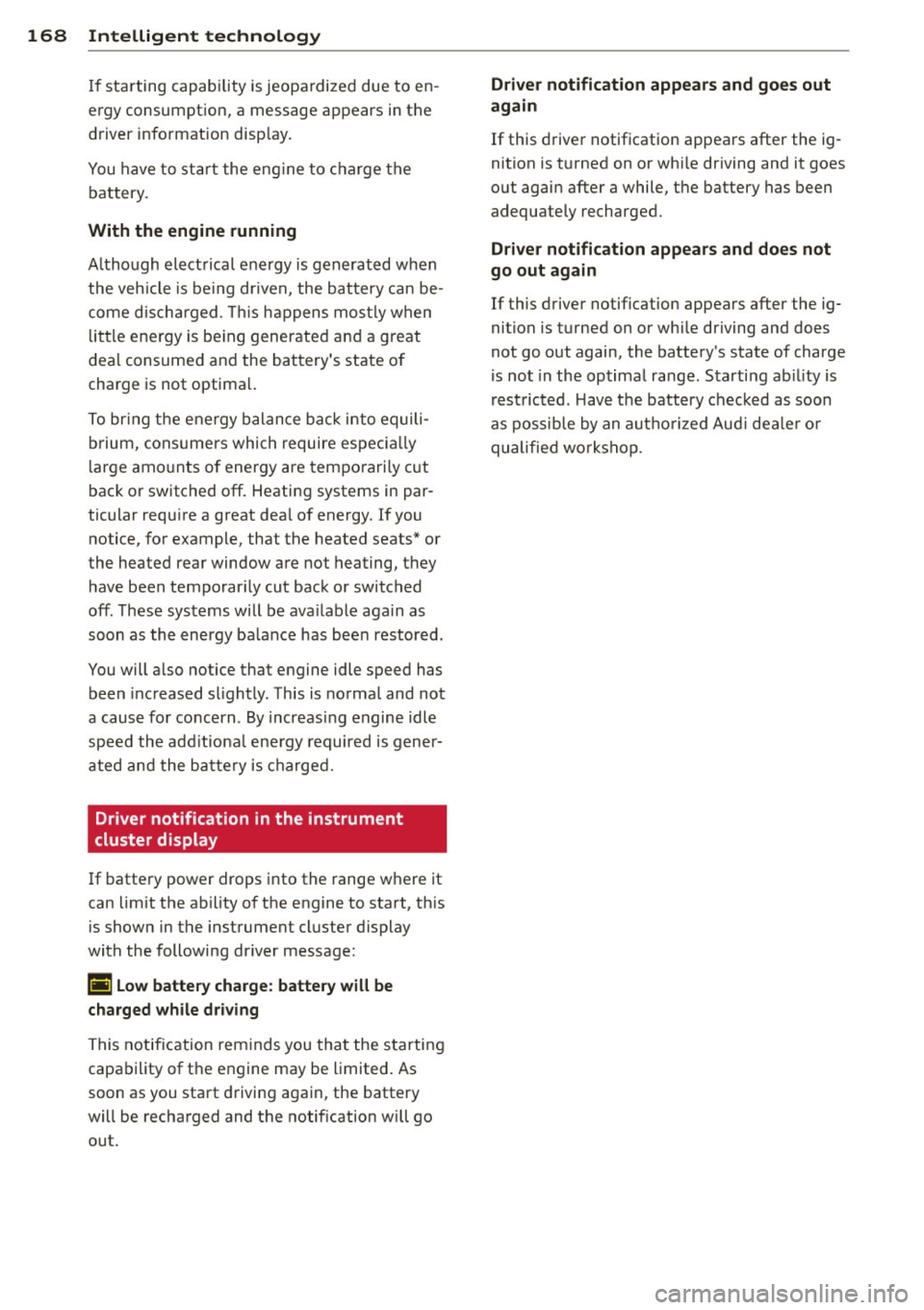

- If starting ability is threatened, you are
informed by a warning
r:!) page 168,
Driver notification in the instrument
cluster display.
What you should know
The highest priority is given to maintaining
starting capability.
The battery is severe ly taxed in short -distance
driving, in city traffic and during the cold time
of year. Abundant electrical energy is re­ quired, but only a little is generated .
It is also
critical if the engine is not running and electri­
cal components are turned on . In this in­
stance energy is be ing consumed but none is
being generated.
It is in precisely these situations that you will
notice energy management actively regulat ­
ing the d istribution of energy .
Vehicle stands for an e xtended peri od
If you do not drive your vehicle over a period
of several days or weeks, e lectr ical compo­
nents are gradually cut back or switched off.
This reduces energy consumption and ma in ­
ta ins start ing capability over a longer period .
Take into considerat ion that when you unlock
your vehicle, some convenience functions, such as the remote key or power seat adjust­
ment, may not be available . The conven ience
funct ions w ill be available again when you
tu rn on the ignition and start the engine .
With the engine turned off
If you listen to the radio, for example, w ith
the engine turned off, the battery is being d is-
charged.
~
•
•

168 Intelligent technology
If starting capability is jeopa rdized due to en­
ergy consumption, a message appears in the
driver information disp lay.
You have to start the eng ine to charge the
battery.
With the engine running
A lthough electrical energy is generated when
the vehicle is be ing driven, the battery can be­
come discha rged. This happens mos tly when
little e nergy is be ing generated and a great
dea l consumed and the battery's state o f
charge is not optima l.
To br ing the energy balance back into equili ­
brium, cons umers which require especia lly
l arge amo unts of energy are temporari ly c ut
back or switched off. Heating systems in par­
ticular requ ire a great dea l of energy. If you
notice, for example, that the heated seats* or
the heated rear window are not heating, they have been temporar ily cut back or switched
off. These systems will be ava ilable again as
soon as the energy ba lance has bee n restored.
You will a lso notice that engine idle speed has
been increased s lightly . This is norma l and not
a cause fo r co ncern . By increas ing engine idle
speed the add itiona l ene rgy required is gene r­
ated and the ba tte ry is charged.
Driver notification in the instrument
cluster display
If batte ry power drops into the range w here it
can limit the ab ility of the engine to start, th is
is shown in the instrument cluster display
with the following driver message:
(•) Low batter y charge : batte ry will be
charged while dr iving
This notif ication reminds you tha t the s tarti ng
capability of the engine may be limited. As
soon as you start d riving again, the battery
will be recharged and the notification wi ll go
out.
Driver notification appears and goes out
again
If this driver notif ication appears after the ig­
nition is t urned on or whi le driving and it goes
out again after a while, the battery has been
adequately recharged.
Driver notification appea rs and doe s not
go out again
If this driver notif ication appears after the ig­
nition is turned on or whi le driving and does
not go out again, the battery 's state of charge
is not in the optima l range. Starting ab ility is
rest ricted . H ave t he battery chec ked as soon
as possib le by an autho rized Aud i dea le r o r
qualified wo rks hop.

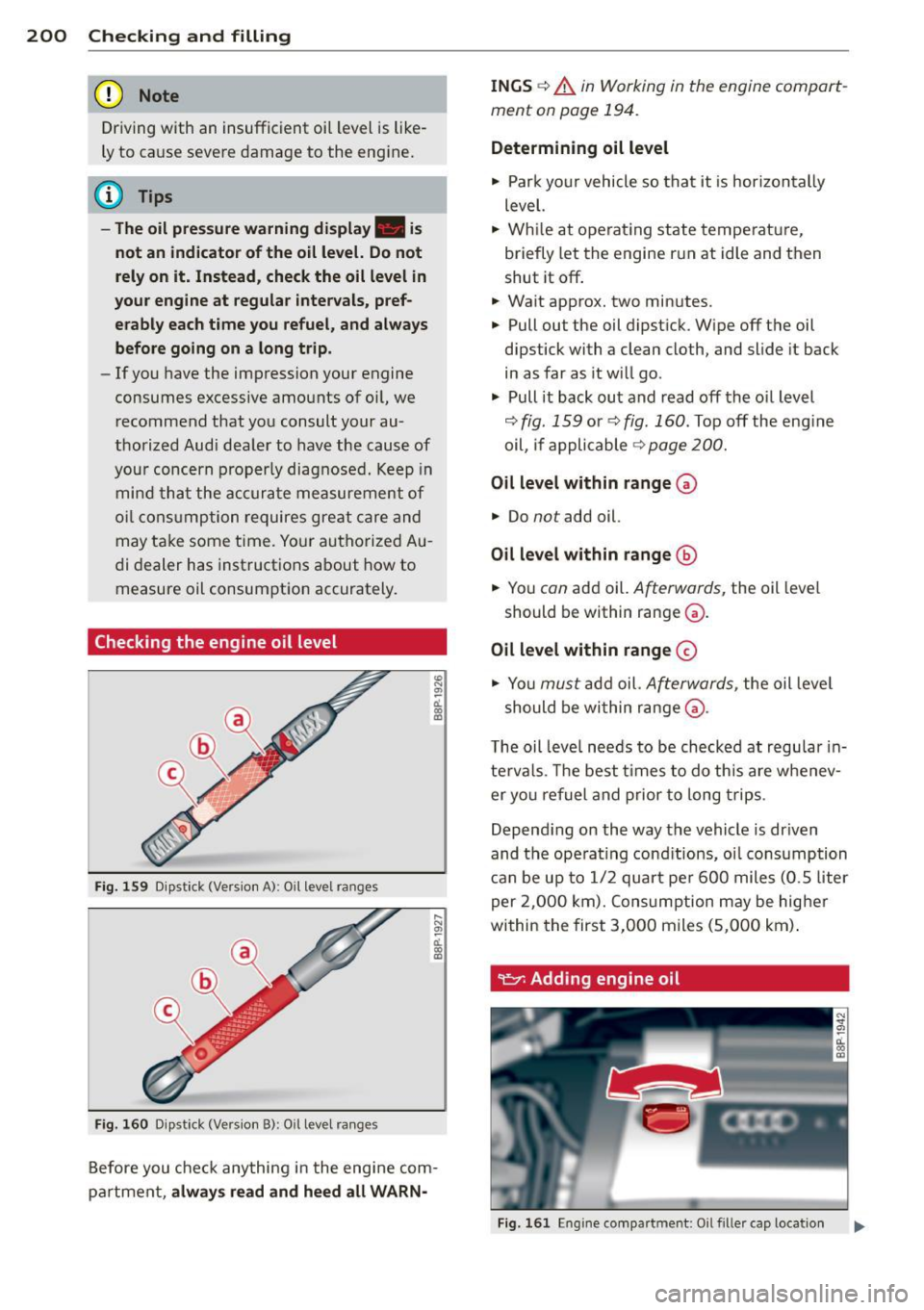

200 Checking and filling
(D Note
Driving with an insufficient oi l level is like­
ly to ca use seve re damage to the eng ine.
@ Tips
- The oil pressure warning display. i s
not an indicator of the oil level. Do not
r ely on it. Instead , check the oil level in
your engine at regular intervals, pref ­
erably each t ime you refuel, and always
before going on a long trip .
-If you have the impression your engine
consumes excessive amo unts of oi l, we
r ecommend that yo u consult your au­
thorized Aud i dea ler to have the caus e of
you r concern p rope rly diag nosed. Keep in
mi nd t hat t he accur at e measure ment of
oi l cons ump tion requires great care and
may ta ke some time. Yo ur autho rize d Au ­
di dea ler has inst ruct ions about how to
measure oil consumptio n accurately.
Checking the engine oil level
Fig. 15 9 Dipstick (Ve rs io n A) : Oi l level ranges
Fig . 160 Dipstick (Ve rs io n B): Oil leve l ra nges
B efore you che ck any thing i n the eng ine com ­
p ar tmen t,
alway s read and heed all WARN-
INGS ~ .&. in Working in the engine comport ­
ment on poge 19 4.
Determining oil level
• Park yo ur vehicle so tha t it is hori zo ntally
level.
• Wh ile at ope rat ing st ate tempe rat ure,
briefly let the engine r un at idle and then
shut it off .
.. Wait approx. two minutes.
.. Pull out the oil dipst ick. W ipe off t he oil
d ipstick with a clean cloth, and slide it back
in as far as it w ill go.
• Pull it back out and read off th e oil level
~ fig. 159 or ~ fig. 160. Top off the eng ine
oil, if applicable ~
poge 200.
Oil level within range 0
.. Do not add oil.
Oil level within range@
• Yo u con add oil. Afterwords, the oil leve l
should be within range
G) .
Oil level within range 0
• Yo u must ad d oil. Afterwards, the oil leve l
should be wi thin r ange
G) .
The oil level need s to be checke d at regu la r in ­
te rva ls. Th e be st ti mes to do th is are w henev ­
er you refuel and prior to long trips .
Depend ing on the way the vehicle is dr iven
and the ope ra tin g con ditions, oi l co nsumption
c a n b e up to 1/ 2 quar t pe r 600 mile s (0. 5 li ter
p er 2,000 km). Co nsumption m ay be hig he r
within the first 3,00 0 miles (5,000 km) .
'1:::7: Adding engine oil
Fi g. 16 1 Engine compa rtment: Oil filler cap location

remain continuously illuminated. This se­
quence will continue upon subsequent vehicle
start-ups as long as the malfunction exists.
When the malfunction indicator is illuminat­
ed, the system may not be able to detect or
signal low tire pressure as intended . TPMS
malfunct ions may occur for a variety of rea­
sons, including the installation of replace­
ment or alternate tires or wheels on the vehi­
cle that prevent the TPMS from functioning
properly . Always check the TPMS malfunction
tellta le after replacing one or more tires or
wheels on your vehicle to ensure that the re­
placement or alternate tires and wheels allow
the TPMS to continue to function properly.
Tire pressure indicator appears
Appl ies to vehicles: with tire pressur e monitoring sys te m
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too
low or if there is a system malfunction.
Fig. 172 Display : underinflation warning
Fig. 173 Display: System malfunction
Using the ABS sensors, the tire pressure moni ­
toring system compares the tire tread circum­
ference and vibration characteristics of the in­
dividual tires. If the pressure decreases in one
or more tires, this is indicated in the instru­
ment cluster with a warning symbol
ti] and a
Tires and wheels 231
message r=!) fig. 172. The driver message in the
display goes out after 5 seconds. The driver
message can be displayed again by pressing
the
ICHECKI button @¢ page 10, fig . 3 . If on­
ly one tire is affected, the display will indicate
its position .
The tire pressure monitoring must be reset in
the menu display each time the pressures are
adjusted (e .g. when switching between parti­
al and full load pressure) or after changing or
replacing a tire on your vehicle¢
page 232.
You can find the recommended tire pressures
for your vehicle on the label on the driver's
door pillar¢
page 216.
Tire tread circumference and vibration charac­
teristics can change and cause a tire pressure
warning if:
- the tire pressure in one or more tires is too
low,
- the tire has structural damage,
- the tire pressure was changed, wheels rotat- ed or replaced but the TPMS was not reset
¢page 232.
Warning symbols
ti] Loss of pressure in at least one tire¢&.
Check the tire or tires and replace or repair if
necessary. The indicator light
ti] in the instru­
ment cluster also illuminates
¢page 13.
Check/correct the pressures of all four tires
and reset TPMS in the menu display .
11@1&1 (Tire Pressure Monitoring System) Tire
pressure! System malfunction . Ifll@IS, ap­
pears after switching the ignition on or while
driving ¢
fig. 173 and the indicator light ti] in
the instrument cluster blinks for approx i­
mately one minute and then stays on, there is
a system malfunction. See your autho rized
Audi dealer as soon as possible.
A WARNING
-If the tire pressure indicator appears in
the instrument cluster display, one or
more of your tires is significantly under­
inflated. Reduce your speed immediately
and avoid any hard steering or braking ..,.

232 Tires and wheels
maneuvers. Stop as soon as possible and
check the tires and their pressures. In­
flate the tire pressure to the proper pres­
sure as indicated on the vehicle's tire
pressure label ¢
page 216. Driving on a
significantly under-inf lated tire causes
the tire to overheat and can lead to tire
failure. Under-inflation also is likely to
impair the vehicle's handling and stop­
ping ability.
- T he driver is responsible for maintain ing
the correct tire pressures. You must
check the tire pressures regularly.
- Under certain cond itions (such as a spor­
ty driving style, winter conditions or un­
paved roads), the pressure monitor indi­
cator may be delayed.
- Ask your authorized Audi dealer if run­
flat tires may be used on your vehicle .
Your vehicle registration becomes invalid
if you use these tires when not permit­
ted. Damage to your veh icle or acc idents
could also result .
(D Tips
- The tire pressure monitoring system
stops working when there is an ESP/ABS malfunction .
- Using snow chains may result in a system
malfunction.
- Tires with the identification "AO" or "RO"
have been specially matched with your
Audi. We recommend using only these
tires because they meet the highest
standards regarding safety and driving
characteristics when used correctly. Your
a uthorized Audi dea ler will g ladly pro­
v ide you w ith more information.
Reset tire pressure monitoring system
(Stepl)
Applies to veh icles: w ith tire pressure monitoring system
If the tire pressure is adjusted, wheels ore ro­
tated or changed, the TPMS must be reset in
the menu display.
----- ®
Fig. 174 Wipe r lever: Contro ls fo r the menu d isplay
Fig. 175 Disp lay: S ta rt m enu
I Rese t I button @ and rocker switch @
¢ fig. 17 4 functions:
To open the menu
" Press the I Reset ! button @ unt il the menu
disp lay¢
fig. 175 appears
Selections and settings
" Press the rocker switch @ to reach a menu
d isp lay. The switch is operated the same as
the display (up/down) .
Entering and confirming
" Press the I Reset I button @.
Returning to the Start menu
" Press the I Rese t I button longer than 2 sec­
onds to return from any menu level to the
Start menu.

@ Tips
-Before resetting the TPMS, the current
pressures of
all four tires must corre­
spond t o the specified va lues. Adjust the
tire pressu re and reset the pressure in
the tire pressure mon itor ing system ac­
cord ing to the load yo u are carry ing
~pag e
216.
- Do not store the tire pressures if snow
cha ins a re installed. Otherw ise the sys­
tem could malfunction.
Reset tire pressure monitoring system
(Step2}
Applies to vehicles: with tire pressure monitoring system
Fig. 1 76 Display: Tire pressure
Fig. 1 77 Display: Tire pressure
I Reset ! button @ and rock e r swit ch @
~ page 232, fig . 17 4 func tions:
Storing tire pressures
.. Turn on the ignition .
.. Se lect the menu:
> Adjusting * > Tire pres-
sure
> Store .
Entering and confirming
.. Se lect the menu : Store now
.. Press the
I Reset I button @ .
.. Se lect the menu : Confirm
Tires and wheels 233
.. Press the I Reset I button @.
Returning to the Start menu
.. Press the I Reset ! button longer than 2 sec­
onds to re tur n from any menu level to the
S ta rt men u.
{!) Tips
Befo re resetting the TPMS, t he cur rent
p re ssu res of
all four tires mus t corres pond
to the speci fied val ues. Adjus t the tire
pr essure and rese t the pressure in the ti re
press ure monitoring system acco rding to
the load you are carry ing
~ page 216 .

244 Fuses and bulbs
Fuse Location, Instrument Panel left
Fuses which can be replaced.
Fig. 191 Cockp it driver 's s ide: fuse pane l layout
Note that the following table is accurate at
the time of going to pr ess and i s subject to
change . In the event of d iscrepancies, the la­
bel on the in side of the cover always take s
pr eceden ce .
The power seats are protected by circuit
break ers,
which automatically reset after a
few seconds after the ove rload has been rem­
ed ied .
Equipment
Manua l head light beam ad­
justment, a utomat ic head­
light beam adjustment, AFS
1 co ntrol m odule, engine
components, light switch
(switch lighting/illumina­
ti on), diagnosis socke t
2
3
4
5
6
8
9
Automatic transmission,
control module for CAN data
transfer (gateway), electro­
mechanical steering, shift
gate automatic transmis­
sion, fuel tank control unit,
engine control unit, brakes
control (A BS), Electronic
Stabili zation Program (ESP) ,
Anti-Slip Regulation (ASR)
Air bag
Air-conditioning (pressure
sensor, air quality sensor), button for Electronic Stabili ­
zation Program (ESP), Anti ­
Slip Regulat ion
(ASR), tire
pressure monitor display, oil
level senso r, back-up ligh t
s w itch, front se at he ati ng ,
p ark ing aid, sea t-occupancy
recognition (on USA vehi ­
cles), garage door opener,
automa tic mirror dimming,
headlight assistant, heated
windshield washer nozzles, air conditioning (control
module)
AFS headlights ( left si de)
AFS headlights (right side) Instr ument cluster
Navigation system, radio
system
1 0 digital
radio, cell phone, TV
equipment
11 Automatic mirror dimming,
headlight assistant
12 Central lock ing (front doors)
Central locking ( rear doors)
Amps
10
10
5
5
5
5
5
15
7 ,5
10
10
10
