jack points AUDI S3 2012 Owners Manual

-The vehicle should never be lifted or jacked
up from underneath the engine oil pan , the
transmission housing , the front or rear
a x le or the body side members. This could
lead to ser ious damage.
- Use lifting equipment with padded contact
surfaces to avo id damage to the underbody
or chassis frame.
- Alternatively, cover the contact surfaces on
workshop hoist or floor jack w ith rubber
pads b efore lifting.
- Before dri ving over a workshop hoist, check
that the vehicle weight does not exceed the
permissible lifting capacity of the hoist .
- Before dr iving over a workshop hoist, en­
sure that there is sufficient clearance be­
tween the hoist and low parts of the vehi­
cle .
A WARNING
To r educe the ris k of seriou s injury a nd ve­
hicle da mage:
- Always lift the veh icle only at the spec ial
wor ks ho p hoi st and floor j ack lift p oin ts
ill ustra te d
c:;>page 253, fig. 199 and
c:;>page 253, fig . 20 0.
- F ailure to l ift the vehicl e at th ese poi nts
cou ld ca use the ve hicle to t ilt or fall from
a lift if there is a c ha nge in vehicle wei ght
dist rib ution and balance . This might hap ­
pen, for example, when heavy c ompo­
nents such as the e ngine bloc k or t rans­
mission are removed.
- W hen remov ing s uch heavy c omponents,
anchor veh icle to h oist or add corre­
sponding we ights t o maintain the center
of g rav ity. Oth erwise, th e veh icle m ig ht
t il t o r slip off the hois t, causing serio us
p ers onal in ju ry.

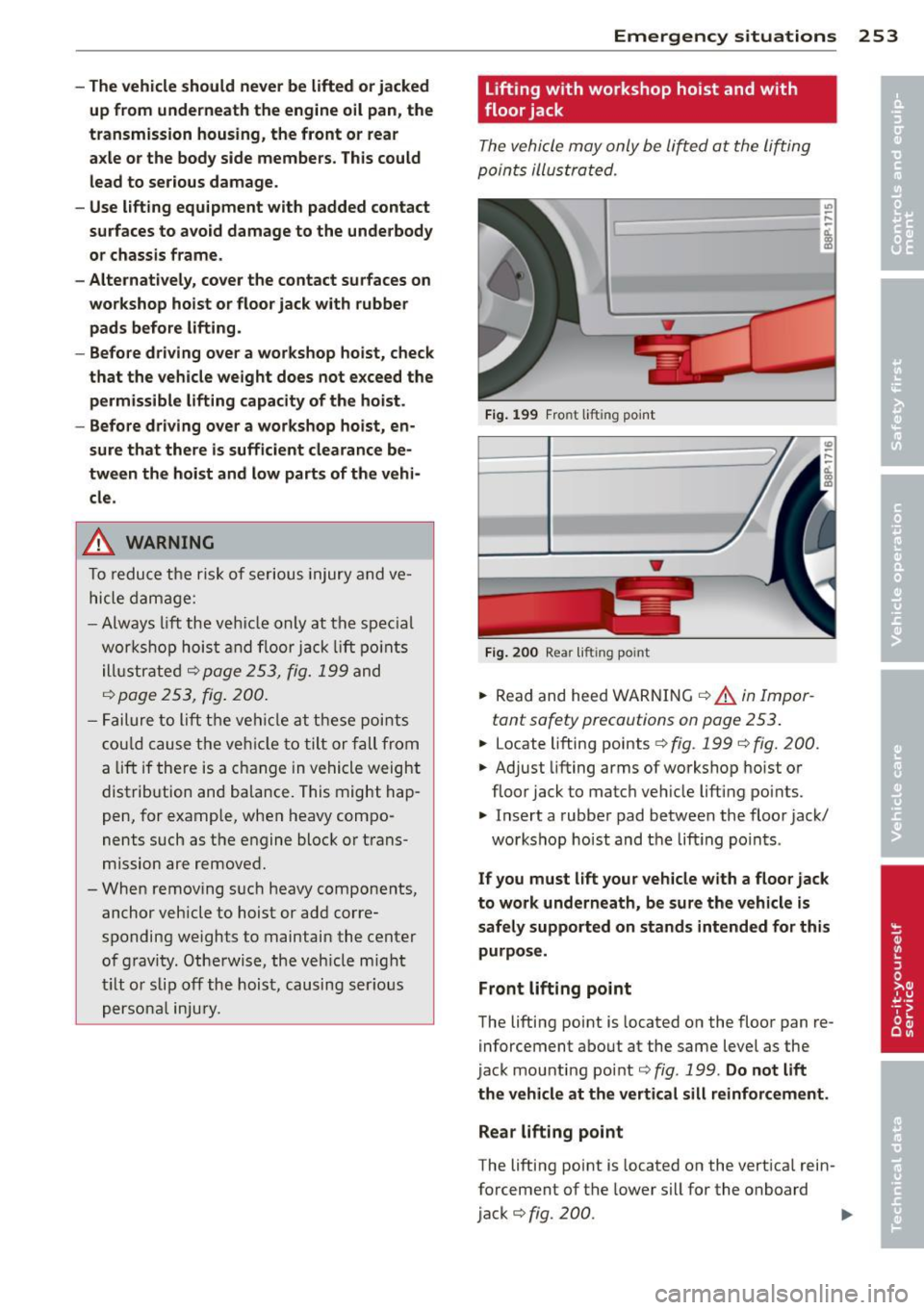

Emergency situations 253
Lifting with workshop hoist and with
floor jack
T he vehicle may only be lifted at the li~ing
p oi nt s illus tra ted.
..,
---------~1::
Fig. 199 Front lifting point
Fig. 200 Rear lifting point
.,. Read and heed WAR NIN G c:;> &. in Impor ­
tant safety precautions on page 253 .
.,. Locate lifting points c:;> fig. 199 c:;> fig . 200 .
.,. Adjust lifting arms of workshop hoist or
fl oor jack to matc h ve hicle lift ing poi nts.
I
.,. Insert a rubbe r pad between the floo r jac k/
workshop hoist and t he lift ing poin ts .
If you must l ift your vehicle with a floor jack
to work underneath, be sure the vehicle is
safely supported on stands intended for this purpo se .
Front lifting point
The lifting poi nt is located o n the floo r pan re­
inforcement about at the same leve l as the
jac k mounti ng po int
c:;> fig. 199. Do not lift
the vehicle at the vertical sill reinforcement .
Rear lifting point
The liftin g point is located on the vert ica l rein­
forcement of the lower s ill for the on board
jack
c:;> fig. 200. ..,.

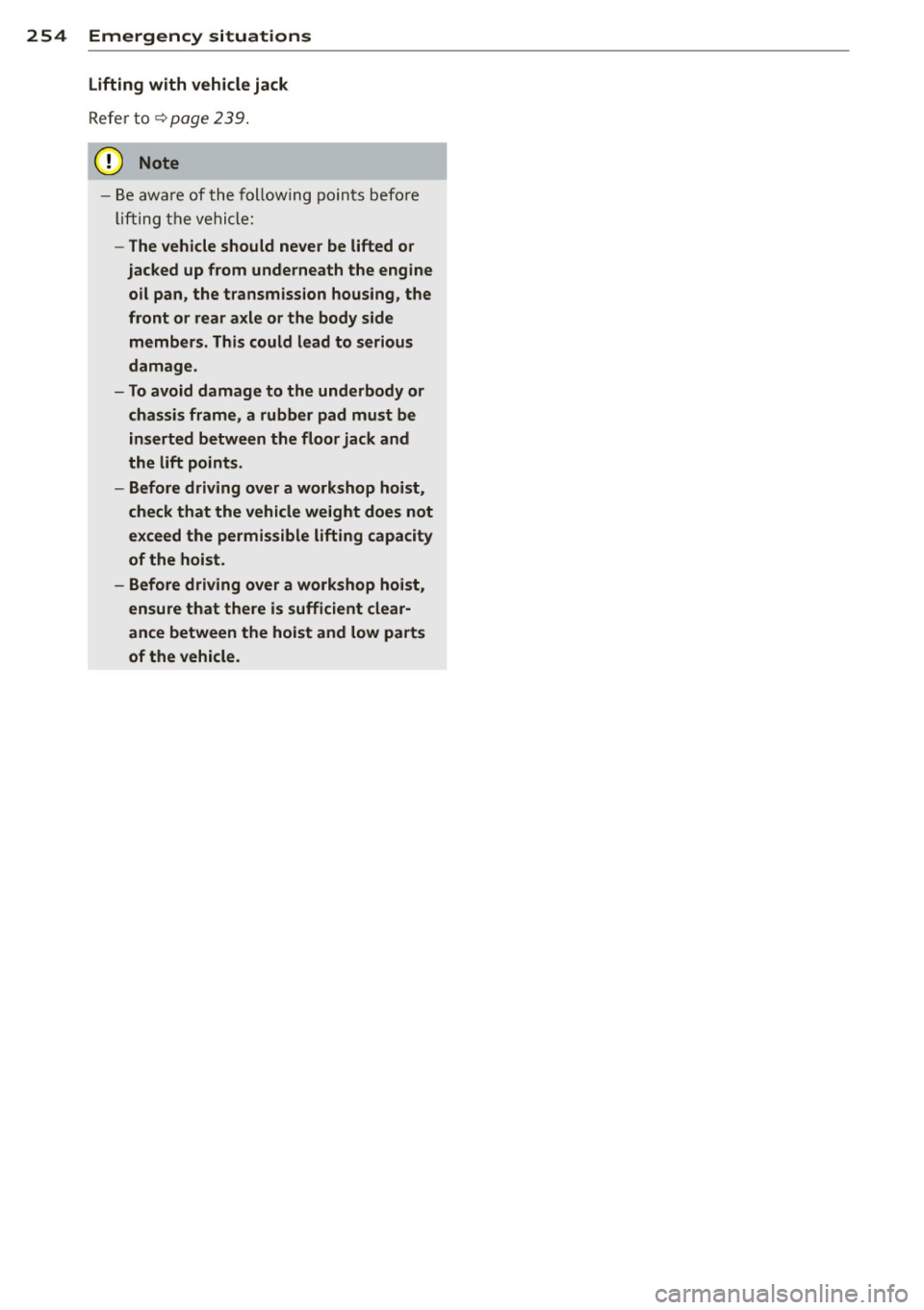

254 Emergency situations
Lifting with vehicle jack
Refer to"* page 239.
(D Note
-Be aware of the following points before
lifting the vehicle:
-The vehicle should never be lifted or
jacked up from underneath the engine
oil pan, the transmission housing, the
front or rear axle or the body side members. This could lead to serious
damage.
- To avoid damage to the underbody or
chassis frame, a rubber pad must be
inserted between the floor jack and
the lift points.
- Before driving over a workshop hoist,
check that the vehicle weight does not
exceed the permissible lifting capacity
of the hoist.
- Before driving over a workshop hoist,
ensure that there is sufficient clear­
ance between the hoist and low parts
of the vehicle.
