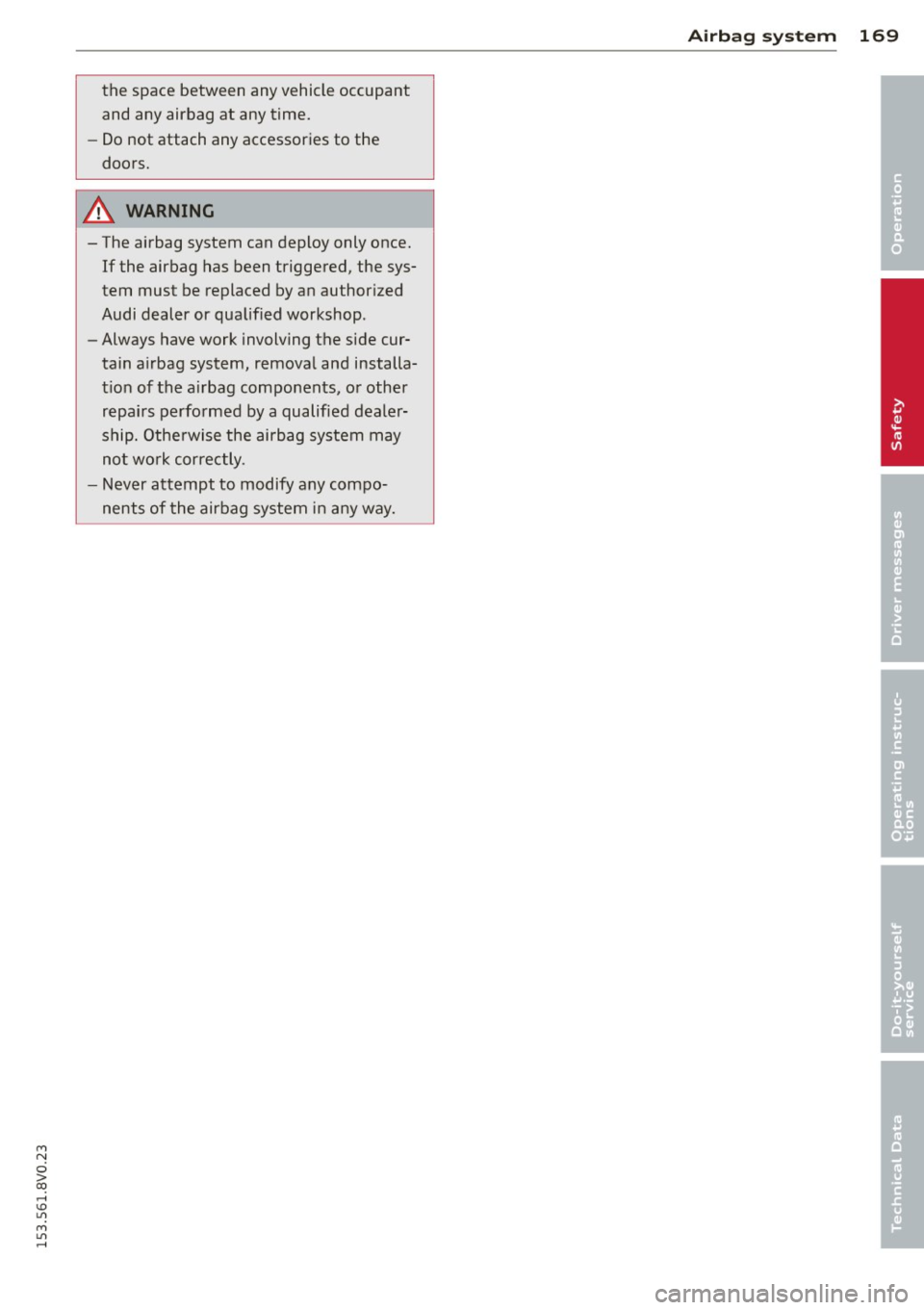

the space between any vehicle occupant and any airbag at any time.
- Do not attach any accessories to the
doors.
A WARNING
- The airbag system can deploy only once.
If the airbag has been triggered, the sys­
tem must be replaced by an author ized
Audi dealer or qualified workshop.
- Always have work involving the side cur­
tain a irbag system, remova l and installa­
t ion of the a irbag components, o r other
repai rs perfo rmed by a qualified dealer­
ship. Othe rwise the airbag system may
not wo rk corre ctly.
- Never attempt to modify any compo­
nent s of the airbag system in any way.
A irbag system 169
•
•
•

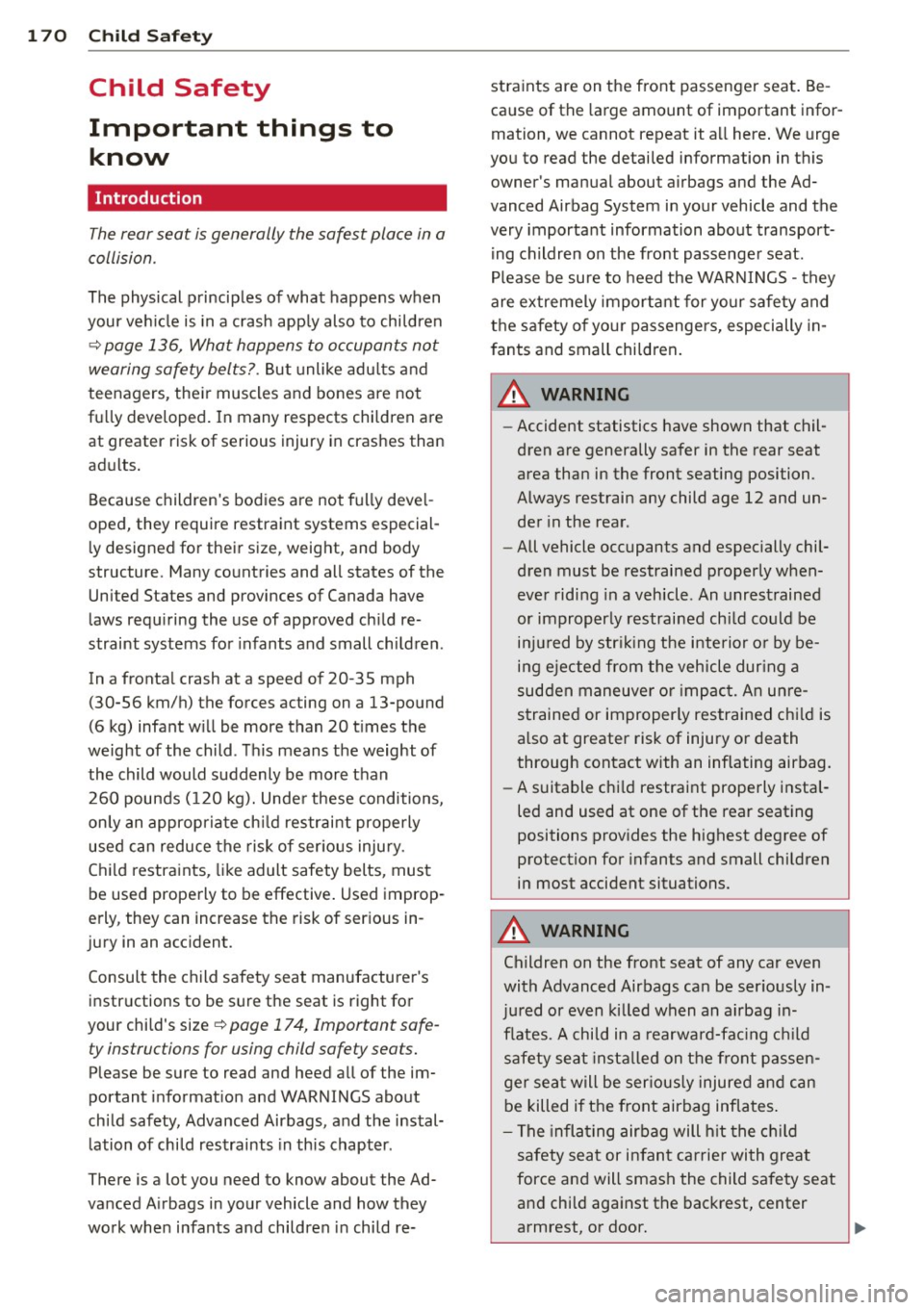

1 70 Child Saf ety
Child Safety
Important things to
know
Introduction
The rear seat is generally the safest place in a
collision.
The physical principles of what happens when
your veh icle is in a crash app ly also to chi ldren
¢ page 136, What happens to occupants not
wearing safety belts?.
But unlike adults and
teenagers, their muscles and bones are not
fu lly developed. In many respects children are
at greater risk of serious injury in crashes than
adults.
Because children's bodies are not fully deve l­
oped, they require restraint systems especial­
ly designed for their size, weight, and body
structure. Many countries and all states of the
United States and provinces of Canada have
laws requiring the use of approved child re­
straint systems for infants and small ch ildren.
In a fronta l crash at a speed of 20 -35 mph
(30-56 km/h) the forces acting on a 13-pound
(6 kg) infant w ill be more than 20 t imes the
weight of the child. This means the weight of
the child would suddenly be more than 260 pounds (120 kg). Under these conditions,
only an appropriate ch ild restraint properly
used can reduce the risk of ser ious injury.
Child restraints, like adult safety belts, must
be used properly to be effective. Used improp­
erly, they can increase the risk of serious in­
jury in an accident.
Consult the child safety seat manufacturer's instructions to be sure the seat is right for
your child's size¢
page 174, Important safe­
ty instructions for using child safety seats.
Please be sure to read and heed all of the im­
portant information and WARNINGS about
ch ild safety, Advanced Airbags, and the instal­
l ation of chi ld restraints in this chapter.
There is a lot you need to know about the Ad­
vanced Airbags in your vehicle and how they
work when infants and children in child re- straints are on the front passenger seat
. Be­
cause of the large amount of important infor­
mation, we cannot repeat it all here . We urge
you to read the detailed information in this
owner's manual about airbags and the Ad­
vanced Airbag System in your vehicle and the
very important information about transport­
ing children on the front passenger seat.
Please be sure to heed the WARNINGS - they
are extremely important for your safety and
the safety of your passengers, especially in­
fants and small children.
A WARNING
-Accident statistics have shown that chil­
dren are generally safer in the rear seat
area than in the front seating position.
Always restrain any child age 12 and un­
der in the rear.
- All vehicle occupants and especially chil­
dren must be restrained properly when­
ever riding in a vehicle. An unrestrained
or improperly restrained chi ld could be
injured by str iking the i nterior or by be­
ing ejected from the vehicle during a
sudden maneuver or impact. An unre­
strained or improperly restrained chi ld is
also at greater risk of injury or death
through contact with an inflating airbag.
- A suitable chi ld restraint properly instal ­
led and used at one of the rear seating positions provides the highest degree of
protection for infants and small children
in most accident situations.
A WARNING ,_
Children on the front seat of any car even
with Advanced Airbags can be ser iously in­
jured or even killed when an airbag in­
flates. A child in a rearward-facing child
safety seat installed on the front passen­
ger seat will be seriously injured and can
be killed if the front airbag inflates.
- The inflating airbag will hit the child
safety seat or infant carrier with great
force and will smash the child safety seat and child against the backrest, center
armrest, or door.
II>-

M N
0 > co ,...., \!) 1.1'1
M 1.1'1 ,....,
-Always install rear-facing child safety
seats on the rear seat.
- If you must install a rearward facing
child safety seat on the front passenger
seat in exceptional circumstances and
the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately
install the rear-facing child safety seat in
a rear seating position and have the air­
bag system inspected immediately by
your Audi dealer.
_& WARNING
- Forward-facing child safety seats instal­
led on the front passenger's seat may in­
terfere with the deployment of the air­
bag and cause serious injury to the child.
- If exceptional circumstances require the
use of a forward-facing child restraint on
the front passenger's seat, the child's
safety and well-being require the follow­ ing special precautions to be taken:
- Always make sure that the forward-fac­
ing seat has been designed and certi­
fied by its manufacturer for use on a
front passenger seat with a front and
side airbag.
- Always carefully follow the manufac­
turer's instructions provided with the
child seat or infant carrier.
- Never install a child restraint without a
properly attached top tether strap if
the child restraint manufacturer's in­
structions require the top tether strap
to be used.
- Never put the forward-facing child re­
straint up against or very near the in­
strument panel.
- Always set the safety belt upper an­
chorage to the adjustment position
that permits proper installation in ac ­
cordance with the child restraint manu­
facturer's instructions.
- Always move the passenger seat into its rearmost position in the seat's fore
and aft adjustment range, as far away
from the airbag as possible before in-
Child Safety 1 71
stalling the child restraint. The back­
rest must be adjusted to an upright po­
sition.
- Always make sure that nothing pre­
vents the front passenger's seat from
being moved to the rearmost position
in its fore and aft adjustment range.
- Never place objects on the seat (such
as a laptop, CO player, electronic games device, power inverter or seat
heater for child seats) . These may in­
fluence the electrical capacitance
measured by the capacitive passenger
detection system and can also fly
around in an accident and cause serious personal injury.
- Never place or use any electrical device
(such as a laptop, CO player, electronic
games device, power inverter or seat
heater for child seats) on the front pas­
senger seat if the device is connected
to the 12-volt socket or the cigarette lighter socket.
- If a seat heater has been retrofitted or
otherwise added to the front passen­ ger seat, never install any child re­
straint system on this seat.
- Make sure that there are no wet objects (such as a wet towel) and no water or
other liquids on the front passenger
seat cushion .
- Always make sure that the
PASSENGER
AIR BAG OFF
light comes on and stays
on all the time whenever the ignition is
switched on.
- If the PASSENGER AIR BAG OFF light
does not come on and stay on, immedi­
ately install the rearward-facing child
safety seat in a rear seating position
and have the airbag system inspected by your authorized Audi dealer.
- Always buckle the child seat firmly in
place even if a child is not sitting in it.
A loose child seat can fly around during
a sudden stop or in a collision.
- Always read and heed all WARNINGS
whenever using a child restraint in ave-
hicle
¢ page 135, Safety belts, ..,
•
•
•

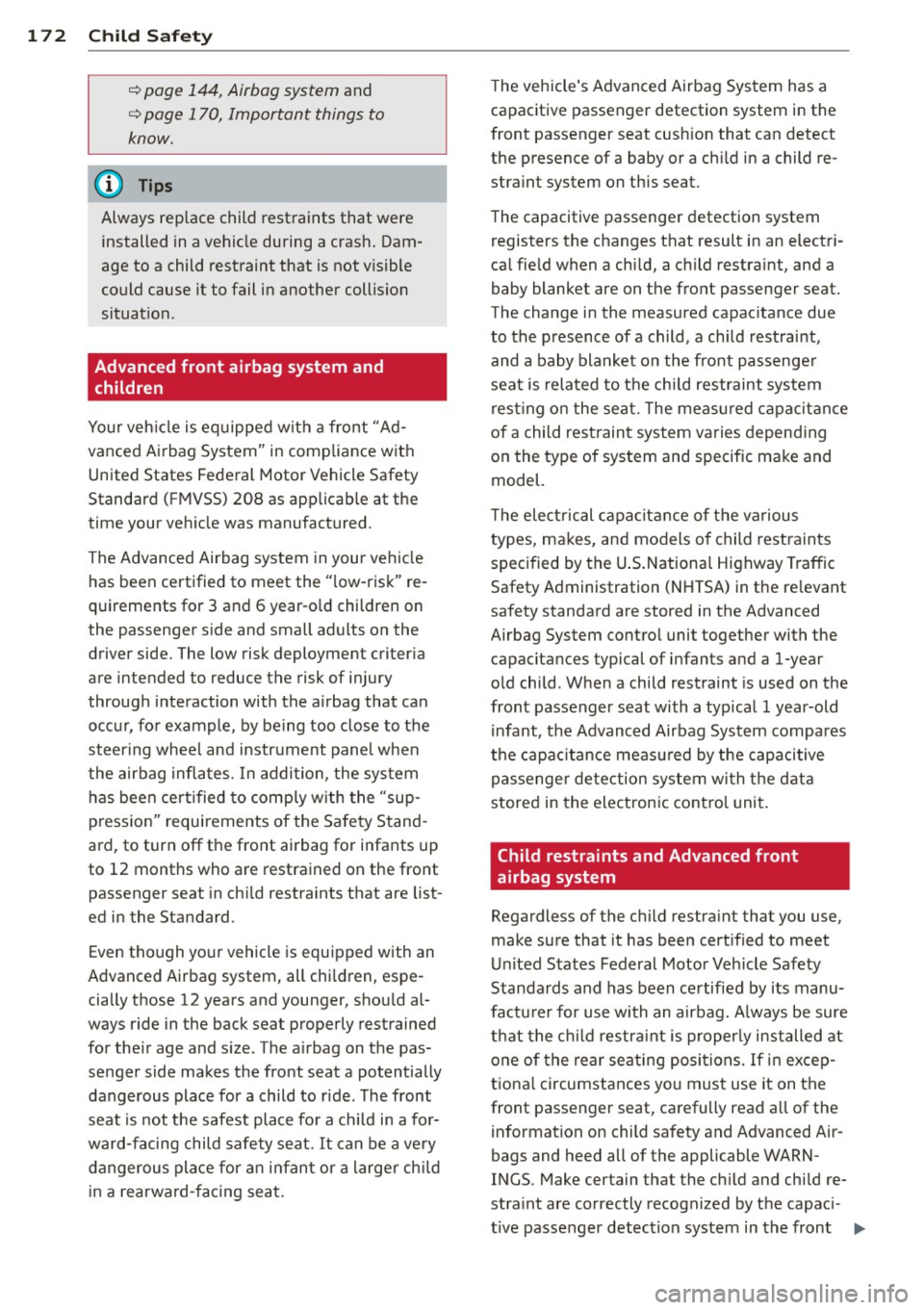

172 Child Saf ety
c::> page 144, Airbag system and
c::> page 170 , Important things to
know.
Always rep lace child restraints that were
installed in a vehicle during a crash . Dam ­
age to a child restraint that is not visible
could cause it to fail in another collision
situation.
Advanced front airbag system and children
Your veh icle is eq uipped with a front "Ad­
vanced Airbag System" in compliance with
United States Federal Motor Vehicle Safety
Standard ( FMVSS) 208 as applicab le at the
time your vehicle was manufactured.
The Advanced Airbag system in your vehicle has been certified to meet the " low -risk" re­
quirements for 3 and 6 year-o ld children on
the passenger side and small adults on the
driver side. The low risk deployment criter ia
are intended to reduce the risk of injury
through interaction with the a irbag that can
occur, for example, by be ing too close to the
steering wheel and instrument panel when
the airbag inflates. In addi tion, the system
h as been certified to comply w ith the "sup­
pression" requirements of the Sa fety Stand­
ard, to turn
off the front airbag for infants up
to 12 months who a re restrained on the front
passenger seat in chi ld restraints that are list­
ed in the Standard.
Even though yo ur vehicle is equipped with an
Advanced Airbag system, all chi ldren, espe­
cially those 12 years and younger, shou ld al­
ways ride in the back seat properly restrained
for the ir age and s ize . The a irbag on the pas­
senger side makes the front seat a potentially
dangerous place for a child to ride. The front
seat is not the safest place fo r a ch ild in a fo r­
ward-facing child safety seat. It can be a ve ry
dangerous place for an infan t or a large r ch ild
in a rearward- facing seat. The vehicle's Advanced Airbag System has a
capacitive passenger detection system i n the
front passenger seat cush ion that can detect
the presence of a baby or a ch ild in a child re­
stra int system on this seat.
The capacitive passenger detection system registers the changes that result in an electri ­
ca l fie ld when a chi ld, a child restra int, and a
baby blanket are on the front passenger seat.
The change in the measured capac itance due
to the p resence of a child, a ch ild restraint,
and a baby blanket on the front passenge r
seat is related to the chi ld restraint system
rest ing o n the seat. The meas ured capa cit an ce
of a child restrain t system varies depend ing
on the type of system and specific make and
model.
T he electrical c apa citan ce of the various
types, makes, and models of child restraints
specified by the U .S . Nationa l Highway Traffic
Safety Administration (NH TSA) in the re levant
safety standard are stored in the Advanced
Airbag System contro l unit together with the
capacitances typical of infants and a 1-year
o ld child . When a child restraint is used on the
front passenger seat with a typical 1 year-old
infa nt, the Advanced Airbag System compa res
the capacitance measu red by the capacitive
passenge r de tection system wi th the data
stored in the electron ic cont ro l unit . Child restraints and Advanced front
airbag system
Regardless of the c hild restra int that you use,
make sure that it has been cert ified to meet
U nited States Federal Motor Vehicle Safety
Standards and has been ce rtified by its manu­
factu rer for use with an airbag. A lways be sure
t h at the c hild restr aint is properly installed at
one of the rear seating posi tions. If in excep­
t iona l circumstances yo u must use it on the
front passenger seat, carefully read a ll of the
information on child sa fety and Advanced Air­
bags and heed all of the applicable WARN­
INGS . Make certain that the c hild and chi ld re­
stra int are correctly recognized by the capac i­
t ive passenger detection system in the front .,.

M N
0 > co ,...., \!) ..,.,
M ..,., ,....,
passenger seat, that the front passenger air­
bag is turned off, and that the airbag status is
always correctly signaled by the
PASSENGER
AIR BAG OFF
li ght.

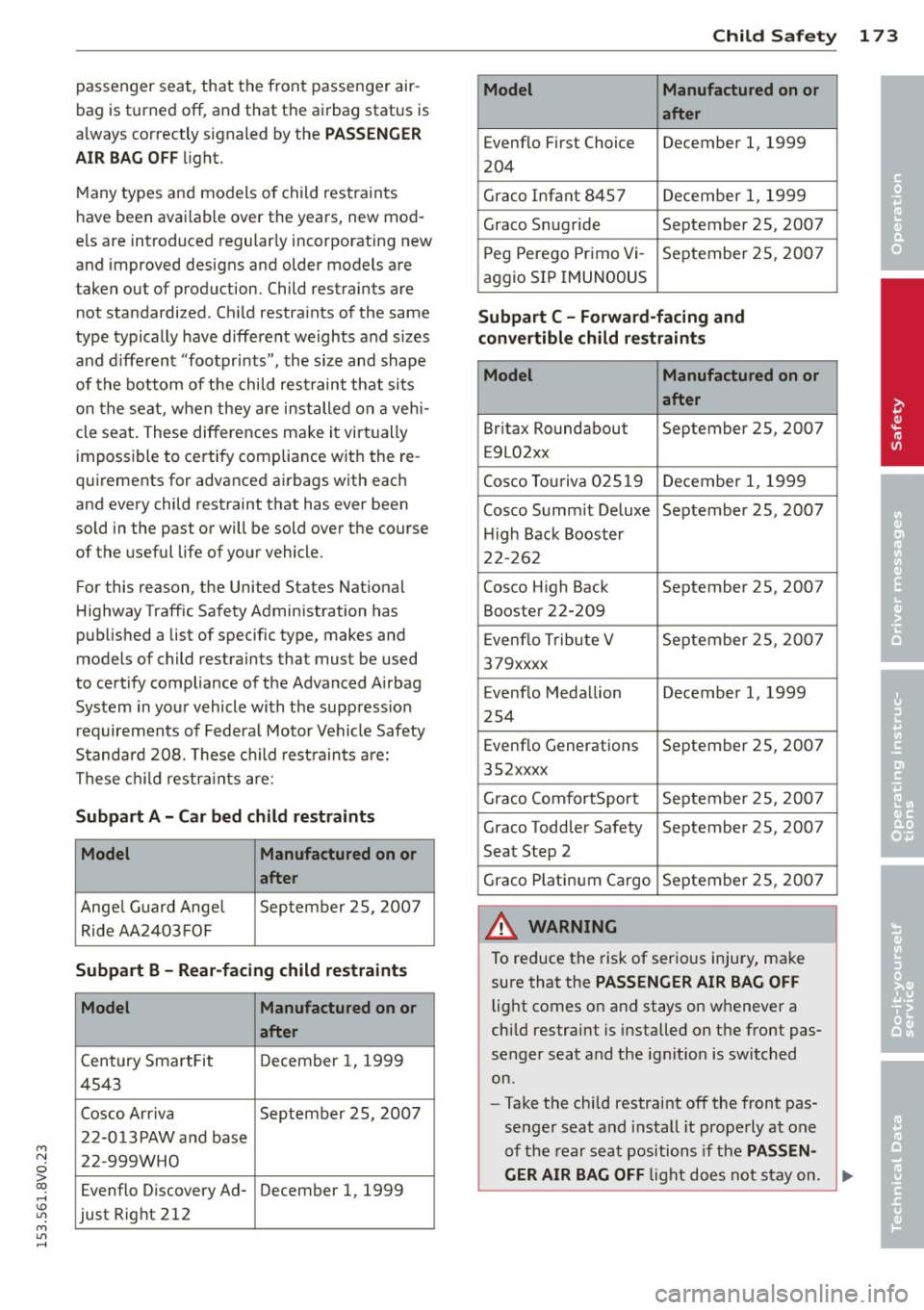

Many types and models of child restraints
have been avai lable over the years, new mod­
e ls are introduced regular ly incorporating new
and improved designs and older models are
taken out of production. Child restraints are
not standardized. Ch ild restra ints of the same
type typically have different we ights and s izes
and d ifferent "footprints", the size and shape
of the bottom of the child restraint that sits
on the seat, when they are installed on a veh i­
cle seat . These differences make it virtually
imposs ible to certify compliance with the re ­
quirements for advanced airbags with each
and every child restraint that has ever been
sold in the past or will be sold over the course
of the useful life of your vehicle.
F or this reason, the United States National
Highway Traffic Safety Administration has
published a list of specific type, makes and
models of child restraints that must be used
to certify compliance of the Advanced Airbag
System in you r vehicle with the supp ress io n
requirements of Federal Motor Vehicle Safety
Standa rd 208. These child rest raints are:
These c hild restr aints are:
Subpart A -Car bed child rest raints
Model Manufactured on or
after
Angel G uard Ange l September 25, 200 7
Ride AA2403 FOF
Subpart B -Rear -facing child restraints
Model Manufactured on or
after
Century SmartFit December 1, 1999
4543
Cosco Arriva September 25, 2007
2 2-0 13PAW a nd base
22-999WHO
Evenflo Discovery Ad- December 1, 1999
just Right 212
Child Sa fet y 173
Model Manufactured on or
after
Evenflo First Choice December 1, 1999
204
Gr aco Infant 8457 December 1, 1999
Graco Snug ride September 25, 2007 P eg Perego Pr imo Vi-
September 2 5, 2007
aggio SIP IMUNOOUS
Subpart C -Forward-facing and
convertible child re straint s
Model Manufactured on or
after
Br itax Roundabout September 25, 2007
E9L02xx
Cosco Touriva 025 19
December 1, 1999
Cosco Summit Deluxe September 25, 2007 H igh Back Booster
22- 262
Cosco High Back September 25, 2007
Booster 22-209
E venflo T ribute V September 2 5, 2007
379xxxx
Evenflo Medallion December 1, 1999
254
Evenf lo Generations
September 25, 2007
352xxxx
Graco ComfortSport September 2 5, 200 7
Graco Toddler Safety September 25, 2007
Seat Step 2
Gr aco P lat inum Cargo September 25, 2007
_& WARNING
To reduce the risk of serious injury, make
sure that the
PASSENGER AIR BAG OFF
light comes on and stays on whenever a
chi ld restraint is installed on the front pas­
senger seat and the ignit ion is switched
on.
- Take the chi ld restraint off the front pas­
senger seat and install it prope rly at one
of the rear seat positions if the
PASSEN -
GER AIR BAG OFF
li ght does not stay on. ~
•
•
•

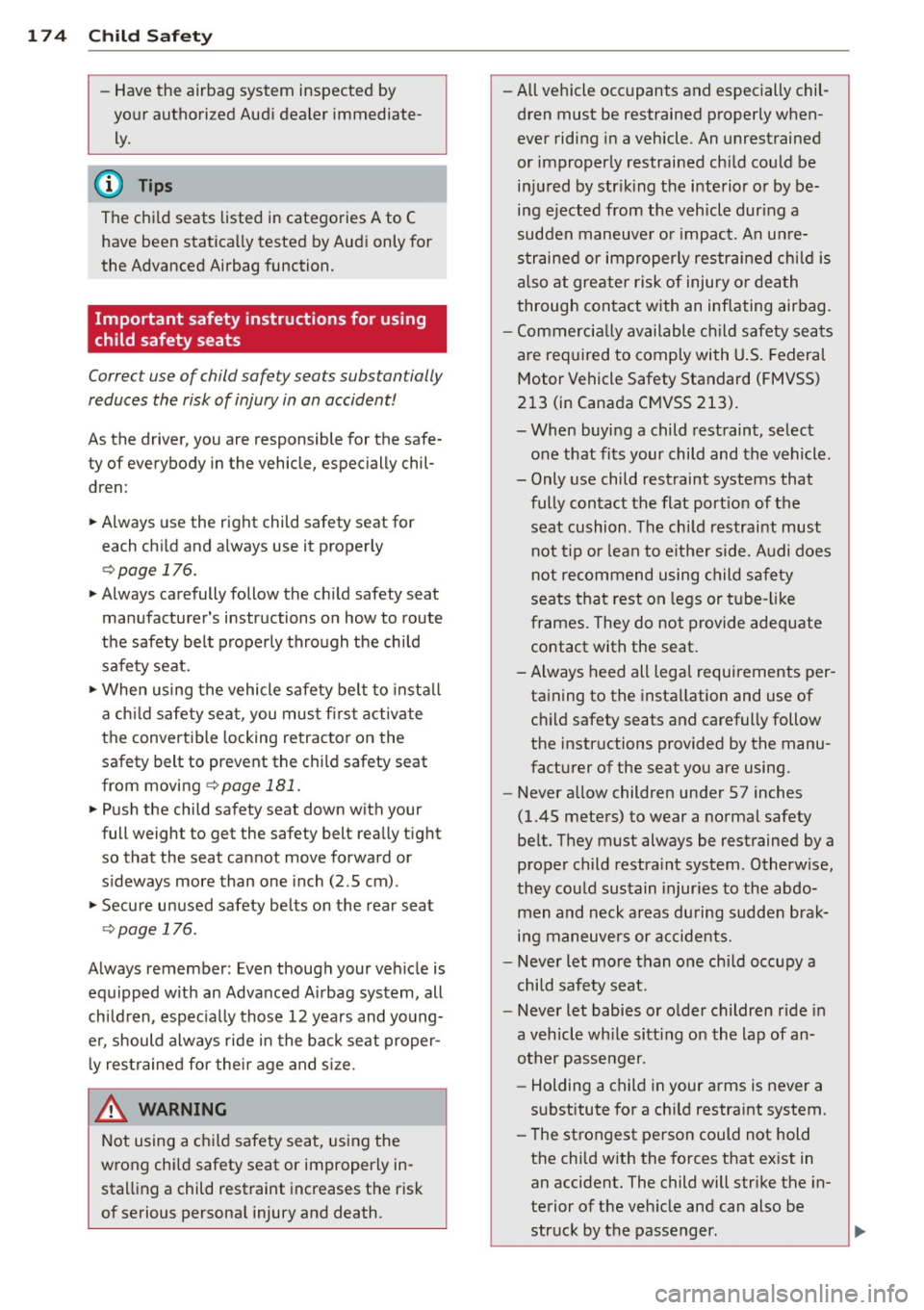

174 Child Safety
-Have the airbag system inspected by
your authorized Audi dealer immediate­
ly.
The child seats listed in categories A to C have been statically tested by Audi only for
the Advanced Airbag function.
Important safety instructions for using
child safety seats
Correc t use of child safety seats substantially
reduces the risk of injury in an accident!
As the driver, you are responsible for the safe­
ty of everybody in the vehicle, especially chil­
dren :
• Always use the right child safety seat for
each child and always use it properly
c:> page 176.
• Always carefully follow the child safety seat
manufacturer's instructions on how to route
the safety belt properly through the child
safety seat.
• When using the vehicle safety belt to install
a child safety seat, you must first activate
the convertible locking retractor on the
safety belt to prevent the child safety seat
from moving
c:> page 181.
• Push the child safety seat down with your
full weight to get the safety belt really tight so that the seat cannot move forward or
sideways more than one inch (2.5 cm) .
• Secure unused safety belts on the rear seat
cc> page 176.
Always remember: Even though your vehicle is
equipped with an Advanced Airbag system, all
children , especially those 12 years and young­
er, should always ride in the back seat proper­
ly restrained for their age and size.
.&_ WARNING
Not using a child safety seat, using the
wrong child safety seat or improperly in­ stalling a child restraint increases the risk
of serious personal injury and death . -
-All vehicle occupants and especially chil­
dren must be restrained properly when­
ever riding in a vehicle. An unrestrained
or improperly restrained child could be
injured by striking the interior or by be­
ing ejected from the vehicle during a
sudden maneuver or impact. An unre­
strained or improperly restrained child is
also at greater risk of injury or death
through contact with an inflating airbag.
- Commercially available child safety seats
are required to comply with U.S. Federal
Motor Vehicle Safety Standard (FMVSS)
213 (in Canada CMVSS 213).
- When buying a child restraint, select one that fits your child and the vehicle.
- Only use child restraint systems that fully contact the flat portion of the seat cushion . The child restraint must
not tip or lean to either side . Audi does
not recommend using child safety
seats that rest on legs or tube-like
frames. They do not provide adequate
contact with the seat.
- Always heed all legal requirements per­
taining to the installation and use of
child safety seats and carefully follow
the instructions provided by the manu­
facturer of the seat you are using.
- Never allow children under 57 inches
(1.45 meters) to wear a normal safety
belt. They must always be restrained by a
proper child restraint system . Otherwise,
they could sustain injuries to the abdo­ men and neck areas during sudden brak­
ing maneuvers or accidents.
- Never let more than one child occupy a
child safety seat.
- Never let babies or older children ride in
a vehicle while sitting on the lap of an­
other passenger .
- Holding a child in your arms is never a
substitute for a child restraint system .
- The strongest person could not hold
the child with the forces that exist in
an accident. The child will strike the in­
terior of the vehicle and can also be struck by the passenger.

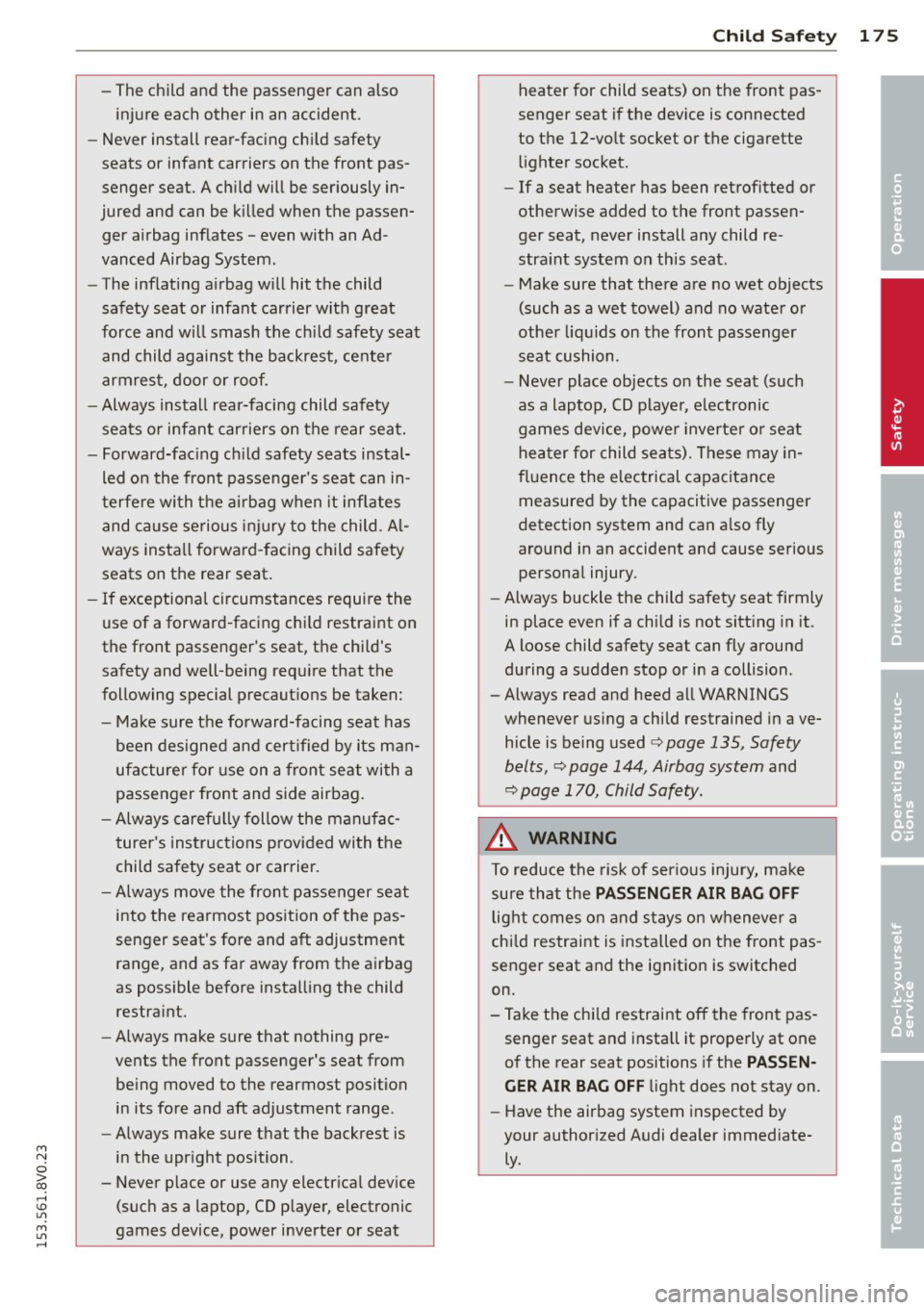

Child Safety 175
-The child and the passenger can also heater for child seats) on the front pas-
injure each other in an accident . senger seat if the device is connected
- Never install rear-facing child safety to the 12-volt socket or the cigarette
seats or infant carriers on the front pas- lighter
socket.
senger seat. A child will be seriously in- -If a seat heater has been retrofitted or
jured and can be killed when the passen- otherwise added to the front passen-
ger airbag inflates - even with an Ad -ger seat, never install any child re-
•
vanced Airbag System. straint system on this seat.
•
-The inflating airbag will hit the child -Make sure that there are no wet objects
safety seat or infant carrier with great (such as a wet towel) and no water or
force and will smash the child safety seat other liquids on the front passenger
and child against the backrest, center seat cushion.
armrest, door or roof. -Never place objects on the seat (such
- Always install rear-facing child safety as a laptop, CD player, electronic
seats or infant carriers on the rear seat. games device, power inverter or seat
- Forward-facing child safety seats instal- heater for child seats). These may
in-
led on the front passenger's seat can in- fluence the electrical capacitance
terfere with the airbag when it inflates measured by the capacitive passenger
and cause serious injury to the child. Al- detection system and can also fly
ways install forward-facing child safety around in an accident and cause serious
seats on the rear seat. personal injury.
- If exceptional circumstances require the -
Always buckle the child safety seat firmly
use of a forward-facing child restraint on in place even if a child is not sitting
in it.
the front passenger's seat, the child's A loose child safety seat can fly around
safety and well-being require that the during a sudden stop or in a collision
.
following special precautions be taken: -Always read and heed all WARNINGS
- Make sure the forward-facing seat has whenever using a child restrained in ave-
been designed and certified by its man- hide is being used
c> page 135, Safety
ufacturer for
use on a front seat with a belts, ¢ page 144, Airbag system and
passenger front and side airbag.
¢ page 170, Child Safety .
-Always carefully follow the manufac-
A WARNING turer's instructions provided with the
child safety seat or carrier. To reduce the risk of serious injury, make
- Always move the front passenger seat
sure that the
PASSENGER AIR BAG OFF
into the rearmost position of the pas-
light comes on and stays on whenever a
senger seat's fore and aft adjustment child restraint is installed on the front pas-
range, and as far away from the airbag senger seat and the ignition is switched
as possible before installing the child on.
restraint. - Take the child restraint off the front pas-
- Always make sure that nothing pre-
senger seat and install it properly at one
vents the front passenger's seat from of the rear seat positions if the
PASS EN-
being moved to the rearmost position GER AIR BAG OFF light does not stay on.
in its fore and aft adjustment range .
-Have the airbag system inspected by
- Always make sure that the backrest is
your authorized Audi dealer immediate-
M • N in the upright position. ly. 0 > - Never place or use any electrical device co ,....,
(such as a laptop, CD player, electronic \!) 1.1"1
M
games device, power inverter or seat 1.1"1 ,....,

1 7 6 Child S afet y

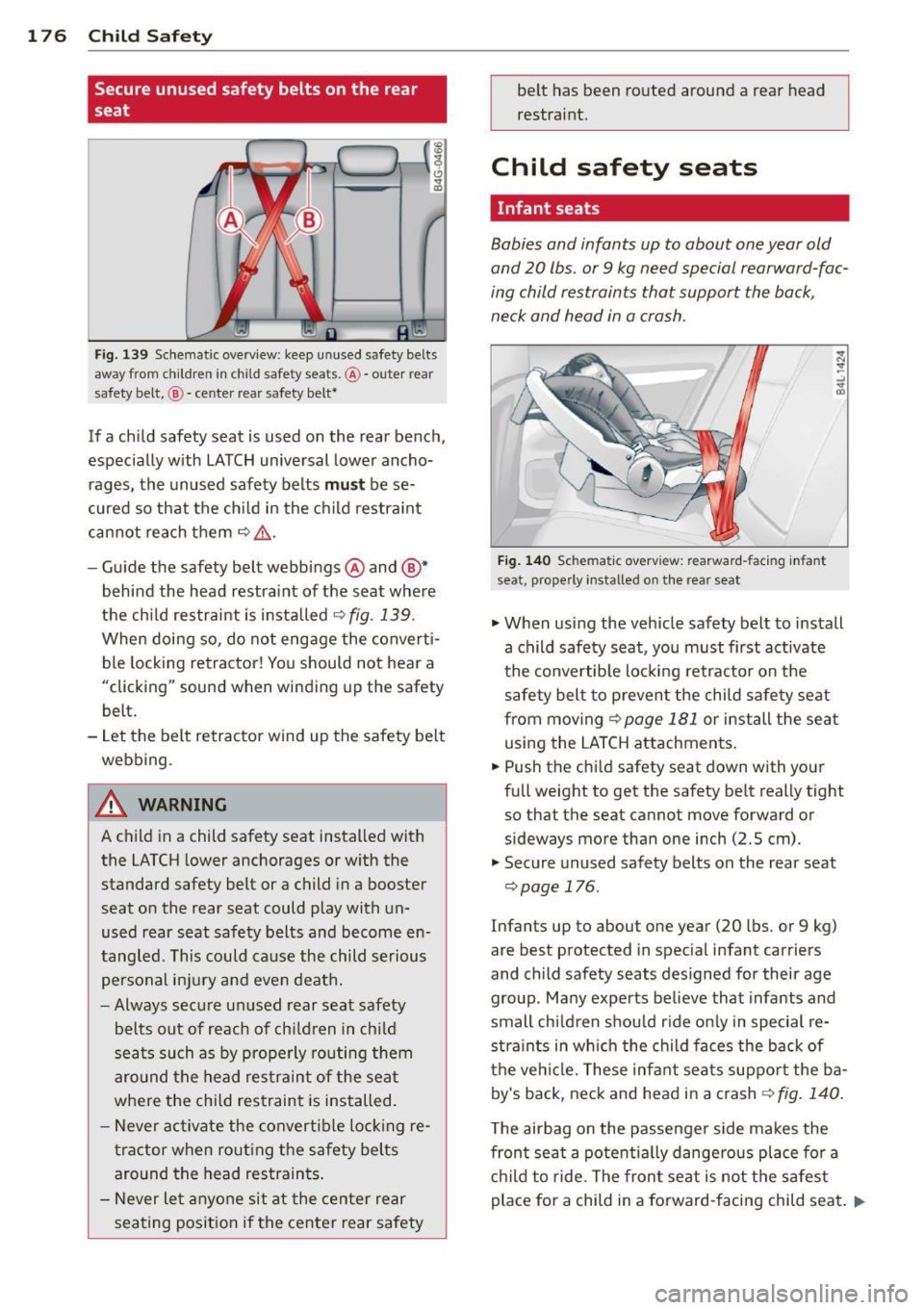

Secure unused safety belts on the rear
seat
F ig. 139 Schematic overview: keep unused safety belts
away from children in child safety seats.@-outer rear
safety belt,
® -center rear safety belr
If a child safety seat is used on the rear bench,
espec ially w ith LATCH unive rsal lower ancho­
rages, the unused safety belts
mu st be se­
cured so that the ch ild in the child restra in t
cannot reach them¢,&..
- Gui de the safety belt webbings @and
®*
behind the head restraint of the seat whe re
the chi ld restrai nt is installed ¢
fig. 139.
When doing so, do not engage the converti­
ble locking retractor! You should not hear a
"clicking" sound when winding up the safety
belt .
- Let the belt re tractor wind up the safety be lt
webbing.
A WARNING
A child in a child safety seat installed with
the LATCH lower anchorages or w ith the
standard safety belt or a child in a booster
seat on the rear seat could play with un­
used rear seat safety belts and become en­
tangled. This could cause the child serious personal i nju ry an d even deat h.
- Always secu re un used rear seat safety
belts out of r each of ch ildren in ch ild
seats such as by properly routi ng them
around the head restraint of the seat
where the child restraint is installed.
- Never ac tivate the convertib le lo cking re­
t ractor when rou ting the s afety belts
around the head restraints .
- Never le t anyone sit at the center re ar
sea ting posit io n if the center rear safety be
lt has been ro uted around a rear head
restraint.
Child safety seats
Infant seats
Babies and infants up to about one year old
and 20 lbs . or 9 kg need special rearward-fac­
ing child restraints that support the back,
neck and head in a crash.
F ig . 14 0 Schem atic overview: rearward -facing infant
seat, properly installed o n the rear seat
.,. When usi ng the vehicle safety belt to install
a child safety seat, you must first activate
the convertib le locking retr actor on the
safety belt to p revent the child safe ty seat
from mov ing¢
page 181 or ins tall the seat
using the LATCH attachmen ts.
.,.. Push the chi ld safety seat down with you r
full weight to get the safety belt really tight
so that the seat cannot move forward or
sideways more than one inch (2.5 cm).
.,. Secure unused safety belts on the rear seat
¢page 176.
Infants up to about one year (20 lbs. or 9 kg)
are best protected in spec ial infant carriers
and ch ild safety seats designed for their age
group. Many experts believe that infants and
small ch ild ren shou ld r ide o nly in special re­
stra ints in wh ich the child faces the back of
the ve hicl e. These infa nt sea ts suppor t the ba­
by's back, nec k and head in a crash
¢ fig. 140 .
The airbag on the passenger side makes the
fron t seat a pote ntia lly dange ro us place for a
chil d to ride. The front se at is not the s afest
place for a child in a forward-facing child seat . ..,.

....,
N
0 > co
rl I.O
"' ....,
"' rl

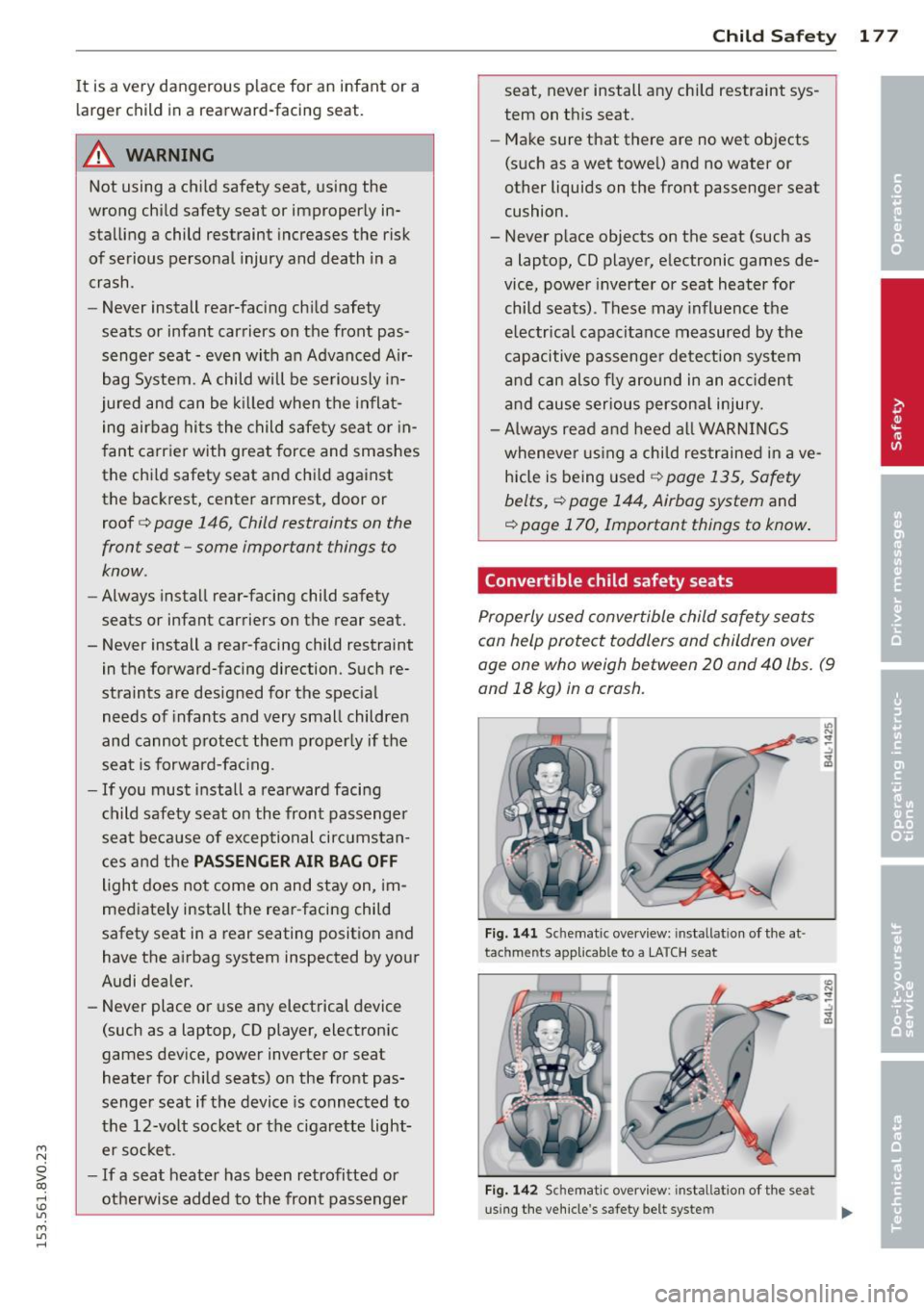

It is a very dangerous place for an infant or a
la rger child in a rearward-facing seat.
A WARNING
Not using a child safety seat, using the
wrong child safety seat or improperly in­ stalling a child restraint increases the risk
of serious personal injury and death in a
crash.
- Never install rear-facing child safety
seats or infant carriers on the front pas­
senger seat -even with an Advanced Air­
bag System. A child will be seriously in­
jured and can be killed when the inflat­
ing airbag hits the child safety seat or in­
fant carrier with great force and smashes
the child safety seat and child against
the backrest, center armrest, door or
roof
c::> page 146, Child restraints on the
front seat -some important things to
know.
- Always install rear-facing child safety
seats or infant carriers on the rear seat.
- Never install a rear-facing child restraint in the forward-facing direction. Such re­
straints are designed for the special
needs of infants and very small children
and cannot protect them properly if the
seat is forward-facing .
-If you must install a rearward facing
child safety seat on the front passenger
seat because of exceptional circumstan­
ces and the
PASSENGER AIR BAG OFF
light does not come on and stay on, im­
mediately install the rear-facing child
safety seat in a rear seating position and have the airbag system inspected by your
Audi dealer.
- Never place or use any electrical device
(such as a laptop, CD player, electronic
games device, power inverter or seat
heater for child seats) on the front pas­
senger seat if the device is connected to
the 12-volt socket or the cigarette light­
er socket .
- If a seat heater has been retrofitted or
otherwise added to the front passenger
Child Safety 177
seat, never install any child restraint sys­
tem on this seat.
- Make sure that there are no wet objects
(such as a wet towel) and no water or
other liquids on the front passenger seat
cushion.
- Never place objects on the seat (such as
a laptop, CD player, electronic games de­
vice, power inverter or seat heater for
child seats). These may influence the
electrical capacitance measured by the
capacitive passenger detection system
and can also fly around in an accident
and cause serious personal injury.
- Always read and heed all WARNINGS
whenever using a child restrained in ave­
hicle is being used
c::> page 135, Safety
belts,
c::> page 144, Airbag system and
c::> page 170, Important things to know.
Convertible child safety seats
Properly used convertible child safety seats
can help protect toddlers and children over
age one who weigh between 20 and 40 lbs. (9
and 18 kg) in a crash.
Fig. 141 Schematic overview: installat ion of the at­
tachments applicable to a LATCH seat
Fig. 142 Schematic overview: installation of the seat
using the vehicle 's safety be lt system
I),,

178 Child Saf ety
• When using the vehicle safety be lt to insta ll
a chi ld safety seat, you must first activate
the convertible locking retractor on the
safety belt to prevent the child safety seat
from moving ¢
page 181 or install the seat
using the LATCH attachments .
• Push the child safety seat dow n with your
full weight to get the safety belt rea lly t ight
so that the sea t ca nnot move forward or
s ideways more than one inch ( 2.5 cm)
¢page 181.
• If the child safety seat is eq uipped with a
tether strap, attach it to the tether anchors
¢ page 187.
• Secure unused safety belts on the rear seat
¢ page 176.
A toddler or child is usually too large for an in ­
fant restraint if it is more than one year o ld
and weighs more than 20 lbs. (9 kg) .
Todd lers and c hildren who are o lder than one
yea r up to abo ut 4 years o ld and weigh more
than 20 lbs (9 kg) up to 40 lbs . (18 kg) must
a lways be properly restrained in a ch ild safety
seat certified for the ir s ize and weight
¢
fig . 141 and ¢ fig. 142.
The airbag on the passenger side makes the
front seat a potentially dangerous place for a child to r ide . The fro nt seat is not the safest
p lace for a child in a forwa rd-facing child safe­
ty seat.
It is a very dange rous p lace for an in­
fant or a la rger chi ld in a rearwa rd-fa cing seat.
A WARNING
Not u sing a ch ild safety se at, using the
wrong ch ild safety sea t or improper ly in­
stal ling a child restraint increases the risk
of serious personal injury and death in a
co llision or other emergency s ituation.
- Children on t he front seat of any car,
even w ith Advanced A irbags, can be seri­
o usly injured or even killed when an a ir­
bag inf lates. A child in a rearward-facing
child safety seat installed on the front
passenge r seat w ill be seriously injured
and can be kil led if the front ai rbag in-
-
f lates -even with an Advanced Airbag
System .
- The inflating air bag will h it the ch ild
safety seat or infant carrier with great
force and will smash the child safety seat
and child aga inst the backrest , center
arm rest, door or roof .
- Always install rear-fac ing ch ild safety
seats on the rear seat .
- If you must install a rearward fac ing
child safety seat on the front passenger
seat because of exceptiona l circumstan ­
ces and the
PASSENGER AIR BAG OFF
light does not come on and stay on, im­
mediately insta ll t he rear-fac ing c hild
s a fety se at in a re ar seating positi on and
have the air bag system ins pected by your
Aud i deale r.
- T he rear side o f the child safety seat
should be pos itioned as close as possi ble
to the backrest on the vehicle seat .
- For a djustable head restra ints: adjust or
remove the rea r seat hea d restra int if it
is difficult to install the c hild seat w ith
the head restraint in place¢
page 59. In­
stall the head restraint again immed iate­
ly once the child seat is removed. Dr iv ing
without head restraints o r with head re­
s traints that are not properly adjus ted
increases the risk of serious or fatal neck
in jur y drama tically.
- Always read and heed all WAR NIN GS
wheneve r using a child restraine d in ave­
h icle is being u sed
¢ page 135, Safe ty
bel ts,
¢ page 1 44, Airbag system and
¢ page 170, Important things to know .
A WARNING
-
If exceptional circums tances require the
use of a fo rward-facing child restraint on
the front passenger 's seat, the child's safe­
ty and well -being require that the follow­
i ng spec ial precautions be taken:
- Make sure the forward- facing seat has
been designed and cert ified by its man u­
facturer fo r use on a front seat with a
passenger front and side airbag.
