service interval AUDI S3 2015 Owners Manual

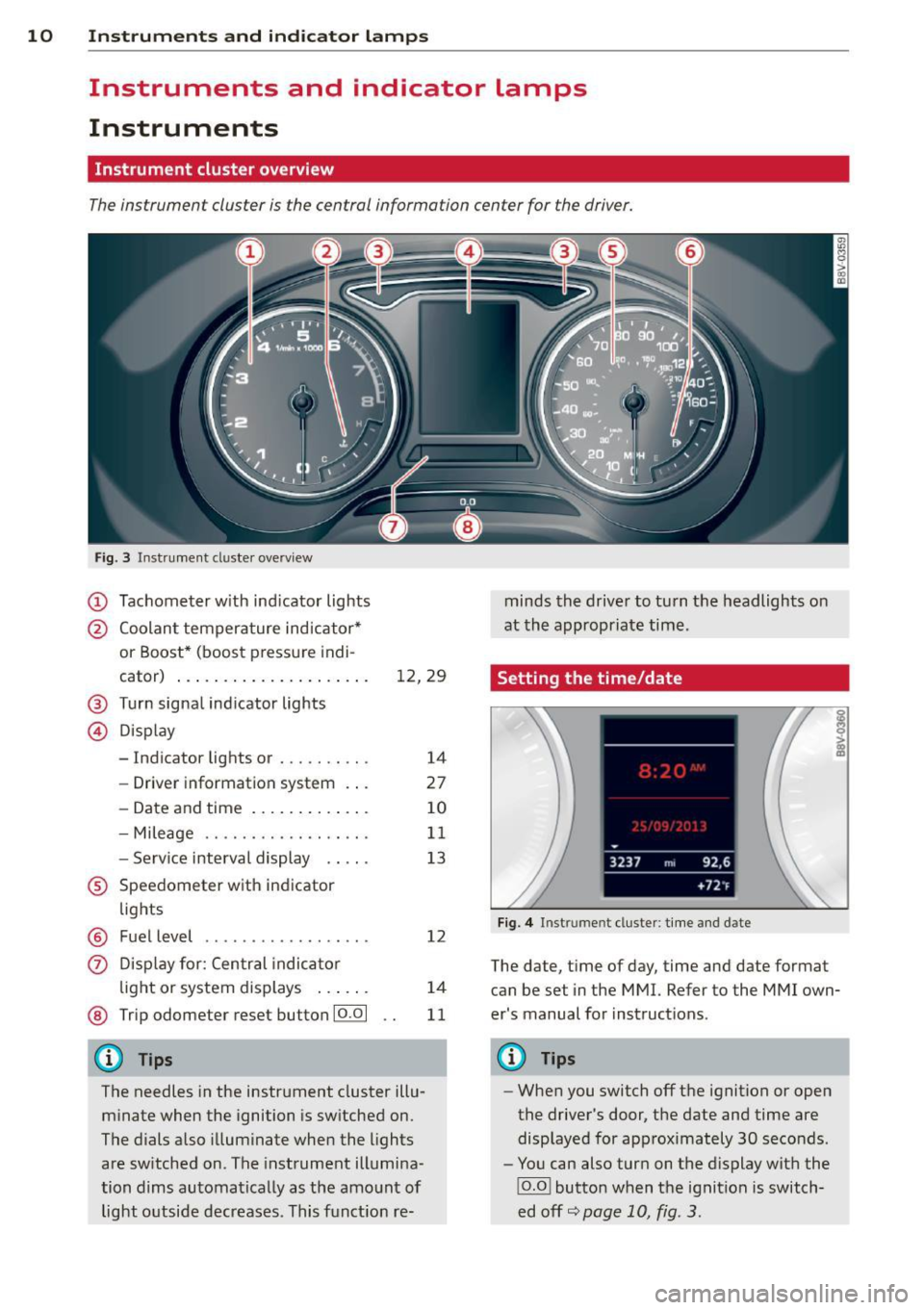

10 Instruments and indicator lamps
Instruments and indicator lamps
Instruments
Instrument cluster overview
The instrument cluster is the central information center for the driver.
Fig. 3 Instrument cl uster ove rv iew
(D Tachometer with ind icator lights
@ Coolant temperature indicator*
or Boost* (boost pressure indi -
cator) . . . . . . . . . . . . . . . . . . . . .
12, 29
® Turn signal indicator lights
© Display
- Indicator lights or . . . . . . . . . .
14
- Driver information system . . . 27
- Date and time . . . . . . . . . . . . .
10
- Mileage . . . . . . . . . . . . . . . . . . 11
- Service interval display . . . . . 13
® Speedometer with indicator
lights
@ Fuel level . . . . . . . . . . . . . . . . . . 12
(J) Display for: Central indicator
light or system displays . . . . . .
14
@ Trip odometer reset button 10 .0 1 11
(!) Tips
The needles in the instrument cluster illu­
minate when the ignition is switched on.
The dials also illuminate when the lights
are switched on . The instrument illumina­
tion dims automatically as the amount of light outside decreases . This funct ion re- minds
the driver to turn the headlights on
at the appropriate time.
Setting the time/date
Fig. 4 Instrument cluster: time and date
The date, time of day, time and date format
can be set in the MMI. Refer to the MMI own­
er's manual for instructions.
@ Tips
-When you switch off the ignition or open
the driver's door, the date and time are
displayed for approximately
30 seconds .
- You can also turn on the display with the
!O.O l button when the ignition is switch­
ed
off ~page 10, fig. 3 .

....,
N
0 > co
rl I.O
"' ....,
"' rl
@ Tips
Diesel engines: Due to the high efficiency
o f t hese engines, the eng ine may not al ­
ways reach operating temperature in cold
outs ide temperatur es. T his is normal a nd
not a cause for co nce rn.

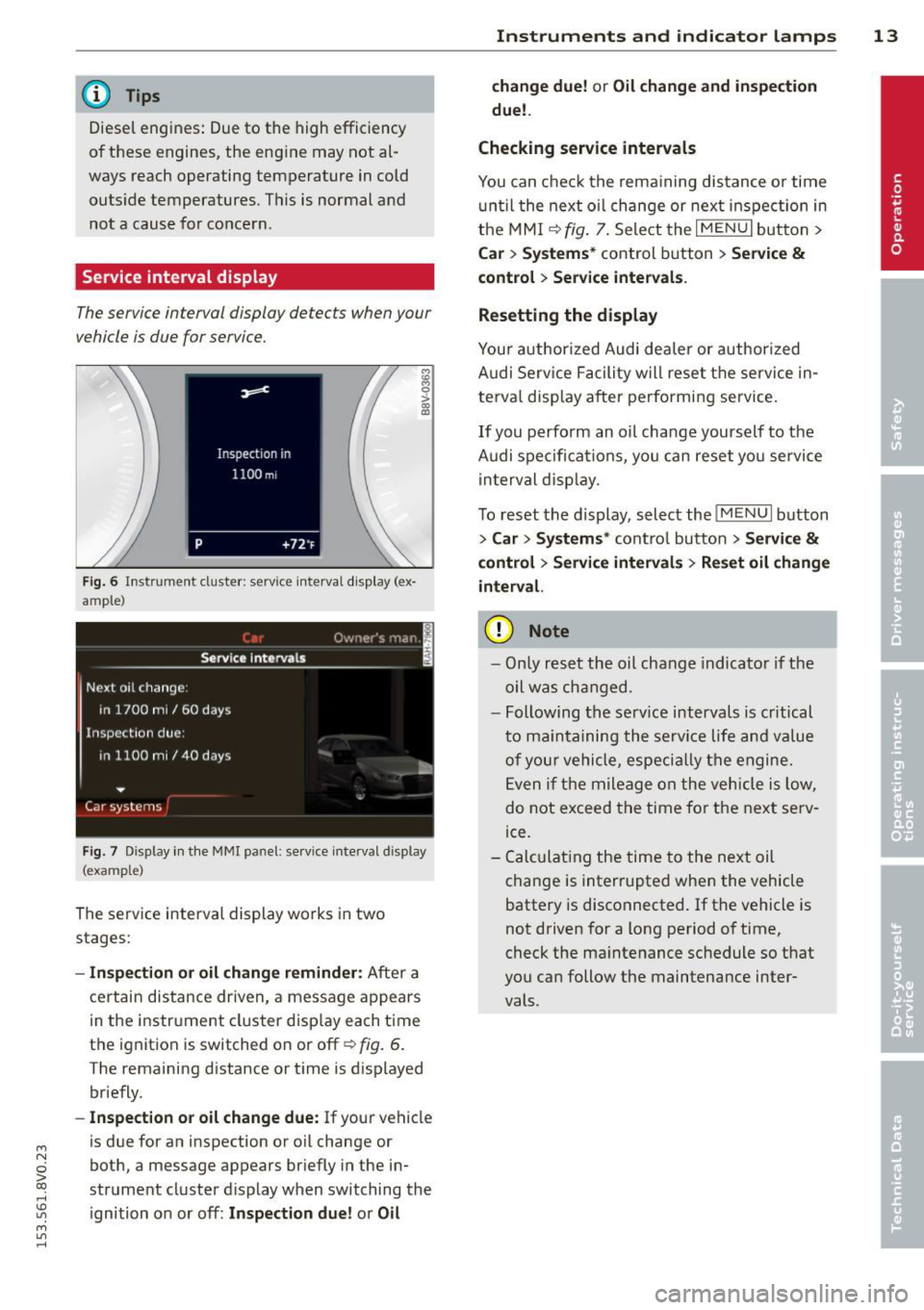

Service interval display
The service interval display detects when your
vehicle is due for service.
F ig . 6 In stru ment cluste r: serv ice inte rval d isp lay (ex­
ample)
F ig . 7 Display in the MMI panel: service interva l display
(example)
The se rv ice interva l display wo rks in two
stages:
- In spection or oil change reminder: A ft er a
c e rt a in dis tance dr iven, a message a ppears
in t he i nstr ument cluster d isp lay each t ime
t h e i gnition is switched on or off~
fig. 6.
The remaining distance or t im e is d isplayed
br iefly.
- Inspection or oil change due : If your vehicle
is due for an inspection or o il change or
bot h, a message appears br iefly in the in­
strument cluster display when switching the
ignition o n or off:
Inspection due! or Oil
Instruments and indicator lamps 13
change due! or Oil change and inspection
due!.
Checking service intervals
You can check th e rema ining dis tance o r time
u nti l the next o il change or nex t inspec tion in
t h e MM I
~ fig. 7. Sele ct the I M ENU I but to n >
Ca r > Systems * control button > Service &
control > Ser vice intervals .
Resetting the display
Y ou r auth or ized Audi dea ler or author ized
A udi Se rv ice F acili ty w ill reset the service in ­
te rva l display a fter performi ng service.
If you perfo rm an oil ch ange yourself to the
A udi spe cifica tions , yo u can reset you servi ce
i n terval disp lay.
T o reset t he di splay, select the
I ME NU I bu tton
> Car > System s* cont ro l button > Service &
control > Service intervals > Re set oil change
interval.
(D Note
- On ly r eset t he oil cha nge i ndicat or if th e
oi l was cha nged.
- Following t he serv ice intervals is critical
t o m ain ta ining the se rv ic e life a nd value
of your v ehicle, especi ally th e e ngine.
E ven i f the mileage on the vehicle is low,
do n ot exceed t he time fo r th e nex t serv ­
ice.
- C alcula ting the time to the next oil
ch ange is inter rupted whe n the vehicle
battery is disconnected. If t he vehicle is
n ot d riven for a long pe riod o f time,
check the ma intenance sc hedule so t hat
yo u ca n follow the maintena nce inter­
vals.

M N
0 > co ,...., \!) 1.1'1
M 1.1'1 ,....,
the brakes. If you need to brake addit ion ­
ally, bra ke in intervals and not continu­
ously.
(D Tips
- If the brake boos ter is not wor king, you
must p ress the brake pedal with much
more force t hen no rma l.
- If yo u retrof it your vehicle with a front
s po ile r, wheel covers or similar items,
make sure that the air f low to the front
whee ls is not interrupted. Otherwise the
brake system can become too hot.

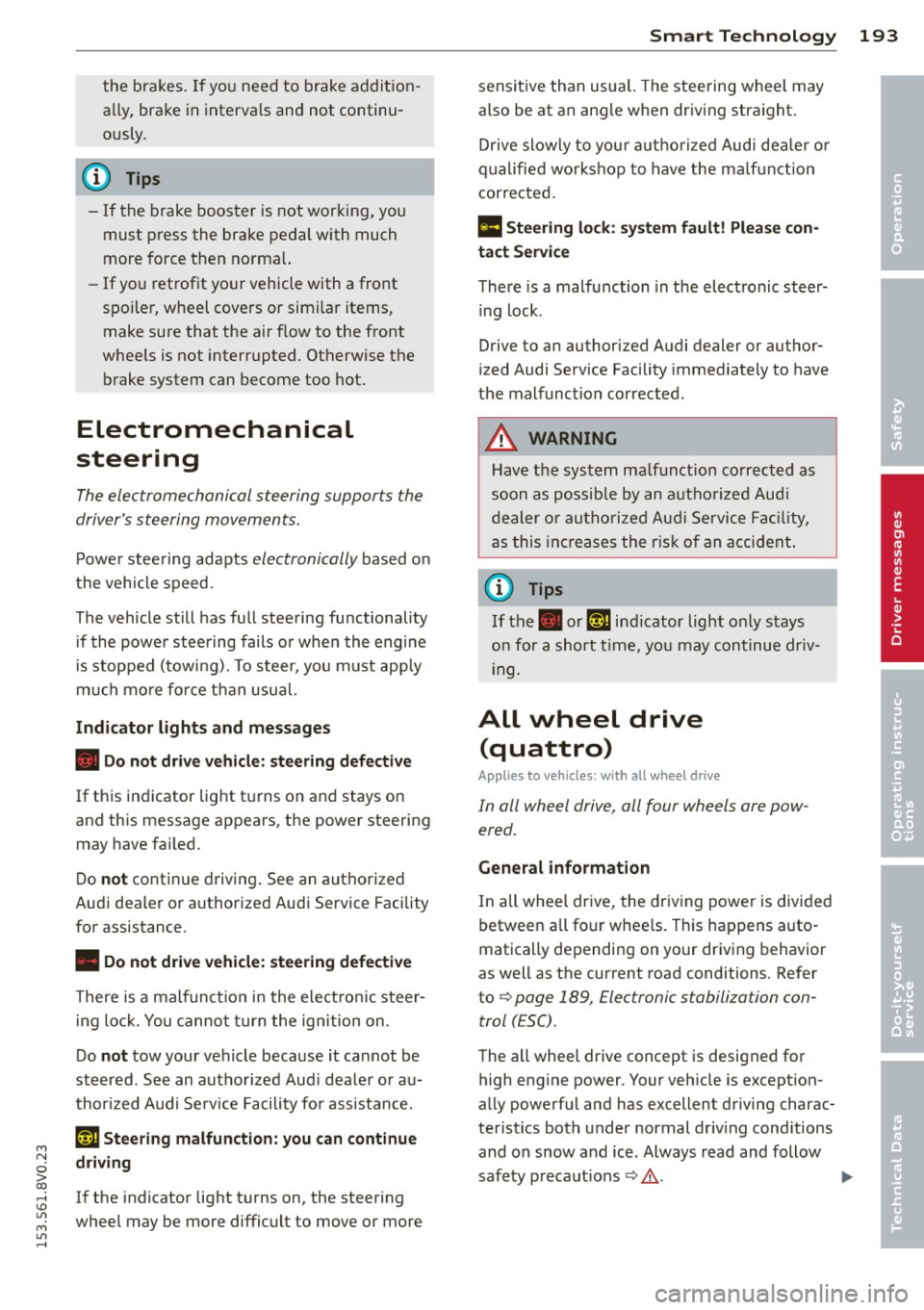

Electromechanical
steering
The elec tromechanical steering suppor ts the
driver's s teering movements .
Powe r stee ring adapts electronically based o n
the veh icle speed.
The vehicle still has full stee ring fu nctionality
if the powe r steering fails o r whe n the eng ine
i s stopped (towi ng). To s teer, yo u must app ly
m uc h mo re fo rce than usual.
Indicator lights and messages
• Do not drive vehicle: steering defective
If th is in dicator lig ht tu rns on and stays on
and this message appears, the power steering may have fa iled.
Do
not co ntin u e dr iving . See an autho rize d
Aud i dea ler o r autho rized Aud i Service Fac ility
for assistance.
• Do not drive vehicle: steering defective
There is a malf unct io n in the electro nic steer­
in g lo ck. You canno t turn the ign ition on.
Do
not tow your vehicle beca use it ca nnot be
steered. See an autho rized Aud i dea le r or au­
thor ized Audi Se rv ice Facility for ass istance.
Ei:-Y Steering malfunction : you can continue
driving
I f the indicator light turns on, the steering
wheel may be more difficult to move or more
Smart Technolog y 193
sensit ive tha n usua l. The stee ring wheel may
also be at a n angle when dr iv ing stra ight .
D rive slowly to you r auth ori zed Audi de aler o r
qualifie d wo rkshop to have the ma lf u ncti on
correc ted.
II Steering lock : sy stem fault! Pl ease con ­
tact Service
T he re is a malfunction in the elec tronic steer­
ing lock .
D rive to an author ized Audi dealer or author­
ized Audi Serv ice Facility immediately to have
the malfunc tion corrected.
A WARNING
Have the sys tem ma lf u nction co rrec ted as
soon as po ssible by an aut horiz ed Aud i
d e aler or au thoriz e d Au di Service Fa cili ty,
a s this incr eases the r is k of an acciden t.
(D Tips
If th e . or l~ij indi cator ligh t only s tays
o n for a short t ime , you may con tinue dr iv­
i ng.
ALL wheel drive
(quattro)
App lies to vehicles: wi th all wheel drive
In all wheel drive, all four wheels are pow­
ered.
General information
In all whee l dr ive, the dr iv ing power is divi ded
between all fo ur whee ls. Thi s happens auto ­
matically depending on yo ur driv ing behavior
as well as the current road conditions. Refer
to
¢ page 189, Electronic stabilization con­
trol (ESC) .
The all wheel drive concept is designed for
high eng ine power. Your veh icle is except ion­
a lly powerfu l and has excellent driving charac­
te ristics both under normal driv ing cond itions
and on snow a nd ice. Always read and follow
safety precaut ions¢ .&.. ..,.
•
•
•

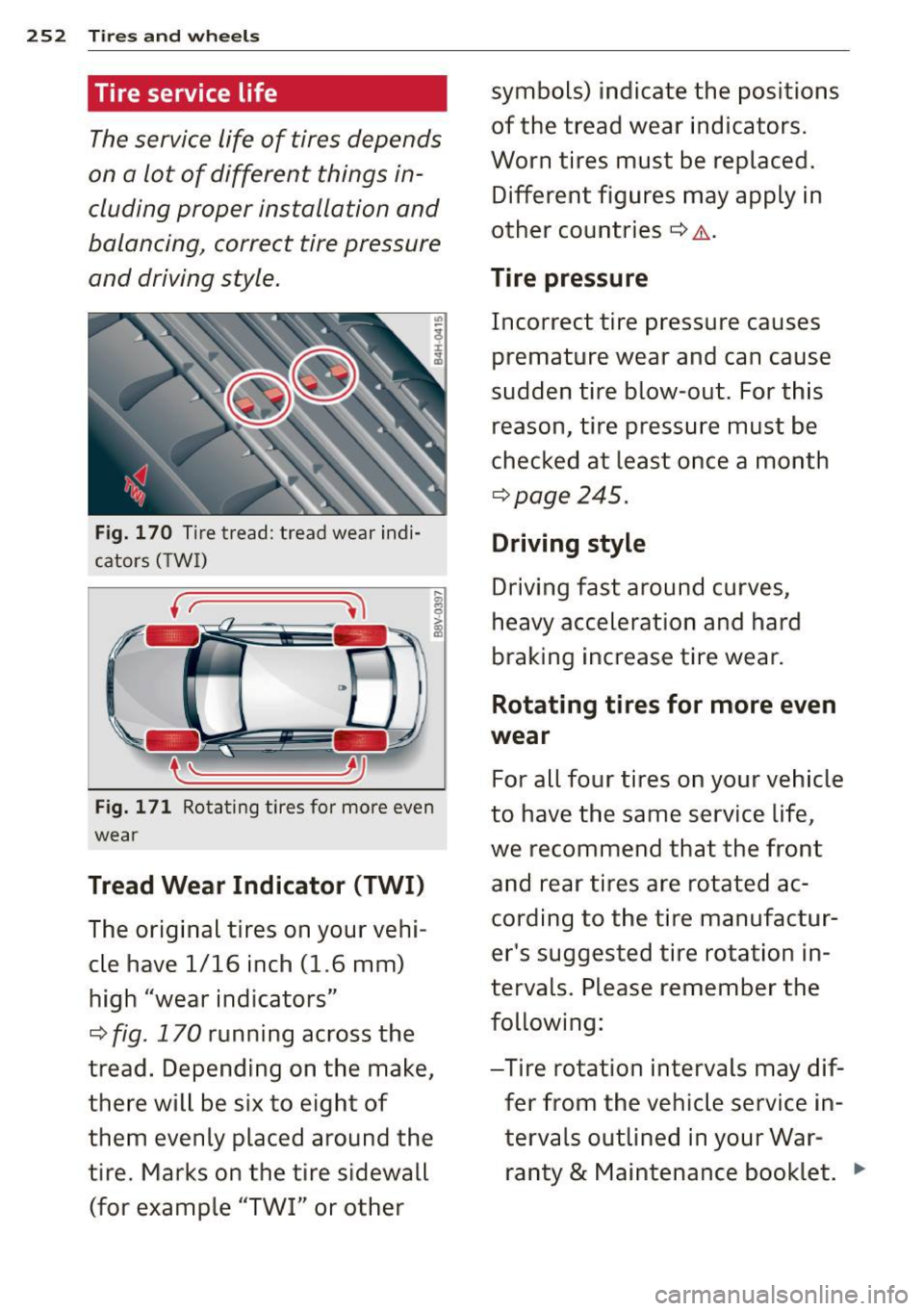

252 Tires and wheels
Tire service life
The service life of tires depends
on a lot of different things in­
cluding proper installation and
balancing, correct tire pressure
and driving style.
Fig. 170 Tire tread: tread wear indi­
cators (TWI)
Fig. 171 Rotating tires for more even
wear
Tread Wear Indicator (TWI)
The original tires on your vehi­
cle have 1/16 inch (1.6 mm)
high "wear indicators"
¢ fig. 170 running across the
tread. Depending on the make,
there will be six to eight of
them evenly placed around the
tire. Marks on the tire sidewall (for example "TWI" or other symbols)
indicate the positions
of the tread wear indicators.
Worn tires must be replaced.
Different figures may apply in
other countries
¢ ..1.. .
Tire pressure
Incorrect tire pressure causes
premature wear and can cause
sudden tire blow-out. For this
reason, tire pressure must be
checked at least once a month
¢page 245.
Driving style
Driving fast around curves,
heavy acceleration and hard
braking increase tire wear.
Rotating tires for more even
wear
For all four tires on your vehicle
to have the same service life,
we recommend that the front and rear tires are rotated ac­
cording to the tire manufactur­
er's suggested tire rotation in­
tervals. Please remember the
following:
-Tire rotation intervals may dif­
fer from the vehicle service in­
tervals outlined in your War­
ranty
& Maintenance booklet. ""

M N
0 > co ,...., \!) 1.1"1
M 1.1"1 ,....,

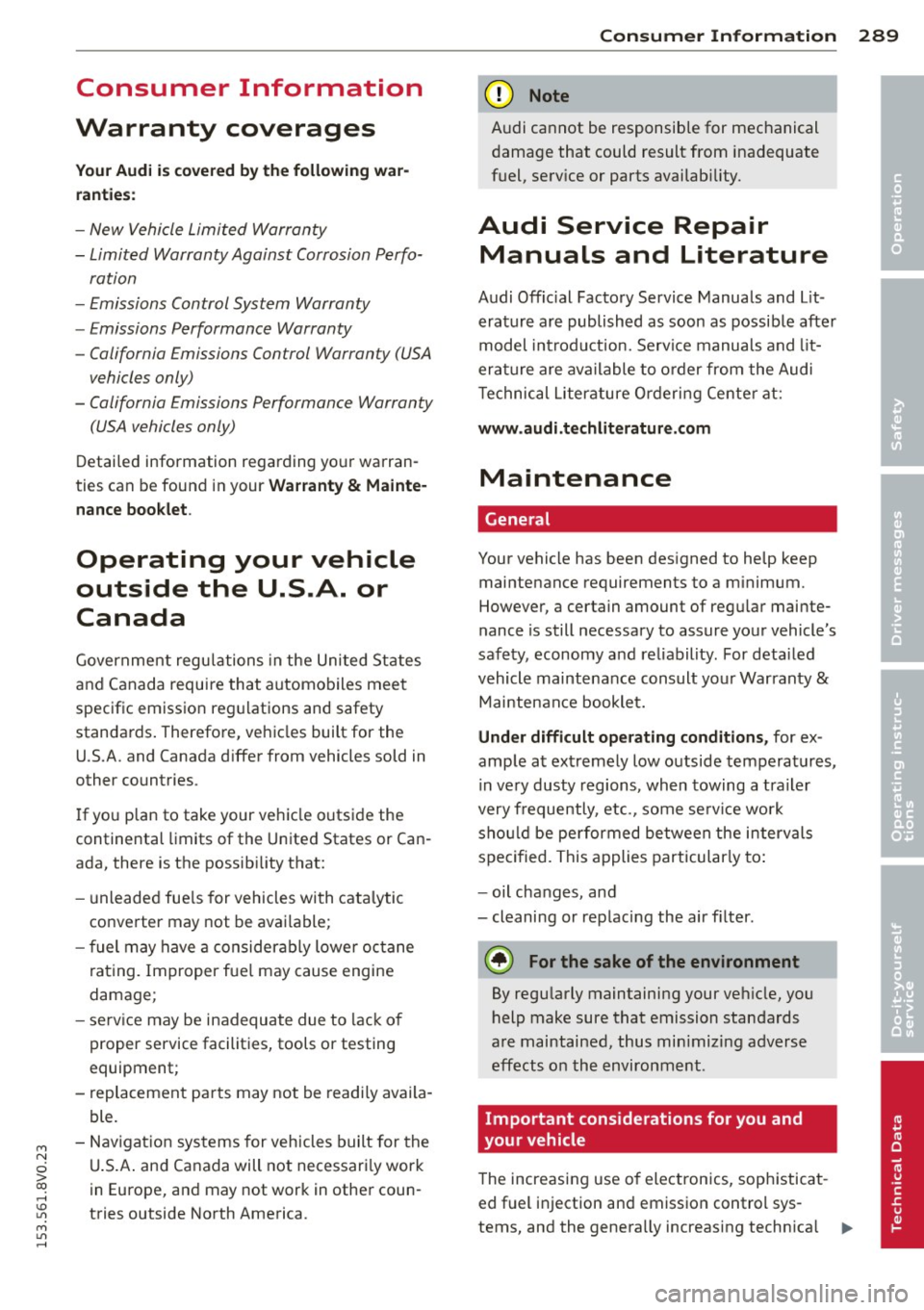

Consumer Information
Warranty coverages
Your Audi is covered by the following war­
ranties :
-New Vehicle Limited Warranty
- Limited Warranty Against Corrosion Perfo-
ration
- Emissions Control System Warranty
- Emissions Performance Warranty
- California Emissions Control Warranty (USA
vehicles only)
- California Emissions Performance Warranty
(USA vehicles only)
Detailed information regarding your warran ­
ties can be found in your
Warranty & Mainte­
nance booklet .
Operating your vehicle
outside the U.S.A. or
Canada
Government regulations in the United States
and Canada require that automobiles meet
specific emission regulations and safety
standards. Therefore, veh icles built for the
U.S.A. and Canada differ from vehicles sold in
other countries .
If you p lan to take your vehicle outside the
continental limits of the United States or Can­
ada, there is the possibility that:
- unleaded fuels for vehicles with catalytic
converter may not be available;
- fuel may have a considerably lower octane
rating . Improper fuel may cause engine
damage;
- service may be inadequate due to lack of
proper service facilities, tools or testing
equipment;
- replacement parts may not be readily availa­
ble.
- Navigation systems for vehicles built for the
U.S.A. and Canada will not necessari ly work
in Europe, and may not work in other coun­
tries outside North America .
Consumer Information 289
@ Note
Audi cannot be responsible for mechanical
damage that could result from inadequate
fuel, service or parts availab ility.
Audi Service Repair
Manuals and Literature
Audi Offic ial Factory Service Manuals and Lit ­
erature are published as soon as possible after
model introduction. Service manuals and lit­
erat ure are available to order from the Audi
T echnical Literature Ordering Center at:
www.audi.techliterature.com
Maintenance
' General
Your vehicle has been designed to help keep
maintenance requirements to a minimum.
However, a certain amount of regular mainte­
nance is still necessary to assure your vehicle's
safety, economy and reliability . For detailed
vehicle maintenance consult your Warranty &
Maintenance booklet.
Under difficult operating conditions , for ex­
ample at extremely low outside temperatures,
in very dusty regions, when towing a tra iler
very frequently, etc., some serv ice work
shou ld be pe rformed between the intervals
specified. This applies particularly to:
- oil changes, and
- cleaning or replacing the air filter.
® For the sake of the environment
By regularly maintaining your vehicle, you
help make sure that emission standards
are maintained, thus min imizi ng adverse
effects on the environment .
Important considerations for you and
your vehicle
The increasing use of electronics, sophisticat­
ed fuel injection and emission contro l sys-
tems, and the genera lly increasing technica l ..,_
•
•

M N
0 > co ,...., \!) 1.1'1
M 1.1'1 ,....,
Driver information system ... .. .. .. .. .. 27
Boost ..... .. .. .. .. .... ... .. .. .... 29
CD/radio display ....... ... .. .. .. .. .. 27
Door/rear lid warning ..... .. .. .. .. .. 27
Driver messages . . . . . . . . . . . . . . . . . . . . 14
Efficiency program . . . . . . . . . . . . . . . . . . 29
E ng ine o il temperature indicator .. .. .. 32
I ndicator lights . . . . . . . . . . . . . . . . . . . . 14
L ap time r .. ............... .. .. .. .. 3 2
On- boa rd comp ute r . . . . . . . . . . . . . . . . . 28
Outside tempera ture display . ... .. .. .. 27
Service interval disp lay . ... .. .. .. .. .. 13
Using the multifunction steer ing whee l . 27
Dr iver sea ting posi tion ...... .. .. .. .. . 126
Drive se lect
refer to Audi dr ive se lect . ...... ... .. 106
D riving safe ly . .. .. ..... ... .. .. .. .. . 125
D riving through water . . . . . . . . . . . . . . . 198
Driving time . . . . . . . . . . . . . . . . . . . . . . . . 28
D ust filter
refer to Po llutant filte r . . . . . . . . . . . . . . 68
E
EC O mode ( autom atic clima te control sys -
tem) . ..... .. .. ... .. ..... ... .. .. .... 70
E fficiency program . . . . . . . . . . . . . . . . . . . 29
D escr ipt io n ................. ... ... . 29
Fu el economy messages . . . . . . . . . . . . . 30
O the r equipmen t . . . . . . . . . . . . . . . . . . . 30
Elect rical accessories
refer to Socket . . . . . . . . . . . . . . . . . . . . . 60
Elect romechanical par king brake
refer to Parking brake ..... .. .. .. .. .. 80
E lect romechan ic a l steering .. .. .. .. .. . 193
I ndica tor ligh ts .. ..... ... .. .. .. .. . 193
E lect ron ic diffe rent ial loc k ... .. .. .. .. . 189
I ndicator light . . . . . . . . . . . . . . . . . . . . . 2 2
Electronic immobili zer ...... .. .. .. .. .. 40
also refer to Immobilizer .. .. .. .. .. .. 35
E lect ro nic spee d limiter .. ... .. .. .. .. .. 31
E lect ronic stabilization control (ESC)
I ndicator light . . . . . . . . . . . . . . . . . . . . . 2 2
Sport mode .. ........... .. .. .. .. . 190
Electro nic Stabilization Control (ESC) .. . 189
Eme rgency ass istance ... ... .. .. .. .. . 26 7
E mergency flasher ...... ... .... .. .. .. 47
Inde x 297
Emergency flashe rs
Indicator light ... .. . ... ...... ... .. . 26
Emergency operation Emergen cy bra king f unct ion ..... .. .. . 82
F ron t passenger's door/rear doors .. .. . 41
L uggage compartment lid .... ... .. .. 2 67
Pano rama sunroof . .. .. ..... ... .. .. . 4S
with convenience key . . . . . . . . . . . . . . . . 79
E mergency re lease
F uel fi ller doo r ... .. . .............. 214
S e lector lever . . . . . . . . . . . . . . . . . . . . . 116
Emergency starting ................. 280
Emergency towing . ................. 282
E nergy m anagement ............ .. .. 19 4
Ind icator lig ht ... .. .. .. ...... ... .. . 2 0
E ngine
Coolant ......... .. ............... 225
Pr ewa rm ing (butto n) ............... . 77
P rewarm ing ( key) . .... ........... .. . 74
Star ting with jumper cables .. ... .. .. 2 80
S tar ting (driver messages with conven -
ience key) . . . . . . . . . . . . . . . . . . . . . . . . . 79
Starting (eng ine) . .. ............... . 77
Starting
(key) . . . . . . . . . . . . . . . . . . . . . . 7 4
stopp ing (button) .................. 78
stopp ing (key) . ......... ........... 76
Engine compartment Closing the hood ..... ............. 219
Open ing the ho od ............. .. .. 219
Overview.. .. .. .. ............ 220,221
Safety precautions ... . .. ...... .... . 217
Engine co ntrol (indicato r light) . . . . . . . . . 23
En gine coolant .. .. ................. 225
Radiator fan . .. .. .... ............. 227
Engine o il .. .. .. .. .. . .. .. ..... ... .. 221
adding ......... .. ............... 223
Changi ng ... .. .. .. . .. .... .... .. .. 224
Checking the oi l level ............. .. 22 3
Dip stic k ... .... .. .. . ..... 2 20, 22 1,22 3
Ind icator lig ht . .. .... ........... .. . 20
Oil consumpt ion . ... . .. .. ..... ... .. 2 22
Specificatio n and viscosity .... ... .. .. 221
T emperature indicato r ... .... ... .. .. . 32
U se ...... .. .. .. ................. 223
Engine speed lim itation ( indica to r li gh t) . 24
•
•
•

M N
0 > co ,...., \!) 1.1'1
M 1.1'1 ,....,
Warning/indicator light . ... .. .. .. .. . 135
Worn properly . ... .... ... .. .. .. .. . 137
Safety belt warn ing light ............. 135
Safety central locking ............. .. .. 41
Safety compliance st icker ... .. .. .. .. . 286
Safety equipment . ................ .. 125
Safety features for occupant restraint and
protection . . . . . . . . . . . . . . . . . . . . . . . . . 125
Safety guide lines
Seat adjustment . . . . . . . . . . . . . . . . . . . . 56
Safety instructions for s ide curta in a irbags ............. 168
fo r us ing chi ld safety seats . .. .... .. . 174
for us ing safety be lts ............... 138
M on itoring the Advanced Airbag Sys -
tem ..... .. ... .. .. ..... ... .. .. ... 159
Safety systems ( indicato r light) . .. .. .. .. 2 1
Scheduled ma intenance interval
with driver i nformat ion system ........ 13
Screwdriver . ... .... .. .... ... .. .. ... 268
Seat adjustment Driver's sea t . . . . . . . . . . . . . . . . . . . . . . . 56
Fr ont passenger's se at . . . . . . . . . . . . . . . 5 7
H ead res traints ....... ... .. .. .. .. . 129
Safety guide lines . ..... ... .. .. .. .. .. 56
Seat heat ing .................... .... 72
Seating position Driver . ... . .... ............. .. .. . 126
Front passenger ................... 127
H ow to adjust the front seats ........ 127
I nco rrect seat position .............. 129
Occupa nts .. .... ............. .. .. . 126
Rear passengers .......... .... .. .. . 128
Seats ad justing . . . . . . . . . . . . . . . . . . . . . 57, 58
Folding .. ... .................. .. .. 65
Seats (number) . ........... .. .. .. .. . 135
Selec tive c ataly tic red uction
refer to AdBlue . .. ..... ... .. .. .. .. . 215
Select ive wheel torque control ........ 189
Selector leve r (automatic transmission)
Emergency operation ............... 116
Position . .. .... ............. .. .. . 109
Service and disposal Safety belt pretensioner ... .. .. .. .. . 142
Service interval d isp lay
wi th d river informat ion system ........ 13
Index 303
Setting clock . ....... . .. .. ..... ... .. . 10
Setting date ....... ................. 10
Setting the temperature automat ic climate control system ..... 71
Setting time . ... .. .. . ... ...... ... .. . 10
S ET UP (basic setting) . .............. .. 10
S hi ft padd les (automatic transmission) . 114
S hor t-t erm memory . . . . . . . . . . . . . . . . . . 28
S ide a irbags
Description ....... ........... ..... 163
How they work .... ................ 165
S ide assist ...... ...... ............. 102
Adjusting the brightness ........ .... 104
Cleaning the sensors ........... .. .. 206
Sensor range .. ... ................ 103
switching on and off ............... 104
S ide curtain airbags ................. 166
Description ....................... 166
How they work . .. ................. 168
Safety i nstr uctions .. ............... 168
Sliding/tilting s unroof
refer to Panorama sunroof ........... 44
Snow cha ins .. .. .. .... ........... .. 262
All wheel drive ... .. . .. ... .... ... .. 193
Socket ........ .... ........... ...... 60
Sources of information abo ut child re-
stra ints and their use ................ 188
S peed l imi ter . .. .. ................. . 31
Speedometer . . . . . . . . . . . . . . . . . . . . . . . 27
Speed rating letter code .. ..... ... .. .. 257
Speed warning system ........... .... . 83
Sport mode . .. .. .. .. ............... 190
Star but ton . . . . . . . . . . . . . . . . . . . . . . . . . 28
START ENGI NE S TOP button (conven ience
key) ...... ... .. .... ..... ..... ..... . 77
START ENGINE STOP (convenience key) .. . 78
St arti ng
Hill ho ld . ... .... .. . .. .. ..... ... .. . 82
Start ing from a stop
Hill start assis t ... .... ........... .. . 82
Starting (eng ine)
Automat ic start (button) . . . . . . . . . . . . . 77
Automat ic start (key) . . . . . . . . . . . . . . . . 7 4
Malfunction (button) . . . . . . . . . . . . . . . . 77
Malfunction ( key) .................. . 75
•
•
•
