N
0 > co

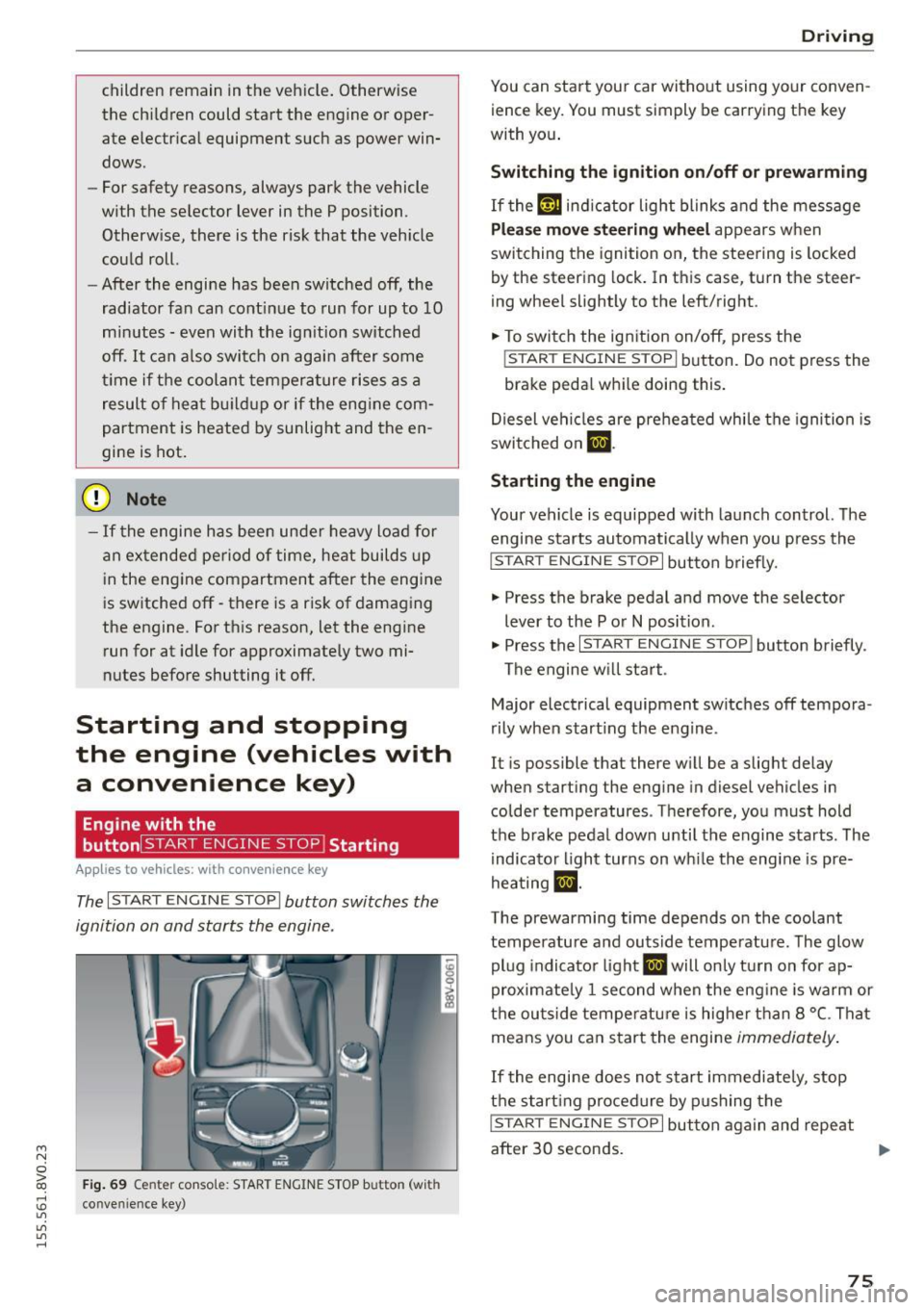

children remain in the vehicle. Otherwise
the children could start the engine or oper­ate electrical equipment such as power win­
dows .
- For safety reasons, always park the vehicle
with the selector lever in the P position.
Otherwise, there is the risk that the vehicle
could roll.
- After the engine has been switched off, the
radiator fan can continue to run for up to 10
minutes -even with the ignition switched
off.
It can also switch on again after some
time if the coolant temperature rises as a
result of heat build up or if the engine com­
partment is heated by sunlight and the en­
gine is hot.
(D Note
- If the engine has been under heavy load for
an extended period of time, heat builds up
in the engine compartment after the engine
is switched off -there is a risk of damaging
the engine . For this reason, let the engine
run for at idle for approximately two mi­
nutes before shutting it off.
Starting and stopping
the engine (vehicles with
a convenience key)
Engine with the
button Starting
Applies to vehicles : wit h convenience key
The I S TART ENGINE STOP I button switches the
ignition on and starts the engine.
Fig. 69 Ce nter conso le : STAR T ENGINE STOP button (wit h
:0 conve nience key)
"'
"'
"'
......
Driving
You can start your car without using your conven ­
ience key. You must simply be carrying the key
with you .
Switching the ignition on/off or prewarming
If thP ,Y,n indicator light blinks and the message
Plea se move steering wheel appears when
switching the ignition on, the steer ing is locked
by the steering lock. In this case, turn the steer­
ing wheel slightly to the left/right .
.,. To switch the ign ition on/off , press the
!S TART ENGINE ST OP I button. Do not press the
bra ke pedal whi le doing this.
Diesel vehicles are preheated while the ignition is
switched on
m .
Starting the engine
Your vehicle is equipped with launch control. The
engine starts automatically when you press the
I STAR T ENGINE ST OP I button brief ly.
.,. Press the brake pedal and move the selector
lever to the P or N position .
.,. Press the
I STAR T ENGINE ST OP ! button briefly .
The engine w ill start .
Major electrical equipment switches off tempora ­
rily when start ing the engine.
It is possible that there will be a slight delay
when starting the engine in diesel vehicles in
colder temperatures . Therefore, you must hold
the brake pedal down until the engine starts . The
indicator light turns on while the engine is pre­
heating
m .
The prewarming time depends on the coolant
temperature and outside temperature . The glow
plug indicator light
El will only turn on for ap­
proximate ly 1 second when the eng ine is warm or
the outside temperature is higher than 8
°C. That
means you can start the engine
immediately .
If the engine does not start immediately, stop
the start ing procedure by pushing the
I STAR T ENGINE ST OP I button again and repeat
after 30 seconds. .,.
75

....,
N
0 > co
rl I.O
"'
"'
"'
rl

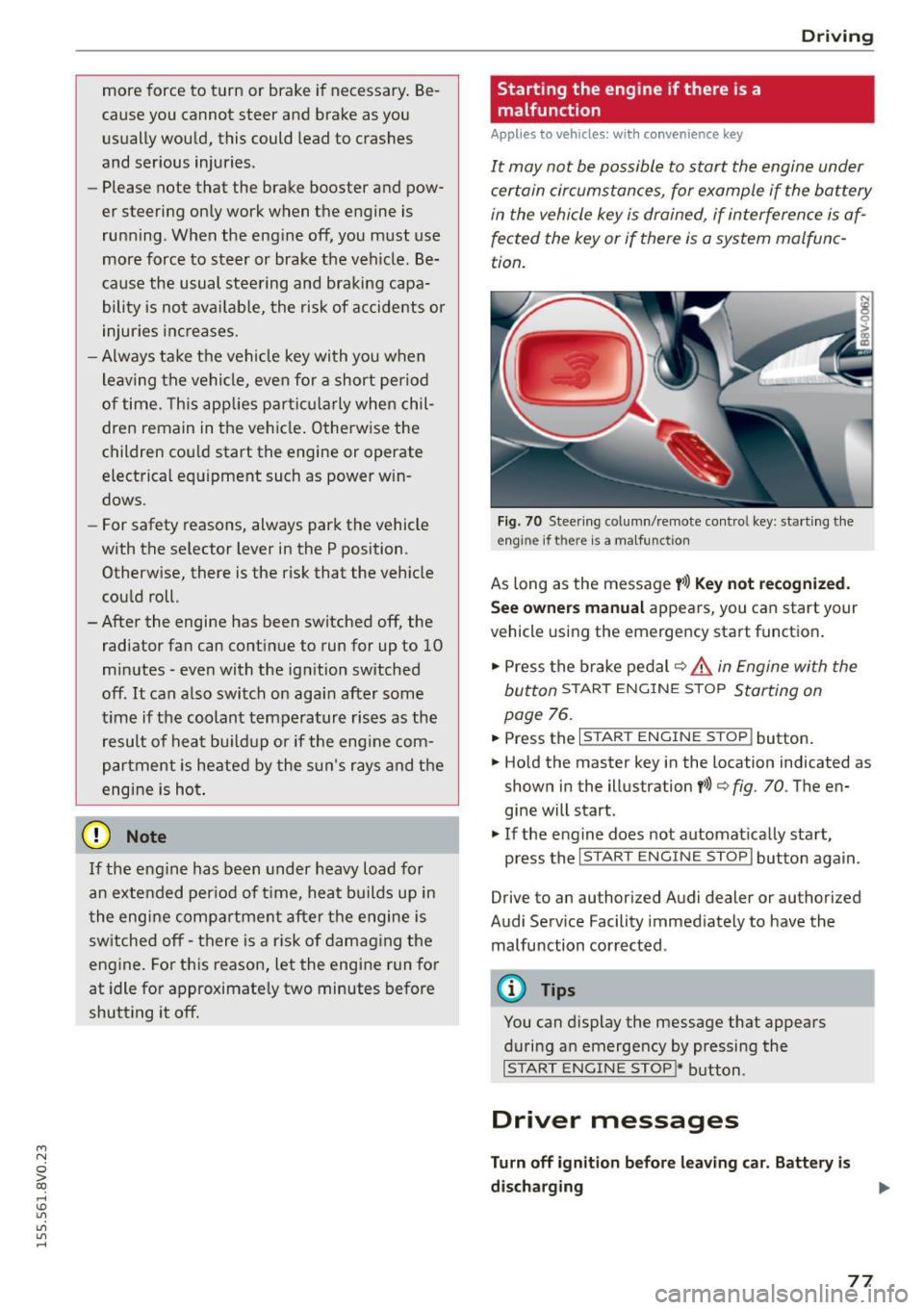

more force to turn or brake if necessary. Be­
cause you cannot steer and brake as you
usually would, this could lead to crashes
and serious injuries.
- Please note that the brake booster and pow­
er steering only work when the engine is
running. When the engine off, you must use
more force to steer or brake the veh icle. Be­
cause the usual steering and braking capa­
bility is not avai lable, the risk of accidents or
injuries inc reases.
- Always take t he vehi cle key with you when
leaving the vehicle, even for a short period
of time. This applies partic ularly when chil­
dren remain in the vehicle . Otherwise the
children could start the engine or operate
electrical equipment such as power win­
dows.
- For safety reasons, always park the vehicle
with the selector lever in the P position.
Otherw ise, there is the risk that the veh icle
could roll.
- After the engine has been switched off, the radiator fan can continue to run for up to 10
minutes -even with the ignition switched
off.
It can also switch on again after some
t ime if the coolant temperature rises as the
result of heat bu ildup or if the eng ine com­
partment is heated by the s un's rays and the
engine is hot .
(D Note
If the eng ine has been under heavy load for
an extended per iod of t ime, heat bu ilds up in
the eng ine comp artment after the engine is
sw itched off -there is a r isk of damaging the
engine. For this reason, let the engine run for
at idle for approximate ly two minutes before
shutting it off.
Dr iving
Starting the engine if there is a
malfunction
Applies to vehicles: with convenience key
It may not be possible to start the engine under
certain circumstances, for example if the battery
in the vehicle key is drained, if interference is af­
fected the key or if there is a system malfunc­
tion.
F ig. 70 Steer ing colum n/remote co ntrol key: start ing the
engine if there is a ma lfunction
As long as the message y >l) K ey not r ecognized .
Se e owne rs manual
appears, you can start your
vehicle using the emergency start function .
"' Press the brake pedal
c:::> .&. in Engine with the
button
START ENGINE STOP Starting on
page
76.
"' Press the ~ I s=T~A~R~T~E~N~G~IN~E~s=T~O~P~ I button.
"' Ho ld the master key in the location indicated as
shown in the illustration
y >>) c:::> fig. 70. The en­
gine will start .
"' If the engine does not automat ically start,
press the
I START ENGINE STOP I button again.
Drive to an authorized Audi dealer or authorized
Audi Serv ice Facility immediately to have the
malfunction corrected.
@ Tips
You can display the message that appears
during an emergency by pressing the
I S TART ENGINE STOP!* button.
Driver messages
Turn off ignition befor e leavi ng car. Batt ery is
di schar ging
77

M N
0 > co ,...., \!) ..,.,
..,.,
..,., ,....,

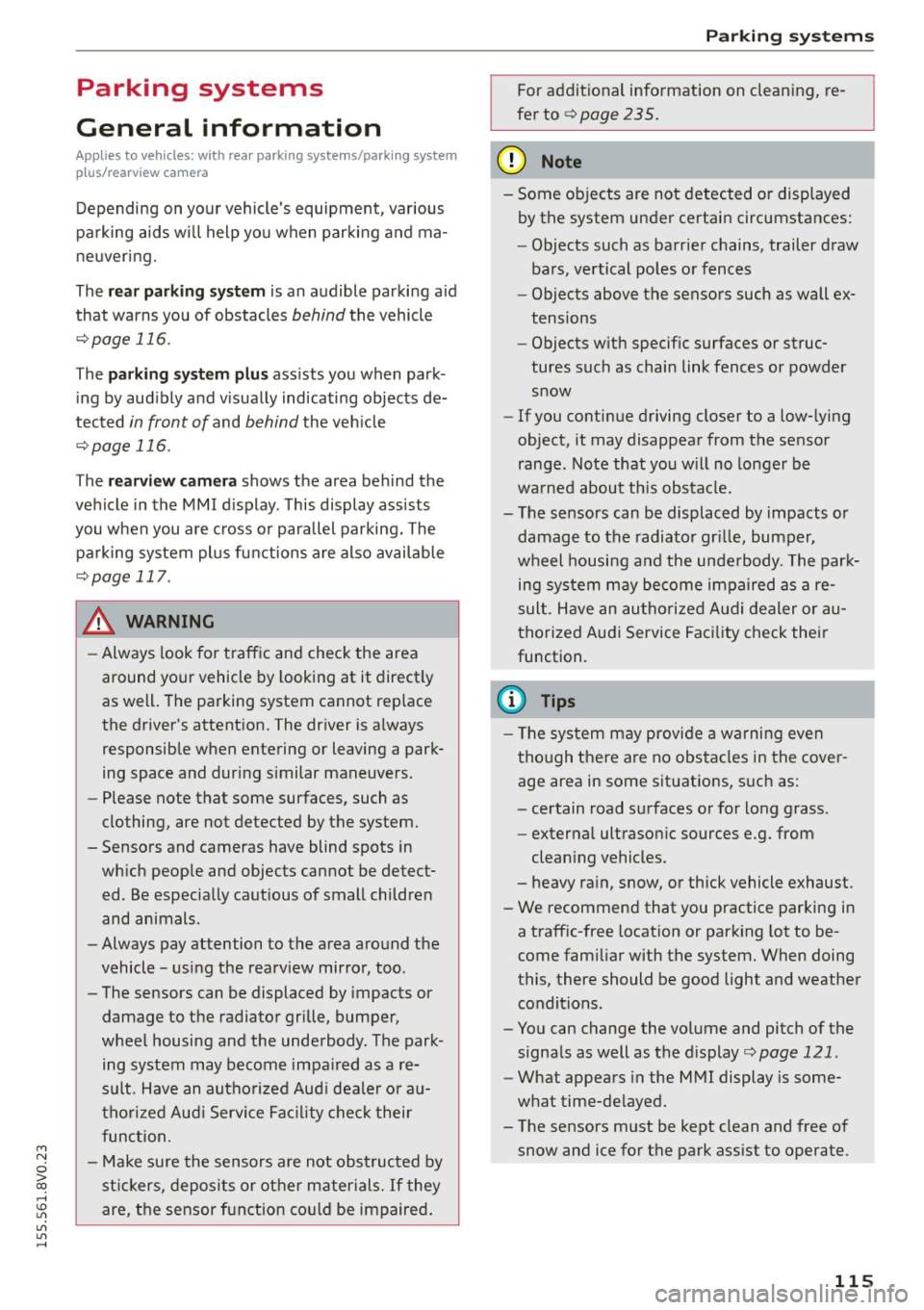

Parking systems
General information
Applies to vehicles: with rea r parking sys te m s/park in g system
p lus/rearview camera
Depending on your vehicle's equipment, various
parking aids will help you when parking and ma­
neuvering.
The
rear parking system is an audible parking aid
that warns you of obstacles
behind the vehicle
¢ page 116.
The parking system plus assists you when park ­
ing by audibly and visually indicating objects de­
tected
in front of and behind the vehicle
¢ page 116.
The rearview camera shows the area behind the
vehicle in the MMI display. This display assists
you when you are cross or parallel parking. The
parking system plus functions are also available
¢page 117.
A WARNING ,--
- Always look for traffic and check the area
around your vehicle by looking at it directly
as well. The parking system cannot replace
the driver's attention. The driver is a lways
responsible when entering or leaving a park­
ing space and during similar maneuvers .
- Please note that some surfaces, such as
clothing, are not detected by the system.
- Sensors and cameras have blind spots in
which people and objects cannot be detect­
ed . Be especially cautious of small children
and animals .
- Always pay attention to the area around the
vehicle - using the rearview mirror, too.
- The sensors can be displaced by impacts or
damage to the radiator grille, bumper,
wheel housing and the underbody . The park­
ing system may become impaired as a re­
sult . Have an authorized Audi dealer or au­
thorized Audi Service Facility check their
function.
- Make sure the sensors are not obstructed by
st ickers, deposits or other materials.
If they
are the sensor function could be impaired .
'
Parking systems
For additional information on cleaning, re­
fer to
¢ page 235.
@ Note
- Some objects are not detected or displayed
by the system under certain circumstances:
- Objects such as barrier chains, trailer draw
bars, vertical poles or fences
- Objects above the sensors such as wall ex­
tensions
- Objects with specific surfaces or struc­
tures such as chain link fences or powder
snow
- If you continue driving closer to a low-lying
object, it may disappear from the sensor
range. Note that you will no longer be
warned about this obstacle.
- The sensors can be displaced by impacts or
damage to the radiator grille, bumper,
wheel housing and the underbody. The park­
ing system may become impaired as a re­
sult. Have an authorized Audi dealer or au­
thorized Audi Service Facility check their
function.
(D Tips
- The system may provide a warning even
though there are no obstacles in the cover­
age area in some situations, such as:
- certain road surfaces or for long grass .
- external ultrasonic sources e.g. from
cleaning vehicles.
- heavy rain, snow, or thick vehicle exhaust.
- We recommend that you practice parking in
a traffic-free location or parking lot to be­
come familiar with the system. When doing
this, there should be good light and weather
conditions.
- You can change the volume and pitch of the
signals as well as the display¢
page 121 .
-What appears in the MMI display is some­
what time-delayed.
- The sensors must be kept clean and free of
snow and ice for the park assist to operate .
115

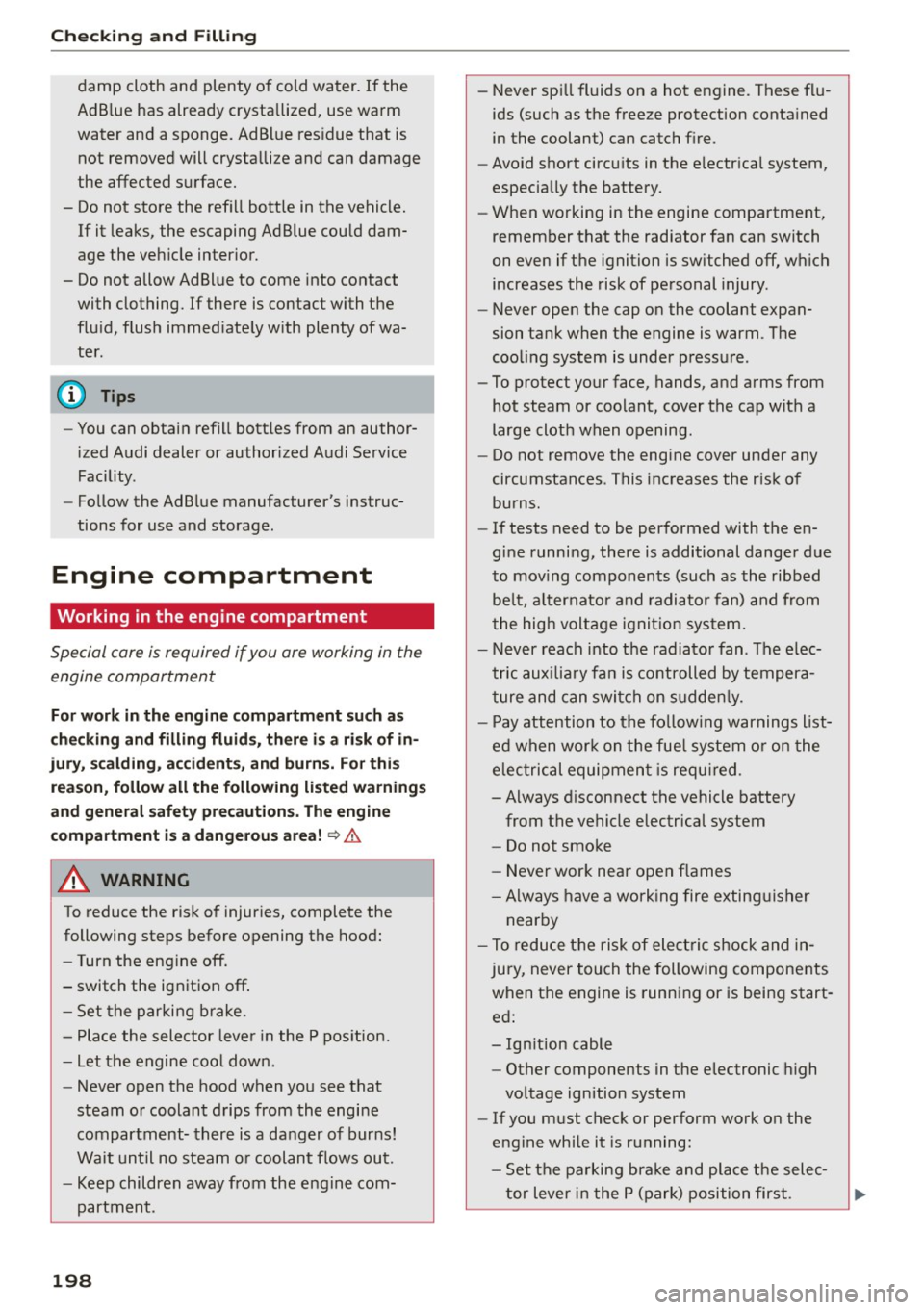

Checking and F ill in g
damp cloth and plenty of cold water. If the
AdB lue has already crysta llized, use warm
water and a sponge. AdBl ue res idue that is
not removed will crysta lli ze and can damage
the affected s urface.
- Do not store the ref ill bottle in the vehicle.
If it leaks, the escaping Ad Blue cou ld dam­
age the veh icle inter ior.
- Do not allow Ad Blue to come into contact
with clothing. If there is contact with the
flu id, flush immed iate ly w ith plenty of wa­
ter .
@ Tips
-You can obtain refill bott les from an author­
i zed Audi dealer or authorized Audi Service
Facility .
- Follow the Ad Blue manufacturer 's instruc­
tions for use and storage .
Engine compartment
Working in the engine compartment
Special care is required if you are working in the
engine compartment
For work in the engine compartment such as
c h ecking and filling fluid s, there i s a risk of in ­
jury, scalding , accid ents, and burns. F or thi s
rea son, follow all the following li sted warning s
and general safety precautions. The engine
c ompartment is a dangerous area!
~ &
A WARNING
To reduce the risk of injur ies, complete the
following steps before opening the hood :
- Turn the eng ine off.
- switch the ignit ion off .
- Set the parking b rake.
- Pla ce the sele ctor leve r in the P pos ition.
- Let the engine coo l down .
- Never open the hood when you see that
steam o r coolan t drips from the engine
compartment- there is a da nger of burns!
Wait un til no steam o r coolant flows ou t.
- Keep children away from the engine com­
partm ent.
198
-
- Never sp ill fluids on a hot engine . These fl u­
ids (such as the freeze protection conta ined
in the coolant) can catch fire.
- Avoid short circ uits in the e lectrica l system,
especially the battery.
- When working in the engine compa rtment,
remember that the radiator fan can switch
on even if the ignition is switched off, wh ich
increases the risk of pe rsonal injury.
- Never open the cap on the coolant expan­
si on tank when the engine is warm . The
cooli ng system is under p ress ure .
- To protect yo ur face, hands, and a rms from
hot steam or coolant, cover the cap with a large cloth when o pening.
- Do not remove the engine c over under any
circumstances . T his i ncreases the r isk of
burns.
- If tests need to be per formed with t he en­
gine running, there is additional danger due
to mov ing components (such as the rib bed
be lt , a lternator a nd radiator fan) a nd from
the high v olt age ignit io n sy stem.
-Never reac h into the radiato r fan . The e lec­
tric aux iliar y fan i s controlled by tempera­
ture and can swi tch on sudden ly.
- Pay attention to t he fo llow ing warnings list­
ed when w ork on the fue l system o r on the
elec tric al equipmen t is requ ired .
- Always d isconnect the vehicle battery
from the vehicle electrical system
- Do not smo ke
- Never work near open flames
- Always have a work ing fire exting uis her
near by
- To reduce t he risk of e le ct ric shock and in­
jury, never touch the following components
when t he engine is running or is bein g start­
e d :
- Ign ition cable
- Other components in the electronic h igh
vo ltage ignition system
- If you must check or perform work o n the
e ngine whi le it is running:
- S et t he parki ng bra ke and pla ce the selec­
t or lever in the P (park) posi tion first .

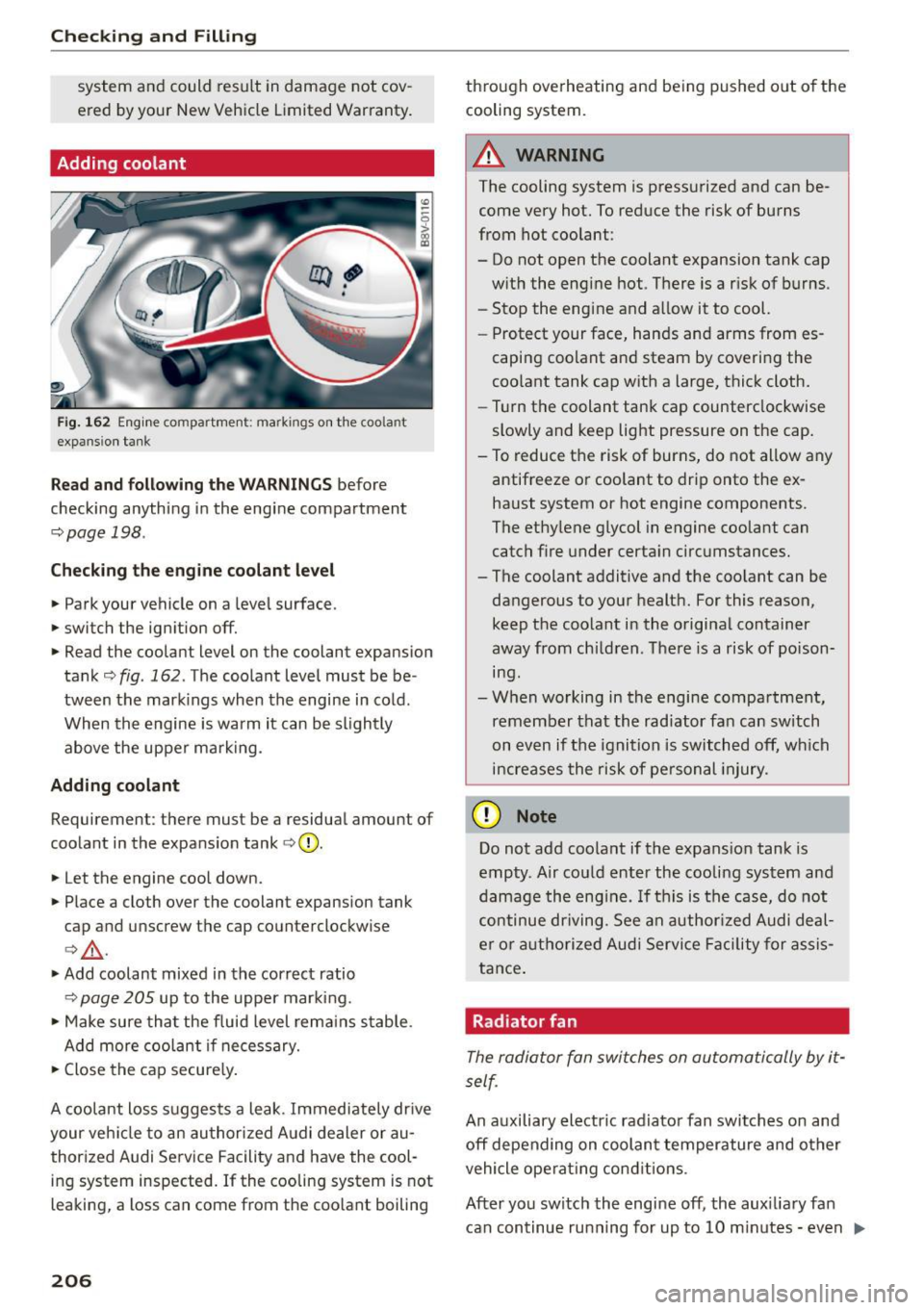

Checking and Fill in g
system and could result in damage not cov­
ered by your New Vehicle Limited Warranty.
Adding coolant
Fig. 162 Eng ine compartment: ma rkings on the coola nt
expans ion tank
Read an d follo wing the WARNINGS before
checking anything in the engine compartment
r::;,page 198.
Checking the engine coolant level
.. Park your vehicle on a level surface.
.. switch the ignition off.
.. Read the coolant level on the coolant expansion
tank
r::;, fig . 162 . The coolant level must be be ­
tween the mark ings when the engine in cold .
When the engine is warm it can be slightly
above the upper marking .
Adding coolant
Requirement: there must be a residual amount of
coolant in the expans ion tank
c> Q).
.. Let the engine cool down.
.. Place a cloth over the coolant expansion tank
cap and unscrew the cap counterclockwise
<=>& .
.,. Add coolant mixed in the correct ratio
r::;, page 205 up to the upper marking .
.. Make sure that the fluid level rema ins stable.
Add more coolant if necessary.
.. Close the cap secure ly.
A coolant loss s uggests a leak. Immediate ly drive
your veh icle to an authorized A udi dealer or au­
thor ized Audi Service Facility and have the cool­
ing system inspected.
If the cooling system is not
leaking, a loss can come from the coolant boiling
206
thro ugh ove rheating and being pushed out o f the
cooling system.
A WARNING
The cooling system is pressurized and can be­
come very hot. To reduce the risk of burns
from hot coolant:
- Do not open the coolant expansion tank cap
w ith the engine hot. There is a risk of burns .
- Stop the eng ine and a llow it to cool.
- Protect your face, hands and arms from es-
caping coolant and steam by covering the
coo lant tank cap with a large, thick cloth.
- Turn the coolant tank cap counterclockwise
slowly and keep light pressure on the cap.
- To reduce the risk of burns, do not allow any
antifreeze or coolant to drip onto the e x­
haust system or hot engine components.
The ethy lene glycol in engine coola nt can
catch fire under certa in circumstances.
- The coolant additive and the coolant can be
dangerous to your health. For this reason,
keep the coolant in the o riginal container
away from ch ildren . The re is a risk of poison­
ing .
- W hen working in the engine compartment,
remember that the rad iator fa n can switch
on ev en if the ignition is switched off, wh ich
increases the risk of pe rsonal injury.
@ Note
Do not add coolant if the expans ion tank is
empty . Air cou ld enter the cooling system and
damage the eng ine. If this is the case, do not
continue driving. See an author ized Audi deal ­
er or a uth ori zed Audi Service Facility for a ssis­
ta nce .
. Radiator fan
The radiator fan switches on automatically by it­
self
An a uxiliary electric radiato r fan switches on and
off depending on coolan t temperature and other
vehicle ope rat ing cond itions .
After yo u sw itch the engine off, the aux ilia ry fan
can continue running for up to 10 m inutes -even .,,.

with the ignition off. It can even switch on again
l ater by itself~.& , if
- the temperature of the engine coolant rises due to the heat bui ld-up from the eng ine in the en ­
gine compartment, or
- the engine compar tment heats up because the
vehicle is parked in intense sunlight.
A WARNING , --
- To reduce the risk of personal injury never
touch the radiator fan.
- The auxiliary e lectric fan is temperature con­
trolled and can switch on suddenly even
when the engine is not running.
- The aux iliary radiator fan switches on auto­
matically when the engine coo lant reaches a
certain temperature and will continue to run
until the coolant temperature drops.

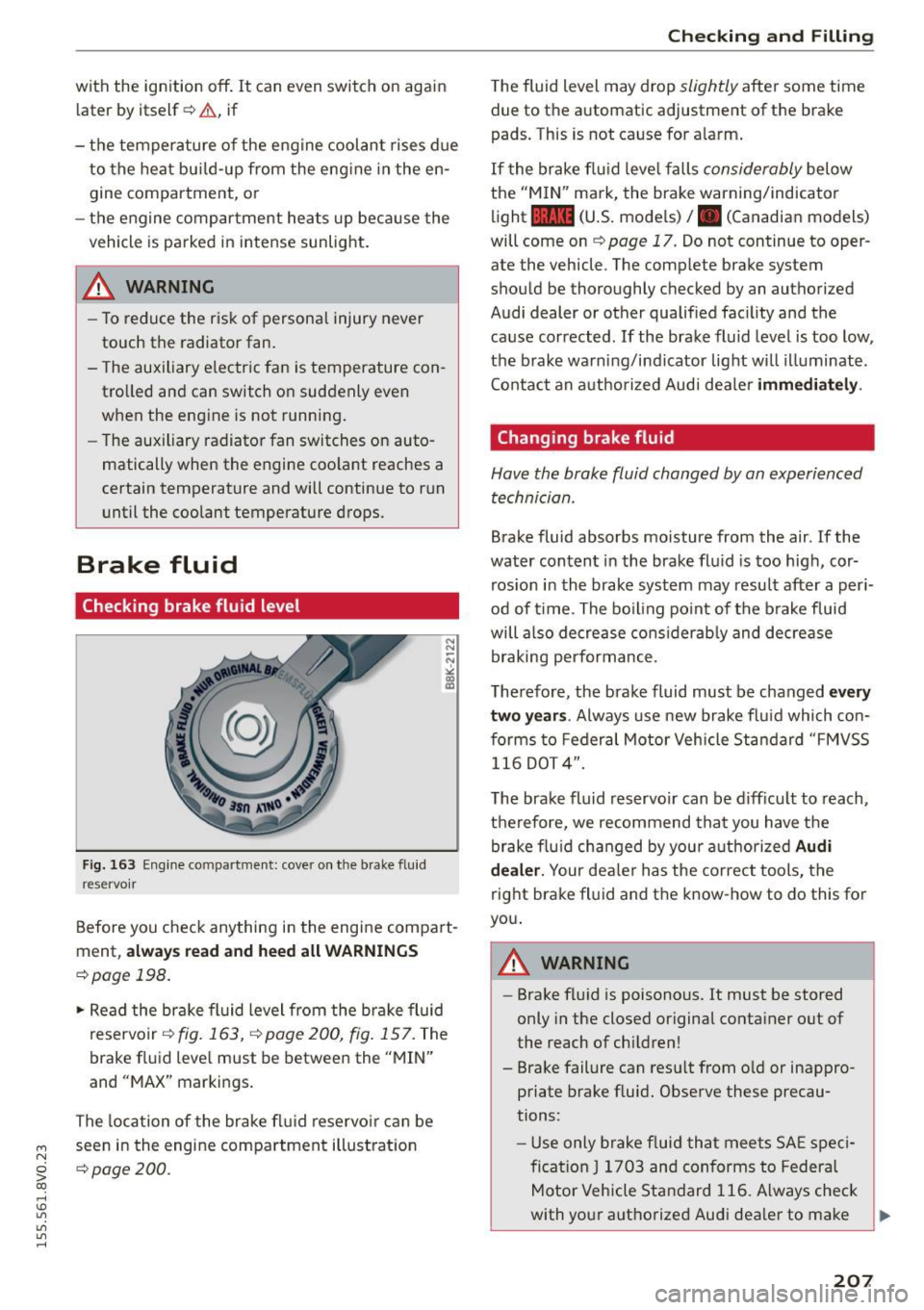

Brake fluid
Checking brake fluid level
Fig. 163 Engine compa rt m ent: cove r on the brake fluid
reservo ir
N N -N
"' :ll
Before you check anything i n the engine compa rt­
ment,
al ways re ad and h eed all W ARN INGS
~page 198.
... Read the brake fluid level from the b ra ke fluid
reservoir
r¢ fig. 163, r:¢ page 200, fig. 157. The
brake f luid leve l must be between the "MIN"
and "MAX" markings.
The location of the brake fl uid reservo ir can be
...., seen in the engine compartment illustration
N
~ r¢ page 200.
co
rl I.O
"'
"'
"'
rl
Check in g and Fillin g
The fluid level may drop slightly after some time
due to the automatic adjustment of the brake
pads . This is not cause for a larm.
If the brake f luid leve l falls considerably below
the "MIN" mark, the brake warning/indicator
light
1111 (U.S. mode ls) I. (Canadian models)
will come on
~ page 17. Do not continue to oper­
ate the vehicle . The comp lete brake system
should be thoroughly checked by an authorized
Audi dealer or other qualified fac ility and the
cause corrected . If the brake flu id level is too low,
the brake warning/indicator light wi ll illuminate .
Contact an a uthorized Audi dea ler
immedi ate ly .
Changing brake fluid
Have the brake fluid changed by an experienced
technician.
Brake fluid absorbs moisture from the air. If the
water content in the brake flu id is too hig h, cor­
ros ion in the brake system may result after a per i­
od of t ime. The bo iling po int of the brake fluid
will a lso decrease cons iderab ly and decrease
braking performance.
Therefore, the brake fluid must be changed
e ve ry
tw o years .
Always use new brake flu id which co n­
forms to Federal Motor Vehicle Standard "FMVSS
116 DOT 4".
The brake fluid reservoir can be diff icu lt to reach,
therefore, we recommend tha t you have the
brake flu id changed by you r authorized
Audi
de aler.
Your dea le r has the correct tools, the
right brake fluid and the know-how to do this for
you .
A WARNING
- -
-Brake flu id is poisonous. It must be stored
only in the closed original conta iner out of
the reach of children !
- Brake failure can resu lt from o ld or inappro­
priate brake fluid. Observe these precau­
tions:
- Use only brake fluid that meets SA E spe ci­
ficat ion
J 1703 and conforms to Federa l
Motor Vehicle Standard 116. Always check
with your a uthorized Audi dea ler to make
~
207

Checking and Filling
of vehicle batteries improperly is very danger­
ous to the environment.

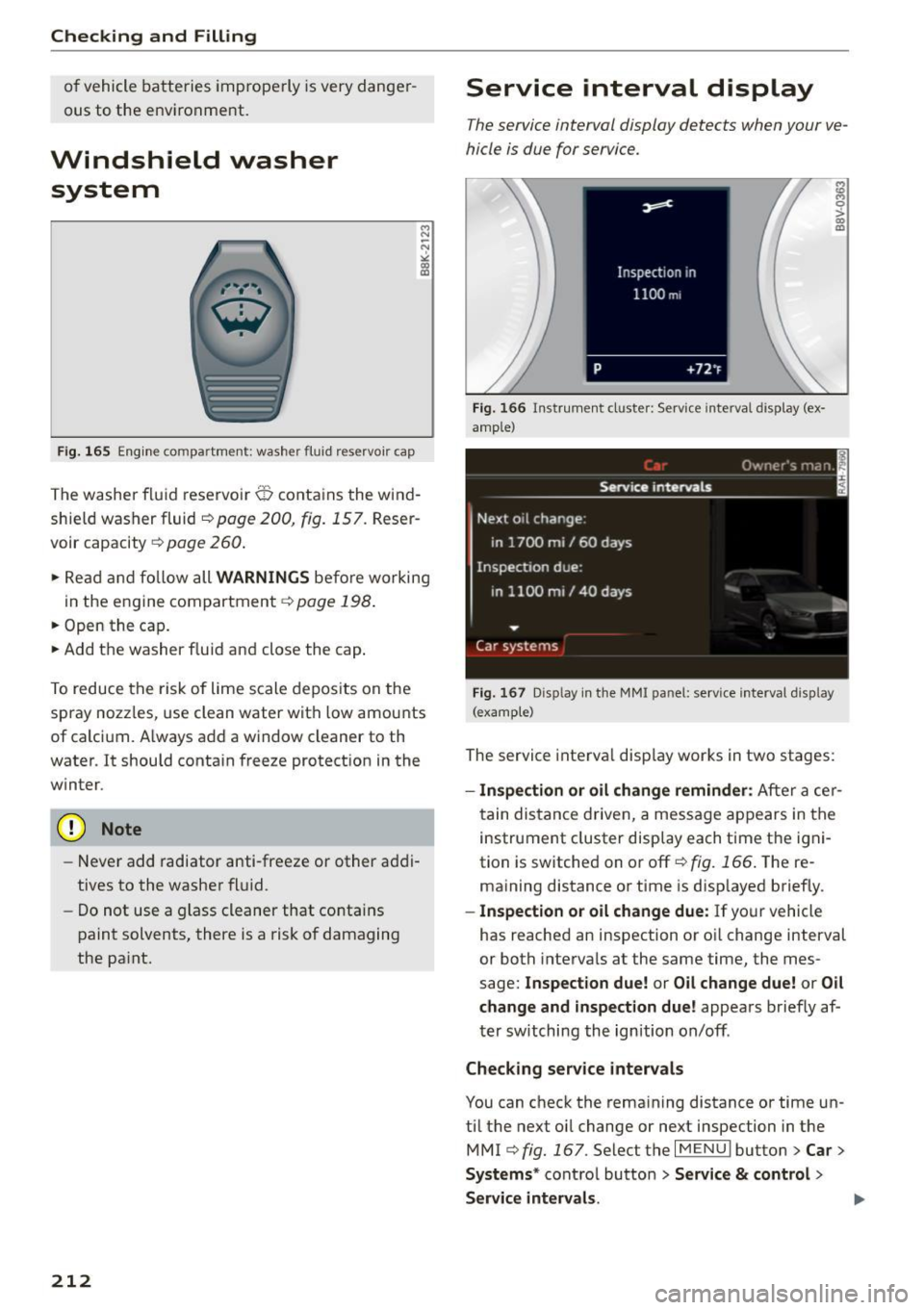

Windshield washer system
F ig . 165 Eng ine compartment: washer fluid reservoir cap
M
"' -')'
"" 00 a,
The washer fluid reservoir O contains the wind­
shield washer fluid¢ page 200, fig. 157. Reser­
voir capacity¢ page 260.
"' Read and follo w all
WARNINGS before working
in the engine compartment ¢page
198 .
... Open the cap .
... Add the washer f luid and close the cap .
To reduce the risk of lime scale depos its on the
spray nozzles, use clean water with low amounts
of calcium. Always add a window cleaner to th
water. It should contain freeze protection in the
winter.
(D Note
- Never add radiator anti-freeze or other addi­
tives to the washer fluid.
- Do not use a glass cleaner that contains
paint solvents, there is a risk of damaging
the pa int.
212
Service interval display
The service interval display detects when your ve­
hicle is due for service.
Fig. 166 Instrument cluster: Service interval display (ex·
amp le)
Fig. 167 Display in the MMI panel: service interval display
(example)
l6 M 0 ;:;. co m
The service interval display works in two stages:
-Inspection or oil change reminder: After a cer ­
tain distance driven, a message appears in the
instrument cluster display each time the igni­
tion is switched on or off¢ fig. 166. The re­
maining distance or time is disp layed briefly.
- Inspection or oil change due: If your vehicle
has reached an inspection or oi l change interval
or both intervals at the same time, the mes­
sage:
Inspection due! or Oil change due! or Oil
change and inspection due!
appears briefly af­
ter switching the ignition on/off.
Checking service intervals
You can check the rema ining distance or time un­
til the next oil change or next inspection in the
MMI
¢ fig. 167. Select the I MENU I button> Car>
Systems*
control button > Service & control >
Service intervals.

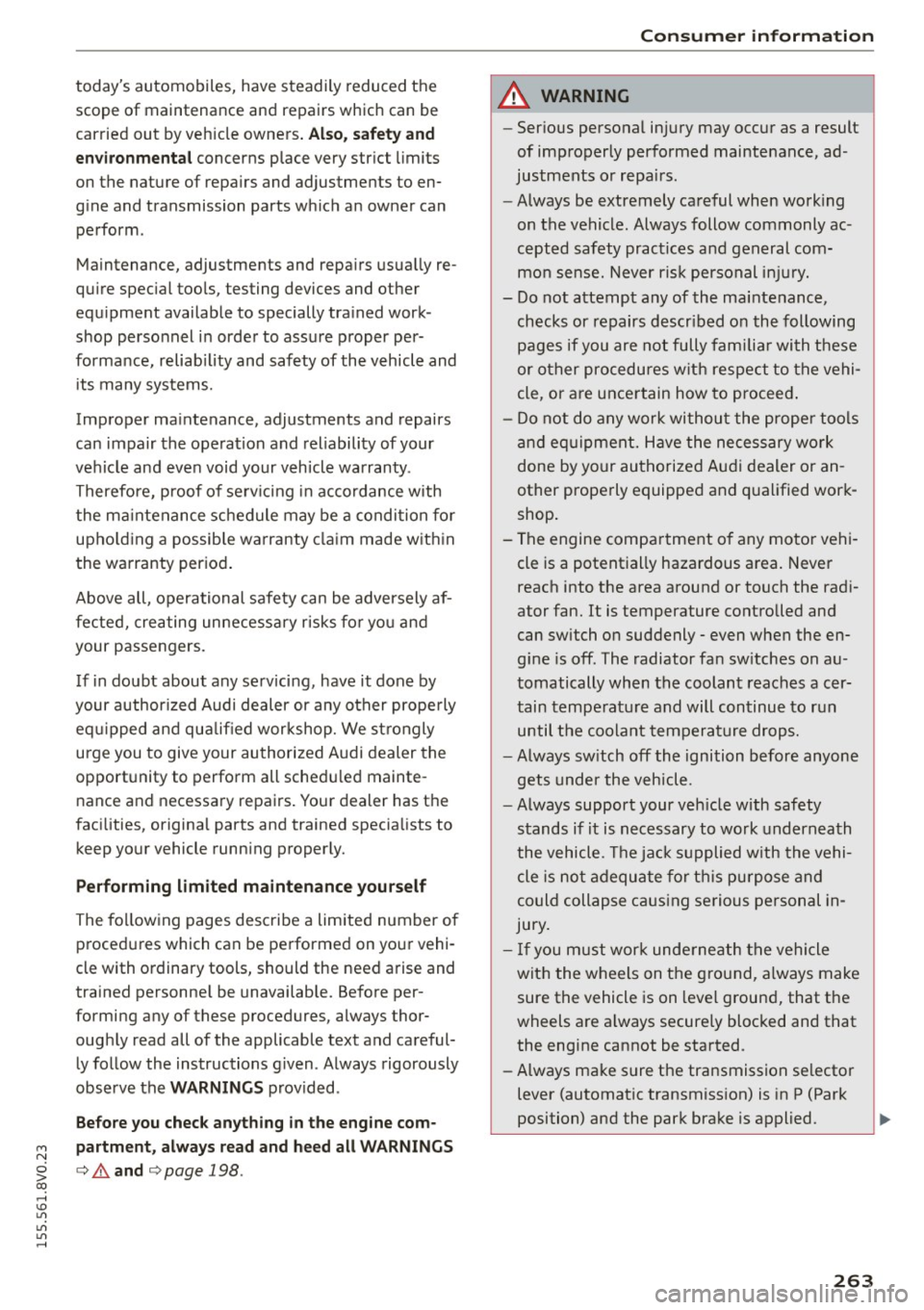

today's automobiles, have steadily reduced the
scope of maintenance and repairs which can be
carried out by vehicle owners .
Also , s afety a nd
en viro nm enta l
concerns place very strict limits
on the nature of repa irs and adjustments to en­
g ine and transmission parts which an owner can
perform.
Maintenance, adjustments and repa irs usua lly re­
qu ire spec ial tools, testing devices and other
equ ipment available to specially trained work­
shop perso nnel in order to assure proper per­
formance, reliab ility and safety of the vehicle and
its many systems.
Improper ma intenance, adjustments and repairs
can impair the operation and reliability of your
vehicle and even void your vehicle warranty .
Therefore, proof of se rv icing in accordance with
the m aintenance schedule may be a condi tion for
upho ld ing a possib le warranty cla im made w ith in
the warranty period .
Above all, operational safety can be adversely af­
fected, creating unnecessary r isks fo r you and
your passengers.
I f in doubt about any servicing, have it done by
your author ized Audi dealer or any other prope rly
equ ipped and qua lified workshop. We st rongly
urge you to give your authorized Audi dealer the
opport unity to perform all sched uled mainte­
nance and necessary repairs . Your dealer has the
fac ilities, origina l parts and trained specia lists to
keep yo ur vehicle runn ing properly.
P e rforming lim it e d ma inten anc e y ours elf
The fo llowing pages describe a limited number of
proced ures which can be performed on yo ur vehi­
cle with ordinary tools, should the need arise and
trained personne l be unavailable. Before per­
forming any of these procedures, always thor­
oughly read all of the applicable text and careful­
ly follow the instructions g iven . Always rigorously
observe the
W ARNINGS prov ided .
Befo re you check an ything in the engine com -
"' partm ent, always r ead and h eed all WARNING S
N
~ c:> .&. and c:> page 198 .
co ,...., \!) ..,.,
..,.,
..,., ,....,
Co nsum er information
A WARNING
- Ser ious personal injury may occur as a result
of improperly performed maintenance, ad­
justments or repairs.
- Always be extremely careful when work ing
on the vehicle. Always follow commonly ac­
cepted safety practices and general com­ mon sense. Never ris k personal injury.
- Do not attempt any of the maintenance,
checks or repairs descr ibed on the following
pages if you are not fully familia r wi th these
or other procedures w ith respect to the vehi­
cle, or a re unce rtain how to proceed .
- Do not do any work without the proper tools
a nd eq uipment. Have the necessary work
done by your authorized Audi dealer or an­
other properly equipped and qualified work­
shop .
- The engine compar tment o f any motor vehi ­
cle is a potentially hazardous area. Never reach into the area around or touch the radi­
ator fan. It is temperature contro lled and
can switch on suddenly - even when the en­
g ine is off. The radiator fan sw itches on au­
tomatically when the coolant reaches a cer­
tain tempe ratu re and will continue to run
until the coolant temperature drops.
- Always sw itch off the ignition before anyone
gets under the vehicle.
- Always support your veh icle with safety
stands if it is necessary to work underneath
the vehicle. The jack supplied w ith the vehi­
cle is not adequate for this purpose and
could collapse caus ing serious personal in­
jury.
- If you m ust wor k underneath t he vehicle
with the wheels on the ground, a lways make
sure the vehicle is on level ground, that the
wheels are a lways secure ly blocked and that
the engine cannot be started.
- Always make sure the transmission se lector
lever (automatic transmiss ion) is in P (Park
position) and the park brake is applied.
Ill>
263

Index
Service in terval disp lay . . . . . . . . . . . . . . . 212
Using the multif unction steering whee l . . . 27
Driver seating posit ion . . . . . . . . . . . . . . . . . 13 1
Drive select .. .. ................. .. ... 112
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 25
Driving economically . . . . . . . . . . . . . . . . . . . 70
Driving safely . . . . . . . . . . . . . . . . . . . . . . . . 130
Driving through water . . . . . . . . . . . . . . . . . . 70
Driving t ime . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Dust filter
refer to Po llutant filter . . . . . . . . . . . . . . . . 64
E
ECO mode (automatic climate control
system) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Efficiency program . . . . . . . . . . . . . . . . . . . . . 29
Descr ipt ion . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Fue l economy messages . . . . . . . . . . . . . . . 30
Other equipment . . . . . . . . . . . . . . . . . . . . . 30
Electrical accessories
refer to Socket . . . . . . . . . . . . . . . . . . . . . . . 57
Elect romechanica l par king b rake
refer to Parking bra ke . . . . . . . . . . . . . . . . . 78
E lectromechanical steering . . . . . . . . . . . . . 126
Indicator l ights . . . . . . . . . . . . . . . . . . . . . 126
E lectronic different ia l lock . . . . . . . . . . . . . . 123
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 21
Elect ron ic immobili ze r . . . . . . . . . . . . . . . . . . 38
also refer to Immobilizer . . . . . . . . . . . . . . 33
Elect ron ic speed lim ite r . . . . . . . . . . . . . . . . . 94
E lectron ic stabilization control ( ESC)
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 21
Sport mode . . . . . . . . . . . . . . . . . . . . . . . . 124
Elect ronic Stabilization Control (ESC) . . . . . 123
E me rgency ass istance . . . . . . . . . . . . . . . . . 240
E mergency flasher . . . . . . . . . . . . . . . . . . . . . 44
E me rgency flashers
I ndicator ligh t . . . . . . . . . . . . . . . . . . . . . . . 25
E me rgency operation
E me rgency braking fu nction . . . . . . . . . . . . 80
Fr ont passenge r's door/ rear doo rs . . . . . . . 39
L ugg age compartmen t lid . . . . . . . . . . . . . 24 0
P anorama sunroof . . . . . . . . . . . . . . . . . . . . 42
with convenience key . . . . . . . . . . . . . . . . . . 77
270
Emergency re lease
Fuel f iller door . . . . . . . . . . . . . . . . . . . . . . 194
Se lector lever . . . . . . . . . . . . . . . . . . . . . . . . 89
E merge ncy s tarting . . . . . . . . . . . . . . . . . . . 252
Energy management . . . . . . . . . . . . . . . . . . 128
Ind icator light . . . . . . . . . . . . . . . . . . . . . . . 19
Engine Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20S
Preheating (button) . . . . . . . . . . . . . . . . . . . 75
Preheating (key) . . . . . . . . . . . . . . . . . . . . . . 73
Star ting with jumper cables . . . . . . . . . . . 252
Starting (button) . . . . . . . . . . . . . . . . . . . . . 75
Start ing (dr iver messages w ith conven ience
key) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Star ting (key) . . . . . . . . . . . . . . . . . . . . . . . . 73
stopp ing (b utton) . . . . . . . . . . . . . . . . . . . . 76
stopp ing (key) . . . . . . . . . . . . . . . . . . . . . . . 7 4
Engine compartment Clos ing the hood . . . . . . . . . . . . . . . . . . . . 200
Open ing the hood . . . . . . . . . . . . . . . . . . . 199
Overview . ... .... .. .. ... . .. .... . 200, 201
Safety preca utions . . . . . . . . . . . . . . . . . . . 198
E ngin e co ntrol ( indicato r light) . . . . . . . . . . . 22
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . 205
Radiator fan . . . . . . . . . . . . . . . . . . . . . . . . 206
Engine o il . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
adding ... .. .... .. ... .. .. ..... ... .. 203
Changi ng . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Checking the oi l level . . . . . . . . . . . . . . . . . 203
Dipst ick ... .. .... .. .. ....... 200, 201, 203
Ind icator light . . . . . . . . . . . . . . . . . . . . . . . 19
Oil consumpt ion . . . . . . . . . . . . . . . . . . . . . 202
Spec ificat io n and viscosity . . . . . . . . . . . . . 201
T empe rat ure indica to r . . . . . . . . . . . . . . . . . 30
U se ...... .. .... .. .. .. ........... .. 203
Engine speed lim itation ( indicato r light) . . . 23
Environment Break-in per iod . . . . . . . . . . . . . . . . . . . . . . . 70
Catalytic converter . . . . . . . . . . . . . . . . . . . 194
Diesel pa rticulate f ilter . . . . . . . . . . . . . . . 19S
Dispos ing of your veh icle battery . . . . . . .
211
D rivi ng at high speeds . . . . . . . . . . . . . . . . . 71
Letting the vehicle stand and warm up . . . . 71
P roper disposal of d ra ined bra ke fl uid . . . 20 7
Proper disposal of d ra ined eng ine oi l . . . . 204
U nleaded fuel .. .. .. ................. 190
Wha t shou ld I do with an o ld battery? ... 211
EPC (engine cont ro l) . . . . . . . . . . . . . . . . . . . . 22

M N
0 > co ,...., \!) 1.1'1
1.1'1
1.1'1
,....,
R
Radiator fan
Radio clock 206
refer to Clock
. . . . . . . . . . . . . . . . . . . . . . . . 10
Rain/light sensor
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 24
Intermittent (windshield wipers) . . . . . . . . 49
Sw itching on/off . . . . . . . . . . . . . . . . . . . . . 49
Raising the vehicle . . . . . . . . . . . . . . . . . . . . 256
Range (tank contents) . . . . . . . . . . . . . . . . . . 28
Rear armrest . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Rear lid
refer to luggage compartment lid . . . . . . . 39
Rear light
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 24
Rearview camera
refer to Parking systems 116,117
Rearview mirror
refer to Mirror . . . . . . . . . . . . . . . . . . . . . . . 48
Rearview mirror dimming . . . . . . . . . . . . . . . 48
Rear window defogger . . . . . . . . . . . . . . . . . . 68
Recirculation mode
automatic control system . . . . . . . . . . . . . . 67
manual climate control system . . . . . . . . . . 65
Reducing fue l consumption
Efficiency program . . . . . . . . . . . . . . . . . . . . 29
Remote control
refer to Remote control key . . . . . . . . . . . . 33
Remote control key . . . . . . . . . . . . . . . . . . . . . 33
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33, 34
Replacing the battery . . . . . . . . . . . . . . . . . 34
Synch ron izat ion . . . . . . . . . . . . . . . . . . . . . . 35
u nl ocking/locking . . . . . . . . . . . . . . . . . . . . 35
Repair manuals . . . . . . . . . . . . . . . . . . . . . . . 262
Repairs Airbag system . . . . . . . . . . . . . . . . . . . . . . 163
Replacement key . . . . . . . . . . . . . . . . . . . . . . 33
Replacing Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . 250
Replacing windshield wiper blades . . . . . . . . 50
Report ing Safety Defects . . . . . . . . . . . . . . . 138
Reset button (tr ip odometer) . . . . . . . . . . . . 11
Resetting the tr ip odometer . . . . . . . . . . . . . 11
Retract New brake pads . . . . . . . . . . . . . . . . . . . . . 125
Ind ex
Retractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Reve rse (automatic transmission) . . . . . . . . . 82
Reversible mat . . . . . . . . . . . . . . . . . . . . . . . . 61
Right hand dr ive . . . . . . . . . . . . . . . . . . . . . . . 46
Rims ......... ... .. ................. 229
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Load ing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Roof weight . . . . . . . . . . . . . . . . . . . . . . . . . 63
s
Saddlebag . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Safe drivi ng habits . . . . . . . . . . . . . . . . . . . . 130
Safety Airbag system . . . . . . . . . . . . . . . . . . . . . . 148
Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Cargo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Co rrect seating position . . . . . . . . . . . . . . 131
Pedal a rea . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Safety be lt pos ition . . . . . . . . . . . . . . . . . . . 144
Safety belt height adjustment . . . . . . . . . 146
Safety be lts worn by pregnant women 145
Safety be lt pretensioner
Serv ice and disposal . . . . . . . . . . . . . . . . . 147
Safety be lts . . . . . . . . . . . . . . . . . . . . . . 1 40, 143
Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
7
Danger to passengers who do not wear a
safety belt . . . . . . . . . . . . . . . . . . . . . . . . . 141
Fastening . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Height ad justment . . . . . . . . . . . . . . . . . . . 146
Improperly wo rn . . . . . . . . . . . . . . . . . . . . 146
Indicator lig ht . . . . . . . . . . . . . . . . . . . . . . . 20
Not worn . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Sa fe ty be lt pos ition . . . . . . . . . . . . . . . . . . 144
Safety instr uctions . . . . . . . . . . . . . . . . . . . 142
Securing child safety seats . . . . . . . . . . . . 182
Special considerations for pregnant wom-
en . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Unfastening . . . . . . . . . . . . . . . . . . . . . . . . 145
Warning/ind icator light . . . . . . . . . . . . . . . 140
Worn properly . . . . . . . . . . . . . . . . . . . . . . 142
Safety be lt warning light . . . . . . . . . . . . . . . 140
Safety centra l locking . . . . . . . . . . . . . . . . . . . 38
Safety compliance sticker . . . . . . . . . . . . . . 258
Safety eq uipment . . . . . . . . . . . . . . . . . . . . . 130
275
