AUDI S4 2014 Owners Manual

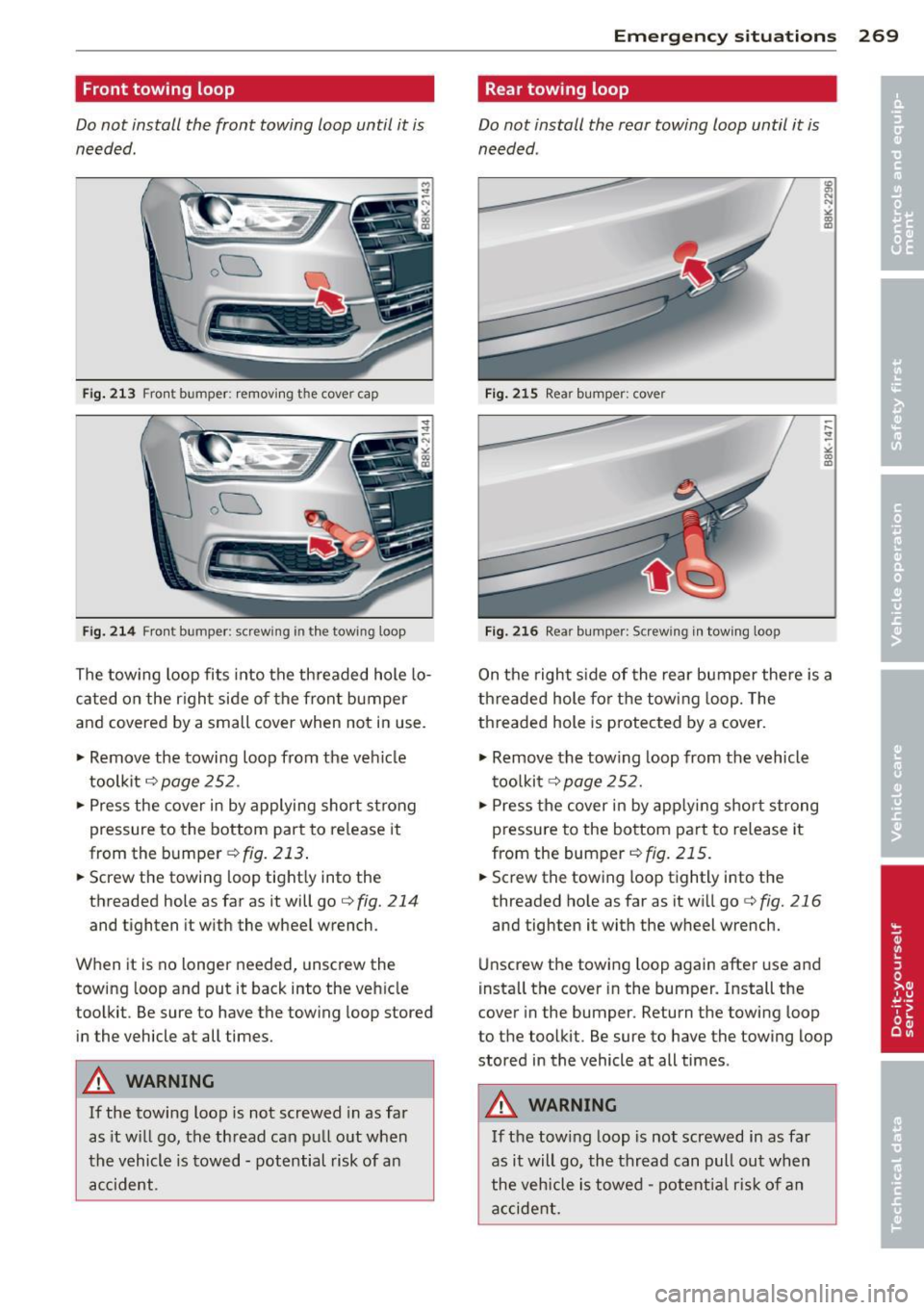

Front towing loop
Do not install the front towing loop until it is
needed.
ou
Fig . 2 13 Fr ont bumper : removing t he cover cap
ou
Fi g. 21 4 Front bumper: screwing in the towing loop
The tow ing loop fits into the th readed hole lo­
cated on the r igh t side of the fron t bumper
and covered by a small cover when not in use .
"' Remove the towing loop from the vehi cle
toolkit
c:::> page 252 .
"' Press the cover in by applying short strong
pressure to the bottom part to re lease it
from the bumper
c:::> fig. 213 .
"'Screw the towing loop tight ly into the
threaded hole as far as it will go
c:::> fig. 214
and tighten it w ith the wheel wrench .
When it is no longer needed, unscrew the
towing loop and put it back into the veh icle
toolkit. Be sure to have the towing loop stored
in the vehicle at all times.
A WARNING
If the towing loop is not screwed in as far
as it w ill go, the thread can pull o ut when
the vehicle is towed - potential risk of an
accident.
-
Emergenc y situ ation s 269
Rear towing loop
Do not install the rear towing loop until it is
needed .
Fig . 215 Rea r bu mper: cover
Fig. 216 Rea r bumpe r: Screwing in tow ing loop
"' "' N N
"' CD CD
On the right s ide of the rear bumper there is a
th readed hole for the towing loop. The
threaded hole is protected by a cover.
"' Remove the towing loop from the vehicle
too lki t
c:::> page 252.
"' Press the cover in by app lying shor t strong
pressure to the bottom part to release it
from the bumper
c:::>fig. 215.
"' Screw the towing loop tightly in to the
threaded ho le as far as it wi ll go
c:::> fig. 216
and tighten it with the wheel wrench.
Unscrew the towing loop again after use and
install the cover in the bumper. Install the
cover in the bumper. Return the towing loop
to the toolkit. Be sure to have the towing loop
stored in the vehicle at all times .
A WARNING
-
If the towing loop is not screwed in as far
as it will go, the thread can pull out when
the vehicle is towed - potent ia l ris k of an
a ccide nt.

2 70 Emergency situations

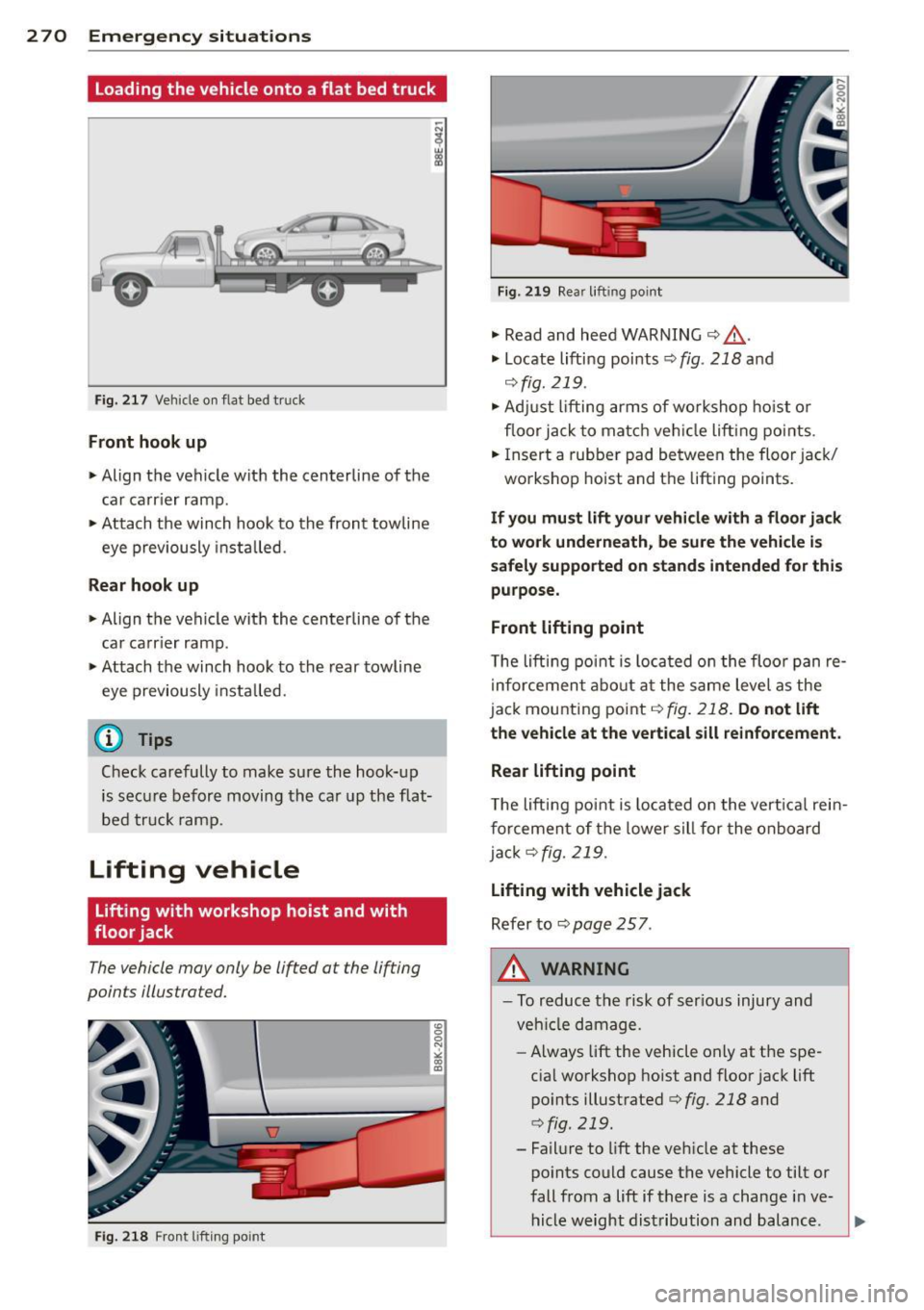

loading the vehicle onto a flat bed truck
Fig. 217 Vehicle on flat bed tr uck
Front hook up
• Align the vehicle with the centerline of the
car carr ier ramp .
• Attach the winch hook to the front towline
eye previously insta lled .
Rear hook up
• Align the vehicle with the centerline of the
car carr ier ramp.
• Attach the winch hook to the rear towline
eye previously insta lled.
@ Tips
Check carefully to make sure the hook-up
is secure before moving the car up the flat·
bed truck ramp .
Lifting vehicle
lifting with workshop hoist and with
floor jack
The vehicle may only be li~ed at the lifting
points illustrated.
Fig. 218 Front lift ing po int
:g 0 N
" O> a,
Fig. 219 Rear lifting point
• Read and heed WARNING ¢ &_ .
• Locate lifting points r::!> fig . 218 and
¢ fig. 219 .
• Adjust lifting arms of workshop hoist or
floor jack to match vehicle lifting points .
• Insert a rubber pad between the floor jack/
workshop hoist and the lifting points.
If you must lift your vehicle with a floor jack
to work underneath, be sure the vehicle is
safely supported on stands intended for this
purpose.
Front lifting point
The lifting point is located on the floor pan re­
i nforcement about at the same leve l as the
jack mounting point
¢ fig. 218. Do not lift
the vehicle at the vertical sill reinforcement.
Rear lifting point
The lifting point is located on the vert ical rein­
forcement of the lower sill for the onboard
jack ¢
fig. 219 .
lifting with vehicle jack
Refer to r:!> page 2 5 7.
A WARNING
= -
-To reduce the risk of ser ious injury and
veh icle damage.
- Always lift the vehicle only at the spe­
cial workshop hoist and floor jack lift
points illustrated
¢ fig. 218 and
¢ fig. 219.
- Failure to lift the vehicle at these
points could cause the vehicle to tilt or
fall from a lift if there is a change in ve-
hicle weight distribution and balance.
~

This might happen, for example, when
heavy components such as the engine
b lock or transmiss io n are removed .
- When removing heavy components like
these, anchor vehicle to ho ist or add cor­
responding weig hts to mai nta in the cen ­
ter of g ravity. Otherwise, the veh icle
m ight tilt o r slip off t he hois t, causi ng
serious p ersona l injury.
(I) Note
- Be awa re of th e fo llowing points befo re
li fting the vehicle:
- The vehicle should never be lifted or
jacked up from underneath the engine oil pan , the transmission housing , the
front or rear axle or the body s ide
members. This could lead to ser ious
damage.
- To avoid damage to the underbody or
chassis frame , a rubber pad must be
inserted between the floor jack and
the lift points .
-Before driv ing over a workshop hoist,
check that the vehicle weight does not
exceed the permi ssible lifting capacity
of the hoi st.
- Before driv ing over a workshop hoist,
ensure that there i s sufficient clear­
ance between the hoist and low parts
of the vehicle.
Emergency situations 2 71
•
•

272 Technical Data

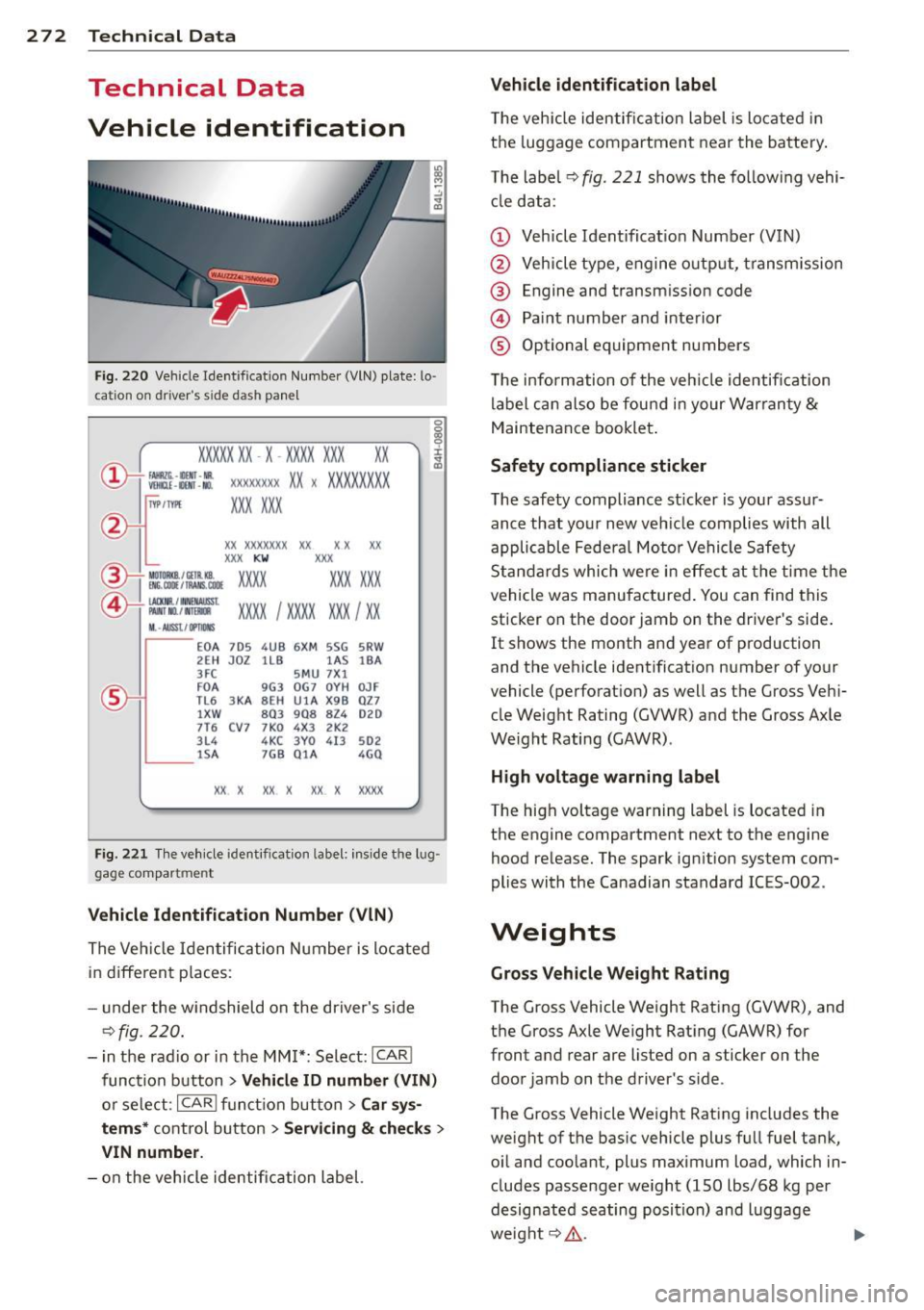

Technical Data
Vehicle identification
Fig . 220 Vehicle Ident ification Number (VlN) plate: lo ·
cation on driver 's s ide dash panel
XXXXX XX · X -XXXX XXX
r,"\__l f~ -11!111 · NII. ~ V!Hlll -llllll . NO.
xx
XXXXXXXX XX X XXXXXXXX
XXX XXX IYP IT'fl'E
XX XXXXXXX XX X X XX
XXX
KW XXX
®i ~~:f :l~~ XXXX XXX XXX
@+ ~~r= XXXX I XXXX XXX I XX M ,. AIIISl./ lflllllS
EOA 7D5 4 UB 6XM SSG 5RW
2E H JDZ llB l AS lBA
3FC 5MU 7Xl
FO A
9G3 OG7 O
YH OJF
TL6 3
KA BEH
UlA X9B QZ 7
l XW
8Q3 9Q8 82 4 020
7T6 CV 7 7KO 4X3 2K2
3L4 4 KC 3YO 4I3 502
lS A 7GB Q1A 4GQ
XX X
XX X XX X XXXX
Fig. 221 The vehicle identi fication label: ins ide the l ug ­
gage compart men t
Vehicle Identification Number (VlN)
The Vehicle Identification Number is located
in different pla ces :
- under the windshield on the driver's side
~fig. 220.
-in the radio or in the MM!": Select: I CAR!
function button >
Vehicle ID number (VIN)
or select: ICAR!function button> Car sys­
tems* control button > Servicing & checks >
VIN number.
-on the vehicle identification label.
Vehicle identification label
The veh icle identification label is located in
the luggage compartment near the battery.
T he labe l~
fig. 221 shows the following vehi­
cle data :
(D Vehicle Identificat ion Number (VIN)
@ Vehicle type, engine o utput, transmission
@ Engine and transm ission code
@ Paint number and interior
® Optional equipment numbers
T he information of the vehicle identification
label can also be found in your Warranty
&
Maintenance booklet.
Safety compliance sticker
The safety compliance sticker is your assur­
ance that your new vehicle complies with all applicable Federal Motor Vehicle Safety
Standards which were in effect at the time the
vehicle was manufactured . You can find this
sticker on the door jamb on the driver's side .
It shows the month and year of production
and the vehicle ident ification number of your
vehicle (perforation) as well as the Gross Veh i­
cle Weight Rating (GVWR) and the Gross Ax le
Weight Rating (GAWR) .
High voltage warning label
The high voltage warning label is located in
the engine compartment next to the engine
hood release. The spark ignition system com­
plies with the Canadian standard ICES-002 .
Weights
Gross Vehicle Weight Rating
The Gross Vehicle Weight Rating (GVWR), and
the Gross Axle Weight Rating (GAWR) for
front and rear are listed on a sticker on the
door jamb on the driver 's s ide .
The Gross Vehicle Weight Rating includes the
weight of the basic vehicle plus full fuel tank,
o il and coolant, plus maximum load , which in­
cludes passenger we ight (150 lbs/68 kg per
designated seating position) and luggage
we ight~ _&.

Technical Dat a 273

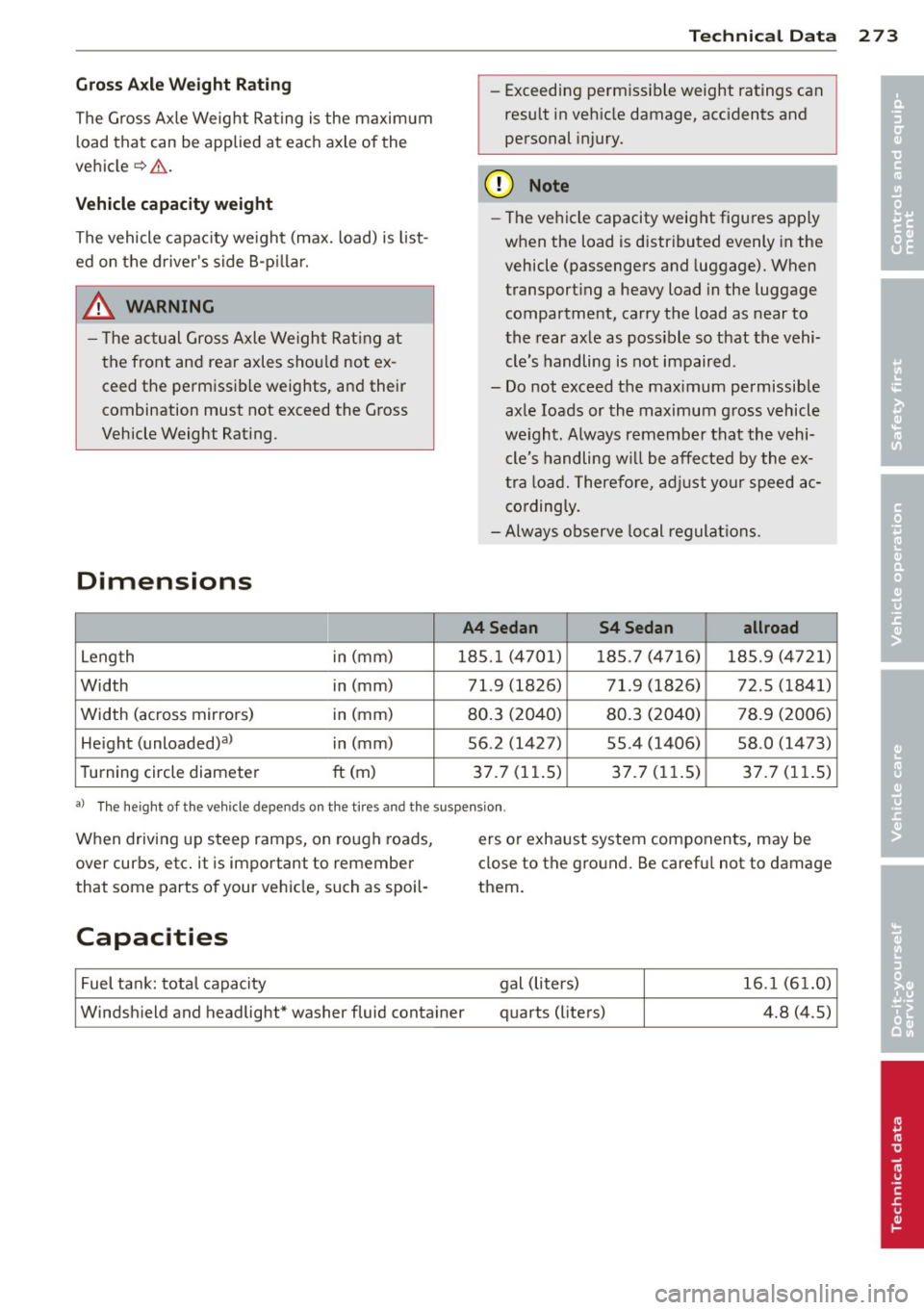

Gros s Axle We ight Rating
The G ross Axle Weight Rating is the maxim um
l oad that can be applied at each axle of the
vehicle
c::> &. .
Vehicle capacity weight
The vehicle capac ity we ight (max. load) is list­
ed on the d river 's side 8-p illar.
_& WARNING
- T he ac tual Gross Axle Weight Rat ing at
t he front and rea r axles sho uld not ex ­
ceed the perm issible weights, a nd their
combination must not exceed the G ross
Vehicle Weight Rat ing.
Dimensions
Leng th in (mm)
Width in (mm)
Width (across mir rors) in (mm)
He ight (unloaded)a) in (mm)
T urning circle diamete r
ft (m)
-
-Exceeding perm iss ible weight ratings can
result in veh icle damage, acc idents and
pe rsonal injury.
([) Note
-Th e ve hicl e capacity weig ht figu res apply
when the load is d istr ibuted evenly in the
vehicle (passengers and luggage). When
transport ing a heavy load in the luggage
compartment , carry the load as near to
t he rear ax le as poss ible so that the vehi­
cle's handling is not impaired.
- Do not exceed t he maximum permissible
ax le loads or the maximum g ross vehicl e
we ight. A lways remember that the v ehi­
cl e's handling w ill be affe cted by the ex­
t ra lo ad. Therefo re, adju st yo ur speed ac­
c o rding ly.
- Always o bserve loc al regulat io ns.
A4Sedan
S4Sedan allroad
1
85. 1 (4701) 185.7 ( 47 16 ) 1 85.9 (47 21)
71.9 (1826) 71.9 (1826) 72 .5 (1841)
80.3 (2 040) 80.3 (2 040) 78.9 (2 006)
56 .2 (1427) 55 .4 (1406) 58 .0 (1473)
37.7 (1 1.5) 37. 7 (11. 5) 37. 7 (11. 5)
aJ The heig ht of t he ve hicle depends on th e t ires and the suspensio n.
When driving up s teep ramps, on ro ugh roads,
over cur bs, etc . it is impo rtant to remembe r
that some parts of your ve hicle, such as spoil -
Capacities
Fuel ta nk: tota l capacity
Windsh ield and headlight* washer fluid container ers o
r exha ust system componen ts, may be
close to the ground. Be carefu l not to damage
them.
gal (liters) 16. 1 (6 1.0)
quarts (lite rs) 4.8 (4.5)
•
•

274 Technical Dat a
Gasoline engines
A4 Sedan 2.0, 4 cylinder
Maximum output SAE net hp@rpm 220 @ 4450-6000
Max imum torque SAE net Lb-ft@ rpm 259@ 1500-4300
Displacement CID (cm
3
) 121 (1984)
E ngine oil with f ilter change quarts (liters)
4.9 (4 .6)
Fuel
Premium unleaded (91 AKI) ¢ page 209, Caso-
line
or Bio-ethanol (E85 ) ¢ page 210, Ethanol fuel
(Bio-ethanol).
allroad 2.0, 4 cylinder
Max imum outpu t SA E net hp@rpm 220 @ 44 50-6000
Maximum torque SAE net Lb-ft@ rpm 259@ 1500-4300
Displacement C
ID (cm
3
) 12 1 (198 4)
Engine oil with filter change quarts (liters) 4.9 (4.6)
F uel
Premium unleaded (91 AKI) ¢ page 209, Caso-
line
o r Bio-ethanol (E85 ) ¢ page 210, Ethanol fuel
(Bio-ethanol) .
S4 Sedan 3.0, 6 cylinder
Maximum output SAE net hp@rpm 333@ 5500-6500
Max imum torque SAE net Lb-ft@ rpm 325@ 2900-5300
Displacement CI
D (cm
3
) 1 82.8 (2995)
E ngine oil with f ilter change quarts (liters) 7
.2 (6.8)
Fuel
Premium unleaded (91 AKI) ¢ page 209, Caso-
line

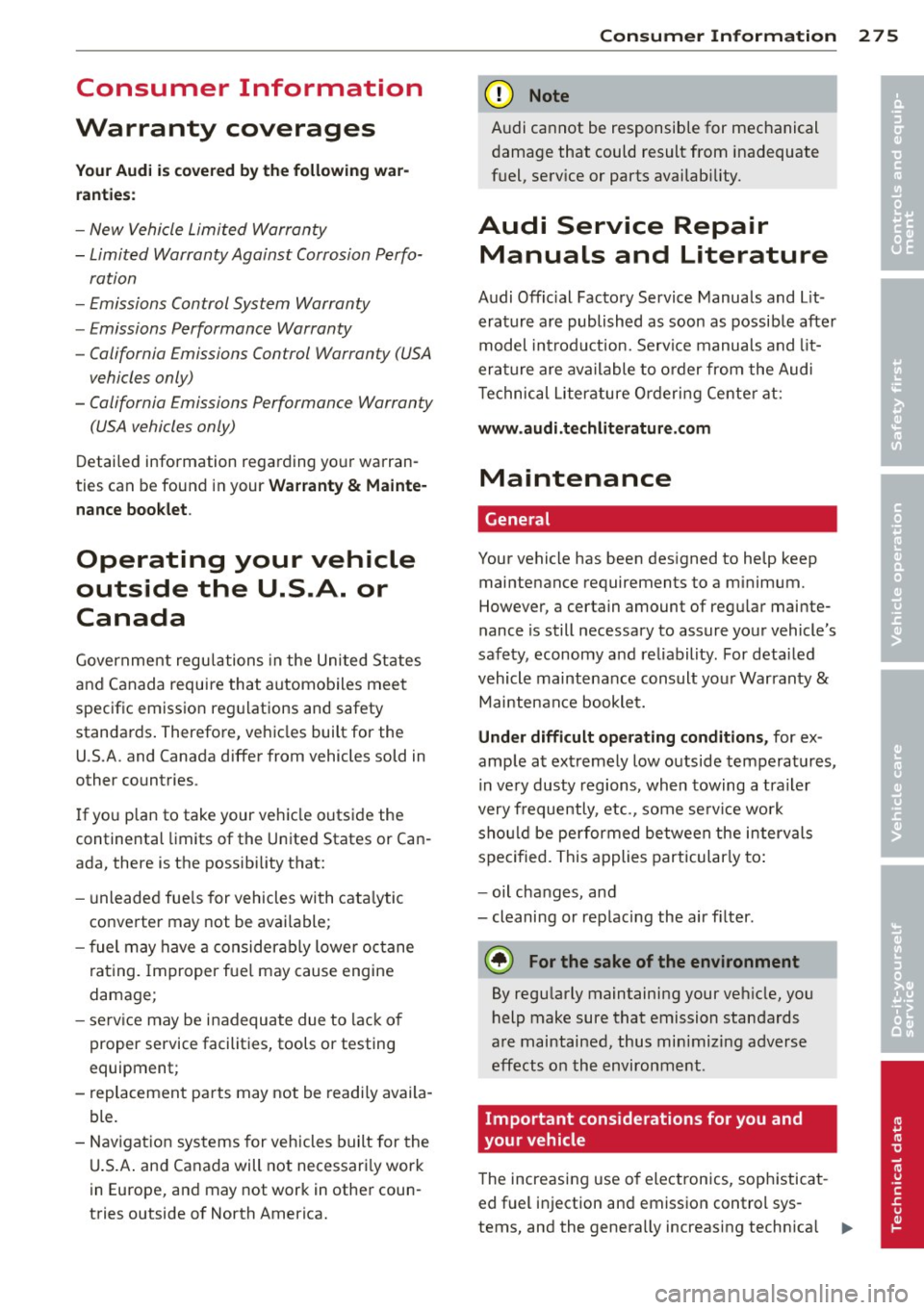

Consumer Information
Warranty coverages
Your Audi i s cove red b y th e following w ar­
ranties :
- New Vehicle Limited Warranty
- Limited Warranty Against Corrosion Perfo-
ration
- Emissions Control System Warranty
- Emissions Performance Warranty
- California Emissions Control Warranty (USA
vehicles only)
- California Emissions Performance Warranty
(USA vehicles only)
Detailed information regard ing yo ur warran ­
ties can be found in your
War ra nty & M ainte ­
nance booklet .
Operating your vehicle
outside the U.S.A. or
Canada
Government regu lations in the United States
and Canada require that a utomobiles meet
specific emission reg ulations and safety
standards . Therefore, ve hicles built for the
U.S.A. and Canada differ from vehicles sold in
other countries .
I f you p lan to take your vehicle outside the
continental limits of the United States or Can­
ada, there is the possibility that:
- u nleaded fue ls for vehicles with cata lytic
converter may not be available;
- f uel may have a considerably lowe r oc tane
ra ting . Improper fue l may cause engine
damage;
- service may be inadequate due to lack o f
proper service facilities, tools or testing
equipment;
- replacement parts may not be readily availa­
ble.
- Nav igat io n systems for vehicles built for the
U.S.A . and Canada will not necessari ly work
in Europe, and may not work in other coun­
tries outside of North America.
Con sumer In formation 275
@ Note
A udi cannot be responsible for mechanical
damage that could result from inadequate
fuel, serv ice or parts availab ility.
Audi Service Repair
Manuals and Literature
Audi Offic ial Factory Service Manuals and L it ­
erature are published as soon as possib le after
model int roduct ion. Service manuals and lit­
erat ure are available to o rder from the Audi
T echnical Literature O rderi ng Cente r at:
www.audi .te chliterature .com
Maintenance
' General
Your vehicle has been designed to help keep
maintenance requirements to a m inimum.
However, a certain amount of regu lar mainte­
nance is still necessary to assure your vehicle's
safety, economy and reliability . For detai led
vehicle maintenance consult your Warranty
&
Maintenance booklet.
Under difficult op erating conditions , for ex­
amp le at extreme ly low outside temperatures,
i n ve ry dusty regions, when towing a tra iler
very frequently, etc., some se rv ice work
shou ld be pe rformed between the intervals
specified. This applies particularly to :
- oil changes, and
- cleaning or replacing the air fi lter.
® For the sake of the environment
By regu larly maintaining your veh icle, you
help make sure that emission standards
are maintained, thus min imiz ing adverse
effects o n the environment .
Important considerations for you and
your vehicle
The increasing use of electronics, sophistica t­
ed fuel i njection and emission contro l sys-
tems, and the genera lly increasing techn ica l ..,_
•
•

2 76 Con sum er Inf ormation

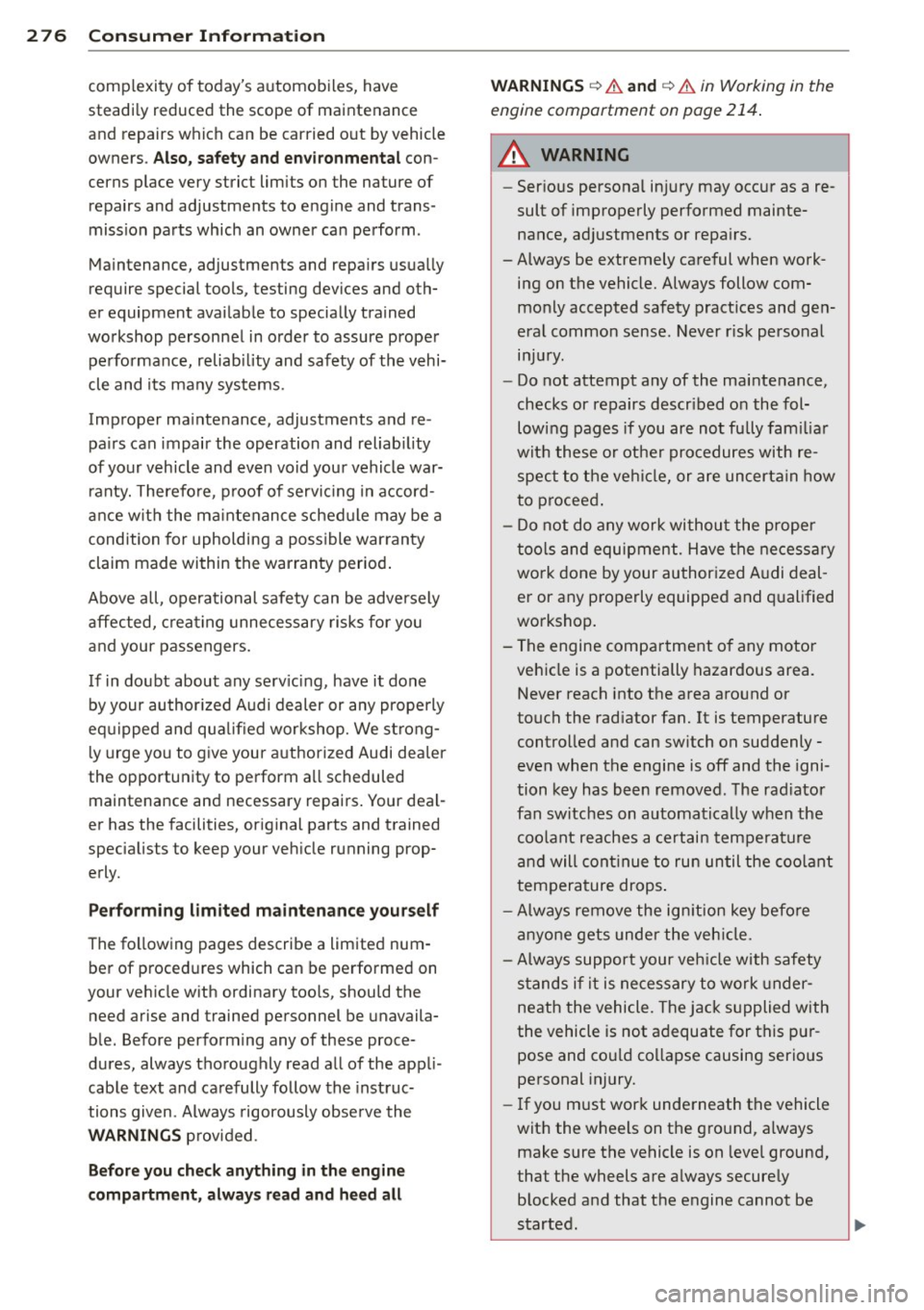

comp lexity of today's automobi les, have
steadi ly reduced the scope of maintenance
and repairs which can be carried out by vehicle
owners.
Also, s afety an d e nvir onm ent al con­
cerns place very strict limits on the nature of repairs and adjustments to engine and trans ­
miss ion pa rts which an owner can perform .
Maintenance, adjustments and repa irs usua lly
require special tools, testing devices and oth­
er equipment avai lab le to specially trained
workshop personnel in order to assure proper
performance, reliab ility and safety of the vehi­
cle and its many systems .
Improper ma intenance, adjustments and re ­
pa irs can impair the operation and reliab ility
of your vehicle and even void your vehicle war­ ranty. Therefo re , proof of servici ng in accord­
ance w it h the ma intenance sched ule may be a
condition for upholding a possible warranty
claim made within the warran ty period.
Above all, operational safety can be adve rsely
affected, c reating unnecessary risks for you
and your passengers.
If in doubt about any serv icing, have it done
by your author ized Audi dealer or any properly
equ ipped and qu alified workshop. We strong­
l y urge you to give your authorized Audi dea ler
the opportunity to perform all scheduled maintenance and necessary repairs . Your deal­
er has the facilities, or iginal parts and trained
specialists to keep your veh icle running prop­
erly.
Performing lim it e d m aint en anc e y ourself
The following pages describe a limited num­
ber of procedures which can be performed on
you r vehicle with ordinary tools, should the
need arise and trained personnel be unavaila­
ble. Before performing any of these proce­
dures, always thoroughly read all of the app li­
cable text and ca refully follow the instruc­
tions given. Always rigorously obse rve the
WARNINGS p rovided .
Before you ch eck anything in th e engine
compartm ent, alw ays read an d hee d all WARNINGS
¢ & a
nd ¢ & in Working in the
engine comportment on page 214 .
A WARNING
--Serious personal in jury may occur as a re-
sult of improperly performed mainte­ nance, adjustments or repa irs.
- Always be extremely careful when work­
ing on the vehicle. Always follow com­
monly accepted safety pract ices and gen­
eral common sense. Never r isk personal
in jur y.
- Do not attempt any of the maintenance,
checks or repairs descr ibed o n the fol­
lowing pages if you are not fu lly fam iliar
with these or other procedures with re­ spect to the ve hicl e, or are uncerta in how
to proceed .
- Do not do any work withou t the proper
too ls and equipment . Have the necessary
work done by your authorized A udi deal ­
er or any properly equipped and q ualified
workshop.
- The engine compar tment o f any motor
vehicle is a potentially hazardous area. Never reach into the area around or
touch the rad iator fan. It is temperature
control led and can sw itch on suddenly -
even when the engine is off and the igni­
tion key has been removed. The rad iator
fan switches on automatically when the coo lant reaches a certain tempera ture
and will cont inue to run until the coo lant
temperature drops .
- Always remove the ign ition key befo re
a nyone gets under the veh icle.
- Always suppor t your veh icle with safety
s tands if it is necessary to work under­
neath the vehicle. The jack s upplied with
the vehicle is not adequate for this pur ­
pose and co uld co llapse causing serio us
personal injury.
- If you must work unde rneath the vehicle
with the wheels on the ground, a lways
make sure the vehicle is on leve l ground,
that the wheels are always securely blocked and that the engine cannot be
started.

-Always make sure the transm ission se­
lector lever (automatic transmiss ion) is
in "P" (Park position) or Neutral (manual
transmission) and the park brake is firm­
ly appl ied .
® For the sake of the environment
-Changing the eng ine settings w ill ad­
versely affect em ission levels. This is det­
rimental to the environment and increas­
es fuel consumption .
- Always observe env ironmental regula­
tions when d ispos ing of old engine oil,
used brake fluid, dirty engine coolant,
spent batter ies or worn out t ires.
- Undeployed airbag modules and p reten­
s ioners might be classified as Perchlo­
rate Material -special handling may ap ­
ply, see www.dtsc.ca .gov/hazardous­
waste/perch lorate . When the veh icle or
parts of the restraint system including
airbag modules safety belts with preten­
s ioners are scrapped, all applicable laws
and regulations must be observed. Your
authorized Audi dealer is familiar w ith
these requirements and we recommend
that you have your dealer perform this
serv ice for you .
Additional accessories,
modifications and
parts replacement
Additional accessories and parts
replacement
Always consult on authorized Audi dealer be­
fore purchasing accessories.
Your veh icle incorporates the latest safety de­
sign featu res ensu ring a high standard of ac­
tive and passive safety.
This safety could be compromised by non-ap­
proved changes to the veh icle. For this reason ,
if parts have to be replaced, p lease observe
the following points when installing addition­
al accessories:
Con sumer In formation 2 77
Approved Audi accessories and genuine Audi
parts are available from authorized Audi deal­
er.
T hese dea lers a lso have the necessary facili­
ties, tools and trained specialists to install the
parts and accessories proper ly.
A WARNING
Using the wrong spare parts or using non­
approved accessories can cause damage to
the vehicle and serious persona l injury.
- Use on ly accessories express ly approved
by Audi and genuine Audi spare parts
- These parts and accessories have been
specially designed to be used on your ve­
hicle.
- Never install accessories such as tele­
phone cradles or beverage holders on air­
bag covers or within the airbag deploy­
ment zones . Do ing so will increase the
risk of injury if a irbags are triggered in an
accident!
- Before you check anything in the engine
compartment, always read and heed all
WARNINGS ~
page 214.
(D Note
-If items other than genuine Audi spare
parts, add-on equipment and accessory
items are used or if repair work is not
performed accord ing to specified meth­
ods, this can result in severe damage to
your vehicle's engine and body (such as
corrosion) and adversely affect your vehi ­
cle's warranty .
- If emergency repairs must be performed
elsewhere, have the vehicle examined by
an authorized Audi dealer as soon as
possible.
- The manufacturer cannot be held liable
for damage wh ich occurs due to failure
to comply with these stipulations.
•
•

2 78 Consumer Information

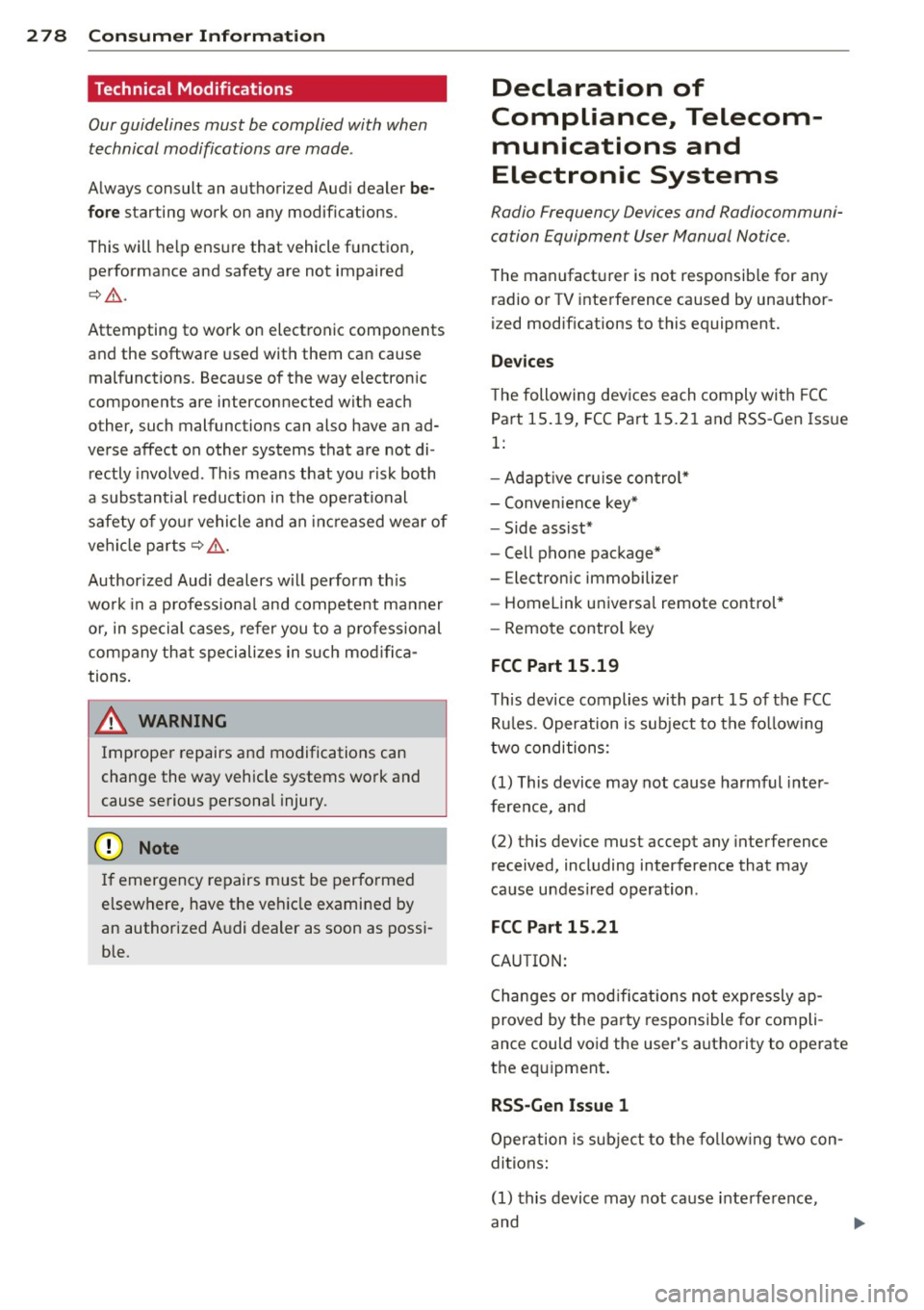

Technical Modifications
Our guidelines must be complied with when technical modifications are made .
Always consult an authorized Audi dealer be­
fore starting work on any modifications.
This will help ensure that vehicle function,
performance and safety are not impaired
¢ &. .
Attempting to work on electronic components
and the software used with them can cause
malfunctions. Because of the way electronic
components are interconnected with each
other, such malfunctions can also have an ad­
verse affect on other systems that are not di­
rectly involved. This means that you risk both
a substantial reduction in the operational
safety of your vehicle and an increased wear of
ve hicle parts ¢
A:,..
Author ized Audi dealers will perform th is
wo rk in a professiona l and competent manner
or, in special cases, refer you to a professional
company that specializes in such modifica­
tions .
A WARNING
-
Improper repairs and modifications can
change the way vehicle systems work and
cause serious personal injury.
(D Note
If emergency repairs must be performed
elsewhere, have the vehicle examined by
an authorized A udi dealer as soon as possi­
ble.
Declaration of
Compliance, Telecom­
munications and
Electronic Systems
Radio Frequency Devices and Radiocommuni­
cation Equipment User Manual Notice.
The manufacturer is not responsib le for any
radio or TV interference caused by unauthor­
ized modifications to this equipment.
Devices
T he following devices each comply with FCC
Part 15.19, FCC Part 15.21 and RSS-Gen Iss ue
1:
- Adapt ive cru ise control*
- Conven ience key*
- Side assist*
- Cell phone package*
- Electron ic immobilizer
- Homelink universal remote control*
- Remote control key
FCC Part 15.19
This device complies with part 15 of the FCC
Rules . Operation is subject to the follo wing
two conditions:
(1) This device may not cause harmful inter­
ference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
FCC Part 15 .21
CAUTION:
Changes or modifications not expressly ap­
proved by the party responsible for compli­
ance could void the user's authority to operate
the equipment.
RSS-Gen Issue 1
Operation is subject to the following two con­
ditions:
(1) this device may not cause inte rfe rence,
and
