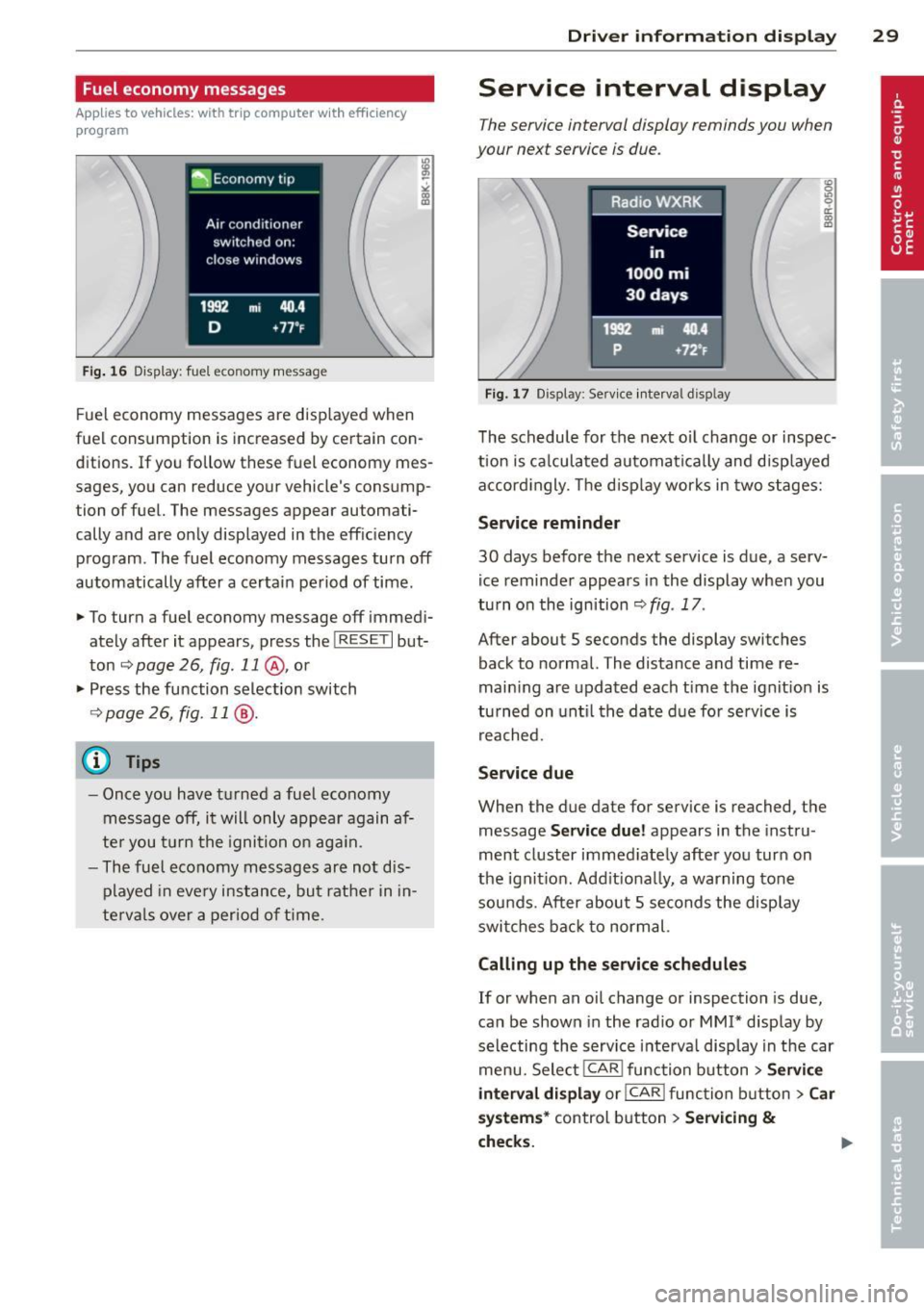

Fuel economy messages
Applies to vehicles: with trip computer w ith efficiency
program
Fig . 16 Display: fuel eco nomy me ssage
F ue l economy messages are disp layed when
fuel consumption is increased by certa in con
ditions. If you follow th ese fu el economy mes
sages, you can reduce your vehicle's consump
tion of fuel. The messages appear automati
cally and are only displayed in the eff ic iency
program . The fuel economy messages turn off
automatically after a certain period of time .
• To turn a fuel economy message off immedi
ately after it appears, pres s the !R ES ETI but
ton
~ page 26, fig . 11 @ , or
• Press the function selection switch
¢ page 26, fig. 11 @ .
(D Tips
- Once you have turned a fuel economy
message off, it will only appear again af
te r you turn the ignition on aga in.
- The fuel economy messages are not dis
played in every instance, but rathe r in in
te rva ls over a period of time .
Driver inform ation di spl ay 29
Service interval display
The service interval display reminds you when
your next service is due .
Fig. 17 Disp lay: Se rvice i nterval d is pl ay
The schedule for the next oi l change or inspec
tion is ca lculated automatica lly and disp layed
accord ingly. The d isp lay works in two stages:
Service reminde r
30 days before the next service is due, a serv
ice reminder appears in the display whe n you
turn on the ignition ¢
fig. 17 .
After about S seconds the display switches
back to normal. The distance and time re
main ing are updated each time the ignit ion is
tu rned on unt il th e date due for service is
reached.
Service due
When the due da te for service is reached , the
message
Ser vice due! appears in the in stru
ment cluster immed iately after you turn on
the ignit ion. Add it iona lly, a warning tone
sou nds . After about S seconds the disp lay
switches bac k to normal.
Calling up the service schedule s
If or when an oil change or inspection is due,
can be shown in the rad io or
MMI* disp lay by
selecting the service interva l display in the car
menu. Select !CAR ! func tion button>
Servic e
interval d ispl ay
o r! CAR ! function button> C ar
sys te m s*
control button > Serv icing &
check s.
Page 32 of 296

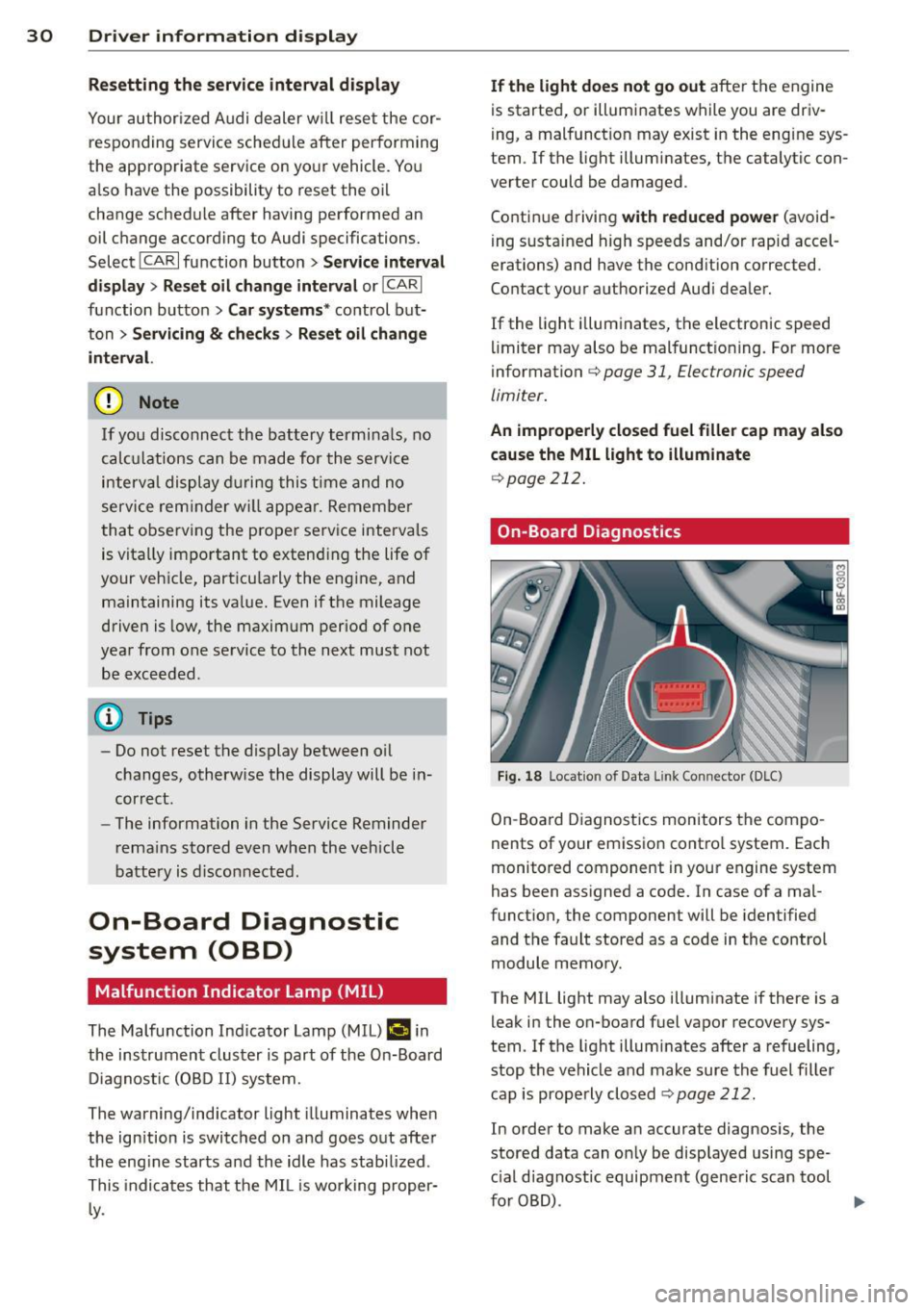

30 Driver information display
Resetting the service interval display
Your authorized Audi dealer will reset the cor
responding service schedule after performing
the appropriate service on yo ur vehicle . Yo u
also have the possibility to reset the oil
change schedule after having performed an
oil change according to Audi specifications.
Select
I CAR I function button > Service interval
display > Reset oil change interval
or ICARI
function button> Car systems* control but
ton
> Servicing & checks > Reset oil change
interval.
(D Note
If you disconnect the battery terminals, no
calculations can be made for the serv ice
interval display during this time and no
service rem inder wi ll appear. Remember
that observing the proper service intervals
is vitally important to extend ing the life of
your vehicle, particu larly the eng ine, and
maintaining its value. Even if the mileage
driven is low, the maximum period of one
yea r from one service to the next must not
be exceeded .
@ Tips
-Do not reset the display between oil
changes, otherwise the display will be in
correct.
- The information in the Service Reminder
r ema ins stored even when the vehicle
battery is disconnected.
On-Board Diagnostic
system (OBD)
Malfunction Indicator Lamp (MIL)
The Malfunction Indicator Lamp (MIL) ¢4' i n
the instrument cluster is part of the On-Board
Diagnostic (OBD II) system.
The warning/indicator light illuminates when
the ignition is switched on and goes out after
the engine starts and the idle has stabilized .
This indicates that the MIL is working proper
ly.
If the light does not go out after the engine
is started, or illuminates while you are driv
i ng, a malfunction may exist in the eng ine sys
tem . If the light illuminates, the catalytic con
verter could be damaged .
Continue driving
with reduced power (avoid
ing sustained high speeds and/or rapid accel
erations) and have the cond ition corrected.
Contact your authorized Audi dealer.
If the light il luminates, the electronic speed
limiter may also be malfunct ioning. For more
information
c:> page 31 , Electronic speed
limiter.
An improperly closed fuel filler cap may also
cause the
MIL light to illuminate
c:>page 212.
On-Board Diagnostics
Fig . 18 Locat io n of Data Link Con nector (D LC)
On-Board Diagnostics monitors the compo
nents of your emission control system . Each
monitored component in your engine system
has been assigned a code. In case of a mal
function, the component will be identified
and the fault stored as a code in the control
module memory.
The MIL light may also illuminate if there is a leak in the on-board fuel vapor recovery sys
tem. If the light illuminates after a refueling,
stop the vehicle and make sure the fuel filler
cap is properly closed
c:> page 212 .
In order to make an accurate diagnosis, the
stored data can on ly be displayed using spe
c ial diagnostic equipment (generic scan tool
furOBD) .
~
Page 33 of 296

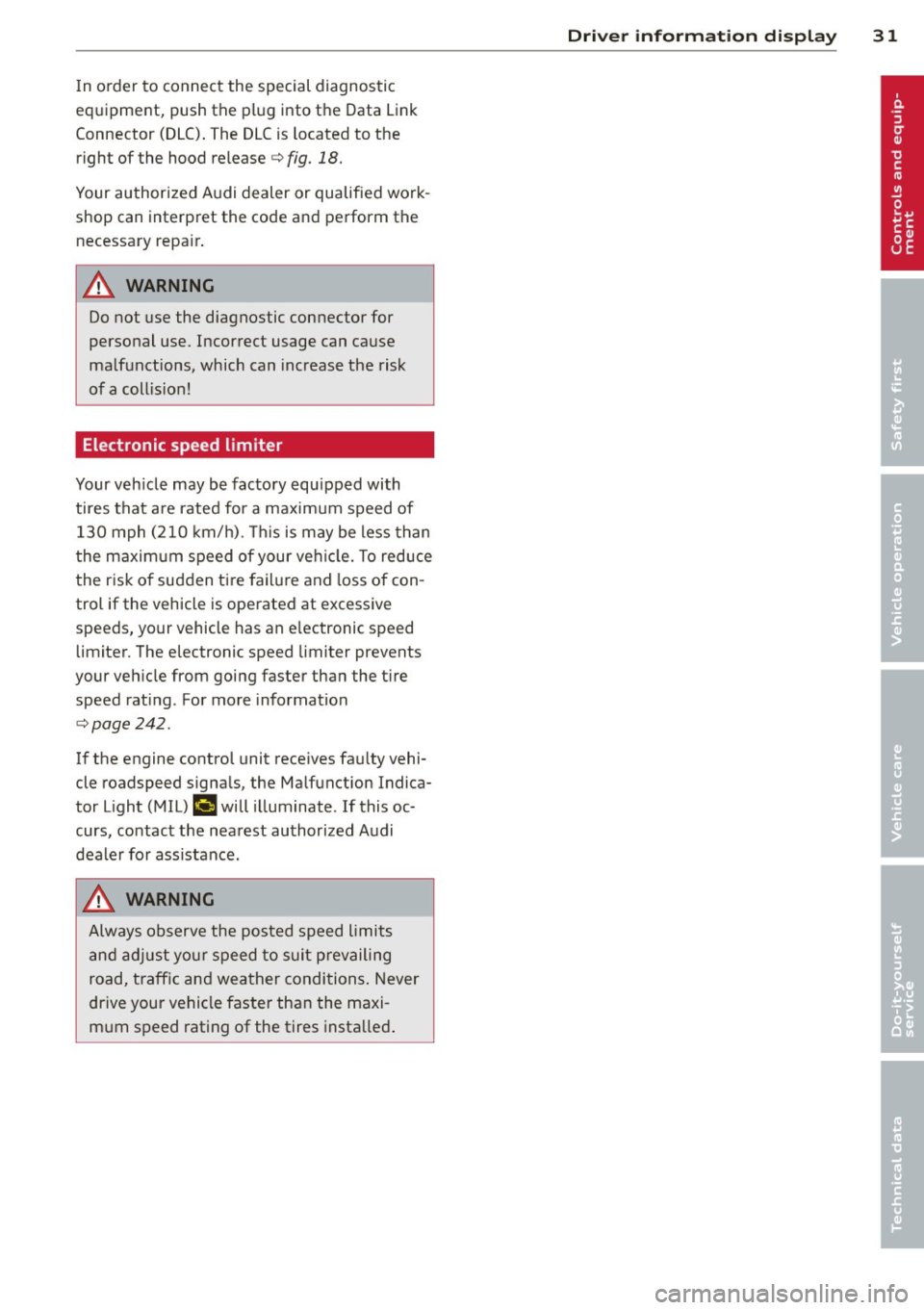

In o rder to connect the special diagnostic
equipment, push the plug into the Data Link
Connector (DLC) . The DLC is located to the
right of the hood release ¢
fig. 18.
Your authorized A udi dealer or qualified work
shop can interpret the code and perform the necessary repa ir.
A WARNING
Do not use the diagnostic connector for
personal use. Incorrect usage can cause
malfunctions, which can increase the risk
of a coll is ion!
Electronic speed limiter
-
Your veh icle may be factory equipped with
tires that are rated for a maximum speed of 130 mph (210 km/ h). Thi s is may be less than
the maximum speed of your ve hicle. To red uce
the risk of sudden ti re failure and loss of con
trol if the vehicle is operated at excessive
speeds, your vehicle has an e lectronic speed
limiter. The electronic speed limiter prevents
your veh icle from going faster than the t ire
speed rat ing . For more informat ion
¢ page 242 .
If the engine control unit rece ives fa ulty vehi
cle roadspeed signa ls, the Ma lfunction Indica
tor Light (MIL)
¢4 will illuminate . If this oc
curs, contact the nearest authorized Audi
deale r for assistance.
A WARNING
-
Always observe the posted speed limits
and ad just yo ur speed to suit p revail ing
road, traff ic and weather conditions . Never
drive your vehicle faster than the maxi
mum speed rating of the tires insta lled .
Dri ver information di spla y 31
Page 34 of 296

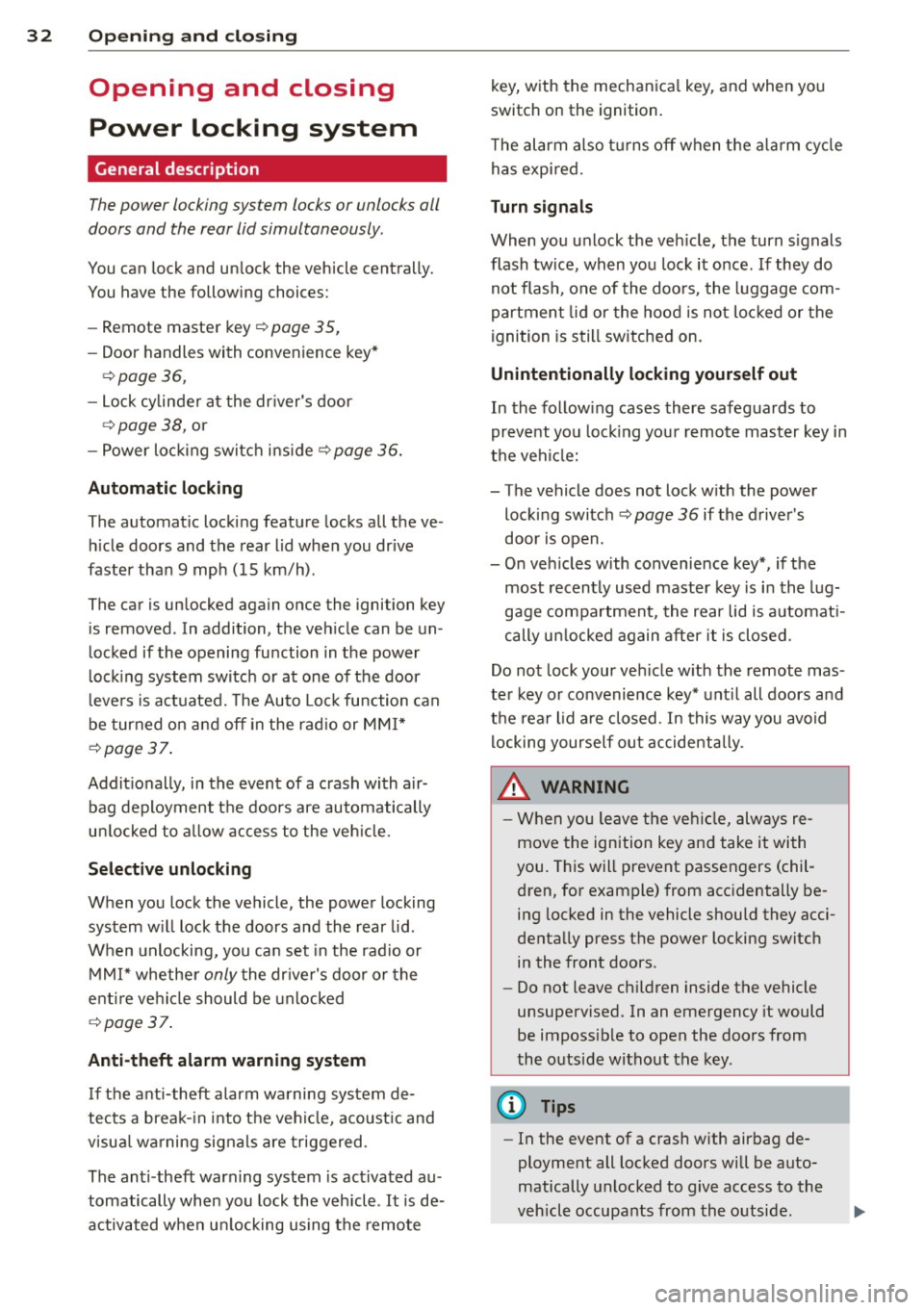

32 Openin g and clo sing
Opening and closing
Power locking system
General description
The power locking system locks or unlocks all
doors and the rear lid simultaneously.
You can lock and unlock the vehicle centrally.
You have the following choices:
- Remote master key~
page 35,
-Door handles with convenience key*
~page 36,
-Lock cy linder at the dr iver's door
~ page 38, or
- Power loc king switch inside
~ page 36.
Automatic l ocking
The automatic locking feature locks all the ve
h icle doors and the rear lid when you drive
faster than 9 mph ( 15 km/h) .
The car is unlocked again once the ignition key is removed. In addition, the veh icle can be un
locked if the opening function in the power
lock ing system switch or at one of the door
leve rs is actuated. The Auto Loc k function can
be turned on and off in the rad io or
MMI*
~ page 37.
Addit ionally, in the event of a crash with a ir
bag deployment the doors are automatically
un locked to allow access to the veh icle.
Selective unlocking
When you lock the vehicle, the power locking
system w ill lock the doors and the rear lid .
When unlocking, you can set in the rad io or
MMI* whether
only the dr iver's door or the
enti re ve hicle should be unlocked
~ page 37.
Anti -th eft alarm warning system
If the anti-theft alarm warning system de
tects a break- in into the vehicle, acoust ic and
visua l wa rning signals are triggered.
The anti -theft warn ing system is act ivated au
tomatically when you lock the vehicle .
It is de
activated when u nlocking using the remote key, with the mechanica
l key, and when yo u
switch on the ignition.
T he alarm a lso t urns off when t he a la rm cycle
has expired.
Turn signals
When you u nlock the veh icle, the turn s ignals
flash twice , when you lock it once . If they do
not flash, one of the doo rs, the luggage com
partment lid or the hood is not locked or the
ignition is s till sw itched on.
Unint entionally locking yourself out
In the follow ing cases there safegua rds to
prevent you lock ing you r remote master key in
the vehicle:
- The vehicle does not lock w ith the power
lock ing switch ~
page 36 if the drive r's
door is open .
- On veh ides with convenience key*, if the
most recently used master key is in the lug
gage compa rtment, the rear lid is automat i
cally un locked again after it is closed.
Do not lock your veh icle w ith the remote mas
ter key or convenience key* unt il all doors and
the rea r lid a re closed . In this way you avoid
locking yourself out accidentally .
_& WARNING
-
-When you leave the veh icle, alw ays re
move the ignition key and take it with
you . This will prevent passengers (chil
dren, for example) from acc identally be
ing locked in the vehicle should they acci
dentally press the power locking switch in the front doors .
- Do not leave ch ildren inside the vehicle
unsuperv ised. In an emergency it would
be imposs ible to open the doors from
the o utside without the key .
(D Tips
- In the event of a crash with airbag de
ployment all locked doors will be auto
matically unlocked to give access to the
vehicle occupants from the outside.
Page 35 of 296

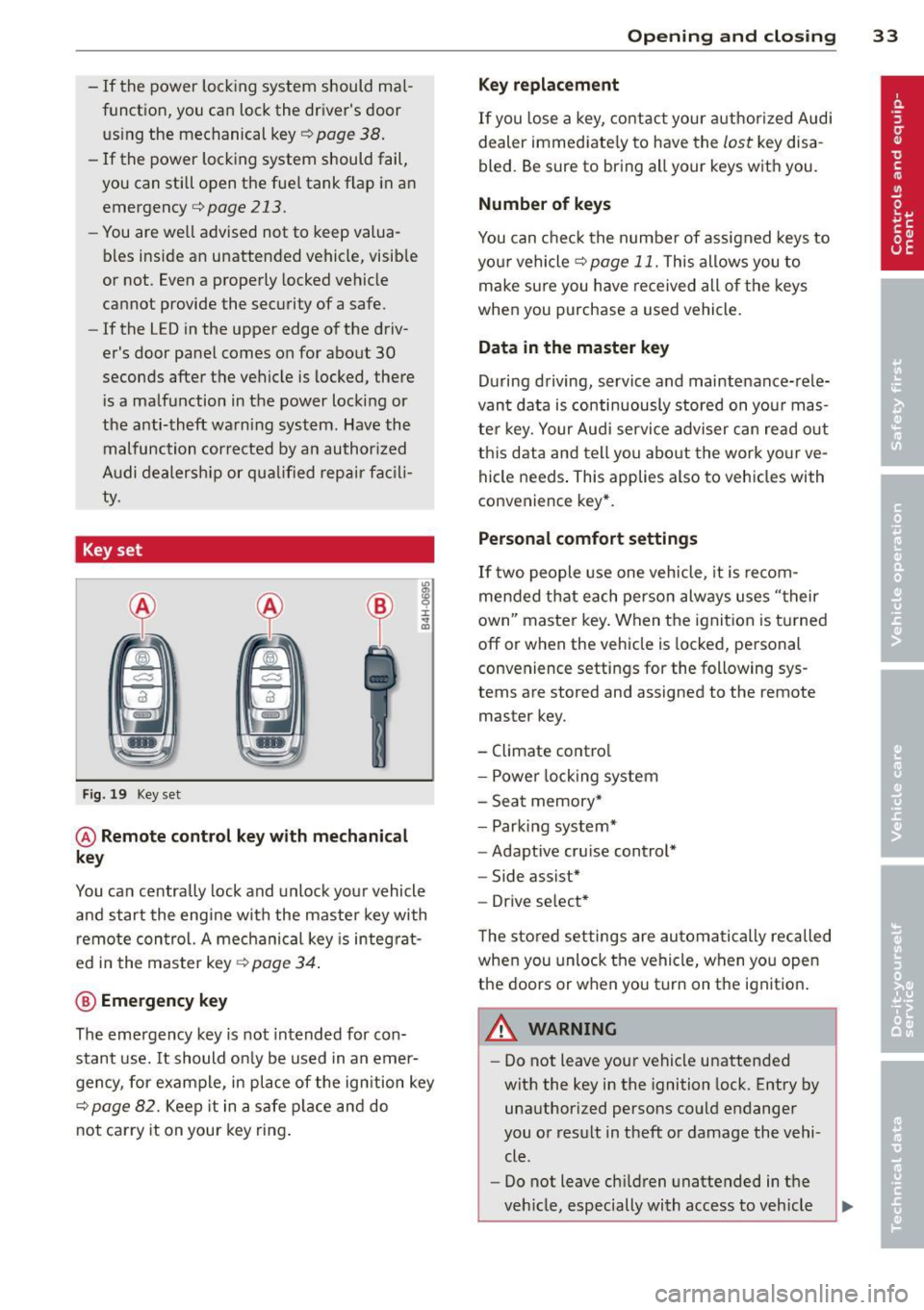

-If the power lock ing system should ma l
function, you can lock the driver's door
using the mechanical key~
page 38.
-If the power locking system should fail,
you can still open the fue l tank flap in an
emergency <=>
page 213.
-You are well advised not to keep valua
bles inside an unattended vehicle, visible
or not . Even a properly locked vehicle
cannot provide the security of a safe .
- If the LED in the upper edge of the driv
er's door panel comes on for about 30
seconds after the vehicle is locked, there
i s a malfunction in the power locking or
the anti-theft warning system. Have the
malfunction corrected by an author ized
Audi dealersh ip or qua lified repair fac ili
ty.
Key set
Fig. 19 Key set
@ Remote cont rol k ey with me chanical
ke y
You can centrally lock and unlock your vehicle
and start the engine with the master key with
remote control. A mechanical key is integrat
ed i n the master key
<=> page 34 .
@ Emerg ency key
The emergency key is not intended for con
stant use.
It should on ly be used in an emer
gency, for example, in place of the ign ition key
<=> page 82. Keep it in a safe p lace and do
not carry it on your key ring .
Openin g an d clos ing 33
Ke y re plac ement
If you lose a key, contact your author ized Audi
dealer immediate ly to have the
lost key disa
bled. Be sure to bring all your keys with you .
Number of keys
You can check the number of assigned keys to
you r vehicle <=>
page 11. This allows you to
make sure you have re ceived all of the keys
when you purchase a used vehicle.
Data in th e mast er ke y
During driving, service and maintenance-rele
vant data is continuously stored on your mas
ter key. Your Audi service adviser can read out
this data and tell you abo ut the work yo ur ve
hicle needs . This applies also to vehicles with
convenience key*.
Person al comf ort settings
If two people use one vehicle, it is recom
mended that each person always uses "their
own'' master key. When the ignition is turned
off or when the vehicle is locked, pe rsonal
convenience settings for the following sys
tems are stored and assigned to the remote
master key.
- Climate control
- Powe r locking system
- Seat memory*
- Parking system*
- Adaptive cruise control*
- Side assist*
- Drive select*
T he sto red settings are automatically recalled
when you unlock the vehicle, when you open
the doors or when you turn on the ignition .
A WARNING
--
-Do not leave your vehicle unattended
with the key in the ignition lock . Entry by
unauthorized persons could endanger
you or result in theft or damage the vehi
cle .
- Do not leave ch ildren unattended in t he
veh icle, especially with access to vehicle
Page 36 of 296

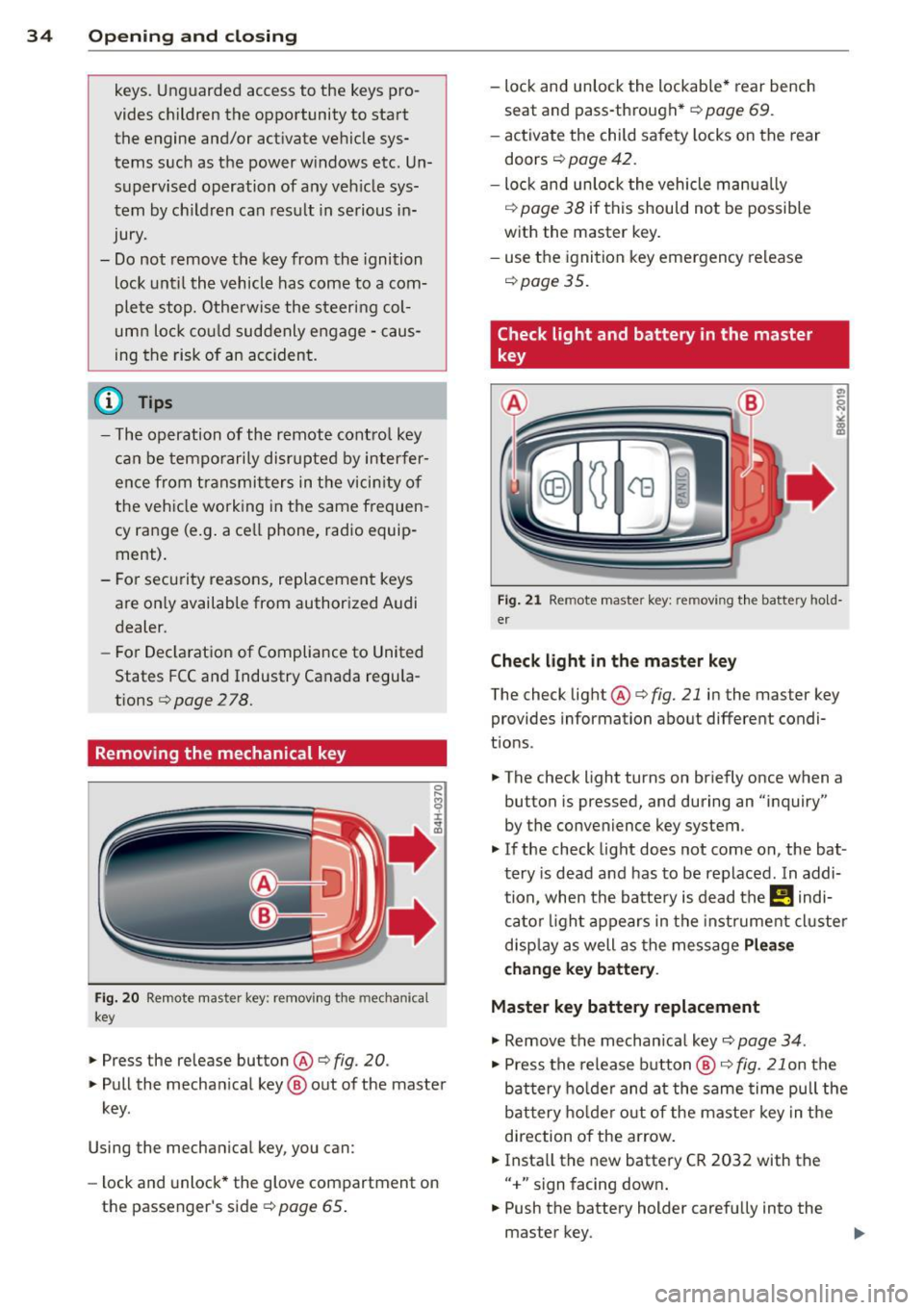

34 Openin g and clo sing
keys. Unguarded access to the keys pro
vides children the opportunity to start the engine and/or act ivate vehicle sys
tems such as the power w indows etc . Un
supervised operation of any veh icle sys
tem by ch ildren can res ult in serious in
Jury.
- Do not remove the key from the ignition
lock until the vehicle has come to a com
plete stop. Otherwise the steering col
um n loc k co uld suddenly e ngage -caus
ing the risk of an accident.
@ Tips
- The operation of the remote contro l key
c a n be tempo rarily disrupted by in terfer
ence from tran smi tters in t he v ici nity of
the veh icle work ing in the same frequen
cy ra nge (e.g . a ce ll phone, radio equip
ment).
- Fo r security reasons, replacement keys
are on ly available from author ized Audi
dealer.
- For Decla ration of Compliance to United
States FCC and Industry Canada regu la
tions
c:> page 2 78.
Removing the mechanical key
F ig . 20 Remote ma ster key : remov ing the mec hanic al
key
" Press the release button ® c:> fig. 20 .
"Pull the mecha nica l key @out of the maste r
key .
Using the mechan ica l key , you can :
- lock and unlock* the glove compartment on
the passenger's side ¢
page 65.
-lock and unlock the lockable* rear bench
seat and pass-through *
c:> page 69.
- activate the child sa fe ty locks on the rear
doors
c:> page 42 .
-lock and unlo ck the vehicle manu ally
¢
page 38 if this should not be possible
with the master key.
- use the ignition key emergency release
¢ page 35.
Check light and battery in the master
key
Fig . 2 1 Re mote mas te r ke y: r em ov ing th e batte ry hold
e r
Check light in the master key
The check light@¢ fig. 21 in the master key
provides information about different condi
t ions .
" The check light tu rns on br iefly once when a
button is pressed, and during an "inquiry"
by the convenience key system .
" If the check light does not come on, the bat
tery is dead a nd has to be replaced . In addi
tion, when the batte ry is dead
the m indi
ca to r li ght appears in the instr ument cluster
disp lay as well as the message
Plea se
change key battery .
Master key battery replacement
" Remove the mechan ica l key ¢ page 34 .
" Press the release button @ ¢fig. 21 on the
bat tery ho lde r and at the same time pull the
ba ttery holde r o ut o f the maste r key in the
di rection o f the arrow.
" Insta ll the new battery CR 2032 with the
"+ " sign facing down .
... Push the battery holder carefu lly into the
master key .
Page 37 of 296

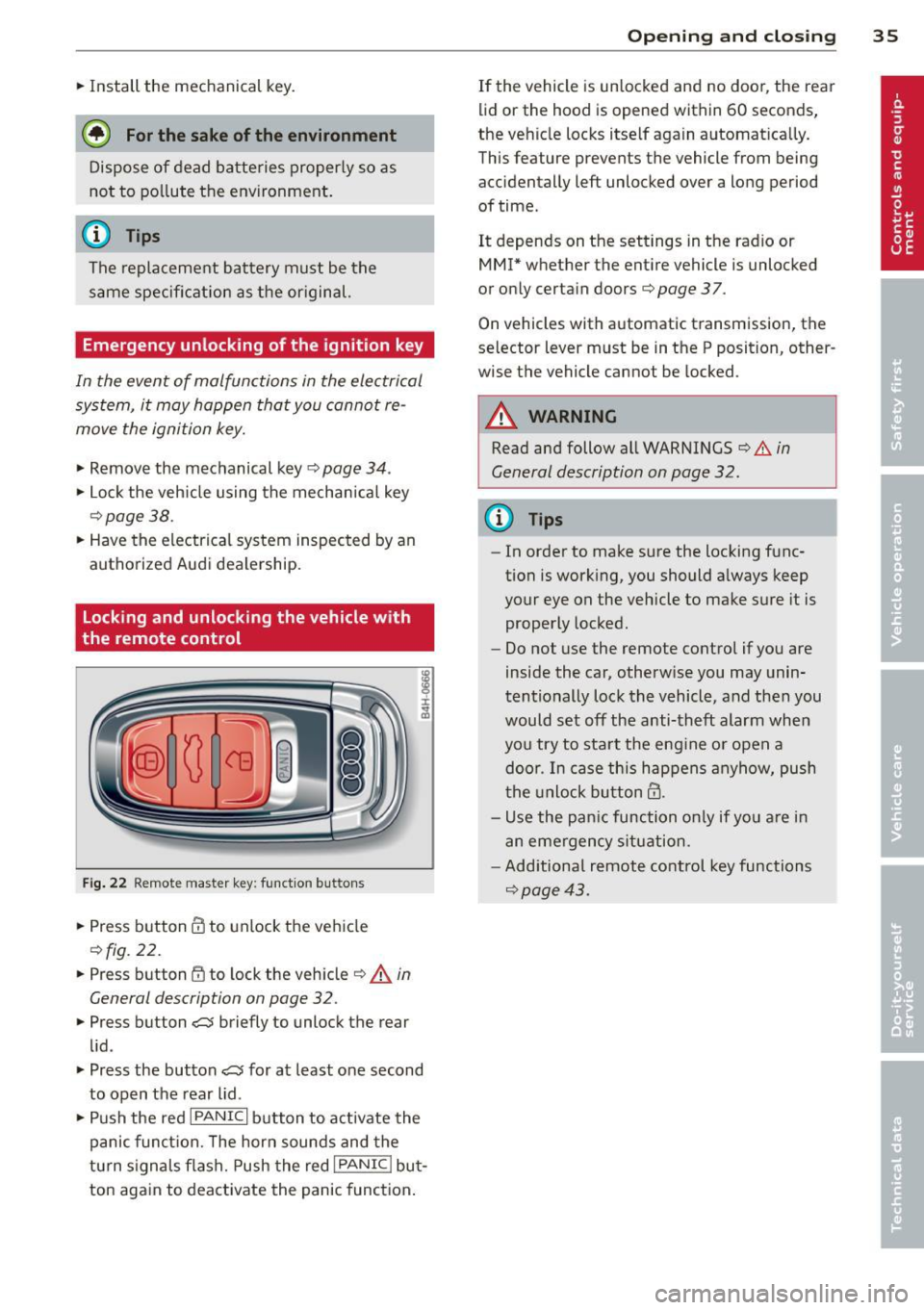

.. Install the mechanical key.
@J For the sake of the environment
Dispose of dead batteries properly so as
not to po llute the environment.
(j) Tip s
The replacement bat tery must be the
same specification as the or iginal.
Emergency unlocking of the ignition key
In the event of malfunctions in the electrical
system, it may happen that you cannot re
move the ignition key.
.. Remove the mechanical key ¢ page 34.
.. Lock the vehicle using the mechanical key
C? page 38 .
.. Have the electrical system inspected by an
authorized Audi dealership.
Locking and unlocking the vehicle w ith
the remote control
Fig . 22 Remot e ma ste r k ey: fun ction bu tton s
.. Press button III to unlock the vehicle
C? fig. 22 .
.. Press button ~ to lock the vehicle ¢ A in
General description on page
32 .
.. Press button~ briefly to unlock the rear
li d .
.. Press the button
c::5 for at least one second
to open the rear lid .
.,. Push the red
I PANIC I button to activate the
panic funct ion. The horn sounds and the
tu rn s ignals flash. Push the red
I PANIC ! but
ton again to deactivate the panic function .
Openin g an d clos ing 35
If the vehicle is unlocked and no doo r, the rear
lid or the hood is opened within 60 seconds,
the vehicle locks itself again automat ically.
This feature prevents the vehicle from being
accidentally left unlocked over a long period
of time .
It depends on the settings in the radio or
MM!* whether the entire vehicle is unlocked
or only certain doors
¢page 37.
On vehicles with automatic transmission, the
selector lever must be in the P position, other
wise the vehicle cannot be locked.
A WARNING
Read and follow all WARNINGS
¢ .& in
General description on page
32 .
@ Tips
- In order to make sure the locking func
tion is work ing, you should always keep
your eye on the vehicle to make sure it is
properly locked .
- Do not use the remote control if you are
inside the car, otherw ise you may unin
tentionally lock the vehicle, and then you
would set off the anti-theft alarm when
you try to start the eng ine or open a
door . In case this happens anyhow, push
the unlock button@ .
- Use the pan ic function on ly if yo u are in
an emergency s ituation .
- Additional remote control key functions
¢page 43 .
Page 38 of 296

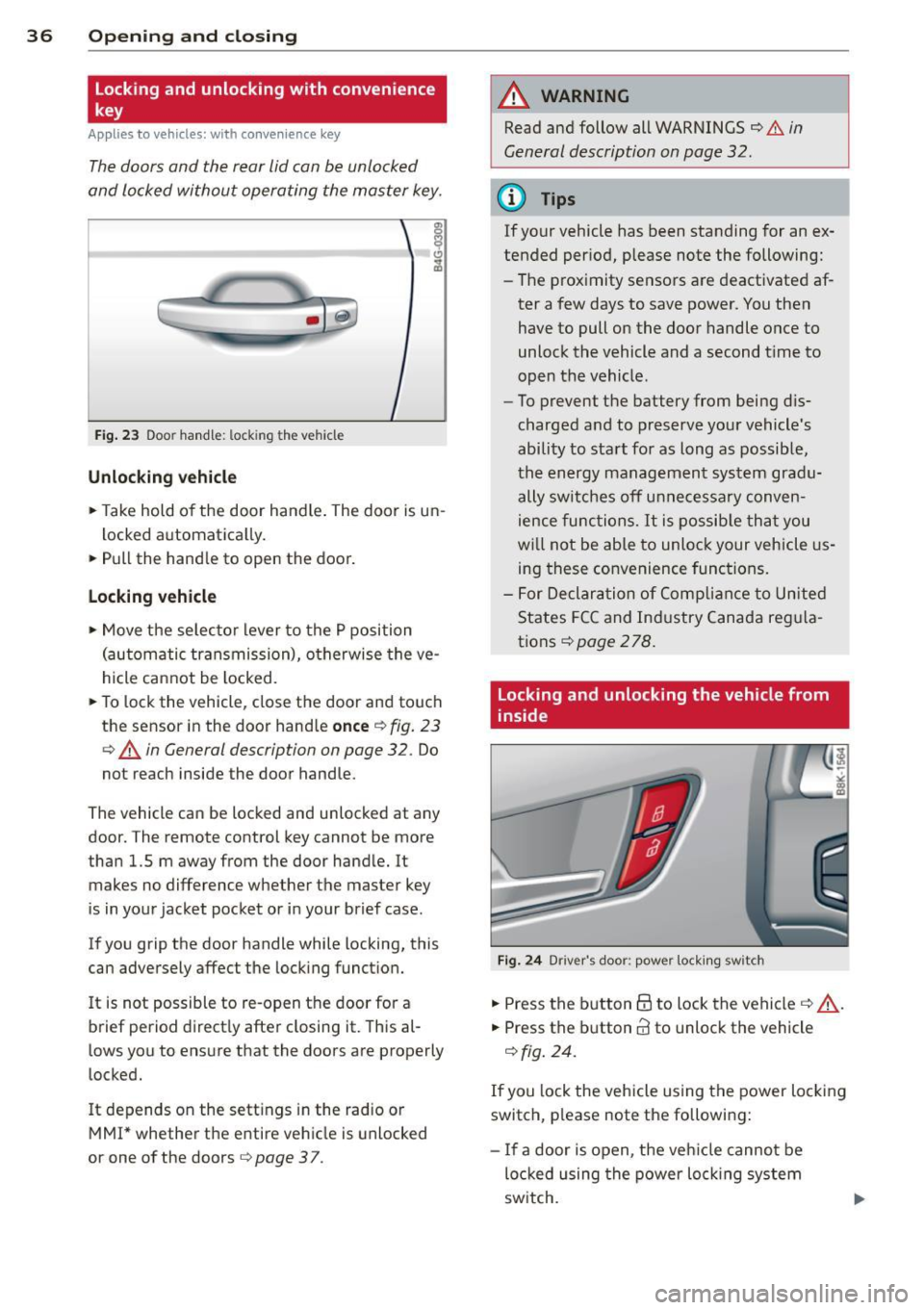

36 Opening and clo sing
locking and unlocking with convenience
key
Appl ies t o vehicles : wit h convenience key
The doors ond the rear lid can be unlocked
and locked without operating the master key.
Fig . 23 Door hand le: lock ing the vehicle
Unlocking vehicl e
.. Take hold of the door handle . The door is un-
locked automatica lly.
.. Pull the handle to open the door.
locking vehicle
.. Move the se lector lever to the P position
(automatic transmission), o therwise the ve
hicle cannot be locked.
.. To lock the vehicle, close the door and touch
the sensor in the door hand le
o nce ¢ fig. 23
c:> A in General description on page 32. Do
not reach inside the door handle.
The vehicle can be locked and unlocked at any
door. The remote control key cannot be more
than 1.5 m away from the door handle. It
makes no difference whether the master key
is in your jacket pocket or i n your brief case.
If you grip the door handle while locking, this
can adversely affect the locking funct ion.
I t is not possible to re-open the door for a
brief period direct ly after closing it. This al
l ows you to ensure that the doors are properly
locked.
I t depends on the sett ings in the radio or
MMI* whether the entire vehicle is unlocked
or one of the doors
c:> page 3 7 .
A WARNING
-
Read and follow all WARNINGS c:> .&. in
General description on page 32 .
(D Tips
If your vehicle has been standing for an ex
tended per iod, please note the following:
- The proximity sensors are deactivated af-
ter a few days to save power. You then
have to pull on the door handle once to
unlock the vehicle and a second t ime to
open the vehicle .
- To prevent the battery from being d is
charged and to preserve your vehicle's
ability to start for as long as possib le,
the energy management system gradu
ally switches off u nne cessary conven
ience func tions.
It is possib le th at you
w ill not be able to unloc k your vehicle us
ing these convenience func tions.
- For Declara tion of Complian ce to Unite d
States FCC and Ind ustry Canada reg ula
tions
¢page 278.
locking and unlocking the vehicle from
inside
F ig . 24 Driver's door: power lock ing switch
.. Press the button@ to lock the vehicle¢_& .
.. Press the button@ to unlock the vehicle
¢ fig. 24.
If you lock the vehicle using the power loc king
switch, p lease note the following:
- If a door is open, the veh icle cannot be
loc ked u sing the power loc king system
sw itch.
Page 39 of 296

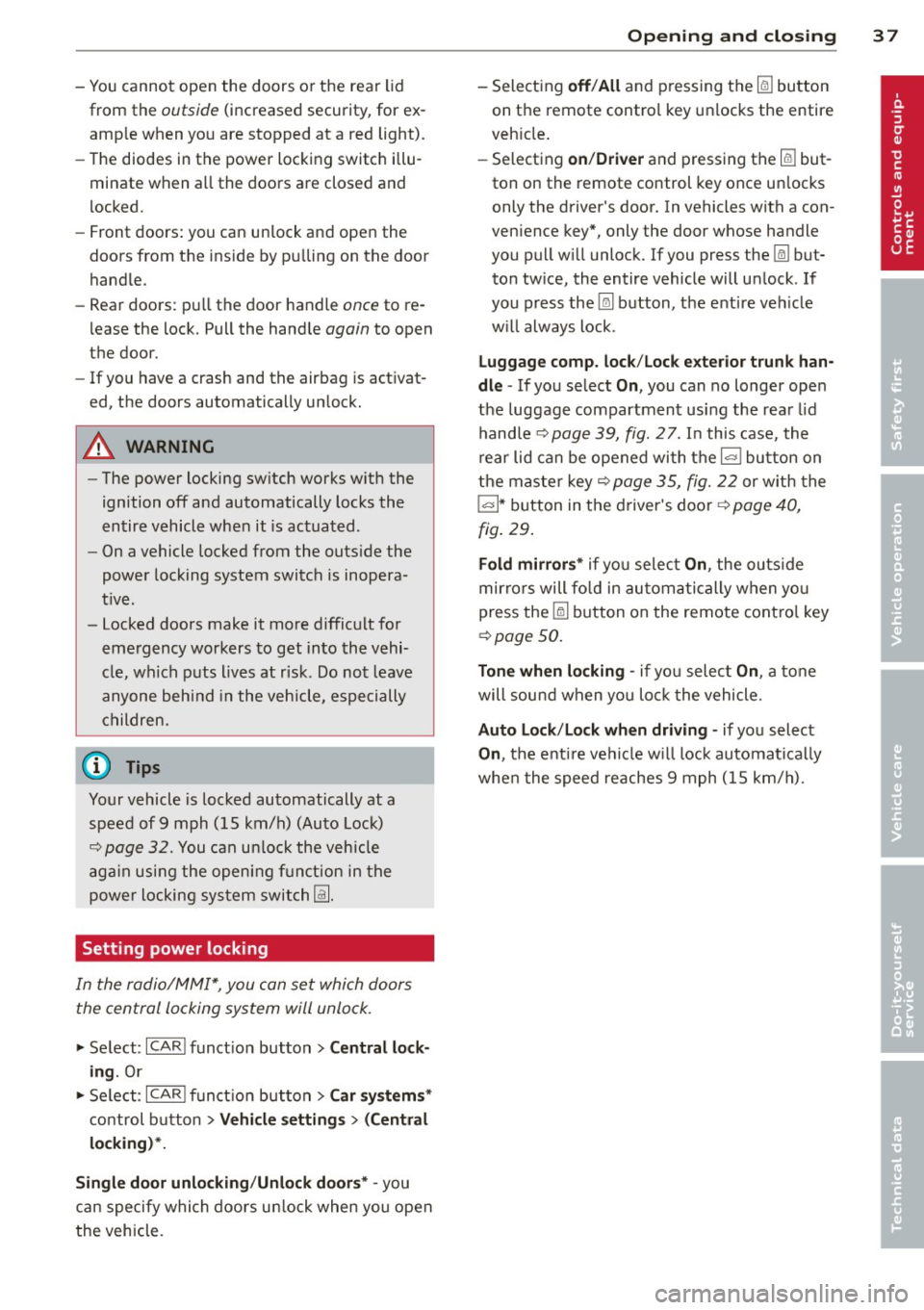

-You cannot open the doors or the rear lid
from the outside (increased security, for ex
amp le when yo u are stopped at a red light).
- The diodes in the power loc king switc h illu
minate when a ll the doors are closed and
l ocked.
- Front doors: you can un lock and open the
doors from the ins ide by p ulling on the door
hand le.
- Rea r doors: p ull the door handle once to re
lease the lock. Pull the hand le again to open
the door.
- If you have a crash and the airbag is activat
ed, the doors automatically un lock.
A WARNING
- The power locking sw itch works w ith the
ignition off and automatically locks the
entire vehicle when it is actua ted .
- On a vehicle locked from the outs ide the
power locking system switch is inopera
t ive.
- Locked doors make it more diffic ult for
eme rg ency workers to get into th e vehi
cle, w hich puts lives at risk . Do not leave
anyone behi nd in the ve hicle, espe cially
ch ildren.
(D Tips
Your vehicle is locked automatically at a
speed of
9 mph (15 km/h) (Au to Lock)
~ page 32. You ca n unl ock the vehicle
a g ai n using the opening f un ction in the
power locking sys tem swit ch ~ -
Setting power locking
In the radio/MM !*, you can se t which doors
t he central locking system will unlo ck .
.,. Se lect:
I CARI f u nct ion butto n > Central lock
ing .
Or
.,. Se lect:
~ I C-A-R~I fu nct io n bu tton > Car systems *
co ntrol b utton > Vehicle settings > (Central
locking)*.
Single door unlocking /Unlock door s* -
you
c a n specify whi ch door s unl ock when yo u open
the veh icle .
Opening and clo sin g 37
-Select ing off / All and p ressing the Iii button
on t he remote contro l key unlocks the entire
veh icle.
- Selecting
on /Driver and pressing the Iii but
ton on the remote control key once un locks
only the driver's door. In vehicles with a con
ven ience key*, only the door whose handle
you pull w ill unlock. If you press the
Iii but
ton tw ice, the entire vehicle will u nlock . If
you press the [@] button, t he entire ve hicle
w ill always lock .
Luggage comp. lock/ Lock exterior trunk han
dl e -
If you select On , you can no longer ope n
the luggage compartment using the rea r lid
hand le
~ page 39, fig. 2 7. In this case, the
r ear lid can be opened with t he
l=I bu tton on
th e maste r key¢ page 35, fig. 22 or with the
l= I* button in the d river's doo r¢ page 40,
fig .
29 .
Fold mirrors * if you se lec t On , the outs ide
mirro rs will fo ld in au tomati cally when yo u
press the
Iii button on the remote cont ro l key
~ page 50.
Tone when locking -if you selec t On, a to ne
will soun d when yo u lo ck t he vehicle.
Auto Lock /Lock when driving -if you selec t
On, th e e nti re ve hicl e w ill lock automat ically
whe n the speed reaches
9 m ph (1 5 km /h).
Page 40 of 296

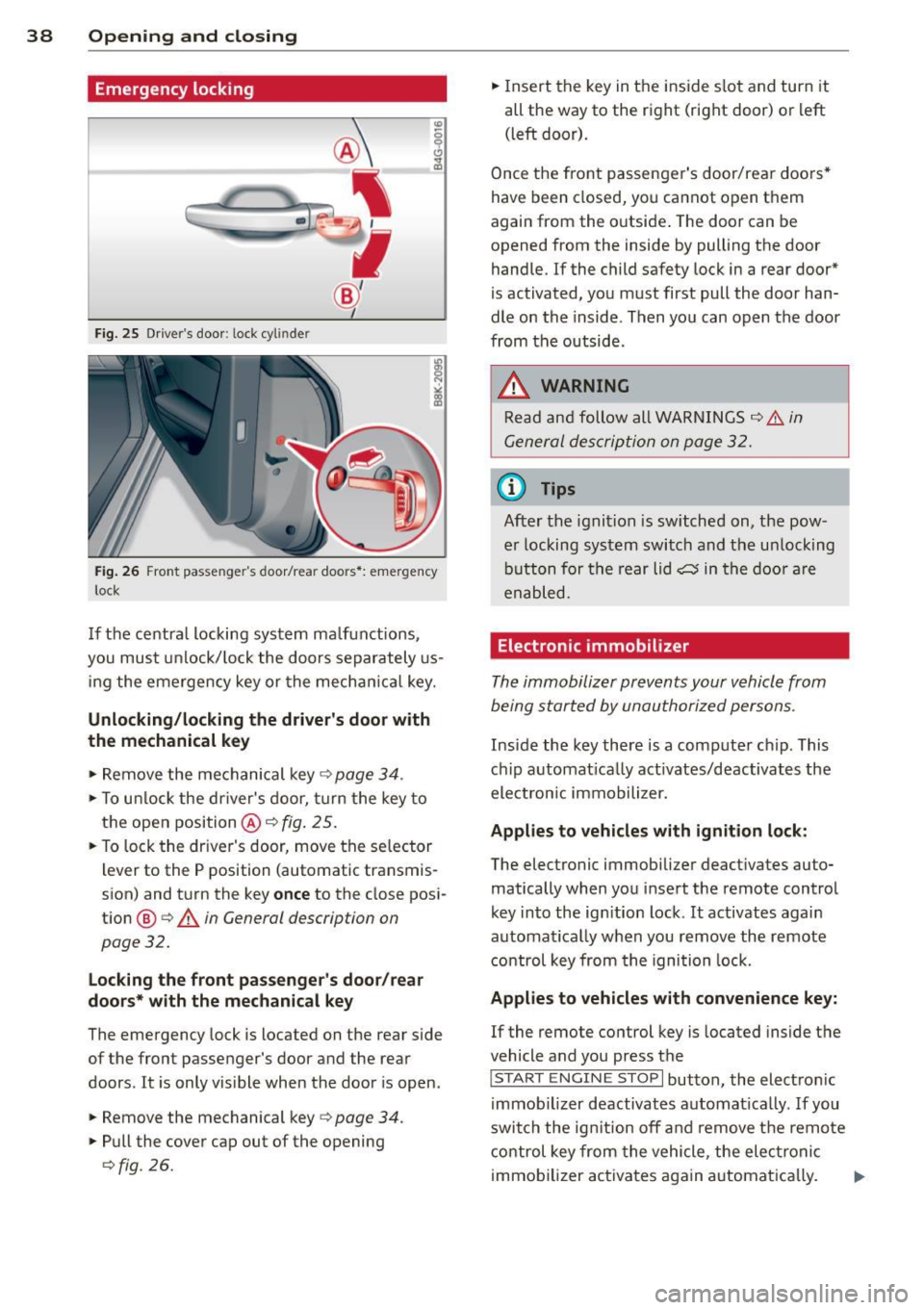

38 Opening and closing
Emergency locking
Fig. 25 Drive r's door : lock cyl inde r
Fig . 26 Front passe nge r's door/rea r doo rs *: emergency
l ock
If the centra l locking system ma lfunctions ,
you must unlock/lock the doors separately us
ing the emergency key or the mechanica l key.
Unlocking/locking the driver's door with
the mechanical key
,. Remove the mechanical key ¢ page 34 .
,. To un lock the driver's door, turn the key to
the open position @¢
fig. 25.
,. To lock the driver's door, move the se lector
lever to the P position (automatic transmis
sion) and turn the key
once to the close posi
tion
® c> A in General description on
page 32.
Locking the front passenger's door/rear
doors* with the mechanical key
The emergency lock is located on the rear side
of the front passenger's door and the rear
doors . It is only visible when the door is open.
,. Remove the mechanical key ¢
page 34.
,. Pull the cover cap out of the opening
¢ fig . 26.
,. Insert the key in the inside s lot and turn it
all the way to the right (right door) or left (left door).
Once the front passenger's door/rea r doors *
have been closed, you cannot open them
again from the outside . The door can be
opened from the inside by pulling the door
handle.
If the child safety lock in a rear door*
is activated, you must first pull the door han
dle on the inside . Then you can open the door
from the outside .
.8, WARNING
Read and follow all WARNINGS ¢.&. in
General description on page 32.
(D Tips
-
After the ignition is switched on, the pow
er locking system switch and the unlocking button for the rear lid
cs in the door are
enabled.
Electronic immobilizer
The immobilizer prevents your vehicle from
being started by unauthorized persons .
Inside the key there is a computer chip . This
chip automat ically act ivates/deactivates the
electron ic immobilizer.
Applies to vehicles with ignition lock:
The electronic immobilizer deactivates auto
matically when you insert the remote control
key into the ign ition lock . It activates again
automatically when you remove the remote
control key from the ignition lock.
Applies to vehicles with convenience key:
If the remote control key is located inside the
vehicle and you press the
I S TART ENGI NE STOP I button, the electron ic
immobilizer deactivates automat ically .
If you
switch the ignition off and remove the remote
control key from the vehicle, the electronic
immobilizer activates again automatica lly. ..,.
