Automatic safety belt r etractors
Every safety be lt is equ ipped wi th an automatic
be lt retractor on the shoulder belt. Th is feature
l ocks the belt when the belt is pull ed out fast,
during hard braking and in an accident. The belt may also lock when you drive up or down a steep
h ill or through a sharp curve. During normal driv­
ing the belt lets you move freely.
Safet y be lt pret en sioner s
The safety belts are equipped with a belt preten­
sioner that helps to tighten the safety belt and
remove slack when the pretensioner is activated
c:> page 251. The function of the pretensioner is
monitored by a warning light
c:> page 33.
Con vertible loc king retractor
Every safety belt except the one on the driver
seat is equipped with a convertible locking retrac­
tor that
mu st be used when the safety belt is
used to attach a child safety seat. Be sure to read
the impo rtant information about this feature
c:> page 288 .
A WARNING
Improperly posit ioned safety be lts ca n cause
ser ious injury in an accident
c:> page 249,
Safety belt position.
- Safety belts offer optimum protection only
when the seatback is upr ight and belts are
prope rly pos itioned on the bo dy.
- Always ma ke sure tha t the rear sea t bac k­
rest to wh ic h t he cente r rea r safety be lt is
a ttached is secure ly latched whenever the
rear center safety belt is being used. If the
backrest is not securely latched, the passen­
ger will move forward with the backrest dur­
ing sudden braking, in a sudden maneuver
and especially in a cras h.
- Never attach the safety belt to the buckle
for another seat. Attaching the belt to the
wrong buckle w ill red uce safety belt effec­
t iveness and can cause serious personal in­
jury.
- A passenger who is not p roperly restrained
can be seriously in ju red by the safety be lt it­
self when it moves from the stronger par ts
Safet y bel ts
of the body into critical areas like the abdo­
men.
- Always lock the convertible locking retractor
when you are securing a child safety seat in
the vehicle
c:> page 290.
Safety belt position
Correct belt position is the key to getting maxi­
mum protection from safety belts.
Fig. 215 Safety belt posit ion
Standard features on your vehicle help you adjust
the position of the safety belt to ma tch your body
s iz e.
- be lt height adjustment for the front seats,
- he ight-adjustable front seats.
A WARNING
Improperly positioned safety belts can ca use
se rious personal injury in an acc ident.
- The shou lder belt should lie as close to the
center of the collar bone as possib le and
should fit well on the body. Ho ld the belt
above the latch to ngue and pull it evenly
across t he chest so th at it sits as low as pos­
sible on the pe lvis and there is no p ressure
on the abdomen . The belt should a lway s fit
snug ly
c:> fig. 215. Pu ll on the belt to tighten
if necessary .
- The lap be lt portion of the sa fety belt must
be positioned as low as possi ble across pel­
vis and never over the abdomen. Make sure
the belt lies flat and snug
c:> fig. 215. Pull on
the belt to tighten if necessary.
- A loose-fitting safety belt can cause serious
in ju ries by shifting its position on your body
~
249

Safe ty belts
from the strong bones to more vulnerable ,
soft tissue a nd cause ser ious injury.
- Always read and heed all WARNINGS and
other important information¢
page 247.

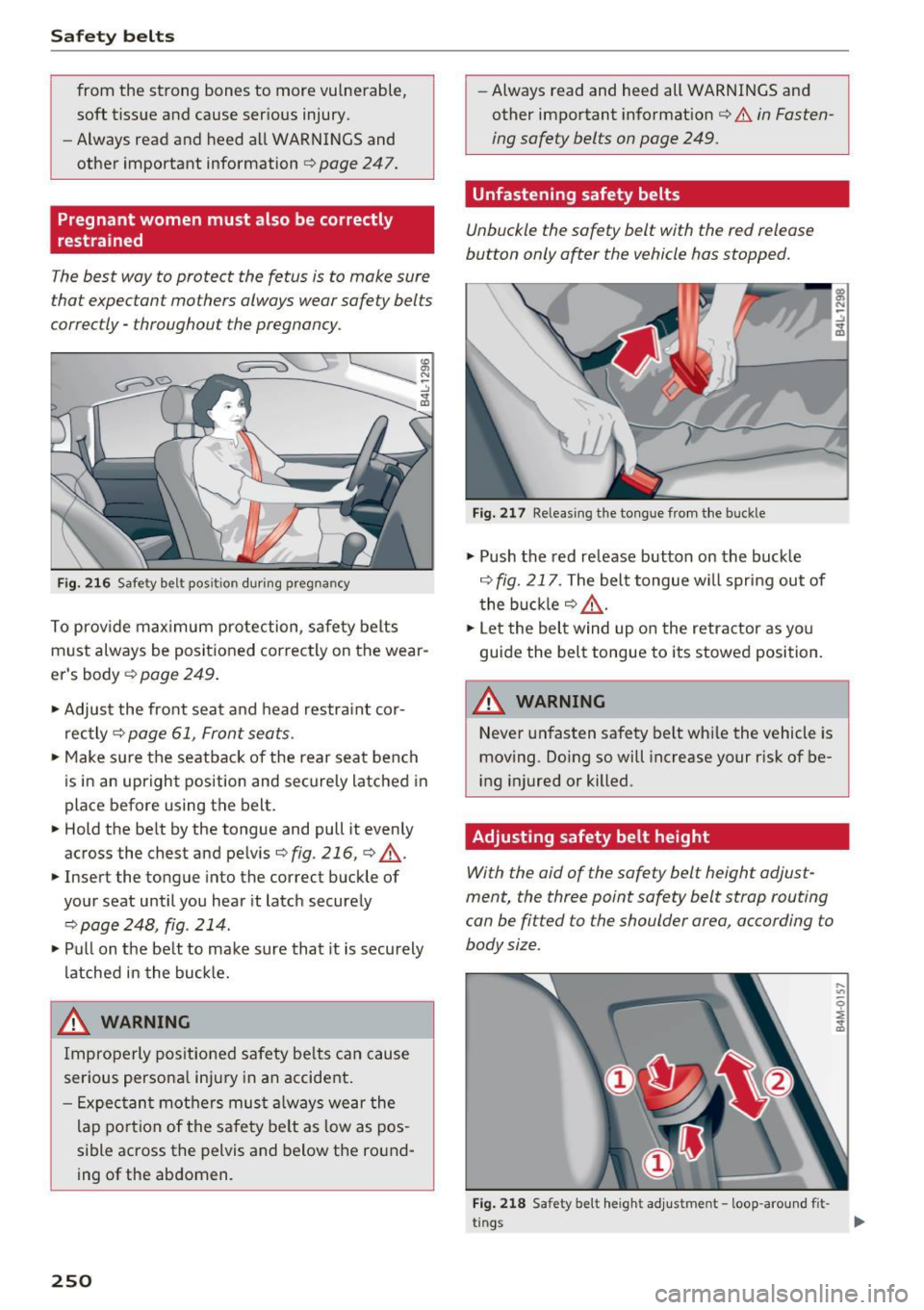

Pregnant women must also be correctly
restrained
T he best way to protect the fetus is to make sure
t hat expectan t mo thers always wear safety bel ts
correctly -throughout the pregnan cy .
Fig. 216 Safe ty belt pos ition duri ng pregna ncy
To prov ide max imum protection , safety belts
m ust always be positioned correctly on the wear ­
er's body
¢ page 249.
.,. Ad just the fro nt seat a nd head restraint cor­
rec tly ¢
page 61, Front sea ts .
.,. Make s ure the seatback of the rear seat bench
is in an upright position and securely latched in
plac e before using the b elt .
.,. Hold the belt by the tongue and pull it evenly
across the chest and pelvis
¢fig. 216, ¢ &.
.,. Insert the tongue into the correct buckle of
your seat until you hear it latch securely
¢ page 248, fig. 214 .
.,. Pu ll on t he be lt to make sure that it is securely
latched in the buc kle.
A WARNING
Improperly pos itioned safety be lt s ca n ca use
serious persona l injury in an accident.
- Expec tan t mot he rs mus t always we ar the
lap po rtion of the safety belt as low as pos ­
sible across the pelvis and below the round­
ing of the abdomen .
250
-Always read and heed all WARNINGS and
other important informat ion ¢
& in Fasten­
ing safety belts on page 249 .
Unfastening safety belts
Unbuckle the safety belt with the red release
button only after the vehicle has stopped.
Fig. 21 7 Re leasing t he tongue from the buckle
.,. Push the red re lease button on the buck le
¢ fig. 217 . The belt tongue w ill spri ng out of
t he buck le ¢
& -
.,. Let the belt wind up o n the retractor as yo u
guide the belt tongue to its stowed position.
A WARNING
Never unfasten safety be lt wh ile the vehicle is
moving . Do ing so will increase your r isk of be­
ing injured or killed.
Adjusting safety belt height
With the aid of the safety belt height adjust ­
ment, the three point safety belt strap routing
can be fi tted to the shoulder area , according to
body size .
Fig . 218 Safety be lt heigh t adj ust me nt - loop -arou nd fit­
tings

<( a, .... N ..... N .... 0 0
3 a,
The shoulder belt should lie as close to the center
of the collar bone as possib le and should fit well
on the bod y ¢
A in Safety belt position on
page 249.
.. Push
the loop- around fittings up ¢ fig . 21 8@ ,
or
.. squeeze to gether the@ button, and push the
loop-around fittings
do wn@ .
.. Pull the belt to make sure that the upper at­
tachment is p roperly engaged .
A WARNING
Always read and heed all WARNINGS and oth­
er important informat ion¢
page 247.
With the front seats, the height adjustment
of the seat can also be used to adjust the po­
sition of the safety belts.
Improperly worn safety belts
Incorrectly positioned safety belts can cause se­
vere injuries.
Wearing safety belts improperly can cause seri­
ous injury or death. Safety belts can only work
when they are correctly pos itioned on the body .
Improper seating positions reduce the effect ive­
n ess of safety be lts and will even inc rease the
ris k of injury and death by mov ing the safety bel t
to cr it ica l areas of the body. Imp roper seating
positions also increase the risk of serious inj ury
and death when an airbag deploys and strikes an
occ upant who is not in the co rrect seat ing posi­
tion. A driver is respons ible for the safety of all
vehicle occupants and espec ia lly for children.
Therefore:
.. Never permit anyone to ass ume an incorrect
s itting position in the veh icle wh ile traveling
¢ &, .
A WARNING
Improperly worn safety belts i ncrease the risk
of serious personal injury and death wheneve r
a vehicle is be ing used.
S afet y be lts
- Always make sure that all veh icle occupants
are correctly restrained and stay in a correct
seating position whenever the vehicle is be­
ing used.
- Always read and heed all WARNINGS and
other important informat ion¢
page 247.
Belt tensioner
How safety belt pretensioners work
Reversible safety belt pr etensioners
T he safety belts on the front seats are equ ipped
wi th reve rsible safe ty belt pretensioners. The fol­
l owing func tions a re available when the dr iver's/
front passenge r's safety belts are fastened:
- I n ce rtain driving situations, the safety bel ts
may tig hten w it h a reve rsib le tensioning func ­
t ion
¢ page 107 .
-The s afe ty be lts may also tighten with thi s re-
versible tens ion ing f unct ion in m inor collisions.
Pyrotechnic safety belt pretens ioners
All safety belts except for the safety belt in the
center seat position of the rea r seat are equipped
with safety belt pretensioners. The sys tem is acti­
va ted by sensors in front, side and rear-end co lli­
s ions of great severity and in a rollover. Th is
t ightens the belt and takes up belt slack¢&.
in
Service and disposal of safety belt pretensioner
on page 252.
Taking up the slack helps to re­
duce forward occupant movement during a co lli­
s io n.
(!) Tips
The pyrotechn ic safety belt pretensioners can
on ly be act ivated once.
- The safety belt pretensione rs do not deploy
in minor frontal, side and rear-end colli­
sions.
- When the pyrotechn ic safety belt preten­
sioners are activated, a fine dust is released.
Th is is normal and is not caused by a fire in
the vehicle .
- The relevant safety requirements must be
observed when the vehicle or components
of the sys tem are scrapped. An authorized
Audi dealer or qua lified wor kshop is fami lia r .,.
251

Safety belts
with these regulations and will be pleased
to pass on the information to you.
- Be sure to observe all safety, environmental
and other regulations if the vehicle or indi­
vidual parts of the system, particularly the
safety belt or airbag, are to be disposed . We
recommend you have your authorized Audi
dealer perform this service for you.

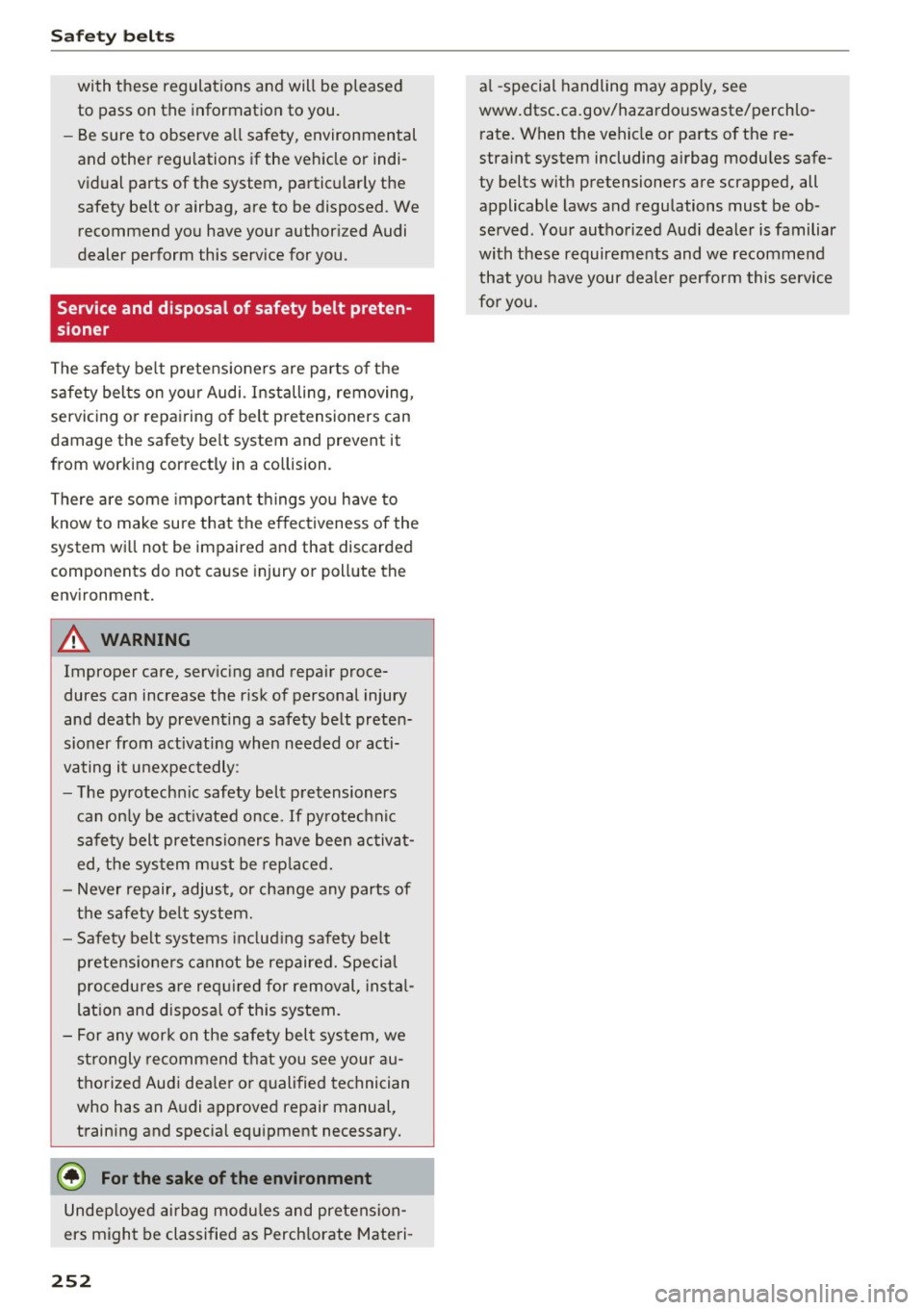

Service and disposal of safety belt preten­
sioner
The safety belt pretensioners are parts of the
safety belts on your Audi. Installing, removing,
servicing or repairing of belt pretensioners can
damage the safety belt system and prevent it
from working correctly in a collision.
There are some important things you have to
know to make sure that the effectiveness of the
system will not be impaired and that discarded
components do not cause injury or pollute the
environment.
A WARNING
Improper care, servicing and repair proce­
dures can increase the risk of personal injury
and death by preventing a safety belt preten­
sioner from activating when needed or acti­
vating it unexpectedly :
- The pyrotechnic safety belt pretensioners
can only be activated once.
If pyrotechnic
safety belt pretensioners have been activat­
ed, the system must be replaced.
- Never repair, adjust, or change any parts of
the safety belt system.
- Safety belt systems including safety belt
pretensioners cannot be repaired. Special
procedures are required for removal, instal­
lation and disposal of this system.
- For any work on the safety belt system, we
strongly recommend that you see your au­
thorized Audi dealer or qualified technician
who has an Audi approved repair manual,
training and special equipment necessary.
@ For the sake of the environment
Undeployed airbag modules and pretension­
ers might be classified as Perchlorate Materi-
252
al -special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlo­ rate. When the vehicle or parts of the re­
straint system including airbag modules safe­
ty belts with pretensioners are scrapped, all
applicable laws and regulations must be ob­
served . Your authorized Audi dealer is familiar
with these requirements and we recommend
that you have your dealer perform this service
for you.

<( a, .... N ,....
N .... 0 0
3 a,

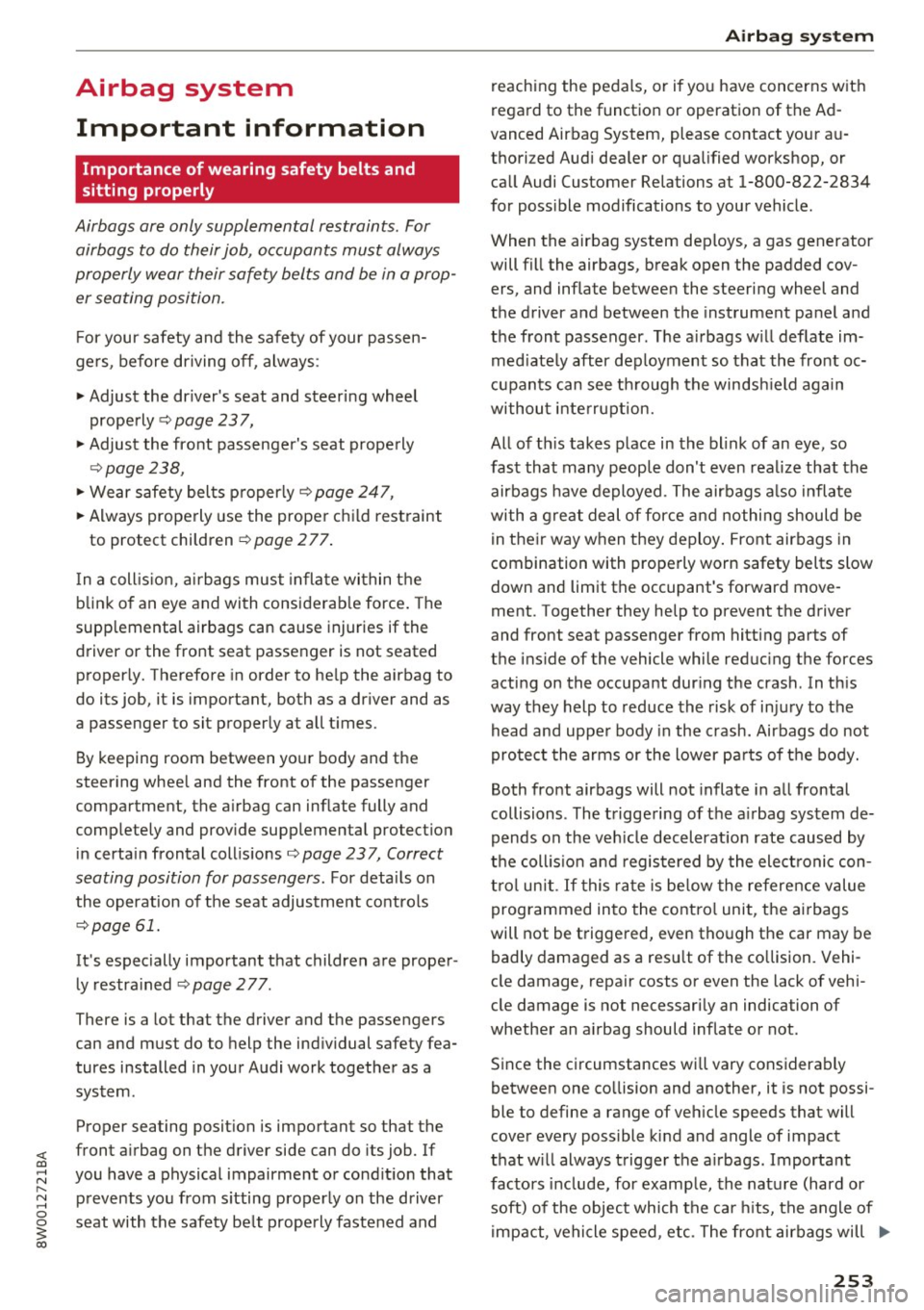

Airbag system
Important information
Importance of wearing safety belts and
sitting properly
Airbags are only supplemental restraints. For
airbags to do their job, occupants must always
properly wear their safety belts and be in a prop­
er seating position.
For your safety and the safety of your passen­
gers, before driving off, always :
.,. Adjust the driver's seat and steering wheel
properly
9 page 237,
.,. Adjust the front passenger's seat properly
¢page 238,
.,. Wear safety belts properly¢ page 247,
.,. Always properly use the proper child restraint
to protect children ¢
page 2 77.
In a collision, airbags must inflate within the
blink of an eye and with considerable force. The
supplemental airbags can cause injuries if the
driver or the front seat passenger is not seated
properly. Therefore in order to help the airbag to
do its job, it is important, both as a driver and as
a passenger to sit properly at all times.
By keeping room between your body and the
steering wheel and the front of the passenger
compartment, the airbag can inflate fully and
completely and provide supplemental protection in certain frontal collisions
¢ page 237, Correct
seating position for passengers.
For details on
the operation of the seat adjustment controls
¢page 61.
It 's especially important that children are proper­
ly restrained
¢page 277 .
There is a lot that the driver and the passengers
can and must do to help the individual safety fea­
tures installed in your Audi work together as a
system.
Proper seating position is important so that the
front airbag on the driver side can do its job. If
you have a physical impairment or condition that prevents you from sitting properly on the driver
seat with the safety belt properly fastened and
Airbag system
reaching the pedals, or if you have concerns with
regard to the function or operation of the Ad­
vanced Airbag System, please contact your au­
thori zed Audi dealer or qualified workshop, or
call Audi Customer Relations at 1-800-822-2834
for possible modifications to your vehicle.
When the airbag system deploys, a gas generator
will fill the airbags, break open the padded cov­ ers, and inflate between the steering wheel and
the driver and between the instrument panel and
the front passenger. The airbags will deflate im­
mediately after deployment so that the front oc­
cupants can see through the windshield again
without interruption.
All of this takes place in the blink of an eye, so
fast that many people don't even realize that the airbags have deployed. The airbags also inflate
with a great deal of force and nothing should be
in their way when they deploy. Front airbags in
combination with properly worn safety belts slow
down and limit the occupant's forward move­
ment . Together they help to prevent the driver
and front seat passenger from hitting parts of
the inside of the vehicle while reducing the forces
acting on the occupant during the crash . In this
way they help to reduce the risk of injury to the
head and upper body in the crash. Airbags do not
protect the arms or the lower parts of the body.
Both front airbags will not inflate in all frontal
collisions . The triggering of the airbag system de­
pends on the vehicle deceleration rate caused by
the collision and registered by the electronic con­
trol unit . If this rate is below the reference value
programmed into the control unit, the airbags
will not be triggered, even though the car may be badly damaged as a result of the collision. Vehi­
cle damage, repair costs or even the lack of vehi­
cle damage is not necessarily an indication of
whether an airbag should inflate or not.
Since the circumstances will vary considerably
between one collision and another, it is not possi­
ble to define a range of vehicle speeds that will
cover every possible kind and angle of impact
that will always trigger the airbags . Important
factors include, for example, the nature (hard or
soft) of the object which the car hits, the angle of
impact, vehicle speed , etc. The front airbags will
II>
253

Airbag syste m

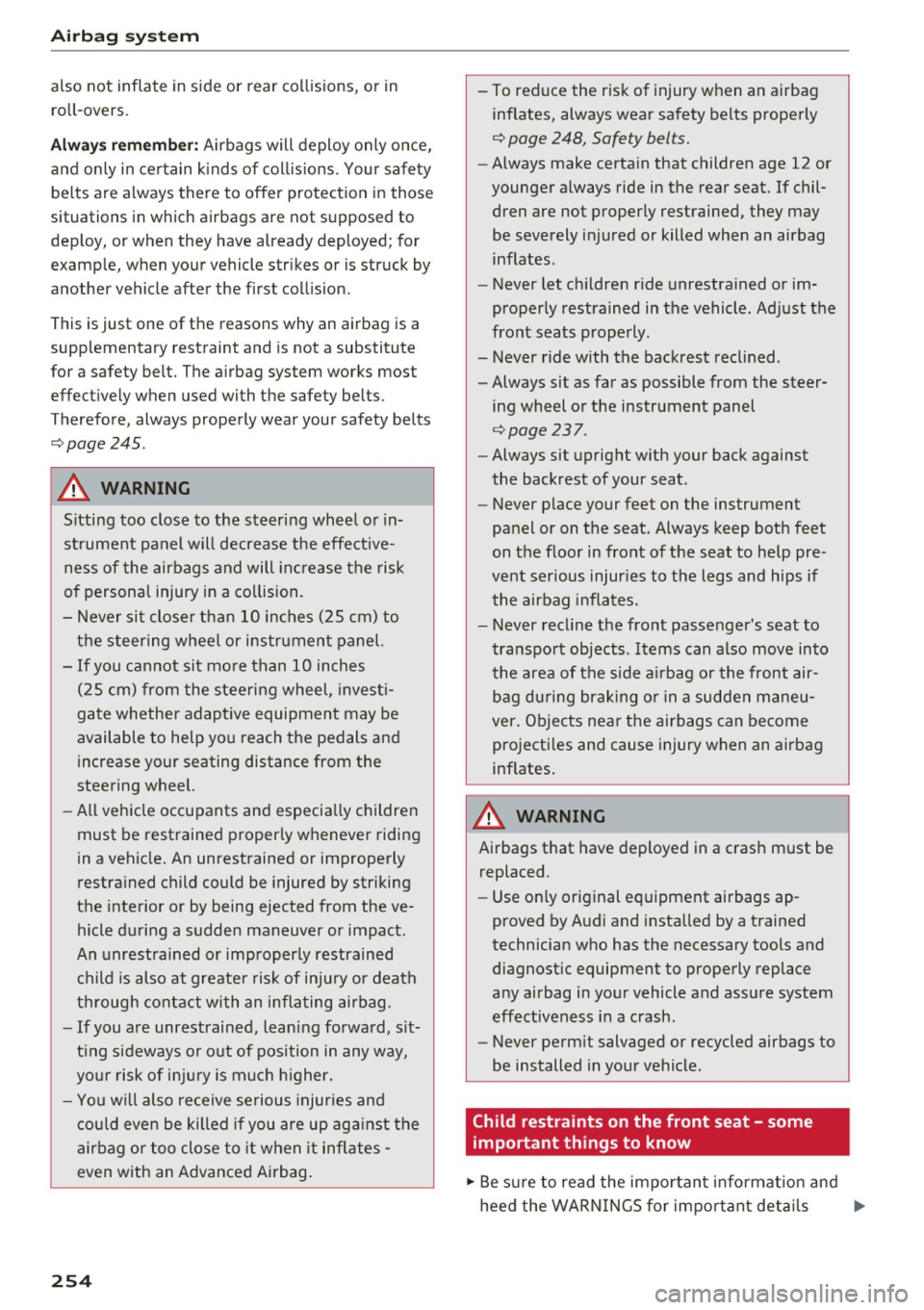

also not inflate in s ide or rear collisions, or in
ro ll-overs.
Alwa ys rememb er: Airbags will deploy only once,
and on ly in ce rtain k inds of coll is ions. Yo ur safety
be lts are always there to offer protection in those
situations in which airbags are not supposed to
dep loy, or when they have already deployed; for
examp le, when your vehicle str ikes or is struck by
another vehicle after the first coll is ion.
This is just one of the reasons why an airbag is a
supp lementary restraint and is not a substitute
for a safety belt. The a irbag system works most
effect ively when used with the safety belts.
Therefore, always properly wear your safety belts
c::>page 245.
A WARNING
Sitting too close to the steering wheel o r in­
st rument panel will decrease the effective­
ness of the airbags and will inc rease the risk
of personal injury in a co llision.
- Never sit closer than 10 inches (25 cm) to
the steering wheel or instrument panel.
- If you cannot si t mo re than 10 inches
(25 cm) from the steering wheel, invest i­
gate whether adaptive equipment may be
available to help yo u reach the pedals and
increase your seating distance from the
steering wheel.
- All veh icle occupants and especially children
must be restrained properly whenever riding
in a vehicle. An unrestrained or improperly
restra ined child could be injured by striking
the interior or by being ejected from the ve­
hicle during a sudden maneuver or impact.
An unrestrained or imp roperly restrained
child is also at greate r risk of inju ry or death
through contact with an inflating airbag.
- If you are unrestrained, leaning fo rwa rd, s it­
t ing s ideways or o ut o f pos ition in any way,
yo ur risk of in ju ry is much h igher.
- Yo u will also receive serious injuries and
c ould even be killed if you are up aga inst the
air bag or too close to it when it inflates -
even with an Advanced Airbag.
254
-
- To reduce the ris k of i njury when an a irbag
inflates, always wea r safety belts properly
c::> page 248, Safety belts.
- Always make certa in that children age 12 or
younger always ride in the rear seat. If chil­
dren are not properly restrained, they may be severely injured or killed when an airbag
inflates.
- Never let ch ildren ride unrestra ined or im­
properly restrained in the vehicle. Ad just the
front seats properly.
- Never ride with the back rest recl ined .
- Always sit as far as possible from the steer-
ing wheel or the instrument panel
c::>page237.
- Always sit upright w ith your back against
the backrest of your seat .
- Never p lace your feet on the instrument
panel or on the seat. Always keep both feet
on the floor in front of the seat to help pre­
vent serious injur ies to the legs and hips if
the airbag inflates.
- Never recl ine the front passenger's seat to
transpo rt objects . Items can also move in to
the area of the s ide a irbag or the front air­
bag du ring brak ing o r in a sudden maneu­
ver. Obje cts nea r the airbags can become
projecti les and cause injury when an airbag
inflates.
A WARNING
A irbags that have deployed in a crash must be
replaced.
- Use on ly original equipment airbags ap­
proved by Audi and installed by a trained
technician who has the necessary tools and
diagnostic equipment to properly replace
any airbag in your vehicle and assure system
effectiveness in a crash.
- Never perm it salvaged or recycled airbags to
be installed in your vehicle.
Child restraints on the front seat - some
important things to know
.,. Be s ure to read the impo rtant info rmat ion and
heed the WARN INGS for important deta ils .,.

<( a, .... N ,....
N .... 0 0
3 a,

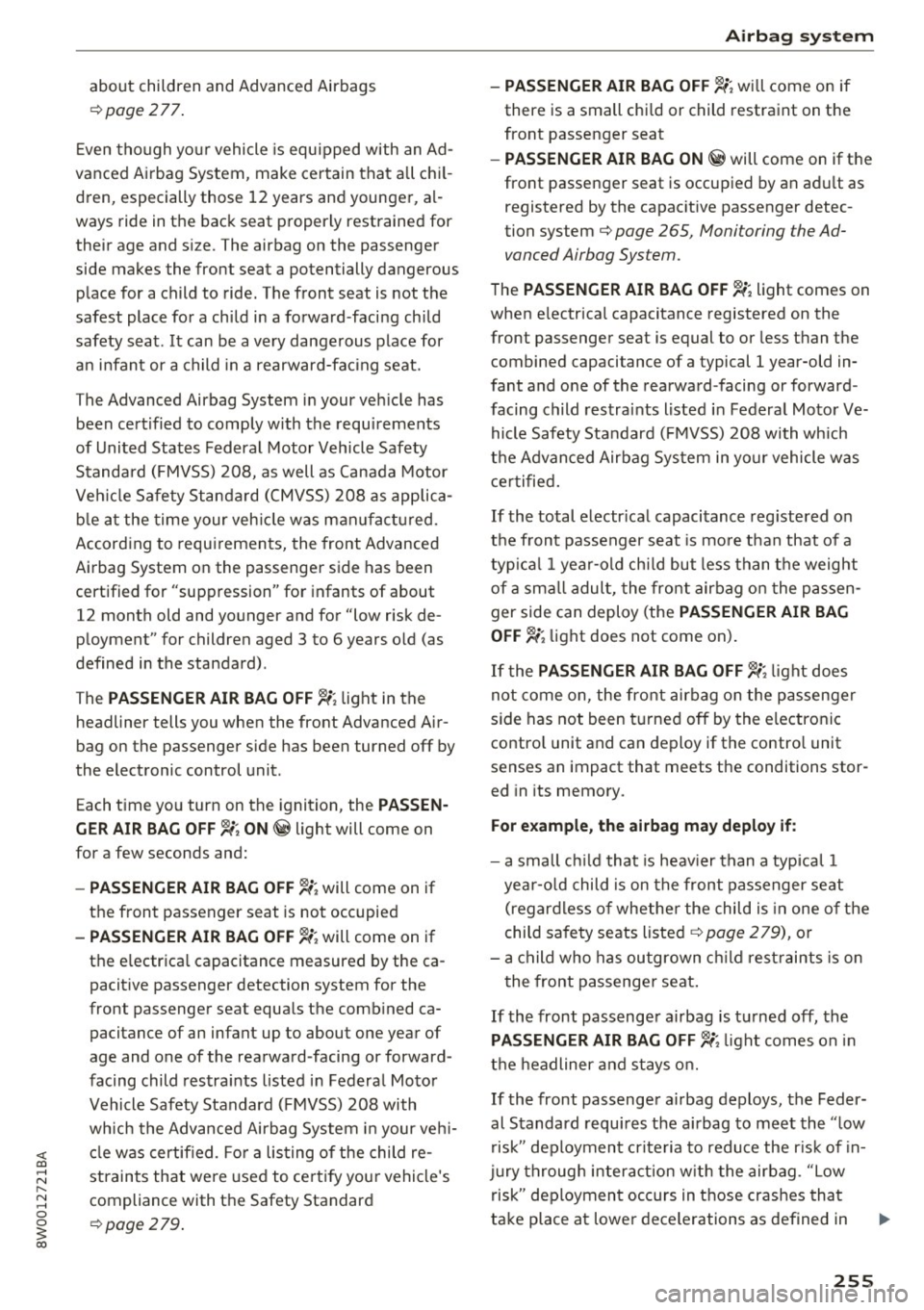

about children and Advanced Airbags
¢ page 2 77.
E ven though yo ur vehicle is equipped with an Ad­
vanced Airbag System, make certain that all chil­
dren, especially those 12 years and younger, al­
ways ride in the back seat properly restrained for
their age and size. The airbag on the passenger
side makes the front seat a potentially dangerous place for a child to ride. The front seat is not the
safest place for a child in a forward-facing child
safety seat .
It can be a very dangerous place for
a n infant or a child in a rearward-fac ing seat.
T he Advanced Airbag System in your veh icle has
been certified to comply with the requirements
of United States Federal Motor Vehicle Safety
Standa rd (FMVSS) 208, as well as Canada Motor
Veh icle Safety Standa rd (CMVSS) 208 as applica­
b le a t the time your veh icle was m an ufact ured.
Accord ing to requirements, the front Advanced
Airbag System on the passenger side has been
certified for "suppression" for infants of about 12 month old and younger and for "low risk de­
ployment" for children aged 3 to 6 years old (as
defined in the standard) .
T he
PASSENGER AIR BAG OFF ~ ; light in the
headliner tells you when the front Advanced Air­
bag on the passenger side has been turned off by
the electronic control unit.
Each time yo u turn on the ignition, the
PASSEN ­
GER AIR BAG OFF ~; ON
@ light will come on
for a few seconds and:
- PASSENGER AIR BAG OFF~; will come on if
the front passenger seat is not occupied
- PASSENGER AIR BAG OFF~; will come on if
the e lectrica l capacitance measured by the ca­
pacitive passenger detection system for the
front passenger seat equa ls the comb ined ca­
pacitance of an infant up to about one year of
age and one of the rearward-facing or forward ­
facing child restra ints listed i n Federa l Moto r
Vehicle Safety Standard ( FMVSS) 208 with
wh ich the Advanced Airbag System i n your veh i­
cl e was certified . Fo r a listing of the child re­
straints that were used to ce rtify you r vehicle 's
compliance with the Safety Standard
¢ page 279 .
Airb ag sys tem
-PAS SENGER AIR BAG OFF~; will come on if
there is a small chi ld or child restraint on the
front passenger seat
- PASSENGER AIR BAG ON@ will come on if the
front passenger seat is occupied by an ad ult as
registered by the capacit ive passenger detec­
tion system
¢ page 265, Monitoring the Ad­
vanced Airbag System .
The PASSENGER AIR BAG OFF~; light comes on
when e lectrical capacitance registered on the
front passenger seat is equal to or less than the
combined capacitance of a typical 1 year-old in­
fant and one of the rearward-facing or forward ­
facing child restrai nts listed in Federal Motor Ve­
hicle Safety Standard ( FMVSS) 208 with wh ich
the Advan ced Airbag System in yo ur vehicle was
ce rtified.
If the total electr ical capacitance reg istered on
t h e front passenger seat is mo re than that of a
typ ical 1 year -old ch ild but less than the weight
of a sm all adult, the front air bag on the passen­
ger side can deploy (the
PASSENGER AIR BAG
OFF ~;
light does not come on) .
If the
PASSENGER AIR BAG OFF~; light does
not come on, the front airbag on the p assenger
s ide has not been turned off by the electronic
contro l unit and can deploy if the contro l unit
senses an impact that meets the conditions stor­
ed in its memory .
For example , the airbag may deploy if :
-a small c hild that is heav ier than a typ ica l 1
year -o ld child is on the front passenger se at
(regardless o f whethe r the child is in one o f the
child sa fe ty seats listed
¢ page 2 79), o r
- a child who has outgrown c hild rest raints is on
t he front passenge r seat .
If the front passenge r airbag is t urned off, the
PASSENGER AIR BAG OFF~; light comes on i n
t h e headliner a nd stays o n.
If the front passenger a irbag deploys, the Feder­
al Standard requi res the airbag to meet the "low
r isk " dep loymen t criteria to redu ce the r isk of in­
j u ry through interaction w it h t he airbag. "Low
risk" deployment oc curs in those crashes that
take place at lowe r decelerations as defined in
Ill>
255

Airbag syste m

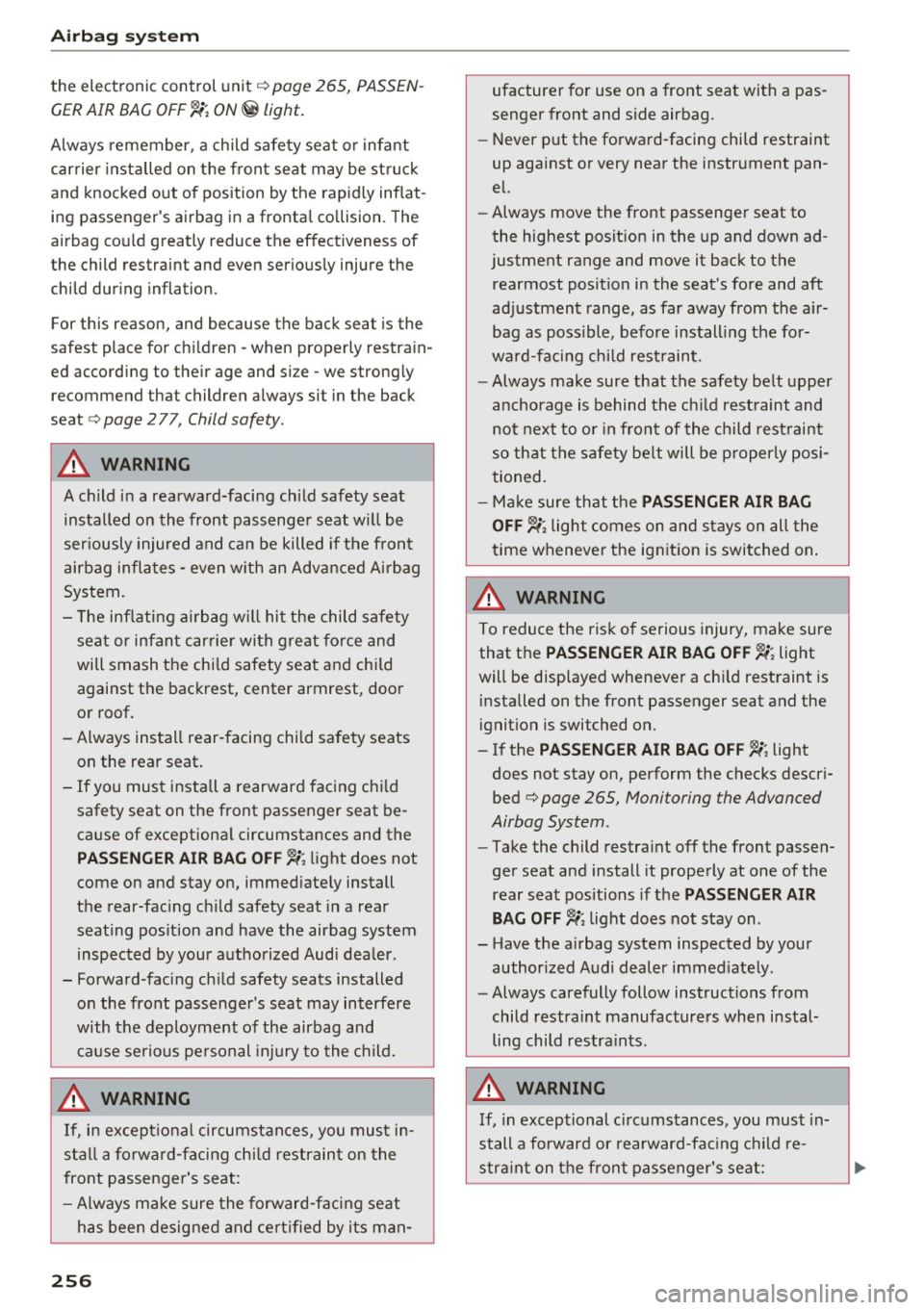

the electronic control unit¢ page 265, PASSEN­
GER AIR BAG OFF~; ON@ light.
Always remember, a child safety seat or infant
carrier installed on the front seat may be struck
and knocked out of position by the rapid ly inflat­
ing passenger's airbag in a fronta l co llision. The
airbag cou ld greatly reduce the effect iveness of
the child restraint and even seriously injure the
child during inflation.
For this reason, and because the back seat is the
safest place for ch ildren -when properly restra in­
ed according to the ir age and size -we strong ly
recommend that children always sit in the back
seat ¢
page 2 77, Child safety.
A WARNING
A child in a rearward-facing child safety seat
installed on the front passenger seat w ill be
ser iously injured and can be killed if the fron t
airbag infla tes -even w ith an Advanced Ai rbag
System.
- T he inflating a irbag w ill hit the child safety
seat or infant carrier with great force and
will smash the chi ld safety seat and child
against the backrest, center armrest, door
or roof.
- Always install rear -facing child safety seats
on the rear seat .
- If you must install a rearward facing ch ild
safety seat on the front passenger seat be­
cause of exceptiona l circumstances and the
PA SSENGER AIR BAG OFF~; light does not
come on and stay on, immed iately install
the rear-fac ing ch ild safety seat in a rear
seat ing pos ition and have the airbag system
inspected by your authorized Audi dea ler.
- Forward-facing ch ild safety seats installed
on the front passenger's seat may interfere
with the deployment of the airbag and ca use serio us pe rsonal injury to the child.
A WARNING
If, in except ional circumstances, you must i n­
stall a forward -facing chi ld res train t on the
front passenger's seat:
- Alw ays make sure the forward-facing seat
has been designed and ce rt ified by its man-
256
ufacturer for use on a front seat with a pas­
senger front and side airbag.
- Never put the forward-facing child restraint
up against or very near the instrument pan­
el.
- Always move the front passenger seat to
the highest posit ion in the up and down ad­
justment range and move it back to the
rearmost posit ion in the seat's fore and aft
ad justment range, as far away from the a ir­
bag as poss ible, before installing the for­
ward-facing chi ld restraint.
- Always make sure that the safety be lt upper
anchorage is behind the ch ild rest raint and
not next to o r in front of the child rest raint
so th at the safety be lt will be p roperly posi­
tioned.
- Ma ke sure that the
PASSENGER AIR BAG
OFF ~;
light comes on and stays on all the
time wheneve r the ign it ion is switched on .
A WARNING
To reduce the risk of serious injury, make sure
that the PASSENGER AIR BAG OFF~; light
will be disp layed whenever a ch ild restraint is
installed on the front passenger seat and the
ignit ion is switched on.
- If the
PASSENGER AIR BAG OFF~; light
does not stay on, perform the checks descri­
bed ¢
page 265, Monitoring the Advanced
Airbag System.
- Take the child restra int off the front passen­
ger seat and install it properly at one of the rear seat positions if the
PASSENGER AIR
BAG OFF~
light does not stay on .
- Have the airbag system inspected by your author ized Audi dealer immed iate ly.
- Always carefully follow instructions from
child restraint manufacturers when instal­
ling child restra ints.
A WARNING
If, in exceptional ci rcumstances, you must in­
stall a forward or rearward-fac ing child re-
stra int on the fron t passenger's seat: ..,.

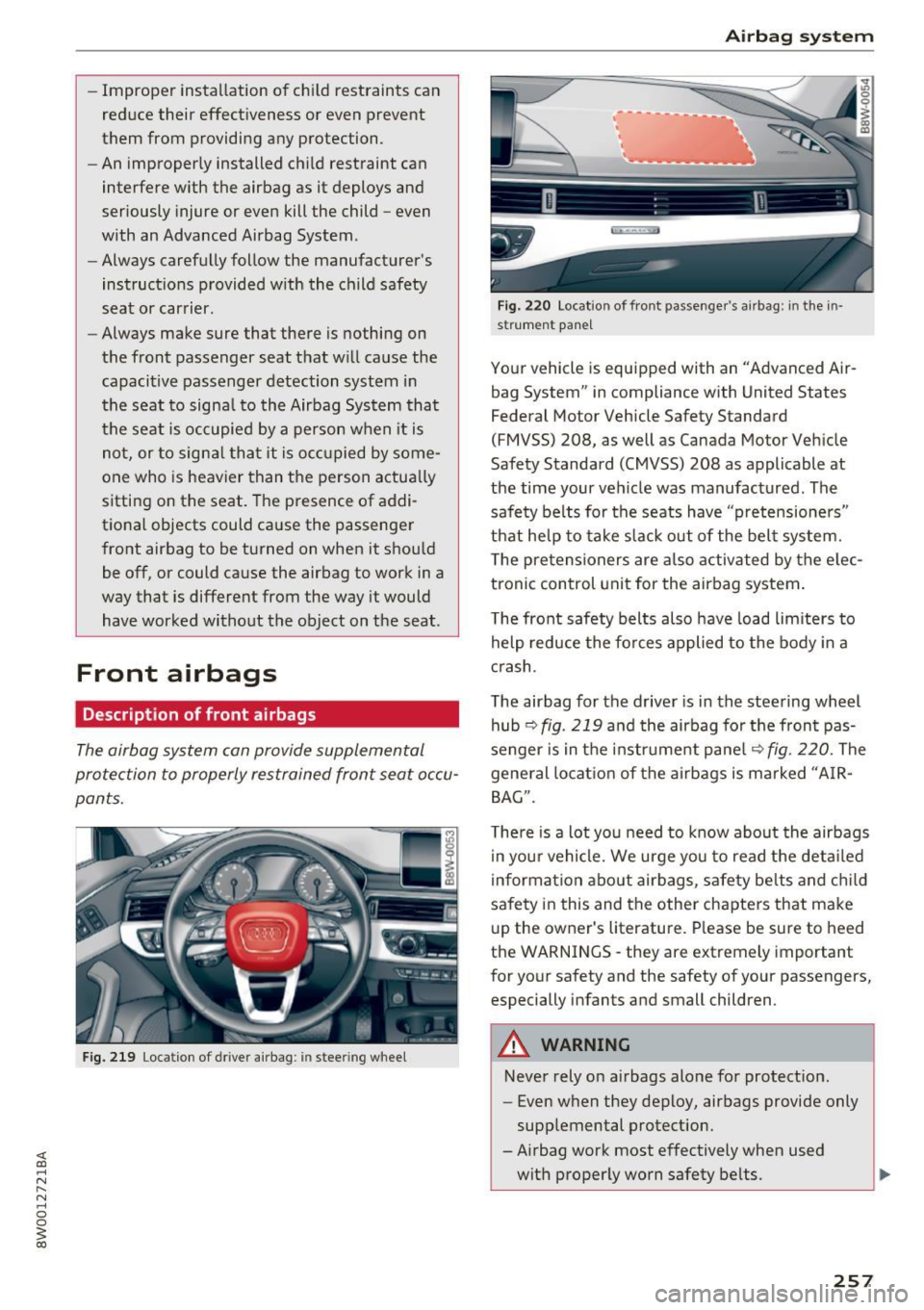

-Improper installation of child restraints can
reduce their effect iveness or even prevent
them from providing any protection .
- An improper ly installed ch ild restraint can
interfere w ith the airbag as it deploys and
seriously injure or even kill the child -even
with an Advanced Airbag System .
- Always carefu lly follow the manufacturer's
instructions provided with the child safety
seat or carrier.
- Always make sure that there is nothing on
the front passenger seat that will cause the
capacit ive passenger detection system in
the seat to signa l to the Airbag System that
the seat is occupied by a person when it is
not, or to signa l tha t it is occ upied by some ­
one who is heavier than the person actua lly
sitting on the seat. The p resence of addi ­
t ional objects could cause the passenge r
front airbag to be turned on when it shou ld
be off, or could cause the airbag to work in a
way that is different from the way it would have worked without the object on the seat .
Front airbags
Description of front airbags
The airbag system can provide supplemental
protection to properly restrained front seat occu ­
pants.
F ig. 219 Loca tion of driver airb ag: in stee ring whee l
Airb ag sys tem
Fig. 220 Locat io n of fro nt passen ger 's a irbag : in t he in·
s tr um en t pan el
Your vehicle is equipp ed with an "Advanced Air­
bag System " in compliance with United States
Fede ral Motor Vehicle Safety Standard
(FMVSS) 208, as well as Canada Motor Veh icle
Safety Standard (CMVSS) 208 as applicable at
the time your veh icle was manufactured . The
safe ty belts fo r the seats have "pretensione rs "
that help to take slack out of the bel t system.
T he pretensioners are also activated by the e lec ­
tronic control unit for the airbag system .
T he front safety belts also have load limiters to
help reduce the fo rces applied to the body in a
c rash .
The airbag for the driver is in the steering wheel
hub
r:::> fig. 219 a nd the airbag fo r the front pas­
senger is in the instrument pane l
~fig. 220. The
general lo cat ion of the airbags is marked "A IR­
BAG".
T he re is a lot yo u need to know about the airbags
i n your vehicle. We urge you to read the deta iled
informa tion abo ut airbags, s afety be lts and c hild
safety in this and the other chapters that make
u p the owner 's literatu re . Please be sure to heed
the WARNINGS -they ar e extrem ely important
for your safety and the safety of your passengers, especially infants and small child ren.
A WARNING
Never rely on airbags alone for protect ion .
- Even when they deploy, airbags provide only
supp lemental protection.
- Airbag work most effectively when used
wit h properly worn safety be lts .
257

Airbag system
-Therefore, always wear your safety belts and
make sure that everybody in your vehicle is
properly restrained.
- Always hold the steering wheel with both
hands on the outside of the steering wheel
rim at the 9:00 o 'clock and 3 :00 o'clock po­
sitions to help reduce the risk of personal in ­
jury if the driver's airbag inflates .
- Never hold the steering wheel at the 12
o'clock position or with your hands any­
where inside the steering wheel or on the steering wheel hub. Holding the steering
wheel the wrong way increases the risk of
severe injury to the arms, hands, and head if
the driver airbag deploys.
A WARNING
Objects between you and the airbag will in­
crease the risk of injury in a crash by interfer­
ing with the way the airbag unfolds and/or by
being pushed into you as the airbag inflates.
- Always make sure nothing is in the front air-
-
bag deployment zone that could be struck
by the airbag when it inflates.
- Objects in the zone of a deploying airbag
can become projectiles when the airbag de­
ploys and cause serious personal injury.
- Never hold things in your hands or on your lap when the vehicle is in use .
- Never place accessories or other objects
(such as cup holders, telephone brackets,
note pads, navigation systems, or things
that are large, heavy, or bulky) on the doors;
never attach then to the doors or the wind­
shield; never place them over or near or at­
tach them to the area marked ,.AIRBAG" on
the steering wheel, instrument panel or the
seat backrests; never place them between
these areas and you or any other person in
the vehicle.
- Never attach objects to the windshield
above the passenger front airbag, such as
accessory GPS navigation units or music
players. Such objects could cause serious in­
jury in a collision, especially when the air­ bags inflate .
258
-Never recline the front passenger seat to
transport objects. Items can also move into
the deployment area of the side airbags or
the front airbag during breaking or in a sud­
den maneuver . Objects near the airbags can
fly dangerously through the passenger com­
partment and cause injury, particularly
when the seat is reclined and the airbags in­
flate.
A WARNING
A person on the front passenger seat, espe­
cially infants and small children, will receive
serious injuries and can even be killed by be­ ing too close to the airbag when it inflates .
- Although the Advanced Airbag System in
-
your vehicle is designed to turn off the front
passenger airbag if an infant or a small child
is on the front passenger seat, nobody can
absolutely guarantee that deployment un­
der these special conditions is impossible in
all conceivable situations that may happen
during the useful life of your vehicle.
- The Advanced Airbag System can deploy in
accordance with the .,low risk" option for 3-
and 6-year-old children under the U.S . Fed­
eral Standard if a child with electrical capac­
itance greater than the combined capaci­
tance of a typical one-year old infant re­
strained in one of the forward facing or rear­
ward-facing child seats with which your ve­
hicle was certified is on the front passenger
seat and the other conditions for airbag de­
ployment are met.
- Accident statistics have shown that children
are generally safer in the rear seat area than
in the front seating position.
- For their own safety, all children, especially
12 years and younger, should always ride in
the back properly restrained for their age and size.
Advanced front airbag system
Your vehicle is equipped with a front Advanced
Airbag System in compliance with United States
Federal Motor Vehicle Safety Standard (FMVSS)
208 , as well as Canada Motor Vehicle Safety ..,.
