-If swallowed and person is conscious ,
r inse mouth with wate r for at least 15
minutes . Do not induce vom iting unless
inst ructed to do so by medical professio­
nal. Get medical at tention immediately .
(D Note
Liquid electro lyte leaking from broken mir ­
ror glass will damage any plastic surfaces
it comes i n contact with . Clean up spilled
electrolyte immed iately w ith clean water
and a sponge .
@ Tips
-Switch ing off the dimming function of
the inside rear view m irror also deact i­
vates the automat ic d imm ing f unction of
t h e exte rior m irrors .
- Automat ic dimming for the m irror only
operates properly i f the sun shade* f or
the rear window is no t in use o r the light
str iking the ins ide mir ro r i s no t hindered
by other objects .
- The au tomati c dimm ing mirro rs do no t
dim when the interio r lighting is turned
on or the reverse gear is se lec ted.
Sun visors
Fi g. 44 D rive r's side : sun viso r
Th e sun v isors for the driver and passenger
can be pulled out of the ir brackets in the cen­
ter of the vehicle and turned towards the
doors @¢
fig. 44. After the sun visor has
been turned to the doo r, it can be extended
l e ngthwise.
The mirror light switches on whe n the cover
over the vanity mirror @opens .
Clear vision 49
Sun shade
App lies to veh icles : w ith sun s had e
~ flou , ~---
Fig. 45 W ith MMI: Button for rear w indow s un sh ade
Fi g. 46 Witho ut M MI: But ton for rea r w in d ow s un
s h ade
Rear door sunshade*
.,. Pull the sun shade out and attach it to the
hooks on the upper door frame .
Rear window sun shade*
.,. To extend/retract the sun shade, press the
~ bu tton ¢ fig. 45 or~ fig . 46 .
You can adjust the settings for the rea r su n
shade so the shade retracts automatically
when you selec t the reverse gear. To do this,
selec t the
ICARI func tion bu tton > Windows >
Rear blind > automatic > on
or I CAR I funct ion
button >
Car Sy stem s control button > Vehi­
cl e se tting s
> Automatic r ear blind > On . The
c u rrent setti ng is au toma tic al ly s to red and as­
s igned to the remote key. The s un shade is ex­
tended again as soon as t he veh icle is trave l­
ing fo rward at a speed g reater than 9 mph
(15 km/h) if th e ign ition has not been switch-
ed off in the meantime.
11>-

50 Clear vis ion
& WARNING
When lowering or raising the sunshade,
make sure there is nothing in its way and
that it has a free path to travel. This could
cause personal injury .
@ Tips
-Pressing the button lt!tl several times
consecutively can tr igger the overload
protection . The sun shade can only be ex­
te nded/retracted again after a b rief wa it­
ing period.
- The rear window sun shade only func­
tions when the veh icle inter ior is warmer
than 14°F (-10°C).
Wiper and washer system
Switching the windshield wipers on

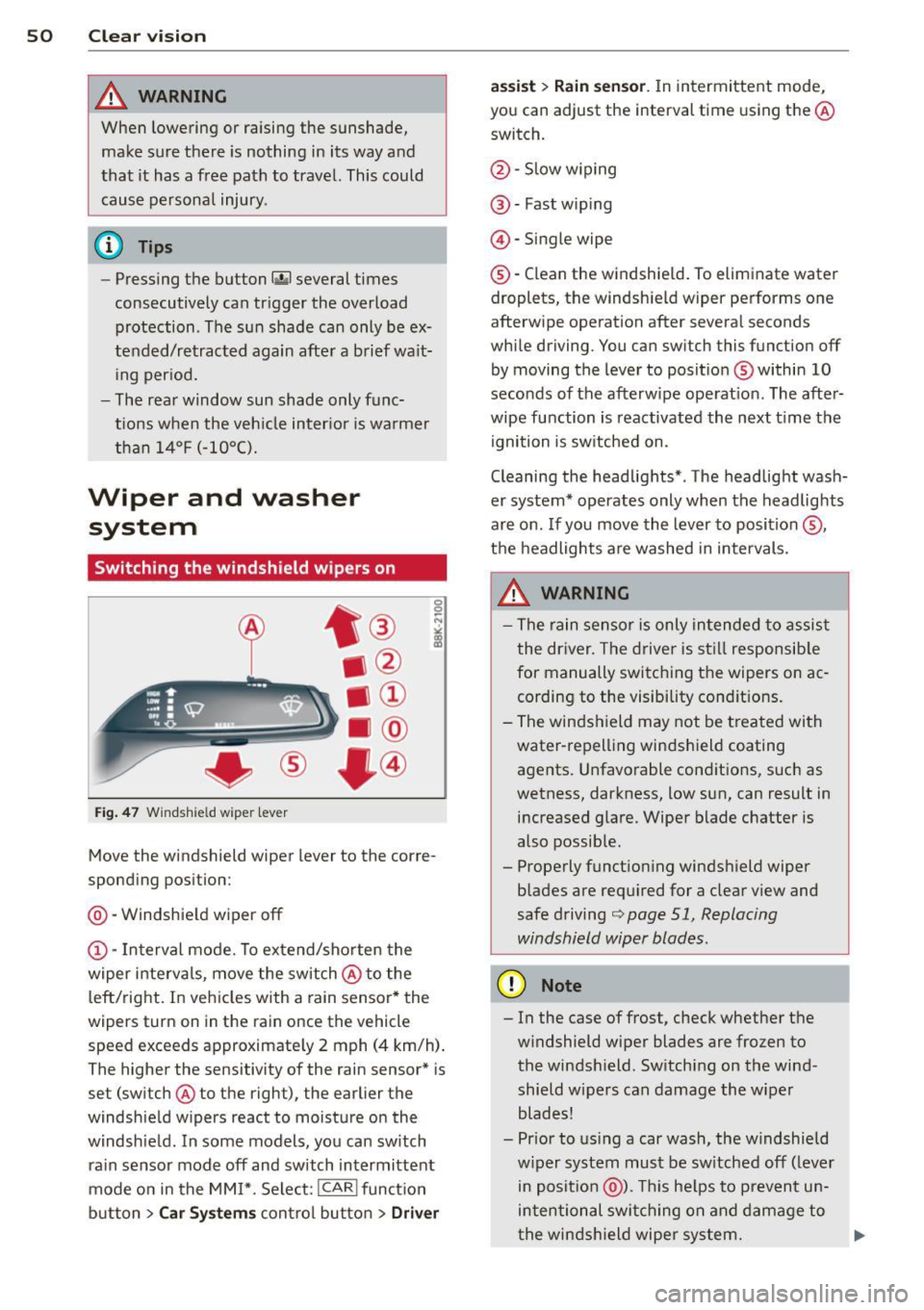

Fig. 47 Windshie ld wipe r lever
Move the windshield wiper lever to the corre­
sponding position:
@ - Windshie ld wiper
off
(D -Interval mode. To extend/shorten the
wiper intervals, move the switch @to the
left/right. In vehicles with a rain sensor* the
wipers turn on in the rain once the vehicle
speed exceeds approximate ly 2 mph (4 km/h) .
The higher the sensitivity of the rain sensor* is
set (switch @to the right), the earlier the
windshie ld w ipers react to moisture on the
windsh ield . In some models, you can sw itch
rain sensor mode
off and switch intermittent
mode on in the MM I*. Select:
I CAR I funct ion
button
> Car Systems contro l button > Driver assist
> Rain
sensor. In intermittent mode,
you can adjust the interval time using the@
switch.
@ -Slow w iping
@ -Fast wip ing
© -Single wipe
®-Clean the windshield. To eliminate water
droplets, the windshield wiper performs one
afterwipe operation after several seconds
while driving. You can switch this function
off
by moving the lever to position @within 10
seconds of the afterwipe operat ion. The after­
wipe function is reactivated the next time the
ignition is sw itched on.
Cleaning the headlights* . The headlight wash­
er system* operates only when the headlights
are on. If you move the lever to position @,
the headlights are washed in intervals.
& WARNING
- The rain sensor is only intended to assist
the driver. The driver is still responsib le
for manually switching the wipers on ac ­
cording to the visibility cond itions.
- The windshield may not be treated with
water-repell ing windshield coating
agents. Unfavorable conditions, such as
wetness, darkness, low sun, can result in increased glare. Wiper blade chatter is
also possib le.
- Properly functioning windsh ield wiper
blades are required for a clear view and
safe driving
i::> page 51, Replacing
windshield wiper blades.
(D Note
- In the case of frost, check whether the
windshield wiper blades are frozen to
the windshield. Switching on the wind­
shield wipers can damage the wiper
blades!
- Prior to using a car wash, the w indshield
w iper system must be sw itched
off (lever
in position @). This helps to prevent un­
intentional switching on and damage to
the windsh ield wiper system. ..,.

@ Tips
-The windshield wipers are switched off
when the ignition is turned off . Activate
the windshie ld w ipers after the ignit ion
i s sw itched back on by mov ing the w ind­
s hi eld wiper lever to any pos ition .
- Worn or dirty windshie ld wiper blades
result in streak ing. Th is can affect the
rain senso r* function . Check your wind­
s hi eld wiper blades regularly .
- The washer fluid nozzles of the wi nd­
s hi eld washer system are heated at low
temperatures when t he ig nit ion is on.
- When stopp ing temporarily, (e .g . at a
traff ic light) the s et speed of the w ind­
s hi eld wipers is automatically red uced by
one speed.
Replacing windshield wiper blades
Wiper blades in good condition help keep the
windshield clear.

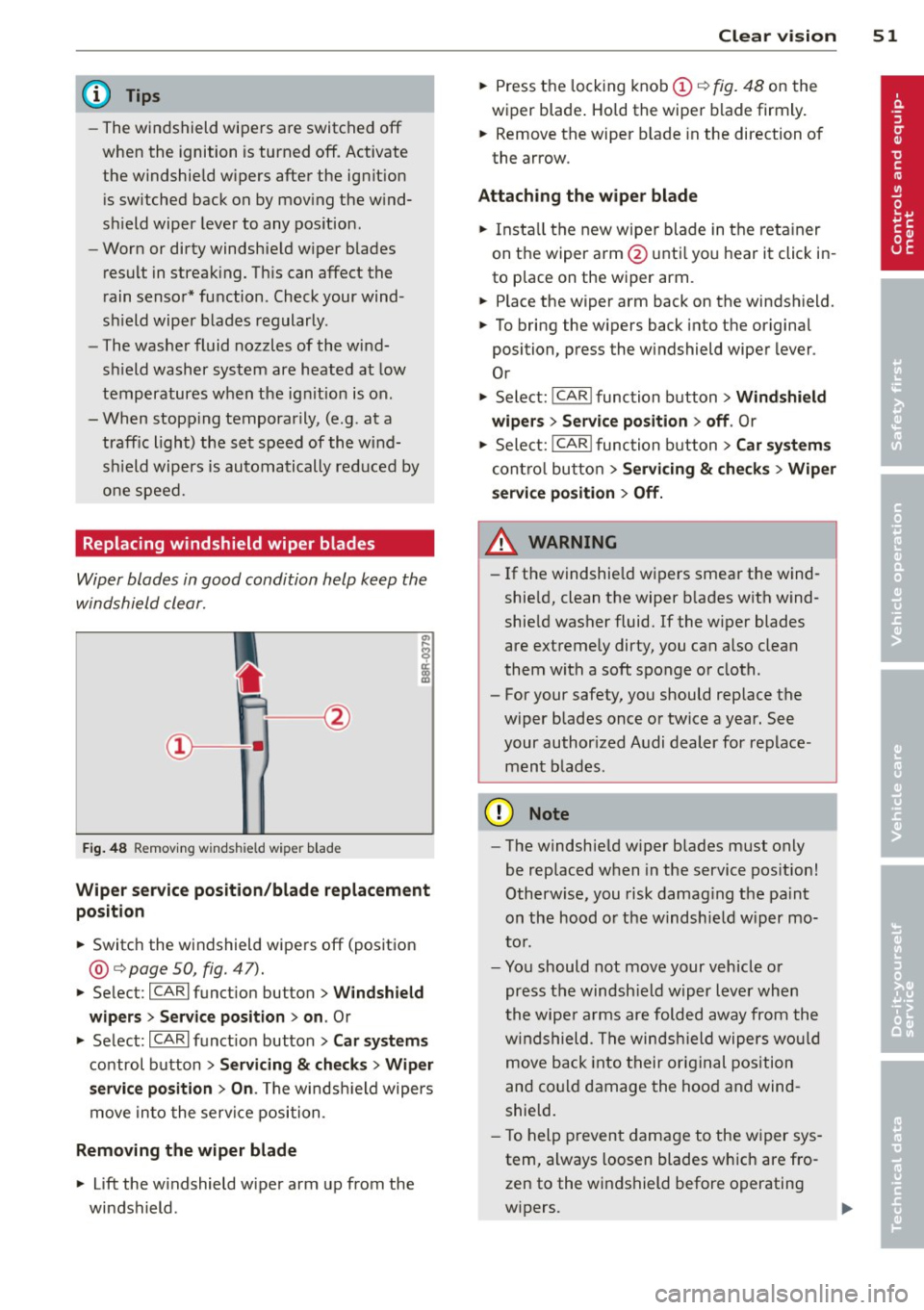

F ig. 48 R emov ing wi nds hie ld w iper bla de
Wiper service position /blade replacement
posit ion
... Switc h the windshield wipe rs off (position
@ ¢ page 50, fig. 47).
"'Se lec t: ICAR lfunct ion bu tton> Windshield
wipers
> Service position > on . Or
... Se lect: ICARI funct io n button>
Car systems
control button > Servicing & checks > Wiper
servic e position > On .
The winds hield wipers
move in to the servi ce position .
Removing the wiper blade
... Lift the w indshield wipe r arm up from the
windshield .
Clear vis ion 51
"' Press the lock ing knob (D ¢ fig. 48 on the
wiper blade . Ho ld the wipe r blade firmly .
... Remove the wiper b lade in the direction of
the arrow .
Attaching the wiper blade
... Insta ll the new wiper blade in t he reta iner
on the wiper arm @unti l yo u h ear it click in ­
to place on the wiper arm .
... Place the wiper arm back on the winds hield.
... To bring the w ipers back into the original
position, pres s the windshield wiper lever .
Or
"' Select: I CAR ! function b utton >
Windshield
wipers
> Service position > off . Or
... Sele ct: I CAR
I func tion b utt on > Car sy stem s
cont ro l butto n > Servicing & che cks > Wip er
service position
> Off.
A WARNING
- If the windshie ld w ipers smear the wind ­
shie ld, clean the wiper b lades with wind ­
shie ld washer fluid. If the w iper blades
are extremely dirty, you can a ls o clea n
them with a soft sponge o r cloth .
- For your safety, you should rep lace the
w iper blades once o r twice a year . See
your author ized A udi dealer for replace­
ment b lades .
(D Note
-The windsh ie ld w iper blades must only
be replaced when in the service pos ition!
Otherw ise, you risk damag ing the pa int
on the hood o r the w indshie ld w iper mo­
to r .
- Yo u should not move your vehicle or
press the windsh ie ld w ip er l ever when
t he wipe r arms are folded away from the
w ind shield. The windsh ie ld wiper s wo uld
move b ack into their orig inal position
and co uld damage the hoo d and wind ­
shield.
- T o help prevent damage to the w iper sys ­
tem , always loosen blades w hich are fro ­
zen to the windshield before operating
w ipers.

52 Clear vis ion
- To help prevent damage to wiper blades,
do not use gasoline, kerosene, paint
th inner, or other solvents on or near the
wiper blades.
- To he lp prevent damage to the wiper
arms or other components, do not at­
tempt to move the wipers by hand.
@ Tips
- Commercial hot waxes applied by auto­
matic car washes affect the how easily
the glass surface can be cleaned .
- You can also use the service position, for
example, if you want to protect the
windshield from icing by using a cover .
Digital compass
Switching the compass on and off
Applies to vehicles: with dig ital compass
The compass direction is shown in the rear-
. . view mtrror.
NW
Fig. 49 R earv iew mir ro r: Digi tal compa ss activate d
.. To sw itch the compass on or off, press and
hold the button @ until the compass dis­
pl ay in the mirror¢
fig. 49 appears o r disap ­
pea rs.
The digital compass only works when the igni ­
tion is on. The directions are indicated with
abbreviations :
N (north), NE (northeast), E
(east), SE (southe ast), S (sou th), SW (sou th­
west),
W (west), NW (northwest) .
(D Tips
To prevent inaccurate compass readings,
do not bring any remote controls, electri- ca
l devices or metallic objects near the
mirror .
Adjusting the magnetic zone
Applies to vehicles: with digital compass
The magnetic zone must be adjusted correctly
for the compass to read accurately.
F ig . SO Nor th A meri ca: magn etic d ef le ctio n zo ne
bo un dari es
"'
.,. Press and hold the button@¢ fig. 50 until
the number of the magnetic zone appears in
the rearview mirror .
.. Press the button@ repeatedly to se lect the
correct magnetic zone . The se lec tion mode
turns
off after a few seconds.
Calibrating the compass
Applies to vehicles: with digital compass
You must recalibrate the compass if it does
not display the correct direction .
.. Press and hold the button @ until a Cap­
pears in the rea rview mirro r.
.. Drive in a circle at about 6 mph (10 km/h)
until a direction is displayed in the rearv iew
mirror.

A WARNING ,~
- To avoid endanger ing yourself and other
dr ivers, calibrate the compass in an area
where there is no traff ic.
- The dig ita l compass is to be used as a di­
rect ional aid only . Even though you may
want to look at it wh ile you are driving,
yo u must st ill pay attention to traffic,
road and weathe r cond itions as well as
other poss ible ha zards.
Clear vis ion 53

54 Seat s a nd s tor ag e
Seats and storage
General recommen­
dations
Why is your seat adjustment so
important?
The safety belts and the airbag system can
only provide maximum protection if the front
seats are correctly adjusted.
There are various ways of adjust ing the front
seats to provide safe and comfortable support
for the driver and the front passenger . Adjust
your seat properly so that :
- you can easily and quick ly reach all the
switches and controls in the instrument
panel
-your body is prope rly supported thus reduc­
ing physical stress and fatigue
- the safety be lts and airbag system can offer
maximum protection ¢
page 144.
In the following sec tions, you will see exactly
how you can best adjust you r seats .
There are special regulations and instructions
for insta lling a child safety seat on the front
passenger's seat. Always follow the informa­
tion rega rd ing child safety provided in
G page 165, Child Safety.
WARNING
Refer to G page 126, Driving Safely for
important information, tips, suggestions
and warnings that you should read and fol­
low for your own safety and the safety of
your passengers.
A WARNING
, -
Incorrect seating position of the dr iver and
all other passengers can result in serious
personal inj ury .
- Always keep your feet on the f loor when
the vehicle is in motion -never put your
feet on top of the instrument panel, out of the w indow or on top of the seat cush­
ion. This app lies especially to the passen- gers
. If your seating position is incorrect,
you increase the risk of injury in the case of sudden braking or an accident. If the
airbag inflates and the seating position is incorrect, this could result in pe rsonal
in ju ry or even death.
- It is important for both the driver and front passenge r to keep a distance of at
least 10 inches (25 cm) between them­
selves and the steering wheel and/or in­
strumen t panel.
If you're s itting any
closer than th is, the a irbag system can ­
not protect you properly. In addition, the
front seats and head restraints m ust be
adj usted to your body height so that they
can give you max imum protect ion.
- Always try to keep as much distance as
possible between yourself and the steer­
ing wheel or instrument panel.
- Do not adjust the driver's or front pas ­
senger's seat while the vehicle is moving.
Your seat may move unexpectedly , caus­
ing sudden loss of veh icle control and
personal injury. If you adjust you r seat
while the veh icle is moving, yo u are out
of pos it ion.
Driver's seat
The correct seat position is important for safe
and relaxed driving .
We recommend that you adjust the dr iver's
seat in the follow ing manner:
.. Adjust the seat in fore and aft direction so
that you can easily push the pedals to the
floor wh ile keeping your knees slightly bent
G &. in Why is your seat adjustment so im ­
portant? on page 54 .
.,. Adjust the seatback so that when you sit
w ith your back against t he seatback, you can
s till grasp the top of the steering whee l.
.. Applies to veh icles with adjustable head re­
straints: Adjust the head restraint so the up­
per edge is as even as possible with the top
of yo ur head. If that is not possib le, try to
adjust the head restraint so that it is as .,.

close to this position as possible
c:>page 57.
A WARNING
Never place any objects in the driver's foot­
well. An object could get into the pedal
area and interfere with pedal function. In
case of sudden braking or an accident, you
would not be able to brake or accelerate .
Front passenger's seat
Always move the front passenger seat into
the rearmost position .
To avoid contact with the airbag while it is de­
ploying, do not sit any closer to the instru­
ment panel than necessary and always wear
the three-point safety belt provided adjusted
correctly . We recommend that you adjust the
passenger's seat in the following manner:
.,. Bring the backrest up to an (almost) upright
position.
Do not ride with the seat reclined .
"" Applies to vehicles with adjustable head re­
stra ints: Adjust the head restraint so the up­
per edge is as even as possible with the top
of your head. If that is not possible, try to
adjust the head restraint so that it is as
close to this position as possible
c:> page 57.
.,. Place your feet on the floor in front of the
passenger's seat .
Front seats
Manual seat adjustment
Appl ies to vehicles: with manu ally a djustable seats
Fig. 51 Fr ont seats: manual seat adjustment
Seats and storage 55
Controls
@-Moving the seat forward/back: pull the
lever and slide the seat
c:> A.
@ -Lengthening/shortening the upper thigh
support*: lift the handle. A spring moves the
support forward
c:> ,& .
@ -Adjust ing the angle* of the seat surface:
pull/press the lever
c:> ,& .
@) -Adjusting the lumbar support*: press the
button in the corresponding position
c:> ,& .
®-Moving the seat up/down: pull/press the
lever
c:> .&. .
@ -Adjusting the backrest angle : turn the ad­
justing wheel
c:> .&..
A WARNING ,--
-Never adjust the driver's or front pas­
senger's seat while the vehicle is moving.
If you do this while the veh icle is moving,
you will be out of position. Always adjust
the dr iver's or front passenger's seat
when the vehicle is not mov ing.
- Be careful when adjusting the seat
he ight. Check to see that no one is in the
way, or ser ious injury could result!
- To reduce the risk of injury in the case of
sudden braking or accident, front pas­
sengers must never rid e in a moving ve­
hicle with the backrest reclined. Safety
be lts and the airbag system on ly offer
maximum protection when the backrest
is upright and the safety belts are prop ­
erly positioned on the body. The more
the backrest is reclined, the greater the
risk of personal injury from an incorrect
seating position and improperly posi­
tioned safety belts.

56 Seats and storage
Power seat adjustment
App lies to vehicles: with power adjustable seats
Fig. 52 Front seats: power seat adjustment
Controls
@ -Adj usting the lumbar support*: press the
button in the corresponding position¢ .&..
@-Moving the seat up/down: press the but­
ton up/down¢ .&..
@-Moving the seat forward/back: p ress the
button fo rward/back
¢ & .
©-Adjusting the backrest angle: press the
button fo rward/back
¢ & .
©-Raising/lowering* the head restraints:
press the button up/down ¢ .&. .
@ -Lengthening/shortening the upper thigh
support*: lift the handle. A spring moves the
front seat cushion forward¢&.
A WARNING
- Never adjust the d river's or front pas­
senger 's seat while the veh icle is moving.
If you do this wh ile the vehicle is movi ng,
yo u will be out of posit ion. Always adjus t
the drive r's or front passenger's seat
when the vehicle is not moving .
- Be care ful when adjus ting the seat
heig ht. Check to see that no one is in the
way, o r serious injury could result!
- B eca use the sea ts can be elec trically ad­
justed with the ignit ion off or with the
ignition key removed, never leave chil­
dren unattended in the vehicle. Unsuper­
vised use of the electric seat adjust­ ments may cause serious injury. -
To reduce the risk of injury in the case of
sudden braking or accident, front pas­
sengers must never r ide in a moving ve­
hicle with the backrest reclined. Safety
be lts and the airbag system only offer
maximum protection when the backrest is upr ight and the safety belts are prop­
e rly po sitioned on the body. The more
the backres t is reclined, the grea ter the
risk of persona l injury from an incorrect
seating position and imprope rly posi­
tioned safety belts.
Center armrest
The center armrest can be adjusted to several
levels .
Fig. 53 A rm rest between the driver's/front passenger's
seats.
Ad ju sting the center armrest
"" To adjust the ang le, raise the arm rest from
the starting position
¢ fig. 53 detent by de­
t en t.
.,. To bring the armres t back into the starting
position, raise it out of the top detent and
fold it back down.
T he armrest can slide forwar d and back .

Head restraints
Front head restraints
Applies to vehicles: with adj ustable head restraints
Head restraints that ore adjusted according
to body size, along with the seat belt , offer
effective protection .
Fig. 54 Fron t seat: adjusting the head rest ra in ts
Ad just the head restraint so the upper edge is
as even as possible with the top of your head.
If that is not poss ible, try to adjust the head
restraint so that it is as close to this position
as possible
¢ page 57.
~ To adjust the height of the head restraint,
grip the head restraint on the sides with
both hands and slide it up/down until it
locks into place
¢fig. 54.
Refer to ¢ page 130, Proper adjustment of
head restraints
for guidelines on how to ad­
just the height of the front head restraints to
suit the occupant's body size .
A WARNING
-Driving without head restra ints or with
head restraints that are not properly ad­
justed increases the r isk of serious or fa­
tal neck injury dramatically.
- Read and heed all WARNINGS
¢page 130.
@ Tips
Correctly adjusted head restraints and
safety belts are an extremely effective
combinat ion of safety features .
l) The head restr aints cann ot be re move d fro m rear
se ats with fixe d backr ests.
-
Seats and storage 57
Rear head restraints
Fig. 55 Rea r seat : head restraints
Fig. 56 Rear head restraints: release
If there is a passenger in the rear center seat­
ing position, slide the center head restraint
upward at least to the next notch¢&_.
Adjusting the head restraints
~ To move the head restraint up, hold it at the
sides with both hands and slide it upward
until you feel it click into place.
~ To move the head restraint down, press the
button @¢
fig. 55 and slide the head re­
straint downward .
Removing the head restraints1>
~ Fold the backrest forward ¢ page 64.
~ Move the head restraint upward as far as it
can go.
~ Press the release@¢ fig. 56 with the me­
chanical key¢
page 34 and the button @
¢
fig . 55 . Pull the head restraint out of the
backrest at the same time¢&_ .
~

58 Seats and storage
Install ing the head restraints
.,. Slide the posts on the head restra int down
into the guides un til you feel the posts click
into place.
.,. Press the button @
Q fig. 55 and slide the
head restraint all the way down. You sho uld
not be able to pull the head restra int out of
the backrest .
So that the driver can have a better view to
the rear, the head restraints should be pushed
down complete ly when the rear seats are not
occupied.
A WARNING
- Read and heed all WARNINGS
9page 130 .
-Only remove the rear seat head rest raints
when necessa ry in order to install a chi ld
sea t
Q page 173. Insta ll the head re­
stra in t again immedia tely once the c hild
sea t is removed. Driving w ithout head re­
st raints or w ith head restra ints that a re
not properly adjusted increases the risk
of serious or fata l neck injury dramatical­
ly.
@ Tips
Correctly adjus ted head restraints and
safety belts are an extremely effective
comb inat ion of safety features .
Seat memory
Description
Applies to vehicles: wit h memory fu nctio n
The memo ry function a llows you to quickly
and eas ily s to re and reca ll personal seating
profiles for the dr iver. The memory func tion is
operated through the master key and the memory buttons in the driver's door .
The driver's seating profi le is stored and as­
signed to the master key each t ime the vehicle
is locked. The seating p rof ile is recalled auto­
matica lly when the vehicle is un locked. If two
peop le use one vehicle, it is recommended t
h at each person always uses "their own"
master key .
Up to 2 seat p rofiles can be stored i n the
memo ry but tons in the drive r's door . Once
they are stored, these seat profiles can be se­
lected at any time.
In add ition to the dr iver's se at settings, yo u
c a n a lso store and access the exterior mirror
adjus tment setti ngs * using the remote con­
tro l key or memory button.
Remote control key
Applies to veh icles: w it h seat memory
To assign the dr iver's seat settings to the re­
mote control key when locking the vehicle, the
funct ion must be act ivated in the radio or
MMI*
.,. Select: !CAR ! function button> Seat adjust­
ment > Dr iver's seat
> Remote control ke y >
on.Or
.,. Select : I CAR I function b utton > Car systems
cont ro l butto n > Ve hicle setting s > Seats >
Driver's sea t> Remote contr ol ke y> On.
(@ Tips
If yo u do not want anothe r drive r's set·
ti ngs to be assigned to the remote key,
swi tc h off the memory f unct ion usi ng the
radio or
M MI* or th e IOFFI butto n
9page 58.
Memory buttons
Applies to veh icles : w it h seat memory
Fig . 57 Drive r's door : mem ory function buttons
The memory buttons a re located in the driv­
er's door.
