AUDI S6 2012 Owners Manual

• Move select or lever to p osition P q ,& .
• If you are towing a trailer, unhitch the trail­
er from your veh icle.
• Take the
jack and the spare t ir e out of the
luggage compartment
q page 257,
q page 257.
A WARNING
You or your passengers cou ld be injured
while changing a whee l if you do not fol­
low these safety precautions:
- If you have a f lat t ire, move a safe dis­
tance off the road. Turn off the eng ine,
turn the emergency f lashers on and use
other warning devices to alert o ther mo­
torists.
- Make su re that passengers wait in a safe
pla ce away from the ve hicle and well
away from the road and traffic.
- T o help preven t the veh icle from mov ing
sudden ly and possibly slipping off the
jack, always fully set the parking brake
and block the whee l diagonally opposite
the wheel being changed . When one
front wheel is lifted off the ground, plac­
ing the Automat ic Transm iss ion in "P"
(Park) will
not prevent the vehicle from
moving.
- Before you change a wheel, be sure the ground is level and fi rm. If necessa ry,
use a sturdy board under the jack.
- After installing the spa re wheel, make
sure that you replace the flat tire/whee l
in its sto rage area properly and tighten
the kn u rled re taining screw securely.
Changing a wheel
When you change a wheel, follow the se­
quence described below step-by-step and in
exa ctly that order .
-
1. Remove the decorati ve wheel cov er* . For
mo re deta ils see also
Q page 260, Deco­
rative wheel covers
o r q page 260,
Wheels with wheel bolt caps.
2 . Loosen the wheel b olts q page 260.
What do I do now? 259
3. Locate the proper mounting point for the
4.
5.
6.
7.
8.
9 .
jack and align the jack below that point
q page 261.
Raise the car with the jack q page 261.
Remove the wheel with the flat tire and
then insta ll
th e spare c> page 262.
Tighte n all wheel bolts lightly.
Lower the vehicle wi th the jack.
U se the wheel bolt w rench and
firmly
t ighten a ll wheel bolts q page 260 .
Replace the decora tive wheel co ver*.
A WARNING
A lways read and fo llow all WARNINGS and
informat ion¢
& in Raising the vehicle on
page 261
and r::> page 263.
After changing a wheel
A wheel change is not complete without the
doing the following .
• Replace the too ls and the jac k in their prop­
er locat ion .
• The fault whee l wi ll not fit inside the spare
wheel well. Store it in the luggage compart­
ment and secure it so that it does not slide
r::>page 59.
• Check the tire pressure on the spare wheel
immed iate ly after mounting it.
• As soon as possib le, have the
tightening
torqu es
on all wheel bolts c hec ked with a
t o rque wrenc h. The co rrec t tighte ning tor­
que is
90 ft lb (120 Nm).
• Have the flat tire
replaced as soon as possi ­
b le.
(D Tips
- I f you not ice that the wheel bo lts a re
corroded and difficult to turn while
changing a tire, they should be rep laced
before you check the tightening torque.
- Drive at reduced speed until you have the
tightening torques checked. ..,_
•
•

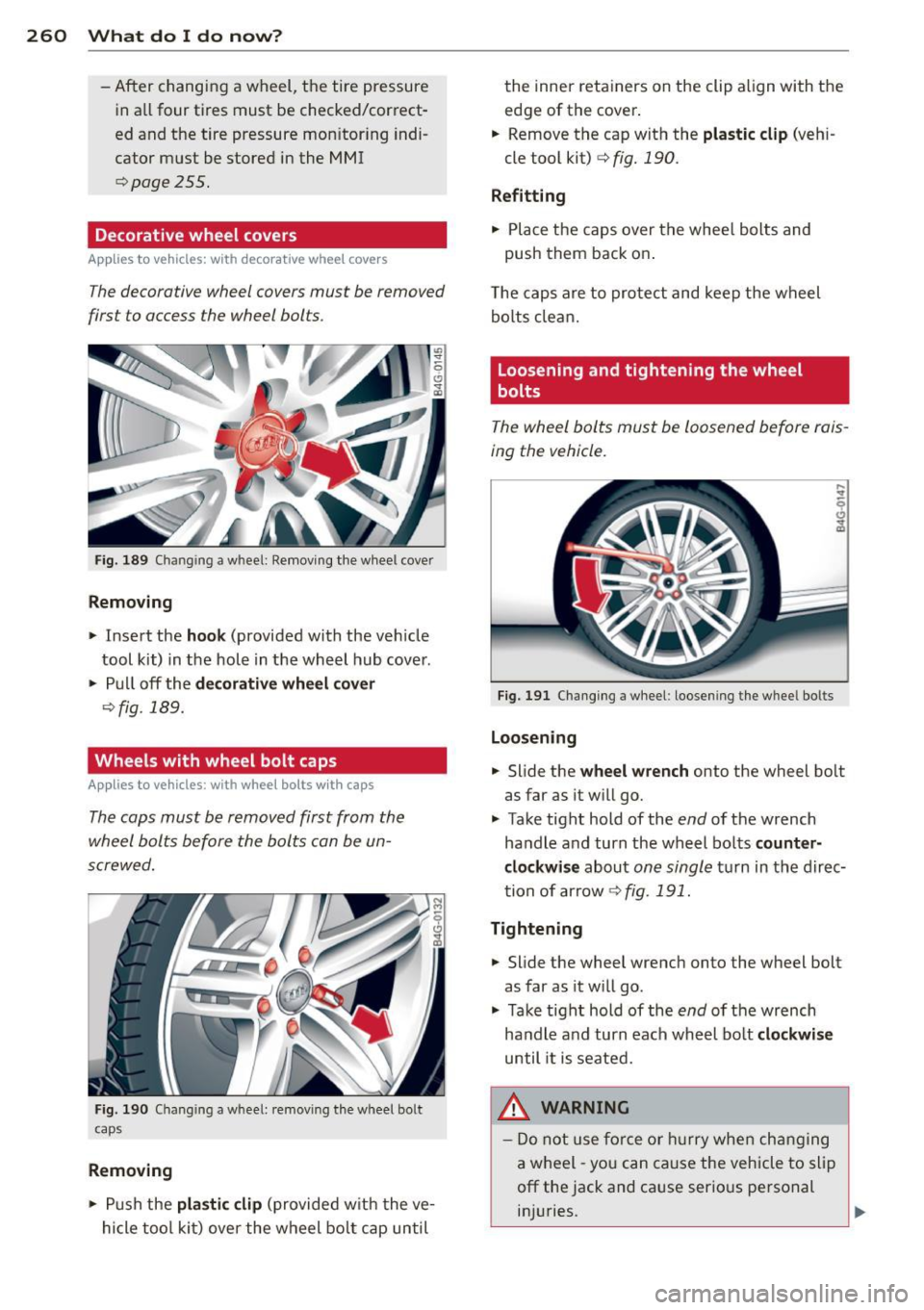

260 What do I do now?
-After changing a wheel, the tire pressure
i n a ll four ti res must be checked/cor rect­
ed and t he tire pressure mo nitor ing indi ­
cator m ust b e stored in the MMI
Q page255 .
Decorative wheel covers
Applies to vehicl es: with decorative wheel covers
The decorative wheel covers must be removed
first to access the wheel bolts .
Fig. 189 Chan ging a w hee l: R em ovin g the whee l cove r
Removing
.. Inse rt the
hook (provided with the ve hicle
tool kit) in the hol e in the wheel hub cove r .
.. Pull off the
decorative wheel cover
c> fig. 189.
Wheels with wheel bolt caps
Applies to vehicles: with wheel bolts with caps
The caps must b e removed first from the
wheel bol ts before the bol ts can be u n­
s cre wed.
Fig . 19 0 Chang ing a w hee l: remov ing t he w heel bo lt
caps
Removing
" Push the
plastic clip (provide d w ith the ve­
hicle too l ki t) over the w heel bo lt ca p un til the inner
reta iners on the clip a lign with t he
edge of the cover .
.. Remove the cap with the
plastic clip (veh i­
cle tool kit)
c> fig. 190.
Refitting
.. Pla ce t he caps over t he whee l bolts and
push them back o n.
T he cap s are to pro te ct and kee p the w heel
b olts clean .
Loosening and tightening the wheel
bolts
T he wheel bol ts mu st be loosened befo re rais ­
ing the vehicle .
Fig. 191 Cha ng ing a w heel: loosenin g th e w hee l bol ts
Loosening
.. Slide the
wheel wrench ont o the wheel bo lt
as far as it w ill go.
.. Take tight hold of the
end of the wrench
ha ndle a nd turn th e wheel bo lts
counter­
clockwise
about on e single tu rn in the dire c­
tion of ar row
c> fig. 191.
Tightening
.. Slide the wheel wrenc h onto the wheel bolt
as far as it w ill go .
" Take tig ht hold of the
end of the wr ench
ha ndle a nd turn each wh eel bo lt
clockwise
until it is seate d .
.8_ WARNING
- Do n ot u se forc e or hurry whe n ch ang ing
a w heel -yo u can ca us e the vehicle to sli p
off the jack and ca use ser io us pe rso nal
i njur ies.

-Do not loosen the wheel bolts more than
one turn
before you raise the veh icle with
the jack. -You risk an injury.
@ Tips
- Never use the hexagonal socket in the
handle of the screwdriver to loosen or
tighten the wheel bolts.
- If a whee l bolt is very tight, you may find
it easier to loosen by carefully push ing
down on the end of the wheel bolt
wrench with
one foot only. As you do so,
hold on to the car to keep your ba lance
and take care not to slip.

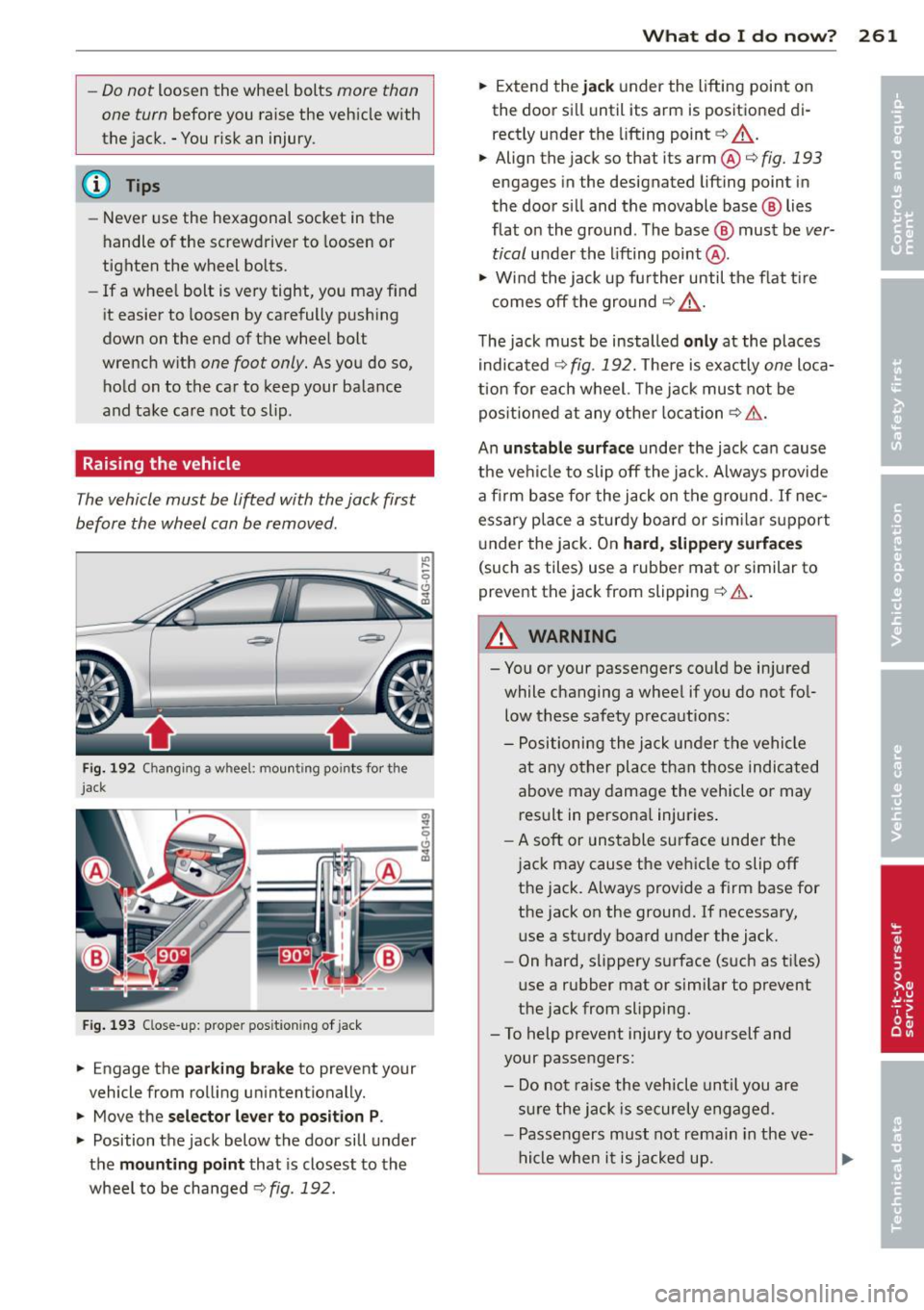

Raising the vehicle
The vehicle must be lifted with the jock first
before the wheel con be removed .
Fig. 1 92 Changing a w hee l: mou nting po ints fo r the
jack
F ig . 19 3 Close -up: proper positioning of jack
.. Engage the parking bra ke to prevent your
vehicle from rolling un intentionally.
.. Move the
selector le ver to position P .
.. Position the jack below the door sill under
the
mounting point that is closest to the
wheel to be changed¢
fig. 192.
What do I d o now ? 261
.. Extend the jack under the lifting point on
the door sill until its arm is positio ned di­
rectly under the lifting point ¢,&. .
.. Align the jack so that its arm@¢
fig. 193
engages in the designated lifting point in
the doo r si ll and the movable base @ lies
flat o n the ground. The base @ must be
ver­
tical
under th e lifting point @.
.,. Wind the jack up fu rther until the f lat t ire
comes off the gro und ¢ ,&. .
The jack mus t be installed
only at the places
i ndicated ¢
fig. 192. The re is exactly one loca­
tion for each wheel. The j ack mus t not be
pos it ioned at any other location ¢
&.
An unstable surfac e under the jack ca n cause
the ve hicl e to slip off the jack. Always provide
a firm base for the ja ck on the g ro und . If nec­
essary p lace a sturdy board or sim ilar support
u nder the jack . On
hard, slippery surface s
(such as tiles) use a rubbe r mat or similar to
prevent the jack from slipping
¢ & .
A WARNING
- You or your passengers co uld be in jured
while c hanging a wheel if you do not fo l­
low these safety precautions:
- Positioning the j ack under the vehicle
at any o ther place than those indicate d
above may damage the vehicle or may result in persona l injuries .
- A soft o r uns table surf ace unde r the
j ac k may cause the veh icle to slip off
the jack. Always provide a f irm base for
the jack on the ground. If necessary, u se a st urdy board under the jack.
- On hard, slippery surface (such as ti les)
use a rubber mat or similar t o prevent
the jack fr om slipping .
- To help prevent injury to yo urself and
your passengers:
- Do not ra ise the veh icle until you are
s ur e the jack is securely engaged .
- Passe ngers must not remain in the ve­
h icle when i t is ja cke d up.

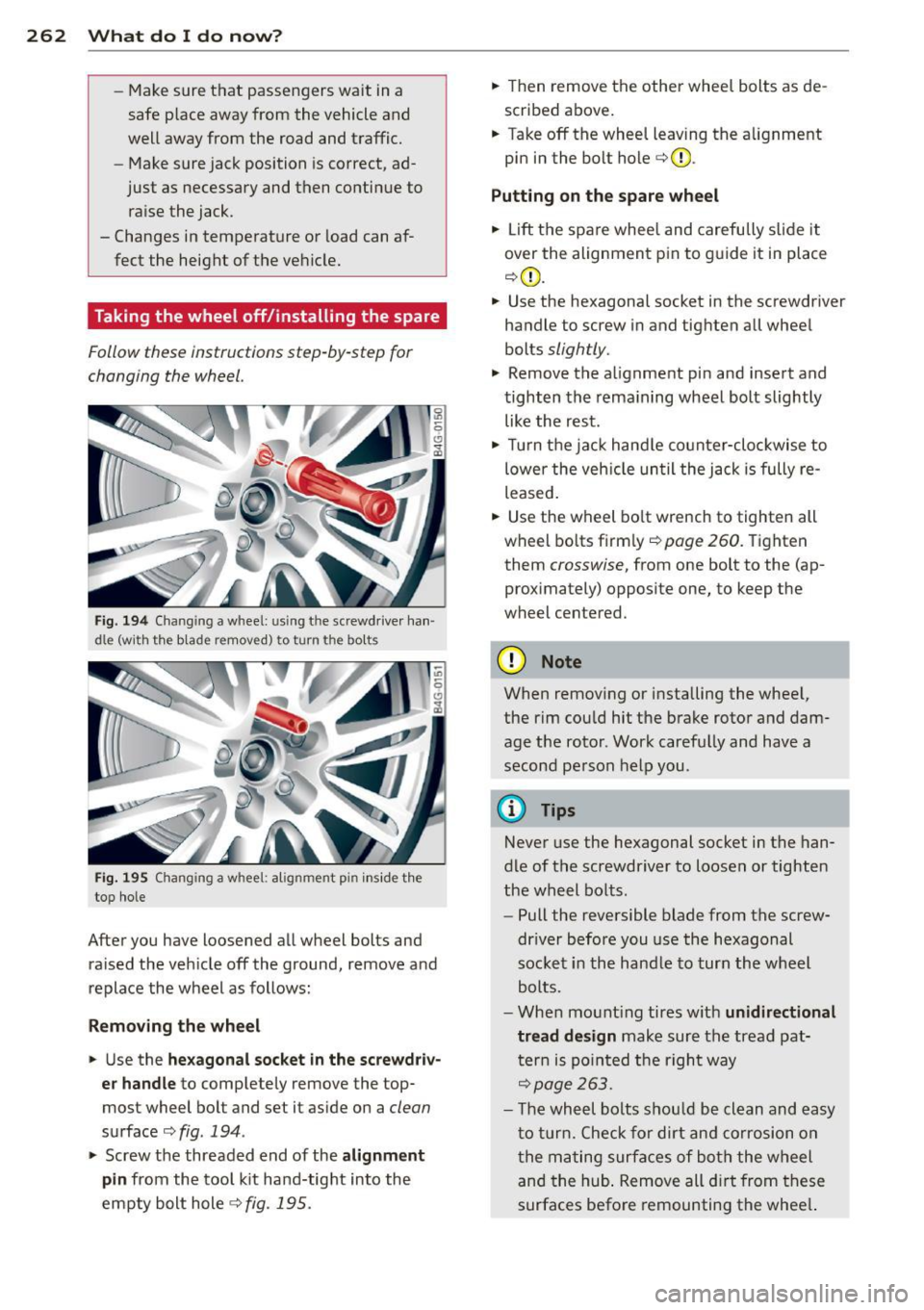

262 What do I do now ?
-Make sure that passengers wait in a
safe p lace away from the vehicle and
well away from the road and traffic.
- Make sure jack position is correct, ad­
just as necessary and then continue to ra ise the jack.
- Changes in temperature or load can af­
fect the height of the vehicle.
Taking the wheel off/installing the spare
Follow th es e ins truc tions st ep-by-st ep for
changing the wheel.
F ig . 194 Chan gin g a w hee l: us ing t he sc rew drive r han ·
die (w ith t he bla de re moved) t o tu rn the b olts
Fig. 195 Chang ing a w hee l: alignm en t pin insid e t he
to p hole
Aft er you h ave loosened all wheel bol ts and
ra is ed the veh icle off the ground, remove and
replace the wheel as follows:
Removing the wheel
.. Use the hexagonal socket in the screwd riv ·
er handle to comp lete ly remove the top­
mos t wheel bo lt and set it as ide on a
clean
surface ¢ fig . 194 .
.. Screw the threaded end of the alignment
pin from the too l kit hand-tig ht into the
empty bolt hole
r::;, fig. 195.
.. Then remove the other whee l bolts as de­
scrib ed above.
.. Take off the whee l leaving the a lignment
pin in the bolt hole
¢ 0) .
Putting on th e spar e wheel
.. Lift the spare wheel and carefully s lide it
over the alignment pin to g uide it in place
¢ (D .
.. Use the hexagonal socket in the sc rewd river
handle to screw in and tig hten all whee l
bolts
slightly .
.. Remove the a lignment pi n and insert and
tighten the rema in ing wheel bolt slightly
like the rest .
.. Turn t he jack hand le co unter -cloc kwise to
lowe r the veh icle un til the jack is fully re­
leased .
.. Use the wheel bo lt wrench to tighten all
wheel bo lts firm ly
r::;, page 260 . Tighten
them
crosswise, from one bolt to the (ap­
proximately) opposi te one, to keep the
wheel cen tered.
(D Note
When remov ing or installing the whee l,
the rim cou ld hit the brake rotor and dam·
age the rotor . Work carefu lly and have a
second pe rson help you .
@ Tips
Never use the hexagonal socket in the han­
d le of the screwdriver to loosen or tighten
the wheel bolts.
- Pull the revers ible blade from the screw·
dr iver before you use the hexagonal
sock et in the hand le to turn the w heel
bolts.
- Whe n mount ing tires w ith unidirectional
tread design make sure the tread pat·
t er n is po inted the right way
r::;, page 2 63.
- T he wh eel bolts s hou ld be cl ean and easy
t o tu rn . Chec k for dirt and corrosion on
t he m ating surfaces of bot h the wheel
an d t he hub . Remove all d irt from these
surfaces befo re remounting the whee l.

Tires with unidirectional tread design
Tires with unidirectional tread design must be
mounted with their tread pattern pointed in the right direction .
Using a sp are t ire w ith a tread p attern
int ended fo r use in a specific dir ection
When us ing a spare tire w ith a tread pattern
in tended for use in a specific direction, please
note the following:
- The direction of rotation is marked by an ar­
row on the side of the tire .
- If the spare t ire has to be installed in the in­
correct direction, use the spare tire only
temporarily since the ti re will not be able to
achieve its optimum performance character­
i st ics with rega rd to aquaplaning, noise and
wear.
- We recommend that you pay particular at­
tent ion to this fact du ring wet weathe r and
that you adjust your speed to match road conditions.
- Replace the flat tire w ith a new one and
have it installed on your veh icle as soon as
possib le to restore the handling advantages
of a unid irectiona l tire .
Notes on wheel changing
Please read the info rmation c:> page 246 , New
t ires and replacing tires and wheels
if you are
going to use a spare t ire which is different
from the tires on your veh icle.
After you change a tire :
-Check the tir e p re ss ure on th e spare imme­
di ately after in st a ll at ion.
- Have th e wheel bol t ti ghtenin g torqu e
ch ecked with a torque wrench a s soon a s
possible b y your autho riz ed Audi dealer o r
a qu alified ser vic e statio n.
- With ste el a nd alloy wheel rims , the wheel
bolts a re correctl y tightened at a torque of
90 ft lb (1 20 Nm ).
- If yo u n otice that the wheel bolt s are cor­
r oded a nd d ifficult to tu rn whil e changi ng
a t ire, the y should be replaced before you
chec k the t igh tening to rque. What do I do now? 263
- Repla ce the flat ti re w ith a new one and
h av e it i nsta lled on you r veh icle as s oon as
po ssible. Remount the whe el cov er.
Un til th en, d riv e with extr a care and at re­
duc ed sp eeds.
A WARNING
-
- If you are going to equ ip your vehicle
with tires or rims which differ from those
which were factory installed, then be sure to read the information¢
page 246,
New tires and replacing tires and
wheels.
- Always make sure the damaged wheel or
even a flat tire and the jack and tool kit
are properly secured in the luggage com­
pa rtment and are not loose in the pas­
senger compartment .
- In an accident or sudden maneuver they
could fly forward , injuring anyone in the
veh icle.
- Always sto re damaged wheel, jack and
too ls se curely in the luggage compa rt­
ment. Otherwise , in an accident or su d­
den maneuver they could f ly forward,
causing injury to passengers in the vehi­
cle.
•
•

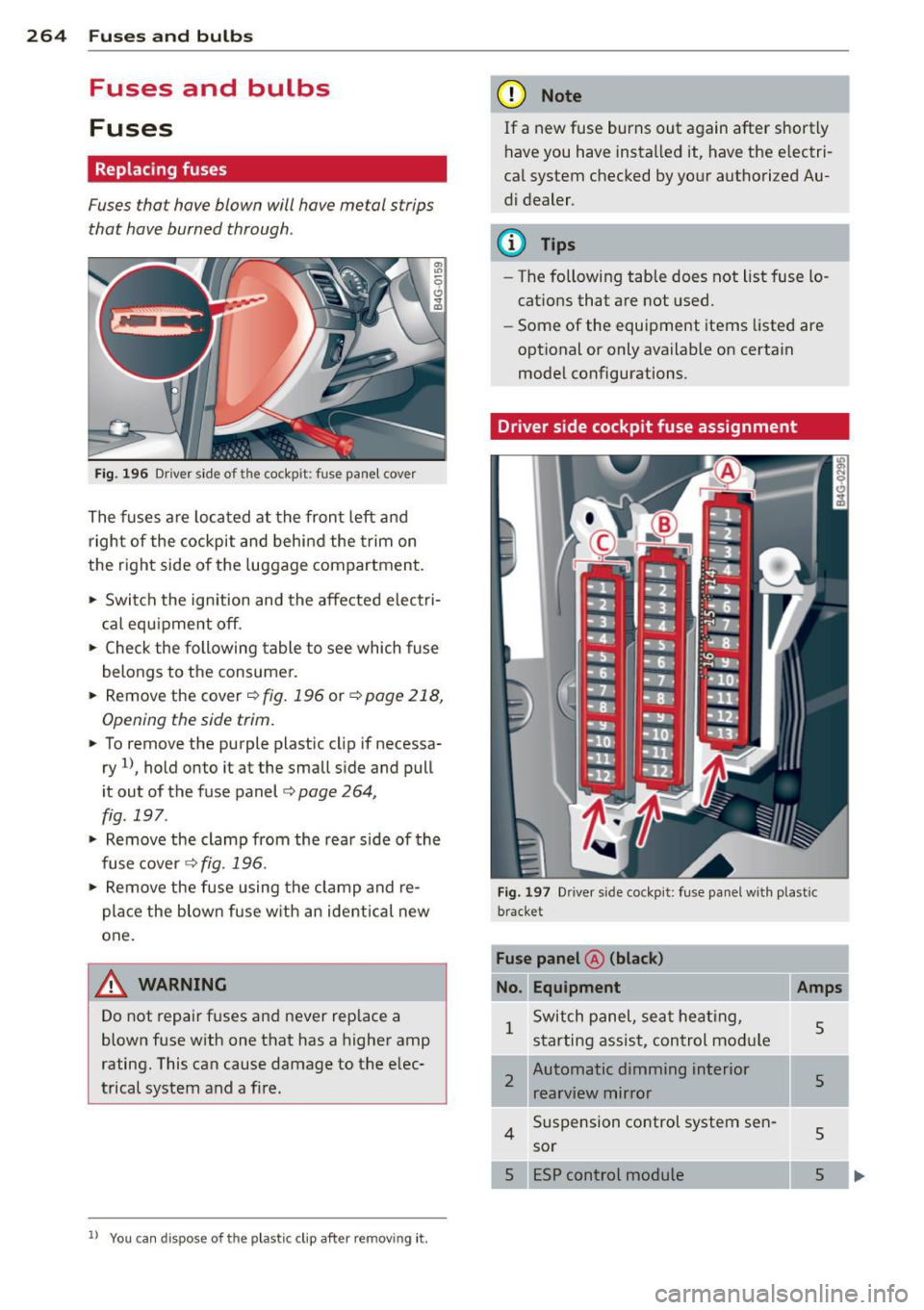

264 Fuses and bulbs
Fuses and bulbs
Fuses
Replacing fuses
Fuses that have blown will have metal strips
that have burned through.
Fig. 196 Driver side of the cockpit: fuse panel cover
The fuses are located at the front left and
right of the cockpit and behind the trim on
the right side of the luggage compartment.
• Switch the ignition and the affected electri­
cal equ ipment off.
• Check the following table to see which fuse
belongs to the consumer.
• Remove the cover ¢
fig. 196 or¢ page 218,
Opening the side trim.
• To remove the purple plastic cl ip if necessa­
ry
ll, hold onto it at the small side and pull
it out of the fuse panel
c:> page 264,
fig. 197 .
• Remove the clamp from the rear side of the
fuse cover <>
fig. 196 .
• Remove the fuse using the clamp and re­
place the blown fuse w ith an ident ical new
one.
A WARNING
Do not repair fuses and never replace a
blown fuse with one that has a higher amp
rating. This can cause damage to the elec­
trical system and a fire.
ll You can dis pose of the plastic clip after re moving it.
(D Note
If a new fuse burns out again after shortly
have you have installed it, have the electri­
cal system checked by your authorized Au­
di dealer .
(D Tips
-The following table does not list fuse lo­
cations that are not used.
- Some of the equipment items listed are
optional or only available on certain
model configurations.
Driver side cockpit fuse assignment
Fig. 197 Drive r side cockpit: fuse panel with plastic
bracket
Fuse panel @ (black)
No. Equipment Amps
1
Switch panel, seat heating,
5 starting assist, control module
2
Automatic dimming interior
s rearview mirror
4
Suspension control system sen-
5 sor
ESP control module
5

Fuse panel@ (bl ack )
No. Equipment
Vehicle electrical system control
6 module 1, Vehicle e lectr ica l sys-
tern control module 2
7 Audi adaptive cruise control
8
Airbag control module, front
passenger 's seat sensor system
9 Gateway
Homelink (garage door opener),
10 night vision system contro
l
module
Image processing (Audi active
11 lane assist , Audi adaptive cruise
control)
12 Steering
13 Terminal 15 in the luggage com-
partment
14 Terminal 15 in the
instrument
panel (front passenger's s ide)
15 Terminal 15 engine
16 Starter
Fuse panel e (brown)
No . Equipment
1 Gateway
2 Climate control
3 ESP co ntrol module
Front door (driver's side)
5
Power seat adjustment (dr iver's
seat)
6
Steering
7 Sunroof
8
Rear door control module (driv-
er's side)
9
Lumbar suppor t (Fro nt p assen-
ger seat)
11 Sunroof, rear spoiler
12 Driver door control mod ule
Amps
5
10
5
5
5
10
5
15
30 15
4 0
Amps
5
10
10
30
7,5 35
20 1 5
5
20
15
Fu se s and bulb s 265
Fuse panel © (red )
No. Equipment
2 Fue l pump
3 Brake light sensor/brake pedal
sensor system
4 Engine acoust ics
5 Rear door control module (driv-
er's side)
6 Left rear seat
7 Horn
8 Win dsh ield wipe r
9 Light/rain sensor
10 L
u mbar support (dr iver seat)
11 Front passenge
r door control
module
12 Right rear door control mod
ule
Front passenger side cockpit fuse
assignment Amps
2
5
5/5
7,5 30
7,5 15
30
5
5
15 15
Fi g. 198 Fro nt passe nge r side cock pit : fu se pa nel with
p last ic bracket
Fuse panel A (black )
No. Equipment
1 Head-up D isplay
2 MMI Display
3 CD/DVD changer
Chip card reader (not in all coun-
5 tr ies)
6 Instrument cluster
Amps
5
5
5
7,5
5
5
7 Steeri ng col umn switch module 5

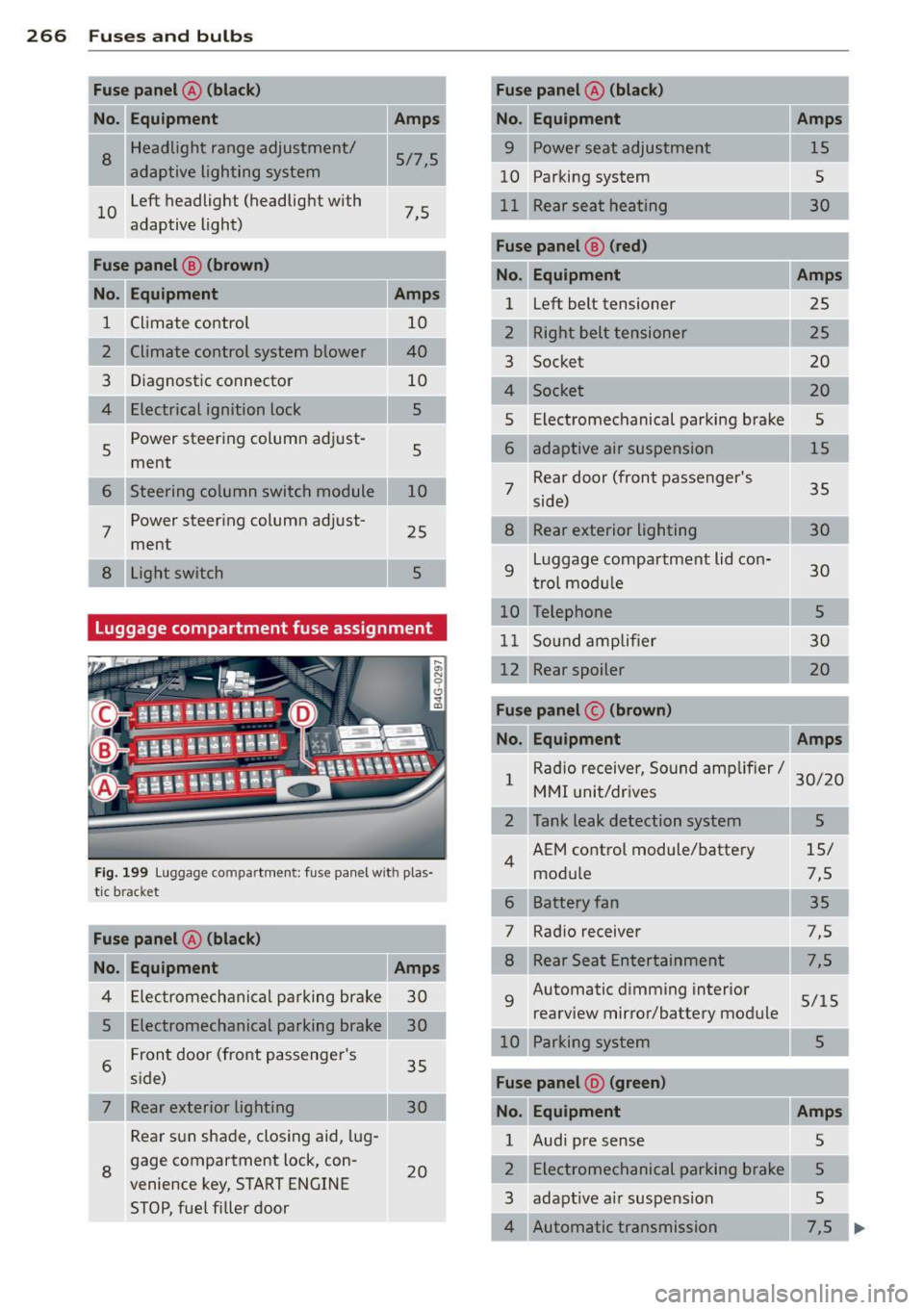

266 Fuses a nd bulb s
Fuse panel @ (black )
No . Equ ipment Amps
=
8
Headlight range adjustment/
5/7,5
adaptive lighting system
10 Left headlight (headlight with
7,5
adaptive light)
Fuse p anel
@ (brown )
No .II Equ ipm ent
II Amp s
1 Climate control 10
2 Climate control system blower 40
3 Diagnostic connector 10
4 Electrical ignition lock 5
5 Power steering column adjust-
ment
5
Steering column switch module 10
7 Power steer
ing column adjust-
ment 25
8 Light switch
Luggage compartment fuse assignment
Fig. 199 Luggage compartment: fuse panel with plas·
tic bracket
Fuse panel @ (bl ack )
No. II Equipment
I[ Amp s
4 E lectromechanical parking brake 30
5 Electromechanical parking brake 30
6 Front door (front passenger's
35
side)
7 Rear exterior lighting Rear sun shade, closing aid, lug­
s gage compartment lock, con ­
venience key, START ENGINE
STOP, fuel filler door 30
20
-Fuse pane
l@ (blac k) I
No. Equipm ent Amps
=· 9 Power seat adjustment 15
10 Parking system
s
30
Fus e pane l
B (red)
No . Equipment Amps
1 Left belt tensioner
25
Right belt tensioner 25
3 Socket 20
20
Electromechanical parking brake
5
adaptive air suspension 15
7 Rear door (front passenger's
35
side)
Rear exterior lighting 30
9
Luggage compartment lid con-
30
t rol module
10 Telephone 5
11 Sound amp lifier 30
12 Rear spoiler 20
Fuse pane l c (b rown )
No. Equipment Amps
1 Rad
io receiver, Sound amplif ier/
30/20
MMI unit/dr ives
2 Tank leak detection system 5
AEM control module/battery 15/
4
module 7,5
6 Battery fan 35
Rad io receiver
7,5
7,5
9
Automatic dimming interior
5/15
rearview mirror/battery module
Parking system 5
Fu se pan el o (gre en)
No. Equipment Amps
1 Audi pre sense 5
2 Electromechanical parking brake 5
3 adaptive a
ir suspension
5
Automatic transmission 7,5
...

Fuse panel @ (green )
Equipment Amps
Parking system 5
Rear Seat Entertainment s
8 Audi side ass ist 5
9
Gateway, Vehicle electrical sys-
5 tern control module 1
10 Sport d ifferential 5

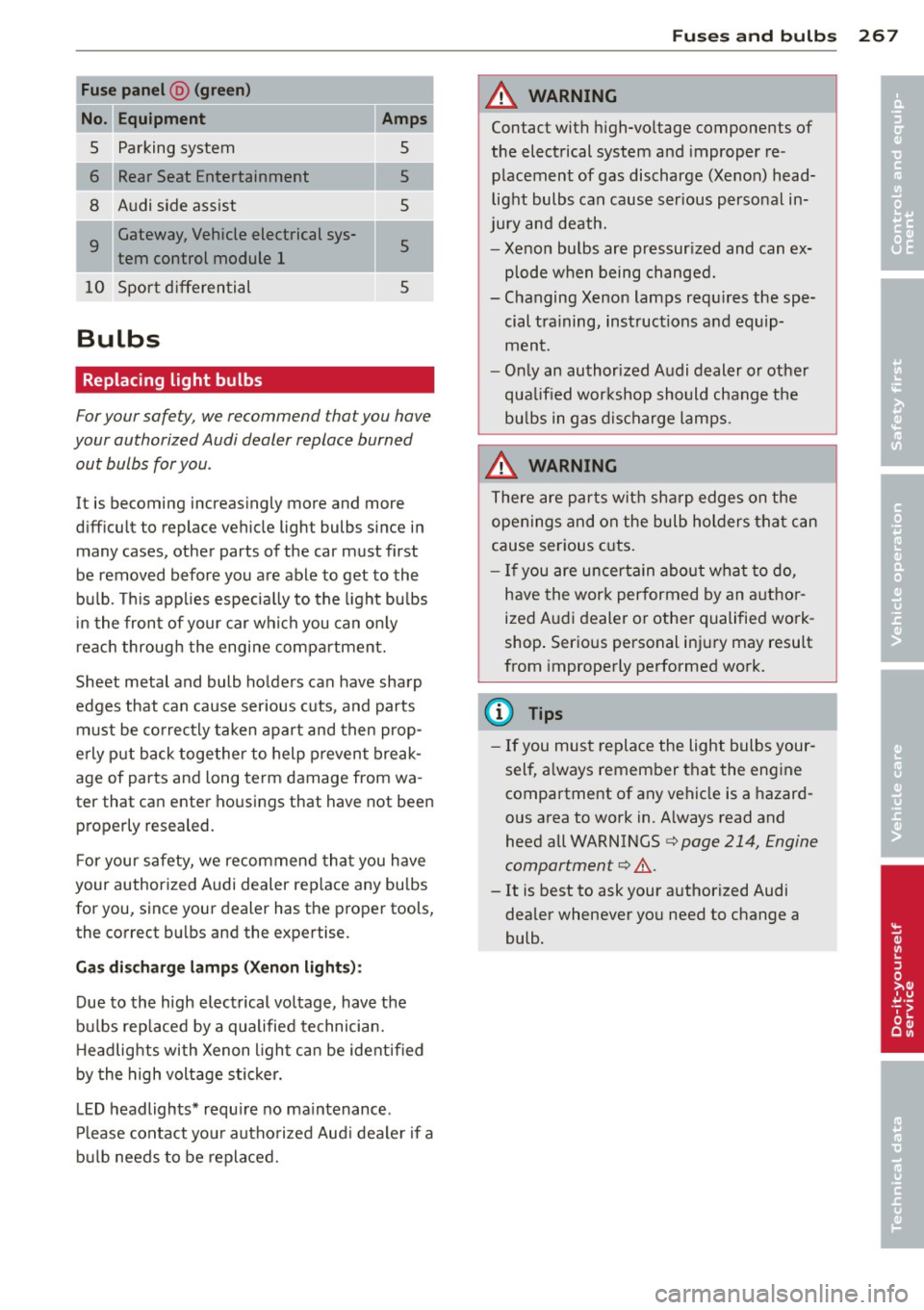

Bulbs
Replacing light bulbs
For your safety, we recommend that you have
your authorized Audi dealer replace burned
out bulbs for you .
It is becoming increasingly more and more
difficult to replace vehicle light bulbs since in
many cases, other parts of the car must first
be removed before you are able to get to the
bu lb. Th is applies especia lly to the light bu lbs
i n the front of your car which you can only
reach through the engine compartment ,
Sheet metal and bulb holders can have sharp
edges that can cause ser ious cuts, and parts
must be correctly taken apart and then prop­
e rly p ut back together to help prevent break­
age of parts and long term damage from wa­
ter that can enter housings that have not been properly resealed.
F or your safety, we recommend that you have
your authorized Audi dealer replace any bu lbs
for you, since your dealer has the proper tools, the correct b ulbs and the expertise.
Gas disc harge la mp s (X enon li ght s):
Due to the high electrical voltage, have the
bu lbs rep laced by a qualified technician.
H eadlights with Xenon l ight can be identified
by the high voltage stic ke r.
LED headlights* requ ire no ma intenance .
Please contact your autho rized Aud i deale r if a
bu lb needs to be replaced.
Fu ses and bulb s
A WARNING
Contact with h igh-vo ltage components of
the electrical system and improper re­
placement of gas discharge (Xenon) head­
light bulbs can cause ser ious personal in­
jury and death.
- Xenon bulbs are pressur ized and can ex­
plode when being changed.
- Changing Xenon lamps requ ires the spe­
cial tra ining, instructions and equip­
ment.
- On ly an authorized Audi dealer or other
qualified wor kshop should change the
bu lbs in gas discharge lamps .
A WARNING
There are parts with sharp edges on the
openings and on the bulb holders tha t can
cause serious c uts.
- If you are uncertain abo ut what to do,
have the work performed by an author­
ized Audi dealer or other qualified work­
shop . Ser ious personal inj ury may result
from improperly performed work.
(D Tips
- If you must replace the light bulbs your­
sel f, a lways remember that the engine
compartment of any vehicle is a hazard­
ous area to work in. A lways read and
heed all WARNINGS
¢ page 214, Engine
compartment¢ ,&..
- It is best to ask your authorized Audi
dealer whenever yo u need to change a
bulb.
-
267
•
•

268 Emergency situations
Emergency situations
General
This chapter is intended for trained emer­
gency crews and working personnel who
have the necessary tools and equipment to
perform these ope rations.
Starting by pushing or
towing
Q;) Note
Vehicles w ith an automatic transmission
cannot be started by pus hing o r tow ing.
Starting with jumper
cables
If necessary, the engine can be started by
connecting it to the battery of another vehi­
cle.
If the engine should fail to start because of a
discharged or weak battery, the battery can be
connected to the battery of
another vehicle,
using a
pair of jumpe r cables to start the en­
g ine .
Jumper cables
Use only jumper cables of sufficiently large
cross section to carry the starter current safe­
ly. Refer to the manufacturer's specif ications.
Use only jumper cables with
insulated termi­
na l clamps which are distinctly marked:
plus(+) cable in most cases colored red
minu s(-) cable
in most cases colored black .
A WARNING
Batteries contain electricity, acid, and gas.
Any of these can cause very serious or fatal
inju ry. Follow the instructions below for
safe handling of your veh icle's battery.
- Always shield you r eyes and avoid lean­
ing over the battery whenever possible.
- A discharged battery can freeze at tem­
peratures just be low 32 °F (0 °C). Before connecting a
jumper cable, you must
thaw the frozen battery complete ly, oth­
erwise it could explode.
- Do not allow battery acid to contact eyes
or skin. Flush any contacted area with
water immediately.
- Improper use of a booster battery to start a vehicle may cause an explosion.
- Vehicle batteries generate explosive gas­
es. Keep sparks, flame and lighted ciga­
rettes away from batteries.
- Do not try to jump start any vehicle with a low acid level in the battery.
- The vo ltage of the booster battery must
also have a 12-Volt rating. The capacity
(Ah) of the booster battery should not be
lower than that of the discharged bat­
tery . Use of batteries of d ifferent voltage
or substantially different "Ah" rating
may cause an exp losion and personal in­
jury.
- Never charge a frozen batte ry. Gas trap­
ped in the ice may cause an explosion.
- Never charge or use a battery that has
been frozen. The battery case may have
be weakened.
- Use of batter ies of different voltage or
substantially different capacity (Ah) rat­
ing may cause an exp losion and injury.
The capacity (Ah) of the booster battery
should not be lower than that of the dis ­
charged battery.
- Before you check anything in the engine
compartment, always read and heed a ll
WARNINGS¢
page 214, Engine com­
partment.
«I) Note
-Applying a higher voltage booster bat­
tery will cause expensive damage to sen­
sitive electronic components, such as
contro l units, relays, rad io, etc.
- There must be no electrical contact be­
tween the vehicles as otherwise current
could already start to flow as soon as the
positive(+) terminals are connected. ..,_
